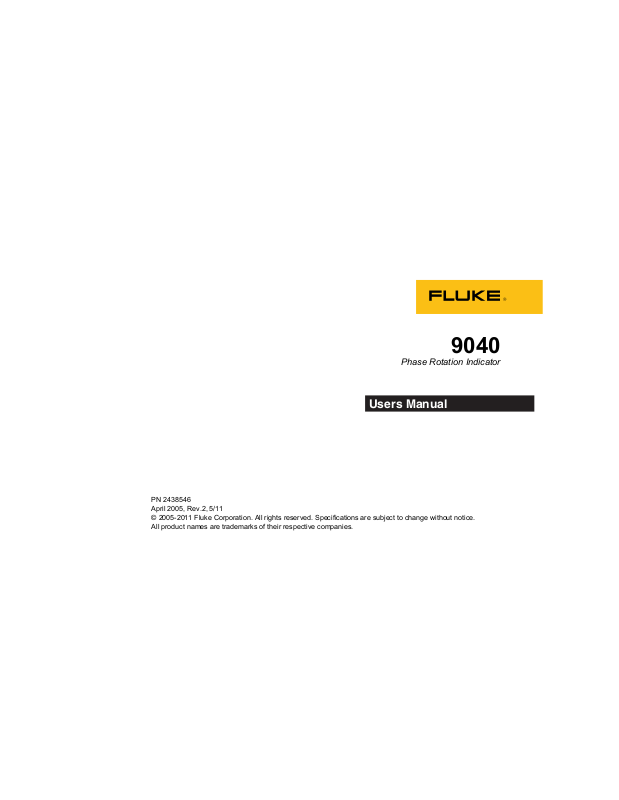

9040
Phase Rotation Indicator
Users Manual
PN 2438546
April 2005, Rev.2, 5/11
© 2005-2011 Fluke Corporation. All rights reserved. Specifications are subject to change without notice.
All product names are trademarks of their respective companies.
LIMITED WARRANTY AND LIMITATION OF LIABILITY
This Fluke product will be free from defects in material and workmanship for one year
from the date of purchase. This warranty does not cover fuses, disposable batteries,
or damage from accident, neglect, misuse, alteration, contamination, or abnormal
conditions of operation or handling. Resellers are not authorized to extend any other
warranty on Fluke’s behalf. To obtain service during the warranty period, contact your
nearest Fluke authorized service center to obtain return authorization information,
then send the product to that Service Center with a description of the problem.
THIS WARRANTY IS YOUR ONLY REMEDY. NO OTHER WARRANTIES, SUCH
AS FITNESS FOR A PARTICULAR PURPOSE, ARE EXPRESSED OR IMPLIED.
FLUKE IS NOT LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSSES, ARISING FROM ANY CAUSE OR THEORY.
Since some states or countries do not allow the exclusion or limitation of an implied
warranty or of incidental or consequential damages, this limitation of liability may not
apply to you.
Fluke Corporation
P.O. Box 9090
Everett, WA 98206-9090
U.S.A.
11/99
Fluke Europe B.V.
P.O. Box 1186
5602 BD Eindhoven
The Netherlands
Title Page
Introduction.......................................................................................................... 1
Contacting Fluke ................................................................................................. 1
Unpacking the 9040 ............................................................................................ 2
Safety Information ............................................................................................... 3
Symbols............................................................................................................... 5
Elements of the 9040 .......................................................................................... 6
Determine the Rotary Field Direction .................................................................. 7
Maintaining the 9040........................................................................................... 8
Replacing the Fuse (9040UK only) ..................................................................... 9
Specifications ...................................................................................................... 10
i
Table of Contents
ii
9040
Introduction
The Fluke 9040 Phase Rotation Indicator (the 9040) is a handheld instrument designed to
detect the rotary field of three-phase systems.
How to Contact Fluke
To contact Fluke, call one of the following telephone numbers:
• Technical Support USA: 1-800-44-FLUKE (1-800-443-5853)
• Calibration/Repair USA: 1-888-99-FLUKE (1-888-993-5853)
• Canada: 1-800-36-FLUKE (1-800-363-5853)
• Europe: +31 402-675-200
• Japan: +81-3-3434-0181
• Singapore: +65-738-5655
• Anywhere in the world: +1-425-446-5500
Or, visit Fluke's website at www.fluke.com
To register your product, visit http://register.fluke.com
To view, print, or download the latest manual supplement, visit
http://us.fluke.com/usen/support/manuals
1
.
.
.
9040
Users Manual
Unpacking the 9040
The 9040 is available in three configurations. Depending on your purchase, the 9040 ships
with these items:
• 9040
o 3 self-retaining test probes, 1000 V CAT II
o 3 alligator clips, 1000 V CAT III/600 V CAT IV
o Users Manual
• 9040UK
o 3 fused test probes, 1000 V CAT III
o 3 alligator clips, 1000 V CAT III/600 V CAT IV
o Users Manual
• 9040EUR
o 3 Slim-Reach™ test probes (black) 1000 V CAT III/600 V CAT IV
o 3 self-retaining test probes, 1000 V CAT II
o 3 alligator clips, 1000 V CAT III/600 V CAT IV
o Users Manual
To prevent possible electrical shock, fire, or personal injury, do not exceed
the Measurement Category (CAT) rating of the lowest rated individual
component of a product, probe, or accessory.
If an item is damaged or missing, contact the place of purchase immediately.
2
XW Warning
Phase Rotation Indicator
Safety Information
Safety Information
Caution identifies conditions and actions that may damage the 9040.
Warning identifies conditions and actions that pose hazard(s) to the user.
XW Warning
To prevent possible electrical shock, fire, or personal injury:
• Carefully read all instructions.
• Comply with local and national safety codes. Use personal protective
equipment (approved rubber gloves, face protection, and flameresistant clothes) to prevent shock and arc blast injury where
hazardous live conductors are exposed.
• Use the product only as specified, or the protection supplied by the
product can be compromised.
• Do not work alone.
• Do not use test leads if they are damaged. Examine the test leads for
damaged insulation or exposed metal. Check test lead continuity.
• Do not touch voltages >30 V ac rms, 42 V ac peak, or 60 V dc.
• Keep fingers behind the finger guards on the probes.
3
9040
Users Manual
• Measurements can be adversely affected by impedances of additional
operating circuits connected in parallel or by transient currents.
• Verify operation prior to measuring hazardous voltages (voltages above
30 V ac rms, 42 V ac peak and 60 V dc).
• Do not use the 9040 with any of the parts removed.
• Do not use the product around explosive gas, vapor, or in damp or wet
environments.
4
Phase Rotation Indicator
Symbols
Symbols
The following symbols appear on the 9040 or in this manual.
Table 1. Symbols
W
X
P
CAT II
CAT III
CAT IV
Risk of Danger. Important
information. See manual.
Hazardous voltage. Risk of
electric shock.
Conforms to requirements of
European Union.
CAT II equipment is designed to protect against transients from energy-consuming
equipment supplied from the fixed installation, such as TVs, PCs, portable tools,
and other household appliances.
equipment is designed to protect against transients in equipment in fixed-
CAT III
equipment installations, such as distribution panels, feeders and short branch circuits,
and lighting systems in large buildings.
CAT IV equipment is designed to protect against transients from the primary supply
level, such as an electricity meter or an overhead or underground utility service.
)
5
Earth ground.
J
Double Insulated.
T
Conforms to relevant Canadian
Standards Association directives.
9040
Users Manual
Elements of the 9040
Indicators, buttons, and jacks are shown in Figure 1.
Figure 1. The 9040 Phase Rotation Indicator
6
Test lead input jack
L1, L2, L3 Indicators
Clockwise Rotation LCD Indicator
Counter-Clockwise Rotation LCD Indicator
Brief Instructions on instrument rear
bbx02f.eps
Phase Rotation Indicator
Determine the Rotary Field Direction
Determine the Rotary Field Direction
To determine the rotary field direction:
1. Connect the test probes to the end of the test leads.
2. Connect the test probes to the three mains phases.
3. The green ON indicator shows that the instrument is ready for testing.
4. Either the clockwise or counter-clockwise rotary indicator illuminates showing the type
of rotary field direction present.
XW Warning
The rotary indicator lights even if the neutral conductor, N, is connected
instead of L1, L2, or L3. Refer to the back of the 9040 for more information.
Note
The 9040 is powered from the installation under test.
7
9040
Users Manual
Maintaining the 9040
W Caution
To prevent damage to the 9040:
• Do not attempt to repair or service the 9040 unless qualified to do so.
• Make sure that the relevant calibration, performance test, and service
information is being used.
• Do not use abrasives or solvents. Abrasives or solvents will damage
the 9040 case.
The only maintenance the 9040 requires is inspection and cleaning. Periodically wipe the
case with a damp cloth and mild detergent. Clean only with soap and water and remove any
residue afterwards.
8
Phase Rotation Indicator
Replacing the Fuse (9040UK only)
Replacing the Fuse (9040UK only)
XW Warning
For safe operation and maintenance of the product:
• Use only specified replacement fuses. See Specifications section.
• Before you replace the fuse, disconnect the accessory (cable or probe)
at both ends.
To replace the fuse:
1. Check the fuse using a simple continuity test.
2. Hold the probe in front of the finger guard and unscrew the tip in a counter-
clockwise direction.
3. Remove the defective fuse from the fuse holder.
4. Insert a new fuse in the fuse holder and reassemble the probe.
9
9040
Users Manual
Specifications
Environmental
Operating Temperature
0 °C to +40 °C
Pollution Degree
2
Type of Protection
IP 40
Mechanical Specifications
Size
124 x 61 x 27 mm (4.9 x 2.4 x 1.1 in)
Weight
200 g (0.44 lb)
Fuse
500 mA / 1000 V/ FF / 50 kA / 6.3 x
32 mm (0.25 x 1.26 in)
Electrical Specifications
Power Supply
From unit under test
10
Safety Specifications
Electrical Safety
IEC 61010-1/EN 61010
IEC 61557-7/EN 61557-7
Maximum Operating Voltage (Ume)
690 V
Protection Levels
CAT III/600 V to ground
CAT IV/300 V to ground
Determine Rotary Field Direction
Nominal Voltage
40 to 690 V ac
Frequency Range (f
15 to 400 Hz
Current Pickup
1 mA
Nominal Test Current (in per phase)
1 mA
)
n
