Fisher Paykel RF170BRPUX6 User Manual

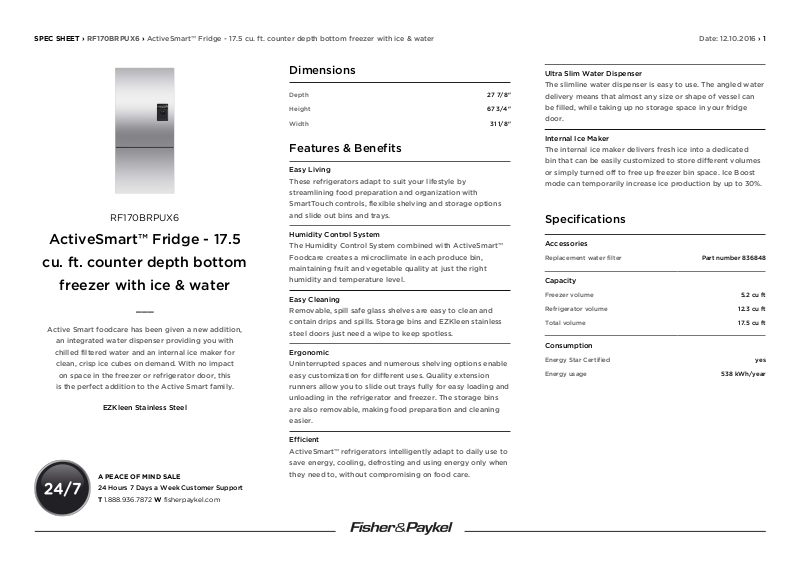

SPEC SHEET › RF170BRPUX6 › ActiveSmart™ Fridge - 17.5 cu. ft. counter depth bottom freezer with ice & water Date: 12.10.2016 › 1
RF170BRPUX6
ActiveSmart™ Fridge - 17.5
cu. ft. counter depth bottom
freezer with ice & water
___
Active Smart foodcare has been given a new addition,
an integrated water dispenser providing you with
chilled filtered water and an internal ice maker for
clean, crisp ice cubes on demand. With no impact
on space in the freezer or refrigerator door, this
is the perfect addition to the Active Smart family.
EZKleen Stainless Steel
Dimensions
Depth 27 7/8"
Height 67 3/4"
Width 31 1/8"
Features & Benefits
Easy Living
These refrigerators adapt to suit your lifestyle by
streamlining food preparation and organization with
SmartTouch controls, flexible shelving and storage options
and slide out bins and trays.
Humidity Control System
The Humidity Control System combined with ActiveSmart™
Foodcare creates a microclimate in each produce bin,
maintaining fruit and vegetable quality at just the right
humidity and temperature level.
Easy Cleaning
Removable, spill safe glass shelves are easy to clean and
contain drips and spills. Storage bins and EZKleen stainless
steel doors just need a wipe to keep spotless.
Ergonomic
Uninterrupted spaces and numerous shelving options enable
easy customization for different uses. Quality extension
runners allow you to slide out trays fully for easy loading and
unloading in the refrigerator and freezer. The storage bins
are also removable, making food preparation and cleaning
easier.
Ultra Slim Water Dispenser
The slimline water dispenser is easy to use. The angled water
delivery means that almost any size or shape of vessel can
be filled, while taking up no storage space in your fridge
door.
Internal Ice Maker
The internal ice maker delivers fresh ice into a dedicated
bin that can be easily customized to store different volumes
or simply turned off to free up freezer bin space. Ice Boost
mode can temporarily increase ice production by up to 30%.
Specifications
Accessories
Replacement water filter Part number 836848
Capacity
Freezer volume 5.2 cu ft
Refrigerator volume 12.3 cu ft
Total volume 17.5 cu ft
Consumption
Energy Star Certified yes
Energy usage 538 kWh/year
A PEACE OF MIND SALE
24 Hours 7 Days a Week Customer Support
T 1.888.936.7872 W fisherpaykel.com
Efficient
ActiveSmart™ refrigerators intelligently adapt to daily use to
save energy, cooling, defrosting and using energy only when
they need to, without compromising on food care.
SPEC SHEET › RF170BRPUX6 › ActiveSmart™ Fridge - 17.5 cu. ft. counter depth bottom freezer with ice & water Date: 12.10.2016 › 2
Design
Bottom freezer
Concealed hinges
Door opening right hinge
EZKleen stainless steel
Flat door design
Premium styling
Sleek side mounted plastic handles
Details
UPC Code 822843245345
Freezer
Bottle chill
Built-in ice maker
Clear plastic bins 2
Door alarm
Fast freeze
Ice Boost
Ice bin and scoop
Large plastic bin
Slide Out Pastry Tray
Measurements
Height - incl. feet and hinge cap 67-3/4"
Minimum air clearance - at rear 1-3/16"
Minimum air clearance - each side 13/16"
Minimum air clearance - on top 2"
Performance
•
•
•
•
•
•
ActiveSmart™ Foodcare
Adaptive defrost
Bottle chill mode
External water dispenser
Fast freeze
Frost free
Humidity controlled crisper bin
Inverter controlled compressor
Sabbath mode
•
•
•
•
•
•
•
•
•
SKU 24534
The product dimensions and specifications in this page apply to the specific product
and model. Under our policy of continuous improvement, these dimensions and
specifications may change at any time. You should therefore check with Fisher &
Paykel’s Customer Care Centre to ensure this page correctly describes the model
currently available. © © Fisher & Paykel Appliances Ltd 2016
Other product downloads available at fisherpaykel.com
fisherpaykel.com
Refrigerator
•
•
•
•
•
•
•
•
Adjustable door shelves 4
Adjustable glass shelves 4
Covered door shelves 2
Door alarm
Front levelling feet
Fruit and vegetable bins 2
Full extension runners
Full width door shelves 2
LED lighting
Rear rollers
SmartTouch control panel
Stackable bottle holders 2
Ultra slim water dispenser
•
•
•
•
•
•
•
Warranty
Parts & Labor 2 years
Sealed system parts 5 years
