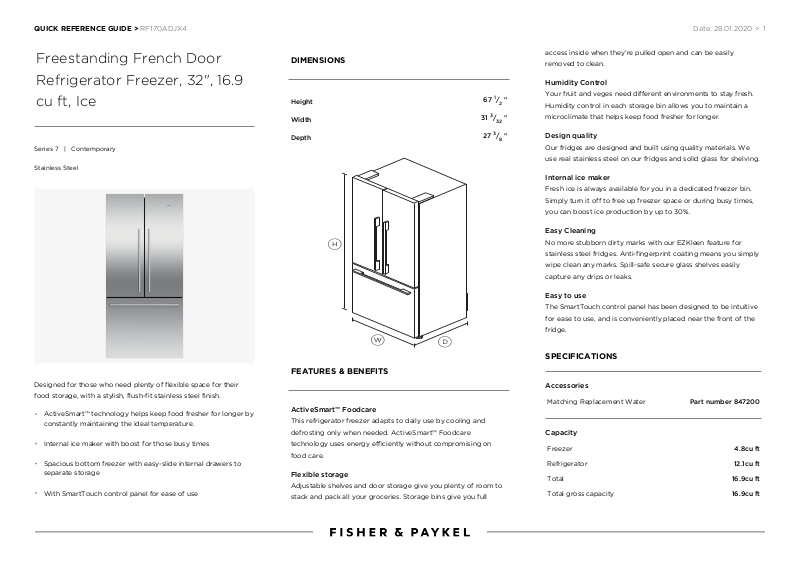

Fisher Paykel RF170ADJX4 Quick Guide
QUICK REFERENCE GUIDE > RF170ADJX4 Date: 28.01.2020 > 1
Freestanding French Door
Refrigerator Freezer, 32", 16.9
cu ft, Ice
Series 7 | Contemporary
Stainless Steel
DIMENSIONS
Height
Width
Depth
67 1/2 "
31 3/32 "
27 3/8 "
access inside when they’re pulled open and can be easily
removed to clean.
Humidity Control
Your fruit and veges need different environments to stay fresh.
Humidity control in each storage bin allows you to maintain a
microclimate that helps keep food fresher for longer.
Design quality
Our fridges are designed and built using quality materials. We
use real stainless steel on our fridges and solid glass for shelving.
Internal ice maker
Fresh ice is always available for you in a dedicated freezer bin.
Simply turn it off to free up freezer space or during busy times,
you can boost ice production by up to 30%.
Easy Cleaning
No more stubborn dirty marks with our EZKleen feature for
stainless steel fridges. Anti-fingerprint coating means you simply
wipe clean any marks. Spill-safe secure glass shelves easily
capture any drips or leaks.
Easy to use
The SmartTouch control panel has been designed to be intuitive
for ease to use, and is conveniently placed near the front of the
fridge.
Designed for those who need plenty of flexible space for their
food storage, with a stylish, flush-fit stainless steel finish.
ActiveSmart™ technology helps keep food fresher for longer by
constantly maintaining the ideal temperature.
Internal ice maker with boost for those busy times
Spacious bottom freezer with easy-slide internal drawers to
separate storage
With SmartTouch control panel for ease of use
FEATURES & BENEFITS
ActiveSmart™ Foodcare
This refrigerator freezer adapts to daily use by cooling and
defrosting only when needed. ActiveSmart™ Foodcare
technology uses energy efficiently without compromising on
food care.
Flexible storage
Adjustable shelves and door storage give you plenty of room to
stack and pack all your groceries. Storage bins give you full
SPECIFICATIONS
Accessories
Matching Replacement Water
Capacity
Freezer 4.8cu ft
Refrigerator 12.1cu ft
Total 16.9cu ft
Total gross capacity 16.9cu ft
Part number 847200
QUICK REFERENCE GUIDE > RF170ADJX4 Date: 28.01.2020 > 2
Refrigerator features
Consumption
Energy usage 585kWh/year
Freezer features
Automatic ice maker •
Bottle chill •
Door alarm •
Fast freeze •
Frost free freezer •
Ice Boost •
Ice bin and scoop •
LED lighting •
Large plastic bin •
Large plastic bins •
Adjustable door shelves 6
Adjustable glass shelves 3
Covered door shelves 2
Deli storage bins 2
Door alarm •
Fruit and vegetable bins 2
LED lighting •
SmartTouch control panel •
Soft close doors •
Stackable bottle holders 4
Warranty
Parts and labor 2 years
Sealed system parts only 5 years
Other product downloads available at fisherpaykel.com
User Guide
Service & Warranty Booklet
Installation Guide
A PEACE OF MIND SALE
24 Hours 7 Days a Week Customer Support
T 1300 650 590 W www.fisherpaykel.com
Small plastic bins 2
Performance
ActiveSmart™ technology •
Adaptive defrost •
Frost free freezer •
Humidity control system •
Inverter controlled compressor •
Sabbath mode •
Product dimensions
Depth 27 3/8 "
Height 67 1/2 "
Width 31 3/32 "
SKU 25802
The product dimensions and specifications in this page apply to the specific product
and model. Under our policy of continuous improvement, these dimensions and
specifications may change at any time. You should therefore check with Fisher &
Paykel's Customer Care Centre to ensure this page correctly describes the model
currently available. © Fisher & Paykel Appliances Ltd 2019.
