DD603 and DS603 Series Models

Dishwasher

User guide

US CA

Installation checklist

Your installer MUST have completed and checked the following:

The DishDrawer® is square and level.

The DishDrawer® is fastened securely to the cabinetry.

Ensure moisture protection tape has been applied and the cabinet is sealed according to the

DishDrawer

The DishDrawer® opens and closes freely. The DishDrawer

no resistance from cabinetry.

For the integrated models, check the 5/16” air gap has been achieved in the correct place.

The power supply is connected and switched on.

The inlet water hose is connected and turned on. There should be no leaks.

The drain hose(s) are connected and there are no leaks. There must be no kinks, or obstructions

in the drain hose(s).

The spray arm is in the center and can freely rotate.

The rinse program has been run.

The water level will be below the stainless steel filter plate at the end of the wash program. It is

normal to find some water in the drain filter area.

Set the water softener to the correct water hardness for your area.

Important!

The installer is responsible for the DishDrawer® installation. Incorrect installation is not covered by warranty.

Installation Instructions.

must be free to close completely with

Important safety information

Save these instructions

WARNING!

For your safety, follow basic precautions when using your DishDrawer®, including the following:

Please read all instructions before operating the DishDrawer

The information in this manual must be followed to minimize the risk of fire or explosion or to

prevent property damage, personal injury or loss of life.

Use the DishDrawer® only for its intended function as described in this User Guide.

Use only detergents or rinse agent recommended for use in a domestic Dishwasher and keep

them out of reach of children. Check that the detergent dispenser is empty after the completion of each wash program.

When loading items to be washed locate sharp items so that they are not likely to damage the

lid seal and load sharp knives with the handles up to reduce the risk of cut type injuries.

Do not touch the heater plate during or immediately after use.

Do not operate your DishDrawer® unless all the enclosure panels are properly in place.

Do not tamper with the controls.

Do not abuse, sit on, stand in or on the drawer or dish rack of the DishDrawer®.

The cup racks are designed to support cups, glasses and kitchen utensils. When the cup racks

are in the DishDrawer

To reduce the risk of injury, do not allow children to play in or on the DishDrawer®.

Under certain conditions hydrogen gas may be produced in a hot water heater system that has

not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using the dishwasher, turn on all hot water taps and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As gas is flammable, do not smoke or use an open flame during this time.

Remove the door to the washing compartment when removing an old dishwasher from service

or discarding it.

Dishwasher detergents are alkaline. They can be dangerous if swallowed. Avoid contact with

skin and eyes, keep children and infirm person(s) away from the dishwasher when the drawer is opened.

do not lean on or use the cup racks to support your body weight.

Installation

This DishDrawer® must be installed and located in accordance with the Installation Instructions

before it is used. If you did not receive Installation Instruction sheets with your DishDrawer can order them by calling your Authorized Service Agent.

Installation and service must be performed by a qualified technician.

If the power supply cord is damaged, it must be replaced by a dealer or Authorized Service

Center or a similar qualified trades person in order to avoid a hazard.

Ensure the DishDrawer® is secured to adjacent cabinetry using the brackets provided. Failure to

do so may result in an unstable product, which may cause damage or injury.

Do not operate this appliance if it is damaged, malfunctioning, partially disassembled or has

missing or broken parts, including a damaged power supply cord or plug.

Do not store or use petrol, or other flammable vapors and liquids in the vicinity of the

DishDrawer

Connect to a properly rated, protected and sized power supply circuit to avoid electrical

overload.

Make sure that the power supply cord is located so that it will not be stepped on, tripped over or

otherwise subject to damage or stress.

Do not install or store the DishDrawer® where it will be exposed to temperatures below freezing

or exposed to weather.

Do not use an extension cord or a portable electrical outlet device (e.g. multi socket outlet box)

to connect the DishDrawer

to the power supply.

, you

Maintenance

Do not repair or replace any part of the appliance or attempt any servicing unless specifically

recommended in this User Guide. We recommend that you call an Authorized Service Agent.

Keep the floor around your appliance clean and dry to reduce the possibility of slipping.

Keep the area around/underneath your appliance free from the accumulation of combustible

materials, such as lint, paper, rags and chemicals.

When cleaning the underside of the filter plate, care must be taken on the sharp outer edge to

avoid the risk of cut type injuries.

Operational

Important!

Under no circumstances should you open the drawer whilst the DishDrawer® is in operation.

Always press the button to pause and wait until you hear the three additional beeps before

opening the drawer.

The DishDrawer® must be used with the motor assembly, filter plate, drain filter and spray arm in

place.

When disconnecting the appliance pull the plug rather than the power supply cord or junction

of cord to avoid damage.

Take care when loading the DishDrawer® not to load dishware items so it prevents the lid from

properly sealing with the drawer. Items should be placed so they do not protrude above and/or forced into the drawer, otherwise a service call may result.

Household appliances are not intended to be played with by children. Children or persons with a

disability which limits their ability to use the appliance, should have a responsible person instruct them in its use. The instructor should be satisfied that they can then use the appliance without danger to themselves or their surroundings.

Close supervision is necessary if this appliance is used by or near children. Do not allow children

to play inside, on or with this appliance or any discarded appliance.

If a Dishwasher cleaner is used, we would strongly recommend a wash program with detergent

should be run immediately afterward, to prevent any damage to the DishDrawer

The DishDrawer® is designed for washing normal household utensils. Items that are contaminated

by petrol, paint, steel or iron debris, corrosive, acidic or alkaline chemicals are not to be washed in the DishDrawer

If the DishDrawer® is not being used for long periods of time, turn the electricity and water

supply to the DishDrawer

off.

Do not pour detergent or rinse agent into the salt reservoir. The detergent or rinse agent will

destroy the water softener.

Important!

This User Guide should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, always ensure that the User Guide is left with the appliance in order that the new owner can become familiar with the appliance and the relevant warnings.

DishDrawer® user guide

DishDrawer® Prefinished model with LCD controls

DishDrawer® Integrated with badge controls

Contents

Installation checklist

Important safety information

Controls (Integrated badge and Prefinished

models with no LCD) 2

LCD Controls 4

Operation 6

Wash program chart 7

Caring for your dinnerware 8

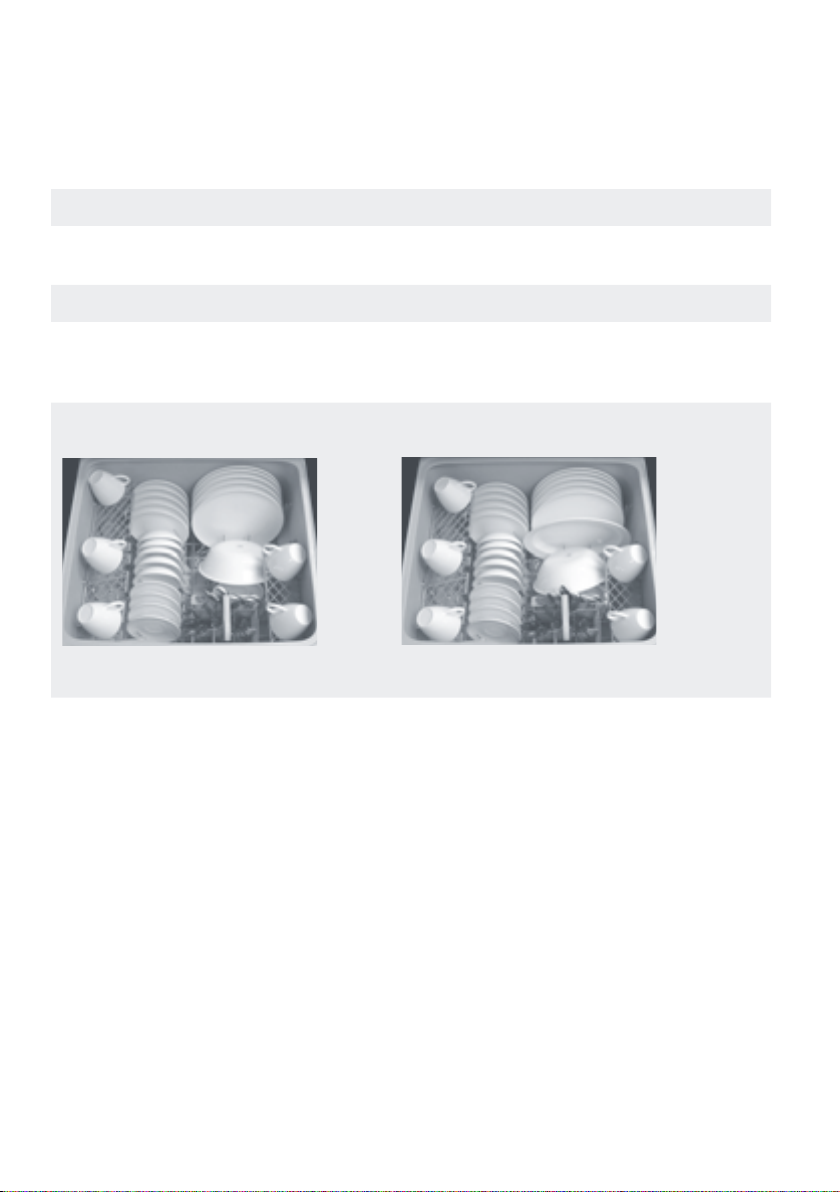

Dishwasher standards test 9

Accessories 10

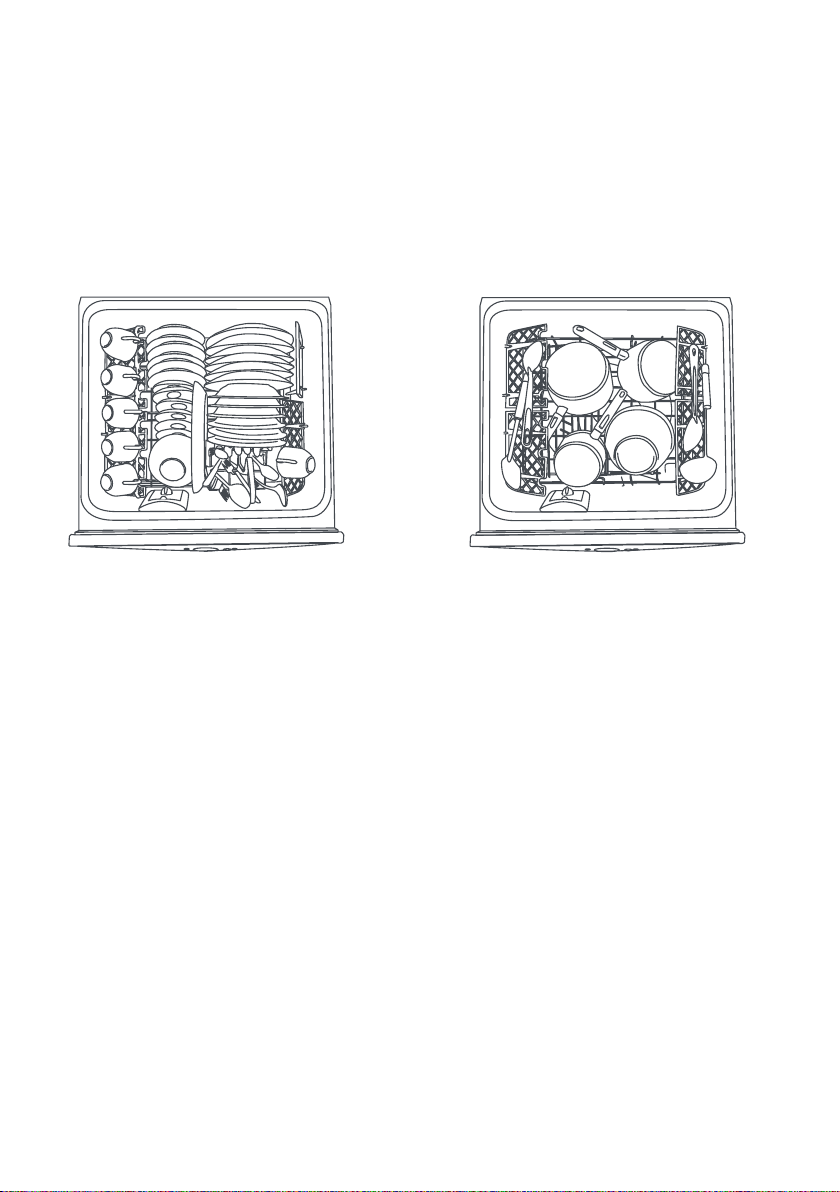

Loading 12

Detergent dispenser 14

Water softener 16

Rinse agent dispenser 18

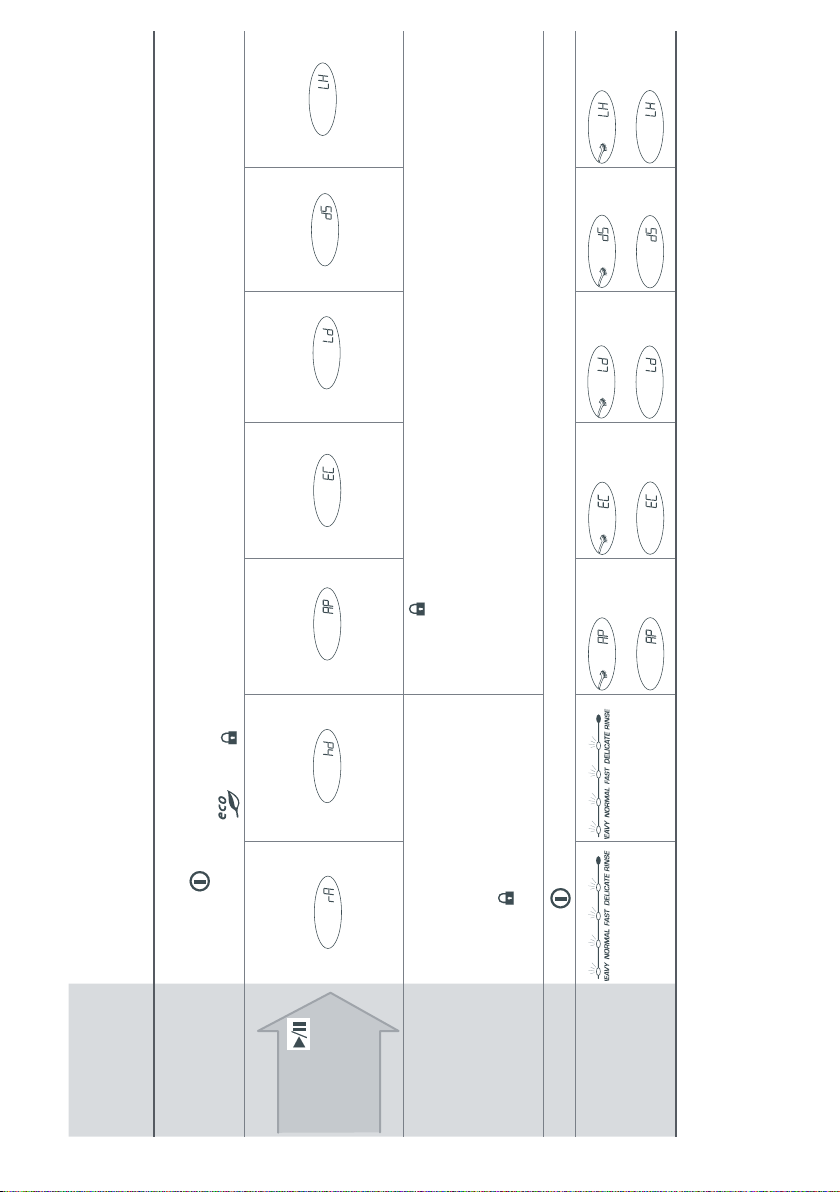

Option adjustment 19

User maintenance instructions 22

Trouble shooting 25

Fault codes 28

Limited warranty 30

DishDrawer® Prefinished model with no LCD controls

This User Guide explains how to operate and maintain your new appliance properly and safely. Please read the whole guide carefully before starting to use your appliance.

Controls (Integrated badge and Prefinished models with no LCD)

If you have a double DishDrawer®, each drawer has its own controls and can run independently of the

other.

Power button

The button turns the DishDrawer® on or off. Opening the drawer will automatically turn the DishDrawer® program in mid cycle, press the water in the DishDrawer®

on for 30 seconds. To end a wash

will be pumped out.

button. Any

Prefinished models with no LCD

Integrated badge

Start/Pause button

The button starts a wash program. Press the button to pause or restart the DishDrawer® drawer. Forcing the drawer open while in mid cycle may cause damage or injury.

during a wash program. When paused, wait for three beeps before opening the

Delay Start

The button also sets the Delay Start feature which can delay the start of a wash program from 1 to 12 hours. This feature also satisfies Shabbat requirements if the Auto Power option is disabled (see Option Adjustment).

To activate Delay Start

Press and hold the button until the light above the button turns orange (or purple

depending on your model).

Continue holding the button down until the desired delay time has been reached. The

DishDrawer® will emit audible ‘beeps’ as you hold the another hour delay.

The DishDrawer® will start once the delay time has elapsed and the drawer is closed.

To cancel Delay Start

Press the button.

button down, each beep indicates

Lock button

The / button activates/deactivates the Keylock or the Childlock functions.

(optional)

Keylock

The Keylock feature disables all the buttons on the DishDrawer®. To activate, press and hold the above the

To cancel the Keylock feature, press and hold the

/ button disappears.

/ button is lit when Keylock is activated.

/ button until you hear one beep (3 seconds). The light

/ button until the light above the

Childlock

The Childlock feature locks the drawer and disables all the buttons. To activate, press and hold the above the

/ button is lit when Childlock is activated.

/ button until you hear two beeps (5 seconds). The light

To cancel the Childlock feature, press and hold the

/ button disappears.

the

/ button until the light above

Wash program selector

Press the button to select a wash program. The DishDrawer® will remember the last program used.

Eco button (optional)

Press the button if you would like the wash program to use less energy and time. The red ECO light will indicate the feature is on. If your dishes are heavily soiled or you require enhanced dry performance, we do not recommend ECO programs.

Power failure

If the DishDrawer® is operating and a power failure occurs, it will stop. The DishDrawer® may be unable to be opened during this time. When the power supply is resumed, the DishDrawer® will restart in the same part of the wash program.

LCD screen controls (Prefinished models with LCD)

If you have a double DishDrawer®, each drawer has its own control panel and can run independently of the other.

Wash program progress symbol

Time remaining (Delay Start)

Delay Start symbol

Power button

Electronic display (LCD screen)

Start/Pause button

Lock button

Power Button

The button turns the DishDrawer® on or off. Opening the drawer will automatically turn the DishDrawer® water in the DishDrawer®

on for 30 seconds. To end a wash program in mid cycle, press the button. Any

will be pumped out.

Start/Pause Button

The button starts a wash program. Press the button to pause or restart the DishDrawer® drawer. Forcing the drawer open while in mid cycle may cause damage or injury.

during a wash program. When paused, wait for three beeps before opening the

Delay Start

To activate Delay Start

Press and hold the button until the delay symbol

Continue holding the button down until the desired delay time has been reached.

The DishDrawer® will start once the delay time has elapsed and the drawer is closed.

To cancel Delay Start

Press the button.

appears on the electronic display.

Lock Button (optional)

The button activates/deactivates the Keylock or the Childlock functions.

Keylock

The Keylock feature disables all the buttons on the control panel. To activate, press and hold the

appears in the electronic display when the Keylock feature is activated.

button until you hear one beep (3 seconds). The symbol

Childlock

The Childlock feature locks the drawer and disables all the buttons on the control panel.

To activate, press and hold the

appears in the electronic display when the Childlock feature is activated.

button until you hear two beeps (5 seconds). The symbol

To cancel the Childlock feature, press and hold the

symbol disappears from the electronic display.

button until you hear one beep and the

Wash program selector

Press the button to select a wash program. The DishDrawer® will remember the last program used.

Eco button (optional)

Press the button if you would like the wash program to use less energy and time. The red

ECO light will indicate the feature is on. If your dishes are heavily soiled or you require enhanced dry performance, we do not recommend ECO programs.

Wash program progress symbols

As the wash program advances through the cycle, the following symbols will appear in the electronic display to indicate the progression. When a wash program has started, the electronic display also will count down the time remaining in one minute increments.

Dirty Pre Wash Main Wash Post Rinse Drying Clean

Power failure

Operation

Load Dishes

Remove all food scraps and load the dishes.

Add Detergent

Check Rinse Agent

Press the Button

Select a Wash Program

The length of the wash program will appear

on the electronic display (if applicable).

Check

Ensure there is nothing obstructing the spray

arm. The drain filter must be level with the filter plate.

Start

Close the drawer and press the

Finish

The DishDrawer®

indicate the end of the wash program. At the end of the wash program the drying fan will continue to run for a set time or until the drawer is opened. The fan assists with drying and uses negligible amounts of energy. It is normal for some water to remain in the drain filter area after the wash program is complete.

will beep six times to

button.

2,3

Wash program chart

Standard Wash Program - when to use

Heavy

Heavily soiled pots, pans and dishes.

pre wash 1 pre wash 1 pre wash pre wash

pre wash 2 pre wash 2

main wash 150

post rinse 1 post rinse post rinse post rinse

post rinse 2

final rinse 163

drying phase drying phase drying phase

Eco Wash Program - when to use

Heavy

Heavily soiled everyday dishes.

Normal

Dishes with normal soils for optimum wash and dry performance.

F main wash 145oF main wash 130oF main wash 120oF

F final rinse 140oF final rinse 120oF final rinse 130oF

Normal

Normal soiled dishes for optimum energy use.

Fast

Lightly soiled dishes.

Fast

Lightly soiled, non greasy dishes.

Delicate

Lightly soiled and heat sensitive crockery.

Delicate

Lightly soiled, non greasy and heat sensitive crockery.

Rinse

Prevents odors and soils drying on dishes.

pre wash 1 pre wash pre wash

pre wash 2

main wash 150

F main wash 130oF main wash 115oF main wash 115oF

post rinse 1 post rinse post rinse post rinse

post rinse 2

final rinse 150

F final rinse 130oF final rinse 115oF final rinse 120oF

drying phase drying phase drying phase

note

Wash times can vary depending on the incoming water temperature, ambient conditions, type of dish load and whether the drawer has been opened during the wash. Wash times are only APPROXIMATE on the Electronic Display and based on 120°F incoming water.

Caring for your dinnerware

The combination of high temperatures and dishwasher detergent may cause damage to some items if they are washed in the DishDrawer®. Remember, if in any doubt about any aspect concerning items washed in the DishDrawer®, follow the instructions from the manufacturer of the items, or wash the item by hand.

Cutlery & Silverware

All cutlery and silverware should be rinsed immediately after use to prevent tarnishing caused by some foods. The Rinse wash program is useful for this. Silver items should not come into contact with stainless steel, for example other cutlery. Mixing these items can cause staining. Remove silver cutlery from the DishDrawer® and hand dry it immediately after the program has finished.

Aluminum

Aluminium can be dulled by dishwasher detergent. The degree of change depends on the quality of the product.

Other Metals

Iron and cast iron objects can rust and stain other items. Copper, pewter and brass tend to stain.

Woodware

Wooden items are generally sensitive to heat and water. Regular use in the dishwasher may cause deterioration over time. If in doubt, wash by hand.

Glassware

Most everyday glassware is dishwasher safe. Crystal, very fine and antique glassware may etch i.e. become opaque. You may prefer to wash these items by hand.

Plastic

Some plastic may change shape or color with hot water. Check manufacturer’s instructions about washing plastic items. Washable plastic items should be weighed down so they do not flip over and fill with water or fall through the basket during the wash.

Decorated Items

Most modern china patterns are Dishwasher safe. Antique items, those with a pattern painted over the glaze, gold rims or hand painted china may be more sensitive to machine washing. If in doubt wash these items by hand.

Glued Items

Certain adhesives are softened or dissolved in machine washing. If in doubt, wash glued items by hand.

Vacation time

If the DishDrawer® is not going to be used for some time, we recommend you ensure the baskets are empty. Leave the inside of the DishDrawer® clean. Leave the drawers ajar to allow air to circulate. Turn off both the power and water supply to the DishDrawer®.

Dishwasher standards test

The DishDrawer®s are tested to various standards for both wash and dry performance. The following are loading pattern diagrams, detergent and rinse agent quantities used for the DishDrawer®.

Wash Programme Normal Eco

Detergent Quantities 5g (pre wash) per drawer

10g (main wash) per drawer

Rinse Agent Setting 4

Water Softener Setting

(for DD603-H and DS603-H models only)

Recommended Loading Pattern

top drawer

Adjust the water softener to match the water hardness. Refer to the water softener and option adjustment section.

bottom drawer

Accessories

The inserts and racks can be added or removed to suit your individual needs. If you have the double DishDrawer® model, some of the accessories are interchangeable between the two drawers. For example you can combine the two Mega Racks into one drawer and wash all cups and glasses, leaving the other drawer for plates and larger items.

a. Basket

The basket holds some of the accessories in place and keeps dishes away from the spray arm.

b. Drain Filter Access Panel

The drain filter access panel is designed to snap onto the basket over the drain filter. This prevents objects from touching the base of the DishDrawer® and stopping the rotation of the spray arm, while still giving access to the drain filter.

c. Mega Rack

The Mega rack is designed to hold glasses, cups and small plates.

d. Plate Insert

The plate insert supports plates and bowls.

How to install the Mega Rack

To install the Mega rack, place the outer legs of the rack on top of the basket, and clip the Mega rack to the side of the basket. When the Mega rack is correctly installed it should not feel loose in the basket.

Cup Racks

Cups, glasses and kitchen utensils can be placed on the left and right hand side of the cup racks.

For best performance ensure there are no large items

below, blocking the wash water from reaching the cup racks.

Wine glasses can be supported on the cup racks if used in

conjunction with the Mega Rack.

There are stops on the cup rack to prevent cups from

touching the DishDrawer® wall. This will maximize the dry and wash performance.

Cutlery Basket

Cutlery, small kitchen utensils and some plastic lids are best placed into the cutlery basket.

For best wash performance, we recommend loading

cutlery with handles pointing down and sharp utensils with their handles facing up, to reduce the risk of injury.

Mix spoons, knives and forks within each section, to

stop cutlery nesting together and to ensure the water circulates freely.

Keep stainless steel from touching silver cutlery to avoid

staining.

Use the oval slots (spoon rack) for spoons and teaspoons.

Small items, like plastic lids, can be placed under the

spoon rack, this will prevent them from being displaced by wash water and falling to the bottom, where they may stop the spray arm rotation.

Wash water for the DishDrawer® comes from the spray arm which is situated inside the base of the drawer. The spray arm rotates, providing wash water to all areas of the wash compartment so care needs to be taken when loading dishes to ensure there is enough space and room for the water to reach all areas, particularly the cup racks. If there are any items blocking the spray arm path or the wash water, then the performance will be ineffective.

How to load your DishDrawer®

Standard load Heavy load

Note

The basket and its inserts are not designed to be lifted out of the DishDrawer® while loaded with dishes.

How NOT to load your DishDrawer®

figure 1 - overcrowding

Overcrowded and wash water will not

reach some of the dinnerware.

Cups, glasses and bowls must have their

openings facing downwards.

figure 3 figures 4 & 5

Ensure dishware items are not forced into

or protrude out of the drawer as it may prevent the lid from properly sealing which could result in a service call.

Locate sharp items safely to prevent

injuring the user and damaging the lid assembly.

Check the bottom of the cutlery basket to

ensure sharp or pointed items have not come through as they may stop spray arm rotation.

figure 2 - nesting

The plates are nesting together and wash

water may not get through.

Ensure cutlery are not nesting or stuck

together. They need to be evenly spread out.

Ensure cutlery has not fallen through the

basket and stopped the spray arm from rotating.

The large bowl is blocking wash water

reaching the cup racks.

Large utensils should be on cup racks so they

do not become dislodged and stop the spray arm from rotating.

Sharp or pointed items must be placed

horizontally or with sharp edges/points facing downward to avoid risk of injury.

Detergent dispenser

Important!

Only use powdered detergent recommended

for domestic automatic dishwashers in the detergent dispenser.

Never sprinkle or pour detergent directly onto

any item in the DishDrawer®.

Tablets and liquid detergents are not suitable to

be used in the DishDrawer®.

Hand washing liquids, soap, laundry detergents

or disinfectants will damage the DishDrawer®.

a,b

closed detergent dispenser

Filling the detergent dispenser

Press the latch down and the door will open.

Pour in detergent. No detergent is needed for the

Rinse program.

After filling the compartment(s), close the

dispenser door until it clicks shut. The detergent will automatically be released into the DishDrawer®

open detergent dispenser

during the wash program.

a Pre Wash Compartment,

10g capacity

b Main Wash Compartment,

30g capacity

c Detergent Dispenser Latch d Rinse agent Indicator Light e Rinse agent Plug

WARNING!

Dishwasher detergents are strongly alkaline and can be dangerous if swallowed.

Avoid contact with skin and eyes.

Keep children and infirm persons away from the DishDrawer® when the drawer is open.

Check that the detergent receptacle is empty after completion of the wash cycle.

Failure to do so could result in poisoning

Detergent quantities

The detergent quantities recommended below are for individual drawers.

Water type Wash program Detergent quantities

prewash (teaspoons)

Hard (>150ppm or >9gpg) All* 2 6

Medium

Soft

(100-150ppm or 6-9gpg) All* 2 4

(<100ppm or <6gpg) Heavy

Normal

1 Delicate Fast

*No detergent is required in the pre wash compartment for the fast wash program.

main wash (teaspoons)

3 2 1 1

Hard water situations

If you live in a hard water situation, we recommend the installation of a household water softener to improve the water quality, detergent effectiveness and prevent the build up of calcium deposits on dishes and in the DishDrawer®.

Certain brands of dishwasher detergent contain varying quantities of phosphates, which help soften water. We suggest you use a detergent with high phosphate content to improve the wash. The detergent compartments need to be completely FULL and rinse agent is used with its setting fixed at 5.

We recommend the use of a dishwasher cleaner/descaler whenever you notice a build up of calcium deposits in your DishDrawer®.

After you have used the dishwasher cleaner/descaler you must run another wash program with detergent to prevent damage to the DishDrawer®.

Soft water situations

If you live in an area of naturally soft water or your household water is softened, avoid using too much detergent in your DishDrawer®. An excess amount of detergent is very aggressive on glassware and may cause irreversible etching.

Etching is a chemical deterioration that occurs on the surface of glassware when it is subjected to high temperatures, too much detergent and/or soft water situations. Etching is caused by a combination of very hot water, which causes the detergent to become very aggressive, but because the water is soft, there are no water hardness mineral ions for the detergent to bind to, so it extracts mineral ions directly from the glass.

Etching looks like rainbow colored film, as the glass is subjected to further washing the surface will eventually appear opaque. This type of etching is irreversible.

To prevent further etching from occurring on glassware use less detergent (follow the recommended detergent quantities in the User Guide for soft water situations), and ensure the dishwasher is not overloaded, so water can reach all the dishes during the wash.

Water softener (DD603-H, DS603-H models only)

Setting up the water softener

Using hard water (above 100ppm) for dishwashing can be detrimental to the performance of your DishDrawer®. Glasses will become opaque and dishes will become spotted or covered in a white film.

Determine the water hardness in your local area

to provide you with information. Identify the setting you require for your DishDrawer® from the water hardness table below. For example, if your water hardness is 500ppm, then the water softener setting on your DishDrawer® should be four. Refer to Option Adjustments section to adjust the water softener so that the setting corresponds to your water hardness.

- your local water company will be able

DishDrawer® setting Grains Per Gallon (gpg) Parts Per Million (ppm)

0 0 - 6 0 - 100

1 6 - 14 100 - 250

2 14 - 20 250 - 350

3 20 - 26 350 - 450

4 26 - 32 450 - 550

5 32 - 36 550 - 625

Note

If your water hardness is above 625ppm, we highly recommend you completely fill the detergent

compartment for all programs except Rinse and the rinse agent setting be at 5. If your water hardness is above 625ppm, the performance of your DishDrawer® will decline.

You may hear some unusual noises when the water softener is in operation, this is normal.

How to fill the salt reservoir

Open the DishDrawer®.

Unscrew the salt reservoir plug by turning counter-

clockwise.

Place the salt into the salt container and pour the

contents into the salt reservoir. The salt reservoir can hold just over one pound of salt.

Fit the cap tightly back into its original position.

If you do not wash your dishes immediately after filling the salt reservoir, run a rinse program to

remove any salt water or spilt granules.

Note

When filling the salt dispenser, you may notice water being displaced from the water softener overflow.

Important!

The water softener must always be filled with granular salt made especially for dishwasher water softening systems e.g. Somat salt. Do not use of cooking salt like table, rock, pellets or salt for domestic water softeners as they may contain impurities that will impair or diminish the

life of the water softener.

The salt reservoir

Water softening can only take place when there is salt in the reservoir. The salt reservoir must be filled prior to using the DishDrawer® and whenever the salt reservoir indicator light is red.

Salt indicator light

If the salt indicator light is red, the salt reservoir is

empty.

If the salt indicator light is black, there is enough salt in the

reservoir for the wash program that has been selected.

Prefinished Models: The electronic display will

also indicate when the salt reservoir is empty by displaying the salt

symbol.

Salt reservoir

Salt Indicator Light

Salt Reservoir Cap

Important!

Do not pour detergent or rinse agent into the salt reservoir. Detergent and rinse agent will destroy the water softener.

Salt Only

NO Detergent

NO Rinse Agent

Rinse agent dispenser

We highly recommend the regular use of liquid rinse agent to give the best drying results. Rinse agent gives a streak free, sparkling clean look to glass and chinaware, in addition it prevents metal from tarnishing. The rinse agent dispenser is on the inside of the drawer, located underneath the detergent dispenser. The dispenser holds approximately 50ml of rinse agent.

Filling the rinse agent dispenser

Turn the plug counter-clockwise and remove.

Pour the rinse agent into the circular opening.

Take care not to spill rinse agent into the

DishDrawer®. Any spillages must be wiped up to prevent excess foaming. Failure to wipe rinse agent spillages may result in a service call which will not be covered by warranty.

Fit the plug back into the original position.

How much rinse agent to use

The regulator may need adjusting to suit your water conditions. The lowest setting is ‘1’ and the highest is ‘5’. Refer to Option Adjustments section to adjust the rinse agent setting. If there is excessive foam at the end of the wash, reduce the setting. If dishes are wet or streaky after drying, increase the setting.

Rinse agent indicator light

If the rinse agent indicator light is red, refill the dispenser. If the rinse agent indicator light is dimly lit or not lit at all, there is enough rinse agent for the wash.

Note

Lighter colored rinse agents will not dim the indicator light as effectively as darker colored rinse

agents.

When the rinse agent is being dispensed, you may notice some unusual noises during the wash,

this is normal.

Option adjustments

The following options can be adjusted to suit your preferences.

Rinse Agent setting

Reduce the Rinse agent setting if there is excess foam after a wash program. Increase the Rinse agent setting if dishes are wet or streaky after a wash program.

Water Softener setting

for models DD603H and DS603H only

Refer to the Water Softener section.

Auto Power setting

By default, DishDrawer® will automatically turn on whenever the drawer is opened. Washing will not start until the drawer is closed and the DishDrawer® to turn on automatically, this feature can be turned off.

End of Wash Program Beeps

By default, DishDrawer® will beep six times at the end of a wash program. This feature can be turned off.

Closed Drawer option

The Closed Drawer option will lock the DishDrawer® when the drawer is closed. When you wish to open the drawer, press the automatically come down after 30 seconds and lock.

button. When the drawer is fully closed again, the lid will

button has been pressed. If you do not want the

If the Lock feature is used in conjunction with the Closed Drawer Option, pressing the will not unlock the drawer. The Lock feature must be turned off to enable DishDrawer® to be opened.

button

Clean Dish Indicator option (prefinished models with LCD only)

By default, DishDrawer® is programmed with the Clean Dish Indicator option off. When the Clean Dish Indicator option is on, the program has finished to indicate the dishes are clean. When you have unloaded all the dishes, press the

This option might be useful when dishes have been left in DishDrawer® and you cannot remember if they have been washed or in situations where household members regularly remove a only few clean dishes without emptying the drawer.

We do not recommend the Clean Dish Indicator option be used in conjunction with the Closed Drawer option.

button to return to normal operating mode.

symbol will remain in the electronic display after a wash

Dry Enhancement Mode option

When the Dry Enhancement Mode is on, the lid will be held down for four hours at the end of a wash cycle. The fan will continue to run while the lid is held down to enhance drying performance. Should you wish to open or stop DishDrawer® during the four hours, press the

button to return to normal operating mode.

Dry

Enhancement

Mode option

Closed

Drawer

option Clean Dish

End of Wash

Program

Beeps option

Auto Power

option

purple / on

DD603, DS603

AVAILABLE ON

MODELS

/ button to turn the selected option on or off.

Press the

On Off

OPTION ONLY

DD603, DS603

AVAILABLE ON

On Off

MODELS

Water Softener

setting

Rinse Agent

setting

Press the button to turn power on.2 Press and hold the and / buttons for 5 seconds until one long beep sounds.

Enter Option Adjstment Mode

Prefinished no LCD

red / off blue / off purple / on blue / on red / on OPTION ONLY

Integrated models

red / off green / off orange / on green / on red / on orange / on

The current setting is shown on the

/ button to increase

selected setting is set to four.

Press the

the setting.

wash program selector in red lights.

If four red lights are lit, the option

Press the button to save the change.

Water Softener

setting set to four

Rinse agent

setting set to four

Press the

button to

scroll through

Follow the

steps below

How to make option adjustments (Integrated models and Prefinished models with no LCD)

First

options

Make an

adjustment

Save

Example

Non-water softener models - the water softener setting does not appear in the sequence of options.

The option sequence will start again from the Rinse Agent setting.

Dry

Enhancement

Mode option

Closed

Drawer

option Clean Dish

End of Wash

Program

Beeps option

On Off

button to turn the selected option on or off.

On Off

Auto Power

option

Water Softener

setting

Rinse agent

setting

Enter Option Adjstment Mode

Press the button to turn power on.2 Press and hold the and buttons for 5 seconds until one long beep sounds.

Press the

button to increase the

The current setting is shown on the

wash program selector in red lights.

If four red lights are lit, the option

selected setting is set to four.

setting.

Press the

Press the button to save the change.

Water Softener

setting set to four

Rinse agent

setting set to four

Press the

button to

scroll through

Follow the steps

below

How to make option adjustments (Prefinished models with LCD controls)

First

options

Make an

adjustment

Save

Example

Non-water softener models - the water softener setting does not appear in the sequence of options.

The option sequence will start again from the Rinse Agent setting.

User maintenance instructions

Cleaning the outer surfaces

From time to time the wash program indicator panel and its surrounds need to be cleaned to remove food particles, hard water scale and any spillages. We recommend wiping these areas with a clean damp cloth.

Important!

We do not recommend the use of the following cleaning aids on your DishDrawer® as they may damage the surfaces:

Plastic or stainless steel scouring pads

Abrasive, solvent, household cleaners

Acid or alkaline cleaners

Hand washing liquids or soap

Laundry detergents or disinfectants

For prefinished models

Depending on the type of exterior finish on your DishDrawer®, we recommend the following:

Stainless Steel

This surface requires only a mild dishwashing detergent and warm water. Take care not to wet

the control panel.

Dry with a clean lint-free cloth

DO NOT use proprietary “Stainless Steel” type cleaners or polishes as these may damage the

protective coating.

Important!

Never use abrasive cleaners or harsh solvents as these will damage the stainless steel surface.

White or Black

To clean the doors wipe the doors with a clean damp cloth.

Dry with a clean lint-free cloth.

For integrated models

Clean the integrated control badge with a damp cloth, then dry with a clean, lint-free cloth.

Cleaning the Drain Filter, Spray Arm and Filter Plate

We recommend that the drain filter is cleaned

whenever there is evidence of food particles. The spray arm and filter plate may need cleaning about once a month in normal use or more often should

the need arise.

If a dishwasher cleaner/descaler is used, you must run a wash program with detergent immediately

Internal Parts of the DishDrawer®

a Spray Arm b Filter Plate c Drain Filter

afterward to prevent any damage to your DishDrawer®.

Important !

The DishDrawer® must be used with the filter plate, drain filter and spray arm correctly in place.

Cleaning the Drain Filter

Lift up the drain filter access panel on the basket (if

fitted).

Lift and remove the drain filter out.

Empty, rinse under clean running water and replace

back into the allocated space.

Ensure the drain filter is flush with the filter plate.

Cleaning the Spray Arm & Filter plate

Ensure the DishDrawer® is cool before you start cleaning and follow the instructions for removing the drain filter and spray arm.

Remove the basket carefully. Lift from the back

end first to prevent knocking the detergent and rinse agent dispenser.

Lift the spray arm and shake any foreign material

out.

Rinse the spray arm under clean running water and

wipe the with a damp cloth.

In the center of the filter plate there are two rings.

Hold the center ring still and turn the outer ring anti-clockwise, about a 1/8 turn. This will release the filter plate.

Lift the filter plate out.

When cleaning the underside of the filter plate,

take care handling the sharp outer edge to avoid the risk of cuts.

Remove any foreign material, wash in hot soapy

water and rinse thoroughly in clean water. The heater plate can be wiped with a damp cloth.

Replace the filter plate so it lies flat in the base of

the drawer ensuring the filter plate is fully locked into position with the center ring.

To lock the filter plate into position, ensure the

lines align with each other (refer to the diagram for the correct position). The filter plate must not be able to move about freely.

Replace the spray arm back onto the impeller.

Replace the basket, lowering the front edge of the

basket into position first.

Correct Locking Position of Filter Plate with Motor Assembly (under Spray Arm)

a Outer Ring b Impeller c Correct Alignment marks d Center Ring

Note

Where there is broken crockery or glass in the drawer, it must be carefully removed to prevent damage to the DishDrawer®.

Trouble shooting

Problem Possible Cause What to do

Continuous beeping

Intermittent beeping

DishDrawer® will not start

Excess water in the DishDrawer®

Water marks on the dishes

Dishes did not dry

A fault has occured. Refer to the Fault codes section.

DishDrawer® is in pause mode.

Power supply is not connected.

The drawer is not properly closed.

Lock feature is on.

button not pressed. Press the button.

Drain hose(s) bent or kinked.

Blocked filters and/or drain hose(s).

Insufficient rinse agent. Ensure there is enough rinse agent in

Rinse agent setting too low.

DishDrawer® overloaded/ incorrectly loaded.

Insufficient or no salt in the water softener.

Incorrect loading. Ensure the dishes are not nesting

Rinse agent depleted. Refill the rinse agent dispenser.

Rinse agent setting too low.

Eco wash program used. Choose a standard wash program.

Close the DishDrawer® and press the

button.

Connect the power supply.

Ensure the drawer is firmly closed.

Turn the Lock off. Hold down the

/ button until the symbol disappears from the LCD or the light above the

Straighten the drain hose(s).

Clean the filter plate/drain filter. Unblock the drain hose(s). Refer to the user maintenance section.

the dispenser.

Increase the rinse agent setting.

Refer to the section on loading.

Ensure there is enough salt in the water softener and/or increase the water softener setting.

together.

Increase the rinse agent setting.

/ button disappears.

Problem Possible Cause What to do

Unclean dishes

DishDrawer® interior is stained

Wash program unsuitable for the load.

Spray arm unable to rotate. Ensure no items are obstructing the

DishDrawer® overloaded/ incorrectly loaded.

Filter plate/drain filter is incorrectly inserted.

Detergent put in the wrong compartment.

Excessive food not removed from dinnerware prior to cleaning.

Unsuitable detergent. Use recommended brands of dishwasher

Not enough detergent. Refer to the detergent section or the

Spray arm holes are blocked.

Filter plate/drain filter is blocked.

Mega rack incorrectly installed.

Insufficient salt in the water softener.

Some foods, like tomato based products, may stain the inside of the DishDrawer®.

Refer to the wash programs section for a suitable wash program, or the soils were too heavily baked on and dishes may need soaking.

spray arm path.

Refer to the section on loading.

Refer to the user maintenance section.

Detergent must be placed in the large compartment.

Scrape all food scaps off dinnerware prior to loading.

detergent.

detergent manufacturer’s instructions.

Clean the spray arm.

Clean the filter plate and drain filter.

Refer to the accessories section for correct installation.

Ensure there is enough salt in the water softener and you may need to increase the water softener setting if the problem persists.

Pre-rinse dishes before placing in the DishDrawer®. Alternatively, using the Rinse program after adding the dishes may minimize staining.

Problem Possible Cause What to do

Foaming

No detergent dispensed

Excessive motor noise

Water leaking

DishDrawer® will not open

Incorrect amount of detergent.

Too much egg in the wash load.

Rinse agent setting too high.

Detergent was wet when loaded.

The filter plate and/or spray arm is incorrectly placed.

No water in the motor area. This usually occurs on the first use or

Drain hose disconnected from waste pipe.

Supply inlet hose not properly connected.

Other leaks. Turn water and power supplies to the

Childlock function is on or the Closed Drawer option is on, or both.

Refer to the detergent section or consult the detergent manufacturer’s instructions.

Increase the amount of detergent.

Decrease the rinse agent setting.

Clean the dispenser and ensure the dispenser is dry when adding detergent.

Refer to the user maintenance section for details on correct placement.

when the DishDrawer® has not been used for long periods of time. Run the DishDrawer® through a wash program.

Reconnect the drain hose to the waste pipe.

Ensure the inlet hose is connected securely.

DishDrawer® off. Call your dealer or Authorized Service Agent.

Turn the Lock function off. Hold down

/ button until the symbol

the disappears from the LCD or the light above the and/or press the DishDrawer®.

/ button disappears

button to open the

Fault codes

How to Recognize a Fault Code

When a fault has occurred, the DishDrawer® will continuously beep every second.

The fault code will be displayed on the electronic display for prefinished models and on the inside control panel for integrated models.

Each fault code is shown in the following chart for prefinished and integrated models.

How to Attend to a Fault Code

Press the button to remove the fault code.

If the fault code and continuous beeps cannot be removed by pressing the button, turn the

power off at the power supply.

We recommend you check the following chart and correct the fault where possible.

After attending to the fault, turn the DishDrawer® on at the power supply.

If the fault code and continuous beeps remain, turn the water and power supply off to the

DishDrawer®.

When calling your Authorized Service Center advise them of the fault code that has appeared

on the DishDrawer®. This information will help the Authorized Service Center respond to your request.

Fault Codes Possible Causes What to Do

Flood switch has been activated.

Turn the water and power supply to the DishDrawer® off and call your Authorized Service Center.

Motor problem. Call your Authorized Service Center.

Temperature sensor failed. Ensure water coming in through the inlet

hose is not hotter than 65oC. You may need to install a tempering valve on your water supply.

Faulty temperature sensor or element

Electronics malfunction. Call your Authorized Service Center.

Fill Fault 1 Turn the DishDrawer® water supply on.

Call your Authorized Service Center.

2 Ensure the spray arm can rotate about

the center, and if the DishDrawer® is full of water, it will need to be emptied manually.

3 Call your Authorized Service Center.

Limited warranty

When you purchase any new Fisher & Paykel whiteware Product for personal or consumer use you automatically receive a two year Limited Warranty covering parts and labor for servicing within the 48 mainland United States, Hawaii, Washington D.C and Canada. In Alaska the Limited Warranty is the same except that you must pay to ship the Product to the service shop or the service technician’s travel to your home. Products for use in Canada must be purchased through the Canadian distribution channel to ensure regulatory compliance.

If the Product is installed in a motor vehicle, boat or similar mobile facility, you receive the same two year Limited Warranty, but you must bring the vehicle, boat or mobile facility containing the Product to the service shop at your expense or pay the service technician’s travel to the location of the Product.

Fisher & Paykel undertakes to:

Repair without cost to the owner either for material or labor any part of the Product, the serial number of which appears on the Product, which is found to be defective. In Alaska, you must pay to ship the Product to the service shop or for the service technician’s travel to your home. If the Product is installed in a motor vehicle, boat or similar mobile facility, you must bring it to the service shop at your expense or pay for the service technician’s travel to the location of the Product. If we are unable to repair a defective part of the Product after a reasonable number of attempts, at our option we may replace the part or the Product, or we may provide you a full refund of the purchase price of the Product (not including installation or other charges).

This warranty extends to the original purchaser and any succeeding owner of the Product for products purchased for ordinary single-family home use.

All service under this Limited Warranty shall be provided by Fisher & Paykel or its Authorized Service Agent during normal business hours.

How long does this Limited Warranty last?

Our liability under this Limited Warranty expires TWO YEARS from the date of purchase of the Product by the first consumer.

Our liability under any implied warranties, including the implied warranty of merchantability (an unwritten warranty that the Product is fit for ordinary use) also expires ONE YEAR (or such longer period as required by applicable law) from the date of purchase of the Product by the first consumer. Some states do not allow limitations on how long an implied warranty lasts, so this limit on implied warranties may not apply to you.

This warranty does not cover:

Service calls that are not related to any defect in the Product. The cost of a service call will be

charged if the problem is not found to be a defect of the Product. For example:

1. Correct faulty installation of the Product.

2. Instruct you how to use the Product.

3. Replace house fuses, reset circuit breakers, correct house wiring or plumbing, or replace light bulbs.

4. Correct fault(s) caused by the user.

5. Change the set-up of the Product.

6. Unauthorized modifications of the Product.

7. Noise or vibration that is considered normal, for example, drain/fan sounds, regeneration noises or user warning beeps.

8. Correcting damage caused by pests, for example, rats, cockroaches etc.

Defects caused by factors other than:

1. Normal domestic use or

2. Use in accordance with the Product’s User Guide.

Defects to the Product caused by accident, neglect, misuse, fire, flood or Act of God.

The cost of repairs carried out by non-authorized repairers or the cost of correcting such

unauthorized repairs.

Travel Fees and associated charges incurred when the product is installed in a location with

limited or restricted access. (i.e. airplane flights, ferry charges, isolated geographic areas).

Normal recommended maintenance as set forth in the Product’s User Guide.

If you have an installation problem contact your dealer or installer. You are responsible for providing adequate electrical, exhausting and other connection facilities. We are not responsible for consequential or incidental damages (the cost of repairing or replacing other property damaged if the Product is defective or any of your expenses caused if the Product is defective). Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

How to get service

Please read your User Guide. If you then have any questions about operating the Product, need the name of your local Fisher & Paykel Authorized Service Agent, or believe the Product is defective and wish service under this Limited Warranty, please contact your dealer or call us at:

TOLL FREE 1-888-9-FNP-USA (1-888-9-367-872) Canada also or contact us through our web site: www.usa.fisherpaykel.com

You may be required to provide reasonable proof of the date of purchase of the Product before the Product will be serviced under this Limited Warranty.

Commercial use

If you are using the Product in a commercial setting (any use other than a single family dwelling), we agree to repair or replace, without cost to you for parts only, any defective parts, the serial number of which appears on the Product. Our liability for these repairs expires ONE YEAR from the date of original purchase.

At our option we may replace the part or the Product, or we may provide you a full refund of the purchase price of the Product (not including installation or other charges). All service under this Limited Warranty shall be provided by Fisher & Paykel or its Authorized Service Agent during normal business hours.

No other warranties

This Limited Warranty is the complete and exclusive agreement between you and Fisher & Paykel regarding any defect in the Product. None of our employees (or our Authorized Service Agents) are authorized to make any addition or modification to this Limited Warranty. Warrantor: Fisher & Paykel Appliances, Inc.

If you need further help concerning this Limited Warranty, please call us at the above number, or write to: Fisher & Paykel Appliances 5900 Skylab Road Huntington Beach CA 92647

This Limited Warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

The product specifications in this booklet apply to the specific products and models described at the date of issue. Under our policy of continuous product improvement, these specifications may change at any time. You should therefore check with your Dealer to ensure this booklet correctly describes the product currently available.

www.fisherpaykel.com

US DishDrawer® User Guide Published: 08/2004 Part No. 527971B

Fisher & Paykel DS603 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
