Fisher & Paykel CG733 User Manual

Gas-on-glass cooktop

CG733 model

Installation instructions

and User guide

玻璃面板燃气灶

CG733型

安装说明

和用户指南

SG HK

Contents

Safety and warnings

Installation instructions

Introduction

Using your cooktop

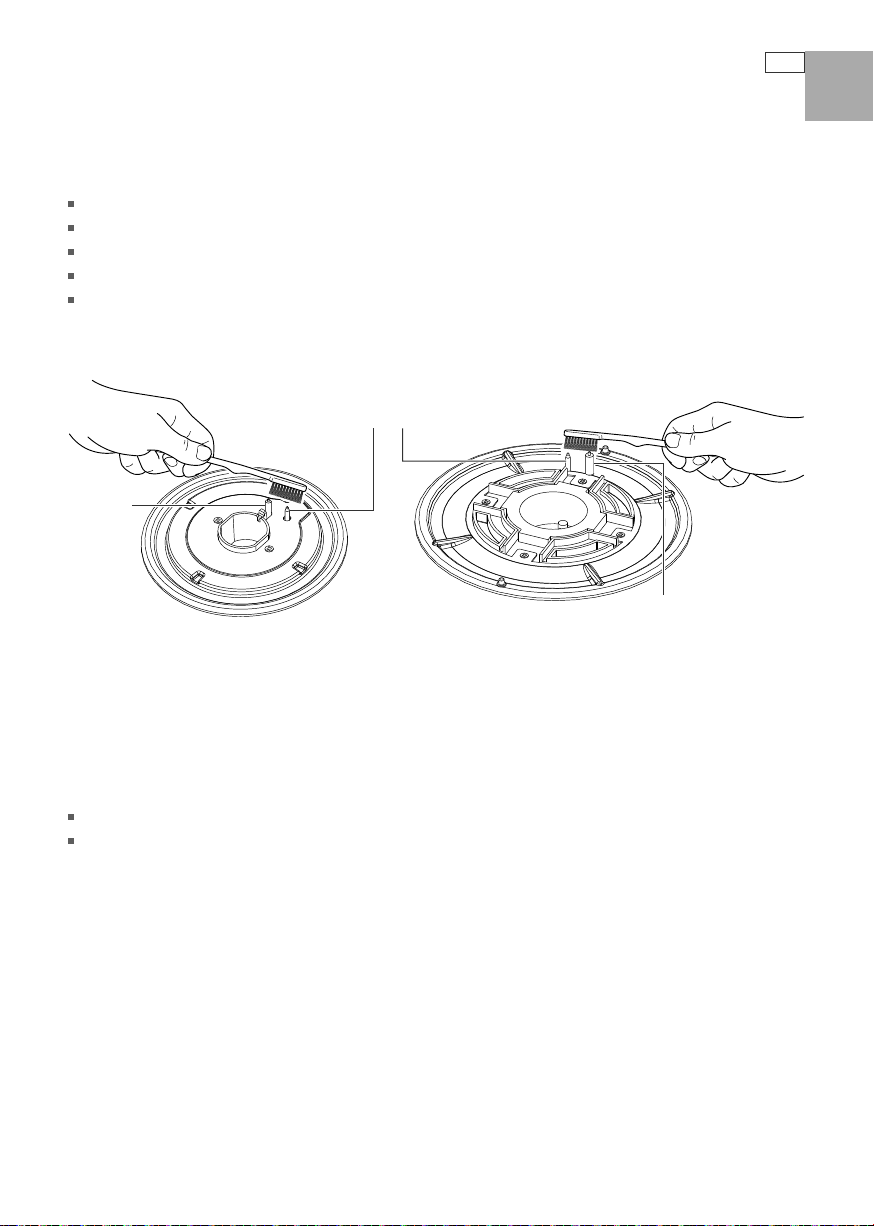

Care and cleaning

Troubleshooting

Warranty and service

Important!

SAVE THESE INSTRUCTIONS

The models shown in this manual may not be available in all markets and are subject to change at any time. For current details about model and specification availability in your country, please visit our local website listed on the back cover or contact your local Fisher & Paykel dealer.

Safety and warnings

WARNING!

Cut Hazard

Take care - some panel edges are sharp.

Failure to use caution could result in injury or cuts.

WARNING!

Electrical Shock Hazard

Before carrying out any work on the electrical section of the appliance, it must be disconnected from the mains power supply.

Connection to a good earth wiring system is essential and mandatory.

Failure to follow this advice may result in death or electrical shock.

Important safety precautions

Installation

Read these instructions carefully before installing or using this product. Please make this information available to the person responsible for installing the product as it could reduce your installation costs. This appliance must be installed in accordance with these installation instructions, local gas fitting regulations, municipal building codes, electrical wiring regulations, and any other relevant statutory regulations. This appliance shall only be serviced by authorised personnel. Always disconnect the cooktop from mains power supply before carrying out any maintenance operations or repairs.

Particular attention shall be given to the relevant requirements regarding ventilation. In the

room where the cooktop is installed, there must be enough air to allow the gas to burn correctly,

according to the current local regulations. Do not modify this appliance. When this appliance is installed, it shall not be used as a space heater. No combustible materials or products should be placed on this appliance at any time. Do not spray aerosols in the vicinity of this appliance while it is still in operation.

Safety and warnings

This appliance should not be sealed into the bench with silicone or glue. Doing so will make

future servicing difficult. Fisher & Paykel will not be liable for costs associated with releasing such

a product, nor for repairing damage that may be incurred in doing this. Packing elements (eg plastic bags, polystrene foam, staples, packing straps etc) and tools

should not be left around during and after installation, especially if they are within easy reach of

children, as these may cause serious injuries.

Safety and warnings

Hot Surface Hazard

This appliance becomes hot during use. Do not touch the cooktop components, burners, trivets/pan supports or the

base when hot. Before cleaning, turn the burners o and make sure the whole cooktop is cool.

Failure to follow this advice may result in serious injury.

Explosion Hazard

Do not store  ammable materials such as gasoline near the cooktop. Do not spray aerosols near the cooktop during use.

Failure to follow this advice may result in death or serious injury.

Electrical Shock Hazard

Do not cook on a broken or cracked cooktop. If the cooktop surface should break or crack, turn o the gas supply and switch the appliance o immediately at the mains power supply (wall switch) and contact a quali ed technician.

Switch o the cooktop at the wall before carrying out cleaning or maintenance.

WARNING!

Failure to follow this advice may result in death or electrical shock.

WARNING!

Fire Hazard

Never leave the appliance unattended when in use. Boilover causes smoking and greasy spillovers that may ignite. Never use your appliance for warming or heating the room.

Failure to follow this advice may result in serious injury.

Safety and warnings

Important safety precautions

Operation

Keep children away from the cooktop when it is in use. Household appliances are not intended to be played with by children. Children, or persons with a disability which limits their ability to use the appliance, should

have a responsible person to instruct them in its use. The instructor should be satisfied that

they can use the appliance without danger to themselves or their surroundings. If the power supply cable is damaged, it must only be replaced by an authorised person.

Ensure that the electrical connection plug is accessible after installation. This appliance should be connected to a circuit that incorporates an isolating switch

providing full disconnection from the power supply. Do not use an asbestos mat or decorative covers between the flame and the saucepan as

this may cause serious damage to your cooktop. Do not place aluminium foil or plastic dishes on the cooktop burners. Do not let large saucepans, frying pans or woks push any other pans aside. This could make

them unstable or deflect heat onto your benchtop and damage the surface. Do not use a steam cleaner for cleaning this cooktop. Saucepan handles may be hot to touch. Ensure saucepan handles do not overhang other

gas burners that are on. Keep handles out of reach of children. Keep children away from the cooktop when it is in use. Household appliances are not intended to be played with by children. Do not stand on this appliance. Do not place or drop heavy objects on this appliance. After use, ensure that the knobs are in the OFF position. This appliance shall not be used as a space heater. The use of a gas cooking appliance results in the production of heat and moisture in the

room in which it is installed. Ensure the kitchen is well ventilated. Keep natural ventilation

holes open or install a mechanical ventilation device (mechanical extractor hood).

Prolonged intensive use of the appliance may call for additional ventilation, for example

opening of a window, or more effective ventilation, for example increasing the level of

mechanical ventilation where present. After having unpacked the appliance, check to ensure that it is not damaged.

In case of doubt, do not use it and consult your supplier or a professionally qualified technician. Packing elements (i.e. plastic bags, polystyrene foam, nails, packing straps, etc.) should not be

left around within easy reach of children, as these may cause serious injuries.

Installation instructions

Cooktop and cutout dimensions

Electrical connection is made at the left rear

Cooktop and cutout dimensions (mm)

overall width of cooktop

overall depth of cooktop

height of chassis (below top of bench)

width of chassis

depth of chassis

overall width of cutout

overall depth of cutout

corner radius of cutout

CG733

730

430

700

400

705

405

max. 120

Installation instructions

Clearances

Clearances (mm)

minimum clearance from rear edge of cutout to:

nearest combustible surface

minimum clearance from glass surface to: rangehood any other overhead exhaust fan

downward-facing combustible surface (overhead cabinetry) downwards-facing tiled or  re resistant surface

minimum clearance from side edges of cutout to:

nearest combustible surface 213

minimum clearance below top of benchtop to:

thermal protection barrier 83

minimum clearance from benchtop to:

overhead cabinet not directly above the cooktop 450

CG733

650 800 650 500

Installation instructions

The appliance may be installed in a suitable room in accordance with the current laws in force.

The appliance is designed and approved for domestic use only and should not be installed in a commercial, semi-commercial or communal environment. Installing the appliance in any of the above environments will void the warranty and could affect any third-party or public liability insurances you may have. The appliance must be installed in compliance with regulations in force. Installation technicians must comply with current laws in force concerning ventilation and the evacuation of exhaust gases. Always disconnect the appliance from the electrical supply before carrying out any maintenance operations or repairs. The walls of the units around the appliance must not be higher than the benchtop and must be capable of resisting temperatures of 105 Do not install the appliance near flammable materials (eg curtains). You must install a thermal protection barrier between the base of the appliance and the built-in unit or an oven. See Fig. 1 below. If the appliance is installed over a built-in oven, the oven should be fitted with a cooling fan and the two appliances should be connected to the gas and electricity supply with independent connections.

C above room temperature.

The thermal protection barrier must be:

removable heat-resistant made from low thermal conductivity material at least 30 mm below the base of the cooktop

Clearance

Thermal

protection barrier

Space for connections

Fig. 1 Location of thermal protection barrier

30 mm

Door

Installation instructions

Ventilation requirements

Providing adequate ventilation

The installer must refer to the current local regulations. The room accommodating the gas cooktop must have adequate natural draught to allow combustion of the gas. The flow of air must come directly from one or more air vents made in the outside walls with a free area of at least 100 cm (or refer to applicable local regulations). The vents must be positioned close to the floor, preferably on the opposite side to the gas burners of your cooktop (as shown in Figs. 2a and 2b). The vents must be designed in such a way that they cannot be obstructed either from the inside or the outside. When it is not possible to provide the necessary vents, the draught may be supplied from an adjacent room, ventilated in the required manner, provided it is not a bedroom or an area at risk. In this event, the kitchen door must be opened to allow the draught to enter the room.

Extracting cooking and gas fumes

Important!

This appliance is not connected to a device extracting the products of gas combustion. Such a device must be installed and connected in accordance with the installation rules in force. Take special care to provide adequate room ventilation as well.

To eliminate cooking and gas fumes, extractor hoods ducted directly to the outside must be installed (Fig. 2a). If this is not possible, an electric fan installed in an external wall or window may be used; the fan should have a capacity to circulate air at an hourly rate of 3 to 5 times the total volume of the kitchen (Fig. 2b). The fan can only be installed if the kitchen has suitable vents to allow air to enter, as described under ‘Providing adequate ventilation’ above.

Extractor hood to extract steam

H min 650 mm

Air vent

Fig. 2a Ventilation with an extractor hood

Electric fan to extract steam

Air vent

Fig. 2b Ventilation with an electric fan

Installation instructions

Fastening the cooktop to the bench

Turn the cooktop upside down and place it on a soft surface.

Spread the seal around the edges, with the adhesive side facing down.

Mount the supplied front and rear clamps (R) and screws (S) onto the cooktop, as shown

(without tightening the screws).

Place the cooktop into the cutout, then tighten the screws to clamp the cooktop securely to the

bench.

Using a sharp cutter or trimmer knife, trim the excess sealing material around the edge of the

cooktop. Take care not to damage the benchtop.

Note: if your bench is thicker than 40 mm, recess the underside to between 20 and 40 mm.

Adhesive side

40 mm

20 mm

Seal

Fig. 3 Preparing the cooktop before installation

Fig. 4 Fastening the cooktop to the bench

min

30 mm

Installation instructions

Gas installation requirements

Important !

Before installation, make sure that the local distribution conditions (gas type and pressure) and the adjustment of this appliance are compatible. The appliance adjustment conditions are given on the plate or the label. This appliance must be installed and serviced only by a suitably qualified, registered installer with technical knowledge of both gas installation and electricity. The installation or service must comply with the current editions of the applicable standards, regulations, and codes of practice governing gas and electrical installations. Failure to install the appliance correctly could void any manufacturer’s warranty.

This appliance is supplied for use on NATURAL GAS or LPG or TOWN GAS (check the gas

regulation label attached on the appliance). Appliances supplied for use with NATURAL GAS: these are adjusted for this gas only and cannot be used with any other gas (LPG or TOWN GAS) without modification. The appliances may be converted to LPG or TOWN GAS using the conversion kit.* Appliances supplied for use on LPG: they are adjusted for this gas only and cannot be used on any other gas (NATURAL GAS or TOWN GAS) without modification. The appliances may be converted to NATURAL GAS or TOWN GAS using the conversion kit.* Appliances supplied for use with TOWN GAS: these are adjusted for this gas only and cannot be used with any other gas (NATURAL GAS or LPG) without modification. The appliances may be converted to NATURAL GAS or LPG using the conversion kit.*

*If the NATURAL GAS/LPG/TOWN GAS conversion kit is not supplied with the appliance, this kit can be purchased by contacting Fisher & Paykel. Please see your ‘Warranty & Service’ booklet for further details.

Installation instructions

Gas Connection

Note: Connection to the gas supply may be made using either a rubber hose (where permitted) or by using a flexible hose or rigid pipe.

Gas connection with a rubber hose

Important !

A rubber hose connection shall only be made if permitted by the applicable local regulations.

The gas connection fitting (Fig. 5a) is made up of: the appliance inlet pipe;

the floating nut; the brass elbow; the washers; the appropriate hose holder (for NATURAL GAS/TOWN GAS or LPG).

Gas connection with rubber hose holder

is supplied with the product in a separate kit; if not supplied with the appliance

(Important: to be used ONLY IF PERMITTED by the local applicable regulations)

Note: if not already fitted on the inlet pipe, the hose holder

it can be purchased by contacting Customer Care.

Turning the gas

connection fitting

(ISO 228-1) female

Rubber hose (not supplied)

for LPG connection

(internal diameter 8 mm)

½ ” G cylindrical

(ISO 228-1) male

Brass elbow

½ ” G cylindrical

Hose holder for

NATURAL GAS or TOWN GAS

Washer

Hose adaptor

for LPG

Washer

½ ” G cylindrical (ISO 228-1) male

Hose clamp (not supplied)

Floating nut

Appliance

inlet pipe

½ ” G cylindrical (ISO 228-1) female

Hose holder for NATURAL GAS or TOWN GAS

Hose clamp (not supplied)

Rubber hose (not supplied) for NATURAL GAS or TOWN GAS connection (internal diameter 13 mm)

Fig. 5a Gas connection

with a rubber hose

Installation instructions

Connecting the appliance to NATURAL or TOWN GAS

If not already fitted, fit the NATURAL/TOWN GAS hose holder on the inlet pipe, making sure that you place the sealing washer between them (as shown in Fig. 5a).

Connect the appliance to the gas supply using a suitable rubber hose (internal diameter 13 mm).

The hose must comply with the applicable local regulations and be of the correct construction

for the type of gas being used.

Make sure that the hose is tightly and securely fitted at both ends.

Use a standard hose clamp (not supplied) to fasten the hose.

Connecting the appliance to LPG

If not already fitted, fit the LPG adaptor on the inlet pipe, making sure that you place the sealing washer between them (as shown in Fig. 5a).

Important!

The LPG hose holder is formed by screwing the LPG hose adaptor into the bottom end of the NATURAL/ TOWN GAS hose holder, (with the sealing washer placed in between them).

Connect the cooktop to the gas supply using a suitable rubber hose (internal diameter 8 mm). The hose must comply with the applicable local regulations and be of the correct construction for the type of gas being used.

Make sure that the hose is tightly and securely fitted at both ends.

Use a standard hose clamp (not supplied) to fasten the hose.

Install a gas pressure regulator.

Important!

To comply with applicable local regulations, a gas pressure regulator (conforming to the current local regulations) must be installed when connecting the appliance to an LPG cylinder.

When connecting the appliance to the gas supply with a rubber hose, make sure that

the hose is as short as possible, without twists or kinks. the hose is not longer than 750 mm (or refer to applicable local regulations) and does not come

into contact with sharp edges, corners or moving parts. Use a single rubber hose only; never connect the appliance with more than one rubber hose. the hose is not under tension, twisted, kinked, or too tightly bent, neither while the appliance is in use nor while it is being connected or disconnected.

the hose does not come into contact with any part of the appliance with a surface temperature

of 70°C or above (or refer to applicable local regulations).

the hose is not subject to excessive heat by direct exposure to flue products or by contact with

hot surfaces.

the hose can easily be inspected along its entire length to check its condition. the hose is replaced at the printed due date or if it shows signs of wear or damage, and replaced

regardless of its condition after a maximum of three years.

you inform the customer that the gas cylinder valve or the gas supply valve immediately by the

appliance should be closed when the appliance is not in use.

you inform the customer that the hose should not be subjected to corrosion by acidic cleaning

agents.

Installation instructions

After connecting the appliance to the gas supply, make sure that you

check the piping and connections using a soapy solution. The presence of bubbles indicated a

leak. Tighten or replace connectons as appropriate, then recheck for leaks.

Important!

Do not use any naked flame to check for leaks.

check whether the injectors are correct for the type of gas being used. If not, follow the

instructions under “Converting the cooktop to a different gas type”.

replace the sealing washer/s on the slightest sign of deformation or imperfection. The sealing

washer/s is/are the part/s which guarantee/s a good seal in the gas connection.

Gas connection with rigid pipes or a flexible hose

The gas connection fitting (Fig. 5b) is made up of: the appliance inlet pipe:

the floating nut; the brass elbow; the washers.

Gas connection with rigid pipes or a flexible hose

Note: if already fitted on the inlet pipe, remove the rubber hose holder

½ ” G cylindrical

(ISO 228-1) male

Brass elbow

Washer

Floating nut

Turning the

gas connection

fitting

Fig. 5b Gas connection with rigid pipes or a flexible hose

(ISO 228-1) female

Washer

½ ” G cylindrical

Flexible pipe

(not supplied)

½ ” G cylindrical (ISO 228-1) male

½ ” G cylindrical (ISO 228-1) female

Rigid pipe (not supplied)

Appliance

inlet pipe

Important !

If fitted, remove the rubber hose holder from the terminal fitting of the inlet pipe.

When connecting the appliance to the gas supply with rigid pipes or a flexible hose ensure:

you use rigid pipes or a flexible hose compliant with applicable local regulations. The flexible hose shall be of the correct construction for the type of gas being used and of the correct size to maintain the heat output of the appliance. the connection with rigid metal pipes does not cause stress or pressure to the gas piping. the flexible hose is not under tension, twisted, kinked, or too tightly bent, neither while the cooktop is in use nor while it is being connected or disconnected.

Installation instructions

the flexible hose is not longer than 2000 mm (or refer to applicable local regulations) and does not come into contact with sharp edges, corners, or moving parts, as these may cause abrasion. Use a single flexible hose only; never connect the appliance with more than one flexible hose. the flexible hose can easily be inspected along its entire length to check its condition; if it has an expiry date, it should be replaced before that date. if using a flexible hose which is not entirely made of metal, make sure that it does not come into contact with any part of the cooktop with a surface temperature of 70 applicable local regulations). the rigid pipe or flexible hose is replaced if it shows signs of damage. the flexible hose is not subject to excessive heat by direct exposure to flue products or by contact with hot surfaces. a gas pressure regulator, in compliance with the applicable local regulations, is installed when connecting to an LPG cylinder. the socket into which the plug of the flexible hose fit is permanently attached to a firmly fixed gas installation pipe and is positioned so that the hose hangs freely downwards. the plug of the flexible hose is accessible after installation, so that it can be disconnected for service or removal. you inform the customer that the gas cylinder valve or the gas supply valve immediately by the cooker should be closed when the appliance is not in use. you inform the customer that the rigid pipe or flexible hose should not be subjected to corrosion by cleaning agents.

C or above (or refer to

After connecting the appliance to the gas supply, make sure that you

check the piping and connections using a soapy solution. The presence of bubbles indicated a

leak. Tighten or replace connectons as appropriate, then recheck for leaks.

Important!

Do not use any naked flame to check for leaks.

check whether the injectors are correct for the type of gas being used. If not, follow the

instructions under “Converting the cooktop to a different gas type”.

replace the sealing washer/s on the slightest sign of deformation or imperfection. The sealing

washer/s is/are the part/s which guarantee/s a good seal in the gas connection.

Testing operation

The operation of the appliance MUST be tested before leaving. Turn on the gas and light each

burner. Check for a well-defined blue flame without any yellow tipping. If any abnormailty is evident, check that the burner cap is located properly and the injector nipple is aligned correctly.

Check the minimum burner setting by quickly rotating the burner knobs from the maximum

to the minimum position: the flame must not go out. If the adjustment is required, see section ‘Adjusting a burner’s minimum gas rate setting’ following.

If satisfactory performance cannot be obtained, check the installation and notify the local gas

supply authority of a gas supply problem, or if it is an appliance problem, Customer Care should be called to obtain the nearest authorised Service Agent.

Installation instructions

Converting the cooktop to a different gas type

Important!

Only a suitably qualified and registered person may convert the cooktop to a different gas type.

To convert from one gas type to another, you need to replace the injectors, and then adjust the minimum gas rate setting.

Replacing the injectors

Remove the pan supports and burners from the cooktop.

Using a spanner, remove the injectors and replace them with ones suitable for the type of gas you are converting the cooktop to. See the ‘Table for the choice of injectors’.

The burners are designed so that regulation of primary air is not required.

Injector

Fig. 7 Triple-ring wok burnersFig. 6 Semi-rapid burners

Adjusting a burner’s minimum gas rate setting

Check whether the flame spreads to all burner ports when the burner is lit with the gas valve set to the minimum position. If some ports do not light, increase the minimum gas rate setting. Check whether the burner remains lit even when the gas valve is turned quickly from the maximum to the minimum position. If the burner does not remain lit, increase the minimum gas rate setting.

To adjust the minimum gas rate setting

Make sure the burner is lit.

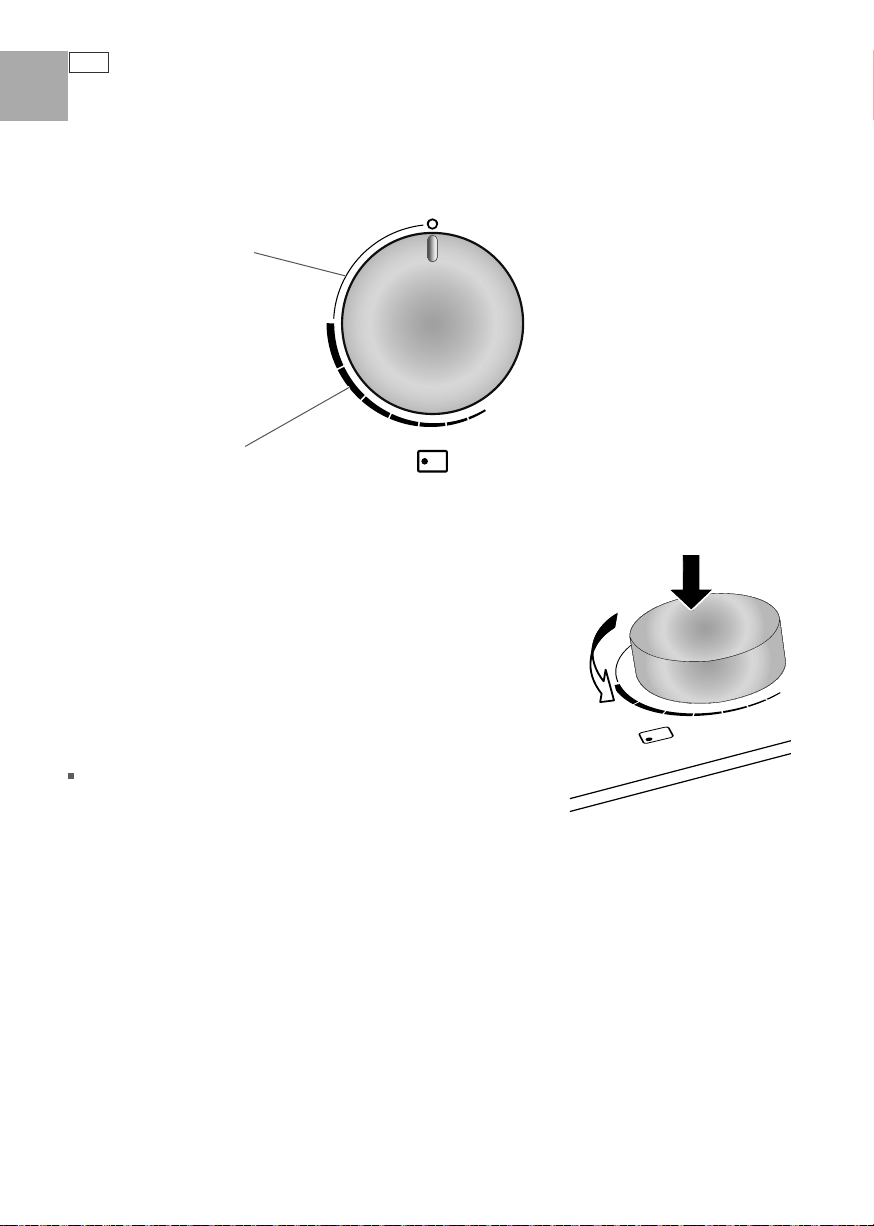

Turn the knob to the minimum position.

Remove the knob.

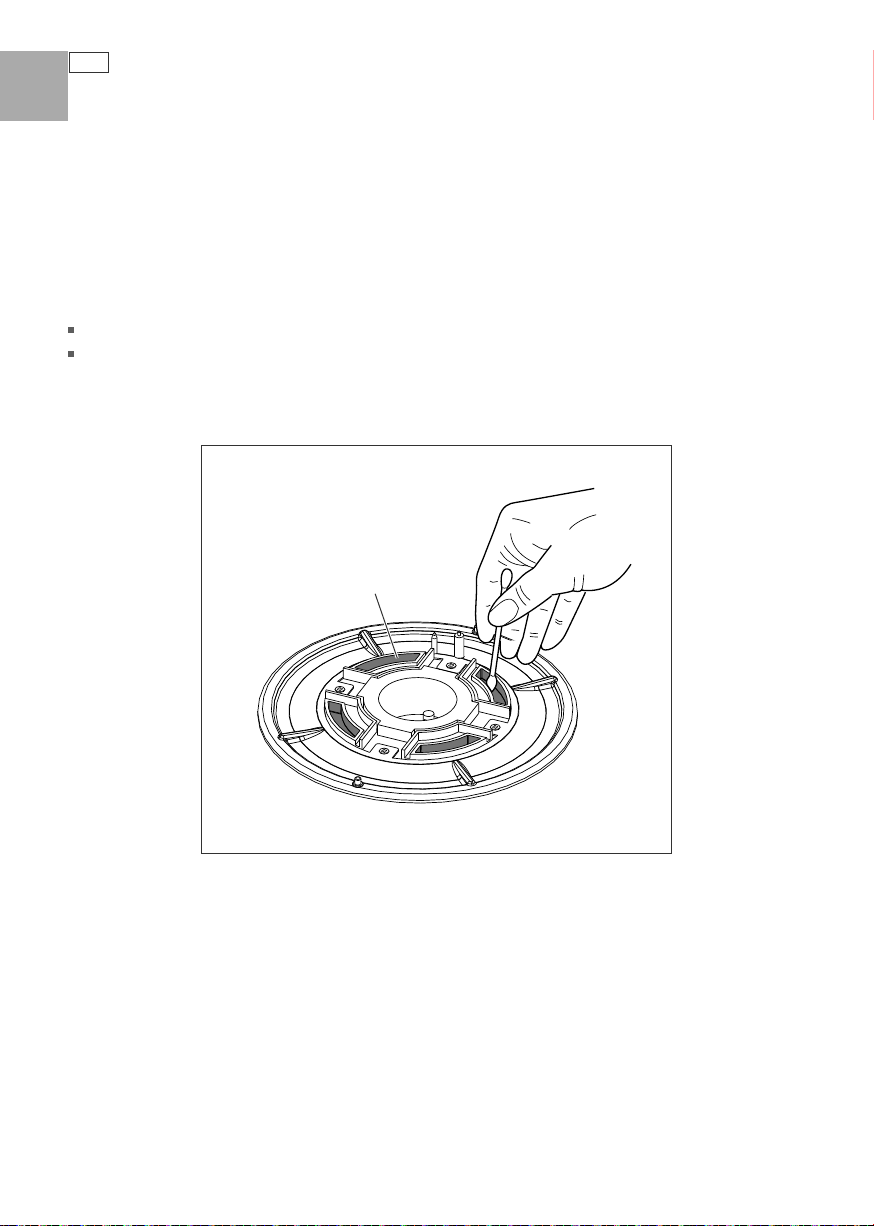

Using a screwdriver, turn the adjustment screw

until the flame setting is correct.

For LPG, tighten the adjustment screw completely.

Fig. 8 Adjusting a burner’s minimum gas rate setting

Adjustment

screw

Installation instructions

Table for the choice of injectors

BURNER TYPE Semi-rapid Triple-ring

NOMINAL POWER (W)

REDUCED POWER (W)

INJECTOR

(1/100mm

or marking)

By-pass

(1/100mm)

Natural Gas 20mbar 97 Z 135 T

LPG 29mbar 65 - 95 -

Town Gas 8mbar 190 2 340 6

Natural Gas 20mbar Adjustable Adjustable

LPG 29mbar 34 - 65 -

Town Gas 8mbar Adjustable Adjustable

1750 3500

450 1500

Additional

marking

Additional

marking

Installation instructions

Electrical connection

Important!

This appliance must be earthed. Installation must be carried out according to the manufacturer’s instructions. Incorrect installation may cause harm and damage to people, animals or property, for which the manufacturer accepts no responsibility. If the installation requires alterations to the domestic wiring system, call a qualified electrician. The electrician should also check that the socket cable section is suitable for the power drawn by the appliance. Before carrying out any work on the electrical section of the appliance, it must be disconnected from the power supply. The appliance must be connected to the mains power supply checking that the voltage corresponds to the value given in the rating plate and that the electrical cable sections can withstand the load specified on the plate. If the appliance is supplied without a plug, fit a standard plug which is suitable for the power consumed by the appliance. The plug must be connected to an earthed socket in compliance with safety standards. Do not use adapters, reducers, a multi-outlet power board or branching devices when connecting this appliance to the mains power supply, as doing so can cause overheating and burning. A suitable isolating switch providing full disconnection from the mains power supply must be incorporated in the permanent wiring, mounted and positioned to comply with the local wiring rules and regulations. The switch must be of an approved type and provide a 3 mm air gap contact separation in all poles in accordance with the local wiring rules. The switch or socket must be accessible with the appliance installed. The power supply cable must not touch any hot parts and must be positioned so that it does not exceed 75°C at any point along its length. If the power supply cable is damaged, it must be replaced by a cable of the same type. It can only be replaced by the manufacturer, its Service Agent or a similarly qualified person in order to avoid a hazard. As the colours of the wires in the power supply cable of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

Colour of power supply cable wire Colour or mark of plug terminal

Green & Yellow “E” (Earth) or green or Blue “N” (Neutral) or black Brown “L” (Live) or red

Power supply cable section

Type H05V2V2-F, resistant to temperature of up to 90oC

Power supply

230 V~ 50 Hz 3 x 0.75 mm

230 V

L1 N(L2)PE

Fig. 9 Connection diagram

Installation instructions

Final checklist

TO BE COMPLETED BY THE INSTALLER

Have you installed the clamps?

Have you clamped the cooktop to the bench securely?

Have you used the supplied washers?

Have you leak-tested all connections?

Is the cooktop set for the correct gas type and pressure?

Are the injector sizes correct for the gas type?

Is the cooktop earthed?

Check that the power supply cable is NOT touching the cooktop.

OPERATION:

Do all burners ignitie individually and in combination?

Do the burners remain lit when turned down?

Are the flames consistent and appropriately sized?

Have you demonstrated the basic operation to the customer?

Installer’s name:

Installer’s signature:

Installation company:

Date of installation:

LEAVE THESE INSTRUCTIONS WITH THE CUSTOMER

+ 47 hidden pages
