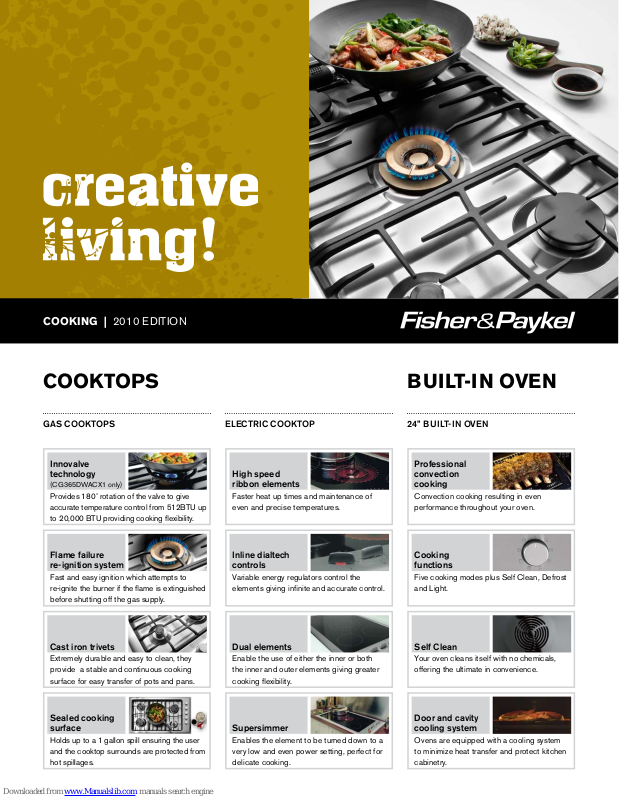

Fisher & Paykel CG365CWACX1, CG365DWACX1, OB24SDPX1, CE901SS Specification Sheet

COOKING | 2010 EDITION

COOKtOps

GAS COOKTOPS ELECTRIC COOKTOP

Innovalve
technology

(CG365DWACX1 only)

Provides 180˚ rotation of the valve to give
accurate temperature control from 512BTU up
to 20,000 BTU providing cooking flexibility.

Flame failure
re-ignition system

Fast and easy ignition which attempts to
re‑ignite the burner if the flame is extinguished
before shutting off the gas supply.

Cast iron trivets

Extremely durable and easy to clean, they
provide a stable and continuous cooking
surface for easy transfer of pots and pans.

High speed
ribbon elements

Faster heat up times and maintenance of
even and precise temperatures.

Inline dialtech
controls

Variable energy regulators control the
elements giving infinite and accurate control.

Dual elements

Enable the use of either the inner or both
the inner and outer elements giving greater
cooking flexibility.

BuIlt-IN OveN

24” BUILT-IN OVEN

Professional
convection
cooking

Convection cooking resulting in even
performance throughout your oven.

Cooking
functions

Five cooking modes plus Self Clean, Defrost
and Light.

Self Clean

Your oven cleans itself with no chemicals,
offering the ultimate in convenience.

Sealed cooking
surface

Holds up to a 1 gallon spill ensuring the user
and the cooktop surrounds are protected from
hot spillages.

Supersimmer

Enables the element to be turned down to a
very low and even power setting, perfect for
delicate cooking.

Door and cavity
cooling system

Ovens are equipped with a cooling system
to minimize heat transfer and protect kitchen
cabinetry.

Gas COOKtOps

BuIlt-IN OveN

CG365CWACX1

Gas Cooktop

CG365DWACX1

Gas Cooktop

Features:

Innovalve technology –
Porcelainized cast iron grates
Burner indicator lights / fault indication –

3 3

3

3

Spill containment (gallons) 1 1
Automatic re‑ignition
LPG conversion jets supplied

3 3

3 3

BTU outputs: Natural Gas LPG Natural Gas LPG

Center burner 14,000–3,412 13,000–3,412 20,000–3,753 19,000–3,753
Rapid burner 2 at 8,000–2,388 2 at 8,200–2,388 2 at 8,000–2,388 2 at 8,200–2,388
Semi‑rapid burner 5,800–1,365 5,700–1,365 5,800–1,365 5,700–1,365
Simmer burner 3,000–512 3,500–512 3,000 – 512 3,500 – 512

Accessories:

Griddle and simmer mat –

Full 1 Year Parts & Labor Warranty:

3 3

3

Product Dimensions (inches):

A Overall width of product 36 36
B Overall depth of product 21
C Overall height of chassis 2

Cutout Dimensions (inches):

D Overall depth of cutout 19
E Overall width of cutout 34

1

/

2

9

/

16

1

/

4

1

/

4

21 1/

3

19 1/
34 1/

2

4

4

eleCtrIC COOKtOp

CE901SS

Electric Cooktop

OB24SDPX1
Built-in Oven

Features:

Oven cavity usable space 2.0 cu.ft.

Oven Electric

Cooking modes 5 (plus Self Clean, Defrost

and Light)

Convection cooking

3

Broil element power 3000 W Turbo Broil
Automatic timer
Fahrenheit / Celsius selection
Grey porcelain interior
Electric clock
Undercounter and wall mount

3

3

3

3

3

Oven lights per cavity 1
Electrical requirement 13.1 amps
Brushed stainless steel finish

3

Accessories:

Racks 2
Broiling pan 2
Broiling rack 1
Glass baking tray 1

Full 1 Year Parts and
Labor Warranty:

Product Dimensions (inches):

A Overall height of product 23

3

31

⁄

32

B Overall width of product 24
C Overall depth of product

(excludes door)

Cabinetry Dimensions (inches):

D Inside height of cabinet 23
E Inside width of cabinet 22
F Inside depth of cabinet 22

22

3

⁄

64

1

⁄

32

3

⁄

64

7

⁄

16

Product / Cabinetry dimensions

Features:

Spill containment (gallons)

1

/

2

6” Medium element 1200 – 60W (2)
8” Large element 1800 – 90W (2)
9” Dual element 2,500 – 125 W
6” Inner of dual element 1,100 – 55 W

Full 1 Year Parts & Labor Warranty:

Product Dimensions (inches):

A Overall width of product 36
B Overall depth of product 21
C Overall height of chassis 3

Cutout Dimensions (inches):

D Overall depth of cutout 19
E Overall width of cutout 34

Product / Cutout dimensions

Gas Cooktop
CG365CWACX1
& CG365DWACX1

A

B

C

Electric Cooktop
CE901SS

E

1

/

2

1

/

8

1

/

2

1

/

4

A

E

D

Fisher & Paykel Appliances
www.fisherpaykel.com
www.fisherpaykel.ca
February 2010

Copyright © Fisher & Paykel 2010. All Rights Reserved.
The product dimensions and specifications in this brochure apply to the
specific products and models described at the date of issue. Under our policy
of continuous product improvement, these dimensions and specifications

B

may change at any time. You should therefore check with your dealer or

C

D

Fisher & Paykel’s Customer Care Center to ensure this brochure correctly
describes the products currently available.
