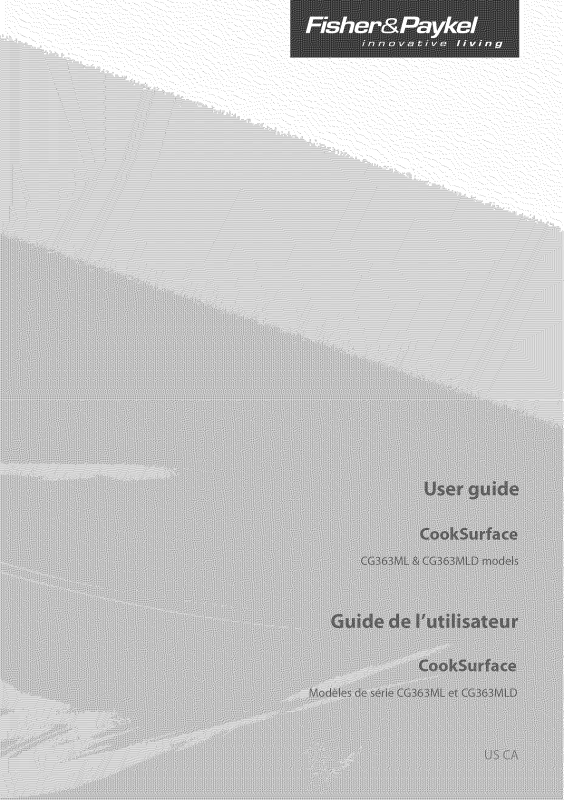

Fisher & Paykel CG363MLNGB1-88543A, CG363MLDNGB1-88544A Owner’s Manual
If the information in this manual is not
followed exactly, a fire or explosion may
result causing property damage, persona[
injury or death,
Do not store or use gasoline or other
flammable vapors and liquids in the v[dnity
of this or any other appliance°
NEVER use this appliance as a space heater
to heat or warm the room. Doing so may
result in carbon monoxide poisoning and
overheating of the appliance°
WHAT TO DO JFYOU SMELL GAS
o Do not try to Hght any app_Janceo
o Do not touch any e_ectricamswitch°
o Do not use any phone in your buimding,
o [mmediatemy ca[_ your gas supplier from a
neighbor's phone, Follow the gas suppmier's
instructions°
o If you cannot reach your gas supplier, ca[_ the
fire department,
Installation and service must be performed by
a qualified installer, service agency or the gas
Introduction
SafetyatMwamk'_gs
UsitsgyourCookSurface
Cooking guidelines
Care atsd deatsitsg
Sou_'@preference settings
Alert codes
Warranty and service
3
4
8
11
14
18
2O
22
25
SAVE THESEINSTRUCTIONS
7h_ mode/ hovvr:,iv:,this _serq_;id# m_y not _9__v_i/_,._/ein _//m_rke/s _r:,d_r__
£_>j_ct to ch_/_g___t _/_y time. for curr_Y:¢det_i/s _¢out mo(J_#<x:@p_cifJc_lio/_
_v#i/_,Ji/ity //q,yo_r co_rltrS p/#_ ¢ visit our/oct/we_,>sit_?/ist_?(]or:, th_ t>_c/(cover
or cor:,t#ct yo/x/oct/Nsh_?r & £#y/<e/de_;/_?£
ntroduction
introducing your CookSurface
Congratulations on your new purchase. The Fisher & Paykel CookSurface is the ultimate in gas
cooking, giving you the speed of gas, the precision and simplicity of electronic control, and the
easy<are elegance of a ceramic glass surface.
Your CookSurface has a number of features, including a constant flame safety system, automatic
cool-down responses, hot warning indicators, and audio and visual feedbackthrough the
electronic interface and built--in speakers.
Before using your CookSurface
Make sure the installer has completed the installation checklist in the installation instructions.
Read this guide, taking special note of the'Safety and warnings' section.
A heat--resistant removable sticker on the glass has been provided as a quick reference guide.
When you no longer need it, it can be easily peeled off.
--11 --12
6--
4--
5--
3 2 1 9 8 "l0 7 6
'I On/Off power button
2 On/Off light
s Keylock light
Pcm _upport_:
4 Burner head
5 Pan support pins
5 Trim rings
7 Control dial
Fig 1CGS63ML only ifiustr_ted
s Control display
9 Burner-ready light
'10 Hot warning light
11 Medium Aero _''burner
12 Small Aero _''burner
"Is Wok Aero _'_burner
Safety and warnings
Your safety is important to us. Please read this information before using your CookSurface.
£xp[osion Na_rd
Do not use water on grease fires. A violent steam explosion may resu[to
Smother fire or flame or use dry chemica_ or foam type extinguisher.
Do not use the appliance to heat unopened food containers, such as cans.
This will cause the container to burst and could result in injury,
Do not store flammable matedab such as gasoline near the appliance,
Do not spray aerosols in the v[dnity of thB appliance wMe it is in operatbn.
Failure to follow this advice may result in death or injury.
Clean the appliance with caution. [fa wet sponge or cloth isused to wipe
spills on a hot cooking area, be careful to avoid steam bum° Some cleaners
can produce noxious fumes if applied to a hot surface.
Never use this appliance asa space heater to heat or warm the room.
Doing so may result in carbon monoxide poisoning and overheating of the
Failure to follow this advice may result in poisoning or death.
£[ectrica[ Shock Na_rd
if the surface is cracked, switch the power to the appJiance off at the wa[[ to
avoid the possibility of electric shock. Ca[[your Authorized Service Center or
Customer Care,
Failure to follow this advice may result in electrical shock.
Safety and wamings
£[ectrica[ Shock Ha_rd
Before doing any user maintenance, locate the wail power outlet and
disconnect the appliance from the power supply and turn off the gas
supply at the shut-off valve°
This appliance is equipped with a three-prong grounding plug for your
protection against shock hazard and should be plugged directly into a
properly grounded power out[eto Do not under any circumstances cut or
remove the grounding prong from this plug°
Failure to follow this advice may result in electrical shock.
Hot Surface Hazard
Do not touch burners or areas near burners. Burners may be hot even
though they are dark in color. Burners and areas near burners may become
hot enough to cause bums° Toavoid risk of burns and!or fire, keep bose
clothing, pothoMers or any other flammable materiab we[[ dear of the
burner flame° Do not touch or let clothing, potho[ders or other flammable
matedaB contact burners or areas near burners until they have had sufficient
time to coo[. Among these areas isthe area within the @des around the
burners, including the pan support pins.
ABvays use a dry pothoMer when removing cookware from the app_ianceo
Do not use wet or damp potho[ders as these can cause steam burns. Do not
use toweB or similar cloths for removing cookware°
Do not leave children alone or unattended near the appliance. Never allow
chiMren to stand, sit or play near, on or with the appliance°
Becarefu_ when reaching for items stored in cabinets over the appliance°
Flammable matedab could be ignited if brought in contact with flame or hot
surfaces and may cause severe burns.
Failure to follow this advice could result in burns and scalds.
ii ililill
Safety and warnings
Have your appliance instaNed and properly grounded by a quMified installer in accordance with
the instMtation instructions.
Ensure that a manuM gas shutooff valve is instaNed in a locadon accessible after instaNation.
Be sure to have the installer show you how to turn off the gas and electrical supplyo
Use this apph%nce only for its intended purpose as described in this user guide.
This @ph%nce cannot be used in the event of a power failure. Do not attempt to operate the
app/iance during power failure.
Wear proper @pareL Loose fitting or hanging garments shouM never be wom while using the
apph%nce.
Turn the pot handles to the sMe or the back of the appliance away from the reach of children.
Handles shouM not be positioned over adjacent burners.
A/ways check that you have turned the burners off when you have finished cooking.
Never leave the appliance unattended when in use. Boiiover causes smoking and greasy
spiltovers that may Onite.
Before using the apph%nce, ensure that ait burners have been assembled correctlyo
Do not operate a burner without alt burner parts in place.
Always keep flammable walt coverings, curtains or drapes a safe distance from },our apph%nce.
For safety reasons, the burner flame size shoutd be adjusted so it does not extend beyond the
edge of the cookware.
Use cookware of the appropriate size and construcdon for the type of cooking. This appflance
is equoped with burners of different sizes. Cookware must be matched to the size of the burner
Select utensils with fiat bottoms targe enough to cover the burner flames. The use of undersize
utensils w,ilt expose a portion of the burner flames to direct contact and may resu# in Onition of
clothing. Proper relationsho of utensil to burner win also improve efficiency°
We recommend raising the pan supports first then pladng the pan on them (the pan supports are
not primarily designed for ##ing pans).
o Do not stand on this gas appfiance.
For safety reasons, do not store items of interest to children above or at the back of the appliance
,_ch#dren climbing on the appfance to reach items could be seriously iY_jure&
When deep4r_%_g in fat, be sure the pan is targe enough not to cause an overflow #om bubbiing
of the fat. Do not deep-fry foods with a high moisture content or food covered with #ost.
Do not let cooking grease or other flammable materiMs accumulate near the @ph%nce.
Do not repair or re#ace any part of the appfiance uMess spedficatty recommended in this user
guide. A# other servicing should be referred to a quarried technician.
@azed cooking utensils - oMy certain types of gtass, glass/ceramic earthenware, or other gtazed
utensils are suitable for cooktop service without breaking due to sudden change in temperature.
Safety and warnings
Do not obstruct the flow d combusdon and ventilation air to the @ph¢anCeo
TheGovernor of California L_required to pubh¢sha Hstd substances known to theState of
California to causecancer or reproductive harm and requires bus#_essesto warn customers of
potendaK exposures tosuch substances°
#_/ARNINGhGasappfances contain or produce substances which can cause death or serious
@_essand which are known to the State of @hTomia to causecance_ b#th defectsor other
reproductive harm° Toreducethe rL_kfrom substances #_fuel or#ore fuel combustion, make
sure this appfiance Lsinstaged, operated, and maintained according to the manufacturer_
instructions_
Using your CookSurface
Operating the CookSurface
!
\
Press the on/off
power button.
While the burner-_ready light is glowing,
turn the dial clockwise to light the gas.
Note: if the burner--ready light goes out
before you light the gas, press the dial
again.
Pressthe control dial.
A tone will sound.
The dial and the pan supports
will rise. The burner--ready
light will then glow for four
seconds.
s
.... i
5 Place your pan on the pan supports.
Operating the CookSurface
Using your CookSurface
Turn the dial to accurately adjust the flame.
Note: the flame wi[[ not go out if you keep
turning the dial down.
Sa To re[ight the burner when the pan supports are raised:
Press the dial The burnepready light wi[[ glow for four seconds.
While the burner--ready light is glowing, turn the dial clockwise to light the gas.
To stop cooking, press the dial The gas will
be shut off, and the pan supports wi[[ stay
raised. If they're hot, the hot warning light
will glow.
Using your 6ookSurface
_o3seconds
\.
Sb To lower the pan supports automatically after you have finished cooking, press and hold the
dial for three seconds while the burner is lit. The flame will go out and the pan supports, if cool
enough, will lower.
If the supports are hot, the hot warning light will glow and the control display will show a
descending sequence of lights until the burner has cooled. This can take between 30 seconds
and 30 minutes depending on the flame setting and how long the burner had been in use. Once
cool, the pan supports will lower automatically.
To turn the CookSurface off, press the on/off power button. Note: if a burner is still cooling, the
hot warning light will glow. Once cool, the burner will lower automatically and the CookSurface
will turn off.
Keytock
The keylock stops children from turning on the dials. }%u can only set the keylock when the
burners are offl ]o set the key[ock, press and hold the on/off power button for two seconds. A
tone will sound and the key[ock light will then glow. ]o turn the key[ock off, press and hold the
on/off power button for two seconds, a tone will sound and the keylock light will go out
6©©king guidelines
Do not use pans with jagged edges or drag pans across the ceram£ glass surface as this can
scratch the gtaSSo
Do not drag pans backwards and forwards across the pan support pins, burner heads and tr#n
rings eg when placing and removing pans or sauteing food_ as th_scan damage them, espeda_ly
the coating on the pan support p_nso
Cooking tips
Match the size of the pan to the burner, You may not need to change burners during cooking
because each Aero _''burner goes from very high to very low,
For best results use high-quality pans with flat, thick bases,
Only use just enough water to cover the food when boiling and use a lid on the pan to reduce
the cooking time and save energy.
For the small burner, pans should be 4" (10 cm) or larger in diameter,
For the medium burner, pans should be 6" (1S cm) or larger in diameter,
For the wok burner, pans should be 7" (18 cm) or larger in diameter, Woks should be no larger
than 16" (40 cm)_ Check that your wok is adequately supported by the wok stand.
Using the CookSurface's special talents
The Aero _''burners on your CookSurface are versatile, highly responsive and operate over a wide
range of settings, Turning the dial gives you accurate and repeatable control of the flame, Once
you know what setting is right for your cooking task, you can always use that exact setting for
the task.
Simmering, keeping food warm, and cooking rice
The low turn-down on the smaller Aero '' burners is perfect for delicate tasks, and for keeping
hot food warm. Experiment with the low settings until you find the one that suits your pans and
the food you are cooking,
Simmering occurs below boiling point, at around 185 °F (85 °C), when bubbles are just rising
occasionally to the surface of the cooking liquid, It is the key to delicious soups and tender stews
because the flavors develop without overcooking the food. You should also cook egg--based and
flour-thickened sauces below boiling point,
Some tasks, including cooking rice by the absorption method, may require a setting higher than
the lowest setting to ensure the food is cooked properly in the time recommended.
Cooking guidelines
Searing steak
To cook juicy flavorsome steaks:
"l Stand the meat at room temperature for about 20 minutes before cooking.
2 Heat up a heavy--based frying pan.
s Brush both sides of the steak with oik Drizzle a small amount of oil into the hot pan and then
lower the meat onto the hot pan.
4 Turn the steak only once during cooking. The exact cooking time will depend on the thickness of
the steak and how cooked you want it. Times may vary from about 2 - 8 minutes per side. Press
the steak to gauge how cooked it is - the firmer it feels the more 'well done' it will be_
5 Leave the steak to rest on a warm plate for a few minutes to allow it to relax and become tender
before serving_
Cooking guidelines
Using a wok
Use your wok oMy on the wok burner°
When using a wo£ Mways use the wok stando
Make sure the wok stand iSfitted correcdy over the raised pan supports° (.seeF@°2)
Do not use a wok larger than 16" (40 cm) diameter° Check that your wok is adequately supported
by the wok stand,
Make sure the w,ok does not push any other pans aside. ThLscould make them unstable, or deflect
heat onto nearby waNs or the countertop_
Fig2 Wok stand i ploced onto the raised wok burner pan supports
For stir-frying
1 Have all the ingredients and equipment ready, Stir-frying should be quick, If cooking large
q uantities, cook the food several smaller batches,
2 Preheat the wok for a minute or so with the burner turned up high enough to heat the sides of
the wok, {If your wok is small or thin-based, this may not be the highest setting on the burner,)
s Drizzle two tablespoons of oil around the sides of the hot wok, allowing it to run down into the
base,
4 Cook any meat first, put it aside and keep warm,
5 Stir-fry the vegetables, When they are hot but still crisp, turn the burner to low, return the meat
to the wok and add your sauce,
6 Stir the ingredients gently to make sure they are heated through.
7 Serve immediately.
Care and cleaning
Your CookSurface has been designed to combine the easy<are cleaning of ceramic glass with
the performance of gas.
Read through the _5afety and wamings_ and _Careand deaning_ sections carefu@ bef_re doing any
cleaning or maintenance°
To avoid the risk of electrical shock or burners being acddentaHy turned on during cleaning, make
sure you turn the CookSuNace off before deaning by pressing the on/off power button°
Remember that the CookSurface wiff need to be turned back on for the pan supports to rise and
lower See the specific cleaning instructions on the pages foffowing°
Tb maintain your CookSurface in good condition, follow the recommendations in the chart
below :
Immed_a_'_iy
Remove sugary spillovers or anything
that melts onto the ceramic glass. See
'Melts and spills that require immediate
attention'for instructions.
Keep the pan supports clean to ensure
that they rise and lower properly during
use. See'Cleaning the pan supports (the
pan support pins and burner heads)', o
Lower the cooled, dean pan supports
and wipe the CookSurface with a damp,
soft cloth and mild detergent. See
'Cleaning the ceramic glass' for further
instructions and information,
Check that the airflow through the air
filter mesh (on the underside of your
CookSurface) and the air intake grill
(installed in the base of your cabinet)
is not blocked or reduced, eg by
accumulated dust or other dirt.
Clean the mesh and grill with a small
brush if necessary.
Check the gas connection hose for any
sign of abrasion, kinking, or any other
damage.
Take care not to scratch @e
tings or pan support pins,
Takeextreme care when
working around hot
surfaces,
supports before lowering
@era.
Do not let spi#s andstains
become burnt onto the glass
or pan supports.
Do not use abrasive
sponges, heavy_duty or
unsuitable nylon scourers,
or corrosive deaners such
removers,
}f you aye unsure aS to
connection hose, contact
Center or Customer Care,
Care and cleaning
Melts and spills that require immediate attention
Anything that melts onto the ceramic glass surface or food spills with a high sugar content may
cause pitting of the ceramic glass surface if [eft there to coo[, Using extreme caution, remove
these spills immediately with a fish slice, palette knife or cooktop scraper, Take care when
working around the hot surfaces and ensure you do not scratch the glass or damage the trim
rings or pan support pins. Examples of melts and spi[B requiring immediate attention include:
melted pBtic wrap
melted aluminum foil
sugar, sugary syrups, jams and jellies
vegetables and vegetable water with a high sugar content eg peas, sweet corn, beet.
Cleaning the ceramic glass
For best results, do not let spills and stains become burnt onto the ceramic glass. Clean the
CookSurface after every use, Simply lower the cooled pan supports and the control dials and
wipe the CookSurface with a damp, soft cloth and mild detergent. A microfiber cloth is ideal for
this tasL Most soiling is very easy to remove because the glass does not get as hot as an electric
ceramic glass cooktop, Soften stubborn stains under a soapy cloth,
Ceramic cooktop cleaner
Ceramic cooktop cleaner may be used to spot<lean stubborn stains, Follow the instructions on
the container. If you must use a razor blade scraper, take care not to damage the trim rings.
ff cooktop cleaner residue Lsleft on the trim rings, it can dry on and may cause the pan supports,
control diats and power button to get stuck. Be caret°ul and wipe around the trim rings and not
over them,
-- Trim ring
Fig3 Cle_ming the cooking surk_ce
Loading...
