Compact 525 Stainless Steel
Refrigerator / Freezer
Models
P120R
C270R
C240BL C240BR
Series
B & D
517727
MANUAL 517727 June 2000
PRODUCTS
Brand |
Fisher & Paykel |
|
|
Voltage |
220-240V 50Hz |
|
|
Model |
Series |
Code |
|
C240BL |
B |
11172 |
11731 |
|
D |
12043 |
|
C240BR |
B |
11171 |
11730 |
|
D |
12042 |
|
C270R |
B |
11175 |
11734 |
|
D |
12046 |
|
P120R |
B |
11170 |
11729 |
|
D |
12041 |
|
Fisher & Paykel Customer Services |
Fisher & Paykel Ltd |
|
PO Box 798 |
Whiteware Spare Parts |
|
19 Enterprise St |
PO Box 14-148, Panmure. |
|
Cleveland, Queensland 4163 |
80 Springs Rd, East Tamaki |
|
Australia |
New Zealand |
|
Tel: (07) 3826 9122 |
Tel: (09) 272 0261 |
|
Fax: (07) 3826 9164 |
Fax: (09) 272 0219 |
|
Email: parts@fp.com.au |
Email: parts@fp.co.nz |
|
A.C.N 003 335 171 |
|
|
COPYRIGHT © FISHER & PAYKEL LTD 2000 |
1 |
|
MANUAL 517727
2
|
MANUAL 517727 |
CONTENTS |
|
DOOR ASSEMBLY SINGLE DOOR MODELS ...................................................................................................................... |
4 |
DOOR ASSEMBLIES BOTTOM FREEZER MODELS........................................................................................................... |
6 |
CABINET COMPONENTS MODEL P120 ............................................................................................................................... |
8 |
CABINET COMPONENTS MODEL C270............................................................................................................................. |
10 |
CABINET COMPONENTS MODEL C240B.......................................................................................................................... |
12 |
CONTROL BOX COMPONENTS........................................................................................................................................... |
14 |
EVAPORATOR PLATE/DEFROST HEATER....................................................................................................................... |
16 |

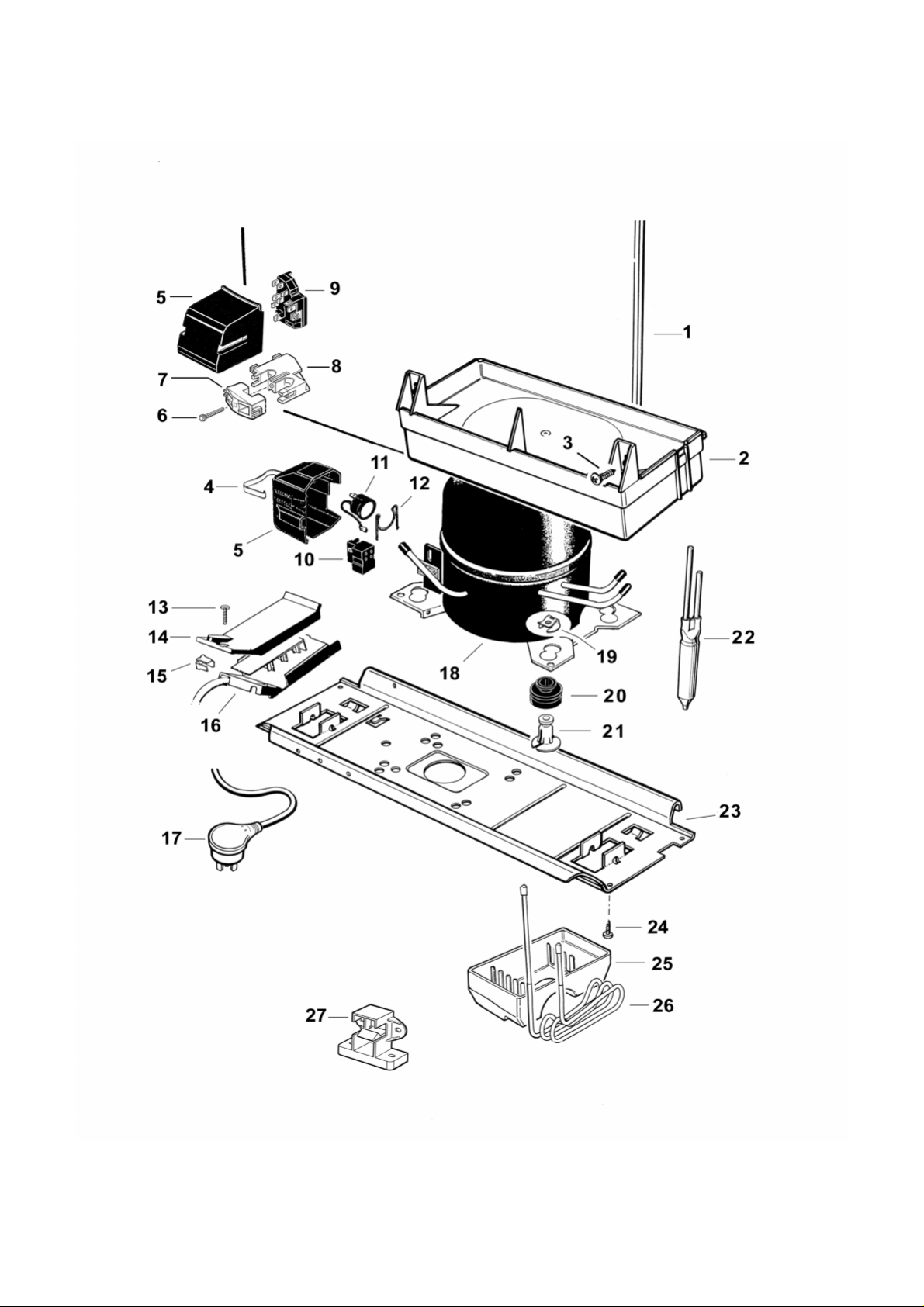

COMPRESSOR AND CABINET REAR................................................................................................................................. |
18 |
NOTES ...................................................................................................................................................................................... |
23 |
GUIDE TO USING THIS MANUAL
The model(s) and/or series covered by this manual are listed on the front cover.
The information detailed in this manual is subject to change without notice, the latest version is indicated by the reprint date and replaces any earlier editions.
The front cover picture shows the type of product and may not necessarily be an exact image of the models covered by the manual.
Part References
Where a Model is shown, the part is exclusive to the Model(s) stated. Common parts relating to a part reference are applicable to all other Model(s) which use the particular item.
Kit Parts
The components shown in italics are those parts in the kit which are available also as separate items. In addition, some parts may be supplied with this kit which are not available as separate items and are therefore not listed in this manual.
All details relating to Technical Bulletins or Notes are shown on a dedicated page. The Technical Bulletin Number shown relates to the bulletin version which is produced for New Zealand Service Centres.
Parts List Key |
|
NOT USED |
As a part, indicates the diagram part reference is not used in this manual. |
# |
Beside the part number, indicates the part is no longer available. |
italics |
Kit components shown in italics are also available separately. |
* |
Indicates a technical bulletin or note exists for the part or part reference. |
NI |
As a part reference, indicates the part is not illustrated on the diagram. |
3
MANUAL 517727
DOOR ASSEMBLY SINGLE DOOR MODELS
4
MANUAL 517727
DOOR ASSEMBLY SINGLE DOOR MODELS
REF PART
1881553
2NOT USED
3881554
4871123
5876253
6876281
7874977
8882650
9883122
10871129
11881044
12881555
881556
13315084P
315087P
14872027P
872029P
15881562
NI 479151 479186
DESCRIPTION |
MODEL |
BEARING HINGE 525 CH
COVER HINGE HOLE 525 CH
PLUG/PIN HINGE DAIRY COVER
COVER DOOR SHELF 525 MOULDED
PLUG DOOR SHELF WHITE
SHELF DOOR MOULDED 525 WHITE
RAIL BOTTLE SUPPORT 525
DIVIDER BOTTLE RAIL HS BLUE
BIN EGG/ICE MOULD ALL BRANDS
SCREW #8X22 WAFER PHIL STZP
BEARING DR CLOSING RH 525 CH
BEARING DR CLOSING LH 525 CH
DOOR PC SS525X 769 BS P120 C240B
DOOR PC SS525X1552 BS C270
GASK ASSY PUSHIN 525X1526 LTGR
GASK ASSY PUSHIN 525X 746 LTGR
BOOKLET USE & CARE 525 C635
LEAFLET SMART CARE NZ
LEAFLET SMART CARE WARRANTY AU
5
MANUAL 517727
DOOR ASSEMBLIES BOTTOM FREEZER MODELS
6
