Built In Walloven
Double & Combination
Series
Models
BI600ED BI600ED+
BI600QASE2
BI600QASE1.5
BI600XC
599072
MANUAL 599072 February 2000 Reprinted 7 December, 2001
PRODUCTS
Brand Fisher & Paykel, Shacklock
Voltage 220-240V 50Hz
Model Code
BI600ED+ 87540 87541 87542 87594
BI600QASE 2 87629 87661
BI600QASE1.5 87628 87660
BI600XC 84565 87589 87651
Fisher & Paykel Appliances Ltd
Appliance Spare Parts
PO Box 14-148, Panmure.
80 Springs Rd, East Tamaki
New Zealand
Tel: (09) 272 0261
Fax: (09) 272 0219
Email: parts@fp.co.nz
COPYRIGHT FISHER & PAYKEL LTD 2001 3
MANUAL 599072
4
MANUAL 599072
CONTENTS
BUILT IN DOUBLE CONTROL PANELS...............................................................................................................................6
BUILT IN DOUBLE CONTROLS.............................................................................................................................................8
BUILT IN DOUBLE ELEMENT & ACCESSORIES .............................................................................................................10
BUILT IN DOUBLE CHASSIS ASSEMBLY.........................................................................................................................16

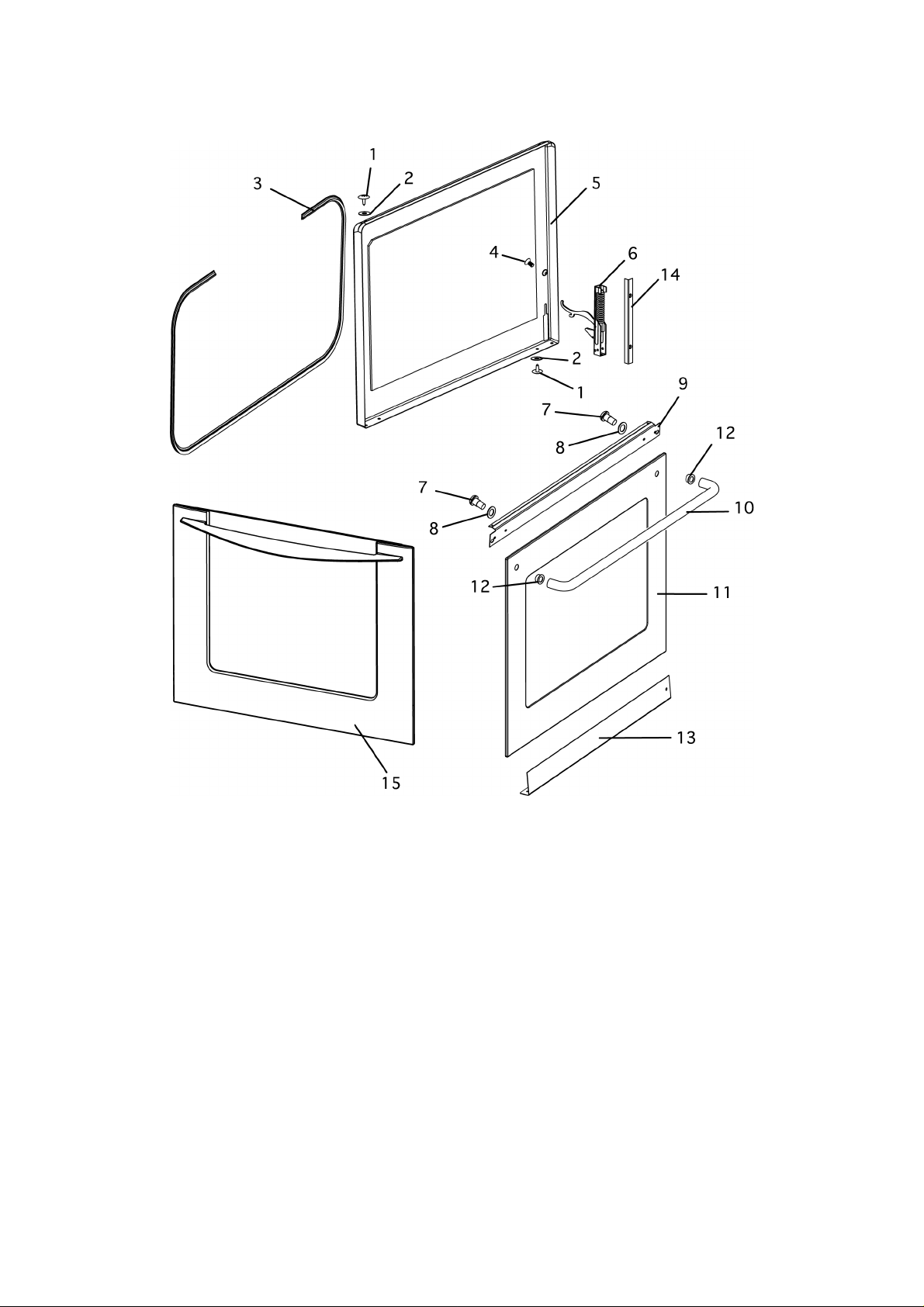

BUILT IN DOUBLE MAIN DOOR ASSY..............................................................................................................................22
BUILT IN DOUBLE LOWER DOOR ASSEMBLY...............................................................................................................24

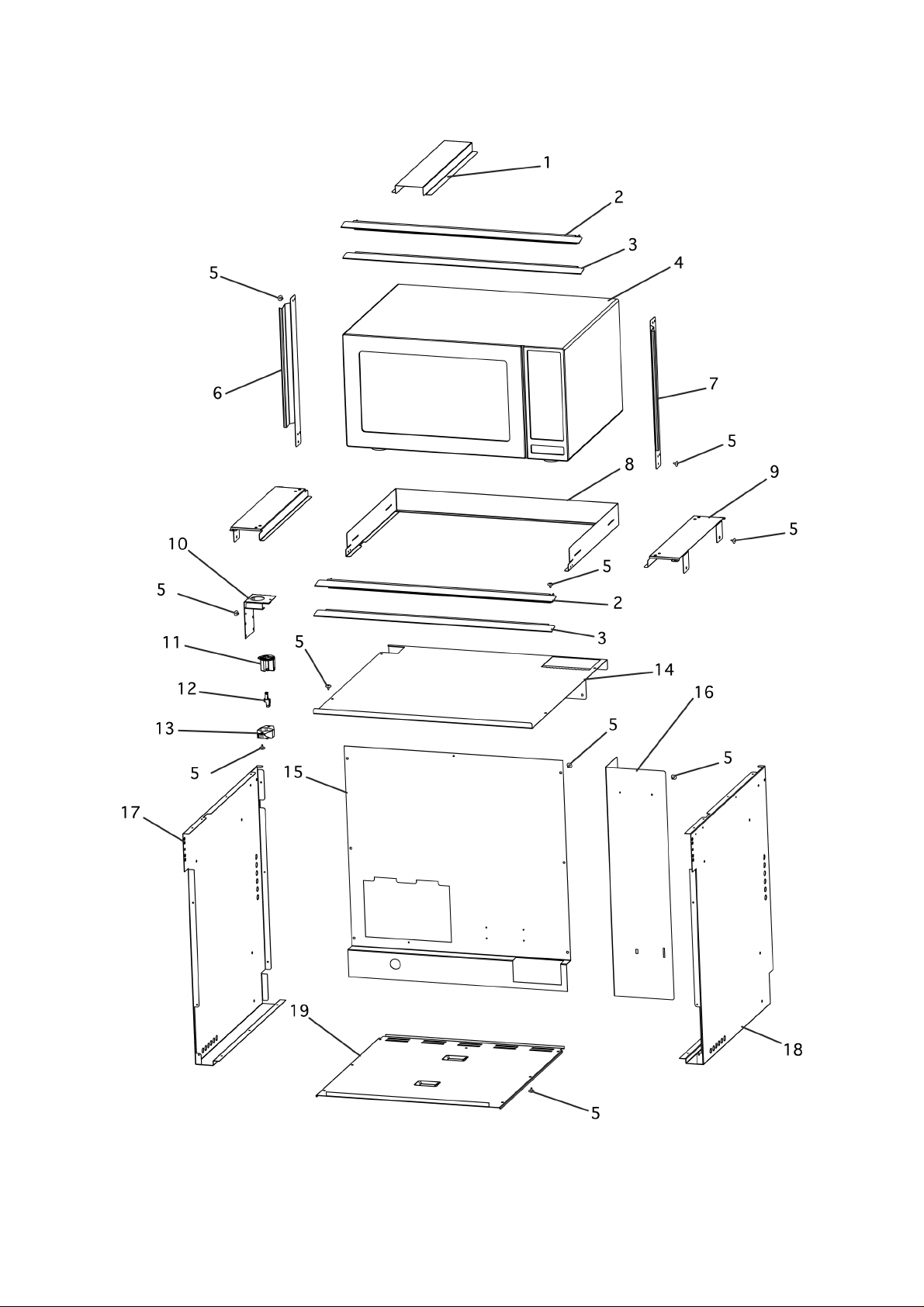

PANEL & TRIM COMPONENTS XC MODEL.....................................................................................................................26

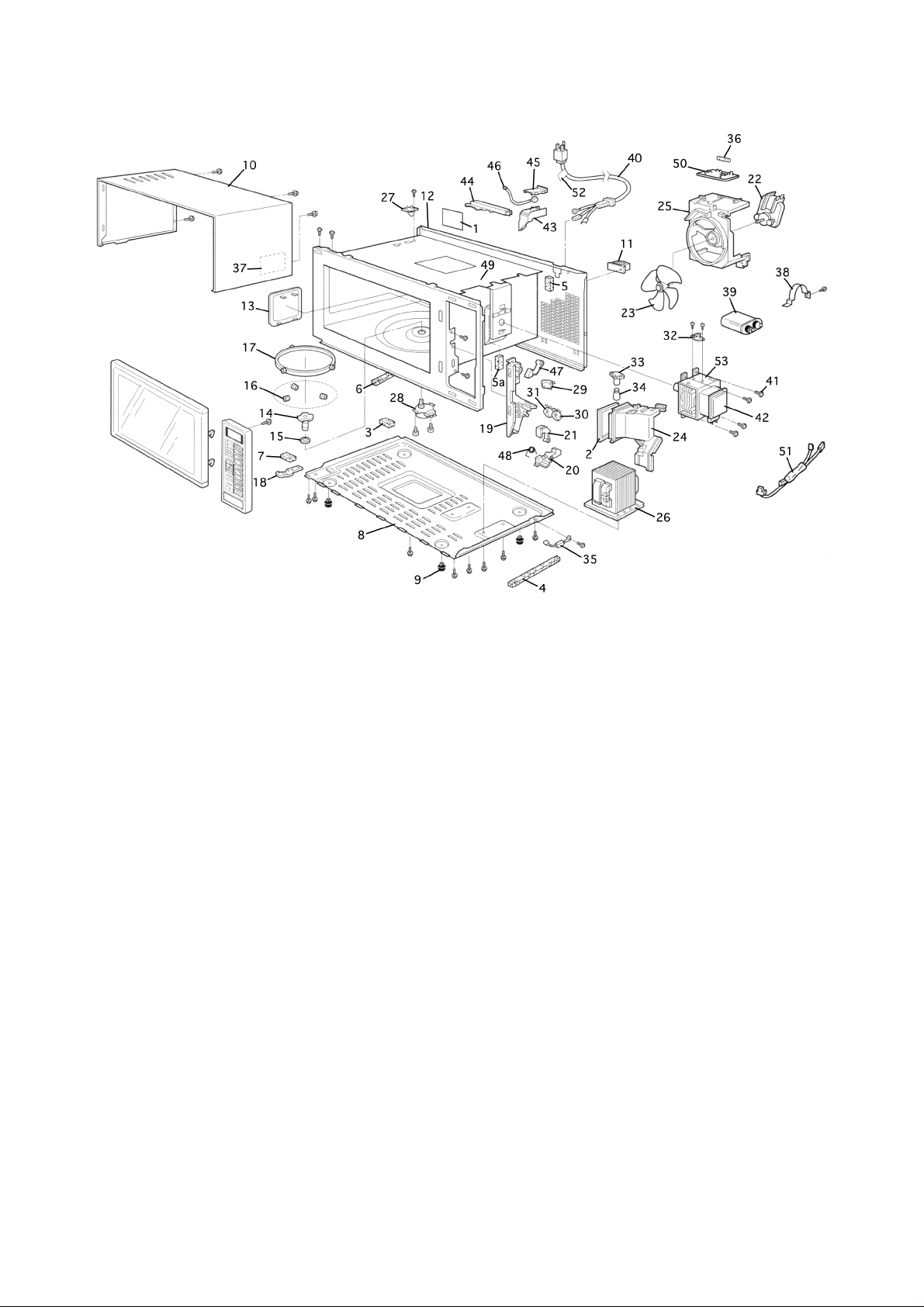

MICROWAVE PANASONIC NN-T687SA............................................................................................................................28
DOOR ASSEMBLY - NN-T687SA .........................................................................................................................................32
NOTES......................................................................................................................................................................................35
GUIDE TO USING THI S MANUAL
The model(s) and/or series covered by this manual are listed on the front cover.
The information detailed in this manual is subject to change without notice, the latest version is
indicated by the reprint date and replaces any earlier editions.
The front cover picture shows the type of product and may not necessarily be an exact image of the
models covered by the manual.
Part References
Where a Model is shown, the part is exclusive to the Model(s) stated. Common parts relating to a part
reference are applicable to all other Model(s) which use the particular item.
Kit Parts
The components shown in italics are those parts in the kit which are available also as separate items. In
addition, some parts may be supplied with this kit which are not available as separate items and are
therefore not listed in this manual.
All details relating to Technical Bulletins or Notes are shown on a dedicated page. The Technical
Bulletin Number shown relates to the bulletin version which is produced for New Zealand Service
Centres.
Parts List Key
NOT USED As a part, indicates the diagram part reference is not used in this manual.
# Beside the part number, indicates the part is no longer available.
italics Kit components shown in italics are also available separately.
* Indicates a technical bulletin or note exists for the part or part reference.
NI As a part reference, indicates the part is not illustrated on the diagram.
5
BUILT IN DOUBLE CONT ROL PANELS
MANUAL 599072
6
MANUAL 599072
BUILT IN DOUBLE CONTROL P ANELS
REF PART DESCRIPTION MODEL
1 447608
447609
2 540188
540221
540277
3 540436
540435
4 447504
5 540111
6 540387
540387
PANE L CONTR O L ASSY WO60 0 XSS SH
PANE L CONTR O L ASSY WO60 0 XSS FP
PANEL CONTROL GLASS BI600ED WH
PANEL CONTROL ASSY SS BI600ED
PANEL CONTROL ASSY BK BI600ED
CONTR O L CAP ASSY AST R O E2
CONTR O L CAP ASSY AST R O E1.5
PANEL CONTROL MOUNTING BI600X
PANEL CONTROL MOUNTING 600D SS
PANE L CONTR O L MOUNT IN G
PANE L CONTR O L MOUNT IN G
BI600XC
BI600XC
BI600ED
BI600ED
BI600ED
BI600QASE 2
BI600QASE1.5
BI600XC
BI600ED
BI600QASE 2
BI600QASE1.5
7
BUILT IN DOUBLE CONTROLS
MANUAL 599072
8
MANUAL 599072
BUILT IN DOUBLE CONTROLS
REF PART DESCRIPTION MODEL
1 447785
447785
447785
2 556020
3 540056
572427
572429
4 540301
540301
5 447651
6 447652
540317
7 572919
8 540431
260160
260160
SWITCH FUNCT EGO 42.09000.006
SWITCH FUNCT EGO 42.09000.006
SWITCH FUNCT EGO 42.09000.006
SCRE W MC M4X5 PAN PH MS NP
KNOB ASSY WEDGE SS
KNOB ASS Y WH/S C D 90
COMPRESSION RING SPIRE SCB1730
KNOB ASSY BK/SC D 90
COMPRESSION RING SPIRE SCB1730
KNOB AERON/ASTRO
KNOB AERON/ASTRO
NEON 240MM TYPE 60XXXH230
BEZEL NEON ROUND RED TYPE 601R
BEZEL N E O N AERO N
NEON 190MM (ACTIVE)
NEON BLUE ASTRO
BI600ED
BI600QASE 2
BI600QASE1.5
BI600ED
BI600ED
BI600ED
BI600QASE 2
BI600QASE1.5
BI600ED
BI600ED
BI600ED
BI600ED
BI600QASE 2
540431
9 571071
10 572642
572642
572642
11 447649
573124
540395
540394
12 447438
13 447824P
14 572341
15 447560
16 540385
17 540386
18 572699
NEON BLUE ASTRO
THERMOSTAT EG O 55.18064.040
CLOCK ELECT ORBIASIC6 13156003
CLOCK ELECT ORBIASIC6 13156003
CLOCK ELECT ORBIASIC6 13156003
BUTTON DIEHL 13126.438 BLACK
BUTTON DEI HL 13126-925 WH ITE
SPACER DOOR ASTRO
BUTTON CLOCK ASTRO
LENSE ADAPTOR DIEHL CLOCK
CONSOLE FAN FORCED SERVICE
LENSE INSERT CONSO LE ONE OVEN
BUTT ON MOUL D ING SS BI60 0
BUTTON CONTROL ASTRO X
GASKET BUTTON CONTROL ASTRO X
TERMINA L BLOCK SNT-8
BI600QASE1.5
BI600ED
BI600QASE 2
BI600QASE1.5
BI600ED
BI600ED
BI600QASE 2
BI600QASE1.5
BI600ED
BI600XC
BI600XC
BI600XC
19 540464
BRACKE T NEO N MO UNT IN G
9
BUILT IN DOU BLE ELEMENT & ACCESSORIES
MANUAL 599072
10
MANUAL 599072
BUILT IN DOUBLE ELEMENT & ACCESSORIES
REF PART DESCRIPTION MODEL
1 447746
540094
447746
447746
540094
2 NOT USED
3 447701
540173
447334
447334
540493
447701
4 571909
571909
404000
761001
PANEL SIDE ENAM CAT BK
PANEL SIDE LWROVEN ENAM CAT BK
PANEL SIDE ENAM CAT BK
PANEL SIDE ENAM CAT BK
PANEL SIDE LWROVEN ENAM CAT BK
RUNNERS WIRE ASSY PLATED
RUNNERS WIRE ASSY LWR P LATE D
RUNNERS WIRE ASSY PL SATIN CR
RUNNERS WIRE ASSY PL SATIN CR
RUNNERS WIRE ASSY LWR S ATI N CR
RUNNERS WIRE ASSY PLATED
LAMP ASY OVEN 708102-51-40-240
LAMP OVEN SES LUSTRE 230V 40W
COVER GLASS
LAMP ASY OVEN 708102-51-40-240
BI600ED
BI600ED
BI600QASE 2
BI600QASE1.5
BI600QASE1.5
BI600ED
BI600ED
BI600QASE 2
BI600QASE1.5
BI600QASE1.5
BI600XC
BI600ED
BI600XC
5 NOT USED
6 573112
573235
573236
573112
573235
573236
573112
573235
573236
573112
573235
573236
7 556107
404000
761001
LAMP OVEN SES LUSTRE 230V 40W
COVER GLASS
LAMP ASSY SIDE BJB 77.705
LAMP FLOODLIGHT 230V 25W SES
COVER GLASS FLOODLIGHT
LAMP ASSY SIDE BJB 77.705
LAMP FLOODLIGHT 230V 25W SES
COVER GLASS FLOODLIGHT
LAMP ASSY SIDE BJB 77.705
LAMP FLOODLIGHT 230V 25W SES
COVER GLASS FLOODLIGHT
LAMP ASSY SIDE BJB 77.705
LAMP FLOODLIGHT 230V 25W SES
COVER GLASS FLOODLIGHT
NUT M6 HEX 10AF FS MS ZNPL
BI600ED
BI600ED
BI600ED
BI600QASE 2
BI600QASE 2
BI600QASE 2
BI600QASE1.5
BI600QASE1.5
BI600QASE1.5
BI600XC
BI600XC
BI600XC
8 556510
9 447716
10 556095
11 540005
447330
WASHER LOCK 6MM INT SERR ST BU
ST UD MOUNT ING
SCREW ST 8X3/8 TAB MSH TX20 NP
GUARD TOP ELEMENT ENAM BU MOT
GUARD TOP ELEMENT PL SATIN CR
BI600ED
BI600QASE 2
11
BUILT IN DOUBLE ELEMENT & ACCESSORIES
MANUAL 599072
12
MANUAL 599072
BUILT IN DOUBLE ELEMENT & ACCESSORIES
REF PART DESCRIPTION MODEL
11 540702
447330
540702
540005
12 540510
13 571644
14 447735
447337
447337
447735
15 447364
447366
447366
447364
16 540547
540642
GUARD TOP ELEMENT ENAM FLINT
GUARD TOP ELEMENT PL SATIN CR
GUARD TOP ELEMENT ENAM FLINT
GUARD TOP ELEMENT ENAM BU MOT
ELEMENT ASSY TOP
PROBE MEAT DIEHL 713904023
RACK GRILL PLATED
RACK GRILL PLATED SATIN CR
RACK GRILL PLATED SATIN CR
RACK GRILL PLATED
RACK BAKE 600 PLATED
RACK BAKE 600 PLATED SATIN CR
RACK BAKE 600 PLATED SATIN CR
RACK BAKE 600 PLATED
RAC K GRILL INSERT PLATED
RACK GRI LL I NSERT S AT IN PLAT E D
BI600QASE 2
BI600QASE1.5
BI600QASE1.5
BI600XC
BI600XC
BI600ED
BI600QASE 2
BI600QASE1.5
BI600XC
BI600ED
BI600QASE 2
BI600QASE1.5
BI600XC
BI600ED
BI600QASE 2
540642
540547
17 447752
18 573067
19 572973
20 540003
540452
540452
540003
21 447756
447756
22 573161
573161
573161
573161
23 540113
RACK GRI LL I NSERT S AT IN PLAT E D
RAC K GRILL INSERT PLATED
ELEMENT ASSY FAN 20.29477.020
FAN LOCK NUT EB M
FAN BLADE (FASCO MOTOR)
TRAY BAKING 600 ENAM BU MOT
TRAY BAKING 600 ENAM FLINT
TRAY BAKING 600 ENAM FLINT
TRAY BAKING 600 ENAM BU MOT
SHROUD FAN ELEMENT ENAM CAT BK
SHROUD FAN ELEMENT ENAM CAT BK
SHROUD FAN ELEMENT ENAM CAT BK
SHROUD FAN ELEMENT ENAM CAT BK
SHROUD FAN ELEMENT ENAM CAT BK
SHROUD FAN ELEMENT ENAM CAT BK
SHROUD FAN ELEMENT ENAM CAT BK
BI600QASE1.5
BI600XC
BI600ED
BI600QASE 2
BI600QASE1.5
BI600XC
BI600ED
BI600XC
BI600ED
BI600QASE 2
BI600QASE1.5
BI600XC
BI600ED
540419
540113
540419
24 447828
25 540004
SHRO UD FAN BI45 AER O EN CAT BK
SHROUD FAN ELEMENT ENAM CAT BK
SHRO UD FAN BI45 AER O EN CAT BK
FILTER FAT
TRAY RO ASTING 600 ENAM BU MO T
BI600ED
BI600QASE1.5
BI600QASE1.5
BI600ED+
13
BUILT IN DOUBLE ELEMENT & ACCESSORIES
MANUAL 599072
14
MANUAL 599072
BUILT IN DOUBLE ELEMENT & ACCESSORIES
REF PART DESCRIPTION MODEL
25 540453
540453
540004
26 540451
540451
540451
540007
27 447751
28 540197
540454
540454
540197
NI 89017
NI 571972
447813
447820
TRAY ROASTING 600 ENAM FLINT
TRAY ROASTING 600 ENAM FLINT
TRAY RO ASTING 600 ENAM BU MO T
COVER LWR ELEMENT ENAM FLINT
COVER LWR ELEMENT ENAM FLINT
COVER LWR ELEMENT ENAM FLINT
COVER LWR E LE MEN T ENAM BU MO T
ELEMENT ASSY LOWER
BOOK USE & CARE BI600 F AN OVEN
BOOK USER GUIDE ASTRO E
BOOK USER GUIDE ASTRO E
BOOK USE & CARE BI600 F AN OVEN
ACPROD PIZZA STONE
PIZZA PADDLE
CARD INSTRUCTION PIZZA STONE
CARD WARRANTY (NEW ZEALAND)
BI600QASE 2
BI600QASE1.5
BI600XC
BI600ED
BI600QASE 2
BI600QASE1.5
BI600XC
BI600ED+
BI600QASE 2
BI600QASE1.5
BI600XC
NI 473664
NI 599056
NI 872959
NI 479151
CARD WARRANTY F&P AU
CARD INSTAL INSTR BI600/450
SMART CARE LEAFLET&ENVELOPE AU
LEAFLET SMART CARE NZ
15
BUILT IN DOU BLE CHASSIS ASSEMBLY
MANUAL 599072
16
MANUAL 599072
BUILT IN DOUBLE CHASSIS ASSEMBLY
REF PART DESCRIPTION MODEL
1 447507
2 447505
540649
3 447506
4 540039
540128
573220
5 572923
6 556037#
7 540074
540233
540713
540074
540712
540209
540688
COVER WIRI NG TOP
PANE L MO UNTI NG FAN D UCT
PANE L MO UNTI NG FAN D UCT
PANEL INSULATION FAN DUCT
LIMITER 140C CAMPINI TY60 NC
CLIP THERMA L LIMITER CAMPINI
LIMITER 155C CAMPINI TY60 NC
FAN KITSET J06OV10A 3/4 STACK
SCREW ST 8X5/8 TAB PAN PH HS NIPL
COVER WIRI NG BAC K SM DBL
COVER WI RING REAR 100/ 100
COVER WIRI NG BAC K 2DB L
COVER WIRI NG BAC K SM DBL
COVER WI RING BACK 1.5DB L
COVER WIRI NG BAC K
COVER WI RING BACK B I600XC
BI600ED
BI600QASE 2
BI600QASE 2
BI600QASE1.5
BI600QASE1.5
BI600XC
BI600XC
8 571878
9 573028
10 556047
11 572640
12 447612
13 447520
540120
14 556078
15 471651
16 540011
540430
540430
540011
17 556082
18 447512
540650
COVER INSPECTION
FAN CONSORT HR180006-A200
SCREW ST 4X3/8 TAB PAN PH NP
TER MINA L B LOCK MAIN S
GROMMET MAINS CABLE (IM6160)
VENT T UBE WO60 0
VENT T UBE LOWE R OVE N
SCREW ST 8X12MM TAB MTS PH BK
CLIP THERMST TUBE 3MM FT47220
GUARD THERMOSTAT ENAM BU MOT
GUARD THERMOSTAT ENAM FLINT
GUARD THERMOSTAT ENAM FLINT
GUARD THERMOSTAT ENAM BU MOT
SCRE W ST M4X12 XT ITE HX WP H NWX
BRACKET SUPPORT OVEN
BRACKET SUPPORT OVEN
BI600ED
BI600QASE 2
BI600QASE1.5
BI600XC
19 571630
20 540095
21 540012
540134
540730
PROBE TE MP. SENS OR HY CA L
BRACKET SUPPORT LOWER OVEN
OVEN&FRAME ENAM BI600E BU MOT
OVEN&FRAME ENAM BI600E BU MOT
OVEN&FRAME BI600E ENAM BU MOT
BI600QASE1.5
BI600ED
BI600ED
BI600ED
17
BUILT IN DOUBLE CHASSIS ASSEMBLY
MANUAL 599072
18
MANUAL 599072
BUILT IN DOUBLE CHASSIS ASSEMBLY
REF PART DESCRIPTION MODEL
21 540428
540738
540428
540738
540009
540136
540734
22 540157
540749
540472
540550
540753
540751
23 447551
540146
24 75017
OVEN&FRAME ENAM BI6QASE FLINT
OVEN&FRAME BI6QASE ENAM FLINT
OVEN&FRAME ENAM BI6QASE FLINT
OVEN&FRAME BI6QASE ENAM FLINT
OVEN&FRAME B I600X ENAM B U MOT
OVEN&FRAME ENAM BI600X BU MOT
OVEN&FRAME B I600X ENAM B U MOT
OVEN&FRAME ENAM 600D BU MOT
OVEN&F RA ME LWR BI6 ENAM B U MOT
OVEN & FRAME LOWER FLINT
OVEN & FRAMEL LOWER FLINT
OVEN&F RA ME LWR BI62 EN AM FLINT
OVEN&FRAME QASE1.5 ENAM FLINT
GASKET OVEN WO600 C/L 1775MM
GASKET OVEN LOWER 1484MM
PLATE CABLE ENTRY
BI600QASE 2
BI600QASE 2
BI600QASE1.5
BI600QASE1.5
BI600XC
BI600XC
BI600XC
BI600ED
BI600ED
BI600QASE 2
BI600QASE 2
BI600QASE 2
BI600QASE1.5
BI600QASE1.5
25 556084
26 74152
27 540073
540117
540655
540656
540231
540232
540658
540659
540073
540117
540655
540656
28 540190
540651
SCRE W TAPT ITE M4X25 HE XP H BZW X
CLAMP CABLE ENTRY
PANEL LEFT S ID E
PANE L RIGH T SIDE
PANEL SI DE LEF T 600D
PANEL SIDE RIGHT 600D
PANEL SI DE LEF T 100/100
PANEL SIDE RIGHT 100/100
PANEL SI DE LEF T 100-100
PANEL SIDE RIGHT 100-100
PANEL LEFT S ID E
PANE L RIGH T SIDE
PANEL SI DE LEF T 600D
PANEL SIDE RIGHT 600D
PANEL INSULATION BASE BI600
PANEL INSULATION BASE BI600
BI600ED
BI600ED
BI600ED
BI600ED
BI600QASE 2
BI600QASE 2
BI600QASE 2
BI600QASE 2
BI600QASE1.5
BI600QASE1.5
BI600QASE1.5
BI600QASE1.5
29 447580
540652
540653
540666
540667
GUARD HI NGE
DUCT HINGE RIGHT LARGE
DUCT HINGE LEFT LARGE
DUCT HINGE RIGHT SMALL
GUARD HINGE LEFT SMALL (VENTED FRAME)
BI600ED
BI600ED
BI600ED
BI600ED
19
BUILT IN DOUBLE CHASSIS ASSEMBLY
MANUAL 599072
20
MANUAL 599072
BUILT IN DOUBLE CHASSIS ASSEMBLY
REF PART DESCRIPTION MODEL
29 540652
540653
540666
540667
540652
540653
540666
540667
540652
540653
30 447657
31 556072
32 540195
33 540194
34 540196
35 540178
DUCT HINGE RIGHT LARGE
DUCT HINGE LEFT LARGE
DUCT HINGE RIGHT SMALL
GUARD HINGE LEFT SMALL (VENTED FRAME)
DUCT HINGE RIGHT LARGE
DUCT HINGE LEFT LARGE
DUCT HINGE RIGHT SMALL
GUARD HINGE LEFT SMALL (VENTED FRAME)
DUCT HINGE RIGHT LARGE
DUCT HINGE LEFT LARGE
HINGE COUNTER SUPPORT 6101071
SCR E W MC M5 X1 0 CS K P H MS BL AC K
DUCT LO WER VENT B I600D
DEFLECTOR AIR BI600ED
FAN EBM QLK45/1800-2518
BRACKET TRANS ITION JOIN
BI600QASE 2
BI600QASE 2
BI600QASE 2
BI600QASE 2
BI600QASE1.5
BI600QASE1.5
BI600QASE1.5
BI600QASE1.5
BI600XC
BI600XC
36 NOT USED
37 572699
38 571672
39 572971
40 572972
TERMINA L BLOCK SNT-8
HARNESS CONTROLLER/PROBE TM620
JACK PROBE LEFEVA J119 F MIC
COVER JACK PROBE LEFEVA C0-3
BI600XC
BI600XC
BI600XC
21
BUILT IN DOUBLE MAIN DOOR ASSY
MANUAL 599072
22
MANUAL 599072
BUILT IN DOUBLE MAIN DOOR ASSY
REF PART DESCRIPTION MODEL
1 556074
2 556504
3 447535
4 556072
5 540023
540440
540440
540023
6 447656
7 572710
572710
8 556522
556522
9 447514
447514
10 540192
SCREW ST 8X8MM TAB MTSPH BLACK
WASHER 4.0 10.0 0.8 FIBRE BK
GASKET DOOR WO600 C/L 1450MM
SCR E W MC M5 X1 0 CS K P H MS BL AC K
DOOR INNER ASSY BI600 BU MOT
DOOR INNER ASSY BI600 FLINT
DOOR INNER ASSY BI600 FLINT
DOOR INNER ASSY BI600 BU MOT
HINGE 6213210
SCREW LIMIT HANDLE DOOR 5.5MM
SCREW LIMIT HANDLE DOOR 5.5MM
WASHER 9.5 16 0.8 FIBRE
WASHER 9.5 16 0.8 FIBRE
BRACKE T IN NER DO OR TOP
BRACKE T IN NER DO OR TOP
HANDLE D SS FP
BI600ED
BI600QASE 2
BI600QASE1.5
BI600XC
BI600ED
BI600XC
BI600ED
BI600XC
BI600ED
BI600XC
BI600ED
572384
572386
447591
11 447571
447594
447733
447594
12 572042
572044
13 447516
14 * 447641
15 540437
540439
540439
NI 447449
HAND LE D F&P MULT I WH
HAND LE D F&P MULT IF UNCTIO N BLAC K
HAND LE D SS
GLASS DOOR OUTER D BK WO600
DOOR O UTER ASSY WO600X SS
GLASS DOOR 2ND SURF WH
DOOR O UTER ASSY WO600X SS
GROM MET D & SQUARE HA ND LE WH
GROM MET D & SQUARE HA ND LE BK
BRACKE T IN NER DO OR BOTTO M
BRACKET STIFFENER DOOR
DOOR OUTE R ASSY AS T RO FUL L
DOOR OUTE R ASSY AS T RO LON G
DOOR OUTE R ASSY AS T RO LON G
RIVET MO/OP 1/8 D-1/8 G
BI600ED
BI600ED
BI600XC
BI600ED
BI600ED
BI600ED
BI600XC
BI600QASE 2
BI600QASE 2
BI600QASE1.5
23
BUILT IN DOUBLE LOWER DOOR ASSEMBLY
MANUAL 599072
24
MANUAL 599072
BUILT IN DOUBLE LOWER DOOR ASSEMBLY
REF PART DESCRIPTION MODEL
1 556074
2 556504
3 540154
4 556072
5 540151
540441
6 540153
7 572710
8 556522
9 447514
10 447591
572055
572057
11 540083
540084
540150
SCREW ST 8X8MM TAB MTSPH BLACK
WASHER 4.0 10.0 0.8 FIBRE BK
GASKET DOOR 600D C/L 1159MM
SCR E W MC M5 X1 0 CS K P H MS BL AC K
DOOR INNER LWR ASSY600D BU MOT
DOOR INNER ASSY BI45O FLINT
HINGE 6216990
SCREW LIMIT HANDLE DOOR 5.5MM
WASHER 9.5 16 0.8 FIBRE
BRACKE T IN NER DO OR TOP
HAND LE D SS
HAND LE D WHITE
HAND LE D BLACK
GLASS DOOR OUTER 600D WH
GLASS DOOR OUTER 600D BK
DOOR OUTER LWR ASSY 600D SS
BI600ED
BI600QASE1.5
BI600ED
BI600ED
BI600ED
BI600ED
BI600ED
BI600ED
BI600ED
BI600ED
BI600ED
12 572042
572044
13 447516
14 * 447641
15 540438
NI 447449
GROM MET D & SQUARE HA ND LE WH
GROM MET D & SQUARE HA ND LE BK
BRACKE T IN NER DO OR BOTTO M
BRACKET STIFFENER DOOR
DOOR OUTE R ASSY AS T RO HA LF
RIVET MO/OP 1/8 D-1/8 G
BI600ED
BI600ED
BI600ED
BI600QASE1.5
25
PANEL & TRI M COMPONENTS XC MODEL
MANUAL 599072
26
MANUAL 599072
PANEL & TRIM COMPONENTS XC MODEL
REF PART DESCRIPTION MODEL
1 540211
2 540208
3 540207
4 540212
5 556095
6 540058
7 540059
8 447431
9 447430
10 572851
11 572204
12 75220
13 572205
14 447439
540687
75220
DUCT STEAM BI600XC
TRIM MICROWAVE UPPER SS
TRIM MICROWAVE LOWER SS
MICROWAVE OVEN NNT687SA
SCREW ST 8X3/8 TAB MSH TX20 NP
TRIM MICROWAVE LEFT SS
TRIM MICROWAVE RIGHT SS
BRACKET BAFFLE MI CROW A VE
BRACKET SUPPORT MICROWAVE
BRACKET MICROWAVE OUTLET
OUTLET SOCKET FACE WHITE
TERM OUTLET CONTACT H25748
TERM OUTLET CONTACT H25748
OUTLET SOCKET RETAINER
COVER WIRI NG TOP
COVER WIRING TOP BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
15 540209
540688
16 540210
540689
17 540175
540685
18 540176
540686
19 540190
540651
COVER WIRI NG BAC K
COVER WI RING BACK B I600XC
DUCT AIR
DUCT A IR BI600XC
PANE L SIDE L H MICRO WA VE
PANE L SIDE L H MICRO WA VE
PANEL SIDE RH MICROWAVE
PANEL SIDE RH MICROWAVE
PANEL INSULATION BASE BI600
PANEL INSULATION BASE BI600
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
27
MI CROWAVE PANASONIC NN-T687SA
MANUAL 599072
28
MANUAL 599072
MI CROW AVE PANASONIC NN-T 687S A
REF PART DESCRIPTION MODEL
1 B00065460JP
2 AMQ0902000AR
3 AMQ0902000BA
4 AMQ0902000AH
5 AMQ0908000AE
6 AMQ0928000AT
7 AMQ0904000BB
8 B10018640AP
9 B10088250AP
10 B110D9580AP
11 B11408760AP
12 B201A9390RP
13 A2055-1000
14 B21315540AP
15 B21777050AP
16 B202K4650AP
LABEL CAUT ION
RUBBER CUSHION
RUBBER CUSHION
CUSHION RUBBER A
CUSHION RUBBER A
CUSHION RUBBER A
CUSHION RUBBER A
BASE DP
FOOT DP
CABINET BODY
STOPPER A
OVEN 1.2 NN-T687SA
COVER
SHAFT PULLEY
WASHER DP
ROLLER B
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
18 A30077050AP
19 B30204830AP
20 B31374830AP
21 B31384830AP
22 2Z-9AUA.S.
23 B40085951AP
24 B40258250AP
25 B41447630AP
26 B621C9250QP
27 A601L5180AP
28 A63264760JP
29 ANE6142-1450
30 A61425180AP
31 A61785180AP
32 B61456240QP
33 B61524740AQ
HINGE LOWER DP
HOOK DOOR
SPACER HOOK B
SPACER HOOK C
MOTOR FAN
FAN BLADE
GUIDE AIR A
ORIFICE 1.2
TRANSFORMER HIGH VOLTAGE
SENSOR TEMP
MOTOR T/TABLE
MICROSWITCH
MICROSWITCH
MICROSWITCH
THERMAL CUTOUT
SOCKET
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
34 B60304080BP
35 A62024000AP
36 B63317550GP
37 B60704760JP
38 B61884060AP
LAMP INCADESCENT
DIODE SI
FUSE
SHEET INSULATION
BRACKET CAP AC ITO R
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
29
MI CROW AVE PANASONIC NN-T 687S A
MANUAL 599072
30
MANUAL 599072
MI CROW AVE PANASONIC NN-T 687S A
REF PART DESCRIPTION MODEL
39 E60904080GP
40 B910C4760QP
41 XTT4+8B
42 2M210-M1F1
43 B64498660AP
44 B64508660AP
45 B65438660AP
46 A607S7050AP
47 B692Y7680VP
48 B606V7641QP
49 B03115460QP
NI B08878640HAP
NI B08878640AP
NI B0887705AAP
NI B0887700AAP
NI B08877050AP
CAPA CIT OR HI GH VO LTA GE
CABLE MAINS
SCREW
MAGNETRON 1.0/1.2
COVER SENSOR A
COVER SENSOR B
COVER SENSOR C
SENSOR STEAM
FILTER NOISE
DIODE PROTECTOR
N LABE L
PA INT TOUCH UP WHI T E
PA INT TOUCH UP BLA C K
PAINT CAVITY SPAN
PAINT TOUCH-UP 1.0 T687SA
PAINT CAVITY SPRAY
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
NI B08877000AP
PAINT TOUCH-UP
BI600XC
31
DOOR ASSEMBLY - NN-T687SA
MANUAL 599072
32
MANUAL 599072
DOOR ASSEM BLY - NN-T687SA
REF PART DESCRIPTION MODEL
1 B01726210JP
2 XTBANE3+8BZ#
3 B301A9580SAP
4 A30067050AP
5 B31457050AP
6 B302K8660AP
7 B30187051AP
8 B30858640AP
9 B30214001AP
10 A31529570AP
11 B00079580QP
12 B00079580JP
13 B603L9580QP
14 B630Y9580QP
15 A80349570AP
16 B80375950AP
LABEL CAUT ION
SCREW 3X8 DOOR A
DOOR A STAINLESS
HINGE UPPER DP
SCREEN DOOR A
DOOR E BLACK
DOOR KEY A
DOOR C BLACK
DOOR KEY SPRING
PLATE GROUNDING
NAME PLATE
PLATE NA ME NN-T687SA
CIRCUIT DP W/GR WIRE
SWITCH MEMBRANE
BASE ESCUTCHEON
SPRING BUTTON
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
17 A80729570AP
18 B80029580AP
19 B82567630AP
20 B83379580QP
21 A80359570AP
22 A66629570AP
23 A06014000AP
24 B00037862QP
26 B03537051AP
27 A50966520UP
28 A621A7600CP
29 A62316010BP
30 ECKDNS472MEX
31 ECQU2A104MN#
32 ERD25FJ564S
33 ERZC10DK112W
BUTT ON OPEN IN G
LENS DISPLAY
LEVER OPENI NG
SHEET ESCUTCHEON
COVER ESCUTCH BASE
PLATE GROUNDING
TRAY GL ASS COOK I NG
BOOK INSTRUCTION
WIRE NN-6455
FERRITE CORE NN-5655/5455
COIL FILTER NN-S687WA/T687SA
HOLDER FUSE NN-S687WA/T687SA
CAPACITOR CERAMIC NN-S687 WA/T687SA
CAPACITOR SX-GX7/GX5/TX-29V2Z/V30/TC-W21
RESISTOR NN-6853 DP
VARISTOR
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
BI600XC
35 B030A8280JP
LEAD WIRE HA RNE S S
BI600XC
33
MANUAL 599072
34
NOTES
BUILT IN DOUBLE MAIN DOOR ASSY
Technical Bulletins
447641 RA65
BUILT IN DOUBLE LOWER DOOR ASSEMBLY
Technical Bulletins
447641 RA65
MANUAL 599072
35
Loading...
