BI600 Series
Walloven
Models
BI600A BI600C BI600CR
BI600E BI600G BI600GR
BI600QAA BI600QAE
BI600QASE BI600QASX
BI600QCR BI600QIO
BI600QWD BI600R
BI600RR BI600S BI600X
BICT600E
599070
MANUAL 599070 January 2000 Reprinted 7 December, 2001
PRODUCTS
Brand Fisher & Paykel, Shacklock
Voltage 220-240V 50Hz
Model Code
BI600A 84529 84530 84531 87431 87437 87442 87443 87457 87458
BI600C 84532 87358 87434 87476
BI600E 84526 84527 84528 87425 87435 87444 87445 87459 87460
87704 87705
BI600G 84533 87359 87433 87475
BI600QAA 87624 87656
BI600QAE 87607 87655
BI600QASE 87625 87657
BI600QASX 87626 87658
BI600QCR 87504 87586
BI600QIO 87501 87528 87529 87530 87531 87532 87580 87581 87582
87583 87584 87585
BI600QWD 87505 87587
BI600R 84534 87360 87432 87474 87653
BI600S 84523 84524 84525 87355 87420 87423
BI600X 84539 84540 84542 87468 87469 87486 87487 87506 87507
BICT600E 84535 84536 84537 87436 87439 87440 87441 87455 87456
Fisher & Paykel Appliances Ltd
Appliance Spare Parts
PO Box 14-148, Panmure.
80 Springs Rd, East Tamaki
New Zealand
Tel: (09) 272 0261
Fax: (09) 272 0219
Email: parts@fp.co.nz
COPYRIGHT FISHER & PAYKEL LTD 2001 3
MANUAL 599070
4
MANUAL 599070
CONTENTS
BI SINGLE CONTROL PANELS..............................................................................................................................................6
BI SINGLE CONTROL PANELS..............................................................................................................................................8
BI SINGLE PANEL CONTROL MOUNTING.......................................................................................................................10
BI AERON BI600QAA CONTROL PANEL...........................................................................................................................12
BI AREON BI600QAE CONTROL PANEL...........................................................................................................................14
BI SINGLE CONTROLS..........................................................................................................................................................16
BI SINGLE CHASSIS ASSEMBLY........................................................................................................................................22
BI MAIN DOOR ASSY............................................................................................................................................................30
BI SINGLE ELEMENT & ACCESSORIES............................................................................................................................36
NON ILLUS T RATED BI600QWD..........................................................................................................................................48
NON ILLUS T RATED BI600QCR...........................................................................................................................................50
NON ILLUS T RATED BI600QIO............................................................................................................................................52
NOTES......................................................................................................................................................................................55
GUIDE TO USING THI S MANUAL
The model(s) and/or series covered by this manual are listed on the front cover.
The information detailed in this manual is subject to change without notice, the latest version is
indicated by the reprint date and replaces any earlier editions.
The front cover picture shows the type of product and may not necessarily be an exact image of the
models covered by the manual.
Part References
Where a Model is shown, the part is exclusive to the Model(s) stated. Common parts relating to a part
reference are applicable to all other Model(s) which use the particular item.
Kit Parts
The components shown in italics are those parts in the kit which are available also as separate items. In
addition, some parts may be supplied with this kit which are not available as separate items and are
therefore not listed in this manual.
All details relating to Technical Bulletins or Notes are shown on a dedicated page. The Technical
Bulletin Number shown relates to the bulletin version which is produced for New Zealand Service
Centres.
Parts List Key
NOT USED As a part, indicates the diagram part reference is not used in this manual.
# Beside the part number, indicates the part is no longer available.
italics Kit components shown in italics are also available separately.
* Indicates a technical bulletin or note exists for the part or part reference.
NI As a part reference, indicates the part is not illustrated on the diagram.
5
BI SINGLE CONTROL PANELS
MANUAL 599070
6
MANUAL 599070
BI SINGLE CONTROL PANELS
REF PART DESCRIPTION MODEL
1 447981
447982
447983
2 447972
447973
447974
3 447978
447979
447980
4 447605
447606
447608
447609
5 447975
447976
447977
PANEL CONTROL ASSY BI600S SS
PANEL CONTROL ASSY BI600S BK
PANEL CONTROL ASSY BI600S WH
PANEL CONTROL ASSY BI600E SS
PANEL CONTROL ASSY BI600E BK
PANEL CONTROL ASSY BI600E WH
PANEL CONTROL ASSY BICT600E SS
PANEL CONTROL ASSY BICT600E BK
PANEL CONTROL ASSY BICT600E WH
PANE L CONTR O L ASSY WO60 0 X W W
PANE L CONTR O L ASSY WO60 0 X BK
PANE L CONTR O L ASSY WO60 0 XSS SH
PANE L CONTR O L ASSY WO60 0 XSS FP
PANEL CONTROL ASSY BI600A SS
PANEL CONTROL ASSY BI600A BK
PANEL CONTROL ASSY BI600A WH
BI600S
BI600S
BI600S
BI600E
BI600E
BI600E
BICT600E
BICT600E
BICT600E
BI600X
BI600X
BI600X
BI600X
BI600A
BI600A
BI600A
6 447404
447984
540249
7 447405
447985
447985
8 447406
447986
540511
447986
PANEL CONTROL BI600C SHACK WH
PANEL CONTROL ASSY BI600C FP
CAP CONTROL PANEL BI600C FP SS
PANEL CONTROL BI600G SHACK WH
PANEL CONTROL ASSY BI600G FP
PANEL CONTROL ASSY BI600G FP
PANEL CONTROL BI600R SHACK WH
PANEL CONTROL ASSY BI600R FP
CAP CONTROL PANEL BI600R SS
PANEL CONTROL ASSY BI600R FP
BI600C
BI600C
BI600C
BI600G
BI600G
BI600GR
BI600R
BI600R
BI600R
BI600RR
7
BI SINGLE CONTROL PANELS
MANUAL 599070
8
MANUAL 599070
BI SINGLE CONTROL PANELS
REF PART DESCRIPTION MODEL
9 540345
10 540646
11 540432
12 540434
13 540161
14 540160
CONTROL PANEL ASSY AERON (SP)
PANEL CONTROL ASSY BI600QAA
CONTR O L CAP ASSY AST R O E
CONTR O L CAP ASSY AST R O X
PANEL CONTROL ASSY BI600QCR
PANEL CONTROL ASSY BI600QWD
BI600QAE
BI600QAA
BI600QASE
BI600QASX
BI600QCR
BI600QWD
9
BI SINGLE PANEL C ONTROL MOUNTING
MANUAL 599070
10
MANUAL 599070
BI SINGLE PANEL CONTROL MOUNTING
REF PART DESCRIPTION MODEL
1 447504
2 447526
447650
447526
447650
3 447532
447924
4 447835
447917
5 540387
6 540390
NI 447302
NI 540099
NI 447300
PANEL CONTRO L MOUNTING BI600X
PANEL CONTRO L MOUNTING WO600E
PANEL CNTRL MOUNTING WO600E SS
PANEL CONTRO L MOUNTING WO600E
PANEL CNTRL MOUNTING WO600E SS
PANEL CONTRO L MOUNTING WO600BE
PANEL CNTRL MTG BICT600E SS
PANE L CNTR L MTG BI600AA
PANE L CONTR O L MOUNT IN G SS
PANE L CONTR O L MOUNT IN G
PANE L CONTR O L MOUNT IN G
PANE L CONTR O L MOUNT IN G E LEGA NT
BRACKET CO NTR O L PANEL IO
PANE L CONTR O L MTG BI600Q WD
BI600X
BI600E
BI600E
BI600S
BI600S
BICT600E
BICT600E
BI600A
BI600A
BI600QASE
BI600QASX
BI600QCR
BI600QIO
BI600QWD
11
BI AERON BI600QAA CONTROL PANEL
MANUAL 599070
12
MANUAL 599070
BI AERON BI600QAA CONTROL PANEL
REF PART DESCRIPTION MODEL
1 556104
2 540352
3 447494
4 447496
5 447495
6 540334
7 540646
8 540495
9 447499
10 540333
11 540301
12 540335
13 571071
14 540317
NUT M4 HEX FS MS NIPL
BRACKET CLOCK AERON
CLOCK PEAPSA SILVER PCA-NZ-471
INSERT CLOCK CIRRUS WO
LENSE CLOCK CIRRUS WO
GASKET CONTROLS AERON
PANEL CONTROL ASSY BI600QAA
KNOB CL OCK SAT IN CHR O ME PE APSA
SWITCH FUNCTION EGO CIRRUS WO
BRACKET FUNCTION SWITCH
KNOB AERON/ASTRO
NEON BODY BLUE AER ON
THERMOSTAT EGO 55.18064.040
BEZEL NE ON AER ON
BI600QAA
BI600QAA
BI600QAA
BI600QAA
BI600QAA
BI600QAA
BI600QAA
BI600QAA
BI600QAA
BI600QAA
BI600QAA
BI600QAA
BI600QAA
BI600QAA
13
BI AERON BI600QAE CONTROL PANEL
MANUAL 599070
14
MANUAL 599070
BI AERON BI600QAE CONTROL PANEL
REF PART DESCRIPTION MODEL
1 556104
2 540332
3 540091
4 572642
5 540316
6 540334
7 540345
8 540311
9 447499
10 540333
11 540301
12 540335
13 571071
14 540317
NUT M4 HEX FS MS NIPL
BRACKET CLOCK AERON
SPACER
CLOCK ELECT ORBIASIC6 13156003
LENSE C LO CK AERO N
GASKET CONTROLS AERON
CONTROL PANEL ASSY AERON (SP)
BUTT ON O UTER AE RO N
SWITCH FUNCTION EGO CIRRUS WO
BRACKET FUNCTION SWITCH
KNOB AERON/ASTRO
NEON BODY BLUE AER ON
THERMOSTAT EGO 55.18064.040
BEZEL NE ON AER ON
BI600QAE
BI600QAE
BI600QAE
BI600QAE
BI600QAE
BI600QAE
BI600QAE
BI600QAE
BI600QAE
BI600QAE
BI600QAE
BI600QAE
BI600QAE
BI600QAE
15

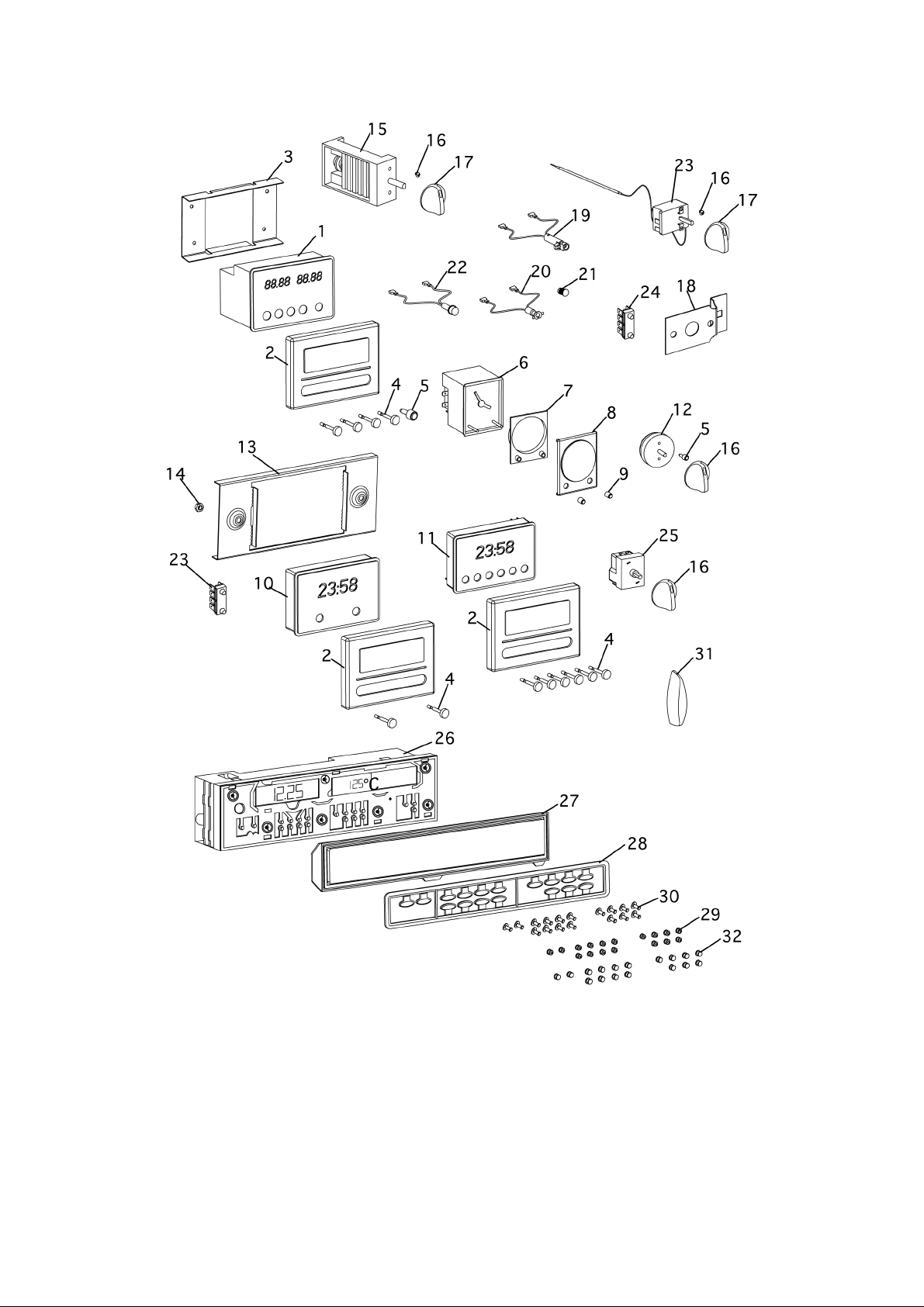

BI SINGLE CONTROLS
MANUAL 599070
16
MANUAL 599070
BI SINGLE CONTROLS
REF PART DESCRIPTION MODEL
1 447821
2 447438
447438
447438
447438
3 540352
4 447649
573124
573124
540394
447888
447890
447649
573124
5 447889
447891
CLOCK PROBE WH DIEHL 13134-016
LENSE ADAPTOR DIEHL CLOCK
LENSE ADAPTOR DIEHL CLOCK
LENSE ADAPTOR DIEHL CLOCK
LENSE ADAPTOR DIEHL CLOCK
BRACKET CLOCK AERON
BUTTON DIEHL 13126.438 BLACK
BUTTON DEIHL 13126-925 WHITE
BUTTON DEIHL 13126-925 WHITE
BUTTON CLOCK ASTRO
BUTTON PUSH WH DIEHL 413127183
BUTTON PUSH BK DIEHL 13126-153
BUTTON DIEHL 13126.438 BLACK
BUTTON DEIHL 13126-925 WHITE
BUTTON TWIST WH DIEHL413127595
BUTTON TWIST BK DIEHL13126-599
BI600S
BI600C
BI600E
BI600S
BICT600E
BI600QASE
BI600E
BI600E
BI600G
BI600QASE
BI600S
BI600S
BICT600E
BICT600E
BI600S
BI600S
6 572237
572238
7 572196
572197
8 572198
9 572284
572285
10 572887
11 572642
572642
572642
12 471331
471331
13 447811
14 556104
15 447785
CLOCK ANALG WH DIEHL1988702790
CLOCK ANALG BK DIEHL1988702890
INSERT ANALOG CLOCK WHITE
INSERT ANALOG CLOCK BLACK
LENSE ANALOG CLOCK
KNOB ANALOG CLOCK WHITE
KNOB ANALOG CLOCK BLACK
CLOCK ORBITIME WHDIEHL13147012
CLOCK ELECT ORBIASIC6 13156003
CLOCK ELECT ORBIASIC6 13156003
CLOCK ELECT ORBIASIC6 13156003
MINUT E MIND E R
MINUT E MIND E R
BRACKET MO UNTING DIEHL CLOCK
NUT M4 HEX FS MS NIPL
SWITCH FUNCT EGO 42.09000.006
BI600A
BI600A
BI600A
BI600A
BI600A
BI600A
BI600A
BI600G
BI600E
BI600QASE
BICT600E
BI600C
BI600R
BI600G
BI600G
BI600A
447783
447785
447782
447785
447781
SWITCH FUNCT EGO 46.25866.512
SWITCH FUNCT EGO 42.09000.006
SWITCH FUNCT EGO 46.15866.500
SWITCH FUNCT EGO 42.09000.006
SWITCH FUNCT EGO 46.13866.501
BI600C
BI600E
BI600G
BI600QASE
BI600R
17
BI SINGLE CONTROLS
MANUAL 599070
18
MANUAL 599070
BI SINGLE CONTROLS
REF PART DESCRIPTION MODEL
15 447785
447785
16 556020
17 572427
572429
447833
572427
572429
447833
447833
572427
260160
260160
260160
260160
260160
SWITCH FUNCT EGO 42.09000.006
SWITCH FUNCT EGO 42.09000.006
SCRE W MC M4X5 PAN PH MS NP
KNOB ASS Y WH/S C D 90
COMPRESSION RING SPIRE SCB1730
KNOB ASSY BK/SC D 90
COMPRESSION RING SPIRE SCB1730
KNOB ASSY WHITE
KNOB ASS Y WH/S C D 90
COMPRESSION RING SPIRE SCB1730
KNOB ASSY BK/SC D 90
COMPRESSION RING SPIRE SCB1730
KNOB ASSY WHITE
KNOB ASSY WHITE
KNOB ASS Y WH/S C D 90
COMPRESSION RING SPIRE SCB1730
BI600S
BICT600E
BI600A
BI600A
BI600C
BI600E
BI600E
BI600G
BI600R
BI600S
447611
447909
18 540464
19 540431
20 447651
447651
447651
447651
447651
21 447652
447652
447652
540317
540317
260160
260160
KNOB ASS Y WH/S C WO600
COMPRESSION RING SPIRE SCB1730
KNOB ASSY BK/SC BI600
COMPRESSION RING SPIRE SCB1730
BRACKE T NEO N MO UNT IN G
NEON BLUE ASTRO
NEON 240MM TYPE 60XXXH230
NEON 240MM TYPE 60XXXH230
NEON 240MM TYPE 60XXXH230
NEON 240MM TYPE 60XXXH230
NEON 240MM TYPE 60XXXH230
BEZEL NEON ROUND RED TYPE 601R
BEZEL NEON ROUND RED TYPE 601R
BEZEL NEON ROUND RED TYPE 601R
BEZEL NE ON AER ON
BEZEL NE ON AER ON
BICT600E
BICT600E
BI600QASE
BI600QASE
BI600A
BI600C
BI600E
BI600S
BICT600E
BI600A
BI600C
BI600E
BI600QAA
BI600QAE
447652
447652
22 572919
572919
572919
BEZEL NEON ROUND RED TYPE 601R
BEZEL NEON ROUND RED TYPE 601R
NEON 190MM (ACTIVE)
NEON 190MM (ACTIVE)
NEON 190MM (ACTIVE)
BI600S
BICT600E
BI600A
BI600C
BI600E
19
BI SINGLE CONTROLS
MANUAL 599070
20
MANUAL 599070
BI SINGLE CONTROLS
REF PART DESCRIPTION MODEL
22 572919
572919
572919
572919
23 571071
24 572699
25 447575
447576
26 447824P
447824P
27 572341
572341
28 447560
29 540386
3344-3
3344-3
NEON 190MM (ACTIVE)
NEON 190MM (ACTIVE)
NEON 190MM (ACTIVE)
NEON 190MM (ACTIVE)
THERMOSTAT EGO 55.18064.040
TERMINA L BLOCK SNT-8
ENERGY REG P&T NZC TP-409
NUT LOCK
ENERGY REG DC P&T NZC TD3-409
NUT LOCK
CONSOLE FAN FORCED SERVICE
CONSOLE FAN FORCED SERVICE
LENSE INSERT CONSO LE ONE OVEN
LENSE INSERT CONSO LE ONE OVEN
BUTT ON MOUL D ING SS BI60 0
GASKET BUTTON CONTROL ASTRO X
BI600G
BI600R
BI600S
BICT600E
BICT600E
BICT600E
BI600QASX
BI600X
BI600QASX
BI600X
BI600X
BI600QASX
30 540385
31 540301
32 447622
447624
33 NOT USED
34 NOT USED
35 NOT USED
36 NOT USED
37 NOT USED
38 NOT USED
39 NOT USED
40 NOT USED
BUTTON CONTROL ASTRO X
KNOB AERON/ASTRO
BUTTON SOFT TOUCH BI600 BLACK
BUTTON SOFT TOUCH WO600 APP WH
BI600QASX
BI600QASE
BI600X
BI600X
21
BI SINGLE CHASSIS ASSEMBLY
MANUAL 599070
22
MANUAL 599070
BI SINGLE CHASSIS ASSEMBLY
REF PART DESCRIPTION MODEL
1 556095
2 447674
3 355721
4 447507
5 447505
540649
6 447506
7 447825P
8 572691
9 540039
540128
540039
540128
540039
540128
540039
SCREW ST 8X3/8 TAB MSH TX20 NP
COVER TERMINAL CONNECTOR C/TOP
TERM CONN10W RIKO732 VOGY V2WH
COVER WIRI NG TOP
PANE L MO UNTI NG FAN D UCT
PANE L MO UNTI NG FAN D UCT
PANEL INSULATION FAN DUCT
POWER FAN FORCED SERVICE
KIT ELECT OVEN O/TEMP CUTOUT
LIMITER 140C CAMPINI TY60 NC
CLIP THERMA L LIMITER CAMPINI
LIMITER 140C CAMPINI TY60 NC
CLIP THERMA L LIMITER CAMPINI
LIMITER 140C CAMPINI TY60 NC
CLIP THERMA L LIMITER CAMPINI
LIMITER 140C CAMPINI TY60 NC
BICT600E
BICT600E
BI600X
BI600A
BI600A
BI600C
BI600C
BI600E
BI600E
BI600G
540128
540039
540128
540039
540128
540039
540128
540128
540331
540039
540128
540039
540128
540039
540128
540128
CLIP THERMA L LIMITER CAMPINI
LIMITER 140C CAMPINI TY60 NC
CLIP THERMA L LIMITER CAMPINI
LIMITER 140C CAMPINI TY60 NC
CLIP THERMA L LIMITER CAMPINI
LIMITER 140C CAMPINI TY60 NC
CLIP THERMA L LIMITER CAMPINI
CLIP THERMA L LIMITER CAMPINI
LIMITER 150C CAMPINI TY60R NC
LIMITER 140C CAMPINI TY60 NC
CLIP THERMA L LIMITER CAMPINI
LIMITER 140C CAMPINI TY60 NC
CLIP THERMA L LIMITER CAMPINI
LIMITER 140C CAMPINI TY60 NC
CLIP THERMA L LIMITER CAMPINI
CLIP THERMA L LIMITER CAMPINI
BI600G
BI600QAA
BI600QAA
BI600QAE
BI600QAE
BI600QASE
BI600QASE
BI600QASX
BI600QASX
BI600QCR
BI600QCR
BI600R
BI600R
BI600S
BI600S
BI600X
540331
540039
540128
10 572923
11 556037#
LIMITER 150C CAMPINI TY60R NC
LIMITER 140C CAMPINI TY60 NC
CLIP THERMA L LIMITER CAMPINI
FAN KITSET J06OV10A 3/4 STACK
SCREW ST 8X5/8 TAB PAN PH HS NIPL
BI600X
BICT600E
BICT600E
23
BI SINGLE CHASSIS ASSEMBLY
MANUAL 599070
24
MANUAL 599070
BI SINGLE CHASSIS ASSEMBLY
REF PART DESCRIPTION MODEL
12 447508
13 571878
14 573028
15 556047
16 572640
17 447612
18 447520
19 447892
20 571672
571672
21 572971
572971
572971
22 572972
572972
572972
COVER WIRI NG BAC K
COVER INSPECTION
FAN CONSORT HR180006-A200
SCREW ST 4X3/8 TAB PAN PH NP
TER MINA L B LOCK MAIN S
GROMMET MAINS CABLE (IM6160)
VENT T UBE WO60 0
HARNESS PROBE DIEHL 499416651
HARNESS CONTROLLER/PROBE TM620
HARNESS CONTROLLER/PROBE TM620
JACK PROBE LEFEVA J119 F MIC
JACK PROBE LEFEVA J119 F MIC
JACK PROBE LEFEVA J119 F MIC
COVER JACK PROBE LEFEVA C0-3
COVER JACK PROBE LEFEVA C0-3
COVER JACK PROBE LEFEVA C0-3
BI600QASX
BI600X
BI600QASX
BI600S
BI600X
BI600QASX
BI600S
BI600X
23 556078
24 471651
25 540011
540011
540011
540011
447331
447331
540430
540430
540011
540011
540011
540011
540011
26 556082
SCREW ST 8X12MM TAB MTS PH BK
CLIP THERMST TUBE 3MM FT47220
GUARD THERMOSTAT ENAM BU MOT
GUARD THERMOSTAT ENAM BU MOT
GUARD THERMOSTAT ENAM BU MOT
GUARD THERMOSTAT ENAM BU MOT
GUARD THERMOSTAT ENAM COBALT
GUARD THERMOSTAT ENAM COBALT
GUARD THERMOSTAT ENAM FLINT
GUARD THERMOSTAT ENAM FLINT
GUARD THERMOSTAT ENAM BU MOT
GUARD THERMOSTAT ENAM BU MOT
GUARD THERMOSTAT ENAM BU MOT
GUARD THERMOSTAT ENAM BU MOT
GUARD THERMOSTAT ENAM BU MOT
SCRE W ST M4X12 XT ITE HX WP H NWX
BI600A
BI600C
BI600E
BI600G
BI600QAA
BI600QAE
BI600QASE
BI600QASX
BI600QCR
BI600R
BI600S
BI600X
BICT600E
27 447512
540650
28 540134
540730
540133
BRACKET SUPPORT OVEN
BRACKET SUPPORT OVEN
OVEN&FRAME ENAM BI600E BU MOT
OVEN&FRAME BI600E ENAM BU MOT
OVEN&FRAME ENAM BI600C BU MOT
BI600A
BI600A
BI600C
25
BI SINGLE CHASSIS ASSEMBLY
MANUAL 599070
26
MANUAL 599070
BI SINGLE CHASSIS ASSEMBLY
REF PART DESCRIPTION MODEL
28 540728
540134
540730
540132
540726
540494
540740
540494
540740
540428
540738
540480
540741
540494
540132
540726
OVEN&FRAME BI600C ENAM BU MOT
OVEN&FRAME ENAM BI600E BU MOT
OVEN&FRAME BI600E ENAM BU MOT
OVEN&FRAME 600R &G ENAM BU MOT
OVEN & VENTED FRAME ENAM BLUE MOT
OVEN&FRAME ENAM 600QAE COBALT
OVEN&FRAME 600QAE ENAM COBALT
OVEN&FRAME ENAM 600QAE COBALT
OVEN&FRAME 600QAE ENAM COBALT
OVEN&FRAME ENAM BI6QASE FLINT
OVEN&FRAME BI6QASE ENAM FLINT
OVEN&FRAME BI6QASX ENAM FLINT
OVEN&FRAME BI6QASX ENAM FLINT
OVEN&FRAME ENAM 600QAE COBALT
OVEN&FRAME 600R &G ENAM BU MOT
OVEN & VENTED FRAME ENAM BLUE MOT
BI600C
BI600E
BI600E
BI600G
BI600G
BI600QAA
BI600QAA
BI600QAE
BI600QAE
BI600QASE
BI600QASE
BI600QASX
BI600QASX
BI600QCR
BI600R
BI600R
540135
540732
540136
540734
540134
540730
29 447551
30 571630
571630
31 556002
32 75017
33 556084
34 74152
35 447510
447511
540647
OVEN&FRAME ENAM BI600S BU MOT
OVEN&FRAME BI600S ENAM BU MOT
OVEN&FRAME ENAM BI600X BU MOT
OVEN&FRAME BI600X ENAM BU MOT
OVEN&FRAME ENAM BI600E BU MOT
OVEN&FRAME BI600E ENAM BU MOT
GASKET OVEN WO600 C/L 1775MM
PROBE TE MP. SENS OR HY CA L
PROBE TE MP. SENS OR HY CA L
SCREW ST 6X1/2 TAB HXW PH NP
PLATE CABLE ENTRY
SCRE W TAPT ITE M4X25 HE XP H BZW X
CLAMP CABLE ENTRY
PANE L SIDE LEF T WO60 0
PANE L SIDE RIG HT
PANEL SIDE RIGHT BI600
BI600S
BI600S
BI600X
BI600X
BICT600E
BICT600E
BI600QASX
BI600X
540648
36 540190
540651
37 447580
540652
PANE L SIDE LEF T BI6 00
PANEL INSULATION BASE BI600
PANEL INSULATION BASE BI600
GUARD HI NGE
DUCT HINGE RIGHT LARGE
27
BI SINGLE CHASSIS ASSEMBLY
MANUAL 599070
28
MANUAL 599070
BI SINGLE CHASSIS ASSEMBLY
REF PART DESCRIPTION MODEL
37 540653
38 447657
39 556072
40 572699
DUCT HINGE LEFT LARGE
HINGE COUNTER SUPPORT 6101071
SCR E W MC M5 X1 0 CS K P H MS BL AC K
TERMINA L BLOCK SNT-8

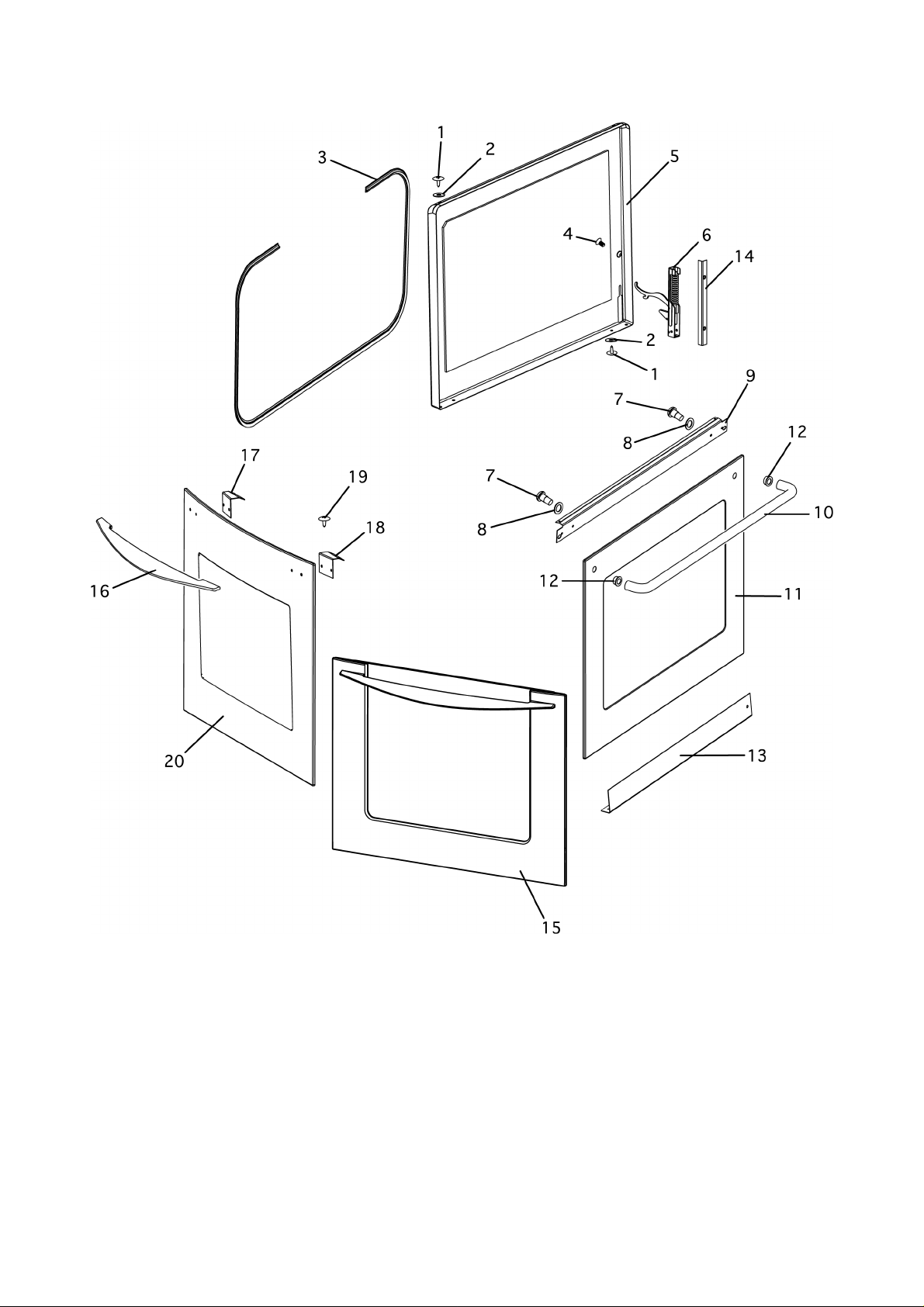

29
BI MAIN DOOR ASSY
MANUAL 599070
30
MANUAL 599070
BI MAIN DOOR ASSY
REF PART DESCRIPTION MODEL
1 556074
2 556504
3 447535
4 556072
5 540023
540023
540023
540023
540342
540342
540440
540440
540342
540023
540023
540023
SCREW ST 8X8MM TAB MTSPH BLACK
WASHER 4.0 10.0 0.8 FIBRE BK
GASKET DOOR WO600 C/L 1450MM
SCR E W MC M5 X1 0 CS K P H MS BL AC K
DOOR INNER ASSY BI600 BU MOT
DOOR INNER ASSY BI600 BU MOT
DOOR INNER ASSY BI600 BU MOT
DOOR INNER ASSY BI600 BU MOT
DOOR INNER ASSY AERON COBALT
DOOR INNER ASSY AERON COBALT
DOOR INNER ASSY BI600 FLINT
DOOR INNER ASSY BI600 FLINT
DOOR INNER ASSY AERON COBALT
DOOR INNER ASSY BI600 BU MOT
DOOR INNER ASSY BI600 BU MOT
DOOR INNER ASSY BI600 BU MOT
BI600A
BI600C
BI600E
BI600G
BI600QAA
BI600QAE
BI600QASE
BI600QASX
BI600QCR
BI600R
BI600S
BI600X
540023
6 447656
7 572710
572710
572710
572710
572710
572710
572710
572710
8 556522
556522
556522
556522
556522
556522
DOOR INNER ASSY BI600 BU MOT
HINGE 6213210
SCREW LIMIT HANDLE DOOR 5.5MM
SCREW LIMIT HANDLE DOOR 5.5MM
SCREW LIMIT HANDLE DOOR 5.5MM
SCREW LIMIT HANDLE DOOR 5.5MM
SCREW LIMIT HANDLE DOOR 5.5MM
SCREW LIMIT HANDLE DOOR 5.5MM
SCREW LIMIT HANDLE DOOR 5.5MM
SCREW LIMIT HANDLE DOOR 5.5MM
WASHER 9.5 16 0.8 FIBRE
WASHER 9.5 16 0.8 FIBRE
WASHER 9.5 16 0.8 FIBRE
WASHER 9.5 16 0.8 FIBRE
WASHER 9.5 16 0.8 FIBRE
WASHER 9.5 16 0.8 FIBRE
BICT600E
BI600A
BI600C
BI600E
BI600G
BI600R
BI600S
BI600X
BICT600E
BI600A
BI600C
BI600E
BI600G
BI600R
BI600S
556522
556522
9 447514
447514
447514
WASHER 9.5 16 0.8 FIBRE
WASHER 9.5 16 0.8 FIBRE
BRACKE T IN NER DO OR TOP
BRACKE T IN NER DO OR TOP
BRACKE T IN NER DO OR TOP
BI600X
BICT600E
BI600A
BI600C
BI600E
31
BI MAIN DOOR ASSY
MANUAL 599070
32
MANUAL 599070
BI MAIN DOOR ASSY
REF PART DESCRIPTION MODEL
9 447514
447514
447514
447514
447514
10 572555
572557
572588
572827
447591
572055
572384
572386
572588
572827
572055
BRACKE T IN NER DO OR TOP
BRACKE T IN NER DO OR TOP
BRACKE T IN NER DO OR TOP
BRACKE T IN NER DO OR TOP
BRACKE T IN NER DO OR TOP
HANDLE D F&P CLASSIC WH
HANDLE D F&P CLASSIC BK
HAND LE D SHACK CHE F MULT I WH
HANDLE D SHACK CHEF MULTI BK
HAND LE D SS
HAND LE D WHITE
HAND LE D F&P MULT I WH
HAND LE D F&P MULT IF UNCTIO N BLAC K
HAND LE D SHACK CHE F MULT I WH
HANDLE D SHACK CHEF MULTI BK
HAND LE D WHITE
BI600G
BI600R
BI600S
BI600X
BICT600E
BI600A
BI600A
BI600A
BI600A
BI600C
BI600C
BI600E
BI600E
BI600E
BI600E
BI600G
447591
572055
572384
572386
447590
447591
447597
447598
572503
11 447571
447594
447733
447594
447734
447571
447594
HAND LE D SS
HAND LE D WHITE
HAND LE D F&P MULT I WH
HAND LE D F&P MULT IF UNCTIO N BLAC K
HANDLE D F&P SOFT TOUCH BK
HAND LE D SS
HAND LE D SHACK CHE F MASTE R WH
HANDLE D SHACK CHEF MASTER BK
HANDLE D F&P SOFT TOUCH WH
GLASS DOOR OUTER D BK WO600
DOOR OUTER ASSY WO600X SS
GLASS DOOR 2ND SURF WH
DOOR OUTER ASSY WO600X SS
GLASS DOOR 1ST SURF WH EURO
GLASS DOOR OUTER D BK WO600
DOOR OUTER ASSY WO600X SS
BI600R
BI600R
BI600S
BI600S
BI600X
BI600X
BI600X
BI600X
BI600X
BI600A
BI600A
BI600A
BI600C
BI600C
BI600E
BI600E
447733
447734
447594
447734
447571
GLASS DOOR 2ND SURF WH
GLASS DOOR 1ST SURF WH EURO
DOOR OUTER ASSY WO600X SS
GLASS DOOR 1ST SURF WH EURO
GLASS DOOR OUTER D BK WO600
BI600E
BI600G
BI600R
BI600R
BI600S
33
BI MAIN DOOR ASSY
MANUAL 599070
34
MANUAL 599070
BI MAIN DOOR ASSY
REF PART DESCRIPTION MODEL
11 447594
447733
447571
447594
447733
12 572042
572044
13 447516
14 * 447641
15 540437
16 540306
540306
17 540326
540326
18 540325
540325
DOOR OUTER ASSY WO600X SS
GLASS DOOR 2ND SURF WH
GLASS DOOR OUTER D BK WO600
DOOR OUTER ASSY WO600X SS
GLASS DOOR 2ND SURF WH
GROM MET D & SQUARE HA ND LE WH
GROM MET D & SQUARE HA ND LE BK
BRACKE T IN NER DO OR BOTTO M
BRACKET STIFFENER DOOR
DOOR OUTE R ASSY AS T RO FUL L
HAND LE DO OR AERO N
HAND LE DO OR AERO N
BRACKE T DO OR LEF T AERO N
BRACKE T DO OR LEF T AERO N
BRACKE T DO OR RIG HT AER ON
BRACKE T DO OR RIG HT AER ON
BI600S
BI600S
BI600X
BI600X
BI600X
BI600QASE
BI600QAA
BI600QAE
BI600QAA
BI600QAE
BI600QAA
BI600QAE
19 556122
556122
20 540340
540340
SCR E WS MC M4X 1 2 H EX PH MS B K
SCR E WS MC M4X 1 2 H EX PH MS B K
DOOR OUTE R ASSY AE R ON
DOOR OUTE R ASSY AE R ON
BI600QAA
BI600QAE
BI600QAA
BI600QAE
35
BI SINGLE ELEMENT & ACCESSORIES
MANUAL 599070
36
MANUAL 599070
BI SINGLE ELEMENT & ACCESSORIES
REF PART DESCRIPTION MODEL
1 447746
2 447334
447701
3 571909
571909
571909
571909
571909
404000
761001
404000
761001
404000
761001
404000
761001
PANEL SIDE ENAM CAT BK
RUNNERS WIRE ASSY PL SATIN CR
RUNNERS WIRE ASSY PLATED
LAMP ASY OVEN 708102-51-40-240
LAMP OVEN SES LUSTRE 230V 40W
COVER GLASS
LAMP ASY OVEN 708102-51-40-240
LAMP OVEN SES LUSTRE 230V 40W
COVER GLASS
LAMP ASY OVEN 708102-51-40-240
LAMP OVEN SES LUSTRE 230V 40W
COVER GLASS
LAMP ASY OVEN 708102-51-40-240
LAMP OVEN SES LUSTRE 230V 40W
COVER GLASS
LAMP ASY OVEN 708102-51-40-240
BI600A
BI600C
BI600E
BI600QAE
BI600QCR
571909
571909
571909
571909
4 447812
404000
761001
404000
761001
404000
761001
404000
761001
404000
761001
447440
LAMP OVEN SES LUSTRE 230V 40W
COVER GLASS
LAMP ASY OVEN 708102-51-40-240
LAMP OVEN SES LUSTRE 230V 40W
COVER GLASS
LAMP ASY OVEN 708102-51-40-240
LAMP OVEN SES LUSTRE 230V 40W
COVER GLASS
LAMP ASY OVEN 708102-51-40-240
LAMP OVEN SES LUSTRE 230V 40W
COVER GLASS
LAMP ASY OVEN 708102-51-40-240
LAMP OVEN SES LUSTRE 230V 40W
COVER GLASS
LAMP OVEN BJB 77222 210410
LAMP B ULB H&S (SPARES)
BI600QIO
BI600QWD
BI600S
BICT600E
BI600G
447812
5 573112
447441
447440
447441
GLASS LAMP H&S (SP)
LAMP OVEN BJB 77222 210410
LAMP B ULB H&S (SPARES)
GLASS LAMP H&S (SP)
LAMP ASSY SIDE BJB 77.705
BI600R
37
BI SINGLE ELEMENT & ACCESSORIES
MANUAL 599070
38
MANUAL 599070
BI SINGLE ELEMENT & ACCESSORIES
REF PART DESCRIPTION MODEL
5 573235
573236
6 556107
7 556510
8 447716
9 556095
10 540005
540005
540005
540005
447330
540701
447330
540701
447330
540702
LAMP FLOODLIGHT 230V 25W SES
COVER GLASS FLOODLIGHT
NUT M6 HEX 10AF FS MS ZNPL
WASHER LOCK 6MM INT SERR ST BU
ST UD MOUNT ING
SCREW ST 8X3/8 TAB MSH TX20 NP
GUARD TOP ELEMENT ENAM BU MOT
GUARD TOP ELEMENT ENAM BU MOT
GUARD TOP ELEMENT ENAM BU MOT
GUARD TOP ELEMENT ENAM BU MOT
GUARD TOP ELEMENT PL SATIN CR
GUARD TOP ELEMENT ENAM COBALT
GUARD TOP ELEMENT PL SATIN CR
GUARD TOP ELEMENT ENAM COBALT
GUARD TOP ELEMENT PL SATIN CR
GUARD TOP ELEMENT ENAM FLINT
BI600A
BI600C
BI600E
BI600G
BI600QAA
BI600QAA
BI600QAE
BI600QAE
BI600QASE
BI600QASE
447330
540702
447330
540005
540005
540005
540005
11 540510
12 571644
571644
571644
13 447735
447735
447735
447735
447337
GUARD TOP ELEMENT PL SATIN CR
GUARD TOP ELEMENT ENAM FLINT
GUARD TOP ELEMENT PL SATIN CR
GUARD TOP ELEMENT ENAM BU MOT
GUARD TOP ELEMENT ENAM BU MOT
GUARD TOP ELEMENT ENAM BU MOT
GUARD TOP ELEMENT ENAM BU MOT
ELEMENT ASSY TOP
PROBE MEAT DIEHL 713904023
PROBE MEAT DIEHL 713904023
PROBE MEAT DIEHL 713904023
RACK GRILL PLATED
RACK GRILL PLATED
RACK GRILL PLATED
RACK GRILL PLATED
RACK GRILL PLATED SATIN CR
BI600QASX
BI600QASX
BI600QCR
BI600R
BI600S
BI600X
BICT600E
BI600QASX
BI600S
BI600X
BI600A
BI600C
BI600E
BI600G
BI600QAA
447337
447337
447337
447337
447735
RACK GRILL PLATED SATIN CR
RACK GRILL PLATED SATIN CR
RACK GRILL PLATED SATIN CR
RACK GRILL PLATED SATIN CR
RACK GRILL PLATED
BI600QAE
BI600QASE
BI600QASX
BI600QCR
BI600R
39
BI SINGLE ELEMENT & ACCESSORIES
MANUAL 599070
40
MANUAL 599070
BI SINGLE ELEMENT & ACCESSORIES
REF PART DESCRIPTION MODEL
13 447735
447735
447735
14 447364
447364
447364
447364
447366
447366
447366
447366
447366
447364
447364
447364
447364
RACK GRILL PLATED
RACK GRILL PLATED
RACK GRILL PLATED
RACK BAKE 600 PLATED
RACK BAKE 600 PLATED
RACK BAKE 600 PLATED
RACK BAKE 600 PLATED
RACK BAKE 600 PLATED SATIN CR
RACK BAKE 600 PLATED SATIN CR
RACK BAKE 600 PLATED SATIN CR
RACK BAKE 600 PLATED SATIN CR
RACK BAKE 600 PLATED SATIN CR
RACK BAKE 600 PLATED
RACK BAKE 600 PLATED
RACK BAKE 600 PLATED
RACK BAKE 600 PLATED
BI600S
BI600X
BICT600E
BI600A
BI600C
BI600E
BI600G
BI600QAA
BI600QAE
BI600QASE
BI600QASX
BI600QCR
BI600R
BI600S
BI600X
BICT600E
15 540547
540547
540547
540547
540641
540642
540642
540642
540642
540642
540547
540547
540547
540547
16 447752
17 573067
RACK GRILL INSERT PLATED
RACK GRILL INSERT PLATED
RACK GRILL INSERT PLATED
RACK GRILL INSERT PLATED
GROMMET HANDLE CURVED BI601 BK
RACK GRI LL I NSERT S AT IN PLAT E D
RACK GRI LL I NSERT S AT IN PLAT E D
RACK GRI LL I NSERT S AT IN PLAT E D
RACK GRI LL I NSERT S AT IN PLAT E D
RACK GRI LL I NSERT S AT IN PLAT E D
RACK GRILL INSERT PLATED
RACK GRILL INSERT PLATED
RACK GRILL INSERT PLATED
RACK GRILL INSERT PLATED
ELEMENT ASSY FAN 20.29477.020
FAN LOCK NUT EB M
BI600A
BI600C
BI600E
BI600G
BI600QAA
BI600QAA
BI600QAE
BI600QASE
BI600QASX
BI600QCR
BI600R
BI600S
BI600X
BICT600E
18 572973
19 540003
540003
540003
540003
FAN BLADE (FASCO MOTOR)
TRAY BAKING 600 ENAM BU MOT
TRAY BAKING 600 ENAM BU MOT
TRAY BAKING 600 ENAM BU MOT
TRAY BAKING 600 ENAM BU MOT
BI600A
BI600C
BI600E
BI600G
41
BI SINGLE ELEMENT & ACCESSORIES
MANUAL 599070
42
MANUAL 599070
BI SINGLE ELEMENT & ACCESSORIES
REF PART DESCRIPTION MODEL
19 447335
447335
540452
540452
447335
540003
540003
540003
540003
20 447756
540006
447756
540006
447755
540006
447756
TRAY BAKING 600 ENAM COBALT
TRAY BAKING 600 ENAM COBALT
TRAY BAKING 600 ENAM FLINT
TRAY BAKING 600 ENAM FLINT
TRAY BAKING 600 ENAM COBALT
TRAY BAKING 600 ENAM BU MOT
TRAY BAKING 600 ENAM BU MOT
TRAY BAKING 600 ENAM BU MOT
TRAY BAKING 600 ENAM BU MOT
SHROUD FAN ELEMENT ENAM CAT BK
SHROUD FAN ELEMENT ENAM BU MOT
SHROUD FAN ELEMENT ENAM CAT BK
SHROUD FAN ELEMENT ENAM BU MOT
SHROUD FAN ELEMENT ENAM DK BR
SHROUD FAN ELEMENT ENAM BU MOT
SHROUD FAN ELEMENT ENAM CAT BK
BI600QAA
BI600QAE
BI600QASE
BI600QASX
BI600QCR
BI600R
BI600S
BI600X
BICT600E
BI600A
BI600A
BI600C
BI600C
BI600E
BI600E
BI600QAE
447756
447756
540006
447756
540006
447756
540006
21 573125
573161
573125
573161
573125
573161
573161
573161
573161
SHROUD FAN ELEMENT ENAM CAT BK
SHROUD FAN ELEMENT ENAM CAT BK
SHROUD FAN ELEMENT ENAM BU MOT
SHROUD FAN ELEMENT ENAM CAT BK
SHROUD FAN ELEMENT ENAM BU MOT
SHROUD FAN ELEMENT ENAM CAT BK
SHROUD FAN ELEMENT ENAM BU MOT
SHROUD FAN ELEMENT ENAM BU MOT
SHROUD FAN ELEMENT ENAM CAT BK
SHROUD FAN ELEMENT ENAM BU MOT
SHROUD FAN ELEMENT ENAM CAT BK
SHROUD FAN ELEMENT ENAM BU MOT
SHROUD FAN ELEMENT ENAM CAT BK
SHROUD FAN ELEMENT ENAM CAT BK
SHROUD FAN ELEMENT ENAM CAT BK
SHROUD FAN ELEMENT ENAM CAT BK
BI600QCR
BI600S
BI600S
BI600X
BI600X
BICT600E
BICT600E
BI600A
BI600A
BI600C
BI600C
BI600E
BI600E
BI600QAA
BI600QAE
BI600QASE
573161
573161
573125
573161
573125
SHROUD FAN ELEMENT ENAM CAT BK
SHROUD FAN ELEMENT ENAM CAT BK
SHROUD FAN ELEMENT ENAM BU MOT
SHROUD FAN ELEMENT ENAM CAT BK
SHROUD FAN ELEMENT ENAM BU MOT
BI600QASX
BI600QCR
BI600S
BI600S
BI600X
43
BI SINGLE ELEMENT & ACCESSORIES
MANUAL 599070
44
MANUAL 599070
BI SINGLE ELEMENT & ACCESSORIES
REF PART DESCRIPTION MODEL
21 573161
573125
573161
22 447828
23 540004
540004
540004
447338
447338
540453
540453
447338
540004
540004
540004
24 540007
SHROUD FAN ELEMENT ENAM CAT BK
SHROUD FAN ELEMENT ENAM BU MOT
SHROUD FAN ELEMENT ENAM CAT BK
FILTER FAT
TRAY ROASTING 600 ENAM BU MOT
TRAY ROASTING 600 ENAM BU MOT
TRAY ROASTING 600 ENAM BU MOT
TRAY ROASTING 600 ENAM COBALT
TRAY ROASTING 600 ENAM COBALT
TRAY ROASTING 600 ENAM FLINT
TRAY ROASTING 600 ENAM FLINT
TRAY ROASTING 600 ENAM COBALT
TRAY ROASTING 600 ENAM BU MOT
TRAY ROASTING 600 ENAM BU MOT
TRAY ROASTING 600 ENAM BU MOT
COVER LWR E LE MENT ENAM BU MOT
BI600X
BICT600E
BICT600E
BI600A
BI600C
BI600E
BI600QAA
BI600QAE
BI600QASE
BI600QASX
BI600QCR
BI600S
BI600X
BICT600E
BI600A
540007
540007
540007
447359
447359
540451
540451
447359
540007
540007
540007
540007
25 447751
26 540197
540163
540197
COVER LWR E LE MENT ENAM BU MOT
COVER LWR E LE MENT ENAM BU MOT
COVER LWR E LE MENT ENAM BU MOT
COVER LWR ELEMENT ENAM COBALT
COVER LWR ELEMENT ENAM COBALT
COVER LWR ELEMENT ENAM FLINT
COVER LWR ELEMENT ENAM FLINT
COVER LWR ELEMENT ENAM COBALT
COVER LWR E LE MENT ENAM BU MOT
COVER LWR E LE MENT ENAM BU MOT
COVER LWR E LE MENT ENAM BU MOT
COVER LWR E LE MENT ENAM BU MOT
ELEMENT ASSY LOWER
BOOK USE & CARE BI600 FAN OVEN
BOOK USE&CARE BI600 STD OVEN
BOOK USE & CARE BI600 FAN OVEN
BI600C
BI600E
BI600G
BI600QAA
BI600QAE
BI600QASE
BI600QASX
BI600QCR
BI600R
BI600S
BI600X
BICT600E
BI600A
BI600C
BI600E
540163
540463
540463
540454
540455
BOOK USE&CARE BI600 STD OVEN
BOOK USER GUIDE AERON E & A
BOOK USER GUIDE AERON E & A
BOOK USER GUIDE ASTRO E
BOOK USER GUIDE ASTRO X
BI600G
BI600QAA
BI600QAE
BI600QASE
BI600QASX
45
BI SINGLE ELEMENT & ACCESSORIES
MANUAL 599070
46
MANUAL 599070
BI SINGLE ELEMENT & ACCESSORIES
REF PART DESCRIPTION MODEL
26 540130
540163
540197
540197
540197
NI 89017
NI 571972
NI 473664
NI 599056
NI 872959
NI 479151
NI 447851
NI 447852
447813
447820
BOOK USE & CARE BI600
BOOK USE&CARE BI600 STD OVEN
BOOK USE & CARE BI600 FAN OVEN
BOOK USE & CARE BI600 FAN OVEN
BOOK USE & CARE BI600 FAN OVEN
ACPROD PIZZA STONE
PIZZA PADDLE
CARD INSTRUCTION PIZZA STONE
CARD WARRANTY (NEW ZEALAND)
CARD WARRANTY F&P AU
CARD INSTAL INSTR BI600/450
SMART CARE LEAFLET&ENVELOPE AU
LEAFLET SMART CARE NZ
KIT TRIM WALL 600 SERIES WHITE
KIT TRIM WALL 600 SERIES BLACK
BI600QCR
BI600R
BI600S
BI600X
BICT600E
47
NON ILLUSTRATED BI600QWD
MANUAL 599070
48
MANUAL 599070
NON ILLUSTRATED BI600QWD
REF PART DESCRIPTION MODEL
NI 447300
447310
447322
447330
447331
447334
447335
447336
447337
447338
447342
447347
447348
447358
447359
447366
PANE L CONTR O L MTG BI600Q WD
DOOR OUTE R ASSY W OO DY SS
BRACKE T IN NER DO OR TOP IO/W D
GUARD TOP ELEMENT PL SATIN CR
GUARD THERMOSTAT ENAM COBALT
RUNNERS WIRE ASSY PL SATIN CR
TRAY BAKING 600 ENAM COBALT
TRAY GLASS MOULD 2225 465X353
RACK GRILL PLATED SATIN CR
TRAY ROASTING 600 ENAM COBALT
DOOR INNER ASSY BI600 COBALT
SW TGL SATORI 250V/15A ON-ON
SW TGL SATORI250V/15A ON-OFF-O
OVEN&FRAME ENAM 600QCR WD COBL
COVER LWR ELEMENT ENAM COBALT
RACK BAKE 600 PLATED SATIN CR
BI600QWD
BI600QWD
BI600QWD
BI600QWD
BI600QWD
BI600QWD
BI600QWD
BI600QWD
BI600QWD
BI600QWD
BI600QWD
BI600QWD
BI600QWD
BI600QWD
BI600QWD
BI600QWD
447382
447451
447470
447493
447498
447651
447652
540055
540160
540165
540172
556020
556105
556528
556604
572919
HAND LE/ K NOB K IT WOODY[ E X VDR]
BEZEL SWITCH TOGGLE
MOUNTING BLOCK HANDLE WOODY
TIMER AUTO OFF ITALORA
SWITCH FUNCTION EGO
NEON 240MM TYPE 60XXXH230
BEZEL NEON ROUND RED TYPE 601R
RELAY FINDER 62.83-8-240
PANEL CONTROL ASSY BI600QWD
S/DWR ASSY BI600Q WD (SP)
S/DWR FRONT ASSY BI600QWD
SCRE W MC M4X5 PAN PH MS NP
NUT M5 HEX FS MS NIPL
WASHER M5 10 1/32 RED FIBRE
SCRE W MC M5X60 CAP ALLEN SS
NEON 190MM (ACTIVE)
BI600QWD
BI600QWD
BI600QWD
BI600QWD
BI600QWD
BI600QWD
BI600QWD
BI600QWD
BI600QWD
BI600QWD
BI600QWD
BI600QWD
BI600QWD
BI600QWD
BI600QWD
BI600QWD
49
NON ILLUSTRATED BI600QCR
MANUAL 599070
50
MANUAL 599070
NON ILLUSTRATED BI600QCR
REF PART DESCRIPTION MODEL
NI 447302
447308
447330
447331
447332
447333
447334
447335
447336
447337
447338
447342
447345
447356
447358
447359
PANE L CONTR O L MOUNT IN G E LEGA NT
BRACKET CLOCK CIRRUS WO
GUARD TOP ELEMENT PL SATIN CR
GUARD THERMOSTAT ENAM COBALT
KNOB CLOCK ELEGANT
BEZE L NEON CLEAR CIRR US WO
RUNNERS WIRE ASSY PL SATIN CR
TRAY BAKING 600 ENAM COBALT
TRAY GLASS MOULD 2225 465X353
RACK GRILL PLATED SATIN CR
TRAY ROASTING 600 ENAM COBALT
DOOR INNER ASSY BI600 COBALT
KNOB ASSY METAL CIRRUS WO
NEON BODY CIRRUS ACL 7000 W BU
OVEN&FRAME ENAM 600QCR WD COBL
COVER LWR ELEMENT ENAM COBALT
BI600QCR
BI600QCR
BI600QCR
BI600QCR
BI600QCR
BI600QCR
BI600QCR
BI600QCR
BI600QCR
BI600QCR
BI600QCR
BI600QCR
BI600QCR
BI600QCR
BI600QCR
BI600QCR
447360
447366
447392
447494
447495
447496
447499
540052
540161
556020
556104
556119
DOOR OUTER ASSY CI RR US SS
RACK BAKE 600 PLATED SATIN CR
BRACKET I/DOOR TOP CIRRUS BK
CLOCK PEAPSA SILVER PCA-NZ-471
LENSE CLOCK CIRRUS WO
INSERT CLOCK CIRRUS WO
SWITCH FUNCTION EGO CIRRUS WO
HANDLE DOOR CIRRUS BRANDED
PANEL CONTROL ASSY BI600QCR
SCRE W MC M4X5 PAN PH MS NP
NUT M4 HEX FS MS NIPL
SCR E W MC M5 X1 6 CS K P H MS BL AC K
BI600QCR
BI600QCR
BI600QCR
BI600QCR
BI600QCR
BI600QCR
BI600QCR
BI600QCR
BI600QCR
BI600QCR
BI600QCR
BI600QCR
51
NON ILLUSTRATED BI600QIO
MANUAL 599070
52
MANUAL 599070
NON ILLUSTRATED BI600QIO
REF PART DESCRIPTION MODEL
NI 447320
447322
447330
447331
447334
447335
447336
447337
447338
447340
447341
447343
447359
447366
447373
447493
OVEN&FRAME 600QIO ENAM COBALT
BRACKE T IN NER DO OR TOP IO/W D
GUARD TOP ELEMENT PL SATIN CR
GUARD THERMOSTAT ENAM COBALT
RUNNERS WIRE ASSY PL SATIN CR
TRAY BAKING 600 ENAM COBALT
TRAY GLASS MOULD 2225 465X353
RACK GRILL PLATED SATIN CR
TRAY ROASTING 600 ENAM COBALT
KNOB ASSY METAL IO
BEZEL NEON AMBER IO ACL
HAND LE DO OR IO HETT IC H
COVER LWR ELEMENT ENAM COBALT
RACK BAKE 600 PLATED SATIN CR
GROM MET HA ND LE DO OR
TIMER AUTO OFF ITALORA
BI600QIO
BI600QIO
BI600QIO
BI600QIO
BI600QIO
BI600QIO
BI600QIO
BI600QIO
BI600QIO
BI600QIO
BI600QIO
BI600QIO
BI600QIO
BI600QIO
BI600QIO
BI600QIO
447497
447651
447652
540041
540091
540099
540166
540167
540168
540169
540170
540171
540736
556018
556117
SWITCH FUNCTION IO EGO
NEON 240MM TYPE 60XXXH230
BEZEL NEON ROUND RED TYPE 601R
DOOR INNER ASSY BI600QIO
SPACER
BRACKET CO NTR O L PANEL IO
O/DOOR&P/CONTRL BI600QIO MB
O/DOOR&P/CONTRL BI600QIO PW
O/DOOR&P/CONTRL BI600QIO RR
O/DOOR&P/CONTRL BI600QIO NY
O/DOOR&P/CONTRL BI600QIO TG
O/DOOR&P/CONTRL BI600QIO SR
OVEN&FRAME 600QIO ENAM COBALT
SCRE W MC M4X8 HEX PH MS NP
SCR E W MC M4 X1 6 PA N P H MS ZP
BI600QIO
BI600QIO
BI600QIO
BI600QIO
BI600QIO
BI600QIO
BI600QIO
BI600QIO
BI600QIO
BI600QIO
BI600QIO
BI600QIO
BI600QIO
BI600QIO
BI600QIO
53
MANUAL 599070
54
NOTES
BI MAIN DOOR ASSY
Technical Bulletins
447641 RA65
MANUAL 599070
55
Loading...
