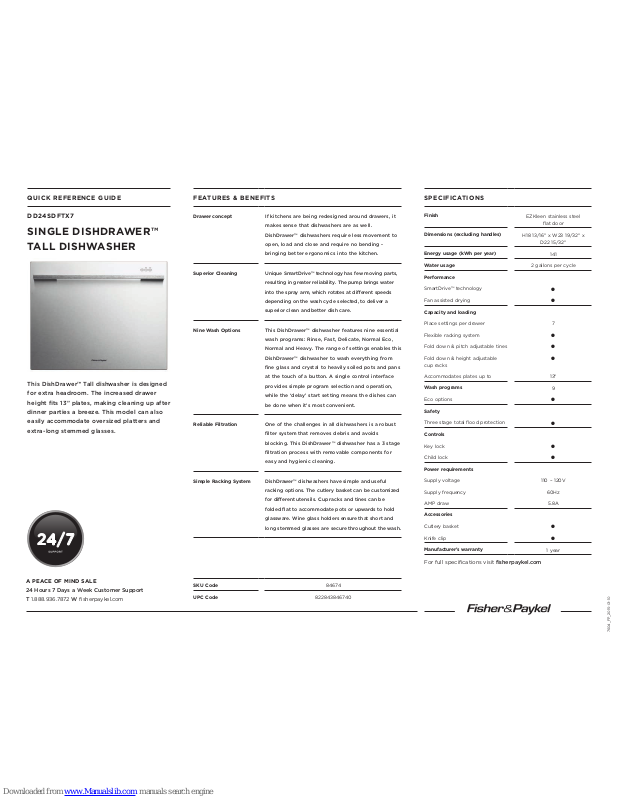

QUICK REFERENCE GUIDE

DD24SDFTX7

SINGLE DISHDRAWER™
TALL DISHWASHER

This DishDrawer™ Tall dishwasher is designed

for extra headroom . The inc reased d rawer

height fit s 13” plates, making cleaning up af ter

dinner p arties a breeze. This model c an also

easily accommodate oversized platters and

extra-long stemmed glasses.

FEATURES & BENEFITS

Drawer concept If kitchens are being redesigned around drawers, it

makes se nse that d ishwas hers are a s well.

DishDrawer™ dishwashers require less movement to

open, l oad and cl ose and r equire n o bendi ng -

bringing better ergonomics into the kitchen.

Superior Cleaning Uniqu e Smart Drive™ tec hnolo gy has few m oving par ts,

resulti ng in gre ater reli abilit y. The pum p brings w ater

into the sp ray arm, w hich rot ates at di erent s peeds

depending on the wash cycle selected, to deliver a

superior clean and better dish care.

Nine Wash Options This DishDrawer™ dishwasher features nine essential

wash pro grams: R inse, Fa st, Del icate, N ormal Ec o,

Normal a nd Heav y. The rang e of setti ngs ena bles thi s

DishDrawer™ dishwasher to wash everything from

fine gla ss and cr ystal to he avily soi led pots a nd pan s

at the tou ch of a butto n. A sing le contr ol inter face

provide s simple p rogram s elect ion and o perati on,

while th e ‘delay ’ start s etting m eans th e dishe s can

be done wh en it’s m ost conven ient .

Reliable Filtration One of th e challe nges in a ll dishwa shers i s a robus t

filter sys tem that r emoves de bris and a voids

blocki ng. Thi s DishD rawer™ di shwash er has a 3 st age

filtrati on proce ss with re movable c ompon ents for

easy and hygienic cleaning.

Simple Racking System DishDrawer™ dishwashers have simple and useful

rackin g option s. The cu tlery b asket ca n be custo mized

for die rent ute nsils . Cup rack s and tin es can be

folded fl at to accom modat e pots or upw ards to ho ld

glassware. Wine glass holders ensure that short and

long ste mmed gl asses ar e secure t hroug hout th e wash.

SPECIFICATIONS

Finish

EZKleen stainless steel

flat door

Dimensions (excluding handles)

H18 13/16" x W23 19/32" x

D22 15/32"

Energy usage (kWh per year)

141

Water usage

2 gallons per cycle

Performance

SmartDrive™ technology

l

Fan assisted drying

l

Capacity and loading

Place settings per drawer 7

Flexible racking system

l

Fold down & pitch adjustable tines

l

Fold down & height adjustable
cup racks

l

Accommodates plates up to 13"

Wash programs

9

Eco options

l

Safety

Three stage total flood protection

l

Controls

Key lock

l

Child lock

l

Power requirements

Supply voltage 110 – 120V

Supply frequency 60Hz

AMP draw 5.8A

Accessories

Cutlery basket

l

Knife clip

l

Manufacturer's warranty

1 year

For full specifications visit fisherpaykel.com

SKU Code

84674

UPC Code

822843846740

7604_FP_2015-01-10

A PEACE OF MIND SALE

24 Hours 7 Days a Week Customer Support

T 1.888.936.7872 W fisherpaykel.com

DATA SHE ET

DATUM : BOTTOM OF CARCASS

DATUM : FRONT OF CARCASS

DATUM : FRONT OF CARCASS

B

B

D

A

FRONT VIEW

PLAN VIEW

PROFILE VIEW

I

I

H

C

D

GE F

K

C

J

24'' SINGLE DISHDR AWER™ TALL DISHWASHER

Model no:

DD60SDFTX7
DD60SDFHTX7
DD60SDFTM7
DD24SDFTX7

Product Dimensions in

a Overall height* of DishDrawer™

B Overall width of DishDrawer™

C Depth of DishDrawer™ front panel (excludes handle)

D Depth of DishDrawer™ chassis

E Height from bottom datum to top of handle

16 1/4''

F Height from bottom datum to bottom of handle

15 5/8''

G Height from bottom datum to bottom of drawer panel

5/16''

H Height of chassis at rear

17 7/8''

I Depth of drawer (open) (measured from front drawer panel)
excluding handle

J Width of handle

22 1/4''

K Depth of handle measured from front of drawer

1 5/8''

* Does not include cavity bracket.
Note: Service outlet at rear extends both sides, hoses and cords can be routed
to either or both.

Minimum Clearances in

Minimum inside height of cavity from bottom datum

Minimum inside width of cavity

Minimum inside depth of cavity from front datum

22 1/16''

match other F&P products. For full details please refer to the installation
manual.

INDICATES CABINETRY CARCASS DATUM

INDICATES MINIMUM CABINETRY CLEARANCES

DATE:

IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm

''). Please read the installation manual for detailed information on

installing the product. www.fisherpaykel.com
