Freestander Ranges
6102 Series
CONTENTS
1
Introduction Safety Instructions 2
Clocks & Timers Ringer Timer Model 4
Features and Functions Main Oven Features 6
Cooking Guide Cooking Guide 7
Roasting Guide Roasting Guide 8
Cooktops Radiant Cooktops 9
Cleaning Cleaning your Range 10

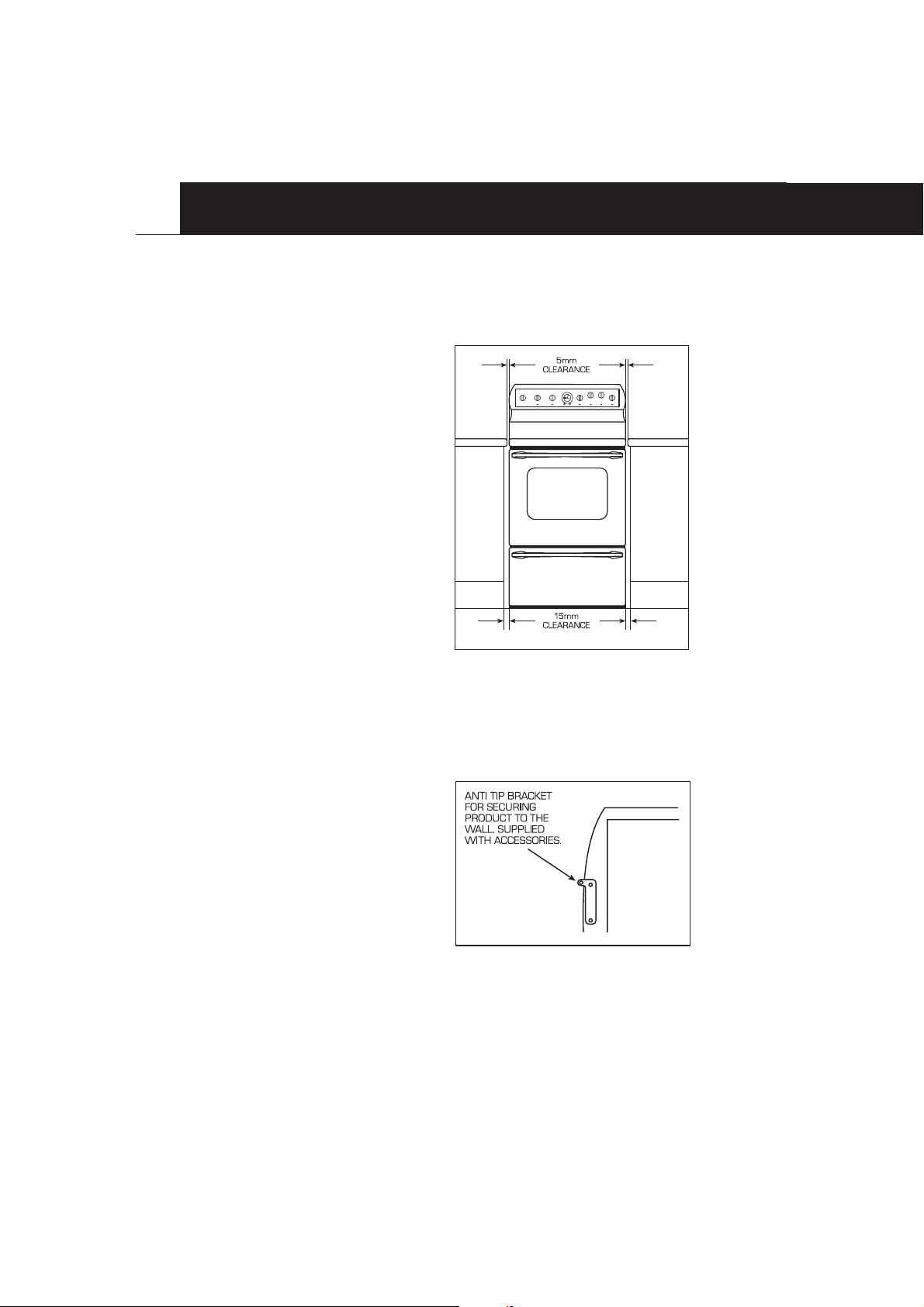

Installation Instructions Installing Your Product 11
Warranty Manufacturer's Warranty 12
First Use 2
Side Mounted Power Outlets 3
Accessories 3
Analogue Clock Model 4
Automatic Cooking Using the Analogue Clock 5
Cleaning your Cooktop 10
Product Details & Customer Care 13
Customer Care 14
INTRODUCTION
2
Congratulations
Safety Instructions
Warning
Congratulations on the purchase of your new
Freestander Range.
We strongly recommend that you read these Use
and Care Instructions carefully to take full
advantage of the features offered by this product.
This books covers operational instructions for the
RA6102 Series Freestander Range - 'Thyme',
'Tamarind', 'Paprika' and 'Sage'.
1. Household appliances are not intended to be
played with by children.
2. Children or persons with a disability that may
limit their ability to use the appliance, should
have a competent person instruct them in its
use. This person should be satisfied that they
can then use the appliance without danger to
themselves or their surroundings.
3. This appliance should be connected to a circuit
which incorporates an isolating switch
providing full disconnection from the power
supply.
4. If your Range is placed on a base to align it
with the bench, take measures to prevent the
base of the Range from slipping.
During use this appliance becomes hot.
Care should be taken to avoid touching heating
elements inside the oven.
First Use
Accessible parts may become hot when the grill is
in use. Children should be kept away.
We do not advise placing aluminium foil or dishes
with reflective qualities on the oven bottom. This
will cause a heat build up, which will result in
irreversible damage to the enamel.
Remove accessories and condition the oven by
running at bake, 200°C for one hour before using.
There will be a distinctive smell, this is normal but
make sure your kitchen is well ventilated during
the conditioning period.
INTRODUCTION
3
Side Mounted Power
Outlets
(New Zealand Only)
Accessories
The two side mounted power outlets are internally
fused with one 10 amp fuse. Care should be taken
not to overload them.
If required the fuse can be repaired by following
these steps:
1. Turn the power to the oven off. Extra care
should be taken to make sure there is no power
to the oven before repairing the fuse.
2. Pull the oven out from the wall os the back is
accessible and locate the fuse cover on the
right-hand side.
3. Using a Phillips style screwdriver, remove the
screw holding the fuse cover in place and
remove the fuse cover.
4. Remove the fuse carrier from its base and
replace the blown fuse wire with a new 10 amp
fuse wire. 10 amp is the maximum allowable
fuse wire that can be used in this fuse.
5. Refit the fuse and the fuse cover.
Your Range will be supplied with some of the
features/accessories listed depending on the model
you have purchased.
1 Roast Dish
1 or 2 Non Stick Bake Trays
2 Oven Racks
1 Grill Rack
Warmer Drawer or Storage Drawer
Best cooking results are achieved using the
accessories provided with your Range. Shiny/
aluminium trays will affect performance,
particularly browning and cooking time.
4CLOCKS & TIMERS
Ringer Timer Model
Setting the Ringer
Timer
Analogue Clock Model
Setting The Analogue
Clock
Setting the Minute
Timer
This has a manual timer which can be set for up to
55 minutes.
The timer can be used at any time even if the
oven is not in use. The timer can be set for up to
55 minutes.
If the oven is in use, the timer does not turn the
oven off.
1. To use the timer, turn the timer control knob
clockwise to the 55 minute mark, then turn
back to show the number of minutes you want.
2. The timer will count down and will ring when
the set time is reached.
This clock has an analogue display and an
automatic function.
To set the clock push the Cook Time knob in and
turn anti clockwise until the clock shows the
correct time. Make sure the shows. Press and
turn the Start Time knob anti clockwise until the
red triangle clicks into alignment with the hour
hand.
The Timer can be used at any time even if the
oven is not in use, however if the oven is in use it
will turn the oven off when the set time has
elapsed.
To set the Timer, turn the Cook Time knob anti
clockwise until you have the number of minutes
you want in the centre of the display window.
When the time you have set is finished, the Timer
will ring and the oven will turn off, if it is on.
To turn the timer bell off, turn the left hand knob
to . The Timer will continue to ring until
turned off. Make sure the oven is returned to
manual mode by turning the Cook Time knob until
the shows.
5 CLOCKS & TIMERS
Automatic Cooking
Using the Analogue
Clock
To Turn the Oven Off,
and/or Cancel
Automatic Cooking
Using Your Oven
Check that the clock shows the correct time.
Choose the Function and Temperature that you
want. The oven indicator light will glow and the
elements will come on.
Decide when you want the oven to come on.
This is the time you want the oven to turn off,
minus the cooking time you have set.
Turn Cook Time knob anti clockwise until you
have the number of minutes you want to cook for
in the centre of the display window.
Press and turn the Start Time knob anticlockwise
until the red triangle is pointing to the time you
want to start cooking. The indicator light will go
out.
The oven is now set for automatic cooking.
Turn the cooktime knob until the symbol shows
in the display window, turn the oven to manual
mode. Press and turn the start time knob until the
triangle clicks into alignment with the hour hand.
turn temperature and function to off.
Turn the oven on by selecting the required
temperature. The oven light will come on
automatically. The oven indicator light will glow
until it has reached the set temperature. For
grilling turn the temperature to grill. When you
have finished cooking, turn the oven off.
Fan Grill Models
Select required function using Function knob then
select the temperature you want with the
Temperature knob. The oven light will come on
automatically when a function is selected. The
Oven Indicator Light will glow until the oven has
reached the set temperature.
To use the grill, select Grill on the Function knob.
Set to the required heat by using the Temperature
knob. The hottest temperature is achieved at Hi.
We recommend that this is used for grilling
meats.
When you have finished cooking, turn the oven
off.
6FEATURES & FUNCTIONS
Main Oven Features
Warmer Drawer
Storage Drawer
Functions
Grill
Bake
This Range has a concealed lower element and may
require food to be cooked at a lower shelf position.
Warmer drawers have a low powered element and
are useful for keeping hot food warm or for warming
plates and serving dishes. Rotate the knob to turn
the warmer drawer on and off.
Storage drawers do not have an element so cannot
keep food warm.
There are a variety of cooking functions depending
on the model of Range you have purchased. These
include Bake, Grill, Fan Grill and Fan Forced.
For best results when grilling, leave the oven door
open at the first stop position. The grill function
cooks a large area of food by using heat from an
upper element and is suitable for tender cuts of
meat, toasted snack foods and crisping toppings
on many dishes.
Heat comes from the top and bottom of the oven.
For baked products you will achieve a better result
if the oven is pre-heated first. Cooking one tray of
food at a time is preferable. Both elements are
controlled by the thermostat and will cycle on and
off to maintain the set temperature. This is the
traditional method for cooking baked food.
Fan Forced
Fan Grill
Multi level fan cooking circulates heat from an
element around the fan, throughout the oven. This
function is particularly good for multi tray cooking,
reheating cooked foods and complete oven meals.
Use Fan Forced for casseroles and baked vegetables
and when cooking more than one tray of baking.
The fan circulates heat from the grill element around
the oven. This style of grilling takes the place of a
rotisserie. Fan Grill is suitable for foods you would
normally fry e.g. sausages, chops and meatballs.
Fan grilling is carried out with the oven door closed
and the oven does not need to be preheated.
COOKING GUIDE
7
stcudorPdekaBsniM/emiTpmeT °CflehSsniM/miTpmeT °CflehS
ekaCtiurFthgiL 58-57051-541458-080514
ekaCananaB 56-06071-061406-55071-0614
stiucsiB 21-01081-5713&221-01081-5712
senocS 51-015222 51-015222
secilS 52-020613 52-025713
seugnireM 011-090013&2011-090013
egnopS 82-420514 82-425713
noitcnuFdecroFnaFnoitcnuFekaB
)elohW(nekcihC
53-03
g005rep
5714
53-03
g005rep
5714
traTdratsuC
yrtsaP
gnilliF
61-41
53-03/8-6
002-091
4
051/002
4
81-41
53-03/8-6
002-091
4
051/002
4
ediuGllirG
tsaoT
segasuaS
*enoDlleW
ces06-05
edisrep
51-01052-iH2
iH3
* When grilling thicker items such as
sausages, turn often to ensure even
browning.
ediuGllirGnaF
)elohW(nekcihC 571
Shelf positions are numbered from the top down. You may need to alter the time to achieve your
desired result.
When multi cooking some products may need to be removed before others.
53-03
4
g005rep
Important
These times and temperatures are a guide only and are based on the oven being
pre-heated first.
ROASTING GUIDE
Meat Temp Minutes Internal
°C per 500g Temp °C
Beef Rare 160-170 30-35 60-65
Medium 160-170 35-45 65-75
Well Done 160-170 45-60 75-80
Mutton Well Done 160-170 45-60 80-85
Hogget / Lamb Medium 160-170 30-40 79-82
Well Done 160-170 45-60 82-85
Pork Well Done 180-185 40-45 78
Chicken Well Done 160-180 25-30
8
Cervena * Rare 220 3
* Brown prior to roasting in an oiled frypan on high heat.
These temperatures and times are a guide only and you may need to increase or
decrease these depending on your preferences.
A large piece of meat requires fewer minutes per 500g than a smaller piece. Roasting
times will be affected by the shape and size of the meat being roasted. Meat with a bone
will cook quicker than a rolled roast.
Do not add water to your roast as this has a steaming affect.
Use a meat thermometer to ensure an accurate result. As the internal temperature of the
meat will continue to rise during standing, please allow for this in your calculation. This
is particularly important if you want a rare or medium rare roast.
1
/2 per cm 65-70
thickness
COOKTOPS
9
Radiant Cooktops
Control
The radiant coil cooktop has tubular heating
elements. The elements are designed to lift and
rotate allowing easy access to the element bowls
for cleaning. Replacement bowl inserts are
available from the dealer where you purchased
your range.
As the control knob is turned from Lo to Hi, the
heat output is increased. Turn the control knob to
Hi to begin cooking, adjusting as necessary.
The elements are controlled by variable energy
regulators giving infinite temperature control. At
the low setting, delicate warming, melting
chocolate or keeping milk warm at very low
temperatures is able to be carried out. The high
setting is ideal for boiling, simmering or frying.
Once your pan is hot, reduce the temperature to
maintain a steady heat to cook your food through.
Cooking efficiency will vary due to the different
types of cooking utensils used, like heavy based
saucepans. Cooking results are influenced by pot
quality and size. It is essential that pot size
matches the diameter of the cooking zone. Low
heat or slow cooking is often due to incorrect pot
size usage.
Utensils
To get the best out of your cooktop follow these
simple suggestions. Preheat the cookware on the
cooktop before adding food.
Cookware with a stainless steel sandwich base or
enamelled cast iron will give you the best results.
When food comes to the boil reduce the
temperature setting. Never use plastic or
aluminium dishes on the cooktop.
It is important that the pans are the same size or
slightly larger than the element. A pan with a
flat base will make better contact with the
element resulting in shorter cooking times.
Aluminium and copper cookware can cause a
metallic residue to remain on the cooktop. If left
this becomes difficult to remove. Jagged edges
on saucepans or heavy frypans may scratch the
element.
Round based woks should NOT be used on radiant
elements, as they will damage the element
bowls.
CLEANING
10
Cleaning Your Cooktop
Cleaning your Range
Oven Door
The element bowls should be cleaned regularly to
avoid food residue being burned on the enamel.
Wipe out using warm water and detergent or liquid
cleaner containing ammonia. The element bowls
have an acid resistant finish but spillovers of acidic
foods should be wiped up as soon as possible to
avoid damaging the enamel.
The aluminium liners supplied for the element
bowl will deteriorate with use and are available
as a spare part.
All surfaces can be wiped with a damp cloth and
liquid detergent or non-abrasive cleaner.
Wipe the outside surfaces frequently, using warm
water and a household detergent or a spray on,
wipe off cleaner.
To remove the oven door for easier cleaning:
1. Open the door to the first stop position.
2. Lift the door to disengage the hinges by
holding the handle only. Do not lift the door
in the vicinity of the hinges, as they are spring
loaded and will snap back.
3. To replace, place hinge arms in the slots, lift
the door by the handle and push from the
bottom of the door to engage the hinges.
Warmer Drawer
Oven and Oven Racks
Oven Lamp
The warmer drawer can be removed for cleaning.
Pull out until it stops, then lift it clear of the Range.
We recommend that the warmer drawer is removed
or paper towels are placed under the door when
cleaning the oven to avoid accidental spills of
oven cleaner onto the warmer drawer.
Clean the inside of the oven while still warm,
using household detergents or an ammonia based
cleaner, e.g. Handy Andy. Off the shelf oven
cleaners may be used providing the instructions
supplied by the manufacturer are followed
carefully. Failure to follow the manufacturers
instructions could stain or damage the enamel.
Turn oven off at wall before touching the oven
lamp. The glass cover can be removed for
cleaning. Always replace the glass cover before
using the oven. Ensure the appliance is switched
off before replacing the oven lamp to avoid the
possibility of electric shock.
INSTALLATION INSTRUCTIONS
11
Installing Your Product
1. This product is designed for a 230/240V ac
single or two phase connection.
2. Cabinet clearances.
3. Anti tip brackets are supplied with the
accessories, so that the product can be
secured to the wall to prevent it from tipping
over.
FISHER & PAYKEL MANUFACTURER'S WARRANTY
When you purchase any new Fisher & Paykel
Whiteware Product you automatically receive a
two year Manufacturer's Warranty covering parts
and labour for servicing within New Zealand and
Australia.
Repair or, at its option, replace without cost to the
Fisher & Paykel
Undertakes to
This warranty DOES
NOT cover
owner either for material or labour, any part of the
Product, the serial number of which appears on the
Product, which is found to be defective within
TWO YEARS of the date of purchase.
A. Service calls to which are not related to any
defect in the Product. The cost of a service
call will be charged if the problem is not found
to be a Product fault. For example:
1. Correct the installation of the product.
2. Instruct you how to use the product.
3. Replace house fuses or correct house wiring
or plumbing.
4. Correcting fault(s) caused by the user.
B. Defects caused by factors other than:
1. Normal domestic use or
2. Use in accordance with the Product's User
Guide.
C. Defects to the Product caused by accident,
neglect, misuse or Act of God.
D. The cost of repairs carried out by non-
authorised repairers or the cost of correcting
such unauthorised repairs.
E. Normal recommended maintenance as set out
in the Product's User Guide.
12
Service under this
Manufacturer's
Warranty must be
provided by Fisher &
Paykel.
Such service shall be provided during normal
business hours. This Warranty Certificate should
be shown when making any claim.
This Warranty is an extra benefit and does not
affect your legal rights.
This Warranty applies only to product
purchased in New Zealand and Australia.
Please keep this Use & Care Manual in a safe
place. Do not return to Fisher & Paykel.
13
PRODUCT DETAILS & CUSTOMER CARE
PRODUCT DETAILS
Fisher & Paykel Ltd
Model/Serial No.
Date of Purchase
Purchaser
Dealer
Suburb
Town
Country
Before You Call
Check ...
NEW ZEALAND
Toll Free:
0800 FP CARE
0800 37 2273
Before you call for service or assistance ...
Check the things you can do yourself.
Refer to your Use & Care Manual and check...
1. Your product is correctly installed
2. You are familiar with its normal operation
If after checking these points you still need
assistance, please refer to the following...
In New Zealand if you need assistance ...*
Call your Fisher & Paykel retailer who is trained to
provide information on
your product, or if we can
be of any further help, please contact our
Customer Care Centre.
Email: Customer.Care@fp.co.nz
Fax: (09) 273 0656
Postal Address: PO Box 14-917,
Panmure, Auckland
If you need service ...*
Fisher & Paykel has a network of independent
Fisher & Paykel AUTHORISED SERVICE CENTRES
whose fully trained technicians can carry out any
service necessary on your product. Your dealer or
our Customer Care Centre can recommend an
AUTHORISED SERVICE CENTRE in your area.
CUSTOMER CARE
14
Before You Call
Check ...
AUSTRALIA
Toll Free: 1300 650 590
from anywhere within
Australia
QUEENSLAND
Before you call for service or assistance ...
Check the things you can do yourself.
Refer to your Use & Care Manual and check...
1. Your product is correctly installed
2. You are familiar with its normal operation
If after checking these points you still need
assistance, please refer to the following...
In Australia if you need assistance ...*
Call the Fisher & Paykel CUSTOMER CARE
CENTRE and talk to one of our Customer Care
Consultants.
Email: Customer.Care@fp.com.au
Phone: (07)3826 9100 Fax: (07) 3826 9298
Postal Address: PO Box 798 Cleveland, QLD 4163
If you need service ...*
Fisher & Paykel Australia Pty Ltd has a network of
independent Fisher & Paykel AUTHORISED
SERVICE CENTRES whose fully trained technicians
can carry out any service necessary on your
product. Your State Office or our Customer Care
Centre can recommend an AUTHORISED
SERVICE CENTRE in your area.
Australian State Offices
Unit 1/400 Nudgee Rd, Hendra, Brisbane Qld 4011
Ph: (07) 3860 9170 Fax: (07) 3860 9179
VICTORIA
WESTERN AUSTRALIA
NORTHERN TERRITORY
NEW SOUTH WALES
SYDNEY
NEW SOUTH WALES
NEWCASTLE
SOUTH AUSTRALIA
* If you Call or Write,
please provide ...
1507 Centre Rd, Clayton, Melbourne, Vic 3168
Ph: (03) 9542 4660 Fax: (03) 9542 4668
Lot 12/137 Pilbara St., Welshpool, WA 6106
Ph: (08) 9356 4520 Fax: (08) 9356 4529
Unit 1, 46 McMinn St., Darwin, NT 0800
Ph: (08) 8981 0440 Fax: (08) 8981 0755
16 Parramatta Rd, Lidcombe, NSW 2141,
Private Bag 7, Silverwater DC NSW 1811
Ph: (02) 8745 8220 Fax: (02) 8745 8288
27 Pendlebury Road, Cardiff, NSW 2285
Ph: (02) 4954 6011 Fax: (02) 4954 6145
10-12 Lafitte Road, Wingfield, SA 5013
Ph: (08) 8344 0450 Fax: (08) 8344 0459
Please provide, name and address, model number,
serial number, date of purchase and a complete
description of the problem. This information is
needed to provide a better response to your request
for assistance.
The product specifications in this booklet apply to the specific products and models
described at the date of issue. Under our policy of continuous product improvement, these
specifications may change at any time. You should therefore check with your Dealer to
ensure this booklet correctly describes the product currently available.
New Zealand Customer Care Centre, toll free - 0800 37 2273
Copyright Reserved © Fisher & Paykel 2001.
Australian Customer Care Centre, Priority - 1300 650 590
Date of Issue: March 2001 Part No. 573158I
- 0800 FP Care,
Loading...
