Ferguson Ariva TT HD PVR User Manual

1 Before You Begin ............................................................................................................ ……….5

1.1 Features .................................................................................................................................5

1.2 Accessories............................................................................................................................6

2 Controls and functions...............................................................................................................7

2.1 Front Panel.............................................................................................................................7

2.2 VFD display ............................................................................................................................7

2.3 Rear Panel ........................................................................................................................... 8

2.4 Remote control........................................................................................................................9

3 Connections ............................................................................................................................. 11

3.1 Connecting to TV ..................................................................................................................11

3.2 Connecting from external USB devices ................................................................................... 15

3.3 Connecting receiver to PC ..................................................................................................... 15

3.4 Connect on satellite dish........................................................................................................16

4 Menu overview ......................................................................................................................... 18

4.1 How to use inside menu......................................................................................................... 18

4.2 Help for menu .......................................................................................................................18

4.3 Menu structure......................................................................................................................19

5 Setup the receiver ....................................................................................................................20

5.1 First install............................................................................................................................20

5.2 Installation ............................................................................................................................ 23

5.3 Program ...............................................................................................................................33

5.4 Configuration ........................................................................................................................ 38

5.5 Other....................................................................................................................................43

5.6 Status...................................................................................................................................47

5.7 PVR .....................................................................................................................................48

6 Viewing General Information....................................................................................................50

6.1 Service Information ...............................................................................................................50

6.2 TV & Radio changing............................................................................................................. 51

6.3 TV or Radio Channel Lists .....................................................................................................51

6.4 Options................................................................................................................................. 53

6.5 A/V+..................................................................................................................................... 54

6.6 Satellite/Favorite ...................................................................................................................55

6.7 EPG (Electronic Program Guide) ..........................................................................................56

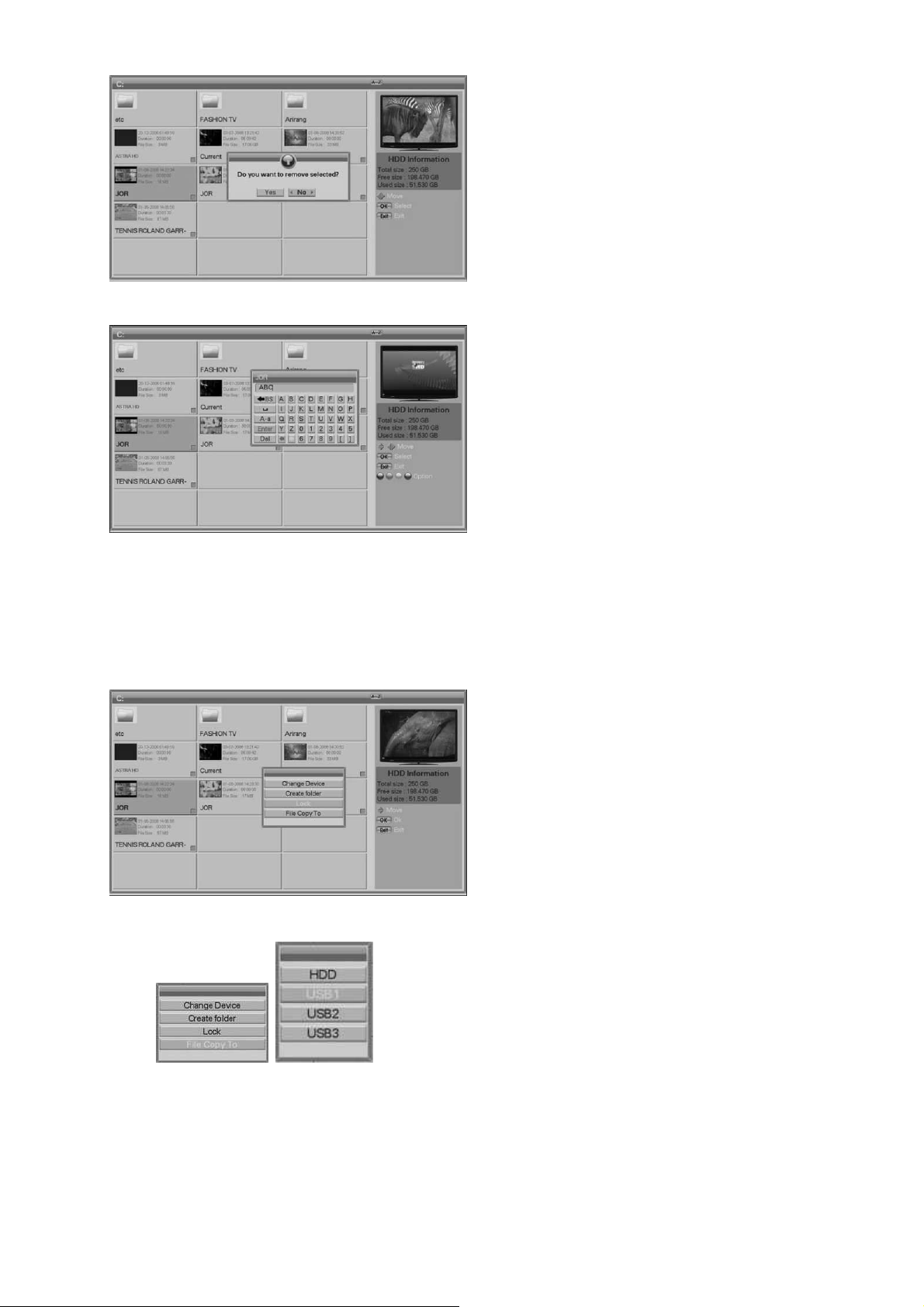

6.8 PVR Function........................................................................................................................58

7 Display Movie and Picture........................................................................................................ 60

7.1 File list / Play function............................................................................................................ 60

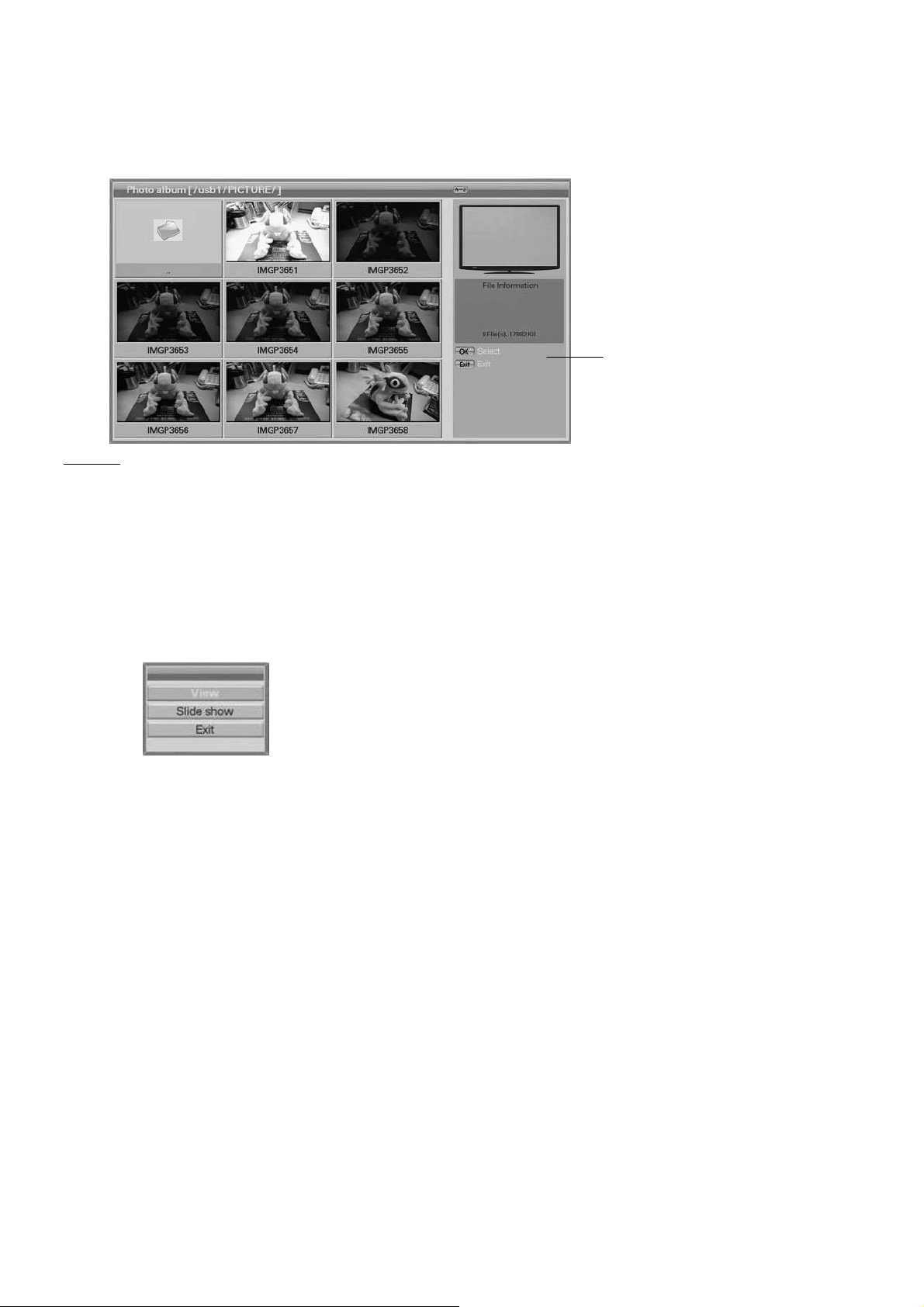

7.2 Photo album ......................................................................................................................... 63

8 Movie edit and cut function ...................................................................................................... 64

8.1 Edit and cut function.............................................................................................................. 64

Additional Information..................................................................................................................... 65

1. Technical Specifications ............................................................................................................. 65

2. Glossary of Terms ......................................................................................................................66

3. Troubleshooting .........................................................................................................................67

Notice

Read this manual carefully and make sure you understand the provided instructions. For your safety, check what the result each action will be.

Warnings, Cautions and Notes

Throughout he whole manual, pay special attention to the follow ing marks t hat indicate hazardous situations.

Caution

Indicates a situation which, if not avoided, could damage the equipment or apparatus.

Warnings

Indicates a hazardous situation which, if not avoided, could result in serious injury.

Note

Indicates additional information to the user to make the user aware of possible problems and information of any importance to help the user to understand, to use and to maintain the installation.

Safety Information

This digital satellite receiver has been manufactured to comply with international safety standards. Please read the follow ing safety precautions carefully.

Safety Instructions and Precautions

Avoid placing heavy things and blocking ventilation passage.

(Passage blocking can cause fire)

Avoid scrubbing the surface with Benzene or Volatile gasoline. Color

can be damaged.

Leave the power and the antenna off for the ling absence or during

thunder storm.

Avoid dropping and damaging Remote Control Unit.

If there is smoke or burning smell, turn off & un-plug the set

immediately. Contact your local repair center for advice.

Avoid place the set on slippery and slant surface.

Keep away from the water.

Clear off the dust. Dust or Metallic particles inside the set can cause

fire and electric shock.

Avoid dissembling and assembling. Do not open the set.

Do not snatch the cable to plug out.

Do not move the set while power cord is plugged in.

Keep the distance from Magnetic items and Audio Speaker.

Place the set with the good ventilation and away from the direct

sunlight and humidity.

Avoid the temperature of over 30C and below 5C.

1. Before You Begin

1.1 Features

- Digital Satellite Receiver for High Definition TV (2 Tuner HD-PVR)

- Resolution HDMI: 1080i, 720p, 576p (Upscaling for PAL transmissions)

- Alphanumeric VFD display with 12 digits and symbols

- CE hard disk quietly working and high transfer rate SATA connection up to 1 TB possible

- 3x USB 2.0 connections for external USB storages and one USB variant B for connect to PC

- Main switch for fully shut down the receiver

- Connectors: HDMI1.2, YPbPr, 2x Scart (RGB, YUV o. CVBS), Audio/Video 3x RCA, SPDIF

- 100Mbit LAN connection for data transfer to PC in preparation Protocol : TCP, UDP, IP, ARP, ICMP, MAC, (IGMP, PPPoE)

- Support for DiSEqC 1.0 (multiswitch) and DiSEqC 1.2/USALS (motorised system) and Unicable (one cable solution)

- First install guide for fast and easy setup

- Multi-language menu

- Integrated Photo album / picture viewer

- Picture in picture function for see two channels in same time

- TimeShift function

- Electronic program guide (EPG) for channel view up to 7 days

- Fast teletext generator with memory for 800 pages

- Recording timer, easy to use over EPG function

- One main channel list and 8 favourite list, for individual configuration

- 8000 memory places for TV and Radio channels

1.2 Accessories

- Manual

- Remote control

- Batteries (2x AAA 1,5V)

- HDMI - cablel

- Loopcable for bridge the tuner

- YUV - cable

- SPDIF - cable

2. Controls and Functions

2.1 Front Panel

Item Description

1. Power Button Turns the receiver On/Off.

2 Menu/OK Button Shows the Main menu in viewing mode. Activates the highlighted menu

item in menu mode.

3. EXIT Button Exit from the current menu or cancels the current progressing operation if applicable. Change the video format in viewing mode. (576P, 720P, 1080i)

4. CH Up/Down Buttons (▲▲▲▲

/▼▼▼▼)

5. Volume Up/Down Buttons

(◀◀◀◀ /▶▶▶▶ )

Changes channels in viewing mode and moves the cursor up/down in menu mode.

Increases/ decreases the volume levels in viewing mode and changes settings in menu mode.

2.2 VFD Display

12-digit display for channel place and name. In Standby it show time and date.

Circle around light up

2.3 Rear Panel

TV- and Radio-Symbol Light up if channel

REC light up when

Symbol apears when Dolby singnal is

Standby-Symbol.

Show the one record

Show the space used

equipment,you need to connect with the cable bridge LOOP OUT A

1 2 345 6 7 8 9 10

Item Description

1. DISH IN A

DISH IN B

LOOP OUT A

Input Tuner 1 for digital signal from satellite reception equipment. Conncet this with the output from your outlet or satellit dish.

Input Tuner 2 for digital signal from satellite reception equipment. Conncet this with the output from your outlet or satellite dish. For the full functionality of this receiver, you need to have 2 cable from your satellite reception equipment. If this is not possible, you need to connect with the cable bridge LOOP OUT A with DISH IN B.

When you have only one cable from your satellite reception

LOOP OUT B:

2. USB

3. USB

4. LAN

5. HDMI

6. CVBS OUT

Stereo Audio OUT

YPbPr OUT

7. RS-232C

8. S/PDIF

9. Electric Inlet Lead

10. Power Cord

with DISH IN B. Here you can connect other devices like one analogue receiver.

Attention, only one receiver has to be active . If not the receivers disturb each other.

USB connector variant B for connecting with PC. Back side USB connectors for external USB hard disks. Connects to a PC for transferring files and SW download

Connect HDMI input of TV or PC monitor. Using standard video cables, these jacks connect CVBS(Yellow). Using standard stereo audio cables, these jacks connect L/R(White,

Red). Using standard A/V cables, these jacks connect Y/Pb/Pr(Green,

Blue, Red) HD component video input. Connects to a Set-top box or a PC serial port. Output for connection to a digital amplifier. 90~240V AC(Auto-selectable), 50~60Hz. Make sure to check the

power specification. AC Power Switch.

2.4 Remote Control Unit

All receiver features can be controlled with the remote controller.

Button

POWER

MUTE

STB

Turns the receiver On/Off. Turns the sound on/off.

Description

Sleep

SET

PVR Info

REW

SLOW

REC ●

PLAY 

STOP ■

PAUSE

∥∥∥∥

VOL+/-

TV/Radio

FAV/SAT

PVR LIST

CH+/-

EPG

You can turn the STB off after minutes set.

Display playback status bar Rewind playback. Fast forward playback. Playback in slow mode.. Record the channel. Playback the recorded files. Stop playing mode. Pause playing mode. Changes channels in viewing mode or selects other menu

pages with sub-pages. Switches between TV and Radio.

Selects the group of favorite. Show the search Satellite list. Display the file list of recorded files Changes channels in viewing mode. Shows the TV/Radio Channel guide.

INFO

Option

A/V+ MENU

A-B OK

EXIT

A to Z

RED

GREEN

◀◀◀◀ /▶▶▶▶ ( / )

YELLOW

BLUE

▲▲▲▲ /▼▼▼▼ ( / )

RED

GREEN

Shows the information of the Banner. If some programs have a lot of EPG information in EPG, you can read next pages

using this button.

Selects the option such as Audio Language, Teletext Language, Subtitle Language and Multifeed. Select temporal the settings for Video and Audio format:

Shows the Main menu in viewing mode.

Selection Audio: Stereo, left, right and joint. Selection Video: 4:3, 4:3 Letterbox and 16:9

Set the block to repeat copy and cut. Confirms the choices and/or selections the highlighted menu

Exit from the present menu and moves to the previous menu. item. While watching TV or listening to Radio, press the OK

button and the channel list will appear. Sorts the channels automatically in alphabetical order.

For Teletext or commands various functions in each MENU

Moves left/right or change settings in menu mode. Changes There are ‘HELP’ in each MENU for color key use.

the volume level in view ing mode. Moves up/down in menu or changes channel.

JPEG

Multifeed +

YELLOW

BLUE

NUMERIC Buttons (0~9)

BACK

HDMI

MARK

JUMP

TEXT

JPG

PIP

SWAP

MOVE

FUNC

Multifeed Screen proportion

Select channels or can use as a alphabetic search key in the sorted channel lists.

Move to the previous channel. Change the video resolution Set the bookmark. Jump to bookmarked point. Activate the teletext function Display the JPEG list. Watch the two channels at the same time. Switch between main-picture and sub-picture Move the position of PIP. SCART & RCA video outputs will be excluded while using PIP

function. Use this button to cancel PIP function and restore your SCART & RCA SD video outputs Commands various functions in each MENU There are ‘HELP’ in each MENU for FUNC key use.

3. Connections

3.1 Connecting to TV <Connecting to digital TV which can support HD resolution (1080i,720p576p) using YPbPr port>

Connect STB’s YPbPr OUT and audio L/R OUT to YPbPr IN and audio L/R IN of TV.

Set STB’s video output mode to 1080i or 720p or 576p using ‘Video Format’ key of remote controller.

Please check TV’s user manual for detail connecting method of the YPbPr input port.

VCR SCART

TV SCART Video Audio

Connect the Video and Audio of TV to the Video and Audio. Connect Red and White connector to Audio R and Audio L, and Yellow to Video port respectively.

Connect the TV SCART of TV to lower SCART connector with fully featured SCART cable.

Connect the VCR SCART of VCR to upper SCART connector with fully featured SCART cable.

Go to section 3.4, Connecting to Dish, then connect your dish.

Connect STB’s HDMI OUT to HDMI IN of monitor or T V.

Set STB’s video output mode to 1080i or 720p or 576p using ‘Video Format’ key of remote controller.

For the best access to HD programming at the highest available resolution, use this connection method.

Connect STB’s optical digital audio out to A/V receiver.

Go to TV Output menu and set “Dolby Digital(A C3)” to enable.

3.2 Connecting from external USB devices

The receiver has 3 USB 2.0 ports to connect external data storage. This can be external USB sticks, USB harddisk and card reader with memory cards. With the use of card readers be sure that only one card is inserted before the device is connected to the receiver. The receiver can not record directly to external data sources. These are always first on the internal SATA recorded and then from there to external USB devices can be copy.

3.3 Connecting receiver to PC

You can connect the receiver in two way to your PC. Over the serial RS232 port for software updates and over USB connector variant B. Last one allows you to transfer files.

3.4 Connect on satellite dish

Connect the receiver with dual-connection (two cable)

To get the full functionality, it is necessary to have 2 connections from the antenna. These has to be connect to the receiver inputs DISH IN A and B application.

When you have only one cable from your satellite reception equipment, you need to connect with the cable bridge LOOP OUT A with DISH IN B.

Recommend

Alternative

Connect the receiver to multiswitch:

Connect the multiswitch outputs with the inputs DISH IN A and DISH IN B from the receiver.

8in4

Pleas check out that for receive different satellite the DiSEqC signal must be active and adjust. Go for this to Main menu > Installation > Dish.

Because you can setup the inputs from receiver different dishes, the follow installation is also possible.

4. Menu overview

4.1 How to use inside menu

Sub menu

Main menu

- Press the menu button on the remote control for open the main menu.

- The submenu you can choose by using the buttons ///.

- The selected sub menu will be high light.

- When you have select, press the button OK for open it.

- In other to go back to previous menu or leave it, use the EXIT button.

4.2 Help for menu

You can see the symbol at the bottom of menu. That means you can use this button on the menu.

In this example:

/ Move the cursor

/ Select options or

change

OK Save and leave

EXIT Exit

4.3 Menu structure

1) Installation

Dish Setup: Selection and adjustment for satellite, transponder and LNB for channel search. Scan Service: Automatic search for channels without special inputs. Most recommend search.

Manual search for channels with information given by

user Factory Setting: Set the receiver back to factory default. Edit TP : Delete, Edit and Add from satellite and transponder

information.

2) Program

Favorite : Favorite channel grouping Edit Channels: Delete, Move, Lock and Rename channel of normal

channel Sorting: Sort the stored channels by transponder, network or

CAS system. Delete: You can delete channels, satellite and so on.

3) PVR

Reservation: You can reserve recording to record your desired

programme automatically Record Setting: General setting for PVR function and hard disk. HDD Information: Display a HDD information Format HDD: Erase the hard disk completely.

4) Configuration OSD Display: Settings for on screen display.

Transparency, Screensaver Banner display time TV Output: Selection for TV / Video-output and setting for AC3

output. Time Setting: Adjustment for time and date. Parental Control: Changing for password and age rating. Language: Settings for language of display, audio and subtitle.

5) Other USB Transfer: You can transfer the software or channel data through

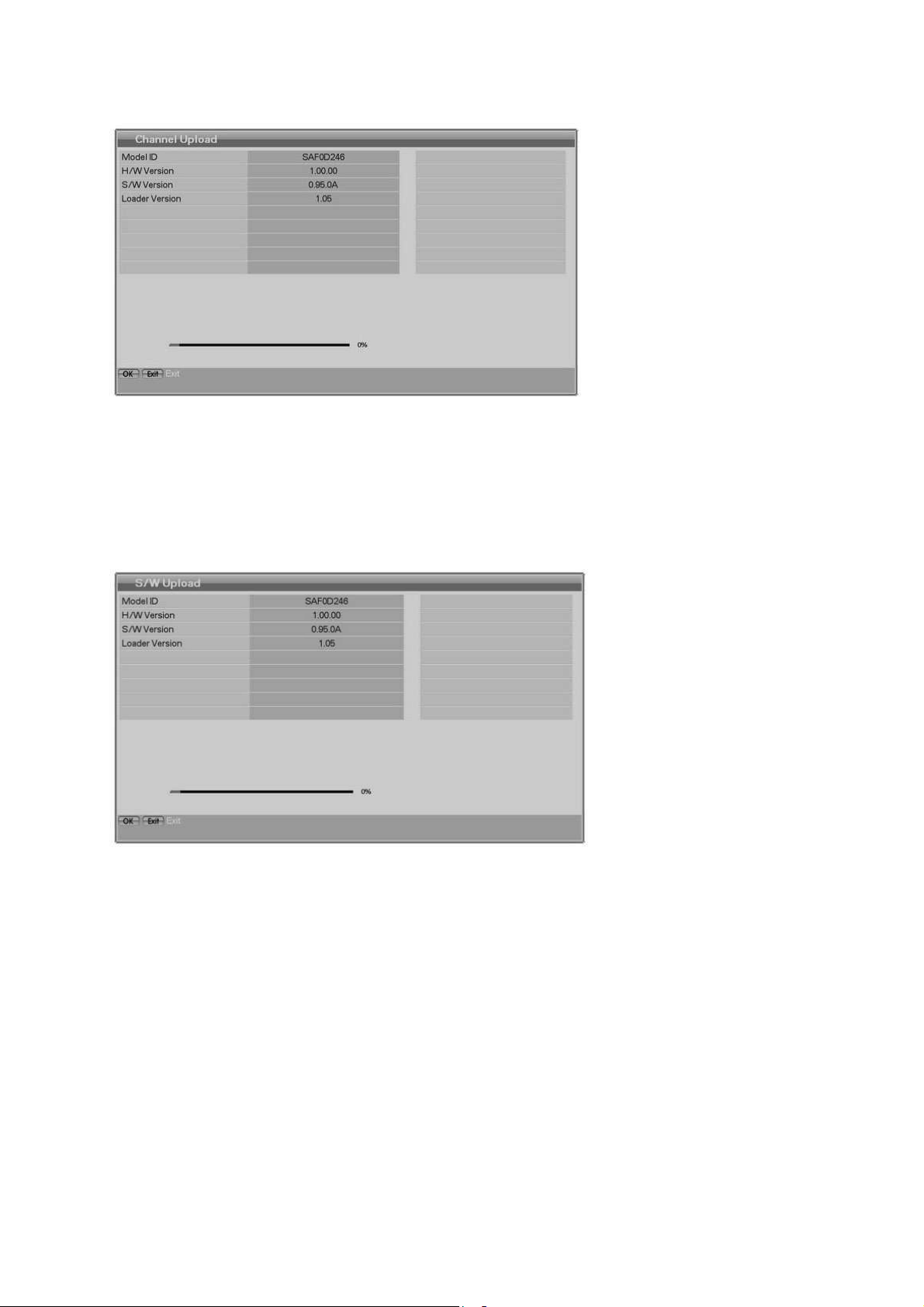

USB device. Channel Upload: Transfer the channel data to other receiver or PC

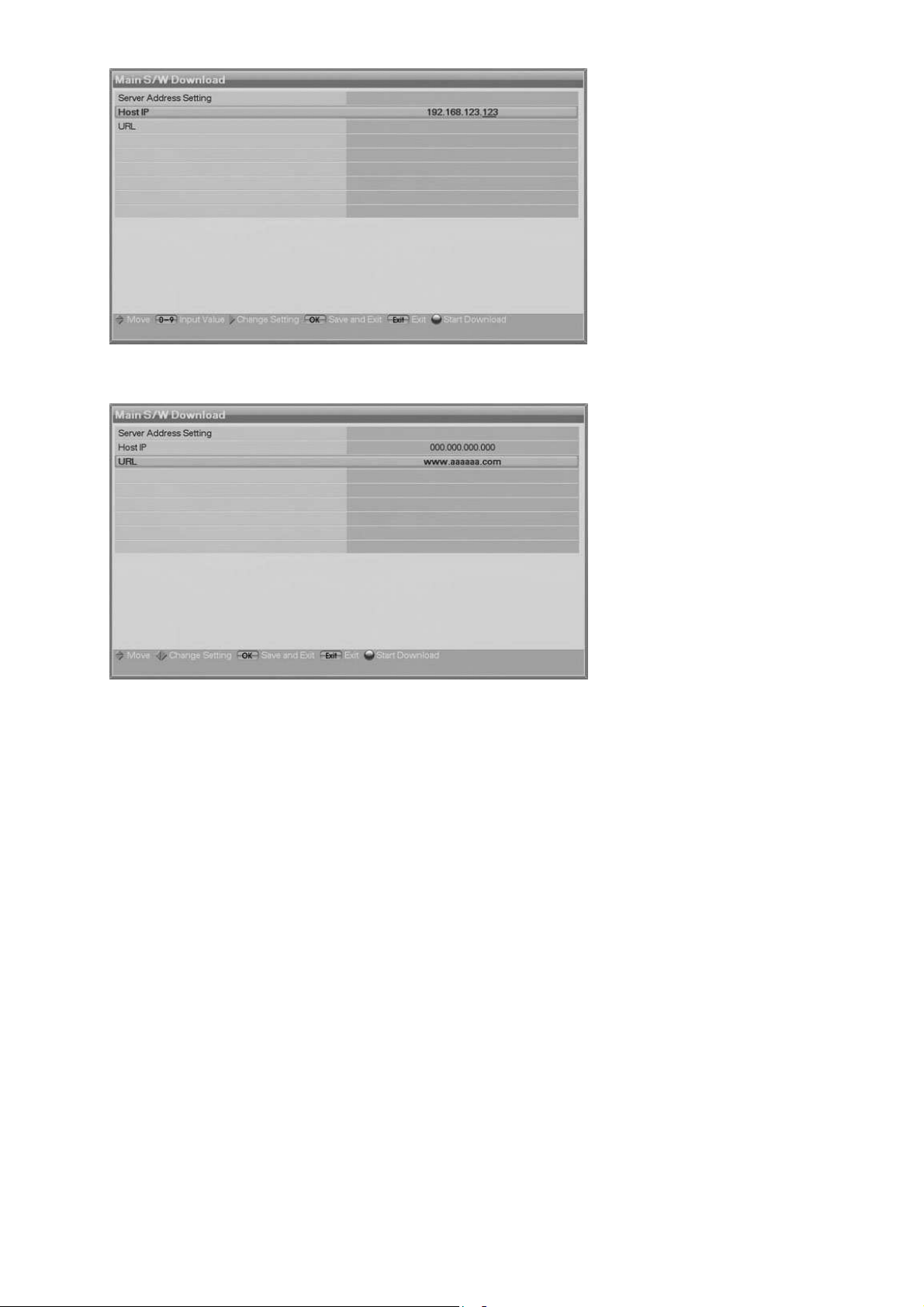

S/W Upload: Transfer the software to second receiver or PC Network Setup: Network setup(TCP/IP) and Main S/W download from

server

6) Status Information: Display the system information of receiver. CI-Slot 1: Information about the used CAM module in slot 1. CI-Slot 2: Information about the used CAM module in slot 2.

5. Setup the receiver

5.1 First install

You can install the receiver using First Installation for your convenience. ‘First Installation' allow you to set your receiver using simple procedure.

Step 1

Select the desired language using the / button.

Step 2

Select the desired time offset using the / button.

Step 3

Select the desired Tuner Connection such as Single Connection, Dual Connection using the /button.

Step 4

Select the desired satellite using the / button.

Press the OK button to confirm and go to the next step.

Step 5

Select the LNB Type using the / button.

Press the OK button to confirm and go to the next step.

Step 6

If you use a DiSEqC 1.0 switch, select DiSEqC option using the / button.

Press the OK button to confirm and go to the next step.

Step 7

After all settings are done, press the button to start scanning.

If you want to know more detail description about each procedure, please refer to the following installation part in 5.2

Press the OK button to confirm and go to the next step.

Previous Step button : If you want to go to the previous step, press the Red button and then you can reset options.

Cancel and Exit button : If you want to skip ‘First installation’, press the Exit button

5.2 Installation

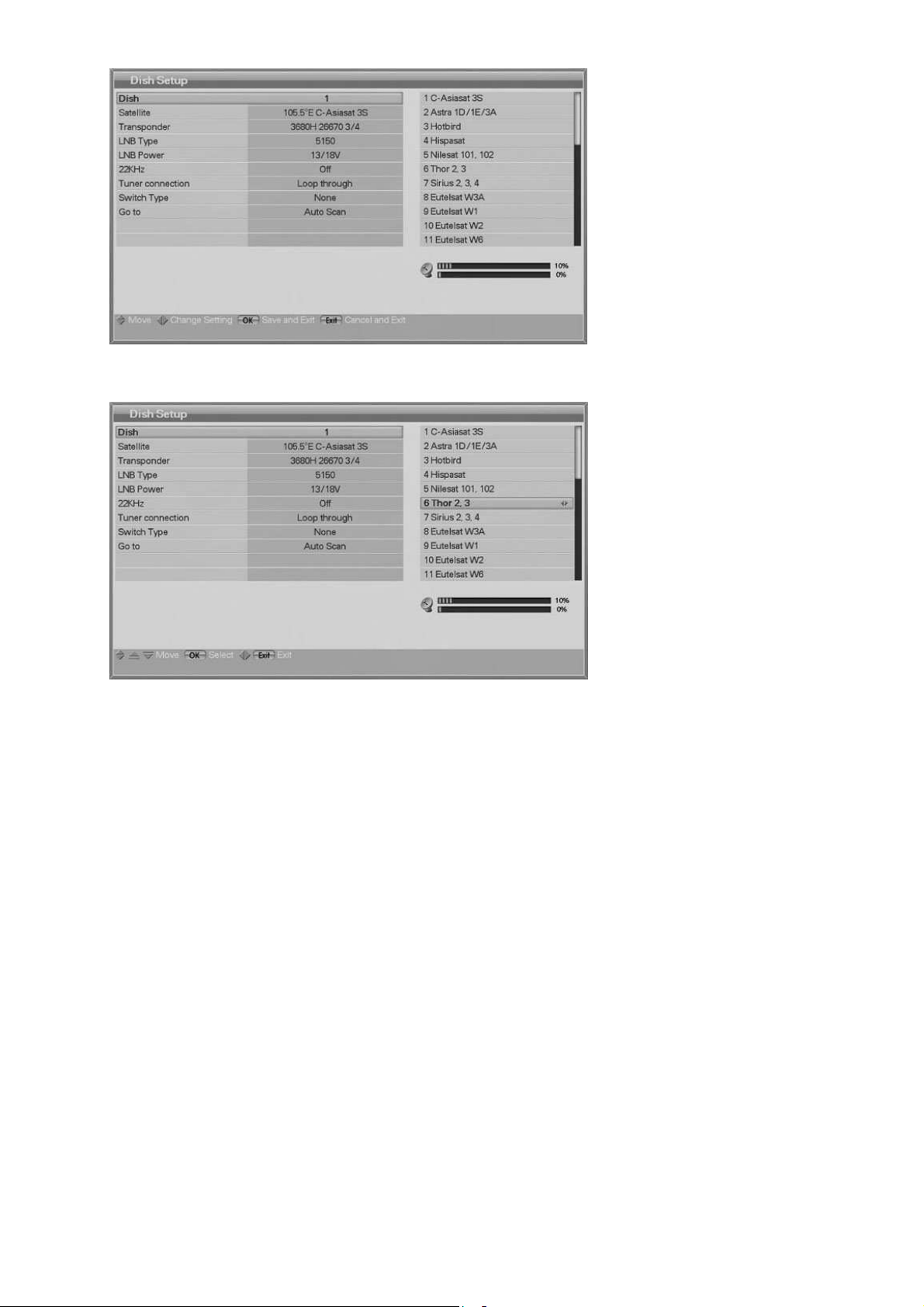

5.2.1 Dish

In other to go to submenu press the Menu button to display the main menu. Go to submenu use the / buttons.

Dish: Selection and adjustment for satellite, transponder and LNB for channel

search.

Scan Service: Automatic search for channels without special inputs. Most recommend search.

Manual search for channels with

information given by user.

Factory Setting: Set the receiver back to factory default.

Edit TP: Delete, Edit and Add from satellite and transponder information.

Press OK button on the sub menu.

In next window you have to give the password. The default password is „0000“.

Use the / button, you can move upwards and downwards in this mode.

Press the / buttons, the right screen shows the preselected 32 satellite lists.

Select the desired satellite, and press the OK button. Then change the satellite column will be changed by the desired satellite name.

If you can not find the desired satellite, select any satellite and press the OK button.

Press the / button to watch the satellite in the preprogrammed lists. Press the OK button to replace the Current satellite with the selected satellite

Press the / button, the right screen shows the transponder lists. Press the OK button to select other transponder.

If you select one of the alternative satellite names, the transponder list is changed automatically according to the selected satellite name.

Select the LNB Type value.

If you have selected User Single or User Dual, enter LNB frequency value directly, and press the OK button. If you select LNB Type value as 9750/10600, 9750/10750 or User Dual, 22KHz value is fixed to auto mode, in other case you can select a value depending on usage of 22KHz tone switch box.

Select one of the LNB Power types using the / button

You can select LNB Power value as 13/18V normally or if the distance between dish and receiver is further than 60m, you can select LNB Power value as 14/19V.

When you use UNICABLE system you have to shut down the voltage to Off.

You can change the sort of the Tuner connection using the / button such as Loop through, A only, B only, Dual, Unicable.

Press the OK button to select the Tuner Connection.

Select Switch Type if used. If you use a DiSEqC 1.0

switch, select DiSEqC on the Switch Type.

Select on of the DiSEqC inputs from the Option.

Select Switch Type.

If you use a DiSEqC 1.1 switch, select SMATV on the Switch Type.

Enter a value with the numeric key (950~2150).

Please ask to your installer for get the correct value.

Select Switch Type.

If you use a DiSEqC 1.2 motor, select the Motor on the Switch Type.

Change position of your Motor through the Option.

Select Switch Type.

If you use a USALS motor, select form the Switch Type

Change position of your USALS motor through the Option.

Select Auto Scan or Manual Scan or PID Scan and then press the OK button.

DiSEqC 1.2 –Options

Move West-East: Select and press / for move the motor. Store Position: Select and press OK for store the actual position. Go to Position: Select and press OK for move the motor to a stored position. Go to Reference: Select and press OK for move the motor to reference position 0°. Set West-Limit: Select and press OK for activate west limit. The motor must support this function. Set Ost-Limit: Select and press OK for activate east limit. The motor must support this function. Enable Limit: Select and press OK for activate the limit function.

Set West Limit & Set East Limit can be available with Disable Limit status.

5.2.2 Scan Service

5.2.2.1 Auto Scan

You can search the channels offered by the satellite for which your dish has been configured.

Press the buttons /. On the right side one list with 32 pre selected satellites will be open. Select the desired satellite, and press the OK button. Then change the satellite column will be changed by the desired satellite name.

When all is made, go to the Start Scan (with Red button) and press the OK button.

The left window shows TV channels and the right window shows Radio channels during the scanning process. Black channel names are new channels downloaded to your receiver. White channel names are already existing channels.

If you press the OK button when scanning for channels, pop-up window appears.

When you complete scanning for channels, a similar pop-up menu appears.

If you want to save the updated channels, select

‘Yes’

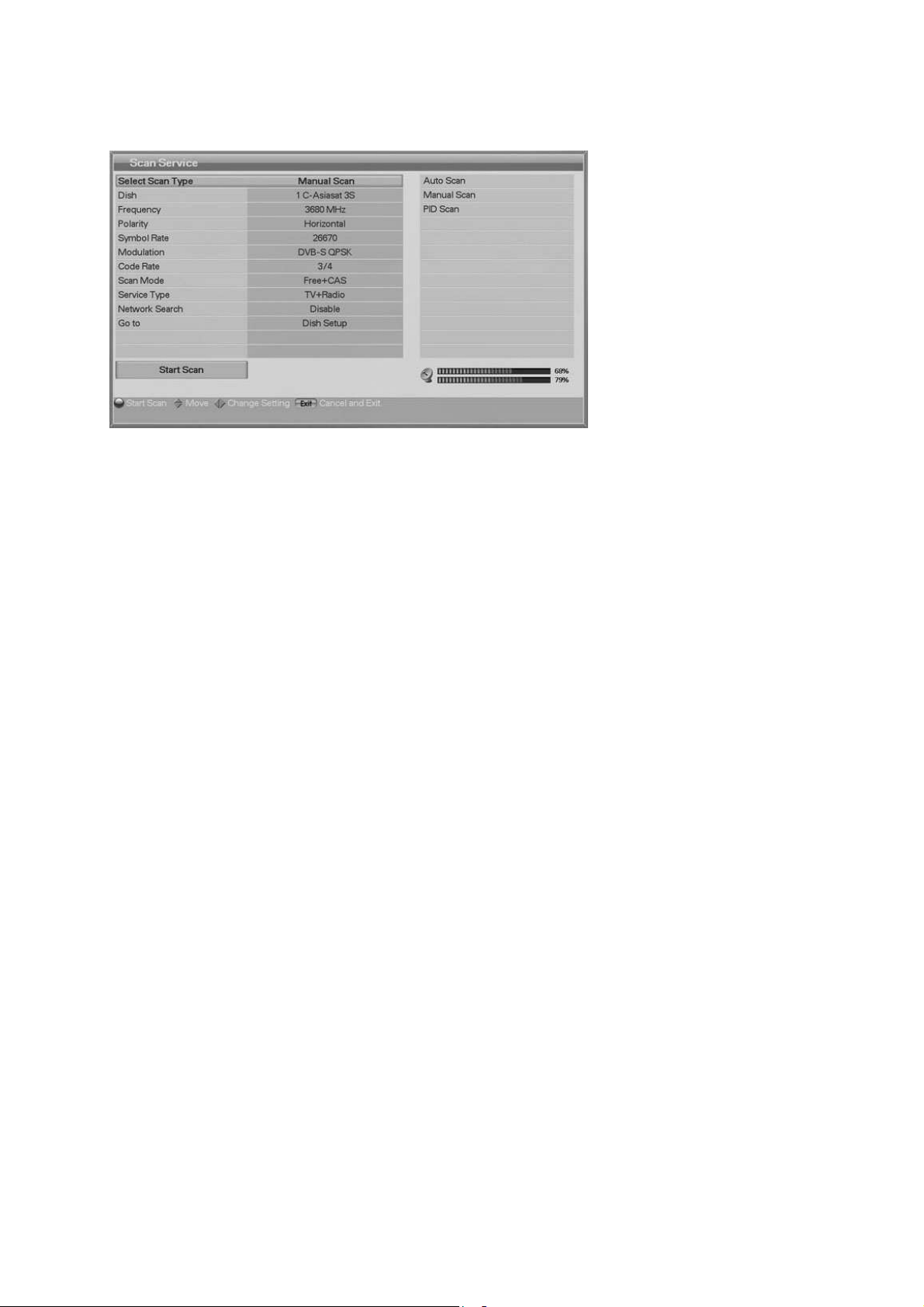

5.2.2.2 Manual Scan

You can change to the specific values you want to scan.

Dish: The target satellite for the manual scan. Frequency: The frequency of the transponder you want to find manually. Polarity: The polarity of the transponder you want to find. Symbol rate : The symbol rate of the transponder you want to find. Modulation: Select the modulation(DVB-S QPSK, DVB-S2

and DVB-S2 8PSK). Pilot: Only available for DVB-S2. You need for HD channels. Code-Rate: The code rate of the transponder you want to fine.

If you did not know it, select AUTO and the receiver try it by him self. Scan mode: Select here what channels the receiver have to find. Free+CAS mean all channel, Free mean only channels you can receive

without using one crypt system. Service Type: The selection of TV, Radio and TV&Radio. Network Search: When enable, the receiver searches for more transponders using the

network index table.

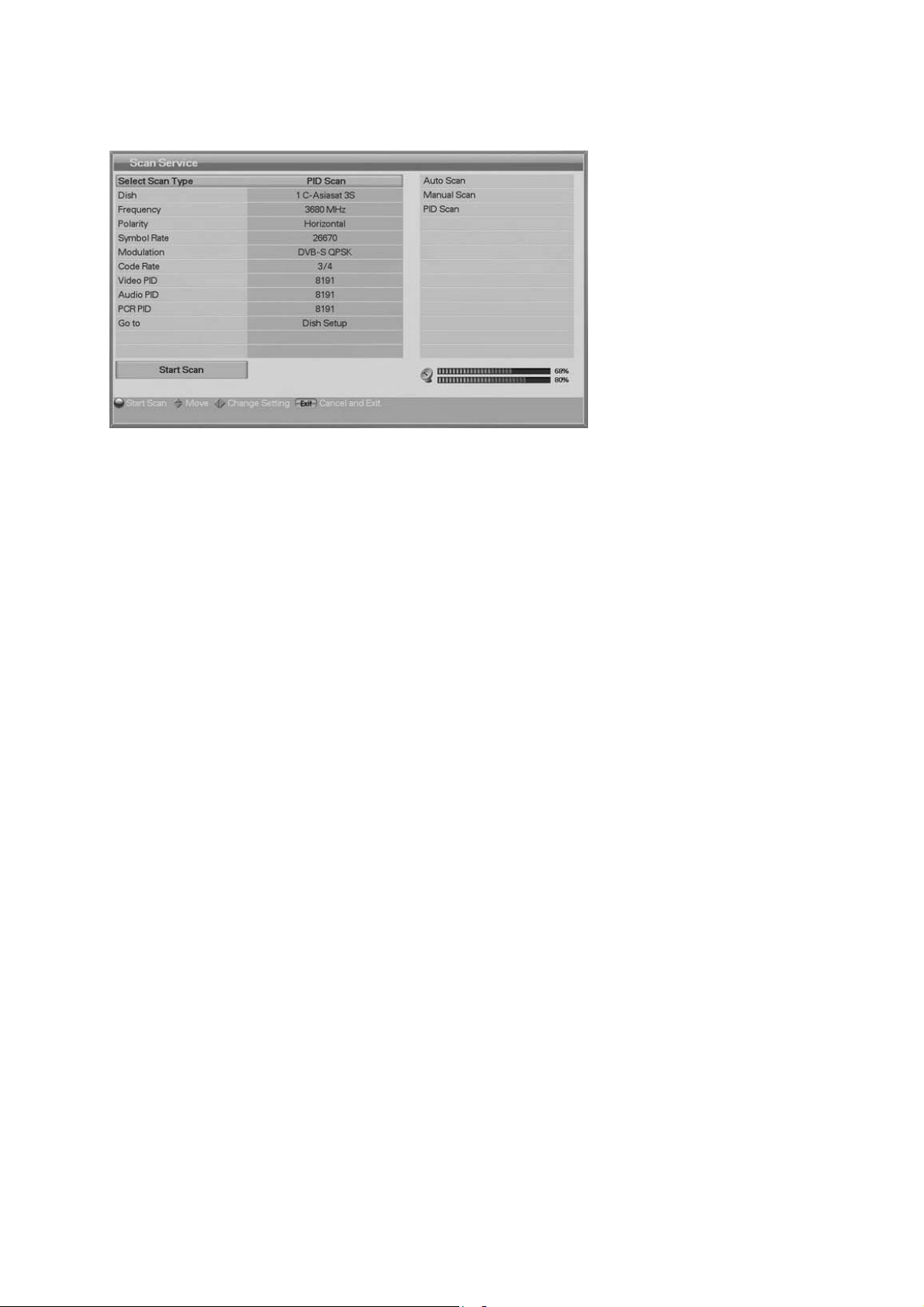

5.2.2.3 PID Scan

You can add manual one channel, when you input the PID information.

Input the values for VideoPID, Audio-PID and PCR PID with the numeric keys.

5.2.3 Factory Setting

If you want to change the set into the default values, press the OK button. The following confirmation window will be reset to the primitive state like new receiver.

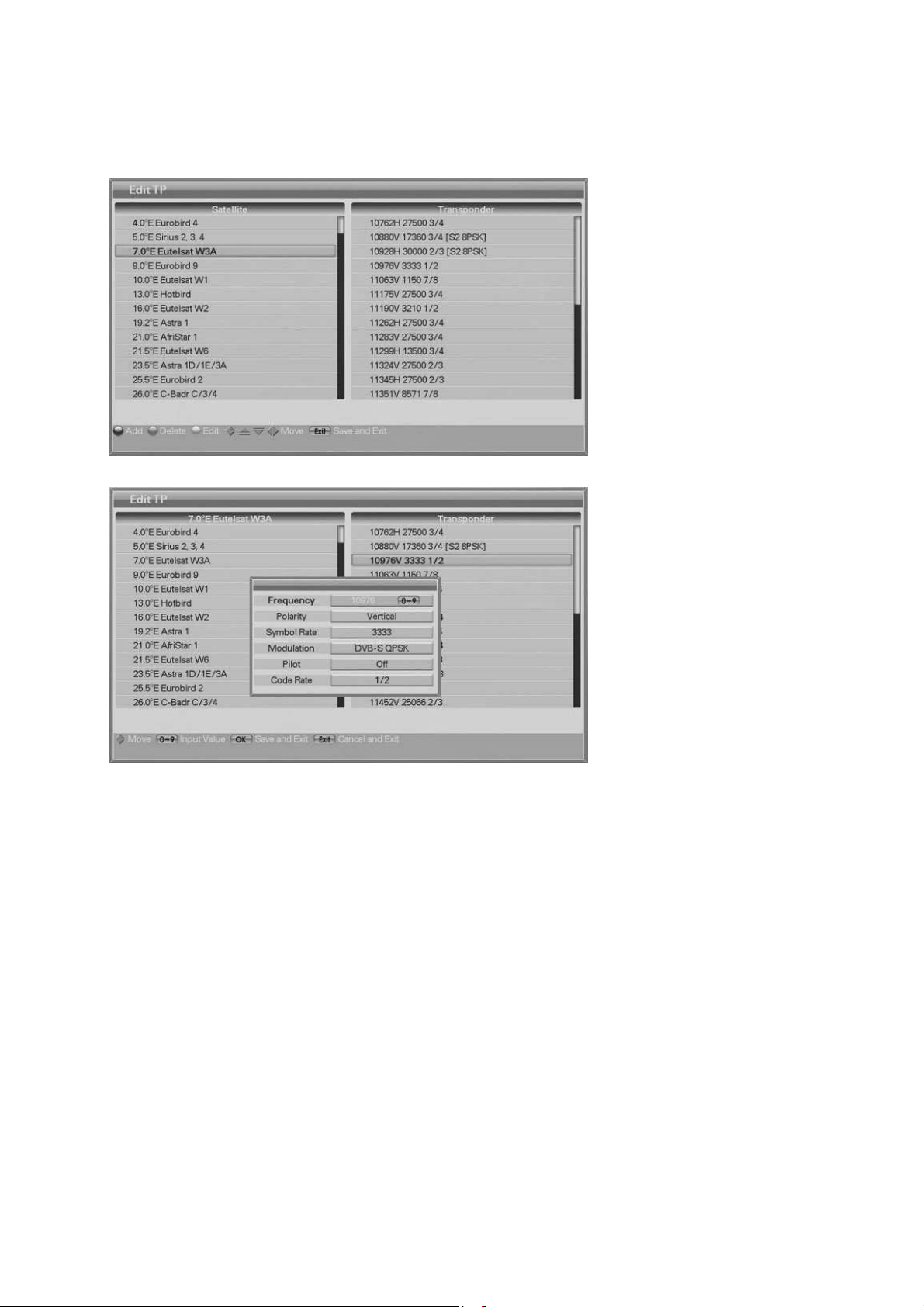

5.2.4 Edit TP

You can modify the entries in the transponder list.

Press the Red/Green/Yellow button to select the satellite in the left screen or the transponder in the right screen.

Press one of the Red/Green/Yellow button for Add, delete or edit.

(The satellite and transponder cannot be deleted if the channels of the selected satellite have already been Downloaded)

If you press the OK button, the current changing state will be saved and exit.

5.3 Program

Favorite : Favorite channel grouping. Edit Channels: Delete, Move, Lock and Rename channel of normal

channel.

Sorting: Choose the channel sort type, such as by

Transponder, Network, CAS.

Delete: Delete the channels satellite and so on.

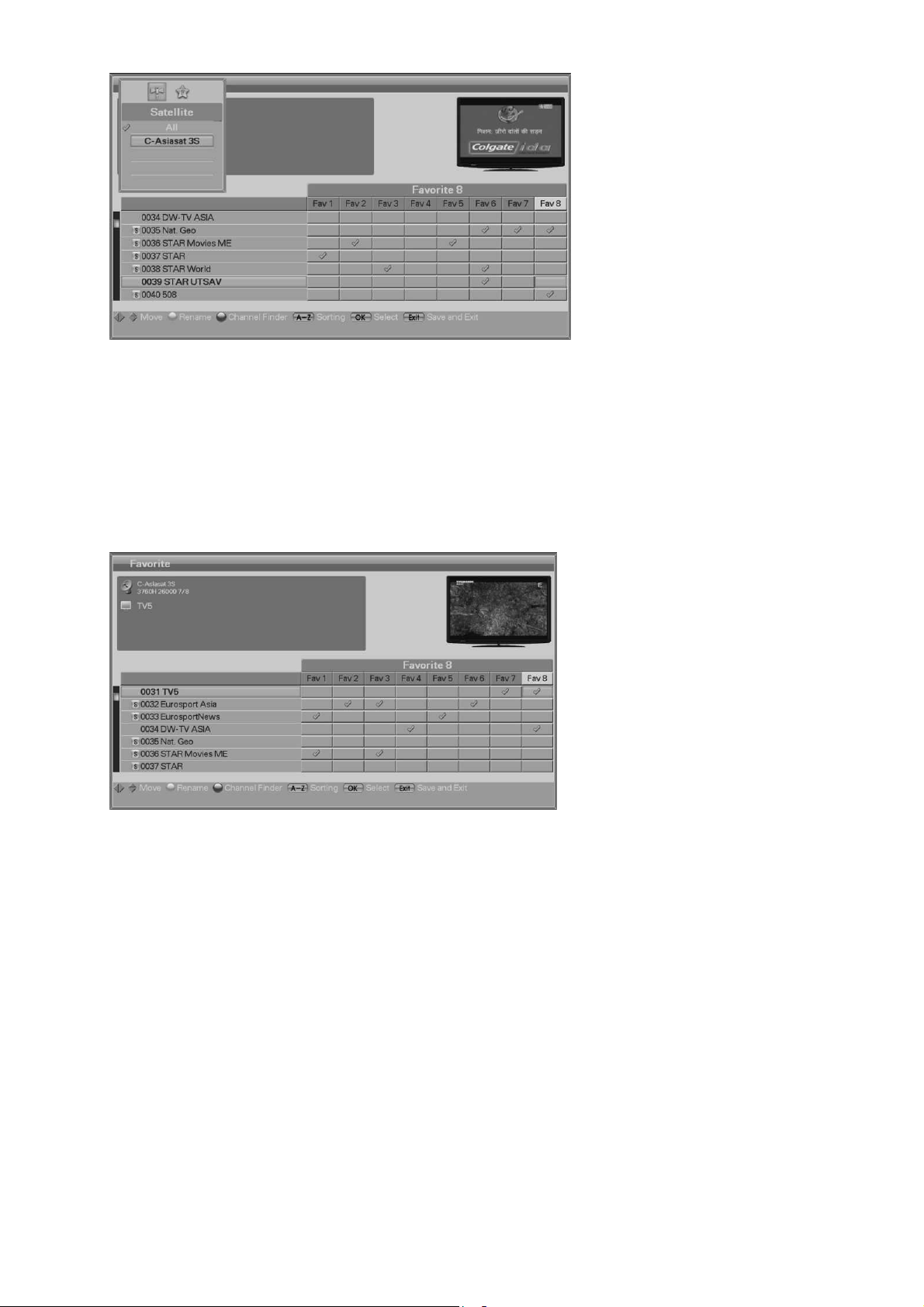

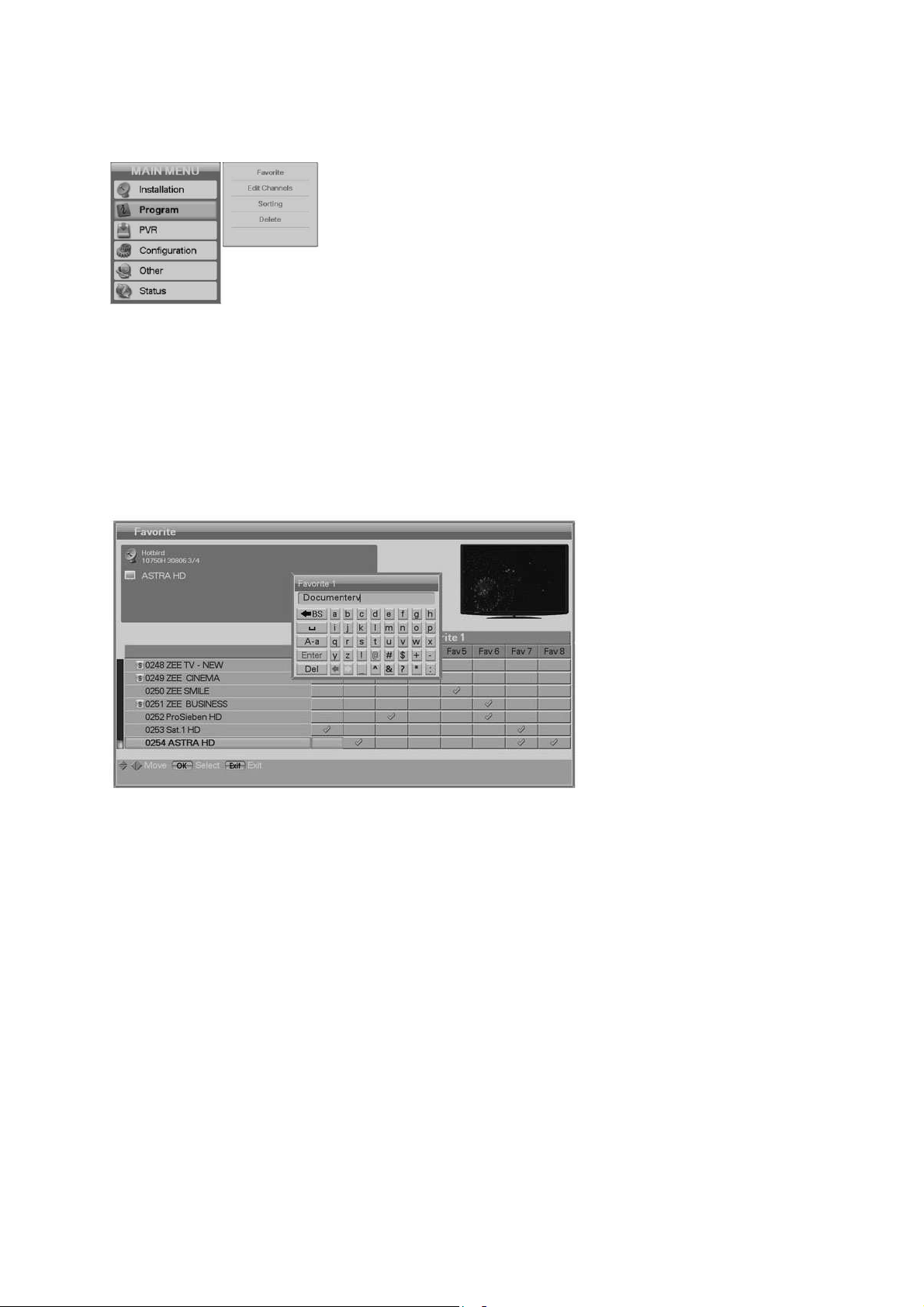

5.3.1 Favorite

You can create totally 8 favorite lists with a maximum of 100 channels in one group.

Press OK button, you can see the checked mark.

Rename: Press the Yellow button, and then a small editing name window will be displayed. You can write each letter of the channel name using ▲/▼/◀/▶ button and the OK button After renaming is done, select Enter tab and then press the OK button. Press the Exit button to exit the editing window without saving. You can use color button for your convenience.

If you want to change other group or satellite, press the Fav button.

When you are finish, press the Exit button. If changed data exist, confirm window will be displayed. Press OK button for confirm your choice and close the window.

5.3.2 Edit Channel

You can move, lock, delete and rename the channel.

Move mode: Select the Move position using the /

button.

Select channel you want to move using the / button. And then after go to you want to position press Yellow button.

Lock mode: Select the Lock position using /

buttons.

Select the channel to be locked and press the OK button.

- Delete mode: Select the Delete position using /buttons. Select channel you want to delete using the / button. Press the OK button, checked sign will be marked on the cursor.

- Rename: Select the Rename position using / buttons. Select the channel to rename and press the OK button. And then a small editing name window will be Displayed.

You can write each letter of the channel name using the ///color button and the OK button.After renaming is done, select Enter tab and then press the OK button.

If you want to change other group or satellite, press the Fav button. Press the Exit button to save and exit.

5.3.3 Sorting

Select Sorting Type using the /button.

If you press the OK button current changing state will be Saved and exit.

Attention, this sorting compare your actual sorting of the channel list can not be restore. If you need back the factory default channel list you need to make one factory reset.

Transponder:

All channel will be sort by transponder frequency. Network: All channel will be sort by network provider. CAS: All channel will be sort by free and Pay-TV channels.

5.3.4 Delete

You can delete channels. You can select not only Mode such as Channel and Favorite, but also Option such as TV, Radio and etc.

Select the Mode and Option you want to delete channels using the /// button.

Press the OK button to delete and exit.

5.4 PVR

Reservation: You can reserve recording to record your desired

programme automatically. Record Setting: General setting for PVR function and hard disk. HDD Information: Display a HDD information. Format HDD: Erase the hard disk completely.

5.4.1 Reservation

You can reserve a channel at your desired time. In this mode, you can reserve channels up to 50.

Now the reservation window open and you can modify the recording information.

To add more, press the Red button. Press the Yellow button to delete the reservation. After all settings are done, press the button to save and

Once :One time recording (After record it will be delete from recording list automatically)

Weekly: Recording on working days. (Every Monday to Friday) Weekend : Recording on weekend (Every Saturday to Sunday) Weekday : Recording will be repeat every week Daily : Recording will be done every day

exit.

5.4.2 Record Setting

HDD

If you select ‘Enable’, HDD will be always turned on.

You can set Time shift function as Auto or Manual. And you can set Default record time.

If you select ‘Disable’, HDD will be activated only when STB performs PVR functions such as recording.

Time shift

If Time shift is Auto, whenever user change the channel, Time shift is activated automatically. If manual, time shift function doesn’t work.

Default record time

You can set the default record time from 5minutes to 10 hours.

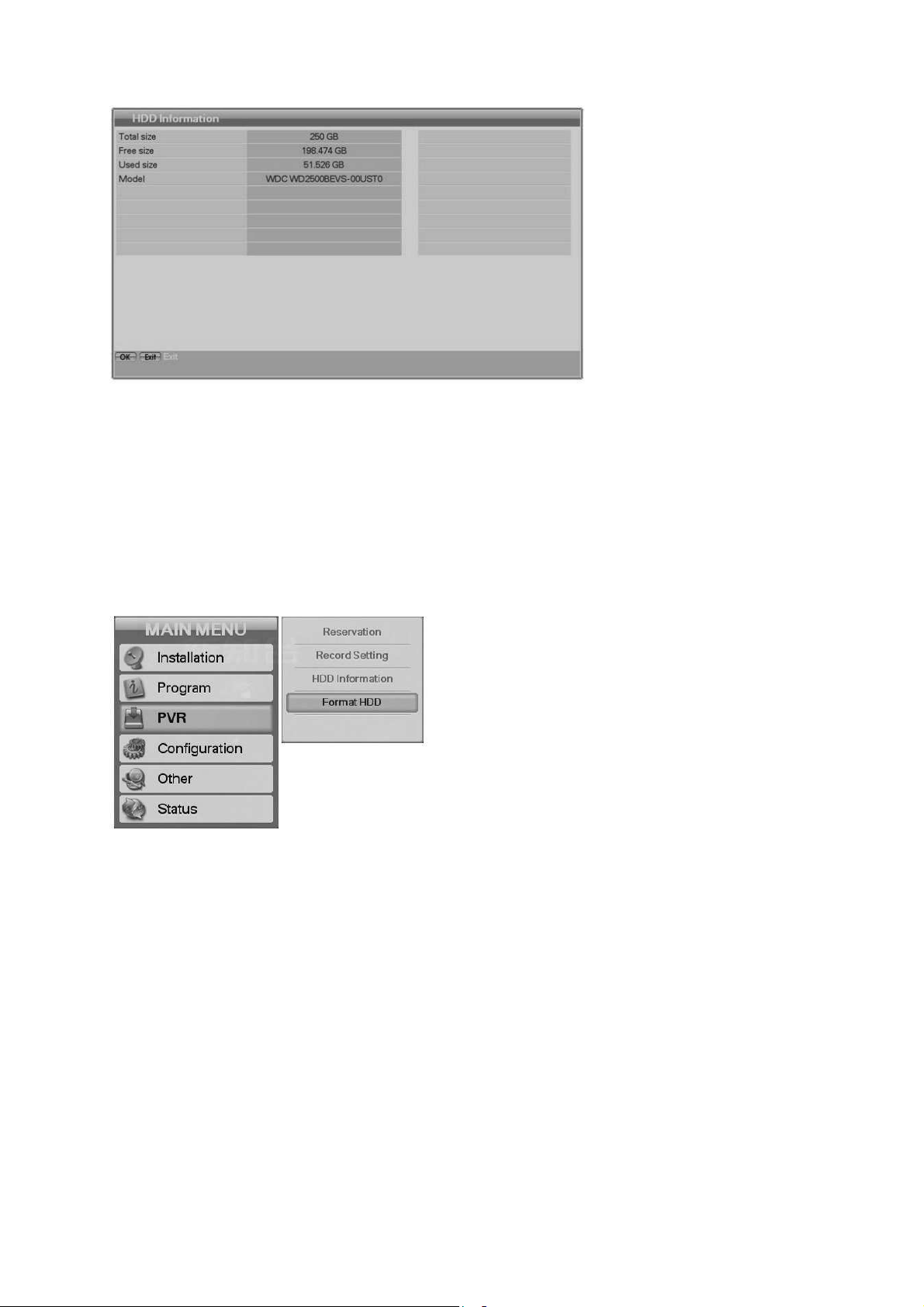

5.4.3 HDD Information

Notice, even when you have format the hard disk never are 100% free. The receiver reserves a part for the time shift function. This can not be change.

You can see the capacity of HDD such as Total size, Free size, Used size and the model name of HDD

5.4.4 Format HDD

If you press the OK button, you can delete all files in HDD permanently.

5.5 Configuration

5.5.1 OSD Display

OSD Display: Settings for on screen display.

Transparency, Screensaver, Banner display time

TV-Output: Selection for TV- / Video-output and setting for AC3 output. Time Setting: Adjustment for time and date.

Parental Control: Changing for password and age rating.

Language: Settings for language of display, audio

and subtitle.

Select the option using the ///button.

If you press the OK button, current changing state will be saved and exit.

Banner display time:

The time for display the information window can be select Hide, Always and between 1sec and 30 sec.

Screen saver:

The screen saver protect you TV device when you see long time same content or you use Radio mode. Selection: Disable, 5, 10, 20, 30, 60, 120min

OSD Transparency:

Select the transparency factor for the menu compare the TV picture.

Teletext Transparency:

Select the transparency factor for the teletext compare the TV picture.

VFD Display:

Here you can choose if the VFD display show permanent channel number and name or if the receiver switch automatically after he has display number and name to only name. With the last option there is more space for show the channel name longer.

Main Menu Position :

Change the Main menu position(Left-Top, Right-top, Left-down, Right-down)

Menu small screen :

View the Small TV screen in the submenu (Small, Full, Disable)

5.5.2 TV Output

Select the TV output option using the /// button.

If you press the OK button, the changed state will be saved and exit.

SCART: Select what kind of signal you will use on connector TV-SCART: (RGB,S-Video, CVBS=FBAS). TV-Screen: Select what format you will use (4:3, 4:3 Letter Box, 16:9). Dolby Digital: When you activate it, automatically the receiver output is switch to surround sound when the channel provides it.

Digital Audio:

Selection the format for the digital audio output.

HDMI Dolby Digital:

When you activate it, automatically the receiver HDMI output is switch to surround sound when the channel provides it.

5.5.3 Time Setting

Time mode:

TDT (recommended) or User mode Offset:

Setting current time using the ///button.

If you press the OK button, current changing state will be saved and exit.

Set the time difference between GMT and the local time.

Day light saving: Day light saving will work only in case of ‘Enable’ mode. Start day: Day light saving start day. End day: Day light saving end day.

The lines Year to Minute are for adjust the date and time manual.

5.5.4 Parental control

If you want to change the password, press the /

button, following message requiring new password will be displayed.

Change the password into new one by numeric button.

To ensure your change, you

The rating allows you to block channel in relation to the age for children. This only can work, when the operator / channel support this function. View all: All channel will display.. 7: Channel is blocked for person under a age of 7 years.

are supposed to input a password once more.

Select your desired rating level using the / button.

Press the OK button to save and exit. Rating mode allows you to block channel according to the age level you have set.

12: Channel is blocked for person under a age of 12 years. 15: Channel is blocked for person under a age of 15 years. 18: Channel is blocked for person under a age of 18 years. When you select one channel that is block by this function, you need to give the password for open it.

5.5.5 Language

Select the language options using the /// button.

Press the OK button to change the selected language.

Display: Selection for the language used in on screen display (menu). Audio 1-2: Select here what is your first and second favourite language for the audio, if the channel/provider support it

Subtitle 1-2:

Select here what is your first and second favourite language for the subtitle, if the channel/provider support it

5.6 Other

Under menu item STB you see

ain

5.6.1 USB Transfer

USB Transfer: You can transfer the software or

Channel data through USB device.

Channel Upload: Transfer the channel data to other receiver or PC

S/W Upload: Transfer the software to other receiver or PC

Network Setup: Set the Internet Protocol(TCP/IP) You can load Main S/W from network

Server

the main information about your receiver.

Model ID: Identify number of your

Under menu item USB you can see the number of M S/W total and Channel data Total on the USB device.

Main S/W : Displayed Main

Select Main S/W if you want to transfer the software to one USB device or if you will load it.

Select Channel if you want to transfer to one USB device or if you will load it.

Select with the buttons ///the function you

want and press OK for start.

receiver

Hardware-Version: Installed hardware

S/W total of available format.(sgn,bin)

5.6.2 Channel upload

5.6.3 Software (S/W) Upload

Connect the receiver with other receiver or PC through RS-232 cable.

For the target receiver, turn the AC Power off, then turn on again.

You can watch the transfer status of software.

Connect the receiver with other receiver or PC through RS-232 cable.

For the target receiver, turn the AC Power off, then turn on again.

You can watch the transfer status of software.

5.6.4 Network Setup

5.6.4.1 Internet Protocol(TCP/IP) You can set the internet Protocol

5.6.4.2 Main S/W Download

You can select options for your internet connection.

Please contact your internet connection provider for exact internet connection setting.

You can download main S/W from network Server

Input the server address you want to connect to.

You can select only Host IP or URL.

Please contact place of purchasing this Set-Top-Box in you do not know address of the server.

5.7 Status

5.7.1 Information

Information: Display the system information of receiver. CI-Slot 1: Information about the used CAM module in slot

1. CI-Slot 2: Information about the used CAM module in slot

You can watch the system information such as Model ID, Hardware version, Software version, and Loader version.

5.7.2 CI-Slot (Common Interface)

You can see not only Free To-Air services, but also scrambled services, using the Conditional Access Modules (CAM). This STB supports Common Interface of two slots. If you see scrambled services, contact your service provider or distributor. Common Interface module and smart card depend on the service provider.

6. Viewing General Information

Alternative

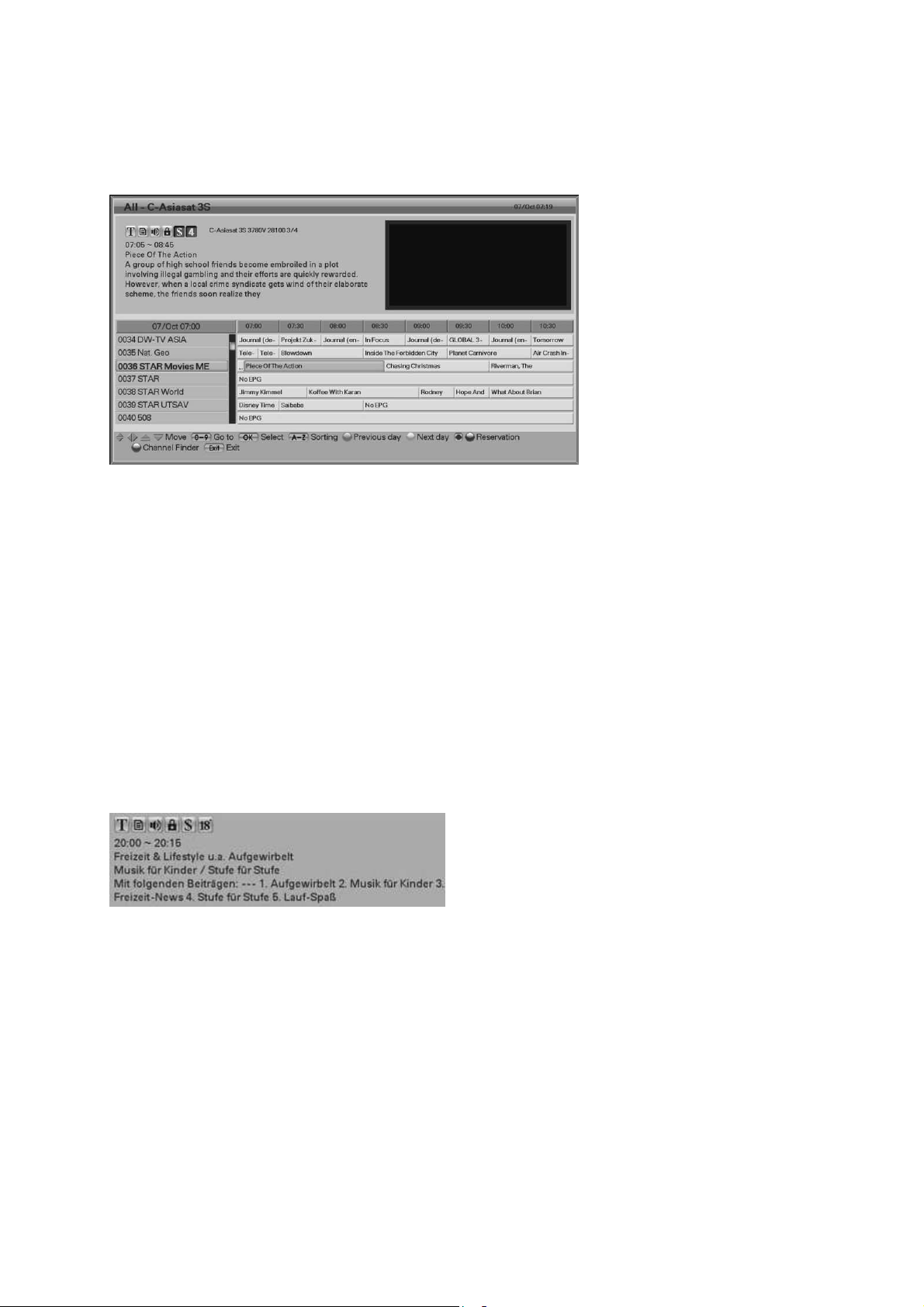

6.1 Service Information

Current event EPG

Dolby

Subtitle

Teletext

Parental

Multifeed

Whenever you press the INFO button, the service information window appears for a few seconds.

If you press the INFO button again on the service information, the detail EPG window appears.

If you press the OK button, information and EPG window will disappear.

Press the CH+, CH- button and then you can change the channel.

You can read next detail EPG using the ◀/▶ button on the service information.

6.2 TV & Radio changing

While watching TV or listening to Radio, you can select TV or Radio using the TV/Rad button.

6.3 TV or Radio Channel Lists

6.3.1 Watching Channel

While watching TV or listening to Radio, you can watch the channel list. Press the OK button to display the channel list.

Press the OK button or AtoZ button. If you want to view the sorted channel list, press the AtoZ button.

Press the ▲/▼ button to move the cursor.

Press the OK button to watch the desired channel.

If you want to hide the channel list, press the Exit button or press the OK button twice.

<Remark> When the receiver has been in record mode, users can not watch several channels which colored on other color on the channel list.

When you have press the button A-Z you get the

alphabetic sorted list.

Press the numeric button or the Yellow button. Then alphabetic Pad will appear.

Now you can choose with the buttons / / one letter and the list jump to the first entry with this letter.

- When you want to sort the channels, press the AtoZ button.

- When you want to change the TV/Radio mode, press the TV/Rad button.

- When you want to watch the next or previous channel page, press the CH+- button or / button.

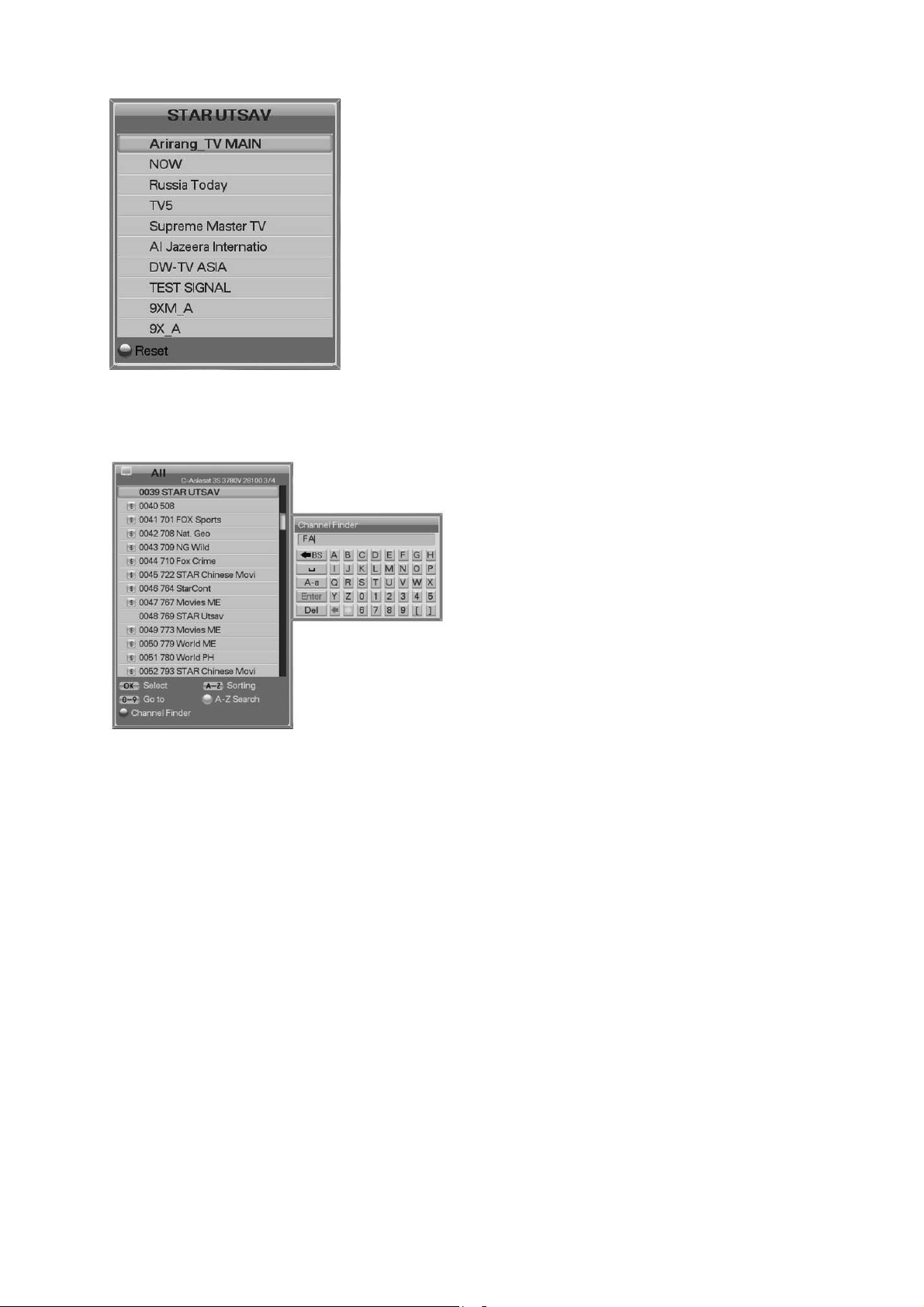

6.3.2 Recall List

6.3.3 Quick Find

By pressing Recall button n the RCU twice quickly, you can see Recall List of ten channels watched previously.

You can search channels by words easily. Keyboard window will pop-up when you press Blue button. Press Enter after you type words. Quick Find function will be activated only with Favorite, Edit Channel, EPG and Channel List menu.

6.4 Options

While watching TV or listening to Radio, press the Option button. You can watch small pop-up window. You can select a option.(Audio Language, Teletext , Subtitle, Multifeed) If you want to change the option mode, press the / button.

6.4.1 Audio Language

Select the Audio mode using the / button.

Press the / button to select a desired audio language.

Press the OK button to change the audio language.

6.4.2 Teletext

Select the Teletext mode using the / button. Press the / button to select a language.

6.4.3 Subtitle

Press the OK button.

You can watch the Teletext contents in the language if it is available.

Select the Subtitle using the / button.

Press the / button to select a language.

Press the OK button.

If the selected language is different from what is available, you can’t watch the subtitle.

6.4.4 Multifeed

Select the Multifeed mode using the /button.

You can choose it with / and than press OK for activate one direct channel.

6.5 A / V +

While watching TV or listening to Radio, press the A/V+ button. You can watch small pop-up window. You can select a option.(Audio mode, Video mode) If you want to change the option mode, press the / button.

6.5.1 Audio-Modus

Select the Audio Mode using the / button.

Press the / button to set the output direction for speakers. (STEREO, LEFT, RIGHT, JOINT).

6.5.2 Video-Modus

Press the OK button to save and exit.

Select the Video Mode using the /button.

Press the /button to set screen format of your TV.

Press the OK button to save and exit

6.6 Satellite/Favorite

While watchin TV or listening to Radio, press the Sat/Fav button. You can watch small pop-up window. You can select a Satellite or Favorite group.

6.6.1 Satellite

Select the Satellite using the / button.

Press the / button to select a Satellite.

Press the OK button, then you can watch the channel list of

6.6.2 Favorite

selected Satellite.

Select the Favorite using the / button.

Press the / button to select a group.

Press the OK button, then you can watch the channel list of selected group.

6.7 EPG (Electronic Program Guide)

Press the EPG button and the electronic channel guide appears if applicable. Time intervals are arranged in a row and channel lists are shown in a column.

Press the / button to change time interval.

Press the / button to watch the guide about the channel, then the detail EPG window will appear.

Press the Green/Yellow button to move by day (24Hr). Press the REW/FF button to move by 4 hours

Highlighted ‘Event’ with a red line means the ‘Event’ is programmed to be recorded (‘Timer Reservation’). Press the REC●button on the EPG, the reservation will be added or deleted.

Press the Red button to reserve channels with event. If you want to know the detail.

Description about reservation, refer to the reservation description in chapter 5.3.1

Reservation.

6.8 PVR Function

The receiver has different possibilities for record events.

This will be control by the remote control.

For this the hard disk must be active.

Pause ∥

The Pause∥ button activates the pause function during play a record or during watch a channel. For the last one, time shift must be active.

If you have pause active (max 2 hour) you can go back to the begin and by press the button REC you can record the event full.

For this go back by press the button REW button. If you press again Pause you continue to look.

Play  The button PLAY starts one recorded file if you have selected it in the file list. If you have activated rewind or forward, the

PLAY button change back to play mode.

REW

With the rewind function who you can start by press the REW button you can go back in recordings or in time shift mode.

If you press again the speed of playback will change.

You need to press the PLAY button for go back to play mode.

STOP ■

The Stop ■ button switch off to display a recorded event.

When you stay in time-shift mode and you has a delay between your actual position in the film and the real, you go by press the STOP button to the real position.

With the FF button you can go forward in one recorded event. If you press again the factor/speed for forward changes. With this you can pass commercial blocks in recordings and in time-shift.

REC

The button REC● starts the direct record function. The recording time is pre select in menu PVR / Record setting. During the recording you can adjust manual by press the buttons REC● and than or.

SLOW

With this button you can set the speed during you play a record to slowly. If you press again the factor/speed for slowly changes. You need to press PLAY  for go back to play mode.

PVR List

The PVR List button open the File List window.

With the file list for see recorded events you only can use the internal hard disk. Play recordings from external USB devices is not possible.

JPEG

The Photo album function can show you pictures in JPEG file format.

For this you can show it from internal hard disk or external USB devices.

7. Display Movie and Picture

7.1 File list / Play function

The file list can be open by press the PVR List button.

Recorded movie

Folder(Directory)

Play a recorded movie

For play a recorded movie select it by using the buttons

/// and than press OK.

Create a thumbnail

The receiver creates automatically during the first play a miniature picture for the file list. If you want to change it, press PLAY . Now you see a window that you need to confirm by select Yes and press OK. The picture will be create when you press OK for confirm.

Delete a file

Select the file by using the buttons/// and than press Red.

Confirm the security question.

If you want delete more than one file, select it and press each time the button Yellow button. After marking press Red for delete it.

Rename a file

Select the file by using the buttons/// and than press Green. One window open and you can choose the

letters by using the buttons /// and than press OK. When you are finish, go to Enter and press OK. With EXIT you can leave this function. You can use color for your convenience button

Lock a file

Select the file by using the buttons/// and than press Blue.

Open the one selection window. You can using /buttons select Lock

Copy a file

Select files to copy by pressing the Yellow button. Press the Blue button after selecting files to copy. Select File Copy To menu in the pop-up

window. Select connected device in the pop-up window.

Move a file

Select files to move by pressing the Yellow button. Go to the folder you want to move selected files. Files will start to move into the current folder if you press the FUNC button.

7.2 Photo album

The photo album can be open by press the button JPEG.

Hard disk information

Function Information

The controls for the photo album are the same like the file list.

The functions Show, Delete etc. will be select by the buttons red

Show a picture

Select one picture by using the buttons /// and press OK.

Now you can select if you want to see only this picture or you want to see a slide show. Please note, only pictures in JEPG-format can be display. For don’t have long loading times, it is recommend a file size with around 2 MB. This is full HD resolution for your display.

8. Movie edit and cut function

8.1 Edit and Cut function

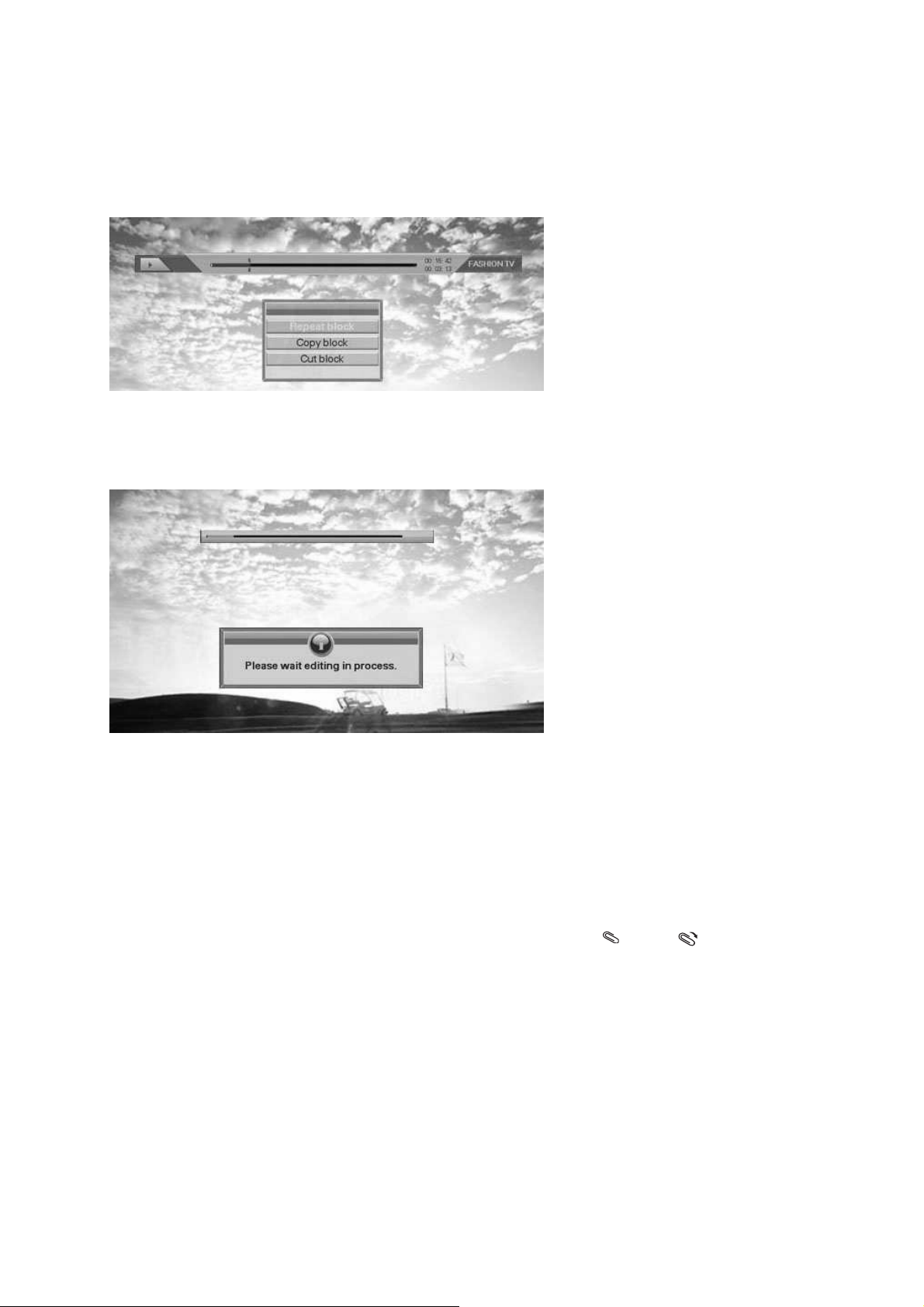

A-B

The A-B button start during you plays a record cut function.

For this start a recorded movie when you will cut out for example a commercial block.

Press one time A-B before the block and a second time after the

Now you can choose if you want to play this block endless or if you want to copy it.

If you select copy, a new file will be created.

The last selection is delete block And after press OK the block will be cut out from the movie.

During the receiver work fort his you see the information windows from left side.

MARK / JUMP

With this you can set marker points during play one record. If you see the Next time you can go by JUMP button to these points.

9. USING THE UNIVERSAL REMOTE CONTROL

Before you use the universal remote control to your device what was you want to control, it must first be programmed (set-up). Please read this guide carefully to make sure the setup is done properly and that you are getting the most out of your URC101 remote control.

The remote control runs on 2 x AAA batteries. To insert or replace the batteries, follow these steps:

a) Push the catch on the battery cover upwards and pull the back cover off the main

part.

b) Carefully remove the old batteries then insert the new batteries, matching the +

and – signs.

c) Once the batteries are in, put the cover back on, making sure the catch clicks into

place.

When you are using the remote control, please make sure the information as below:

 You point your universal remote control at the infrared part of your device.  Ensure there is nothing blocking the infrared receiver on your device.  Do not leave flat batteries in your universal remote control, as they could leak

and void your warranty.

 Always replace the batteries at the same time, do not mix the old and new

batteries or mix different battery types.

 When you throw away old batteries, make sure they done in due consideration

with the environment. Please consult your local council or recycle department, for nearest collection point.

 Do not drop or throw your universal remote control, as you may damage the unit

and the circuitry inside.

 Do not let the remote control come into contact with any liquids.  Use a dry cloth to clean your universal remote control to make your remote

control last longer.

SETUP THE REMOTE CONTROL TO WORK WITH YOU TV SET-UP the brand code on the remote control

You can set-up the remote to control your TV what you want to control, please find out the manufacturer of you TV in the BRAND CODE LIST section and note the three-digit code. The setup procedure as the following step:

1. Turn your TV on.

2. Press and hold the [SETUP] and TV key, keep about a bout 3 seconds at the same until the LED indicator lights up.

3. Follow the sequence to key in the 3-digis code numbers which you found from the Brand Code List, the LED indicator will be flash once when you press the number key every time.

4. After key in the 3-digits code number, if the code number is correct, the LED indicator will be turn off what was the remote control save the code and exit the set-up mode. If the code number is not in the list, the LED indicator will flash twice then keep on light, so please go back to the step 3 and set up again.

5. Please control your TV with the [POWER] key on the remote control, check your TV power off or not, please go to the step 6 for power off or repeat the step 3 for not.

6. Setup is finished.

Remark:

a) Anytime you want to leave the code setup mode, please press any keys except

the number keypad, the LED indicator will turn off after flash any times.

b) The remote control will be leaved the Setup mode automatically if you have not

press any key after 30 seconds.

SEARCH the brand code on the remote control If you can not identify a suitable Brand Code for your equipment from the Brand

Code List (many lesser known brands codes may be present but not listed under

that brand), you may try our database search method. During the Search the selected LED indicator will flash at various speeds. The entire search procedure may

take several minutes to complete. The following instruction uses your television as an example for set-up using the database Search method.

1. Turn your TV on.

2. Press and hold the [SET] and [TV] key, keep about 3 seconds at the same time until the LED indicator lights up.

3. Press and release the [CH+] or [CH-] key and the LED indicator will be flashed.

Aim the remote control at your TV, please press and release the [CH+] or [CH-] key slowly, the remote control will transmit the [POWER] Signal of next Table.

5. Check the TV activate or not. Go to procedure 6 for activate or repeat procedure 4 for not.

6. Press the [OPTION] key to save the setup on remote control and exit the Search Mode, then the LED indicator will be turned off.

Remark:

1. During the search mode, press the [CH+] key set to FORWARD SEARCH, and press the [CH-] set to BRCKWARD on the database of remote control.

2. During the Search mode, the remote control will be didn’t save the setup and exit the Search mode if you press any key except the [CH+] or [CH-] key.

3. The remote control will be leaved the Setup mode automatically if you have not press any key after 30 seconds

QUICK SEARCH the brand code on the remote control

You can use this feature to find out the suitable control code quickly and don’t press any key. Please use the feature following these steps as blow:

1. Turn on you TV which you want to control.

2. Press and hold the [SET] and [TV] key, keep about 3 seconds at the same time until the LED indicator lights up.

3. Press and release the [POWER] key to inter the Quick Search mode, and LED indicator will flash ceaselessly.

Aim the remote control at your TV, the remote control will transmit the [POWER] Signal of next Table automatically.

5. Check the TV activate or not. Go to procedure 6 for activate or repeat procedure 4 for not.

6. Press the [OPTION] key to save the setup on remote control and exit the Search Mode, then the LED indicator will be turned off.

Remark:

1. During the Search mode, the remote control will be didn’t save the setup and exit the Search mode if you press any key except the [OPTION] key.

2. The remote control will be exit the Search mode automatically when all codes was search finish on the database of remote control.

Checking the Brand Code on the remote control

There are 3-digits brand codes for TVs. You can check and show any one of digits form the following step:

1. Press and hold the [SET] key and press the selected digit of the number keypad, e.g. [1], [2], or [3].

2. Release both keys and observe the LED on the remote control.

3. The number of LED flashing times is the control code of the selected digit (No flashing when this digit in zero).

Example: checking the brand code number of in factory setting status.

1. Press the [SET] key at the same time, the LED no flashing --- the 1st number is zero.

2. Press the [SET] key at the same time, the LED flashing once --- the 2nd number is one.

3. Press the [SET] key at the same time, the LED flashing night times --- the 3rd number is night.

So the current brand code number is 018

Lock the brand code on the remote control

If the brand code setup was finished. You can use this feature to lock TV device on the remote control. When after the device Lock has processed, the brand code of the

device will be locked permanently and can not changed by SET-UP or SEARCH. The locking procedure is:

Enable Lock

1. Press and release the TV key.

2. Press and hold the [SET] and [OK] at the same time until the LED indicator flash once.

Disable Lock

1. Press and release the TV key.

2. Press and hold the [SET] and [OK] at the same time until the LED indicator flash twice.

BRANDE CODE

TV CODE

AIWA 504 508 509 651 627 AKAI 047 581 232 684 536 733 091 616 467 712 514 721

075 582 302 701 537 750 144 648 503 713 173 660 080 591 383 706 538 755 161 657 508 714 528 725 081 593 398 708 181 678 166 659 510 717

BANG & OLUFSEN 701 640 748 BEKO 658 676 660 215 216 BENQ 246 248 BLAUPUNKT 202 750 754 622 690 553 721 728 657 221 203 206 090 091 092 093 106 121 200 201 CASIO 638 660 CITIZEN 166 000 561 291 034 035 046 405 DAEWOO 012 510 167 616 035 528 291 657 040 585 406 660 013 520 232 648 039 565 398 658 046 598 416 701 422 706 423 712 427 FERGUSON 746 621 514 707 759 717 729 670 232 656 210 659 094 101 110 730 125 762 129 139 143 148 153 183

184 FIDELITY(UK) 123 616 575 718 722 514 726 678 753 678 510 717 111 661 FILMNET 140 FILSAI 708 616 FINLANDIA 753 707 711 503 717 661 FINLUX 081 620 701 219 681 179 642 709 619 698 149 640 119 621 704 232 691 190 660 733 708 614 697 195 125 625 705 514 693 192 663 735 680 758 556 695 128 636 706 FIRST LINE 701 565 232 552 660 528 081 616 708 510 FISHER 019 616 135 676 084 638 190 706 107 642 503 715 FISHER 081 632 179 691 102 640 336 710 126 669 510 724 514 735 755 554 754 FUJITSU 664 737 073 712 556 706 561 725 259 224 425 058 FUNAI 467 510 536 514 707 759 717 729 754 552 708 562 689 425 012 414 076 440 143 725 GOLDSTAR(LG) 037 507 708 417 616 232 525 717 435 698 406 536 038 510 711 431 619 291 526 721 504 701 746 405 046 514 713 433 660 398 529 726 505 707 530 731 156 523 714 434 676 GRUNDIG 090 567 194 660 121 622 236 719 566 737 235 716 091 594 195 688 185 626 237 721 192 637 563 730 106 616 232 698 187 636 437 723 119 619 HARMAN_KARDON 224 HITACHI 002 503 718 175 642 081 551 729 181 676 403 707 008 505 722 177 646 084 556 730 273 691 406 711 046 509 726 178 659 095 561 731 274 701 418 713 051 514 727 179 660 099 597 733 275 704 419 714 078 516 728 180 661 102 599 754 291 705 497 715 706 502 717 118 398 114 613 HUMAX 435 HYUNDAI 700 KENWOOD 166 341 LG (GOLDSTAR) 037 530 293 661 123 617 406 669 291 659 490 676 038 536 398 665 156 646 417 671 292 660 505 677 046 616 405 667 232 657 467 674 687 718 510 683 715 746 529 685

LOEWE 063 224 LOEWE OPTA 720 738 660 614 127 701 640 232 083 MARANTZ 232 702 660 701 415 224 166 657 METZ 660 709 553 559 580 688 030 743 721 640 742 189 091 121 155 550 NEC 018 505 167 536 084 514 405 549 596 500 555 754 044 506 168 537 102 516 408 554 708 538 166 528 072 510 398 NOKIA 619 698 725 728 660 503 672 684 686 NORDMENDE 174 514 691 748 656 743 730 175 749 181 180 223 722 095 099 717 108 109 112 748 139 161 173 PANASONIC 018 508 229 660 118 513 306 713 224 615 433 726 064 509 232 691 169 514 401 714 498 755 442 730 089 510 304 701 182 541 409 717 505 751 447 750 104 512 305 712 220 566 411 722 449 PHILIPS 021 514 277 619 123 529 391 688 215 598 731 715 031 523 291 628 135 530 406 698 224 612 734 717 066 525 307 640 166 548 410 701 228 616 759 721 113 526 308 657 186 561 437 702 232 618 707 729 122 528 309 660 208 562 507 PIONEER 424 411 412 232 656 560 614 702 730 660 658 717 008 009 045 056 291 005 166 065 071 424 175 095 SAMSUNG 034 437 641 070 524 669 046 503 655 291 529 706 036 467 650 143 525 676 052 505 657 325 530 726 043 490 652 232 526 701 069 510 660 327 566 746 398 572 405 616 406 618 SANYO 006 503 329 631 126 536 335 672 219 556 497 725 016 508 330 638 135 537 336 676 328 616 500 727 019 509 331 642 137 538 414 691 755 756 502 754 084 510 332 660 165 549 467 706 757 102 522 334 085 514 333 662 190 554 494 708 669 SCHNEIDER 081 580 698 191 632 711 148 624 708 232 660 714 107 616 701 208 648 712 179 628 710 510 661 715 122 619 707 212 659 713 528 562 691 514 664 717 678 724 735 729 726 759 SHARP 004 339 510 084 408 694 291 452 754 170 444 721 007 340 511 088 425 712 337 499 755 172 451 730 046 406 552 758 407 649 338 055

SHIVAKI 660 SIEMENS 726 721 622 232 660 688 755 657 221 206 202 203 085 090 091 717 121 726 200 201 SONY 041 437 534 204 514 701 342 527 761 341 526 760 084 501 549 230 523 703 343 529 165 510 681 530 138 507 584 321 525 754 396 TATUNG 018 352 346 568 165 514 349 653 706 703 351 691 024 353 347 614 232 549 350 660 132 510 348 616 701 TCL 459 507 478 529 465 525 483 536 485 538 644 532 460 514 479 530 468 526 484 537 496 629 482 523 462 TELEFUNKEN 095 184 437 139 205 730 097 197 596 161 217 175 096 196 570 154 207 761 110 198 656 173 223 232 121 200 670 174 THOMSON 099 218 173 620 114 548 180 670 161 570 730 707 108 232 174 656 121 553 181 694 729 699 737 717 112 514 175 660 160 563 TOSHIBA 010 438 359 510 619 102 497 362 536 704 204 509 024 439 359 516 636 146 502 395 537 705 436 616 034 448 360 517 694 176 503 407 538 738 592 754 084 467 361 519 701 195 508 412

Additional Information

1. Technical Specifications

A. Input signal

Frequency range 950 MHz - 2150 MHz Input level 44dBµV - 84dBµV Impedance 75 Ohm Demodulation DVB-S QPSK, DVB-S2 QPSK, DVB-S 8PSK

B. Video

Video-Decoding MPEG-2, H.264/AVC But rate 1,5 – 15 Mbit/s

C. Audio

Audio-Decoding MPEG-1/2, Layer 1/2 Sampling Rate 32 / 44,1 / 48 kHz Audio mode Stereo, Dual channel, Joint Stereo, Mono

D. Power supply

Main voltage 90 VAC – 240 VAC 50-60Hz Power consumption 24 W LNB voltage 13 / 18 V ; 14 / 19 V LNB current 0,5 A max. Control signals 22 kHz, 0,6 Vss, Tone Burst

DiSEqC 1.2 USALS Unicable

E. Connectors

Component Y, Pb, Pr HDMI 1

Scart 2 (TV + VCR) Optical audio S/PDIF 1 (AC 3 – Datenstrom) Video 1 (RCA) Audio L + R (RCA) RS-232 1 (D-Sub) USB 2.0 3x variant A, 1x variant B

F. Weight / Dimensions

Weight 2,6 kg (netto) Dimensions (BxHxD) 36 x 6 x 28 (cm)

. Troubleshooting

Operating disorders of the recipient can have different causes. Check the recipient using the below listed practices. If the problem with the help of this description can not be solved, please contact our hotline.

Mistake Possible cause Correction

Check the power cord and the

Display off, no function

No picture, no sound

Bad picture quality „Mosaic-effect“

No audio, picture OK

Remote control does not work

Receiver is not connect to main voltage or not switch on

Connection to TV set is not made properly

Receiver works, but no channel can be receive

The dish is not align well

Mute function is active in receiver or TV set

Batteries are old Wrong mode selected

outlet, switch on the main power switch on the backside of the receiver Check out if the connections are made according this instructions manual Realign the dish and control the signal bar in menu automatic search Realign the dish and control the signal bar in menu automatic search.

Deactivate mute function

Check out if the batteries are OK

Press the button STB

Bad picture quality only receive some channels Parental protection can not deactivate

LNB voltage can be to less or the cable looses are to high

Code is wrong or forgotten

Change the LNB voltage

to14/19 V.

Reset the code,

check chapter 5.3.5

. Glossary of Terms

CAS

Conditional access system, access system for Pay TV channels.

Common Interface, slot with standart mit genormter interface for CA module.

DiSEqC

Digital Satellite Equipment Control, signals made by the receiver for control LNB`s, multiswitch and motorised systems

EPG (electronic program guide)

Information service made by the channel operator, with information about the shown movies.

FEC

Forward Error Correction, one technique for compensate transmission mistakes in defect data packages.

FTA

Free to Air, channels with out Pay-TV content, you can see free of charge.

LNB

Low Noise Block converter, the LNB converts the frequency from satellite to a frequency who can use by the receiver. One LNB has also a special amplifier with very less own noise.

MPEG

Moving Picture Experts Group, standards for digital compression in video and audio data.

PID

Packet Identification, the PID number is the identification number for digital audio and video data’s inside a data stream.

PIN-Code

Personal Identification Number is a four digit code for lock critical areas in a receiver or to deactivate the parental control.

Ferguson Ariva TT HD PVR User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
