Fender Nashville Power, NASHVILLE POWER TELECASTER Assembly

WHITE WIRE FROM

BRIDGE PICKUP TO
5 WAY SWITCH

YELLOW WIRE FROM
MIDDLE PICKUP TO

5 WAY SWITCH

WHITE WIRE FROM
NECK PICKUP TO

5 WAY SWITCH

RED WIRE FROM
BATTERY SNAP

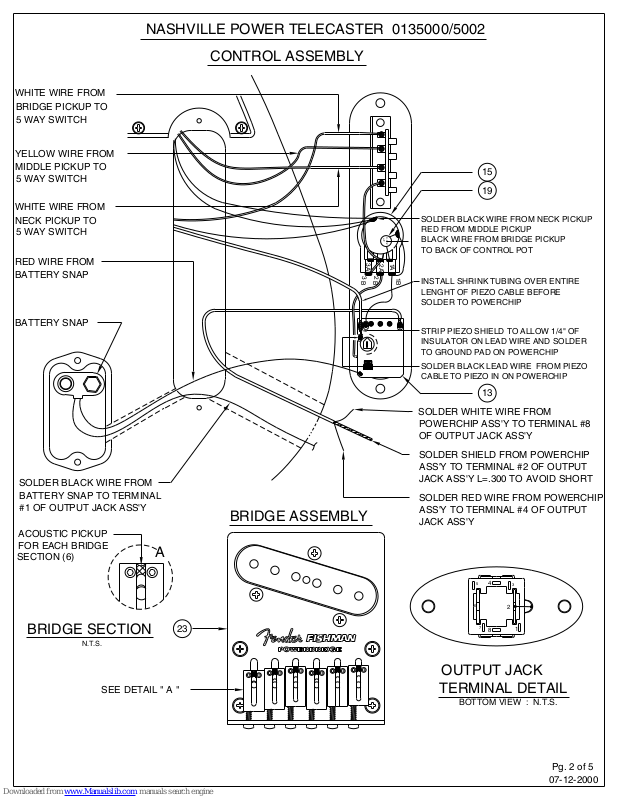

NASHVILLE POWER TELECASTER 0135000/5002

CONTROL ASSEMBLY

SOLDER BLACK WIRE FROM NECK PICKUP

uF

0.022

3

1

2

A

A

A

2

3

B

B

RED FROM MIDDLE PICKUP
BLACK WIRE FROM BRIDGE PICKUP
TO BACK OF CONTROL POT

1
B

INSTALL SHRINK TUBING OVER ENTIRE
LENGHT OF PIEZO CABLE BEFORE
SOLDER TO POWERCHIP

15

19

BATTERY SNAP

SOLDER BLACK WIRE FROM
BATTERY SNAP TO TERMINAL
#1 OF OUTPUT JACK ASS'Y

ACOUSTIC PICKUP
FOR EACH BRIDGE

SECTION (6)

A

BRIDGE ASSEMBLY

STRIP PIEZO SHIELD TO ALLOW 1/4" OF
INSULATOR ON LEAD WIRE AND SOLDER
TO GROUND PAD ON POWERCHIP

SOLDER BLACK LEAD WIRE FROM PIEZO
CABLE TO PIEZO IN ON POWERCHIP

13

SOLDER WHITE WIRE FROM
POWERCHIP ASS'Y TO TERMINAL #8
OF OUTPUT JACK ASS'Y

SOLDER SHIELD FROM POWERCHIP
ASS'Y TO TERMINAL #2 OF OUTPUT
JACK ASS'Y L=.300 TO AVOID SHORT

SOLDER RED WIRE FROM POWERCHIP
ASS'Y TO TERMINAL #4 OF OUTPUT
JACK ASS'Y

4

5

6

3

2

BRIDGE SECTION

N.T.S.

23

SEE DETAIL " A "

7

1

8

OUTPUT JACK

TERMINAL DETAIL

BOTTOM VIEW : N.T.S.

Pg. 2 of 5

07-12-2000

NASHVILLE POWER TELECASTER 0135000/5002

FISHMAN PREAMP POWERCHIP (WIRING DETAIL)

MAG-INPUT PAD

WHITE WIRE FROM
TWO CONDUCTOR
SHIELDED CABLE

SHIELD FROM TWO
CONDUCTOR CABLE

TURN TRIM-POT FOR PIEZO
VOL FULL CLOCKWISE

RED WIRE FROM
TWO CONDUCTOR
SHIELDED CABLE

TOP VIEW

SCALE: N.T.S.

RED WIRE FROM
BATTERY-SNAP

JUMPER IN THIS
POSITION

BOTTOM VIEW

SCALE: N.T.S.

Pg. 3 of 5

07-12-2000
