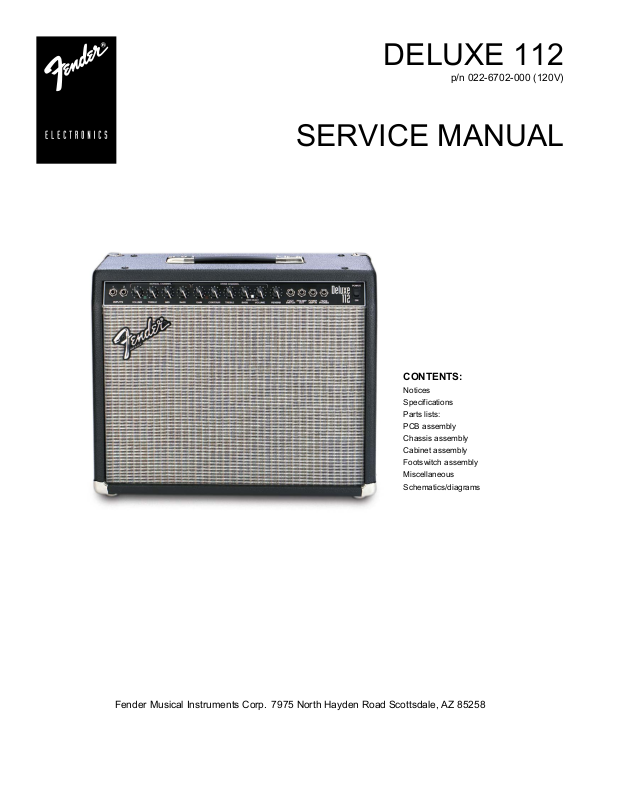

Fender Deluxe-112-SM Service Manual

DELUXE 112

p/n 022-6702-000 (120V)

SERVICE MANUAL

CONTENTS:

Notices

Specifications

Parts lists:

PCB assembly

Chassis assembly

Cabinet assembly

Footswitch assembly

Miscellaneous

Schematics/diagrams

Fender Musical Instruments Corp. 7975 North Hayden Road Scottsdale, AZ 85258

DELUXE 112

(This is the model name for warranty claims)

SERVICE MANUAL

JANUARY 1993

IMPORTANT NOTICE:

The information contained herein is CONFIDENTIAL and PROPRIETARY to Fender Musical Instruments Corp. It is
disclosed solely for use by qualified technicians for purposes of equipment maintenance and service. It is not to be
disclosed to others without the expressed permission of Fender Musical Instruments Co. All specifications subject to
change without notice.

For warranty repair service, only Fender specified part numbers are to be used. It is recommended they also be used
for post-warranty maintenance and repair.

Parts marked with an asterisk (
and SAFETY requirements. DO NOT USE A SUBSTITUTE!

A coded naming convention is used in the description of certain parts. The codes and what they mean are as follows:

CAPACITOR CODES HARDWARE CODES

CAP AE = Aluminum Electrolytic BLX = Black Oxide
CAP CA = Ceramic Axial CR = Chrome Plated
CAP CD = Ceramic Disk HWH = Hex Washer Head
CAP MPF = Metalized Polyester Film M = Machine Screw
CAP MY = Mylar NI = Nickel Plated
CAP PFF = Polyester Film/Foil OHP = Oval Head Phillips

RESISTOR CODES

RES CC = Carbon Comp SMA = Sheet Metal "A" Point
RES CF = Carbon Film SMB = Sheet Metal "B" Point
RES FP = Flame Proof SS = Stainless Steel
RES MF = Metal Film TF = Thread Forming
RES WW = Wire Wound ZI = Zinc Plated

*

) indicate the required use of that specific part. This is necessary for RELIABILITY

PB = Particle Board
PHP = Pan Head Phillips
PHPS = Pan Head Phillips Sems

DELUXE 112

SPECIFICATIONS

Product Release No.: PR 205

Part Number: 120V Version : 022-6702-000

230V : 022-6762-000
100V : 022-6772-000

Product specifications are subject to change without notice

PARTS LIST

PRINTED CIRCUIT BOARD ASSEMBLY

QTY PART # DESCRIPTION REFERENCE DESIGNATION

1 039350 PCB ASSY “DELUXE 112” ALL VERSIONS (STUFFED)
1 028104 BUTTON PUSH SWITCH BLACK (@S1)
1 028577 CABLE ASSY REVERB 30” (@P1-4)
2 028042 CAP AE RDL 50V 2200uF C47,48
1 028458 CAP AE RDL 50V 1uF 20% C53
4 028459 CAP AE RDL 50V 2.2uF 20% C11.33.3.4.35
1 028460 CAP AE RDL 50V 4.7uF 20% C35
6 028465 CAP AE RDL 25V 22uF 20% C6,12,25,27,39,40
4 028471 CAP AE RDL 50V 47uF 20% C37,38,49,50
1 039255 CAP CA 100V 10PF 5% C10
1 038873 CAP CA 100V 22PF 5% C26
1 038698 CAP CA 100V 47PF 5% C29
1 038699 CAP CA 100V 100PF 5% C23
1 038701 CAP CA 50V 470PF 5% C14
1 038874 CAP CA 50V 560PF 5% C17
2 039263 CAP CA 50V 1000PF C3,32
2 039268 CAP CA 50V 4700PF C1,2
1 033579 CAP PF RDL 100V .0015uF 10% C21
2 033580 CAP PF RDL 100V .0022uF 10% C13,28
1 033581 CAP PF RDL 100V .0033uF 10% C20
1 033590 CAP PF RDL 100V .022uF 10% C19
6 033591 CAP PF RDL 100V .033uF 10% C7-9,24,45,46
5 033592 CAP PF RDL 100V .047uF 10% C18,22,51,52,56
2 033596 CAP PF RDL 100V .068uF 10% C54,55
1 036234 CAP PF RDL 100V .015uF 10% C31
2 027278 CAP MPF 63V .1uF 10% C41,42
2 027281 CAP MPF 63V .22uF C5,30
5 027286 CAP MPF 63V .47uF C4,15,16,43,44
1 027937 CONTROL SNAPIN 2K 15A TAPER R14
2 027940 CONTROL SNAPIN 50K 15A TAPER R12,13
2 027941 CONTROL SNAPIN 50K B TAPER R24,33,34,56,
2 027947 CONTROL SNAPIN 100K 30C TAPER R26,35,
1 027949 CONTROL SNAPIN 250K 30C TAPER R38

24 006260 DIODE 1N4448 75PRV CR1-4,9,11,15-21,28-38

4 020534 DIODE 1N5402 RECTOFOER 200V C&F CR22-25
4 028776 DIODE BIAS BYV26D LEAD FORMED CR5-8
2 064089 DIODE 1N4003 200PRV 1AMP
2 027329 DIODE ZENER 1N5228B 3.9V 1/2W CR10,12
2 028119 DIODE ZENER 1M5353B 16V 5W CR26,27

10 025802 FASTON TAB MALE .250”X.032 PCB MT CP1-10

2 026000 FASTON TAB MALE PCB MT .187X.032 CP11,12
2 025996 FUSE CLIP PCB .250 & 5mm FUSE XF1
1 048827 FUSE QA 1-1/4”X1/4” 250V 2AMP F1 (100V/120V ONLY)

CR13,14
