Fender Compugilist User Manual

COMPUGILIST
14
LEDs
9V DC INPUT
5
4
6 7
15
8
3
TONE
LEVEL
2
1
1. Distortion Bypass Footswitch & LED
2. Output Jack
4. Tone
5. Gain
6. Bass Boost
7. Recovery
8. Compression
RECOVERY COMP
GAIN
BASS
BOOST
COMPUGILIST
LEVEL
G.R.
COMPDIST
9. Level (Compressor)
10. Gain Reduction LED
11. Input Jack
12. Compressor Bypass Footswitch & LED
13. Low Battery Indicator
14. LED Kill Switch
15. DC Power Connector
9
10
11
12
13
COMPUGILIST
Thanks for purchasing Compugilist – a versatile new dual-effect unit based on two of our most popular pedals: The Bends Compressor and Pugilist Distortion. Both effects are independently switchable and feature straightforward controls. The Compressor offers Recovery, Compression and Level controls, with a Gain Reduction indicator light. The Distortion side offers familiar Gain, Tone and Level controls.
The Compugilist is a great way to get that classic “mastered” rock tone in a single pedal.
DESIGNED IN CALIFORNIA, U.S.A.
Distortion Bypass Footswitch & LED
Footswitch bypasses distortion effect. LED Illuminates when distortion effect is active.
Level (Distortion)
Controls overall distortion output level.
Tone
Similar to tone control on a guitar — turn counterclockwise to decrease treble frequencies; turn clockwise for full-range tone.
Gain
Controls amount of distortion added to signal.
Bass Boost
Boosts low-end frequencies.
Compressor Bypass Footswitch & LED
Footswitch bypasses compressor effect. LED Illuminates when compressor effect is active.
Recovery
Controls compressor recovery time.
Compression
Controls amount of compression (compression ratio).
Level (Compressor)
Controls overall compressor output level.
G.R. (Gain Reduction) LED
Illuminates when gain is actively being reduced.
Input Jack
High-impedance input suitable for electric guitar, bass, acoustic guitars with pickup systems, keyboards and other instruments.
Output Jack
Low-impedance output jack connects to amp or to next effect pedal in signal chain.
DC Power Connector
Standard center-negative 9VDC jack for use with appropriate power supplies.
LED Kill Switch
Deactivates control-knob illumination.
FENDER MUSICAL INSTRUMENTS CORPORATION
A PRODUCT OF:
CORONA, CALIFORNIA, USA
Fender® is a registered trademark of FMIC.
Copyright © 2019 FMIC. All rights reserved.
P/N 7717097000 - REV 1
Important Safety Instructions
•WARNING: To prevent damage, fire or shock hazard, do not expose the unit or its AC power to rain or moisture.
•Do not alter the AC plug of the connected power adapter
•Do not drip or splash liquids on the unit.
•No user serviceable parts inside, refer servicing to qualified personnel only.
• WARNING: The unit must only be connected to a safety agency certified, regulated, power source (adapter), approved for use and compliant with applicable local and national regulatory safety requirements.
• Unplug the AC power adapter before cleaning the unit exterior. Use only a damp cloth for cleaning and then wait until the unit is completely dry before reconnecting it to power.
• Amplifiers and loudspeaker systems, and ear/headphones (if equipped) are capable of producing very high sound pressure levels which may cause temporary or permanent hearing damage. Use care when setting and adjusting volume levels during use.
Additional Languages
Manual available in additional languages at:
www.fender.com/support
IMPEDANCES: POWER SUPPLY:
POWER REQUIREMENTS:
DIMENSIONS: WEIGHT:
Product specifications subject to change without notice
Specifications
INPUT: 820kΩ OUTPUT: <6kΩ 9VDC regulated adapter,
5.5 x 2.1 mm barrel connector, center negative 75mA @ 9VDC
3.75” x 4.9” x 2.5” (95.25mm x 124.5mm x 63.5mm)
1.2lbs (.54kg)

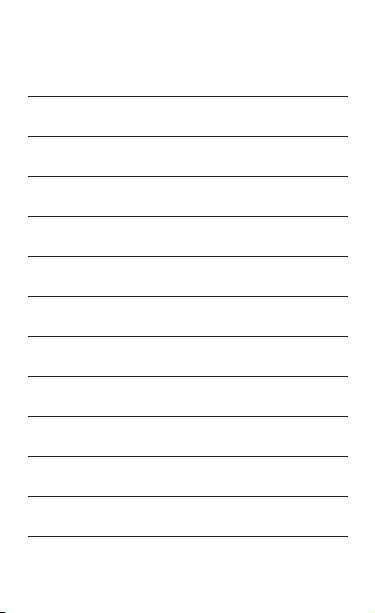

NOTES:
