CATALOGO DE PARTES GF8 MOD. 2013-2014
(CA6371 EuIV) Motor 1.05
Motor completo ____________________________ 01 Cubiertas de piso ___________________________ 30 Transmisión completa ________________________ 01 Protectores y cubiertas interiores _______________ 31 Cabeza de motor ____________________________ 02 Sistema limpiaparabrisas ______________________ 32 Bloque de cilindros __________________________ 03 Parabrisas _________________________________ 33 Carter ____________________________________ 04 Marco del radiador __________________________ 34 Soportes de motor ___________________________ 05 Tablero ___________________________________ 35
Cigüeñal __________________________________ 06 Soporte de tablero ___________________________ 36 Árbol de Levas _____________________________ 07 Consola central _____________________________ 37 Banda de distribución _________________________ 08 Carrocería ________________________________ 38 y 39 Múltiple de admisión _________________________ 09 Estribos, cristales traseros ____________________ 40 y 41
Riel de inyectores ___________________________ 10 Toldo ____________________________________ 42 PCV _____________________________________ 11 Bisagra puertas delanteras ____________________ 43 Múltiple de escape __________________________ 12 Puertas delantera ____________________________ 44 Bomba de aceite ____________________________ 13 Elevador de cristal __________________________45 45 Bomba de agua _____________________________ 14 Chapas y manijas puerta delantera ________________ 46 Termostato ________________________________ 15 Puerta corrediza ____________________________ 47 Marcha ___________________________________ 16 Chapas y guias de puerta corrediza _______________ 48 Alternador ________________________________ 17 Cristales de puertas corredizas _________________ 49 Cables de bujías ____________________________ 18 5ta puerta _________________________________ 50 Embrague _________________________________ 19 Medallon _________________________________ 51 Tren de engranes ___________________________ 20 y 21 Chapa de 5ta puerta _________________________ 52
Horquillas de trasmisión ______________________ 22 Asientos delanteros _________________________ 53 Armadura de transmisión _____________________ 23 Asientos medios y cinturon seguirdad ___________ 54
Bastidores ________________________________ 24 Asientos traseros ___________________________ 55 Facia frontal ______________________________ 25 Calefaccion ________________________________ 56 a 58 Facia trasera _______________________________ 26 Control de calefaccion _______________________ 59
Piso metálico frontal _________________________ 27 Aire acondicionado __________________________ 60 Piso metálico trasero _________________________ 28 Retrovisor y parasol _________________________ 61 Base de batería _____________________________ 29 Cinturon de seguridad delantero ________________ 62
CATALOGO DE PARTES GF8 MOD. 2013
(CA6371 EuIV) Motor 1.05

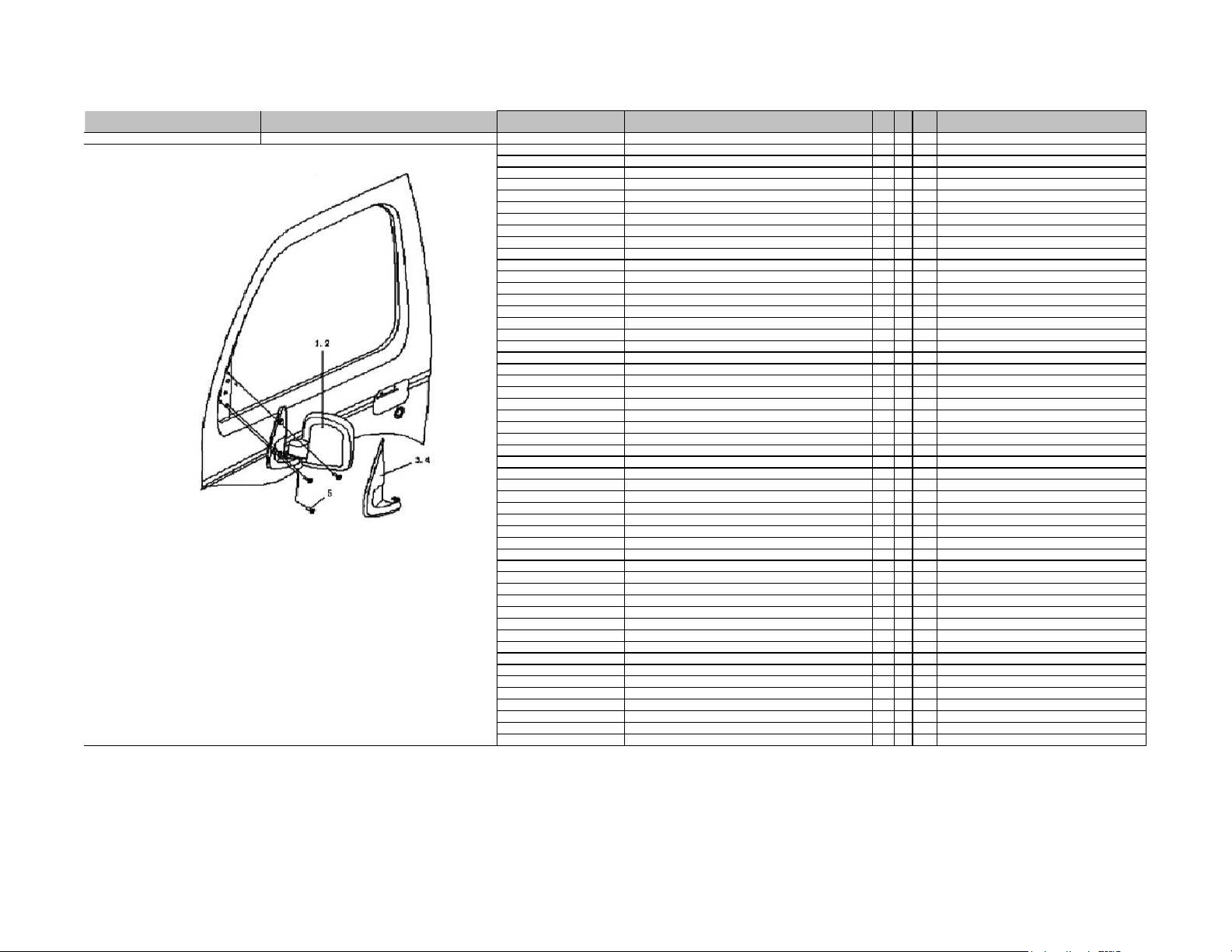

Espejos laterales ____________________________ 63 Faros y calaveras ___________________________ 92 Cofre, parrilla, salpicadera _____________________ 64 Luz de stop ________________________________ 93 Chicote de embrague ________________________ 65 Cuarto de salpicadera, luz de placa trasera _________ 94 Cables de transmision ________________________ 66 Arneses __________________________________ 95 a 99 Flecha cardan ______________________________ 67 Panel de instrumentos ________________________ 100 Diferencial ________________________________ 68 Radio ____________________________________ 101 Eje trasero ________________________________ 69 Encendedor _______________________________ 102 Amortiguadores delanteros ____________________ 70 Reflejantes de facia trasera ____________________ 103 Horquillas y tirantes de suspension ______________ 71 Placas para soportes de motor y transmision _______ 104 Barra estabilizadora __________________________ 72 Tanque y bomba de combustible ________________ 105 Muelles y amortiguadores traseros_______________ 73 Filtro de combustible y mangueras _______________ 106 Masa de rueda delantera ______________________ 74 Filtro de aire ________________________________ 107 Soporte de refaccion _________________________ 75 Canister __________________________________ 108 Rin de rueda _______________________________ 76 Pedal de acelerador __________________________ 109 Caja de direccion ____________________________ 77 Silenciador y catalizador ______________________ 110 Volante de conductor ________________________ 78 Radiador y ventilador ________________________ 111 Columna de direccion ________________________ 79 Freno de mano _____________________________ 80 Conjunto de pedales de freno y embrague _________ 81 Conjunto frenos delanteros ____________________ 82 Conjunto frenos traserosos ____________________ 83 Booster y bomba de frenos ____________________ 84 Tuberia hidraulica de frenos ___________________ 85 Deposito de liquido de frenos y mangueras ________ 86 Palanca multifunciones _______________________ 87 Claxon ___________________________________ 88 Bobina y unidad de control electronico ___________ 89 Kit de cerraduras y switch _____________________ 90 Luz interior trasera ___________________________ 91
CATALOGO DE PARTES GF8 MOD. 2013
(CA6371 EuIV) Motor 1.05
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK

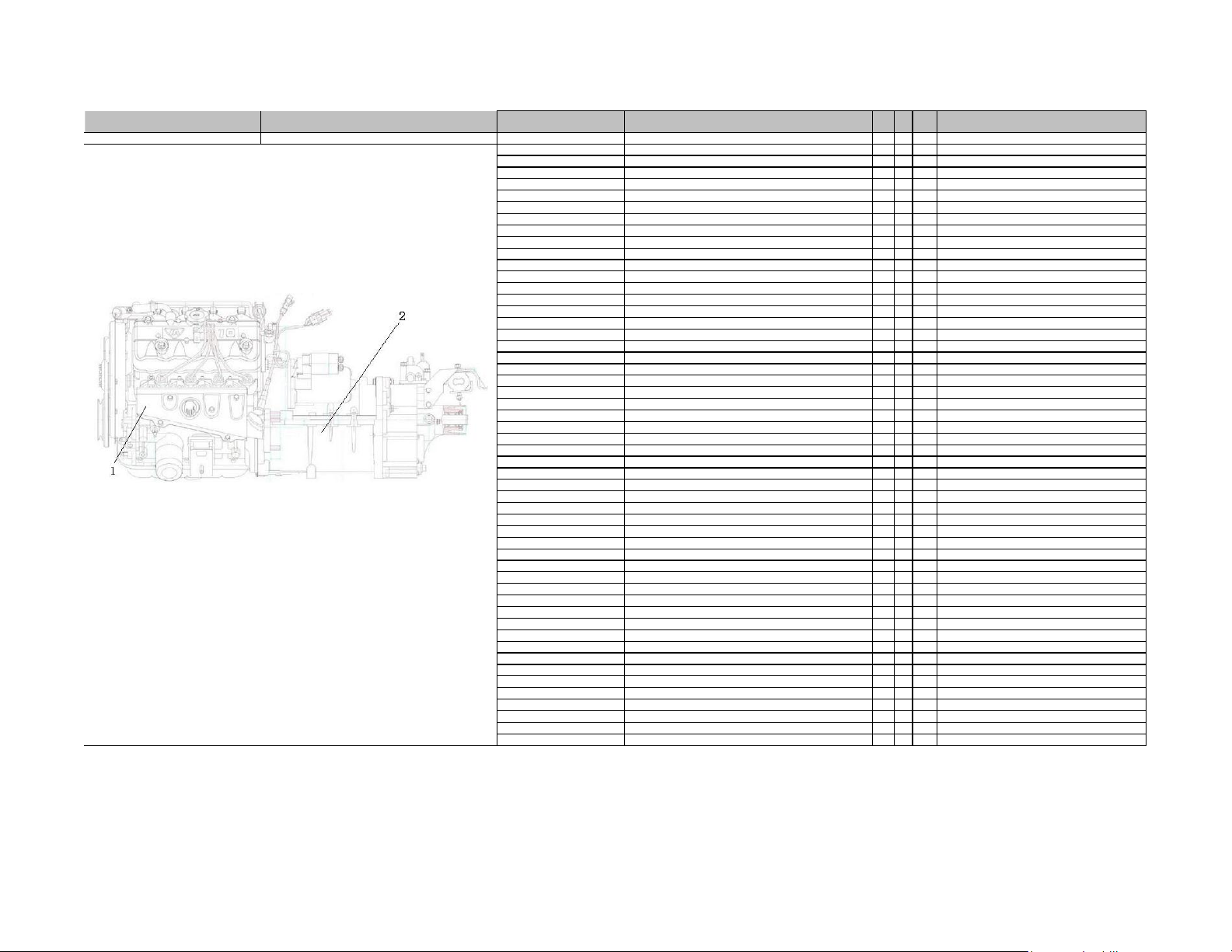

DA465QA,44KW,EU4 ENGINE ENGINE ASSY
DA465QA Engine Assy
1 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
BS10 Transmission Assy
2 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
Pag. 01
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK

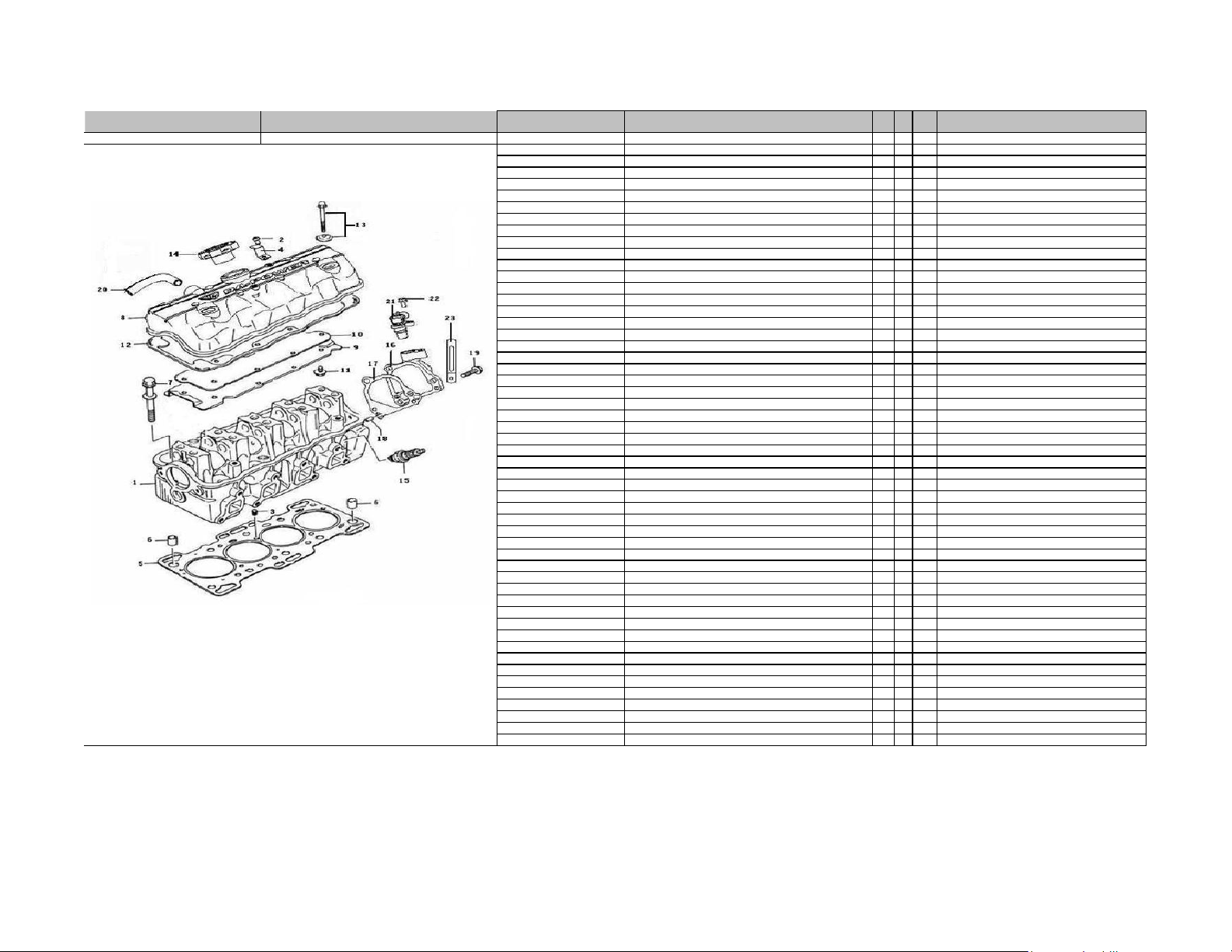

DA465QA,44KW,EU4 ENGINE CYLINDER HEAD &CYLINDER HEAD COVER
465QA-1003800 Cylinder Head
1 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000243 Bolt
2 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1003006-A Oil Venturi Plug
3 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000068-B Bracket
4 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465QA-1000800-01 Cylinder Head Gasket
5 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000015 Pin
6 2
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000215-B Bolt
7.1 10
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000214 Gasket
7.2 10
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465QA-1007017 Cylinder Head Cover
8 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1007015 Breather Plate
9 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1007016 Breather Gasket
10 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000228 Bolt
11 8
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000071-A Cylinder Head Cover Gasket
12 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000216 Bolt
13.1 4
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1007802 Washer
13.2 4
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1009800-B Oil Filler Cap Comp
14 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465QA-3707950 Spark Plug
15 4
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465QA-1003011 Camshaft Rear Cover
16 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1003010-A Gasket
17 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
6×10Ⅲb GB4661-89
Pin
18 2
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
GB5789-86 M8×25 Bolt
19 3
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465QA-1007018 Breather Tube
20 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465QA-3700820 Camshaft Phase Sensor
21 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
GB5789-86(AM6×16) Bolt
22 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000830 Clamp Assy
23 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
Pag. 02
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK

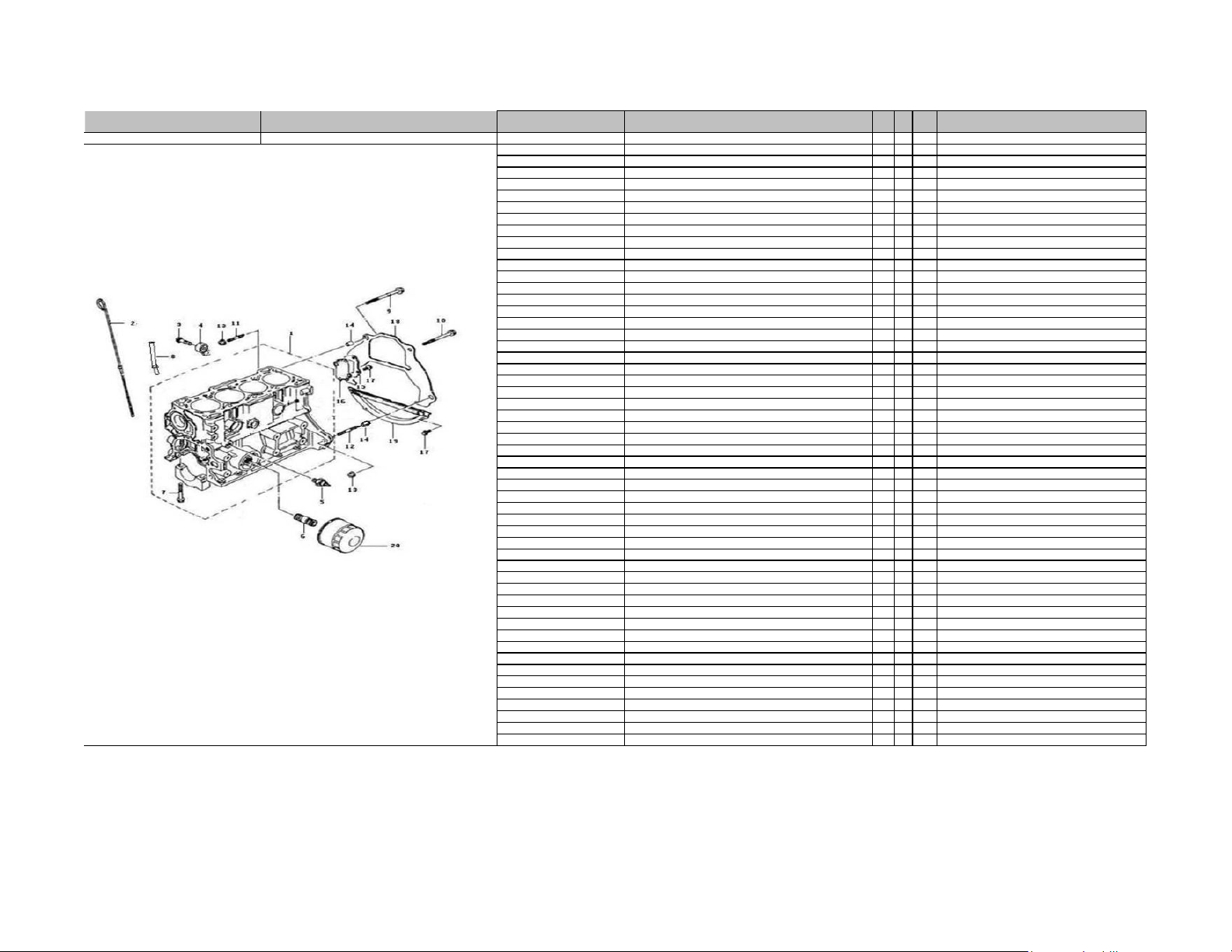

DA465QA,44KW,EU4 ENGINE BLOCK CYLINDER
465Q-1002900-C Cylinder Block
1 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465Q-1009802 Oil Gauge Comp
2 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000248 Bolt
3 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465QA-3752800 Knock Sensor
4 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465Q-3810950 Oil Pressure Switch
5 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465Q-1000022-C Oil Filter Stand
6 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1002201-01 Bolt
7 10
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465Q-1A/D-1002810 Oil Gauge Guide Pipe Comp
8 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000241 Bolt
9.1 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000247 Plate
9.2 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000242 Bolt
10.1 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000247 Plate
10.2 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1701202 Screw
11 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1701201 Screw
12 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000212 Nut
13.1 2
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000247 Washer
13.2 2
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000015 Plug
14 2
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1002014 Water Jacket Plate
15 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1002013 Water Jacket Plate Gasket
16 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000228 Bolt
17 4
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465QA-1000054 Clutch Housing Upper Plate
18 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1701811-A Clutch Housing Down Plate
19 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465Q-1017950 Oil Filter
20 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
Pag. 03
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK

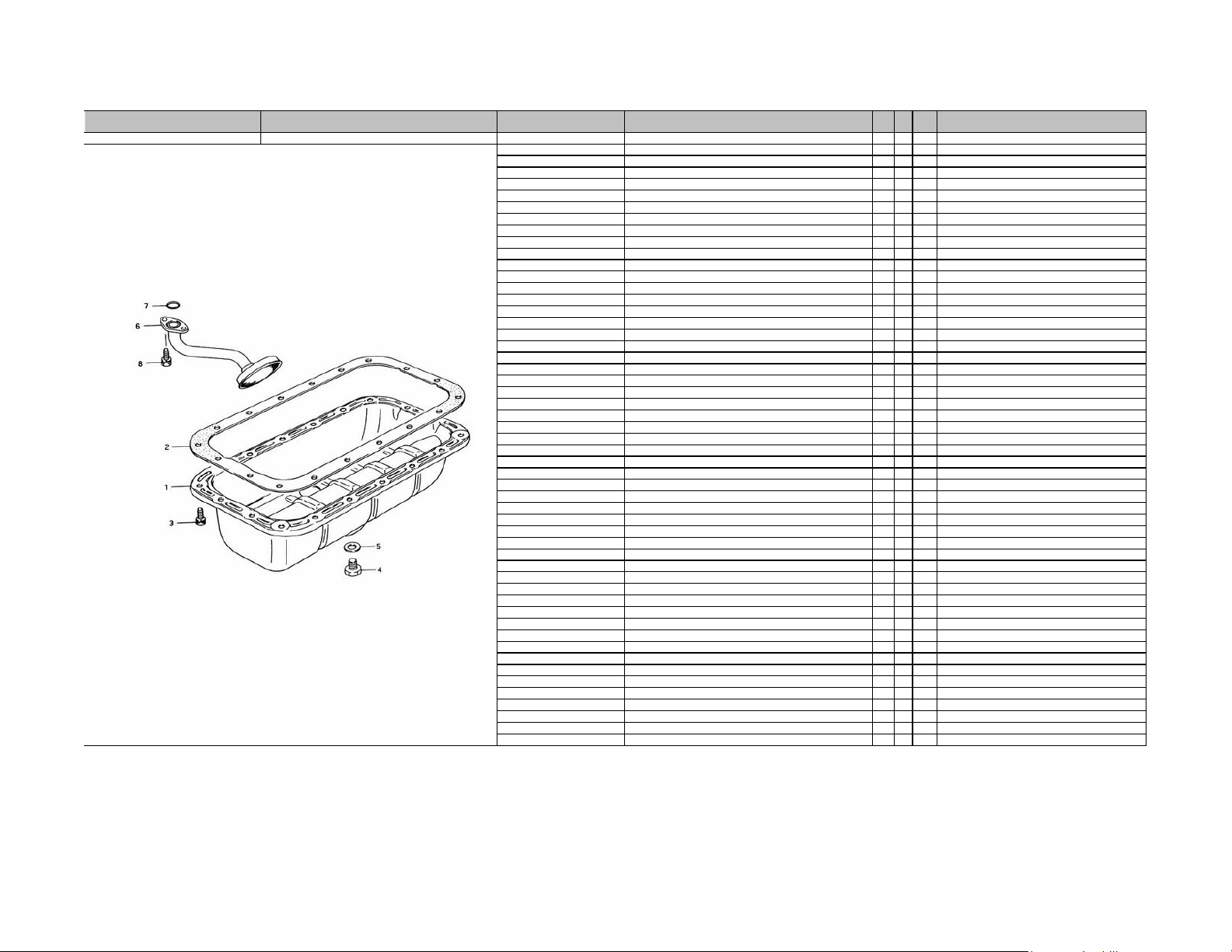

DA465QA,44KW,EU4 ENGINE OIL PAN
465Q-1009801-01 Oil Pan Comp
1 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000021-A Oil Pan Gasket
2 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000801 Bolt
3 18
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1009202-A Drain Plug
4 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1009203 Drain Plug Gasket
5 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1010950 Oil Pump Strainer Comp
6 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000078 O Ring
7 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000233 Bolt
8 2
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
Pag. 04
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
DA465QA,44KW,EU4 ENGINE ENGINE SUPPORT BRACKET
465Q-1001802 Fr Mounting Comp
1 2
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
GB93-87 10 Spring Washer
2 6
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000212 Nut
3 6
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465Q-1000070 Left Front Bracket Plate
4 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465QA-1001820 Right Front Bracke Comp
5 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465QA-1001830 Left Front Bracket Comp
6 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000253 Bolt
7 3
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
GB 859-87 8 Spring Washer
8 3
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465Q-1001805 Engine Rear Mounting
9 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465Q-1000069 Engine Rear Bracket
10 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000816 Bolt
11 4
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000815 Bolt
12 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
GB97.1-85-8-140HV Washer
13 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
Pag. 05
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK

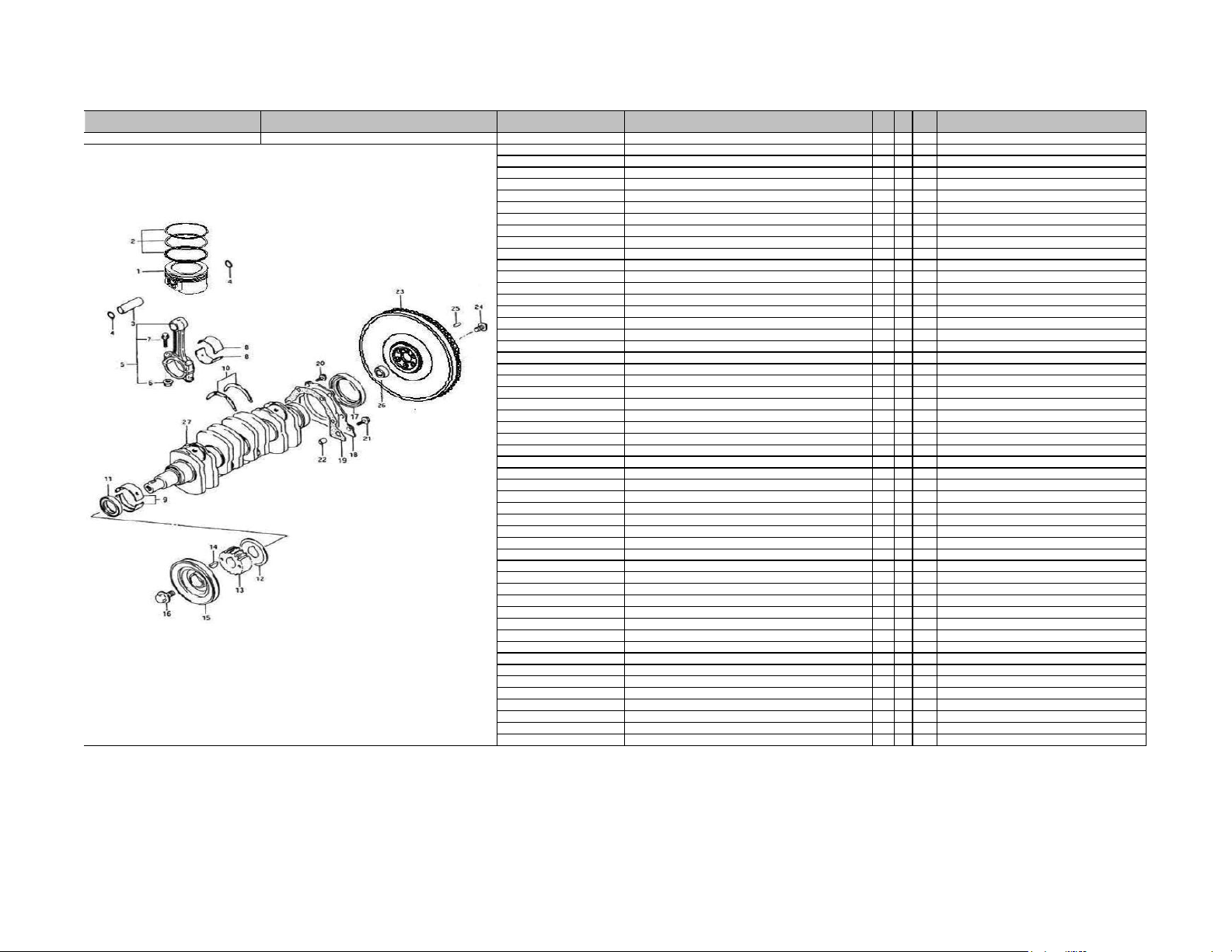

DA465QA,44KW,EU4 ENGINE PISTON-CONNROD –CRANKSHAFT
465QA-1004008-B Piston
1 4
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465QA-1004009-B 1St Piston Ring
2.1 4
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465QA-1004011-B 2Nd Piston Ring
2.2 4
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465QA-1004920-B Piston Oil Ring Assy
2.3 4
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465QA-1004001 Piston Pin
3 4
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1004002-A Piston Pin Retaining Ring
4 8
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1004900-01 Connrod Assy
5 4
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1004201-01 Connrod Nut
6 8
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1004003-01 Connrod Bolt
7 8
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1004004 Connrod Bearing
8 8
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1002006 Crankshaft Bearing
9 10
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1002007 Crank Thrust Bearing
10 2
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1006900-A Crankshaft Oil Seal
11 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000033 Timing Belt Plate
12 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465Q-1000034 Crank Timing Belt Gear
13 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000031 Key
14 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465Q-5-1000038-A Crankshaft Pulley Assy
15 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000227 Bolt
16 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1005901-A Crankshaft Oil Rear Seal
17 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1002015 Oil Seal Housing
18 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1002016-01 Gasket
19 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1002202 Bolt
20 4
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000221 Bolt
21 2
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000017 Plug
22 2
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1A/D-1005803-01 Flywheel Comp
23 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1005201-A Bolt
24 6
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
6X10IIIbGB4661-89 Dowel Pin
25 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
6000-DDUR Inputshaft Bearing
26 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465QA-1005001 Crankshaft
27 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
Pag. 06
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
DA465QA,44KW,EU4 ENGINE ROCKER-VALVE-CAMSHAFT
465QA-1006810-D Camshaft Assy
1 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465QA-1006001-D Camshaft
1.1 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465QA-1006003 Sensor Wheel
1.2 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1006900-A Oil Seal Camp
2 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1003013 Camshaft Thrust Plate
3 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1003206 Rocker Arm Shaft Screw
4 2
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1007901 Valve Rocker Shaft Comp
5 2
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1003205 Rocker Arm Shaft Screw
6 10
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1007900 Valve Rocker -Arm
7 8
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1007008 Rocker Arm Spring
8 8
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1007001 Valve Adjusting Screw
9 8
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1007201 Valve Adjusting Nut
10 8
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465QA-1007009 Intake Valve
11 4
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465QA-1007008 Exhaust Valve
12 4
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465QA-1007012 Valve Spring
13 8
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465QA-1007013-B Valve Spring Retainer
14 8
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465QA-1007014 Valve Cotter
15 16
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465QA-1007011-B Valve Spring Seat
16 8
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465QA-1007920 Oil Seal
17 8
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
Pag. 07
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
DA465QA,44KW,EU4 ENGINE BELT TIMING AND COVER
465Q-1000802-A Timing Belt Inside Cover Comp
1 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000900-A Timing Belt Outside Cover Comp
2 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000025-A Grommet
3 2
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000026-A Grommet
4 2
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000027 Spacer
5 4
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465Q-1000804 Bolt Assy
6 4
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000228 Bolt
7 6
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000860 Small Clamp
8 3
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465Q-1000032 Camshaft Timing Belt Gear
9 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000031 Key
10 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000227 Bolt
11 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465Q-1000035 Timing Belt
12 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000901-03 Tensioner Assy
13 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000030 Tensioner Plug
14 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000029 Spring Bracket
15
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000028 Tensioner Spring
16 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1307201 Screw
17 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000224-B Bolt
18 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
GB93-87 8 Washer Spring
19 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000226 Washer
20 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465Q-1000073 Soft Tube Clamp
21 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
Pag. 08
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
DA465QA,44KW,EU4 ENGINE INTAKE MANIFOLD
462-1A/D-1300800 Coolant Temperature Sensor
1 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000810 Bolt
2 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465QA-1000870-B Hook Assy
3 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465Q/D2-1100800 Manifold Air Pressure & Temperature Sensor
4 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465QA-1000111-C Manifold Air Pressure & Temperature Sensor Plate
5 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
GB65-85-M5x8 Bolt
6.1 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
GB859-87 5 Spring Seat
6.2 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465Q/D2-1207850 Solenoid Valve
7 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
GB5789-86 M6X12 Bolt
8 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465QA-1000109 Solenoid Valve Plate
9 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465QA-1000840-B Gas Purge Hose
10 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465Q-2/D-1000065 Clip
11 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
GB5789-86 AM6×16 Bolt
12 4
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465QA-1000124 Intake Manifold Bracket
13 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465QA-1008800 Intake Manifold Assy
14 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465QA-1000048 Throttle Body Gasket
15 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465QA-1107950 Throttle Body Assy
16 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
GB5789-86 M6×35 Bolt
17 3
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
GB5789-86 M6×40 Bolt
18 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465QA-1000041 Intake Manifold Gasket
19 2
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
GB6170-86 M8 Nut
20.1 5
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
GB93-878 Spring Seat
20.2 5
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000253 Bolt
21.1 3
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
GB859-87 8 Spring Seat
21.2 3
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465QA-1000047-A Engine Front Hook
22 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
Pag. 09
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
DA465QA,44KW,EU4 ENGINE FUEL RAIL
465QA-1104950-B Fuel Rail Assy
1 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000810 Bolt
2 2
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465QA-1000850 Vaccum Hose Clamp Assy
3 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
QC/T 620-1999 Q67516 Pipe Band
4 4
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465QA-1014700 Pressure Intake Hose
5 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465QA-1014600 Pressure Return Hose
6 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465QA-1104900-B Fuel Pipe Assy
7 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
GB5789-86 M8X16 Bolt
8 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465QA-1000064-01 Vaccum Hose
9 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
Pag. 10
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
DA465QA,44KW,EU4 ENGINE PCV
465QA-1000093-01 Hose
1 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465QA-1000094-01 Hose
2 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465Q-1000092-01 Clip
3 2
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465Q-1000820-01 Joint 3 Way
4 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000080 Clip
5 4
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465QA-1000079-02 Hose
6 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465Q-1014800 Pcv Assy
7 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
Pag. 11
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK

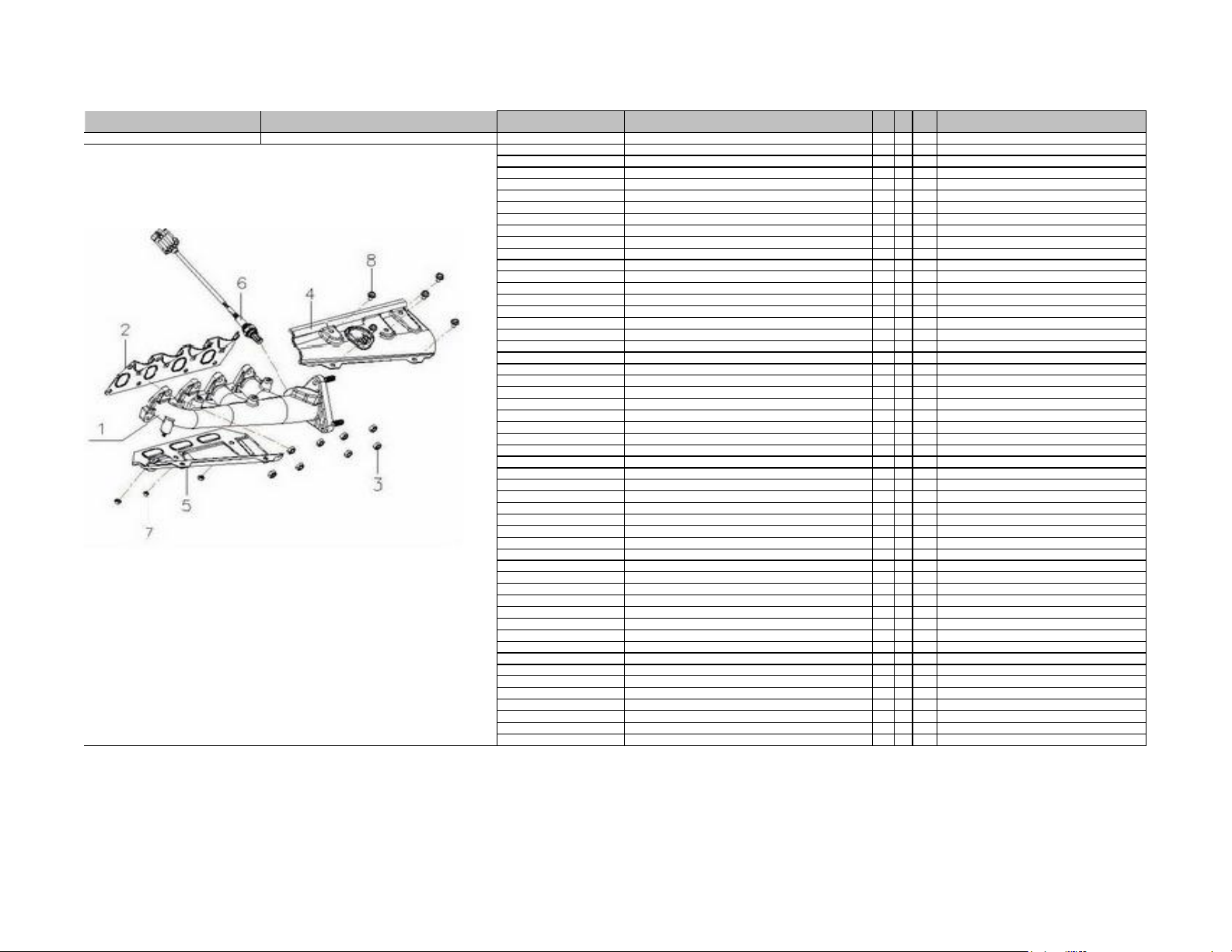

DA465QA,44KW,EU4 ENGINE EXHAUST MANIFOLD
465QA-1008810-B Exhaust Pipe Assy
1 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465QA-1008830-01 Exhaust Manifold Gasket
2 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
GB6170-86 M8 Nut
3 8
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465QA-1008011 Exhaust Manifold Cover
4 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465QA-1000820 Exhaust Manifold Lower Cover Comp
5 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1A/D-1207800-01 Oxygen Sensor
6 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
GB6170-86 M6 Nut
7 3
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000228 Bolt
8 5
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
Pag. 12
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK

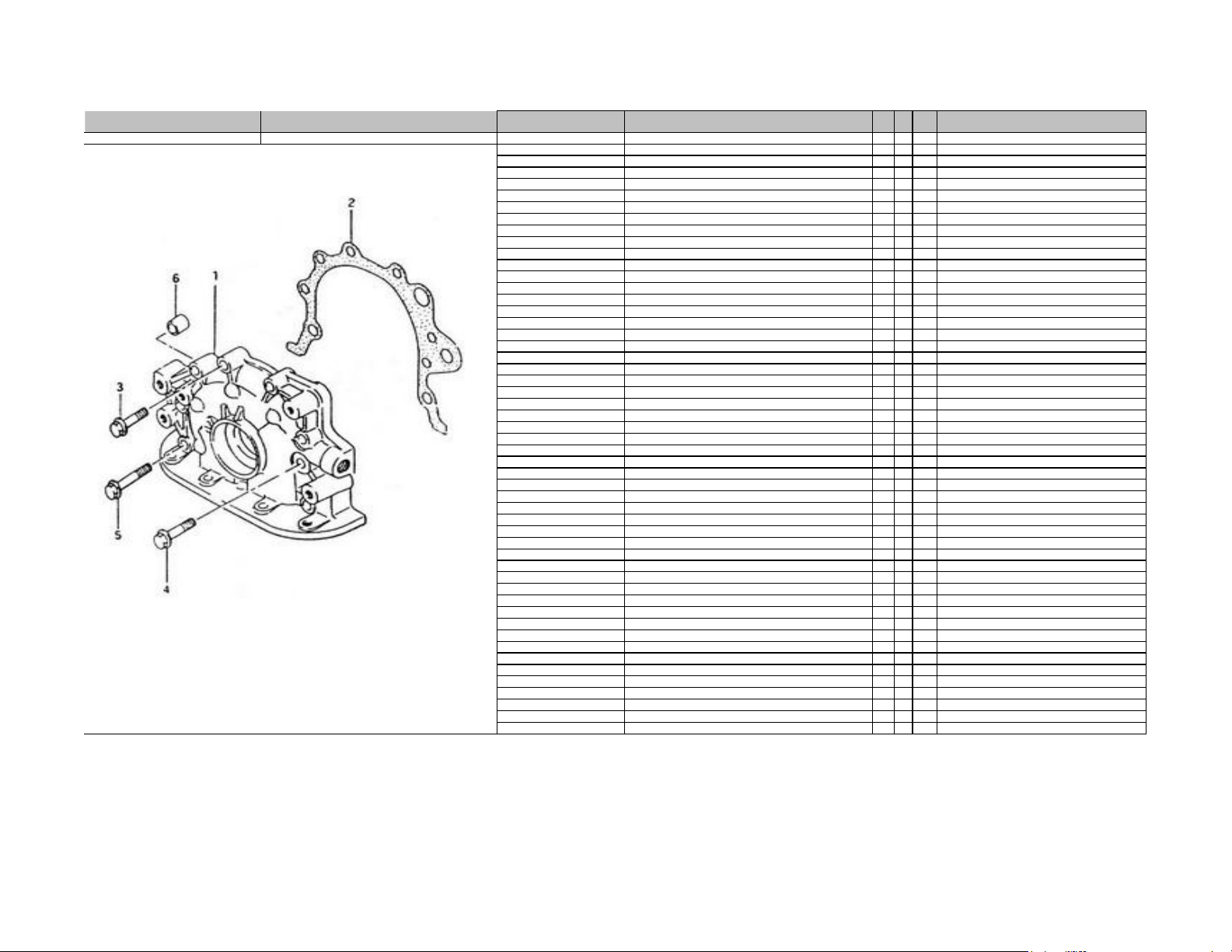

DA465QA,44KW,EU4 ENGINE OIL PUMP
462-1011950-01 Oil Pump
1 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000018-01 Oil Pump Gasket
2 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000217 Bolt
3 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000218 Bolt
4 5
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000219 Bolt
5 2
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000017 Pin
6 2
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
Pag. 13
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK

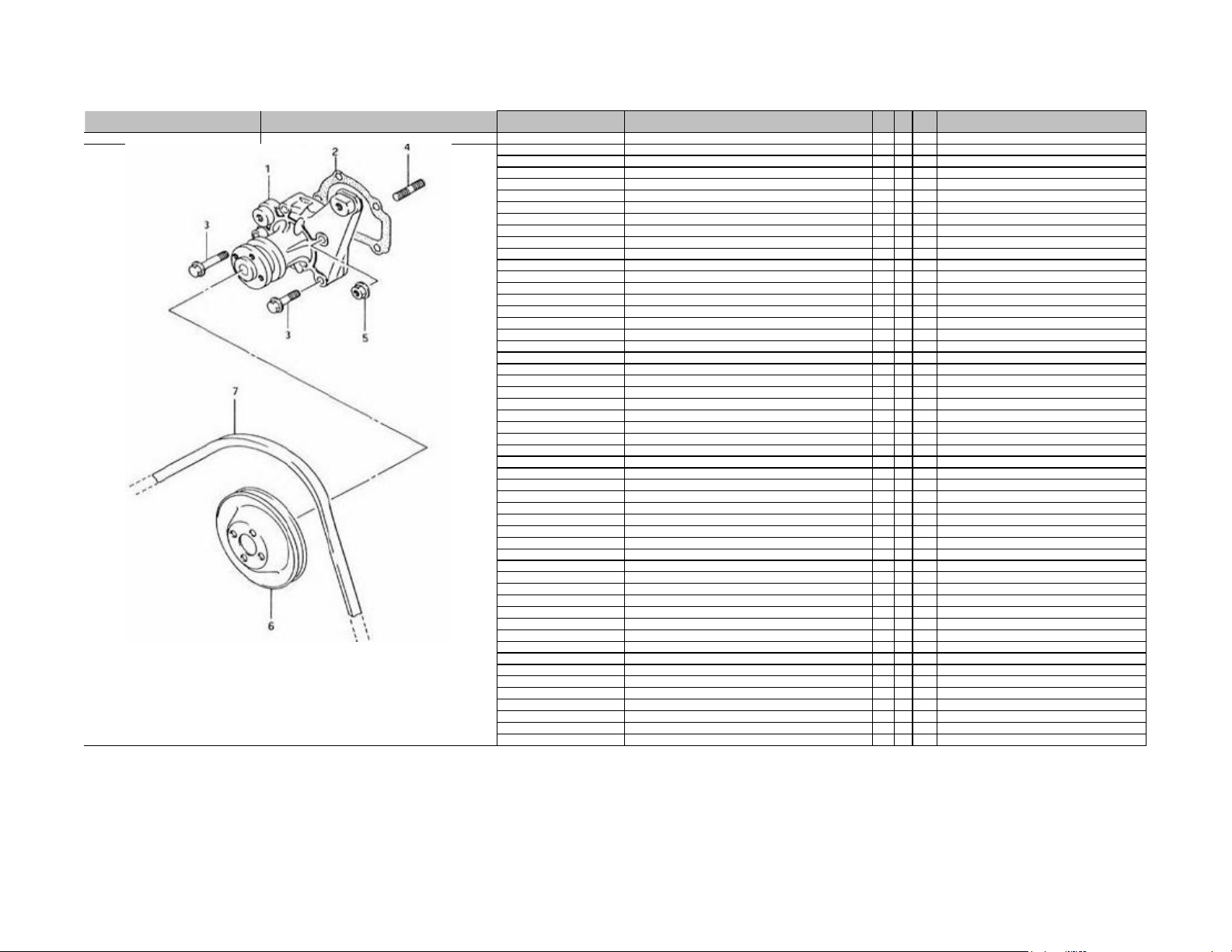

DA465QA,44KW,EU4 ENGINE WATER PUMP AND FAN
462-1307950-01 Water Pump Assy
1 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000024-01 Water Pump Gasket
2 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000217 Bolt
3 3
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1002205 Bolt Stud
4 2
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
GB6170-86-M6 Nut
5.1 2
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
GB859-87 6 Spring Plate
5.2 2
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000037-01 Fan Pulley
6 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000229-02 Fan Belt Assy
7 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
Pag. 14
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK

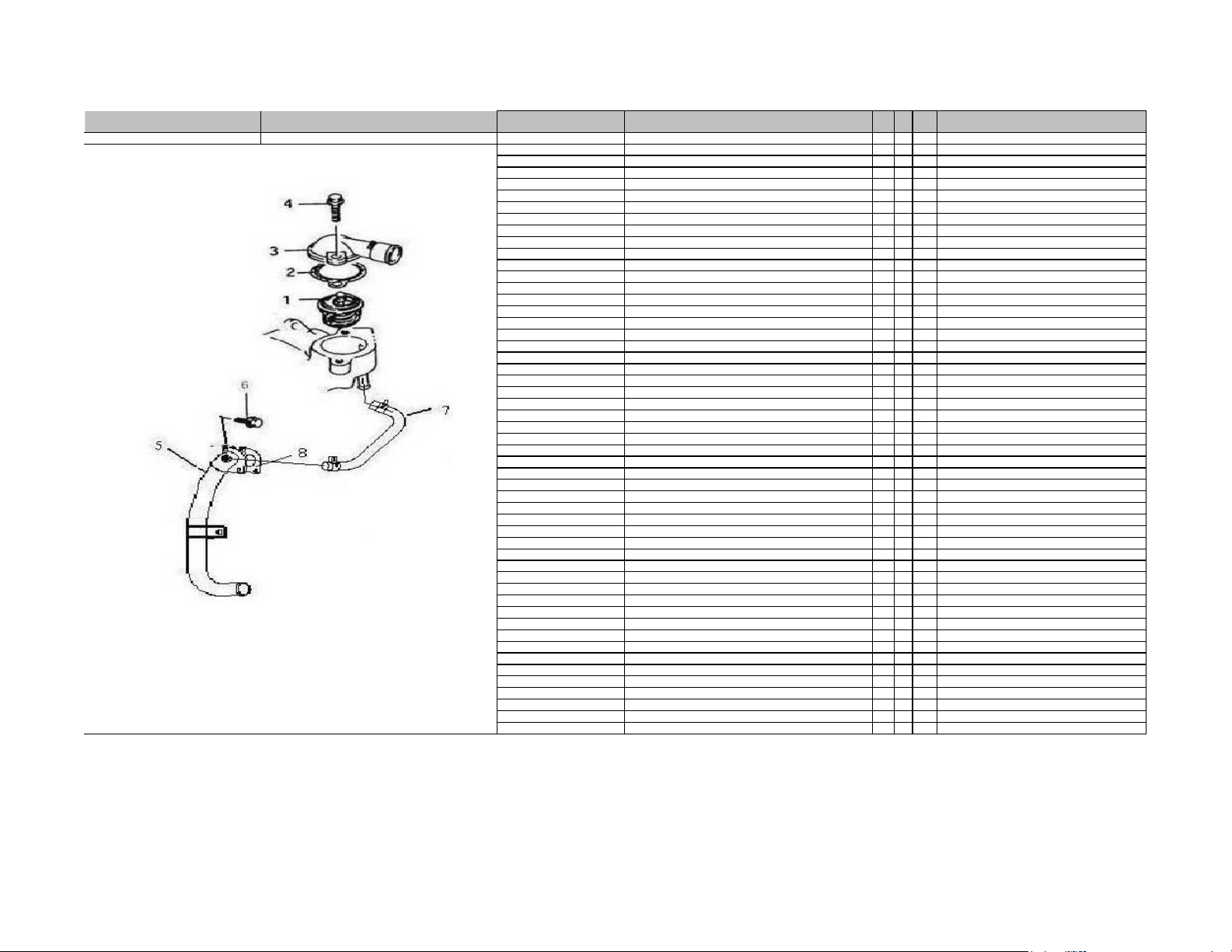

DA465QA,44KW,EU4 ENGINE COOLANT PIPE
462-1306950-B Thermostat
1 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000043-A Thermostat Gasket
2 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1A/D2-1000882 Thermostat Cover
3 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000815 Bolt
4 2
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465QA-1303830-01 Inlet Pipe Housing Assy
5 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000814 Bolt
6 2
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465QA-1000070-02 Bypass Hose
7 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000050-A Inlet Pipe Housing Gasket
8 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
Pag. 15
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
DA465QA,44KW,EU4 ENGINE STARTER
465Q-3708950 Start Motor Assy
1 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000241 Bolt
2.1 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000247 Washer
2.2 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000242 Bolt
3.1 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000247 Washer
3.2 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
Pag. 16
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
DA465QA,44KW,EU4 ENGINE ALTERNATOR
462-1A/D-3701950 Alternator
1 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465QA-1000880 Alternator Adjust Arm
2 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000249 Washer
3.1 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000812 Bolt
3.2 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000816 Bolt
4 2
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
465Q-1A-1000062 Alternator Lower Bracket
5 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000248 Bolt
6 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
GB5789-86 M8×20 Bolt
7 3
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1700205 Bolt
8 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
Pag. 17
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK

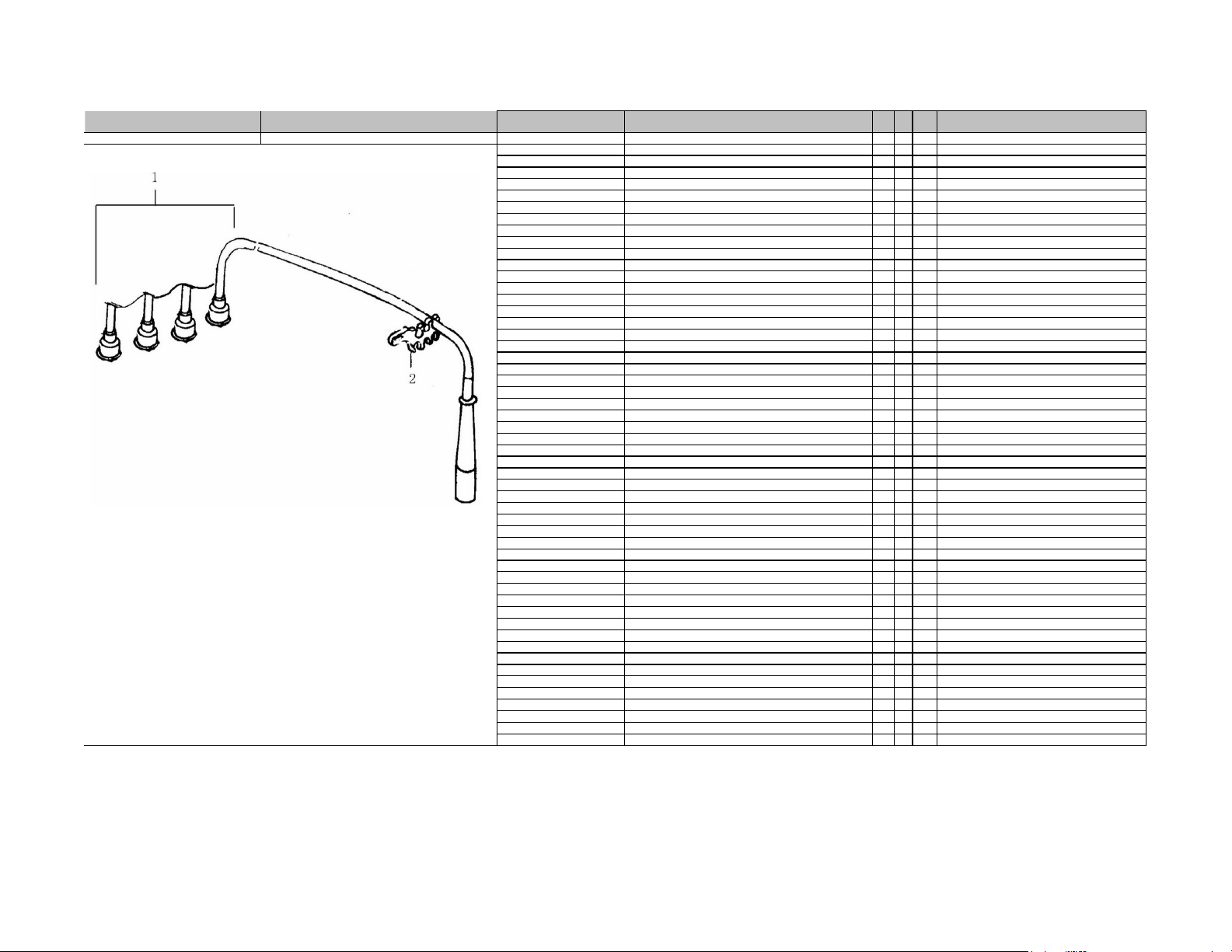

DA465QA,44KW,EU4 ENGINE SPARK PLUG WIRE
465QA-3707900 High Tension Cord Assy
1 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
462-1000068-B Clip
2 1
●
Da465Qa,44Kw,Eu4 Engine,Made From 2011
Pag. 18
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK

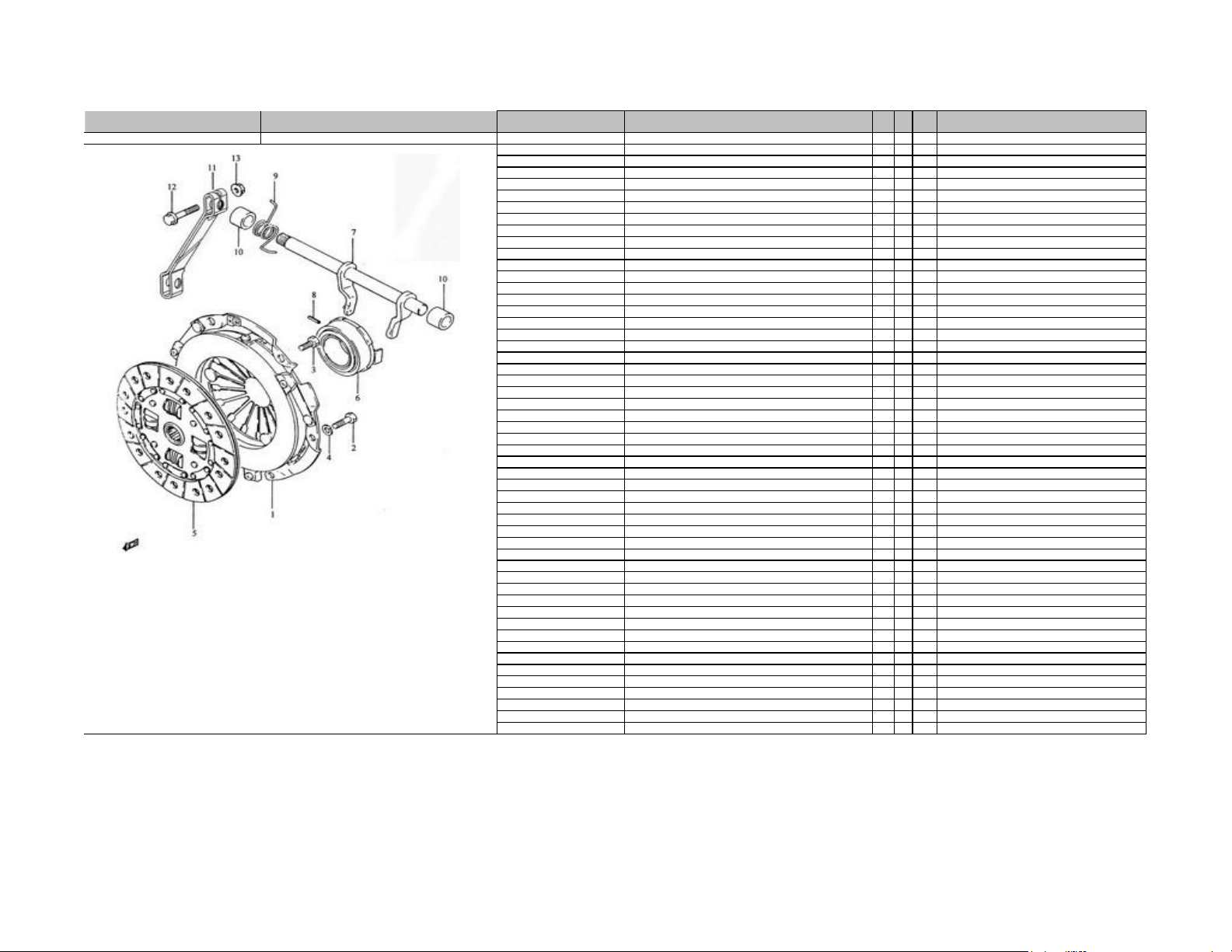

DA SERIES BIG 5MT CLUTCH ASSY
LH10-1601900-02 Clutch Pressure Plate And Housing Assy.
1 1
●
Da Series Big 5Mt
462-1000238 Locating Screw
2 2
●
Da Series Big 5Mt
462-1000810 Screw Assy
3 4
●
Da Series Big 5Mt
GB93-87 8 Spring Washer
4 2
●
Da Series Big 5Mt
LH10-1601800-02 Clutch Driven Disk
5 1
●
Da Series Big 5Mt
LH10-1601910-A Release Bearing
6 1
●
Da Series Big 5Mt
LH10-1601840 Clutch Release Shaft Assy
7 1
●
Da Series Big 5Mt
LH10-1601037 Spring Cylinder Pin
8 1
●
Da Series Big 5Mt
LH10-1601022-B Clutch Release Shaft Spring
9 1
●
Da Series Big 5Mt
LH10-1601021 Clutch Release Bearing Bush
10 2
●
Da Series Big 5Mt
LH10-1601035-B Clutch Arm
11 1
●
Da Series Big 5Mt
462-1700203 Screw
12 1
●
Da Series Big 5Mt
GB97.1-85 8-140HV Washer
13.1 1
●
Da Series Big 5Mt
GB6170-86 M8 Nut
13.2 1
●
Da Series Big 5Mt
Pag. 19
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK

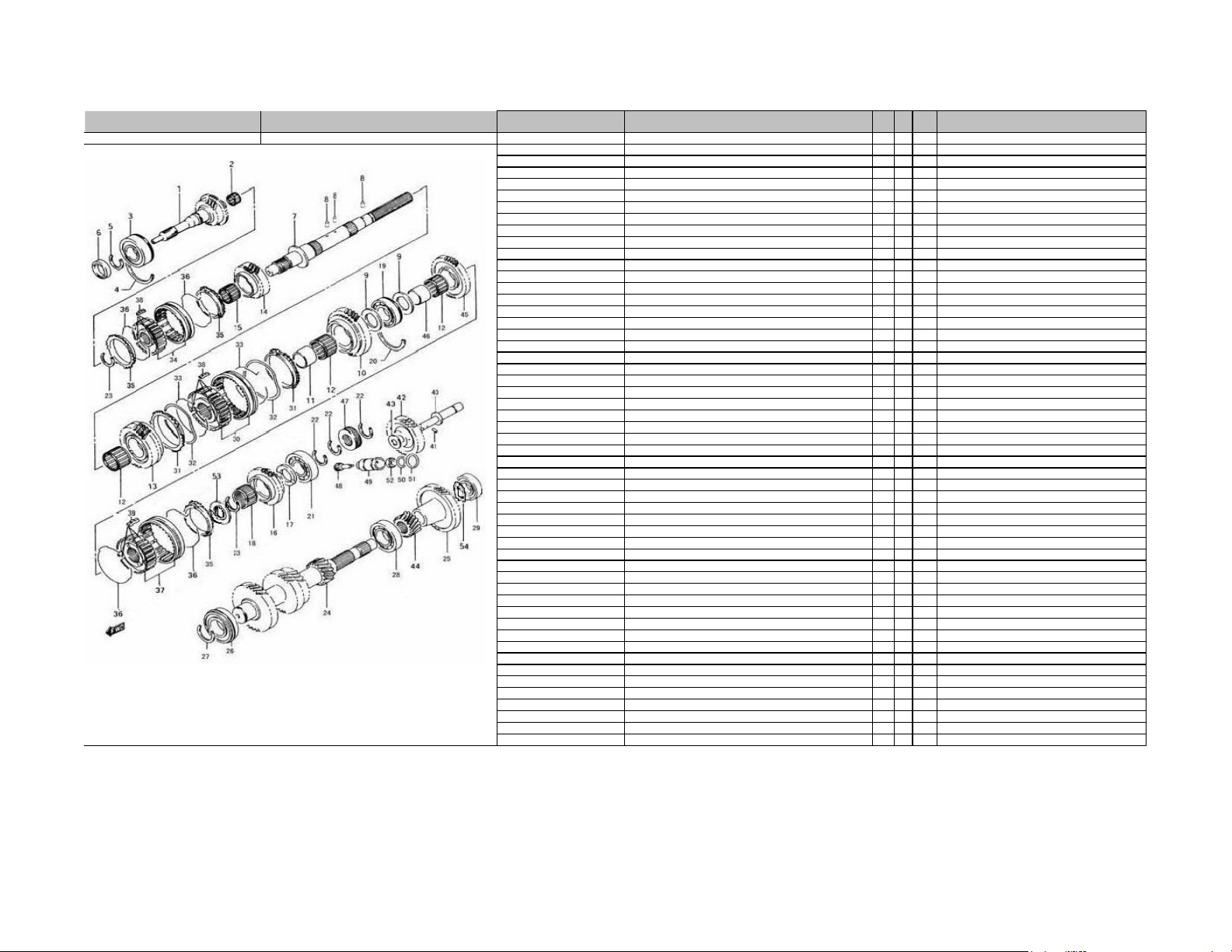

DA SERIES BIG 5MT SHAFT INPUT AND SHAFT OUTPUT
BS10-2-1701810 1St Shaft Assy
1 1
●
Da Series Big 5Mt
K202617 Needle Bearing
2 1
●
Da Series Big 5Mt
63/28-2RSN/P63 Bearing,1St Shaft
3 1
●
Da Series Big 5Mt
BS10-2-1701067 C Type Locking Ring
4 1
●
Da Series Big 5Mt
BS10-2-1701207 Clip
5 1
●
Da Series Big 5Mt
BS10-1701930-A Oil Seal
6 1
●
Da Series Big 5Mt
BS10-2-1701027-06 2Nd Shaft
7 1
●
Da Series Big 5Mt
3×5ⅢGB4661-84
Column Roller
8 3
●
Da Series Big 5Mt
BS10-2-1701034 Thrust Washer
9 2
●
Da Series Big 5Mt
BS10-2-1701044 Gear,1St
10 1
●
Da Series Big 5Mt
BS10-2-1701065 Bush
11 1
●
Da Series Big 5Mt
K354027 Needle Bearing
12 3
●
Da Series Big 5Mt
BS10-2-1701046 Gear,2Nd
13 1
●
Da Series Big 5Mt
BS10-2-1701035 Gear,3Rd
14 1
●
Da Series Big 5Mt
K303527 Needle Bearing
15 1
●
Da Series Big 5Mt
BS10-2-1701062 Gear,5Th
16 1
●
Da Series Big 5Mt
BS10-2-1701063 Snap Ring
17 1
●
Da Series Big 5Mt
K27.533.522.7 Needle Bearing
18 1
●
Da Series Big 5Mt
6206-2RSN/P63 Bearing
19 1
●
Da Series Big 5Mt
BS10-1701015 C Type Locking Ring
20 1
●
Da Series Big 5Mt
6305-2RS /P63 Bearing
21 1
●
Da Series Big 5Mt
BS10-1701204 Clip
22 3
●
Da Series Big 5Mt
BS10-1701208 Clip
23 2
●
Da Series Big 5Mt
BS10-2-1701052-06 Middle Gear Shaft
24 1
●
Da Series Big 5Mt
BS10-2-1701064-06 Driving Gear,5Th
25 1
●
Da Series Big 5Mt
BS10-2-1701066 Stopping Ring
26.1 1
●
Da Series Big 5Mt
62/28-2RSN/P63 Front Bearing, Middle Shaft
26.2 1
●
Da Series Big 5Mt
BS10-2-1701207 Clip
27 1
●
Da Series Big 5Mt
62/28-2RS /P63 Middle Bearing,Middle Shaft
28 1
●
Da Series Big 5Mt
6304/P63 Bearing
29 1
●
Da Series Big 5Mt
BS10-1701043 Low-Speed Connecting Toothed Ring
30.1 1
●
Da Series Big 5Mt
BS10-2-1701042 Low-Speed Outer Gear Ring
30.2 1
●
Da Series Big 5Mt
BS10-1701045 Low-Speed Synchronization Ring
31 2
●
Da Series Big 5Mt
BS10-1701036 Spring Ring
32 2
●
Da Series Big 5Mt
BS10-1701041 Spring Clip
33 2
●
Da Series Big 5Mt
BS10-1701061 High-Speed Connecting Toothed Ring
34.1 1
●
Da Series Big 5Mt
BS10-2-1701059 High-Speed Outer Gear Ring
34.2 1
●
Da Series Big 5Mt
BS10-1701024 High-Speed Synchronization Ring
35 3
●
Da Series Big 5Mt
BS10-1701037 Spring Clip
36 4
●
Da Series Big 5Mt
BS10-2-1701058 Connecting Toothed Ring,Reverse/5Th
37.1 1
●
Da Series Big 5Mt
BS10-2-1701059 High-Speed Outer Gear Ring
37.2 1
●
Da Series Big 5Mt
BS10-2-1701038-01 Slide Key
38 6
●
Da Series Big 5Mt
BS10-1-1701057-01 Slide Key,5Th
39 3
●
Da Series Big 5Mt
BS10-2-1701033 Middle Shaft,Reverse
40 1
●
Da Series Big 5Mt
6×10ⅢB GB4661-84
Orientation Pin
41 1
●
Da Series Big 5Mt
BS10-2-1701830 Middle Gear Assy,Reverse
42 1
●
Da Series Big 5Mt
BS10-1701017 Snap Ring
43 1
●
Da Series Big 5Mt
BS10-1701032 Driving Gear,Reverse
44 1
●
Da Series Big 5Mt
BS10-1701031 Driven Gear,Reverse
45 1
●
Da Series Big 5Mt
BS10-1701029 Bush
46 1
●
Da Series Big 5Mt
BS10-2-3802011-04 Worm, Speed Meter
47 1
●
Da Series Big 5Mt
BS10-2-3802012-04 Driven Gear, Speed Meter
48 1
●
Da Series Big 5Mt
BS10-3802013 Bush
49 1
●
Pag. 20
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
DA SERIES BIG 5MT SHAFT INPUT AND SHAFT OUTPUT
BS10-3802014 Rubber Ring
50 1
●
Da Series Big 5Mt
BS10-2-3802015 Rubber Ring
51 1
●
Da Series Big 5Mt
462-1701902 Oil Seal Ring Assy
52 1
●
Da Series Big 5Mt
BS10-2-1701087 Adjusting Washer
53 1
●
Da Series Big 5Mt
BS10-2-1701068 Spring Washer
54 1
●
Da Series Big 5Mt
Pag. 21
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
DA SERIES BIG 5MT FORK & FORK SHAFT MECHANISM
BS10-2-1702014 Shift Case
1 1
●
Da Series Big 5Mt
6×10ⅢB GB4661 –84
Column Roller
2 1
●
Da Series Big 5Mt
BS10-1700212 Stud Bolt
3 1
●
Da Series Big 5Mt
462-1700203 Screw
4 3
●
Da Series Big 5Mt
BS10-1702810 Shift Cranker Shaft Assy.
5 1
●
Da Series Big 5Mt
462-1702015 Rubber Bushing
6 1
●
Da Series Big 5Mt
462-1702805 Shift Arm Shaft Assy.
7 1
●
Da Series Big 5Mt
462-1702020 Rubber Gasket
8 1
●
Da Series Big 5Mt
BS10-1702022 Rubber Gasket
9 1
●
Da Series Big 5Mt
BS10-1702830 Shifting Arm Shaft Assy.
10 1
●
Da Series Big 5Mt
462-1000235 Spring
11 1
●
Da Series Big 5Mt
GB93-87 8 Spring Washer
12 1
●
Da Series Big 5Mt
GB6170-86-M8 Nut
13 1
●
Da Series Big 5Mt
BS10-2-1702019 Shifting Fork
14 1
●
Da Series Big 5Mt
462-1702017 Spring
15 1
●
Da Series Big 5Mt
462-1702203 Washer
16 1
●
Da Series Big 5Mt
BS10-1-1702038 Limiting Stopper
17 1
●
Da Series Big 5Mt
BS10-1-1702018 Limiting Spring
18 1
●
Da Series Big 5Mt
BS10-1-1702203 Limiting Screw
19 1
●
Da Series Big 5Mt
5/16″GB308 –84
Steel Ball
20 1
●
Da Series Big 5Mt
BS10-1702027 Spring
21 1
●
Da Series Big 5Mt
BS10-1702202 Washer
22 1
●
Da Series Big 5Mt
462-1002203 Rubber Gasket
23 1
●
Da Series Big 5Mt
BS10-1702013 Fork Gear1 And Gear2
24 1
●
Da Series Big 5Mt
BS10-1702011 Fork Gear3 And Gear4
25 1
●
Da Series Big 5Mt
BS10-1702034 Reverse Fork
26 1
●
Da Series Big 5Mt
BS10-2-1702033 Shaft , Gear1 And Gear2 Fork
27 1
●
Da Series Big 5Mt
BS10-2-1702800 Shaft Assy., Gear3 And Gear4 Fork
28 1
●
Da Series Big 5Mt
BS10-2-1702035 Shaft., Reverse And Gear5 Fork
29 1
●
Da Series Big 5Mt
BS10-1702032
滚针Roller
30 1
●
Da Series Big 5Mt
GB879-86 5×24 Spring Column Pin
31 3
●
Da Series Big 5Mt
BS10-1702031 Spring
32 3
●
Da Series Big 5Mt
3/8　GB308-77
Steel Ball
33 5
●
Da Series Big 5Mt
462-1701804 Breather Valve Assy.
34 1
●
Da Series Big 5Mt
462-1702016 Rubber Gasket
35 1
●
Da Series Big 5Mt
462-1700014-A Odometer Flexible Shaft Nip Clasp
36 1
●
Da Series Big 5Mt
BS10-2-1702041 Baffle
37 1
●
Da Series Big 5Mt
462-1000812 Bolt
38 2
●
Da Series Big 5Mt
Pag. 22
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
DA SERIES BIG 5MT TRANSMISSION COVER
BS10-2/D-1701012 Upper Case
1.1 1
●
Da Series Big 5Mt
BS10-2-1701011 Lower Case
1.2 1
●
Da Series Big 5Mt
BS10-1700012 Orientation Jacket
2 4
●
Da Series Big 5Mt
BS10-1700201 Screw
3 4
●
Da Series Big 5Mt
BS10-2-1700244 Screw
4 8
●
Da Series Big 5Mt
462-1700203 Screw
5 2
●
Da Series Big 5Mt
BS10-1700214 Screw
6 2
●
Da Series Big 5Mt
BS10-2-1701940 Front End Cover Assy
7 1
●
Da Series Big 5Mt
BS10-1700208 Screw
8 8
●
Da Series Big 5Mt
462-1701004 Rubber Cap,Check Hole
9 1
●
Da Series Big 5Mt
465Q-1A/H-3729950 Switch Assy,Back Up Light
10 1
●
Da Series Big 5Mt
462-1700010 Rubber Ring,Back Up Light
11 1
●
Da Series Big 5Mt
BS10-2-1701850 Rear Case Assy
12 1
●
Da Series Big 5Mt
BS10-1700202 Screw
13 3
●
Da Series Big 5Mt
BS10-1700011 Cable Bracket
14 1
●
Da Series Big 5Mt
BS10-2-1701208-A Screw
15 1
●
Da Series Big 5Mt
BS10-1700203 Bolt
16 1
●
Da Series Big 5Mt
GB6170-86 M8 Nut
17.1 1
●
Da Series Big 5Mt
GB97.1-85-8-140HV Washer
17.2 1
●
Da Series Big 5Mt
BS10-2200900-A Oil Seal
18 1
●
Da Series Big 5Mt
462-1701206-A Screw Plug
19 2
●
Da Series Big 5Mt
468QL-1000122 Shackle,Engine
20 1
●
Da Series Big 5Mt
BS10-1700013 Rubber Plug
21 1
●
Da Series Big 5Mt
465QA-3700800 Crankshaft Position Sensor
22 1
●
Da Series Big 5Mt
462-1000801 Screw Assy
23 1
●
Da Series Big 5Mt
BS10-1700204 Bolt
24 1
●
Da Series Big 5Mt
BS10-1700205 Bolt
25 1
●
Da Series Big 5Mt
Pag. 23
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
BODY FRAME,CHASSIS
2801055-2E2-DY Left Front Rail Assy ,Frame
1 1
●
Common Parts
2801065-2E2-DY Side Reinforce Unit-Left Rail
2 1
●
Common Parts
2801113-2E2-DY Bracket,Left First Side Rail-Frame
3 1
●
Common Parts
2801060-2E2-DY Right Front Rail Assy ,Frame
4 1
●
Common Parts
2801070-2E2-DY Side Reinforce Unit-Right Rail
5 1
●
Common Parts
2801114-2E2-DY Bracket-Right First Side Rail-Frame
6 1
●
Common Parts
2801150-1J0-DY Right Front Hangert,Fuel Tank
7 1
●
Common Parts
2801135G2E2-DY Left Rear Rail Assy ,Frame
8 1
●
Common Parts
2801417-V01-DY Bracket,Left Second Side Beam
9 1
●
Common Parts
2801615-1J0-DY Left Bracket, Front Row Seat Belt
10 1
●
Common Parts
2801437-V01-DY Bracket,Left Third Side Beam
11 1
●
Common Parts
2801205-V01-DY Rear Hanger,Leaf Spring
13 1
●
Common Parts
2801185-2E2-DY Stop Mechnism Bracket, Right Side ,Frame
14 1
●
Common Parts
2801170-V01-DY Bracket,Rear Shock Absorber-Frame
15 1
●
Common Parts
2801167-V01-DY Front Hanger,Leaf Spring
16 1
●
Common Parts
2801140D2E2-DY Right Rear Rail Assy ,Frame
17 1
●
Common Parts
2801412-V01-DY Bracket,Right Side Beam
18 1
●
Common Parts
2801620-1J0-DY Right Bracket, Front Row Seat Belt
19 1
●
Common Parts
2801438-V01-DY Bracket,Right Third Side Beam
20 1
●
Common Parts
2801205-V01-DY Rear Hanger,Leaf Spring
22 1
●
Common Parts
2801185-V01-DY Stop Mechnism Bracket, Right Side ,Frame
23 1
●
Common Parts
2801170-V01-DY Bracket,Rear Shock Absorber-Frame
24 1
●
Common Parts
2801155-V01-DY Right Hanger,Fuel Tank
25 1
●
Common Parts
2801167-V01-DY Front Hanger,Leaf Spring
26 1
●
Common Parts
2801010-2E2-DY Front Beam Welding Assy- Frame
27 1
○
Only For Old Logo Vehicles
2801010A2E2-DY Front Beam Welding Assy- Frame
27 1
●
Only For New Logo Vehicles
2801025-2E2-DY Radiator Bracket Assy
28 1
○
Only For Old Logo Vehicles
2801622-2E2 Radiator Bracket Assy
28.1 2
●
Only For Big Logo Vehicles
2801621-2E2 Condensatorbracket Assy
28.2 2
●
Only For Big Logo Vehicles
2801073-2E2-DY Reinforce I
30 1
●
Common Parts
2801455-2E2-DY Front Cover Plate Assy-Front Left Side Rail
31 1
●
Common Parts
2801460-2E2-DY Front Cover Plate Assy-Front Right Side Rail
32 1
●
Common Parts
2801107-2E2-DY
Reinforce Plate Ⅱ,Left Front Rail
33 1
●
Common Parts
2801108-2E2-DY
Reinforce Plate Ⅱ,Right Front Rail
34 1
●
Common Parts
2801515-2E2-DY Rear Cover Plate-Front Left Rail
35 1
●
Common Parts
2801520-2E2-DY Rear Cover Plate,Right Front Rail
36 1
●
Common Parts
2801350-2E2-DY Stable Pulling Rod Fixed Beam Welding Assy
37 1
●
Common Parts
2801210-2E2-DY First Cross Beam Assembly
38 1
●
Common Parts
2801480-2E2-DY 2# Crossbeam Assy
39 1
●
Common Parts
2801215-2E2-DY 3# Crossbeam Assy
40 1
●
Common Parts
2801270-2E2-DY 5# Crossbeam Assy
42 1
●
Common Parts
2801290-V01-DY 6# Crossbeam Assy
43 1
●
Common Parts
2801321-1J0-DY 7# Crossbeam Assy
44 1
●
Common Parts
2801575-V01-DY Left Reinforce Plate-Rear Row Seat
45 1
●
Common Parts
2801580-V01-DY Right Reinforce Plate-Rear Row Seat
46 1
●
Common Parts
2801355-2E2-DY Fixing Plate Assy-Left Stable Pulling Rod
47 1
●
Common Parts
2801360-2E2-DY Fixing Plate Assy-Right Stable Pulling Rod
48 1
●
Common Parts
Pag. 24
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
BODY FRONT BUMPER
2803010A2E2-SP Front Bumper Assy
1 1
●
Only For Big Logo Vehicles
Q2300620 Cross Recessed Pan Head Screw
2 4
●
Common Parts
Q340B06 Nut
3 2
●
Common Parts
Q40306 Spring Washer
4 2
●
Common Parts
5301184-Q3 Clamp
5 2
●
Common Parts
Pag. 25
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
BODY REAR BUMPER
2804010-2E2-SP Rear Bumper Assy
1 1
●
Only For Big Logo Vehicles
Q2140620 Cross Recessed Pan Head Screw
2 8
●
Common Parts
Q32808 Lock Nut
3 8
●
Common Parts
Pag. 26
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK

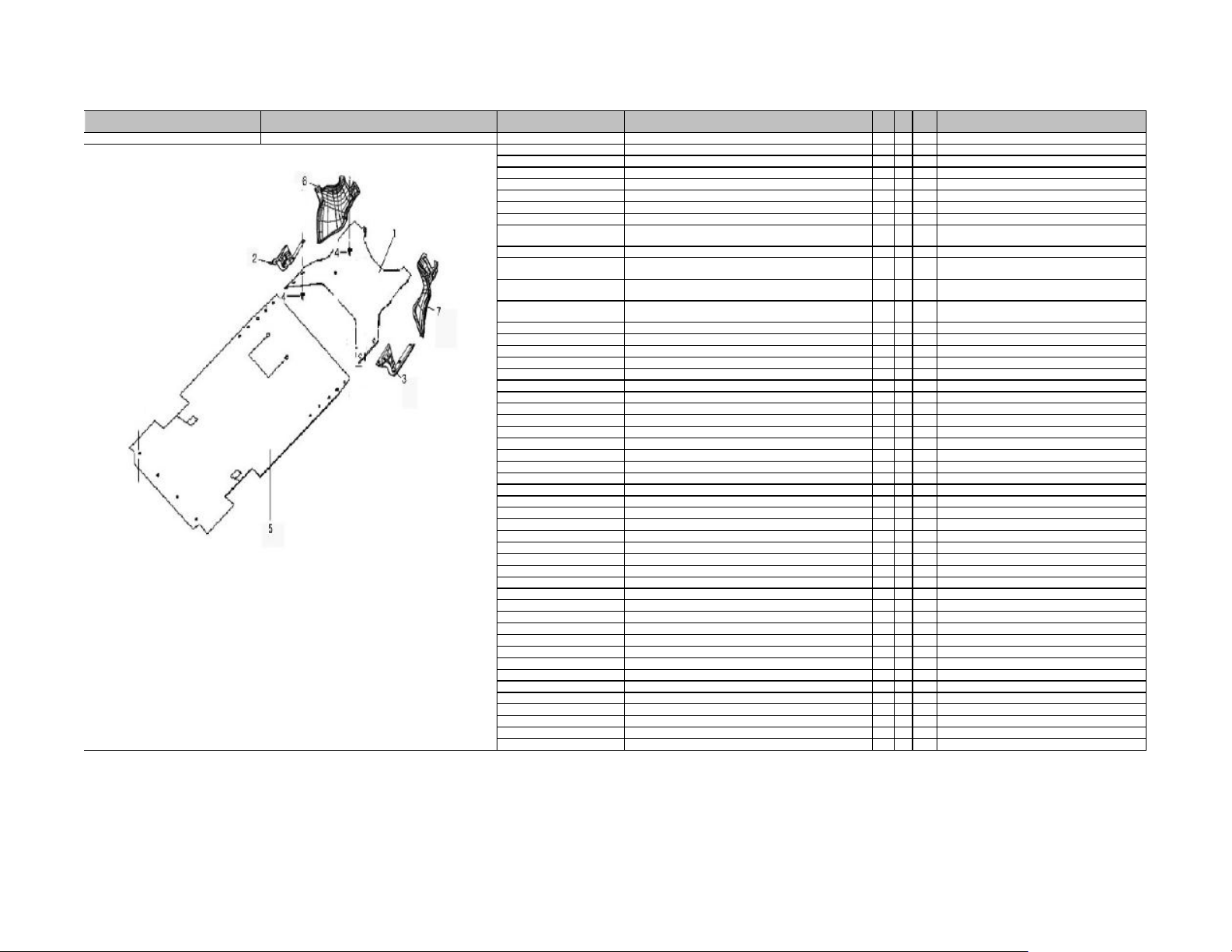

BODY FRONT WELDED FLOOR
5101020-2E2-DY Front Floor Welding Assembly
1 1
●
Only For Left Hand Drive
5101065-2E2-DY Inner Front Left Wheeling Cover Assy
2 1
●
Common Parts
5101070-2E2-DY Inner Front Right Wheeling Cover Assy
3 1
●
Common Parts
5101165-2E2-DY Engine Compartment Front Plate Subassy
4 1
●
Before 2010
5101165Z2E2-DY Engine Compartment Front Plate Subassy
4 1
●
After 2010
5101170-2E2-DY Reinforce Plate,Front Seat
5 1
●
Common Parts
5101185-2E2-DY Left Side Plate,Engine Compartment
6 1
●
Common Parts
5101190-2E2-DY Right Side Plate,Engine Compartment
7 1
●
Common Parts
5107310-2E2-DY Rear Cover Plate Assy,Engine
10 1
●
Common Parts
5101121-2E2 Upper Mudguard,Left Front Wheel
14 1
●
Common Parts
5101122-2E2 Upper Mudguard,Right Front Wheel
15 1
●
Common Parts
5101141-2E2 Rear Mudguard,Left Front Wheel
16 1
●
Common Parts
5101142-2E2 Rear Mudguard,Right Front Wheel
17 1
●
Common Parts
5107301-V01 Rubber Cover, Lower Cabin Hole
22 2
●
Common Parts
Pag. 27
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
BODY REAR WELDED FLOOR
5101255-2E2-DY Reinforce Beam,Rear Welding Floor Front Plate
1 1
●
Common Parts
5101255-2E2 Reinforce Beam,Rear Welding Floor Front Plate
1 1
●
Common Parts
5101240-2E2-DY Rear Floor Front Plate Welding Assy
2 1
●
Common Parts
5101211H2E2-DY Rear Welding Floor Assy
3 1
●
Common Parts
5101236-V01-DY Rear Wheel Cover,Rear Welding Floor
4 2
●
Common Parts
5101260-1J0-DY Inner Plate, Door Sill
5 1
●
Common Parts
5101255-V01-DY Outer Plate, Door Sill
6 1
●
Common Parts
5107297-V01 Floor Rear Plug
7 2
●
Common Parts
1204012-2E2
Heat Insulation Plate Ⅱ
8 1
●
Common Parts
Q2715516 Cross Slot Flat Round Head Tapping Screw
9 8
●
Common Parts
5101225B2E2 Floor Center Left Apron Assembly
10 1
●
Only For The Big Lodo
5101230-2E2-DY Floor Center Right Apron Assembly
11 1
●
Common Parts
5101245-1J0-DY Floor Rear Left Apron Assembly
12 1
●
Common Parts
5101250-1J0-DY Floor Rear Right Apron Assembly
13 1
●
Common Parts
5101165-V01-DY Lower Left Welded Slid Assembly,Lh
14 1
●
Common Parts
5101170-V01-DY Lower Right Welded Slid Assembly,Rh
15 1
●
Common Parts
5101183-V01 Sliding Door Stop Spring
16 2
●
Common Parts
5101290-V01-DY Gusset Plate Assy,The 2Nd Row Seat
17 1
●
Common Parts
5107294-V01 Rubber Cap, Lower Slid
18 2
●
Common Parts
5107296-V01 Rubber Plug - Floor Center Apron
19 2
●
Common Parts
5107298-V01 Rubber Plug - Floor Rear Apron
20 2
●
Common Parts
5101315-2E2-DY Lower Inner Plate,Left Middle Pillar
21 1
●
Common Parts
5101320-2E2 Lower Inner Plate,Right Middle Pillar
22 1
●
Common Parts
Pag. 28
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK

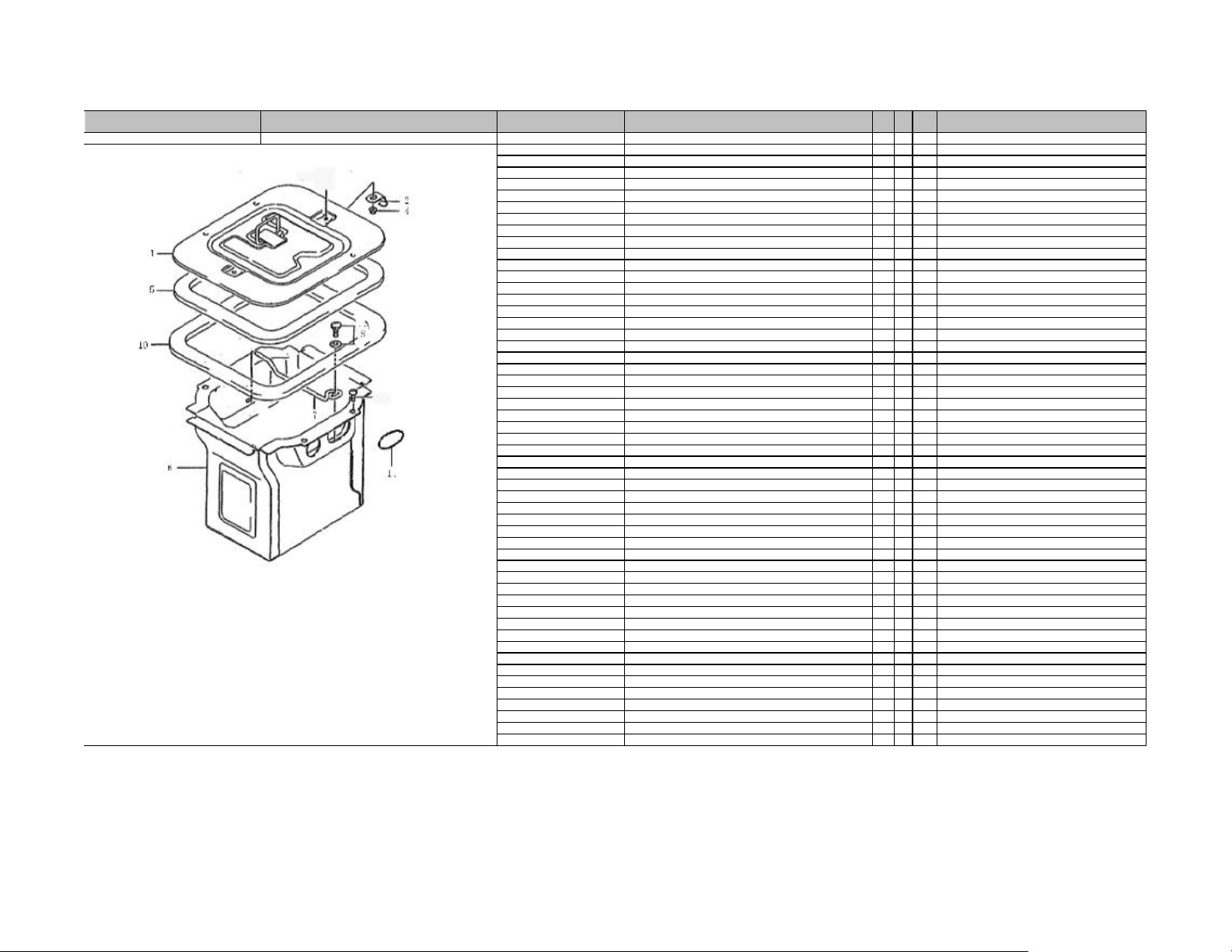

BODY BATTERY TRAY
5107320-V01 Cover,Battery Box
1 1
●
Common Parts
5107326-V01 Clip,Battery Cover
2 2
●
Common Parts
CQ34006 Nut
4 2
●
Common Parts
5107328-V01 Sealing Strip
5 1
●
Common Parts
5107310-V01 Welded Battery Box
6 1
●
Common Parts
5107341-V01 Pressing Rod
7 1
●
Common Parts
CQ1460630 Combined Bolt
8 1
●
Common Parts
5107329-V01 Seal Strip
10 1
●
Common Parts
3703031-V01 Bushing
11 1
●
Common Parts
Pag. 29
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
BODY CARPET
5109037-V06 Plastic Decoration Trim, Carpet-Middle Door Side,Lh
1 1
●
Common Parts
5109038-V06 Plastic Decoration Trim, Carpet-Middle Door Side,Rh
1 1
●
Common Parts
5109047-V06 Plastic Decoration Trim, Carpet-Rear Door
1 1
●
Common Parts
5109050M2E2 Front Carpet
1 1
●
Beige/Gray Double Color Dashboard
5109081-2E2 Protecting Panel,Front Left Doorway
2 1
●
Common Parts
5109082-2E2 Protecting Panel,Front Right Doorway
3 1
●
Common Parts
Q399B03 Plastic Nut
4 10
●
Common Parts
5109210N2E2 Rear Carpet Assy
5 1
●
Beige, For Beige/Gray Double Color Dashboard, Made After 2011
5109061-2E2 Protecting Plate ,Left Inner Wheeling Cover
6 1
●
Beige,For New Dashboard Or Dark Gray For Old Gray Dashboard
5109062-2E2 Protecting Plate ,Right Inner Wheeling Cover
7 1
●
Beige,For New Dashboard Or Dark Gray For Old Gray Dashboard
Pag. 30
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
BODY INSULATING LINING
5109061-2E2 Protecting Plate ,Left Inner Wheeling Cover
1 1
●
Beige,For New Dashboard Or Dark Gray For Old Gray Dashboard
5109062-2E2 Protecting Plate ,Right Inner Wheeling Cover
2 1
●
Beige,For New Dashboard Or Dark Gray For Old Gray Dashboard
5107631-2E2 Shockproof Plate,Front Floor
3 2
●
Common Parts
5107511-2E2 Front Heat-Insulating Lining,Engine Compartment
4 1
●
Common Parts
5107513-2E2 Rear Left Heat-Insulating Lining,Engine Compartment
5 1
●
Common Parts
5107514-2E2 Rear Right Heat-Insulating Lining,Engine Compartment
6 1
●
Common Parts
5109083-V01 Shockproof Plate,Rear Floor,Lh
7 1
●
Common Parts
5109084-V01 Shockproof Plate,Rear Floor,Rh
8 1
●
Common Parts
5107231-2E2 Heat-Insulating Lining,Engine Middle Cover
9 1
●
Common Parts
5107221-2E2 Front Sealing Strap,Engine Middle Cover
10 1
●
Common Parts
5107222-2E2 Rear Sealing Strap,Engine Middle Cover
11 1
●
Common Parts
5107331-2E2 Heat-Insulating Lining,Engine Rear Cover
12 1
●
Common Parts
5107321-2E2 Rear Sealing Strap,Engine Rear Cover
13 1
●
Common Parts
Q399B03 Plastic Nut
15 4
●
Common Parts
5109091-2E2 Heat-Insulating Lining,Front Floor
16 1
●
Common Parts
Pag. 31
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK

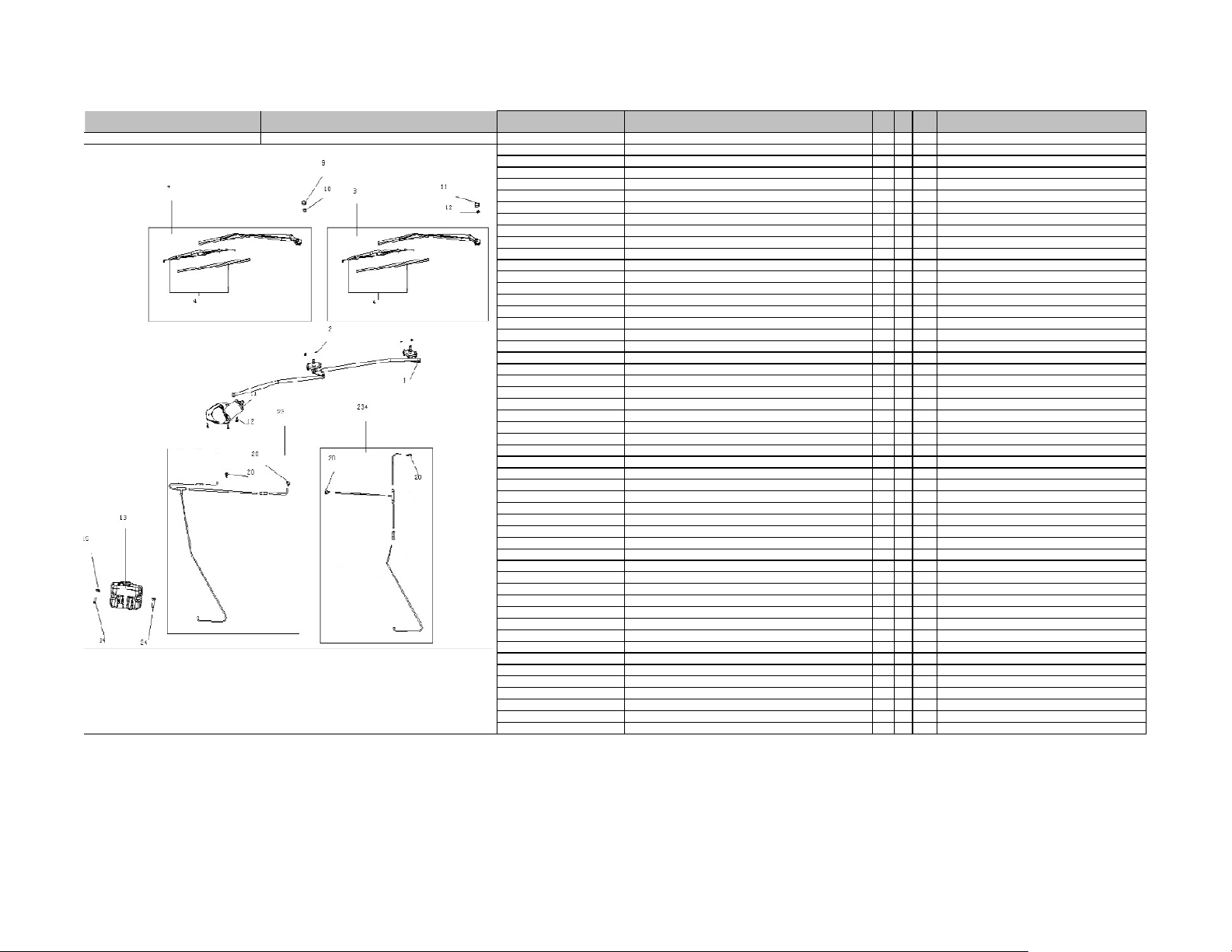

BODY WIPER & SYRINGE WATER BOX
5205030-2E2 Transmission Rod Assembly,Wiper
1 1
●
Only For Left Hand Drive
Q32006 Hexagon Nuts With Flange
2 4
●
Common Parts
5205045-2E2 Left Wiper Arm With Blade Assy
3 1
●
Only For Left Hand Drive
5205065-2E2 Wiper Blade
4 2
●
Common Parts
5205050-2E2 Right Wiper Arm With Blade Assy
7 1
●
Only For Left Hand Drive
5205091-2E2 Wiper Blade,Cap
9 2
●
Common Parts
5205092-2E2 Wiper Blade,Nut
10 2
●
Common Parts
5205130-2E2 Wiper Motor And Retaining Plate Assy
11 1
●
Only For Left Hand Drive
Q174B0616 Hexagon Head Bolt
12 3
●
Common Parts
5207010-2E2 Syringe Water Cover Assy
13 1
●
Common Parts
Q174B0616 Hexagon Head Bolt
14 1
●
Common Parts
Q40306 Spring Washer
15 1
●
Common Parts
5207040-2E2B1 Nozzle,Syringe Water Box
23 1
●
After 2009-07,Lhd
5101123-2E2 Clamp
24 1
●
Common Parts
Pag. 32
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK

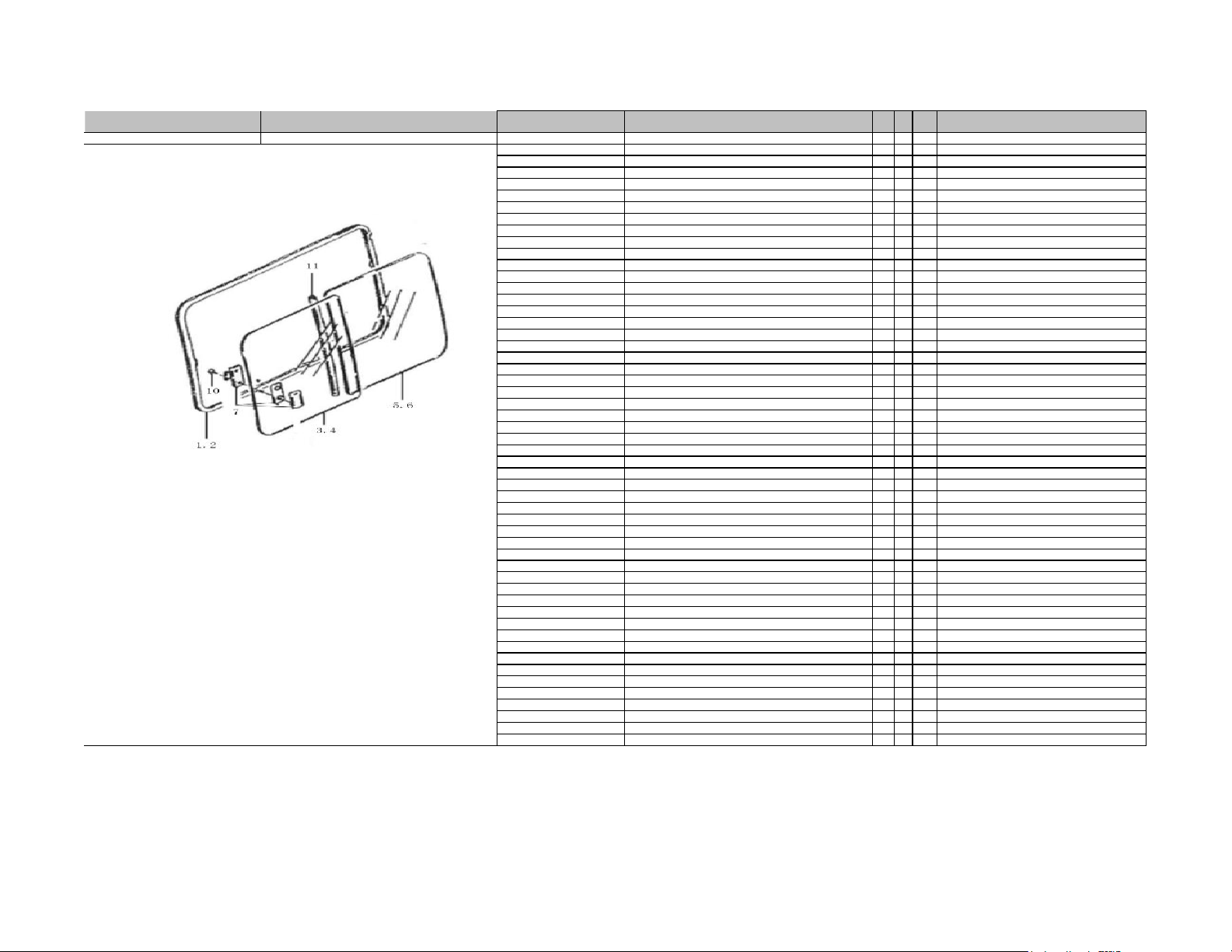

BODY FRONT WINDSHIELD
5206021M2E2 Front Windshield Interior Trim Strip
1 1
●
Only For New Beige/Gray Dashboard
5206014-2E2 Front Windshield Exterior Trim Strip
2 1
●
Common Parts
5206901-2E2 Glass And Mirror Seat Components
3 1
●
Standard
5206020-2E2 Supporting Block,Front Windshield
4 2
●
Common Parts
5301011-2E2 Front Windshield Lower Trim Board
5 1
●
Only For Left Hand Drive
5301016-2E2 Sealing Strap,Front Cover
6 1
●
Common Parts
6302017-V01 Clamp
7 4
●
Common Parts
6102105-6J6 Clamp
8 6
●
Common Parts
Pag. 33
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK

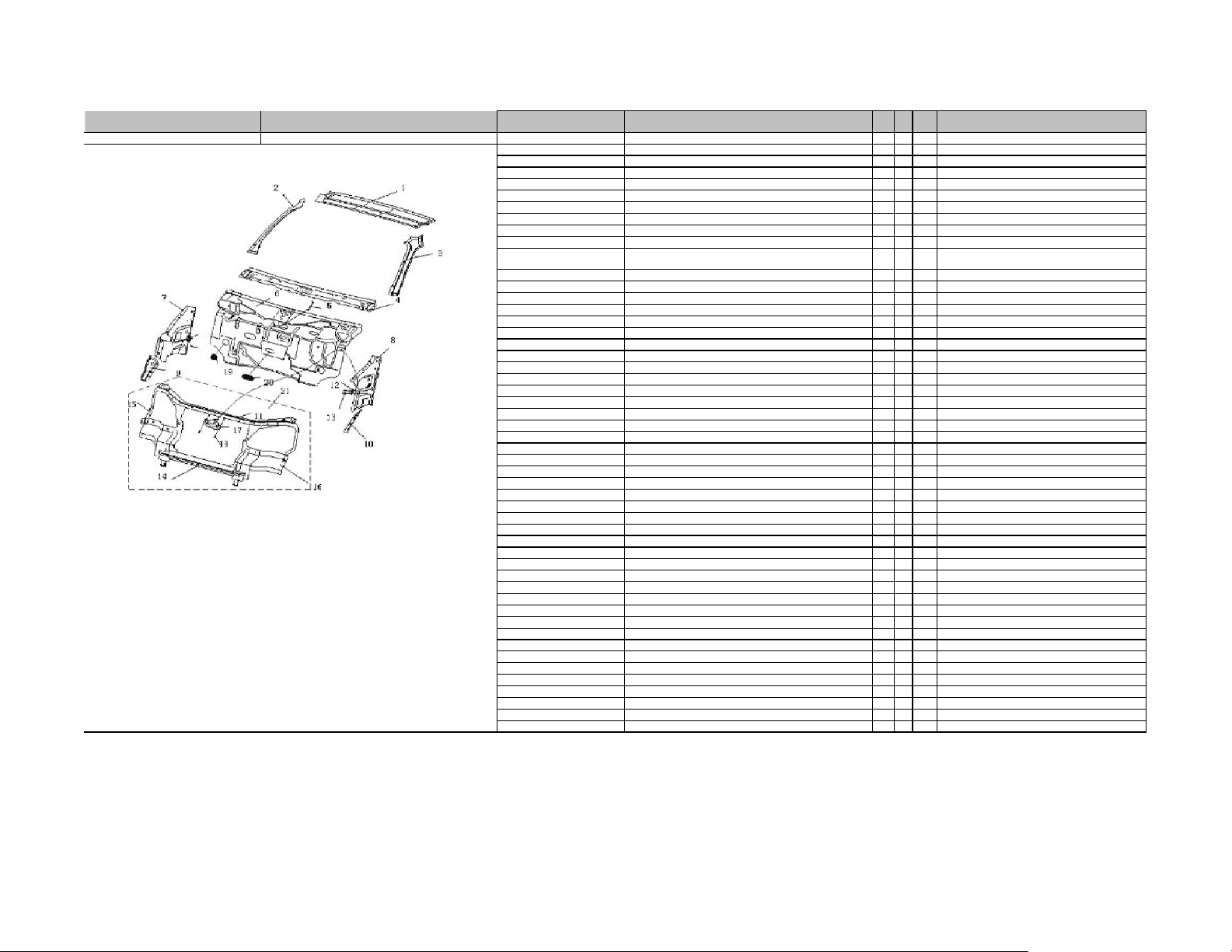

BODY BODY FRONT PARTS
5701020-V01-DY Top Cover Front Beam Assy
1 1
●
Common Parts
5401210M2E2-DY Front Right Pillar Upper Inner Plate Assy
2 1
●
Beige color dashboard
5401205M2E2-DY Front Left Pillar Upper Inner Plate
3 1
●
Only For New Beige/Gray Dashboard
5301031-2E2-DY Front Windshield Lower Plate
4 1
●
Only For Left Hand Drive
8402147-2E2 Front Cover Plate Stay Bar
5 1
●
Common Parts
8400046-1J0 Cushion Block
5.1 1
●
Common Parts
8402148-1J0 Plastic Clamp,Front Cover Plate Stay Bar
5.2 1
●
Common Parts
8402149-1J0 Plastic Clamp,Front Cover Plate Stay Bar
5.3 1
●
Common Parts
5301040-2E2B1 Front Wainscot Welded Assy
6 1
●
Only For 2011 New Front Bumper Vehicle
5301180-2E2-DY Right Side Wainscot Welded Assy
7 1
●
Only For Left Hand Drive
5301175-2E2-DY Left Side Wainscot Welded Assy
8 1
●
Only For Left Hand Drive
5301240-2E2-DY Right Side Wainscot Connecting Plate Assy
9 1
●
Common Parts
5301235-2E2-DY Left Side Wainscot Connecting Plate Assy
10 1
●
Common Parts
8400015-2E2-DY Front Supporting Beam Welding Assy
11 1
●
Common Parts
8402155-2E2 Cable Assy,Front Hook Aay
12 1
●
Only For Left Hand Drive
Q174B0616 Hexagon Head Bolt
13 2
●
Common Parts
8400081-2E2-DY Head Lamp Bracket Lower Connecting Plate
14 1
●
Common Parts
8400050-2E2-DY Bracket,Right Head Lamp
15 1
●
Common Parts
8400045-2E2-DY Bracket,Left Head Lamp
16 1
●
Common Parts
8402210-1J0 Lock Body Assy.
17 1
●
Common Parts
Q1460616 Hexagon Head Combined Bolt
18 2
●
Common Parts
5301432-2E2 Refrigerator Weeping Pipe Via Hole Rubber Plug
19 1
●
Only For None-A/C Vehicle
5301431-2E2A1 Refrigerator Pipe Via Hole Plastic Cover
20 1
●
Only For None-A/C Vehicle
8400010-2E2-DY Front Supporting Beam With Headlamp Bracket Assy
21 1
●
Common Parts
Pag. 34
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Eu4 STD
REMARK

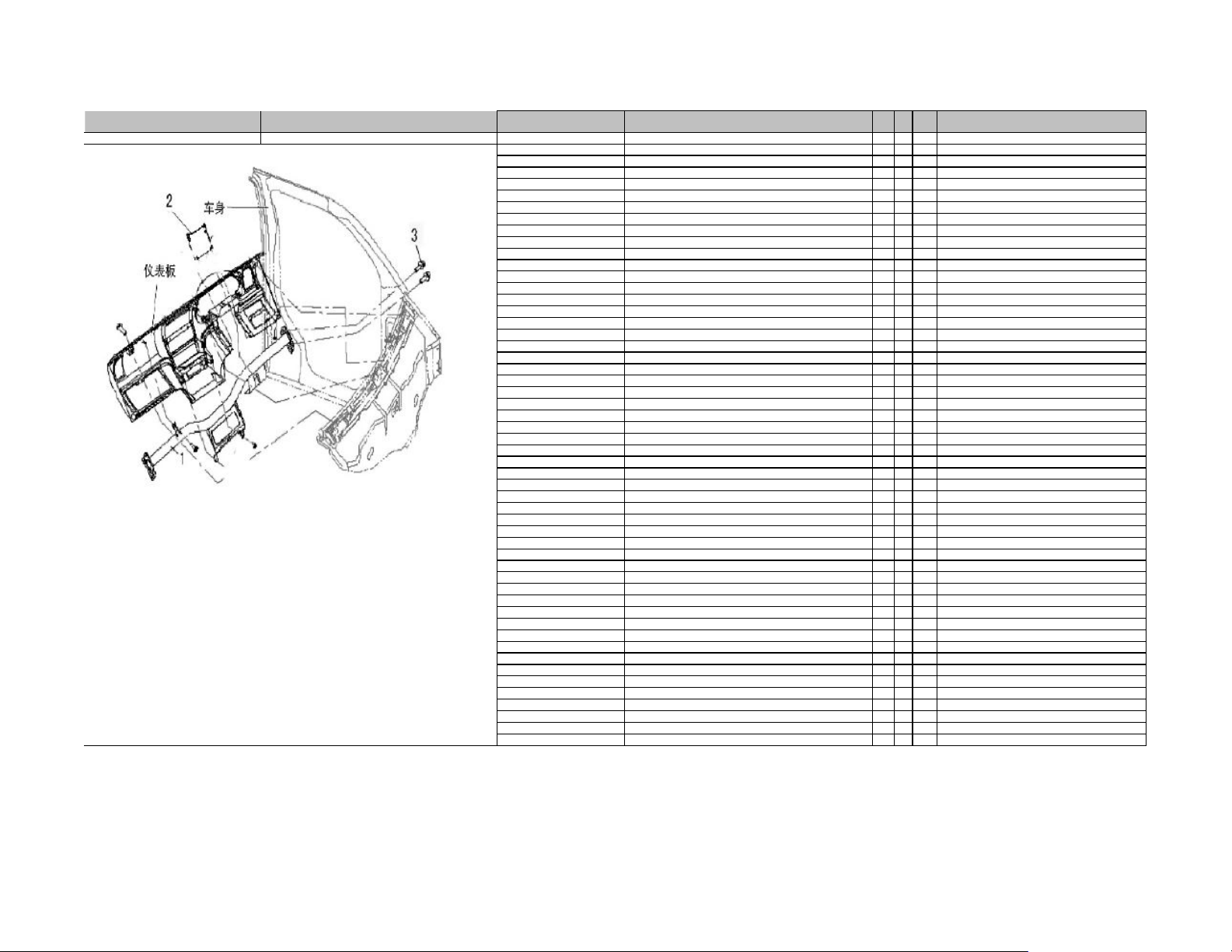

BODY DASHBOARD
5310010A2E2 Instrument Panel Assy
3
●
Beige/Gray Double Color Dashboard
5303010M2E2 Glove Box Assy
5
●
Beige/Gray Double Color Dashboard
5303040M2E2 Lock,Glove Box
5.1
●
Beige/Gray Double Color Dashboard
5310051M2E2 Center Trim Cover
6
●
Beige/Gray Double Color Dashboard
5310041M2E2 Instrument Trim Cover
7
●
Beige/Gray Double Color Dashboard
5310171A2E2 Fuse Cover
8
●
Beige/Gray Double Color Dashboard
5310173M2E2 Switch Face Shield
9
●
Beige/Gray Double Color Dashboard
5310031M2E2 Instrument Panel Left Plug
10
●
Beige/Gray Double Color Dashboard
5310032M2E2 Instrument Panel Right Plug
11
●
Beige/Gray Double Color Dashboard
5310015M2E2 Left Side Air Outlet Vent Hole
12.1
●
Beige/Gray Double Color Dashboard
5310020M2E2 Right Side Air Outlet Vent
12.2
●
Beige/Gray Double Color Dashboard
5310060M2E2 Center Air Outlet 1 Vent Hole
13.1
●
Beige/Gray Double Color Dashboard
5310065M2E2 Center Air Outlet 2 Vent Hole
13.2
●
Beige/Gray Double Color Dashboard
5310033M2E2 Instrument Panel Center Plug
15
●
Beige/Gray Double Color Dashboard
5310181-2E2B1 Radio Carrier
16
●
Common Parts
3722013-2E2 Fuse Seat
17
●
Common Parts
8203010M2E2 Ashtray Assy
18
●
Beige/Gray Double Color Dashboard
8102036M2E2 Left Side Window Defroster Air Duct
19
●
Beige/Gray Double Color Dashboard
8102030M2E2 Front Windshield Defroster Air Duct Assy
20
●
Beige/Gray Double Color Dashboard
8102041M2E2 Right Side Window Defroster Air Duct
21
●
Beige/Gray Double Color Dashboard
8102061M2E2 Right Air Duct
22
●
Beige/Gray Double Color Dashboard
8102050M2E2 Center Air Duct Assy
23
●
Beige/Gray Double Color Dashboard
8102056M2E2 Left Air Duct
24
●
Beige/Gray Double Color Dashboard
5310183M2E2 Steering Column Panel
26
●
Beige/Gray Double Color Dashboard
Pag. 35
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
BODY DASHBOARD BEAM AND ACCESSORIES
5301310-2E2-DY Front Beam Welding Assy,Instrument Panel
1 1
●
Only For Left Hand Drive
5310183M2E2 Steering Column Panel
2 1
●
Beige/Gray Double Color Dashboard
5301420-2E2 Bolt And Flat Washer Complex
3 4
●
Common Parts

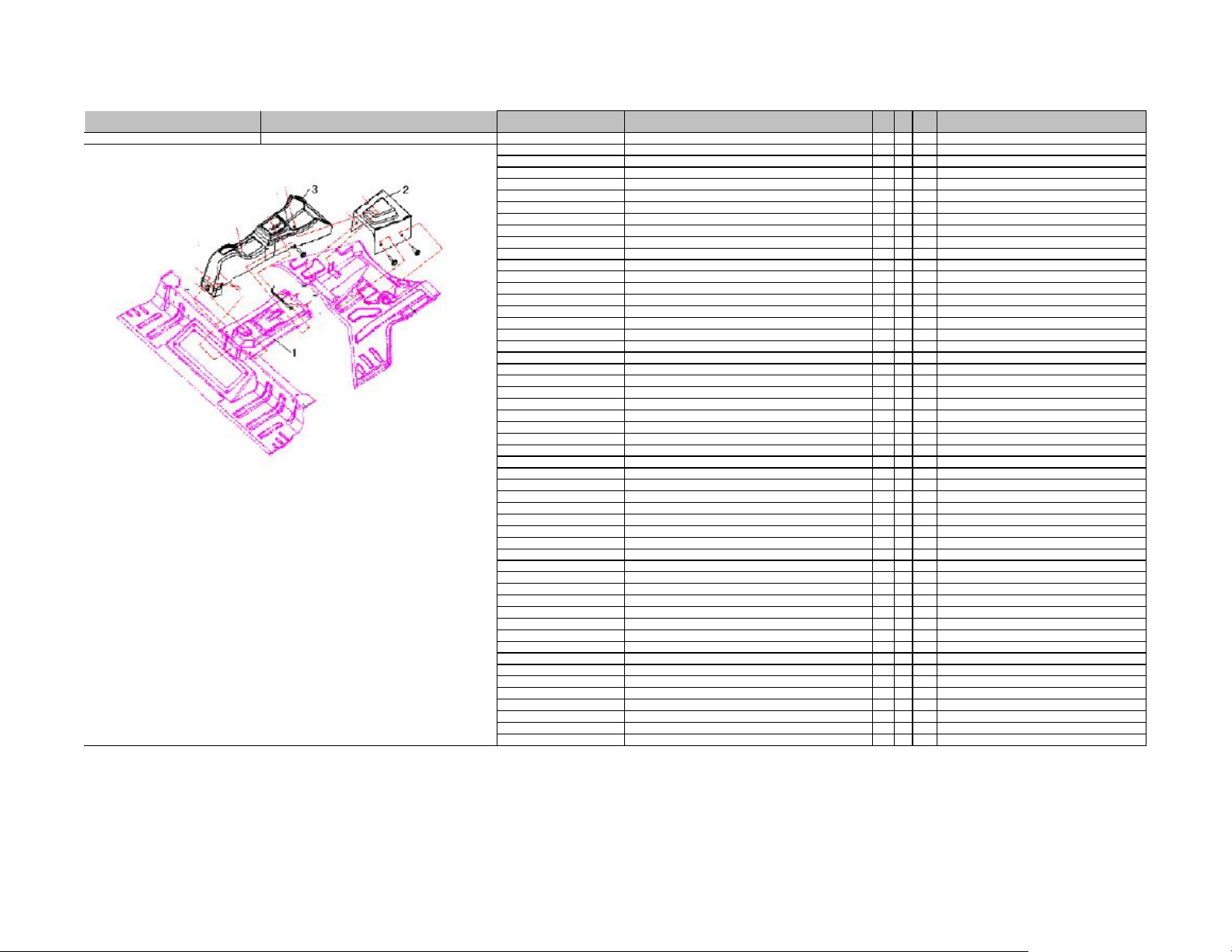

Pag. 36
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
BODY DASHBOARD BEAM AND ACCESSORIES
5107200-2E2-DY Middle Welded Cover,Engine
1 1
●
Common Parts
5305021M2E2B1 Lower Case,Vice-Instrument Panel
2 1
●
New Beige/Gray Dashboard,Made In 2011
5305010M2E2B1 Upper Case Assembly,Vice-Instrument Panel
3 1
●
New Beige/Gray Dashboard,Made In 2011

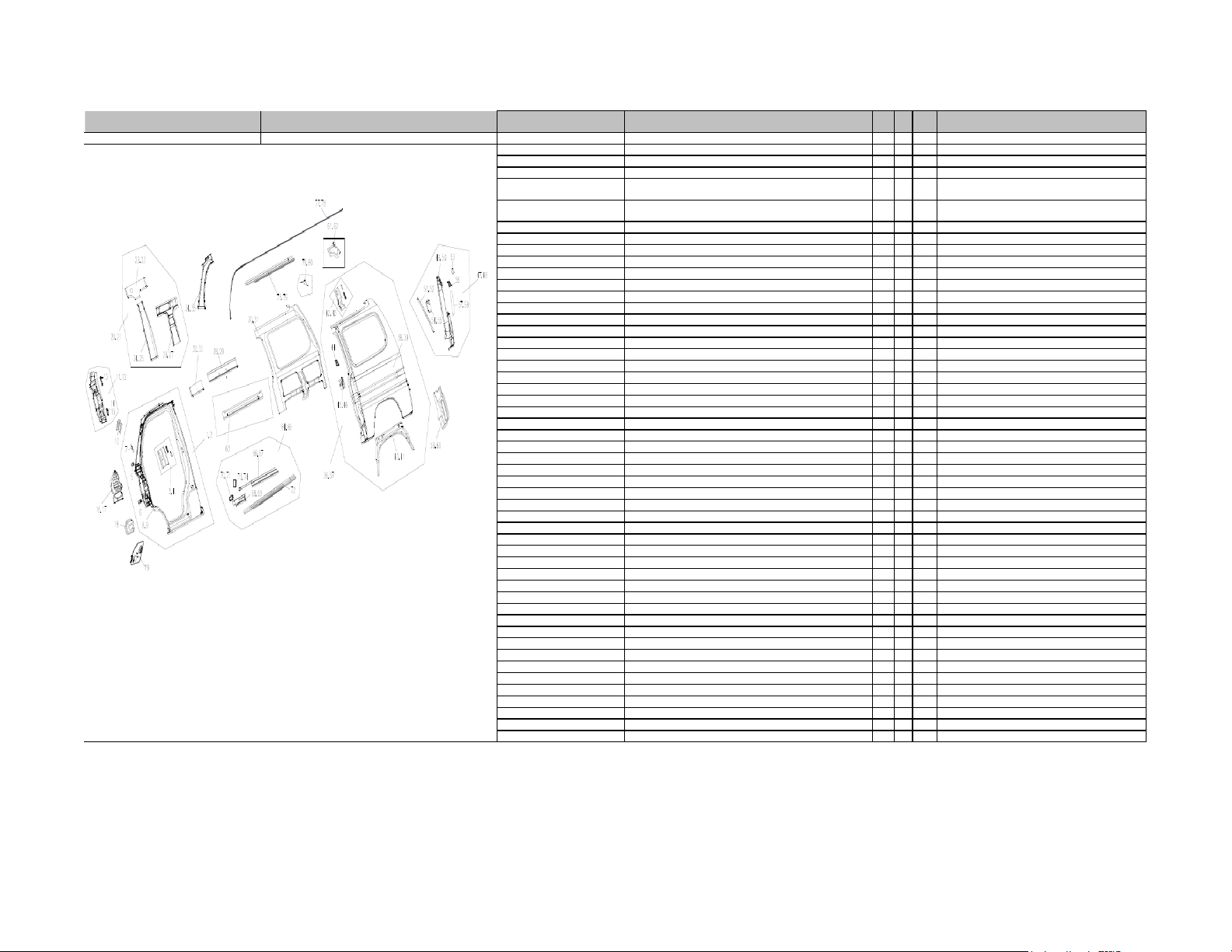

Pag. 37
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
BODY SIDE WALL WELDED PARTS
5401045C2E2-DY Front Left Door Frame Outer Plate Assembly
1 1
●
Only For New Beige/Gray Dashboard
5401050C2E2-DY Front Right Door Frame Outer Plate Assembly
2 1
●
Only For New Beige/Gray Dashboard
5401125-2E2-DY Front Left Door Lock Ring Nut Plate Reinforce Plate Assembly
3 1
●
Common Parts
5401130-2E2-DY Front Right Door Lock Ring Nut Plate Reinforce Plate
Assembly
4 1
●
Common Parts
5401075-2E2-DY
BracketⅠ-Welded Fender Plate
5 2
●
Common Parts
5401080-2E2-DY
Bracket Ⅱ-Welded Fender Plate
6 2
●
Common Parts
5401122-2E2-DY Sliding Door Upper Stopper
7 2
●
Common Parts
5401065-2E2-DY Antenna Nut Plate Assy
10 1
●
Common Parts
5401085-2E2-DY Front Left Pillar Lower Reinforce Plate Assy
11 1
●
Common Parts
5401090-2E2-DY Front Right Pillar Lower Reinforce Plate Assy
12 1
●
Common Parts
5401103-2E2B1-DY Instrument Panel Beam Fixing Bracket
13 2
●
Common Parts
5401063-2E2-DY Reinforce Plate,Left Side Wainscot
16 1
●
Common Parts
5401064-2E2-DY Reinforce Plate,Right Side Wainscot
17 1
●
Common Parts
5401145-2E2-DY Fuel Filler Hole Exterior Seat Assy
18 1
●
Common Parts
5401150-2E2-DY Cap,Fuel Filler
19 1
●
Common Parts
5401235D2E2-DY Center Left Pillar Inner Plate Assembly
20 1
●
Without Top Refrigerator
5401240D2E2-DY Center Right Pillar Inner Plate Assembly
21 1
●
Without Top Refrigerator
5401425-V01-DY Left Sliding Door Frame Upper Inner Plate Assembly
28 1
●
Common Parts
5401430-V01-DY Right Sliding Door Frame Upper Inner Plate Assembly
29 1
●
Common Parts
5401425-2E2 Rear Left Side Wall Inner Plate Assembly
30 1
●
Before 2011
5401440-V01-DY Rear Right Side Wall Inner Plate Assembly
31 1
●
After 2011
5401215M2E2-DY Front Left Door Frame Upper Inner Plate Assembly
32 1
●
Common Parts
5401220-2E2-DY Front Right Door Frame Upper Inner Plate Assy
33 1
●
Common Parts
5401205M2E2-DY Front Left Pillar Upper Inner Plate
34 1
●
Common Parts
5401210M2E2-DY Front Right Pillar Upper Inner Plate Assy
35 1
● Beige color dashboard
5401175-2E2-DY Rear Left Side Wall Outer Plate Welding Assembly
36 1
●
Common Parts
5401180-2E2-DY Rear Right Side Wall Outer Plate Welding Assembly
37 1
●
Common Parts
5401187-2E2-DY Outer Plate, Wheel Cover, Lr
40 1
●
Common Parts
5401188-2E2-DY Outer Plate, Wheel Cover, Rr
41 1
●
Common Parts
5401235-V01-DY Left Sliding Door Lock Ring Reinforce Plate
42 1
●
Common Parts
5401240-V01-DY Right Sliding Door Lock Ring Reinforce Plate
43 1
●
Common Parts
5401210-V01-DY Top Cover Reinforce Beam Bracket Assy
44 4
●
Common Parts
5401253-V01-DY Rear Left Side Wall Outer Plate Lower Reinforce Plate
45 1
●
Common Parts
5401254-V01-DY Rear Right Side Wall Outer Plate Lower Reinforce Plate
46 1
●
Common Parts
5401275-1J0-DY Rear Left Pillar Welding Assembly
47 1
●
Common Parts
5401280-1J0-DY Rear Right Pillar Welding Assembly
48 1
●
Common Parts
5401285-8J0-DY Rear Left Pillar Lower Plate Welding Assembly
49 1
●
Common Parts
5401290-V01-DY Rear Right Pillar Lower Plate Welding Assembly
50 1
●
Common Parts
5401297-V01-DY Rear Left Pillar Upper Plate
51 1
●
Common Parts
5401298-V01-DY Rear Right Pillar Upper Plate
52 1
●
Common Parts
5401309-V01-DY Back Door Limiting Seat
53 2
●
Common Parts
5401315-1J0-DY Rear Bumper Side Bracket Assembly
56 2
●
Common Parts
5401301-V01-DY Rear Left Pillar Lower Plate Reinforce Plate
59 1
●
Common Parts
5401302-V01-DY Rear Right Pillar Lower Plate Reinforce Plate
60 1
●
Common Parts
Pag. 38
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
BODY SIDE WALL WELDED PARTS
5401255-V01-DY Left Back Door Support Rod Reinforce Plate Assembly
61 1
●
Common Parts
5401260-V01-DY Right Back Door Support Rod Reinforce Plate Assembly
62 1
●
Common Parts
5401207-1J0-DY Sliding Door Sill Outer Plate
63 2
●
Common Parts
5401185-V01-DY Upper Left Slide Rail Welding Assembly
64 1
●
Common Parts
5401190-V01-DY Upper Right Slide Rail Welding Assembly
65 1
●
Common Parts
5401201-V01-DY Upper Slide Rail Reinforce Plate
72 2
●
Common Parts
5401181-V01-DY Left Sliding Door Frame Upper Outer Plate
75 1
●
Common Parts
5401182-V01-DY Right Sliding Door Frame Upper Outer Plate
76 1
●
Common Parts
5401031-2E2-DY Left Water Slot
77 1
●
Common Parts
5401032-2E2-DY Right Water Slot
78 1
●
Common Parts
5401233V01B1-DY Rear Left Side Wall Rear Connecting Plate
79 1
●
Common Parts
5401234V01B1-DY Rear Right Side Wall Rear Connecting Plate
80 1
●
Common Parts
Pag. 39
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
BODY SIDE WALL WINDOW & ACCESSORIES
5401443-V01 Slide Rail Decorative Part
87 2
●
Common Parts
5402015-V01 Inner Decoration Panel,Rear Left Side Wall
88 1
●
Common Parts
5402020-V01 Inner Decoration Panel,Rear Right Side Wall
89 1
●
Common Parts
5402033-V01 Outside Decorating Plate,Rear Left Side Wall
90 1
●
Common Parts
5402034-V01 Outside Decorating Plate,Rear Right Side Wall
91 1
●
Common Parts
5402036M2E2 Front Door Frame Trim Strip
92 2
●
Only For New Beige/Gray Dashboard
5402046M2E2 Side Wall Handle
93 5
●
Beige/Gray Double Color Dashboard
5402049-2E2 Front Door Lower Bumping Block
94 2
●
Common Parts
5403025AV01 Rear Left Side Wall Window Assembly
95 1
●
Double Pieces Side Glass
5403030AV01 Rear Right Side Wall Window Assembly
96 1
●
Double Pieces Side Glass
5402031-V01A1 Sealing Film,Rear Left Side Wall Inner Decoration Panel
99 1
●
Common Parts
5402032-V01A1 Sealing Film,Rear Right Side Wall Inner Decoration Panel
100 1
●
Common Parts
5402051M2E2 Front Left Pillar Inner Panel
101 1
●
Only For New Dashboard(Color Gray In 2010,Color Beige In 2011)
5402052M2E2 Front Right Pillar Inner Panel
102 1
●
Only For New Dashboard(Color Gray In 2010,Color Beige In 2011)
5402057-2E2 Harness Via Hole Rubber Plug
103 2
●
Common Parts
6102105-6J6 Plastic Clamp
112 24
●
Common Parts
6102106-V06 Plastic Clamp
113 4
●
Common Parts
8405061F2E2-SP Left Middle Apron Plate
117 1
●
Only For The Vehicles With New Bumper Made After 2010
8405062F2E2-SP Right Middle Apron Plate
118 1
●
Only For The Vehicles With New Bumper Made After 2010
8405111F2E2-SP Left Rear Apron Plate
119 1
●
Only For The Vehicles With New Bumper Made After 2010
8405112F2E2-SP Right Rear Apron Plate
120 1
●
Only For The Vehicles With New Bumper Made After 2010
8405065-2E2 Bracket,Left Middle Apron Plate
121 1
●
Common Parts
8405070-2E2 Bracket,Right Middle Apron Plate
122 1
●
Common Parts
Pag. 40
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
BODY SIDE WALL WINDOW & ACCESSORIES
8405095-2E2 Bracket,Left Middle Apron Plate
125 1
●
Common Parts
8405100-2E2 Bracket,Right Middle Apron Plate
126 1
●
Common Parts
Q2360616 Cross Recessed Pan Head Screw
127 24
●
Common Parts
8405073-1J0 Plastic Clamp
128 20
●
Common Parts
Q1460616 Hexagon Head Combined Bolt
130 2
●
Common Parts
5101351-1J0 Mudguard,Rear Left Wheel
131 1
●
Common Parts
5101352-1J0 Mudguard,Rear Right Wheel
131 1
●
Common Parts
CQ2714213 Screw
131 4
●
Common Parts
6203050-V01 Sliding Door Window Lock Assembly
132 2
●
Double Pieces Side Glass
6203057-V01 Sliding Door Window Glass Gasket
133 4
●
Double Pieces Side Glass
6203056-V01 Sliding Door Window Glass Protecting Cover
134 2
●
Double Pieces Side Glass
5403033AV01 Front Glass,Rear Left Side
135 1
●
Double Pieces Side Glass
5403034AV01 Front Glass,Rear Right Side
136 2
●
Double Pieces Side Glass
5403037AV01 Rear Glass,Rear Left Side
137 2
●
Double Pieces Side Glass
5403038AV01 Rear Glass,Rear Right Side
138 2
●
Double Pieces Side Glass
5403035AV01 Frame Assy,Rear Left Side Window
139 2
●
Double Pieces Side Glass
5403040AV01 Frame Assy,Rear Right Side Window
140 2
●
Double Pieces Side Glass
Pag. 41
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
BODY TOP COVER
5701011-V01-DY Top Cover Welding Assy
1 1
●
Common Parts
5701020-V01-DY Top Cover Front Beam Assy
2 1
●
Common Parts
5701030AV06-DY Top Cover Rear Beam Assy
3 1
●
Only For New Beige/Gray Dashboard
5701041-V01-DY Top Cover Front Reinforce Beam Assy
4 1
●
Common Parts
5701042-V01-DY Rear Reinforce Beam,Top Cover
5 1
●
Common Parts
5702010M2E2 Molding Roof Trim
6 1
●
Not Sold Now,Only For New Dashboard With A/C
5702011N2E2 Molding Roof Trim
6 1
●
Only For New Beige/Gray Dashboard
5702012AV01 Clamp
7 6
●
Common Parts
5702013M2E2 Clamp
8 2
●
Only For New Beige/Gray Dashboard
5702031-V01 Hole Cap For Back Door Hinge
9 2
●
Common Parts
5702021-V01 Top Cover Interior Trim Strip
10 1
●
Common Parts
5702041AV01 Damping Hold-Down Strip
10 2
●
Common Parts
Pag. 42
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
BODY FRONT DOOR GEMEL
6106105-2E2-DY Front Door Gemel Assembly
1 4
●
Common Parts
Q1460820 Hexagon Head Combined Bolt
2 16
●
Common Parts
6109010-2E2 Limit Assy, Front Door
3 2
●
Common Parts
Q1800612 Hexagon Head Bolt
4 4
●
Common Parts
6109101-2E2 Elastic Pin
5 1
●
Common Parts
Pag. 43
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
BODY FRONT DOOR & DECORATION
6100015-2E2-DY Left Front Door Welded Assembly
1 1
●
Common Parts
6100020-2E2-DY Right Front Door Welded Assembly
2 1
●
Common Parts
6102025C2E2-13 Front Left Door Inner Decoration Panel Assy
3 1
●
Molded Inner Panel(Beige Color Made From 2011)
6102030C2E2-13 Front Right Door Inner Decoration Panel Assy
4 1
●
Molded Inner Panel(Beige Color Made From 2011)
6102061-2E2 Left Front Door Sealing Film
5 1
●
Common Parts
6102062-2E2 Right Front Door Sealing Film
6 1
●
Common Parts
6103075-2E2 Glass Rear Guide Rail,Left Front Door
7 1
●
Common Parts
6103080-2E2 Glass Rear Guide Rail,Right Front Door
8 1
●
Common Parts
Q1800612 Hexagon Head Bolt
9 4
●
Common Parts
Q2716322 Self-Tapping Screw
10 4
●
Common Parts
6102071-2E2 Inside Handle,Front Door
11 2
●
Common Parts
6102206-V06 Inside Handle,Front Door
11 2
●
Gray for gray dashboard, Beige for beige dashboard
6102105-6J6 Clamp
12 20
●
Common Parts
6107021-2E2 Rubber Sealing Strap, Left Front Door
13 1
●
Common Parts
6107022-2E2 Rubber Sealing Strap,Right Front Door
14 1
●
Common Parts
6107041-2E2 Rubber Sealing Strap,Left Front Door Glass
15 1
●
Common Parts
6107042-2E2 Rubber Sealing Strap,Right Front Door Glass
16 1
●
Common Parts
6107061-2E2 Inside Sealing Strap, Left Front Door Glass
17 1
●
Common Parts
6107062-2E2 Inside Sealing Strap, Right Front Door Glass
18 1
●
Common Parts
6107091-2E2 Front Door Upper Bumping Block
20 2
●
Common Parts
6101034-V01 Plastic Nut
21 6
●
Common Parts
6107097-2E2 Front Door Harness Hole Sealing Plug
23 2
●
Common Parts
6105158-V06 Door Self-Lock Handle Bushing
24 2
●
Only For New Dashboard(Color Gray In 2010,Color Beige In 2011)
6102041-2E2-13 Inner Upper Cover,Left Front Door
30 1
●
Beige Color,Molded Door Inner Panel
6102042-2E2-13 Inner Upper Cover,Right Front Door
31 1
●
Beige Color,Molded Door Inner Panel
6102045-2E2 Bracket-Inner Handle Box, Left Front Door
32 1
●
For Molded Door Inner Panel
6102050-2E2 Bracket-Inner Handle Box, Right Front Door
33 1
●
For Molded Door Inner Panel

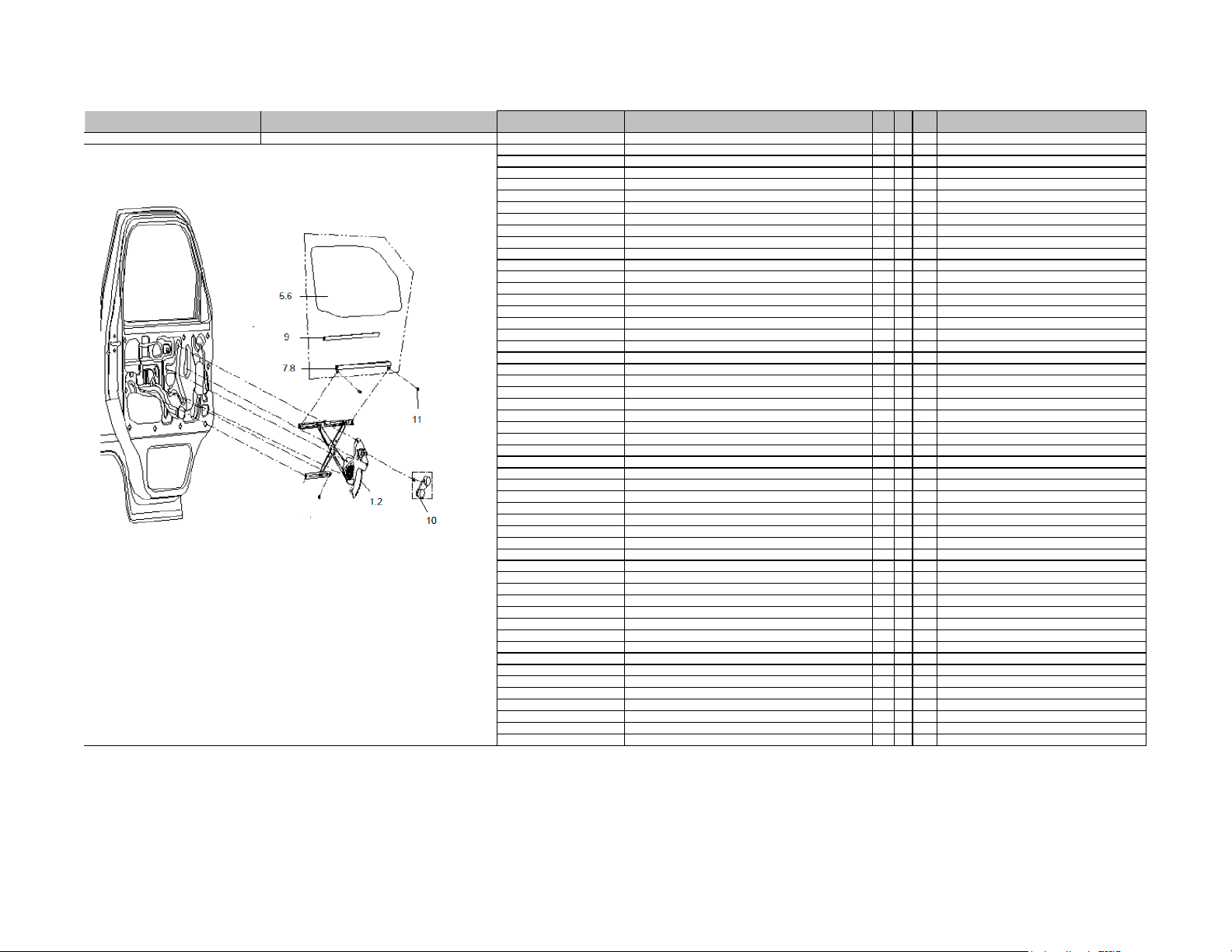

Pag. 44
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
BODY FRONT DOOR GLASS & LIFTER
6104015B2E2 Front Door Glass Lifter Assembly, Manual ,Lh
1 1
●
For Molded Door Inner Panel
6104020B2E2 Front Door Glass Lifter Assembly,Manual, Rh
2 1
●
For Molded Door Inner Panel
6103021-2E2 Front Left Door Glass
5 1
●
Common Parts
6103022-2E2 Front Right Door Glass
6 1
●
Common Parts
6103045-V01 Front Left Door Glass Bracket Assy
7 1
●
Common Parts
6103050-V01 Front Right Door Glass Bracket Assy
8 1
●
Common Parts
6103053-V01 Front Door Glass Bracket Rubber Holding Strip
9 4
●
Common Parts
6104105-6J6 Rock Handle Assembly, Glass Lifter
10 2
●
Common Parts
Q2360612 Cross Recessed Pan Head Screw
11 4
●
Common Parts
Pag. 45
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
BODY FRONT DOOR LOCK
6105015-2E2 Front Door Lock Body Assembly, L.H.
1 1
●
Common Parts
6105020-2E2 Front Door Lock Body Assembly, R.H.
2 1
●
Common Parts
6105157-V06 Door Self Lock Handle
3 2
●
new dashboard(color gray in 2010,color beige in 2011)
6105050-2E2 Front Door Lock Ring Assembly
4 2
●
Common Parts
Q2420820 Combined Screw
5 4
●
Common Parts
6105075-2E2-13 Inside Handle Assembly, Left Front Door
6 1
● beige color
6105080-2E2-13 Inside Handle Assembly, Right Front Door
7 1
● beige color
Q2714816 Screw-Tapping
8 2
●
Common Parts
Q2420620 Combined Screw
11 6
●
Common Parts
CQ32606 Nut
14 4
●
Common Parts
6105051-2E2 Adjusting Piece 1,Front Door Lock
20 1
●
Common Parts
6105052-2E2 Adjusting Piece 2,Front Door Lock
21 1
●
Common Parts
6107045-2E2 Outer Sealing Strap, Left Front Door Glass
23 1
●
Common Parts
6107050-2E2 Outer Sealing Strap, Right Front Door Glass
24 1
●
Common Parts
Pag. 46
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
BODY SLIDING DOOR
6200045-1J0-DY Sliding Door Welding Assy,Lh
1 1
●
Common Parts
6200050-1J0-DY Sliding Door Welding Assy,Rh
2 1
●
Common Parts
6206045-V01 Sliding Door Upper Rolling Wheel Arm Assembly, L.H.
3 1
●
Common Parts
6206050-V01 Sliding Door Upper Rolling Wheel Arm Assembly, R.H
4 1
●
Common Parts
Q1840820 Hexagon Head Bolt
5 4
●
Common Parts
6206015-V01 Sliding Door Gemel Assembly, Lh
6 1
●
Common Parts
6206020-V01 Sliding Door Gemel Assembly, Rh
7 1
●
Common Parts
6206065-V01 Sliding Door Lower Rolling Wheel Arm Assembly, Lh
9 1
●
Common Parts
6206070-V01 Sliding Door Lower Rolling Wheel Arm Assembly, Rh
10 1
●
Common Parts
CQ1460820 Combined Bolt
11 2
●
Common Parts
CQ1460820 Combined Bolt
12 2
●
Common Parts
6202015-V01 Sliding Door Inner Decoration Panel Assembly, L.H.
13 1
●
Only For New Dashboard(Color Gray In 2010,Color Beige In 2011)
6202020-V01 Sliding Door Inner Decoration Panel Assembly, R.H
14 1
●
Only For New Dashboard(Color Gray In 2010,Color Beige In 2011)
6102105-6J6 Clamp
15 20
●
Common Parts
6302017M2E2 Clamp
15 10
●
Common Parts
6202051-V01 Sliding Door Water-Proof Film,Lh
16 1
●
Common Parts
6202052-V01 Sliding Door Water-Proof Film ,Rh
17 1
●
Common Parts
6207011M2E2 Sliding Door Sealing Strap
18 2
●
Only For New Beige/Gray Dashboard
6205311-V01 Sliding Door Cushion Block
19 2
●
Common Parts
6206081-V01 Cushion Block
20 2
●
Common Parts
6209015-V01 Sliding Door Rail Assembly, L.H.
21 1
●
Common Parts
6209020-V01 Sliding Door Rail Assembly, R.H
22 1
●
Common Parts
CQ32206 Combined Nut
24 10
●
Common Parts
5402033-V01 Outside Decorating Plate,Rear Left Side Wall
25 1
●
Common Parts
5402034-V01 Outside Decorating Plate,Rear Right Side Wall
26 1
●
Common Parts
Q2710516F6 Screw-Tapping
27 2
●
Common Parts
Pag. 47
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
BODY SLIDING DOOR LOCK
6205065-V01 Pulling Door Lock Body Assembly, L.H.
1 1
●
Common Parts
6205070-V01 Pulling Door Lock Body Assembly, R.H.
2 1
●
Common Parts
Q2400616 Hexagon Head Combined Bolt
3 6
●
Common Parts
6105022-V01 Damper Block Assy
4 4
●
Common Parts
6205190-V01 Lock Ring Assembly,Pulling Door
5 2
●
Common Parts
6105231-V01 Front Door Lock Adjusting Plate
6 0
●
Common Parts
Q2400820 Combined Screw
7 4
●
Common Parts
6205015-V01 Sliding Door Lock Connecting Rod Mechanical Assy, Lh
8 1
●
Common Parts
6205020-V01 Sliding Door Lock Connecting Rod Mechanical Assembly, R.H
9 1
●
Common Parts
Q2140608 Cross Recessed Pan Head Screw
10 6
●
Common Parts
6205263-V01A1 Stopper
11 1
●
Common Parts
Q2140616 Cross Recessed Pan Head Screw
12 4
●
Common Parts
6205264-V01 Adjusting Plate
13 0
●
Common Parts
6205262-V01 Lower Limiting Seat
14 2
●
Common Parts
Q2140616 Cross Recessed Pan Head Screw
15 4
●
Common Parts
6205215-V01 Sliding Door Outside Handle Assembly. L.H.
16 1
●
Common Parts
6205220-V01 Sliding Door Outside Handle Assembly, R.H.
17 1
●
Common Parts
6105411-V01 Front Door Outside Handle Bushing Assembly
18 2
●
Common Parts
Q2140612 Cross Recessed Pan Head Screw
19 4
●
Common Parts
6105157-V06 Door Self Lock Handle
20 2
●
new dashboard(color gray in 2010,color beige in 2011)
6105158-V01 Door Self-Lock Handle Bushing
21 2
●
Common Parts
6205245-V01 Slidling Door Inner Handle Assembly, Rh
22 2
●
Dark Gray Or Beige Color
6205261-2E2 Upper Limiting Seat
23 2
●
Common Parts
Q2540616 Cross Slot Sunk Screw
24 4
●
Common Parts
Pag. 48
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
BODY SLIDING DOOR GLASS
6203035-V06 Sliding Door Window Frame Assembly,Lh
1 1
●
Common Parts
6203040-V06 Sliding Door Window Frame Assembly,Rh
2 1
●
Common Parts
6203033-V01 Left Sliding Door Window Front Glass
3 1
●
Common Parts
6203034-V01 Right Sliding Door Window Front Glass
4 1
●
Common Parts
6203037-V01 Left Sliding Door Window Rear Glass
5 1
●
Common Parts
6203038-V01 Right Sliding Door Window Rear Glass
6 1
●
Common Parts
6203050-V01 Sliding Door Window Lock Assembly
7 2
●
Common Parts
6203056-V01 Sliding Door Window Glass Protecting Cover
8 1
●
Common Parts
6203057-V01 Sliding Door Window Glass Gasket
9 1
●
Common Parts
Q2140412 Cross Recessed Pan Head Screw
10 4
●
Common Parts
6203046-V01 Sliding Door Window Glass Clamp Strap
11 2
●
Common Parts

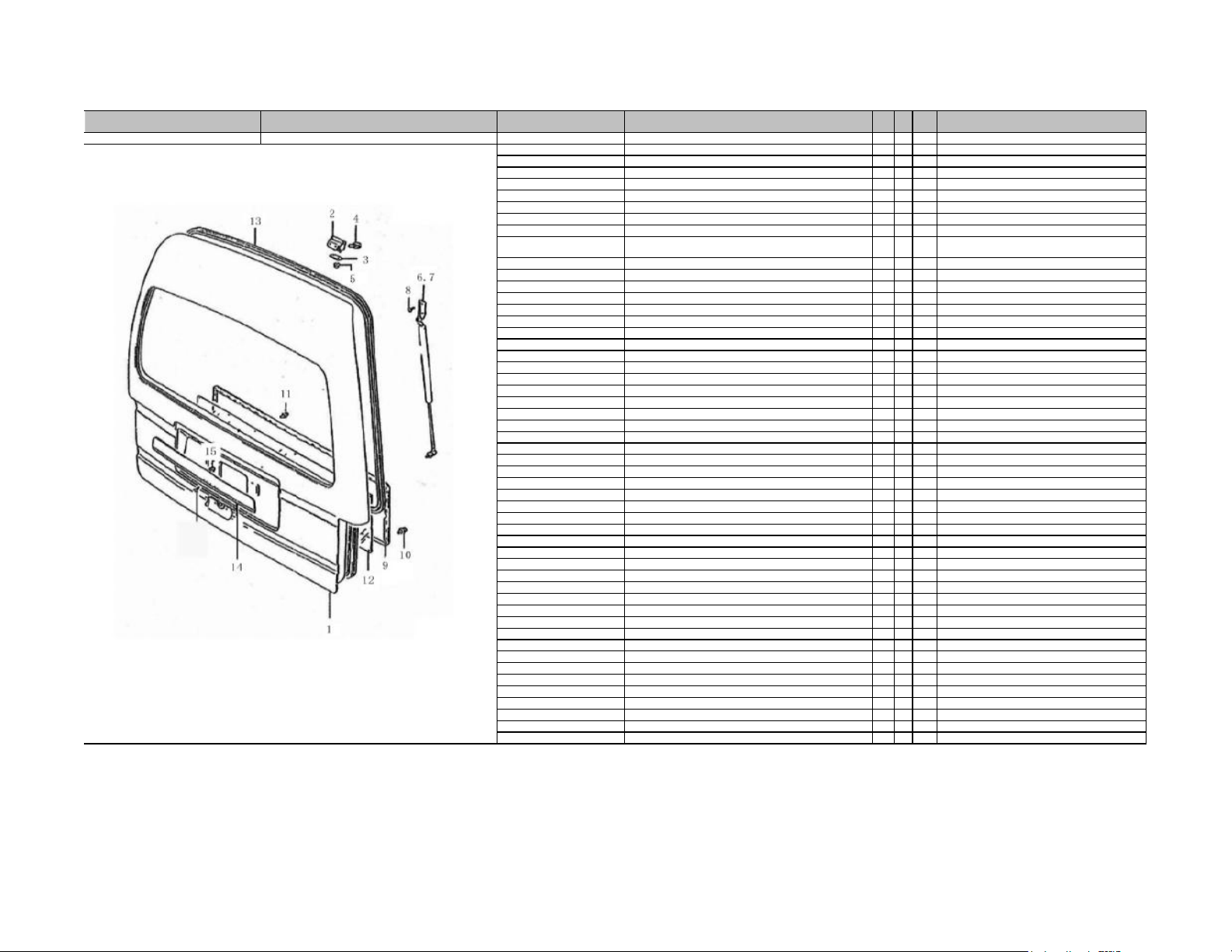

Pag. 49
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
BODY REAR DOOR
6300050AV01-DY Rear Door Welding Assy
1 1
●
Common Parts
6306010-V01-DY Rear Door Hinge Assembly
2 2
●
Common Parts
6306022-V01 Rear Door Hinge Pad
3 4
●
Common Parts
CQ1420820 Combined Bolt
4 4
●
Common Parts
CQ32208 Combined Nut
5 4
●
Common Parts
6309015-V01 Rear Door Supporting Rod Mechanical Assembly, Lh
6 1
●
Common Parts
6309020-V01 Rear Door Supporting Rod Mechanical Assembly, Rh
7 1
●
Common Parts
CQ1460620 Combined Bolt
8 4
●
Common Parts
6302010-V01 Rear Door Inner Decoration Panel Assembly
9 1
●
Only For New Dashboard(Color Gray In 2010,Color Beige In 2011)
6302017-V01 Clamp
10 14
●
Common Parts
6102105-6J6 Clamp
11 2
●
Common Parts
6302013-V01 Rear Door Sealing Film
12 1
●
Common Parts
6307011M2E2 Rear Door Sealing Strap
13 1
●
Only For New Beige/Gray Dashboard
6301086-2E2 Rear Door License Light Cover
14 1
●
With Chinese Character
6301086-V01A1 Rear Door License Light Cover
14 1
●
Common Parts
6101034-V01 Plastic Nut
15 3
●
Common Parts
3921011K2E2 Rear Faw Brand Name Plate(New)
20 1
●
New Style Faw Brand Plate
Pag. 50
GROUP NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
BODY
6303012-V01 Rear Door Window Frame Strip
2 1
●
Common Parts
6303013-V01 Rear Door Window Outer Sealing Strap
3 1
●
Common Parts
Pag. 51
SECTION NAME
REAR DOOR GLASS
6303011-V01
Rear Door Glass
1
1
Common Rear Glass
●
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
BODY REAR DOOR LOCK
6305010-V01 Rear Door Lock Assembly
1 1
●
Common Parts
Q2400820 Combined Screw
3 2
●
Common Parts
CQ32206 Combined Nut
4 2
●
Common Parts
6305117-V01 Damping Washer
5 2
●
Common Parts
CQ1420820 Combined Bolt
6 2
●
Common Parts
6305090-V01 Lock Ring Assembly,Rear Door Lock
7 1
●
Common Parts
6305111-V01 Adjusting Plate
8 1
●
Common Parts
6305125-V01 Rear Door Limit Seat Assy
9 1
●
Common Parts
Pag. 52
Common Parts
●
CQ1460620
Combined Bolt
2
3
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
BODY DRIVER SEAT
6804015-2E2 Angle-Adjusting Assembly,Lh
1 1
●
Common Parts
6804210-2E2 Vice Sliding Rail, Driver & Passenger Seat
2 1
● Without E-mark
6804110-2E2 Sliding Rail Assembly,Driver Seat
3 1
● Without E-mark
5107121-2E2 Sealing Strap,Engine Left Cover Plate
5 1
●
Common Parts
6904020-2E2 Angle-Adjusting Assembly,Rh
6 1
●
Common Parts
6904110-2E2 Sliding Rail Assembly,Passenger Seat
7 1
● Without E-mark
5107122-2E2 Sealing Strap,Engine Right Cover
8 1
●
Common Parts
5107190-V01 Engine Cover Lock Assembly
9 4
●
Common Parts
CQ1420616 Combined Bolt
10 8
●
Common Parts
8212030-2E2 Front Belt Buckle Assy
11 2
●
Without E-Mark
6800901-2E2 Driver’S Seat With Engine Cover Assy
12 1
●
Without E-Mark,Old Style,Gray Color And Beige Color
6900901-2E2 Driver’S Seat With Engine Cover Assy
13 1
●
Without E-Mark,Old Style,Gray Color And Beige Color
Pag. 53
GROUP NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
BODY
7200010-2E2 Seat Assembly - Second Row
1 1
●
With Side Rolling Seat,With Headrest
7204015-2E2 Angle-Adjusting Assembly,Lh
1.1 1
●
Common Parts
Q1460820 Hexagon Head Combined Bolt
2 4
●
Common Parts
8212220-1J0 Seat Belt Lock Pin Assy
3 2
●
Without E-Mark
8212240-2E2 Seat Belt Lockpin And Belt Seat Assy
4 1
●
Without E-Mark,Beige Color
8212230-1J0 Seat Belt Buckle(Twin) Assy
5 1
●
Without E-Mark
8212020-8E1-C01 Side Seat Belt,3Rd Row Seat
6 1
●
New Style Second Row 3-Point Elr Seat Belts
8212051-8E1 Dust Cover,Seat Belt
7 1
●
New Style Second Row 3-Point Elr Seat Belts
Pag. 54
SECTION NAME
SECOND ROW SEAT
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
BODY THIRD ROW SEAT
7300010-2E2 Seat Assembly - Third Row
1 1
●
Rolling Over Seat,Gray Color
7300010C2E2 Seat Assembly - Third Row
1 1
●
Rolling Over Seat,Beige Color
7304015-2E2 Left Connecting Plate Assembly - Third Row
1.1 1
●
Common Parts
7304020-2E2 Right Connecting Plate Assembly - Third Row
1.2 1
●
Common Parts
Q1460620 Hexagon Head Combined Bolt
2 4
●
Common Parts
7307014-C1 Positioning Bracket,Third Row Seat
3 1
●
Common Parts
CQ1420820 Combined Bolt
4 2
●
Common Parts
Q1420820 Hexagon Head Combined Bolt
4 2
●
Common Parts
Pag. 55
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK

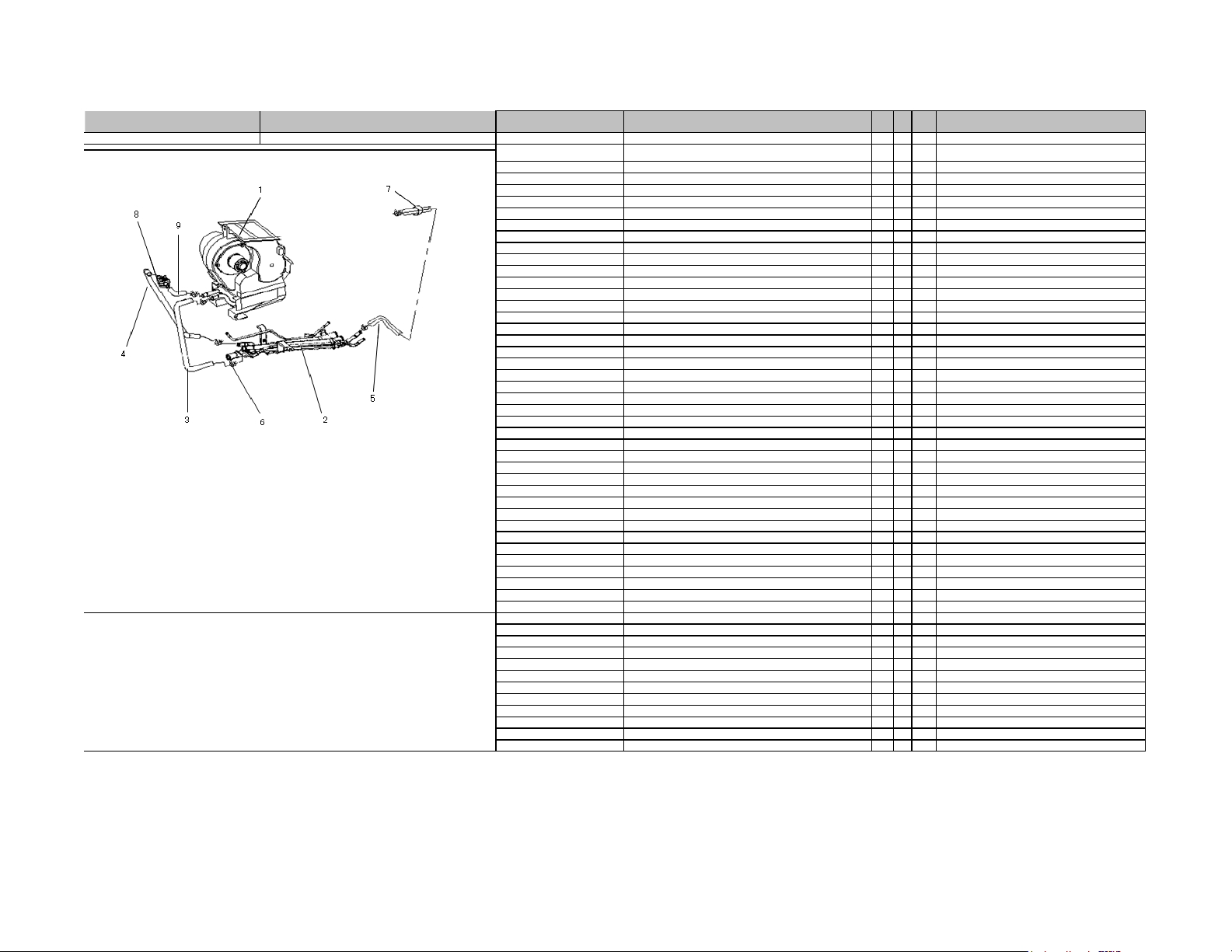

BODY HEATER ACCESSORIES-1
1303020Z2E2 Water Pipe Welding Assy
2 1
●
Only For Eu4 Vehicles
8101117-2E2 Heater Water Inlet Hose 2
3 1
●
Only For Left Hand Drive
8101122-2E2 Heater Water Outlet Hose
4 1
●
Only For Left Hand Drive
8101116-2E2 Heater Water Inlet Hose 1
5 1
●
Common Parts
Q673B17 Grommet
6 8
●
Common Parts
8101221-V01 Sleeve- Water Inlet Rubber Hose
7 1
●
Common Parts
8101130-2E2 Manual Water Valve
8 1
●
Common Parts
8101123-2E2 Heater Water Outlet Hose 2
9 1
●
Common Parts
Pag. 56
Only For Left Hand Drive
●
8101010-2E2
Heater Assy
1
1
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
BODY HEATER ACCESSORIES-2
8112010-2E2 Heater Control Panel Assy
15 1
●
Only For Left Hand Drive
8101010-2E2 Heater Assy
17 1
●
Only For Left Hand Drive
Q32006 Hexagon Nuts With Flange
19 3
●
Common Parts
8101045-2E2 Air Connect Hose Assy,Heater
20 1
●
Without A/C
8101240-2E2 Exchange Air Box Assy
21 1
●
Only For Left Hand Drive
Q40206 Bigger Washer
22 1
●
Common Parts
Q174B0620 Cross Slot Recessed Hexagon Head Bolt
23 1
●
Common Parts
Pag. 57
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
BODY HEATER ASSY
8101015-2E2 Water Tank Assy, Heater
1 1
●
Common Parts
8101035-2E2 Motor Assy, Heater
2 1
●
Common Parts
8101050-2E2 Impeller Fan W/O Motor,Heater
3 1
●
Common Parts
8101055-2E2 Resistance Assy,Heater
4 1
●
Common Parts
8101071-2E2 Swing Pole,Heater
5 1
●
Common Parts
8101076-2E2 Rocker,Cool To Heat
6 1
●
Common Parts
8101063-2E2 Clamp.Heater
7 3
●
Common Parts
Pag. 58
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
8112010-2E2 Heater Control Panel(Without A/C) Assy
1 1
●
Only For Left Hand Drive
8112022-2E2 Knob Sleeve,Heater Control Panel
2 3
●
Common Parts
8112016-2E2 Knob,Heater Control Panel
3 2
●
Common Parts
8112026-2E2 Switch Knob,Heater Control Panel
4 1
●
Common Parts
8112024-2E2 Internal/External Air Knob,Heater Control Panel
5 1
●
Common Parts
Pag. 59
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
BODY A/C SYSTEM
8103020-2E2 Compressor Assy
1 1
●
8103043-V01 Belt, Compressor
5 1
●
Q1460825 Hexagon Head Combined Bolt
6 3
●
Q32008 Hexagon Nuts With Flange
7 3
●
8105020-2E2 Condensator Assy
8 1
●
8107020-2E2 Front Refrigerator Assy
11 1
●
Q174B0620 Cross Slot Recessed Hexagon Head Bolt
12 1
●
8107060M2E2 Upper Refrigerator
14 1
●
8107062-2E2 Cover Plate,R,Upper Refrigerator
15.1 1
●
8107061-2E2 Cover Plate,L,Upper Refrigerator
15.2 1
●
8107064-V06 Hose-Drain (1),Upper Refrigerator
16 4
●
8107066-2E2 Hose-Drain (2),Upper Refrigerator
17 2
●
8107067-V06 Three Way Connector-Hose Drain,Upper Refrigerator
18 2
●
8107072M2E2 Right Bracket-Plate Assembly,Upper Refrigerator
20 1
●
8107071M2E2 Left Bracket-Plate Assembly,Upper Refrigerator
21 1
●
8108020-2E2 Inlet Air Pipe,Compressor
24 1
●
Q1860635 Hexagon Head Bolt
25 1
●
8108025-2E2 Outlet Air Pipe,Compressor
26 1
●
8108030-2E2 Inlet Air Pipe,Front Refrigerator
27 1
●
8108035-2E2 Outlet Air Pipe,Front Refrigerator
28 1
●
8108045-2E2 Outlet Air Pipe,Condenser
29 1
●
8108065-V01 High Low Voltage Switch
30 1
●
8108070M2E2 Inlet Air Pipe,Upper Refrigerator
31 1
●
8108080-2E2 Inlet Air Pipe 1,Upper Refrigerator
32 1
●
8108085M2E2 Outlet Air Pipe,Upper Refrigerator
33 1
●
8109010-2E2 Reservoir Dryer Bottle Assy
36 1
●
Q2360625 Cross Recessed Pan Head Screw
37 2
●
8111032-2E2 Hose-Drain,Front Refrigerator
38 1
●
Q1840835 Hexagon Head Bolt
40 2
●
8111010-2E2 Clamp-A/C Pipe
43 1
●
8107075M2E2 Air Outlet Grille And Switch Assembly,Upper Refrigerator
44 1
●
8107074M2E2 Air Inlet Grille,Upper Refrigerator
45 1
●
Pag. 60
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
BODY SUN VISOR & INSIDE REARVIEW MIRROR
8201010-2E2-12 Inside Rearview Mirror Assembly
1 1
●
Beige Color,,with E-mark
8204010-2E2 Sun Visor Assy
2 2
●
Common Parts
Pag. 61
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK

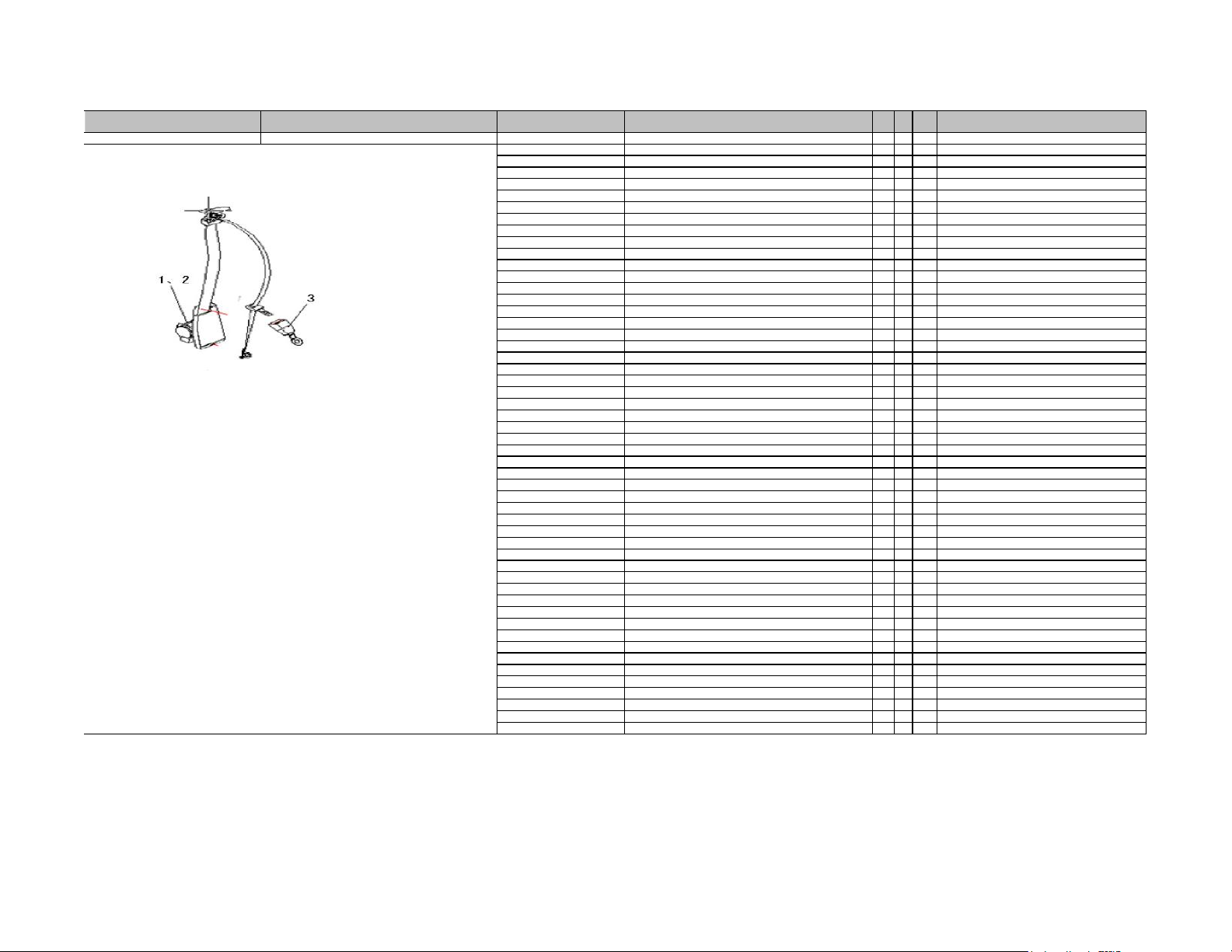

BODY FRONT SEAT BELT
8212015-2E2 Front Seat Belt, L.H.
1 1
●
Without E-Mark
8212020-2E2 Front Seat Belt, R.H.
2 1
●
Without E-Mark
8212030-2E2 Front Belt Buckle Assy
3 2
●
Without E-Mark
Pag. 62
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
BODY OUTERSIDE REARVIEW MIRROR
8202015C2E2 Outerside Mirror,Lh
1 1
●
Without E-Mark,Bigger One
8202020C2E2 Outerside Mirror,Rh
2 1
●
Without E-Mark,Bigger One
8202021-2E2 Cover,Left Outside Mirror
3 1
●
Common Parts
8202022-2E2 Cover,Right Outside Mirror
4 1
●
Common Parts
Q2320620 Combined Cross Slot Pan Head Screw
5 6
●
Common Parts
Pag. 63
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
BODY HOOD &FENDER
8401010F2E2 Vehicle Front Grill With Faw Logo
1 1
●
Only For Big Logo Vehicles
8402010-2E2-DY Front Hood Welding Assy
2 1
●
Common Parts
Q1460620 Hexagon Head Combined Bolt
3 4
●
Common Parts
8402085-2E2-DY Left Hinge Assy.,Front Cover Plate
4 1
●
Common Parts
8402090-2E2-DY Right Hinge Assy.,Front Cover Plate
5 1
●
Common Parts
8403031-2E2-DY Welded Fender Welding Assy,Lh
6 1
●
Common Parts
8403032-2E2-DY Welded Fender Welding Assy,Rh
7 1
●
Common Parts
Q1460616 Hexagon Head Combined Bolt
8 2
●
Common Parts
Q2300612 Self-Tapping Screw
9 10
●
Common Parts
Pag. 64
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK

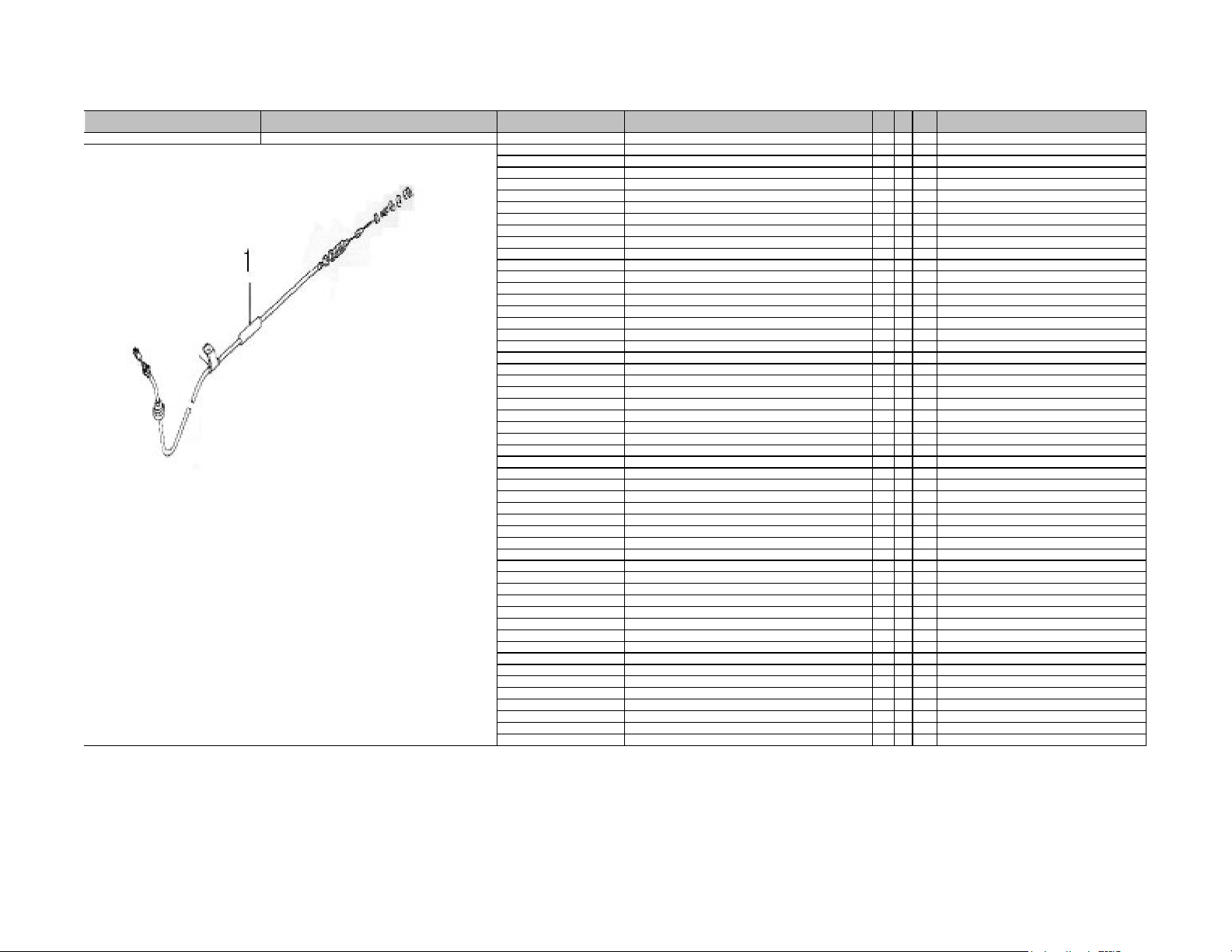

CHASSIS CLUTCH CABLE
1602060-2E2 Clutch Cable Assembly
1 1
●
Only For Left Hand Drive
Pag. 65
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK

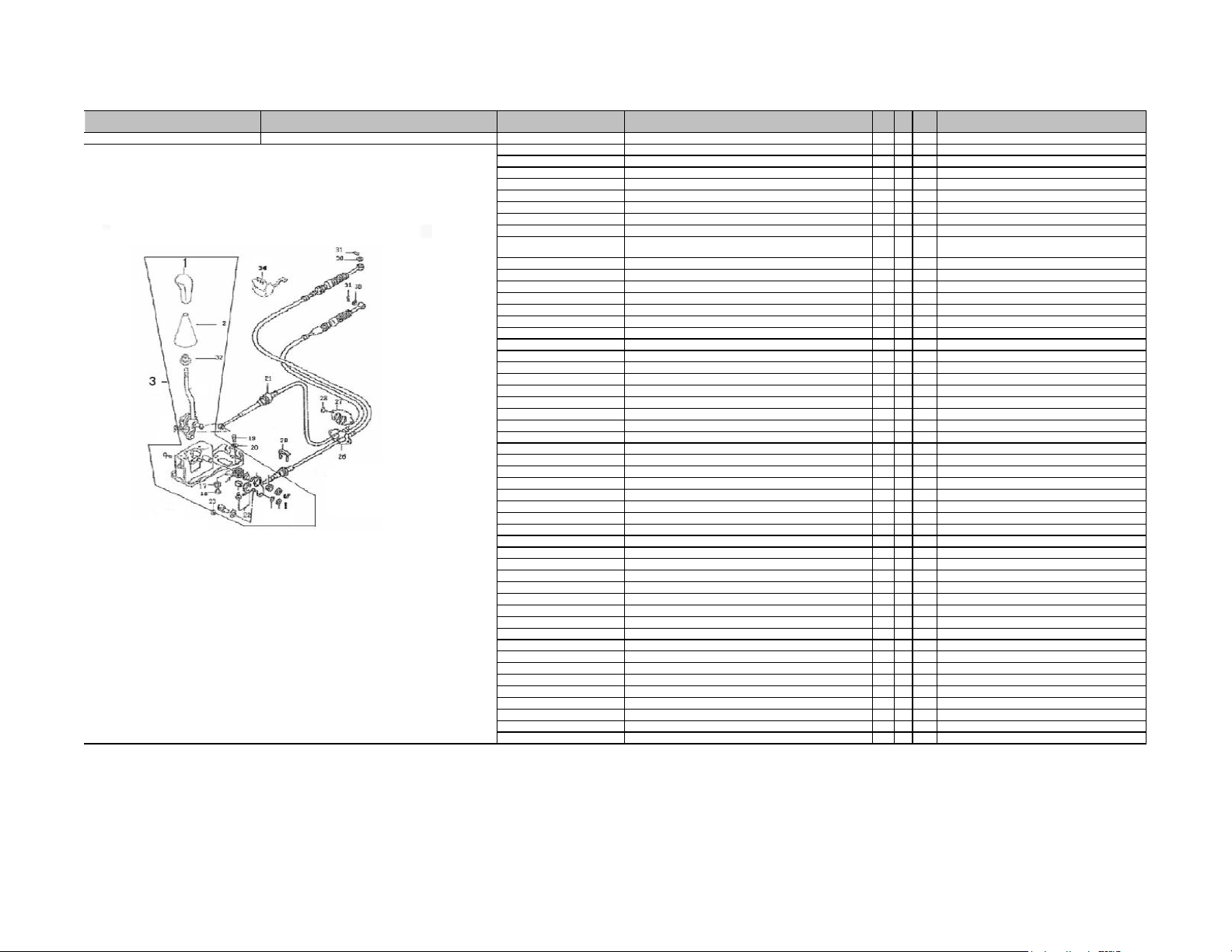

CHASSIS GEAR SHIFTING LEVER
1703060-2E2 Knob-Hand Lever
1 1
●
Common Parts
1703013A2E2 Rubber Dust Cover
2 1
●
Only For New Beige/Gray Dashboard
1703010F2E2 Gear Shifting Lever And Control Linkage Assembly
3 1
●
Only For New Beige/Gray Dashboard
1703011-V01 Damping Washer
17 4
●
Common Parts
1703012-V01 Bushing, Damping Washer
18 4
●
Common Parts
CQ1420625 Combination Bolt
19 4
●
Common Parts
Q40206 Bigger Washer
20 1
●
Common Parts
1703070-2E2 Gear Shifting Soft Lever Assembly
21 1
●
Only For Big 5Mt
1703080-2E2 Gear Selecting Soft Lever Assembly
22 1
●
Only For Big 5Mt
CQ36006 Thick Hexagon Nut
23 1
●
Common Parts
1703093-V01 Plug, Soft Lever Hole
26 1
●
Common Parts
1703092-V01 Compress Plate, Dust Plug
27 1
●
Common Parts
CQ2716316 Self-Tapping Screw
28 2
●
Common Parts
1703091-V01 Clip Plate, Soft Lever
29 2
●
Common Parts
Q40108 Flat Washer
30 2
●
Common Parts
Q50108 Lock Pin
31 2
●
Common Parts
1703014-2E2 Sleeve,Dust Cover
32 1
●
Common Parts
BS10-1700011 Bracket,Gear Shifting Soft Lever
34 1
●
Dongan Bs10 Big 5Mt
Pag. 66
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
CHASSIS PROPELLER SHAFT
2201010B2E2 Propeller Shaft
1 1
●
For Eu3,Eu4 Big 5Mt
2201030-V01 U-Joints Assembly
1 2
●
Common Parts
2201059-4E2 Flange, U-Joints
1 1
●
Common Parts
2201073-V01 Elastic Retaining Washer
1 8
●
Common Parts
Q151C1025 Hexagon Head Bolt
2 4
●
Common Parts
Q40310 Spring Washer
3 4
●
Common Parts
Pag. 67
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK

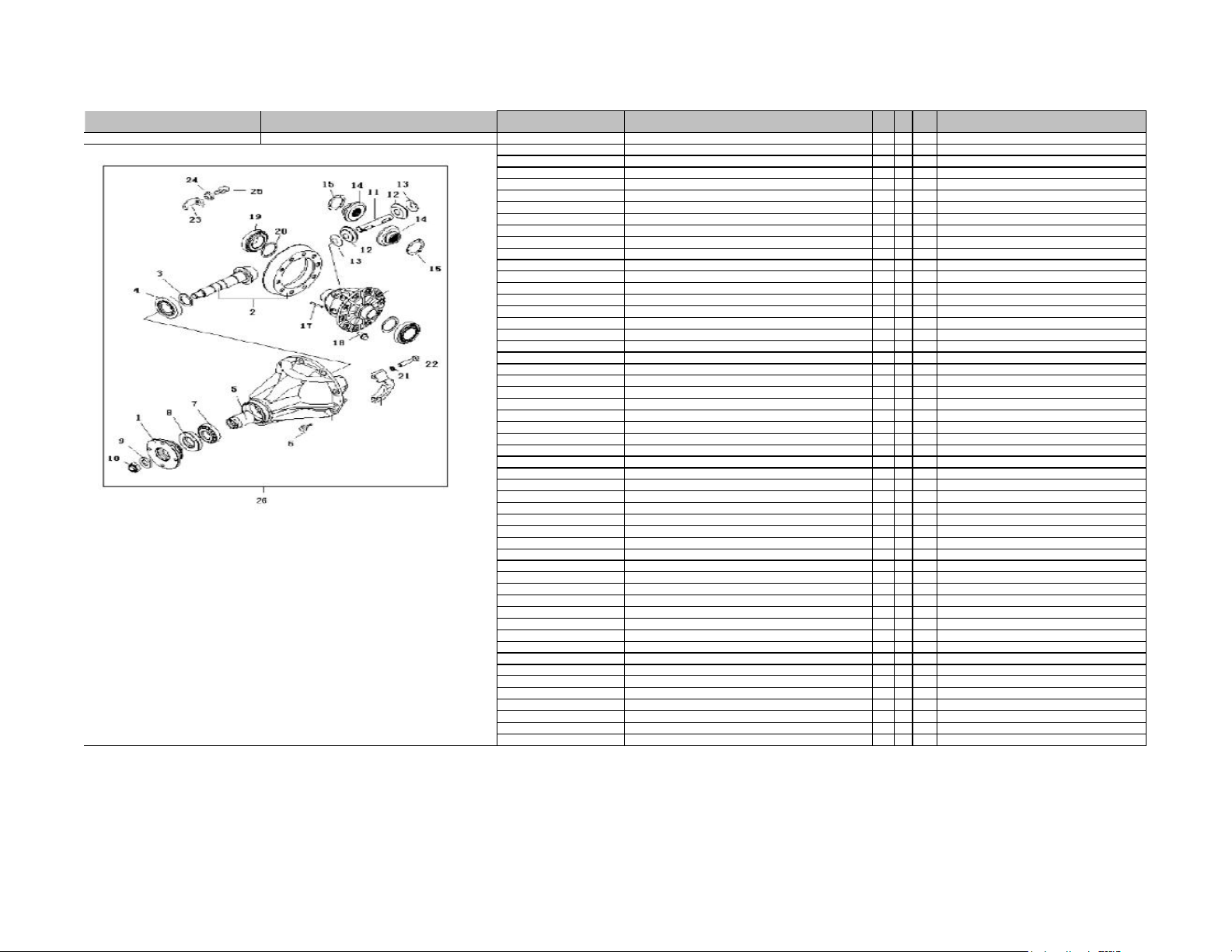

CHASSIS FINAL DRIVE ASSY
B-2402015A2E2-R1007 Flange Assembly, Driving Gear
1 1
●
Jianan Axle,Before Oct,2010
B-2402041A2E2-R1007 Driving Bevel Gear
2.1 1
●
Jianan Axle,Before Oct,2010
B-2402042A2E2-R1007 Driven Bevel Gear
2.2 1
●
Jianan Axle,Before Oct,2010
B-2402101～128A2E2-R1007
Adjusting Shim
3 0
●
Jianan Axle,Before Oct,2010
B-2402050A2E2-R1007 Taper Roller Bearing
4 1
●
Jianan Axle,Before Oct,2010
B-2402047A2E2-R1007 Wave Elastic Bushing
5 1
●
Jianan Axle,Before Oct,2010
B-2402201～218A2E2-R1007
Adjusting Shim
6 1
●
Jianan Axle,Before Oct,2010
B-2402060A2E2-R1007 Taper Roller Bearing
7 1
●
Jianan Axle,Before Oct,2010
B-2402025A2E2-R1007 Oil Seal
8 1
●
Jianan Axle,Before Oct,2010
B-2402082A2E2-R1007 Washer
9 1
●
Jianan Axle,Before Oct,2010
B-2402081A2E2-R1007 Lock Nut
10 1
●
Jianan Axle,Before Oct,2010
B-2403023A2E2-R1007 Shaft, Planet Pinion
11 1
●
Jianan Axle,Before Oct,2010
B-2403021A2E2-R1007 Planet Pinion
12 2
●
Jianan Axle,Before Oct,2010
B-2403022A2E2-R1007 Shim
13 2
●
Jianan Axle,Before Oct,2010
B-2403026A2E2-R1007 Half Axle Gear
14 2
●
Jianan Axle,Before Oct,2010
B-2403101～112A2E2-R1007
Adjusting Shim
15 0
●
Jianan Axle,Before Oct,2010
B-2402059A2E2-R1007 Pin
17 1
●
Jianan Axle,Before Oct,2010
B-2402043A2E2-R1007 Bolt
18 10
●
Jianan Axle,Before Oct,2010
B-2402055A2E2-R1007 Taper Roller Bearing
19 2
●
Jianan Axle,Before Oct,2010
B-2403201～256A2E2-R1007
Adjusting Shim
20 0
●
Jianan Axle,Before Oct,2010
B-2402052A2E2-R1007 Washer 10
21 4
●
Jianan Axle,Before Oct,2010
B-2402053A2E2-R1007 Bolt M10X50
22 4
●
Jianan Axle,Before Oct,2010
B-2402054A2E2-R1007 Washer 8
23 8
●
Jianan Axle,Before Oct,2010
B-2402056A2E2-R1007 Nut M8
24 8
●
Jianan Axle,Before Oct,2010
2402010A2E2-C02-SP Final Drive Assy
26 1
●
Longshan,From Oct,2010
B-2402010A2E2-R1007 Final Drive Assy
26 1
●
Jianan Axle,Before Oct,2010
Pag. 68
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK

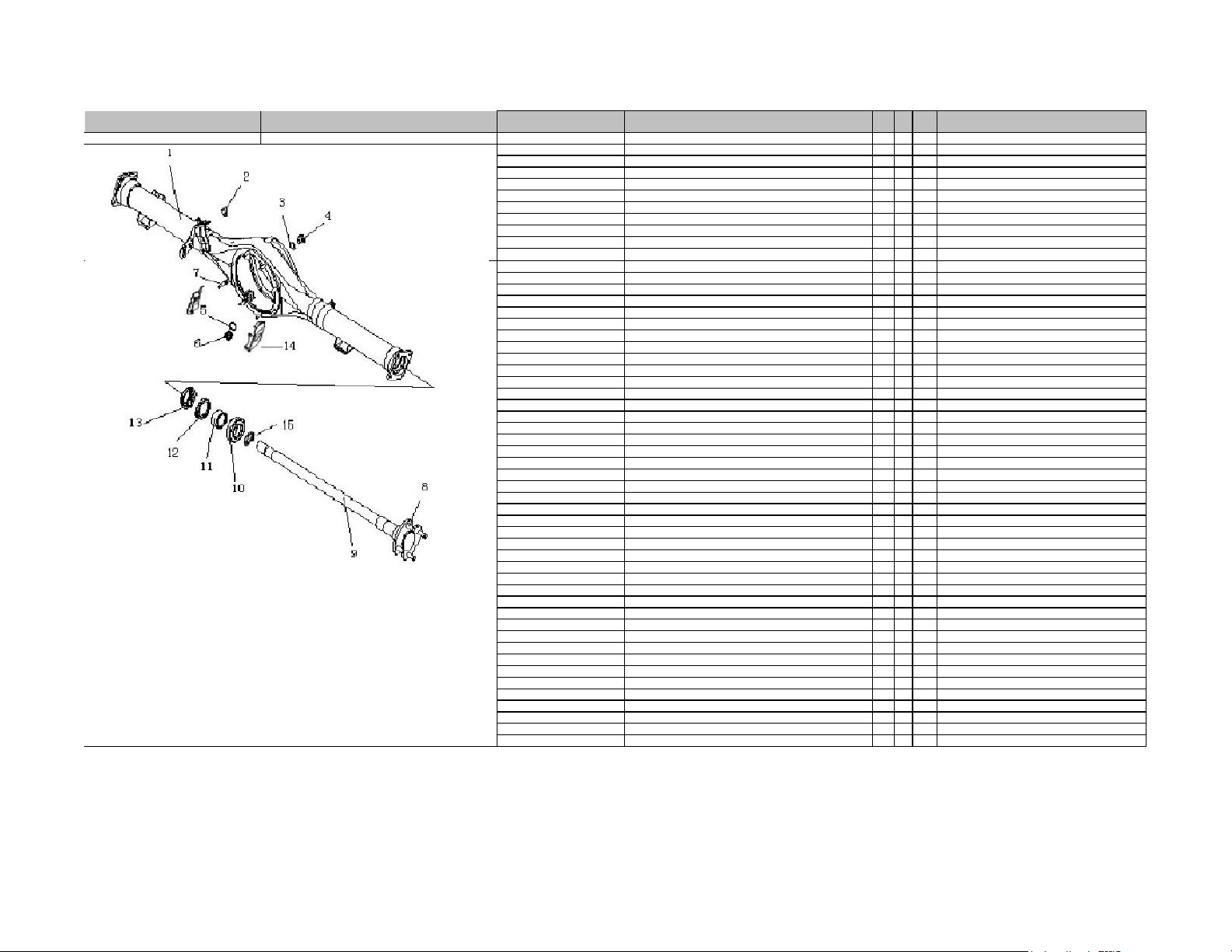

CHASSIS REAR AXLE-2
2401015A2E2-C02-SP Rear Axle Shaft Tube
1 1
●
Longshan,From Oct,2010
2401081A2E2-C02-SP Cap Plug
2 1
●
Longshan,From Oct,2010
2401056A2E2-C02-SP Copper Seal
3 1
●
Longshan,From Oct,2010
2401057A2E2-C02-SP Oil Inlet Plug
4 1
●
Longshan,From Oct,2010
2401051A2E2-C02-SP Copper Seal
5 1
●
Longshan,From Oct,2010
2401052A2E2-C02-SP Oil Outlet Plug
6 1
●
Longshan,From Oct,2010
2401071A2E2-C02-SP Bolt
7 8
●
Longshan,From Oct,2010
3104018A2E2-C02-SP Bolt,Rear Hub
8 8
●
Longshan,From Oct,2010
2403051A2E2-C02-SP Half Axle
9 2
●
Longshan,From Oct,2010
2403080A2E2-C02-SP Taper Roller Bearing
10 2
●
Longshan,From Oct,2010
2403053A2E2-C02-SP Thrust Ring, Half Axle
11 2
●
Longshan,From Oct,2010
2403065A2E2-C02-SP Oil Seal Ring Assembly ,Half Axle
12 2
●
Longshan,From Oct,2010
2403061A2E2-C02-SP Oil Retainer Plate,Half Axle
13 2
●
Longshan,From Oct,2010
2403072A2E2-C02-SP Shield Plate
14 2
●
Longshan,From Oct,2010
2403052A2E2-C02-SP Washer,Half Axle
15 2
●
Longshan,From Oct,2010
Pag. 69
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK

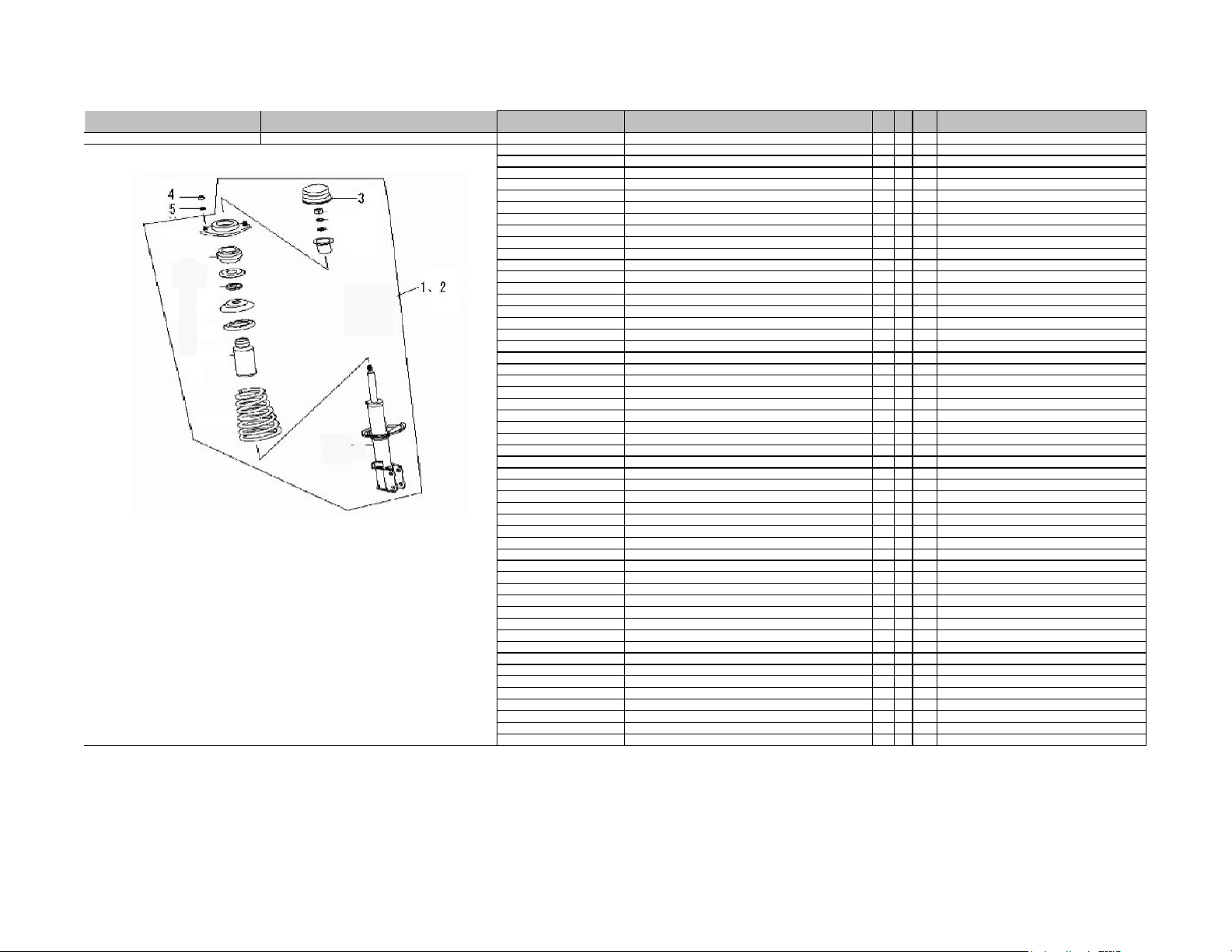

CHASSIS FRONT SHOCK ABSORBER
2901020-2E2 Front Shock Absorber With Coil Spring Assembly,Rh
1 1
●
Common Parts
2901015-2E2 Front Shock Absorber With Coil Spring Assembly,Lh
2 1
●
Common Parts
2901021-2E2 Plastic Dust Cap
3 1
●
Common Parts
Q341C10 Nut
4 2
●
Common Parts
Q40310 Spring Washer
5 2
●
Common Parts
Pag. 70
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
CHASSIS FRONT SUSPENSION
2904010A2E2 Middle Arm Welding Assy
1 1
●
Only For Left Hand Drive
2904014-2E2 Combined Bolt
2 4
●
Common Parts
2904035-2E2 Suspend Arm With Ball Welded Assy
3 1
●
Common Parts
2904040-2E2 Suspend Arm With Ball Welded Assy
4 1
●
Common Parts
2909022-2E2 Washer-Thrust,Tension Rod
6 1
●
Common Parts
Q33812 Locknut
7 1
●
Common Parts
2909021-2E2 Bush,Tension Rod
8 2
●
Common Parts
2909023-2E2 Washer-Thrust,Tension Rod
9 1
●
Common Parts
2909015-2E2 Rod-Tension With Seat Assembly,Lh
14 1
●
Common Parts
2909020-2E2 Rod-Tension With Seat Assembly,Rh
15 1
●
Common Parts
CQ1601075 Hex Bolt
16 1
●
Common Parts
CQ34010 Nut
18 1
●
Common Parts
2904024-V01 Combined Bolt
19 4
●
Common Parts
Q40310 Spring Washer
21 1
●
Common Parts
Q341C10 Nut
22 1
●
Common Parts
Q40312 Spring Washer
23 1
●
Common Parts
CQ34112 Nut
24 2
●
Common Parts
Pag. 71
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
CHASSIS FRONT STABLE PULLING ROD
2906011-2E2 Front Stable Pulling Rod
1 1
●
Common Parts
2906021-2E2 Bracket,Stable Pulling Rod
2 2
●
Common Parts
2906022-2E2 Rubber Bushing, Stable Pulling Rod
3 2
●
Common Parts
Q1460825 Hexagon Head Combined Bolt
4 2
●
Common Parts
2906030-2E2 Joint Lever
5 2
●
Common Parts
2906041-2E2 Rubber Gasket
6 4
●
Common Parts
Q33008 Lock Nut
7 2
●
Common Parts
Q341C10 Nut
8 2
●
Common Parts
Q40310 Spring Washer
9 2
●
Common Parts
2906042-2E2 Washer
10 4
●
Common Parts
Pag. 72
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
CHASSIS REAR LEAF SPRING
2912010-V01 Rear Leaf Spring Assembly
1 2
●
Common Parts
2912043-V01 Rubber Upper Shim
2 2
●
Common Parts
2912044-V01 Rubber Lower Shim
3 2
●
Common Parts
2912042-V01 Seat
4 2
●
Common Parts
2912041-5E3 U-Bolt , Rear Leaf Spring
5 2
●
Only For The Vehicle Made After 2008
2912045-5E3 Left U-Bolt Seat Plate Assy, Rear Leaf Spring
6 1
●
Only For The Vehicle Made After 2008
2912050-5E3 Right U-Bolt Seat Plate Assy, Rear Leaf Spring
7 1
●
Only For The Vehicle Made After 2008
2912030-5E3 Cushion Block Assembly,Rear Leaf Spring
9 2
●
Only For The Vehicle Made After 2008
2912025-V01 Bushing Assembly,Rear Leaf Spring
10 2
●
Common Parts
CQ1611290 Hex Bolt
11 2
●
Common Parts
Q40312 Spring Washer
12 2
●
Common Parts
CQ34112 Nut
13 2
●
Common Parts
2912062-V01 Side Outer Plate
14 2
●
Common Parts
2912063-V01 Pin,Rear Leaf Spring
15 4
●
Common Parts
2912064-V01 Rubber Bushing-Rear Leaf Spring
16 8
●
Common Parts
2912061-V01 Side Inner Plate
17 2
●
Common Parts
CQ34110 Nut
19 4
●
Common Parts
Q40012 Flat Washer
20 2
●
Common Parts
2915010-V01 Rear Shock Absorber Assy
21 2
●
Common Parts
Q40208 Bigger Washer
22 2
●
Common Parts
Q40308 Sping Washer
23 2
●
Common Parts
CQ34008 Nut
24 2
●
Common Parts
Q40110 Flat Washer
25 2
●
Common Parts
Q40310 Spring Washer
26 2
●
Common Parts
CQ34010 Nut
27 2
●
Common Parts
Pag. 73
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
CHASSIS FRONT WHEEL HUB
3103015-2E2 Front Wheel Hub
1 2
●
Common Parts
3103018-2E2 Bolt,Front Hub
2 4
●
Common Parts
3103023-2E2 Lock Nut
3 2
●
Common Parts
3103021-2E2 Dust Cover
4 2
●
Common Parts
3001011-2E2 Left Steering Knuckle
5 1
●
Common Parts
3001012-2E2 Right Steering Knuckle
6 1
●
Common Parts
2901011-2E2 Hexagon Head Bolt
7 2
●
Common Parts
CQ34112 Nut
8.1 2
●
Common Parts
Q40312 Spring Washer
8.2 2
●
Common Parts
3103022-2E2 Steering Knuckle Spindle
9 2
●
Common Parts
Pag. 74
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
CHASSIS SPARE WHEEL BRACKET
3105010-2E2 Spare Wheel Bracket
1 1
●
Common Parts
3105020-V01 Spare Wheel Bracket Rod
2 1
●
Common Parts
3105026-V01 Spare Wheel Bracket Bolt
3 1
●
Common Parts
3105030-V01 Spare Wheel Bracket Sling
4 1
●
Common Parts
CQ1420616 Combined Bolt
5 1
●
Common Parts
CQ1460616 Combined Bolt
6 2
●
Common Parts
Pag. 75
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
CHASSIS WHEEL,TYRE
3101015-2E2 13 X 5.00B Wheel Assembly(Steel)
1 5
●
Steel Wheel
3103017-V01 Nut,Wheel(Steel Wheel)
2 8
●
Steel Wheel
3106010-V01 165/70 R13 Radial Tyre Without Inner Tube
3 5
●
Common Parts ,Triangle Brand
Pag. 76
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
CHASSIS STEERING GEAR BOX
3401010-2E2A1 Steering Gear Box With Ball Pin Assembly
1 1
●
Only For Left Hand Drive
Q32712 Lock Nut
2 2
●
Common Parts
3003040-2E2 Right Ball Pin
3 1
●
Common Parts
3003012-2E2 Right Protect Rubber Bushing
4 1
●
Common Parts
3400021-2E2
Bracket Ⅱ, Steering Gear Box
5 1
●
Common Parts
Q1420825 Hexagon Head Combined Bolt
6 4
●
Common Parts
3400011-2E2 Bracket I, Steering Gear Box
7 1
●
Common Parts
3401011-2E2 Dust Cover, Gear Shaft
8 1
●
Common Parts
3003011-2E2 Left Protect Rubber Bushing
9 1
●
Common Parts
3003035-2E2 Left Ball Pin
10 1
●
Common Parts
Q1460830 Hexagon Head Combined Bolt
11 1
●
Common Parts
3003030-2E2 Tie Rod Assy
12 2
●
Common Parts
Pag. 77
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
CHASSIS STEERING WHEEL
3402010M2E2 Steering Wheel Assy
1 1
●
Only For New Beige/Gray Dashboard
3402020M2E2 Upper Cover ,Steering Wheel
2 1
●
Only For New Beige/Gray Dashboard
Q341B12 Nut
3 1
●
Common Parts
Q40312 Spring Washer
4 1
●
Common Parts
Pag. 78
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK

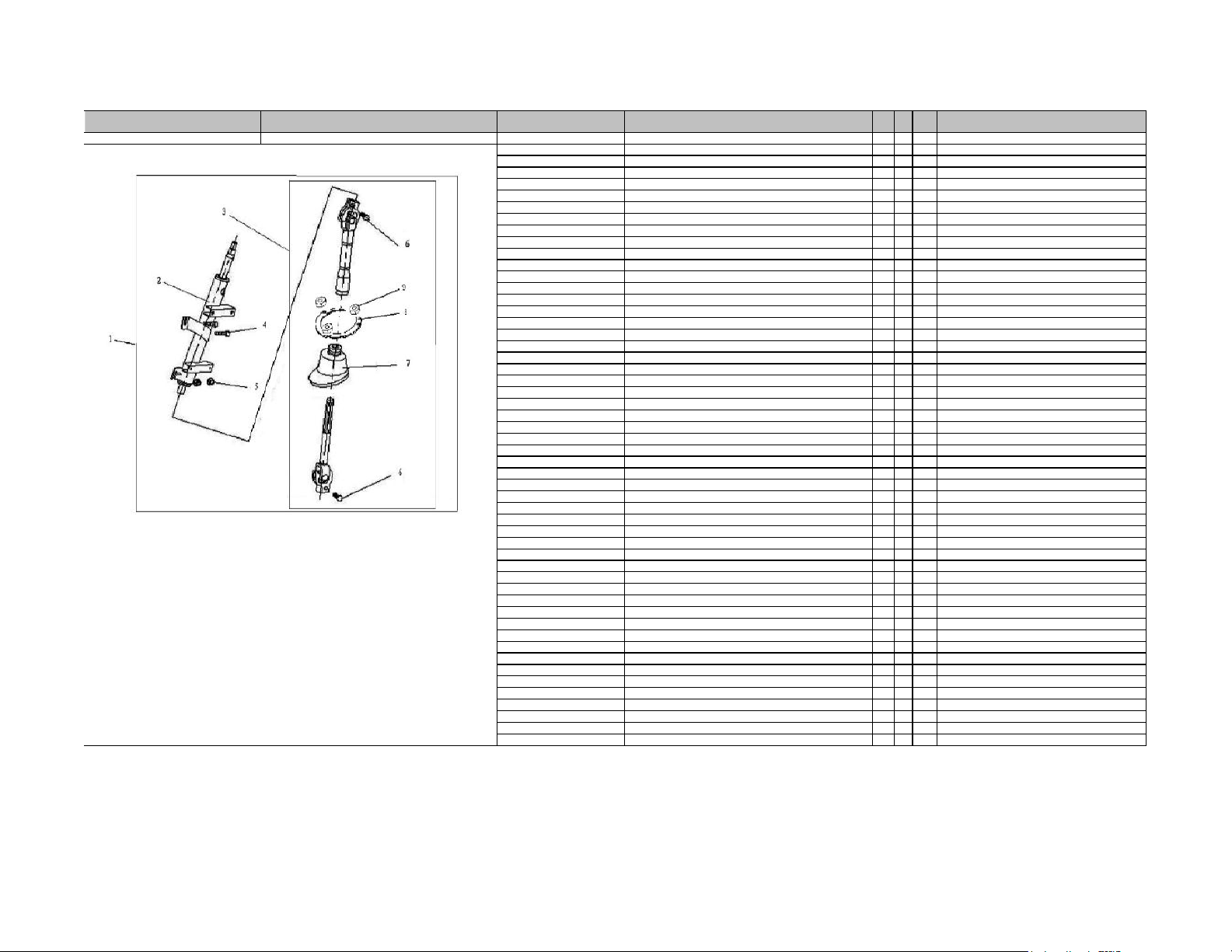

CHASSIS STEERING SHAFT
3404010-2E2B1 Steering Shaft Assy
1 1
●
Only For Left Hand Drive
3404020-2E2 Steering Shaft(Upper)
2 1
●
Common Parts
3404050-2E2 Steering Shaft(Lower)
3 1
●
Only For Left Hand Drive
Q1460830 Hexagon Head Combined Bolt
4 2
●
Common Parts
Q32008 Hexagon Nuts With Flange
5 2
●
Common Parts
Q1420830 Hexagon Head Combined Bolt
6 2
●
Common Parts
3404011-2E2 Rubber Dust Cover, Steering Shaft
7 1
●
Only For Left Hand Vehicles Made Before 2010
3404011-2E2B1 Rubber Dust Cover, Steering Shaft
7 1
●
Only For Left Hand Vehicles Made After 2010
3404012-2E2 Plate, Steering Shaft Dust Cover
8 1
●
Only For Vehicles Made After 2010
Pag. 79
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK

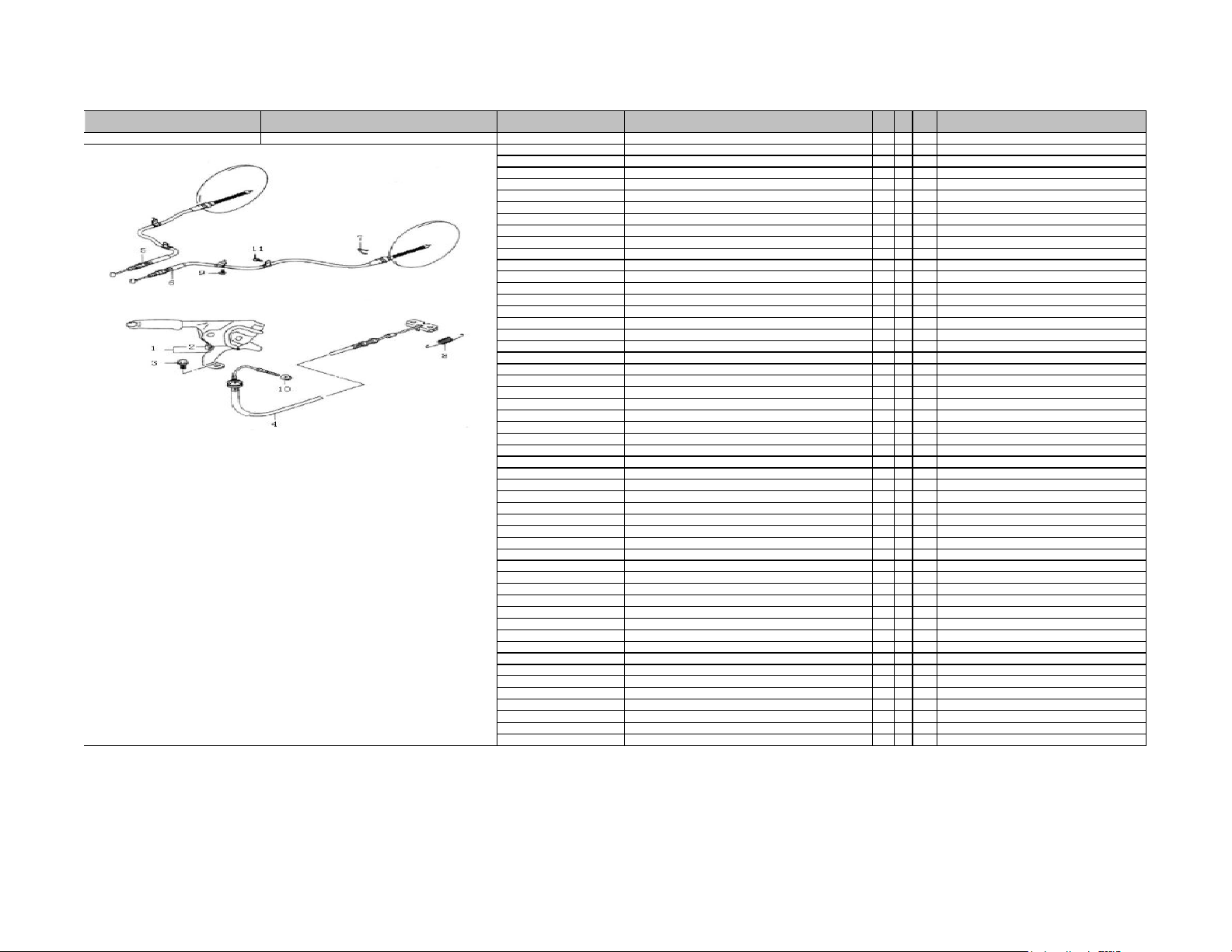

CHASSIS PARKING BRAKE HANDLE
3508010-2E2 Parking Brake Handle
1 1
●
Common Parts
3818010-2E2 Hand Brake Switch Assy
2 1
●
Common Parts
CQ1460820 Combined Bolt
3 2
●
Common Parts
3508110-2E2 Front Cable Assy,Parking Brake
4 1
●
Common Parts
3508140-2E2 Cable Assy,Parking Brake,Rear, Rh
5 1
●
Common Parts
3508135-2E2 Cable Assy,Parking Brake,Rear, Lh
6 1
●
Common Parts
3508171-V01 Spring
7 2
●
Common Parts
3508161-2E2 Returning Spring
8 1
●
Common Parts
CQ1460616 Combined Bolt
9 2
●
Common Parts
Q33006 Lock Nut
10 1
●
Common Parts
Q32006 Hexagon Nuts With Flange
11 2
●
Common Parts
Pag. 80
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
CHASSIS BRAKE & CLUTCH PEDAL
1602021-2E2 Bushing,Clutch Pedal
1 4
●
Common Parts
3504101-2E2 Retract Spring,Brake Pedal
3 2
●
Common Parts
1602013-V01 Bumping Block
4 1
●
Common Parts
Q1840835 Hexagon Head Bolt
5 1
●
Common Parts
Q33008 Lock Nut
6 1
●
Common Parts
Q1460825 Hexagon Head Combined Bolt
8 2
●
Common Parts
3504103-6J6 Pedal Rubber Sleeve
11 2
●
Common Parts
CQ34008 Nut
12 2
●
Common Parts
Q40308 Sping Washer
13 2
●
Common Parts
3504010-2E2 Brake And Clutch Pedal Assy
14 1
●
Only For Left Hand Vehicles Made After 2010
Pag. 81
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK

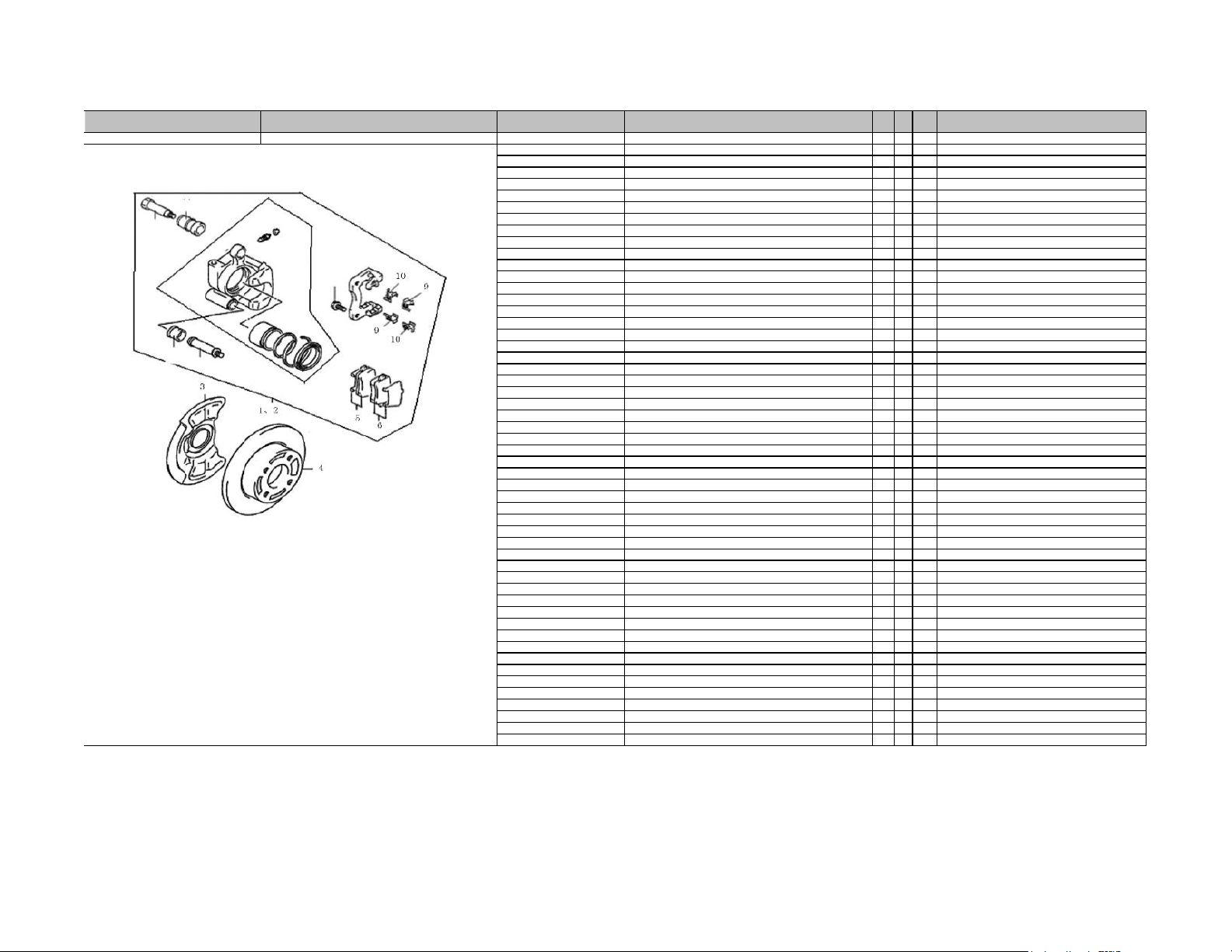

CHASSIS FRONT BRAKE
3501015-2E2 Brake Clamp Assembly (Left)
1 1
●
Common Parts
3501020-2E2 Front Clamp Assembly(Right)
2 1
●
Common Parts
3501031-2E2 Dust Cover(Left)
3 2
●
Common Parts
3501041-2E2 Front Brake Disc Plate
4 2
●
Common Parts
3501050-2E2 Inner Side Brake Block Assembly
5 2
●
Common Parts
3501060-2E2 Outer Side Brake Block Assembly
6 2
●
Common Parts
B-3501311-8E1-HJ671 1St Guiding Shim
9 2
●
Common Parts
B-3501312-8E1-HJ671 2Nd Guiding Shim
10 2
●
Common Parts
3501017-2E2 Brake Caliper Bolt
15 4
●
Common Parts
Q40512F3 Spring Washer
16 4
●
Common Parts
Pag. 82
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK

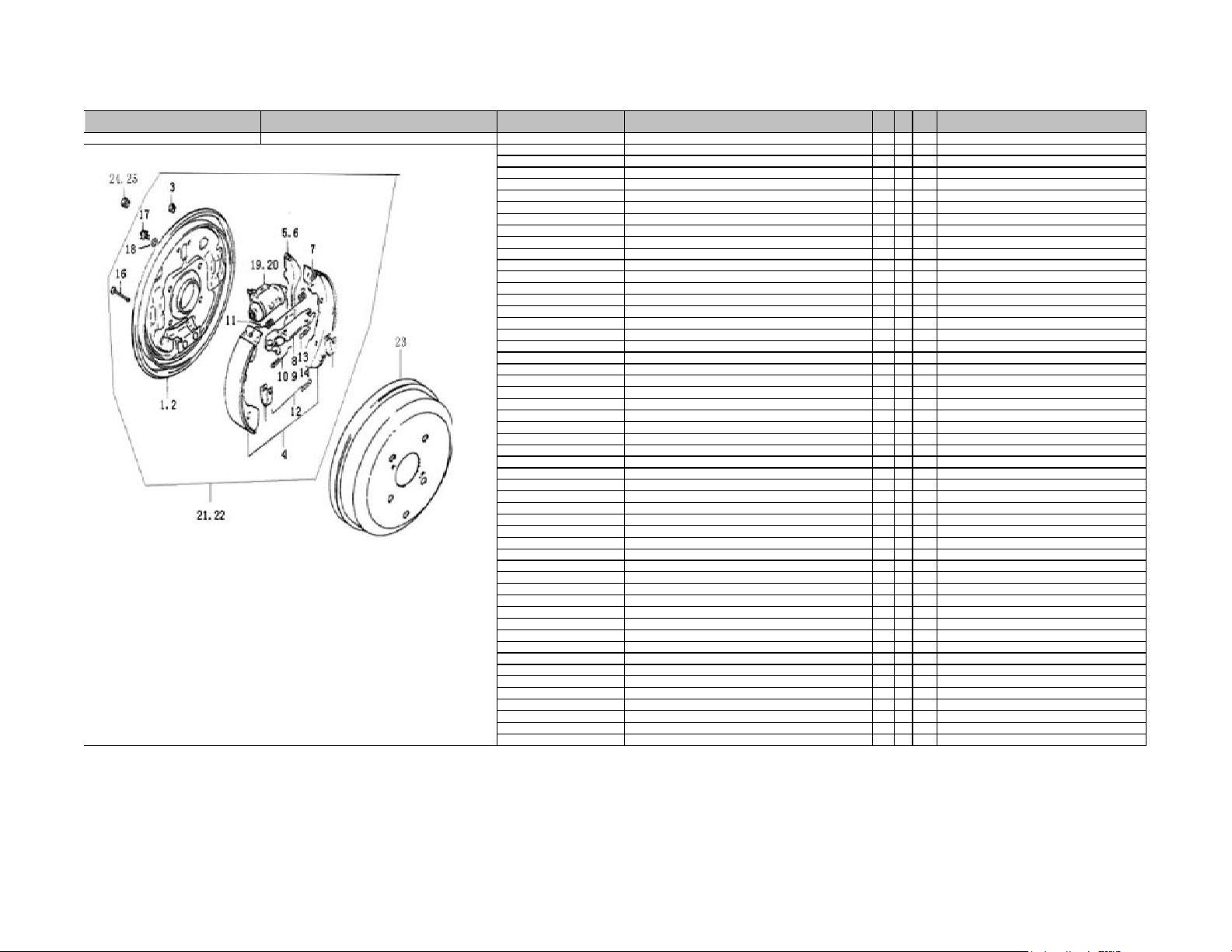

CHASSIS REAR BRAKE
3502025-V01 Plate-Rear Left Brake Assembly
1 1
●
Common Parts
3502030-V01 Plate-Rear Right Brake Assembly
2 1
●
Common Parts
3502119-V01 Plug, Watching Hole
3 2
●
Common Parts
3502050-V01 Brake Shoe Assembly
4 4
●
Common Parts
3502091-V01 Pulling Arm
5 1
●
Common Parts
3502092-V01 Pulling Arm
5 1
●
Common Parts
3502093-V01 Pin Shaft
6 2
●
Common Parts
Q43660 Cotter Ratain Washer
7 2
●
Common Parts
3502095-V01 Brake Clearance Self-Adjusting Mechanism,Rl
8 1
●
Common Parts
3502100-V01 Brake Clearance Self-Adjusting Mechanism,Rr
9 1
●
Common Parts
3502106-V01 Toothed Plate Tension Spring
10 2
●
Common Parts
3502113-V01 Returning Spring
11 2
●
Common Parts
3502111-V01 Brake Shoe And Pulling Spring
13 1
●
Common Parts
3502112-V01 Brake Shoe And Pulling Spring
14 1
●
Common Parts
3502116-V01 Position Spring
15 4
●
Common Parts
3502117-V01 Pin
16 4
●
Common Parts
Q1860612 Hexagon Head Bolt
17 4
●
Common Parts
Q40306 Spring Washer
18 4
●
Common Parts
B-3502065-2E2-JAJ068 Rear Brake Wheel Cylinder Assy (Left)
19 1
●
Common Parts
B-3502070-2E2-JAJ068 Rear Brake Wheel Cylinder Assy (Right)
20 1
●
Common Parts
3502015-2E2 Brake Assembly, Rl
21 1
●
Common Parts
3502020-2E2 Brake Assembly, Rr
22 1
●
Common Parts
3502121-2E2 Rear Brake Drum
23 2
●
Common Parts
CQ34008 Nut
24 8
●
Common Parts
Q40308 Sping Washer
25 8
●
Common Parts
Pag. 83
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK

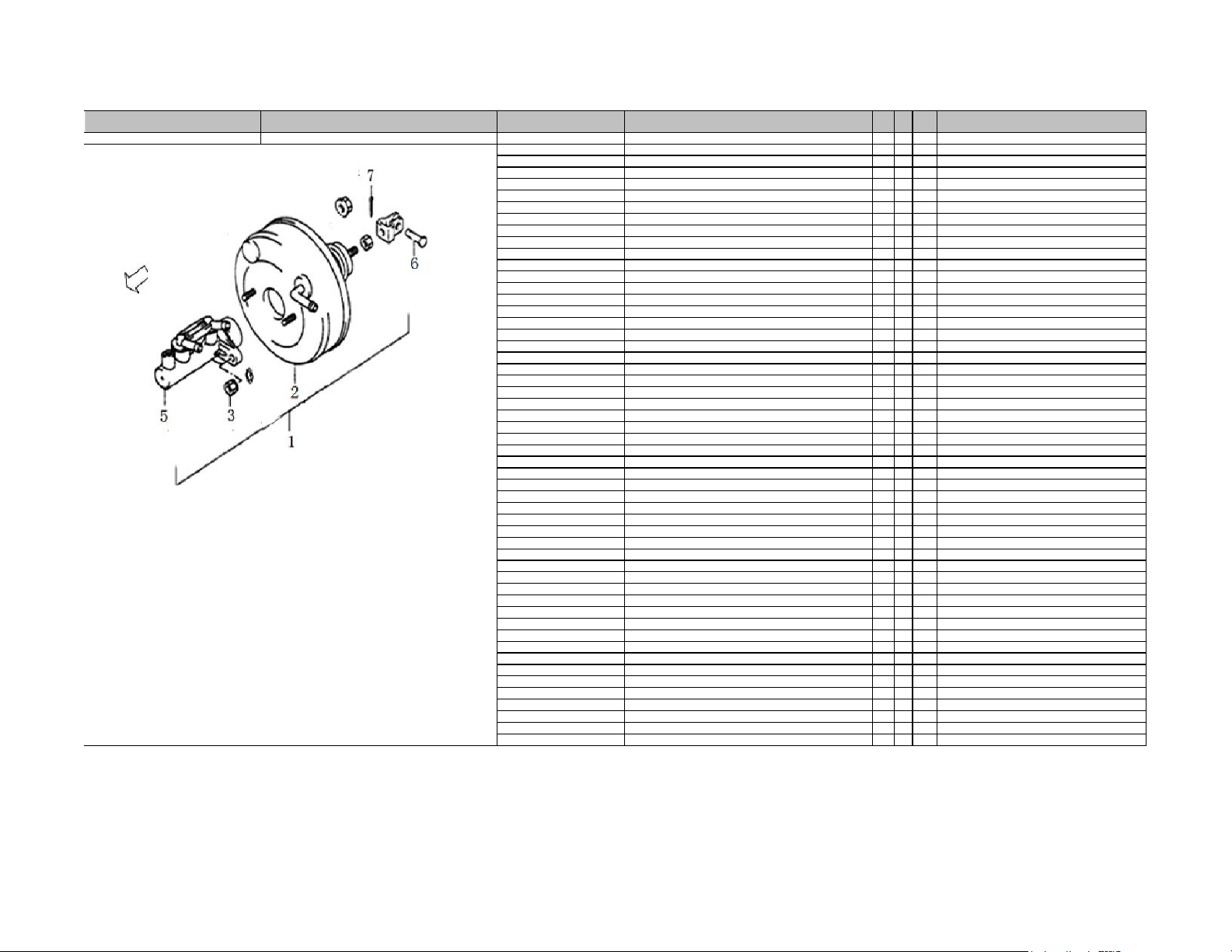

CHASSIS BRAKE MASTER CYLINDER
3539010-2E2 Vacuum Booster With Brake Master Cylinder Assy
1 1
●
Common Parts
3510010-2E2 Vacuum Booster Assy
2 1
●
Common Parts
3510032-2E2 Dust Cap
3 1
●
Common Parts
3505010-2E2 Brake Master Cylinder Assy
5 1
●
Common Parts
Q5101022 Pin
6 1
●
Common Parts
Q5003025 Cotter Pin
7 1
●
Common Parts
CQ34008 Nut
8 1
●
Common Parts
Q40308 Sping Washer
9 1
●
Common Parts
Pag. 84
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK

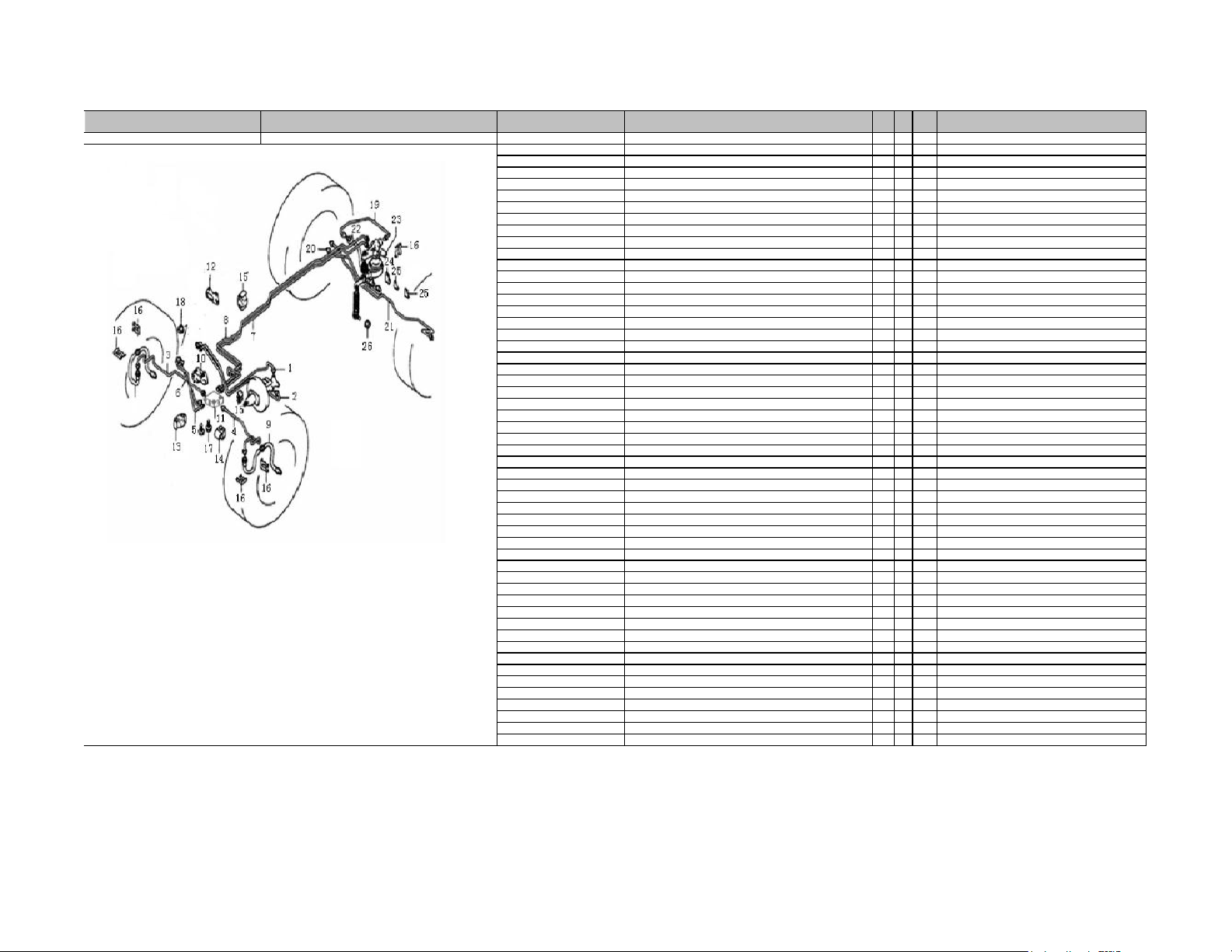

CHASSIS BRAKE TUBE & HOSE
3506115-2E2 Tube Assy-Brake
1 1
●
Only For Left Hand Vehicles Made After 2010
3506110-2E2 Tube Assy-Brake
2 1
●
Only For Left Hand Vehicles Made After 2010
3506140-2E2 Tube Assy-Brake
3 1
●
Common Parts
3506135-2E2 Tube Assy-Brake
4 1
●
Common Parts
3506120-2E2 Tube Assy-Brake
5 1
●
Only For Left Hand Vehicles Made After 2010
3506125-2E2 Tube Assy-Brake
6 1
●
Only For Left Hand Vehicles Made After 2010
3506145-2E2 Tube Assy-Brake
7 1
●
Common Parts
3506150-2E2 Tube Assy-Brake
8 1
●
Common Parts
3506070-2E2 Hose Assy-Front Brake
9 2
●
Common Parts
3506190-2E2 Three Way Connector-Brake Tube
10 1
●
After 2009-07
3506076-2E2 Six Way Connector
11 1
●
Common Parts
3506197-2E2 Liner, Three Way Connector
12 1
●
After 2009-07
3506219-2E2
Clip-Tube,Brake Ⅳ
13 1
●
Common Parts
3506218-2E2
Clip-Tube,Brake Ⅲ
14 1
●
Common Parts
3506217-2E2
Clip-Tube,Brake Ⅱ
15 7
●
Common Parts
3506091-V01 Spring Clip-Brake Hose
16 6
●
Common Parts
Q1840630 Hexagon Nuts With Flange
17 2
●
Common Parts
Q32006 Hexagon Nuts With Flange
18 3
●
Common Parts
3506155-2E2 Tube Assy-Brake
19 1
●
Common Parts
3506160-2E2 Tube Assy-Brake
20 1
●
Common Parts
3506165-2E2 Tube Assy-Brake
21 1
●
Common Parts
3506095-V01 Hose Assy-Rear Brake
22 1
●
Common Parts
3527010-2E2 Loading Level Value Assy
23 1
●
Common Parts
Q68506F4 Clip-Tube,Brake
24 1
●
Common Parts
Q68606F4 Single Pipe Clip
25 4
●
Common Parts
Q32008 Hexagon Nuts With Flange
26 1
●
Common Parts
Pag. 85
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK

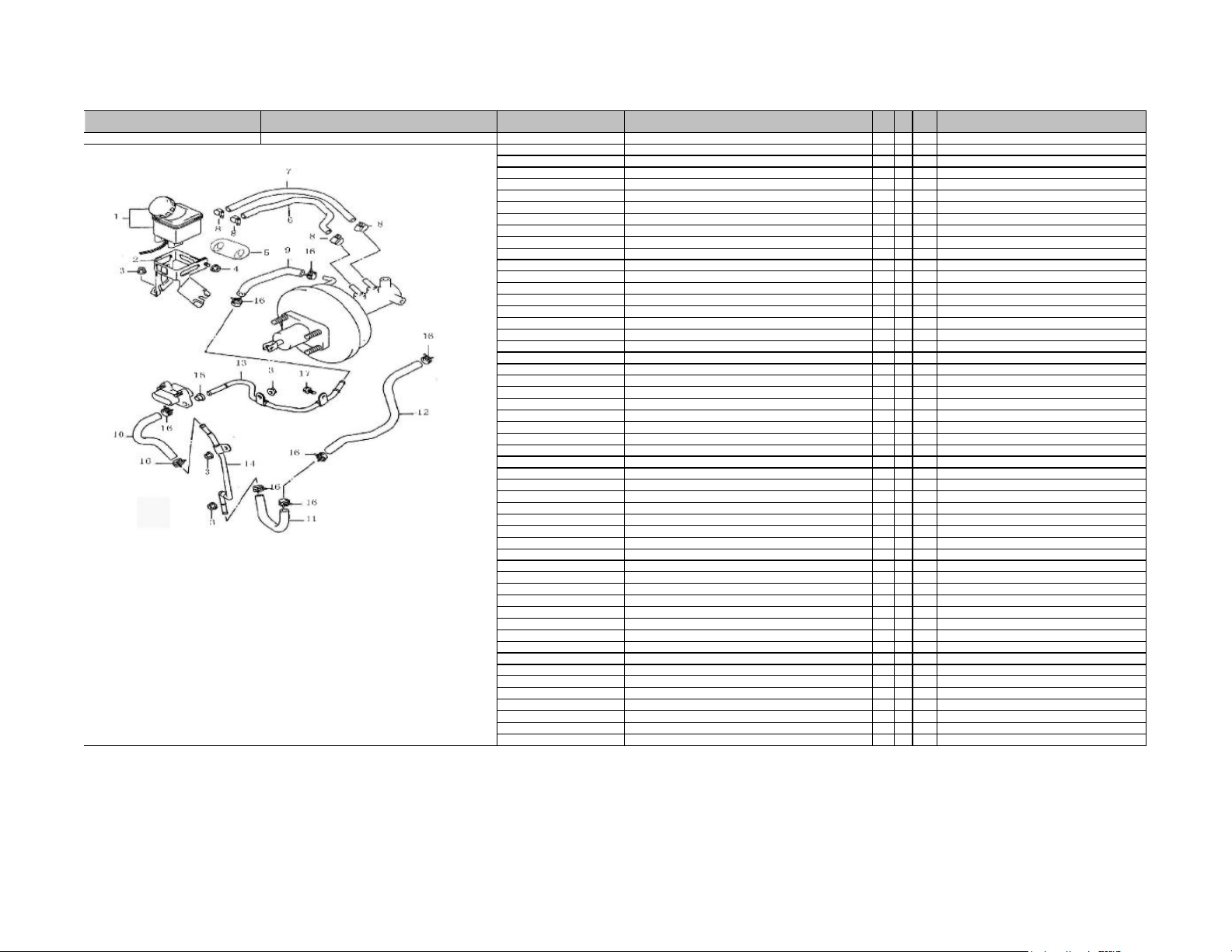

CHASSIS BRAKE OIL TANK
3506015-2E2 Brake Oil Tank Assy
1 1
●
Common Parts
3506020-2E2 Brake Oil Tank Bracket
2 1
●
Common Parts
Q32006 Hexagon Nuts With Flange
3 3
●
Common Parts
CQ34006 Nut
4 1
●
Common Parts
3506031-2E2 Glue Sleeve
5 1
●
Common Parts
3506026-2E2 Oil Pipe I
6 1
●
Common Parts
3506027-2E2
Oil Pipe Ⅱ
7 1
●
Common Parts
CQ67516 Grommet
8 4
●
Common Parts
3506044-2E2
Vacuum Soft Pipe Ⅳ
9 1
●
Common Parts
3506043-2E2
Vacuum Brake HoseⅢAssy
10 1
●
Only For Left Hand Vehicles Made After 2010
3506042-2E2
Vacuum Brake HoseⅡAssy
11 1
●
Only For Left Hand Vehicles Made After 2010
3506040Z2E2
Vacuum Brake HoseⅠAssy
12 1
●
Only For Eu4 Vehicles
3506050-2E2
Vacuum PipeⅡ Assy
13 1
●
Only For Left Hand Vehicles Made After 2010
3506045-2E2
Vacuum PipeⅠ Assy
14 1
●
Only For Left Hand Vehicles Made After 2010
3506052-1J0 Vacuum Pipe Bushing
15 1
●
Common Parts
Q673B17 Grommet
16 8
●
Common Parts
Q2360616 Cross Recessed Pan Head Screw
17 1
●
Common Parts
Pag. 86
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
ELECTRICAL EQUIPMENTS SWITCH 1
3735010-2J0 Combined Switch Assy
1 1
●
Only For Left Hand Vehicles Made After 2010
3735021M2E2 Upper Plastic Cover, Combined Switch
2 1
●
Only For New Beige/Gray Dashboard
3735023M2E2 Lower Plastic Cover, Combined Switch
3 1
●
Only For New Beige/Gray Dashboard
Q39739162 Reed Nut
5 4
●
Common Parts
3732210-2E2 Front Fog Light Switch Assy
8 1
●
Common Parts
3732220-2E2 Rear Fog Light Switch Assy
8 1
●
Common Parts
3720010-6J6 Brake Light Switch Assy
9 1
●
Common Parts
3818010-2E2 Hand Brake Switch Assy
10 1
●
Common Parts
3751080-2E2 Relay Box Assy
12 1
●
Eu4 Without A/C
3751030-6J6 Relay Assy
13 7
●
Common Parts
3751020-6J6 Flasher Relay
14 1
●
Common Parts
3758030-6J6 Dome Lamp And Door Interlock Switch Assembly
15 4
●
Common Parts
Pag. 87
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK

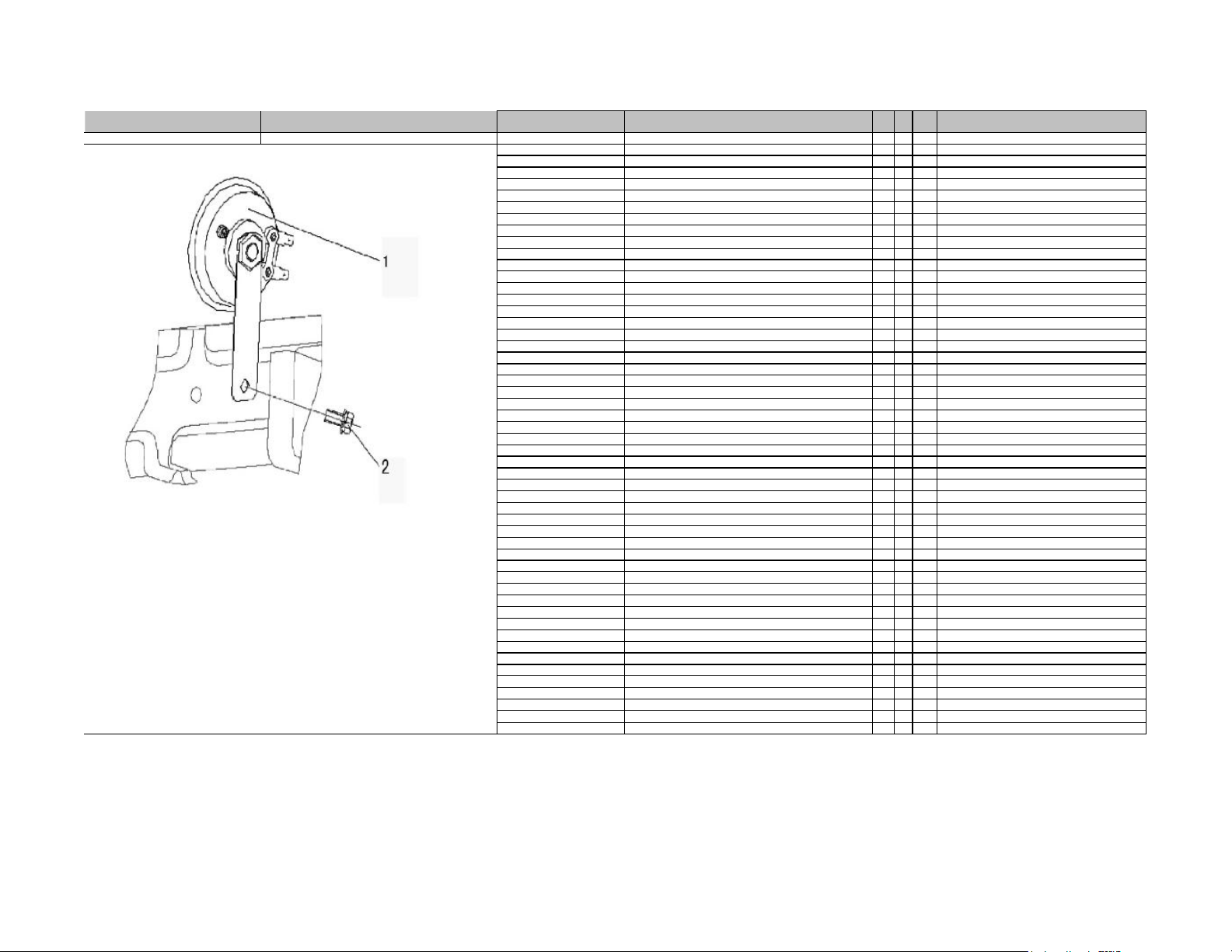

ELECTRICAL EQUIPMENTS HORN
3721010-2E2 Horn Assy
1 1
●
Common Parts
Pag. 88
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
ELECTRICAL EQUIPMENTS IGNITION COIL &ECM
3705010-2E2 Ignition Coil Assembly
1 1
●
Common Parts
Q2360635 Cross Recessed Pan Head Screw
2 2
●
Common Parts
3601010Z2E2 Ecm Electric Control Module
3 1
●
Eu4.970Cc
Q1840625 Hexagon Head Bolt
4 4
●
Common Parts
3604060-2E2 Acceleration Sensor Assy
5 1
●
Eu3,Eu4 Standard
Q32008 Hexagon Nuts With Flange
6 1
●
Common Parts
5101285-2E2 Bracket, Ecm
7 1
●
Common Parts
Pag. 89
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
ELECTRICAL EQUIPMENTS IGNITION SWITCH
3704901-2E2 Ignition Switch,All Vehicle Keys And All Door Lock Core
1 1
●
Common Parts
5401168-V01 Shim
2 1
●
Common Parts
Pag. 90
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
ELECTRICAL EQUIPMENTS INNER DOME LIGHT
3714010M2E2 Front Dome Light Assy
1 1
●
Only For New Beige/Gray Dashboard
C5W Bulb,12V 5W
5 1
●
Common Parts
Pag. 91
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
ELECTRICAL EQUIPMENTS FRONT & REAR COMBINED LIGHT
3711015-2E2 Left Front Combined Light Assy
1 1
●
Only For Left Hand Drive
3711020-2E2 Right Front Combined Light Assy
2 1
●
Only For Left Hand Drive
3716015-9V2 Left Rear Combined Light Assy
3 1
●
Only For 2011 New Rear Bumper Vehicle
3716020-9V2 Right Rear Combined Light Assy
4 1
●
Only For 2011 New Rear Bumper Vehicle
Pag. 92
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
ELECTRICAL EQUIPMENTS HIGH POSITION REAR BRAKE LIGHT
3773210-2J0 High Position Rear Brake Light
1 1
●
Without E-Mark
Q2140612F9 Cross Recessed Pan Head Screw
2 2
●
Common Parts
Pag. 93
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
ELECTRICAL EQUIPMENTS TURNING,FOG,LICENSE LIGHT
3726015-2E2 Side Turning Light Assy,Lh
1 1
●
Without E-Mark
3726020-2E2 Side Turning Light Assy,Rh
2 1
●
Without E-Mark
3732015-2E2 Left Front Fog Light Assy
4 1
●
Without E-Mark
3732020-2E2 Right Front Fog Light Assy
5 1
●
Without E-Mark
3717010-V01 License Plate Assy
10 1
●
Without E-Mark
Pag. 94
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK

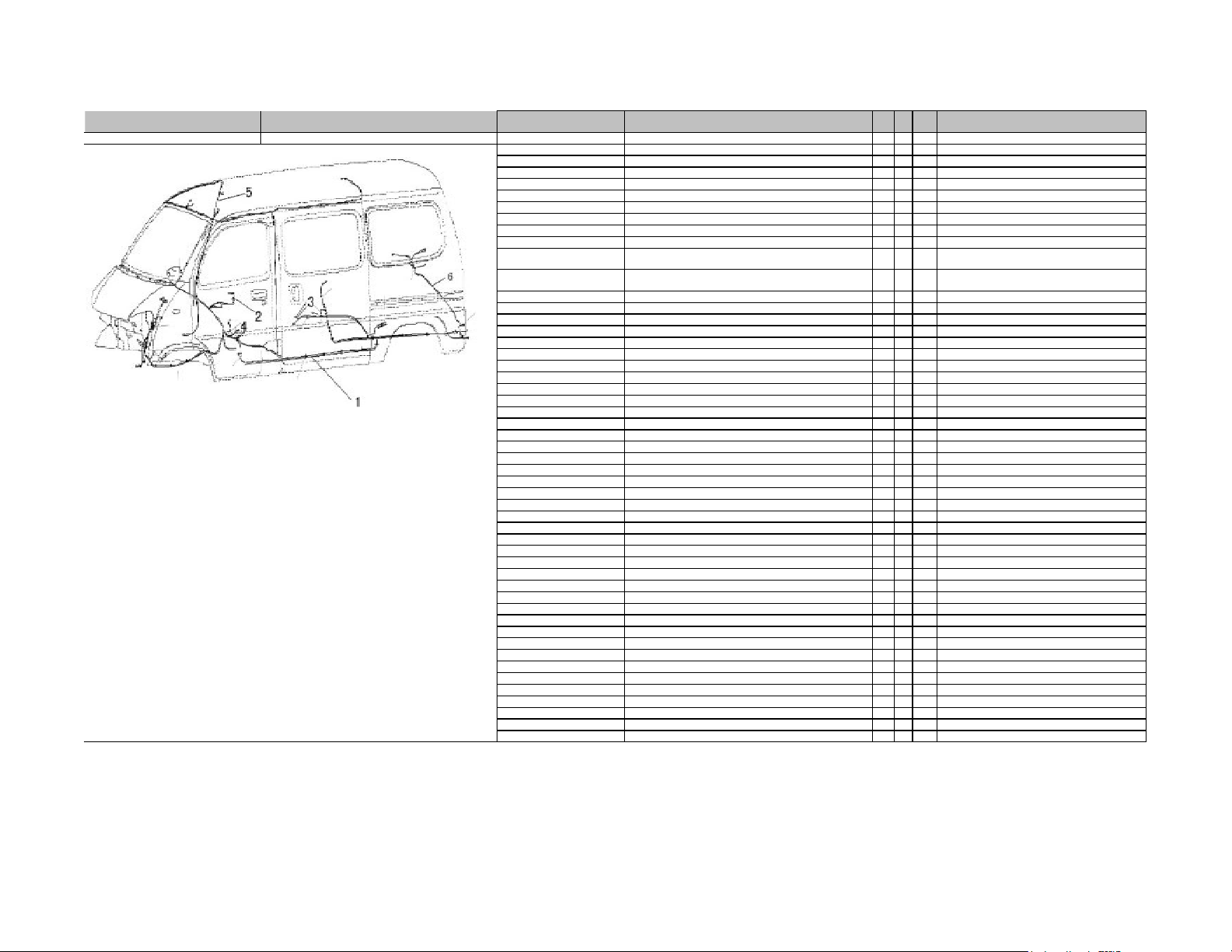

ELECTRICAL EQUIPMENTS WIREHARNESS-1
3724030Z2E2 Wire Assembly,Chassis
1 1
●
Only For Eu4,Without Power Headlight
3724017-8J0 Generator Lead-Meet Generator Positive Pole
2 1
●
Common Parts
3724035-2E2 Fuse Wireness
3 2
●
Common Parts
3724070-6J6 Wire Assy
4 1
●
Common Parts
3724050-2E2B1 Wire Assy,Dome Light
5 1
●
Common Parts
3724040-2E2A1 Wire Assy,Rear Combined Light
6 1
●
Common Parts,Except Power Head Light
Pag. 95
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
ELECTRICAL EQUIPMENTS WIREHARNESS-2
3724020F2E2 Wire Assy,Body
1 1
●
Only For Standard Eu4,Left Hand Drive
3722111-2E2 Center Match Electricity Box
2 1
●
Common Parts
3722013-2E2 Fuse Seat
2.1 1
●
Common Parts
BX2011C-5A Fuse
2.2 5
●
Common Parts
BX2011C-10A Fuse
2.3 8
●
Common Parts
BX2011C-15A Fuse
2.4 12
●
Common Parts
BX2011C-20A Fuse
2.5 4
●
Common Parts
3751020-6J6 Flasher Relay
2.6 1
●
Common Parts
3751030-6J6 Relay Assy
2.7 1
●
Common Parts
Pag. 96
GROUP NAME SECTION NAME
PART NUMBER DESCRIPTION IN ENGLISH
Key No.
Qty
Eu4 STD
REMARK
ELECTRICAL EQUIPMENTS WIREHARNESS-3
3724060-2E2A1 Front Cabin Wire Assy
1 1
●
Standard,Except Rhd And Power Heandlight
Pag. 97
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
