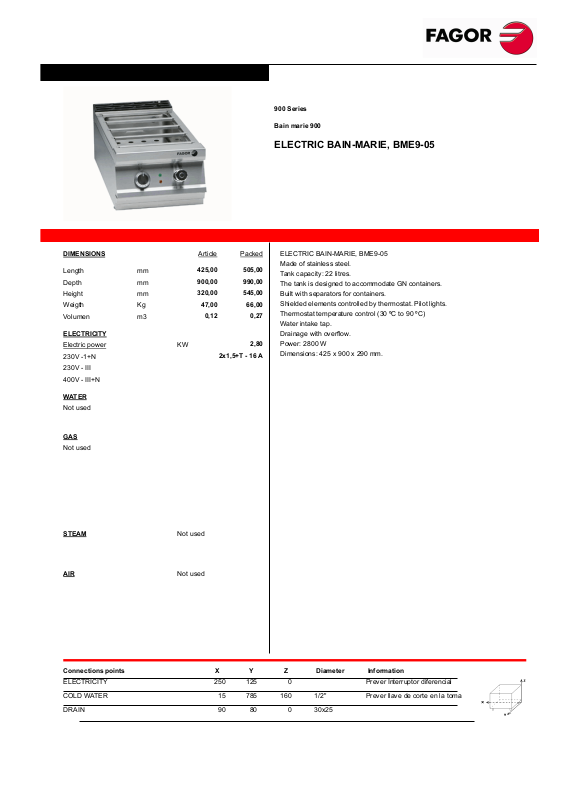

Fagor BME 9-05 Datasheet
900 Series
Bain marie 900
ELECTRIC BAIN-MARIE, BME9-05
DIMENSIONS |
|
Article |
Packed |
|
Length |
mm |
425,00 |
505,00 |
|
Depth |
mm |
900,00 |
990,00 |
|
Height |
mm |
320,00 |
545,00 |
|
Weigth |
Kg |
47,00 |
66,00 |
|
Volumen |
m3 |
0,12 |
0,27 |
|
ELECTRICITY |
|
|
|
|
Electric power |
|
KW |
2,80 |
|
230V |
-1+N |
|
|
2x1,5+T - 16 A |
230V |
- III |
|
|
|
400V |
- III+N |
|
|
|
WATER
Not used
GAS
Not used
STEAM |
Not used |
AIR |
Not used |
ELECTRIC BAIN-MARIE, BME9-05 Made of stainless steel.
Tank capacity: 22 litres.
The tank is designed to accommodate GN containers. Built with separators for containers.
Shielded elements controlled by thermostat. Pilot lights. Thermostat temperature control (30 ºC to 90 ºC)
Water intake tap. Drainage with overflow. Power: 2800 W
Dimensions: 425 x 900 x 290 mm.
Connections points |
X |
Y |
Z |
Diameter |
Information |
||
|
|
|
|
|
|
|
|
ELECTRICITY |
250 |
125 |
0 |
|
Prever Interruptor diferencial |
|
|
|
|
|
|
|
|
|
|
COLD WATER |
15 |
785 |
160 |
1/2" |
Prever llave de corte en la toma |
||
|
|
|
|
|
|
|
|
DRAIN |
90 |
80 |
0 |
30x25 |
|
|
|
|
|
|
|
|
|
|
|
