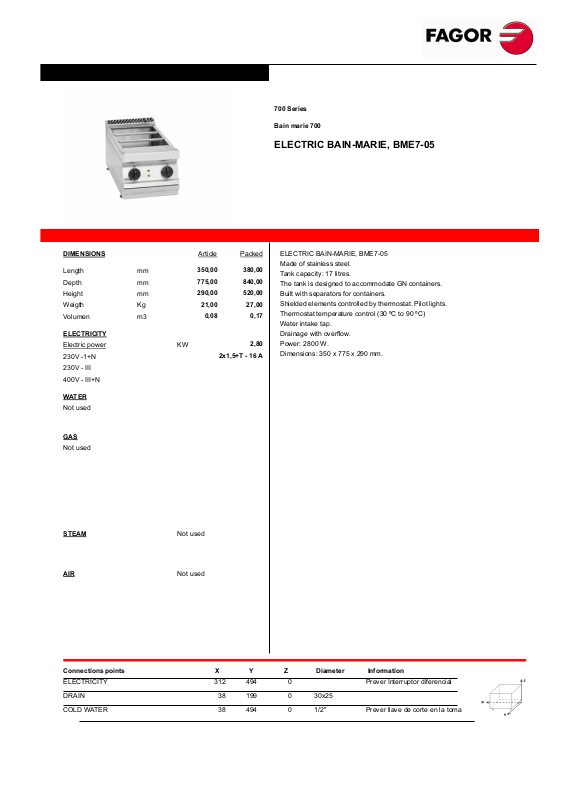

Fagor BME-705 Datasheet

ELECTRIC BAIN-MARIE, BME7-05

Bain marie 700

700 Series

ELECTRIC BAIN-MARIE, BME7-05
Made of stainless steel.
Tank capacity: 17 litres.
The tank is designed to accommodate GN containers.
Built with separators for containers.
Shielded elements controlled by thermostat. Pilot lights.
Thermostat temperature control (30 ºC to 90 ºC)
Water intake tap.
Drainage with overflow.
Power: 2800 W.
Dimensions: 350 x 775 x 290 mm.

350,00

775,00

290,00

21,00 27,00

0,17

Length

Depth

Height

Weigth

Volumen

mm

mm

mm

Kg

m3

2,80

2x1,5+T - 16 A

230V -1+N

230V - III

400V - III+N

GAS

KW

Connections points X Y Z Diameter Information

DIMENSIONS

380,00

840,00

520,00

0,08

ELECTRICITY

STEAM

AIR

Article Packed

Electric power

WATER

Not used

Not used

Not used

Not used

312 494 0ELECTRICITY Prever Interruptor diferencial

38 199 0DRAIN 30x25

38 494 0COLD WATER Prever llave de corte en la toma1/2"
