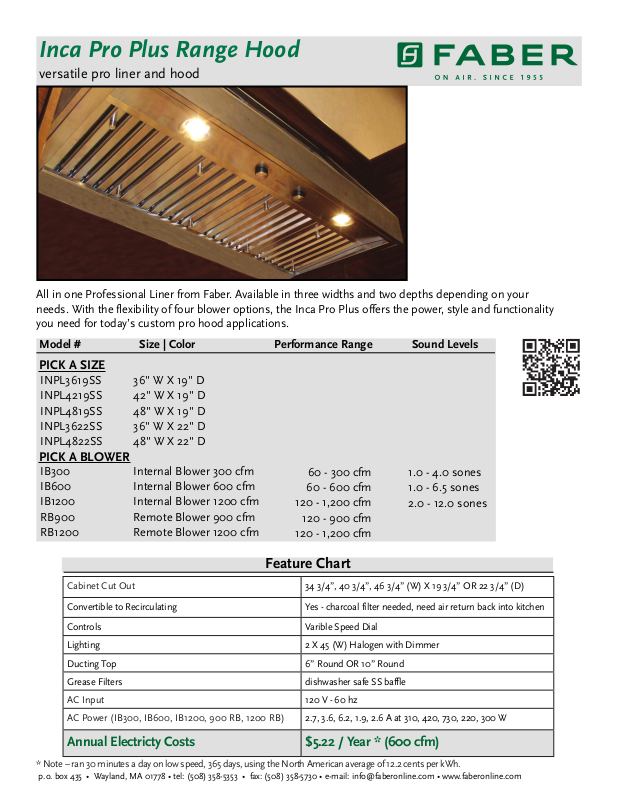

Inca Pro Plus Range Hood
versatile pro liner and hood
All in one Professional Liner from Faber. Available in three widths and two depths depending on your
needs. With the flexibility of four blower options, the Inca Pro Plus offers the power, style and functionality
you need for today’s custom pro hood applications.
Model # Size | Color Performance Range Sound Levels
PICK A SIZE
INPL3619SS
INPL4219SS
INPL4819SS
INPL3622SS
INPL4822SS
36" W X 19" D
42" W X 19" D
48" W X 19" D
36" W X 22" D
48" W X 22" D
PICK A BLOWER
IB300
IB600
IB1200
RB900
RB1200
Internal Blower 300 cfm
Internal Blower 600 cfm
Internal Blower 1200 cfm
Remote Blower 900 cfm
Remote Blower 1200 cfm
60 - 300 cfm
60 - 600 cfm
120 - 1,200 cfm
120 - 900 cfm
120 - 1,200 cfm
1.0 - 4.0 sones
1.0 - 6.5 sones
2.0 - 12.0 sones
Feature Chart
Cabinet Cut Out 34 3/4”, 40 3/4”, 46 3/4” (W) X 19 3/4” OR 22 3/4” (D)
Convertible to Recirculating Yes - charcoal filter needed, need air return back into kitchen
Controls Varible Speed Dial
Lighting 2 X 45 (W) Halogen with Dimmer
Ducting Top 6” Round OR 10” Round
Grease Filters dishwasher safe SS baffle
AC Input 120 V - 60 hz
AC Power (IB300, IB600, IB1200, 900 RB, 1200 RB) 2.7, 3.6, 6.2, 1.9, 2.6 A at 310, 420, 730, 220, 300 W
Annual Electricty Costs $5.22 / Year * (600 cfm)
* Note – ran 30 minutes a day on low speed, 365 days, using the North American average of 12.2 cents per kWh.
p.o. box 435 • Wayland, MA 01778 • tel: (508) 358-5353 • fax: (508) 358-5730 • e-mail: info@faberonline.com • www.faberonline.com
0
22 9/16” - 28 9/16” - 34 9/16”
OVERALL
6”
11 1/2”
17”
11 1/4”
Dimensional Diagrams
(see installation instructions for more information)
DUCT TRANSITION
Charcoal Filters
For recirculating installations, high
quality, heavy duty filters ensure the
removal of smoke and odors from
the kitchen. Some ductwork is
required to exhaust the unit out of
the cabinet.
# FILTER1
ACCESSORIES
In-line blower Kit
Use to connect a separately
purchased in-line blower to the
range hood
SIDE
#INLBKIT
WARNING! Product specifications are subject to change without notification. Consult the installation instructions before you begin installing this rangehood.
Rev. 11/12
