S418
UL325 - UL991
2
FAAC Model S418 Swing Gate Operator
CONTENTS
FAAC Model S418 - Rev: 02 - JUN 2012
Read this instruction manual before you begin installing the product.
= Information regarding personal safety and proper maintanence of the product.
IMPORTANT SAFETY INFORMATION 3
Important Safety Instructions 3
Important Installation Instructions 3
General Safety Precautions 4
UL325 Gate Operator Classications 5
Installing the Warning Signs 5
1. DESCRIPTION 6
1.1 DIMENSIONS 6
2. TECHNICAL SPECIFICATIONS 7
3. INSTALLATION 7
3.1 ELECTRICAL PREPARATIONS SETUP 7
3.2 PRELIMINARY CHECKS 7
3.3 INSTALLATION DIMENSIONS 7
3.4 INSTALLING THE OPERATOR 8
3.5 WIRING THE OPERATOR 10
3.6 MECHANICAL STOPS 10
4. AUTOMATED SYSTEM TEST 11
5. MANUAL OPERATION 11
5.1 RESTORING NORMAL OPERATION 12
6. MAINTENANCE 12
7. REPAIRS 12
10. S418 PARTS DIAGRAM 13
E024U CONTROL BOARD AND LIMITED WARRANTY A2 - A18
3
FAAC Model S418 Swing Gate Operator
1. Install the gate operator only when the following
conditions have been met:
• The operator is appropriate for the type and usage
class of the gate.
• All openings of a horizontal slide gate have been
guarded or screened from the bottom of the gate to
a minimum of 4 feet (1.25 m) above the ground to
prevent a 2.25 inch (55 mm) diameter sphere from
passing through openings anywhere in the gate or
through that portion of the adjacent fence that the
gate covers when in the open position.
• All exposed pinch points are eliminated or guarded.
• Guarding is supplied for exposed rollers.
2. The operator is intended for installation on gates used
by vehicles only. Pedestrians must be provided with a
separate access opening.
3. To reduce the risk of entrapment when opening and
closing, the gate must be installed in a location that
allows adequate clearance between the gate and
adjacent structures. Swinging gates shall not open
outward into public access areas.
4. Before installing the gate operator, ensure that the gate
has been properly installed and that it swings freely in
both directions. Do not over-tighten the operator clutch
or pressure relief valve to compensate for a damaged
gate.
5. User controls must be installed at least 6 feet (1.83
m) away from any moving part of the gate and located
where the user is prevented from reaching over, under,
around or through the gate to operate the controls.
Controls located outdoors or those that are easily
accessible shall have security features to prevent
unauthorized use.
6. The Stop and/or Reset buttons must be located within
line-of-sight of the gate. Activation of the reset control
shall not cause the operator to start.
7. All warning signs and placards must be installed
and easily seen within visible proximity of the gate. A
minimum of one warning sign shall be installed on each
side of the gate.
8. For gate operators that utilize a non-contact sensor
(photo beam or the like):
• See instructions on the placement of non-contact
sensors for each type of application.
• Exercise care to reduce the risk of nuisance tripping,
such as when a vehicle trips the sensor while the
gate is still moving.
• Locate one or more non-contact sensors where the
risk of entrapment or obstruction exists, such as at
the reachable perimeter of a moving gate or barrier.
• Use only FAAC “Photobeam” photoelectric eyes to
comply with UL325.
Important Installation Instructions
WARNING - TO REDUCE THE RISK OF SEVERE
INJURY OR DEATH:
• READ AND FOLLOW ALL INSTRUCTIONS.
• Never let children operate or play with the gate
controls. Keep remote controls away from children.
• Always keep people and objects away from the
gate. NO ONE SHOULD CROSS THE PATH OF A
MOVING GATE.
• Test the gate operator monthly. The gate MUST
reverse on contact with a rigid object or when an
object activates a non-contact sensor. If necessary,
adjust the force or the limit of travel and then retest
the gate operator. Failure to properly adjust and retest
the gate operator can increase the risk of injury or
death.
• Use the manual release mechanism only when the
gate is not moving.
• KEEP GATE PROPERLY MAINTAINED. Have
a qualied service person make repairs to gate
hardware.
• The entrance is for vehicles only. Pedestrians must
use a separate entrance.
• SAVE THESE INSTRUCTIONS.
IMPORTANT SAFETY INFORMATION
Important Safety Instructions
4
FAAC Model S418 Swing Gate Operator
Gate Construction
Vehicular gates should be constructed and installed
in accordance with ASTM F2200: Standard Specication for Automated Vehicular Gate Construction.
For more information, contact ASTM at: www.astm.org
Installation
• If you have any questions or concerns regarding the
safety of the gate operating system, do not install the
operator and consult the manufacturer.
• The condition of the gate structure itself directly
affects the reliability and safety of the gate operator.
• Only qualied personnel should install this equipment.
Failure to meet this requirement could cause severe
injury and/or death, for which the manufacturer
cannot be held responsible.
• The installer must provide a main power switch that
meets all applicable safety regulations.
• It is extremely unsafe to compensate for a damaged
gate by increasing hydraulic pressure.
• Install devices such as reversing edges and photo
beams to provide better protection for personal
property and pedestrians. Install reversing devices
that are appropriate to the gate design and
application.
• Before applying electrical power, ensure that voltage
requirements of the equipment correspond to the
supply voltage. Refer to the label on your gate
operator system.
Usage
• Use this equipment only in the capacity for which it
was designed. Any use other than that stated should
be considered improper and therefore dangerous.
• The manufacturer cannot be held responsible
for damage caused by improper, erroneous or
unreasonable use.
• If a gate system component malfunctions, disconnect
the main power before attempting to repair it.
• Do not impede the movement of the gate, you may
injure yourself or damage the gate system as a result.
• This equipment may reach high thermal temperatures
during normal operation, therefore use caution when
touching the external housing of the gate operator.
• Use the manual release mechanism according to the
procedures presented in this manual.
• Before performing any cleaning or maintenance
operations, disconnect power to the equipment.
• All cleaning, maintenance or repair work must
performed by qualied personnel.
General Safety Precautions
9. For gate operators that utilize a contact sensor (edge
sensor or similar):
• Locate one or more contact sensors where the risk
of entrapment or obstruction exists, such as at the
leading edge, trailing edge, and post mounted both
inside and outside of a vehicular horizontal slide
gate
• Locate one or more contact sensors at the bottom
edge of a vehicular vertical lift gate.
• Locate one or more contact sensors at the bottom
edge of a vertical barrier (arm).
• Locate one or more contact sensors at the pinch
point of a vehicular vertical pivot gate.
• Locate hard-wired contact sensors and wiring so
that communication between sensor and gate
operator is not subjected to mechanical damage.
• Locate wireless contact sensors, such as those
that transmit radio frequency (RF) signals, where
the transmission of signals are not obstructed or
impeded by building structures, natural landscaping
or similar hindrances. Wireless contact sensors shall
function under their intended end-use conditions.
• Use only FAAC MSE MO, CN60 or M60 edge
sensors.
Important Installation Instructions (continued)
5
FAAC Model S418 Swing Gate Operator
RESIDENTIAL VEHICULAR GATE OPERATOR CLASS I
A vehicular gate operator system intended for use in a single family dwelling, garage or associated parking area.
UL325 Gate Operator Classications
COMMERCIAL / GENERAL ACCESS VEHICULAR GATE OPERATOR CLASS II
A vehicular gate operator system intended for use in commercial locations or buildings such as multi-family housing
units (ve or more single family units), hotels, parking garages, retail stores or other buildings that service the general
public.
INDUSTRIAL / LIMITED ACCESS VEHICULAR GATE OPERATOR CLASS III
A vehicular gate operator system intended for use in industrial locations or buildings such as factories, loading docks
or other locations not intended to service the general public.
RESTRICTED ACCESS VEHICULAR GATE OPERATOR CLASS IV
A vehicular gate operator system intended for use in guarded industrial locations or buildings such as airport security
areas or other restricted access locations that do not service the general public, and in which unauthorized access is
prevented via supervision by security personnel.
This FAAC swing gate operator is supplied
with two warning signs to alert people that a
possible hazard exists and that appropriate
actions should be taken to avoid the hazard or
to reduce exposure to it.
Permanently install one warning sign on each
side of the gate so they are fully visible to
trafc and pedestrians.
Use appropriate hardware such as metal
screws (not supplied) to permanently install
each warning sign.
Installing the Warning Signs
6
FAAC Model S418 Swing Gate Operator
The FAAC Model S418 automated system for swing-leaf gates is an electro-mechanical operator which transmits its
movement to the gate leaf by means of a worm-screw system.
The irreversible system guarantees mechanical locking of the leaf when the motor is not operating. An easy-to-use
release device permits movement of the leaf in case of malfunction or a power outage.
The adjustable rear bracket permits the operator to be installed on most existing gate applications.
Fig. 1
Fig. 2
1. DESCRIPTION
Model S418 Swing Gate Operator
• Correct operation is only guaranteed when using authorized FAAC accessories, safety devices and control
units.
• The S418 automated system has been designed and constructed to control vehicle access in residential
units. Any other use must be avoided.
1.1 DIMENSIONS
32 ½
5
13¾
4¼
*
Dimensions in Inches
Part Description Part Description
1 Operator 6 Power Cable
2 Release Device 7 Front Bracket
3 Mechanical Stop at Closing 8 Adjustable Rear Bracket
4 Mechanical Stop at Opening 9 Rear Fitting
5 Cable Cover
7
FAAC Model S418 Swing Gate Operator
3. INSTALLATION
Technical Specications S418
Power Supply (VDC) 24
Nominal Power (W) 35
Absorbed Current (A) 1.5
Maximum Thrust Force (lbf) 405
Stroke (inches) 13 3/4
1
Cycles per day at 68 °F (approx) 80
Class of operation Residential
Rod speed (inches/sec) 0.7
Maximum Size of Leaf (feet) 12
Ambient Operating Temperature (°F) -4 to 131
Operator Weight (lbs) 13.2
Protection Class IP54
1
If you do not use the mechanical stops on opening and
closing, the operator stroke increases to 15 1/4 inches.
2. TECHNICAL SPECIFICATIONS
3.2 PRELIMINARY CHECKS
The structure of the gate directly inuences the reliability
and safety of the automated system. To ensure correct
operation, the structure of the existing gate, or that to be
tted, must have the following characteristics:
• The length of leaf must conform to what is shown in the
technical characteristics of the operator (Section 2).
• The structure of the leaves must be sturdy and rigid,
suitable for an automated system.
• There must be regular and uniform movement of the
leaves, with no friction or sticking along their entire
movement.
• Hinges must be suitably sturdy and in good condition.
It is recommended that any metalwork operations
should be performed prior to installing the automated
system.
3.1 ELECTRICAL SETUP
When laying electrical cables, use conduits with adequate
rigidity and/or exibility.
To avoid any type of interference, always separate low-
voltage accessories and command connection wiring from
power supply cables, use separate sheaths.
Fig. 3
Part Description Cables
1 Operators
2 x AWG 14 (max 30’)
AWG 12 (max 50’)
AWG 10 (max 100’)
2 Control Unit 3 x AWG 14 (AC Power)
3 TX Photocells 4 x AWG 20
4 RX Photocells 2 x AWG 20
5 Key Selector 2 x AWG 20 (1 contact)
6 Flashing Lamp 2 x AWG 14
7 External Antenna Coaxial Cable
8 Mechanical Stops
Dimensions in Inches
3.3 INSTALLATION DIMENSIONS
Determine the assembly position of the operator, referring to
Figure 4 and relative table. It is a good idea at this stage to
choose whether or not you want to use the built in mechanical
positive stops; eliminating the mechanical stops increases the
working stroke of the operator and values A and B must be
changed.
Fig. 4
a
A B C 1D 2Z 3L E
3
With both
stops
90°
6½ 6½ 13 3½ 3 27 4⅛
6⅞ 6⅞ 13¾ 3½ 3⅛ 27 4⅛
110° 6 6 13⅜ 3⅛ 2¾ 27 4⅛
With open
stop
90°
6⅞ 6½ 13⅜ 4 3 28 4⅛
7 7 14⅛ 4 3⅛ 28 4⅛
110° 6¼ 6¼ 14⅛ 3½ 2¾ 28 4⅛
With no stops
90° 7 7 14⅛ 4 2¾ 28 4⅛
110° 6⅝ 6⅝ 15 4 2¾ 28 4⅛
1
Working stroke of the operator.
2
Maximum value.
3
Minimum value.
8
FAAC Model S418 Swing Gate Operator
If the size of the pillar or the position of the hinge does
not permit the proper installation of the operator, a niche
will have to be made in the pillar (as indicated in Figure 6)
in order not to change value A (Figure 4). The size of the
niche must be such as to permit an easy installation of the
operator, not limiting its rotation and allowing activation of
the manual release device.
Fig. 8
Fig. 9
Fig. 6
The rear bracket is adjustable to different positions, which
limits modications necessary to satisfy installation values
A and B.
Figure 7 shows some of the positions that the bracket can
take; all the positions intermediate to those shown may be
obtained.
The positions chosen must permit the assembly of the
bracket using both securing screws.
3.3.1 General Rules for Determining Installation Values
• To obtain opening of the leaf to 90°: A+B=C.
• To obtain opening of the leaf more than 90°: A+B<C.
• Lower A and B values produce higher peripheral leaf
speeds.
• Limit the difference between value A and value B to within
1½ inches, greater differences may cause variations in
speed during opening and closing gate movements.
• Maintain a Z value that keeps the operator from striking
the pillar.
• The mechanical stops intervene during the rst and nal
1½ inches of the stroke. Not utilizing the entire operator
stroke could limit the possible adjustments or reduce
them to zero.

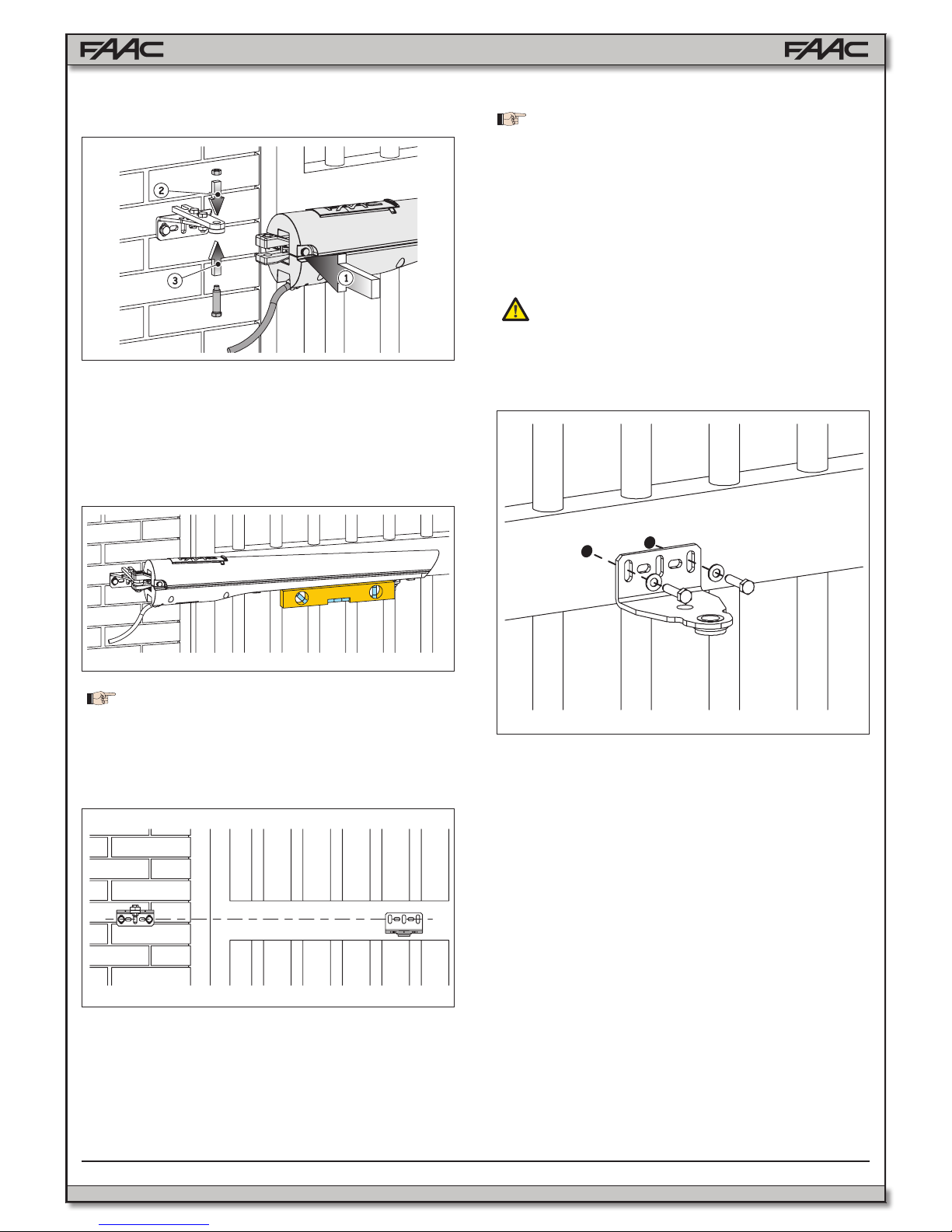

3.4 INSTALLING THE OPERATOR
To correctly install the operator, follow the procedure below:
1. Secure the xed part of the rear bracket in the position
determined previously, using suitable assembly systems.
In the case of iron pillars, the bracket may be welded
directly to the pilaster, see Figures 8 and 9.
During assembly procedures, check that the bracket is
perfectly horizontal using a level.
6½
4⅞
4⅛
4¼
2⅞
2
2½
3¼
1½
2½
Fig. 7
Dimensions in Inches
9
FAAC Model S418 Swing Gate Operator
2. Secure the rear bracket, as indicated in Figure
10, so as to follow the A and B values determined
previously.
2⅛
Fig. 12
1⅜
Fig. 13
Fig. 10
Fig. 11
Fig. 14
4. Check that the front fitting is in the position
indicated in Figure 12 (with the mechanical stop
at closing) or in Figure 13 (with no mechanical
stop at closing). If this cannot be accomplished,
the operator must be temporarily powered* in
order to bring the tting into position.
* A 12 VDC battery may be used.
5. Secure the front bracket as indicated in Figure 14.
3. Secure the rear fitting of the operator as
indicated in Figure 11.
Dimensions in Inches
Dimensions in Inches
10
FAAC Model S418 Swing Gate Operator
Fig. 15
Fig. 16
Fig. 17
6. Secure the operator to the rear bracket using the
appropriate bolt supplied, as indicated in Figure 15.
7. Bring the leaf of the gate to the close position.
8. Bring the operator, together with the related bracket,
alongside the leaf.
9. Check that the operator is horizontal using a level,
as indicated in Figure 16, and temporarily secure it
with clamps or two welding points.
The axis of the securing holes of the front bracket must
be aligned with the axis of the securing holes of the rear
bracket, see Figure 17.
If the structure of the gate does not permit reliable
mounting, the structure of the gate must be reinforced
to provide a solid supporting base.
10. Prepare the operator for manual operation, see
Section 5, and move the leaf manually, checking that
it completes the entire opening operation required,
stopping at the mechanical stops.
If, during the test, the operator hits the leaf of the
gate, value E may be increased, see Figure 4, up to
a maximum of 4½ inches, using appropriate spacers
placed between the front bracket and the leaf of the
gate.
11. Perform any corrective measures necessary and
repeat the procedures from Step 9.
12. Permanently secure the front bracket, using a
suitable securing system as indicated in Figure 18.
If it is decided to weld the bracket directly onto the
leaf, the operator must be released temporarily. Wait
for the bracket to cool before reattaching the
operator.
Fig. 18
3.5 WIRING THE OPERATOR
The operator is supplied with the cable already connected.
If the cable has to be replaced, install a cable rated for
outdoor use.
3.6 MECHANICAL STOPS
The S418 operator is supplied with mechanical stops
on opening and closing as standard. These may be
used in place of mechanical stop-points for the leaf. For
adjustment of the stops, proceed as follows:
3.6.1 Mechanical Stop at Opening
1. Prepare the operator for manual operation, see
Section 5.
2. Manually move the leaf into its opening position.

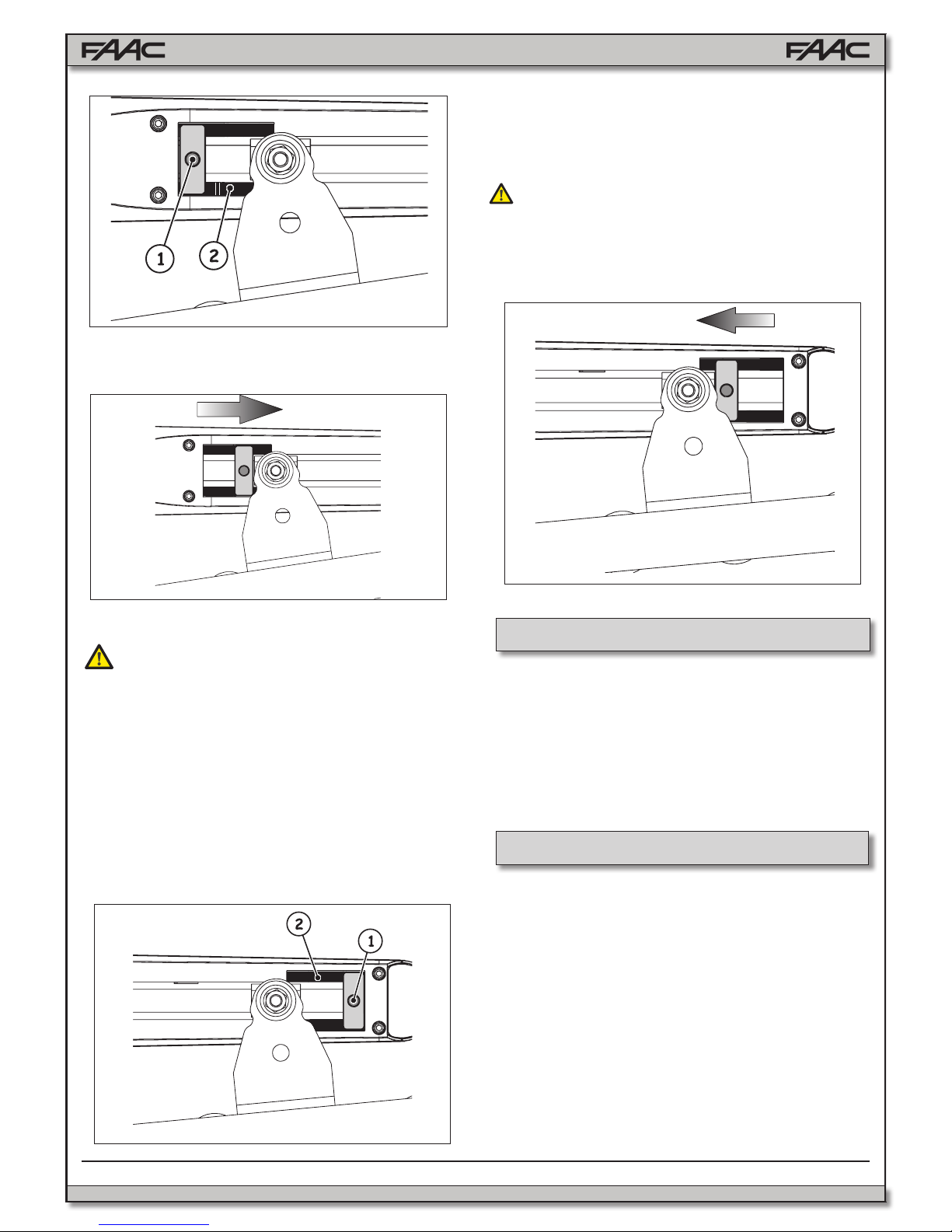

3. Loosen the securing screw, Figure 19 Ref. 1. The
screw does not need to be completely removed.
11
FAAC Model S418 Swing Gate Operator
Fig. 19
Fig. 20
Fig. 21
Fig. 22
5. Tighten the securing screw once again.
The mechanical stop is coupled to a toothed
sector, Figure 19 Ref. 2.
In the case of obstructions during movement,
check that the coupling is free. DO NOT FORCE
IT.
4. Move the mechanical stop until it is close to the
front tting, as indicated in Figure 20.
3.6.2 Mechanical Stop at Closing
1. Prepare the operator for manual operation, see
Section 5.
2. Manually move the leaf into its closing position.
3. Loosen the securing screw, Figure 21 Ref. 1. The
screw does not need to be completely removed.
4. Move the mechanical stop until it is close to the
front tting, as indicated in Figure 22.
5. Tighten the securing screw once again.
The mechanical stop is coupled to a toothed
sector, Figure 21 Ref. 2.
In the case of obstructions during movement,
check that the coupling is free.
DO NOT FORCE IT.
• Once all necessary electrical connections have
been made, power up the system and program
the control unit based on your individual needs
(see relevant instructions).
• Perform a test of the automated system and of all
connected accessories, paying special attention
to safety devices.

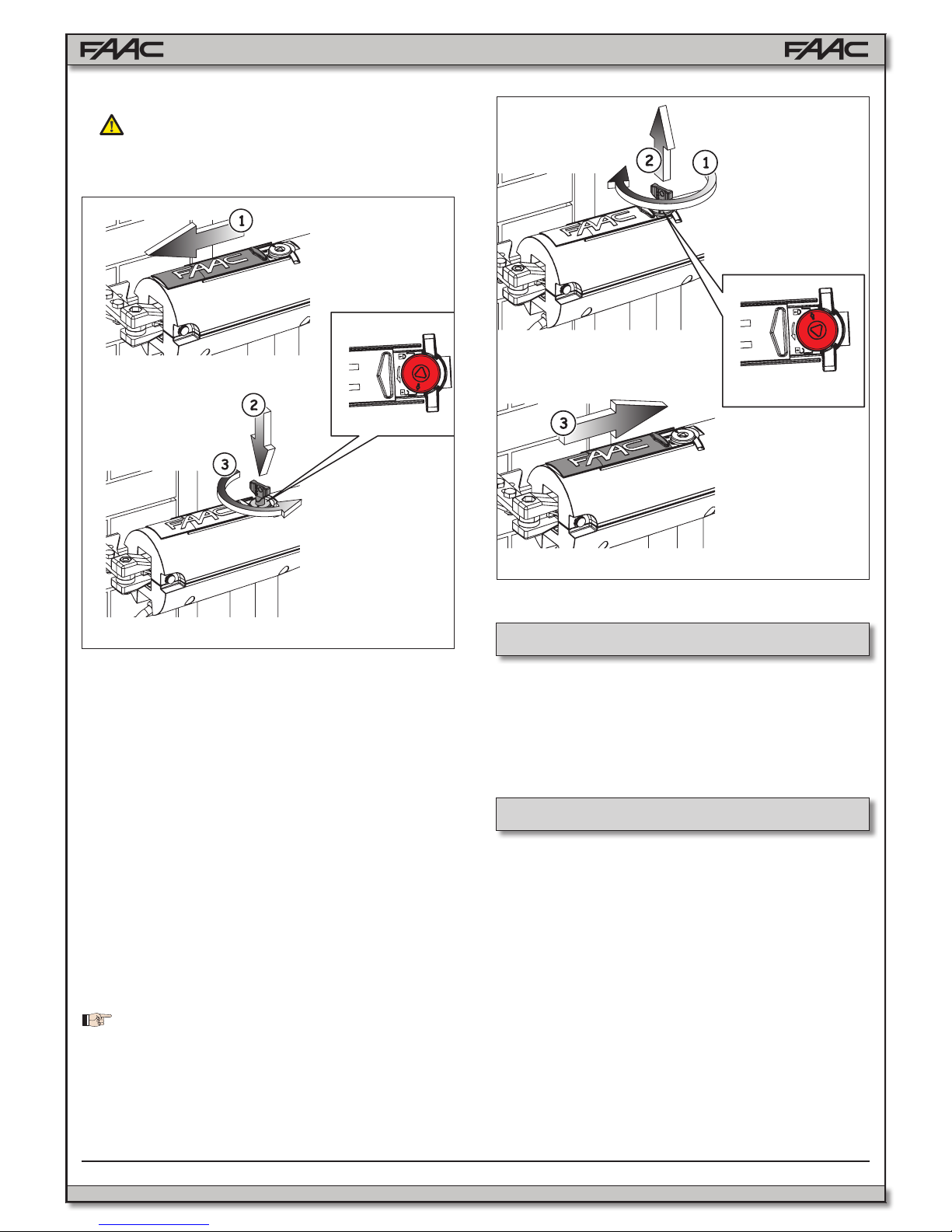

4. AUTOMATED SYSTEM TEST
If the automated system needs to be moved manually,
due to a power outage or operator malfunction, perform
the following steps to release the device:
1. Switch off the power supply to the system.
2. Slide off the protective cap, Figure 23 Ref. 1.
3. Insert the supplied release key, Figure 23 Ref. 2,
and turn it counter-clockwise until it stops, Figure
23 Ref. 3. The release position is indicated by
an open padlock.
4. Move the leaf manually.
5. MANUAL OPERATION
12
FAAC Model S418 Swing Gate Operator
Fig. 24
Fig. 23
5.1 RESTORING NORMAL OPERATION
To restore normal operation mode, proceed as follows:
1. Ensure that the system is not powered.
2. Turn the release key clockwise until it stops, Figure
24 Ref. 1, and remove the key, Figure 24 Ref.
2. The locking position is indicated by a closed
padlock.
3. Close the protective cap, Figure 24 Ref. 3.
4. Manually move the leaf until the device engages
and the leaf locks.
5. Power up the system and perform several open/
close operations to check that all functions of the
automated system have been restored.
During the rst cycle, the operator might not slow
down correctly. However, wait for the end of the cycle
and then give the opening command once again.
6. MAINTENANCE
In order to ensure correct operation and constant
safety over time, make a general check of the system every six months, paying special attention to the
safety devices.
7. REPAIRS
The user must not carry out any repairs or maintenance operations; these must be performed only
and exclusively by qualied FAAC personnel or
FAAC service centers.
To keep the operator in manual mode, the release
device must be left in its current (unlocked) position and
the system must not be powered.
13
FAAC Model S418 Swing Gate Operator

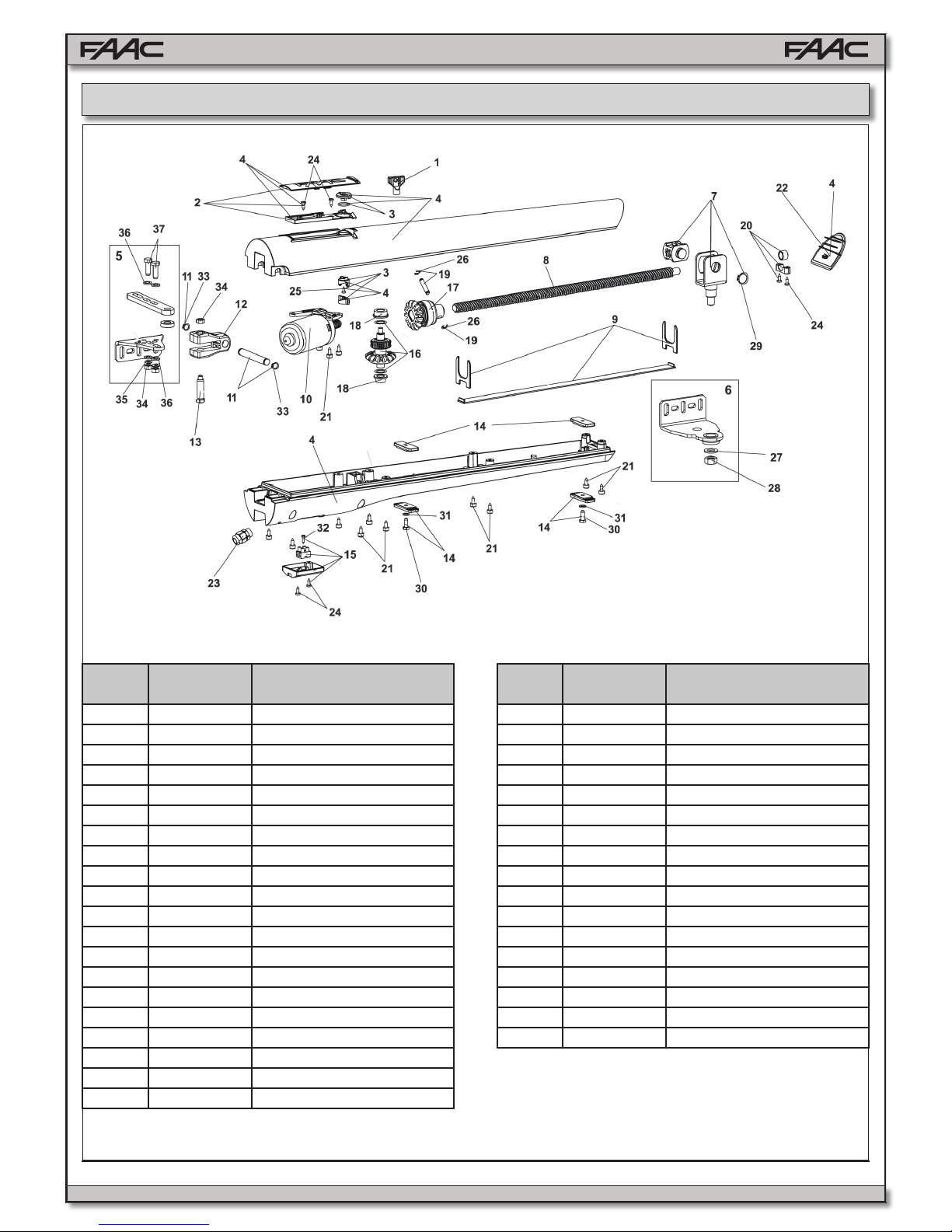

8. S418 PARTS DIAGRAM
Part Part
Number
Description
01 713002 RELEASE KEY
02 63001555 RELEASE COVER
03 63001565 RELEASE ASSEMBLY
04 63001575 OPERATOR BODY
05 63001585 REAR ADJUSTABLE BRACKET
06 63001515 FRONT BRACKET
07 63001595 LEAD NUT
08 63001525 SCREW
09 63001605 SCREW COVER
10 63001615 MOTOR
11 718366 LONG PIN
12 7228015 REAR FORK
13 7182075 SHORT PIN
14 63001625 MECHANICAL STOP
15 63001635 HARNESS COVER
16 60202215 TENSIONING SET
17 60202225 EXIT SHAFT
18 60202165 BUSH
19 718367 PIN W/SEEGER
20 60202355 BUSH FOR FIXING WORM GEAR
Part Part
Number
Description
21 63001545 10 SCREWS Ø4.8X13 S418
22 63001535 FRONT CAP
23 NOTA05 GLAND
24 701459 AUT. 3.5X 13 6954
25 701405 SCREW AUT. 3.5X9.5 6954 AB N
26 704049 SEEGER E 6 7434 INOX
27 XRO00120025Z WASHER 13X2.5 UNI 6592
28 702102 NUT ES. 12 5588 6S Z
29 704029 SEEGER E 18 UNI 7435
30 701110002 TE 6X 16 5739 8G Z G
31 703103 GROWER WASHER 6 1751 Z
32 701418 AUT. 2.9X 13 6954 AB
33 704002 CIRCLIP E10 7435
34 702106 NUT ES. 8 5588 6S Z
35 703104 GROWER WASHER 8 1751 Z
36 XRO00080016Z WASHER 8.4X1.6 UNI6592
37 701122002 TE 8X 25 5739 8G Z

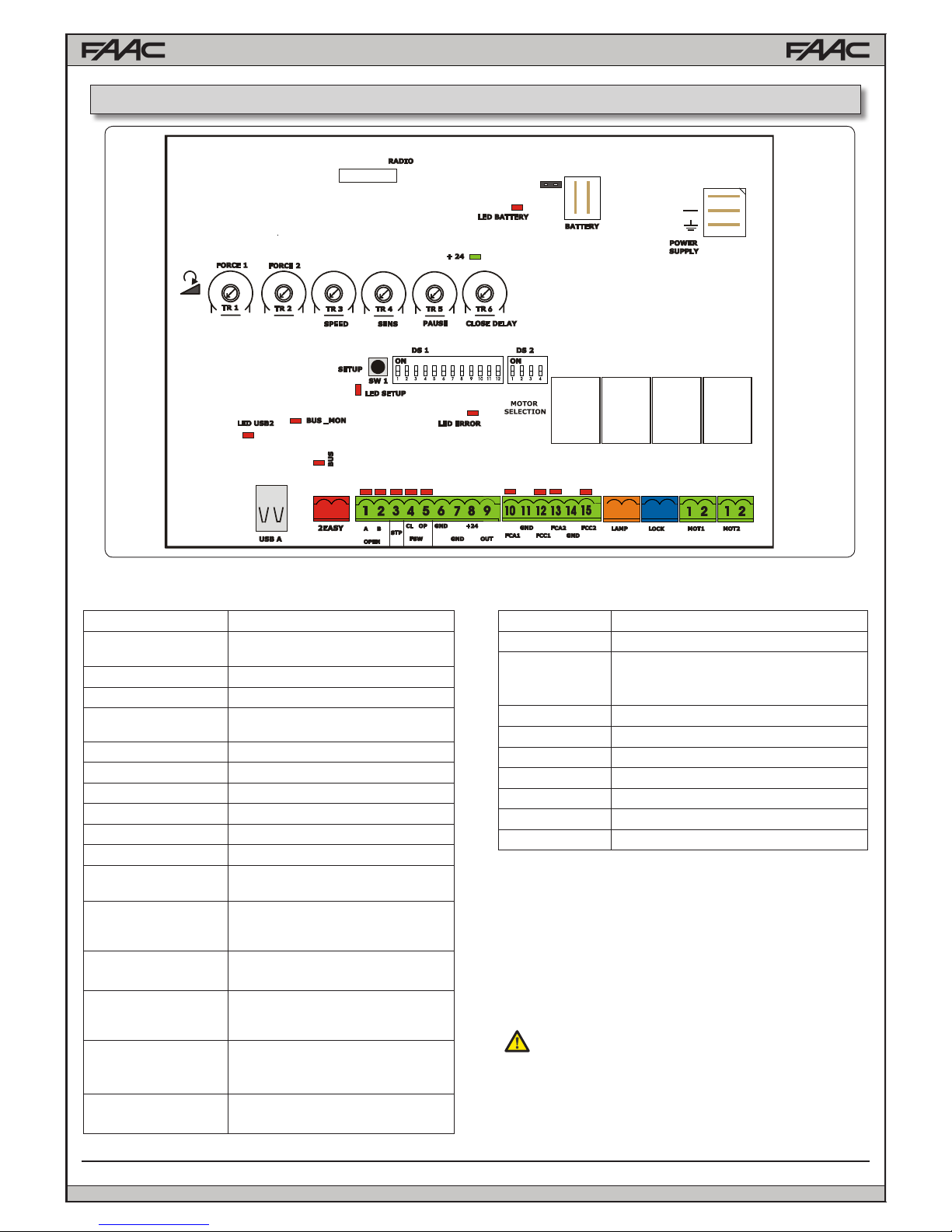

SETTING
+
J24
DL19 DL20 DL21 DL22DL14 DL15 DL16 DL17 DL18
Main power supply
115/230 V~ 50/60 Hz switchable
Secondary power
supply
24 Vdc - 16 A max.
(min. 20 Vdc. - max. 36 Vdc.)
Power consumption
stand-by = 4W max. = 400 W
Max load per motor
7 A
Accessory power
supply
24 Vdc - 500 mA
Battery charge current
150 mA
Operating temperature
-4 °F.........+131 °F
Protection fuses
All self-resetting
Main power fuse
2.5 A Timed
Operating Logics
E, A, S, EP, AP, SP, B, C
Operating time out
10 min.
Pause time Programmable (0 to 4 min)
with trimmer
Motor force, speed,
obstacle sensitivity,
closing delay
Programmable with
dedicated trimmer
Connector inputs
Power supply, Battery,
Radio receiver, USB
Terminal strip inputs Encoder, Open A, OpenB, Stop,
Open safety fotocell, Closing safety
fotocell, Limit switches
Terminal strip outputs Lamp, Buzzer, Motors, Lock,
Programmable OUT,
accessory power supply
Programming
With trimmers,
dipswitches
and pushbutton
RADIO
Connector for the radio receiver
BATTERY
Connector for the backup battery
J24 Jumper to disable battery charging
(With the jumper present the battery
is charged)
POWER SUPPLY
DC Power supply input
TR1 to TR6
Programming Trimmers
+24 LED
DC power indicator
SW1 - SETUP
Pushbutton for automatic setup
DS1 - DS2
Programming dipswitches
LED ERROR
Troubleshooting indicator
USB A
USB connection for software upgrade
On the radio connector it’s possible to plug in receivers RP
and RP2. With a single channel radio RP it will be possible to
activate only the OPEN A input, with a dual channel radio RP2
it will be possible to activate both OPEN A and OPEN B inputs.
Plug in the radio board with the component side towards the
internal part of the board.
Make sure you insert or disconnect the board ONLY with the
power off.
1. E024U CONTROL BOARD DESCRIPTION & CHARACTERISTICS
1.1 TECHNICAL SPECIFICATIONS 1.2 LAYOUT AND COMPONENTS
1.3 RADIO CONNECTION
Fig. A1
A2
E024U CONTROL BOARD
A B STP CL OP
OPEN FSW
Fig. A2
PIN LABEL FUNCTION
2 EASY 2 EASY Input for bus 2easy accessories (encoder)
1 OPEN A N.O. Contact for total opening command
2 OPEN B /
CLOSE
OPEN B: N.O. Contact for opening of leaf 1 only
(with only one leaf the opening stops at 50% of traveling)
CLOSE (LOGIC B-C): N.O. Contact for closing command
3 STOP N.C. Contact for stop command
4 FSW CL N.C. Contact for closing safety
5 FSW OP N.C. Contact for opening safety
6 GND (-) 24 Vdc negative
7 GND (-) 24 Vdc negative
8 + 24 24 Vdc positive
9 OUT (-) Programmable output (See: DS1 SW 11-12)
10 FCA 1 Open limit switch Motor 1
11 GND (-) 24 Vdc negative
12 FCC 1 Close limit switch Motor 1
13 FCA 2 Open limit switch Motor 2
14 GND (-) 24 Vdc negative
15 FCC2 Close limit switch Motor 2
LAMP LAMP Audio alarm output (DS1 SW11=OFF)
Output for ashing light 24Vdc 15W max (DS1 SW11=ON)
LOCK LOCK Output for electrical lock, max 5A pulse (DS2 - SW 4=OFF) 12 Vac / 24Vdc
Always ON (maglock): max 1 A (DS2 - SW 4=ON) 24 Vdc
MOT1 MOT 1 Motor 1 output ( rst moving motor )
MOT2 MOT 2 Motor 2 output ( second moving motor )
USB A USB Firmware upgrade input
2. INPUT / OUTPUT DESCRIPTION
A3
E024U CONTROL BOARD
FSW
STP CL OP
How to connect Normally Open contacts.
(Connect them in parallel)
How to connect Normally Close contacts.
(Connect them in series)
The photocells must be connected depending on which area
they must protect. (See Fig. A5)
Closing Safety D : These photocells protect the area covered
by the gate during the closing movement. They have no effect
during the opening movement.
Opening Safety B-C : These photocells protect the area covered
by the gate during the opening movement. They have no effect
during the closing movement.
Opening/Closing Safety A : These photocells protect the area
covered by the gate both during the opening and the closing
movements.
The E024U board allows the connection of several safety devices
(for example photocells). With photocells you can activate the
FAILSAFE function, which, before each movement of the operator, tests each fotocells. In case the test fails the movement
is inhibited. To activate this function set to ON the dip-switch N.
11 and 12 of DS1, and connect the negative of the transmitter
to the OUT pin (No.9).
Fig. A3
Fig. A5
Fig. A4

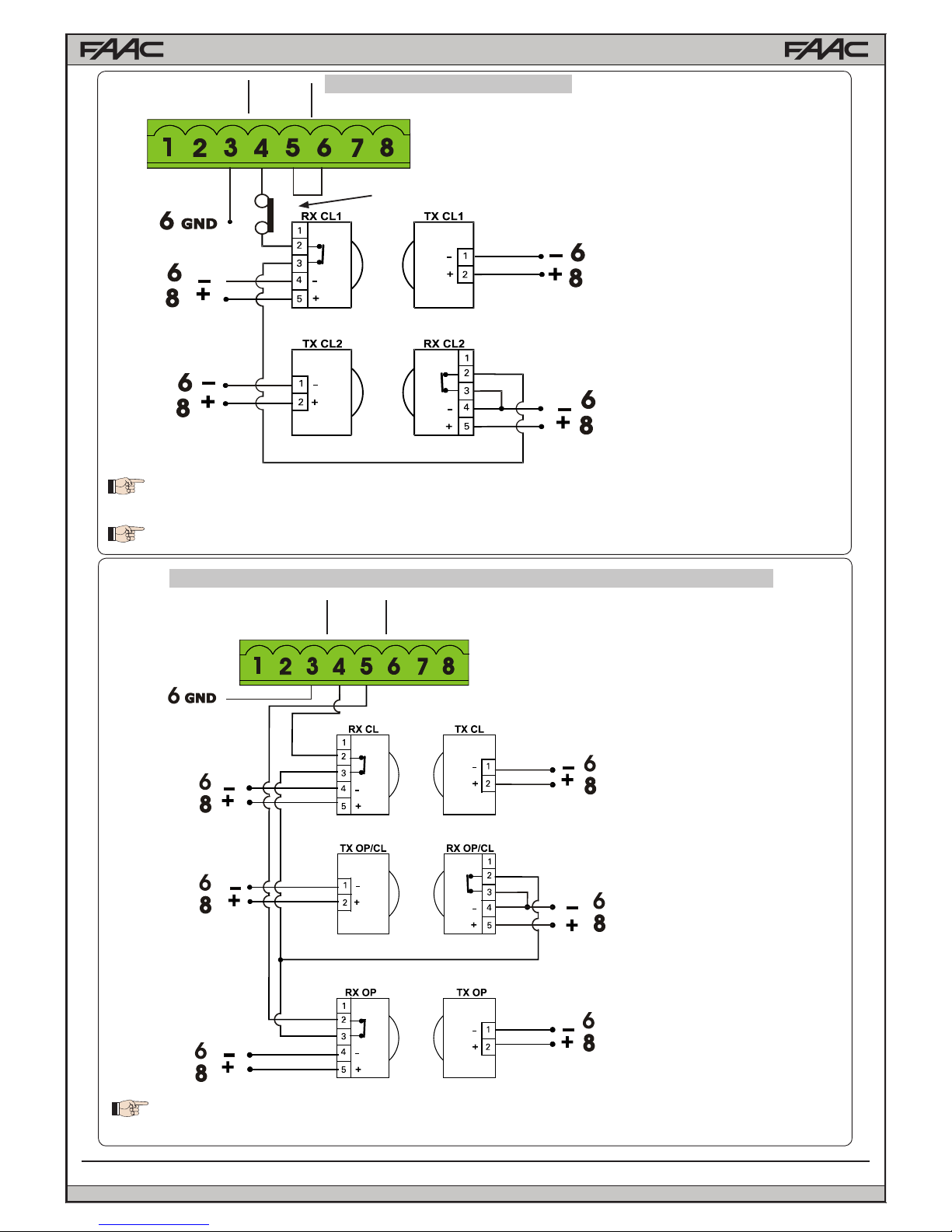

Connection of a pair of closing photocells and a pair of opening/closing photocells
To use the FAIL-SAFE mode connect the negative power supply of the transmitters to OUT (pin 9), and set dip-
switch 11 and 12 to ON on DS1
Fig. A6
RX= Photocell Receiver
TX= Ptotocell Transmitter
CL= Closing
OP= Opening

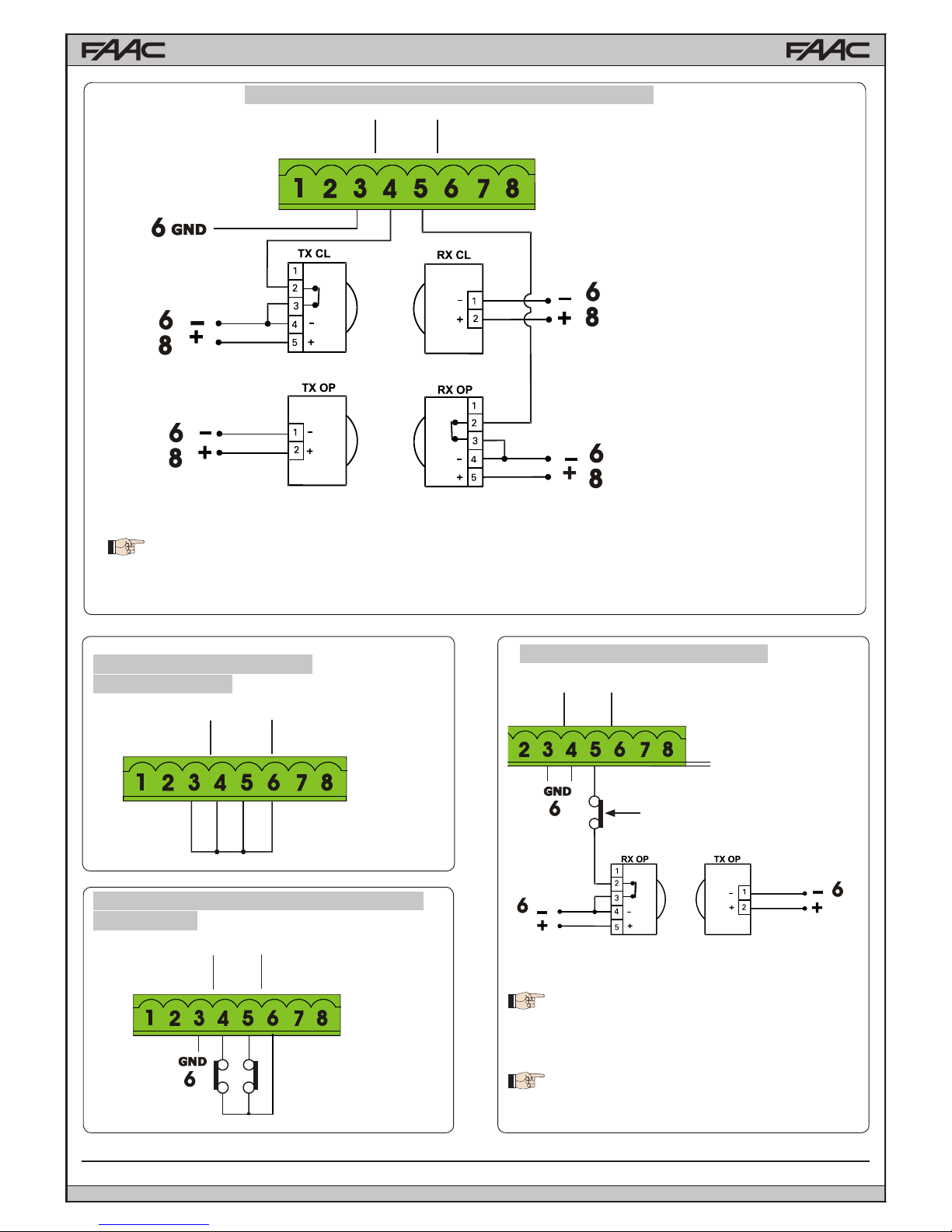

3. PHOTOCELLS CONNECTIONS
3.1 CONNECTIONS TO NORMALLY CLOSE (N.C.) PHOTOCELLS
A4
E024U CONTROL BOARD
FSW
STP CL OP
FSW
STP CL OP
Connection of two pairs of closing photocells
Connection of a pair of closing photocells, a pair of opening photcells and a pair of opening/closing photocells
Other optional safety devices to connect in series
Fig. A7
Fig. A8
To use the FAIL-SAFE mode connect the negative power supply of the transmitters to OUT (pin 9), and
set dip-switch 11 and 12 to ON on DS1
When using the FAIL-SAFE mode also the safety inputs not used (FSW CL , FSW OP) must be connected
to OUT (pin No. 9)
To use the FAIL-SAFE mode connect the negative power supply of the transmitters to OUT (pin 9),
and set dip-switch 11 and 12 to ON on DS1
RX= Photocell Receiver
TX= Ptotocell Transmitter
CL= Closing
OP= Opening
RX= Photocell Receiver
TX= Ptotocell Transmitter
CL= Closing
OP= Opening
A5
E024U CONTROL BOARD
8
8
FSW
STP CL OP
FSW
STP CL OP
FSW
STP CL OP
FSW
STP CL OP
To use the FAIL-SAFE mode connect the negative power supply of the transmitters to OUT (pin 9), and set dip-
switch 11 and 12 to ON on DS1
Connection of a pair of closing photocells and a pair of opening photocells
Fig. A9
Connection of no safety or stop devices
(NOT RECOMMENDED)
Connection of one pair of opening photocells
Other optional safety devices to
connect in series
Fig. A10
Fig. A11
Fig. A12
To use the FAIL-SAFE mode connect the ne-
gative power supply of the transmitters to OUT
(pin 9), and set dip-switch 11 and 12 to ON on
DS1
When using the FAIL-SAFE mode also the
safety inputs not used (FSW CL , FSW OP)
must be connected to OUT (pin No. 9)
RX= Photocell Receiver
TX= Ptotocell Transmitter
CL= Closing
OP= Opening
Connection of a generic closing safety device and a generic
open safety device
A6
E024U CONTROL BOARD
4. PROGRAMMING
OPERATING LOGIC
DS 1: SW 1 - SW 2 - SW 3
LOGIC
SW 1SW 2SW 3PAUSE
TIME
DESCRIPTION
E (default)
Semiautomatic
OFF OFF OFF NO
One command opens, the next one closes. A command du-
ring opening stops the gate
A
Automatic
ON ON ON
0 - 4
min
One command opens, waits for the pause time an then closes
automatically
S
Security
OFF OFF ON
0-4
min
One command opens, waits for the pause time and then closes automatically. If the closing safety is activated or another
command is given during the pause time it closes
EP
Semiautomatic
step by step
OFF ON OFF NO
One command opens, the next one closes. During the move-
ment a command stops the gate
AP
Automatic
step by step
OFF ON ON
0-4
min
One command opens, waits for the pause time and then clo-
ses automatically. A command during the pause time holds
the gate open
SP
Security
step by step
ON OFF OFF
0-4
min
One command opens, waits for the pause time and then
closes automatically. If the closing safety is activated during
pause time the gate closes in 5 s. A command during pause
time holds open the gate
B
Manned Pulsed
ON OFF ON NO
An open A command opens the gate, an open B command
closes the gate
C
Manned Constant
ON ON OFF NO
Holding open A active opens the gate, holding Open B active
closes the gate
For more details on the operating logics please refer to Chapter 12 - Function Logics
4.1 DIP SWITCH DS1 SETTINGS FOR OPERATING LOGIC
A7
E024U CONTROL BOARD
6
TR 3 – SPEED ADJUSTMENT FOR MOTOR1 AND MOTOR 2
Turn clockwise to increase the opening and closing speed
TR 4 – SENSITIVITY ADJUSTEMENT FOR OBSTACLE DETECTION FOR MOTOR 1 AND MOTOR 2
Turn clockwise to increase the sensitivity for obstacle detection.
With this trimmer you can adjust the reaction time for the board to invert the motion of the gate in case of
obstacle detection, or the complete stop in case the board is in the positive stop detection zone.
If an obstacle is detected during the gate movement the board will invert the motor rotation until the gate goes
back to the original starting position. If in the successive movement an obstacle is detected again the board
will be put in alarm mode and won’t take any more commands until the STOP input is activated (Alarm Reset)
or power is cycled
TR 5 – PAUSE TIME ADJUSTMENT ( 0 - 4 min. )
Turn clockwise to increase the pause time.
TR6 - CLOSING DELAY OF LEAF 1 OVER LEAF 2 ADJUSTMENT ( 0 - 15 sec )
Turn clockwise to increase the delay
TR1 – FORCE ADJUSTMENT MOTOR 1
Turn clockwise to increase the opening and closing force
1 min
2 min
3 min
4 min0 sec
30 sec
TR 2 – FORCE ADJUSTEMENT MOTOR 2
Turn clockwise to increase the opening and closing force

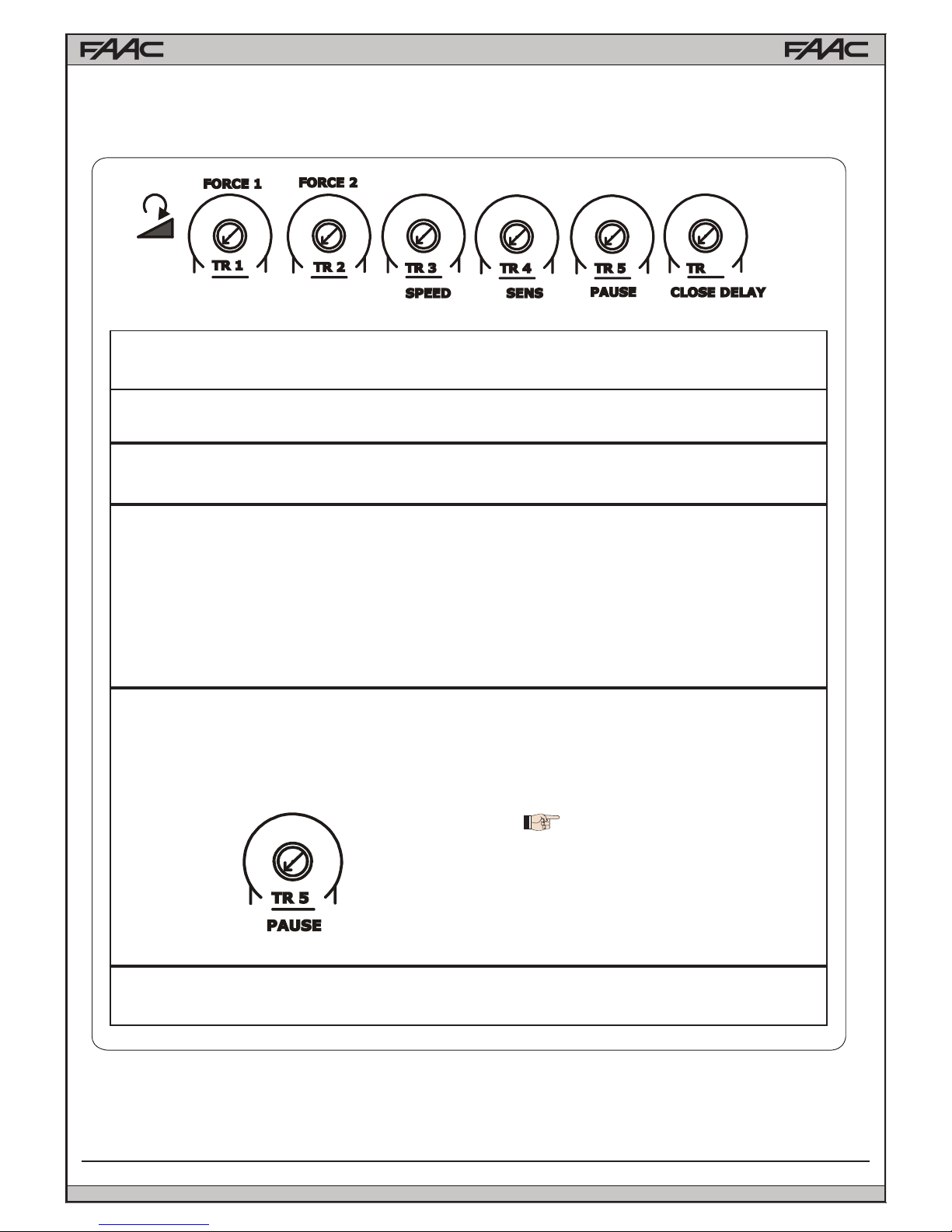

4.2 ADJUSTING TRIMMERS
Dip switches DS1: 1 to 3 need to
be set for an operating mode with
PAUSE time for this adjustment
to have any effect
A8
E024U CONTROL BOARD
BOARD SETUP
DS 1: SW 4 to SW 12
OPENING DELAY
SW 4
The opening of leaf 2 is delayed after the opening of leaf 1. This is to avoid
that the gate’s leafs interfere with each other during the initial part of the
movement. In case there is only one leaf is has no effect.
0 sec (default)
OFF
2 sec
ON
REVERSE AND LAST STROKE
SW 5
If active, before opening, while the gate is closed, the motors thrust to
close for 2 s to facilitate the release of the electric lock. At closing the
motors are activated for a nal stroke after slowdown to facilitate locking
of the electric lock.
inactive (default)
OFF
active
ON
MAX THRUST AT STARTUP
SW 6
With this fuction active the motors work at maximum force at startup
(regardless of the force setting) during the initial phase of the movement.
Useful for heavy leafs
inactive (default)
OFF
active for 3 sec
ON
AUTOMATIC OPENING IN CASE OF
POWER FAILURE
SW 7
If active and with the optional backup battery installed, the board will
open the gate after one minute from the power failure and keep it open.
Within the minute wait it’s always possible to open and close the gate
with a command. If the logic used has a pause time the board will close
the gate when the power comes back.
inactive (default)
OFF
active
ON
CLOSING SAFETY LOGIC
SW 8
With this function you can choose the behaviour of the closing safety. With
SW8 OFF the gate movement will be reversed as soon as the safety is active,
with SW8 ON the gate will stop when the safety is active and it will reverse
only when the safety is deactivated again.
immediate reverse (default)
OFF
reverse when cleared
ON
PREFLASHING
SW 9
This function activates the ashing lamp for 5s before the movement of
the gate
inactive (default)
OFF
active for 5 sec
ON
EXTRA SENSITIVITY TO
OBSTACLE DETECTION
SW 10
If active this function allows to have an immediate reverse in case the
gate hits a rigid obstacle, while keeping the motor active in case of a
gradual increment of resistance, like with wind pressure on the gate or
increased friction
inactive (default)
OFF
active
ON
ORANGE TERMINAL FUNCTION
SW 11
If OFF after the second consecutive obstacle detection this output is
activated until the STOP contact is open or the power is cycled
if ON the output can be connected to a warning lamp.
NOTE: for UL325 compliance this switch must be left OFF
Audio Alarm (default)
OFF
Warning Lamp
ON
OUT FUNCTION (pin 9)
max 100mA
SW 12
if OFF: use pin 9 as power supply negative for a warning lamp. The
lamp will be active during opening, pause and stop. Flashing during
close, off when the gate is closed
If ON: use pin 9 as power supply negative for the safety photocells.
Before any movement the board will check for the presence of the
safety photocells. If the test fails the gate will not move.
Lamp
OFF
Photocells FAIL SAFE active
ON

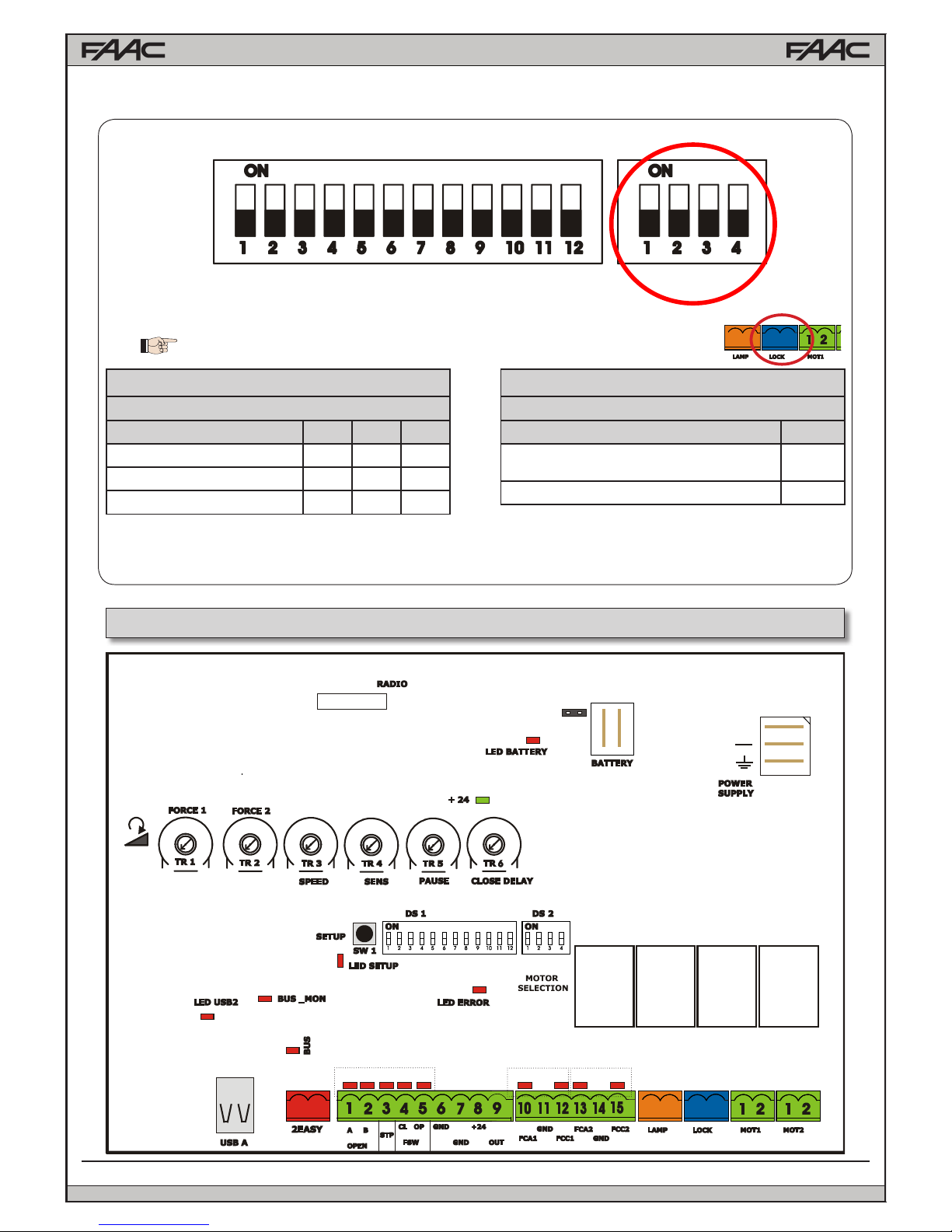

4.3 DIP SWITCH DS1 SETTINGS FOR BOARD SETUP
A9
E024U CONTROL BOARD
DS2
SETTING
+
J24
1
2
3
4
5
6
7
8 9
10
DL19 DL20 DL21 DL22
DL14 DL15 DL16 DL17 DL18
DS 2
OPERATOR SELECTION
OPERATOR TYPE SW 1 SW 2 SW 3
S450H, S800H OFF OFF OFF
S418 OFF OFF ON
415, 390, 770 ON OFF OFF
DS 2
LOCK OUTPUT MODE
OUTPUT MODE SW 4
Active only for 3 sec. after an open impulse
(from gate closed)
OFF
Active always except 3 sec. before an opening
ON
+
IMPORTANT
BUS
DEVICE
4.4 DIP SWITCH DS2 SETTINGS FOR OPERATOR TYPE AND LOCK MODE

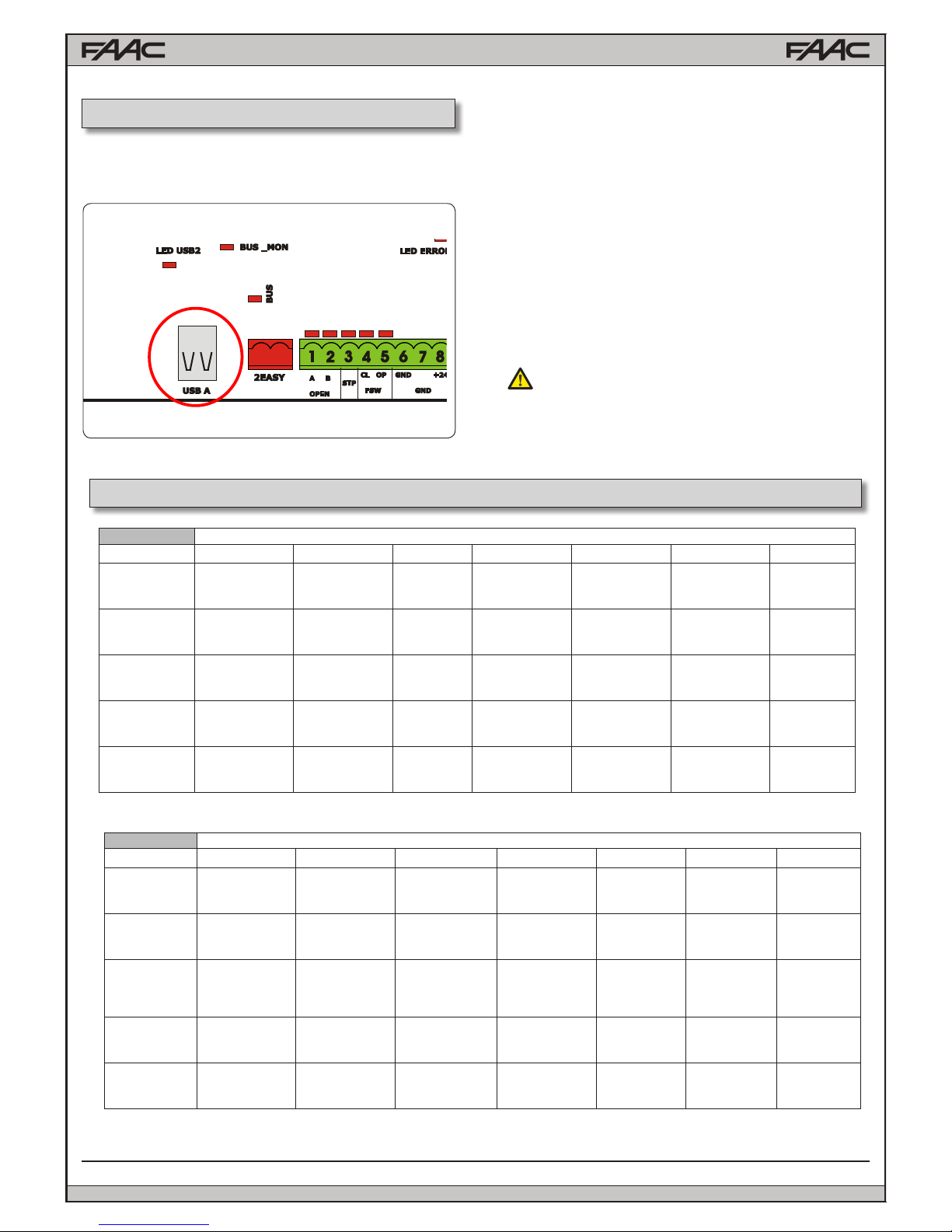

5. LED DIAGNOSTICS
A10
E024U CONTROL BOARD
A11
L
E
D
DESCRIPTION
LED STATUS
In BOLD the normal state with gate closed and working
ON STEADY OFF BLINKING
1
LED BATTERY
Board working on AC
power
Board working on
battery power or ext
supply
Battery charging
2
LED +24 Main power present Main power OFF
3
LED SET-UP
Normal operation
SLOW BLINK
(1 sec. ON - 1 sec. OFF)
SET-UP needed
FAST BLINK
(0.5 sec. ON - 0.5 sec OFF)
SET UP in in progress
4
LED ERROR Board malfunction No errors Error conditions. See LED ERROR
DISPLAY table
5
LED BUS_MON Communication on
Bus “2easy” OK
Communication bus
“2Easy” inactive. Verify
the bus “2Easy” devices
for shorts
Bus 2Easy devices with the
Same address. Verify dip switch
Setting on photocells or
Encoder LEDs
6
LED USB
Software update done
or USB key not present
USB key inserted and software
Update in progress
(DON’T Remove the USB key)
7
RESERVED
8
LED DL 14
OPEN A INPUT (N.O.)
OPEN A active OPEN A not active
LED DL 15
OPEN B INPUT (N.O.)
OPEN B active OPEN B not active
LED DL 16
STOP INPUT (N.C.)
STOP non active STOP active or
wiring error
LED DL 17
FSW CL INPUT (N.C.)
Closing safety
devices clear
Closing safety devices
triggered or wiring error
LED DL 18
FSW OP INPUT (N.C.)
Opening safety
devices clear
Opening safety devices
triggered or wiring error
9
LED DL 19 FCA1
OPEN LIMIT SWITCH MO-
TOR1 (N.C.)
Limit switch
OFF or not used Limit Switch activated
LED DL 20 FCC1
CLOSE LIMIT SWITCH MO-
TOR1 (N.C.)
Limit switch
OFF or not used Limit Switch activated
10
LED DL 21 FCA2
OPEN LIMIT SWITCH MO-
TOR2 (N.C.)
Limit switch
OFF or not used Limit Switch activated
LED DL 22 FCC2
CLOSE LIMIT SWITCH MO-
TOR2 (N.C.)
Limit switch
OFF or not used Limit Switch activated
A11
E024U CONTROL BOARD
WARNING: If the time learning setup is done automatically then
the slow down points are set by the board on his own
Move the leafs to the mid position
Very important for a good result
1. Press and hold the SETUP button until the SETUP LED
lights up, wait about 3 sec. until it turns off and then release
it immediately. NOTE: If you wait too long to release it the
manual set-up will start. The LED will blink during the setup
procedure
2. Leaf 2 (if present) starts to move slowly in closing direction,
stopping when it reaches the mechanical stop or FCC2.
3. Leaf 1 begins to move slowly in closing direction, stopping
when it reaches the mechanical stop, or FCC1.
4. Leaf 1 starts to move slowly in opening direction, followed
by leaf 2 (if present) still slowly.
5. When they both reach the open mechanical stop or FCA1 and
FCA2 they stop and reverse, leaf 2 (if present) automatically
starts closing at full speed followed by leaf 1.
After powering up the board for the rst time or when the board
will need it the setup LED will blink at a slow frequency to indicate
that the setup procedure to learn the running times is needed.
The setup can be redone at any time by pressing and holding
the setup button as indicated below.
After the setup rst movement, if the leafs are opening instead
of closing you need to reverse the wires going to the motor that
moves in the wrong direction
LED ERROR DISPLAY
NUMBER OF
FLASHES
ERROR CONDITION SOLUTION
1
OBSTACLE DETECTION Remove the obstacle
2
BOARD IN SLEEP MODE
(Slow blinking means that the automatic open
in case of power failure function is active)
Verify the presence of AC power
3
MOTOR 1 FAILURE Replace motor 1
4
MOTOR 2 FAILURE Replace motor 2
5
ENCODER on motor 1 or motor 2 broken or
wiring error
Verify the encoder wiring and LED status. If they are correct replace
the encoder
6
FAIL SAFE FAILED Verify the photocells wiring and alignement
7
BOARD THERMAL PROTECTION ACTIVE Turn off the board and wait until the components cool down
8
MAX RUN TIME REACHED
WITHOUT FINDING THE
POSITIVE STOP (10 min. )
- Verify that the operator manual release is not engaged
- Verify that the board recognizes the mechanical stop, in
case redo the setup procedure
The diagnostic LED shows only one error condition at a time, with the priority of the below table. In case there is more
than one error once one is eliminated the LED will show the next
6. When they reach the close mechanical stop or FCC1 and
FCC2 both leafs stop and leaf 1 restarts automatically opening at full speed followed by leaf 2 (if present).
7. If you selected an automatic logic the board will wait for the
pause time and then closes the gate automatically. Otherwise you have to give an OPEN command to close the gate.
WARNING: If the manual time learning setup is done then
the slow down points must be set by the installer during the
procedure
Move the leafs to the mid position
Very important for a good result
1. Press and hold the SETUP button until the SETUP LED
lights up, keep it pressed for about 3 sec. until it turns off and
keep it pressed more until the leaf 2 (if present) starts moving slowly. The LED will blink during the setup procedure
2. Leaf 2 will move in closing direction until it reaches the
mechanical stop or FCC2
3. Leaf 1 starts moving slowly until it reaches the mechanical
stop or FCC1
4. Leaf 1 starts moving in opening direction at the set speed
(trimmer speed).
5. At the point where you want the slowdown to start give an
OPEN A command with the push button or the remote that
is already stored in memory. Leaf 1 starts to slow down
and stops when it reaches the mechanical stop or FCA1.
6. Leaf 2 starts moving in opening direction at the set speed
(trimmer speed)
6. TIME LEARNING (SET-UP)
6.1 AUTOMATIC TIME LEARNING
6.2 MANUAL TIME LEARNING
A12
E024U CONTROL BOARD
The obstacle detection function is achieved by controlling the
current absorption and / or through the encoder connected to
the motors.
If the gate encounters an obstacle during the movement of
opening or closing, the obstacle detection function is activated
and the operator reverses the direction of the gate.
In case of a second consecutive obstacle the operator stops
the gate right away and any further command is inhibited. To
re-enable the automation, you must remove power or open the
STOP contact input. Until this “reset” the Audio Alarm output
will be active.
7. At the point where you want the slowdown to start give an
OPEN A command with the push button or the remote that
is already stored in memory. Leaf 2 starts to slow down and
stops when it reaches the mechanical stop or FCA2.
8. Leaf 2 starts to close at the set speed (trimmer speed).
9. At the point where you want the slowdown to start give an
OPEN A command with the push button or the remote that
is already stored in memory. The leaf 2 starts to slow down
and stops when it reaches the mechanical stop or FCC2.
10. Leaf 1 starts to close at the set speed (trimmer speed).
11. At the point where you want the slowdown to start give an
OPEN A command with the push button or the remote that
is already stored in memory. Leaf 1 starts to slow down and
stops when it reaches the mechanical stop or FCC1.
12. The manual time learning procedure is complete.
15
15/32
”
6 7/32”
17 15/32”
The E024U board is supplied on a panel that ts in a 16x14”
enclosure.
On the back panel are installed the control board, the power
supply and additional accessories.
Power Supply
AC connection
Power outlet
and switch
Pushbutton
E24U board
DIN rail
Batteries
AC POWER GUIDELINES:
THE E024U control board and power supply uses a single
phase AC power line to operate, charge the batteries, and power
gate accessories. Use the following guidelines when installing
the AC power:
1. Check the local wiring codes in all cases and follow all local
building codes. Wiring and hookup should be performed by a
qualied electrician/installer only.
2. AC power should be supplied from a circuit breaker panel and
must have its own dedicated circuit breaker. This supply must
include a green ground conductor.
3. Use copper conductor wires with liquid tight exible conduit
UL listed for electric cable protection
14 AWG, 600V, 80°C
Terminal Block max Torque 2.1 Nm
4. Properly ground the gate operator to minimize or prevent
damage from power surges and/or lightning. Use a grounding
rod if necessary. A surge suppressor is recommended for additional protection.
6.3 OBSTACLE DETECTION FUNCTION
7. ENCLOSURE
8. POWER CONNECTION
A13
E024U CONTROL BOARD
AC POWER CONNECTION
To connect AC power to the controller:
1. Turn the circuit breaker for the AC gate operator power OFF
before connecting the AC input wires.
2. Turn OFF the Power Switch located on the left side of enclosure before connecting the AC input wires.
3. Connect the AC input wires to the AC terminal located on the
top left of the control box. See diagram below.
4. Batteries must be installed after the AC power is on. See
Battery Power Connection.
115V 60Hz 2.5A
The E024U board is powered by a high efciency switching power
supply that takes 115V or 230V in input and provides 36VDC to
power the board. The power supply is preset for 115V at the factory, consult with FAAC Tecnical Support for 230V wiring options.
230V
115V
The E024U board allows the connection of a 24V backup battery to provide power to operate the gate during blackouts. For
more details about how the boards handles the loss of main
power and how to congure its behaviour please see par 4.3
and DS1 switch 7.
To connect the battery use the provided cable and plug it on the
BATTERY connector on the board. Plug the other end of the
cable to the batteries, red wire to +24 and black wire to GND.
+
J24
SETTING
+
DL 1
DL 2
DL 3
DL 4
DL 5
J24
+
J2 4
To disable the battery charger unplug jumper J24
J24 PRESENT = BATTERY CHARGING ACTIVE
J24 NOT PRESENT = BATTERY CHARGING NOT ACTIVE
9. BACKUP BATTERY
8.1 POWER SUPPLY
9.1 DISABLE THE BATTERY CHARGER
A14
E024U CONTROL BOARD
LOGIC “E” PULSES
SYSTEM STATUS
OPEN A OPEN B CLOSE STOP FSW OP FSW CL FSW CL/OP
CLOSED opens the leaves opens leaf 1 no effect
no effect
(OPEN disabled)
no effect
(OPEN disabled)
no effect
no effect
(OPEN disa-
bled)
OPENING
stops operation
(1)
stops operation
recloses
leaves
immediately
stops operation
immediately
reverses at
closing
no effect
stops and opens
at release (OPEN
stops - saves
CLOSE)
OPEN
recloses leaves
immediately (1)
recloses leaves
immediately
recloses
leaves
immediately
no effect
(OPEN/CLOSE
disabled)
no effect
no effect
(CLOSE disabled)
no effect
(OPEN/CLOSE
disabled)
CLOSING
reopens leaves
immediately
reopens leaves
immediately
no effect stops operation no effect
reverses at opening
stops and opens
at release (OPEN
stops - saves
CLOSE)
BLOCKED closes leaves closes leaves closes leaves
no effect
(OPEN/CLOSE
disabled)
no effect
(OPEN disabled)
no effect
(CLOSE disabled)
no effect
(OPEN stops -
saves CLOSE)
(1) if the cycle began with OPEN-B (leaf 1), both leaves are activated at opening
LOGIC “A” PULSES
SYSTEM STATUS
OPEN A OPEN B CLOSE STOP FSW OP FSW CL FSW CL/OP
CLOSED
opens and closes
after pause time
opens leaf 1 and
closes after pause
time
no effect
no effect
(OPEN disabled)
no effect
(OPEN disa-
bled)
no effect
no effect
(OPEN disa-
bled)
OPENING no effect (1) no effect
recloses leaves
immediately
stops operation
reverses at
closing
no effect
stops and
opens at
release (saves
CLOSE)
OPEN IN
PAUSE
reloads
pause time (1)
reloads
pause time of
released leaf
recloses leaves
immediately
stops operation no effect
recharges
pause time
(CLOSE disa-
bled)
recharges
pause time
(CLOSE disa-
bled)
CLOSING
reopens leaves
immediately
reopens leaves
immediately
no effect stops operation no effect
reverses at
opening
stops and
opens at
release (saves
CLOSE)
BLOCKED closes leaves closes leaves closes leaves
no effect
(OPEN/CLOSE
disabled)
no effect
(OPEN disa-
bled)
no effect
(CLOSE disa-
bled)
no effect
(OPEN/CLOSE
disabled)
(1) if the cycle began with OPEN-B (leaf 1), both leaves are activated at opening
SETTING
+
DL 1
DL 2
DL 3
DL 4
DL 5
J2 4
1. Disconnect the batteries if they are present.
2. Turn the AC power off and insert the Flash Drive into the
USB A input on the board
3. Turn the AC power back on. The USB2 LED will start to ash
to conrm the beginning of the software update. (WARNING: DON’T TURN THE POWER OFF OR REMOVE
THE FLASH DRIVE UNTIL THE USB2 LED TURNS OFF.
4. Wait until the USB 2 LED turns off
5. Remove the USB Flash drive.
6. Cycle power, reconnect the batteries if needed and execute
a new SETUP procedure (See chapter 6)
For the upgrade you need a USB Flash Drive, where you have
to copy the le supplied by FAAC. Then follow these steps:
WARNING: Only upgrade the rmware with the proper le
supplied by FAAC. otherwise the board could be damaged
The E024U board keeps the operating rmware in a eld programmable memory, it can be easily upgraded through the on
board USB port
10. FIRMWARE UPGRADE
11. FUNCTION LOGICS
A15
E024U CONTROL BOARD
LOGIC “EP” PULSES
SYSTEM STATUS
OPEN A OPEN B CLOSE STOP FSW OP FSW CL FSW CL/OP
CLOSED opens the leaves opens leaf 1 no effect
no effect
(OPEN disabled)
no effect
(OPEN disabled)
no effect
no effect
(OPEN disabled)
OPENING stops operation (1) stops operation
recloses
leaves
immediately
stops operation
immediately
reverses at
closure
no effect
stops and opens
at release
(OPEN stops -
saves CLOSE)
OPEN
recloses leaves
immediately (1)
recloses leaves
immediately
recloses
leaves
immediately
no effect
(OPEN/CLOSE
disabled)
no effect
no effect
(CLOSE disa-
bled)
no effect
(OPEN/CLOSE
disabled)
CLOSING stops operation stops operation no effect stops operation no effect
reverses at
opening
stops and opens
at release
(OPEN stops -
saves CLOSE)
BLOCKED
restarts moving in
opposite direction.
Always closes
after STOP
restarts moving in
opposite direction.
Always closes
after STOP
closes leaves
no effect
(OPEN/CLOSE
disabled)
no effect
(OPEN disabled)
no effect
(CLOSE disa-
bled)
no effect
(OPEN stops -
saves CLOSE)
LOGIC “AP” PULSES
SYSTEM STATUS
OPEN A OPEN B CLOSE STOP FSW OP FSW CL FSW CL/OP
CLOSED
opens and closes
after pause time
opens leaf 1 and
closes after pause
time
no effect
no effect
(OPEN disabled)
no effect
(OPEN disa-
bled)
no effect
no effect
(OPEN disabled)
OPENING
stops operation
(1)
stops operation
recloses
leaves
immediately
stops operation
reverses at
closing (saves
OPEN)
no effect
stops and opens
at release
(OPEN stops -
saves CLOSE)
OPEN IN PAUSE
stops operation
(1)
stops operation
recloses
leaves
immediately
stops operation no effect
recharges
pause time
(CLOSE disa-
bled)
recharges
pause time
(CLOSE disa-
bled)
CLOSING
reopens leaves
immediately
reopens leaves
immediately
no effect stops operation no effect
reverses at
opening
(see
DS1-SW8)
stops and opens
at release
(OPEN stops -
saves CLOSE)
BLOCKED closes leaves closes leaves closes leaves
no effect
(OPEN/CLOSE
disabled)
no effect
(OPEN disa-
bled)
no effect
(CLOSE disa-
bled)
no effect
(OPEN/CLOSE
disabled)
(1) if the cycle began with OPEN-B (leaf 1), both leaves are activated at opening
(1) if the cycle began with OPEN-B (leaf 1), both leaves are activated at opening
LOGIC “S” PULSES
SYSTEM STATUS
OPEN A OPEN B CLOSE STOP FSW OP FSW CL FSW CL/OP
CLOSED
opens and closes
after pause time
opens released
leaf and closes
after pause time
no effect
no effect
(OPEN disa-
bled)
no effect
(OPEN disa-
bled)
no effect
no effect
(OPEN disabled)
OPENING no effect (1) no effect
recloses leaves
immediately
stops operation
reverses at
closure
continues
to open and
recloses
immediately
stops and opens
at release
(saves CLOSE)
OPEN IN
PAUSE
recloses leaves
immediately (1)
recloses leaves
immediately
recloses leaves
immediately
stops operation no effect
stops and, at
release, closes
stops and, at
release, closes
CLOSING
reopens leaves
immediately
reopens leaves
immediately
no effect stops operation no effect
reverses at opening
(see DS1-SW8)
and closes imme-
diately at end
stops and opens
after release and
closes immediately
at end
BLOCKED closes leaves closes leaves closes leaves
no effect
(OPEN/CLOSE
disabled)
no effect
(OPEN disa-
bled)
no effect
(CLOSE disa-
bled)
no effect
(OPEN/CLOSE
disabled)
(1) if the cycle began with OPEN-B (leaf 1), both leaves are activated at opening
A16
E024U CONTROL BOARD
LOGIC “B” PULSES
SYSTEM STATUS
OPEN A OPEN B CLOSE STOP FSW OP FSW CL FSW CL/OP
CLOSED opens the leaves no effect no effect
no effect
(OPEN disabled)
no effect
(OPEN disabled)
no effect
no effect
(OPEN disa-
bled)
OPENING no effect closes leaves closes leaves stops operation
reverses at
closure
no effect
stops and, at
release, closes
(saves
OPEN/CLOSE)
OPEN no effect closes leaves closes leaves
no effect
(OPEN/CLOSE
disabled)
no effect
no effect
(CLOSE disa-
bled)
no effect
(OPEN/CLO-
SE disabled)
CLOSING opens the leaves no effect no effect stops operation no effect
reverses at
opening
stops and
opens at
release
(saves
OPEN/CLOSE)
BLOCKED opens the leaves closes leaves closes leaves
no effect
(OPEN/CLOSE
disabled)
no effect
(OPEN disabled)
no effect
(CLOSE disa-
bled)
no effect
(OPEN/CLO-
SE disabled)
LOGIC “C” CONTINUOS COMMANDS PULSES
SYSTEM STATUS
OPEN A OPEN B CLOSE STOP FSW OP FSW CL FSW CL/OP
CLOSED opens the leaves no effect no effect
no effect
(OPEN disabled)
no effect
(OPEN disabled)
no effect
no effect
(OPEN disa-
bled)
OPENING no effect closes leaves closes leaves stops operation
reverses at
closure
no effect
stops and, at
release, closes
(saves
OPEN/CLOSE)
OPEN no effect closes leaves closes leaves
no effect
(OPEN/CLOSE
disabled)
no effect
no effect
(CLOSE disa-
bled)
no effect
(OPEN/CLO-
SE disabled)
CLOSING opens the leaves no effect no effect stops operation no effect
reverses at
opening
stops and
opens at
release
(saves
OPEN/CLOSE)
BLOCKED opens the leaves closes leaves closes leaves
no effect
(OPEN/CLOSE
disabled)
no effect
(OPEN disabled)
no effect
(CLOSE disa-
bled)
no effect
(OPEN/CLO-
SE disabled)
LOGIC “SP” PULSES
SYSTEM STATUS
OPEN A OPEN B CLOSE STOP FSW OP FSW CL FSW CL/OP
CLOSED
opens and clo-
ses after pause
time
opens leaf 1 and
closes after pause
time
no effect
no effect
(OPEN disabled)
no effect
(OPEN disa-
bled)
no effect
no effect
(OPEN disa-
bled)
OPENING
stops operation
(1)
stops operation
recloses
leaves
immediately
stops operation
reverses at
closure
continues to open
and recloses
immediately
stops and opens
after release and
closes immediately
at end (OPEN stops
- saves CLOSE)
OPEN IN PAUSE
recloses
leaves
immediately (1)
recloses leaves
immediately
recloses
leaves
immediately
stops operation no effect
stops and, at
release, closes
stops and, at
release, closes
CLOSING stops operation stops operation no effect stops operation no effect
reverses at opening
stops and
opens at
release (saves
CLOSE)
BLOCKED
restarts moving
in opposite
direction. Always
closes after
STOP
restarts moving in
opposite direction.
Always closes
after STOP
recloses
leaves
immediately
no effect
(OPEN/CLOSE
disabled)
no effect
(OPEN disa-
bled)
no effect
(CLOSE disabled)
no effect
(OPEN/CLOSE
disabled)
(1) if the cycle began with OPEN-B (leaf 1), both leaves are activated at opening
A17
E024U CONTROL BOARD
A18
E024U CONTROL BOARD
To the original purchaser only:
FAAC International, Inc., warrants, for twentyfour (24) months from the date of invoice, the
gate operator systems and other related systems
and equipment manufactured by FAAC S.p.A.
and distributed by FAAC International, Inc., to be
free from defects in material and workmanship
under normal use and service for which it was
intended provided it has been properly installed
and operated.
FAAC International, Inc.’s obligations under this
warranty shall be limited to the repair or exchange
of any part of parts manufactured by FAAC
S.p.A. and distributed by FAAC International, Inc.
Defective products must be returned to FAAC
International, Inc., freight prepaid by purchaser,
within the warranty period. Items returned will
be repaired or replaced, at FAAC International,
Inc.’s option, upon an examination of the product
by FAAC International, Inc., which discloses, to
the satisfaction of FAAC International, Inc., that
the item is defective. FAAC International, Inc.
will return the warranted item freight prepaid.
The products manufactured by FAAC S.p.A. and
distributed by FAAC International, Inc., are not
warranted to meet the specic requirements,
if any, of safety codes of any particular state,
municipality, or other jurisdiction, and neither
FAAC S.p.A. or FAAC International, Inc., assume
any risk or liability whatsoever resulting from
the use thereof, whether used singly or in
combination with other machines or apparatus.
Any products and parts not manufactured
by FAAC S.p.A. and distributed by FAAC
International, Inc., will carry only the warranty,
if any, of the manufacturer. This warranty shall
not apply to any products or parts thereof which
have been repaired or altered, without FAAC
International, Inc.’s written consent, outside of
FAAC International, Inc.’s workshop, or altered
in any way so as, in the judgment of FAAC
International, Inc., to affect adversely the stability
or reliability of the product(s) or has been subject
to misuse, negligence, or accident, or has
not been operated in accordance with FAAC
International, Inc.’s or FAAC S.p.A.’s instructions
or has been operated under conditions more
severe than, or otherwise exceeding, those set
forth in the specications for such product(s).
Neither FAAC S.p.A. nor FAAC International, Inc.,
shall be liable for any loss or damage whatsoever
resulting, directly or indirectly, from the use or
loss of use of the product(s). Without limiting the
foregoing, this exclusion from liability embraces a
purchaser’s expenses for downtime or for making
up downtime, damages for which the purchaser
may be liable to other persons, damages to
property, and injury to or death of any persons.
FAAC S.p.A. or FAAC International, Inc., neither
assumes nor authorizes any person to assume
for them any other liability in connection with
the sale or use of the products of FAAC S.p.A.
or FAAC International, Inc. The warranty herein
above set forth shall not be deemed to cover
maintenance parts, including, but not limited to,
hydraulic oil, lters, or the like. No agreement to
replace or repair shall constitute an admission by
FAAC S.p.A. or FAAC International, Inc., of any
legal responsibility to effect such replacement,
to make such repair, or otherwise. This limited
warranty extends only to wholesale customers
who buy directly through FAAC International,
Inc.’s normal distribution channels. FAAC
International, Inc., does not warrant its products
to end consumers.
Consumers must inquire from their selling dealer
as to the nature and extent of that dealer’s
warranty, if any. This warranty is expressly in
lieu of all other warranties expressed or implied
including the warranties of merchantability and
tness for use. This warranty shall not apply to
products or any part thereof which have been
subject to accident, negligence, alteration, abuse,
or misuse or if damage was due to improper
installation or use of improper power source, or
if damage was caused by re, ood, lightning,
electrical power surge, explosion, wind storm,
hail, aircraft or vehicles, vandalism, riot or civil
commotion, or acts of God.
LIMITED WARRANTY
Loading...
