Page 1

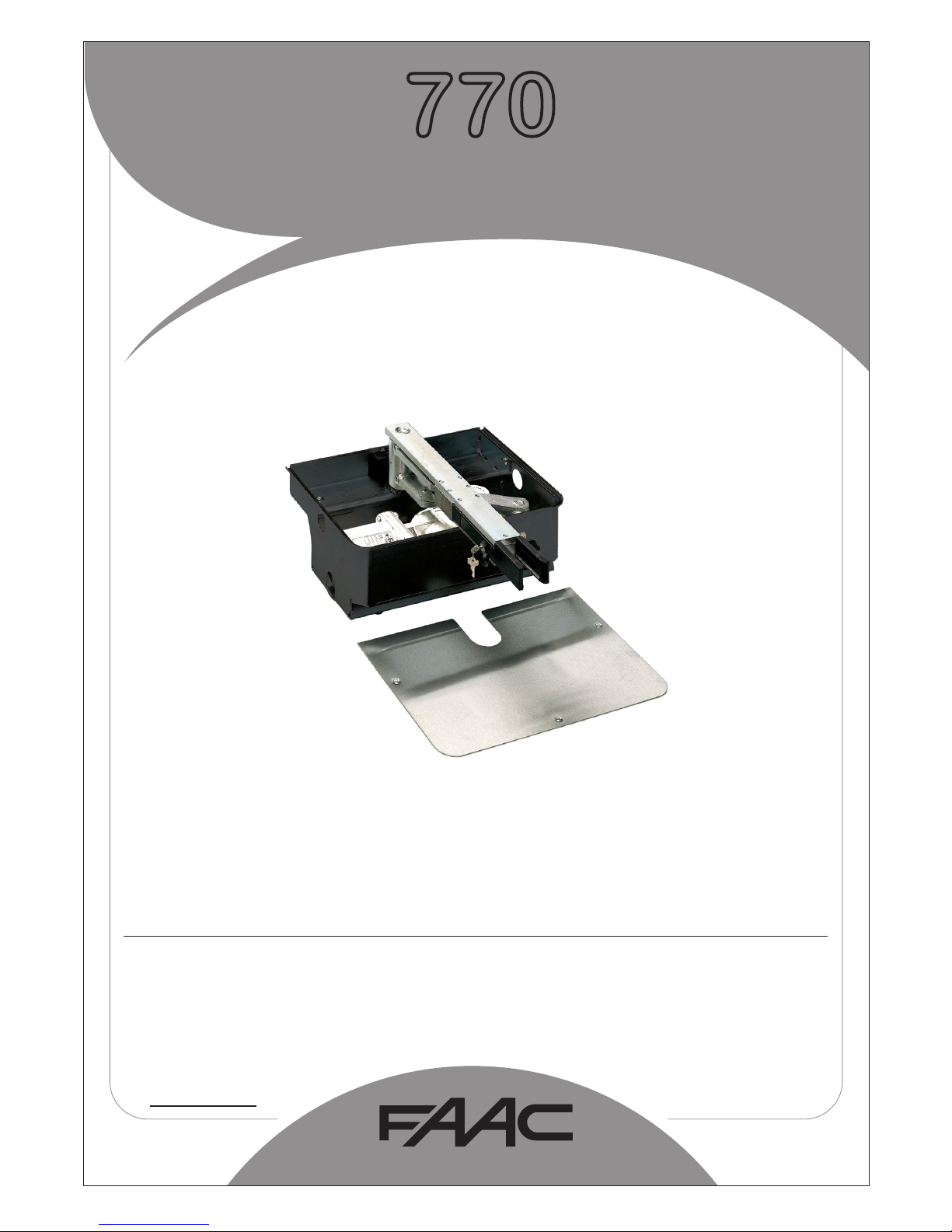

Underground Swing Gate Operator
FAAC International Inc.
Headquarter & East Coast Operations
5151 Sunbeam Road
Suites 9-11
Jacksonville, FL 32257
Tel. 866 925 3222
www.faacusa.com
FAAC International Inc.
West Coast Operations
357 South Acacia Avenue
Unit 357
Fullerton, CA 92831
Tel. 800 221 8278
770
Page 2
2
FAAC Model 770 Underground Swing Gate Operator
CONTENTS
FAAC Model 770 - Rev: 01.0C.02 - FEB 2011
Read this instruction manual before you begin installing the product.
= Information regarding personal safety and proper maintanence of the product.
IMPORTANT SAFETY INFORMATION 3
Important Safety Instructions 3
Important Installation Instructions 3
General Safety Precautions 4
UL325 Gate Operator Classications 5
Installing the Warning Signs 5
1. DESCRIPTION & CHARACTERISTICS 6
2. STANDARD INSTALLATION LAYOUT 6
3. INSTALLING THE SYSTEM 6
3.1. PRELIMINARY CHECKS 6
3.2 INSTALLING THE LEAF SUPPORTING FOUNDATION BOX (Fig. 3) 6

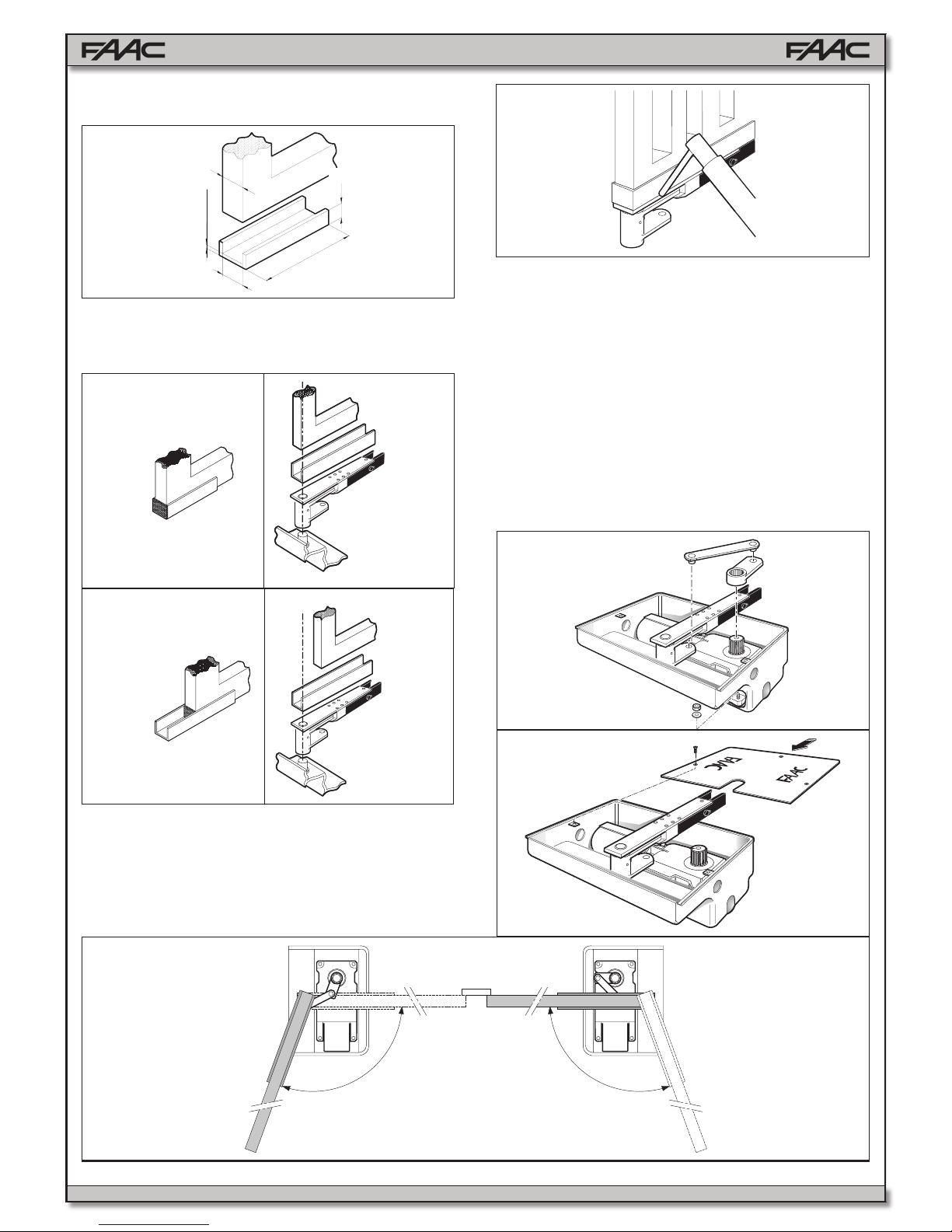

3.3 SETTING UP THE GATE 7
3.4 INSTALLING THE OPERATOR 8
4. START-UP 9
5. TESTING THE AUTOMATION SYSTEM 9
6. MANUAL OPERATION 9
7. RETURNING TO NORMAL OPERATION 9
8. MAINTENANCE 9
9. REPAIRS 9

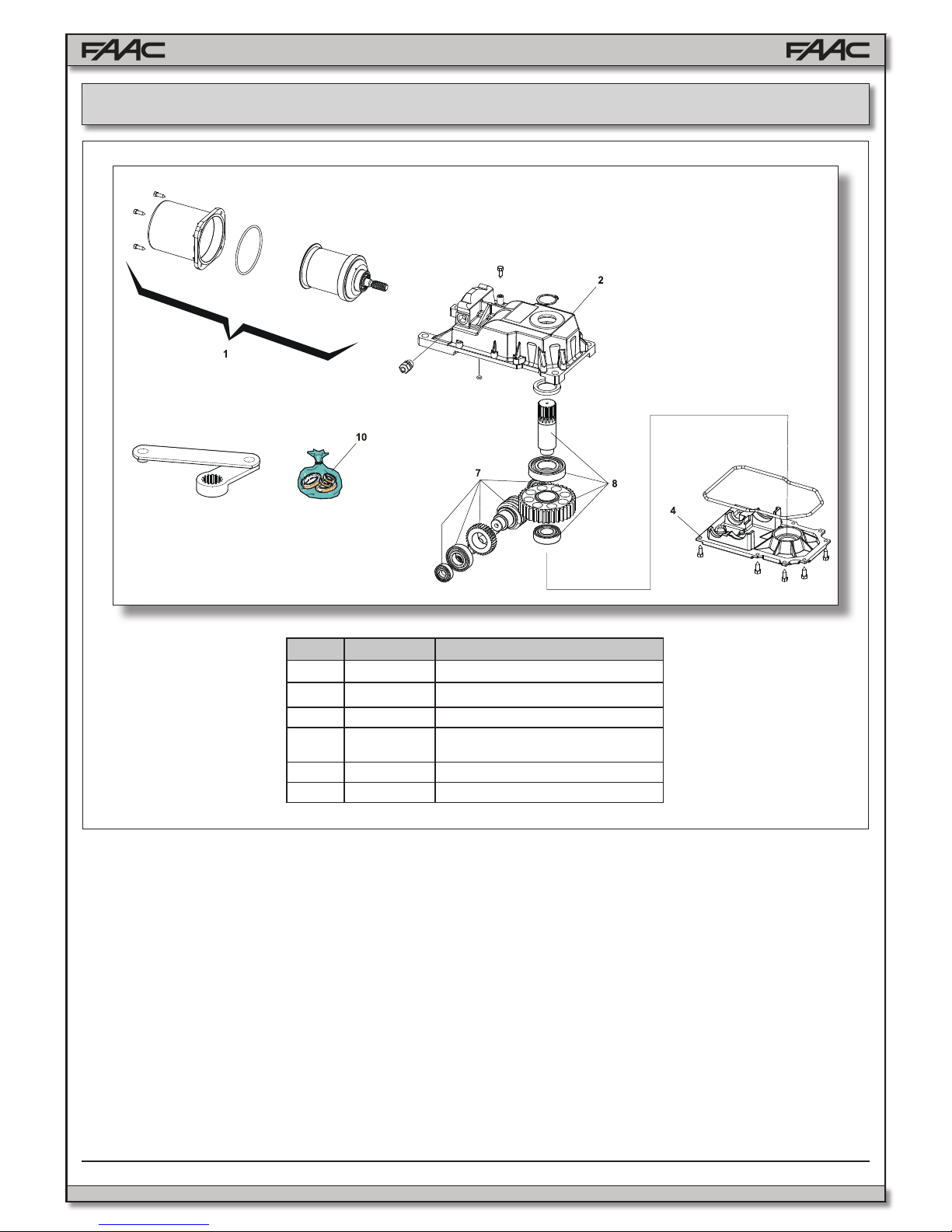

10. 770 PARTS DIAGRAM 10
LIMITED WARRANTY 11
Page 3
3
FAAC Model 770 Underground Swing Gate Operator
1. Install the gate operator only when the following
conditions have been met:
• The operator is appropriate for the type and usage
class of the gate.
• All openings of a horizontal slide gate have been
guarded or screened from the bottom of the gate to
a minimum of 4 feet (1.25 m) above the ground to
prevent a 2.25 inch (55 mm) diameter sphere from
passing through openings anywhere in the gate or
through that portion of the adjacent fence that the
gate covers when in the open position.
• All exposed pinch points are eliminated or guarded.
• Guarding is supplied for exposed rollers.
2. The operator is intended for installation on gates used
by vehicles only. Pedestrians must be provided with a
separate access opening.
3. To reduce the risk of entrapment when opening and
closing, the gate must be installed in a location that
allows adequate clearance between the gate and
adjacent structures. Swinging gates shall not open
outward into public access areas.
4. Before installing the gate operator, ensure that the gate
has been properly installed and that it swings freely in
both directions. Do not over-tighten the operator clutch
or pressure relief valve to compensate for a damaged
gate.
5. User controls must be installed at least 6 feet (1.83
m) away from any moving part of the gate and located
where the user is prevented from reaching over, under,
around or through the gate to operate the controls.
Controls located outdoors or those that are easily
accessible shall have security features to prevent
unauthorized use.
6. The Stop and/or Reset buttons must be located within
line-of-sight of the gate. Activation of the reset control
shall not cause the operator to start.
7. All warning signs and placards must be installed
and easily seen within visible proximity of the gate. A
minimum of one warning sign shall be installed on each
side of the gate.
8. For gate operators that utilize a non-contact sensor
(photo beam or the like):
• See instructions on the placement of non-contact
sensors for each type of application.
• Exercise care to reduce the risk of nuisance tripping,
such as when a vehicle trips the sensor while the
gate is still moving.
• Locate one or more non-contact sensors where the
risk of entrapment or obstruction exists, such as at
the reachable perimeter of a moving gate or barrier.
• Use only FAAC “Photobeam” photoelectric eyes to
comply with UL325.
Important Installation Instructions
WARNING - TO REDUCE THE RISK OF SEVERE
INJURY OR DEATH:
• READ AND FOLLOW ALL INSTRUCTIONS.
• Never let children operate or play with the gate
controls. Keep remote controls away from children.
• Always keep people and objects away from the
gate. NO ONE SHOULD CROSS THE PATH OF A
MOVING GATE.
• Test the gate operator monthly. The gate MUST
reverse on contact with a rigid object or when an
object activates a non-contact sensor. If necessary,
adjust the force or the limit of travel and then retest
the gate operator. Failure to properly adjust and retest
the gate operator can increase the risk of injury or
death.
• Use the manual release mechanism only when the
gate is not moving.
• KEEP GATE PROPERLY MAINTAINED. Have
a qualied service person make repairs to gate
hardware.
• The entrance is for vehicles only. Pedestrians must
use a separate entrance.
• SAVE THESE INSTRUCTIONS.
IMPORTANT SAFETY INFORMATION
Important Safety Instructions
Page 4
4
FAAC Model 770 Underground Swing Gate Operator
Gate Construction
Vehicular gates should be constructed and installed
in accordance with ASTM F2200: Standard Specication for Automated Vehicular Gate Construction.
For more information, contact ASTM at: www.astm.org
Installation
• If you have any questions or concerns regarding the
safety of the gate operating system, do not install the
operator and consult the manufacturer.
• The condition of the gate structure itself directly
affects the reliability and safety of the gate operator.
• Only qualied personnel should install this equipment.
Failure to meet this requirement could cause severe
injury and/or death, for which the manufacturer
cannot be held responsible.
• The installer must provide a main power switch that
meets all applicable safety regulations.
• It is extremely unsafe to compensate for a damaged
gate by increasing hydraulic pressure.
• Install devices such as reversing edges and photo
beams to provide better protection for personal
property and pedestrians. Install reversing devices
that are appropriate to the gate design and
application.
• Before applying electrical power, ensure that voltage
requirements of the equipment correspond to the
supply voltage. Refer to the label on your gate
operator system.
Usage
• Use this equipment only in the capacity for which it
was designed. Any use other than that stated should
be considered improper and therefore dangerous.
• The manufacturer cannot be held responsible
for damage caused by improper, erroneous or
unreasonable use.
• If a gate system component malfunctions, disconnect
the main power before attempting to repair it.
• Do not impede the movement of the gate, you may
injure yourself or damage the gate system as a result.
• This equipment may reach high thermal temperatures
during normal operation, therefore use caution when
touching the external housing of the gate operator.
• Use the manual release mechanism according to the
procedures presented in this manual.
• Before performing any cleaning or maintenance
operations, disconnect power to the equipment.
• All cleaning, maintenance or repair work must
performed by qualied personnel.
General Safety Precautions
9. For gate operators that utilize a contact sensor (edge
sensor or similar):
• Locate one or more contact sensors where the risk
of entrapment or obstruction exists, such as at the
leading edge, trailing edge, and post mounted both
inside and outside of a vehicular horizontal slide
gate
• Locate one or more contact sensors at the bottom
edge of a vehicular vertical lift gate.
• Locate one or more contact sensors at the bottom
edge of a vertical barrier (arm).
• Locate one or more contact sensors at the pinch
point of a vehicular vertical pivot gate.
• Locate hard-wired contact sensors and wiring so
that communication between sensor and gate
operator is not subjected to mechanical damage.
• Locate wireless contact sensors, such as those
that transmit radio frequency (RF) signals, where
the transmission of signals are not obstructed or
impeded by building structures, natural landscaping
or similar hindrances. Wireless contact sensors shall
function under their intended end-use conditions.
• Use only FAAC MSE MO, CN60 or M60 edge
sensors.
Important Installation Instructions (continued)
Page 5
5
FAAC Model 770 Underground Swing Gate Operator
RESIDENTIAL VEHICULAR GATE OPERATOR CLASS I
A vehicular gate operator system intended for use in a single family dwelling, garage or associated parking area.
UL325 Gate Operator Classications
COMMERCIAL / GENERAL ACCESS VEHICULAR GATE OPERATOR CLASS II
A vehicular gate operator system intended for use in commercial locations or buildings such as multi-family housing
units (ve or more single family units), hotels, parking garages, retail stores or other buildings that service the general
public.
INDUSTRIAL / LIMITED ACCESS VEHICULAR GATE OPERATOR CLASS III
A vehicular gate operator system intended for use in industrial locations or buildings such as factories, loading docks
or other locations not intended to service the general public.
RESTRICTED ACCESS VEHICULAR GATE OPERATOR CLASS IV
A vehicular gate operator system intended for use in guarded industrial locations or buildings such as airport security
areas or other restricted access locations that do not service the general public, and in which unauthorized access is
prevented via supervision by security personnel.

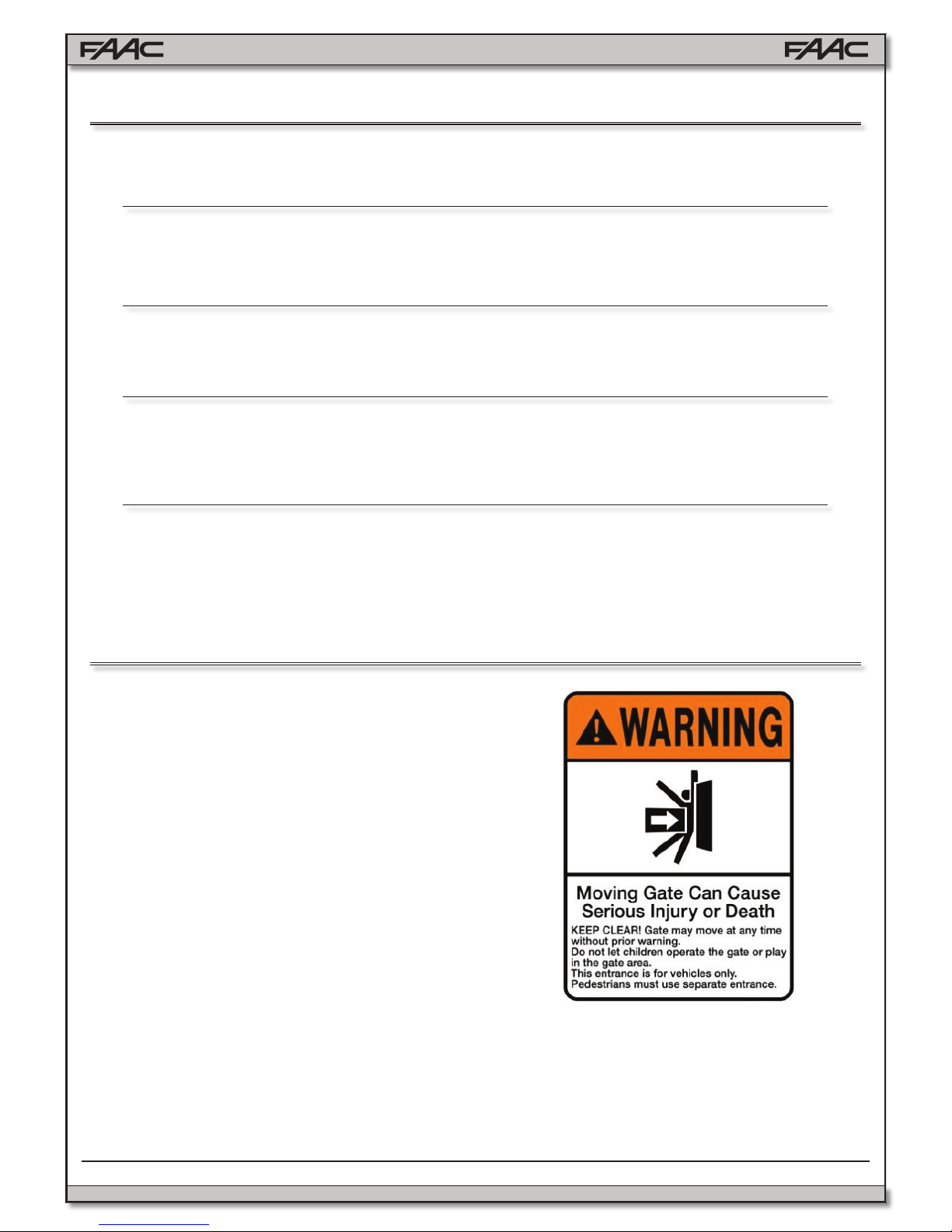

This FAAC swing gate operator is supplied
with two warning signs to alert people that a
possible hazard exists and that appropriate
actions should be taken to avoid the hazard or
to reduce exposure to it.
Permanently install one warning sign on each
side of the gate so they are fully visible to
trafc and pedestrians.
Use appropriate hardware such as metal
screws (not supplied) to permanently install
each warning sign.
Installing the Warning Signs
Page 6
6
FAAC Model 770 Underground Swing Gate Operator

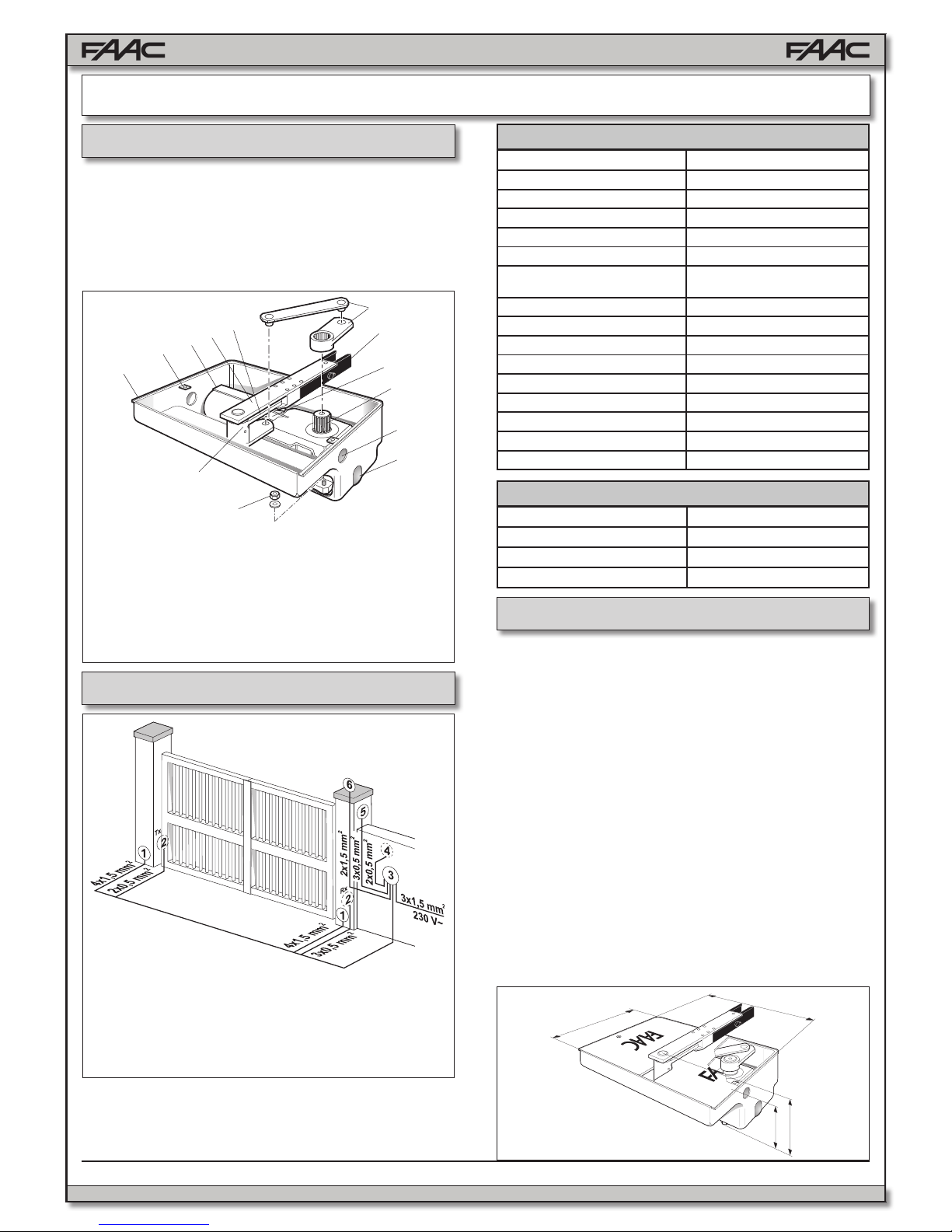

The FAAC 770 is an electomechanical operator for swing gates. It
is designed for underground installation and therefore does not alter
the appearance of the leaf.
The supplied foundation box allows you to setup the gate before
actually installing the operator.
The 770 electromechanical operator is irreversible, so it ensures a
mechanical stop and eliminates the need to install an electric lock.
1 Foundation Box
2 Bores for Fastening Box Cover (3)
3 770 Operator
4 Support Bracket for Gate
5 Locking Bracket
6 Release Device with Key
7 Operator Ground Connection
8 Crank and Connecting Rod Assembly
9 Pinion
10 Bore for Power Supply Cable Pipe
11 Bore for Drain Pipe
12 Fastening Screws for Operator (4)
13 Lubrication Bore
3.1. PRELIMINARY CHECKS
To ensure trouble-free operation, ensure that the gate (whether exist-
ing or yet to be installed) adheres to the following specications:
• Max. single leaf weight: 1100 lbs.
• Max. single leaf length: 98.5 inches.
• Strong and rigid leaf frame.
• Smooth gate movement, with no stiff points.
• Proper minimum clearance between bottom edge of gate and
ground. See Fig. 6a (where ‘s’ = thickness of guide bracket)
• Mechanical travel stops.
The condition of the gate directly affects the reliability and safety of
the automation system. If any welding has to be done on the gate,
complete it before installing the automation system.
Fig. 1
2. STANDARD INSTALLATION LAYOUT
Fig. 2

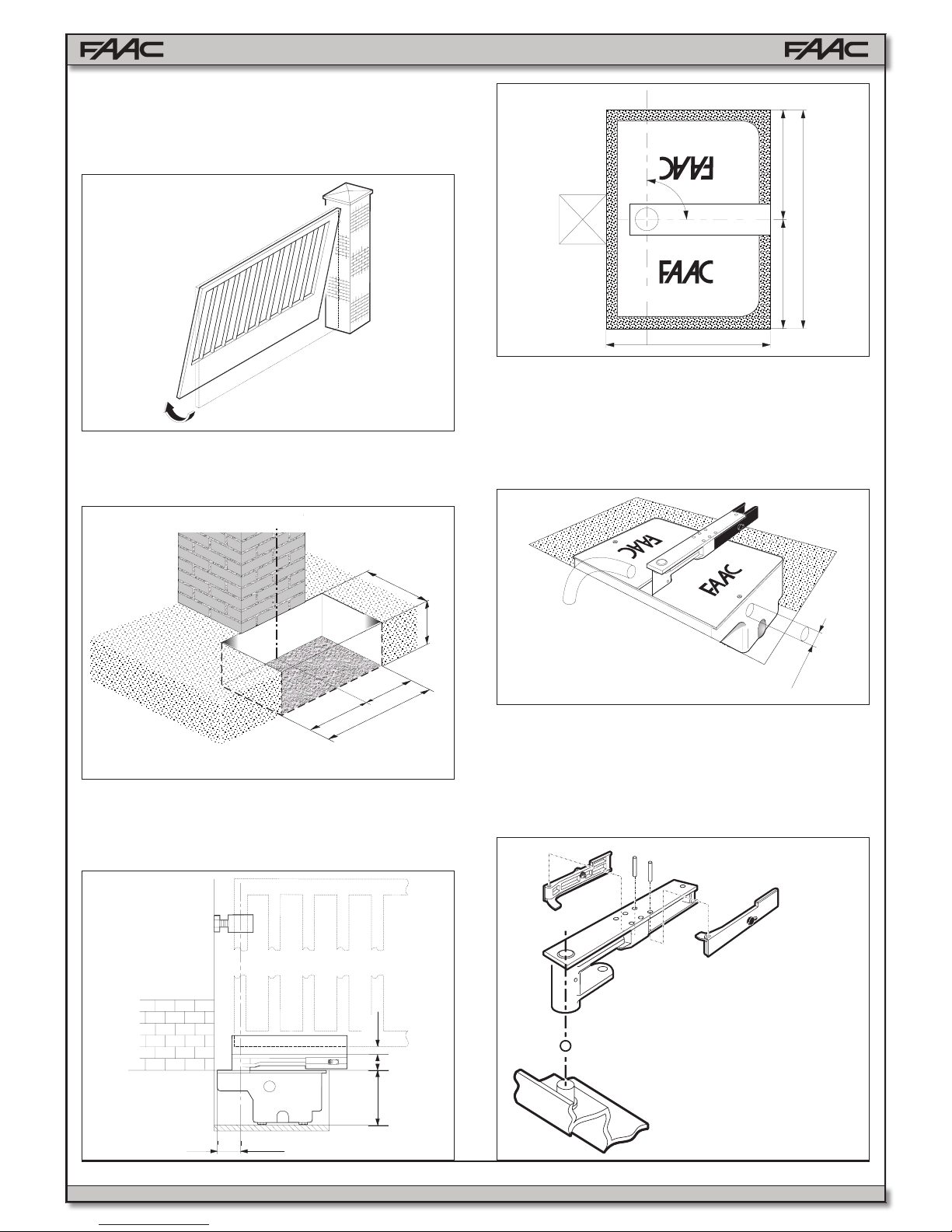

3.2 INSTALLING THE LEAF SUPPORTING
FOUNDATION BOX (Fig. 3)
a) For Existing Gates with Fixed Hinges:
• Remove the gate.
• Remove the bottom hinge.
If the gate cannot be removed, place blocks under its bottom edge to
support it.
12⅛
17
6⅛
8½
Fig. 3
1
2
3
4
5
8
6
7
9
10
11
12
13
770 Operators (require 2 junction boxes)
Photocells
Control Unit
T10 Pushbutton
Receiver
Flashing Light
1) Use suitable rigid/exible pipes for laying power cables.
2) Always keep low voltage accessory cables separated
from 230V~ power cables. To avoid interference, use
separate sheaths.
Table 1b: Electric Motor Specications
1. DESCRIPTION & CHARACTERISTICS
3. INSTALLING THE SYSTEM
Operator 770
Reduction Ratio 1400:1
Motor Winding Thermal Cutout (°F) 284
Temperature Range -4°F to +131°F
Maximum Torque (Nm) 300
Angular speed (°/sec) 6
Opening Time (secs) 1 (90°), 8 (110° and 180°), 10.5
(140°)
Operator Weight (lbs) 26.5 lbs (carrying box: 31 lbs)
Type and Frequency of Use at 68°F 100%
Indicative Hour Cycles at 68°F 100 (100° and 180°) , 170 (140°)
Max. leaf opening angle 110° (140° and 180° with kit)
Max. leaf weight (lbs) 1100
Power cable length (inches) 78.75
Housing protection IP 67
Operator dimensions (inches) 14.25 x 6 x 5.5
Max. leaf length (inches) 138 (110°), 118 (180°), 98.5 (140°)
Table 1a: Operator Specications
Power Supply 24 VDC
Absorbed power (W) 70
Current Drawn (A) 3
Electric Motor (rpm) 1400
* Measurements in Inches
FAAC Model 770 Underground Swing Gate Operator
Page 7
7
FAAC Model 770 Underground Swing Gate Operator
b) For Existing Gates with Adjustable Hinges:
• Remove the bottom hinge.
• Slacken the top hinge.
• Swing the leaf around the axis of the top hinge (Fig. 4).
c) Installing a New Gate:
Fit just the top hinge. If possible use an adjustable hinge.
1. Dig a hole for the foundation box as shown in Fig. 5.
Fig. 4
S
2½
6⅛
2¼
~12⅜
6⅛
~17⅜
Fig. 5
Fig. 6b
~17⅜
~12⅜
90°
Fig. 7
Ø 1⅜
Depending on the nature of the ground, it may be necessary to cast a
bed of quick-setting concrete at the bottom of the hole to avoid subsidence in future.
2. Place the foundation box in the hole, refer to the dimensions
provided in Figs. 6a and 6b.
The center of the pivot on the foundation box must be perfectly aligned
with the leaf’s axis of swing (Figs 6a and 6b).
3. Lay down a 1.5 inch diameter PVC tube through which a 4 core
electrical cable can pass. The tube must reach from the box to
the control unit (Fig. 7). Lay a second tube to drain rain water
from the box to the nearest drain (also Fig. 7).
4. Fix the box in place with a casting of concrete.
3.3 SETTING UP THE GATE
Allow cement to set before starting this operation.
1. Assemble the release levers on the support bracket, and t the
latter on the pivot in the foundation box, also inserting the ball
supplied (Fig. 8).
Note: grease both the pivot and the ball.
Fig. 8
Fig. 6a
* Measurements
in Inches
* Measurements in Inches
* Measurements in Inches
* Measurements
in Inches
Page 8
8
FAAC Model 770 Underground Swing Gate Operator
min ⅜
13
min 1½
C
C+1
Fig. 9
• A
scertain the correct location of the leaf on the “U” prole with
reference to the axis of rotation (Figs. 10a and 10b);
• Seal the “U” prole on the post side with a plate, as shown in Figs.
10a and 10b.
Fig. 10a
Fig. 11
Fig. 12
Fig. 10b
3.4 INSTALLING THE OPERATOR
1. Open the gate leaf.
2. Place the operator on the fastening screws on the foundation
box, and x it by means of the supplied nuts and washers (Fig.
13).
Note: the exact position of the operator is shown in Fig. 12.
In any case,
the operator pinion must be on the opposite side of leaves opening
direction.
3. Manually close the leaf and t the driving levers supplied, as
shown in Fig. 13.
Note: grease the operator pinion and the xing pivots of the two levers.
4. Install the second operator, if required, by repeating the operations described above.
5. Install the electronic control unit. Refer to the dimensions indicated in these instructions.
6. Fasten the box cover by means of the supplied screws (Fig. 14).
2. Prepare the guide bracket, as follows:
• Use a “U” prole with dimensions indicated in Fig. 9.
3. Carefully weld the guide bracket to the support bracket (Fig. 11).
4. Fit the gate into the guide bracket and x the top hinge in place.
IMPORTANT: To ensure trouble-free operation, do NOT weld the gate
leaf to the guide bracket or to the support bracket.
5. Manually verify whether the gate opens and closes completely
and smoothly, stopping at the mechanical travel stops.
Fig. 14
Fig. 13
* Measurements
in Inches
Page 9
9
FAAC Model 770 Underground Swing Gate Operator
At regular intervals, check the structure of the gate and
make sure that the hinges are in perfect working order.
Periodically lubricate the pivot and ball in the support
bracket, through the lubricating bore shown in Fig. 1Ref. 13. Make sure that the pivots of the lever systems,
the pinion and the engagement of the lock on the locking
bracket (Fig. 1 - Ref. 5) are always well lubricated, and
check the efciency of the manual operation.
Whenever you perform a maintenance operation, check
that the anti-crushing system and the safety devices
installed on the automation system are correctly set.
Fig. 15
For repairs, refer to an authorized FAAC service center.
To restore normal operation, proceed as follows:
1. Push the lever back into its home position (Fig. 16 Ref. 1).
2. Insert the release key into the lock and turn it as far
as it will turn in the direction opposite the post (Fig.
16 - Ref. 2).
3. Operate the leaf manually until the lock is engaged
in the locking bracket (Fig. 16 - Ref. 3).
4. Close the lid on the lock.
7. RETURNING TO NORMAL OPERATION
8. MAINTENANCE
Fig. 16
9. REPAIRS
1. Program the electronic control unit according to your
requirements, following the relevant instructions.
2. Connect the system to the power supply and check
the status of the LEDs (refer to the instructions for
the electronic control unit).
4. START-UP
5. TESTING THE AUTOMATION SYSTEM
Carefully test the operation of the automation system and
of all connected accessories.
Give the customer the User’s Guide page, and show
them the correct operation and use of the automation
system.

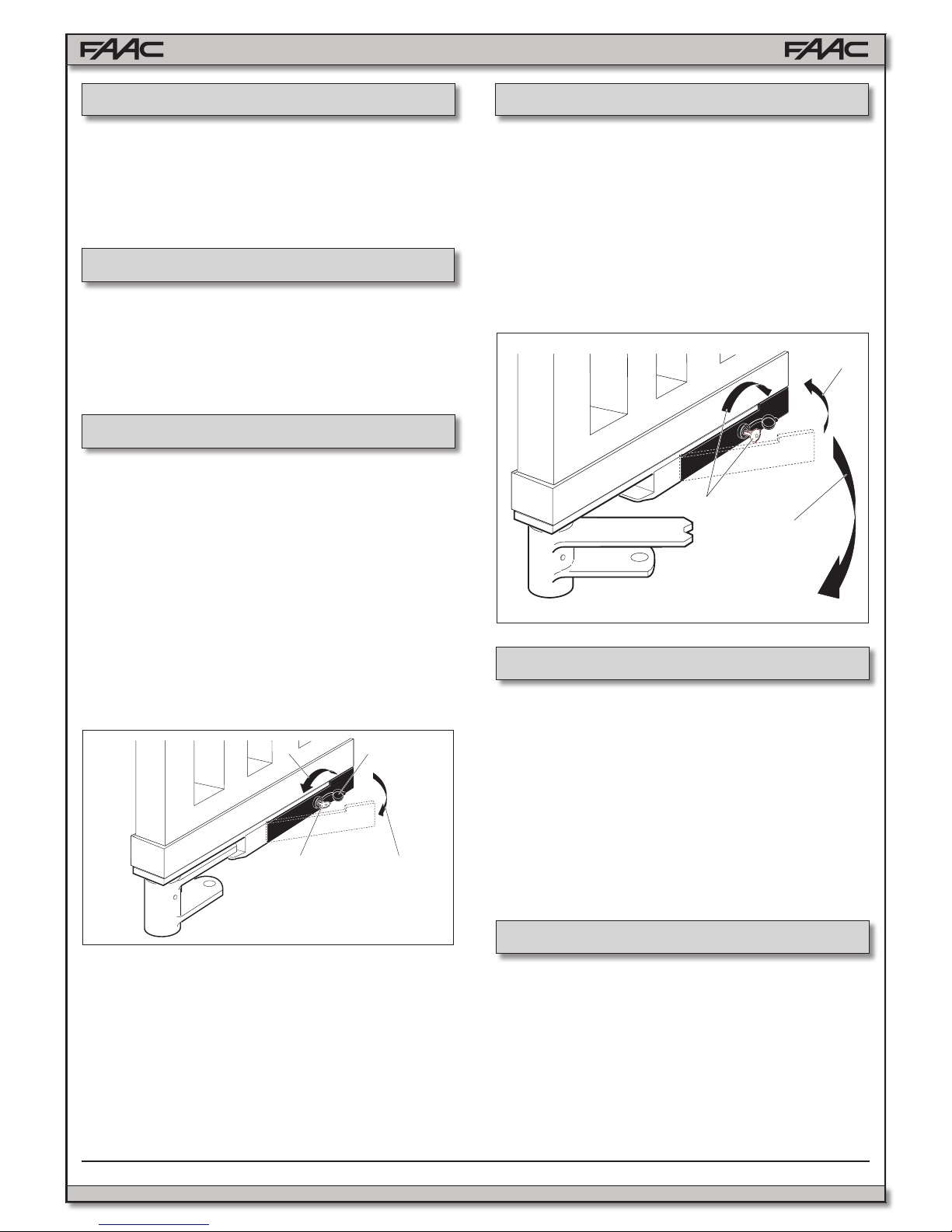

6. MANUAL OPERATION
Should the need arise to operate the gate manually
because of a power failure or malfunction, the release
device with key tted on the support bracket
(Fig. 1 - Ref.
6)
makes it possible to release the system from both the
inside and the outside.
To operate the leaf manually, proceed as follows.
• Open the lid of the lock (Fig. 15 - Ref. 1).
• Insert the release key in the lock (Fig. 15 - Ref. 2).
• Turn the key in the direction of the post, as far as it
will go (Fig. 15 - Ref. 3).
• Pull the lever out (Fig. 15 - Ref. 4).
• Operate the leaf manually.
Page 10
10
FAAC Model 770 Underground Swing Gate Operator
10. 770 PARTS DIAGRAM
POS. P/N DESCRIPTION
01 770770 770 24V MOTOR
02 716078 770 GEAR BOX
04 727158 770 GEAR BOX COVER
07 718078 SW. G. O. THIRD INTERNAL SHAFT
GROUP
08 719165 SW. G. O. 770 INTERNAL SLOW SHAFT
10 390451 770 SEAL KIT
Page 11
11
FAAC Model 770 Underground Swing Gate Operator
To the original purchaser only:
FAAC International, Inc., warrants, for twentyfour (24) months from the date of invoice, the
gate operator systems and other related systems
and equipment manufactured by FAAC S.p.A.
and distributed by FAAC International, Inc., to be
free from defects in material and workmanship
under normal use and service for which it was
intended provided it has been properly installed
and operated.
FAAC International, Inc.’s obligations under this
warranty shall be limited to the repair or exchange
of any part of parts manufactured by FAAC
S.p.A. and distributed by FAAC International, Inc.
Defective products must be returned to FAAC
International, Inc., freight prepaid by purchaser,
within the warranty period. Items returned will
be repaired or replaced, at FAAC International,
Inc.’s option, upon an examination of the product
by FAAC International, Inc., which discloses, to
the satisfaction of FAAC International, Inc., that
the item is defective. FAAC International, Inc.
will return the warranted item freight prepaid.
The products manufactured by FAAC S.p.A. and
distributed by FAAC International, Inc., are not
warranted to meet the specic requirements,
if any, of safety codes of any particular state,
municipality, or other jurisdiction, and neither
FAAC S.p.A. or FAAC International, Inc., assume
any risk or liability whatsoever resulting from
the use thereof, whether used singly or in
combination with other machines or apparatus.
Any products and parts not manufactured
by FAAC S.p.A. and distributed by FAAC
International, Inc., will carry only the warranty,
if any, of the manufacturer. This warranty shall
not apply to any products or parts thereof which
have been repaired or altered, without FAAC
International, Inc.’s written consent, outside of
FAAC International, Inc.’s workshop, or altered
in any way so as, in the judgment of FAAC
International, Inc., to affect adversely the stability
or reliability of the product(s) or has been subject
to misuse, negligence, or accident, or has
not been operated in accordance with FAAC
International, Inc.’s or FAAC S.p.A.’s instructions
or has been operated under conditions more
severe than, or otherwise exceeding, those set
forth in the specications for such product(s).
Neither FAAC S.p.A. nor FAAC International, Inc.,
shall be liable for any loss or damage whatsoever
resulting, directly or indirectly, from the use or
loss of use of the product(s). Without limiting the
foregoing, this exclusion from liability embraces a
purchaser’s expenses for downtime or for making
up downtime, damages for which the purchaser
may be liable to other persons, damages to
property, and injury to or death of any persons.
FAAC S.p.A. or FAAC International, Inc., neither
assumes nor authorizes any person to assume
for them any other liability in connection with
the sale or use of the products of FAAC S.p.A.
or FAAC International, Inc. The warranty herein
above set forth shall not be deemed to cover
maintenance parts, including, but not limited to,
hydraulic oil, lters, or the like. No agreement to
replace or repair shall constitute an admission by
FAAC S.p.A. or FAAC International, Inc., of any
legal responsibility to effect such replacement,
to make such repair, or otherwise. This limited
warranty extends only to wholesale customers
who buy directly through FAAC International,
Inc.’s normal distribution channels. FAAC
International, Inc., does not warrant its products
to end consumers.
Consumers must inquire from their selling dealer
as to the nature and extent of that dealer’s
warranty, if any. This warranty is expressly in
lieu of all other warranties expressed or implied
including the warranties of merchantability and
tness for use. This warranty shall not apply to
products or any part thereof which have been
subject to accident, negligence, alteration, abuse,
or misuse or if damage was due to improper
installation or use of improper power source, or
if damage was caused by re, ood, lightning,
electrical power surge, explosion, wind storm,
hail, aircraft or vehicles, vandalism, riot or civil
commotion, or acts of God.
LIMITED WARRANTY
Loading...
