User’s Manual
© 2008 Extron Electronics. All rights reserved.
HSA 822
Hideaway® Surface Access Enclosure
68-617-02 Rev. G
08 08
Precautions
Safety Instructions • English
This symbol is intended to alert the user of important
operating and maintenance (servicing) instructions
in the literature provided with the equipment.
This symbol is intended to alert the user of the
presence of uninsulated dangerous voltage within
the product's enclosure that may present a risk of
electric shock.
Caution
Read Instructions • Read and understand all safety and operating
instructions before using the equipment.
Retain Instructions • The safety instructions should be kept for future
reference.
Follow Warnings • Follow all warnings and instructions marked on the
equipment or in the user information.
Avoid Attachments • Do not use tools or attachments that are not
recommended by the equipment manufacturer because they may be
hazardous.
Consignes de Sécurité • Français
Ce symbole sert à avertir l’utilisateur que la
documentation fournie avec le matériel contient des
instructions importantes concernant l’exploitation
et la maintenance (réparation).
Ce symbole sert à avertir l’utilisateur de la présence
dans le boîtier de l’appareil de tensions dangereuses
non isolées posant des risques d’électrocution.
Attention
Lire les instructions• Prendre connaissance de toutes les consignes de
sécurité et d’exploitation avant d’utiliser le matériel.
Conserver les instructions• Ranger les consignes de sécurité afin de
pouvoir les consulter à l’avenir.
Respecter les avertissements • Observer tous les avertissements et
consignes marqués sur le matériel ou présentés dans la documentation
utilisateur.
Eviter les pièces de fixation • Ne pas utiliser de pièces de fixation ni
d’outils non recommandés par le fabricant du matériel car cela
risquerait de poser certains dangers.
Sicherheitsanleitungen • Deutsch
Dieses Symbol soll dem Benutzer in der im
Lieferumfang enthaltenen Dokumentation
besonders wichtige Hinweise zur Bedienung und
Wartung (Instandhaltung) geben.
Dieses Symbol soll den Benutzer darauf aufmerksam
machen, daß im Inneren des Gehäuses dieses
Produktes gefährliche Spannungen, die nicht isoliert
sind und die einen elektrischen Schock verursachen
können, herrschen.
Achtung
Lesen der Anleitungen • Bevor Sie das Gerät zum ersten Mal verwenden,
sollten Sie alle Sicherheits-und Bedienungsanleitungen genau
durchlesen und verstehen.
Aufbewahren der Anleitungen • Die Hinweise zur elektrischen Sicherheit
des Produktes sollten Sie aufbewahren, damit Sie im Bedarfsfall darauf
zurückgreifen können.
Befolgen der Warnhinweise • Befolgen Sie alle Warnhinweise und
Anleitungen auf dem Gerät oder in der Benutzerdokumentation.
Keine Zusatzgeräte • Verwenden Sie keine Werkzeuge oder Zusatzgeräte,
die nicht ausdrücklich vom Hersteller empfohlen wurden, da diese eine
Gefahrenquelle darstellen können.
Instrucciones de seguridad • Español
Este símbolo se utiliza para advertir al usuario sobre
instrucciones importantes de operación y
mantenimiento (o cambio de partes) que se desean
destacar en el contenido de la documentación
suministrada con los equipos.
Este símbolo se utiliza para advertir al usuario sobre
la presencia de elementos con voltaje peligroso sin
protección aislante, que puedan encontrarse dentro
de la caja o alojamiento del producto, y que puedan
representar riesgo de electrocución.
Precaucion
Leer las instrucciones • Leer y analizar todas las instrucciones de
operación y seguridad, antes de usar el equipo.
Conservar las instrucciones • Conservar las instrucciones de seguridad
para futura consulta.
Obedecer las advertencias • Todas las advertencias e instrucciones
marcadas en el equipo o en la documentación del usuario, deben ser
obedecidas.
Evitar el uso de accesorios • No usar herramientas o accesorios que no
sean especificamente recomendados por el fabricante, ya que podrian
implicar riesgos.
Warning
Power sources • This equipment should be operated only from the power source
indicated on the product. This equipment is intended to be used with a main
power system with a grounded (neutral) conductor. The third (grounding) pin is
a safety feature, do not attempt to bypass or disable it.
Power disconnection • To remove power from the equipment safely, remove all
power cords from the rear of the equipment, or the desktop power module (if
detachable), or from the power source receptacle (wall plug).
Power cord protection • Power cords should be routed so that they are not likely to
be stepped on or pinched by items placed upon or against them.
Servicing • Refer all servicing to qualified service personnel. There are no user-
serviceable parts inside. To prevent the risk of shock, do not attempt to service
this equipment yourself because opening or removing covers may expose you to
dangerous voltage or other hazards.
Slots and openings • If the equipment has slots or holes in the enclosure, these are
provided to prevent overheating of sensitive components inside. These openings
must never be blocked by other objects.
Lithium battery • There is a danger of explosion if battery is incorrectly replaced.
Replace it only with the same or equivalent type recommended by the
manufacturer. Dispose of used batteries according to the manufacturer's
instructions.
Avertissement
Alimentations• Ne faire fonctionner ce matériel qu’avec la source d’alimentation
indiquée sur l’appareil. Ce matériel doit être utilisé avec une alimentation
principale comportant un fil de terre (neutre). Le troisième contact (de mise à la
terre) constitue un dispositif de sécurité : n’essayez pas de la contourner ni de la
désactiver.
Déconnexion de l’alimentation• Pour mettre le matériel hors tension sans danger,
déconnectez tous les cordons d’alimentation de l’arrière de l’appareil ou du
module d’alimentation de bureau (s’il est amovible) ou encore de la prise secteur.
Protection du cordon d’alimentation • Acheminer les cordons d’alimentation de
manière à ce que personne ne risque de marcher dessus et à ce qu’ils ne soient
pas écrasés ou pincés par des objets.
Réparation-maintenance • Faire exécuter toutes les interventions de réparation-
maintenance par un technicien qualifié. Aucun des éléments internes ne peut être
réparé par l’utilisateur. Afin d’éviter tout danger d’électrocution, l’utilisateur ne
doit pas essayer de procéder lui-même à ces opérations car l’ouverture ou le
retrait des couvercles risquent de l’exposer à de hautes tensions et autres dangers.
Fentes et orifices • Si le boîtier de l’appareil comporte des fentes ou des orifices,
ceux-ci servent à empêcher les composants internes sensibles de surchauffer. Ces
ouvertures ne doivent jamais être bloquées par des objets.
Lithium Batterie • Il a danger d'explosion s'll y a remplacment incorrect de la
batterie. Remplacer uniquement avec une batterie du meme type ou d'un ype
equivalent recommande par le constructeur. Mettre au reut les batteries usagees
conformement aux instructions du fabricant.
Vorsicht
Stromquellen • Dieses Gerät sollte nur über die auf dem Produkt angegebene
Stromquelle betrieben werden. Dieses Gerät wurde für eine Verwendung mit
einer Hauptstromleitung mit einem geerdeten (neutralen) Leiter konzipiert. Der
dritte Kontakt ist für einen Erdanschluß, und stellt eine Sicherheitsfunktion dar.
Diese sollte nicht umgangen oder außer Betrieb gesetzt werden.
Stromunterbrechung • Um das Gerät auf sichere Weise vom Netz zu trennen,
sollten Sie alle Netzkabel aus der Rückseite des Gerätes, aus der externen
Stomversorgung (falls dies möglich ist) oder aus der Wandsteckdose ziehen.
Schutz des Netzkabels • Netzkabel sollten stets so verlegt werden, daß sie nicht
im Weg liegen und niemand darauf treten kann oder Objekte darauf- oder
unmittelbar dagegengestellt werden können.
Wartung • Alle Wartungsmaßnahmen sollten nur von qualifiziertem
Servicepersonal durchgeführt werden. Die internen Komponenten des Gerätes
sind wartungsfrei. Zur Vermeidung eines elektrischen Schocks versuchen Sie in
keinem Fall, dieses Gerät selbst öffnen, da beim Entfernen der Abdeckungen die
Gefahr eines elektrischen Schlags und/oder andere Gefahren bestehen.
Schlitze und Öffnungen • Wenn das Gerät Schlitze oder Löcher im Gehäuse
aufweist, dienen diese zur Vermeidung einer Überhitzung der empfindlichen
Teile im Inneren. Diese Öffnungen dürfen niemals von anderen Objekten
blockiert werden.
Litium-Batterie • Explosionsgefahr, falls die Batterie nicht richtig ersetzt wird.
Ersetzen Sie verbrauchte Batterien nur durch den gleichen oder einen
vergleichbaren Batterietyp, der auch vom Hersteller empfohlen wird. Entsorgen
Sie verbrauchte Batterien bitte gemäß den Herstelleranweisungen.
Advertencia
Alimentación eléctrica • Este equipo debe conectarse únicamente a la fuente/tipo
de alimentación eléctrica indicada en el mismo. La alimentación eléctrica de este
equipo debe provenir de un sistema de distribución general con conductor
neutro a tierra. La tercera pata (puesta a tierra) es una medida de seguridad, no
puentearia ni eliminaria.
Desconexión de alimentación eléctrica • Para desconectar con seguridad la
acometida de alimentación eléctrica al equipo, desenchufar todos los cables de
alimentación en el panel trasero del equipo, o desenchufar el módulo de
alimentación (si fuera independiente), o desenchufar el cable del receptáculo de
la pared.
Protección del cables de alimentación • Los cables de alimentación eléctrica se
deben instalar en lugares donde no sean pisados ni apretados por objetos que se
puedan apoyar sobre ellos.
Reparaciones/mantenimiento • Solicitar siempre los servicios técnicos de personal
calificado. En el interior no hay partes a las que el usuario deba acceder. Para
evitar riesgo de electrocución, no intentar personalmente la reparación/
mantenimiento de este equipo, ya que al abrir o extraer las tapas puede quedar
expuesto a voltajes peligrosos u otros riesgos.
Ranuras y aberturas • Si el equipo posee ranuras o orificios en su caja/alojamiento,
es para evitar el sobrecalientamiento de componentes internos sensibles. Estas
aberturas nunca se deben obstruir con otros objetos.
Batería de litio • Existe riesgo de explosión si esta batería se coloca en la posición
incorrecta. Cambiar esta batería únicamente con el mismo tipo (o su equivalente)
recomendado por el fabricante. Desachar las baterías usadas siguiendo las
instrucciones del fabricante.
Extron’s Warranty
Extron Electronics warrants this product against defects in materials and
workmanship for a period of three years from the date of purchase. In the event of
malfunction during the warranty period attributable directly to faulty workmanship
and/or materials, Extron Electronics will, at its option, repair or replace said products
or components, to whatever extent it shall deem necessary to restore said product to
proper operating condition, provided that it is returned within the warranty period,
with proof of purchase and description of malfunction to:
USA, Canada, South America, Europe, Africa, and the Middle East:
and Central America:
Extron Electronics Beeldschermweg 6C
1001 East Ball Road 3821 AH Amersfoort
Anaheim, CA 92805, USA The Netherlands
Asia: Japan:
Extron Electronics, Asia Extron Electronics, Japan
135 Joo Seng Road, #04-01 Kyodo Building
PM Industrial Bldg. 16 Ichibancho
Singapore 368363 Chiyoda-ku, Tokyo 102-0082
This Limited Warranty does not apply if the fault has been caused by misuse,
improper handling care, electrical or mechanical abuse, abnormal operating conditions
or non-Extron authorized modification to the product.
If it has been determined that the product is defective, please call Extron and ask for an
Applications Engineer at (714) 491-1500 (USA), 31.33.453.4040 (Europe), 65.6383.4400
(Asia), or 81.3.3511.7655 (Japan) to receive an RA# (Return Authorization number). This
will begin the repair process as quickly as possible.
Units must be returned insured, with shipping charges prepaid. If not insured, you
assume the risk of loss or damage during shipment. Returned units must include the
serial number and a description of the problem, as well as the name of the person to
contact in case there are any questions.
Extron Electronics makes no further warranties either expressed or implied with
respect to the product and its quality, performance, merchantability, or fitness for any
particular use. In no event will Extron Electronics be liable for direct, indirect, or
consequential damages resulting from any defect in this product even if Extron
Electronics has been advised of such damage.
Please note that laws vary from state to state and country to country, and that some
provisions of this warranty may not apply to you.
Extron Electronics, Europe
Japan
Table of Contents
Chapter 1 • Introduction ..........................................................1-1
About the HSA 822 Hideaway® Enclosure.................1-2
Features ...................................................................................... 1-4
Chapter 2 • Installation............................................................. 2-1
Installation Overview.......................................................... 2-2
Preparing the Routing Template ...................................2-3
Preparing the Table and Mounting the Enclosure .....2-4
Cabling and Installing the AAPs....................................2-8
Cabling the Enclosure ....................................................... 2-10

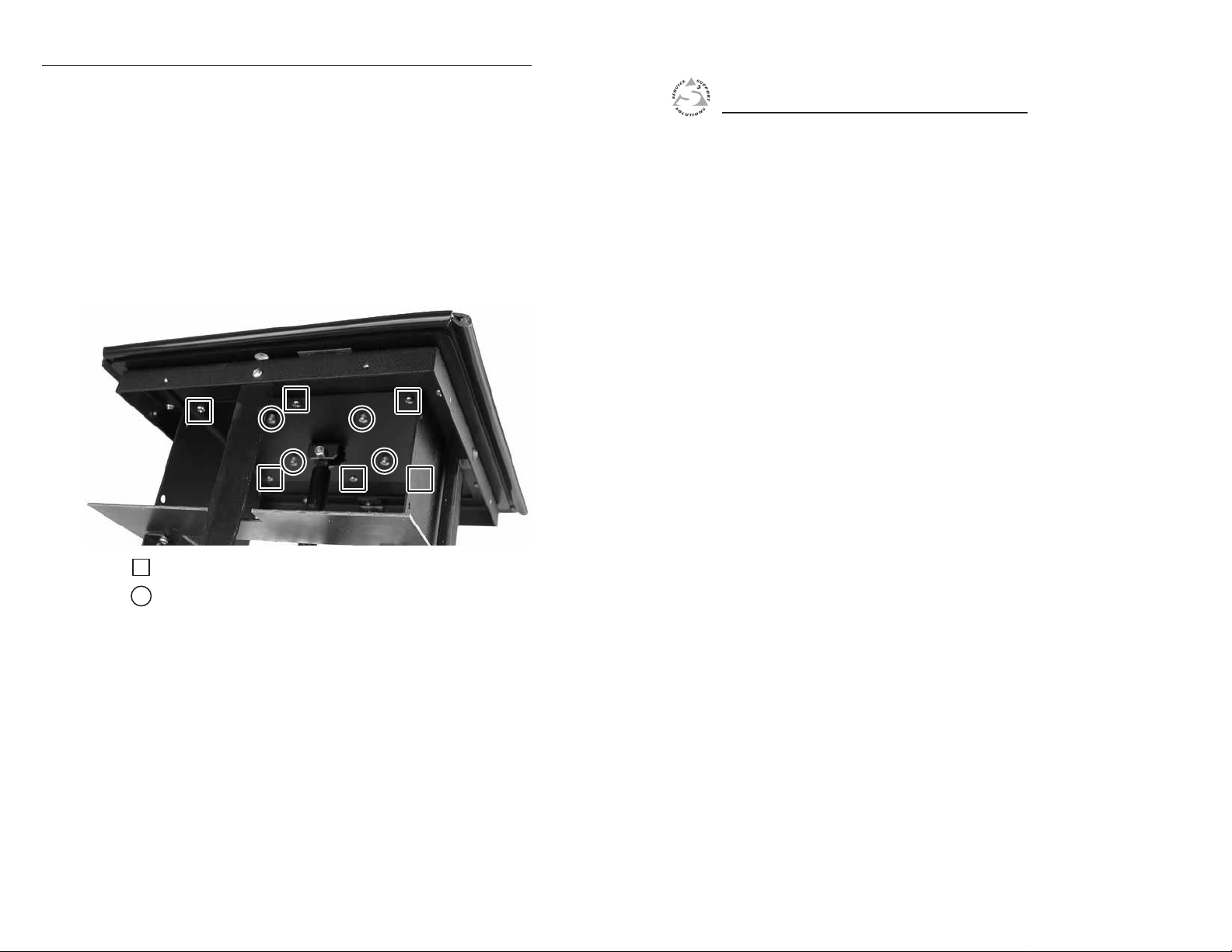

Bottom panel features ........................................................2-10
Cabling the RJ-45 connectors............................................. 2-10
Routing the AAP Cables ................................................... 2-12
Bezels .........................................................................................2-13
Chapter 3 • Maintenance and Modifications ............ 3-1

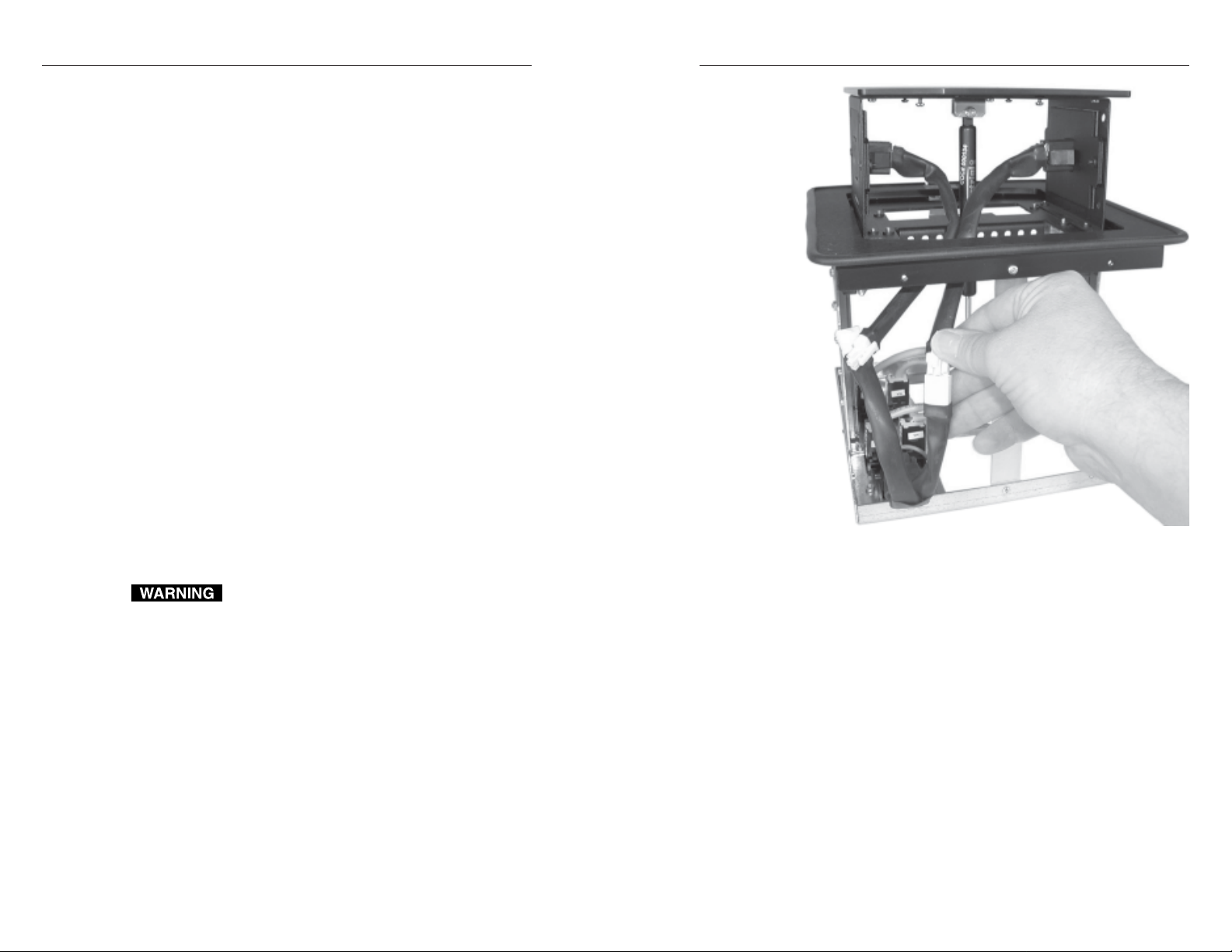

Replacing an AAP .................................................................. 3-2
Replacing the Bezels ............................................................3-4
Removing and Replacing the Enclosure .................... 3-5
Replacing the Gas Lift......................................................... 3-8
Adjusting the Top Surface ..............................................3-12
Adjusting the height of the top surface ............................ 3-12
Adjusting the top surface level ..........................................3-14
Appendix A • Reference Information ............................ A-1

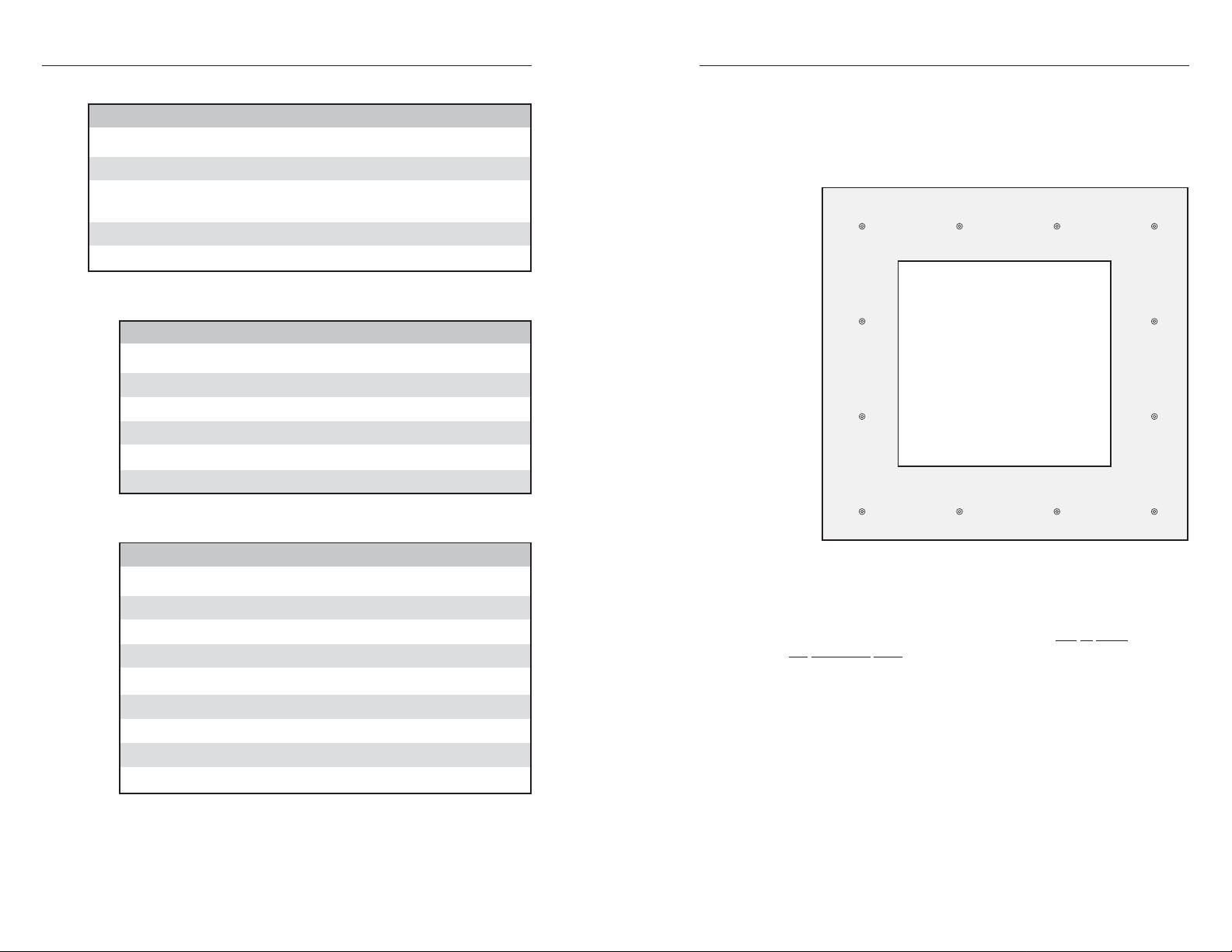

Specifications ......................................................................... A-2
Part Numbers.......................................................................... A-3
Included Parts......................................................................... A-3
Template, Replacement Parts, and Accessories.... A-4
Interface Accessories.......................................................... A-4

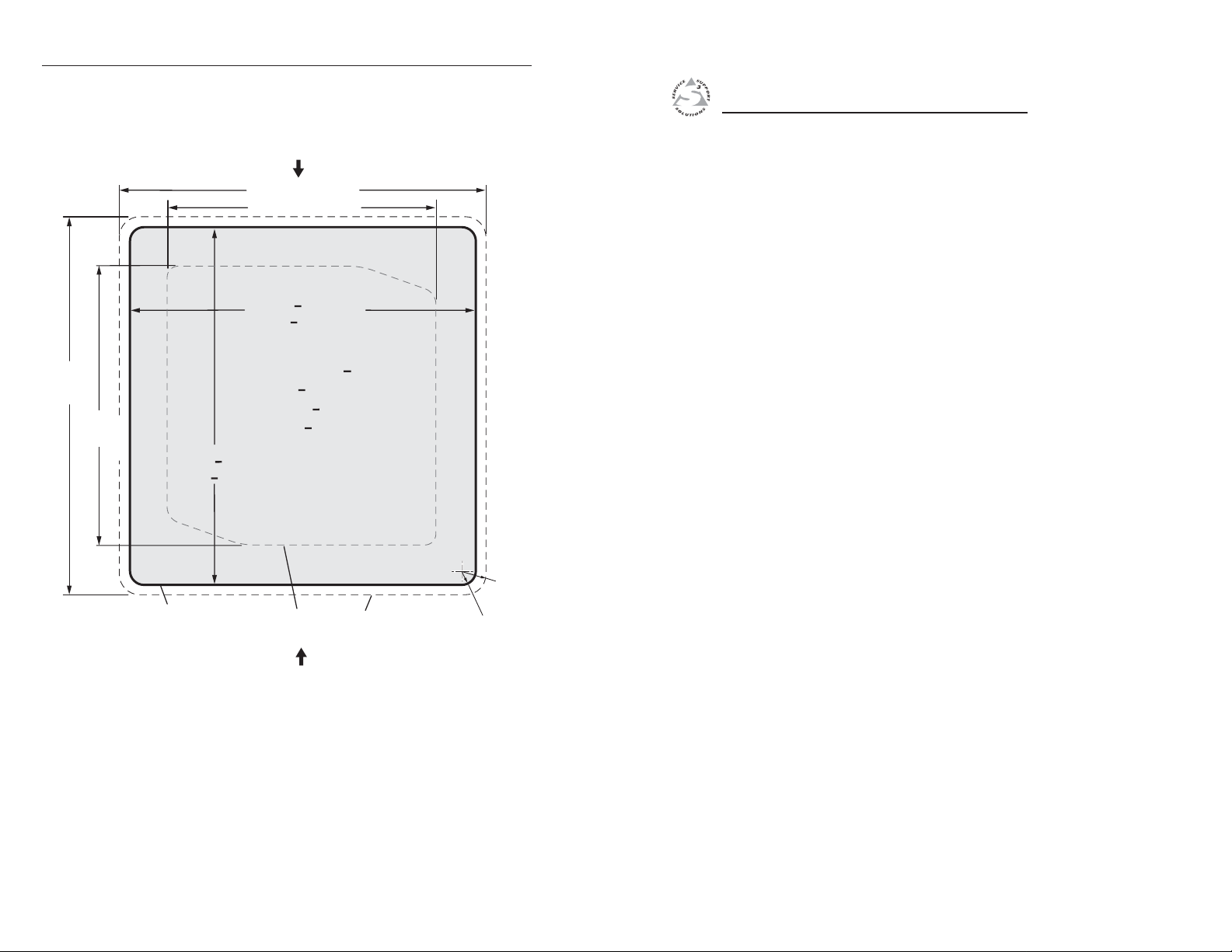

Top Plate Dimensions ......................................................... A-5
HSA 822 cut-out template.................................................... A-6

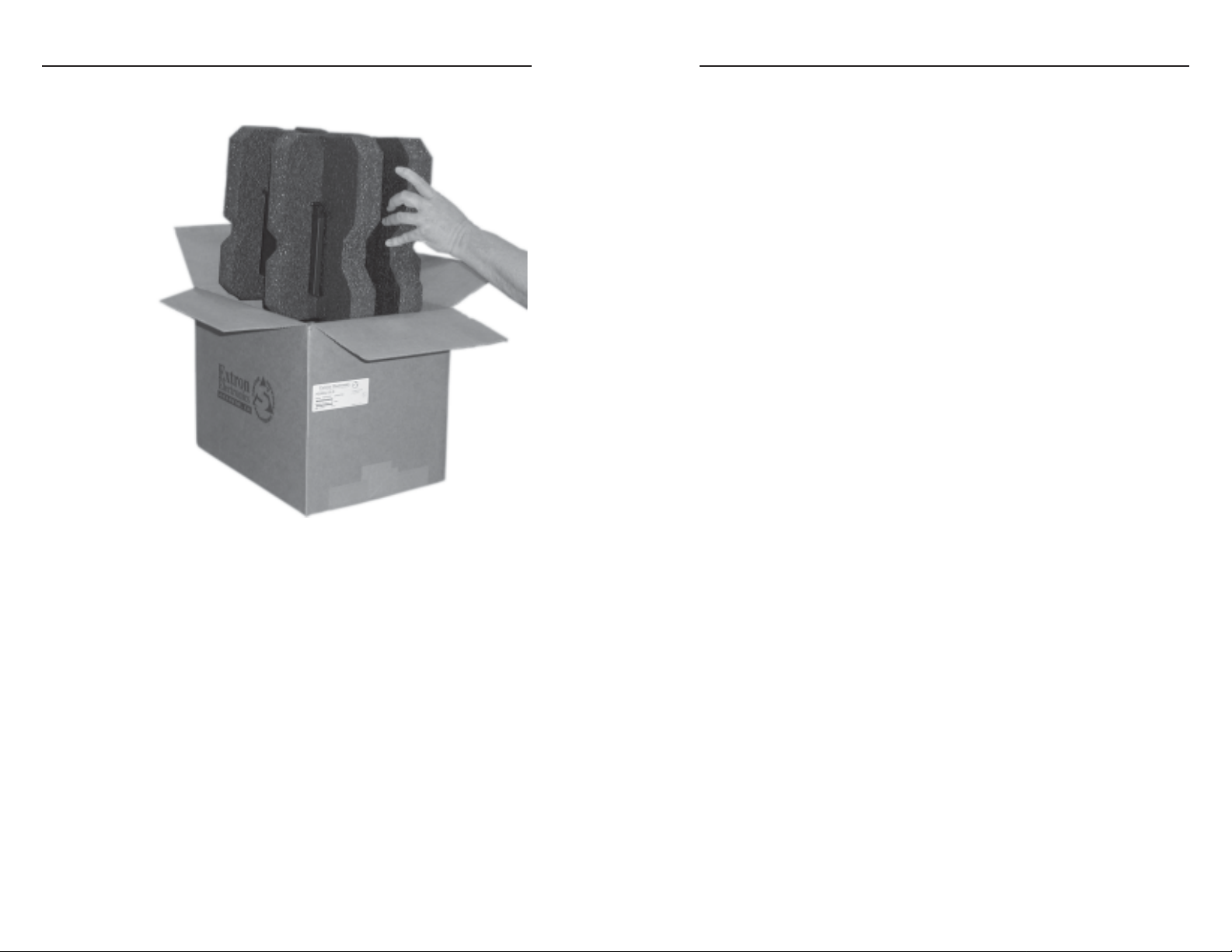

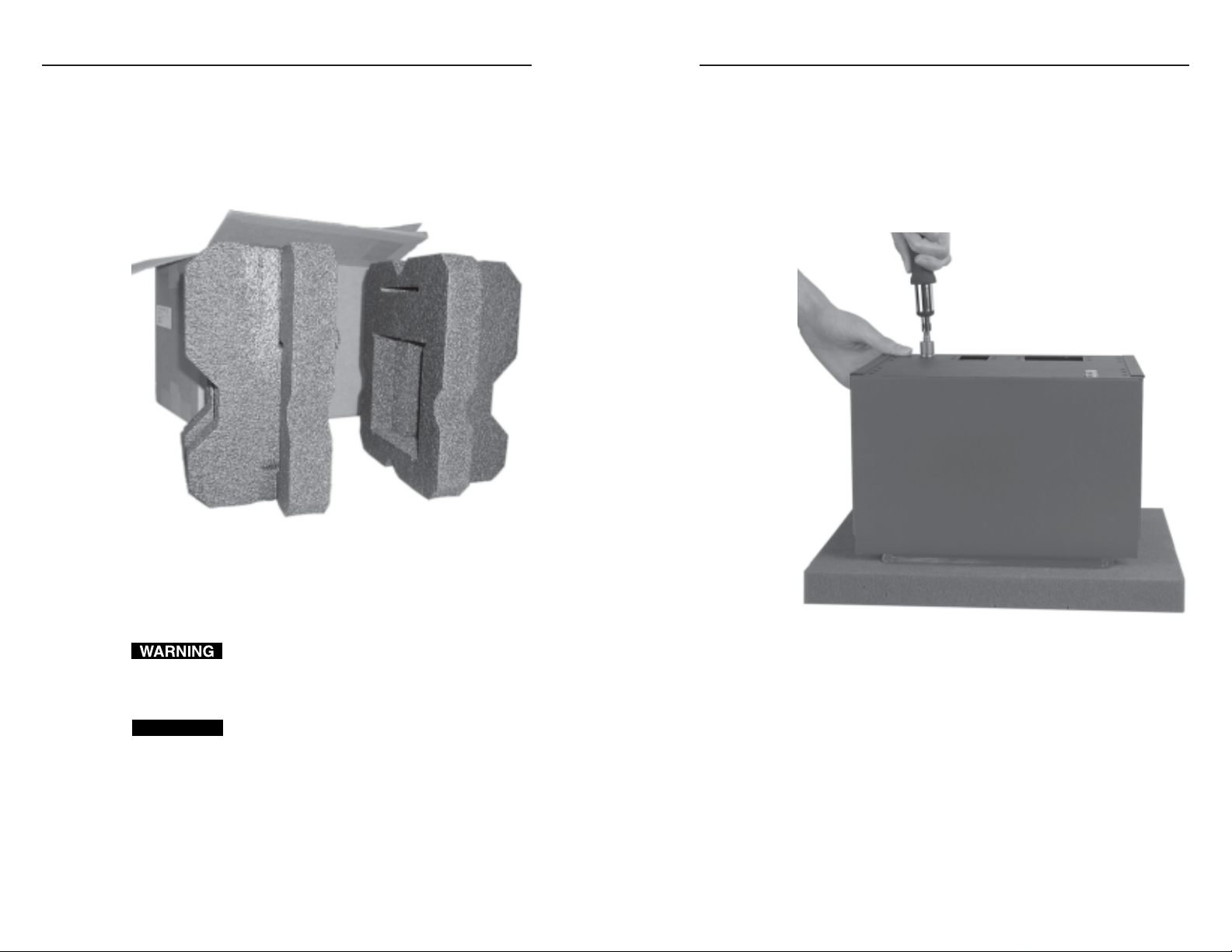

Appendix B • Packaging for Shipment ..........................B-1
iHSA 822 Hideaway® Enclosure • Table of Contents
Table of Contents, cont’d
HSA 822 Hideaway® Enclosure
Chapter One
1
All trademarks mentioned in this manual are the properties of their respective owners.
68-617-02 Rev. G
ii
HSA 822 Hideaway
®
Enclosure • Table of Contents
Introduction
About the HSA 822 Hideaway® Enclosures
Features
08 08
Introduction
Projector
Extron
HSA 822
Extron
RGB 580
xi
Surface Access
Enclosure
S
O
G
S
E
R
R
D
D
S
P
V
S
Y
N
C
W
ID
T
H
N
E
G
S
Y
N
C
C
O
M
P
S
Y
N
C
I
N
P
U
T
S
R
G
B
5
8
0
x
i
A
N
A
L
O
G
A
U
D
I
O
C
O
N
T
R
O
L
V
ID
E
O
O
U
T
P
U
T
L
E
V
E
L
A
B
C
D
E
P
E
A
K
I
N
G
Extron
HSA 822
Extron
RGB 580xi
Remote Interface
Both Sides
C
O
M
P
U
T
E
R
IN
P
U
T
S
E
L
E
C
T
A
U
D
I
O
C
O
M
P
U
T
E
R
I
N
P
U
T
S
E
L
E
C
T
A
U
D
I
O
About the HSA 822 Hideaway® Enclosure
The Extron HSA 822 is a furniture-mounted, architectural
solution for inconspicuous computer video interface connector
access and control.
The HSA 822 provides space for four double space (doubleheight) or eight single space Extron Architectural Adapter Plates
(AAPs), two standard grounded AC power receptacles, and four
RJ-45 (Category 6, CAT 6) connectors (figure 1-1). The HSA is
available in a US version, with US power receptacles, and an
international version. Several different types of power
receptacles are available for the international version, including
Universal, UK, French, Israeli, Australian, Indian, European,
and Swiss receptacles.
The Universal AC outlet is fully compatible with
Europlug, British, Indian, Danish, and Italian plug
types. See the universal AC outlet guide on the Extron
Web site, www.extron.com, for compatibility details on
all plug types.
Closed
The installed enclosure fits nearly flush within a table or
podium top, storing the AAPs and connectors out of the way
and out of sight. To access the AAPs and connectors, the user
presses down on the top of the enclosure, releasing a
mechanical latch. A gas lift slowly raises the AAPs and
connectors into view.
The functionality of the HSA 822 can be optimized with one
through four RGB 580xi AAPs connected to one through four
RGB 580xi Remote Interfaces (figure 1-2).
1-2
HSA 822 Hideaway® Enclosure • Introduction
Open
Figure 1-1 — HSA 822 hideaway enclosure
The AAP spaces and RJ-45 connectors are arranged back-to
back, while the AC receptacles are back-to-back on the sides
perpendicular to the AAPs. Cabling inside the enclosure runs
the AC power line and RJ-45 signal lines from the connectors on
the AAP panels to connectors on the underside of the enclosure.
With an optional conversion kit, one or more of the RJ-45 (data)
lines can be converted to an RJ-11 (telephone) line.
Figure 1-2 — HSA 822 and RGB 580
xixi
xi
xixi
HSA 822 Hideaway® Enclosure • Introduction
configuration
1-3
Introduction, cont’d
Features
The HSA 822 is available in a variety of surface finishes,
including black anodized aluminum, brushed aluminum,
brushed brass, and polished aluminum.
• UL/CUL listing
• CSA certification
• Easy access to connectors and controls
• Durable mechanical movement and latching mechanism
• A variety of surface finishes available
• A variety of colors of included RJ-45 connector bezels
included: black, red, blue, orange, gray, white, ivory,
yellow, and green
The space behind the AAP panel is limited. The online
Connectivity Configurator, available at
www.extron.com, offers guidance as to the fit of AAPs
into this space.
• Compact size
• Easy installation of up to four powered or passive double
space Extron AAPs
HSA 822 Hideaway® Enclosure
Chapter Two
2
1-4
• RJ-45 (CAT 5/6) network and data connections
(teminated in accordance with the TIA/EIA 568 A
standard)
• Grounded AC plugs
HSA 822 Hideaway® Enclosure • Introduction
Installation
Installation Overview
Preparing the Routing Template
Preparing the Table and Mounting the Enclosure
Cabling and Installing the AAPs
Cabling the Enclosure
Routing the AAP Cables
Bezels
Installation
Installation Overview
Install and set up the HSA 822 as follows:

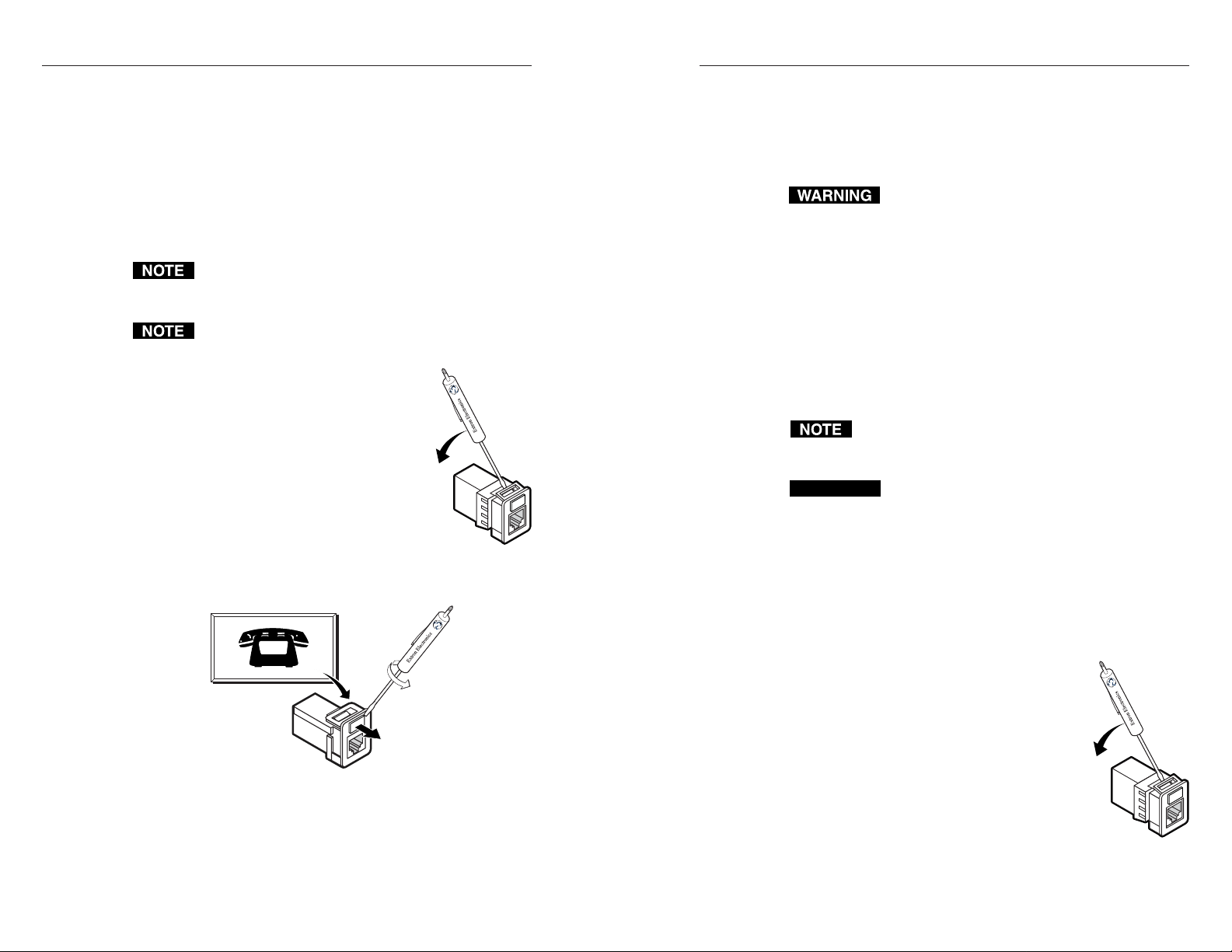

If desired, install the optional RJ-45 to RJ-11 conversion
1
kit(s) to replace one or more RJ-45 connectors with RJ-11
connectors. Refer to the RJ-45 to RJ-11 Conversion Kit
manual.
If desired, install the optional flexible conduit kit to
2
replace the removable AC power cord. Refer to the
Flexible Conduit Kit manual.
If you have an unprepared mounting template, prepare
3
the template. See “Preparing the Routing Template” on
the next page.

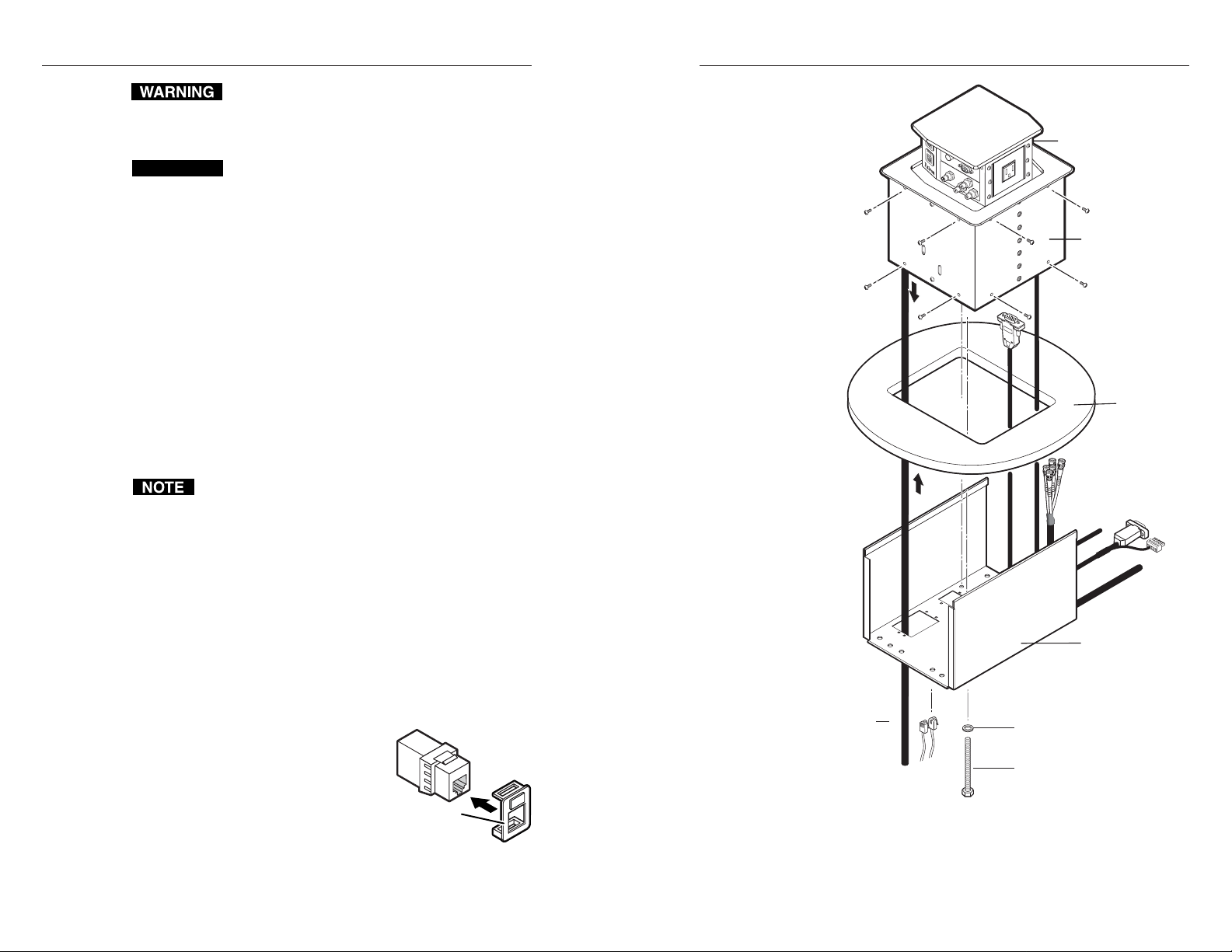

Cut a hole in the surface where the enclosure will be
4
installed and install the enclosure. The clamshell, a
clamping and protective device, clamps the enclosure to
the table. See “Preparing the Table and Mounting the
Enclosure” on page 2-4.
Run all cables necessary to support the AC and
5
RJ-45 connectors and all planned AAP connectors. Leave
enough slack in the cables to connect them to the
underside of the enclosure or to the rear of the AAPs
before the AAPs are installed in the enclosure.
Turn off all of the equipment to be connected. Ensure that
6
the equipment connected to the RJ-45 connectors and the
connections for any AAPs are all turned off and
disconnected from the power source.

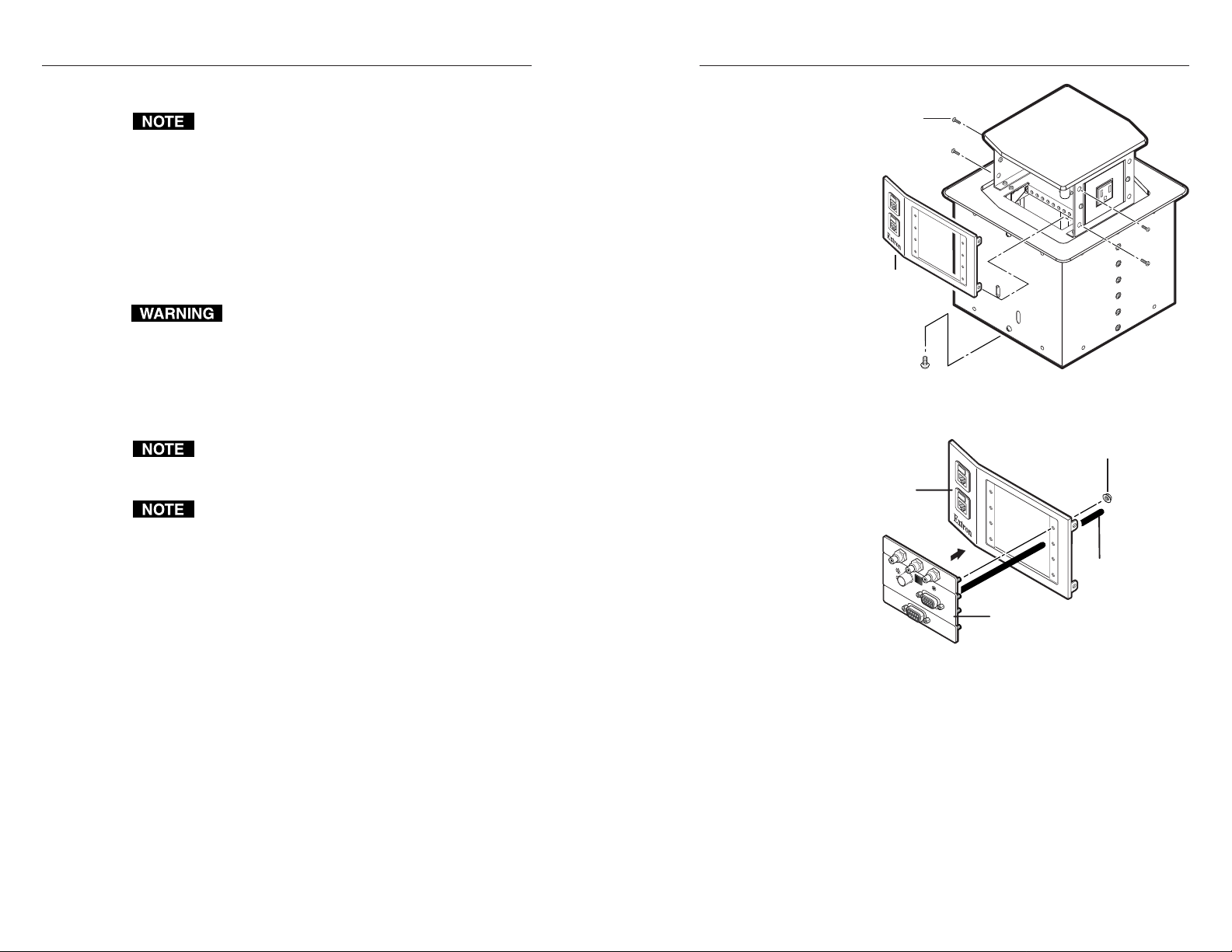

If applicable, connect cables to the rear connectors on the
7
AAPs to be installed in the HSA 822. Install the desired
AAPs on the AAP panel of the enclosure. See “Cabling
and Installing the AAPs” on page 2-8.
Connect the power and RJ-45 cables to the underside of
8
the enclosure. See “Cabling the Enclosure” on page 2-10.
Route and secure the AAP cables inside the clamshell.
9
See “Routing the AAP Cables” on page 2-12.
If present, peel the protective coating from the top surface.
10
Connect power cords and turn on the devices that connect
11
to the surface access enclosure.
Preparing the Routing Template
Extron provides a metal routing template for the HSA 822 at no
charge. The HSA 822 template is part #70-191-01. Extron
recommends using this template as a guide to cut the hole in the
table where the HSA will be installed.
The metal routing template is reusable. Do not discard
this template when the installation is complete. Save it
for future HSA 822 installations.
1. Cut 1/2" x 4" strips of soft, finished lumber long enough to
span the distance between the desired installation location
on the table or other mounting surface and the edges of
the table (figure 2-1).
Width of Mounting Surface
Minimum
4 Screws
Mounting
Surface
Edge
Wood Thickness
0.5" / 1.3 cm
Figure 2-1 — Prepared routing template
These strips raise the routing template above the mounting
surface to provide room for the router’s collar, protect the
mounting surface, and extend the reach of the routing
template so that it can be clamped to the edge of the
surface.
2. Using four or more short wood screws, secure the routing
template to the lumber strips.
CAUTION
Do not allow the wood screws to protrude through
the bottom of the wooden strips. Protruding screws
will mar the table when the template is used.
Mounting
Surface
Edge
Wood
Strips
Wood Strip
Height
4" / 10.2 cm
Routing T emplate
2-2
HSA 822 Hideaway® Enclosure • Installation
HSA 822 Hideaway® Enclosure • Installation
2-3
Installation, cont’d
Preparing the Table and Mounting the Enclosure
The preferred and recommended method for preparing the
table is to use the appropriate Extron metal routing template
and a router.
Alternatively, you can use a paper cut-out template (see
appendix A, “Reference Information”) and a sabre saw or
keyhole saw, but this method is not recommended.
Prepare the table as follows:
CAUTION
The opening in the table for the HSA 822 should be
cut only by licensed and bonded craftspeople.
Exercise care to prevent scarring or damaging the
furniture.
The routing templates for the various HSA models
are not interchangeable. If you use the wrong
template, you will cut an improperly-sized hole. If
you use a larger template than required, the cut will
result in gaps in the table surface on either side of
the enclosure.
Figure 2-2 — Cutting the opening with a router
The surfaces of the HSA enclosure have screws and
other protruding hardware that could damage fine
furniture. Do not rest the enclosure on unprotected
furniture.
The metal routing template is reusable. Do not discard
this template when the installation is complete. Save it
for future HSA 822 installations.
1. Locate the desired mounting location on the tabletop or
other installation surface. Mark the location.
CAUTION
2. Place the routing template assembly on the table, centered
on the mounting location. Angle the template for the
optimum positioning. If necessary, use a square to ensure
that the template is properly positioned. Extron is not
responsible for improperly-positioned HSA products.
3. Once the template assembly is positioned properly, secure
the assembly to the table with C-clamps (figure 2-2).
Ensure that only the wooden strips contact the
furniture. Failure to do so may mar the furniture.
Wear safety glasses when operating the router.
Failure to comply can result in eye injury.
4. Using a router with a 5/8" (or 16 mm) outside diameter
guide bushing and a 1/2" (or 12 mm or 12.7 mm) diameter
straight router bit, carefully cut the opening in the table
surface (figure 2-2).
5. Remove the C-clamps and the routing template.
The flanged edges of the top of the surface enclosure
are sharp when the HSA is removed from the table.
Exercise caution when handling to prevent personal
injury.
CAUTION
The flanged edges of the top of the surface enclosure
are bevelled to an ultra-fine thickness of less than
0.04 (4/100)" (approximately 1 mm). These edges
are soft and can be easily nicked or bent. Exercise
caution when handling and mounting the
enclosure. Mishandling can damage the appearance
of the enclosure.
HSA 822 Hideaway® Enclosure • Installation
HSA 822 Hideaway® Enclosure • Installation
2-52-4
Installation, cont’d
6. Remove the plastic strips that protect the flanged edges of
the top of the surface enclosure. If a sticky residue
remains, remove it with an appropriate metal cleaning
product.
CAUTION
7. Carefully lower the HSA enclosure into the hole to test the
fit. If necessary, remove the enclosure and use a file or
rasp to enlarge or smooth the edges of the opening.
8. From the underside of the table, bolt the clamshell to the
enclosure with two bolts of optimum length (included)
(figure 2-3).
9. Peel any remaining protective coating from the enclosure.
Do not use isopropyl alcohol or other solvents to
clean the HSA. Strong solvents will ruin some
finishes.
I
N
P
U
S
T
E
L
E
C
C
T
O
A
M
U
P
D
U
I
O
T
E
R
HSA 822
Mounting
Surface
AAP Cables
2-6
HSA 822 Hideaway® Enclosure • Installation
Clamshell
Power Cord
RJ-45 Connectors
Flat Washer
Full Thread
Mounting Bolts
Figure 2-3 — Mounting the HSA 822 enclosure
HSA 822 Hideaway® Enclosure • Installation
2-7
Installation, cont’d
Cabling and Installing the AAPs
The space behind the AAP panel is limited. The online
Connectivity Configurator, available at
www.extron.com, offers guidance as to the fit of AAPs
into this space.
Extron’s various single space and double space AAP devices,
including the various RGB 580xi AAPs, can be mounted to the
HSA 822. See appendix A, “Reference Information”, for
RGB 580xi AAP part numbers.
The screws for installing an AAP are built into its AAP panel, so
no additional screws are needed.
Ensure that AC power is disconnected before
servicing the HSA unit.
1. Remove the top and bottom screws on the right and left
sides of the AAP panel (figure 2-4). Retain the screws. Lift
the panel away from the enclosure as far as the connected
cables allow and then allow the panel to dangle,
supported by its connected cables.
The center screws on each side of the AAP panel do not
fasten the AAP panel in place. They secure the
AC power outlet.
Ensure that the edges of the AAP panels do not scratch
the finished surface of the top panel flange when
removing the panels.
2. Cable the rear of the AAPs before fastening the AAPs to
the AAP panel. Route the cables through the hole in the
underside of the surface mount enclosure and connect
them to the rear of the AAPs. If applicable, refer to the
cabling information in the documentation for the AAP.
3. Insert each of the AAP’s screws through the holes in the
AAP opening of the HSA AAP panel. Secure each AAP to
the panel with the provided captive washers and #4-40
nuts (figure 2-5).
Remove two
screws ea. side.
Remove panel.
H
S
A
8
2
2
Replacement Face Plate
Screws (4) Under Enclosure
Figure 2-4 — Removing the AAP panel from an
HSA 822
AAP Panel
#4-40 Nut w/ Captive
IN
P
U
S
T
E
L
E
C
C
T
O
A
M
U
P
D
U
IO
T
E
R
RGB 580xi SI AAP
Washer
Cable
HSA 822
Figure 2-5 — Mounting an AAP device on the AAP
panel
4. Replace the AAP panel in the surface mount enclosure and
secure it in place with the screws removed in step 1. If you
lose an AAP panel screw, four spare screws are stored in
the underside of the enclosure.
2-8
HSA 822 Hideaway® Enclosure • Installation
HSA 822 Hideaway® Enclosure • Installation
2-9
Installation, cont’d
Cabling the Enclosure
Bottom panel features
2
1
1
Figure 2-6 — HSA 822 enclosure underside connectors
RJ-45 connectors — See Cabling the RJ-45 connectors below.
1
All RJ-45 connectors are teminated in accordance with
the TIA/EIA 568 A standard.
AC power connector — Connect this cord to the power source.
2
For US-domestic versions, this power cord is
permanently connected to the HSA.
Connect the power cord to a 125 VAC,
60 Hz, 10 A power source.
For international versions, this power cord is a
removable IEC power cord. Connect the cord
to a 220-250 V, 50/60 Hz, 10 A power source.
3
3 5
an appropriate telecommunications or data network or to an
Extron TP product.
An RJ-11 (telephone) plug can be connected to the RJ-45
jack.
When cabling the AAP panels and the bottom panel, the bottom
RJ-45 connectors match up with the AAP panel RJ-45 connectors
as shown in figure 2-7. For example, match the AAP panel RJ-45
connector A1 with the underside RJ-45 connector A1, match A2
with A2, and so forth.
4
A1
A2
A1
B1
A2
B1
B2
B2
Figure 2-7 — HSA 822 RJ-45 connectors
If necessary have a qualified service person replace the
connector icon on the AAP panel by prying the old icon off of
the connector plug-in with a tweeker or small screwdriver
(figure 2-8) and snapping a new icon in place.
2-10
Cable access holes
3
Spare AAP panel screws
4
Top panel height adjustment screw — See “Adjusting the
5
height of the top surface” in chapter 3, “Maintenance and
Modifications”.
Cabling the RJ-45 connectors
Plug one end of a CAT 5 or CAT 6 twisted pair (TP) cable into
each of these RJ-45 female connectors. Connect the other end to
HSA 822 Hideaway® Enclosure • Installation
Icon Labels
Figure 2-8 — Changing the connector icon
HSA 822 Hideaway® Enclosure • Installation
2-11
Installation, cont’d
Routing the AAP Cables
The AAP cables must have freedom of movement to permit
opening and closing the surface mount enclosure. At the same
time, they need to be restrained to prevent their rubbing against
the edges of the enclosure cable access hole in the underside of
the surface mount enclosure. Rubbing against the cable access
hole edges can damage the cables. Route and secure the AAP
cables as follows:
1. Open the top panel to extend the AAP cables to their
maximum pull.
2. Experiment with AAP cable positioning to ensure that the
cables do not rub against the edges of the AAP cable hole
and to ensure that the cable pull does not restrict the
movement of the top panel. Figure 2-9 shows the cables
routed to the side, which proved effective in tests at
Extron.
3. Use tie wraps to secure the AAP cables to the tie-down
holes in the clamshell and enclosure in the locations
shown on figure 2-9.
View from one side View from the opposite side
Bezels
The HSA 822 ships with RJ-45/RJ-11 connector bezel plug-ins in
a variety of colors and a black, blank bezel.
Bezel
To change to a different color RJ-45 connector
bezel or if an RJ-45 connector is not needed or
desired, replace the connector bezel plug-in on
the AAP panel with a bezel of a different color
or a blank plug-in. See Replacing the Bezels in
chapter 3.
If no RJ-45 connector is desired, snap
the interior RJ-45 cable onto the rear of
the blank bezel plug-in (shown at
right) to hold it conveniently out of the
way. Retain the removed connector
bezel plug-in for any possible later
use.
Blank Bezel
Plug-in in AAP
Panel
2-12
Secure the AAP cables at the circled locations.
Figure 2-9 — HSA 822 AAP cable routing
HSA 822 Hideaway® Enclosure • Installation
HSA 822 Hideaway® Enclosure • Installation
2-13
Installation, cont’d
HSA 822 Hideaway® Enclosure
Chapter Three
3
2-14
Maintenance and Modifications
Replacing an AAP
Replacing the Bezels
Removing and Replacing the Enclosure
Replacing the Gas Lift
Adjusting the Top Surface
HSA 822 Hideaway® Enclosure • Installation
Maintenance and Modifications
The HSA 822 surface mount enclosures can be modified in the
future to replace an AAP. The most probable corrective
maintenance procedures required are leveling the top surface
and replacing the gas lift. Most of the maintenance procedures
require removing the surface mount enclosure from the table.
Replacing an AAP
Replace one or more AAPs as follows:
1. On the underside of the clamshell and in the enclosure, cut
the tie wraps that route the AAP cables out of the way.
2. Remove the top and bottom screws on the right and left
sides of the AAP panel (figure 3-1). Retain the screws. Lift
the panel away from the enclosure as far as the connected
cables allow and then allow the panel to dangle,
supported by its connected cables.
The center screws on each side of the AAP panel do not
fasten the AAP panel in place. They secure the
AC power outlet.
CAUTION
Remove two
screws ea. side.
Remove panel.
Ensure that AC power is disconnected before
servicing the HSA unit.
Ensure that the edges of the AAP panels do not
scratch the finished surface of the top panel flange
or the furniture in which the HSA 822 is installed
when removing the panels.
INPUT
SELECT
COMPUTER
A
U
D
I
O
H
S
A
8
2
2
3. Disconnect any cables from the rear of the AAPs that are
being replaced. If a cable is no longer required in your
system, carefully pull the cable through and out the
bottom of the surface mount enclosure and the clamshell.
4. Remove the AAP(s) that you no longer want from the AAP
panel by unscrewing the nuts on the rear of the AAP panel
that secure the AAPs in place (figure 3-2).
AAP Panel
#4-40 Nut w/ Captive
IN
P
U
S
T
E
L
E
C
C
T
O
A
M
U
P
D
U
IO
T
E
R
RGB 580xi SI AAP
Washer
Cable
HSA 822
Figure 3-2 — Mounting an AAP device
5. Cable the rear of the AAPs to be installed before attaching
the AAPs to the enclosure. Route the cables through the
hole in the underside of the surface mount enclosure and
connect them to the rear of the AAPs. If applicable, refer
to the cabling information in the documentation for the
AAP.
6. Insert each AAP’s screws through the holes in the AAP
opening of the AAP panel. Secure each AAP to the panel
with the provided captive washers and #4-40 nuts.
7. Replace the AAP panel in the surface mount enclosure and
secure them in place with the screws removed in step 2. If
you lose an AAP panel screw, four spare screws are stored
in the underside of the enclosure (see figure 2-6 on
page 2-10).
8. To prevent wear and tear caused by cable movement,
secure the AAP cables underneath the table. See
page 2-12, Routing the AAP Cables.
HSA 822 Hideaway
3-2
Figure 3-1 — Removing the AAP panel
®
Enclosure • Maintenance and Modifications
HSA 822 Hideaway® Enclosure • Maintenance and Modifications
3-3
Maintenance and Modifications, cont’d
Replacing the Bezels
The HSA 822 ships with RJ-45 connector bezel plug-ins in a
variety of colors and a black, blank bezel. Replace a bezel as
follows:
1. Remove the top and bottom screws on the right and left
sides of the AAP panel (figure 3-1). Retain the screws. Lift
the panel away from the enclosure as far as the connected
cables allow and then allow the panel to dangle,
supported by its connected cables.
The center screws on each side of the AAP panel do not
fasten the AAP panel in place. They secure the
AC power outlet.
Ensure that the edges of the AAP panels do not scratch
the finished surface of the top panel flange when
removing the panels.
2. With a tweeker, push down on and
gently twist on the front of each RJ-45
connector detent to disconnect the
connector from the rear of the AAP panel
plug-in.
3. Pinch the top and bottom bezel detents
together and push the bezel through the
AAP panel.
4. Snap a replacement bezel in place. If
necessary, replace the connector icon by
prying the old icon off of the connector plug-in with a
tweeker (figure 3-3) and snapping a new icon in place.
Icon Labels
Figure 3-3 — Changing the connector icon
5. Replace the AAP panel in the surface mount enclosure and
secure it in place with the screws removed in step 1. If you
lose an AAP panel screw, four spare screws are stored in
the underside of the enclosure.
Removing and Replacing the Enclosure
The procedures for replacing the gas lift and adjusting the
levelling of the top surface require removing the HSA 822 from
the table. Remove and replace the surface mount enclosure for
maintenance as follows:
Ensure that AC power is disconnected before
servicing the HSA unit.
1. On the underside of the clamshell and in the enclosure, cut
the tie wraps that route the AAP cables out of the way.
2. Disconnect the IEC power cord and RJ-45 connectors from
the underside of the surface mount enclosure.
3. On both AAP panels, remove the top and bottom screws
on the right and left sides of the AAP panel (figure 3-1,
page 3-2). Retain the screws. Lift the panels away from
the enclosure as far as the connected cables allow and then
allow the panels to dangle, supported by their connected
cables.
The center screws on each side of the AAP panel do not
fasten the AAP panel in place. They secure the AC
power outlet.
CAUTION
4. To ensure that the bottom RJ-45 connectors match up with
the AAP panel RJ-45 connectors when the maintenance is
complete, tag the internal CAT 6 cables to define their
installation location (top or bottom and side A or B).
Also tag the side of the enclosure itself (A or B).
5. With a tweeker, inside the AAP panels,
push down on and gently twist on the
front of each RJ-45 connector detent to
disconnect the connector from the rear of
the AAP panel plug-in.
6. Disconnect any cables from the rear of
the existing AAPs. Carefully pull the
cables through and out the bottom of the
surface mount enclosure.
7. Set the AAP panels aside.
Ensure that the edges of the AAP panels do not
scratch the finished surface of the top panel flange
or the furniture in which the HSA 822 is installed
when removing the panels.
HSA 822 Hideaway
®
Enclosure • Maintenance and Modifications
HSA 822 Hideaway® Enclosure • Maintenance and Modifications
3-53-4
Maintenance and Modifications, cont’d
The flanged edges of the top of the surface enclosure
are sharp when the HSA is removed from the table.
Exercise caution when handling to prevent personal
injury.
CAUTION
8. On the underside of the table, remove the two bolts that
secure the clamshell to the surface mount enclosure
(figure 3-4). Lift the enclosure out of the table.
9. Remove and retain the four screws in the corners of each
side surface of the enclosure shroud “cube”. Remove the
two halves of the shroud.
10. Perform the desired maintenance or modification
procedure.
11. If the surface is not level or the top panel is not level with
the flange, adjust the top surface. See Adjusting the Top
Surface in this chapter.
12. Connect the appropriate cables to the rear of the AAPs
installed on the AAP panels. Route the cables through the
hole in the underside of the surface mount enclosure and
connect them to the rear of the AAPs. Refer to the cabling
information in the documentation for the AAP.
13. Snap the interior RJ-45 cable
connectors onto the rear of the
RJ-45 AAP panel bezel plug-ins in
the locations identified by the
tags.
The flanged edges of the top of the surface enclosure
are bevelled to an ultra-fine thickness of less than
0.04 (4/100)" (approximately 1 mm). These edges
are soft and can be easily nicked or bent. Exercise
caution when handling and mounting the
enclosure. Mishandling can damage the appearance
of the enclosure.
The surfaces of the HSA enclosure have screws and
other protruding hardware that could damage fine
furniture. Do not rest the enclosure on unprotected
furniture.
You do not need to remove the screws in the center of
each side. They do not secure the shroud in any way;
rather, they provide structural support to the enclosure.
RJ-45 Bezel
Plug-in in AAP
Panel
HSA 822
Enclosure
Flat Washer
Full Thread
Mounting Bolts
Shroud
Clamshell
Mounting
Surface
AAP Cables
Remove (16)
screws.
Power Cord
RJ-45 Connectors
I
N
P
U
S
T
E
L
E
C
C
T
O
A
M
U
P
D
U
I
O
T
E
R
Figure 3-4 — Removing the HSA 822 from the table
HSA 822 Hideaway
®
Enclosure • Maintenance and Modifications
HSA 822 Hideaway® Enclosure • Maintenance and Modifications
3-73-6
Maintenance and Modifications, cont’d
14. Replace the AAP panels in the surface mount enclosure
and secure them in place with the screws removed in step
3. If you lose an AAP panel screw, four spare screws are
stored in the underside of the enclosure.
15. Secure the two shroud halves to the enclosure frame with
the eight screws per shroud half (four per side) removed in
step 9. Orient the shroud halves such that the vertical
column of center holes align with the column of screw
inserts on the vertical slides.
16. Carefully lower the HSA enclosure into the table opening.
From the underside, bolt the clamshell to the enclosure
with the two bolts removed in step 8.
17. Connect the IEC power cord and RJ-45 cables to the
connectors on the underside of the surface mount
enclosure.
18. To prevent wear and tear caused by cable movement,
secure the AAP cables underneath the table. See
page 2-12, “Routing the AAP Cables”.
Replacing the Gas Lift
The gas lift that raises the surface is rated for 100,000 opening
and closing cycles. An enclosure with many cables connected or
an enclosure with a brass top panel may require a stronger gas
lift than the standard 10 lb lift (see Template, Replacement Parts,
and Accessories in appendix A, Reference Information for part
numbers for the 12 lb and 15 lb gas lifts. Replace the gas lift as
follows:
Ensure that AC power is disconnected before
servicing the HSA unit.
1. Remove the surface mount enclosure. See “Removing and
Replacing the Enclosure”, steps 1 through 9, in this
chapter. Place the enclosure on a horizontal surface.
2. Disconnect the 3-prong cable connectors on the interior
AC cables (figure 3-5).

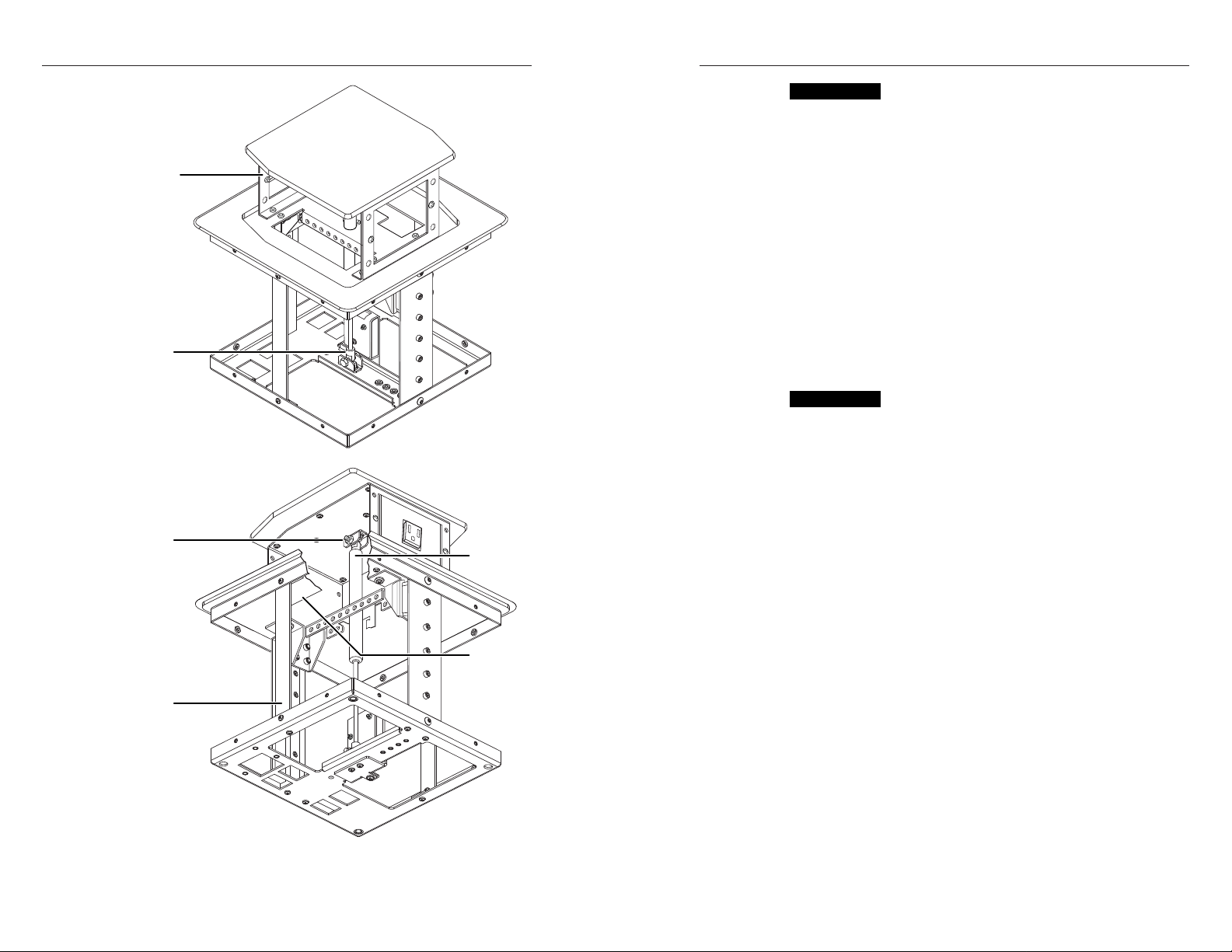

Figure 3-5 — Disconnecting the interior AC cables
3. Turn the enclosure upside-down. To protect the finish,
place the enclosure on a soft cloth.
4. Open and close the top panel as necessary to access the
center lifting platform (figure 3-6). Remove the four
screws that secure the top panel bracket to the lifting
platform.
HSA 822 Hideaway
®
Enclosure • Maintenance and Modifications
HSA 822 Hideaway® Enclosure • Maintenance and Modifications
3-93-8
Maintenance and Modifications, cont’d
Top Panel
Bracket
Frame
Clevis Nut
Top Panel
Clevis
Gas Lift
Lifting
Platform
CAUTION
5. Turn the enclosure frame rightside-up.
6. Remove and retain the 9/32" nut and bolt that secure the
gas lift to the top panel clevis. Lift the top panel and clevis
off of the gas lift and set it aside on the bracket flanges.
7. Turn the gas lift counterclockwise until the lift comes free
of the frame clevis nut at the bottom of the enclosure
frame. Carefully draw the gas lift out through the top of
the enclosure frame.
8. Insert the shaft end of the replacement gas lift through the
hole in the lifting platform. Thread the shaft of the gas lift
into the frame clevis nut and tighten it several turns.
CAUTION
9. Hold the top panel in position above the gas lift. Secure
the gas lift to the top panel clevis with the nut and bolt
that were removed in step 6.
10. Reconnect the interior AC power cables.
11. If necessary, release (extend) the top panel. Turn the
enclosure frame upside-down and place it on the soft cloth
surface.
12. Secure the top panel bracket to the lifting platform with
the four screws removed in step 4.
13. Reinstall the surface mount enclosure. See “Removing and
Replacing the Enclosure”, steps 11 through 18.
With the top panel bracket detached from the lifting
platform, the bracket will be floppy atop the gas lift.
Ensure that the bracket does not bang into the top
flange. Marring of the soft surface of the flange
may result
Ensure that the top panel bracket does not contact
the top flange. Marring of the soft surface of the
flange may result
Enclosure
Frame
Figure 3-6 — Changing the gas lift
HSA 822 Hideaway
3-10 3-11
®
Enclosure • Maintenance and Modifications
HSA 822 Hideaway® Enclosure • Maintenance and Modifications
Maintenance and Modifications, cont’d
Adjusting the Top Surface
The top lifting panel of the HSA 822 can be adjusted to raise or
lower its level flush with the flange. It can also be adjusted to
ensure that the lifting panel is horizontal and not tipped.
Adjusting the height of the top surface
You may be able to adjust the height of the top lifting
panel without removing the HSA 822 from the table. If
you can reach the height adjustment lock screw slots
(figure 3-7) in the side of the enclosure with a long
Phillips-head screwdriver, you should not need to remove
the HSA from the table.
I
N
P
U
S
T
E
L
E
C
C
T
O
A
M
U
P
D
U
I
O
T
E
R
Height Adjustment
Locking Screw Slots
Loosen
locking
screws.
HSA 822 Hideaway
3-12

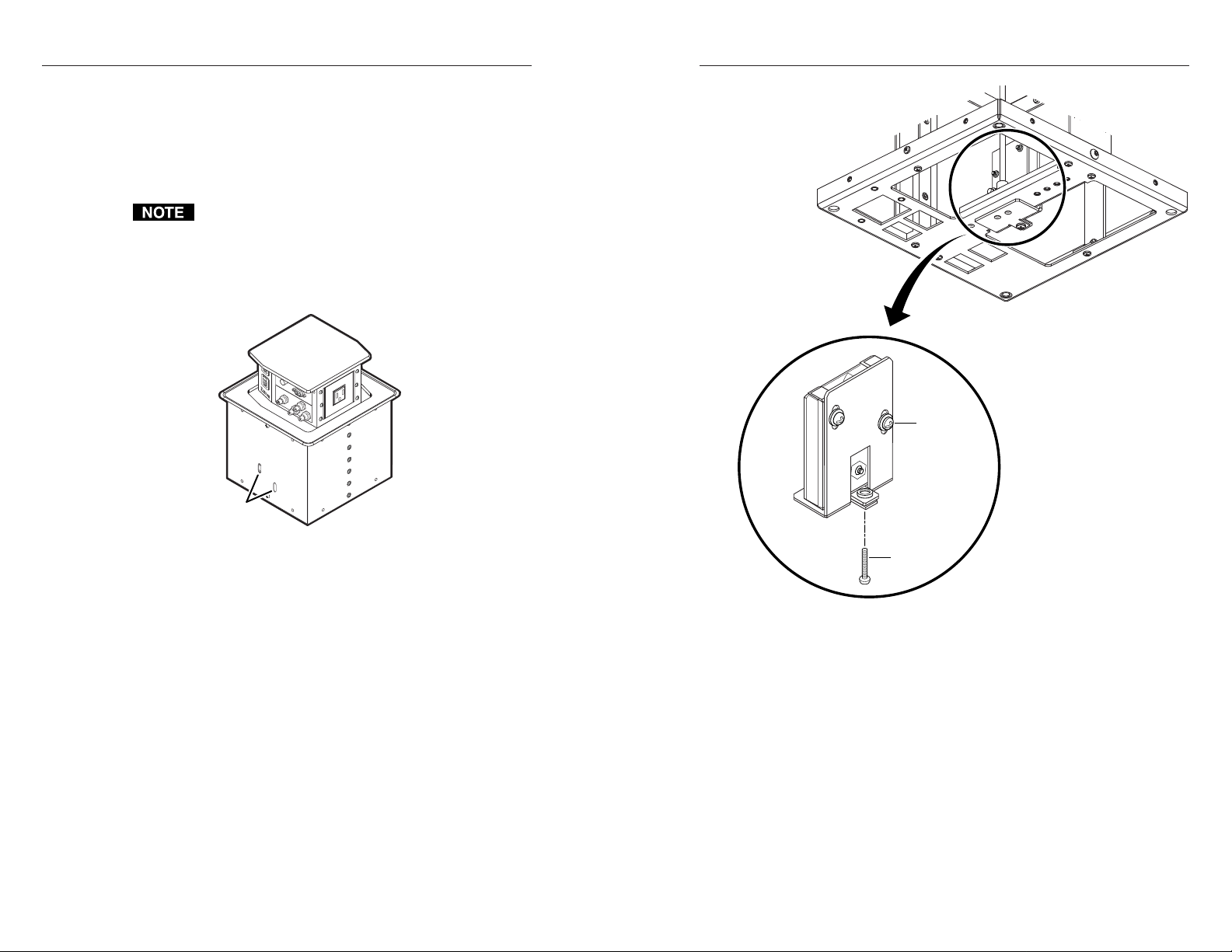

Figure 3-7 — Height adjustment locking screw slots
Raise or lower the lifting panel flush with the flange as follows:
1. If you cannot access the height adjustment locking screw
slots in the side of the HSA enclosure, remove the surface
mount enclosure from the table. See “Removing and
Replacing the Enclosure”, steps 1 through 9. Place the
enclosure on its side on a horizontal surface. To protect
the finish, place the enclosure on a soft cloth.
2. If necessary, close and latch the top panel.
3. Slightly loosen the two locking screws (figure 3-8).
®
Enclosure • Maintenance and Modifications
Adjustment
Screw
Figure 3-8 — Height adjustment screw location
4. Turn the height adjustment screw counter clockwise to
raise the lifting plate or clockwise to lower the plate
(figure 3-8).
5. Tighten the two locking screws that you loosened in step 3.
6. If removed, reinstall the surface mount enclosure in the
table. See “Removing and Replacing the Enclosure”, steps
12 through 18.
HSA 822 Hideaway® Enclosure • Maintenance and Modifications
3-13
Maintenance and Modifications, cont’d
Adjusting the top surface level
The top lifting panel of the HSA 822 can be adjusted to ensure
that the lifting panel is horizontal and not tipped. Level the
lifting panel of the HSA 822 as follows:
1. Remove the surface mount enclosure from the table. See
“Removing and Replacing the Enclosure”, steps 1 through
9. Place the enclosure on a horizontal surface. To protect
the finish, place the enclosure on a soft cloth.
2. If necessary, close and latch the top panel.
3. Slightly loosen the six locking screws (figure 3-9) that
secure the top panel to the panel bracket.
HSA 822 Hideaway® Enclosure
Appendix A
A
Indicates the location of the locking screws.
(One screw is concealed.)
Indicates the location of the adjustment screws.
Figure 3-9 — Location of level adjustment and
locking screws
4. Carefully turn the four adjustment screws on the
underside of the top panel to level the top panel with the
flange.
5. Tighten the six screws that you loosened in step 3.
6. Reinstall the surface mount enclosure. See “Removing and
Replacing the Enclosure”, steps 12 through 18.
HSA 822 Hideaway® Enclosure • Maintenance and Modifications
3-14
Reference Information
Specifications
Part Numbers
Included Parts
Template, Replacement Parts, and Accessories
Interface Accessories
Top Plate Dimensions
Reference Information
A
B
C
Specifications
General
The Universal AC outlet is fully compatible with Europlug,
British, Indian, Danish, and Italian plug types. See the
Universal AC outlet guide on the Extron Web site,
www.extron.com, for compatibility details on all plug types
Rack mount.................... No, but furniture mountable
Enclosure type ............... Metal
Enclosure approximate dimensions
CAUTION
Use the appropriate metal Extron routing template or refer to
the surface cutout dimensions here before cutting a hole in the
furniture or other surface. Pay special attention to the direction
the unit will face; the unit’s AAP and connector access side is
underlined. Extron is not responsible for miscut mounting
holes.

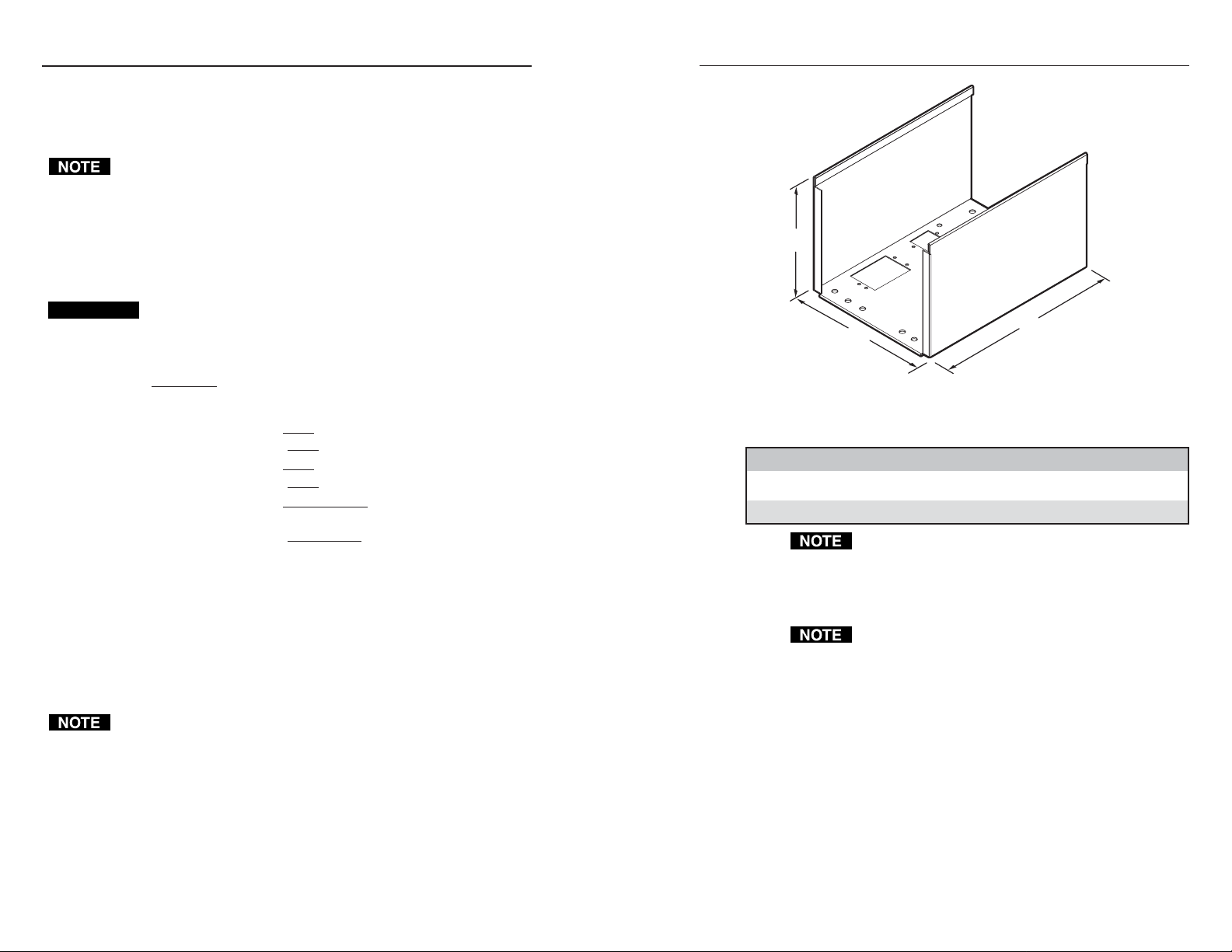

Figure A-1 — Clamshell dimensions
Top plate (outer rim)......................... 8.470" W x 8.750" D
21.51 cm W x 22.23 cm D)
(
Top plate (vertically lifting plate) ...
Surface cutout ....................................
Clamshell (figure A-1) ...................... A = 7.24" (18.39 cm)
Product/shipping weight......... 8.8 lbs (4.0 kg)/15 lbs (6.8 kg)
Listings, certifications ............... UL, CUL
Compliances ............................... CE
MTBF ........................................... Gas lift 100,000 cycles
Warranty ..................................... 3 years parts and labor
6.220" W x 6.500" D
15.80 cm W x 16.51 cm D)
(
7.90" ±0.0325" W (AAP access from
front and back) x 8.250" ±0.0325" D
(20.07 ±0.083 cm W x 20.96 ±0.083 cm D)
B = 8.25" (21.0 cm)
C = 10.98" (27.89 cm)
Part Numbers
HSA 822 Part number
HSA 822 US Enclosure (black anodized) 60-570-01
HSA 822 International Enclosure 60-687-nn
For the international versions, the nn in the part number
identifies the AC power connector and finish (black
anodized, brushed aluminum, polished aluminum, and
brushed brass). Specify the desired power connector and
finish when ordering.
The USA version of the HSA 822 is also available in
brushed aluminum, polished aluminum, and brushed
brass finishes. Visit the Extron web site,
www.extron.com for more part numbers.
Specifications are subject to change without notice.
A-2
HSA 822 Hideaway® Enclosure • Reference Information
HSA 822 Hideaway® Enclosure • Reference Information
A-3
Reference Information, cont’d
Included Parts
Part
HSA 822 HSA Hideaway Products manual
Snap-in icon inserts
RJ-45 connector bezel plug-in inserts
(assorted colors and blank)
1/4 - 20, 1", 1 ½", 2", 2 ½" full thread bolts
-or-
M6 x 65 mm, 50 mm, 40 mm, 25 mm full thread bolts
Template, Replacement Parts, and Accessories
Part Part number
HSA 822 routing template 70-191-01
HSA 822 standard (10 lb) gas lift 70-193-01
HSA 822 12 lb gas lift 70-193-02
HSA 822 15 lb gas lift 70-193-03
HSA 822 RJ-11 cable kit 70-226-01
HSA 822 flexible conduit adapter kit 70-228-01
Interface Accessories
Top Plate Dimensions
The preferred and recommended method for cutting the table is
to use the metal routing template (figure A-2
“Installation”) and a router. The template, part # 70-191-01, is
available at no cost.
USER ACCESS
and chapter 2,
USER ACCESS
EXTRON ELECTRONICS
A-4
Accessory Part number
RGB 580xi 60-362-01
RGB 580xi AAP 3' (black) 70-128-02
RGB 580xi AAP 6'
RGB 580xi AAP 12' (black) 70-130-02
RGB 580xi I AAP 12' (black) 70-133-02
RGB 580xi S AAP 3' (black) 70-134-02
RGB 580xi S AAP 6'
RGB 580xi SI AAP 3' (black) 70-137-02
RGB 580xi SI AAP 6' (black) 70-138-02
(black) 70-129-02
(black) 70-135-02
HSA 822 Hideaway® Enclosure • Reference Information
Figure A-2 — HSA 822 metal routing template
If you choose not to use Extron’s metal routing template, the
cut-out template (figure A-3) will help you properly prepare the
mounting surface. The cut-out template is not to scale and is
for reference only. The surface cut-out area dimensions for the
template are marked in bold type.
For a full size paper template, visit the Extron Web site
(http://www.extron.com) or call the Extron S3 Sales & Technical
Support Hotline.
HSA 822 Hideaway® Enclosure • Reference Information
A-5
Reference Information, cont’d
8.750"
(22.23 cm)
6.500"
(16.51 cm)
Cut-Out Template for Extron's
HSA 822
User Access (Connectors and AAP Openings)
8.470" (21.51 cm)
6.220" (15.80 cm)
+
7.900 0.0325"
+
(20.07 0.083 cm)
SURFACE CUT-OUT
AREA = 7.900 0.0325"
(20.07 0.083 cm) x
(20.96 0.083 cm)
+
8.250 0.0325"
+
(20.96 0.083 cm)
8.250 0.0325"
+
+
+
+
HSA 822 Hideaway® Enclosure
Appendix B
B
A-6
Cut surface material
out along this line.
User Access (Connectors and AAP Openings)
TEMPLATE IS NOT FULL SIZE.
Figure A-3 — HSA 822 cut-out template
HSA 822 Hideaway® Enclosure • Reference Information
Tilting Plate Top Panel
Cut-Out Radius:
0.25"
(0.6 cm)
0.5"
(1.3 cm)
Packaging for Shipment
Packaging for Shipment
The HSA 822’s ultra-fine machined surfaces and moving parts
make them vulnerable to damage caused by mishandling
during shipment if they are improperly packaged. If, for any
reason, you need to return an HSA to Extron, first contact
Extron to obtain a return kit. The return kit, which reduces the
chances of damage during shipment, includes a sturdy shipping
carton and foam cut to fit the HSA (figure B-1).
Figure B-1 — HSA 822 return kit
2. Disconnect all cables, remove any AAPs, and remove the
HSA 822 from the table or desk. See “Removing and
Replacing the Enclosure”, steps 1 through 8, in chapter 3,
“Maintenance and Modifications”. Place the enclosure
upside-down on a horizontal surface. To protect the finish,
place the enclosure on a soft cloth or rubber mat.
3. Bolt the clamshell to the enclosure with two bolts and flat
washers included in the return kit (figure B-2).
Package an HSA for shipment as follows:
1. Contact the Extron S
obtain a return kit. Extron will send the repair kit to the
location you specify.
CAUTION
HSA 822 Hideaway
The flanged edges of the top of the surface enclosure
are sharp when the HSA is removed from the table.
Exercise caution when handling to prevent personal
injury.
The flanged edges of the top of the surface enclosure
are bevelled to an ultra-fine thickness of less than
0.04 (4/100)" (approximately 1 mm). These edges
are soft and can be easily nicked or bent. Exercise
caution when handling and mounting the
enclosure. Mishandling can damage the appearance
of the enclosure.
®
Enclosure • Packaging for Shipment
3
Sales & Technical Support Hotline to
Figure B-2 — Attaching the clamshell
HSA 822 Hideaway® Enclosure • Packaging for Shipment
B-3B-2
Packaging for Shipment, Cont’d
4. Place the enclosure and clamshell rightside-up on a
horizontal surface. To protect the finish, place the
enclosure on a soft cloth or rubber mat.
5. Install the rubber strips that protect the flanged edges of
the top of the surface enclosure (figure B-3).
Figure B-3 — Installing protective strips
7. Insert the HSA 822 and the clamshell into one of the foam
shells (figure B-4). Either open end of the clamshell and
the open top panel will fit into the recesses in the foam.
Figure B-4 — Installing the foam shell
8. Insert the opposite end of the HSA 822 and the clamshell
into the remaining foam shell (figure B-5). Firmly push the
foam shells together as far as they will go to completely
suspend the HSA and clamshell. The sides of the
clamshell protrude through slots in the foam.
6. Release (extend) the top panel.
HSA 822 Hideaway® Enclosure • Packaging for Shipment
Figure B-5 — HSA suspended in the foam
HSA 822 Hideaway® Enclosure • Packaging for Shipment
B-5B-4
Packaging for Shipment, Cont’d
9. Lower the foam-protected HSA into the shipping carton
(figure B-6).
B-6
Figure B-6 — Placing the HSA in the shipping carton
10. Close the shipping carton and seal it with high quality
shipping tape.
11. Ship the HSA to Extron using a reputable shipping
company.
HSA 822 Hideaway® Enclosure • Packaging for Shipment
HSA 822 Hideaway® Enclosure • Packaging for Shipment
B-7
Packaging for Shipment, Cont’d
B-8
HSA 822 Hideaway® Enclosure • Packaging for Shipment
