Extron electronic FOX Matrix 7200, FOX Matrix 3200 User Manual

FOX Matrix 3200 FOX Matrix 7200

Modular Fiber Optic Matrix Switchers
Setup Guide
Fiber Optic Matrix Switchers
68-1740-51 Rev. A
08 14

Safety Instructions

Safety Instructions • English
WARNING: This symbol, , when used on the product, is intended
to alert the user of the presence of uninsulated dangerous voltage within the product’s enclosure that may present a risk of electric shock.
ATTENTION: This symbol, , when used on the product, is
intended to alert the user of important operating and maintenance (servicing) instructions in the literature provided with the equipment.
For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the Extron Safety and Regulatory Compliance Guide, part number 68-290-01, on the Extron website, www.extron.com.
Instructions de sécurité • Français
AVERTISSEMENT : Ce pictogramme, , lorsqu’il est utilisé sur
le produit, signale à l’utilisateur la présence à l’intérieur du boîtier du produit d’une tension électrique dangereuse susceptible de provoquer un choc électrique.
ATTENTION : Ce pictogramme, , lorsqu’il est utilisé sur le produit,
signale à l’utilisateur des instructions d’utilisation ou de maintenance importantes qui se trouvent dans la documentation fournie avec le matériel.
Pour en sav tion, la compatibilité EMI/EMF, l’accessibilité, et autres sujets connexes, lisez les informations de sécurité et de conformité Extron, réf. 68-290-01, sur le site Extron, www.extron.com.
Sicherheitsanweisungen • Deutsch
WARNUNG: Dieses Symbol auf dem Produkt soll den Benutzer
darauf aufmerksam machen, dass im Inneren des Gehäuses dieses Produktes gefährliche Spannungen herrschen, die nicht isoliert sind und die einen elektrischen Schlag verursachen können.
VORSICHT: Dieses Symbol auf dem Produkt soll dem Benutzer
in der im Lieferumfang enthaltenen Dokumentation besonders wichtige Hinweise zur Bedienung und Wartung (Instandhaltung) geben.
Weitere Informationen über die Sicherheitsrichtlinien, Produkthandhabung, EMI/EMF-Kompatibilität, Zugänglichkeit und verwandte Themen finden Sie in den Extron-Richtlinien für Sicherheit und Handhabung (Artikelnummer 68-290-01) auf der Extron-Website,
www.extron.com.
Instrucciones de seguridad • Español
ADVERTENCIA: Este símbolo, , cuando se utiliza en el
producto, avisa al usuario de la presencia de voltaje peligroso sin aislar dentro del producto, lo que puede representar un riesgo de descarga eléctrica.
ATENCIÓN: Este símbolo, , cuando se utiliza en el producto,
avisa al usuario de la presencia de importantes instrucciones de uso y mantenimiento recogidas en la documentación proporcionada con el equipo.
Para obtener información sobre directrices de seguridad, cumplimiento de normativas, compatibilidad electromagnética, accesibilidad y temas relacionados, consulte la Guía de cumplimiento de normativas y seguridad de Extron, referencia 68-290-01, en el sitio Web de Extron,
www.extron.com.
Инструкция по технике безопасности Русский
ПРЕДУПРЕЖДЕНИЕ: Данный символ, , если указан
на продукте, предупреждает пользователя о наличии неизолированного опасного напряжения внутри корпуса продукта, которое может привести к поражению электрическим током.
ВНИМАНИЕ: Данный символ, , если указан на
продукте, предупреждает пользователя о наличии важных инструкций по эксплуатации и обслуживанию в руководстве, прилагаемом к данному оборудованию.
Для получения информации о правилах техники безопасности, соблюдении нормативных требований, электромагнитной совместимости (ЭМП/ЭДС), возможности доступа и других вопросах см. руководство по безопасности и соблюдению нормативных требований Extron на сайте
Extron: www.extron.com, номер по каталогу - 68-290-01.
Chinese Simplified(简体中文)
警告: 产品上的这个标志意在警告用户该产品机壳内有暴露的危险
电 压 ,有 触 电 危 险 。
注意: 产品上的这个标志意在提示用户设备随附的用户手册中有
重要的操作和维护(维修)说明。
关于我们产品的安全指南、遵循的规范、EMI/EMF 的兼容性、无障碍 使用的特性等相关内容,敬请访问 Extron 网站 www.extron.com,参见
Extron 安全规范指南,产品编号 68-290-01
Chinese Traditional
警告: 若產品上使用此符號,是為了提醒使用者,產品機殼內存在著
可能會導致觸電之風險的未絕緣危險電壓。
注意 若產品上使用此符號,是為了提醒使用者,設備隨附的用戶手
冊中有重要的操作和維護(維修)説明。
有關安全性指導方針、法規遵守、EMI/EMF 相容性、存取範圍和相關 主題的詳細資訊,請瀏覽 Extron 網站:www.extron.com,然後參閱
《Extron 安全性與法規遵守手冊》,準則編號 68-290-01。
Japanese
警告:この記号 が製品上に表示されている場合は、筐体内に絶
縁されて いない高 電圧が流 れ、感電の危 険があることを 示して います。
注意: この記号 が製品上に表示されている場合は、本
機の取扱説明書に 記載されている重要な操作と保 守( 整備)の指 示についてユーザー の 注 意を喚 起する も ので す。
安全上のご注意、法規厳守、EMI/EMF適合性、その他の関連項目に つ い て は 、エク ストロ ン の ウェ ブ サイト www.extron.comよ り 『 Extron Safety and Regulatory Compliance Guide(P/N 68-290-01) をご覧く ださい。
Korean
경고: 이 기호 , 가 제품에 사용될 경우, 제품의 인클로저 내에 있는
접지되지 않은 위험한 전류로 인해 사용자가 감전될 위험이 있음을 경고합니다.
주의: 이 기호 , 가 제품에 사용될 경우, 장비와 함께 제공된
책자에 나와 있는 주요 운영 및 유지보수(정비) 지침을 경고합니다.
안전 가이드라인, 규제 준수, EMI/EMF 호환성, 접근성, 그리고 관련 항목에 대한 자세한 내용은 Extron 웹 사이트(www.extron.com)의 Extron
안전 및 규제 준수 안내서, 68-290-01 조항을 참조하십시오.
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part15 of the FCC rules. The ClassA limits provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause interference; the user must correct the interference at his own expense.
NOTE: This unit was tested with shielded I/O cables on the
peripheral devices. Shielded cables must be used to ensure compliance with FCC emissions limits.
For more information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the “Extron Safety and Regulatory Compliance Guide
Extron website.
Copyright
© 2014 Extron Electronics. All rights reserved
Trademarks
All trademarks mentioned in this guide are the properties of their respective owners.
(®)
The following registered trademarks
, registered service marks
RGB Systems, Inc. or Extron Electronics:
Registered Trademarks
AVTrac, Cable Cubby, CrossPoint, eBUS, EDID Manager, EDID Minder, Flat Field, GlobalViewer, Hideaway, Inline, IP Intercom, IP Link, Key Minder, LockIt, MediaLink, PlenumVault, PoleVault, PowerCage, Pure3, Quantum, SoundField, SpeedMount, SpeedSwitch, System INTEGRATOR, TeamWork, TouchLink, V-Lock, VersaTools, VoiceLift, VN-Matrix, WallVault, WindoWall, XTP, and XTP Systems
Registered Service Mark
AAP, AFL - Accu-RATE Frame Lock, ADSP - Advanced Digital Sync Processing, Auto-Image, CableCover, CDRS - Class D Ripple Suppression, DDSP - Digital Display Sync Processing, DMI - Dynamic Motion Interpolation, Driver Configurator, DSP Configurator, DSVP - Digital Sync Validation Processing, EQIP, FastBite, FlexOS, FOXBOX, Global Configurator, IP Intercom HelpDesk, LinkLicense, MAAP, MicroDigital, ProDSP, QS-FPC - QuickSwitch Front Panel Controller, Scope-Trigger, SIS - Simple Instruction Set, Skew-Free, SpeedNav, Triple-Action Switching, XTRA, ZipCaddy, and ZipClip
(SM)
: S3 Service Support Solutions
Trademarks
(™)
(SM)
(®)
, and trademarks
” on the
(TM)
are the property of
Conventions Used in this Guide
Notifications
The following are used:
WARNING: Potential risk of severe injury or death. AVERTISSEMENT: Risque potentiel de blessure grave ou de
mort.
ATTENTION:
Risk of property damage.
Risque de dommages matériels.
NOTE: A note draws attention to important information.
Software Commands
Commands are written in the fonts shown here:
^AR Merge Scene,,Op1 scene 1,1 ^B 51 ^W^C
[01] R 0004 00300 00400 00800 00600 [02] 35 [17] [03]
E X! *X$* Y3%* Y3&* Y3^ CE}
NOTE: For commands and examples of computer or device
responses mentioned in this guide, the character “0” is used for the number zero and “O” is the capital letter “o.”
Computer responses and directory paths that do not have variables are written in the font shown here:
Reply from 208.132.180.48: bytes=32 times=2ms TTL=32
C:\Program Files\Extron
Variables are written in slanted form as shown here:
ping xxx.xxx.xxx.xxx —t
SOH R Data STX Command ETB ETX
Selectable items, such as menu names, menu options, buttons, tabs, and eld names are written in the font shown here:
From the File menu, select New.
Click the OK button.

Contents

Introduction ................................. 1
About this Guide ........................... 1
About the FOX Matrix Switchers ... 2
Congurability and
Transmission modes ................ 3
Installation ................................... 5
Rear Panel ..................................... 5
A Note on I/O Boards ................ 5
Making Connections ................. 7
Front Panel .................................. 10
Front Panel Operations ................ 11
Creating a Tie .............................. 11
Viewing Ties
(and Muting Outputs) ................. 12
Saving or Recalling a Preset ....... 12
Locking the Front Panel
(Executive Mode) ....................... 13
Remote Control .......................... 15
Selected SIS Commands ............ 15
Command and Response
Table for SIS Commands ....... 16
Matrix Switchers Control
Program ..................................... 20

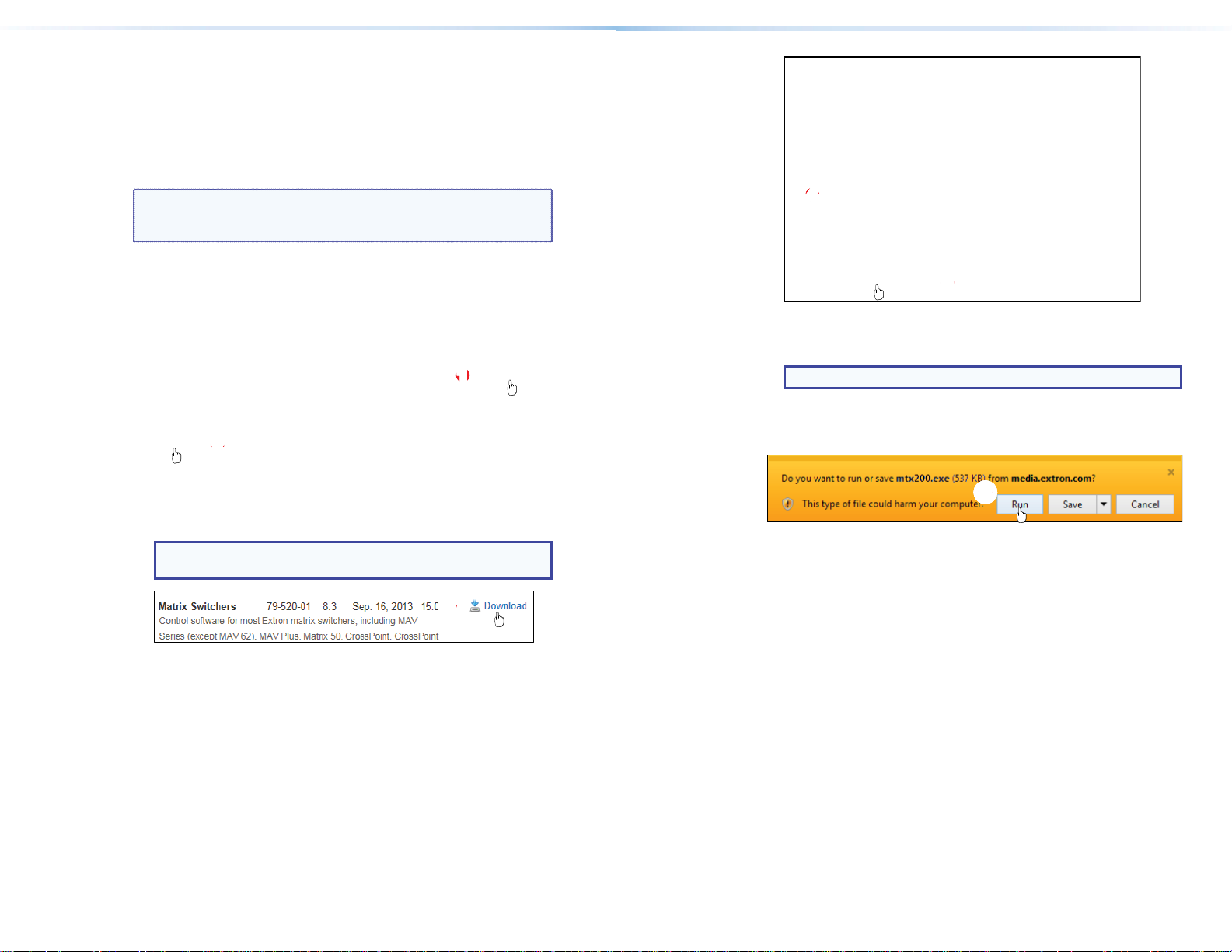

Installing the Program ............. 20
LAN port Connection............... 21
Starting the Program ............... 21
Built-in HTML Pages ................... 23
Conguring for Network
Communication ...................... 23
Loading the Start-up Page ...... 24
Maintenance and Modifications .... 27
Removing and Installing
a Board or Blank Panel .............. 27
Removing and Installing
a Power Supply Module............. 29
Removing and Installing
a Fan Module ............................. 31
Specifications Availability
Product specications are available on the Extron website,
www.extron.com.
FOX Matrix 3200 and FOX Matrix 7200 • Contents v

Introduction

WARNING: The ber optic I/O boards of the FOX matrix switchers
output continuous invisible light, which may be harmful to the eyes; use with caution.
Do not look into the ber optic cable connectors or into the ber optic cables themselves.
Plug the attached dust caps into the optical transceivers when the ber cable is unplugged.
AVERTISSEMENT : L'appareil émet une lumière invisible en
continu, à utiliser avec precaution.
Ne regardez pas dans les connecteurs de câble bre optique sur
le panneau arrière ou dans les câbles bre optique eux-mêmes.
Branchez les protections contre la poussière dans l'ensemble émetteur/récepteur lorsque le câble bre optique est débranché.
This section provides an overview of the Extron FOX Matrix 3200 and FOX Matrix 7200 and describes their features. Topics that are covered include:
About this Guide
About the FOX Matrix Switchers

About this Guide

NOTE: For more information on any subject in this guide, see the
FOX Matrix 3200 and FOX Matrix 7200 Series User Guide, available at www.extron.com.
This setup guide helps you easily and quickly set up and congure your FOX Matrix 3200 and FOX Matrix 7200 switcher. Step by step instructions show you how to:
Install the input and output boards
Connect the hardware
Perform basic operations
• Use both the front panel controls and selected Simple Instruction
Set (SIS) commands
Load and start the Matrix Switchers Control Program
Connect to the built-in HTML pages, which you can use to operate
the switcher
FOX Matrix 3200 and FOX Matrix 7200 • Introduction 1vi FOX Matrix 3200 and FOX Matrix 7200 • Contents

About the FOX Matrix Switchers

MIXING
The FOX Matrix Switchers (see gure 1 for a FOX Matrix 3200 example) are congurable matrix switchers that distribute optical signals. Fiber optic I/O boards route signals that are compatible with all Extron FOX 500, FOXBOX, FOX, FOX 2G, and FOX HD-SDI ber optic product lines. 3G/HD-SDI/SDI/ I/O boards route 3G, high denition serial digital interface (HD-SDI), and serial digital interface (SDI) signals. The matrix switcher routes any input signal to any combination of outputs. An optical input can be tied to optical outputs, 3G/HD-SDI SDI outputs, or both and an 3G/HD-SDI SDI input can be tied to 3G/HD-SDI/SDI outputs, optical outputs, or both. The matrix switcher can route multiple input/output congurations simultaneously.
NOTES:
Compatible optical signals are digital signals from 270 Mbs
through 4.25 Gbps that are sent and received via ber optic small form factor pluggable (SFP) modules.
The FOX transmitter-to-receiver communications, including the
serial link, occupy one matrix switcher input and output. This matrix switcher can also support the FOX return (receiver-to­transmitter) serial communications, but returning this signal stream to the transmitter occupies a separate matrix switcher input and output.
The switcher has two internal, hot-swappable 100 VAC to 240 VAC, 50-60 Hz, 175-watt (FOX Matrix 3200) or 180-watt (FOX Matrix 7200) power supplies that provide worldwide power compatibility and reliability.
Configurability and Transmission modes
The FOX Matrix Switchers are assembled from individual input/output (I/O) boards. The switcher can include up to four (FOX Matrix 3200) or nine (FOX Matrix 7200) I/O boards, each of which supports 8 inputs by 8 outputs. The four types of I/O boards are:
Singlemode fiber optic 8x8 I/O board
Multimode fiber optic 8x8 I/O board
Singlemode pathological fiber optic 8x8 I/O board. This board
addresses the compatibility issues of passing pathological signals generated from 3G HD-SDI, HD-SDI, and SDI signals over ber optic systems
3G HD-SDI, HD-SDI, and SDI 8x8 I/O board
NOTE: As listed above, three versions of the fiber optic I/O boards
are documented in this manual. They are categorized by the type of fiber optic cable, multimode or singlemode, which defines the effective range of transmission:
DISPLAY FULL/FINE
INPUT
POWER 12V
0.3A MAX
POWER
PHONES
HD SDI HD SDI HD SDI HD SDI
db db db db 0
10
20
30
40
50
EXT
5CH2 6 CH3 7 CH4 8
CH1
REC
CH1
5 CH2 6
PB
HD/SDI IN
REMOTE
EJECT
1(9P) 2(50P) RS-232C
db
0
0
0
0
10
10
10
10
20
20
20
20
30
30
30
30
40
40
40
40
50
50
50
50
L
1-4
IMX
CUE
MONITOR R
5-8REC
REC
CH3
7 CH4 8 CUE
PB
UNITYVARIABLE
FOX HDSDI
OPTICAL
MODE
12
BUFFERED OUTPUTS
RxTx
FOX 3G HD-SDI
Singlemode
MPEG IMXDigital BETACAMHDCAM
ASSEMBLEINSERT
VIDEO CH1 CH2 CH3 CH3 CUE
TC
00:00:00:00
CHANNEL CONDITION
F1 F2 F3 F4 F5 F6
HOME
LIST GOOD SHOT MARK TRIM
REC
PREROLL
EDIT
REC/ ERASE
AUDIO
ININOUT
DMC EDIT DELETE
ENTRY
MEMORY
REW
PLAY
F FWD
PREVIEWAUTO EDIT
REVIEW
OUT
FOX HDSDI
POWER
OPTICAL
12V
MODE
0.3A MAX
High Definition Video System
HDCAM
MULTI
RECORDER
SHUTTLE/VAR
CONTROL
JOG
JOG
VAR
PLAYER
PUSH/
SHUTTLE
SHIFT
ALARM
F
E
O
S
R
R
W
E
KEY INHI
V
A
E
R
R
D
RESET
REC INHI
STANDBY
STOP
HD/SDI IN
POWER
1(9P) 2(50P) RS-232C
PHONES
HD SDI HD SDI HD SDI HD SDI
db db db db 0
0
10
10
20
20
30
30
DISPLAY
40
40
FULL/FINE
50
50
EXT
CH1
5CH2 6 CH3 7 CH4 8
INPUT
MIXING
REC
CH1
5 CH2 6
CH3
PB
UNITYVARIABLE
12
BUFFERED OUTPUTS
RxTx
FOX 3G HD-SDI
Multimode
MPEG IMXDigital BETACAMHDCAM
REMOTE
EJECT
ASSEMBLE INSERT
VIDEO CH1 CH2 CH3 CH3 CUE
TC
db
0
0
0
10
10
10
00:00:00:00
20
20
20
CHANNEL CONDITION
30
30
30
40
40
40
50
50
50
F1 F2 F3 F4 F5 F6
HOME
LIST GOOD SHOT MARK TRIM
L
1-4
REC/
IMX
CUE
MONITOR
ERASE
R
5-8REC
DMC EDIT DELETE
MEMORY
REC
PREVIEW AUTO EDIT
REVIEW
7 CH4 8 CUE
PB
M
1 - 8
ANAHEIM, CA
S
9 - 16
17 - 24
H
25 - 32
H
100-240V 50/60Hz 1.2A MAX.
RESET
REMOTE
RS-232/RS-422
BI-LEVEL
LAN
CORDS BEFORE SERVICING
DISCONNECT BOTH POWER
TRI-LEVEL
ACT LINK
SWITCH
100-240V 50/60Hz 1.2A MAX.
REFERENCE
FOX Matrix 3200
S
Singlemode I/O Board
M
Multimode I/O Board
SDI/HD-SDI I/O Board
High Definition Video System
HDCAM
MULTI
RECORDER
SHUTTLE/VAR
CONTROL
JOG
JOG
VAR
PUSH/
PLAYER
SHUTTLE
SHIFT
ALARM
F
E
O
S
R
R
W
E
KEY INHI
V
A
E
R
R
D
RESET
REC
REC INHI
PREROLL
EDIT
AUDIO
ININOUT
STANDBY
ENTRY
REW
PLAY
F FWD
STOP
OUT
OUT
OUT
IN
OUT
OUT
IN
B
A
OUT
OUT
IN
OUT
OUT
IN
B
A
B
AD
E
C
MUTI-RATE SDI INPUTS
B
AD
E
C
MUTI-RATE SDI INPUTS
PRIMARY POWER SUPPLY
REDUNDANT
PRIMARY
Singlemode
Multimode
SDI/HD-SDI
IN
C
IN
C
F
F
OUT
IN
D
OUT
IN
D
H
G
H
G
OUT
IN
OUTINOUT
E
F
OUT
IN
OUTINOUT
E
F
B
AD
E
C
MUTI-RATE SDI OUTPUTS
B
AD
E
C
MUTI-RATE SDI OUTPUTS
REDUNDANT POWER SUPPLY
IN
OUT
IN
G
H
IN
OUT
IN
G
H
H
G
F
H
G
F
POWER 12V
0.3A MAX
HD/SDI IN
FOX 3G HD-SDI
Multimode
POWER 12V
0.3A MAX
FOX 3GHD-SDI
Singlemode
H
ATION
Tx
COMMUNIC
TION A
Tx
COMMUNIC
FOX HDSDI
OPTICAL
MODE
12
BUFFERED OUTPUTS
RxTx
FOX HDSDI
OPTICAL
MODE
12
HD/SDI IN
BUFFERED OUTPUTS
RxTx
Singlemode — Very long distance, up to 30 km (18.75 miles)
NOTE: In this figure, the FOX 3G HD-SDI units
are set to bidirectional transceiver mode.
Figure 1. Typical FOX Matrix 3200 application
The Extron proprietary ber optic signal, generated by Extron ber optic transmitters, can include video, stereo audio, and transmitter­to-receiver RS-232 serial communications. The video component of the signal can be RGB video, Digital Visual Interface (DVI) video, HDMI video, 3G/HD-SDI/SDI video, or low resolution video, depending on the transmitter and receiver.
The matrix switcher can be remotely controlled via its Ethernet LAN port or either of two serial ports, one on the rear panel and one on the front panel, using either the Windows-based Extron Matrix Switchers Control
Multimode — Long distance, up to 300 m (984 feet)
By adding or removing I/O boards, you can expand and contract the FOX Matrix Switchers from an 8-input by 8-output matrix to up to either:
FOX Matrix 3200 — A 32-input by 32-output matrix
FOX Matrix 7200 — A 72-input by 72-output matrix
NOTE: On a fiber optic I/O board as delivered from Extron, all
transceiver modules are configured the same: either all multimode or all singlemode. You can mix multimode and singlemode fiber optic I/O boards in a FOX matrix switcher, but you must ensure that you connect the proper transmission mode fiber cables to the board.
Program or the SIS.
FOX Matrix 3200 and FOX Matrix 7200 • Introduction2 3FOX Matrix 3200 and FOX Matrix 7200 • Introduction

Installation

Location A
AA AA
BB
This section describes installation of the FOX matrix switchers, including

Rear Panel

connections and features. Topics that are covered include:
Rear Panel
Front Panel

A Note on I/O Boards

As shown in gure 2, each I/O board is identied by the input and output numbers supported by the board position. The transceiver modules on the I/O boards are identied as A through H.
Output and Input
ANAHEIM, CA
Location A
Input
Figure 2. Arrangement of Inputs and Outputs on the I/O Boards
The board position designators, printed beside the fans, correspond to the input and output numbers served by that position (1 - 8, 9 - 16, and so on).
The location designators, A through H, correspond to the transceiver modules, numbered from left to right, each of which includes an input and an output.
See gure 2. The input and output numbers supported by the I/O board in slot 2 (location 9 - 16) are as follows: A = 9, B = 10, C = 11, D = 12, E = 13, F = 14, G = 15, and H = 16.
I#1
O#1
OUT
IN
1 - 8
A
OUT
IN
9 - 16
A
O#9
17 - 24
I#9
AD
25 - 32
100-240V 50/60Hz 1.2A MAX.
I#26
I#25
O#10
B
I#27
O#2
OUT
B
OUT
B
C
I#28
I#2
O#3
IN
IN
O#11
I#10
E
MUTI-RATE SDI INPUTS
I#29
I#3
O#4
OUT
IN
C
OUT
IN
C
O#12
I#11
F
PRIMARY POWER SUPPLY
I#30
I#31
Location H
Input
G
I#32
I#4
OUT
IN
D
OUT
IN
D
I#12
H
I#5
O#5
O#13
AD
O#6
OUT
IN
OUT
E
OUT
IN
E
O#14
I#13
B
C
C
Slot 1
F
OUT
D
(1-8)
IN
Slot 2
(9-16)
F
Slot 3
No board
installed
Slot 4
(25-32)
O#26
O#25
Location A
Output
ATTENTION:
Turn off power to the input and output devices, and disconnect
their power cords before making connections.
Débranchez le produit et les autres appareils.
FOX Matrix 3200 and FOX Matrix 7200 • Installation 54 FOX Matrix 3200 and FOX Matrix 7200 • Introduction
OUT
IN
OPTICAL
2* 1
*
OPTIONAL FOR RETURN DATA
LINK
LINK
OPTICAL
Transmitting
Unit
Receiving
Unit
FOX Matrix
Switcher
12*
*
OPTIONAL FOR
RETURN DATA
LINK
LINK
ÕÕÎÎ
AA
BBCCDDEEGGHH
IIHHFF
AA
BB
CC DD
EE
FF
GG
HHHH
II
FAN ASSIMBLY
FAN ASSIMBLY
ANAHEIM, CA
WARNING: This unit outputs continuous invisible light, which
may be harmful to the eyes; use with caution. For additional safety, plug the attached dust caps into the optical transceivers when the ber cable is unplugged.
AVERTISSEMENT : L'appareil émet une lumière invisible
en continu, à utiliser avec precaution. Branchez les protections contre la poussière dans l'ensemble émetteur/récepteur lorsque le câble bre optique est débranché.
OUT
OUT
IN
1 - 8
1 - 8
OUT
IN
9 - 16
9 - 16
OUT
IN
17 - 24
17 - 24
OUT
IN
25 - 32
25 - 32
OUT
IN
33 - 40
33 - 40
OUT
IN
41 - 48
41 - 48
OUT
IN
49 - 56
49 - 56
AD
57 - 64
57 - 64
AD
65 - 72
65 - 72
DISCONNECT BOTH POWER CORDS BEFORE SERVICING
REDUNDANT
100-240V
50/60Hz
3.7A MAX.
PRIMARY
100-240V
50/60Hz
3.7A MAX.
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
B
C
MUTI-RATE SDI INPUTS
B
C
MUTI-RATE SDI INPUTS
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
E
F
E
F
PRIMARY POWER SUPPLY
G
G
OUT
OUT
OUT
IN
1 - 8
1 - 8
ANAHEIM, CA
REMOTE
RS-232/RS-422
LAN
OUT
OUT
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
IN
OUT
OUT
IN
OUT
OUT
IN
OUT
OUT
IN
OUT
OUT
IN
OUT
OUT
IN
IN
IN
IN
IN
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
ACT LINK
OUT
9 - 16
9 - 16
OUT
17 - 24
17 - 24
AD
25 - 32
25 - 32
100-240V 50/60Hz 1.2A MAX.
RESET
BI-LEVEL
BI-LEVEL
DISCONNECT BOTH POWER
DISCONNECT BOTH POWER
CORDS BEFORE SERVICING
CORDS BEFORE SERVICING
TRI-LEVEL
TRI-LEVEL
SWITCH
SWITCH
100-240V 50/60Hz 1.2A MAX.
REFERENCE
REFERENCE
OUT
A
IN
OUT
IN
OUT
A
B
C
REDUNDANT
PRIMARY
Figure 4. FOX Matrix 3200 Switcher Rear Panel
Power Supply indicator LEDs (see page 9).
H
Replaceable fans (see Removing and
I
Installing a Fan Module on page 31 to
IN
B
IN
IN
B
MUTI-RATE SDI INPUTS
OUT
IN
C
OUT
IN
C
OUT
IN
C
E
F
PRIMARY POWER SUPPLY
IN
D
OUT
IN
D
OUT
IN
D
H
G
IN
OUT
E
OUT
IN
OUT
E
OUT
IN
OUT
E
B
AD
C
MUTI-RATE SDI OUTPUTS
IN
F
IN
F
IN
F
E
REDUNDANT POWER SUPPLY
OUT
OUT
OUT
F
IN
OUT
IN
G
G
G
H
IN
OUT
IN
H
IN
OUT
IN
H
H
G
replace the fan).
OUT
OUT
C
MUTI-RATE SDI OUTPUTS
C
MUTI-RATE SDI OUTPUTS
IN
OUT
IN
OUT
E
F
E
F
LAN
REMOTE
RS232/RS422
ACT
REDUNDANT POWER SUPPLY
OUT
G
G
OUT
H
H
SWITCH REFERENCE
BI-LEVEL TRI-LEVEL
IN
IN

Making Connections

Fiber optic boards with connectors and
A
LEDs
NOTES:
Ensure that you use the proper
ber cable for your I/O board. Typically, singlemode ber has a
IN
IN
RESET
LINK
yellow jacket and multimode cable
OUT
OUT
IN
OUT
IN
H
H
IN
OUT
IN
B
AD
B
AD
has an orange or cyan jacket.
The FOX matrix switcher uses one
connector on the block as an input and the second connector on the same block as a separate output.
6 FOX Matrix 3200 and FOX Matrix 7200 • Installation 7FOX Matrix 3200 and FOX Matrix 7200 • Installation
Figure 3. FOX Matrix 7200 Switcher Rear Panel
Fiber optic boards with connectors and LEDs (see page 7).
A
3G HD-SDI, HDI-SDI, and SDI boards with connectors (see page 8).
B
Remote port (see page 8).
C
Ethernet port (LAN connector) (see page 8).
D
Reset button and LED (see page 8).
E
Switch Reference connectors (see page 8).
F
Power connectors (see page 9).
G
Input connector — Connect a fiber
Î
optic cable between each Input LC connector and a FOX 500 Tx or any other compatible Extron FOX device.
NOTE: Or, for the serial return
(receiver-to-transmitter) function, connect the far end to the Optical 2 connector on a FOX Rx receiver.
Input LED — See Fiber optic I/O
board LED indications on page 9.
9
Not used
Not used
Power connectors — Plug the switcher into two grounded AC
OUT
IN
Output connector — Connect a fiber optic cable between each
Õ
output LC connector and a FOX 500 Rx or any other compatible Extron FOX device.
NOTE: Or, for the serial return (receiver-to-transmitter)
function, connect the far end to the Optical 2 connector on a FOX Tx transmitter.
Output LED — See Fiber optic I/O board LED indications on the next page.
SDI/HDI-SDI boards with BNC connectors
B
Multi-rate SDI Input connectors — Connect HD-SDI, SDI, or
Ï
3G-SDI video inputs to these BNC connectors.
Multi-rate SDI Output connectors — Connect digital displays to
Ö
these BNC connectors.
Remote port — If desired, connect a control system or computer to
C
the rear panel Remote RS-232/RS-422 port.
RS-232 Function Pin Function
— Tx Rx —
Gnd
— — —
Not used Transmit Receive Not used Ground Not used Not used Not used
1
5
1
96
Figure 5. Audio Output Connector Wiring
LAN port — If desired, connect a network WAN or LAN hub, a
D
control system, or a computer to the Ethernet RJ-45 port.
Network connection — Wire as a patch (straight) cable.
Computer or control system connection — Wire the interface cable
as a crossover cable.
2 3 4 5 6 7 8
RS-422
— Tx– Rx–
Gnd
Rx+
Tx+
Not used Transmit (–) Receive (–) Not used Ground Not used Receive (+) Transmit (+)
Definition
Reclocked at 4.25 Gbps
Not reclocked, laser off, or no signal
Non-4G signal present or not reclocked
Not reclocked, laser on or no signal
G
sources.
NOTE: For reliability, connect the Redundant power cord to
either an uninterruptible power source or to a power source that is completely independent from the primary power source.
Primary and Redundant power supply indicator LEDs
H
Green — Indicates that the associated power supply is operating within normal tolerances.
Red — Indicates that the associated power supply is operating outside the normal tolerances or has failed. See Removing and
Installing a Power Supply Module on page 29 to replace the power
supply.
Fiber optic I/O board LED indications
On the ber optic I/O boards, the input and output LEDs on the transceivers provide useful indications of the status of the lasers and the reclocking function (see the table below).
Output LED indication
On On
Off Off
Fast blink Fast blink
Slow blink Slow blink N/A
NOTE: If reclocking is set to bypass, the Output LED is always on.
Input LED indication
Definition
Reclocked at 4.25 Gbps
Not reclocked or no signal
Non-4G signal present or not reclocked
NOTE: The factory default IP address is 192.168.254.254.
Reset button — Initiates four levels of reset of the matrix switcher.
E
For different reset levels, press and hold the recessed button while the switcher is running or while you power up the switcher. See the FOX 3200 and 7200 Series User Guide, available at
www.extron.com.
Switch Reference connectors (affect SDI / HD-SDI inputs and
F
outputs only) — Connect an external sync signal to this BNC connector to genlock the video signal in broadcast or other sync­critical applications.
8 FOX Matrix 3200 and FOX Matrix 7200 • Installation 9FOX Matrix 3200 and FOX Matrix 7200 • Installation

Front Panel

The button lights to indicate the selection.
The output buttons blink to indicate the potential ties.
links to indicate
the need to confirm the change.
CONTROL
2
ESC
VIEW
FOX 4G MATRIX 3200
FIBER OPTIC DIGITAL MATRIX SWITCHER
ENTERPRESET
CONFIG
PRIMARY
REDUNDANT
POWER SUPPLY
1
Configuration port — If desired, connect a control system or
A
computer to the front panel Configuration (RS-232) port. Use an optional 9-pin D to 2.5 mm mini jack TRS RS-232 cable.

Front Panel Operations

This section describes simple matrix switcher operation from the front panel. Topics that are covered include:
Creating a Tie
Viewing Ties (and Muting Outputs)
Saving or Recalling a Preset
Locking the Front Panel (Executive Mode)

Creating a Tie

Primary and Redundant Power Supply LEDs
B
Green — Indicates that the associated power supply is operating within normal tolerances.
Red — Indicates that the associated power supply is operating outside the normal tolerances or has failed (see Removing and
Installing a Power Supply Module on page 29 to replace the power
supply).
A "tie" is an input-to-output connection.
A "set of ties" is an input tied to two or more outputs. (An output can never be tied to more than one input.)
A "conguration" is one or more ties, one or more sets of ties, or a combination.
1. Press and release the Esc button to clear any input button, output
button, or control button indicators that may be lit.
2. Press and release the desired input button.
5
3. Press and release the desired output buttons.
3 4
8
4. Press and release the Enter button. The tie is created and all button
indicators turn off.
ENTER
The Enter button b
FOX Matrix 3200 and FOX Matrix 7200 • Front Panel Operations 1110 FOX Matrix 3200 and FOX Matrix 7200 • Installation
hold
uttons
Release the buttons.

Viewing Ties (and Muting Outputs)

Preset button blinks.
Press and hold.
Sa preset
PRESET
PRESET
1 2 3 4 5 6 16
15
Recall a
preset
The Preset button lights.Press and release.
All input and output buttons with assigned presets light red.
When a preset is saved, the configuration data at assigned preset locations will be overwritten
.
INPUTS
The button blinks red to indicate that
to indicate the need to

Locking the Front Panel (Executive Mode)

1. Press the View button. Output buttons light for outputs that have no
ties established.
NOTE: If an output button blinks, that output is muted. To
toggle mute on and off, press and hold the output button for
2 seconds.
2. Press an input button. The buttons for all tied outputs light.
3. Press an output button. The buttons for the tied input and all tied
outputs light.
4. Press the View button again to exit View mode. All input and output
buttons return to an unlit state.

Saving or Recalling a Preset

A "preset" is a conguration that has been stored.
1. Save a preset — Press and hold the Preset button until it ashes.
ve a
Recall a preset — Press and release the Preset button.
PRESET
2 seconds
PRESET
To toggle the lock on and off, simultaneously press and hold the Enter button and the Esc button for approximately 2 seconds..
Press and Esc buttons simultaneously to toggle executive mode on or off.
ENTER
the Enter and
C O N T R O L
PRESET
ESCVIEW
2 seconds
C O N T R O L
PRESET
ENTER
The Preset and View b blink twice to indicate the mode change.
ESCVIEW
2. Press and release the desired input or output button.
this preset is selected to save or recall.
1
12 FOX Matrix 3200 and FOX Matrix 7200 • Front Panel Operations 13FOX Matrix 3200 and FOX Matrix 7200 • Front Panel Operations
3. Press and release the Enter button.
The Enter button blinks
ENTER
red
activate the save or recall.

Remote Control

This section describes using the remote control features of the

Selected SIS Commands

FOX matrix switchers to control the devices. Topics that are covered include:
Selected SIS Commands
Matrix Switchers Control Program
Built-in HTML Pages
You can use Simple Instruction Set (SIS) commands for operation and conguration of the switchers. You can run these commands from a PC connected to the rear panel Remote RS-232/RS-422 port (item C on page 8), LAN port (item D on page 8),or front panel conguration port (item A on page 10) on the switcher.
NOTE: The table that begins on the next page is a partial
list of SIS commands. For a complete listing, see the FOX Matrix 3200 and FOX Matrix 7200 Series User Guide.
FOX Matrix 3200 and FOX Matrix 7200 • Remote Control 1514 FOX Matrix 3200 and FOX Matrix 7200 • Front Panel Operations
16 FOX Matrix 3200 and FOX Matrix 7200 • Remote Control 17FOX Matrix 3200 and FOX Matrix 7200 • Remote Control
Command and Response Table for SIS Commands
Command ASCII Command
Create ties
NOTES: Commands can be entered back-to-back in a string, with no spaces. For example: 1*1!02*02&003*003%4*24!.
The matrix switchers support 1-, 2-, and 3-digit numeric entries (1*1!, 02*02&, or 003*003%).
!
The
Tie input
Example (see Note, above):
Tie input
Example (see Note, above):
Tie input
Example (see Note, above):
Read output tie
Read output tie
Read output tie
tie command, the & tie command, and the % tie command can be used interchangeably, as can the ! read tie command, the &
tie command, and the % read tie command.
X! to output X@ X!*X@! OutX@InX!All]
X!
to output
X!
to output X@,
X@ X!*X@& OutX@InX!RGB]
(Host to Unit)
1*3!
10*4&
X!*X@% OutX@InX!Vid]
7*5%
X@& X!] X@% X!] X@! X!]
Response
(Unit to Host)
Out03
In01All]
Out04
In10RGB]
Out05
In07Vid]
Additional Description
Tie input X! to output X@. Tie input 1 to output 3.
Tie input X! to output X@. Tie input 10 to output 4.
Tie input X! to output X@. Tie input 7 to output 5.
Input X! is tied to output X@.
Input X! is tied to output X@.
Input X! is tied to output X@.
NOTE: • = Space
Command ASCII Command
Channel mutes
Channel mute
Channel unmute
Read channel mute
Global channel mute
Global channel unmute
View output mutes
Save and recall presets
NOTE: If you try to recall a preset that is not saved, the matrix switcher responds with the error code E11.
Save current conguration as a global preset
Recall a global preset
Front panel lock (executive mode)
Lock front panel functions
Unlock front panel functions
View lock status
X! X@
Example:
Example:
= Input number = Output number
00
– maximum number of inputs for your conguration (00 = untied)
01
– maximum number of outputs for your conguration
(Host to Unit)
Response
(Unit to Host)
X@*1B VmtX@*1] X@*0B VmtX@*0] X@B X#]
1*B
0*B
EVM}
Vmt1
Vmt0
1X#2
X#
] ]
... X#
X$, SprX$]
9,
Spr09
]
X$. RprX$]
5.
1X
0X
X
Rpr05
Exe1
Exe0
X%]
]
] ]
Additional Description
Mute output X@ (no signal is output, light output remains active).
Unmute output X@ (signal is output).
1
= mute on, 0 = mute off.
Mute all light outputs.
Unmute all light outputs.
n
]
Each X# response is the mute status of an output, starting from output 1. n = the maximum of outputs for your conguration.
Command character is a comma.
Save current ties as preset 9.
Command character is a period.
Recall preset 5 to become the current conguration.
NOTE: X@ = Output number
X#
= Mute
X$
= Global preset number
X%
= Lock
01
– maximum number of outputs for your conguration
1
= mute on, 0 = mute off
01
– 64
0
= off (unlock
ed)
1
= on (locked)
18 FOX Matrix 3200 and FOX Matrix 7200 • Remote Control 19FOX Matrix 3200 and FOX Matrix 7200 • Remote Control
Command ASCII Command
Information requests
Information request
Request part number
Request part number and board conguration
Query rmware version
Example:
(Host to Unit)
I
N
*N
Q
Q
Response
(Unit to Host)
V
X^XX&•AX^XX&•SX*1X*
Additional Description
2
n
...X*
]
VX^XX& shows the number of available inputs and outputs for this conguration.
X^XX&
A
has no meaning for this product.
2
X*1X*
S
...
n is 4 (FOX Matrix 3200) or 9 (FOX Matrix 7200).
X(] X(.X*1X*2X*3X*4X*5X*6X*7X*8X*9]
4 (FOX Matrix 3200) or 9 (FOX Matrix 7200) X*s.
X1)]
1.23
]
The factory-installed rmware version is 1.23 (sample value only).
n
X*
shows the board type installed in each slot.
NOTE: X^ = Inputs Total number of inputs for this switcher
Command ASCII Command
IP setup
Set IP address
Read IP address
Set DHCP on or off
Read DHCP on/off status
Set verbose mode
Read verbose mode
Congure current port timeout
Read current port timeout
Congure global IP port timeout
Read global IP port timeout
X&
= Outputs Total number of outputs for this switcher
X*
= Board installed
X(
= Part number
X1)
= Firmware version number to second decimal place (x.xx)
(Host to Unit)
0
= No board installed
1
= 8x8 multimode board
2
= 8x8 singlemode board
60
-nnnn-nn
Response
(Unit to Host)
EX1!CI} IpiX1!] ECI} Y1)] EX1@DH} IdhX1@] EDH} X1@] EY1#CV} VrbY1#] ECV} Y1#] E0*Y1$TC} Pti0*Y1$] E0TC} Y1$] E1*Y1$TC} Pti1*Y1$] E1TC} Y1$]
3
= 3G/HD-SDI/SDI board
x
= Unknown board or mix of transceivers installed
Additional Description
NOTE:
X1!
= IP address nnn.nnn.nnn.nnn
X1@
= DHCP
X1#
= Verbose mode
X1$
= Port timeout interval
0
= off, 1 = on
0
= clear or none (default for Telnet connection)
1
= verbose mode (default for RS-232/RS-422 connection)
2
= tagged responses for queries
3
= verbose mode and tagged for queries
1
(= 10 seconds) –
65000
(default is 30 = 300 seconds = 5 minutes)

Matrix Switchers Control Program

Another way to operate the switcher is via the Matrix Switchers Control Program, which runs on computers that use the Windows® operating system This program is available on the Extron website. You can run this program from a PC connected to the rear panel Remote RS-232/RS-422 port (item C on page 8), LAN port (item D on page 8), or front panel conguration port (item A on page 10) on the switcher.
NOTE: For details on operating the program, see the “Matrix
Software” section in the FOX Matrix 3200 and FOX Matrix 7200 User Guide.
4444444444

Installing the Program

The Matrix Switchers Control Program is available on the Extron website. Download and install all programs as follows:
1. Visit www.extron.com and click the Download tab.
1111111111
22
22222222
2. Click the Software link.
3. Select the desired software to download and click Download.
TIP: Jump to the nearest page of downloads by clicking the
desired filtering letter.
3333333333
The Download Center dialog box appears (see gure 6, on the next page).
55
55555555
Figure 6. Download Center Dialog Box
4. Enter the requested personal information.
TIP: Click Remember Me to eliminate step 4 in future downloads.
5. Click Download to copy the software or rmware to your computer.
The download warns you about downloads and asks you to conrm it.
6666666666
6. Cick Run to conrm that you want to run the installation.
7. Follow the on-screen instructions. The installation program creates
the necessary directories and folders and installs the programs.

LAN port Connection

The rst time you connect your PC to the switcher via the LAN port, you may need to change the default settings (IP address, subnet mask, and [optional] administrator name and password) on the controller (see the "Conguring for Network Communication" in the FOX Matrix 3200 and FOX Matrix 7200 User Guide.

Starting the Program

1. Click Start > Programs > Extron Electronics > Matrix
Switchers > MATRIX Switcher + Control Pgm.
The Comm Port Selection window appears.
20 FOX Matrix 3200 and FOX Matrix 7200 • Remote Control 21FOX Matrix 3200 and FOX Matrix 7200 • Remote Control

Built-in HTML Pages

Another way to congure and operate the switcher is via its factory­installed HTML pages, which are always available and cannot be erased or overwritten. The HTML pages that are pre-loaded on the switcher are accessible through its LAN port (item D on page 8), connected via a LAN or WAN, using a web browser such as Microsoft® Internet
2. Choose the comm (serial) port that is connected to the switcher or IP
[LAN].
NOTE: For a comm port, check the
baud rate displayed in the Comm Port Selection window. If you need to change the baud rate, click the Baud button and double-click the desired baud rate.
3. Click OK.
If you selected a serial port in step 2, the Matrix Switchers Control
Program is ready for operation.
4. If you selected IP [LAN] in step 2, the IP Connection window
appears.
Explorer®.
Configuring for Network Communication
The rst time you connect a PC to a switcher via its LAN port, you may need to temporarily change the IP settings of the PC in order to communicate with the controller. Then you must change the default settings of the controller (IP address, subnet mask, and [optional] administrator name and password) in order to use the unit on an intranet (LAN) or on the Internet. After you have set up the FOX matrix switcher for network communication, you can reset the PC to its original network conguration.
NOTE: The computer and the switcher must both be connected
to the same subnet on a LAN (using a straight-through cable). Alternatively, you can use a crossover Ethernet cable to connect the controller directly to the computer.
Use the ARP command to congure the IP address as follows:
1. Obtain a valid IP address for the FOX matrix switcher from the
network administrator.
2. Obtain the MAC address (UID number) of the switcher from the
label on its rear panel. The MAC address should have this format: 00-05-A6-xx-xx-xx.
3. If the switcher has never been congured and is still set for factory
defaults, go to step 4. If not, perform a Mode 4 system reset. For detailed information on reset modes, refer to “Reset Operations” in the FOX Matrix 3200 and FOX Matrix 7200 User Guide.
NOTE: The switcher must be configured with the factory
default IP address (192.168.254.254) before the ARP command is executed, as described below.
a. Examine the Matrix IP Address eld, which displays the last
Matrix IP address entered.
If necessary, enter the correct IP address in the eld.
NOTE: 192.168.254.254 is the factory-specified default
value for this field.
b. If the switcher is password-protected, enter the appropriate
4. At the PC, access the MS-DOS® command prompt, then enter the
arp –s command. Type in the desired new IP address for the unit (obtained in step 1) and the MAC address of the unit (from the rear panel of the unit). For example:
arp –s 10.13.197.7 00-05-A6-03-69-B0 and then press <Enter>.
After receiving the the new address and starts responding to the ping requests, as described in step 5.
arp -s command, the controller changes to
administrator or user password in the Password eld.
c. Click Connect. The Matrix Switchers Control Program is
ready for operation.
22 FOX Matrix 3200 and FOX Matrix 7200 • Remote Control 23FOX Matrix 3200 and FOX Matrix 7200 • Remote Control
NOTE: You must ping the FOX matrix switcher as shown in
step 5 for the IP address change to take place. The response should show the new IP address, as shown in the following figure.
5. Execute a ping command by entering “ping” followed by a space and
C:\>ping 10.13.197.7
Pinging 10.13.197.7 with 32 bytes of data:
Reply from 10.13.197.7: bytes=32 time<10ms TTL=128 Reply from 10.13.197.7: bytes=32 time<10ms TTL=128 Reply from 10.13.197.7: bytes=32 time<10ms TTL=128 Reply from 10.13.197.7: bytes=32 time<10ms TTL=128
Ping statistics for 10.13.197.7: Packets: Sent = 4, Received = 4, Lost = 0 (0% loss), Approximate round trip times in milli-seconds: Minimum = 0ms, Maximum = 0ms, Average = 0ms
the new IP address at the command prompt. For example:
ping 10.13.197.7
4. Press the keyboard <Enter> key. The switcher checks to see if it is
password-protected.
If the switcher is not password-protected, it checks and downloads the HTML start-up page. The switcher is ready for operation via HTML remote control.
If the switcher is password-protected, it downloads the Enter Network Password page.
NOTE: A User name entry is not required.
NOTE: You can reconnect using either Telnet or a Web browser
to verify that the update was successful.
6. After verifying that the IP address change was successful, enter and
issue the “arp –d” command at the DOS prompt. For example:
arp –d 10.13.197.7 removes 10.13.197.7 from the ARP table
or
arp –d* removes all static IP addresses from the ARP table.
5. Enter the appropriate administrator or user password in the Password
eld and click OK.
The switcher downloads the HTML start-up page (see gure 7). The switcher is ready for operation via HTML remote control.

Loading the Start-up Page

NOTES:
If your Ethernet connection to the matrix switcher is unstable,
try turning off the proxy server in your Web browser. In Microsoft Internet Explorer, click Tools > Internet Options >
Connections > LAN Settings, uncheck the Use a proxy server... box, and then click OK.
For details on operating the switcher via HTML pages, refer
to the "HTML Operation" section in the FOX Matrix 3200 and FOX Matrix 7200 User Guide.
1. Start the Web browser program.
2. Click in the Address eld.
3. Enter the Matrix IP address in the Address eld.
NOTE: 192.168.254.254 is the factory-specified default value
for this field.
24 FOX Matrix 3200 and FOX Matrix 7200 • Remote Control 25FOX Matrix 3200 and FOX Matrix 7200 • Remote Control
Figure 7. HTML Startup Page
Maintenance and Modifications
This section describes repairing and reconguring the FOX matrix switchers by replacing components. Topics that are covered include:

Removing and Installing a Board or Blank Panel

Removing and Installing a Power Supply Module
Removing and Installing a Fan Module
Removing and Installing a Board or Blank Panel
Circuit boards can be added or removed to increase or decrease the I/O conguration (size) of the switcher.
WARNING: The ber optic I/O boards of the FOX matrix switchers
output continuous invisible light, which may be harmful to the eyes; use with caution.
Do not look into the ber optic cable connectors or into the ber optic cables themselves.
Plug the attached dust caps into the optical transceivers when the ber cable is unplugged.
AVERTISSEMENT: L'appareil émet une lumière invisible en
continu, à utiliser avec precaution.
Ne regardez pas dans les connecteurs de câble bre optique sur
le panneau arrière ou dans les câbles bre optique eux-mêmes.
Branchez les protections contre la poussière dans l'ensemble émetteur/récepteur lorsque le câble bre optique est débranché.
NOTES:
On a ber optic I/O board as delivered from Extron, all transceiver
modules are congured the same: either all multimode or all singlemode. You can mix multimode and singlemode ber optic I/O boards in a FOX matrix switcher, but ensure that you connect the proper transmission mode ber cables to the board.
Typically, singlemode ber has a yellow jacket and multimode
cable has an orange or cyan jacket.
For proper cooling and air ow, boards or blank panels should
be installed in all locations during normal switcher operations.
See A Note on I/O Boards on page 5 to understand the
different arrangement of connectors on the I/O boards.
The FOX Matrix Switcher components that are user-replaceable
are hot-swappable. You do not need to power down the switcher to remove or replace a component.
FOX Matrix 3200 and FOX Matrix 7200 • Maintenance and Modifications 2726 FOX Matrix 3200 and FOX Matrix 7200 • Remote Control
Remove and replace and I/O board or blank panel as follows:
Knurled Knobs
1. For a board, disconnect any connected cables.
2. Rotate the left and right knurled knobs to completely loosen the
captive screws.
3. Gently pull on the knurled knobs/captive screws to loosen the board
or panel from the backplane.
4. Slide the board or panel out of the chassis (below).

Removing and Installing a Power Supply Module

8. Gently slide the board or blank panel into the enclosure. For an I/O
board, slide the board toward the front panel until it meets resistance.
9. Gently seat the board or panel in the backplane.
10. Use a screwdriver to tighten the left and right knurled knob captive
screws to lock the board or panel in place.
The two power supply modules (primary power supply and redundant
ATTENTION:
Do not touch the electronic components or the connectors
on the backplane or on the circuit boards without being electrically grounded. Handle circuit boards by their edges only. Electrostatic discharge can damage circuits, even if you cannot feel, see, or hear it.
Ne pas toucher les composants électroniques ou les
connecteurs sur la carte mère ou sur les circuits imprimés sans être électriquement relié à la terre. Manipuler les circuits imprimés en les tenant seulement par leurs bords. Les décharges électrostatiques (ESD) peuvent endommager l'équipement, même si vous ne pouvez pas le sentir, le voir ou l'entendre.
power supply) are identical. Each power supply module has a 2-color LED, visible on the rear panel, that indicates the status of the power supply outputs. If the LED is lit green, the power supply is operating normally. If the LED is lit red, the supply has failed and should be replaced at the earliest opportunity. LEDs with identical meaning are also on the front panel.
ATTENTION:
This unit uses double pole/neutral fusing. Do not operate the
equipment with only one power supply cord connected.
Cette unité utilise double pôles/fusion neutre. N'utilisez
pas l'équipement avec seulement un cordon d'alimentation connecté.
NOTE: Power supply modules are not interchangeable between
models.
1. Rotate the left and right knurled knobs to completely loosen the
Align with Plastic Guides
IN
OUT
H
IN
IN
OUT
OUT
G
IN
H
IN
OUT
IN
OUT
E
IN
OUT
IN
OUT
E
IN
D
IN
OUT
IN
OUT
OUT
OUT
C
IN
OUT
OUT
B
OUT
IN
1 - 8
9 - 16
ANAHEIM, CA
17 - 24
25 - 32
100-240V 50/60Hz 1.2A MAX.
RESET
BI-LEVEL
REMOTE
DISCONNECT BOTH POWER
RS-232/RS-422
100-240V 50/60Hz 1.2A MAX.
TRI-LEVEL
SWITCH
REFERENCE
LAN
ACT LINK
C
IN
OUT
OUT
OUT
A
B
OUT
IN
C
IN
OUT
OUT
PRIMARY POWER SUPPLY
A
B
IN
OUT
A
REDUNDANT
PRIMARY
CORDS BEFORE SERVICING
E
D
IN
IN
OUT
D
IN
OUT
OUT
F
IN
F
IN
F
REDUNDANT POWER SUPPLY
IN
OUT
OUT
G
H
IN
OUT
G
OUT
IN
OUT
E
IN
OUT
D
IN
OUT
C
IN
OUT
B
IN
OUT
A
IN
IN
OUT
H
IN
OUT
G
IN
F
captive screws.
2. Gently pull on the handle to loosen the power supply from the
backplane.
3. Slide the power supply out of the chassis.
4. Orient the power supply module to be installed with the LED to the
right.
5. Align the anges on the power supply module with the left and right
power supply guides (see the next page).
6. Gently slide the power supply module into the enclosure until the
power supply meets resistance.
5. Place the removed board on an anti-static surface or in an anti-static
container.
6. For an I/O board, orient the board to be installed so that transceiver
module A (ber board) or input BNC A (3G/HD-SDI/SDI board) is on the left and transceiver module or output BNC H is on the right.
7. For an I/O board, align the board with the left and right chassis
guides.
28 FOX Matrix 3200 and FOX Matrix 7200 • Maintenance and Modifications 29FOX Matrix 3200 and FOX Matrix 7200 • Maintenance and Modifications
Align with Plastic Guides
ANAHEIM, CA
RESET
REMOTE
RS-232/RS-422
LAN
BI-LEVEL
TRI-LEVEL
ACT LINK
100-240V 50/60Hz 1.2A MAX.
100-240V 50/60Hz 1.2A MAX.
REDUNDANT
PRIMARY
DISCONNECT BOTH POWER
CORDS BEFORE SERVICING
SWITCH
REFERENCE
PRIMARY POWER SUPPLY
REDUNDANT POWER SUPPLY
1 - 8
A
B
C
D
E
F
G
H
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
9 - 16
A
B
C
D
E
F
G
H
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
17 - 24
A
B
C
D
E
F
G
H
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
25 - 32
A
B
C
D
E
F
G
H
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
Knurled Knobs
Power LED

Removing and Installing a Fan Module

Align with Plastic Guides
RESET
REMOTE
RS-232/RS-422
LAN
BI-LEVEL
TRI-LEVEL
ACT LINK
100-240V 50/60Hz 1.2A MAX.
100-240V 50/60Hz 1.2A MAX.
REDUNDANT
PRIMARY
DISCONNECT BOTH POWER
CORDS BEFORE SERVICING
SWITCH
REFERENCE
PRIMARY POWER SUPPLY
REDUNDANT POWER SUPPLY
A
B
C
D
E
F
G
H
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
A
B
C
D
E
F
G
H
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
A
B
C
D
E
F
G
H
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
A
B
C
D
E
F
G
H
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
ANAHEIM, CA
1 - 8
9 - 16
17 - 24
25 - 32
Knurled
Knobs
The FOX Matrix 3200 has a single fan module. The FOX Matrix 7200 has two identical fan modules. If a fan fails, it should be replaced at the earliest opportunity.
1. Rotate the top and bottom knurled knobs to completely loosen the
captive screws.
7. Gently seat the power supply in the backplane.
8. Use a screwdriver to tighten the left and right knurled knob captive
screws to lock the power supply in place.
2. Gently pull on the screws to loosen the fan from the backplane.
3. Slide the fan out of the chassis.
4. Orient the fan to be installed so that the printing on the back of the
panel is right-side up.
5. Align the anges on the fan with the top and bottom fan guides.
6. Gently slide the fan into the enclosure until the fan meets resistance.
7. Gently seat the fan in the backplane.
8. Use a screwdriver to tighten the top and bottom knurled knob captive
screws to lock the fan in place.
30 FOX Matrix 3200 and FOX Matrix 7200 • Maintenance and Modifications 31FOX Matrix 3200 and FOX Matrix 7200 • Maintenance and Modifications
Extron Warranty
Extron Electronics warrants this product against defects in materials and workmanship for a period of three years from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components, to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with proof of purchase and description of malfunction to:
USA, Canada, South America, and Central America:
Extron Electronics 1001 East Ball Road Anaheim, CA 92805 U.S.A.
Europe and Africa:
Extron Europe Hanzeboulevard 10 3825 PH Amersfoort The Netherlands
Asia:
Extron Asia 135 Joo Seng Road, #04-01 PM Industrial Bldg. Singapore 368363 Singapore
This Limited Warranty does not apply if the fault has been caused by misuse, improper handling care, electrical or mechanical abuse, abnormal operating conditions, or if modifications were made to the product that were not authorized by Extron.
NOTE: If a product is defective, please call Extron and ask for an application
engineer to receive an RA (return authorization) number. This will begin the repair process.
USA
: 714.491.1500 or 800.633-9876 Europe: 31.33.453.4040
Asia: 65.6383.4400 Japan: 81.3.3511.7655
Japan:
Extron Electronics, Japan Kyodo Building, 16 Ichibancho Chiyoda-ku, Tokyo 102-0082 Japan
China:
Extron China 686 Ronghua Road Songjiang District Shanghai 201611 China
Middle East:
Extron Middle East Dubai Airport Free Zone F12, PO Box 293666 United Arab Emirates, Dubai
32 FOX Matrix 3200 and FOX Matrix 7200 • Maintenance and Modifications
Units must be returned insured, with shipping charges prepaid. If not insured, you assume the risk of loss or damage during shipment. Returned units must include the serial number and a description of the problem, as well as the name of the person to contact in case there are any questions.
Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
