EVS XEDIO Manager User Manual Version 4.1

Download
User’s Manual
Version 4.1 - December 2011
Xedio Manager
From Xedio Suite
EVS Broadcast Equipment – December 2011
Issue 4.1.D
I

COPYRIGHT

EVS Broadcast Equipment – Copyri ght © 2010-2011. All rights reserved.

DISCLAIMER

The information in this manual is furnished for informational use only and subject to change without notice. While every effort has been made to ensure that the information contained in this user manual is accurate, up-to-date and reliable, EVS Broadcast Equipment cannot be held responsible for inaccuracies or errors that may appear in th is publication.

IMPROVEMENT REQUESTS

Your comments will help us improve the quality of the user documentation. Do not hesitate to send improvement requests, or report any error or inaccuracy on this user manual by e-mail to
doc@evs.tv.

REGIONAL CONTACTS

You will find the full list of addres ses and phone numbers of local offices either at the end of this user manual (for manuals on hardware products) or on the EVS website on the followi ng page:
http://www.evs.tv/contacts

USER MANUALS ON EVS WEBSITE

The latest version of the user manual, if any, and other user manuals on EVS products can be found on the EVS download center, on the following webpage:
http://www.evs.tv/downloadcenter
Issue 4.1.D
II
EVS Broadcast Equipment – December 2011
EVS Broadcast Equipment – December 2011
Issue 4.1.D
III
Table of Contents
TABLE OF CONTENTS ................................................................................................. III
WHAT’S NEW? ............................................................................................................. VII
1. INTRODUCTION ..................................................................................................... 1
2. USER INTERFACE ................................................................................................. 2
2.1 OPENING XEDIO MANAGER ..................................................................................................... 2
2.2 OVERVIEW OF THE XEDIO MANAGER WINDOW .................................................................... 2
2.2.1 Menu bar ................................................................................................................................. 3
2.2.2 The Outlook Bar ...................................................................................................................... 5
2.2.3 The Work Area ........................................................................................................................ 6
2.2.4 The Logbook Area................................................................................................................... 6
3. ENCODERS ............................................................................................................ 7
3.1 INTRODUCTION .......................................................................................................................... 7
3.2 PHYSICAL MANAGER ................................................................................................................ 8
3.2.1 Introduction ............................................................................................................................. 8
3.2.2 Creating Physical Encoder ...................................................................................................... 9
3.2.3 Setting up the Encoding Parameters ..................................................................................... 10
3.2.4 Modifying the Physical Encoder Properties ........................................................................... 12
3.2.5 Possible Actions with Contextual Menus ............................................................................... 12
3.3 LOGICAL MANAGER................................................................................................................. 13
3.3.1 Introduction ........................................................................................................................... 13
3.3.2 Creating Logical Encoder ...................................................................................................... 13
3.3.3 Modifying the Logical Encoder Properties ............................................................................. 14
3.3.4 Possible Actions with Contextual Menus ............................................................................... 14
3.4 GROUP MANAGER ................................................................................................................... 16
3.4.1 Introduction ........................................................................................................................... 16
3.4.2 Creating a Group of Logical Channels .................................................................................. 16
3.4.3 Deleting a Group of Encode rs ............................................................................................... 17
3.5 SCHEDULER ............................................................................................................................. 17
3.6 PREVIEW ................................................................................................................................... 18
4. LINX AND DIRECT ACCESS ............................................................................... 19
4.1 INTRODUCTION ........................................................................................................................ 19
4.2 GENERAL CONFIGURATION PARAMETERS ......................................................................... 19
4.3 EVS VIDEO SERVER ................................................................................................................ 20
4.3.1 Introduction ........................................................................................................................... 20
4.3.2 EVS Server Parameters ........................................................................................................ 21
4.3.3 How to Gang Recorder Channels ......................................................................................... 22
4.3.4 Possible Actions with Contextual Menus ............................................................................... 22
4.4 EVS VIDEO SERVER GROUP .................................................................................................. 23
5. MACHINES ........................................................................................................... 24
5.1 INTRODUCTION ........................................................................................................................ 24
Issue 4.1.D
IV
EVS Broadcast Equipment – December 2011
5.2 VTR MANAGER ......................................................................................................................... 25
5.3 SWITCHER MANAGER ............................................................................................................. 26
5.4 ARCHIVE SERVER MANAGER ................................................................................................ 28
5.5 XFILE MANAGER ...................................................................................................................... 29
5.6 IPDIRECTOR ............................................................................................................................. 30
5.7 MODIFYING OR DELETING AN EXTERNAL DEVICE .............................................................. 32
6. MEDIA .................................................................................................................. 33
6.1 INTRODUCTION ........................................................................................................................ 33
6.2 MEDIA SERVERS ...................................................................................................................... 34
6.2.1 Introduction ........................................................................................................................... 34
6.2.2 Adding a Media Server .......................................................................................................... 34
6.2.3 Contextual Menus ................................................................................................................. 35
6.2.4 Setting the CDM Encoder Mapped Drive .............................................................................. 37
6.3 CLASS MANAGER .................................................................................................................... 37
6.3.1 Introduction ........................................................................................................................... 37
6.3.2 Possible Actions with Contextual Menus ............................................................................... 38
6.4 MEDIA IMPORTER .................................................................................................................... 38
6.5 RTD MANAGER ......................................................................................................................... 40
6.5.1 Introduction ........................................................................................................................... 40
6.5.2 Possible Actions with Contextual Menus ............................................................................... 40
6.6 MEDIA MANAGER ..................................................................................................................... 41
6.6.1 Introduction ........................................................................................................................... 41
6.6.2 Element Grid ......................................................................................................................... 42
6.6.3 Searching the Database ........................................................................................................ 45
6.6.4 Delete & Purge ...................................................................................................................... 55
7. METADATA .......................................................................................................... 56
7.1 INTRODUCTION ........................................................................................................................ 56
7.2 PROFILE MANAGEMENT ......................................................................................................... 57
7.2.1 Managing User Fields ........................................................................................................... 58
7.2.2 Managing Metadata Profi l es ................................................................................................. 59
7.3 MEDIA PROFILE ASSOCIATION .............................................................................................. 60
7.4 EDIT PROFILE ASSOCIATION ................................................................................................. 61
8. PLAYOUTS ........................................................................................................... 63
8.1 INTRODUCTION ........................................................................................................................ 63
8.2 SERVERS MANAGER ............................................................................................................... 64
8.2.1 Introduction ........................................................................................................................... 64
8.2.2 Creating and Configuri ng a Pl ayout Server ........................................................................... 64
8.2.3 Modifying the Playout Server Properties ............................................................................... 65
8.2.4 Possible Actions with Contextual Menus ............................................................................... 65
8.3 GROUP MANAGER ................................................................................................................... 65
8.3.1 Introduction ........................................................................................................................... 65
8.3.2 Creating a Group of Playout Servers .................................................................................... 66
8.3.3 Deleting a Group of Playout Servers ..................................................................................... 66
9. SOFTWARES ....................................................................................................... 67
9.1 INTRODUCTION ........................................................................................................................ 67
9.2 PARAMETER PROFILES .......................................................................................................... 68
EVS Broadcast Equipment – December 2011
Issue 4.1.D
V
9.2.1 Introduction ........................................................................................................................... 68
9.2.2 Possible Actions with Contextual Menu ................................................................................ 69
9.2.3 List of <GENERAL> Parameters ........................................................................................... 70
9.2.4 List of Parameters for Xedio Manager ................................................................................... 75
9.2.5 List of Parameters for Xedio CleanEdit ................................................................................. 77
9.2.6 List of Parameters for Xedio Ingest ....................................................................................... 88
9.2.7 List of Parameters for Xedio Playout Organizer .................................................................... 89
9.2.8 List of Parameters for Xedio Browse ..................................................................................... 90
9.2.9 List of Parameters for Xedio Browse (VC) ............................................................................ 90
9.2.10 List of Parameters for Xedio Approval ................................................................................... 91
9.2.11 List of Parameters for Xedio Importer ................................................................................... 91
9.2.12 List of Parameters for Xedio Explorer ................................................................................... 92
9.2.13 List of Parameters for Xedio Cutter ....................................................................................... 93
9.2.14 How to Edit a Parameter Profile ............................................................................................ 95
9.3 KEYBOARD PROFILES ............................................................................................................. 96
9.3.1 Introduction ........................................................................................................................... 96
9.3.2 Possible Actions with Contextual Menu ................................................................................ 96
9.3.3 How to Edit a Keyboard Shortcut .......................................................................................... 96
9.3.4 List of Xedio CleanEdit Key boar d Keys Ass i gnments ........................................................... 97
9.3.5 List of Xedio Playout Organi zer Keyb oar d Keys As si gn m ents ............................................ 106
9.3.6 List of Xedio Browse and Xedio Browse (VC) Keyboard Keys Assignments ....................... 106
9.3.7 List of Xedio Cutter Keyboard Keys Assignments ............................................................... 107
9.4 KEYBOARD MACHINES ......................................................................................................... 111
9.4.1 Introduction ......................................................................................................................... 111
9.4.2 Possible Actions with Contextual Menu .............................................................................. 111
9.5 VIDEO FX ................................................................................................................................ 112
9.5.1 Introduction ......................................................................................................................... 112
9.5.2 Editing Default Parameters for Effects ................................................................................ 112
10. TOOLS ................................................................................................................ 113
10.1 INTRODUCTION ...................................................................................................................... 113
10.2 PROGRAM CLASS MANAGER ............................................................................................... 114
10.2.1 Introduction ......................................................................................................................... 114
10.2.2 Possible Actions with Contextual Menus ............................................................................. 114
10.3 PROJECTS / CLIPS / EDITS / PLAYLISTS MANAGER .......................................................... 115
10.3.1 Introduction ......................................................................................................................... 115
10.3.2 Element Grid ....................................................................................................................... 115
10.3.3 Searching the Database ...................................................................................................... 119
10.3.4 Delete & Purge .................................................................................................................... 119
10.4 BROADCASTED ITEMS MANAGER ....................................................................................... 119
10.5 SCRIPT MANAGER ................................................................................................................. 120
10.6 MONITORING .......................................................................................................................... 121
11. USERS ................................................................................................................ 122
11.1 INTRODUCTION ...................................................................................................................... 122
11.2 USER MANAGER .................................................................................................................... 123
11.2.1 Introduction ......................................................................................................................... 123
11.2.2 Creating a User ................................................................................................................... 124
11.2.3 Possible Actions with Contextual Menu .............................................................................. 124
11.3 ORIGIN MANAGER ................................................................................................................. 125
Issue 4.1.D
VI
EVS Broadcast Equipment – December 2011
11.3.1 Introduction ......................................................................................................................... 125
11.3.2 Contextual Menus ............................................................................................................... 125
11.4 LICENSE MANAGER ............................................................................................................... 126
12. MEDIA FILE CLEANER ...................................................................................... 127
EVS Broadcast Equipment – December 2011
Issue 4.1.D
VII
, new
Modification of the Keyboard Profile Parameters for
What’s New?
The following table descr ibes the sections updated to reflect the new a nd modified features on Xedio Manager from Xedio Suite 3.02 and 4.01 (compared to Xedio Suite 3.01).
In the user manual, the icon has been added on left margin to highlight information on new and updated features.
Click the section number (or the description) in the table to jump directly to the corresponding section.
Section Description
5.6 Possibility to synchronize the Xedio database with the IPDirector database.
6.4 Media Importer: Possibility to import media from CANON Compact Flash drive
6.6.1 A Today tab is automatically added to the Saved Filters. It corresponds to ‘cre ation date = today’.
6.6.2 Special Status Display for the Elements: explanation has been added to give information on special display of the elements in the elemen ts grid.
6.6.3 Quick Text search can now be applied together with an advanced filter, with an AND operator.
6.6.3 Filter Fields: The most relevant parameters are listed on the top of the list.
6.6.3 Search Fields Types: logi cal operators now replac e text.
9.2.3 New General Software Parameters for the Default Proxy Resolution and for the clipping on add frames.
9.2.5 New Software Parameters Profile for Xedio CleanEdit: check for missing hi-res files in the edit timeline Devices tab, video standard selection and Make Local option.
9.2.13 New Software Parameter s Profiles for Xedio Cutte r.
9.3.4, 9.3.7 forward and reverse pl ay
EVS Broadcast Equipment – December 2011
Issue 4.1.D
1

1. Introduction

An installation of Xedio Suite can include a single workstation providing a single fast and easy editing facility or a range of workstations running the various applications included in the sui te to provide a complete newsroom or sports centre video production solution.
Each installation of a Xedio Suite requires its own specific config uration and set of parameters. All the workstations, the users, their associated projects, and the whole media pool are available to the system. Each of these is referenced within the Xedio database.
Xedio Manager is the application within the suite that manages the configuration of the installation and defines the paramet ers used by the system.
Xedio Manager is designed for system administrators to easily use and set the system up from the very beginning of the installation to the daily asset and content management.
Xedio Manager can be installed on all computers connected to the Xedio network. The only requirement is an ODBC connection to the database; o therwise there are no specific computer o r network requirements nec essary to enable use.
Issue 4.1.D
2
EVS Broadcast Equipment – December 2011

2. User Interface

2.1 OPENING XEDIO MANAGER

To start the Xedio Manager application, click on the Xedio Manager icon on the desktop.

2.2 OVERVIEW OF THE X EDIO MANAGER WINDOW

The Xedio Manager graphical interface contains four main areas highglighted in the screenshot below:
EVS Broadcast Equipment – December 2011
Issue 4.1.D
3

2.2.1 MENU BAR

TOOLS MENU
The Tools menu gives access to the Media File Cleaner tool. This tool shows the list of all the media files presen t on the Xedio media servers but not referenced in the database (orphan files). From the Media File Cleaner window, it is possible to delete these orphan f iles. Refer to section 12 ‘Media File Cleaner’ o n page 127 for more information.
VIEW MENU
The View menu provides the following options:
Menu Item Description Outlook Bar Displays or hides the Outlook bar. Logbook Bar Displays or hides the Logbook bar.
Full Screen Hides the Menu bar.
HELP MENU
The Help menu provides the About… option which gives information about the system, such as version number.
The screenshot below gives an idea of the window overview but it is not a reference for the required version numb ers.
Issue 4.1.D
4
in name from the list, the corresponding version is
Version number of the DLL allowing the access to the
It must be compatible with the CleanEdit Database DLL
EVS Broadcast Equipment – December 2011
The window gives the f ollowing information:
Information Item Meaning Application Version number of Xedi o Manager. Execute Folder Folder Path where Xedio Manager is installed.
PlugIns List of the installed plug-in. When the user selects a plug
displayed next to the field.
Xedio Database DLL
Xedio database.
Xedio Database
Version number of the database.
Script
version number.
Timecode Extractor Version number of the application which checks the media
and the timecode insid e the media.
Database Server
Name of the server where the database resides.
Name Database Name Name of the database i n SQL server. DSN Name Data Source Name, label of the currently used OD BC link. DBMS Databa se Management System type and version. Libraries List of the existing DLL libraries. When the user selects a
library name from the list, the corresponding version is displayed next to the field.
Database Server
Date and time from the Database server.
Current Time
EVS Broadcast Equipment – December 2011
Issue 4.1.D
5
interactions with external devices such as VTR,
which could be

2.2.2 THE OUTLOOK BAR

The Outlook bar presents nine tabs. They correspond to the areas managed by Xedio Manager.
When Xedio Manager is started for the first time, only the Media and Users tabs are shown. You need to create a media server before being able to see all the tabs. See section 6.2 ‘Media Servers’ on page 34.
The following table briefly describes the va rious categories:
Subject Purpose Encoders Manages (create, delete and modify) encoders and sets up
their parameters.
LinX Manages interactions wit h EVS video servers. Machines Manages
archive servers, XFile and EVS servers.
Medias Manages all media and associated storage structure as
referenced in the dat abase.
Metadata Manages the creation of metadata profiles
associated to media.
Playouts Manages the playou t servers used by the Xedio Suite. Softwares Sets up all software parameters and allows the creation of
Tools Manages database content and user s jobs.
parameter profiles.
Issue 4.1.D
6
Subject Purpose Users Manages users and access rights.
Each category provides access to a series of items. Once a category tab is selected, its specific items are shown as icons. Select any of these icons to display its relevant interface in the Work area.
Refer to the different chapters of the present manual for complete information on each category managed by Xedio Manager.

2.2.3 THE WORK AREA

The Work area is only active when an item is selected in one category from the Outlook area. Thus, the window displayed in the Work area depends on the selected item. Parameter s are set from this area.
EVS Broadcast Equipment – December 2011

2.2.4 THE LOGBOOK AREA

The Logbook area lists the operations that the user performs in the database and their status. If a problem occurs, an error message is added in the list. At the same time, the applica tion saves all this info rmation in a log file.
EVS Broadcast Equipment – December 2011
Issue 4.1.D
7
encoding parameters for
Defines the logical encoders, i.e. the combination of
rolled as one single logical

3.1 INTRODUCTION

Encoders are physical devic es which allow the digitization o f incoming audio/video feeds into multiple file formats. Most of the models are configured to encode lo­res or hi-res feed. They can be logically grouped to associate physical encoders handling the same feed, either in hi-res or in lo-res. So, editing operations can be quickly performed on lo-res media and then reflected to the corresponding hi-res media for further news production and play out.
The XEDIO I/O encoder model is a ble to encode both lo-res and hi-res at the same time.
Five items are available in the Encoders category. They are detailed in the table below.

3. Encoders

Item Description
Physical Manager
Logical Manager
Group Manager Allows to create groups of logical encoders that make
Defines hardware setup and each physical encoder.
physical encoders to form a single logical encoder. For example, a hi-res encoder and a lo-res encoder receiving the same feed can be cont encoder.
logical channels visible from specific workstations.
Issue 4.1.D
8
Item Description Scheduler Displays blocks corresponding to the scheduled ingest
already planned for e ncoding.
Preview Displays the current video input when the encoder is
recording media.

3.2 PHYSICAL MANAGER

3.2.1 INTRODUCTION

You must define and co nfigure a physical encoder before you can use it. When you click the Physical Manager button, the Physical Encoders Manager
window is displayed in the Work area, allowing you to define or update encoding hardware connected to the network (Encoder type, IP address) and the encoding parameters.
EVS Broadcast Equipment – December 2011
Contextual menus are av ailable for additional operations.
EVS Broadcast Equipment – December 2011
Issue 4.1.D
9
(also called
(also called CDM[3]
placing the pointer over the

3.2.2 CREATING PHYSICAL ENCODER

To create and configure a physical encoder, complete the follo wing fields and then click on the Create button.
The encoder name is added to th e list on the left side of the window and ‘Channel 1’ appears underneath. A s the XEDIO I/O model is a multichannel enco der, up to 2 channel numbers are di splayed under the encoder name.
Field Description
Encoder Model
Encoder Description Automatically filled at e ncoder model selection. Company Automatically filled at en coder model selection. Number of Channels Automatically filled at encoder mode l selection. Type Automatically filled at en coder model selection. Label Name you give to the physical encoder, as it will appear
IP Address IP address of the phy sical encoder. Description Optional text to describe the encoder. This will appear in
Select an encoder model among CDM[1] CDM-MPEG), CDM[2], XEDIO I/O PCX3)
in the list. Preferably choose a name relevant to the job of the encoder or to its position in the Xedio architecture.
a ToolTip when corresponding encoder name in the list on the le ft.
Issue 4.1.D
10
Number of B frames between two P frames (typically 2).

3.2.3 SETTING UP THE ENCODING PARAMETERS

Select a channel (’Channel 1’, or ‘Channel 2’ with CDM[3] PCX3) to set the encoding parameters.
The encoding parameters fields displayed on the right depend on the encoder model.
CDM-MPEG ENCODING PARAMETERS
EVS Broadcast Equipment – December 2011
The available paramete rs for CDM[1], also called CDM-MPEG, are the following:
Setting Description Media Server Media storage server where the encoded media files will be
stored.
Gop Size Number of frames between two I pictures (normal setting is
12). Defines the MPEG file structure to use.
Number of B Frames
Defines the Gop struct ure to use.
Video Size Width of the picture. Select a value in the list (typically 352
for the lo-res and 72 0 for the hi-res, for a CDM-MPEG2).
Video
Choose PAL or NTSC sta ndard.
Standard Format MPEG1
EVS Broadcast Equipment – December 2011
Issue 4.1.D
11
Video encoding bitrate, entered as a bit/sec number. For
the timecode is based on the video source signal.
Setting Description
Video Bitrate
example, 8Mb/s is ente red as 8000000.
TC Config Defines the timecode i nserted in the encoded fi le:
• vitc:
Select vitc for all encoders in a lo-res + hi-res configuration.
• local time: the timecode is taken from the CDM encoder
local time.
• encoder config: the timecode is managed by the encoder
itself (from the CDM Ma nager application).
Audio Numbers
Number of audio channe ls to encode and multiplex . This is related to the audio configuration table tha t defines the
audio parameters for t he encoded file.
Video Ratio Selection between 16/9 and 4/3 formats for encodi ng.
When you have done the required modifications, click on the Update button to send the new parameters values to the encoder hardwar e.
CDM[2] AND CDM[3] ENCODING PARAMETERS
Issue 4.1.D
12
These files define the
Only two groups of embedded audio can be selected
Preview Thumb
Path of the thumbnail, automatically generated by the
EVS Broadcast Equipment – December 2011
The available paramete rs for CDM[2] and CDM[3] are t he following:
Setting Description Profile Encoding profile used by the encoder.
The profiles come from a li st of xml files stored on the storage server (in the Profiles/CDM2 folder). codecs/formats and the ir parameters.
Storage The storage server tha t stores the encoded media files. Audio Groups This parameter is only available for CDM[2].
simultaneously.
Audio Channels
Path
The audio sources can be chosen using the drop down lists in the selected groups.
encoder, during video digitization. This thumbnail is used in Xedio Ingest Organizer scheduler
and Xedio Manager to p review the source being e ncoded.

3.2.4 MODIFYING THE PHYSICAL ENCODER PROPERTIES

To modify the properties of a physical encoder, select it in the list, enter new values in the relevan t fields, and click the Update button.

3.2.5 POSSIBLE ACTIONS WITH CONTEXTUAL MENUS

A contextual menu is available when you select an encoder name in the list and then right-click. The fol lowing options can be se lected:
Menu Item Description Duplicate Creates a new physical encoder with the same properties
and same encoding parameters. The term ‘duplicated’ is added next to the new en coder name.
Delete Deletes the encoder co nfiguration and removes it f rom the
list.
A contextual menu is available when you select a channel in the list and then right-click:
Menu Item Description
Set Label / Description
Opens a dialog box allowing to update the ‘Channel 1’ or ‘Channel 2’ name or to enter a description.
EVS Broadcast Equipment – December 2011
Issue 4.1.D
13

3.3 LOGICAL MANAGER

3.3.1 INTRODUCTION

When you click the Logical Manager button, the Logical Encoders Manager window is displayed in the Work area, allowing you to logically group physical encoders as being part of the same channel. Possible configurations use two encoders in hi-res and lo-res or one encoder in hi-res only. With a XEDIO I/O encoder model, lo-res and hi-res are recorded by t he same encoder.

3.3.2 CREATING LOGICAL ENCODER

To create and configure a logical encoder, complete the following fields and then click on the Create button.
The logical encoder name is added to the list on the left side of the window and the name of its corres ponding physical encoders a ppears underneath.
Field Description Label Give a name to the logical encoder.
Logical Encoder Group
Select the group you want to link to the logical encoders. This will determine the Ingest Organizer workstation which will see the encoders and this is used to restrict the access to some encoders by th e Ingest Organizer.
The GLOBAL group makes the encoders visible to all the Ingest Organizer works tations.
Issue 4.1.D
14
encoder model, selecting one of the
Port of the server hosting the Xedio Ingest Organizer
of the encoder channel in the Xedio
Optional text to describe the logical encoder. This will
Field Description
EVS Broadcast Equipment – December 2011
Physical Low Bitrate Encoder
Physical High Bitrate Encoder
Xedio Ingest IP address
Xedio Ingest TCP Port
Switcher Output Output of the swi tcher to which the enco der is connected. Color Background color
Select the low bitrate (if applicable) physical encoder to be part of the logical e ncoder.
With a XEDIO I/O physical encoder channels automatically alloc ates the other channel of the physical encoder to the corresponding low bitrate or high bitr ate field.
Select the high bitrate physical encoder to be part of the logical encoder.
IP address of the server hosting the Xedio Ingest Organizer module controlling the encoder.
module.
Scheduler. The color palette is available by clicking the Color button
and then selecting a color from the drop-down list.
Position Position of the encoder channel in the Xedio Scheduler. Description
appear in a ToolTip when placing the pointer over the corresponding logical encoder name in the list on the left.

3.3.3 MODIFYING THE LOGICAL ENCODER PROPERTIES

To modify the properties of a logic al encoder, select it in the list, enter new val ues in the relevant fields, a nd click the Update button.

3.3.4 POSSIBLE ACTIONS WITH CONTEXTUAL MENUS

DELETING A LOGICAL ENCODER
A contextual menu is available when you select a logical encoder name in the list and then right-click:
Menu Item Description
Delete Logical Encoder
Deletes the logical encoder configuration and removes it from the list.
EVS Broadcast Equipment – December 2011
Issue 4.1.D
15
in a
Imports the list and configuration of encoders in a
In the Open window, select the file that contains the
EXPORTING AND IMPORTING ENCODER PROPERTIES
A contextual menu is available when no encoder is selected and you right-click in the encoder list area .
Menu Item Description
Export Encoders
Import Encoders
Exports the list and configuration of encoders readable file (.enc f ormat).
In the Save As window, select the fol der to export the file to.
readable file.
encoders list to import.
Issue 4.1.D
16

3.4 GROUP MANAGER

3.4.1 INTRODUCTION

When you click the Group Manager button, the Logical Encoder Group Manager window is displayed in the Work area, allowing you to group together multiple logical encoders.
A group of encoders will then be visible only to a predefined Xedio Ingest Organizer workstation. Indeed, at first run of Xedio Ingest Organizer, the group membership is set.
EVS Broadcast Equipment – December 2011

3.4.2 CREATING A GROUP OF LOGICAL CHANNELS

To create a group of logical encoders, complete the followin g fields and then click on the Create button.
The group name is adde d to the list on the left side of the window.
Field Description Label Give a name to the group of logical e ncoder.
Description Optional text to describe the group of logi cal encoders. Logical Encoders Select the logica l encoders to group together.
EVS Broadcast Equipment – December 2011
Issue 4.1.D
17
Note 1
A group of logical channels rest ricts the amount of available channels for specific Xedio Inges t Organizer workstations. Ther e is one default group, called GLOBAL, that allows a Xedio Ingest Organizer workstation to “see” all channels whe n it is selected.
Note 2
To finalize encoders configuration, it is necessary to store the CDM encoders mapped drive in the database (see section 6.2.4 ‘Setting the CDM Encoder Mapped Drive’ on page 37)

3.4.3 DELETING A GROU P OF ENCODERS

To be able to delete a group of encoders, you first need to clear the logical encoders boxes and pre ss the Update button.
Then, right-clicking the group name will show you a contextual menu with the
Delete option.

3.5 SCHEDULER

When you click the Scheduler button, the Scheduler window displays blocks corresponding to the scheduled ingests already planned for encoding by all the logical encoders.
As this function is the same as the one avail able in Xedio Ingest Or ganizer, please refer to the user manual of this applicati on for more details.
Issue 4.1.D
18

3.6 PREVIEW

When you click the Preview button, the Preview window displays simultaneously the video currently u nder processing and encoding at all encoders inputs.
The only available par ameter is the Refresh Rate defined in seconds.
EVS Broadcast Equipment – December 2011
EVS Broadcast Equipment – December 2011
Issue 4.1.D
19
Defines the parameters of the web services used to

4.1 INTRODUCTION

Xedio “Add-On” for EVS Video Server is based on LinX protocol and XT Gateway. The LinX Application Programming Interface is an integrated API used to access the EVS family video s ervers through Ethernet/I P connection.
Xedio can access EVS video server disks (e.g. XT[2], XS) and use the media stored on EVS server thanks to XTGateway, provided that they have previously been configured. Xedio will then be able to see, display, search and access clips and record trains on EVS video servers. New clips could be created in CleanEdit from EVS video servers.
Two items are available in the LinX category. They are detailed in the tabl e below.
4. LinX and
Direct Access
Item Description EVS Video Server Defines setup parameters for an EVS video server which
will be used by CleanEdit to see, display, search and access clips and recor d trains.
EVS Video Server Group
All the steps below must be followed.
interact between Xedio and the EVS video servers .

4.2 GENERAL CONFIGURATION PARAMETERS

The following parameters must be defined from Softwares > Parameter Profiles > General > General tab:
• Notification C enter Address: set the IP ad dress with port 48888.
Example: 172.22.23.9:4 8888
Issue 4.1.D
20
• XedioBroker Add ress: set the IP address wi th port 8762.
Example: 172.22.23.9:8 762

4.3 EVS VIDEO SERVE R

4.3.1 INTRODUCTION

All the EVS Video Servers you want to access through LinX protocol must be referenced in this ca tegory.
The Discover button helps you to “discover” automatically all the EVS Video Server available on your network. If a server does not appear in the discovery, you can try to restart the server or check the network path between the local machine and your server (e.g. mutlicast shall be enabled), If it is still not discovered, then conf igure the server manually.
When you click the EVS Video Server button, the EVS Video Server Manager window is displayed in the Work area.
EVS Broadcast Equipment – December 2011
EVS Broadcast Equipment – December 2011
Issue 4.1.D
21
Displays the list of configurations available from the

4.3.2 EVS SERVER PARAMETERS

To set EVS video server parameters, complete the following fields and then click on the Save button.
Field/Button Description Server Name Name of t he server to be accessed by Xedio, as you want
it to be displayed in t he interface.
Description Optional text to desc ribe the EVS Server. FTP Interfaces (HCTX Connections) IP Address 1 FTP IP address 1 of the EVS server you want to connect
to (mandatory).
IP Address 2 FTP IP address 2 of the EVS server you want to connect
to (optional).
FTP Login Login ID d efined on the EVS server (e.g. evs). FTP Password Password defined on the EVS server (e.g. evs) . Control & Management Interfa ce (PC LAN Connection) IP Address PC LAN IP address of the EVS server you want to connect
to (mandatory).
Connect Checks the connection with the selected EVS server. Discover Opens a window which lists the EVS video servers from
the network and their corresponding PC LAN IP address.
Setup Opens a dialog box which allows to set the AVSP
guardbands length of clips created wit h LinX (e.g. 5 sec 0 frame).
Configuration List
server.
Apply Applies the select ed configuration.
Issue 4.1.D
22
Field/Button Description I/O Channel Displays the list of recorder channels from the selected
EVS server.
Button Description Delete Deletes the selected EVS serve r from the tree structure. Refresh Checks whether the EVS video serv er is reachable. If yes,
the server configuration is retrieved. If not, the server name and server icon are displayed in red.
Save Saves the parameters entered for the serve r. Clear Clears the parameters e ntered for the server.
EVS Broadcast Equipment – December 2011

4.3.3 HOW TO GANG RECORDER CHANNELS

You can gang several recorder channels from an EVS video server. To do so, proceed as follows:
1. Select several recorder channels in the I/O Chann els area,
2. Right-click the list.
3. Select Gang.
The ganged channels ar e mentioned in the Gangin g column.

4.3.4 POSSIBLE ACTIONS WITH CONTEXTUAL MENUS

A right-click on a server displa ys a contextual menu with the f ollowing option:
Menu Item Description Delete XT Deletes the selected EVS server from the t ree structure.
EVS Broadcast Equipment – December 2011
Issue 4.1.D
23
of the machine hosting the LinxAdapter
Keep 80 for TCP Port and
in the EVS Video

4.4 EVS VIDEO SERVE R GROUP

When you click the EVS Video Server Group button, the EVS Vide o Server Group Manager window is displ ayed in the Work area.
To set a group of EVS video server, complete the following fields, select the servers you want to gr oup and then click on the Create button.
Field Description Label Name you want to give to the group of servers. Description Optional text to desc ribe the group of EVS Serve rs.
LinxAdapter IP address
software, used to manage the Linx notifications from the EVS video server to Xedio. keep the soap string unchanged.
LinxAdapter Backup Not used. Keep 0.0.0.0. LinxOutAdapter IP address of the machine hosting the LinxOutAdapter
software, used to manage the Linx commands sent from Xedio to the EVS video server. Keep 80 for TCP Port and keep the soap string unchanged.
EVS video servers List of EVS video servers defined
Server tab. Select the servers you want to include in the group. All t he EVS servers which must be seen and could be used in CleanEdit m ust be assigned to a group.
Mandatory.
Issue 4.1.D
24

5.1 INTRODUCTION

External devices can be connected to the Xedio Suite. Their parameters are configured from the Ma chines tab.
Four items are available in the Machines category. They are detailed in the table below.
EVS Broadcast Equipment – December 2011

5. Machines

Item Description VTR Manager Defines setup parameters for a controlled VTR.
Switcher Manager Defines setup parameters for a switcher connected to the
system.
Archive Servers Defines setup parameters for a server used to archive
media.
XFile Manager Defines setup parameters for an XFil e used for rendering. IPDirector Defines setup parameters to use information coming from
IPDirector API.
EVS Broadcast Equipment – December 2011
Issue 4.1.D
25
IP address of the server hosting the Xedio Ingest
en sending data and

5.2 VTR MANAG ER

A VTR can be used as a source of ingest. The VTR video output must be connected to the encoder video input.
When you click the VTR Manager button , the VTR Manager window is disp layed in the Work area.
To set VTR parameters, complete the following fields and then click on the Save button.
Field Description ID Number automatically allocated by the system when you
save the VTR configura tion.
Label Name you give to the V TR device. Description Optional text to desc ribe the VTR device. Xedio Ingest
Organizer IP Serial COM Port Port used by the workstation wh
Switcher Input Switcher device to which the video source of the VTR is
Organizer module contro lling the VTR to be used.
transport control comman ds to the VTR (in RS-422).
connected. Leave this field blank if you do not have any switcher control devic e supporting Xedio protoc ol.
Issue 4.1.D
26

5.3 SWITCHER MA NAGER

When you click the Switcher Manager button, the Switcher Manager window is displayed in the Work area.
EVS Broadcast Equipment – December 2011
You can indirectly control a switcher through the system. If the T ransmit Switcher Info field is checked, Xedio Ingest Server application transmits the switching information over the Ethernet network to a dedicated software device before starting any recording. T his device will manage the audio and video routing at the switcher with regard to it s brand and protocol, and send an acknowled gement back to Xedio Ingest Server within a determined delay i n order to start the enco der(s).
To set switcher parameters, complete the following fields and then click on the
Apply button. Field Description
Transmit Switcher Info
Switcher Config Host
Enables/Disables the use of a software device to control the switcher(s)
IP address of the sof tware device to access to.
IP Switcher Config Host
Port number where to se nd the switching informat ion.
Port Wait For Host
Delay for the “acknowledge ” coming from the device.
Response TimeOut (in sec.)
Note
When timeout delay is reached, Xedio Ingest Server aborts the reco rding process.
EVS Broadcast Equipment – December 2011
Issue 4.1.D
27
Possible answers following a
Possible answers following a
The protocol used between Xedio Ingest Server and the “switching device” uses the following commands:
Commands sent from CleanGes t Server
Description
to the switching device
<ConnectPorts InPort="x" OutPo rt="y"/> Used before starting a record <ReleasePorts InPort="x" OutPo rt="y"/> Used a t the end of a record.
The answers received fr om the device must be as follows:
Received from the softw are device Description
<ConnectOK/> <ConnectFailed/>
“ConnectPorts” command.
<ReleaseOK/> <ReleaseFailed/>
“ReleasePorts” command.
<CmdErr/> Error status
Issue 4.1.D
28

5.4 ARCHIVE SERVER MANAGER

When an Archive Server is attached to a Xedio installation, it must be referenced in the database.
When you click the Archives Servers Manager button, the Archive Servers window is displayed in the Work area.
EVS Broadcast Equipment – December 2011
To set archive server parameters, complete the following fields and then click on the Save button.
Field Description ID Number automatically allocated by the system when you
save the Archive Serve r configuration.
Label Name you give to the A rchive Server. Description Optional text to describe the Ar chive Server. IP Address IP address of the archive serve r. Is default When selected, the current archive server is used by
default.
EVS Broadcast Equipment – December 2011
Issue 4.1.D
29

5.5 XFILE MANAGER

XFile can be used to receive and send media in file format or for the rendering of files to an EVS video server.
When you click the XFile Manager button, t he XFile Manager window is displayed in the Work area.
To set XFile parameters, complete the following fields and then click on the Save button.
Field Description ID Number automatically allocated by the system when you
save the XFile configu ration.
Label Name you give to XFile. Description Optional text to describe the XFile. XFile IP Address IP address of the machine hosting XFile software. Root XML Path Location where an XML file is sent by Xedio to request a
job.
Media Path Location where the media is stored before being treated
by XFile.
Default XT EVS video server number used by default to store media
files treated by XFile.
Default Page EVS server page number used by default to store media
Default Cam EVS server cam number used by default to store media
files treated by XFile. If the field is left empty, the first available place will be used.
files treated by XFile. If the field is left empty, the first available place will be used.
Issue 4.1.D
30

5.6 IPDIRECTOR

It is possible to syn chronize the Xedio databas e with the IPDirector da tabase. The IPD Gateway is a Windows service used to synchronize database information
from IPDirector to Xedio. It subscribes to IPDirector Notifica tion Server. The IPDirector Notification Server is an IPDirector API which is used to notify the
gateway when modificati ons are done in the IPDir ector database.
Important
When the IPD Gateway has been installed, it must be configured in Xedio Manager and the IPD nearlines must be configured in the Xedio Media Servers of Xedio Manager before you start the IPD Gateway services.
When you click the IPDirector button, the IPDirector window is displayed in the Work area.
EVS Broadcast Equipment – December 2011
To set IPDirector parameters, complete the following fields and then click on the
Update button. Field Description
IPDirector Gateway IP Address IP address of the machine where the IPDirector gateway
is installed.
EVS Broadcast Equipment – December 2011
Issue 4.1.D
31
IP address of the machine where the IPD database is
Field Description TCP Port IPD gateway TCP port (default is 808 0)
Domain User ‘.\<Windows Domain User with Admin rights>’ Domain Password Windows Domain Password for this user IPDirector Notification Server IP Address IP address of the mach ine where the IPD API is in stalled. TCP Port IPD API TCP port. Login Login for the IPD Notification Server Password Password for the IPD Noti fication Server Create When selected, the ‘create’ operations in IPDirector are
notified.
Update When selected, the ‘update’ operations in IPDirector are
notified.
Delete When selected, the ‘deletee’ operations in IPDirector are
IPDirector Database
IP Address
Database Name Name o f the server where the IPD data base is located. Login IPD da tabase username. Password IPD database password.
Each time the configuration is modifying, click the Full Resync button to force a full resynchronization from IPDirector to Xedio. A confirmation dialog box then opens where users enter the dates interval to be taken into account for the resynchronization.
notified.
installed.
Issue 4.1.D
32
EVS Broadcast Equipment – December 2011

5.7 MODIFYING OR DELETING AN EXTERNAL DEVICE

To modify the properties of one of the previous external devices, except a switcher, select it in the list, enter new values in the relevant fields, and click the Update button.
To delete one of the previous external devices, except a switcher, select it in the list, right-click and sel ect Delete from the contextu al menu.
EVS Broadcast Equipment – December 2011
Issue 4.1.D
33
Allows to define the media storage server(s) and to Manages the animated transition graphics (RTD’s)
anages the media files within the database and the

6.1 INTRODUCTION

From the Media category you can define the media storage tree structure and media classes, you can import and manage media file s.
Five items are available in the Medias category. They are detailed in the table below.

6. Media

Item Description
Servers
create its sub-folders (multiple storage servers may be defined).
Class Manager Allows to define a Class List to categorize the stored
media.
Media Importer Allows to import media fil es into the storage server and to
create a reference to the files within the data base.
RTD Manager
referenced in the dat abase.
Manager M
storage server.
Issue 4.1.D
34

6.2 MEDIA SERVERS

6.2.1 INTRODUCTION

A Media Server is the l ocation where all the media used withi n a Xedio installation will be stored.
When you click the Media > Servers button, the Media Servers window is displayed in the Work area, allowin g you to define a media se rver.

6.2.2 ADDING A MEDIA SERVER

To add a media server, proceed as follows:

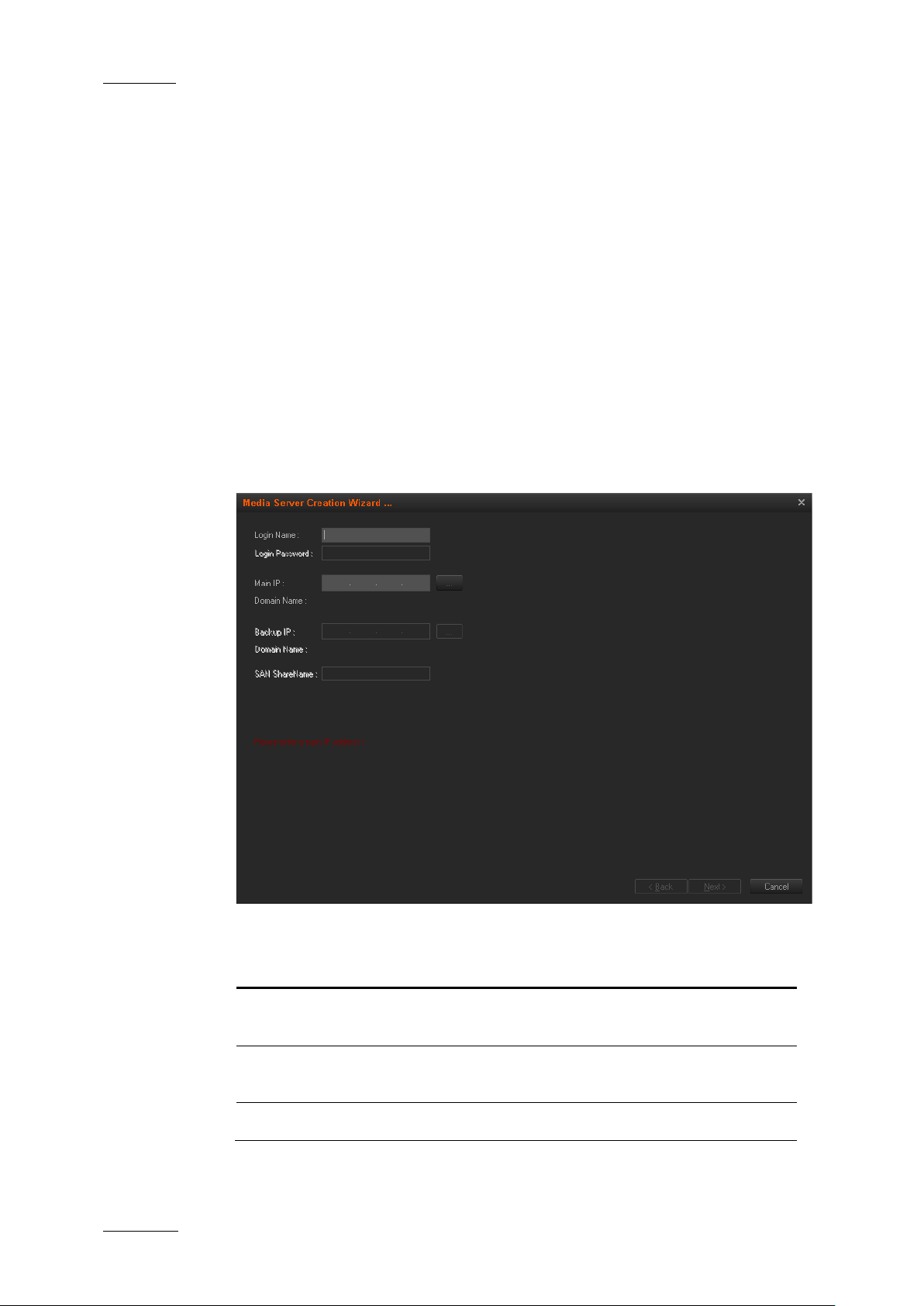

1. Right-click in the Media Server window and select New Media Server in the
contextual menu. A wiz ard opens.
EVS Broadcast Equipment – December 2011
2. Complete the fields descr ibed in the following tabl e:
Field Description Login Name Login name defined for the media server in its
configuration paramete rs.
Login Password Login password defined for the media server in
its configuration par ameters.
Main IP IP address of the serv er used for media storage .
EVS Broadcast Equipment – December 2011
Issue 4.1.D
35
Domain Name Field automatically filled when an IP address is
entered
Backup IP IP address of the backup storage server, when a
redundant network is used.
3. Click Next.
The next page displays the drives capacity of the new media server.
4. Click Next.
5. Select the drive(s) for the storage and enter a base path for the sub-folders
that will be created by the system.
6. Click Next.
7. Type a name for the server in the Label field.
8. Click Finish.
The tree structure of the media server is di splayed.

6.2.3 CONTEXTUAL MENUS

A contextual menu is availabl e when you select a media server in the list a nd then right-click:
Menu Item Description New Media Server Adds a media serve r storage: displays the folders present
Rename Media Server
in the path selected for use as media server. Allows to update the m edia server label.
Issue 4.1.D
36
view in the Media Servers
created in the system. This tells the system to use a
and sets the HIRES folder as
Removes the media folder from the Media Servers
EVS Broadcast Equipment – December 2011
Menu Item Description
Delete Media Server
Deletes the media server window.
Modify Media Server Description
Opens the Media Server Modification window allowing to update the label or d escription of the media se rver.
Media File Cleaner Opens the Media File Cleaner windo w. Refer to section 12
‘Media File Cleaner’ o n page 127 for more informa tion.
A contextual menu is available when you select a folder in the list and then right­click:
Menu Item Description New Media Server Adds a media serve r storage: displays the folders present
in the path selected for use as media server.
Default ‘Folder Name Files’ Directory
Sets the selected folder as default folder for the type of files (bitmaps, video files, thumbnails etc…). The folder icon is then green.
This is only necessary when multiple storage servers are specific storage server for some files and another server
for other files. Th e Default folders may be chang ed at any time without losing pr eviously stored material.
Example: for the HIRES folder, the option is Default ‘HiResFiles’ Directory default for the hi-re s files.
Delete Media Directory
window.
Collect Media Displays the l ist of media present in t he selected folder. Media File Cleaner Opens the Media File Cleaner windo w. Refer to section 12
‘Media File Cleaner’ o n page 127 for more informa tion.
EVS Broadcast Equipment – December 2011
Issue 4.1.D
37

6.2.4 SETTING THE CDM ENCODER MAPPED DRIVE

The physical encoder is usually configured to store the encode d files on a specific mapped drive, usually called “G” or “H”. This mapped drive letter also has to be stored in the databas e in the CDM Mapping column.
To set or change the enc oder mapped drive, proce ed as follows:
1. In the Medias Servers window, click twice (not a double cli ck, click then wait
and click again) the mapped drive letter related to the requested server in the CDM mapping column.
2. Select the requested CD M mapped drive from the drop-d own list. The encoder mapped driv e has been set or changed.

6.3 CLASS MANAGER

6.3.1 INTRODUCTION

The Class Manager tool is used to define and manage the ClassList. Classes categorize the media and the virtual media. They are mainly used in the database lists from the Xedio Suite to perform search on media. Media are assigned to classes through the Xedio applications such as Xedio Ingest Organizer, Xedio Importer, Xedio AutoFi le Importer or Xedio Browse applications.
When you click the Class Manager button, the Media Class Manager window is displayed in the Work area, allowing you to create new media classes and sub­classes.
Issue 4.1.D
38
class so users
EVS Broadcast Equipment – December 2011

6.3.2 POSSIBLE ACTIONS WITH CONTEXTUAL MENUS

A contextual menu is available w hen no class is selected and you right-click in the Media Class Manager win dow.
Menu Item Description New Root Creates a new class of media.
A contextual menu is available when you select a Class in the list and then right­click:
Menu Item Description New Root Creates a new class of media. New Child Creates a new sub-class of media.
Rename Allows to rename the s elected class or sub-class. Modify Opens the Modify Class window allowing to update the
label or description of the selected class or sub-class.
Delete Deletes the selected c lass or sub-class. Hidden State Hides/Unhides the selected class or sub-
cannot/can use it.

6.4 MEDIA IMP ORTER

The Media Importer is th e tool used to import, into the Xedio database, media that have already been recorded and are in a file format that can be used by Xedio. P2, XDCAM and XDCAM EX, music, graphics or existing mpeg and dv files are some examples.
The Xedio Importer is available as:
• a separate appl ication
• as a module bui lt in CleanEdit, and availa ble in the Media Import er tab.
• as a module built in Xedio Manager, and available in the Media category,
Media Importer tool.
When you click the Media Importer button, the Media Importer window is displayed in the Work area. It presents different sub-tabs t o set the parameters for different types of media to be imported into the system, such as:
• XDCAM, XDCAMEX, P2 and CANON tabs
To import media files recorded on Sony XDCAM and XDCAMEX, Panasonic P2 and CANON cameras
• Video/Audio/Stills tab
To import media files, images or audio files
EVS Broadcast Equipment – December 2011
Issue 4.1.D
39
• RTD tab
To import video contai ning transitions
• EVS Server tab
To import media files available on an EVS server on the same network as the Xedio suite. In this case, Xedio does not import the file content into the Xedio storage system, but creates a reference to the server files in the Xedio database.
Refer to the Xedio Importer user manual for a comprehensive description of the tabs and fields.
Issue 4.1.D
40
@50, HD 1080i
@59,94, HD 1080p @50, HD 1080p
EVS Broadcast Equipment – December 2011

6.5 RTD MANAGE R

6.5.1 INTRODUCTION

When you click the RTD Manager button,the RTD Manager window is displ ayed in the Work area, allowing you to import or manage the trans ition sequences. The list displays the availabl e effects stored in the sy stem.

6.5.2 POSSIBLE ACTIONS WITH CONTEXTUAL MENUS

A contextual menu is available when no RTD is selected and you right-click in the RTD Manager window.
Menu Item Description Import Imports a transition effec t.
A contextual menu is available when you select a RTD in the list and then right­click:
Menu Item Description Import Imports a transition effec t.
Preview Allows to preview the selec ted transition effect. Edit Opens the Update RTD Label window allowing to update
the label or descript ion of the selected effect.
Delete Deletes the selected effect from the da tabase. It can only
be removed if it is not already used in an edit, otherwise, an error message will o ccur.
Video Standard Allows to select a video standard among PAL SD, NTSC
drop SD, HD 1080i @50, HD 720p @59,94, HD 720p @59,94.
Used by Opens a window to show in which projects the selected
media is used in:
EVS Broadcast Equipment – December 2011
Issue 4.1.D
41

6.6 MEDIA MANAG ER

6.6.1 INTRODUCTION

The Media Manager tool is designed to give an overview of the database content, to edit some media properties and to delete media files from the database and from the storage server(s). Different search tools can be applied to the database content to help users to find specific media.
Note
Only items that are not used (not locked) in any user project and not used to create virtual media and/or clip can be deleted; otherwise, an error message will occur.
The media items displayed in the Media Manager window are all the media items corresponding to the filters or search tools applied.
When you click the Media > Manager button, the Media Manager window is displayed in the Work area.
The upper part of the Work area gives access to the differ ent filters which can be applied to the media list.
At least two tabs exi st on the left of the Medi a Manager window.
• The Filter 0 tab: The element grid displays the list of all media present in the
database, or it retur ns the result of a sear ch applied to the list.
Issue 4.1.D
42
media can be set as treated when virtual media have
llow for a
16/9, and unknown. This only affects the flag in the
• The Today tab: the element grid shown the media with ‘creation dat e = today’.
Additional tabs are displayed when the users have saved filters applied to the database. Refer to sec tion ‘Using Saved Filters ’ on page 53 for more detail s.
Media items are displa yed in columns.

6.6.2 ELEMENT GRID

DISPLAYED COLUMNS
It is possible to re-arrange the columns order, and to add or remove some columns.
Right-clicking on any of the column headings displays a contextual menu. The Choose Displayed Columns option opens the Select Visible Columns window allowing you to choose the columns you want to be displayed in the element gr id.
The column width and order can be adjusted using standard computer commands and drag and drop tech niques.
EVS Broadcast Equipment – December 2011
ELEMENT GRID CONTEXTUAL MENU
A contextual menu is a vailable when you right-click on an item in t he list.
Menu Item Description Published State Allows the selection of a sub-menu to change the publish
state of the media between Published and Not Published. A published media will be displayed in the
database lists of all the software and thus available for use.
Treated State Allows the selection of a sub-menu to change the treated
state of the media between Treated and Not Treated. A been created from this media in Xedio Browse.
Deleted State Allows the selection of a sub-menu to change the deleted
state of the media be tween Deleted and Not Deleted.
Video Standard Allows to change the metadata for the media to PAL or
NTSC and vice versa. This only affects the flag in the metadata and does not affect the media (to a correction in the dat a only).
Video Ratio Allows to change the metadata f or the media between 4/3,
metadata and does not affect the media (to allow for a correction in the dat a only).
Media File(s) Status Allows the selection of sub-menu to change the status of
the low bitrate file or the high bitrate file between Rec
Done, Imported, Rec Error, Archived, ArchiDel, Restored, Deleted and Imported Erro r.
EVS Broadcast Equipment – December 2011
Issue 4.1.D
43
Displays the properties for the selected media. If a
Generate Low Resolution Media
Menu Item Description
Set Audio Track Assignment
Allows to set or update the audio track assignment for selected media (8 audio or 5.1). Refer to section ‘How to Define New Default Audio Channel Assignment’ on page 72 for explanation.
Properties
default metadata profile has been defined for the media, a metadata tab is displayed and allows to modify the media metadata values.
Delete Media &
See section 6.6.4 ‘Delete & Pur ge’ on page 55.
Purge Force Delete Deletes a media with all the references of its use in the
database. If it is used in an edit , this will cause “holes” in the edit. This option must be used very cautious ly.
Play Opens a new Player window to al low the low bitrate file or
the high bitrate file to be browsed.
Media Analyzer Opens a Timecode Extractor window showing an analysis
of the selected file .
MOS Publication Allows to send a notification to the news ro om system. Merge This option is used to associat e a lo-r es media to a hi-res
media. Opens the Get Lowres File window allowing you to browse
for the lo-res file.
Generate Low Resolution Media File
Generates missing lo-res media fi le from the hi-res media file. Refer to section ‘ Files’ on page 44.
Retrim In case the TC IN or TC OUT of a media hi-res and lo-res
files differ, this option will automatically adjust both files to the same TC range.
Create Missing Thumbnails
This option creates thumbnails in the Thumbnail IN and Thumbnail OUT columns of the Work area.
Issue 4.1.D
44
If the Do this for all selected media option is selected, the check will
EVS Broadcast Equipment – December 2011
Menu Item Description Used By Opens a window to show in which projects and edits the
selected media is used in:
GENERATE LOW RESOLUTION MEDIA FILES
When several files are selected from the list and you select the Generate Low Resolution Media File option, se veral cases can occur.
1. Some hi-res files are not present on the Media server (they could be offline
or ARCHIDEL) A popup window is displayed and lists those missing files. You are asked
whether you want to co ntinue.
• Press YES to generate only lo-res files corresponding to existing hi-res
files
• Press NO t o cancel the operation.
2. The hi-res files are online and at least one lo-res file already exists on the
Media server or is ‘ARCHIDEL’. A popup window is displayed and mentions that ex isting file. You are asked
whether you want to ov erwrite this lo-res file.
• Press YES to overwrite the ex isting lo-res file.
EVS Broadcast Equipment – December 2011
Issue 4.1.D
45
not be applied on the other files and all the existing lo-res files will be
generated.
• Press NO t o avoid the replacement of existing lo-r es files.
If the Do this for all selected media option is selected, the check will not be applied on the other files and only the offline lo-res files will be generated.
3. The hi-res files are onl ine and at least one lo-res file is in use.
A popup window is displayed and mentions the file in use. You are asked whether you want to co ntinue.
• Press YES to generate only l o-res files not in use.
• Press NO t o cancel the operation.
SPECIAL STATUS DISPLAY FOR THE ELEMENTS
The elements can be di splayed with a specific font to reflect a particul ar status.
Element Display Meaning Red font Element in recording or importing state. A wrong status
may be displayed when a Xedio Ingest server cras hed.
Italic font Virtual media created with Xedio Br owse. Grey font Only h i-res media or lo-res media i s available.

6.6.3 SEARCHING THE DATABASE

INTRODUCTION
When the database contains large amount s of data, it may become difficult to find a specific element. Th e Xedio Suite offers sever al ways to speed up your se arch:
• quick text search
• filters on pa rameters
By default, the columns that are taken into consideration for the Quick Text Search are the ones cu rrently visible in the grid.
If you wish to search in other columns, and view the string you are searching for in the columns, you can:
• add other columns to the element grid view
• use Filters, as explained in section ‘ Advanced Filters’ on page 47
These search tools are explained in detail be low. Quick text search and filters on parameters, as well as several filters on
parameters, can be com bined and saved for later use. All the criteria must be met in the results list ( an ‘AND’ operator is applied). These Saved Filters can then be applied in one click.
Issue 4.1.D
46
field to apply a
EVS Broadcast Equipment – December 2011
QUICK TEXT SEARCH
Introduction
The Quick Text Search field is always available on the top of the database
content list:
It allows searching fo r a string in the dis played columns. The Quick Text Search option obeys specific rules which can be accessed via the
Help button next to the Quick Text Search field. For more details on thes e rules, refer to the section ‘Qu ick Text Search Rules’, on
page 47.
How to Perfo rm a Quick Text Sear ch
To perform a Quick Text search, proceed as follow s:
1. Show t he columns you wish to per form a quick search on.
2. Type a search string in the Quick Text Search field, based on Quick Text
search rules available from the Help button and detailed in section ‘Quick Text Search Rules’ on page 47.
3. Depending on whether the AutoRefresh Filtering setting is selected or not,
you may have to press the Search button to apply the Quick Text Search. Refer to the tab Softw are > Parameter Profiles > G eneral > General.
The Quick Text Search is applied and the search result is displayed in the grid.
4. To cl ear the applied Quick Text Search, cl ick the red "X" icon to the right of
the search field or select <empty> fr om the Quick Text Search field.
5. The Quick Text Search f ield is a combo box that gives access to the las t 10
previously searched st rings. Select a filter from the list of the Quick Text Search
previous search.
EVS Broadcast Equipment – December 2011
Issue 4.1.D
47
, even if in two
, even if in two different fields
’ at the
’ at the
Quick Text Se arch Rules
The string that you enter in the Quick Text Search field is analyzed according to the following set of rules, which can be accessed via the Help button next to
the Quick Text Search field. The free text search is not a case sensitive oper ation.
Search String Search Result
Yellow card Searches for the strings ‘yellow’ and ‘card’
different fields (columns), for example ‘yellow’ in Name and ‘card’ in Keywords.
For example a clip named ‘The Yellow Man’ with keywords ‘Red Card’ will be found, since it has yellow and card in 2 different
fields. "Yellow card" Searches for s trings containing ‘Yellow car d’. Yellow | card Searches for ‘yellow’ or ‘card’
(columns), for example ‘yellow’ in Name or ‘card’ i n Keywords.
Spaces around the | si gn are mandatory. yell* Searches for ‘yell’ at the beginn ing of a string. *low Searches f or ‘low’ at the end of a string. Ye*low Searches for strings with ‘ye’ at the beginning and ‘low
end. Ye*low 123 Searches for strings with ‘ye’ at the beginning and ‘low
end and which contains ‘123’. =card Sear ches for a string exactly equals to ‘card’.
For example, if a field co ntains ‘yellow card’, the =card condition
will not return any re sult. =”yellow card” Searches for a string exac tly equals to ‘yellow car d’.
The use of quotes is required due to the space between ‘yellow’
and ‘card’.
ADVANCED FILTERS
Filters are available for more detailed search operations from th e Filter 0 tab. The parameters available for filtering operations are the column headings and any metadata associated by the user.
From the Today tab, th e filter ‘creation date = today’ is automatically applied.
Issue 4.1.D
48
button is dimmed when all filter
button is red when the filter
fields displayed
EVS Broadcast Equipment – December 2011
Filter Activation
Show/Hide Filter Butto n
To display, or hide, the Filter extended area, click the Show/Hide Filter button over the grid.
Filter Button Display Meaning
(dimmed)
criteria are hidden. Consequently , the filters are inactiv e. The Show/Hide Filter
The Show/Hide Filter
(red)
extended area is visible, even if no filtering criterion is applied.
Filter Extended Area
The Filter extended ar ea is as follows:
The first field under the Show/Hide Filter button lists three options for the combination of criteri a to be taken into accoun t during the filtering op eration.
The second field is a filter field allowing the users to select a fir st filter parameter.
Criteria Combination
The available options are detailed in the table b elow:
Option Meaning
ALL criteria are met
All the criteria selected in the Filter under the Criteria Combination fie ld must be met.
The media displayed in the results list fulfill all the selected filter criteria.
ANY criteria is met At least one of the criteria selected in the Filter fields
must be met. The media displayed in the results list fulfill at least one
of the selected filt er criteria.
NO criteria is met None o f the criteria selec ted in the Filter fields di splayed
under the Criteria Combination fie ld must be met. The media displayed in the results list fulfill none of the
selected filter criteria.
EVS Broadcast Equipment – December 2011
Issue 4.1.D
49
Filter Fields
Under the Criteria Combination field, the users will be able to select as many filter parameters as they want and to choose specific value(s) for these filter parameters. The use of Filter fields is explained in the next section.
Filter Fields
The Filter field provides the list of all the parameters on which a search can be performed. The following sc reenshot is an example of such a list. The options ma y differ between the applications of the Xedio Suite. Most relevant parameters are listed at the top of the list, then, all the other fields are displayed in alphabetical order.
Once a parameter has b een selected, an entire li ne is displayed.
Interface Element Description 1 Selected filter parame ter.
2 Various fields used to enter the filter criteria. Refer to
section ‘Search Fields Ty pes’ on page 50.
Issue 4.1.D
50
value. This will include, or exclude, media containing the
EVS Broadcast Equipment – December 2011
Interface Element Description
Used to remove the corr esponding filter line.
Used to add a new filt er line.
Search Field s Types
According to the selected filter parameter, different types of search fields will be displayed. They are de tailed in the table belo w.
Filter Parameter Type
Timecode or Duration Parameter
Such as TC IN, TC OUT, Duration…
Displayed Criteria Fields
Select a logical operator in the first field and then enter a timecode or duration v alue in the second field.
Range
Such as Timecode Range
Date
Such as Creation Date
Select an option from the first field and then enter a timecode specified timecode val ue. Several Date Search filte rs exist. They are described be low.
a. Select a condition or a logical oper ator in the first field
b. This will condition the next step:
EVS Broadcast Equipment – December 2011
Issue 4.1.D
51
• Search based on a specific date (e.g. with =…): a calendar
,…): no other field
endar for the
the current date and time (e.g. with next hour, last
Filter Parameter Type
Displayed Criteria Fields
will be displayed for the selection of a da te.
• Search based on an interval (e.g. with […] (between)…): two
calendars are displaye d for the selection of t wo dates.
• Search based on a specific date calculated from the current
date (e.g. with tomorrow, last month appears.
Time
Such as Last
Several Date Search fi lters exist. They are des cribed below.
a. Select a condition or a logical oper ator in the first field Rendered Date Time
b. This will condition the next step:
• Search ba sed on a specific date and time (e.g. with =…): two
additional fields will be displayed, a cal selection of a date and drop-down list for the selection of time.
• Search based on a specific date and time calculated from
Issue 4.1.D
52
month,…): no other fiel d appears.
and then enter a
EVS Broadcast Equipment – December 2011
Filter Parameter Type
Number
Such as DB Id
Option List
Such as Video Standard
Displayed Criteria Fields
Select a logical operator in the first field
number in the second f ield.
Note <> means ‘differs from ’
Select a condition in the first field
Boolean
Such as Published
Free Text
Such as Label
Click the button to display the lis t of options available for
the selected filter p arameter.
Example for the Video Standard:
Select an option from the list.
Select Yes or No from the single crit eria field
Select a condition in the first field and then enter text in the
second field.
EVS Broadcast Equipment – December 2011
Issue 4.1.D
53
How to Perform a Search through Filter Fields
To enter search values in the Filter fields, p roceed as follows:
1. Choose the columns you wish t o perform a search on.
2.
Click the Show/Hide Filter button The following Filter a rea is displayed:
3. Select a criteria combination f rom the list:
4. Select a filter parameter from t he filter parameter lis t.
An entire line, corres ponding to the selected fi lter parameter, is display ed:
5. Enter filter criteria as explained in section ‘Search Fields Types’ on page
50. For free text fields, press ENTER to apply the fi lter. Otherwise, the results list is automatically res tricted.
6.
If required, click the button to add a filter parameter.
USING SAVED FILTERS
Once you have defined a filter cri terion, you may want to save it for later use. You will then be able to apply the same filter wit h a single click.
Right-clicking in the Filter 0 tab displays a contextual menu with the following options:
Issue 4.1.D
54
d/or description of the
EVS Broadcast Equipment – December 2011
Menu Option Description Create New Filter Allows to create a new filter tab.
Save Filter As Allows to create a new filter tab in which the current
search filter will be save d.
Filter Properties Allows to change the name an
selected filter tab.
Reset Filter Removes al l search criteria on the selected filter tab. Delete Filter Removes the filter tab.
How to Save Fi lters
To save filters, proceed as fol lows:
1. Define the filter or filters combin ation you wish to save, as explained above.
2. Right-click the Filter 0 tab.
3. Select Save Filter As from the cont extual menu.
The Filter Edit Dialog box opens.
4. Enter a label for the tab you are going to create and, if required, enter a
description.
5. Click OK to confirm.
The new filter tab is displayed on the left of the list.
How to Apply a Saved Filter
To apply a saved filt er, simply click the cor responding tab.
EVS Broadcast Equipment – December 2011
Issue 4.1.D
55

6.6.4 DELETE & PURGE

The Delete Media(s) & Purge function allows the user to remove unused media from the media server w hile deleting the media from the database.
There are four options availab le when using this fu nction:
1. Delete database references: removes en tries from the database only
2. Delete database references AND media files from online (e.g. XT[2]) or
nearline (e.g. SAN, XStore) storage: removes entries from the database and from the media server
3. Delete database references AND media files from offline/deep archive (e.g.
Tape library, ftp archive): removes entries from the database and from the archive storage
4. Delete database references AND media files from online/nearline storage AND
media files from offlin e/deep archive: removes entries from the datab ase, from the media server and f rom the archive storage
The media will be removed only if they are not used in other edits or in other playlists (either the media itself or through attac hed virtual media or vi rtual clips).
Additionally, all as sociated material such as virtual media and vir tual clips that are used in the edit(s) or playlist(s) selected for deletion will be removed from the database.
For more powerful media delete and purge options, see sections 12 ‘Media File Cleaner’ on page 127.
Issue 4.1.D
56
tadata fields and their

7.1 INTRODUCTION

Metadata is customer-def ined data which can be associated with media or edits to describe or classify t hem.
Metadata user fields can be created and associated into profiles within Xedio Manager. Then, a metadata profile can be assigned to media or edits and metadata values specif ic to the media or edit c an be entered in the user fi elds.
Three items are available in the Metadata category. They are detailed in the table below.
EVS Broadcast Equipment – December 2011

7. Metadata

Item Description
Profile Management
Media Profile Association
Edit Profile Association
Manages the creation of me association into metad ata profiles.
Allows the selection of metadata profiles to be available for association with m edia.
Allows the selection of metadata profiles to be available for association with a n edit.
EVS Broadcast Equipment – December 2011
Issue 4.1.D
57

7.2 PROFILE MANAGEMENT

When you click the Profile Management button, the Metadata Profiles Management window is displayed in the Work area, allowing you to define user fields and to associa te them into profiles. It is divided into three areas:
1. Available Metadata Fields
2. Metadata Profile Information
3. Existing M etadata Profiles
Issue 4.1.D
58
down list of values defined at
down arrow giving
Field Values (combo

7.2.1 MANAGING USER FIELDS

CREATING USER FIELDS
To create a user field, press the Add New Field button in the Available Metadata Fields area, complete the following fields and then click on the OK button.
Field Description Field Name Name you want to give to the user field.
Type Six types of user fields a re available. They will appear as
follows in Xedio CleanEdi t:
Boolean True or False values.
EVS Broadcast Equipment – December 2011
Combo
Drop­creation
Date Date field with drop-
access to a calendar.
Number Number field with up and down arrows to
increase or decrease t he value. Text Free text field Timecode Timecode field
Default Values Possibility to define a default value to be used for the
user field. The default value is enabled when the Default
Values button is surrounded by a red line.
Description Optional text to describe the user fiel d.
Right-click in the field and select New to define a value
option)
for the drop-down list.
MODIFYING A USER FIELD
To modify the propert ies of a user field, select it i n the list, click the Modify Field button, enter new val ues in the relevant fields, and click the OK button.
If the user fiel d is used in a profile, only the Label and the Description fields can be edited.
DELETING A USER FIELD
To delete a user field, select it in the list and click the Delete Field button. It can only be deleted if i t is not used in a profile.
EVS Broadcast Equipment – December 2011
Issue 4.1.D
59

7.2.2 MANAGING METADATA PROFILES

CREATING A METADATA PROFILE
To create a metadata profile, complete the following fields in th e Metadata Profile Information area and then click on the Save Profile button. It will then be displayed in the Metad ata Profiles area.
Field Description ID Automatically filled by t he system. Label Name you give to the p rofile.
Description Optional text to desc ribe the metadata profi le. Field(s) List of user fields you want to use in the profile: select a
user field in the Available Metadata Fields area and drag it to the Metadata Pr ofile Information area.
MODIFYING A METADATA PROFILE
To modify a metadata profile, select it in the Metadata Profiles area, enter new values in the relevan t fields, and click the Save Profile button.
It can only be edited if it is not selected for use in the Media or Edit Profile Association.
DELETING A METADATA PROFILE
To delete a metadata profile, select it in the Metadata Profiles area and click the Delete Profile button in t he Metadata Profile Infor mation area.
It can only be deleted if it is not selected for use in the Media or Edit Profile Association.
Issue 4.1.D
60
available for
Selected list and be
Each user field from the selected profiles could be

7.3 MEDIA PRO FILE ASSOCIATION

When you click the Media Profile Association button, the Media Metadata Profile Table Association window i s displayed in the Work area, al lowing you to select the profiles you want to m ake available to the users.
EVS Broadcast Equipment – December 2011
The following fields a re displayed in the window :
Field Description Description Automatically filled by the system for the selected profile
with the description text entere d at profile creation.
Available Displays the list of existing profiles
selection.
Selected Displays the list of profiles which have been selected in
the Available list and added thanks to the Add button. Profiles can be removed from the made available in the Available list again by using the Remove button.
displayed in additional column in Media > Manager from the Xedio Manager and in the Media Manager tab f rom the Xedio CleanEdit.
EVS Broadcast Equipment – December 2011
Issue 4.1.D
61
Displays the list of existing profiles available for made available in the Available list again by using the
Field Description Default Profile Allows the selection of a profile, from the list of Selected
Profiles, to be used as default profile when a user will associate metadata to a media.
The Save button must be pressed to save changes.

7.4 EDIT PROFILE AS SOCIATION

When you click the Edit Profile Association button, the Edit Metadata Profile Table Association win dow is displayed in the W ork area, allowing you to s elect the profiles you want to m ake available to the users.
The following fields a re displayed in the window :
Field Description Description Automatically filled by the system for the selected profile
with the description text entered at profil e creation.
Available
selection.
Selected Displays the list of profiles which have been selected in
the Available list and added thanks to the Add button. Profiles can be removed from the Selected list and be
Issue 4.1.D
62
Remove button.
profiles could be
Field Description
Each user field from the selected displayed in additional column in Tools > Edits Manager from the Xedio Manager and in the Edit Manager tab from the Xedio CleanEdit.
Default Profile Allows the selection of a profile, from the list of Selected
Profiles, to be used as default profile when a user will associate metadata to an edit.
The Save button must be pressed to save changes.
EVS Broadcast Equipment – December 2011
EVS Broadcast Equipment – December 2011
Issue 4.1.D
63
Allows to create groups of playout servers that make playout channels visible only from specific Playout

8.1 INTRODUCTION

The servers which will be used for payout must be defined and their parameters must be set in Xedio Manager. They will then be available in the Playout Organizer application.
Two items are available in the Playouts category. They are detailed in the table below.

8. Playouts

Item Description Servers Manager Defines hardware setup and parameters for each playout
server.
Group Manager
Organizer workstations.
Issue 4.1.D
64
the playout server available from all Playout

8.2 SERVERS MANAGER

8.2.1 INTRODUCTION

When you click the Servers Manag er button, the Playout Servers Man ager window is displayed in the Wor k area, allowing you to define each physi cal machine to be used for playout.
EVS Broadcast Equipment – December 2011

8.2.2 CREATING AND CONFIGURING A PLAYOUT SERVER

To create and configure a playout server, complete the following fields and then click on the Create button.
The playout server name is added to the list on the left side of the window and “PCX” then “Channel 1” appear underneath, which corresponds to the playout channel.
Field Description Label Name you give to the playout server, as it will appear in
the list.
Playout Group List of predefined playout groups. The GLOBAL option
makes Organizer workstations.
IP Address IP address of the pla yout server. Port (default = 4021) Port used for the pla yout. Description Optional text to describe the p layout server. Card1 / 2 / 3 Type of card used. Several cards could be used but it is
not advisable.
EVS Broadcast Equipment – December 2011
Issue 4.1.D
65

8.2.3 MODIFYING THE PLAYOUT SERVER PROPERTIES

To modify the properti es of a playout server, select it in the list, enter new values in the relevant field s, and click the Update button.

8.2.4 POSSIBLE ACTIONS WITH CONTEXTUAL MENUS

A contextual menu is available when you select a playout server in the list and then right-click:
Menu Item Description Duplicate Creates a new playout server with the same properties.
The term ‘duplicated’ is added next to the new playout server name.
Delete Deletes the playout server configuration and removes it
from the list.

8.3 GROUP MANAGER

8.3.1 INTRODUCTION

The Playout Servers may be grouped together through the Group Manager. This can be used to group a main server and a backup server. They can then be made visible only from some predefined Playout Organizer workstations.
When you click the Group Manager button , the Playouts Group Manager window is displayed in the Work area.
Issue 4.1.D
66

8.3.2 CREATING A GROUP OF PLAYOUT SERVERS

To create a group of playout servers, complete the following fields and then click on the Create button.
The group name is adde d to the list on the left side of the window.
Field Description Label Give a nam e to the group of playout serve rs. Description Optional text to describe the group of play out servers.
Playout Servers Select the playout servers to gr oup together.
Note
A group of playout channels restricts the amount of available channels for specific Playout Organizer workstations. There is one default group, called GLOBAL, that allows a Playout Organizer workstation to “see” all channels when it is se lected.
EVS Broadcast Equipment – December 2011

8.3.3 DELETING A GROU P OF PLAYOUT SERVERS

To be able to delete a group of p layout servers, you first need to cl ear the playout servers boxes and press the Update button.
Then, right-clicking the group name will show you a contextual menu with the Delete Group option.
EVS Broadcast Equipment – December 2011
Issue 4.1.D
67
Makes it possible to set and store the software
akes it possible to set and store the keyboard key
keyboard profiles to

9.1 INTRODUCTION

The parameters specific to the various applications of the Xedio Suite can be stored into different profiles. These profiles can then be selected for us e by users.
Keyboard shortcuts can also be defined and stored into profiles. These profiles are linked to the work station.
Four items are available in the Softwares category. They are detailed in the table below.

9. Softwares

Item Description
Parameter Profiles
parameters of all applications into profiles.
Keyboard Profiles M
assignments into profi les.
Keyboard Machines Allows to assign defined
workstations.
Video FX Allows to set the n ame and the default parameters for the
transition effects.
Issue 4.1.D
68
for which it is possible to manage
that can be managed, relating to the

9.2 PARAMETER PRO FILES

9.2.1 INTRODUCTION

When you click the Parameter Profiles button, the Softwares Parameter Profiles window is displayed in the Work area. It is div ided into three areas:
EVS Broadcast Equipment – December 2011
Nr Area Description
1 Applic ation Selection area
This area displays the applications icons parameters and profiles.
2 Profil e Selection area This area displays the available profiles
selected application.
3 Paramet ers area This area gives the list of parameters.
They can be edited and modified there.
Note
Each Xedio application must have been started and have written registry for its corresponding icons to be available .
EVS Broadcast Equipment – December 2011
Issue 4.1.D
69
Opens the New Param Profile window where you can
Opens the Modify Param Profile window allowing to
It is not possible to remove a profile that is In the Open window, select the file that contains the

9.2.2 POSSIBLE ACTIONS WITH CONTEXTUAL MENU

A contextual menu is available when an application is selected in the Application Selection area and you right-click in the Profile Selecti on Area:
Menu Item Description
New
enter a name for the new profile in the Label field.
Modify
update the label or description of the selected parameter profile.
Delete Deletes the selected p arameter profile.
Note
currently in use. An error message will be shown if this is attempted.
Import from File Import a parameters profi le stored in a .ini forma t.
parameters profile to import.
Import Default Import a parameters profile stored in a .ini format as the
default parameter prof ile. In the Open window, select the file that contains the
parameters profile to import.
Export to File Exports the selected parameters profile in a readable file
(.ini format). In the Save As window, select the fol der to export the file
to.
Export to Text Exports the selected parameters profile in a text file
format (.txt format). In the Save As window, select the fol der to export the file
to.
Issue 4.1.D
70
resulting grab
When selected: enables clipping on odd frames when
This parameter should only be set for full

9.2.3 LIST OF <GENERAL> PARAMETERS

The GENERAL profile giv es access to the followin g lists of parameters (tabs).
General
Auto Refresh Filtering When selected: each time a new criterion is added to a
filter, the search is automatically started without pressing Return or pushing the Search button.
EVS Broadcast Equipment – December 2011
Can select ClassList node
Confirmation window to backup EVS video server
Default video aspect ratio
Default high bitrate video width
Default Proxy Video Frequency
Default Proxy Video Resolution
Default video standard
When selected: enables the selection of a class list node rather than only the deepest sub-items.
When selected: displays a confi rmation window before the backup operation of a n EVS video server.
Video Ratio used in th umbnail generation and duri ng rendering operations
Possible values: 4/3 or 16/9 Free text field to define the default horizontal resolution
for hi-resolution vid eo files (width in pixel s) Default video frequenc y for Proxy video browsing , editing
and encoding Default video resoluti on for Proxy video brows ing, editing
and encoding Video supported by the Dispatcher in the curre nt session
(You cannot mixed PAL a nd NTSC). This parameter is also used during rende ring to upscale or not the m edia
Possible values: PAL SD, NTSC drop SD, HD 1080i @50, HD 720p @50, HD 1080i @59,94 , HD 720p @59,94.
Default XT Growing
Field to define the d efault duration for XT growing clip.
Clip Duration Grab Still Frame
Field to define the d efault folder to store gra b image file.
Folder Grab Still Frame
Prefix Notification Center
address
Field to define the default prefix for the image file.
Free text field to define the IP address and port number of the notification cent er.
Odd Frame Clipping
working with P resolut ion in all players and t imelines.
Note
progressive workflows.
EVS Broadcast Equipment – December 2011
Issue 4.1.D
71
Free text field to define the default clip name when
ment for the
o Define New Default Audio
in Xedio Importer or AutoFile Importer, these
nes on
audio channel assignment for
How to Define New Default Audio
audio channel assignment for the
The field displays the
How to Define New Default Audio
eline allows the user to place and manage audio
General
XedioBroker address Free text field to define the IP address and port number
of Xedio Broker.
XT Clip creation default clipname
creating an XT clip.
Audio
Default Input Audio Track Assignment
Default Rendering Audio Track Assignment
Default XT Input Audio Track Assignment
Defines the default audio channel assign imported media files (other than server clips and encoder ingests).
The field displays the assignments for 2, 4, 8 and 16 channels configuration s separated by a ‘|’ sign.
Refer to the section ‘
How t
Channel Assignment’ on page 72.
Note
Once the audio track ass ignment has been defined values will be used instead of the default o
the workstation.
Defines the default rendered files.
The field displays the assignments for 2, 4, 8 and 16 channels configuration s separated by a ‘|’ sign.
Refer to the section ‘ Channel Assignment’ on page 72.
Defines the default media files (server clips only). assignments for 2, 4, 8 and 16 channels configurations separated by a ‘|’ sig n.
Refer to the section ‘ Channel Assignment’ on page 72.
Enable 5.1 management
Enables the creation of 5.1 tracks in CleanEdit timeline. The 5.1 audio support in CleanEdit works only with EVS video server clips. Each track created in the CleanEdit tim blocks from server clips, behind which a group of 6 audio channels are handled.
Issue 4.1.D
72
EVS Broadcast Equipment – December 2011
How to Define New Default Audio Channel Assignment
It is possible to def ine new default audio channe l assignments. You will be able to d efine configurations with:
• up to 8 stereo pa irs
• up to 5 stereo pa irs and one 5.1 group
• up to 2 stereo pa irs and two 5.1 groups.
To do so, proceed as follows.
1. In the Variant Value field, double-click the configuration corresponding to the selected number of channels.
The Audio Track Assignm ent window is displayed.
2. Enter a name for the new audio configuration in t he Label field.
3. Right-click an audio chan nel field.
The following contextu al menu appears:
EVS Broadcast Equipment – December 2011
Issue 4.1.D
73
4. Select one of the options :
• 2.0
Two audio channels are used
• 5.1
Six audio channels are used
5. Repeat steps 3 and 4 for the remaining channels.
6. If required, you can re-assigned the order of the channels inside a group.
Follow steps 6 and 7. Right-click an audio c hannel field. The following contextu al menu appears:
• 2.0:
• 5.1:
7. Select one of the options . Consequently, two cha nnels will have the same name wi thin a group. So the
group is displayed in red. You will not be able to save the changes until this is solved.
Issue 4.1.D
74
Option list to select the restore type to be used for
Clip Type, e.g. DV_50i,
EVS Broadcast Equipment – December 2011
Automatic Restore
Restore Type
automatic restore process. Possible values:
• Full R estore: restores the whole media
• Partial Restore: restores only the useful section of the
media used in the edi t for which a restore is re quested.
Import
Imported FileName Format
Free text field to define the imported filename format for XDCAM import.
The following items ca n be used:
%LABEL Label given by Xedio user %NAME Clip Name %CLASSID Class ID %TCIN Timecode IN %TCOUT Timecode OUT %CLIPTYPE
P2HD_100i) %USER Xedio Username %DURATION Timecode Duration %YEAR Current Ye ar %MONTH Current Month %DAY Current Day Number %HOUR Current Hour %MIN Current Minute %SEC Current Second %MSEC Current Millisecond %SDYEAR Shooting Date – Year %SDMONTH Shooting Date – Month
Number
EVS Broadcast Equipment – December 2011
Issue 4.1.D
75
to machine
Import
%SDDAY Shooting Date – Day
Number %GUID Clip GUID
Use Long Clip Name When selected: the l ong clip name is used as m edia label.
Vumeter
Bottom level of Vumeter
Field to define the d b value of vu-meter bottom level. It is the audio level diffe rence (in dB) compared the 0 level (audio level of the s ource media) and correspond ing to the bottom of the gre en zone in the audio meters
Saturation level of Vumeter
Field to define the db va lue of vu-meter saturati on level. It is the audio level difference (in dB) compared to the 0 level (audio level of the source media) and cor responding to the bottom of the red zone in the audio mete rs
Top level of Vumeter Field to define t he db value of vu-meter top level. It is the
audio level (in dB) o f the source media and corres ponds to the top of the re d zone in the audio meters .
Warning level of Vumeter
Field to define the d b value of vu-meter warni ng level. This value corresponds to the beginning of the or ange area in the vu-meter.
Note
The default values for audio vumeter levels differ in Xedio and in Final Cut Pro.
It is therefore normal to see the same media reaching the red zone in Xedio while it is sti ll in the orange zone in F CP.

9.2.4 LIST OF PARAMETERS FOR XEDIO MANAGER

The Xedio Manager prof ile gives access to the fol lowing lists of paramet ers (tabs).
General
Convert IP to Machine Name
If you want to have the same audio meter display in both applications, you can match the audio meter default values in Xedio Manager to the FCP values.
When selected: the IP address is converted name for display.
Issue 4.1.D
76
efine the dates to be displayed in
When select: Enables the display of audio track LoResGen Media
resolution media file
LoResGen Rendering
EVS Broadcast Equipment – December 2011
Cefiltermgr
Max Date Interval Field to define the maximum date interval, in days, which
can be used when a search filter is applied on a date parameter (0 = no limit).
Max Result Set Size Field to define the maximum number of items which will
be displayed in the result list after a search filter has been applied (0 = no limit ).
Recent Date List
Free text field to d ‘recent dates’ drop-do wn lists.
Cemediaimport
Enable Audio Track Assignment Dialog
assignment dialog tab in the Setup window during an
import. Enable RTD Import When select: Allows import of RTD files Enable P2 Import When s elect: Allows import of files w ith P2 format PlayXTClip When select: Allows serv er clip to be viewed in a player PlayXTTrain When select: Allows serv er train to be viewed in a player Enable Image Import When select: Allows import of image (stills files) Enable Stills Key
When select: Allows impo rt of stills with key files Import
Enable Video Import When select: Allows import of video f iles Enable Wave Import When selec t: Allows import of files with wave format Enable XDCam Import When select: Allows imp ort of files with XDCam format Allow XT Import When select: Allows imp ort of server clips
Media Manager
Xedio Media server where the low­Server
shall be (re)generated.
Low-resolution rendering profile used to generate the low­Profile
resolution media file.
Scheduler
Scheduler Published Default value of the Publish check box when creating a
EVS Broadcast Equipment – December 2011
Issue 4.1.D
77
record from the Schedu ler.
Enables automatic Edit ID generation and selects the
Scheduler
Possible values are: published, not published or previous
state. Scheduler ReadOnly When selected: restricts the Scheduler access to read-
only; records cannot b e created or modified.

9.2.5 LIST OF PARAMETERS FOR XEDIO CLEANEDIT

The CleanEdit profile gives access to the foll owing lists of parameters (tabs). An Effects area is displayed in the lower part of the window. Selecting effects
allows the users to use them in CleanEdit. Refer to the Xedio CleanEdit manual for a description of each effect.
General Auto Refresh Filtering When selected: each time a new criterion is added to a
filter, the search is automatically started without pressing
Return or pushing the Search button. Check for missing
hires files
When selected, checks for missing hi-res files in the edit
timeline and displays a small yellow triangle over each
missing clip in the t imeline. Active Window Color Option list to se lect the color used for the rectangle under
the active Player area or Recorder area. Show confirmation
dialog
When selected: Shows a confirmation dialog win dow when
doing delete actions Automatic Edit ID
Generation
generation method.
Possible values:
• None
• IDDB: unique in the DB but maybe not across several
DB
• UUID: U niversally Unique Identifier (UmID)
Read Only Edit ID When selected: sets the Edit ID property to read-only EVS Server Ganging
Type
Field to enter a valu e corresponding to a camera ganging
type.
0: XT input cameras
1: IPDirector metadata
2: mixed (first tries IPD metadata then XT input cams) External Cue Point –
Ranking 0 Color
Color used, in the med ia bar of the Player, to r epresent a
log with the default ranking assigne d
Issue 4.1.D
78
Possible values: from 0 to 100, with 0 = disab led, 1 =
EVS Broadcast Equipment – December 2011
General External Cue Point –
Ranking * Color External Cue Point –
Ranking ** Color External Cue Point –
Ranking *** Color Mandatory Edit On-air
Color used, in the med ia bar of the Player, to represent a
log with a ranking * assigned
Color used, in the med ia bar of the Player, to represent a
log with a ranking ** assigned
Color used, in the media bar of the Player, to represent a
log with a ranking *** assigned
When selected: the on air date of an edit is manda tory Date
Show ArchiveMgr TAB When selec ted: shows the ArchiveMgr TA B in CleanEdit Show Devices TAB When selected: shows th e Devices TAB Show Edit TAB When selected: shows t he Edit TAB Show EditMgr TAB When selected: shows the EditMgr TAB Show HeaderMaker
When selected: shows th e Header Maker TAB TAB
Show MediaImporter
When selected: shows th e MediaImporter TAB TAB
Show MediaMgr TAB When selec ted: shows the MediaMgr TAB Show Playout TAB When selec ted: shows the Playout TAB Show ProjectMgr TAB When selec ted: shows the ProjectMgr TAB Show Export TAB When selected: shows the Expo rt TAB Show Scheduler TAB When selected: shows th e Scheduler TAB Show
When selected: shows th e CharacterGenerator TAB CharacterGenerator TAB
Show VoiceOver TAB When selected: shows th e VoiceOver TAB Show VTR TAB When selected: shows th e VTR TAB User Cue Point Color Color used, in the media bar of the Player, to represent a
log entered by the logged user.
Archive
Archive Default Priority
Field to enter a value co rresponding to the default
archive request priori ty. This value is transmitted when
the system is integrated wi th DIVA.
EVS Broadcast Equipment – December 2011
Issue 4.1.D
79
lowest priority and 10 0 = highest priority.
when an
when an
When selected: deletes high resolution files after
eletes low resolution files after
to 100, with 0 = disabled, 1 =
Archive
Archive Hi Res When selected: archives high resolution files
archiving is requested . Archive Low Res When selected: archives low resolution files
archiving is requested . Delete Hi Res
archiving. Delete Low Res When selected: d
archiving. Restore Default
Priority
Field to enter a valu e corresponding to the def ault restore
request priority.
Possible values: from 0 to 100, with 0 = disabled, 1 =
lowest priority and 10 0 = highest priority. Restore Hi Res When selected: restore s high resolution files Restore Low Res When selec ted: restores low resolut ion files Check Locked Media
When selected: allows the user to check for lock ed media. in Media List
Automatic Restore
Restore Priority Edit Clip
Field to enter a value corresponding to the Restore
Priority when a clip is dropped in the timeline or when
Edit Play date is modi fied.
Possible values: from 0
lowest priority and 10 0 = highest priority. Restore Priority R2B Field to enter a value corresponding to the Restore
Priority when an Edit is set to Ready to Broadca st.
Possible values: from 0 to 100, with 0 = disabled, 1 =
lowest priority and 10 0 = highest priority.
Browser
Base for new project Free t ext field to enter the def ault base name for a new
project. Base for new edit Free text field to enter the def ault base name for a new
edit. Base for new clip Free t ext field to enter the def ault base name for a new
clip.
Issue 4.1.D
80
When selected: allows the user to change media
EVS Broadcast Equipment – December 2011
Browser
Video standard selection
When selected: enables the selection of the video
standards.
Cefiltermgr
Allow Change Edit Properties
When selected: allows the user to change edit properties
in Edit Manager. Allow Change Media
Properties
properties in Media Ma nager. Max Date Interval Field to define the maximum date interval, in days, which
can be used when a search filter is applied on a date
parameter (0 = no limit). Max Result Set Size Field to define the maximum number of items which will
be displayed in the result list after a search filter has
been applied (0 = no l imit). Recent Date List Free text field to define the dates to be displayed in
‘recent dates’ drop-do wn lists.
Cemediaimport
Allow to Backup XT/XS clip
When selected: allows to backup to local storage a ll Edit
Clip in Direct Access to X T/XS. If this parameter is
selected, the Make Loc al option is available f or Edit. Audio Track
Assignment Dialog
When selected: Enables the display of audio track
assignment dialog tab in the Setup window during an
import. Kmt When selected: Allows import of RTD files P2 When s elected: Allows import of files with P2 format PlayXTClip When selected: Allows s erver clip to be viewed in a
player PlayXTTrain When selected: Allows s erver train to be viewe d in a
player Stills When selected: Allows import of image (stills files) Stills Keys When selected: Allows import of stills with key file s Video When selec ted: Allows import of v ideo files Wave When selec ted: Allows import of f iles with wave format XDCam When selected: Allows i mport of files with XDCam format
EVS Broadcast Equipment – December 2011
Issue 4.1.D
81
separated list of
to 0, the first available agent with a name containing
Cemediaimport
XT When selected: All ows import of server cl ips
Cerendering2
Available XTNr Free text field to enter a comma-
numbers for available EVS video ser ver. If the fiel d is left
empty, all numbers betw een 1 and 30 are allowed. Id RTProf Agent Field to enter the DB ID of RTProf agent. If the field is
set to 0, the first available agent with a name containing
‘RTProfAgent’ is fetched fr om DB. Id Shell Agent
Field to enter the DB Id of Shell agent. If the field is set
'ShellAgent' is fet ched from DB. Id To XT Agent Field to enter the DB Id of ToXT agent. If the field is set
to 0, the first available agent with a name containing
'ToXTAgent' is fetched from DB Show To CleanEdit When selected: shows the ‘ To CleanEdit’ TAB Show To Device When selected: shows th e ‘To Device’ TAB Show To File When selected: shows the ‘To File’ TAB Show To Target When selected: shows the ‘To Target’ TAB
Cg Enable Import Picture When selec ted: enables the Import Pictu re button.
Enable Save As
When selected: enables the Save as template button. Template
HeaderMaker Template Path Free text field to en ter the path to HeaderMaker template.
Player
Auto Clip IN Amount of fields before the entry point of a clip when
using the auto-clippi ng tool (Alt+Space bar) . Auto Clip OUT Amount of fields after the out point of a clip when using
the auto-clipping too l (Alt+Space bar).
Issue 4.1.D
82
used to play
When selected: enables the left roller and right roller
EVS Broadcast Equipment – December 2011
Player
Browsing Interval Accuracy
Field to enter the interval, in msec, in which the media
player browsing tries to be frame accurate.
WARNING: high values r equire a high bandwidth. Enable Deinterlace
Menu Jog Audio Threshold
HI Jog Audio Threshold
LO
When selected: enables the Deinterlacer menu (hi-res
mode only).
Field to enter the jog browsing speed limit for the audio
to be decoded in hi-res.
Field to enter the jog browsing speed limit for the audio
to be decoded in lo-res. Jog Range HI Field to enter the jog range in hi-res. Jog Range LO Field to enter the jog ran ge in lo-res. PrevNextX Field to enter the number of fields to jump when Alt key
is used with Prev and Next buttons. Shift Speed Max Field to enter the speed rate for super fast forward and
rewind tools when used together with the Shift key. Speed Max Field to enter the speed rate for fast forward and fast
rewind tools. XT Clip Creation Time
Tolerance XT Stream Creation
Time Tolerance XT Train Only View
Field to enter the tolerance value (in seconds) towards
the creation time betw een two sibling XT clips.
Field to enter the tolerance value (in seconds) towards
the creation time betw een two sibling streams.
When selected: the cli p creation on XT train is disabled. Enable
Recorder
Browsing Interval Accuracy
Field to enter the interval, in msec, in which the timeline
browsing tries to be frame accurate.
WARNING: high values r equire a high bandwidth. Enable Deinterlace
Menu PreRoll
When selected: enables the Deinterlacer menu (hi-res
mode only).
Field to enter the Preroll time, in fields,
previous/next transition PrevNextX Field to enter the number of fields to jump when Alt key
is used with Prev and Next buttons. RollBoth
tools.
EVS Broadcast Equipment – December 2011
Issue 4.1.D
83
in the “fx”
to be
to be
Recorder
RollLeft When selected: ena bles the left roller tool RollRight When selec ted: enables the right roller tool RollTurn When selected: enables t he clip roller tool
Scheduler
Read Only When selected: restricts the Scheduler access to read-
only; records cannot b e created or modified.
Timeline
Audio Auto FX When selec ted: enables automatic audi o transition effect. Audio Effects When selected: enables graphical audio transition effects
adjustments when zoomin g audio tracks Audio Fade IN Dur
Field to enter the duration, in fields, of the audio fade
effect at the IN point. This will be displayed
dialog box, “Audio fa de” tab. Audio Fade IN Pos Option list to select the position of the audio fade effect
at the IN point. This will be displayed in the “fx” dialog
box.
Possible values: None, Before OUT, Centered, Af ter OUT. Audio Fade OUT Dur Field to enter the duration, in fields, of the audio fade
effect at the OUT point. This will be displayed in the “fx”
dialog box, “Audio fa de” tab. Audio Fade OUT Pos Option list to select the position of the audio fade effect
at the OUT point. This will be displayed in the “fx” dialog
box.
Possible values: None, Before OUT, Centered, Aft er OUT. Audio Level Adjust
Field to enter the default audio level value
displayed in the FX dial og box. Audio Level Max Field to enter the maximum audio level adjustment value
to be displayed in th e FX dialog box. Audio X Fade Dur
Audio X Fade Pos Option li st to select the audio cross fade position.
Block Font Height Field to enter the text font size in tim eline block.
Field to enter the default audio fade duration
displayed in the “fx” dialog box, “Audio fade ” tab.
Possible values: None, Before OUT, Centered, Aft er OUT.
Issue 4.1.D
84
When selected: enables the video Fade tab in the FX
EVS Broadcast Equipment – December 2011
Timeline
Block Font Name Option list to select the text font name in timel ine block. Can Accelerate When s elected: enables fast moti on. Clips Move Field to enter the number of fields to shift the selected
clips, to the l eft or to the right, when used in combinat ion
with + or – key. Clips Move Sensibility Field to enter the mouse sensitivity value when selecting
and moving blocks insi de the timeline. Color Block Width Field to enter the size of the color area within timeline
blocks. Default Audio Trans
FX
Default Video Trans FX
Option list to define the default audio tran sition effect.
Possible values: None, Fade OUT, Fade IN, Cross Fade.
Option list to define the default video tran sition effect.
Possible values: Mix, Wip e, Border Wipe, Dip to Color . Fast Motion Clip HR Option list to select the transcoding codec used for the
rendering of hi-res Fast Motion Cli p.
Possible values: list of codecs available with the current
release package. Fast Motion Clip LR Option list to select the transcoding codec used for the
rendering of lo-res Fast Motion Cl ip.
Possible values: list of codecs available with the current
release package. Fx Tab Audio Fade When selected: enables the Audio Effect tab in the Fx
dialog.box. FX Tab Audio Level When selected: enables the Audio Level Adjustment tab in
the FX dialog box. FX Tab Color Ins When selected: enables the Color Clip Tool tab in the FX
dialog box. Fx Tab Video Fade
dialog box.
Note: this is not sup ported. Guardband Frames Field to enter the minimum duration value when adjusting
clip duration using t he rollers. Graphics Insert
Field to enter the default duration for inse rted graphics. Duration
Magnet Pixels Field to enter the sensitivity value of the magnetic effect
during drag-and-drop ope rations on timeline clips .
EVS Broadcast Equipment – December 2011
Issue 4.1.D
85
aximum displayed value for audio
aximum allowed value in the Fast
if the
in the
nsertion tab in tag
iz tab in tag properties
roperties dialog box
the External
nables video transition effects
Timeline
Max Display DB Field to enter the m
level. Max Fast Motion
Speed
Field to enter the m
Motion speed dialog box (in percent)
‘CanAccelerate’ paramet er is set to 1. Reset To Default When selected: resets the toolbar when creating a new
edit
Show Audio Matrix Buttons
Show Default Audio Channel Buttons
When selected: displays the Audio Matrix button
CleanEdit interface.
When selected: displays the Default Audio Channel
buttons. Show TC In Out When selected: displays the timecodes (IN and OUT) in
the timeline blocks. Tag_External
Graphics
When selected: enables the External Graphics tab in tag
properties dialog box . Tag_Logo Insertion When selected: enables the Logo I
properties dialog box . Tag_Viz When selected: enables the V
dialog box. Tag Default Duration Field to enter the default tags duration. Tag Label List When selected: uses label list for tags.
Otherwise, free text is us ed. Tag Properties
When selected: enables the Tag P
and the Add Tag option from con textual menu. Use Tag Labels When selected: enables the Label field in
Graphics tab of the Ta gs dialog box. Use Tag Templates When selecte d: enables the Template fi eld in the External
Graphics tab of the Ta gs dialog box. Video Auto FX When selec ted: enables automatic vide o transition effect. Video Color Dur Field to enter th e length of the clip created with the ‘color
insertion tool’. Video Color Ins Option list to select the color of the clip created with the
‘color insertion tool ’. Video Effects
When selected: e
adjustments.
Issue 4.1.D
86
button above the
button above
button above
button above the
button above
button above
When selected: displays the Mark Reset button above the
EVS Broadcast Equipment – December 2011
TL Buttons
Afx When selected: displays the AFX
timeline. Align Left When selected: displays the Align Left button above the
timeline. Align Right When selected: displays the Align Right button above the
timeline. Blank Clear
When selected: displays the Blank Clear
the timeline. Blank Delete When selected: displays the Blank Delete button above
the timeline. Blank Fill When selected: displays the Blank Fill button above the
timeline. Cue When selected: displays the Cue Tool button above the
timeline. Clip Selector When selected: displays the Select All button
(after/before nowline) above the timeline. Color Insert
When selected: displays the Color Insert
the timeline. Extend When selected: displays the Extend
timeline. Extend Slow When selected: displays the Extend Slow
the timeline. Extend Still When selected: displays the Extend Still
the timeline. Fx When selected: displ ays the FX button used to cal l the FX
the dialog box above timeline. In Out Delete When selected: displays the In Out Delete button above
the timeline.
When selected: displays the A/B button above the Invert
timeline. Mark Clip When selected: displays the Mark Clip button above the
timeline. Mark IN When selected: displays the Mark In button above the
timeline. Mark OUT When selected: displays the Mark Out button above the
timeline. Mark Reset
EVS Broadcast Equipment – December 2011
Issue 4.1.D
87
timeline.
TL Buttons
Move Frame When selected: enables the Move Frame edit zone. Overwrite When selected: displays the Insert/Overwrite button
above the timeline. Rendering When selected: displays the Rendering button above the
timeline. Split When selected: displays the Clip Split button above the
timeline. Vfx When selected: displays the VFX button above the
timeline.
TL Colors Option li st to select the… Audio Block Audio block color
Audio Block With FX Color for audio block with FX Audio Hatching Audio block hatching c olor Audio Text Audio block text color Audio Trace Color Audio level color Drag Audio Trace Color for the audi o level when adjusting Drag Video Trace Color for the video transition duration when adjus ting Mark IN Mark IN line color Mark OUT Mark OUT line color NowLine Nowline color Rendered Video Block Rendered v ideo block color Selected Blocks Select ed timeline blocks color Sync Block Color for audio block which has been moved out of sync
with its associated v ideo. Video Block Video block color Video Block With FX Color for video block with FX Video Hatching Video block hatching c olor Video Text Video block text col or
Issue 4.1.D
88
dim mode
for the voice over
atic audio level
, centered, after
Option list to define whether a crash record will
EVS Broadcast Equipment – December 2011
TL Colors Option li st to select the… VO Text VO block text color
VO With Attenuation Color for VO block with attenuation VO Without
Attenuation Color for VO b lock without attenuation
Voiceover
Attenuation Auto When selected: enables the voice over auto-
(automatic attenuation of all the audio channels from the
same output than the voice over
duration). Attenuation DB Field to enter the value (DB) for autom
attenuation of audio channels for the voice over duration. Attenuation Fade Field to enter the fade length, in fi elds, to reach the audio
level set with Attenu ationDB. Attenuation Pos Option list t o select the Attenuation F ade position.
Possible values are: None, before cut
cut. PreRoll Field to enter the Preroll time, in fields, used to play
voice over. Text Mask Field to enter the vo ice over default base name.

9.2.6 LIST OF PARAMETERS FOR XEDIO INGEST

The Xedio Ingest profile gives access to the following l ists of parameters (tabs) . General
Default Media Class Option lis t to select the Media class to be used by default
during ingest.
Possible values: Media classes defined under Media >
Class Manager. Crash published
automatically be published.
Possible values: Not Published, Published, Previous
State.
EVS Broadcast Equipment – December 2011
Issue 4.1.D
89
lied on a date
s to be displayed in
When adding an ARCHIDEL clip to a playlist, an
Scheduler Scheduler published Option list to define the publish state of the ingest from
the Scheduler in Xedio Ingest.
Possible values: Not Published, Published, Previous
State.
VTR VTR published Option list to define the default value of the Publish box
when creating a record from VTR.
Possible values: Not Published, Published, Previous
State.

9.2.7 LIST OF PARAMETERS FOR XEDIO PLAYOUT ORGANIZER

The Playout Organizer profile gives access to the following lists of parameters (tabs).
Cefiltermgr
Max Date Interval Field to define the maximum date interval, in days, which
can be used when a search filter is app
parameter (0 = no limi t). Max Result Set Size Field to define the maximum number of items which will
be displayed in the result list after a search filter has
been applied (0 = no l imit). Recent Date List
Free text field to define the date
‘recent dates’ drop-do wn lists.
Playout Organizer
Automatic restore priority
automatic restore is launched if the broadcast date and
time is foreseen withi n 24 hours.
This parameter sets th e priority of the restore.
Possible values: from 0 to 100, with 0 = disabled, 1 =
lowest priority and 10 0 = highest priority. Force Approval When selected: forces DB objects to be approved before
their insertion into a playlist. Hide Start on time When s elected: hides the Start on-time button.
Issue 4.1.D
90
d and fast

9.2.8 LIST OF PARAMETERS FOR XEDIO BROWSE

The Xedio Browse profil e gives access to the foll owing lists of parameters.
General
Text Mask Field to enter the default base name for a new virtual
media.
Player Jog Range HI Field to enter the jog range in hi-res.
Jog Range LO Field to enter the jog range in lo-res. PrevNextX Field to enter the number of fields to jump when Alt key
is used with Prev and Next buttons. Shift Speed Max Field to enter the speed rate for super fast forward and
rewind tools when used together with the Shift key.
EVS Broadcast Equipment – December 2011
Speed Max Field to enter the speed rate for fast forward and fast
rewind tools.

9.2.9 LIST OF PARAMETERS FOR XEDIO BROWSE (VC)

The Xedio Browse (VC) p rofile gives access to the following lists of parameter s.
General
Text Mask Field to enter the default base name for a new virtual
media.
Player Jog Range HI Field to enter the jog range in hi-res.
Jog Range LO Field to enter the jog range in lo-res. PrevNextX Field to enter the number of fields to jump when Alt key
is used with Prev and Next buttons. Shift Speed Max Field to enter the speed rate for super fast forward and
rewind tools when used together with the Shift key. Speed Max
Field to enter the speed rate for fast forwar
rewind tools.
