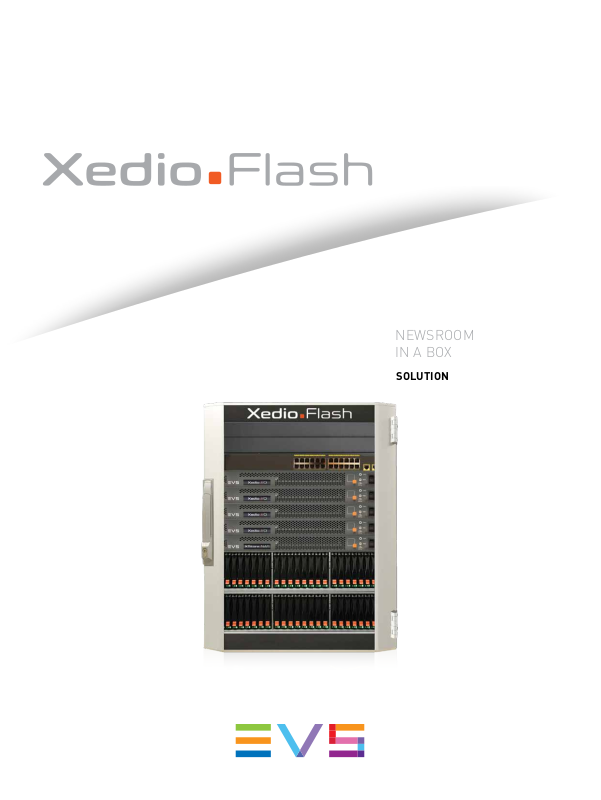

EVS XEDIO-FLASH User Manual

NEWSROOM
IN A BOX

SOLUTION

NEWSROOM
IN A BOX

All-in-one News Production Workflow

Xedio Flash is an integrated hardware
and software system offering all-in­one newsroom capabilities. Xedio Flash
is designed for small and regional
newsrooms seeking to speed up and
secure news production operations.
The entire turnkey newsroom production
system fits into a single rack which
includes 2 encoders for news feeds
ingest, ENG file import facilities,
5 XEDIO CleanEdit advanced timeline
editor licenses, an 18TB central storage
along with media management and
2 XEDIO players for instant playout
without rendering. The basis configuration
is easily scalable for more capacity.

Its open architecture guarantees easy
integration with craft editors such as Avid
Media Composer and Apple FCP as well
as with existing NRCS systems.

Fully format-agnostic, Xedio Flash is the
ideal platform for multiformat Long GOP,
I-Frame, SD/HD operations.

Compact and easy to use, Xedio Flash is
a real plug and play system that offers an
exceptional level of speed and control,
all packed in one box.

MAIN WORKFLOW FUNCTIONS

News Gathering

ENG File Import

Quick Editing

Instant Playout

Integration with Post Production

NRCS Support Based on MOS Protocol

TARGET
APPLICATIONS

• Small to Medium
Newsrooms
(Local News)

• Mobile Studios

• Corporate News

• Sport News

THE SOLUTION

Take advantage of the flexible,
intuitive and reliable file­based production tools of EVS’
renowned Xedio production suite.
It’s all in an attractive, compact,
and easily-transportable
package. Wired, configured and
ready for immediate use upon
delivery, Xedio Flash will help
you get the show on the road
without hassle or delay.

COMPLETE
WORKFLOW

With Xedio you can ingest feeds and
import media quickly and efficiently,
attach metadata for easy searching,
as well as create and edit on a timeline.
Playout management lets you control
playout channels giving complete
organizational control over
your production.

Reduce time from ingest to playout
through direct playout mode, without
file rendering and direct editing while
ingesting. Xedio Flash covers all aspects
of an end-to-end News workflow.

FORMAT AGNOSTIC
SOLUTION

For fluid news production with multiple
sources, Xedio Flash can work
transparently with mixed format material
(e.g. mixing long GOP and I-frame-coded
material) from ingest to playout.

For instance, Xedio’s ability to use SD
and HD files on the same timeline during
program-building, means that no time is
lost in transcoding operations.

INGEST & PLAYOUT.
XEDIO I/O

Using the Xedio I/O Encoder, any SD or
HD feed can be recorded in high- and
low-resolution onto the central storage.
Live feed ingest and file import in multiple
formats can be controlled manually or
automatically via Xedio Ingest Organizer.
High resolution and proxy media files are
simultaneously generated by the system
and are instantly available for editing.
All ingested feeds (including News
feeds or international feeds for sport)
can be controlled and monitored from
a single station.

As a player, Xedio I/O is able to play Xedio
EDL’s in real time, with no need for file
rendering prior to playout. Xedio Playout
Organizer is provided for fast playlists
creation and control.

TIMELINE EDITING
WITH XEDIO CE

Xedio’s virtual editor software offers
unmatched HD/SD editing capabilities
with a simple interface. Optimized for
news production, it supports multiple
formats and resolutions on the same
timeline, with real-time, on-the-fly
visualization of the final output edit.
Xedio CE also offers extended media
management capabilities with powerful
search and data filtering modes.
It can be configured to work in high
or low-resolution.

NEWSROOM
IN A BOX

CENTRAL
STORAGE

Xedio Flash is equipped with a dedicated high­performance, highly robust NAS storage with easy
extensions capabilities.
The storage is shared by multiple users,
ensuring efficient cooperative production as soon
as ingest starts.

XEDIO FLASH

PACKAGE
CONFIGU
RATION

The Xedio Flash basis
package includes the
following components:

HARDWARE
COMPONENTS:

• 2x Xedio encoders

• 2x Xedio players

• NAS controller

• Disk tray of 18 TB

• Ethernet switch for direct client PC’s connection

• KVM switch for central configuration

SOFTWARE
COMPONENTS:

• Feeds Ingest: Ingest Organizer

• Files ingest XEDIO Importer

• Editing: 5 XEDIO CE licenses

• Playout control: XEDIO Playout Organizer

• Media management: XEDIO Database, XEDIO Manager

ADDITIONAL
OPTIONS:

• Additional browsing/editing licences

• Additional Xedio I/O (encoders or players)

• Extended storage

• Interfacing with external systems

FLEXIBLE, INTUITIVE
& RELIABLE
FILEBASED
PRODUCTION TOOLS

KEY FEATURES

ALLINONE NEWS PRODUCTION WORKFLOW

- Compact

- Plug and Play

- Includes all production functions from ingest to playout

FASTEST NEWS PRODUCTION WORKFLOW

- Edit while ingesting

- Play directly after edit finish, no rendering required

OPEN ARCHITECTURE

- Integration with post-production

- MOS Gateway support for data exchange with NRCS

ROBUST IMPLEMENTATION

- Dual power supplies

- Redundant Raid disk arrays

- Solid SW applications

FORMAT AGNOSTIC

- Mix SD/HD format on the timeline

- Native support Mpeg2 Long-GOP SD / HD (SONY
XDCAM)

- Native support of all popular I-frame file format
including Avid DNxHD
DVCPro-50, HD, etc.

®

, Panasonic AVC-Intra,

SCALABLE TO LARGER SYSTEMS

CUSTOMER SUPPORT
& TRAINING

Our clients range from TV stations to
video equipment rental companies and
production houses worldwide. EVS’ key
priority is to make sure that its clients
keep performing at the highest possible
level. We listen to our customers,
identify operating workflows, anticipate
needs, and suggest effective and reliable
solutions, so that they in turn can offer
top-quality productions to millions of TV
viewers across the globe.

CUSTOMER SUPPORT

EVS is dedicated to making sure its
products are functioning in a way that
meets your needs and expectations.
We offer technical support 24/7 from
each of our regional offices, so you can
rest assured that someone will always
be available to answer any question that
may arise.

All members of EVS’ technical support
team are qualified technicians with a
solid background in broadcasting.
They understand your requirements
and can provide you with the best
solution available.

TRAINING

Do you want to learn how to operate EVS
systems and applications or enhance
your skills in using our tools?

EVS Training offers a series of courses
on how to operate its products, taught
in-house by industry professionals.
Some of the training sessions are
conducted by the EVS team via a Web
interface, so that you get hands-on
instruction even at a distance. EVS User
Guides and technical documents are
available free-of-charge on our Website.

To learn more about EVS go to www.evs.com

Corporate
[phone]

North & Latin America
[phone]

Asia & Pacific
[phone]

Other regional offices
www.evs.com/contact

Xedio.Flash 0313
