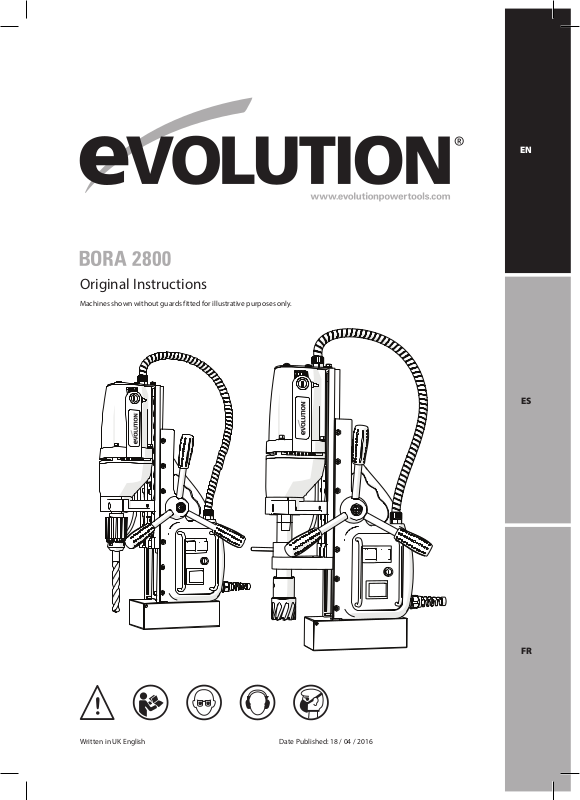

EN
Original Instructions
Machines shown without guards fitted for illustrative purposes only.
ES
FR
Written in UK English |
Date Published: 18 / 04 / 2016 |
ENGLISH
Original Instructions
EN
ES
FR
|
|
www.evolutionpowertools.com |
|
|
|
|
|
TABLE OF CONTENTS |
|
|
|
|
|
|
|
English |
|
Page 2 |
|
Español |
|
Página 24 |
|
Français |
|
Page 48 |
|
|
|
|
|
INTRODUCTION |
|
Page 5 |
|
Guarantee |
|
Page 5 |
|
Machine Specifications |
|
Page 6 |
|
Vibration |
|
Page 7 |
|
Labels and Symbols |
|
Page 8 |
|
Intended use of this Power Tool |
|
Page 8 |
|
Prohibited use of this Power Tool |
|
Page 9 |
|
|
|
|
|
SAFETY PRECAUTIONS |
|
Page 10 |
|
Electrical Safety |
|
Page 10 |
|
Outdoor Use |
|
Page 10 |
|
General Power Tool Safety Instructions |
|
Page 11 |
|
Additional Safety Instructions |
|
Page 12 |
|
|
|
|
|
GETTING STARTED |
|
Page 14 |
|
Unpacking |
|
Page 15 |
|
Machine Overview |
|
Page 15 |
|
Assembly and Preparation |
|
Page 16 |
|
Operating Instructions |
|
Page 18 |
|
|
|
|
|
MAINTENANCE |
|
Page 21 |
|
Environmental Protection |
|
Page 21 |
|
|
|
|
|
DECLARATION OF CONFORMITY |
|
Page 22 |
4
www.evolutionpowertools.com |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(1.2) |
(1.5) |
|
|
|
|
|
This Instruction Manual was |
Evolution Power Tools will, within the |
|
|
|
|
|
originally written in English. |
guarantee period, and from the original date of |
|
EN |
|
||
|
purchase, repair or replace any goods found to |
|
|
|
|
|
(1.3) |
be defective in materials or workmanship. This |
|
|
|
|
|
guarantee is void if the tool being returned |
|
|
|
|
||
IMPORTANT |
|
|
|
|
||
has been used beyond the recommendations |
|
|
|
|
||
Please read these operating and safety |
|
|
|
|
||
in the Instruction Manual or if the machine |
|
|
|
|
||
instructions carefully and completely. |
|
|
|
|
||
has been damaged by accident, neglect, or |
|
|
|
|
||
For your own safety, if you are uncertain |
|
|
|
|
||
improper service. This guarantee does not |
|
|
|
|
||
about any aspect of using this equipment |
|
|
|
|
||
apply to machines and / or components which |
|
|
|
|
||
please access the relevant Technical Helpline, |
|
|
|
|
||
have been altered, changed, or modified |
|
|
|
|
||
the number of which can be found on the |
|
|
|
|
||
in any way, or subjected to use beyond |
|
|
|
|
||
Evolution Power Tools website. We operate |
|
|
|
|
||
recommended capacities and specifications. |
|
|
|
|
||
several Helplines throughout our worldwide |
|
|
|
|
||
Electrical components are subject to respective |
|
|
|
|
||
organization, but Technical help is also |
|
|
|
|
||
manufacturers’ warranties. All goods returned |
|
|
|
|
||
available from your supplier. |
|
|
|
|
||
defective shall be returned prepaid freight |
|
|
|
|
||
|
|
|
|
|
||
WEB |
to Evolution Power Tools. Evolution Power |
|
|
|
|
|
Tools reserves the right to repair or replace |
|
|
|
|
||
www.evolutionpowertools.com/register |
|
|
|
|
||
it with the same or equivalent item. There |
|
|
|
|
||
|
|
|
|
|
||
(1.4) |
is no warranty – written or verbal – for |
|
|
|
|
|
consumable accessories such as (following list |
|
|
|
|
||
Congratulations on your purchase of an |
|
|
|
|
||
not exhaustive) blades, cutters, drills, chisels |
|
ES |
|
|||
Evolution Power Tools product. Please |
|
|
||||
or paddles etc. In no event shall Evolution |
|
|
|
|
||
complete your product registration ‘online’ |
|
|
|
|
||
Power Tools be liable for loss or damage |
|
|
|
|
||
as explained in the A4 online guarantee |
|
|
|
|
||
resulting directly or indirectly from the use |
|
|
|
|
||
registration leaflet included with this |
|
|
|
|
||
of our merchandise or from any other cause. |
|
|
|
|
||
machine. You can also scan the QR code |
|
|
|
|
||
Evolution Power Tools is not liable for any |
|
|
|
|
||
found on the A4 leaflet with a Smart Phone. |
|
|
|
|
||
costs incurred on such goods or consequential |
|
|
|
|
||
This will enable you to validate your |
|
|
|
|
||
damages. No officer, employee or agent of |
|
|
|
|
||
machine’s guarantee period via Evolution’s |
|
|
|
|
||
Evolution Power Tools is authorized to make |
|
|
|
|
||
website by entering your details and thus |
|
|
|
|
||
oral representations of fitness or to waive any |
|
|
|
|
||
ensure prompt service if ever needed. We |
|
|
|
|
||
of the foregoing terms of sale and none shall |
|
|
|
|
||
|
|
|
|
|||
sincerely thank you for selecting a product |
|
|
|
|
||
be binding on Evolution Power Tools. |
|
|
|
|
||
from Evolution Power Tools. |
|
|
|
|
||
|
|
|
|
|
|
|
EVOLUTION LIMITED GUARANTEE. |
Questions relating to this limited |
|
|
|
|
|
guarantee should be directed to the |
|
|
|
|
||
Evolution Power Tools reserves the right to |
|
|
|
|
||
company’s head office, or call the |
|
|
|
|
||
make improvements and modifications to the |
|
|
|
|
||
appropriate Helpline number. |
|
|
|
|
||
product design without prior notice. |
|
|
|
|
||
|
|
|
|
|
|
|
Please refer to the guarantee registration |
|
|
|
|
|
|
leaflet and/or the packaging for details of the |
|
|
|
FR |
|
|
terms and conditions of the guarantee. |
|
|
|
|
||
|
|
|
|
|
|
5
www.evolutionpowertools.com
SPECIFICATIONS
MACHINE |
METRIC |
|
IMPERIAL |
|
|
|
|
Motor (UK) 230V ~ 50/60Hz |
1200W |
|
5A |
|
|
|
|
Motor (UK) 110V ~ 50/60Hz |
1200W |
|
11A |
|
|
|
|
Motor (USA) 120V ~ 60Hz |
1200W |
|
10A |
|
|
|
|
Number Of Speeds |
1 |
|
1 |
|
|
|
|
Speed (No Load) |
570min-1 |
|
570rpm |
|
|
|
|
Insulation Class |
1 |
|
1 |
|
|
|
|
Power Cord Length |
2.6m |
|
8’ 5” |
|
|
|
|
Weight |
14kg |
|
31lb |
|
|
|
|
CUTTER CAPACITIES |
|
|
|
|
|
|
|
Maximum Annular Cutting Capacity |
28mm |
|
1-1/8” |
|
|
|
|
Maximum Cutting Depth |
50mm |
|
2” |
|
|
|
|
Cutter Shank |
19mm |
|
3/4” |
|
|
|
|
Standard Twist Drill Capacity |
13mm |
|
1/2” |
|
|
|
|
MAGNET |
|
|
|
|
|
|
|
Magnetic Adhesion |
1300kg f |
|
2860lbs f |
|
|
|
|
Minimum Plate Thickness |
10mm |
|
3/8” |
|
|
|
|
DIMENSIONS |
|
|
|
|
|
|
|
Magnet Dimension |
50 x 80 x 164mm |
|
2 x 3-1/8 x 6-1/2” |
|
|
|
|
Maximum Machine Height |
585mm |
|
23” |
|
|
|
|
Minimum Machine Height |
450mm |
|
17-3/4” |
|
|
|
|
Machine Width |
225mm |
|
8-7/8” |
|
|
|
|
NOISE & VIBRATION |
|
|
|
|
|
|
|
Sound Pressure Level LPA |
85.10 dB(A) |
K=3 dB(A) |
|
|
|
|
|
Sound Power Level LWA |
98.10 dB(A) |
K=3 dB(A) |
|
|
|
|
|
Hand Arm Vibration |
0.283m/s2 |
K=1.5m/s2 |
|
|
|
|
|
MODEL NUMBERS |
|
|
|
|
|
|
|
United Kingdom |
230V: 090-0001 |
110V: 090-0002 |
|
|
|
||
United States |
090-0003 |
||
|
|
||
Europe |
090-0004 |
||
|
|
|
|
6
www.evolutionpowertools.com
(1.6)
Note: The vibration measurement was made under standard conditions in accordance with: BS EN 61029-1:2009
The declared vibration total value has been measured in accordance with a standard test method and may be used for comparing one tool with another.
The declared vibration total value may also be used in a preliminary assessment of exposure.
(1.7) VIBRATION
WARNING: When using this machine the operator can be exposed to high levels of vibration transmitted to the hand and arm. It is possible that the operator could develop “Vibration white finger disease” (Raynaud syndrome). This condition can reduce the
sensitivity of the hand to temperature as well as producing general numbness. Prolonged or regular users of this machine should monitor the condition of their hands and fingers closely. If any of the symptoms become evident, seek immediate medical advice.
•The measurement and assessment of human exposure to hand-transmitted vibration in the workplace is given in: BS EN ISO 5349-1:2001 and
BS EN ISO 5349-2:2002
•Many factors can influence the actual vibration level during operation e.g. the work surfaces, condition and orientation and the type and condition of the machine being used. Before each use, such factors should be assessed, and where possible, appropriate working practices adopted. Managing these factors can help reduce the effects of vibration:
Handling
•Handle the machine with care, allowing the machine to do the work.
•Avoid using excessive physical effort on any of the machine’s controls.
•Consider your security and stability, and the orientation of the machine during use.
Work Surface
•Consider the work surface material; its condition, density, strength, rigidity and orientation.
WARNING: The vibration emission during actual use of the power tool can differ from the declared total value depending on the ways in which the tool is used. The need to identify safety measures and to protect the operator are based on an estimation of exposure in the actual conditions of use
(taking account of all parts of the operating cycle, such as the times the tool is switched off, when it is running idle, in addition to trigger time).
7
EN
ES
FR
www.evolutionpowertools.com
(1.8)
LABELS & SYMBOLS
WARNING: Do not operate this machine if warning and/or instruction labels are missing or damaged. Contact Evolution Power Tools for replacement labels.
Note: All or some of the following symbols may appear in the manual or on the product.
SYMBOL |
DESCRIPTION |
|
|
V |
Volts |
|
|
A |
Amperes |
|
|
Hz |
Hertz |
|
|
Min-1 |
Speed |
|
|
~Alternating Current
no |
No Load Speed |
|
|
Eye protection should be worn at all times when using this tool.
Hard Hat - Head protection should be worn at all times whilst using this tool, to protect from overhead hazards.
Ear protection / Ear defenders should be worn at all times whilst using this tool.
This tool exceeds 85dB(A).
Wear Dust Protection
Electrical enclosure - risk of electric shock.
Read and understand the instruction manual - before operating this tool.
Warning
Fuse
CE certification
CSA certification
WEEE - Waste Electrical & Electronic Equipment. This machine should be disposed of as Electrical & Electronic Waste.
(9.13) INTENDED USE
•This power tool is intended to be used for drilling holes with annular cutters and twist drills in an industrial environment.
•The machine is designed to be held onto a ferrous surface using its electromagnetic base.
•This power tool should be used in a weather protected environment, and be used with the accessories provided, or Evolution Power Tools recommended accessories only.
•The power tool can be used vertically, horizontally and in an inverted position, provided the magnetic adhesion and work environment allow.
8
www.evolutionpowertools.com |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
WARNING: To prevent ingress of fluids into |
Children should be supervised to ensure |
|
|
|
|
|
|
the electrical system, cutting paste should be |
that they do not have access to, and are not |
|
|
|
|
|
|
used rather than cutting fluid when using the |
allowed to play with, this machine. |
|
EN |
|
|||
machine in the inverted position. |
|
|
|
|
|
|
|
|
(1.14) |
|
|
|
|
|
|
(9.14) |
ELECTRICAL SAFETY |
|
|
|
|
|
|
PROHIBITED USES |
This machine is fitted with the correct moulded |
|
|
|
|
|
|
• This power tool should never beusedwithout |
plug and mains lead for the designated market. |
|
|
|
|
|
|
a ground or protective earth connection. |
If the supply cord is damaged, it must be |
|
|
|
|
|
|
• This power tool should not be used in a |
replaced by a specific cord or assembly available |
|
|
|
|
|
|
potentially explosive environment. |
from the manufacturers or its service agent. |
|
|
|
|
|
|
• This power tool should not be used in a wet |
|
|
|
|
|
|
|
or humid environment where water could |
(1.15) |
|
|
|
|
|
|
|
|
|
|
|
|
||
be drawn into the power tools cooling and |
OUTDOOR USE |
|
|
|
|
|
|
ventilation system. |
|
|
|
|
|
|
|
• If the power tool is used in the inverted or |
WARNING: For your protection, if this tool is |
|
|
|
|
|
|
horizontal position, cutting fluids should |
to be used outdoors it should not be exposed |
|
|
|
|
|
|
not be used to prevent ingress of fluids into |
to rain, or used in damp locations. Do not place |
|
|
|
|
|
|
the electrical system. Cutting paste should |
the tool on damp surfaces. Use a clean, dry |
|
|
|
|
|
|
be used instead. |
workbench if available. For added protection |
|
|
|
|
|
|
• This power tool should never be positioned |
use a residual current device (R.C.D.) that will |
|
|
|
|
|
|
on a work piece between the electrode and |
interrupt the supply if the leakage current to |
|
|
|
|
|
|
ground of an arc type welder. Damage to |
earth exceeds 30mA for 30ms. Always check |
|
ES |
|
|||
the machine will result as the welder will |
the operation of the residual current device |
|
|
|
|
|
|
ground through the power tools ground or |
(R.C.D.) before using the machine. |
|
|
|
|
|
|
earth cable. |
|
|
|
|
|
|
|
• This power tool should not be used |
If an extension cable is required it must be a |
|
|
|
|
|
|
where the voltage is abnormally lower |
suitable type for use outdoors and so labelled. |
|
|
|
|
|
|
than the rated voltage, subject to voltage |
The manufacturer’s instructions should be |
|
|
|
|
|
|
tolerances. Check the power tool rating |
followed when using an extension cable. |
|
|
|
|
|
|
plate, check the voltage available. |
|
|
|
|
|
|
|
|
(2.1) |
|
|
|
|
|
|
WARNING: Operating on a lower than rated |
POWER TOOL GENERAL |
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|||
voltage will result in the electro magnet |
SAFETY INSTRUCTIONS |
|
|
|
|
|
|
being at reduced power and the machine may |
(These General Power Tool Safety Instructions |
|
|
|
|
|
|
become insecure whilst cutting. |
are as specified in BS EN 60745-1:2009 & EN |
|
|
|
|
|
|
|
61029-1:2009) |
|
|
|
|
|
|
(1.13) |
|
|
|
|
|
|
|
WARNING: This machine is not intended for use |
WARNING: Read all safety warnings and |
|
|
|
|
|
|
by persons (including children) with reduced |
instructions. Failure to follow the warnings |
|
|
|
|
|
|
physical, sensory or mental capabilities, or lack |
and instructions may result in electric shock, |
|
|
|
|
|
|
of experience and knowledge, unless they |
fire and/ or serious injury. |
|
|
|
|
|
|
have been given supervision or instruction |
|
|
|
FR |
|
||
concerning the safe use of the machine by a |
Save all warnings and instructions |
|
|
|
|
|
|
person responsible for their safety and who is |
for future reference. |
|
|
|
|
|
|
competent in its safe use. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
9 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
www.evolutionpowertools.com
The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
(2.2)
1) General Power Tool Safety Warnings [Work area safety]
a)Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b)Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gasses or
dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating power tool. Distractions can cause you to lose control.
(2.3)
2) General Power Tool Safety Warnings [Electrical Safety]
a)Power tool plugs must match the outlet.
Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce the risk of electric shock.
b)Avoid body contact with earthed or
grounded surfaces, such as tubes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d)Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e)When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for
outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.
Use of an RCD reduces the risk of electric shock.
(2.4)
3) General Power Tool Safety Warnings [Personal Safety].
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b)Use personal protective equipment.
Always wear eye protection. Protective equipment such as dust masks, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
c)Prevent unintentional starting. Ensure
the switch is in the off position before connecting to power source and or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising the power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on.
A wrench or key left attached to a rotating part of a power tool may result in personal injury .
e)Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f)Dress properly. Do not wear loose
clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure that these are connected and properly used. Use of dust collection can reduce dust-related hazards.
10
www.evolutionpowertools.com
(2.5)
4) General Power Tool Safety Warnings [Power tool use and care].
a)Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at a rate for which it was designed.
b)Do not use the power tool if the switch does not turn it on or off. Any power tool
that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the power tool from the power source and/or battery pack from the power tool before making any adjustments, changing accessories or storing power tools. Such preventative safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
e)Maintain power tools. Check for misalignment or binding of moving parts, breakage of moving parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f)Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
(2.6)
5) General Power Tool Safety Warnings [Service]
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
(2.7)
HEALTH ADVICE
WARNING: When using this machine, dust particles may be produced. In some instances, depending on the materials you are working with, this dust can be particularly harmful.
If you suspect that paint on the surface of material you wish to cut contains lead,
seek professional advice. Lead based paints should only be removed by a professional and you should not attempt to remove it yourself. Once the dust has been deposited on surfaces, hand to mouth contact can result in the ingestion of lead. Exposure to even low levels of lead can cause irreversible brain and nervous system damage. Young and unborn children are particularly vulnerable.
You are advised to consider the risks associated with the materials you are working with and to reduce the risk of exposure. As some materials can produce dust that may be hazardous to your health, we recommend the use of an approved face mask with replaceable filters when using this machine.
You should always:
•Work in a well-ventilated area.
•Work with approved safety equipment, such as dust masks that are specially designed to filter microscopic particles.
(2.8)
WARNING: the operation of any power tool can result in foreign objects being thrown towards your eyes, which could result in severe eye damage. Before beginning power tool operation, always wear safety goggles or safety glasses with side shield or a full face shield where necessary.
11
EN
ES
FR
www.evolutionpowertools.com
(9.0)
ADDITIONAL SAFETY INSTRUCTIONS
WARNING: Mains Power Supply Security. Due to the nature of operation of this machine, it is of the utmost importance to ensure the security and continuity of the mains power supply.
Ensure that this machine has a dedicated power supply, and use a lock on device to ensure that the mains power supply cannot be interrupted or compromised accidentally. Do not use other appliances on the same power socket, as any variation in voltage caused by other connected appliances could result in the magnet deactivating. Always use the tool on its own dedicated power socket.
Where the power supply is provided by an ‘onsite’ generator set, ensure that the
generator set is reliable and well maintained, and that the fuel tank contains sufficient fuel to allow completion of the task. The addition of warning labels is strongly recommended.
(9.1)
1) TRANSPORTING and HANDLING.
Magnetic Drills are heavy machines, care must be taken when transporting and handling.
•When transporting or moving the Magnetic
Drill, always use the carrying handle or other carrying aids provided.
•Always ensure that the dovetail slide is in its lowest position and locked in place.
•Do not transport or move the Magnetic
Drill with a cutter attached.
•If the coolant feed system is fitted, ensure that the coolant feed tap is in the off position, or the coolant system has been drained.
•If the Magnetic Drill is to be transported in a vehicle ensure that it is laid on its side and is secured to prevent movement.
•Do not transport the Magnetic Drill with the mains cord and plug dragging along the ground.
•Never carry or drag the machine using the mains cord.
(9.2)
Carrying your Magnetic Drill
Safety Advice
•Although compact, this Magnetic Drill is heavy. To reduce the risk of back injury, get competent help, if required, whenever you have to lift the drill.
•To reduce the risk of back injury, hold the tool close to your body when lifting. Bend your knees so you can lift with your legs, not your back. Lift by using the transportation/lifting handle.
•Never carry the Magnetic Drill by the power cord. Carrying the Magnetic Drill by the power cord could cause damage to the insulation or the wire connections resulting in electric shock or fire.
•Before moving the Magnetic Drill tighten the auxiliary slide locking screw to guard against sudden unexpected movement.
•Lock the Drilling Head in its lowest position.
(9.3)
2) BEFORE USING THE MAGNETIC DRILL.
•Checkthemainscordandplugforanydamage.
If damaged it must be replaced before use.
•Check the complete machine for any signs of damage. If the machine is damaged it must not be used until it has been repaired.
•Check the security and condition of the guard. This machine must not be used without the guard being fitted.
•Ensure that the feed handles are attached securely.
•Check that the dovetail slide is correctly adjusted and operates smoothly without any binding or excessive sideways movement. The cutting head should not fall freely under its own weight.
•Check the condition of the webbing safety strap and adjustable buckle for any signs of damage or fraying. If damaged it must be replaced.
•Check that the secondary/auxiliary slide is securely locked by the locking lever.
12
www.evolutionpowertools.com
(9.5)
3) ADJUSTING GIBS (Dovetail Slides)
FREE PLAY
Before every use, lubricate and adjust as necessary. When adjusting the gib the following procedure must be followed.
•Using an 8mm AF spanner (not supplied), loosen the 7 locknuts. With all 7 locknuts loosened, ensure that the main slide is at the lowest position.
•Using the 2.5 mm Hex Key supplied, and starting with the lower adjusting screws and working upwards, turn the adjusting screws to eliminate any free movement.
•Operate the crank handle to move the slide up and down. There should be no free play, yet no binding anywhere throughout the range of travel.
•If necessary repeat the above procedure several times to ensure that all free movement has been eliminated and that the machine head moves up and down freely without any binding and without any side to side movement.
•Re-tighten the 7 locknuts when adjustment is complete.
(9.6)
4) COOLANTS and LUBRICANTS.
The use of coolants or lubricants will ease the cutting operation and prolong the life of the cutter and the machine.
•When using coolants or lubricants, ensure that they do not run down the mains cord to the mains plug and supply outlet. Do not allow coolants or lubricants to enter the machine’s ventilation openings.
•When using the machine in an inverted position or on vertical surfaces use cutting paste instead of a liquid cutting fluid.
•If the machine is to be used to cut materials that create dust, such as cast iron, dust extraction equipment (not supplied) should be used and/or the operator should wear a suitable respiratory protection mask.
(9.7)
5) PREPARATION and SETTING UP.
The electromagnet on this machine is designed to adhere to ferrous metallic surfaces only.
WARNING: The use on any material whose thickness is less than that specified in this Instruction Manual will progressively reduce the magnetic performance, and could result in a potentially dangerous condition arising.
(9.9)
•Always prepare the material surface before attaching the machine. The material surface must be clean, flat and free
from rust, protective coatings, grease or other debris such as chips or swarf from previously drilled holes.
•Always check the surface of the magnetic base ensuring that it is not damaged and is clear of debris such as chippings or swarf from previously drilled holes.
•Never use this machine on a structure where arc welding is taking place. Damage to the machine will result as the welder will ground through the power tools ground or earth cable.
(9.10)
6) DURING CUTTING OPERATIONS. WARNING: The swarf and the slug produced will be hot and sharp.
•When using annular cutters ensure that the slug ejected at the end of the cut will not endanger anyone in the vicinity.
•If working at height some form of collection device for the ejected slug may be necessary.
•Care should be taken with the ejected slug, this will be both hot and sharp, gloves should be worn when handling the slug.
•This power tool canbeusedon a vertical surface or upside down provided there is sufficient magnetic adhesion, extra care should be taken when drilling vertically or inverted . When using the machine vertically or inverted it is possible hot and sharp swarf or chips may fall. Always wear appropriate personal protective equipment.
13
EN
ES
FR
www.evolutionpowertools.com
(9.11)
7) SAFETY STRAP OR SAFETY CHAIN
WARNING: The electromagnet base on this power tool can deactivate if the power supply is interrupted or suffers an electrical malfunction.
•To prevent possible operator injury, the safety strap or chain supplied should be used at all times to provide extra security in the event of supply failure or electrical malfunction.
Note: When drilling some very large flat, horizontal plates, the fitting of the safety strap or chain may be impossible. Consult the responsible person for guidance.
•The safety strap or chain should be attached to the fixing points provided and checked for security before commencing any and every drilling operation.
(4.1)
GETTING STARTED UNPACKING
Caution: This packaging contains sharp objects. Take care when unpacking. This machine
could require two persons to lift, assemble and move. Remove the machine, together with the accessories supplied from the packaging. Check carefully to ensure that the machine is in good condition and account for all the accessories listed in this manual. Also make sure that all the accessories are complete. If any parts are found to be missing, the machine and its accessories should be returned together in their original packaging to the retailer. Do not throw the packaging away; keep it safe throughout the guarantee period. Dispose of the packaging
in an environmentally responsible manner. Recycle if possible. Do not let children play with empty plastic bags due to the risk of suffocation.
(4.2)
ITEMS SUPPLIED
Description |
Quantity |
|
|
Instruction Manual |
1 |
|
|
Coolant Tank System |
1 |
|
|
Handles |
3 |
|
|
Safety Strap |
1 |
|
|
Safety Guard |
1 |
|
|
Safety Guard Fixing Screws |
2 |
|
|
Hex Key 2.5mm |
1 |
|
|
Hex Key 4mm |
1 |
|
|
Hex Key 5mm |
1 |
|
|
Chuck with Chuck Key |
1 |
|
|
Carry Case |
1 |
|
|
(4.3)
ADDITIONAL ACCESSORIES
In addition to the accessories supplied with this machine the following accessories are available from Evolution’s online shop at www.evolutionpowertools.com or from your local retailer.
(4.4)
Description
3 Piece Cutter Kit
6 Piece Cutter Kit
Cyclone Cutters
14
www.evolutionpowertools.com
MACHINE OVERVIEW
A parts diagram can be downloaded from www.evolutionpowertools.com.
EN
4 |
5 |
|
1 |
|
ES |
|
|
|
|
7 |
|
|
|
3 |
|
|
2 |
|
|
|
|
1. Spindle Hub & Handles |
|
|
|
2. Coolant Tank |
|
|
|
3. Annular Cutter |
|
|
|
4. 3 Jaw Chuck |
|
|
|
5. Twist Drill (Not included) |
|
|
6 |
|
|
|
|
6. Arbor Support Bracket |
|
|
FR |
|
|
8 |
|
7. Switch Panel |
|
|
|
|
|
|
|
8. Magnetic Base |
|
|
|
15
www.evolutionpowertools.com
FIG. 1
FIG. 2
A
B
FIG. 3
(>9.15) ASSEMBLY AND PREPARATION
WARNING: This machine must not be connected to a power source until all assembly and preparation has been completed and a safety check carried out. (<9.15)
ASSEMBLY
Remove the machine from the case and check that all accessories are present and correct. Place the machine onto a clean, sturdy work surface.
•Attach the three handles into the spindle hub ensuring that they are fully seated. (Fig. 1)
•Attach the Safety Guard and secure in place using the supplied fixing screws. (Fig. 2)
•Attach the coolant tank and coolant hose to the left hand side of the machine. The coolant tube is a press fit into the connector on the coolant inlet body. (Fig. 3b) The coolant tank should be hung on the two protruding dome headed screws located at the top left hand edge of the machine’s main body. (Fig. 3a)
(9.16)
Note: To release the delivery tube from the quick connector, push the collar towards the brass union and withdraw the delivery tube.
(9.17)
Note: For some operations it may be convenient to remove the coolant tank and supply tube, and to use alternative coolant application methods.
16
www.evolutionpowertools.com
(>9.18) TESTING
WARNING: This machine has CLASS 1 insulation and MUST be earthed. Any power socket that this machine is connected to must be grounded to earth. Ensure that both operating switches are in the ‘OFF’ position before connecting the power cord to the socket.
WARNING: The power cord assembly is a custom terminated one. Replacement should only be carried out by a qualified
technician. Only use replacement parts recommended by FIG. 4a Evolution Power Tools.
(<9.18)
•Place the machine onto a piece of clean 10 mm thick mild steel plate that is larger than the magnetic base of the machine.
•Connect the plug into a mains supply socket.
•Switch on the socket (UK only).
•Operate the red rocker switch on the machine’s switch panel to energise the magnet. (Fig. 4a)
•Operate the green push switch (Fig. 4b) on the machine’s
switch panel to switch on the motor and the Red push |
FIG. 4b |
switch to switch off the motor. (Fig. 4c) |
|
|
•Allow the motor to run for a few seconds to check for any unusual noise or vibration.
•Do not use the machine if any vibration or unusual noises are detected or if magnetic adhesion is questionable. Have the machine serviced by a qualified person, or if under warranty refer to the guarantee agreement.
•Turn ‘OFF’ the machine when all testing has been completed.
FIG. 4c
17
EN
ES
FR
FIG. 5
FIG. 6
www.evolutionpowertools.com
CUTTING ADVICE
(9.19)
INSTALLING A CUTTER
Select a cutter suitable for the operation to be performed. Check the cutter to ensure that it is sharp and is not damaged in any way.
•Insert the pilot pin into the cutter ensuring that it slides smoothly. (Fig.5)
•Raise the cutting head to its highest position.
•Check that the cutter securing set screws located in the arbor are not protruding into the spindle bore. (Fig.6)
•Align the two flats on the cutter shaft with the grub screws in the spindle.
•Start to tighten one of the grub screws and at the same time slightly rotate the cutter backwards and forwards until the grub screw is fully tightened. This will ensure that the grub screw is located squarely onto the flat preventing the cutter from becoming loose.
•Tighten the remaining grub screw.
(>9.12) SETTING UP
WARNING: Before using the machine ensure that you have read the sections on the intended and prohibited of use of this machine.
This machine should only be used for hole boring/drilling whilst attached to the work piece by the electromagnetic base.
WARNING: This machine is intended for use at any position, but only if the electromagnet is in full working order and has sufficient hold on the work piece material.
The safety strap or chain should be attached in case of power failure or machine malfunction.
The safety strap or chain should NOT be used as an alternative to the magnet for clamping purposes.
Always ensure the strap or chain is correctly fitted and the machine is secure BEFORE starting the machine.
(9.12<)
18
www.evolutionpowertools.com |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(9.20) |
|
|
|
|
|
COOLANT / LUBRICANT FLOW. |
|
|
|
|
|
Note: It is recommended that a Soluble Oil is used as other |
|
|
EN |
|
|
|
|
|
|
|
|
coolants/lubricants may have a high viscosity and may not |
|
|
|
|
|
flow easily to the cutter. |
|
|
|
|
|
Ensure that the Coolant/Lubrication bottle is filled with |
|
|
|
|
|
suitable Coolant/Lubrication liquid and that the ON/OFF tap is |
|
|
|
|
|
in the ON position. |
|
|
|
|
|
• Ensure that the work piece is flat, clean and free from any |
|
|
|
|
|
rust, coatings or other contamination. |
|
|
|
|
|
|
|
|
|
|
|
• Position the machine onto the work piece. |
|
|
|
|
|
• Connect the plug into a mains supply socket and switch on |
|
|
|
|
|
at the socket. (UK only) |
|
|
|
|
|
• Energise the magnetic base by operating the Magnet |
|
|
|
|
|
‘ON/OFF’ switch. |
|
|
|
|
|
The machine should now be firmly attached to the mild steel plate. |
|
|
|
|
|
Before commencing the cutting operation check that there is |
|
|
|
|
|
sufficient Coolant/Lubrication flow at the cutter. |
|
|
ES |
|
|
To ensure Coolant/Lubrication flow: |
|
|
|
|
|
• Loosen the Coolant/Lubrication bottle cap. This will |
|
|
|
|
|
prevent a vacuum being created that will stop the Coolant/ |
|
|
|
|
|
Lubrication fluid from flowing. |
|
|
|
|
|
• Gently squeeze the Coolant/Lubrication bottle to force the |
|
|
|
|
|
Coolant/Lubrication through to the cutter. |
|
|
|
|
|
• Lower the cutting head towards the work piece until the |
|
|
|
|
|
cutter teeth touch the work piece and the pilot pin is |
|
|
|
|
|
|
|
|
|
|
|
depressed, then raise the cutting head. |
|
|
|
|
|
• Continue this process until the Coolant/Lubrication fluid is |
|
|
|
|
|
flowing onto the work piece. |
|
|
|
|
|
FR
19
www.evolutionpowertools.com
OPERATION
MAKING A CUT
Note: This machine is fitted with a 10 Amp (5 x 20mm) Surge Fuse (Fig. 7). If the machine fails to operate check the fuse. If it has blown it must be replaced with an identical type.
|
• |
FIG. 7 |
• |
|
• |
|
• |
|
• |
|
• |
Correctly position the machine on the work piece, with the electro magnet energised and with the safety strap secured in place.
Check for sufficient Coolant/Lubrication fluid flowing at the cutter.
Start the motor by pushing the green switch, located in the machines switch panel.
Using the feed handles slowly lower the cutting head until the cutter makes contact with the work piece.
Continue to apply only sufficient pressure to allow the cutter to cut freely through the work piece.
Depending on the thickness of the workpiece periodically raise the cutter to clear the swarf build up prior to continuing the cut.
FIG. 8
FIG. 9
WARNING: On completion of the cut the pilot pin will eject the material slug. This slug will be very hot with sharp edges. Use protective gloves if slug requires handling.
If the slug fails to be ejected from the cutter this could be caused by the slug becoming twisted inside the cutter. To release the slug lower the cutter onto a flat area of the work piece, this will square up the slug and allow it to be ejected.
INSTALLING THE 3 JAW CHUCK
The chuck (part HTA 153) can be fitted onto the BORA2800 machines main drive spindle, and this enables the BORA2800 to take standard twist drills up to ø13mm.
WARNING: Ensure that the machine is disconnected from the mains power supply when installing the 3 jaw chuck.
Note: The arbor of the BORA2800 Drilling System is machined to perfectly match the main drive spindle of the machine. Both parts are numbered with a unique code.
•Use a spanner (not supplied) to unscrew the arbor.
•Remove the arbor support bracket by removing the 4 x M5 socket headed bolts. (Fig. 8)
•Remove the coolant tank.
•Screw the chuck onto the main drive spindle. (Fig. 9)
20
www.evolutionpowertools.com
(6) MAINTENANCE
(6.1)
Note: Any maintenance must be carried out with the machine switched off and disconnected from the mains/battery power supply.
Check that all safety features and guards are operating |
|
correctly on a regular basis. Only use this machine if all |
|
guards/safety features are fully operational. |
FIG. 10 |
|
All motor bearings in this machine are lubricated for life.
No further lubrication is required.
Use a clean, slightly damp cloth to clean the plastic parts of the machine’s. Do not use solvents or similar products which could damage the plastic parts.
WARNING: Do not attempt to clean by inserting pointed objects through openings in the machines casings etc. The machines air vents should be cleaned using compressed dry air.
Excessive sparking may indicate the presence of dirt in the motor or worn out carbon brushes.
(6.2)
If this is suspected have the machine serviced and the brushes replaced by a qualified technician. (<6.2)
(>6.5)
ADJUSTING GIBS (Dovetail Gibs Slides) FREE PLAY
Before every use, lubricate and adjust as necessary. (Fig. 10)
Refer to ADDITIONAL SAFETY INSTRUCTIONS 3 for detailed instructions on the adjustment of the Dovetail Slides. (<6.5)
(6.4)
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.
21
EN
ES
FR
www.evolutionpowertools.com
DECLARATION OF CONFORMITY
The manufacturer of the product covered by this Declaration is:
Evolution Power Tools, Venture One, Longacre Close, Holbrook Industrial Estate, Sheffield, S20 3FR.
The manufacturer hereby declares that the machine as detailed in this declaration fulfils all the relevant provisions of the Machinery Directive and other appropriate directives as detailed below. The manufacturer further declares that the machine as detailed in this declaration, where applicable, fulfils the relevant provisions of the Essential Health and Safety requirements.
The Directives covered by this Declaration are as detailed below:
2006/42/EC. Machinery Directive.
2004/108/EC. (until Apr 19th 2016) Electromagnetic Compatibility Directive. 2014/30/EU. (starting from Apr 20th 2016) Electromagnetic Compatibility Directive. 93/68/EC. The CE Marking Directive.
2002/95/EC. The Restriction of the Use of Certain Hazardous Substances in Electrical Equipment (RoHS) Directive.
2002/96/EC as The Waste Electrical and Electronic Equipment (WEEE) Directive. amended by
2003/108/EC.
And is in conformity with the applicable requirements of the following documents
EN55014-1:2006•EN55014-2;1997+A1+A2•EN61000-3-2:2000 EN61000-3-3:1995+A1+A2•EN61029-2-9:2002•EN60825-1:1994+A1+A2 EN61029-1;2009•ENISO12100-2/A1:2009•ENISO12100-2:2003
Product Details |
|
Brand |
Evolution |
Product Code |
BORA2800 |
Description |
28mm (1-1/8”) Magnetic Drill |
Voltage |
110V / 120V / 230V ~ 50Hz / 60Hz |
Input |
1200W |
The technical documentation required to demonstrate that the product meets the requirements of directive has been compiled and is available for inspection by the relevant enforcement authorities, and verifies that our technical file contains the documents listed above and that they are the correct standards for the product as detailed above.
Name and address of technical documentation holder.
Signed: |
Print: Matthew Gavins: Group Chief Executive. |
Date: |
18 / 04 / 16 |
22
