1 INTRODUCTION
1.1 Introduction
c-pro 3 NODE kilo is a range of programmable controllers for
cooling and air cond itioning app lications.
The controllers are equipped with a significant number of input
and output arrangements which make it possible to create a
flexible, modular and expandable network of control devices.
The range of available communication ports ( RS-485, CAN,
USB and Ethernet) and of supported communication protocols
promote the integration of the devices into larger systems.
The application software can be designed for the development
environment for UNI-PRO 3 programmable controllers.
page 5 of 44
EVCO S.p.A. c-pro 3 NODE kilo | Hardware manual ver. 1.0 | Code 114CP3NKE104
1.2 Summary table of available models, their main characteristics and purchase
codes
The following table contains a description of the available models.
Available models EPK4BHX EPK4BHR EPK4LHX EPK4LHR EPK4DHX EPK4DHR
The following table shows the main characteristics of the devices.
Version EPK4BHX EPK4BHR EPK4LHX EPK4LHR EPK4DHX EPK4DHR
blind • •
built-in LED (custom 4+4 digit
display)
built-in LCD (128 x 64 pixel single
colour LCD graphic display)
Dimensions EPK4BHX EPK4BHR EPK4LHX EPK4LHR EPK4DHX EPK4DHR
DIN modules 8 8 8 8 8 8
Connections EPK4BHX EPK4BHR EPK4LHX EPK4LHR EPK4DHX EPK4DHR
screw-in removable terminal boards • • • • • •
Power supply EPK4BHX EPK4BHR EPK4LHX EPK4LHR EPK4DHX EPK4DHR
24 VAC/DC not insulated • • • • • •
Analog inputs EPK4BHX EPK4BHR EPK4LHX EPK4LHR EPK4DHX EPK4DHR
PTC/NTC/Pt 1000 3 3 3 3 3 3
• •
• •
PTC/NTC/Pt 1000/0-20 mA/4-20
mA/0-5 V ratiometric/0-10 V
Digital inputs (for NA/NC
contact)
opto-isolated 24VAC/DC 50/60 Hz
contacts
opto-isolated 24 VAC/DC 50/60 Hz/
2 KHz contacts
Analog outputs EPK4BHX EPK4BHR EPK4LHX EPK4LHR EPK4DHX EPK4DHR
PWM/0-10 V 2 2 2 2 2 2
3 3 3 3 3 3
EPK4BHX EPK4BHR EPK4LHX EPK4LHR EPK4DHX EPK4DHR
3 3 3 3 3 3
2 2 2 2 2 2
page 6 of 44
EVCO S.p.A. c-pro 3 NODE kilo | Hardware manual ver. 1.0 | Code 114CP3NKE104
0-20 mA/4-20 mA/0-10 V 1 1 1 1 1 1
Digital outputs
(electromechanical relays; A res.
@ 250 VAC)
3 A SPST 6 4 6 4 6 4
3 A SPDT 1 1 1 1 1 1
EPK4BHX EPK4BHR EPK4LHX EPK4LHR EPK4DHX EPK4DHR
Digital outputs (controls for
solid state relays)
24 VAC/DC, 600 mA max 2 2 2
Communication ports EPK4BHX EPK4BHR EPK4LHX EPK4LHR EPK4DHX EPK4DHR
RS-485 MODBUS slave 1 1 1 1 1 1
RS-485 MODBUS master/slave 1 1 1 1 1 1
CAN CANBUS 1 1 1 1 1 1
USB 1 1 1 1 1 1
Ethernet MODBUS TCP 1 1 1 1 1 1
Other characteristics: EPK4BHX EPK4BHR EPK4LHX EPK4LHR EPK4DHX EPK4DHR
clock • • • • • •
EPK4BHX EPK4BHR EPK4LHX EPK4LHR EPK4DHX EPK4DHR
For additional information, please read chapter 8
The following table shows the purchase codes.
Available models EPK4BHX EPK4BHR EPK4LHX EPK4LHR EPK4DHX EPK4DHR
For additional models, please contact the EVCO distribution network.
“TECHNICAL DATA”.
page 7 of 44
EVCO S.p.A. c-pro 3 NODE kilo | Hardware manual ver. 1.0 | Code 114CP3NKE104
2 DESCRIPTION
2.1 Description
The following drawing shows the appearance of the devices.
The following table shows the meaning of the parts of the devices.
PART MEANING
1 K1 and K2 digital outputs
2 K3, K4, K5 and K6 digital outputs
3 K7 digital outputs
4 Ethernet MODBUS TCP port
5 display and keypad (not available for the blind versions)
6 digital in puts
7 analog outputs
8 USB port
9 analog inputs
10
micro switch activating the Can Canbus terminal port, the RS-485 MODBUS master/slave port and the RS-485 MODBUS
slave port
11 RS-485 MODBUS slave, RS-485 MODBUS master/slave and CAN CANBUS ports
12 power supply
13 signalling LED
For additional information, please refer to the following chapters.
page 8 of 44
EVCO S.p.A. c-pro 3 NODE kilo | Hardware manual ver. 1.0 | Code 114CP3NKE104
3 DIMENSIONS AND INSTALLATION
3.1 Dimensions:
The following drawing shows the measurements of the devices (8 DIN modules), in mm (in).
3.2 Installation
The device is installed on a DIN 35.0 x 7.5 mm (1.377 x 0.295 in) or 35.0 x 15.0 mm (1.377 x 0.590 in), track in a control panel.
To install the devices, please follow the instructions in the drawing below.
1 2
page 9 of 44
EVCO S.p.A. c-pro 3 NODE kilo | Hardware manual ver. 1.0 | Code 114CP3NKE104
To remove the devices, first remove any screw-in removable terminal boards mounted in the lower part, then trigger the DIN track clip
with a screwdriver as show in the following picture:
3 4
To install the devices again, first press the clip of the DIN track.
3.3 Installation warnings
- make sure that the device work conditions (temperature of use, humidity, etc.) lie within the limits indicated; see chapter 8
“TECHNICAL DATA”
-
do not install the device near to any heat sources (heating elements, hot air ducts etc.), equipment containing powerful
magnets (large diffusers, etc.), areas affected by direct sunlight, rain, humidity, excessive dust, mechanical vibrations or
shocks
- in compliance with Safety Standards, the device must be installed correctly and in a way to protect against any contact with
electric parts; all parts that ensure protection must be fixed in a way that they cannot be removed without the use of tools.
page 10 of 44
EVCO S.p.A. c-pro 3 NODE kilo | Hardware manual ver. 1.0 | Code 114CP3NKE104
4 ELECTRIC CONNECTION
4.1 Connectors

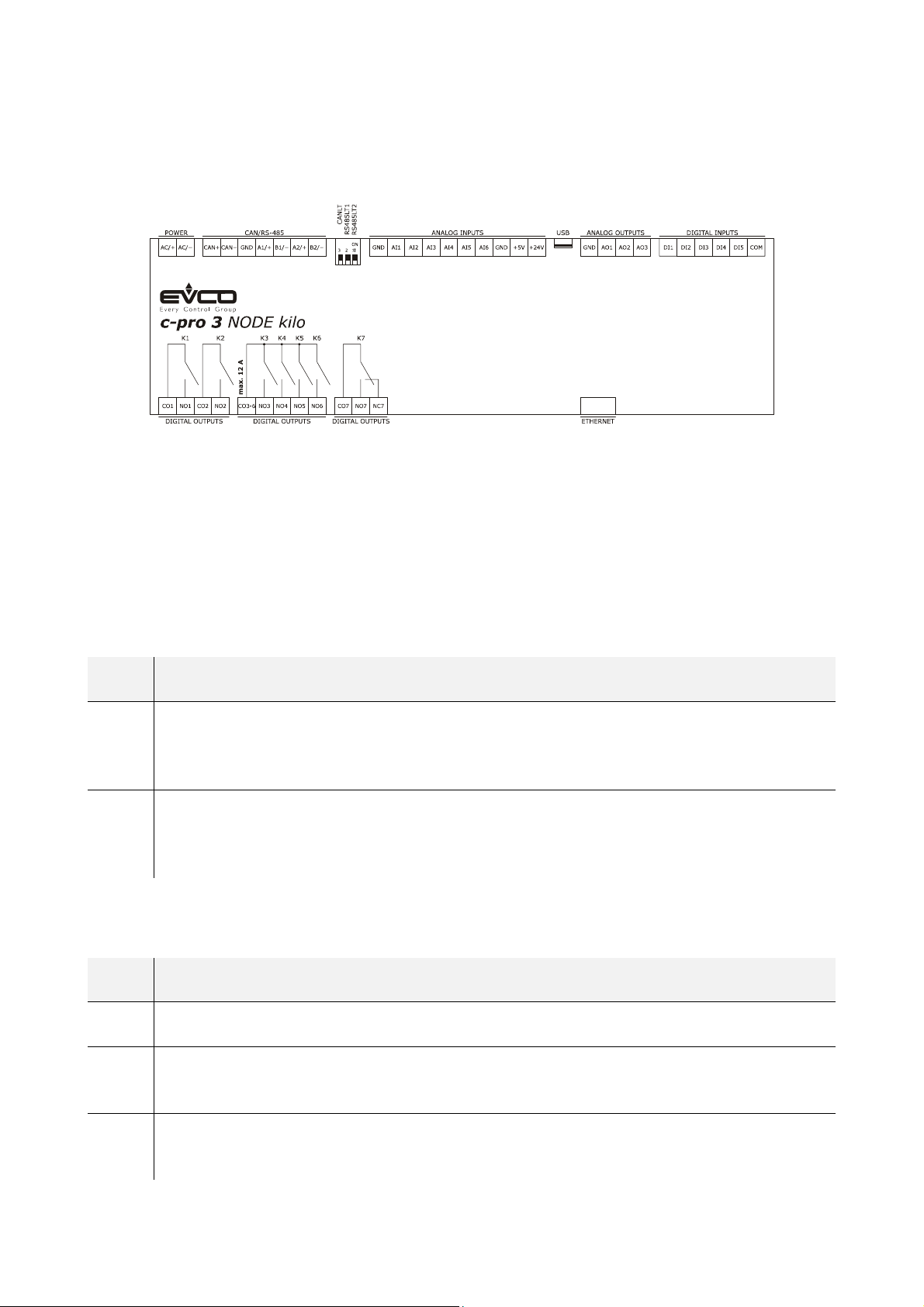

The following drawing shows the connectors of the devices.
4.2 Meaning of connectors
The following tables show the meaning of the various device connectors.
For additional information, please read chapter 8 "TECHNICAL DATA",
POWER
Device power supply (24 VAC/DC not insulated)
If the device runs on direct current, it shall be necessary to pay attention to the polarity of the supply voltage.
If the device is connected to a network of devices, it shall be necessary to:
check that the power supply of the devices included in the network are galvanically isolated.
-
the phase powering the device is the same as that of all the devices included in the network.
-
PART MEANING
device power supply:
AC/+
AC/-
ANALOG INPUTS
Analog inputs
Please see paragraph 6 "CONFIGURATION" for the settings of the analog inputs.
PART MEANING
GND analog inputs ground
AI1
- if the device is run by alternating current, connect the phase
-
if the device is run by direct current, connect the positive pole
device power supply:
- if the device is run by alternating current, connect the neuter
if the device is run by direct current, connect the negative pole
-
analog input 1 settable by way of the PTC, NTC, Pt 1000 probes configuration parameter, transducers 0-20 mA, 4-20
mA, 0-5 V ratiometric or 0-10 V
AI2
analog input 2 settable by way of the PTC, NTC, Pt 1000 probes configuration parameter, transducers 0-20 mA,
4-20 mA, 0-5 V ratiometric o 0-10 V
page 11 of 44
EVCO S.p.A. c-pro 3 NODE kilo | Hardware manual ver. 1.0 | Code 114CP3NKE104
AI3
analog input 3 settable by way of the PTC, NTC, Pt 1000 probes configuration parameter, transducers 0-20 mA,
4-20 mA, 0-5 V ratiometric o 0-10 V
AI4 analog input 4, settable by way of the PTC, NTC, Pt 1000 probes configuration parameter
AI5 analog input 5, settable by way of the PTC, NTC, Pt 1000 probes configuration parameter
AI6 analog input 6, settable by way of the PTC, NTC, Pt 1000 probes configuration parameter
GND analog inputs ground
+5V 0-5 V (5VDC) ratiometric transducers power supply
+24V 0-20 mA, 4-20 mA and 0-10 V (24 VAC) transducers power supply
DIGITAL INPUTS
Digital inputs.
PART MEANING
DI1
digital input 1 (24 VAC/DC, 50/60 Hz or 2 KHz opto-isolated); the frequency can be set with the UNi-PRO 3 development
environment
DI2
digital input 2 (24 VAC/DC, 50/60 Hz o 2 KHz opto-isolated); the frequency can be set with the UNi-PRO 3 development
environment
DI3 digital input 3 (24 VAC/DC, 50/60 Hz opto-isolated)
DI4 digital input 4 (24 VAC/DC, 50/60 Hz opto-isolated)
DI5 digital input 5 (24 VAC/DC, 50/60 Hz opto-isolated)
COM common digital inputs
ANALOG OUTPUTS
Analog outputs.
Please see paragraph 6 "CONFIGURATION" for the settings of the analog outputs.
PART MEANING
GND analog outputs ground
AO1 analog output 1, settable by way of the configuration parameter for PWM or 0-10V.
AO2 analog output 2, settable by way of the configuration parameter for PWM or 0-10 V
AO3 analog output 3, settable by way of the configuration parameter for 0-20 mA, 4-20 mA or 0-10 V
page 12 of 44
EVCO S.p.A. c-pro 3 NODE kilo | Hardware manual ver. 1.0 | Code 114CP3NKE104
DIGITAL OUTPUTS
Digital outputs.
PART MEANING
CO1 common digital output 1
usually open contact for digital output 1
NO1
CO2 common digital output 1
NO2
according to model:
electromechanical relay with 3 A res. @ 250 VAC
-
control for 24 VAC/DC, 600 mA max. solid state relays
-
usually open contact for digital output 2
according to model:
electromechanical relay with 3 A res. @ 250 VAC
-
-
control for 24 VAC/DC, 600 mA max. solid state relays
CO3-6 common digital output 3... 6
NO3 usually open contact for digital output 3 (electromechanical relay with 3 A res. @ 250 VAC)
NO4 usually open contact for digital output 4 (electromechanical relay with 3 A res. @ 250 VAC)
NO5 usually open contact for digital output 5 (electromechanical relay with 3 A res. @ 250 VAC)
NO6 usually open contact for digital output 6 (electromechanical relay with 3 A res. @ 250 VAC)
CO7 common digital output 7
NO7 usually open contact for digital output 7 (electromechanical relay with 3 A res. @ 250 VAC)
NC7 usually open contact for digital output 7
CAN/RS-485
RS-485 MODBUS slave, RS-485 MODBUS master/slave and CAN CANBUS ports
The communication protocol for the RS-485 MODBUS master/slave port can be set with the UNI-PRO 3 development environment.
For the settings for the RS-485 MODBUS slave, RS-485 MODBUS master/slave and CAN CANBUS ports, please refer to chapter 6
“CONFIGURATION”.
PART MEANING
CAN+ CAN CANBUS port positive pole
CAN- CAN CANBUS port negative pole
GND RS-485 MODBUS slave, RS-485 MODBUS master/slave and CAN CANBUS ports ground
A1/+ RS-485 MODBUS master/slave port positive pole
page 13 of 44
EVCO S.p.A. c-pro 3 NODE kilo | Hardware manual ver. 1.0 | Code 114CP3NKE104
B1/- RS-485 MODBUS master/slave port negative pole
A2/+ RS-485 MODBUS slave port positive pole
B2/- RS-485 MODBUS slave port negative pole
The following table shows the Function codes supported by the device, provided that it works in commander mode with a MODBUS
communication protocol.
FUNCT.
CODE
FC 01 read coils
FC 02 read discrete inputs
FC 03 read multiple registers
FC 04 read input registers
FC 05 write single co il
FC 06 write single register
FC 08 diagnostic
FC 15 write multiple coils
FC 16 write multiple registers
MEANING
FC 23 read write multiple registers (max imum 10 registers)
The RS-485 MODBUS slave and RS-485 MODBUS master/slave ports can be used for one of the following operations:
-
device configuration (through the Parameters Manager set-up software system)
device supervision (through the CloudEvolution system monitoring and supervision (via Web) system)
-
-
MODBUS master function use with regard to other slave devices.
The CAN CANBUS port can be used to connect the device to the I/O expansions and remote user interfaces of the c-pro 3 range
The maximum number of devices that can be comprised in the CAN network (32) depends on the BUS load; the BUS load, in turn,
depends on the baud rate of the CANBUS communication and on the type of device (for instance, a CAN network can comprise 1
programmable controller with 4 I/O expansions and 4 remote user interfaces with a baud rate of 500,000 baud).
USB
USB port
Through the USB port it is possible to carry out one of the following actions:
- upload and download of application software (through the UNI-PRO 3 development environment or USB flash drive)
application software debug (through the UNI-PRO 3 development environment)
-
device configuration (through the Parameters Manager set-up software system or a USB flash drive)
-
-
file transfer (through the UNI-PRO 3 development environment)
- data logging (through a USB flash drive).
Please see paragraph 6 "CONFIGURATION" for the settings of the USB port.
page 14 of 44
EVCO S.p.A. c-pro 3 NODE kilo | Hardware manual ver. 1.0 | Code 114CP3NKE104
ETHERNET
Ethernet MODBUS TCP port
Please see paragraph 6 "CONFIGURATION" for the settings of the Ethernet MODBUS TCP port.
4.3 Insertion of the termination resistor of the CAN CANBUS port
To reduce reflections on the signal transmitted through the cables connecting the devices to a CAN network it is necessary to insert the
termination resistor of the first and last elements of the network.
To insert the termination resistor, place the micro-switch 3 in the ON position.
4.4 Insertion of the RS-485 MODBUS master/slave port termination resistor
To reduce reflections on the signal transmitted through the cables connecting the devices to a RS-485 network it is necessary to insert
the termination resistor of the first and last elements of the network.
To insert the termination resistor, place the micro-switch 2 in the ON position.
4.5 Insertion of the RS-485 MODBUS slave port termination resistor
To reduce reflections on the signal transmitted through the cables connecting the devices to a RS-485 network it is necessary to insert
the termination resistor of the first and last elements of the network.
To insert the termination resistor, place the micro-switch 1 in the ON position.
4.6 RS-485 MODBUS master/slave port polarisation
The devices can polarise the RS-485 MODBUS master/slave port; the polarisation can be set through the configuration parameter.
4.7 RS-485 MODBUS slave port polarisation
The devices cannot polarise the RS-485 MODBUS slave port; the polarisation must be carried out by another device.
page 15 of 44
EVCO S.p.A. c-pro 3 NODE kilo | Hardware manual ver. 1.0 | Code 114CP3NKE104
4.8 Example of electric connection
The following drawing shows and example of the electric connection of the devices.
4.9 Warnings for the electric connection
- do not use electric or pneumatic screwdrivers on the device terminal board
if the device has been taken from a cold to hot place, humidity could condense inside; wait about 1 hour before powering it
-
make sure that the power supply voltage, the frequency and the operational electric power of the device, correspond with
-
those of the local power supply; see chapter 8 “TECHNICAL DATA”
-
disconnect the device power supply before proceeding with any type of maintenance
connect the device to a RS-485 network using a twisted pair
-
-
connect the device to a CAN network using a twisted pair
position the power cables as far away as possible from the signal cables
-
do not use the device as a safety device
-
-
for repairs and information regarding the device, contact the EVCO sales network.
page 16 of 44
EVCO S.p.A. c-pro 3 NODE kilo | Hardware manual ver. 1.0 | Code 114CP3NKE104
5 USER INTERFACE
5.1 Keypad
The following table shows the meaning of the keypad of the devices.
KEY PRESET FUNCTION
cancel, hereinafter also "ESC key"
left shift, hereinafter also "LEFT key"
increase, hereinafter also "UP key"
decrease, hereinafter also "DOWN key"
right shift, hereinafter also "RIGHT key"
confirm, hereinafter also "ENTER key"
The keypad is not available in the blind versions.
5.2 LED warning lights
The following table shows the meaning of the LED warning lights of the devices.
LED MEANING
power supply LED
ON
RUN
if it is on, the dev ice is powered
if it is off, the device is not powered
run LED
if it is on, the application software shall be compiled and executed in release mode
if it is flashing very slowly, the application software shall be compiled in debug mode
if it is flashing slowly, the app lication soft ware shall be executed in debug mode
if it is flashing quickly, the application software shall be compiled, executed in debug mode and stopped at a breakpoint
if it is off:
-
the device is not compatible with the application software
the device is not authorised to operate with the Special ABL (Application Block Libraries)
-
system alarm LED
if it is on, a system alarm has been triggered that cannot be reset through the application software
if it is flashing very slowly, the external FLASH memory is being accessed
if it is flashing slowly, a system alarm had been triggered with automatic reset
if it is flashing quickly, a system alarm had been triggered with manual reset
if it is off, no system alarm has been triggered
page 17 of 44
EVCO S.p.A. c-pro 3 NODE kilo | Hardware manual ver. 1.0 | Code 114CP3NKE104
CAN CANBUS communication LED
if it is on, the device is configured to communicate via CAN CANBUS with another device, but the communication has not
CAN
been established
if it is flashing slowly, the CAN CANBUS communication has been established, but is not entirely correct
if it is flashing quickly, the CAN CANBUS communication shall established and be entirely correct
if it is off, no CAN CANBUS communication is in progress
L1
Auxiliary LED
The operation of this LED can be set via the UNI-PRO 3 development environment
For additional information, please refer to the following chapters.
page 18 of 44
EVCO S.p.A. c-pro 3 NODE kilo | Hardware manual ver. 1.0 | Code 114CP3NKE104
6 CONFIGURATION
6.1 Configuration of abuilt-in LCD programmable controller
To access the procedure, proceed as follows:
1.
Check that the power is on.
Keep the UP and DOWN keys pressed for 2 s: the following menu (hereinafter, the "Main menu") shall appear on the
2.
display,
<c-pro 3 NODE kilo>
Info
English
Parameters
Networks
Backup/Restore
Diagnostic
Debug
To access the su b-menus, proceed as follows:
3.
Press and release the UP or DOWN key to select the relevant sub-menu.
Press and release the ENTER key.
4.
To access the "Parameters", "Networks", "Password" and "Backup/Restore" sub-menus, proceed as follows:
5. Starting from point 2, press and release the UP or DOWN key to select the relevant sub-menu.
6.
Press and release the ENTER key.
Press and release the ENTER key again to set the password
7.
Press and release the DOWN key repeatedly to set "-19".
8.
9.
Press and release the ENTER key again.
To adjust a parameter, proceed as follows:
10. From point 9, press and release the UP or DOWN key to select the parameter (some parameters are included in sub-
menus; press and release the ENTER key to access them).
Press and release the ENTER key.
11.
12.
Press and release the UP or DOWN key to change the value.
Press and release the ENTER key to confirm the set value
13.
14.
Press and release the ESC key repeatedly to go back to the "Main menu".
To change the language of the application software, proceed as follows:
15. From point 2, press and release the UP or DOWN key to select the "Language" item (the default setting is "English").
Press and release the ENTER key.
16.
Press and release the UP or DOWN key to change the language.
17.
18.
Press and release the ENTER key to confirm the set value
To change the current date and time, proceed as follows:
19.
Starting from point 2, press and release the UP or DOWN key to select the "Current date and time" item.
Press and release the ENTER key.
20.
Press and release the UP or DOWN key to change the value.
21.
22.
Press and release the ENTER or RIGHT keys to confirm the value and change the following field (press and release the LEFT
or RIGHT keys to move between fields)
Repeat points 21 and 22.
23.
To copy the controller parameters to a USB peripheral device, proceed as follows:
24. Check that the power is on.
25.
Connect the peripheral device to the controller.
Access the "Backup/Restore" sub-menu, then choose "Parameters key" (Choose "Backup Memory" for the backup memory)
26.
Press and release the UP or DOWN key to select "Application par" to copy the parameters of the application software, or
27.
"Hardware config" to copy the configuration parameters.
28.
Press and release the UP or DOWN key to select "Save on the key"
page 19 of 44
EVCO S.p.A. c-pro 3 NODE kilo | Hardware manual ver. 1.0 | Code 114CP3NKE104
29. Press and release the ENTER key: the parameters shall be copied from the controller into the peripheral device (the process
usually requires a few seconds; if an error should be present, the System alarm LED (see paragraph 5.2 LED warning
lights) shall light up and an Err. value shall be input in the Key Par (in the "Diagnostic" sub-menu) parameter.
30.
Disconnect the peripheral device
To copy the USB peripheral device parameters to the controller, proceed as follows:
31. Check that the power is on.
Connect the peripheral device to the controller.
32.
Access the "Backup/Restore" sub-menu, then choose "Parameters key" (Choose "Backup Memory" for the backup memory)
33.
34.
Press and release the UP or DOWN key to select "Restore from the key".
Press and release the ENTER key: the parameters shall be copied from the peripheral device into the controller (the process
35.
usually requires a few seconds; if an error should be present, the System alarm LED (see paragraph 5.2 LED warning
lights) shall light up and an Err. value shall be input in the Key Par (in the "Diagnostic" sub-menu) parameter.
36. Disconnect the peripheral device
Copying the peripheral device parameters tp the controller is allowed provided that the controllers firmware coincides.
To exit the procedure, proceed as follows:
37. Press and release the ESC key repeatedly; any changes shall not be saved.
Disconnect the power supply after changing the configuration.
6.2 Configuration of a blind programmable controller
The following procedures show an example of how to configure a blind programmable controller through a built-in programmable
controller (in the example, c-pro 3 NODE kilo) and its user interface.
Proceed as follows:
1. Disconnect the controllers power supply
Connect the blind controller to the built-in controlled through the CAN CANBUS port; see chapter 4 “ELECTRIC
2.
CONNECTION”.
3.
Connect the controllers power supply
Keep the UP and DOWN keys pressed for 2 s: the following menu shall appear on the display,
4.
<c-pro 3 NODE kilo>
Info
English
Parameters
Networks
Backup/Restore
Diagnostic
Debug
5.
Press and release the UP or DOWN key to select "Networks".
Press and release the ENTER key.
6.
Press and release the ENTER key again to set the password
7.
8.
Press and release the DOWN key repeatedly to set "-19".
Press and release the ENTER key again.
9.
Press and release the UP or DOWN key to select "CAN Bus".
10.
11.
Press and release the ENTER key again.
Set the "NetworkNode" parameter using the UP or DOWN keys to select the parameter and the ENTER key to change and
12.
confirm the relevant value.
The default setting of the CAN node is 1 (operate on the controller to set the "NetworkNode" parameter to [ 1 ] 1).
13. Press and release the UP or DOWN key to select ">".
14. Press and release the ENTER key again: the "Main menu" of the blind controller shall be shown on the display.
Proceed as shown in paragraph 6.1 “Configuration of abuilt-in LCD programmable controller”.
15.
page 20 of 44
EVCO S.p.A. c-pro 3 NODE kilo | Hardware manual ver. 1.0 | Code 114CP3NKE104
6.3 I/O expansion configuration
The following procedures show an example of how to configure an I/O expansion through a built-in programmable controller (in the
example, c-pro 3 NODE kilo) and its user interface.
Proceed as follows:
1. Disconnect the power supply of the controller and the expansion
2.
Connect the blind controller through the CAN CANBUS port; see chapter 4 “ELECTRIC CONNECTION”.
Connect the power supply of the controller and the expansion
3.
Keep the UP and DOWN keys pressed for 2 s: the following menu shall appear on the display,
4.
<c-pro 3 NODE kilo>
Info
English
Parameters
Networks
Backup/Restore
Diagnostic
Debug
5.
Press and release the UP or DOWN key to select "Networks".
Press and release the ENTER key.
6.
Press and release the ENTER key again to set the password
7.
8.
Press and release the DOWN key repeatedly to set "-19".
Press and release the ENTER key again.
9.
10.
Press and release the UP or DOWN key to select "CAN Bus".
Press and release the ENTER key again.
11.
Set the "NetworkNode" parameter using the UP or DOWN keys to select the parameter and the ENTER key to change and
12.
confirm the relevant value.
The default setting of the CAN node of an I/O expansion is 2 (operate on the controller to set the "NetworkNode" parameter to [ 2 ] 2).
13.
Press and release the UP or DOWN key to select ">".
Press and release the ENTER key again: the "Main menu" of the expansion shall be shown on the display.
14.
15.
Proceed as shown in paragraph 6.1 “Configuration of abuilt-in LCD programmable controller”.
6.4 Configuration of a programmable controller through a remote user interface
The following procedures show an example of how to configure a programmable controller through a remote user interface (in the
example, Vgraph) and its user interface.
Proceed as follows:
Disconnect the power supply of the controller and the interface.
1.
2.
Connect the controller to the interface through the CAN CANBUS port; see chapter 4 “ELECTRIC CONNECTION”.
3. Keep the ESC and RIGHT keys pressed for 2 sec.
Connect the power supply of the controller and the interface.
4.
5.
When the interface display shows the following menu, release the ESC and RIGHT keys.
Vgraph
Parameters
Contrast
CAN Network
Modbus
Info
Debug
6.
Press and release the UP or DOWN key to select "CAN Network".
Press and release the ENTER key.
7.
Press and release the ENTER key again to set the password
8.
9.
Press and release the DOWN key repeatedly to set "-19".
page 21 of 44
EVCO S.p.A. c-pro 3 NODE kilo | Hardware manual ver. 1.0 | Code 114CP3NKE104
10. Press and release the ENTER key again.
11.
Set the "NW Node" parameter using the UP or DOWN keys to select the parameter and the ENTER key to change and
confirm the relevant value.
The default address of the CAN node of a programmable controller is 1 (operate on the remote user interface to set the "NW Node"
parameter to [ 1 ] 1) and the address if the CAN node of an I/O expansion is 2 (operate on the remote user interface to set the "NW
Node" parameter to [ 2 ] 2)
Disconnect the user interface power supply
12.
13.
Connect the user interface power supply
Keep the LEFT and ENTER keys pressed for 2 s: the following menu shall appear on the display,
14.
Network Status
Loc 99 OK
1 1 OK > >
2 2 OK > >
3 0 - > >
4 0 - > >
5 0 - > >
Press and release the UP or DOWN key to se lect the device
15.
Press and release the ENTER key: the "Main menu" of the device shall be shown on the display.
16.
17.
Proceed as shown in paragraph 6.1 “Configuration of abuilt-in LCD programmable controller”.
> >
page 22 of 44
EVCO S.p.A. c-pro 3 NODE kilo | Hardware manual ver. 1.0 | Code 114CP3NKE104
6.5 List of configuration parameters
6.5.1 Configuration parameters of the "Info" menu
The following table shows the meaning of the configuration parameters of the "Info" menu.
PARAM. MIN. MAX. M. U. DEF. DESCRIPTION
PROJ parameter available in read only mode
FW parameter available in read only mode
HW parameter available in read only mode
SW parameter available in read only mode
SN parameter available in read only mode
MASK parameter available in read only mode
DATE parameter available in read only mode date and time of the latest compilation of the application project.
Information on the application project (proje ct, version and
revision)
Information on the firmware (code, version, revision and sub-
revision)
Information on the hardware (version, revision, generic (G) or
special (S))
Information on the UNI-PRO 3 development environment
(version and revision).
Information on the serial number and the results of the
production tests
Information on the mask (depends on the manufacturer's coding
system)
6.5.2 Configuration parameters of the "Parameters" menu
The following table shows the meaning of the configuration parameters of the "Parameters" menu.
PARAM. MIN. MAX. M. U. DEF. DESCRIPTION
type of probe analog port 1
PTC
= PTC probe
= NTC probe
NTC
0-20mA
= Transducer 0-20 mA
4-20mA = Transducer 4-20 mA
AI1 - - - - - - - - - NTC
= Transducer 0-5 V ratiometric
0-5V
0-10V
= Transducer 0-10 V
= Pt 1000 probe
PT1000
= Type 2 NTC probe
NTCK2
NTCK3
= Type 3 NTC probe
= electric resistance reading
RESIST
page 23 of 44
EVCO S.p.A. c-pro 3 NODE kilo | Hardware manual ver. 1.0 | Code 114CP3NKE104
type of probe analog port 2
PTC
= PTC probe
= NTC probe
NTC
= Transducer 0-20 mA
0-20mA
4-20mA
= Transducer 4-20 mA
AI2 - - - - - - - - - NTC
AI3 - - - - - - - - - NTC
= Transducer 0-5 V ratiometric
0-5V
= Transducer 0-10 V
0-10V
PT1000
= Pt 1000 probe
= Type 2 NTC probe
NTCK2
= Type 3 NTC probe
NTCK3
RESIST
= electric resistance reading
type of probe analog port 3
= PTC probe
PTC
NTC
= NTC probe
= Transducer 0-20 mA
0-20mA
= Transducer 4-20 mA
4-20mA
0-5V
= Transducer 0-5 V ratiometric
= Transducer 0-10 V
0-10V
= Pt 1000 probe
PT1000
NTCK2
= Type 2 NTC probe
= Type 3 NTC probe
NTCK3
= electric resistance reading
RESIST
AI4 - - - - - - - - - NTC
AI5 - - - - - - - - - NTC
AI6 - - - - - - - - - NTC
type of probe analog port 4
= PTC probe
PTC
NTC
= NTC probe
= Pt 1000 probe
PT1000
NTCK2
= Type 2 NTC probe
= Type 3 NTC probe
NTCK3
= electric resistance reading
RESIST
type of probe analog port 5
PTC
= PTC probe
= NTC probe
NTC
PT1000 = Pt 1000 probe
NTCK2
= Type 2 NTC probe
= Type 3 NTC probe
NTCK3
= electric resistance reading
RESIST
type of probe analog port 6
PTC
= PTC probe
= NTC probe
NTC
= Pt 1000 probe
PT1000
NTCK2
= Type 2 NTC probe
= Type 3 NTC probe
NTCK3
RESIST
= electric resistance reading
page 24 of 44
EVCO S.p.A. c-pro 3 NODE kilo | Hardware manual ver. 1.0 | Code 114CP3NKE104
analog ports time-out (if no communication with an analog port
Al Err Time 0 240 s 2
AO impulse 1 50 ms/10 20 duration of the cut phase impulse
AO1 - - - - - - - - - 0-10V
freq 10 2000 Hz 1000 frequency of the analog port 1 PWM-type signal
delay ph. 0 50 ms/10 0 displacement of the phase-cutting impulse from analog port 1
AO2 - - - - - - - - - 0-10V
is detected after this span of time, the controller notifies an
analog input error)
type of signal analog port 1
FAN
= FAN (for cut phase module)
= 0-10 V
0-10V
PWM
= PWM (Pulse With Modulation)
type of signal analog port 2
FAN
= FAN (for phase-cutting module)
= 0-10 V
0-10V
PWM
= PWM (Pulse With Modulation)
freq 10 2000 Hz 1000 frequency of the analog port 2 PWM-type signal
delay ph. 0 50 ms/10 0 displacement of the phase-cutting impulse from analog port 2
type of signal analog port 3
0-20mA
AO3 - - - - - - - - - 0-10V
I/O Timeout
(1)
AI1 filter OFF ON - - - ON analog input 1 filter coefficient
AI2 filter OFF ON - - - ON analog input 2 filter coefficient
AI3 filter OFF ON - - - ON analog input 3 filter coefficient
AI4 filter OFF ON - - - ON analog input 4 filter coefficient
1 240 s 60
= 0-20 mA
= 4-20 mA
4-20mA
= 0-10 V
0-10V
CANBUS commun ication time-out to check the remote I/O values
(after this span of time has elapsed with no CANBUS
communication, the controller I/O is disabled)
AI5 filter OFF ON - - - ON analog input 5 filter coefficient
AI6 filter OFF ON - - - ON analog input 6 filter coefficient
DI1 filter OFF ON - - - ON digital input 1 filter coeffic ient
DI2 filter OFF ON - - - ON digital input 2 filter coeffic ient
page 25 of 44
EVCO S.p.A. c-pro 3 NODE kilo | Hardware manual ver. 1.0 | Code 114CP3NKE104
DI3 filter OFF ON - - - ON digital input 3 filter coeffic ient
DI4 filter OFF ON - - - ON digital input 4 filter coeffic ient
DI5 filter OFF ON - - - ON digital input 5 filter coeffic ient
access to the level first page enabled by pressing a combination
of keys
= yes, proceeding as follows:
YES
- keep the ENTER key pressed for 3 sec. to
En. Prg
Level (1)
- - - - - - - - - NO
- keep the ENTER and ESC keys pressed
access the first page of leve l 1
for 3 sec. to access the first page of level
2
- keep the LEFT and RIGHT keys pressed
for 3 sec. to access the first page of level
3
restriction between the access passwords of the various leve ls
NO
Password
indi (1)
Ena BkMem
RTC (1)
Backlight (2) - - - - - - - - - TIME
B. Time (2) 0 60 s 240
Contrast (2) 0 100 - - - 50 display contrast
- - - - - - - - - NO
- - - - - - - - - YES clock and backup storage functions enabled
= It is not necessary to set a password to access
= it is necessary to set a password to access each
YES
type of backlight
OFF
= the backlight is never on
= the backlight is always on
ON
= the backlight stays on for the period of time after
TIME
backlight duration (only if the Backlight parameter is set in TIME
mode)
the levels below the one already accessed
level
the latest key operation set with the B. Time
parameter
Date Char
Sep (2)
Year format
(2)
- - - - - - - - - / date separator ASCII character
year format
- - - - - - - - - YY
page 26 of 44
= two digits (e.g. 13)
YY
YYYY
= four digits (e.g. 2013)
EVCO S.p.A. c-pro 3 NODE kilo | Hardware manual ver. 1.0 | Code 114CP3NKE104
date format
Date format
(2)
Time Char
Separator
(2)
- - - - - - - - - D-M-Y
- - - - - - - - - : time separator ASCII character
D-M-Y = day, month and year
= month, day and year
M-D-Y
= year, month and day
Y-M-D
Time With
Sec (2)
Time AM/PM
(2)
- - - - - - - - - YES
- - - - - - - - - NO
time displayed with seconds
= yes
YES
time format
= 24 h (e.g. 15:20)
NO
= 12 h (e.g. 3:20 PM)
YES
page 27 of 44
EVCO S.p.A. c-pro 3 NODE kilo | Hardware manual ver. 1.0 | Code 114CP3NKE104
6.5.3 Configuration parameters of the "CAN Bus" sub-menu of the "Networks" menu
The following table shows the meaning of the configuration parameters of the "CAN Network" section of the "CAN Bus" sub-menu or the
"Networks" menu.
PARAM. MIN. MAX. M. U. DEF. DESCRIPTION
MyNode 1 127 - - - 1 local CAN node or device address
Master - - - - - - - - - YES
Baud - - - - - - - - - 20K
Timeout 1 60 s 5
Network
Node
TSEG1 - - - - - - - - - - - - reserved
[1] 0 [32] 127 - - - [1] 99
enabled to function as master in a CAN network
= yes
YES
baud rate of the CAN-type communication
= 20.000 baud
20K
50K
= 50.000 baud
= 125.000 baud
125K
= 500.000 baud
500K
remote CAN-type communication timeout, i.e., communication
with the other network elements (after the time set with this
parameter has elapsed with no CAN-type communication with an
element, the element is disabled).
address of the CAN nodes or of the other network elements (e.g.
for [1] 2)
[1]
= node
= node address
2
TSEG2 - - - - - - - - - - - - reserved
SJW - - - - - - - - - - - - reserved
BTR - - - - - - - - - - - - reserved
CAN machine status
INIT
= initia lisation
Status parameter available in read-only mode
Bus Status parameter available in read-only mode
Cnt Rx parameter available in read-only mode number of packets received
STOPPED
OPERAT
PRE-OP
CAN bus status
OK
WARNING
PASSIVE
BUS OFF
= stop CAN
= operating
= in pre-operating mode
= status OK
= attention
= bus in receiving mode on ly
= bus stopped
page 28 of 44
EVCO S.p.A. c-pro 3 NODE kilo | Hardware manual ver. 1.0 | Code 114CP3NKE104
Cnt Tx parameter available in read-only mode number of packets sent
Cnt Ovf parameter available in read-only mode number of overflow packets
Cnt Passive parameter available in read-only mode number of passages to the passive state
Cnt Bus Off parameter available in read-only mode number of passages to the passive state
6.5.4 Configuration parameters of the "UART1" sub-menu of the "Networks" menu
The following table shows the meaning of the configuration parameters of the "UART1" sub-menu or the "Networks" menu concerning
the RS-485 MODBUS master/slave port.
The parameters are visible if the application software allows the port to be configured to support the MODBUS communication protocol.
PARAM. MIN. MAX. M. U. DEF. DESCRIPTION
Address 1 247 - - - 1
Baudrate - - - - - - - - - 9600
Parity - - - - - - - - - EVEN
Stop - - - - - - - - - 1 BIT
MODBUS address of the device (significant only if the
communication protocol is of the MODBUS slave type)
baud rate of the MODBUS-type communication
1200 = 1.200 baud
= 2.400 baud
2400
4800
= 4.800 baud
= 9.600 baud
9600
= 19.200 baud
19200
28800
= 28.800 baud
= 38.400 baud
38400
= 57.600 baud
57600
MODBUS-type communication parity
NONE
= none
= odd
ODD
EVEN
= even
number of stop bits of the MODBUS-type communication
1 BIT = 1 bit
= 2 bit
2 BIT
Timeout 2 240 s 10
Polarization - - - - - - - - - NO
local MODBUS-type commun ication timeout, i.e., dev ice timeout
(this parameter sets a delay from the sending of a request after
which, if no answer is received, the request sending is considered
failed and the next request is sent; it is significant only if the
communication protocol is of the MODBUS master type).
RS-485 MODBUS slave port polarisation
NO
= the device does not polarise the RS-485 slave
port
YES
= the device polarises the RS-485 slave port
page 29 of 44
EVCO S.p.A. c-pro 3 NODE kilo | Hardware manual ver. 1.0 | Code 114CP3NKE104
6.5.5 Configuration parameters of the "UART2" sub-menu of the "Networks" menu
The following table shows the meaning of the configuration parameters of the "UART2" sub-menu or the "Networks" menu concerning
the RS-485 MODBUS slave port.
The parameters are visible if the application software allows the port to be configured to support the MODBUS communication protocol.
PARAM. MIN. MAX. M. U. DEF. DESCRIPTION
Address 1 247 - - - 1
Baudrate - - - - - - - - - 9600
Parity - - - - - - - - - EVEN
Stop - - - - - - - - - 1 BIT
MODBUS address of the device (significant only if the
communication protocol is of the MODBUS slave type)
baud rate of the MODBUS-type communication
1200 = 1.200 baud
2400
= 2.400 baud
= 4.800 baud
4800
= 9.600 baud
9600
19200
= 19.200 baud
= 28.800 baud
28800
= 38.400 baud
38400
57600
= 57.600 baud
MODBUS-type communication parity
= none
NONE
ODD
= odd
= even
EVEN
number of stop bits of the MODBUS-type communication
1 BIT = 1 bit
2 BIT
= 2 bit
local MODBUS-type commun ication timeout, i.e., dev ice timeout
(this parameter sets a delay from the sending of a request after
Timeout 2 240 s 10
which, if no answer is received, the request sending is considered
failed and the next request is sent; it is significant only if the
communication protocol is of the MODBUS master type).
6.5.6 Configuration parameters of the "Ethernet" sub-menu of the "Networks" menu
The following table shows the meaning of the configuration parameters of the "Ethernet" sub.menu of the "Networks" menu.
PARAM. MIN. MAX. M. U. DEF. DESCRIPTION
MAC parameter available in read-only mode reserved
Eth IP - - - - - - - - - - - - IP address
Subnet Mask - - - - - - - - - - - - - - - - subnet Mask
Adr Gateway - - - - - - - - - - - - - - - - gateway address
page 30 of 44
EVCO S.p.A. c-pro 3 NODE kilo | Hardware manual ver. 1.0 | Code 114CP3NKE104
Port MB
Slave
Port MB
Master
NumReboot parameter available in read-only mode reserved
- - - - - - - - - - - - MODBUS slave port
- - - - - - - - - - - - MODBUS master port
6.5.7 Configuration parameters of the "USB" sub-menu of the "Networks" menu
The following table shows the meaning of the configuration parameters of the "USB" sub-menu of the "Networks" menu.
PARAM. MIN. MAX. M. U. DEF. DESCRIPTION
USB Status
Device
Device
Status Idle
Speed
parameter available in read-only mode reserved
parameter available in read-only mode reserved
6.5.8 Configuration parameters of the "Password" menu
The following table shows the meaning of the configuration parameters of the "Password" menu.
PARAM. MIN. MAX. M. U. DEF. DESCRIPTION
-32768 32768 - - - 0 value of the level 1 access password
Level 1:
- - - - - - - - - ON
-32768 32768 - - - 0 value of the level 2 access password
Level 2:
- - - - - - - - - ON
-32768 32768 - - - 0 value of the level 3 access password
enabling of the level 1 access password
OFF = no password needs to be set to access level 1
= it is necessary to set a password to access level 1
ON
enabling of the level 2 access password
OFF = no password needs to be set to access level 2
ON
= it is necessary to set a password to access level 2
Level 3:
- - - - - - - - - ON
Level 4: -32768 32768 - - - 0 value of the level 4 access password
enabling of the level 3 access password
OFF = no password needs to be set to access level 3
= it is necessary to set a password to access level 3
ON
page 31 of 44
EVCO S.p.A. c-pro 3 NODE kilo | Hardware manual ver. 1.0 | Code 114CP3NKE104
enabling of the level 4 access password
- - - - - - - - - ON
-32768 32768 - - - 0 value of the level 5 access password
OFF = no password needs to be set to access level 4
= it is necessary to set a password to access level 4
ON
Level 5:
- - - - - - - - - ON
Timeout 0 240 s 240
enabling of the level 5 access password
OFF = no password needs to be set to access level 5
= it is necessary to set a password to access level 5
ON
timeout of access passwords (after this time has elapsed from the
latest keypad operation, it is necessary to set a new password to
access the relevant level, if so required).
6.5.9 Configuration parameters of the "Diagnostics" menu
The following table shows the meaning of the configuration parameters of the "Diagnostics" menu.
PARAM. MIN. MAX. M. U. DEF. DESCRIPTION
status of non-volatile memory
Memory parameter available in read-only mode
RTC parameter available in read-only mode
OK = no error
ERR
= error
clock status
OK
= no error
= error
ERR
= data loss
LOW
DISAB
= disabled
STACK parameter available in read-only mode
5V RATIO parameter available in read-only mode
24V
SENSOR
MATH parameter available in read-only mode
parameter available in read-only mode
stack status
OK = no error
ERR = error (overflow)
status of the voltage supply of the ratiometric transducers
OK = no error
= error (voltage out of range)
ERR
status of the supply voltage of 0-20 mA, 4-20 mA and 0-10 V
transducers
OK
= no error
= error (voltage out of range)
ERR
math status
OK
= no error
ERR
= error (overflow, under flow, division by zero or
NaN)
page 32 of 44
EVCO S.p.A. c-pro 3 NODE kilo | Hardware manual ver. 1.0 | Code 114CP3NKE104
result of the upload or download of the application software
KEY PAR parameter available in read-only mode
parameters or of a configuration through USB drive.
= procedure completed successfully
OK
= procedure not completed successfully
ERR
6.5.10 Configuration parame ters of the "Debug" menu
The following table shows the meaning of the configuration parameters of the "Debug" menu.
PARAM. MIN. MAX. M. U. DEF. DESCRIPTION
Main run
time
max main
time
free stack
main
100ms run
time
100 ms max
time
free stack
100 ms
5V PROBE parameter available in read-only mode measurement of voltage supply of the ratiometric transducers
24V PROBE parameter available in read-only mode
parameter available in read-only mode application software main cycle time (in ms)
parameter available in read-only mode application software maximum main cycle time (in ms)
parameter available in read-only mode minimum free stack main (in byte)
parameter available in read-only mode application software run time timed at 100 ms
parameter available in read-only mode application software maximum run time timed at 100 ms
parameter available in read-only mode
application software free stack of the interrupt cycle at 100 ms (in
byte)
measurement of the supply voltage of 0-20 mA, 4-20 mA and 0-
10 V transducers
24V parameter available in read-only mode measurement of the supply voltage coming from the upper board
Notes:
to display the parameter, press the RIGHT key
(1)
(2)
to display the parameter, press the RIGHT key; this parameter is not available in the built-in LED and blind versions.
page 33 of 44
EVCO S.p.A. c-pro 3 NODE kilo | Hardware manual ver. 1.0 | Code 114CP3NKE104
7 ACCESSORIES
7.1 0810500018/0810500020 connection cables
7.1.1 Preliminary notes
The cables can be used to program the devices.
The 0810500018 cable is 2,0 m (6,561 ft) long; the 0810500020 cable is 0,5 m (1,640 ft) long.
7.2 4GB EVUSB4096M USB flash drive
7.2.1 Preliminary notes
The flash drive can be used to upload and download the configuration parameters of the devices.
7.3 Non opto-isolated RS-485/USB serial interface EVIF20SUXI
7.3.1 Preliminary notes
The interface makes it possible to connect the devices to the Parameters Manager set-up software system.
page 34 of 44
EVCO S.p.A. c-pro 3 NODE kilo | Hardware manual ver. 1.0 | Code 114CP3NKE104
7.4 Cut phase speed regulator for EVDFAN1 single-phase fans
7.4.1 Preliminary notes
The regulator is used to vary the fan speed.
It uses a PWM-type control signal with a max. operating current of 5 A.
7.5 CJAV31 connection kit
7.5.1 Preliminary notes
The kit is used to wire the devices.
page 35 of 44
EVCO S.p.A. c-pro 3 NODE kilo | Hardware manual ver. 1.0 | Code 114CP3NKE104
8 TECHNICAL DATA
8.1 Technical data
Purpose of the command device: operating command device.
Construction of the command
device:
Container: grey self-extinguishing.
Heat and fire protection class: D.
Dimensions:
Method of mounting the
command device:
Protection grade:
Connections
built-in electronic device.
142.0 x 128.0 x 60.0 mm (5.590 x 5.039 x 2.362 in; L x H x D); 8 DIN modules
The dimensions refer to the device with all the screw-in removable terminal boards in place.
on a DIN 35.0 x 7.5 mm (1.377 x 0.295 in) or 35.0 x 15.0 mm (1.377 x 0.590 in), track in
a control panel.
-
IP20 overall
IP40 for the front.
-
-
screw in removable terminal board, male only 3,5 mm pitch (0,137 in ) for wires
up to 1,5 mm² (0,0028 in²): power supply, analog inputs, digital inputs, analog
outputs and ports RS-485 MODBUS slave, RS-485 MODBUS master/slave and
CAN CANBUS
screw in removable terminal board, male only 5 mm pitch (0,196 in) for wires
-
up to 2,5 mm² (0,0038 in²): digital outputs
- type A USB connector: USB port
RJ45 F phone connector: MODBUS TCP Ethernet port.
-
page 36 of 44
EVCO S.p.A. c-pro 3 NODE kilo | Hardware manual ver. 1.0 | Code 114CP3NKE104
The maximum lengths of the connection cables are:
power supply: 100 m (328 ft)
-
analog inputs: 100 m (328 ft)
-
-
transducers power supply: 100 m (328 ft)
digital inputs: 100 m (328 ft)
-
analog outputs PWM: 1 m (3.280 ft)
-
-
analog outputs 0-20 mA, 4-20 mA and 0-10 V: 100 m (328 ft)
digital outputs (electromechanical relay): 100 m (328 ft)
-
digital outputs (controls for solid state relays) 100 m (328 ft)
-
-
RS-485 MODBUS slave and RS-485 MODBUS master/slave ports: 1,000 m
(3,280 ft); please refer also to the MODBUS specifications and implementation
guides available at http://www.modbus.org/specs.php
- CAN CANBUS port:
- 1.000 m (3.280 ft) with baud rate 20.000 baud
- 500 m (1.640 ft) with baud rate 50.000 baud
- 250 m (820 ft) with baud rate 125.000 baud
- 50 m (164 ft) with baud rate 500.000 baud
-
USB port: 1 m (3.280 ft)
To wire the device, the use of the CJAV31 kit (to be ordered separately) is recommended:
screw-in removable terminal boards, female only, 3.5 mm pitch (0.137 in) for wires up to
1.5 mm² (0,0028 in²) and screw-in removable terminal boards, female only, 5 mm pitch
(0.196 in) for wires up to 2.5 mm² (0,0038 in²) .
To program the device, the use of the 0810500018 or 0810500020 connection cables (to be
ordered separately) s recommended: the 0810500018 cable is 2.0 m (6.56 ft) long , the
0810500020 cable is 0.5 m (1.640 ft) long.)
-
Operating temperature:
Storage temperature: from -25 to 70 °C (from -13 to 158 °F).
Humidity for use: from 10 to 90 % relative humidity without condensate.
Command device pollution
situation:
Height at which it is used: from 0 to 2,000 m (from 0 to 6,591 ft).
Height at which it can be
transported:
Environmental standards:
EMC standards:
from -10 to 60 °C (from 14 to 140 °F) for the built-in models
from -20 to 60 °C (from -4 to 140 °F) for the blind models
-
2.
from 0 to 3,048 m (from 0 to 10,000 ft).
-
RoHS 2011/65/CE
WEEE 2012/19/EU
-
-
REACH (CE) regulation n. 1907/2006.
EN 60730-1
-
IEC 60730-1.
-
page 37 of 44
EVCO S.p.A. c-pro 3 NODE kilo | Hardware manual ver. 1.0 | Code 114CP3NKE104
24 VAC (+10 %, -15 %), 50/60 Hz (±3 Hz), 35 VA max. non insulated
-
24 VDC (-15 %, +65 %), 12 W max. non insulated
-
Power supply:
Rated impulse voltage: 4 KV.
Overvoltage category: III.
Class and structure of software: A.
supplied by a class 2 circuit.
Protect the power supply with a 2A-T 250 V fuse
If the device runs on direct current, it shall be necessary to pay attention to the polarity of
the supply voltage.
integrated (with primary lithium battery)
Clock:
Digital inputs:
Battery autonomy without power supply: 5 years at 25 °C (77 °F).
Drift: ≤ 30 s/ month at 25 °C (77 °F).
5 inputs:
3 configurable via configuration parameter for PTC, NTC or Pt 1000 probes
-
-
3 configurable via configuration parameter for PTC, NTC, Pt 1000 probes,
transducers 0-20 mA, 4-20 mA, 0-5 V ratiometric or 0-10 V.
Ratiometric transducers 0-5 V power supply: 5 VDC (+0 %, -12 %), 60 mA max.
Transducers power supply 0-20 mA, 4-20 mA e 0-10 V: 12 DC (+50 %, -25 %),
120 mA max.
The maximum current distributable by the two power supplies is 120 mA.
Digital inputs PTC (990 @ 25 °C, 77 °F)
Type of sensor:
Measurement field:
Precision:
Resolution :
Conversion time:
Protection:
KTY 81-121.
from -50 to 150 °C (from -58 to 302 °F).
±0,5 % of scale end.
0,1 °C.
100 ms.
none.
Digital inputs NTC (10 K @ 25 °C, 77 °F)
Type of sensor:
Measurement field:
Precision:
ß3435.
from -50 to 120 °C (from -58 to 248 °F).
- ±0.5 % of scale end from -40 to 100 °C
- ±1 °C from -50 to -40 °C and from 100 to 120 °C.
Resolution :
Conversion time:
Protection:
0.1 °C.
100 ms.
none.
page 38 of 44
EVCO S.p.A. c-pro 3 NODE kilo | Hardware manual ver. 1.0 | Code 114CP3NKE104
Digital inputs NTC (10 K @ 25 °C, 77 °F)
Type of sensor:
Measurement field:
Precision:
Resolution :
Conversion time:
Protection:
Digital inputs NTC (10 K @ 25 °C, 77 °F)
Type of sensor:
Measurement field:
Precision:
Resolution :
Conversion time:
Protection:
Digital inputs Pt 1000 (1 K @ 0 °C, 32 °F)
Measurement field:
Precision:
NTC type 2.
from -40 to 86 °C (from -40 to 186 °F).
±1 °C.
0,1 °C.
100 ms.
none.
NTC type 3.
from -40 to 86 °C (from -40 to 186 °F).
±1 °C.
0,1 °C.
100 ms.
none.
from -100 to 400 °C (from -148 to 752 °F).
- ±0,5 % of scale end from -100 to 200 °C
- ±2 °C from 200 to 400 °C.
Resolution :
Conversion time:
Protection:
0.1 °C.
100 ms.
none.
Digital inputs:
Digital inputs 0-20 mA and 4-20 mA
Input resistance:
Precision:
Resolution :
Conversion time:
Protection:
Digital inputs 0-5 V raziometrici and 0-10 V
Input resistance:
Precision:
Resolution :
Conversion time:
Protection: none.
5 inputs (configurable through the UNI-PRO 3 development environment for NA or NC
2 at 24 VAC/DC, 50/60 Hz/2 KHz opto-isolated; the frequency can be set
-
3 at 24VAC/DC 50/60 Hz opto-isolated.
-
Digital inputs at 24 VAC/DC, 50/60 Hz
- 24 VAC (±15 %), 50/60 Hz (±3 Hz)
Power:
≤ 200 .
±0.5 % of scale end.
0.01 mA.
100 ms.
none; maximum allowable current at each input is 25 mA.
≥ 10K .
±0.5 % of scale end.
0.01 V.
100 ms.
contact):
through the UNI-PRO 3 development environment
- 24 VDC (+66 %, -16 %).
Input resistance:
Protection:
≥ 10K .
none.
page 39 of 44
EVCO S.p.A. c-pro 3 NODE kilo | Hardware manual ver. 1.0 | Code 114CP3NKE104
Analog outputs:
Digital inputs at 24 VAC/DC, 2 KHz
- 24 VAC (±15 %), 50/60 Hz (±3 Hz)
Power:
- 24 VDC (+66 %, -16 %).
Input resistance:
Protection:
3 outputs:
2 configurable via configuration parameter for PWM or 0-10 V
-
-
1 configurable via configuration parameter for 0-20 mA, 4-20 mA or 0-10 V.
Analog outputs PWM
10 VDC (+16 %, -25 %), 10 mA max.
Power:
Frequency:
Duty:
0... 100 %.
Protection:
Analog outputs 0-20 mA and 4-20 mA
Input resistance:
Precision:
Resolution :
Conversion time:
Protection:
≥ 10K .
none.
0... 2 KHz.
none.
40... 300 .
±3 % of scale end.
0.05 mA.
1 s.
none.
Analog outputs 0-10 V
Input resistance:
Precision:
Resolution :
- ±2 % of scale end for utilities with impedance> 5 K.
Conversion time:
Protection:
7 outputs:
- according to model:
- 6 SPST electromechanical relays with 3 A res. @ 250 VAC (K1... K6)
- 2 24 VAC/DC, 600 mA max solid state relays
Digital outputs:
-
1 SPDT electromechanical relay with 3 A res. @ 250 VAC (K7).
The device guarantees double insulation between each connector of the digital outputs and
the other parts of the device.
Type 1 or Type 2 actions: Type 1.
1 K.
±3 % of scale end.
- +2 %, -5 % of scale end for utilities with impedance
from 1 to 5 K
1 s.
none.
(K1 and K2) controls and 4 SPST electromechanical relays with 3 A
res. @ 250 VAC (K3... K6)
Complementary features of Type
1 or Type 2 actions:
C.
page 40 of 44
EVCO S.p.A. c-pro 3 NODE kilo | Hardware manual ver. 1.0 | Code 114CP3NKE104
according to model:
-
Displays:
Communication port:
none (blind model)
4+4 digit custom display custom (built-in LED model)
-
single-colour LCD graphic display 128 x 64 pixel (built-in LCD model).
-
5 ports:
1 RS-485 port with MODBUS slave communication protocol
-
1 RS-485 port with communication protocol settable through the UNI-PRO 3
-
development environment for MODBUS master or MODBUS slave
-
1 CAN port with CANBUS communication protocol
-
1 USB port:
1 Ethernet port with MODBUS TCP communication protocol
-
page 41 of 44
EVCO S.p.A. c-pro 3 NODE kilo | Hardware manual ver. 1.0 | Code 114CP3NKE104
page 42 of 44
EVCO S.p.A. c-pro 3 NODE kilo | Hardware manual ver. 1.0 | Code 114CP3NKE104
c-pro 3 NODE kilo
Programmable controllers
Hardware manual ver. 1.0
PT - 16/14
Code 114CP3NKE104
This document is exclusive property of EVCO; EVCO does not
assume any liability regarding possible errors stated.
The customer (manufacturer, installer or final user) assumes
all liability regarding configuration of the device.
EVCO does not take any responsibility for damages coming by
the non-observance of additional information.
EVCO reserves the right to make any change without prejudice
the basic safety and operating features.
page 43 of 44
EVCO S.p.A. c-pro 3 NODE kilo | Hardware manual ver. 1.0 | Code 114CP3NKE104
EVCO S.p.A.
Via Feltre 81, 32036 Sedico Belluno ITALY
Tel. 0437/8422 | Fax 0437/83648
info@evco.it | www.evco.it
page 44 of 44
Loading...
