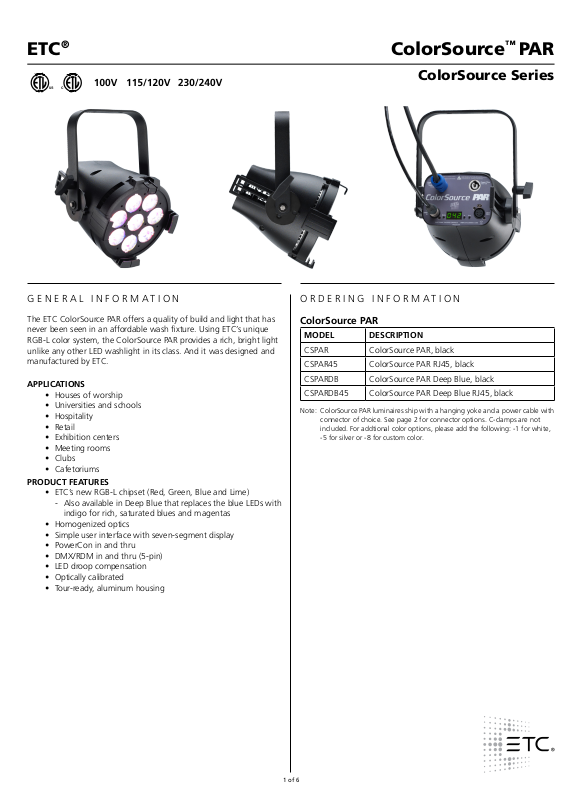

ETC CSPARDB45-0 User Manual

ETC

®

ColorSource™ PAR

ColorSource Series

GENERAL INFORMATION

The ETC ColorSource PAR offers a quality of build and light that has
never been seen in an affordable wash fixture. Using ETC’s unique
RGB-L color system, the ColorSource PAR provides a rich, bright light
unlike any other LED washlight in its class. And it was designed and
manufactured by ETC.

APPLICATIONS

• Houses of worship

• Universities and schools

• Hospitality

• Retail

• Exhibition centers

• Meeting rooms

• Clubs

• Cafetoriums

PRODUCT FEATURES

• ETC’s new RGB-L chipset (Red, Green, Blue and Lime)

- Also available in Deep Blue that replaces the blue LEDs with
indigo for rich, saturated blues and magentas

• Homogenized optics

• Simple user interface with seven-segment display

• PowerCon in and thru

• DMX/RDM in and thru (5-pin)

• LED droop compensation

• Optically calibrated

• Tour-ready, aluminum housing

ORDERING INFORMATION

ColorSource PAR

MODEL DESCRIPTION

CSPAR ColorSource PAR, black

CSPAR45 ColorSource PAR RJ45, black

CSPARDB ColorSource PAR Deep Blue, black

CSPARDB45 ColorSource PAR Deep Blue RJ45, black

Note: ColorSource PAR luminaires ship with a hanging yoke and a power cable with

connector of choice. See page 2 for connector options. C-clamps are not
included. For addtional color options, please add the following: -1 for white,

-5 for silver or -8 for custom color.

1 of 6

ETC

®

ColorSource™ PAR

ColorSource Series

SPECIFICATIONS

GENERAL

• Eight RGB-L chipset color-mixing wash luminaire

• ETL Listed to UL1573, the standard for stage and studio
lighting units

• IP20-rated for indoor use

• Power- and DMX-in/thru connections for easy setup

• Simple seven-segment, three-button interface with easy
access to 12 customizable presets and five sequences

PHYSICAL

• Rugged, die-cast, all-metal housing

• Easy-access slots for secondary lenses and standard 7.5”
PAR accessories

• Available in black (standard), white or silver (optional) or
custom colors (contact factory)

• Hanging yoke included

ELECTRICAL

• 100VAC to 240VAC 50/60Hz universal power input

• PowerCon in and thru connections

• Up to nine luminaires (15A max) may be linked via power thru
connector (10 luminaires total per circuit) when used with
R20 relay module or Unison
breaker trip curves when used with other equipment.
Requires power from a non-dimmable source

• Inrush

- 120V: 35A (First half-cycle)

- 240V: 49A (First half-cycle)

LED*

• 55,000-hour LED life (70% intensity after 55,000 hours)

• 40 Luxeon® Z LED emitters (five per optic)

*See additional LED notes on page 3

COLOR

• Exclusive RGB-L Color array

• Available with a Deep Blue array that replaces blue with
indigo

• Brightness and color range unlike any other four-color system

• Droop compensation maintains color accuracy during use

• Optically calibrated to ensure consistency across fixture

OPTICAL

• Primary field angle of 24.9° and beam angle of 14.5°

• Secondary lenses available for multiple beam-spread options

• Homoginized optics for a consistent, smooth beam

• Refer to accessories charts for lenses available

CONTROL

• Available with DMX512 in and thru via five-pin XLR or RJ45
connectors (Termination Required)

• RGB control (See DMX control table for additional
information)

• 15-bit virtual dimming engine provides smooth, high-quality
theatrical fades

• RDM functionality for address and setting changes

• Local control of presets (12) and sequences (5)

THERMAL

• Ambient operating temperature of 32° to 104°F (0° to 40°C)

• Active electronic thermal management for thermal
droop-free operation

• Variable-speed fan

• Fixture is designed for continuous operation up to 104°F
(40°C) ambient temperature and requires free flow of air
around fixture housing

®

Echo Relay Panel. Consult

ADDITIONAL ORDERING INFORMATION

Power Input Cables

Use information below to order 5’ power input leads with factory-fitted connectors.

MODEL DESCRIPTION

DPA-A 5’ PowerCon to parallel blade U-ground

(Edison) connector

DPA-B 5’ PowerCon to 20A two-pin and ground (stage-pin)

connector

DPA-C 5’ PowerCon to grounded 20A twistlock connector

DPA-X 5’ PowerCon to bare-end power input lead

Power-Thru Jumpers

Note: Power thru jumpers connect to luminaire’s output (thru) connector to provide
link to successive luminaires

MODEL DESCRIPTION

DPJ-5 5’ PowerCon to PowerCon

DPJ-10 10’ PowerCon to PowerCon

fixture to fixture jumper

fixture to fixture jumper

Luminaire Accessories

MODEL DESCRIPTION

CSPARFSY Yoke with floor-stand attachment

400BD Barn door (Use only as a flexible top hat to diminish

aperture glare. Not for beam shaping)

407CF Color Frame (use for round and oblong lenses)

400L Egg Crate Louver

400PTH3 Top Hat 3” Tube

400PTH6 Top Hat 6” Tube

400PHH Half Hat 6” Tube

400CC C-Clamp (does not ship with fixture)

400SC Safety Cable (32”)

DPSJ-25 25’ PowerCon to Edison

inline switch

2 of 6

input power cable with

ETC

Beam Angle

Field Angle

Beam Angle

Field Angle

®

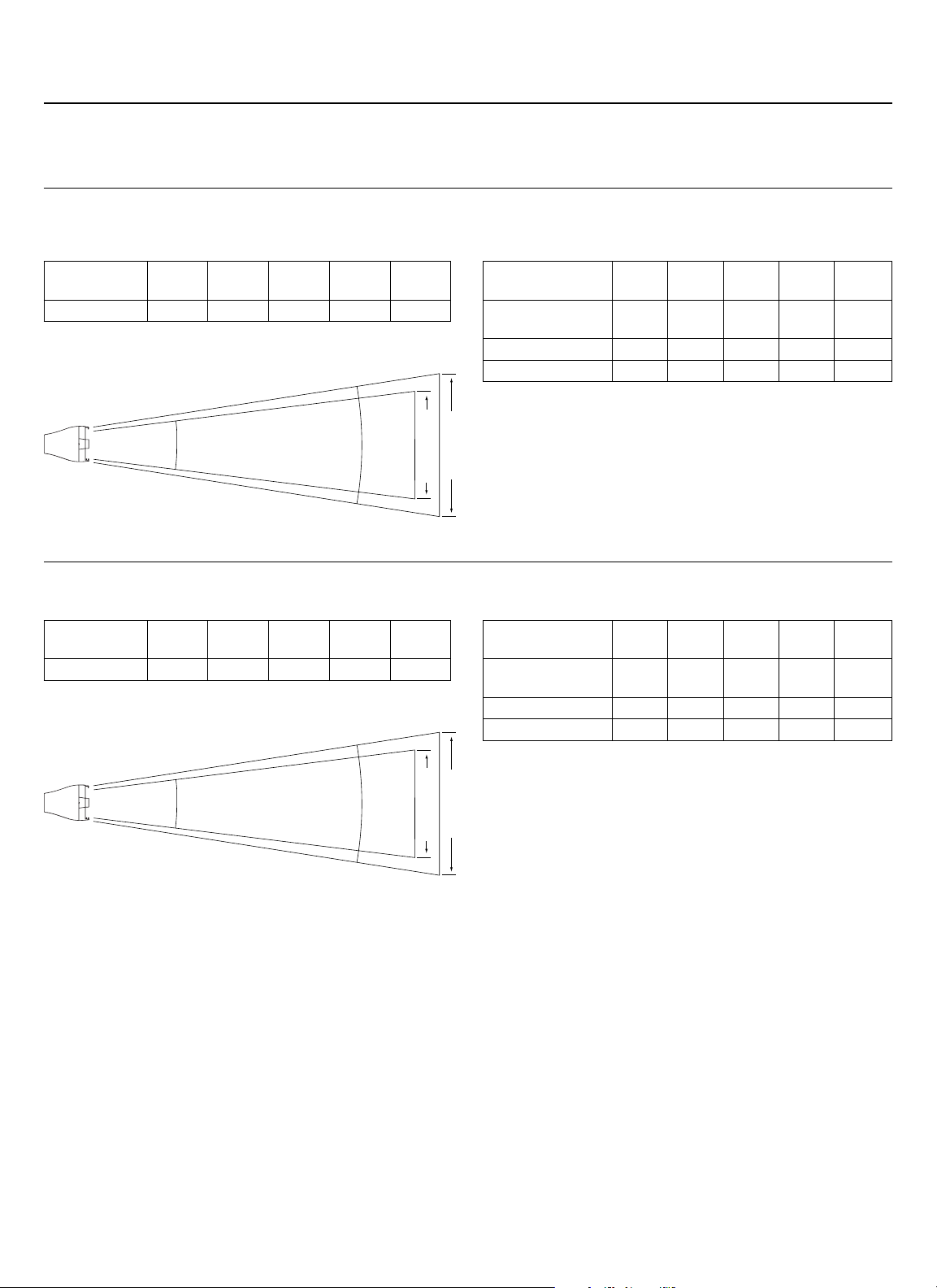

PHOTOMETRICS

ColorSource PAR

Mode Degree Candela Field

Lumens

Regulated - RGB 14.4 47,900 2,749 1,537 32

Metric conversions: For meters, multiply feet by 0.3048

For lux, multiply footcandles by 10.76

14.5˚ 24.9˚

Beam

Lumens

Lumens

Per Watt

ColorSource™ PAR

ColorSource Series

Throw Distance (d) 10ft

3.0m

Field Diameter 4.4ft

1.3m

Illuminance (fc) 474 211 119 76 1

Illuminance (lux) 5,102 2,268 1,276 816 10.76

To determine center beam illumination in footcandles at any throw distance, divide
candela by the throw distance squared

For field diameter at any distance, multiply distance by 0.442
For beam diameter at any distance, multiply by 0.254

15ft

4.6m

6.6ft

2.0m

20ft

6.1m

8.8ft

2.7m

25ft

7.6m

11ft

3.4m

217.7ft

66.4m

–

ColorSource PAR Deep Blue

Mode Degree Candela Field

Lumens

Regulated - RGB 15.32 32,627 2,129 1,273 29.8

Metric conversions: For meters, multiply feet by 0.3048

For lux, multiply footcandles by 10.76

15.3˚ 26.3˚

Beam

Lumens

Lumens

Per Watt

Throw Distance (d) 10ft

3.0m

Field Diameter 4.7ft

1.4m

Illuminance (fc) 326 145 82 52 1

Illuminance (lux) 3,512 1,561 878 562 10.76

To determine center beam illumination in footcandles at any throw distance, divide
candela by the throw distance squared

For field diameter at any distance, multiply distance by 0.467
For beam diameter at any distance, multiply by 0.269

15ft

4.6m

7.0ft

2.1m

20ft

6.1m

9.3ft

2.8m

25ft

7.6m

11.7ft

3.6m

180.6ft

55.1m

–

3 of 6

ETC

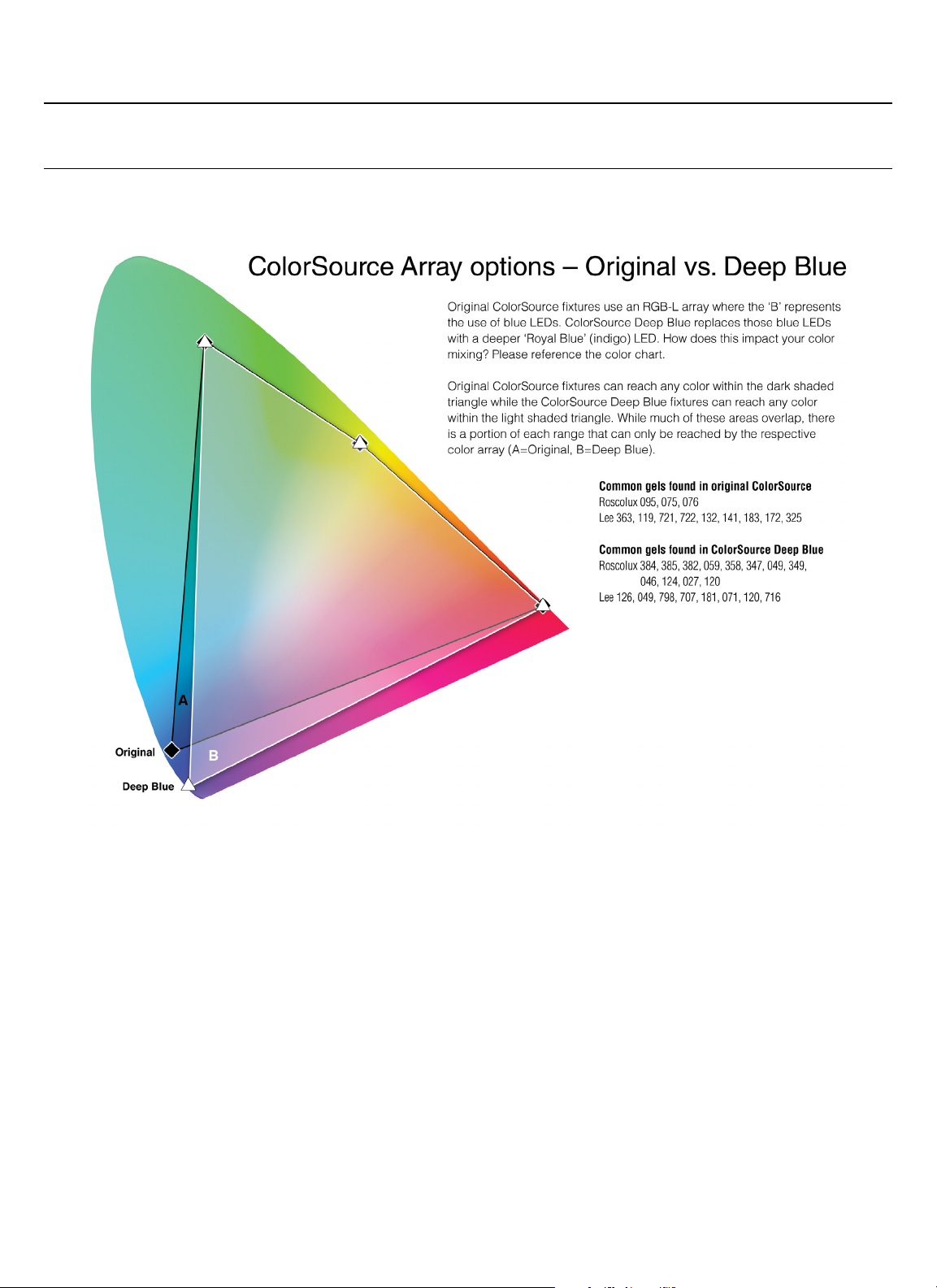

COLORSOURCE PAR VS COLORSOURCE PAR DEEP BLUE

®

ColorSource™ PAR

ColorSource Series

4 of 6

ETC

®

ColorSource™ PAR

ColorSource Series

ADDITIONAL ORDERING INFORMATION

Secondary Lens Options

MODEL DESCRIPTION: The following lenses are cut for

ColorSource luminaires and create round, linear
or oblong field patterns as described below. These
lenses are not sized for use in Selador
fixtures.

Narrow
Linear Field

Note: This is the same material as Selador
lenses

SELLVN-7.5 7.5” Very Narrow lens Linear lenses

SELLN-7.5 7.5” Narrow lens

SELLM-7.5 7.5” Medium lens

SELLW-7.5 7.5” Wide lens

SELLEW-7.5 7.5” Extra Wide lens

Round Field

SELRVN-7.5 7.5” Very Narrow lens (round field)

SELRN-7.5 7.5” Narrow lens (round field)

SELRM-7.5 7.5” Medium lens (round field)

SELRW-7.5 7.5” Wide lens (round field)

Oblong Field

SELON-7.5 7.5” Narrow lens (oblong field)

SELOM-7.5 7.5” Medium lens (oblong field)

SELOW-7.5 7.5” Wide lens (oblong field)

®

Classic

Classic

may be
combined to
create desired
field size

N

OTES ABOUT LED LUMINAIRES

All LED sources experience some lessening of light output and some
color shift over time. LED output will vary with thermal conditions.
Thermal conditions can be affected by ambient temperatures and
orientation. Based on the LED manufacturer’s B50 L70 specification,
a ColorSource luminaire will achieve ~70% of its initial output after
55,000 hours of typical usage. In individual situations, LEDs will be
used for different durations and at different levels. This can
eventually lead to minor alterations in color performance,
necessitating slight adjustments to presets, cues or programs.

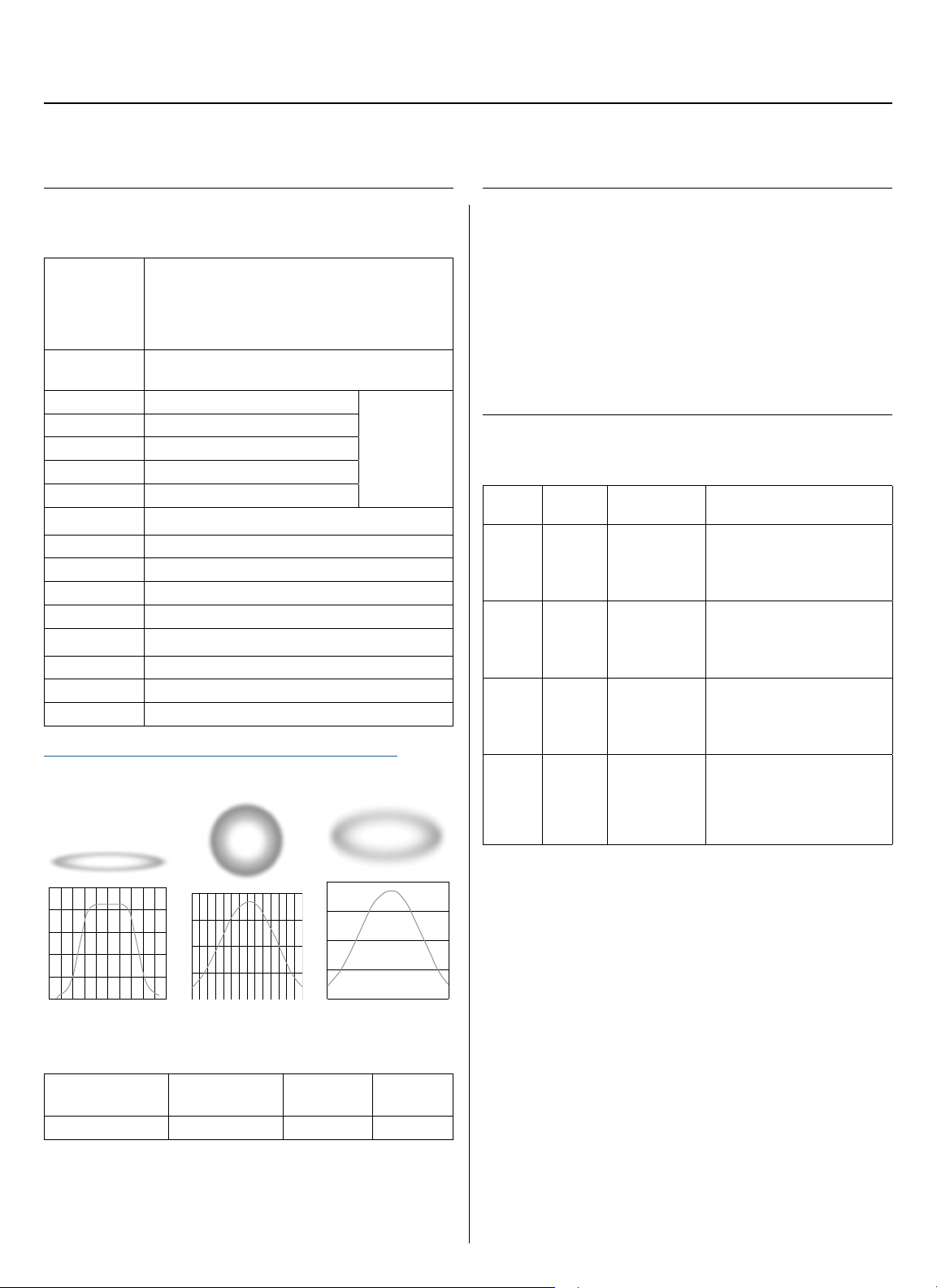

CONTROL

DMX Input Channel Profiles

DMX
Profile

5ch­Default

RGB 3 1-Red

1ch 1 1-INT This mode controls the intensity

DMX

Channels

5 1-INT

Channel

Assignments

2-Red
3-Green
4-Blue
5-Strobe

2-Green
3-Blue

Notes

of Preset 1

Desire lenses compared to Source Four PAR EA

Typical Lens Field Profiles

Round OblongNarrow Linear

Power Consumption at Full Intensity

MODEL VOLTAGE

(V)

ColorSource PAR 120 / 240 0.75 / 0.4 90/89

CURRENT

(A)

WATTS

Direct 6 1-INT

2-Red
3-Green
4-Blue/Indigo*
5-Lime
6-Strobe

*Original ColorSource PAR fixture
uses blue in channel 4; Deep
Blue ColorSource PAR fixture uses
indigo in channel 4.

5 of 6

ETC

®

PHYSICAL

ColorSource™ PAR

ColorSource Series

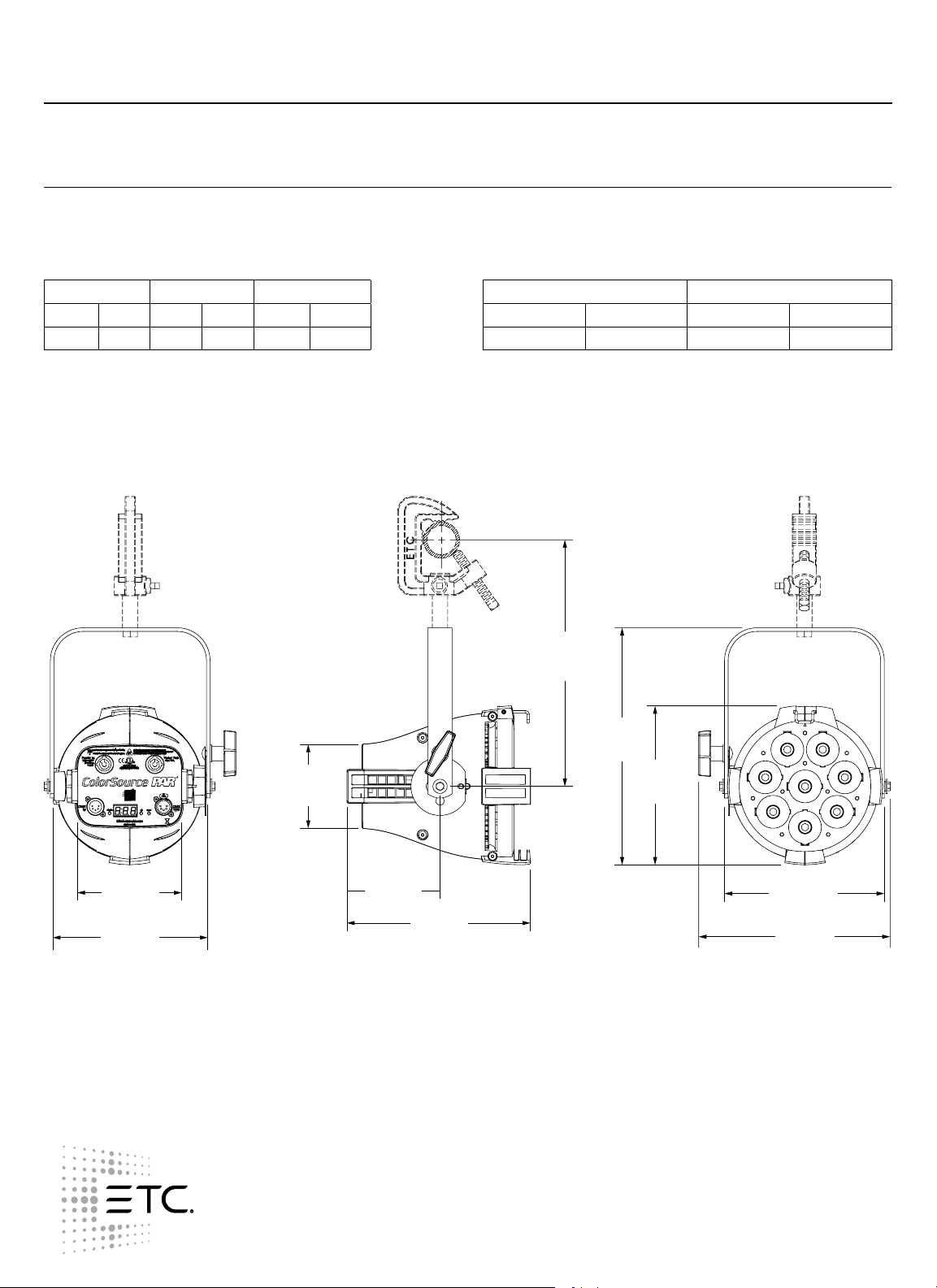

ColorSource PAR Dimensions

HEIGHT WIDTH DEPTH

inches mm inches mm inches mm

12.20 310 7.98 203 9.45 240

* Does not include mounting hardware

4.33”

110mm

ColorSource PAR Weights

WEIGHT* SHIPPING WEIGHT

lbs kgs lbs kgs

8.3 3.77 10.1 4.59

* Does not include mounting hardware

12.67”

322mm

12.20”

310mm

8.18”

208mm

5.37”

136mm

7.98”

203mm

4.80”

122mm

9.45”

240mm

8.22”

209mm

9.87”

251mm

Corporate Headquarters n 3031 Pleasant View Rd, PO Box 620979, Middleton WI 53562 0979 USA n [phone]
London, UK
Rome, IT n Via Pieve Torina, 48, 00156 Rome, Italy n [phone]
Holzkirchen, DE n Ohmstrasse 3, 83607 Holzkirchen, Germany n [phone]
Hong Kong n Room 1801, 18/F, Tower 1 Phase 1, Enterprise Square, 9 Sheung Yuet Road, Kowloon Bay, Kowloon, Hong Kong n +852 2799

1220 Web n etcconnect.com n Copyright©2017 ETC. All Rights Reserved. All product information and specifications subject to change. 7412L1000 Rev G 10/18

n Unit 26-28, Victoria Industrial Estate, Victoria Road, London W3 6UU, UK n [phone]

6 of 6
