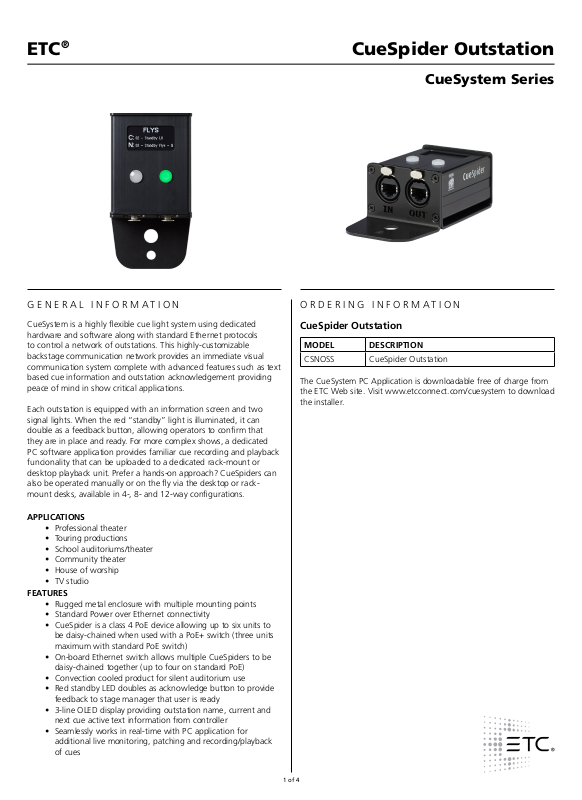

ETC CSNOSS Datasheet

®

CueSpider OutstationETC

CueSystem Series

GENERAL INFORMATION

CueSystem is a highly flexible cue light system using dedicated
hardware and software along with standard Ethernet protocols
to control a network of outstations. This highly-customizable
backstage communication network provides an immediate visual
communication system complete with advanced features such as text
based cue information and outstation acknowledgement providing
peace of mind in show critical applications.

Each outstation is equipped with an information screen and two
signal lights. When the red “standby” light is illuminated, it can
double as a feedback button, allowing operators to confirm that
they are in place and ready. For more complex shows, a dedicated
PC software application provides familiar cue recording and playback
funcionality that can be uploaded to a dedicated rack-mount or
desktop playback unit. Prefer a hands-on approach? CueSpiders can
also be operated manually or on the fly via the desktop or rack­mount desks, available in 4-, 8- and 12-way configurations.

APPLICATIONS

• Professional theater

• Touring productions

• School auditoriums/theater

• Community theater

• House of worship

• TV studio

FEATURES

• Rugged metal enclosure with multiple mounting points

• Standard Power over Ethernet connectivity

• CueSpider is a class 4 PoE device allowing up to six units to
be daisy-chained when used with a PoE+ switch (three units
maximum with standard PoE switch)

• On-board Ethernet switch allows multiple CueSpiders to be
daisy-chained together (up to four on standard PoE)

• Convection cooled product for silent auditorium use

• Red standby LED doubles as acknowledge button to provide
feedback to stage manager that user is ready

• 3-line OLED display providing outstation name, current and
next cue active text information from controller

• Seamlessly works in real-time with PC application for
additional live monitoring, patching and recording/playback
of cues

ORDERING INFORMATION

CueSpider Outstation

MODEL DESCRIPTION

CSNOSS CueSpider Outstation

The CueSystem PC Application is downloadable free of charge from
the ETC Web site. Visit www.etcconnect.com/cuesystem to download
the installer.

1 of 4

®

CUESYSTEM SYSTEM DIAGRAM

CueSpider OutstationETC

CueSystem Series

CueSystem Desk

Laptop

CueSystem

Playback Unit

Ethernet

connectivity

CueSpider Outstations

2 of 4

®

CueSpider OutstationETC

CueSystem Series

SPECIFICATIONS

ALL CUESYSTEM USER OPTIONS, PATCHING, RECORDING
AND PLAYBACK FEATURES ARE CONFIGURED LIVE USING THE
CUESYSTEM PC APPLICATION AVAILABLE FOR DOWNLOAD
FROM WWW.ETCCONNECT.COM/CUESYSTEM

GENERAL

• Independent operation of outstations from either desk or PC
software. PC may be present or not with no effect on system
operation

• CueSpider constructed of rugged aluminum extrusion

• ETC recommends the use of NEUTRIK® etherCON connectors
to minimize the risk of inadvertent device disconnection

• Red button provides standby warning - may be user
configured to flash or come on solid. When using flashing
option, red light on outstation may be pressed making it go
solid on both the outstation and desk providing visual ‘ready’
indication to stage manager

• Green LED provides GO indication

DISPLAY SCREENS – PATCH

• Shows a simple view of all connected devices complete with
IP address and local patch ID

• Free text title entry allows each channel to have a friendly
name which is displayed on the PC virtual desk display and in
the OLED display of a connected outstation

• Simple point and click patching of a desk channel to one or
more outstations

• Realtime status report provides instant notification if a device
is offline

• Identify function provides simple method of physically
locating an outstation

DISPLAY SCREENS – DEVICE DISCOVERY

• Device discovery utility operates by listening to UDP pings
from connected equipment meaning it is not necessary to
know the current IP address of a device

• Simple auto-populating list provide convenient point-and-click
access to connected devices

• Provides ability to remotely configure the IP address of a
connected device

• Firmware update tool provides simple mechanism for
checking and updating all connected network devices to
latest firwmare version

DISPLAY SCREENS – OVERVIEW

• On-board system overview allows user to import any JPEG or
PNG image file as a background similar to a lighting console
magic sheet

• Simple drag and drop placement of icons allows user to place
a graphical representation of connected outstations over
imported image for easier reference

• Outstation graphics provide real-time reporting of current
status for easy system monitoring

SPECIFICATIONS

DISPLAY SCREENS – PROGRAM

• Multiple desks may be added to the system providing simple
method of partitioning outstations if required

• Cue list entry with free text naming of cues allows stage
manager to use custom references

• Ability to insert and delete a cue

• Cue list re-number function

• No forced behavourial entry - user is free to program any
combination of channels of cue light colors

• Real-time updating to main show file

• ‘Live’ playback mode provides simple, clutter-free display
of cue list, current and next cue along with large ‘GO’ and
‘BACK’ buttons

• Blind preview of any cue in list

DISPLAY SCREENS – USER OPTIONS

• Configurable start up behavior including auto-connect to
hardware desks

• User selectable outstation behavior allows red standby light to
be flashing or solid

• User selectable GO button behavior between latching,
momentary or dual function

WINDOWS PC MINIMUM REQUIREMENTS

• Pentium P4 or higher processor (inc AMD and other
manufacturer’s equivalents)

• 2 GHz CPU clock or higher

• 1 GB RAM or higher

• Minimum 1 x RJ45 Ethernet port

• 10/100Mbps Network Interface Card or better

• Video output with 1024 x 764 display resolution or higher

• Video in 16 bit color or higher

• Windows 7, 8 or 10 operating system

• Microsoft .NET framework 3.5 or newer (installer will
download if not present

3 of 4

®

PHYSICAL

Product Dimensions

MODEL HEIGHT WIDTH DEPTH

in mm in mm in mm

CueSpider 4.88 124 2.52 64 1.69 43

Product Weight

MODEL WEIGHT SHIPPING WEIGHT

lbs kg lbs kg

CueSpider 0.46 0.21 0.80 0.36
