ETC CS-74 Administration & Setup Manual

CS-74

Administration & Setup Guide

99 AAuussttiinn DDrriivvee,, MMaarrllbboorroouugghh,, CCTT 0066444477 ((886600)) 229955--88110000 wwwwww..eesssseennttiiaalltteell..ccoomm ssaalleess@@eesssseennttiiaalltteell..ccoom

m

Table of Contents

1.0 Product Overview ........................................................................................................................................ 3

1.1 Product Description ................................................................................................................................. 3

1.2 Product features ....................................................................................................................................... 3

2.0 Administration ............................................................................................................................................... 4

2.1 Login .......................................................................................................................................................... 4

2.2 System Settings ....................................................................................................................................... 5

2.3 Menu Options ........................................................................................................................................... 6

2.4 System Information Page ...................................................................................................................... 7

2.5 Networking Page .................................................................................................................................... 8

2.6 SIP Configuration Page ......................................................................................................................... 9

2.7 Audio Settings Page .............................................................................................................................. 11

2.8 Update Firmware .................................................................................................................................. 12

2.9 Diagnostics Page .................................................................................................................................. 13

3.0 Frequently Asked Questions .................................................................................................................... 14

4.0 Appendix ..................................................................................................................................................... 16

4.1 Specifications ......................................................................................................................................... 16

5.0 CS-74 Limited Warranty ........................................................................................................................... 17

Revised June 16,2014

CS-74 Administration and Set Up Guide Page 2 Essential Trading Systems Corp.

1.0 Product Overview

1.1 Product Description

The CS-74 is a four line/channel SIP endpoint device capable of connecting 4 simultaneous SIP
calls.

1.2 Product features

• Display – Provides information such as device name, user name and line/channel
assignments as defined by administrator

• Volume Control – Each line has individual volume control so users can set levels to their
liking.

• Loud Speaker – Each CS-74 is equipped with a built in loud speaker. Administrators have
access to master volume control via web page configuration. Audio for all lines is mixed.

• LED’s – LED’s on the front panel provide status indication for device condition such as: line
registered, ring, call connected, and audio activity

• PTT Buttons – Buttons on front panel serve not only as PTT (Press to Talk) on the
respective line but in certain modes, initiate/drop a call, and activate/deactivate HandsFree
operation.

• Ethernet Hub – Each CS-74 is equipped with 2 Ethernet ports for connecting other IP
devices such as PC, IP phone, etc. or adding additional CS-74’s. Port 2 is PoE compliant
for powering the device from a PoE compliant Ethernet switch

• Local Power – Each CS-74 is equipped with a coaxial power socket for connecting an
external 48VDC power supply in the event PoE is not available

• Handset/Headset – The CS-74 can be equipped with the option to connect either a mono
headset or PTT handset. Headset connector is standard 1/8” stereo connector located on
the right side of the device. Handset connector is RJ-25 located on the back of the device.

• Gooseneck Mic – The CS-74 is typically equipped with a close talking gooseneck
microphone. For listen only models this option is removed.

CS-74 Administration and Set Up Guide Page 3 Essential Trading Systems Corp.

2.0 Administration

2.1 Login

The CS-74 is configured via browser interface. CS-74’s ship, default, set to DHCP. Upon
connection to appropriate network the device will automatically acquire an IP address via DHCP.
This address will be indicated on the device’s display during boot up.

Once the IP address has been determined, open a browser from a PC that is networked with this
device. Type the IP address into the URL bar of the browser and press enter. The CS-74 Login
screen is shown in Figure 1.

Default Username is: admin, default password is: admin. Upon logging in, administrative login
credentials can be changed to ensure security of system configuration.

Figure 1

CS-74 Administration and Set Up Guide Page 4 Essential Trading Systems Corp.

2.2 System Settings

After logging in, you are brought to the System Settings page where access to all administrative
functions of the CS-74 are presented as tabs across the top of the window. See Figure 2.

Figure 2

CS-74 Administration and Set Up Guide Page 5 Essential Trading Systems Corp.

2.3 Menu Options

The menu selections are displayed as headings across the top of the web page. Each section will
be explained in more detail later in the guide. Figure 3 shows the options available.

Figure 3

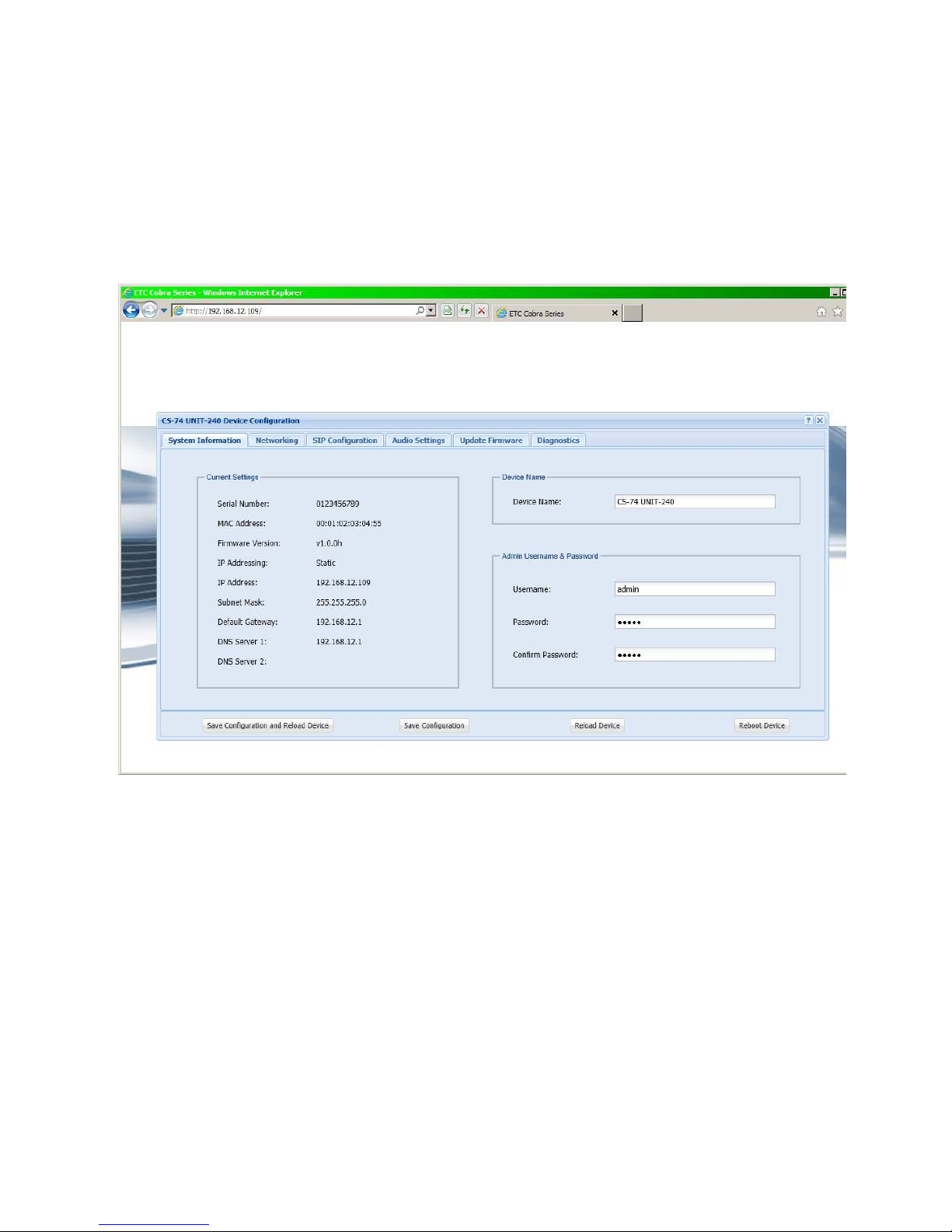

• System Information – This page displays device information and admin definable fields for
device name and login credentials

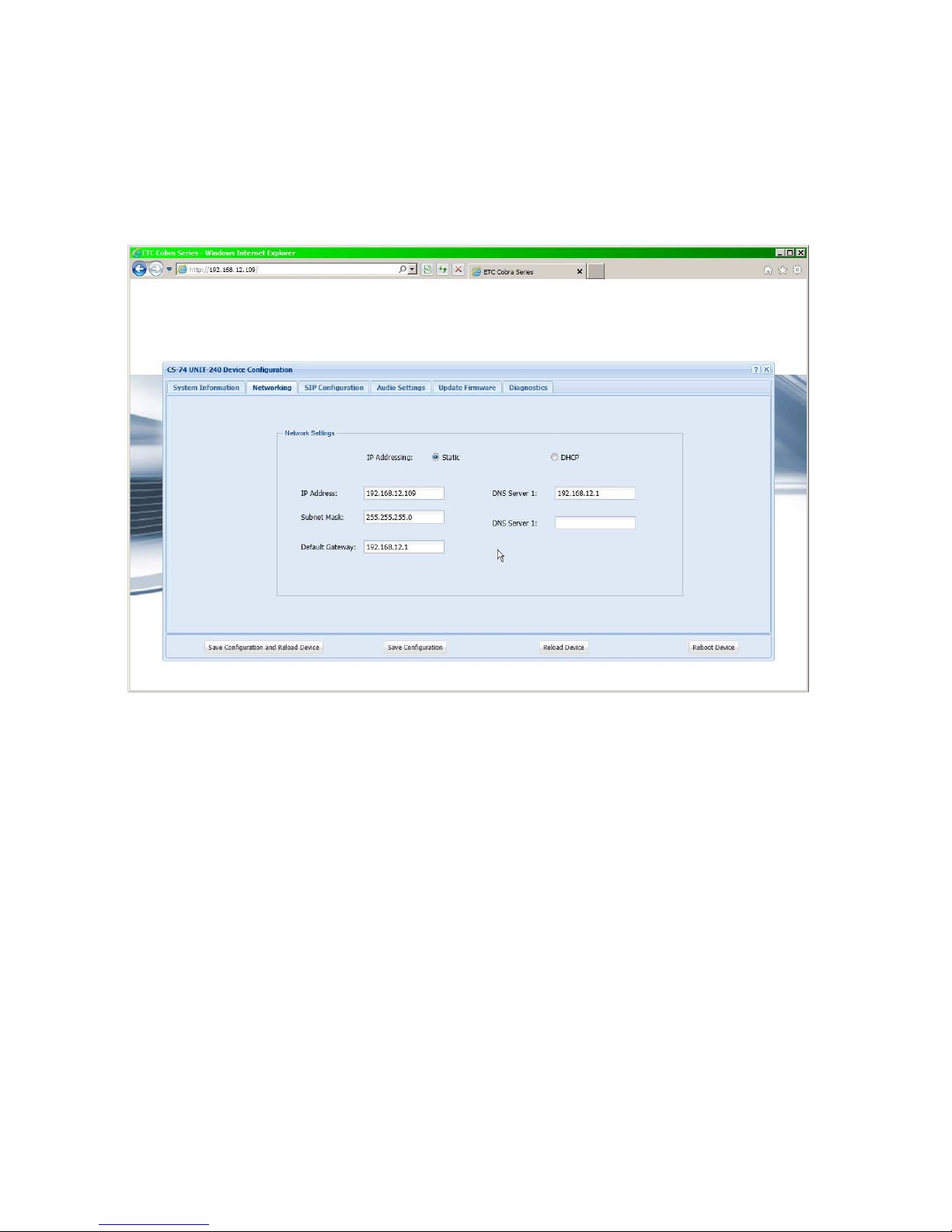

• Networking – This page allows the administrator to configure IP setting for the device and
select static or DHCP

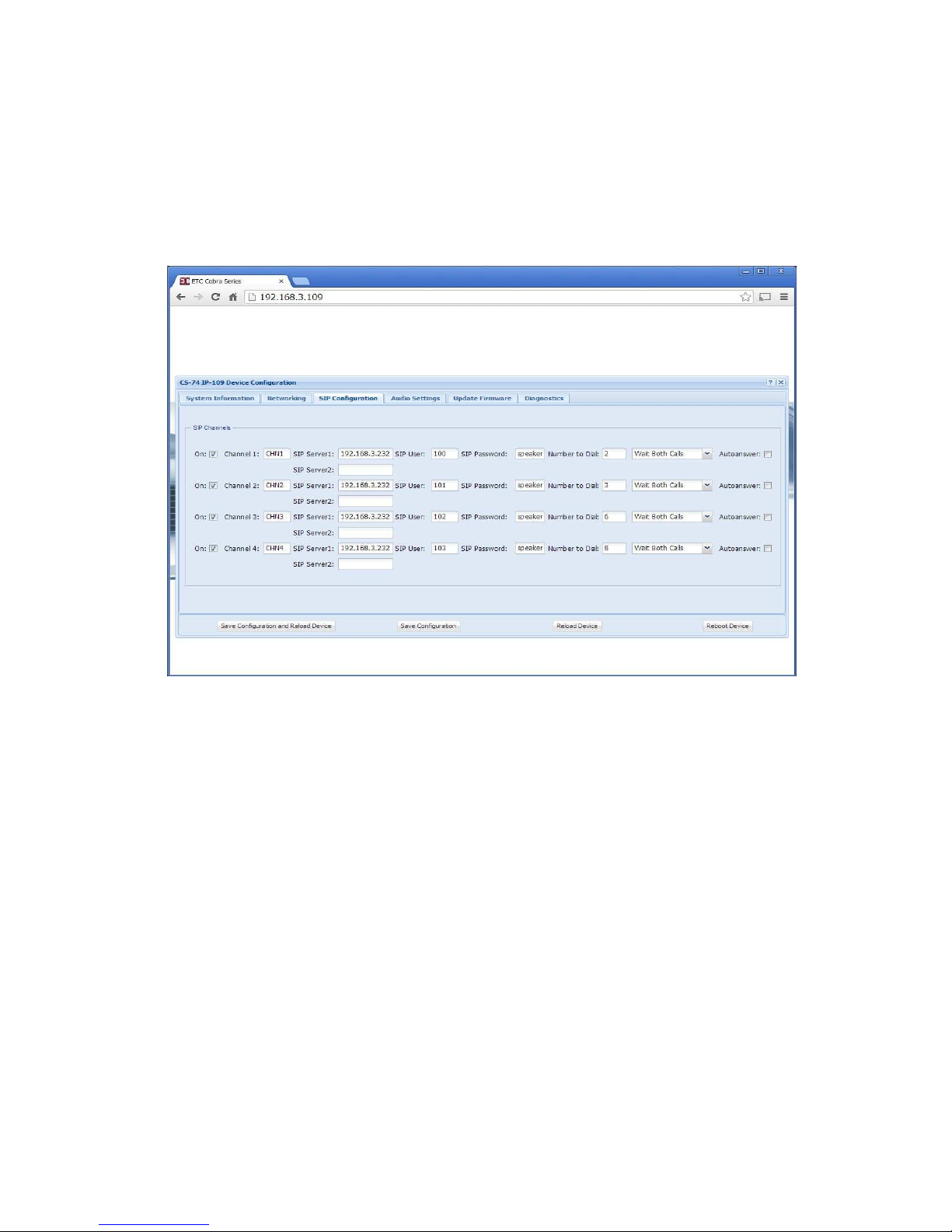

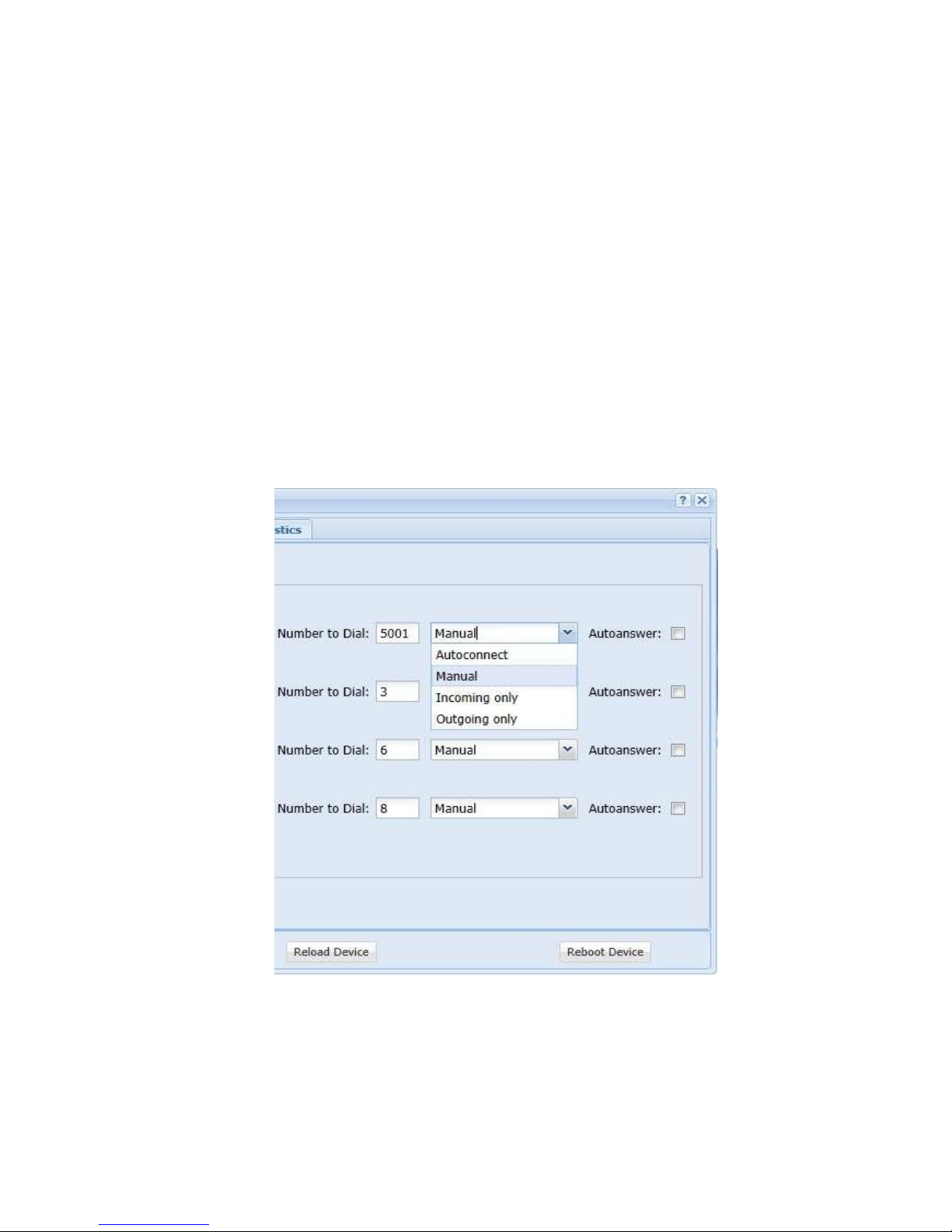

• SIP Configuration – This page allows the administrator to configure SIP related details for
each of the lines/channels

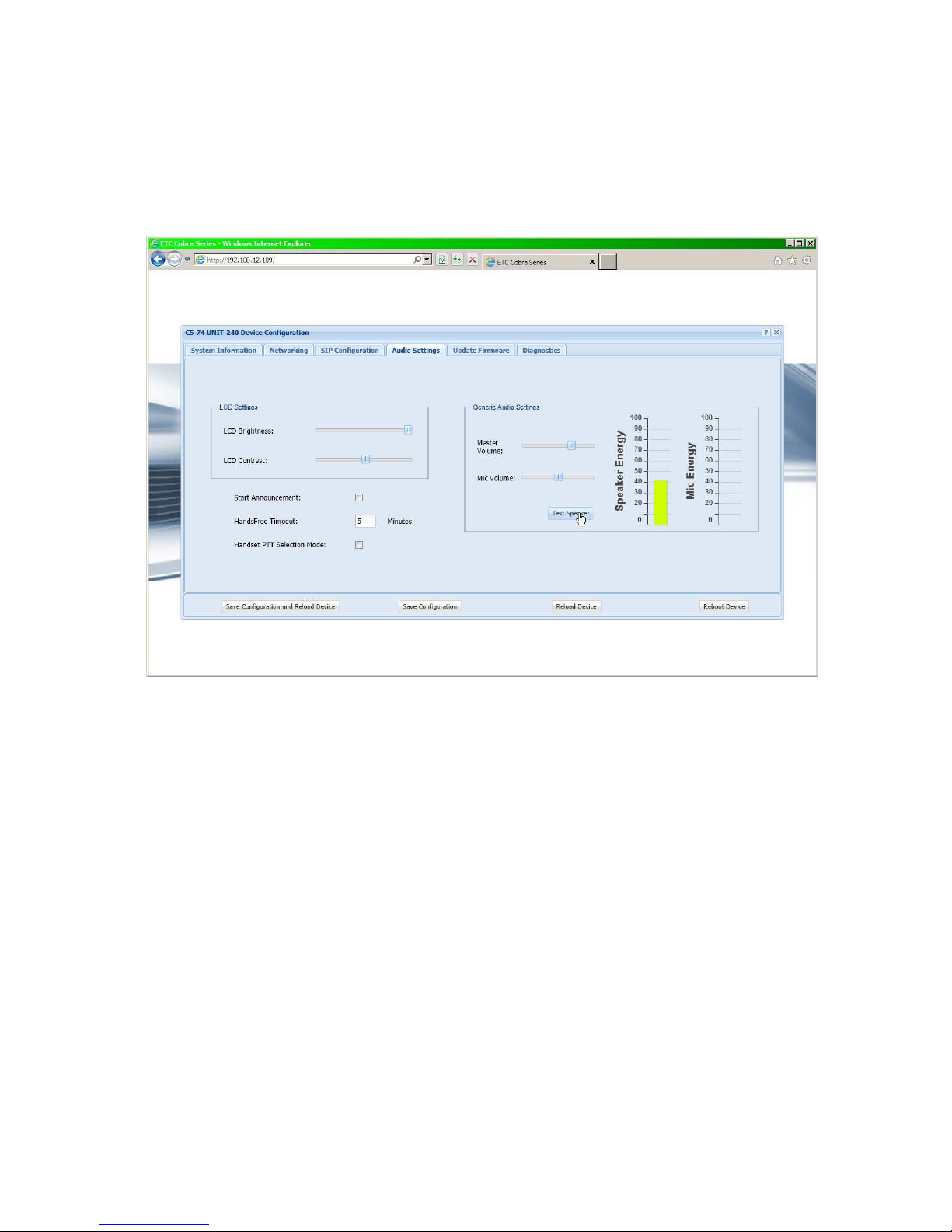

• Audio Settings – This page allows the administrator to set master volume & mic gain as well
as display brightness/contrast. Other miscellaneous settings are accessible from this
page.

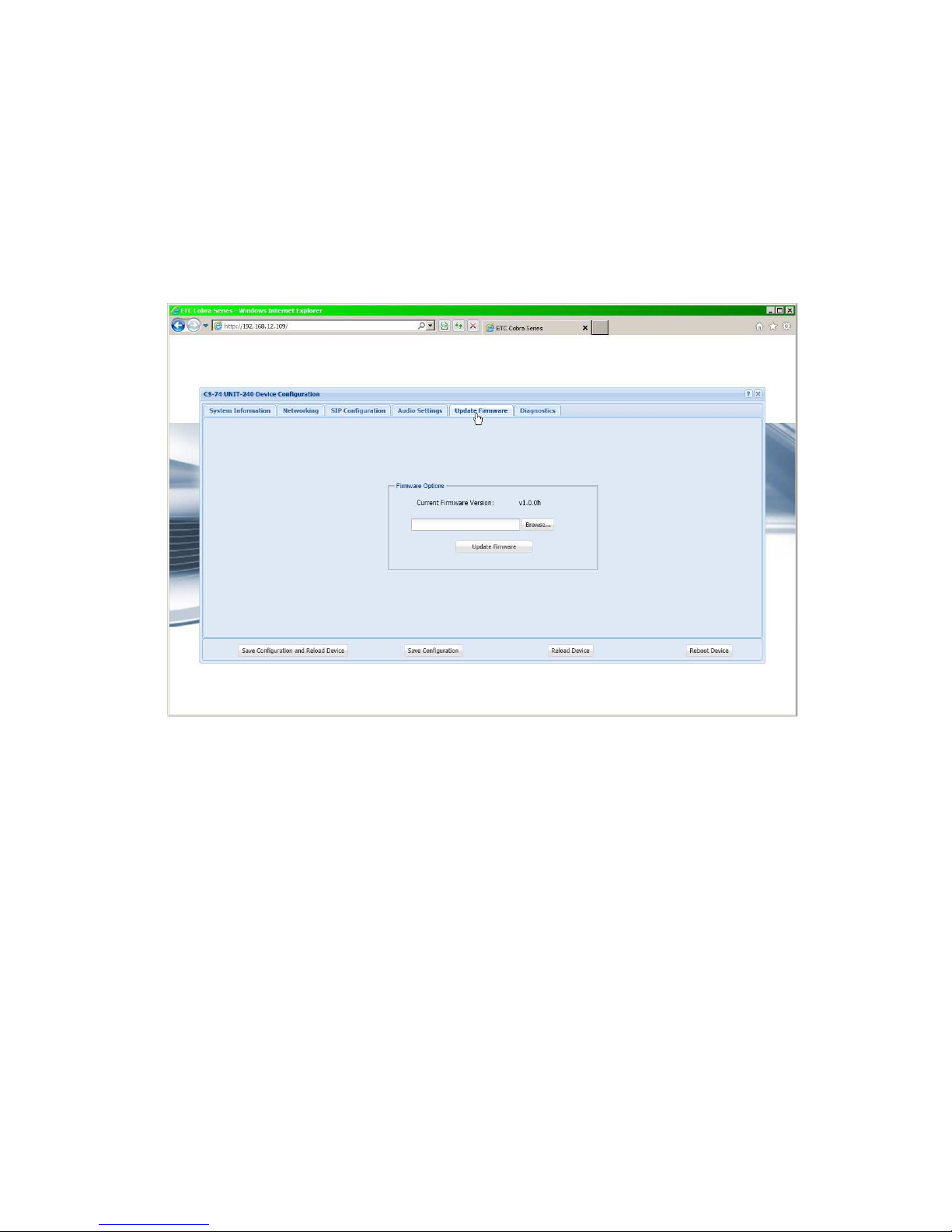

• Update Firmware – This page allows the administrator to upgrade device firmware

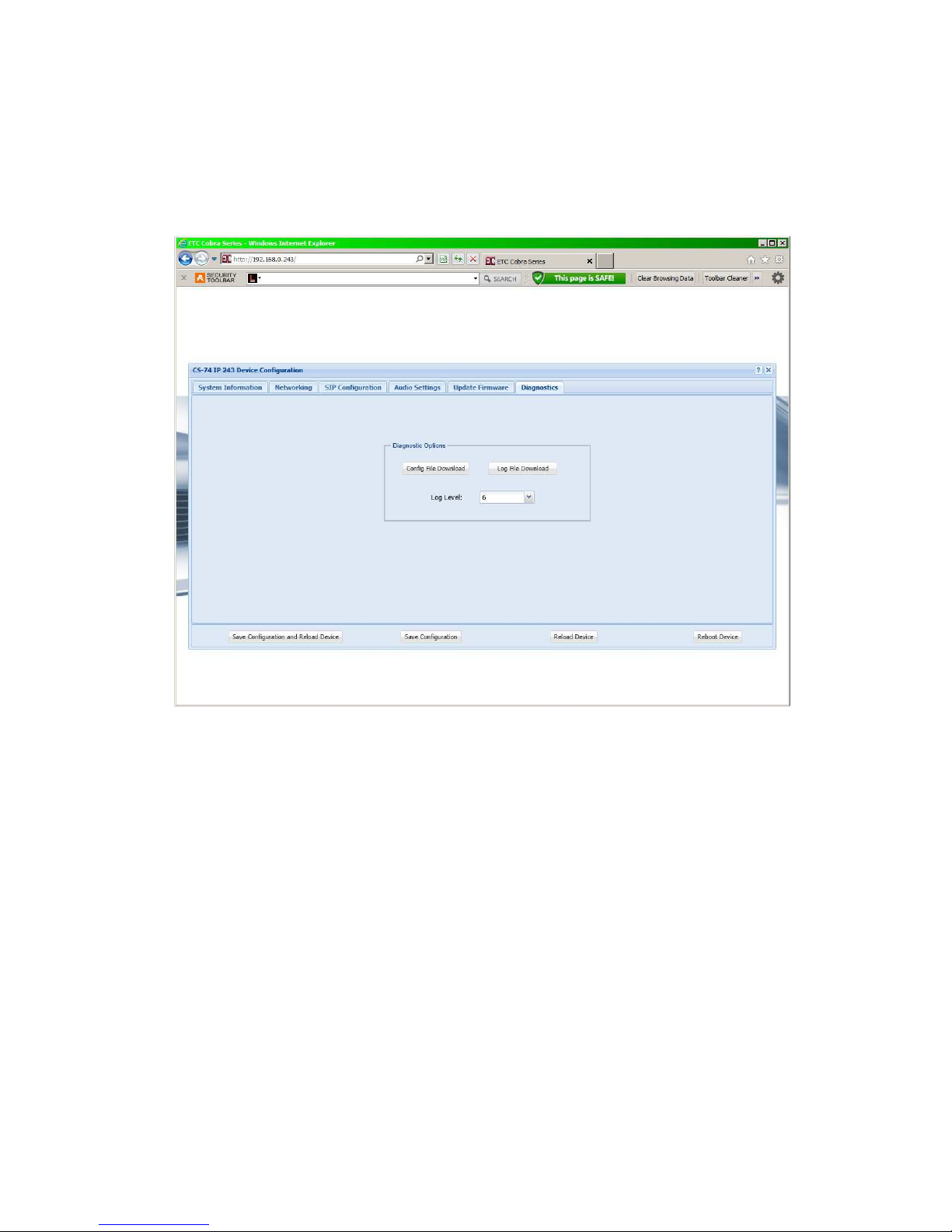

• Diagnostics – This page allows the administrator access to diagnostic tools.
