ETC ARCPD1DRDMM, ARCPD1HDRDMM, ARCPED1DRDMM Data Sheet

ArcSystem D1/D1HO/D2 DriverETC
ArcSystem Series
Date
Project
Fixture
Comments
GENERAL INFORMATION
Designed for use with ArcSystem Pro One-Cell series luminaires, the ArcSystem driver range is a convection cooled LED driver providing superior quality dimming. Each driver variant has been specifically optimized for the best possible control of its intended luminaire. With this in mind, the following chart details compatability of each variant:
DRIVER SUITABLE FOR USE WITH:
D1 Driver Pro One-Cell / Pro One-Cell Small
D1HO Driver Pro One-Cell High-Output
D2 Driver Pro One-Cell Micro
Each D1 driver provides power and control for one Pro One-Cell luminaire while the D2 can power up to 2 Pro One-Cell Micro luminaires. Intensity may be controlled directly using a wired-DMX connection to the drivers RJ45/etherCON connectors, or wirelessly using the separate ArcMesh Transmitter. An optional, wired-only, DMX/RDM version of each driver is available for projects that do not require wireless capability.
GENERAL INFORMATION
APPLICATIONS
• Auditoriums
• Worklights
• Lobbies
• Houses of worship
• Museums
• Studios
FEATURES
• Wired-DMX with wireless ArcMesh control protocols
• Wired only DMX/RDM option available
• Stepless smooth dimming to absolute zero
• Silent operation
• Convection cooled
• Suitable for air handling/plenum use
ORDERING INFORMATION
ArcSystem Drivers
MODEL CONTROL DRIVER CONSTRUCTION
ARCPD1D - D1 Standard ARCPD1DE - D1 Emergency ARCPD1HD - D1HO Standard ARCPD1HDE - D1HO Emergency ARCPD2D - D2 Standard ARCPD2DE - D2 Emergency
Blank - DMX/ArcMesh RDM - DMX/RDM
M - Metal
Note: Drivers shipped prior to August 1, 2019 feature a voltage range of 100-240 VAC. Drivers shipped after August 1, 2019 feature a 100-277 VAC range
To complete the form, simply select an option at the bottom of each column to populate the last row with your desired part number.
1 of 5
ArcSystem D1/D1HO/D2 DriverETC
PRODUCT SPECIFICATIONS (ARCSYSTEM DRIVERS)
ArcSystem Series
Control
Input method DMX-512 via RJ45 etherCON connector
Protocols DMX, ArcMesh wireless, RDM (option)
Modes (footprint) D1/D1HO: 1-channel
D2: 2-Channel
RDM configuration Yes (with RDM option)
UI type PC config app for ArcMesh option
Local control No
Notes ArcMesh wireless control requires optional TX1
transmitter
Electrical
Voltage range* 100–277 VAC hard-wired
Input method Wiring compartment with two half-inch knock-
outs at each end for field wiring
Inrush D1 Driver: 20 A at 120 VAC
D1HO Driver: 20 A at 120 VAC D2 Driver: 20 A at 120 VAC
Wattage (max / standby) D1 Driver: 25 W / <1 W
D1HO Driver: 100 W / <3 W D2 Driver: 20 W / <0.5 W
Power factor >0.9
Current draw D1 Driver: 0.20 A at 120 VAC
D1HO Driver: 0.83 A at 120 VAC D2 Driver: 0.17 A at 120 VAC
Notes *- D1 drivers shipped prior to August 2019,
feature a voltage range of 100–240 VAC. Drivers shipped after August 1, 2019 feature a 100–277
VAC range
Thermal
Ambient operating temp 0°–40° C (32°–104° F)
Fan (controllable) N/A (convection cooled)
BTUs/hour D1 Driver: 85
D1HO Driver: 341 D2 Driver: 68
Physical
Materials Die-cast aluminum and cold-rolled steel
Color options Black
Mounting options 4 screw holes in rear plate or optional recessed
bracket (see separate datasheet)
IP rating IP-20 (dry locations only)
Weight D1 Driver: 0.61 kg (1.35 lb)
D1 277 V Driver: 0.91 kg (2.00 lb) D1HO Driver: 1.14 kg (2.50 lb) D2 Driver: 0.71 kg (1.55 lb)
Warranty
Driver 5 years
Regulatory and Compliance
Approved regulatory standards
Standard version cETLus Listed Conforms to ANSI/UL STD.8750 Certified to CSA STD. C22.2 No: 250 CE Compliant
Emergency version cETLus Listed Conforms to ANSI/UL STD.924 Certified to CSA STD. C22.2 No: 141
2 of 5
D1/D1HO drivers additionally conform to: ANSI/UL STD.2043
ArcSystem D1/D1HO/D2 DriverETC
Normal Breaker Panel
ArcSystem D1 Driver with Emergency Option
Normal/ Emergency Breaker Panel
Upstream UL1008 A.T.S
Normal Branch Circuit
Used to sense normal power failure.
Connect to Sense Input on D1 Driver
Terminal Block.
Normal/Emergency Branch Circuit
Normal
Emergency
Connect to Maintained Input on
D1 Driver Terminal Block. Used to
power driver under both normal
and emergency conditions
ArcSystem Series
EMERGENCY CONNECTION
A dual-input emergency version of this driver is available. Emergency drivers have two line-voltage leads that are wired to the product and have the following functions:
• Normal power/emergency power
• Normal power sense input
If normal power to the sense input is lost, the driver will force the luminaire on at 100% overriding all other control signals. There is no control of the driver/luminaire via wireless ArcMesh or wired DMX until normal power is restored at the sense input.
ACCESSORY INFORMATION
D1/D2 Extension Cables (to Pro One-Cell Luminaire)
MODEL NUMBER DESCRIPTION
ARCDAHBC1 1 m extension cable
ARCDAHBC1 2 m extension cable
ARCDAHBC1 3 m extension cable
ARCDAHBC1 5 m extension cable
ARCDAHBC1 10 m extension cable
*NOT SUITABLE FOR D1HO/PRO ONE-CELL HIGH-OUTPUT
3 of 5
ArcSystem D1/D1HO/D2 DriverETC
ArcSystem Series
PHYSICAL
Product Dimensions Product Weight
MODEL HEIGHT WIDTH DEPTH MODEL WEIGHT SHIPPING WEIGHT
in mm in mm in mm lb kg lb kg
D1 Driver 1.56 40 9.58 243 3.49 89 D1 Driver 1.35 0.61 1.70 0.77
D1 Driver 277V 1.56 40 11.98 304 3.49 89 D1 Driver 277V 2.00 0.91 2.40 1.09
D1 HO Driver 3.03 77 9.98 253 3.49 89 D1 HO Driver 2.50 1.14 2.85 1.30
D2 Driver 1.80 46 12.00 305 2.56 64 D2 Driver 1.55 0.71 1.95 0.89
ARCSYSTEM D1 DRIVER
MODEL: ARCMD1DM
INPUT VOLTAGE: 120-240VAC FREQ: 50/60Hz CURRENT: 0.3A - 0.18A (25W) MAX
OUTPUT: VOLTAGE: 18-45VDC CURRENT: 400/600mA
ASSEMBLE ARCMD1DM ONLY WITH ARCP
Contains TX FCC ID: TYOJN5168M6 Contains Industry Canada ID IC 7438A-CYO5168M6
etcconnect.com
DRY LOCATIONS ONLY
SUITABLE FOR
AIR-HANDLING
Intertek
3060167
Conforms to ANSI/UL Std. 924
Certified to CAN/CSA C22.2 No. 141
9.58 “
(243mm)
USE
.40 “
(10mm)
3.49 “
(89mm)
1.56 “
(40mm)
ARCSYSTEM D1 DRIVER 277V
MD1DPCRA :LEDOM
:DI CCF XT sniatnoC
6M8615NJOYT
6M8615OYC-A8347
zH06/05 :QERF ,CAV772-001 :EGATLOV TUPNI
XAM )W52( A8.1 - A3.0 :TNERRUC TUPNI
CDV84 :EGATLOV TUPTUO
Am006/004 :TNERRUC TUPTUO
SECAPS GNILDNAH-RIA NI ESU ROF ELBATIUS
PI/moc.tcennoccte :ofni tnetap dna kramedarT*
:GNINRAW
CI DI adanaC yrtsudnI sniatnoC
mraH evitcudorpeR - recnaC
vog.ac.sgninraW56P.www
MOC.TCENNOCCTE
TNEMELUES SCES STNEMECALPME RUOP 02PI / YLNO SNOITACOL YRD
COHC ED EUQSIR - NOITNETTA / KCOHS FO KSIR - NOITUAC
NOITATNEMILA'L REPUOC / GNICIVRES EROFEB REWOP TCENNOCSID
mm67 NIHTIW NOITALUSNI LLATSNI TON OD NEITERTNE'L TNAVA
MC
TNALOSI'L ERTTEM SAP EN / TCUDORP EHT FO TRAP YNA FO )ni 3(
CSU
DLI
S
TE
ERIANIMUL UD EITRAP ETUOT ED )op 3( mm 67 ED SNIOM A
ketretnI
7610603
LU/ISNA ot smrofnoC 0578 .dtS
ASC/NAC ot deifitreC
0.052 .oN 2.22C
4 of 5
PHYSICAL
MDH1DPCRA :LEDOM
XAM )W001( A1.1 - A3.0 :TNERRUC TUPNI
zH06/05 :QERF ,CAV772-001 :EGATLOV TUPNI
PI/moc.tcennoccte :ofni tnetap dna kramedarT*
CDV84 :EGATLOV TUPTUO
A80.2 :TNERRUC TUPTUO
MOC.TCENNOCCTE
TNEMELUES SCES STNEMECALPME RUOP 02PI / YLNO SNOITACOL YRD
SECAPS GNILDNAH-RIA NI ESU ROF ELBATIUS
COHC ED EUQSIR - NOITNETTA / KCOHS FO KSIR - NOITUAC
NOITATNEMILA'L REPUOC / GNICIVRES EROFEB REWOP TCENNOCSID
mm67 NIHTIW NOITALUSNI LLATSNI TON OD NEITERTNE'L TNAVA
TNALOSI'L ERTTEM SAP EN / TCUDORP EHT FO TRAP YNA FO )ni 3(
ERIANIMUL UD EITRAP ETUOT ED )op 3( mm 67 ED SNIOM A
ketretnI
7610603
CSU
M
C
S
TE
DLI
:DI CCF XT sniatnoC
6M8615OYC-A8347
6M8615NJOYT
CI DI adanaC yrtsudnI sniatnoC
LU/ISNA ot smrofnoC
0.052 .oN 2.22C
0578 .dtS
ASC/NAC ot deifitreC
vog.ac.sgninraW56P.www
mraH evitcudorpeR - recnaC
:GNINRAW
ArcSystem D1 DriverETC
ArcSystem Series

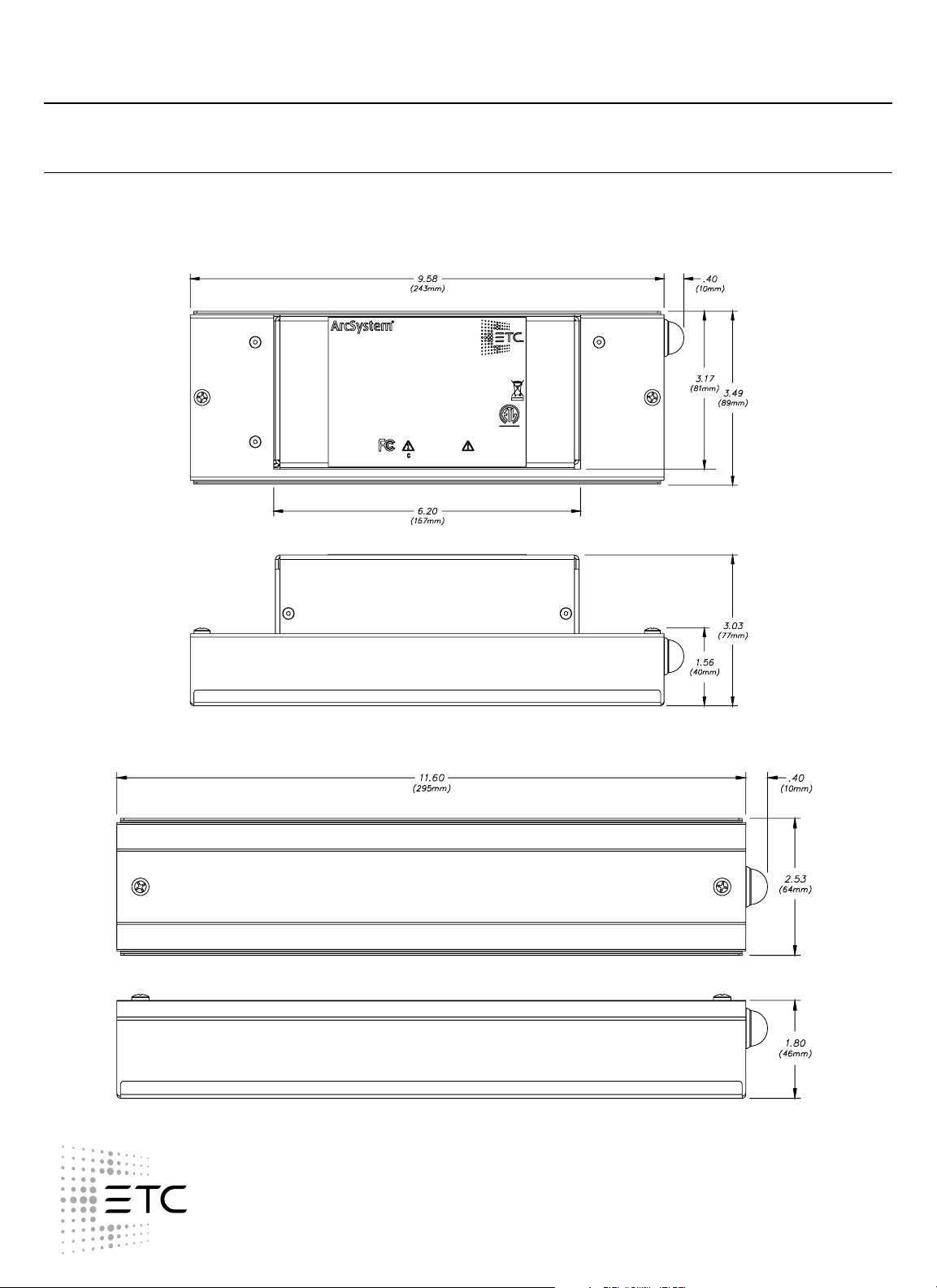

ARCSYSTEM D1 HIGH-OUTPUT DRIVER
ARCSYSTEM D2 DRIVER
Corporate Headquarters l Middleton, WI USA Global Offices l London, UK l Rome, IT l Holzkirchen, DE l Paris, FR l Hong Kong l Singapore l New York, NY l Orlando, FL l Burbank, CA
Copyright©2019 ETC. All Rights Reserved. All product information and specifications subject to change. Rev D 09/19
Trademark and patent info: etcconnect.com/IP
etcconnect.com
5 of 5
