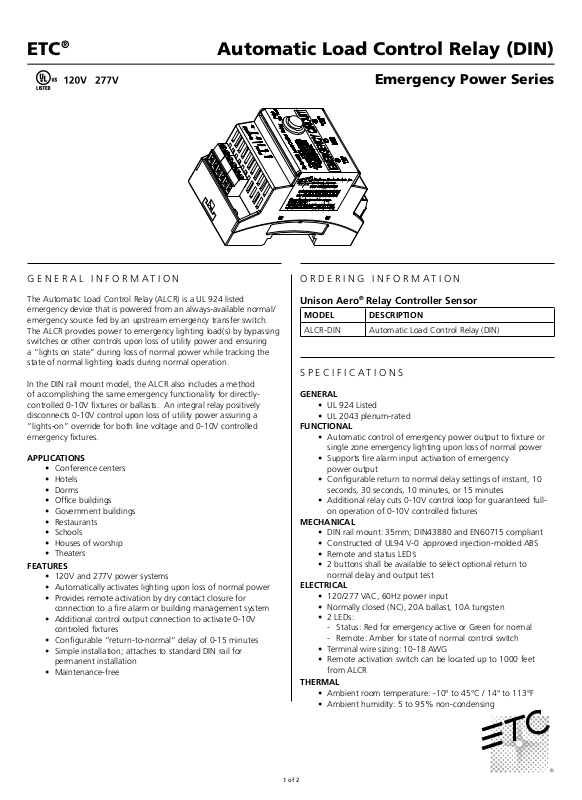

ETC ALCR-DIN Datasheet
®
Automatic Load Control Relay (DIN)ETC
Emergency Power Series
GENERAL INFORMATION
The Automatic Load Control Relay (ALCR) is a UL 924 listed
emergency device that is powered from an always-available normal/
emergency source fed by an upstream emergency transfer switch.
The ALCR provides power to emergency lighting load(s) by bypassing
switches or other controls upon loss of utility power and ensuring
a “lights on state” during loss of normal power while tracking the
state of normal lighting loads during normal operation.
In the DIN rail mount model, the ALCR also includes a method
of accomplishing the same emergency functionality for directlycontrolled 0-10V fixtures or ballasts. An integral relay positively
disconnects 0-10V control upon loss of utility power assuring a
“lights-on” override for both line voltage and 0-10V controlled
emergency fixtures.
APPLICATIONS
• Conference centers
• Hotels
• Dorms
• Office buildings
• Government buildings
• Restaurants
• Schools
• Houses of worship
• Theaters
FEATURES
• 120V and 277V power systems
• Automatically activates lighting upon loss of normal power
• Provides remote activation by dry contact closure for
connection to a fire alarm or building management system
• Additional control output connection to activate 0-10V
controled fixtures
• Configurable “return-to-normal” delay of 0-15 minutes
• Simple installation; attaches to standard DIN rail for
permanent installation
• Maintenance-free
ORDERING INFORMATION
Unison Aero® Relay Controller Sensor
MODEL DESCRIPTION
ALCR-DIN Automatic Load Control Relay (DIN)
SPECIFICATIONS
GENERAL
• UL 924 Listed
• UL 2043 plenum-rated
FUNCTIONAL
• Automatic control of emergency power output to fixture or
single zone emergency lighting upon loss of normal power
• Supports fire alarm input activation of emergency
power output
• Configurable return to normal delay settings of instant, 10
seconds, 30 seconds, 10 minutes, or 15 minutes
• Additional relay cuts 0-10V control loop for guaranteed full-
on operation of 0-10V controlled fixtures
MECHANICAL
• DIN rail mount: 35mm; DIN43880 and EN60715 compliant
• Constructed of UL94 V-0 approved injection-molded ABS
• Remote and status LED’s
• 2 buttons shall be available to select optional return to
normal delay and output test
ELECTRICAL
• 120/277 VAC, 60Hz power input
• Normally closed (NC), 20A ballast, 10A tungsten
• 2 LEDs:
- Status: Red for emergency active or Green for normal
- Remote: Amber for state of normal control switch
• Terminal wire sizing: 10-18 AWG
• Remote activation switch can be located up to 1000 feet
from ALCR
THERMAL
• Ambient room temperature: -10° to 45°C / 14° to 113°F
• Ambient humidity: 5 to 95% non-condensing
1 of 2
®
2.11”
54mm
3.53”
90mm
2.39”
61mm
PHYSICAL
Automatic Load Control Relay (DIN)ETC
Emergency Power Series
Unison Aero Relay® Controller Dimensions
*
MODEL HEIGHT WIDTH DEPTH
inches mm inches mm inches mm
ALCR-DIN 2.39 61 3.53 90 2.11 54
Unison Aero Relay Controller Weights
*
MODEL WEIGHT SHIPPING WEIGHT
ounces grams ounces grams
ALCR-DIN 14.0 397 15.2 431
*Weights and dimensions typical
ETC D20FB
module in
Sensor or
Unison Dimmer
Rack
Normal Hot (Black) Normal Switch
Emergency Hot
Emergency Neutral (Gray)
Normal Neutral (White)
Normal Hot (Black)
Emergency Hot
Emergency Neutral (Gray)
Dimmed Circuit
Dimmer Neutral (White)
Dimmer Hot Feed
Emergency Hot
Emergency Neutral (Gray)
Normal Neutral (White)
ALCR
ALCR
ALCR
(Red)
Normal Light Fixture
Emergency Load
Emergency Load
Emergency Load
Switch Control Arrangement
• When normal power is present, switch controls both
the normal and emergency light fixtures
• When normal power is lost, the emergency light
fixture(s) turn on regardless of the switch state
Emergency Light Fixture
Backup Arrangement
• When normal power is present, the emergency
load is turned off
• When normal power is lost, the emergency load
turns on
Emergency Light Fixture
Dimmer Control with D20FB
• When normal power is present, normal fixture(s) dim
and emergency fixture(s) remain off
• When normal power is lost or dimmer circuit
breaker trips, emergency fixture(s) turns on
Normal Light Fixture
Emergency Light Fixture
0-10V common
0-10V signal0-10V signal
0-10V
controller
NORMALLY CLOSED
TEST SWITCH
FIRE
SECURITY
AUTOMATIC LOAD
ONTROL RELAY
C
(ALCR-DIN)
Status
Option
LED
Button
Normal
Emergency
Out
Neutral
In
Switch
Sense
ALARM PANEL
SYSTEM
0-10V /
Remote
FLO
Loop
Remote
LED
Neutral
:
0-10V Emergency Fixture
0-10V Non-Emergency Fixture
0-10V /
Remote
0-10V Fixture Control (ALCR-DIN only)
FLO
Loop
• When normal power is present and switch is
AUTOMATED LOAD
ONTROL RELAY
C
(ALCR-DIN)
Status
Option
LED
Button
Normal
Emergency
Out
Neutral
In
Switch
Sense
Neutral
Emergency Load
Emergency Neutral (White)
Emergency Hot
