Escort MU-IN-D-8-L, MU-OE-D-8-L, MU-OE-D-16-L, MU-ST-D-8-L, MU-IN-D-16-L User Manual

Issue Date: 23 May 2011

Escort iMiniPlus PDF Logger Quick User Gu i de v1.1

Version 1.1

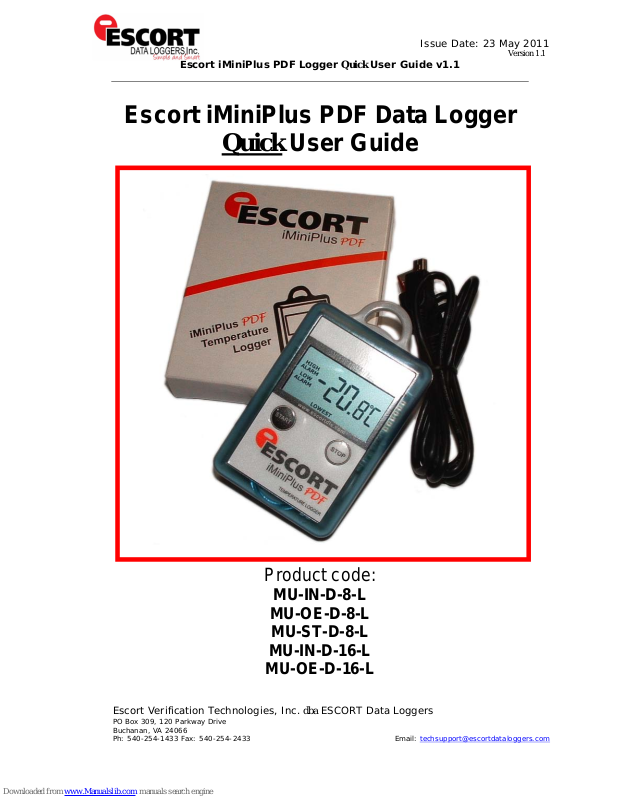

Escort iMiniPlus PDF Data Logger

Quick User Guide

Escort Verification Tec hnologies, Inc. dba ESCORT Data Loggers

PO Box 309, 120 Parkway Drive
Buchanan, VA 24066
Ph: 540-254-1433 Fax: [phone] Email: [e-mail]

Product code:

MU-IN-D-8-L

MU-OE-D-8-L

MU-ST-D-8-L

MU-IN-D-16-L

MU-OE-D-16-L

Issue Date: 23 May 2011

Escort iMiniPlus PDF Logger Quick User Gu i de v1.1

Version 1.1

Contents

1 Specifications ........................................................................................... 3

2 Getting Started – What you need ............................................................... 4

3 Front view ............................................................................................... 5

Rear view ................................................................................................ 5

4

5 How iMiniPlus PDF Logger works ................................................................ 6

6 Installing Escort Console Software to PC ..................................................... 6

7 FDA 21 CFR Part 11 compliance ................................................................. 8

8 Connecting logger to PC ............................................................................ 8

9 PDF report contents .................................................................................. 9

10 Programming logger with Escort Console ................................................... 12

10.1 Customizing PDF report and changing details ..................................... 12

10.2 Programming password ................................................................... 13

10.3 Configure Sensors and Alarm Settings............................................... 14

10.3.1 Specification and Alarm .................................................................... 14

10.3.2 LCD Display ................................................................................ 16

10.4 Checking the time clock .................................................................. 16

10.5 Setting the Start, Stop and logging duration ...................................... 17

10.5.1 Duration of trip, at least .......................................................... 17

10.5.2 Interval between each reading ................................................. 18

10.5.3 Start new log trip ................................................................... 18

10.5.4 Finish log trip ......................................................................... 18

10.5.5 Continuous logging ................................................................. 19

10.5.6 Enable stop button in this logger(s) .......................................... 19

11 Viewing logger data with PDF Reader Softwa re .......................................... 20

12 Downloading logger readings via Escort Console Pro ................................... 20

12.1 Download wizard ............................................................................ 21

13 Does Console work with PDF file? ............................................................. 22

Escort Verification Tec hnologies, Inc. dba ESCORT Data Loggers

PO Box 309, 120 Parkway Drive
Buchanan, VA 24066
Ph: 540-254-1433 Fax: [phone] Email: [e-mail]

Issue Date: 23 May 2011

Escort iMiniPlus PDF Logger Quick User Guide v1.1

iMiniPlus PDF 8K iMiniPlus PDF 16K
Operating Temperature -40°C to +70°C ( -40°F to +158°F) -40°C to +70°C ( -40°F to +158° F)
Product Code MU-IN-D-8-L MU-IN-D-16-L
MU-OE-D-8-L MU-OE-D-16-L
MU-ST-D-8-L
Sensors Internal or External options Internal or External options
LCD display Large 5 digits Large 5 digits
Start option “START” button “START” button
*"RESTART" feature with ‘START’ button
Stop option “STOP” button or PC “STOP” button or PC
Book marking YES YES
Continuous Logging mode YES YES
Display resolution 0.1 ºC 0.1 ºC
Accuracy ±0.5 ºC[-40 ºC to-10 ºC] ±0.5 ºC[-40 ºC to-10 ºC]
±0.3 ºC[-10 ºC to+70ºC] ±0.3 ºC[-10 ºC to+70ºC]
±1.0 ºF [-40°F to +14°F] ±1.0 ºF [-40°F to +14°F]
±0.6 ºF [+14° F to +158°F] ±0.6 ºF [+14° F to +158°F]
Sensor response time INT – T90 of 20 min in moving air INT – T90 of 20 min in moving air

EXT – T90 of 5 min in movi ng air EXT – T90 of 5 min in moving air
Log interval 5 seco n ds to 18 hours 5 seconds to 18 hours
Battery Low icon on LCD YES YES
Memory capacity 8048 16240
Communications USB USB
Trip counter YES YES
Lease counter YES YES
High / Low Alarms Consecutive Consecutive
Non Consecutive Non Consecutive
Catastrophe Alarm Catastrophe Alarm
Integrator Alarm Integrator Alarm
Start delay after “STAR T”

button pressed
File formats PDF, LCF, LRF, CSV, SYLK, Text PDF, LCF, LRF, CSV, SYLK, Text

Program Password
protection
LCD Display Latest, Highest, Lowest, Average Latest, Highest, Lowest, Average

Time over Specifications Time over Specifications
Time under Specifications Time under Specifications
Low/ High Alarm Low/ High Alarm
Degrees ºF or ºC Degrees ºF or ºC

*Restart fe at u re with 'START' button only applicable if pr e v ious logged tr i p has not trigger ed 'HIGH ALARM' and/or 'LO W
ALARM'

Escort Verification Tec hnologies, Inc. dba ESCORT Data Loggers

PO Box 309, 120 Parkway Drive
Buchanan, VA 24066

Ph: 540-254-1433 Fax: [phone]

Version 1.1

1 Specifications

1 minute to 4 hours 15 minutes 1 minute to 4 hours 15 minutes

YES YES

- 3 - Email: [e-mail]

Issue Date: 23 May 2011

Escort iMiniPlus PDF Logger Quick User Guide v1.1

2 Getting Started – What you need

A B C D

A: Escort Console Pro Software (Software Disk)

Version 1.1

Software is also available at www.escortdataloggers.com

B: PC Workstation or Notebook/Laptop

PDF Reader software installed

C: USB to Mini-B plug (5-pin)
D: Escort iMiniPlus PDF Data Logger

Escort Verification Tec hnologies, Inc. dba ESCORT Data Loggers

PO Box 309, 120 Parkway Drive
Buchanan, VA 24066

Ph: 540-254-1433 Fax: [phone]

- 4 - Email: [e-mail]

Issue Date: 23 May 2011

Escort iMiniPlus PDF Logger Quick User Guide v1.1

3 Front view

Display & buttons

Version 1.1

4 Rear view

USB connector, Product label and battery

Escort Verification Tec hnologies, Inc. dba ESCORT Data Loggers

PO Box 309, 120 Parkway Drive
Buchanan, VA 24066

Ph: 540-254-1433 Fax: [phone]

- 5 - Email: [e-mail]

Issue Date: 23 May 2011

Escort iMiniPlus PDF Logger Quick User Guide v1.1

The iMiniPlus PDF Logger comes with water-proof covers fo r th e USB connection
and the battery.

Make sure that when logger is in use these covers are in place. This is important
in wet or dusty environments. If covers are lost please contact your distributor
for a replacement.

When replacing the battery align one triangular mark on the battery cover
against similar shaped mark on the logger base to avoid damaging plastic lock
feature of the battery cover part.

5 How iMiniPlus PDF Logger works

iMiniPlus PDF Logger needs to be programmed by Escort Console for logging trip
before use. (16K iMiniPlus PDF loggers can be res tarted by 'START' button, if
during the program 'Restart' option is enabled only applicab le if previous logged
trip has not triggered 'HIGH ALARM' and/or 'LOW AL A RM')

There is no need to install USB drivers on PC. iMiniP lus PDF Logger is configured
as generic USB Mass Storage Device. All operating systems should install this
device automatically using default USB dr ivers.

iMiniPlus PDF does not require any proprietary software installation to download
data from logger after logging trip is finished.

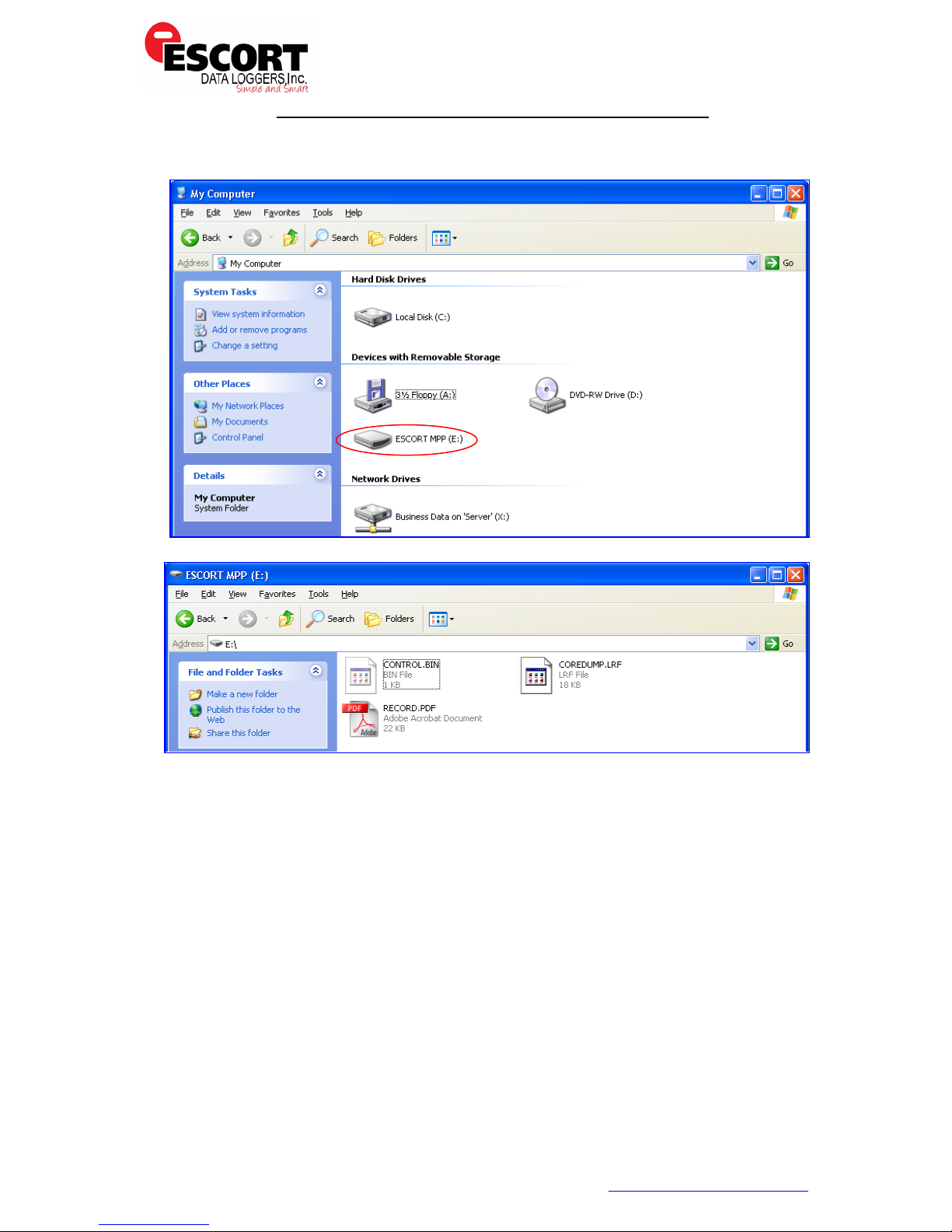

iMiniPlus PDF normally generates 3 files once connected to USB.

• PDF report. This file is used to view logger data. This file is not present if
the logger has been configured not to produce it.

• CONTROL.BIN file is used for communication purposes with Escort
software

• .LRF file is used by Escort Console to create secure .LCF file for traceable
data records.

 iMiniPlus PDF Logger does not consume battery power when connected to USB and cannot

measure or recognize change in Battery status.

iMiniPlus PDF Logger checks battery status every 15 minutes when not connected to USB and

updates Battery Low icon on LCD.

Escort Console checks battery status of the logger when programming the logger for new trip.

Please note that battery low detect circuit is only accurate when electronics and battery of the is
at room temperatures from 15 °C to 25 °C or from 59 °F to 77 °F. If logger is used in cold
environment it may report battery low prematurely on LCD display. In this case remove logger
from cold and check again battery status after 15 minutes or when the temperature of
electronics has risen to room temperature range.

Version 1.1

6 Installing Escort Console Software to PC

Install the free Escort Console Pro Software to your PC/ Laptop using either

1. The Escort Console Software CD or

Escort Verification Tec hnologies, Inc. dba ESCORT Data Loggers

PO Box 309, 120 Parkway Drive
Buchanan, VA 24066

Ph: 540-254-1433 Fax: [phone]

- 6 - Email: [e-mail]

Issue Date: 23 May 2011

Version 1.1

Escort iMiniPlus PDF Logger Quick User Guide v1.1

2. Through the escort website www.escortdataloggers.com
See instruct ion below for Website Installation
