Escort iX Ci PLATFORM Installation Manual
Intelligent Long Range Detection System
ESCORT Live App Provides
Crowd Sourced Alerts
GPS Intelligence
Rejects False Alerts
ESCORT Live App Provides
Crowd Sourced Alerts
iX Ci
Excellent Radar/Laser
Detection Range
E
x
cellent
R
adar/
L
aser
De
ection
ange
Intelligent Long Range
Detection System
iX Ci
P
L
A
T
F
O
R
M
P
L
A
T
F
O
R
M
Installation Manual
Designed and m anufactured in the USA by Escor t Inc.
ESCOR T Inc.
5440 West Ches ter Road
West Chester OH 45069
800.433. 3487
EscortRadar.com
©2018 ESCORT Inc. ESCORT ®, ESCORT iX Ci®, Laser Shif terMax®, Defender ®, AutoLearn®, TrueLock™, CruiseA lert™, AutoSensiti vity™,
SpecDispl ay™, ExpertMet er™, ESCORT Live™ , IVT Fil ter™ and SmartMute™ are t rademarks of ES CORT, Inc.
FCC NOTE:
Modi cations n ot expressly app roved by the manufac turer could void the us er’s FCC granted authori ty to operate the equ ipment.
FCC ID:QKLM4R2 . CONTAINS FCC ID:QKLBT2
This device comp lies with part 15 of the FCC rule s. Operation is sub ject to the follow ing two conditions: (1) This dev ice may not cause harmf ul
interference, and (2) this device must accept any interference received including interference that may cause undesired operation.

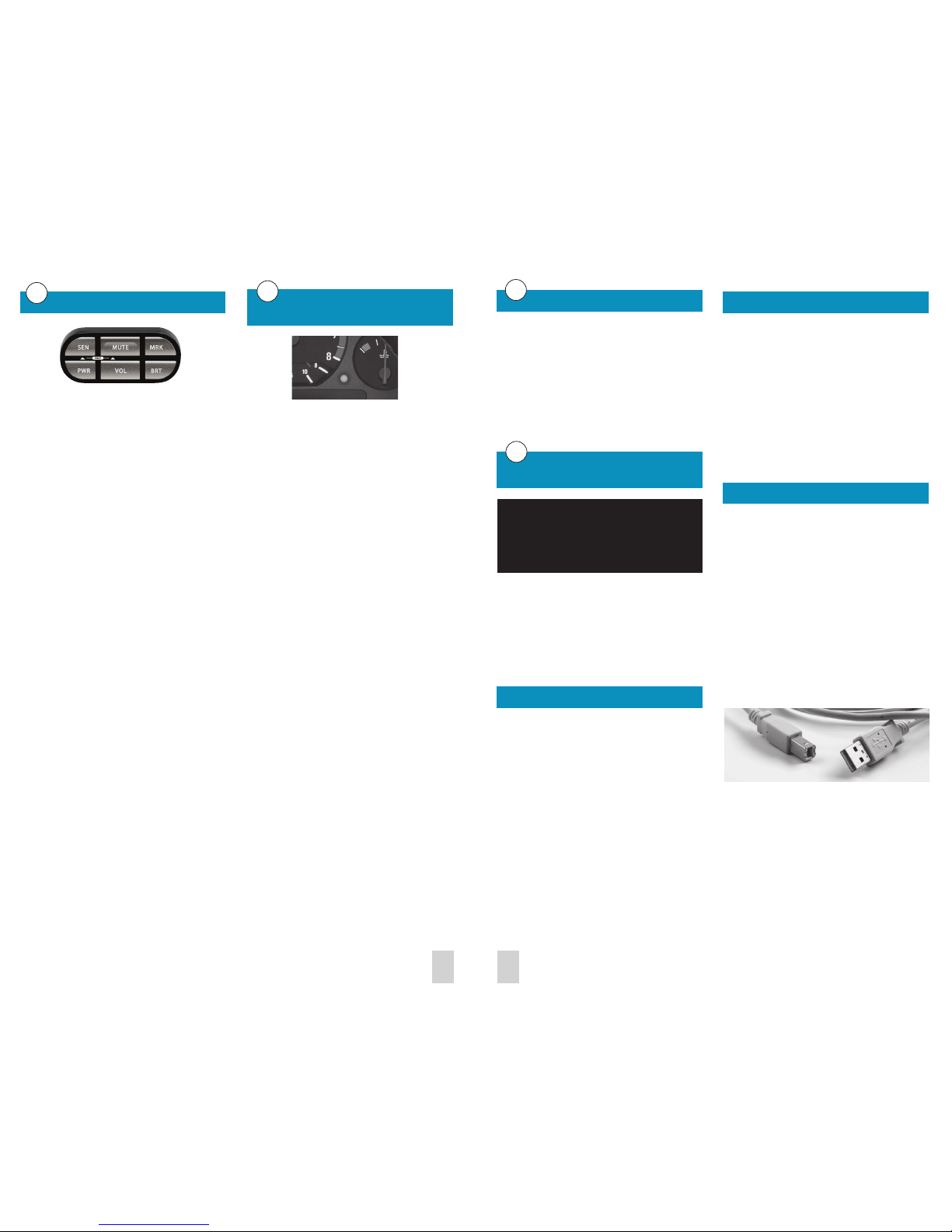

Control Module
• Controller mounts easily to instrument pod,
dashboard, or console
• Adhesive pads provided for secure mounting
Interface
• Central module connects to switched 12-volt
power and ground
• All components plug directly in using modular
connections
Concealed Alert Indicator
• Multi-color indicator is:
•
Solid green when power is ON
•
Blinking red when receiving a front alert
•
Blinking blue when receiving a rear alert*
(*only with optional rear radar receiver installed)
• 6-foot cable with modular connector
• Bezel provided mounts easily to instrument pod,
dashboard, or console

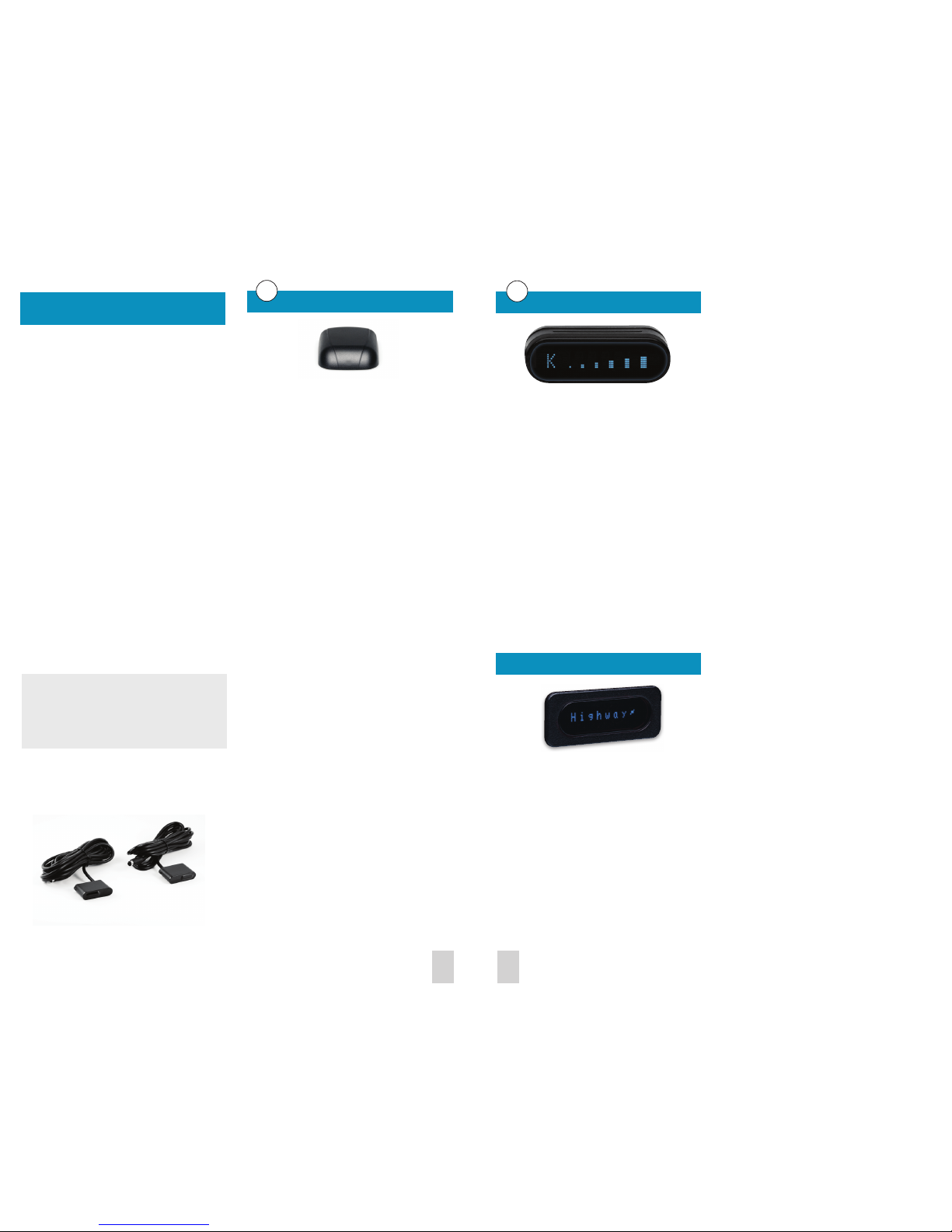

Radio Mute Cable
• 6-foot cable connects to compatible vehicle
audio systems and automatically mutes the
audio during alerts
Display Module
• Display mounts easily to instrument pod,
dashboard, or console
• Bezel provided for optional in-dash
mounting
• Adhesive pads provided for secure mounting
In-dash Display Bezel
• In-dash bezel for factory-installed look mounts
easily to instrument pod, dashboard, or console
• Integrated adhesive backing for secure mounting
Front Radar Receiver
• Weatherproof radar receiver
• Universal mounting brackets with hardware
• Built-in 3-foot cable with weatherproof
connector
• 13-foot extension cable with weatherproof
connector and inline grommet
• 10 nylon wire ties to secure cable
GPS Antenna
• Weatherproof magnetically mounted GPS
Antenna
• 30-foot cable with modular connector

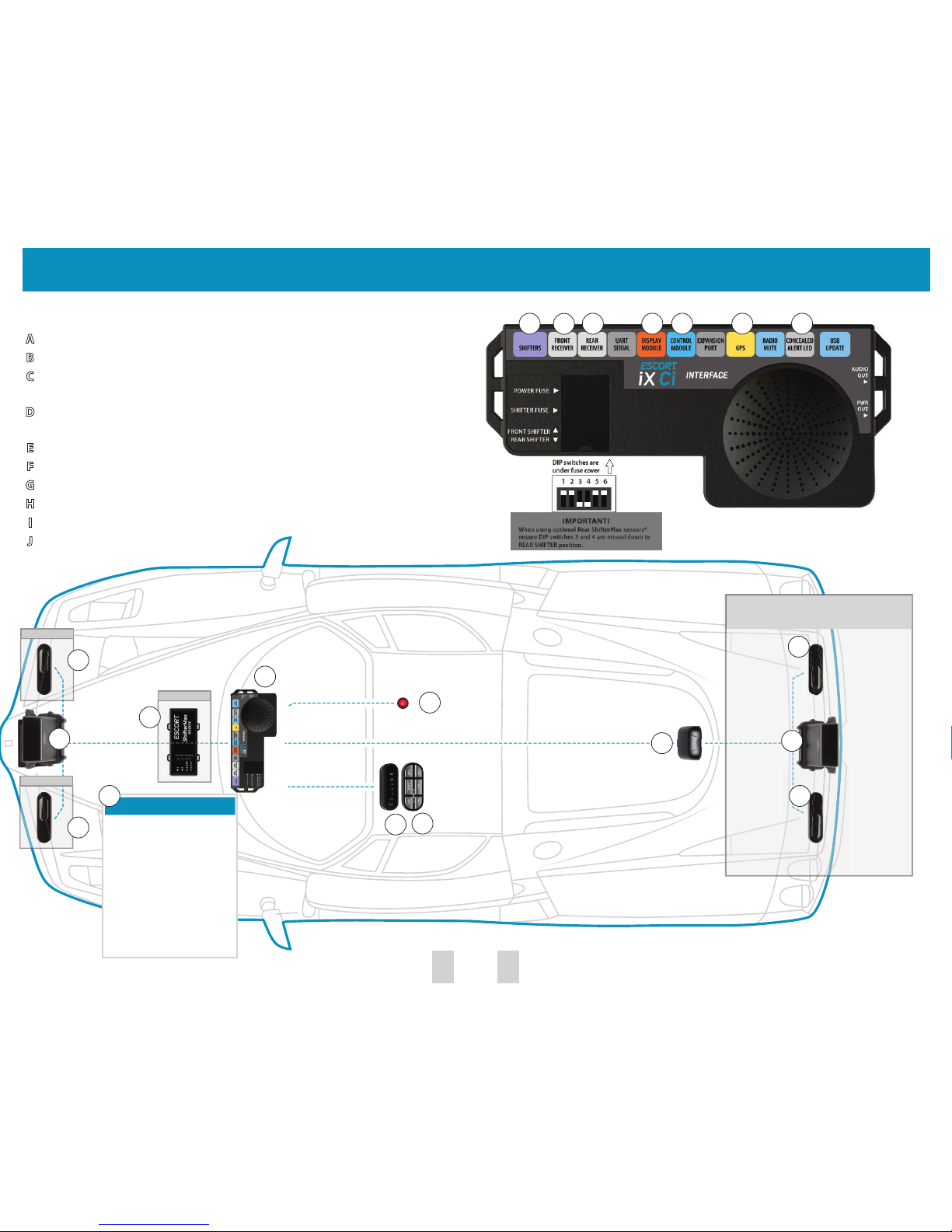

ESCORT iX Ci Components ESCORT iX Ci Components
2 3
Download Data Cable
• Provides access to update software and data via
computer with internet connection running the
Detector Tools software
Documentation
• Comprehensive Owner’s Manual
• Installation guide
Built-in Diagnostics
• Confirms all components are operational and
provides on-screen troubleshooting information
System Expansion
• The following optional components are available
separately, adding 360° radar detection and laser
shifting capabilities to ESCORT iX Ci.
ESCORT iX Ci Rear Radar Receiver
ShifterMax Pack Plus
ShifterMax Pack
4 5

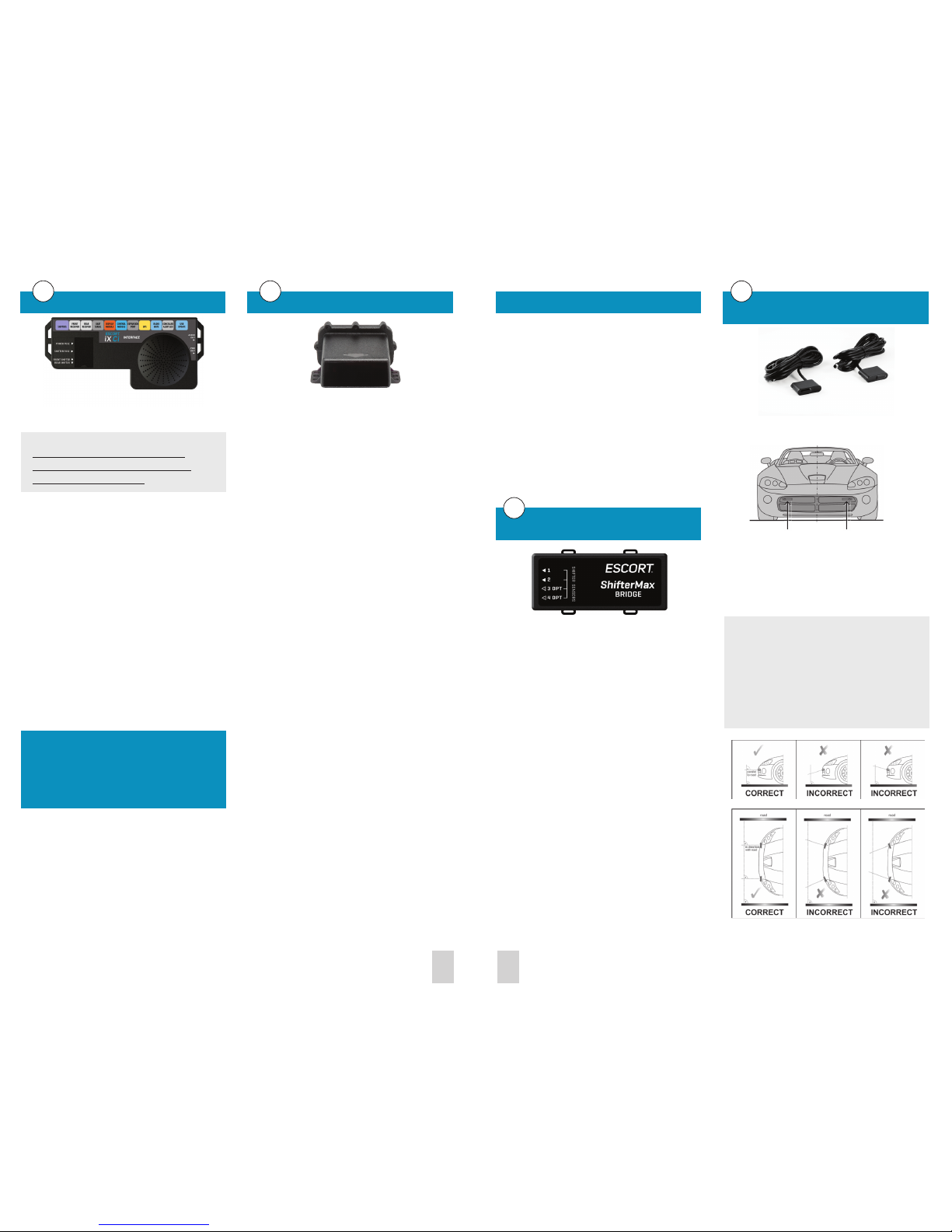

Important Notes Installation Instructions
Installation Tips
While following the steps throughout this
manual, please refer to the following
recommendations for a professional, troublefree installation:
1 Determine the best location for the radar
receiver. The best location is typically under
the bumper, or inside the front grill of the
vehicle. For the best radar performance, install
the radar receiver horizontally, with a clear
“view” of the road.
2 Entry points into the interior may be located
behind the plastic liner in the wheel well, fuse
box, or unused grommets.
3 There are often many existing entry points
at the rear of the vehicle as well:
• Gaskets behind license plates, around
illumination lamps, and near trunk lid hinges.
• Tail light wiring gaskets are often easily
accessible and large enough to add cables.
4 If there are no suitable openings, it will be
necessary to drill a hole through the firewall:
a. Thoroughly investigate all locations
before drilling any holes! Ensure no wires,
hoses, or other vehicle components will be
damaged.
b. On vehicles with automatic transmissions,
there is often a location for mounting a
clutch pedal. This location is typically an
ideal location to drill.
c. Before drilling, cover the surface being
drilled with masking tape to prevent
damage to the anti-corrosion coating in the
event the drill bit slips.
d. Drill a 13/32" or 7/16" hole.
5 When pulling the inline grommet to the
entry point, apply rubbing alcohol to a section
of the cable to reduce friction and quickly pull
the grommet along the length.
6 The cables of units mounted at the rear of
the vehicle can generally be routed through
the trunk compartment and concealed under
trim panels quite easily. If necessary, the cables
can also be routed under the vehicle and
through an opening in the firewall. Be sure to
secure cables away from moving parts and hot
surfaces.
7 A quality crimper for modular connectors
can be used to cut cables to length and replace
the connector. Removing the connectors may
also make it easier to enter the vehicle’s interior
through existing openings.
Note:
• Only an exact replacement for the
standard connector can be used. Do not
attempt to cut the wires unless the proper
connector and crimping tools are available.
• Connectors cannot be reused.
• Do not cut the cable too short! Provide
enough cable to route to the Interface and
add a couple extra feet to ease installation
• Install the new connector such that its
locking tab is on the same side as the color
coded stripe on the cable.
• Do not attempt to cut the cable and splice
the wires together.
8 When drilling or cutting interior trim panels
(for instance, when installing the Concealed
Installation Alert Indicator or the optional
Display Bezel), first cover the surface of the
panel with masking tape to prevent accidental
scratches.
Error Codes
Below is a list of error codes which are shown
in error messages. The codes help diagnose
the cause of the error.
Error
Repl A critical issue has been reported
requiring component to be
replaced or repaired.
Check Connections and wiring of
component should be checked. If
problem persists there may be an
issue with component.
Hi Temp Component is too hot. Mounting
it in a cooler location may be
necessary.
Hi Volt Power supply voltage is too high.
Voltage must be between 10.5 –
16 V DC.
Lo Volt Power supply voltage is too low.
Voltage must be between 10.5 –
16 V DC.
Component
IF Interface
FR Front Radar Receiver
RR Rear Radar Receiver
GR GPS Receiver
SB Shifter Bridge Box
S1 Shifter Sensor 1
S2 Shifter Sensor 2
S3 Shifter Sensor 3
S4 Shifter Sensor 4
S5 Shifter Sensor 5
S6 Shifter Sensor 6
For information about accessing the error code
log, visit the “User Manuals” section of the
EscortRadar.com website.
E Read This First
Please read these instructions in their entirety
before starting your installation.
For the easiest, trouble-free installation, install
the interface first and wire it to a 12-volt
switched circuit.
Then, before installing components, connect
them to the interface and power up the system
to confirm proper operation and perform
software updates, if needed.
Installation Warnings
1 It is recommended that you have a
professional install your new ESCORT iX Ci .
Installation of this system requires experience
and expertise in automotive electronics. If you
are unfamiliar with automotive electronics, car
audio specialists and many car dealers can
install your ESCORT iX Ci for you.
2 Attempting to install this product without
expertise in automotive electronics installation
can cause personal injury or damage to your
vehicle.
3 If your vehicle is damaged during
installation its safety systems may be
compromised, which could cause personal
injury or property damage.
4 Improper installation may void warranty.
Performance Warnings
To get the best performance possible, the
mounting location of the radar receiver is
critical. Although radar signals will pass
through some types of plastic, mounting the
radar receiver so that it has a clear “view” of
the road will ensure maximum warning.
Since Laser signals will not pass through
objects, including most plastics, it is critical that
the Laser Shifters are mounted perfectly level
and have an unobstructed “view” of the road.
