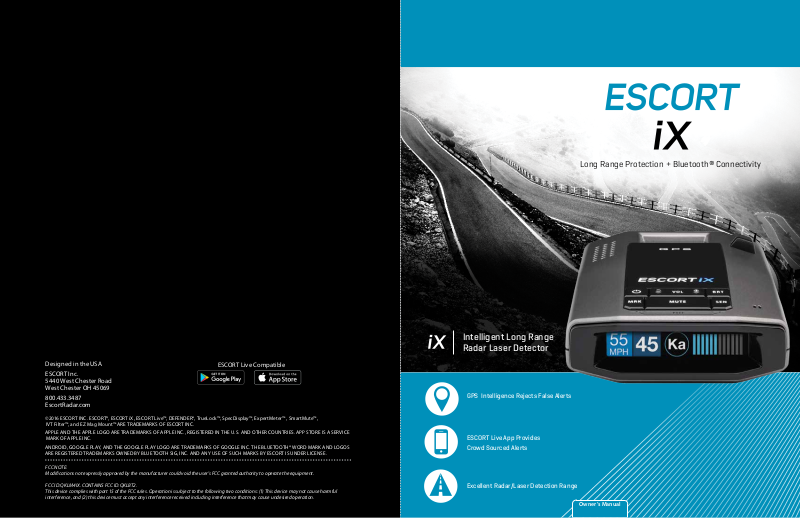

Page 1
Intelligent Long Range
Radar Laser Detector
Long Range Protection + Bluetooth® Connectivity
Designed in the USA
ESCORT Live Compatible
ESCORT Inc.
5440 West Chester Road
West Chester OH 45069
800.433.3487
EscortRadar.com
©2016 ESCORT INC. ESCORT®, ESCORT iX, ESCORT Live™, DEFENDER®, TrueLock™, SpecDisplay™, ExpertMeter™ , SmartMute™,
IVT Filter™, and EZ Mag Mount™ ARE TRADEMARKS OF ESCORT INC.
APPLE AND THE APPLE LOGO ARE TRADEMARKS OF APPLE INC., REGISTERED IN THE U.S. AND OTHER COUNTRIES. APP STORE IS A SERVICE
MARK OF APPLE INC.
ANDROID, GOOGLE PLAY, AND THE GOOGLE PLAY LOGO ARE TRADEMARKS OF GOOGLE INC. THE BLUETOOTH® WORD MARK AND LOGOS
ARE REGISTERED TRADEMARKS OWNED BY BLUETOOTH SIG, INC. AND ANY USE OF SUCH MARKS BY ESCORT IS UNDER LICENSE.
FCC NOTE:
Modications not expressly approved by the manufacturer could void the user’s FCC granted authorit y to operate the equipment.
FCC ID:QKLM4IX. CONTAINS FCC ID:QKLBT2.
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received including interference that may cause undesired operation.
GPS Intelligence Rejects False Alerts
ESCORT Live App Provides
Crowd Sourced Alerts
Excellent Radar/Laser Detection Range
Owner’s Manual
Page 2
Congratulations
®
ESCORT iX Features
Table of Contents
ESCORT iX
Congratulations!
You’ve just purchased the ESCORT iX with long-range
radar-laser performance, GPS-based intelligence and
instant Bluetooth® connectivity to the award-winning
ESCORT Live speed trap app.
ESCO RT iX features
a multi-color OLED
display. Brilliant
graphics illuminate
intuitive icons that
identify the type of
threat at a glance.
• The ESCORT iX delivers long-range warning on all
radar bands including X, K, Superwide Ka.
• ESCORT iX’s GPS location-based intelligence
automatically locks out false alerts and allows you
to mark locations for future reference.
• ESCORT iX gives you access
to ESCORT’s DEFENDER
Database, which warns you
of verified speed traps, speed cameras, and red
light cameras.
• The ESCORT iX with built in Bluetooth® technology
gives you access to ESCORT’s award winning app,
ESCORT Live. Our exclusive real-time ticketprotection, the network which warns you of
upcoming alerts received and reported by other
users in the area, and gives you
access to local speed limit data
for over-speed alerts.
Getting Started 4
•
Registration 4
• Downloading ESCORT Live! 4
• Pairing Your Smartphone 4
• Installation – What’s Included 5
• Installation – Mounting 5
Controls & Features 6
•
Using ESCORT iX 6
• Using SmartCord USB 6
Settings & Preferences 7-13
•
AutoPower 7
• Volume 7
• Mute 7
• AutoMute 7
• Alert Tones 9
Standard 9
Mild 9
• Cruise Alert 9
• Voice Alerts 9
• Over-Speed Alert 9
• Signal-Strength Meter 9-10
Standard 9
SpecDisplay 9
ExpertMeter 10
Simple 10
• Clearing the Database 11
• Serial Number & Software Version 11
• How To Use Preferences 11
• SmartMute 7
• User Mode 7
Advanced 7
Novice 7
• Display Color 7
• Display Brightness 7
• Speed Display 7
• Radar Sensitivity 7
• Highway 8
• Auto 8
• Auto No X 8
• Auto Lo K 8
• TrueLock/Locking Out False Alerts 8
• AutoLearn 8
• Settings & Preferences – Overview 12-13
• Restore Detector Settings 13
Understanding Your Detector 14-11
•
Interpreting Alerts 14
• How Radar Works 15
• How Pop Works 15
• How Laser Works 15
• How TSR Works 16
• How Red Light Cameras Work 16
• How Speed Cameras Work 16
• How GPS Works 17
Software Updates 17
Troubleshooting 18
Service 19
INTELLIGENT LONG-RANGE RADAR-LASER DETECTOR
• Marking Locations 8-9
• Over-Speed Alert 9
2
3
Parts & Accessories 19
Warranty 19
Page 3
Registration
ESCORT Live
Installation
Before downloading ESCORT Live you must rst
register your ESCORT iX. Be sure to have your
ESCORT iX nearby, as you will need the serial number.
1 Visit www.EscortRadar.com and click Product
Registration.
2 Click the “Registration for all devices” link.
3 Follow the onscreen instructions to register your
device.
Be sure to write down the username and password
you create, as you will need this information to access
and download ESCORT Live. (You will also receive an
email with this information, once you have registered
your device.)
For iPhone:
1 Ensure ESCORT iX power is ON
2 Open the App Store on your iPhone
and search for ESCORT Live Radar.
3 Follow the onscreen instructions to download
ESCORT Live Radar and then open the app.
4 When prompted, enter the username and
password you created when registering your
product at EscortRadar.com.
5 Press the Settings button
then select Devices.
6 You should see iX listed with
Not Connected
Press the
when prompted select Pair.
7 The Bluetooth icon on the ESCORT iX display will
appear to confirm that it is paired to your iPhone.
For Android based smartphones:
1 Ensure ESCORT iX power is ON.
underneath.
iX device entry and
ESCORT iX comes with our latest EZ Mag Mount™.
Simply tilt the display end of the detector up and slide
it onto the mounting bracket. The magnetic mount
holds the detector in place. To remove the detector
from the mount, simply lift the display end of the
detector and the detector releases from the mount.
What’s Included
• ESCORT iX Radar/laser detector
• EZ Mag Mount™ windshield mount
• SmartCord USB power adapter
• Quick Reference Guide
• Zippered Travel Case
Mounting Tips
• Place on center of windshield between driver and
passenger.
• Ensure clear view of road ahead and sky above.
• Avoid windshield wipers and heavily tinted areas.
To mount the detector in your vehicle
1 Remove paper backing from EZ Mag Mount™
StickyCup.
2 Ensure the locking clamp is open.
3 Firmly press EZ Mag Mount™ StickyCup onto
windshield and close the locking clamp to secure.
4 To adjust view, loosen thumb wheel and adjust
angle of mounting bracket. Tighten thumb wheel
to secure.
5 Tilt the display end of the detector slightly upward
and engage with the flanged edge of the mounting
bracket. The EZ Mag Mount™ magnet holds the
detector in place.
6 To remove the detector, simply lift the display
end of the detector upward. The ESCORT iX will
release from the mount.
7 To remove mount from windshield, release
locking clamp and pull tab on top of StickyCup.
EZ Mag Mount™ Care Instructions:
Should the EZ Mag Mount™ StickyCup accumulate
debris and lose its stickiness, simply rinse under warm
water, gently wipe off debris and allow to air dry.
2 On your smartphone go to Bluetooth® Settings
and make sure that Bluetooth® is ON.
3 Press Scan for devices and wait for the device list to
populate, iX should appear under Available
devices.
4 Press the iX device entry.
5 The Bluetooth icon on the ESCORT iX display will
appear to confirm that it is paired to your
smartphone.
6
Open Google Play on your smartphone
and search for Escort Live Radar.
7 Follow the onscreen instructions to download
Escort Live Radar and then open the app.
8 When prompted, enter the username and
password you created when registering your
product at EscortRadar.com.
9 Open the app, walk through the tutorial, and
you’re ready to hit the road!
EZ Mag Mount™
ESCORT iX
Release Tab
StickyCup
Locking Clamp (closed)
Thumb Wheel For
Angle Adjustment
Mounting Bracket
54
Page 4

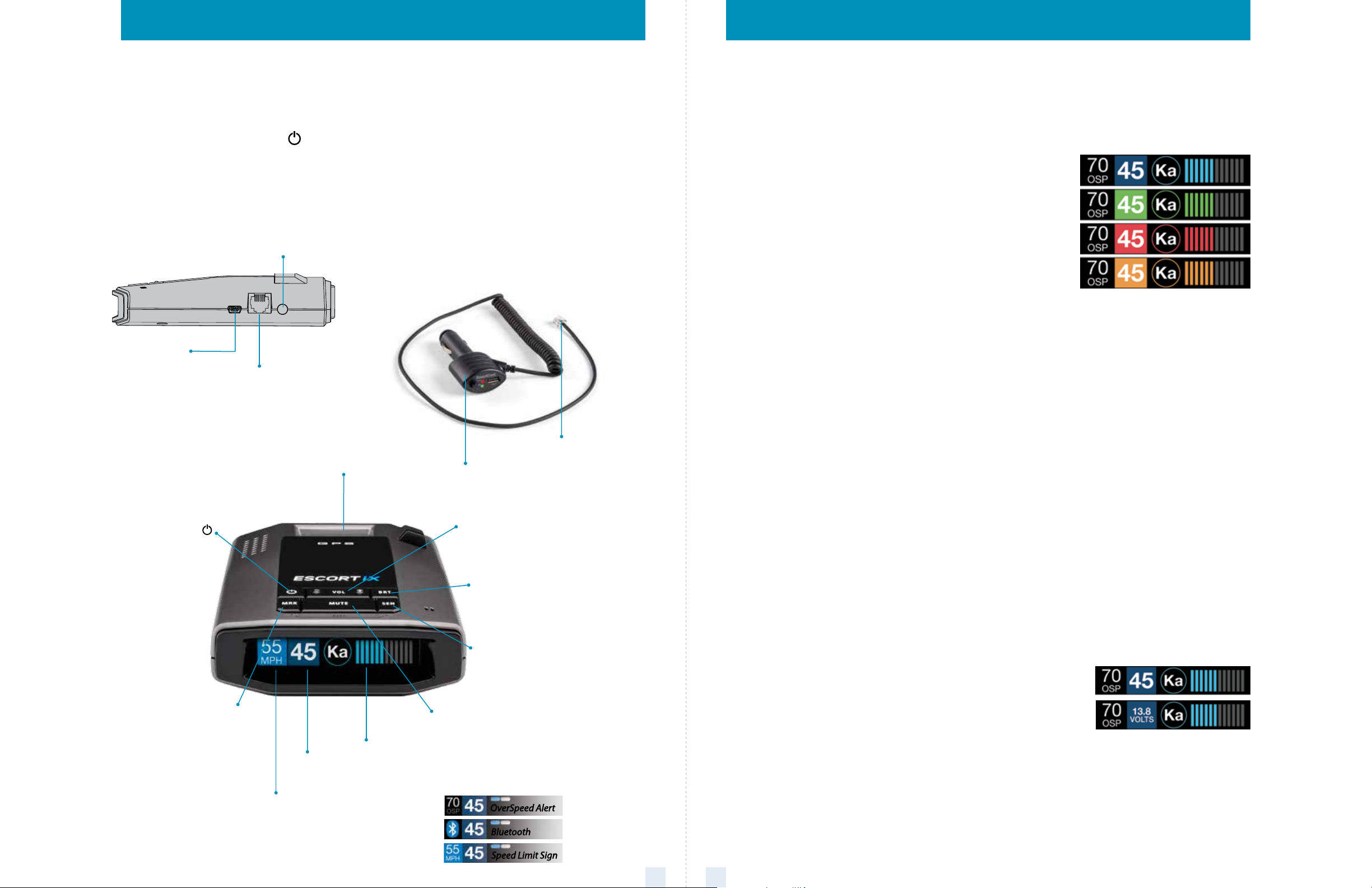

Controls & Features
Settings & Preferences
Using ESCORT iX
1 Plug small end of SmartCord USB into modular jack
on ESCORT iX and large end of SmartCord USB into
your car’s lighter/accessory socket.
2 ESCORT iX should power on automatically. If not,
press the device’s power button.
NOTE: You can easily access and customize all of your
Settings and Preferences by pressing and holding the
MRK and SEN buttons. See Settings & Preferences for
details.
Earphone Jack
Connects to optional 3.5 mm stereo earphone
Mini USB Jack
Connects to your
computer via USB A / Mini
B cable for downloading
software updates
Power
Press to turn
ESCORT iX on or off
Mark Location (MRK)
To mark a location for
future alerts, press MRK
twice, then VOL + or – to
select the type of marker,
then MRK again to
confirm. Press twice
while receiving marker
alert to unmark
Modular Jack
Connects to
SmartCord USB
for powering
your device
Mount Area
The EZ Mag Mount™
attaches to device here
Display
Current speed
Display (OSP)
OverSpeed alert setting that can be
adjusted in Preferences. Bluetooth
icon will appear on display screen
blue when paired to phone and
Speed limit data will show here when
ESCORT Live App is open.
Using SmartCord USB
• Mute Button:
- Press to mute the audio for a specific alert.
- Press three times to lock out a false alert.
- Press twice while receiving a locked-out alert
to unlock.
- When connected to ESCORT Live press and
hold mute button on unit or cord to manually
report to other users a verified X or K-band
alert, or a police officer observing traffic.
• Alert Light: Blinks red when receiving a radar
or laser alert.
•
Power Light: Lights green when receiving power.
•
USB Charging Port: Charge smartphones,
tablets and other USB-charged Devices.
Modular Connector
Plugs into detector jack
SmartCord USB Adapter
Connects to lighter/accessory socket
Volume
Press and hold + or − to
adjust volume
Brightness (BRT)
Press to adjust display
brightness (Min, Med,
Max, Auto, Dark)
Sensitivity (SEN)
Press to adjust detector
sensitivity (Auto, Auto
NoX, AutoLoK, and
Highway)
Mute
Press to mute an alert;
Display
Alert area
press three times to lock
out a false alert; press
twice while receiving a
locked-out alert to
unlock
OverSpeed Alert
Bluetooth
Speed Limit Sign
AutoPower
This feature automatically turns o ESCORT iX after a
set period of time to save unnecessary drain on your
battery. This is especially useful if your vehicle has a
constant-power ignition. To turn ESCORT iX on again
you must press the power button. See the Settings &
Preferences section for details on how to customize
the AutoPower feature.
NOTE: If AutoPower is on, to save screen life the display
screen goes blank after 30 minutes without moving.
Display screen will turn on automatically after you
reach 10MPH.
Volume
To adjust ESCORT iX to your preferred audio level for
alerts, simply press and hold + or –. The audio will
increase/decrease while it is depressed. Once you
reach the desired audio level, simply release the
button. ESCORT iX will retain this setting in its
memory, even if the system is turned o.
Mute
The MUTE button allows you to silence the audio
during an alert. Simply press the button during the
alert. Once the radar encounter has passed, the mute
will disengage, and the audio will return to your preset level. You can also silence an alert by pressing the
SmartCord USB MUTE button.
AutoMute
Your ESCORT iX also includes ESCORT’s patented
AutoMute feature. Once ESCORT iX alerts you to a
radar encounter at your selected volume level, it
automatically reduces the volume to your desired
level. This keeps you informed without the
annoyance of a continuous full-volume alert. If you
prefer, you can turn the AutoMute feature o. See the
Settings & Preferences section for details.
SmartMute
If AutoMute has already reduced the volume for one
alert and a higher-priority band is detected, ESCORT
iX will sound an alert at your set volume for the
second band before adjusting the volume back down
to the AutoMute level.
User Mode
ESCORT iX oers two unique user modes:
Advanced
In this mode, you can access and customize all of
ESCORT iX’s settings and preferences.
Novice
In this mode, you can access and customize units
(English or metric) and display color only. All other
preferences are set to the factory defaults. To view all
settings and preferences, you must switch back to
Advanced mode.
7 6
Display Color
Your detector screen can be displayed with blue,
green, red or amber accents to match the dashboard
lighting of various vehicles. See the Settings &
Preferences section for details on how to change the
display color.
Blue
Green
Red
Amber
Display Brightness
ESCORT iX’s display brightness is automatically
adjusted to suit ambient lighting conditions in your
car. If you prefer, you can press the BRT button to set
a xed brightness level:
Auto Automatically adjusts brightness
(factory setting)
Dark Dark mode
Minimum Minimum brightness
Medium Medium brightness
Maximum Maximum brightness
NOTE: If you select Dark mode, the display will not
provide any indication that it is on. Therefore, only
audible alerts will notify you of detected signals.
Speed Display
ESCORT iX displays your current speed just to the
right of the Over-Speed Alert setting (or posted speed
limit for your current location, if connected to ESCORT
Live). If you prefer, you can turn o the speed display
feature (see Settings & Preferences section for details).
If speed display is OFF, ESCORT iX will simply display
your battery voltage in this location
Speed display ON:
Current speed
Speed display OFF:
Battery voltage
Radar Sensitivity
The SEN button allows you to select your preferred
radar sensitivity: Highway, Auto, AutoNoX, or AutoLoK.
In general, ESCORT recommends Auto for everyday
driving.
Page 5
Settings & Preferences
Highway
In this setting, ESCORT iX will detect all radar signals
on all bands at maximum range.
Auto
In this setting, ESCORT iX will continuously analyze all
incoming signals and intelligently adjust the
sensitivity circuits, providing long-range warning with
minimal false alarms.
Auto No X
Auto No X works the same as Auto mode; however, X
band is completely turned o.
Auto Lo K
Auto Lo K works the same as Auto mode; however K
band sensitivity is lowered.
WARNING: Do not use ESCORT iX in Auto No X unless you
are absolutely certain that there are no trac radar guns
using X band in your area.
TrueLock/Locking Out False Alerts
ESCORT iX is equipped with a TrueLock GPS Filter to
lock out and store in its memory false alerts. To lock
out a false alert (X band, K band or laser only), press
the MUTE button on the detector or the SmartCord
USB three times during an alert. Pressing the rst time
will silence the audio. Pressing a second time will
generate a prompt on the display that will read
“Lockout?” Press a third time to conrm you want to
lock this signal out by location and frequency. A
“Stored” message will be displayed. Once a signal has
been stored, ESCORT iX will reject the signal the next
time you approach this area and will display the
locked-out alert.
Locked-out alert
To unlock a signal that has already been stored,
simply press and hold the detector or SmartCord USB
MUTE button while receiving the locked out alert.
The display will read “Unlock?” Press the detector or
SmartCord USB MUTE button again to unlock it from
memory. The display will then read “Unlocked” to
conrm your action.
For details on how to turn the GPS Filter o, refer to
the Settings & Preferences section.
NOTE: When the GPS Filter is set to OFF, you do not have
access to ESCORT iX’s other GPS-enabled features (e.g.,
Defender Database alerts, marking locations, etc.).
AutoLearn
The AutoLearn feature analyzes (over time) the source
of radar signals by location and frequency. This
allows ESCORT iX to determine if a signal is a real
threat or a false one. If it determines that the signal is
an automatic door opener, motion sensor, etc., it
automatically locks out this source at this particular
location. A “Stored” message will appear on the
display when a signal has been automatically locked
out. If you prefer, you can turn the AutoLearn feature
o. See the Settings & Preferences section
for details.
NOTE: AutoLearn typically needs to encounter the exact
frequency in the same location approximately three
times to lock it out. Since some door openers are turned
on and o routinely, some variations may occur. When
AutoLearn is on, ESCORT iX will also unlearn signals to
protect you from locking out real threats. If a particular
signal is no longer present at a location that was
previously locked out, ESCORT iX will unlock that signal.
Marking Locations
The MRK button allows you to mark a specic location
and label it for future reference. Once marked,
ESCORT iX will provide an alert when you reach this
area again.

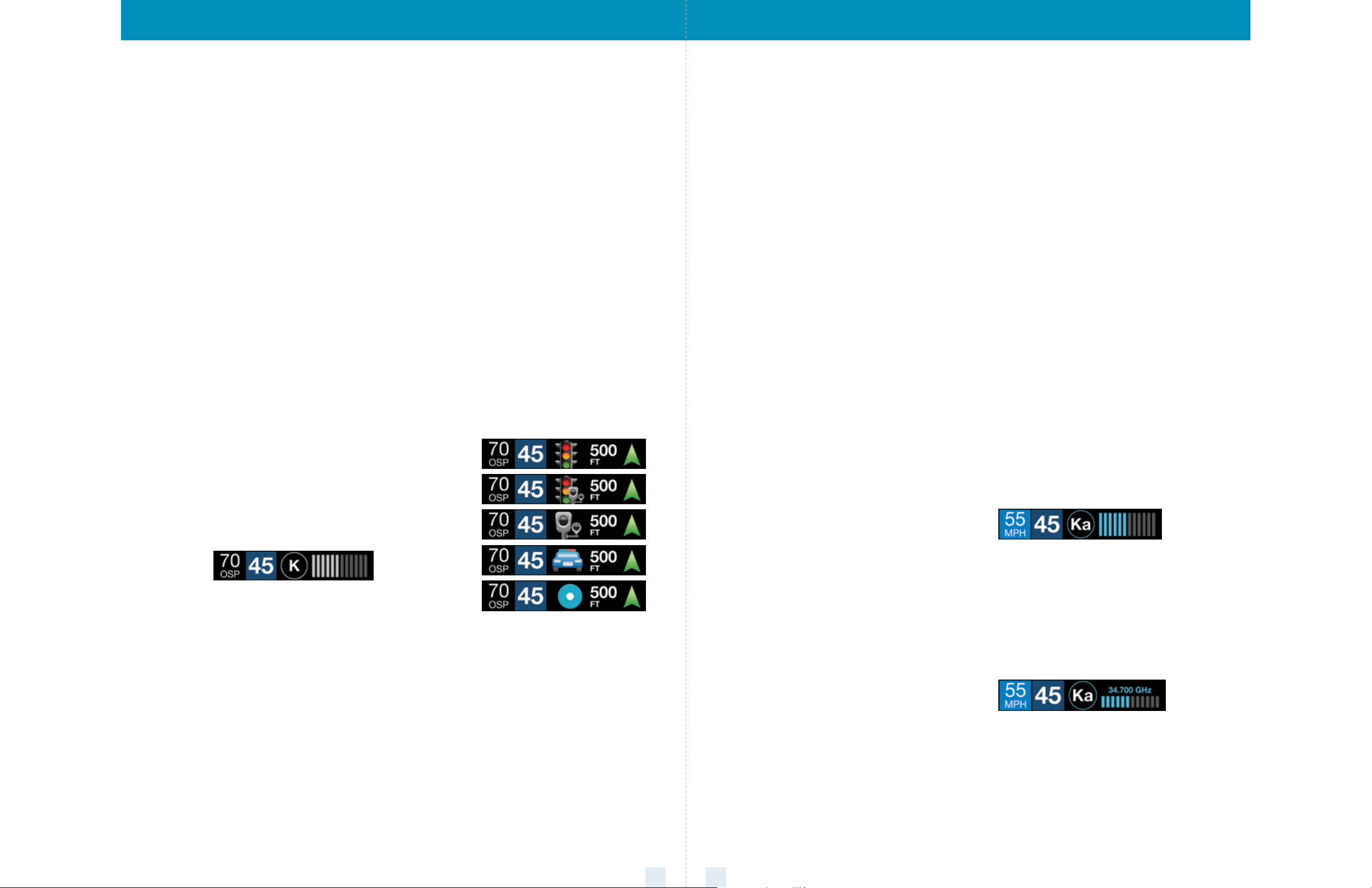

Red light camera
Red light &
speed camera
Speed camera
Speed trap
Other
ESCORT iX gives an advanced warning of upcoming
markers at the following distances:
• Red light cameras: 250 ft or 10 seconds
• Red light & speed cameras: 250 ft or 10 seconds
• Speed cameras: 500 ft when traveling below 55
mph; 1,000 ft when traveling above 55 mph
• Speed traps: 0.3 mi or approximately 1,584 ft
• Other: 500 ft when traveling below 55 mph;
1,000 ft when traveling above 55 mph
To mark a location, press the MRK button. The display
will read “Mark?” Press MRK again to bring up a menu
of markers to choose from. Press + or – to scroll
through the markers, then press MRK to select the
marker you wish to use at this location. The display
will read “Marked!”
NOTE: When a location is marked the rst time, you must
travel at least 1 mile away from that location to receive
an alert when you return to the area.
To unmark a location, touch the MRK button when
you are receiving a marked-location alert. The display
will read “Unmark?” Touch the MRK button again
to conrm. The display will read “Unmarked!” To
customize the types of markers you want to be able
to set and receive, see the Settings & Preferences
section.
Over-Speed Alert
With ESCORT iX, you can set the Over-Speed Alert to
notify you when you are traveling over a specied
speed (factory default is 70 mph; see Settings &
Preferences for details). When you travel above the
speed threshold you have set, the background display
for your current speed will turn red to alert you that
you have exceeded the specied speed.
Alert Tones
Standard
The factory default for alert tones is the ESCORT
Standard mode, in which ESCORT iX uses a Geiger
counter-type sound to indicate the signal strength
and type of radar signal being encountered. When
you encounter radar, a distinct audible alert will
sound and will increase as the signal gets stronger.
This allows you to judge the distance from the signal
source without taking your eyes o of the road. Each
band has a distinct tone for easy identication:
X band = beep tone
K band = brap tone
Ka band = double-brap tone
Laser = solid brap tone
Pop = solid brap tone
Mild
Mild mode oers softer, simpler alert tones that are
less obtrusive to the driving experience:
• X band, K band,
Ka band and Pop = Doorbell chime
• Low signal strength = Double chime
• High signal strength = Triple chime
• If alert remains in area
more than 15 seconds = Single chime
(as a reminder)
• Laser = Solid brap tone
Since laser signals are a possible threat no matter how
weak, ESCORT iX alerts you to all laser signals with a
full laser alert. See the Settings & Preferences section
for details on switching your alert tones.
Cruise Alert
For all alerts received while traveling below the
speciced speed, ESCORT iX will sound a simple
double-beep alert (factory default is 20 mpg; see
Settings & Preferences for details).
Voice Alerts
ESCORT iX provides digital voice announcements for
alerts and selection feedback. If you prefer, you can
turn o the voice feature. See the Settings &
Preferences section for details.
Signal-Strength Meter
ESCORT iX oers four dierent settings for displaying
alerts:
Standard
The Standard option provides information on a single
radar signal. When ESCORT iX detects radar, it displays
the band of the radar (X, K or Ka) and a bar graph of
the signal’s strength. When laser is detected, the
display will simply read “Laser.” If there are multiple
signals present, ESCORT iX will determine which one
is the most important threat to display.
SpecDisplay
The SpecDisplay option is an advanced display for
experienced detector users. In this mode, it will
display the actual numeric radar frequency being
received. Even long-time detector users will require
some time to get familiar with this new level of
information about detected signals. To use
SpecDisplay instead of the Standard bar graph meter,
you must select it (Spec) in Preferences.
98
Page 6
Settings & Preferences
ExpertMeter
ESCORT’s exclusive ExpertMeter option is also
designed for the advanced detector user. In this
mode, ESCORT iX simultaneously tracks up to four
radar signals. It shows each band along with a bar
graph of its signal strength. In the image above, a Ka
band, K band and two X bands are being detected
with the greyed out X band being a locked out false.
ExpertMeter can help you spot a change in your
normal driving environment (e.g., a trac radar unit
being operated in an area where there are normally
other signals present).

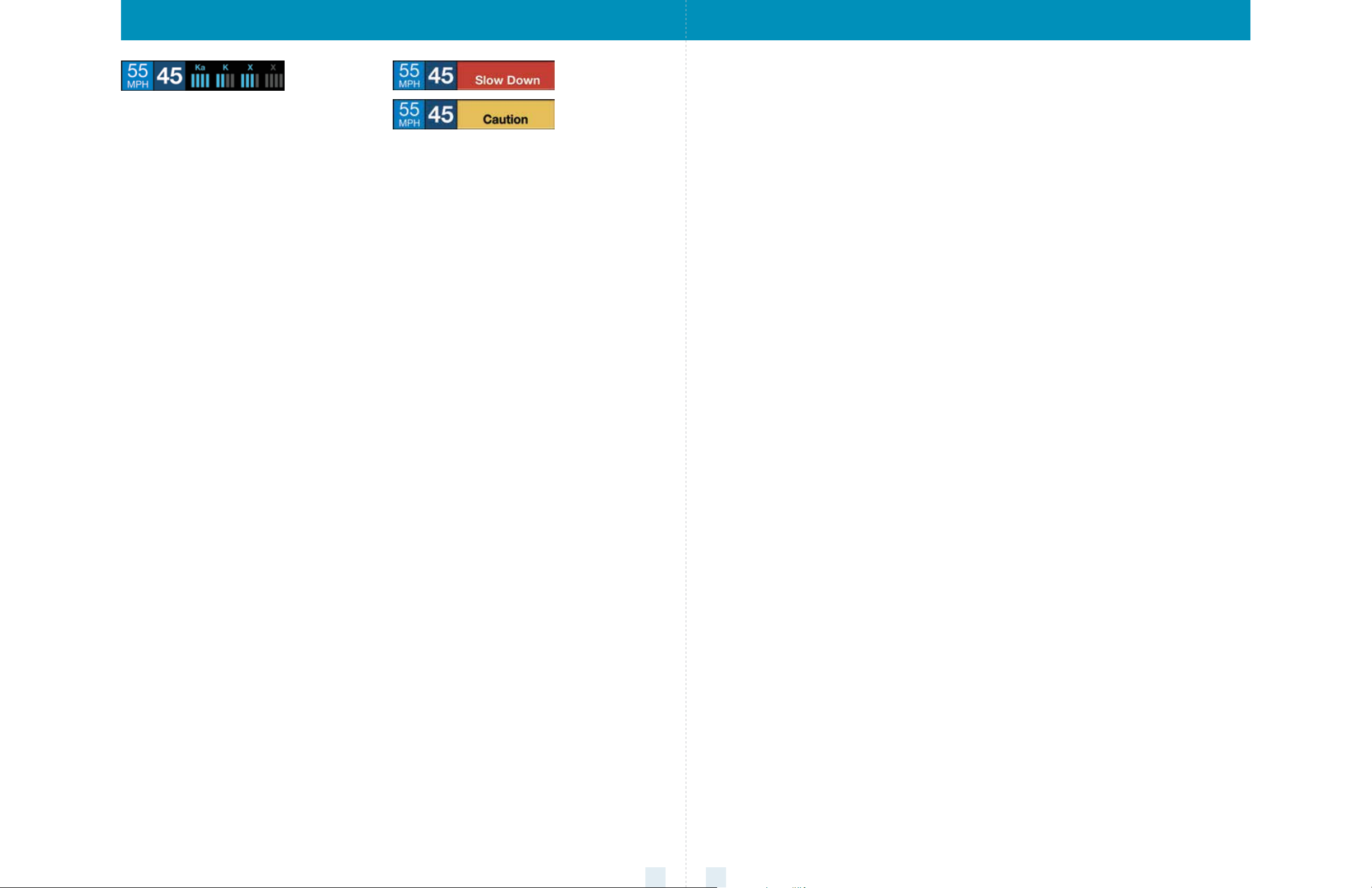

Simple
In this mode, Simple messages replace actual bands
and signal strengths or frequencies. “Caution” is
used when an alert is received while you are traveling
below your current Cruise Alert setting (or posted
speed limit for current location, when connected to
ESCORT Live). “Slow Down” is displayed when an alert
is received while you are traveling above the current
Cruise Alert setting (or posted speed limit for current
location, when connected to ESCORT Live).
NOTE: ESCORT iX’s selectable bands feature allows you to
customize which bands are monitored. For details on
modifying your band detection, see the Settings &
Preferences section. For details on the various radar/laser
bands and how they work, see the Understanding Your
Detector section.
Clearing the Database
At some point, you may wish to clear some of the data
in ESCORT iX’s database. This may include any of the
following: Defender Database data, marked locations
or locked-out locations. For details on how to clear
the database, see the Settings & Preferences section.
Serial Number and Software Version
To view your ESCORT iX’s serial number and software
revision, press MRK and MUTE while powering on the
detector.
How To Use Preferences
To access Preferences, press and hold both the MRK
and SEN buttons. ESCORT iX will display “Preferences,”
indicating it is in program mode.
Once the unit is in Preferences mode, the MRK button
is used to review the preference categories, and
the + and − buttons are used to change the individual
settings within the selected option.
To exit Preferences, simply wait a few seconds
without pressing a button. A “Completed” message
will display, conrming your selection(s).
Example:
Here’s how you would turn the Speed Display o:
1 Enter Preferences by pressing and holding both the
MRK and SEN buttons. ESCORT iX will display
“Preferences.”
2 Press the MRK button to scroll through the
categories to “Speed Display.”
3 Since the factory setting is for Speed Display to be
ON, ESCORT iX will show Speed Display as ON.
4 Press the + or − button to change from ON to OFF.
5 To complete this change, simply wait a few seconds
without pressing a button. The unit will display
“Completed” to conrm your selection.
NOTE: You can only access and customize the Speed
Display feature while in the Advanced user mode. See
the Overview of Preferences chart for details on how to
switch user modes.
1110
Page 7
Settings & Preferences – Overview
Press and hold the MRK and SEN buttons to access Preferences. To exit Preferences, simply wait a few
seconds without pressing a button. A Completed message will display confirming your selection(s).
Press MRK to go from Press + or – to change
one category to the next your setting within a category
User Mode Advanced* Access and customize all Settings and Preferences
Novice Access and customize units and display color, (all other
Settings are set to factory defaults)
NOTE: Switch to Advance mode to view all Preferences
Pilot Mode Scanning* Scanning Bar with Full Word
Full Word Full Word: Auto, AutoNoX, AutoLoK or Highway
Display Color Blue* / Green / Red / Amber Set color to match your vehicle’s dash display
Speed Display On* Displays current speed
Off Displays battery voltage
Cruise Alert 20 mph* Offers double-beep alert tones if traveling below specified speed
Off / 20-160 mph
Over Speed 70 mph* Reminds you when you exceed a specified speed
Off / 20-160 mph
Meter Mode Standard* Single band with bar graph of signal strength
Spec Single band with numeric frequency
Expert Multiple bands with bar graph of signal strengths
Simple Caution (if traveling below Cruise Alert limit)
Slow Down (if traveling above Cruise Alert limit)
Tones Standard* Standard ESCORT alert tones
Mild Mild doorbell chime alert tones
AutoMute Low / Med* / High / Off Automatically reduces audio to preferred volume during alert
AutoLearn On* / Off Automatically stores and locks out false alarms
Units English* / Metric Units for distance and speed
Language English* / Espanol Language for voice and text
Voice On* / Off Voice announcements
GPS Filter On* / Off Enables GPS-powered features
AutoPower Off Power turns on or off depending on your vehicle’s ignition type
(constant power or switched)
1 Hour Powers off automatically after 1 hour
2 Hours Powers off automatically after 2 hours
4 Hours* Powers off automatically after 4 hours
8 Hours Powers off automatically after 8 hours
NOTE: AutoPower only works with constant power-ignition. If AutoPower is on,
the display screen goes blank after 30 minutes to save screen life.
Display screen will turn on automatically after you reach 10 mph
Band Enables Default* Default Settings for North America
Modified Customize the bands you want to monitor
Press SEN to modify Press + or – to change
band preferences and go from your setting within a category
one category to the next
X Band On* / Off
K Band On* / Off
Ka Band On* / Off Freq: 33.400-36.000 Ghz
NOTE: When Ka Band is off, you can selec t separate segments of the band to turn on
a nd off.
KaN1 On* / Off Freq: 33.660-33.900 Ghz
KaN2 On* / Off Freq: 34.200-34.400 Ghz
KaN3 On* / Off Freq: 34.600-34.800 Ghz
KaN4 On* / Off Freq: 35.400-35.600 Ghz
Ka-POP On / Off*
Laser On* / Off
TSR On* / Off Automatically rejects traffic-flow-sensor false alarms
RDR On* / Off Radar Detector Rejection
Marker Enables Default* Other, Red Light Camera, Red and Speed Camera, and Speed Trap
Modified Customize the types of locations you want to mark for future reference
Press SEN to modify marker Press + or – to change
preferences and go from your setting within a category
one category to the next
Other On* /Off Other location
Redlight On* / Off Red light camera
Red & Speed On* / Off Red light & speed camera
Speed Camera On* / Off Speed camera
Speed Trap On* / Off Speed trap
Air Patrol On / Off* Known aircraft patroled areas
NOTE: User cannot mark an Air Patrol location
Clear Locations Marked Clear all user-marked locations. Press SEN button to confirm
Lockouts Clear all lockouts. Press SEN button to confirm
Defender Clear all DEFENDER Database data. Press SEN button to confirm
Format Clear DEFENDER Database, all markers, and all lockouts.
Press SEN button to confirm
*Default Setting
Restore Factory Settings
To restore ESCORT iX to its original factory settings,
press and hold BRT and SEN while turning the power
on. A “Restored” message will display, acknowledging
the reset.
1312
Page 8
Understanding Your Detector
Interpreting Alerts
Although ESCORT iX has a comprehensive warning
system, only experience will teach you what to expect
from your detector and how to interpret what it tells
you.
The specic type of radar being used, the type of
transmission (continuous or instant-on) and the
location of the radar source aect the alerts you
receive. The following examples will give you an
introduction to understanding your detector’s
warning system for radar and laser alerts.
Alert Explanation
Detector begins to sound slowly; rate of alert You are approaching a continuous radar source
increases until it becomes a solid tone. aimed in your direction.
The signal meter ramps accordingly.
Detector emits short alerts for a few seconds then An instant-on radar source is being used ahead
falls silent, only to briey alert and fall silent again. of you and out of your view.
Detector suddenly sounds a continuous tone for the An instant-on radar or laser source is being used
appropriate band received. nearby. This kind of alert requires immediate
attention.
Detector sends a brief laser alert. Laser is being used in the area. Because laser is
inherently dicult to detect, any laser alert may
indicate a source very close by
Detector receives weak signals. Signals may be a little A moving patrol car with continuous radar is
stronger as you pass large, roadside objects. Signals overtaking you from behind. Because these
increase in frequency. signals are reected (reections are increased by
large objects), they may or may not eventually
melt into a solid point, even when the patrol car
is directly behind you.
Detector alerts slowly for a while then abruptly jumps You are approaching a radar unit concealed by a hill
to a strong alert. or an obstructed curve
Detector alerts intermittently. Rate and strength of A patrol car is traveling in front of you with a
alerts may be consistent or vary wildly. radar source aimed forward. Because signals are
sometimes reected o of large objects and
sometimes not, the alerts may seem inconsistent.
Detector alerts intermittently; rate and strength of A patrol car is approaching from the other
signal increases with each alert. direction, sampling trac with instant-on radar.
Such alerts should be taken seriously.
Detector gives an X band alert intermittently. You are driving through an area populated with
radar motion sensors (e.g., door openers or
burglar alarms). Since these transmitters are
usually contained inside buildings or aimed
toward or away from you, they are typically not
as strong or lasting as a real radar encounter.
How Radar Works
Trac radar, which consists of microwaves, travels in
straight lines and is easily reected by objects such
as cars, trucks, and even guardrails and overpasses.
Radar works by directing its microwave beam down
the road. As your vehicle travels into range, the
microwave beam bounces o your car, and the radar
antenna looks for the reections. Using the Doppler
principle, the radar equipment then calculates your
speed by comparing the frequency of the reection
of your car to the original frequency of the beam
sent out.
Trac radar has limitations, the most signicant of
these being that it typically can monitor only one
target at a time. If there is more than one vehicle
within range, it is up to the radar operator to decide
which target is producing the strongest reection.
Since the strength of the reection is aected by both
the size of the vehicle and its proximity to the
antenna, it is dicult for the radar operator to
determine if the signal is from a sports car nearby or a
semi truck several hundred feet away.
Radar range also depends on the power of the radar
equipment itself. The strength of the radar unit’s
beam diminishes with distance. The farther the radar
has to travel, the less energy it has for speed
detection.
Because intrusion alarms and motion sensors often
operate on the same frequency as X and K band
radar, your detector will occasionally receive nonpolice radar signals. Since these X band transmitters
are usually contained inside of a building or aimed
toward the ground, they will generally produce much
weaker readings than will a true radar encounter. As
you become familiar with the sources
of these pseudo alarms in your daily
driving, they will serve as
conrmation that the device’s radar
detection abilities are fully
operational.
How POP Works
POP works by transmitting an extremely short burst,
within the allocated band, to identify speeding
vehicles in trac. Once the target is identied, or
“popped,” the gun is then turned to its normal
operating mode to provide a vehicle tracking history
(required by law).
NOTE: According to radar gun manufacturers, tickets
should not be issued in pop mode.
How Laser Works
Laser speed detection is actually light detection and
ranging (LIDAR). Laser guns project a beam of
invisible infrared light. The signal is a series of very
short infrared light energy pulses that move in a
straight line, reecting o your car and returning to
the gun. Laser uses these light pulses to measure
the distance to a vehicle. Speed is then calculated by
measuring how quickly these pulses are reected,
given the known speed of light.
Laser is a newer technology whose use is not as
widespread as conventional radar; therefore, you may
not encounter it on a daily basis. And unlike radar
detection, laser is not prone to false alarms. Because
laser transmits a much narrower beam than does
radar, it is much more accurate in its ability to
distinguish between targets and is also more dicult
to detect. As a result, even the briefest laser alert
should be taken seriously.
There are limitations to laser, however. Laser is much
more sensitive to weather conditions than radar,
and a laser gun’s range will be decreased by anything
aecting visibility, such as rain, fog or smoke. A
laser gun cannot operate through glass, and it must
be stationary to get an accurate reading. Because
laser must have a clear line of sight and is subject to
cosine error (an inaccuracy that increases as the
angle between the gun and the vehicle increases),
police typically use laser equipment parallel to the
road or from an overpass. Laser can be used day or
night.
CAUTION: Overcondence in an unfamiliar area can be
dangerous. Likewise, if an alert in a commonly
traveled area is suddenly stronger or on a dierent band
than usual, speed radar may be set up nearby.
1514
Page 9
Understanding Your Detector Software Updates
How TSR Works
ESCORT iX includes a new boost in anti-falsing
software to eliminate excessive alerts from
erroneous X and K band sources, such as trac ow
monitoring systems. These systems, which are
becoming more widely used in several countries,
generate K band signals to measure the ow of trac
on a given road. Unfortunately, most detectors see
this as a real threat and will alert you to it
unnecessarily. Our new proprietary software,
TSR, intelligently sorts, ranks and rejects
these types of false alarms automatically. The result is
ultimate protection without excessive false alarms.
How Red Light Cameras Work
Red light cameras use three basic things: a camera, a
device to trigger the camera and a computer. An
intersection may have more than one camera to
monitor trac from multiple directions. The trigger is
typically a series of wires buried just beneath the
surface of the road. These wires are separated by a
pre-set distance to create a magnetic eld or
induction loop. Once a vehicle is in the intersection,
the loop or circuit becomes closed and alerts the
computer to take a picture.
In some states, tickets are issued to the car’s owner,
no matter who’s actually driving. In this case, the red
light camera only needs to photograph the vehicle’s
rear license plate. In other states, the actual driver is
responsible for paying the ticket. In this case, the
system needs a second camera in front of the car to
get a shot of the driver’s face.
How Speed Cameras Work
There are several types of xed position speed
cameras used, including radar, laser, induction-loop
and photo-based. Radar and laser based cameras are
typically mounted near the road and transmit a short
range signal across the lanes monitored. Since this
signal is transmitted across the road instead of down
the road like with many handheld systems, detecting
them in time is critical.
How GPS Works
Developed by the U.S. military,
the global positioning system (GPS)
is made up of 24 orbiting satellites. There
are at least four satellites visible at any given time
every day. A GPS receiver is designed to locate and
receive data from four of these satellites. These data
include the distance to your location from each of the
satellites. Once the distance from each satellite is
known, the receiver can calculate and pinpoint your
exact location.
ESCORT iX’s red light and speed camera Defender
Database is easily updated using our exclusive
detector software tools found on our website.
Firmware, or the operating software for the detector,
can also be updated using these tools.
To access these updates, please register your
ESCORT iX at EscortRadar.com. Once registered, you
will receive email notications that updates are
available for your database or rmware. To handle
your software and database updates, you will need to
connect ESCORT iX to a computer via USB A/mini B
cable (not included).
Another technology used is an induction loop system.
This type of system utilizes wires buried just beneath
the surface of the road to trigger a computer that
calculates speed between the two points. Photo
based systems take two sets of pictures of all passing
vehicles between two separate xed locations. Both
sets of photographs are date and time stamped,
which enables the system to calculate average speed
between the two locations.
Fixed speed cameras can also be set up to monitor
one to four lanes of trac in the same direction. To
achieve this, a sensor is installed in each lane, and a
wide angle camera lens is used to photograph the
vehicle that is speeding.
1716
Page 10
Troubleshooting
Service
Warranty
Problem Explanation/Solution
Detector beeps briey at the same An X band motion sensor or intrusion alarm is located
location every day, but no radar within range of your route. If you have AutoLearn
source is in sight. enabled, the factory default setting, then ESCORT
iX will store this signal after about 3 passes
and no longer alert to it.
Detector did not alert when a VASCAR (Visual Average Speed Computer and
police car was in view. Recorder), a stopwatch method of speed detection,
may be in use.
Ocer may not have radar or laser unit turned on.
Detector’s audible alerts become Detector is in AutoMute mode. See “AutoMute” in the
softer after the rst few alerts. Settings & Preferences section for details.
The power-on sequence reoccurs A loose power connection can cause ESCORT iX to be
while you are driving. briey disconnected and will retrigger the
power-on sequence. Check all connections.
You wish to restore the factory Press and hold the BRT and SEN buttons while
default settings. powering on the detector. A “Restored” message will
display, acknowledging the reset.
The device will not turn on. Check that vehicle ignition is on.
Check all connections.
The detector feels warm. It is normal for the device to feel warm.
The display is blank. ESCORT iX is in Dark mode. Press the BRT
button to adjust the brightness.
Service Procedure
If your ESCORT iX ever needs service, call us at
1-800-543-1608. We may be able to solve your
problem over the phone. If the problem requires that
you send your ESCORT iX to the factory for repair, we
will provide you with a Service Order Number, which
must be included on the outside of your shipping
box. Ship the product prepaid insured, for your
protection.
Properly pack your product and include:
• Your ESCORT iX and power cord
• Your Service Order Number
• Your name and complete return address
• Your daytime telephone number
• A description of the problem you are experiencing
ESCORT Inc.
Customer Service Department
Return Authorization Number __________________
5440 West Chester Road
West Chester OH 45069
ESCORT Extended Service Plan
ESCORT oers an optional extended service plan.
Contact ESCORT Sales for details at 800-433-3487.
Parts & Accessories
The following accessories and replacement parts are
available for ESCORT iX:
• SmartCord USB
• DirectWire SmartCord
• Laser ShifterPro System
• EZ Mag Mount™
• Travel Case
Visit EscortRadar.com for selection and pricing.
800.433.3487
EscortRadar.com
ESCORT One-Year Limited Warranty
What this warranty covers: Escort, Inc. (“Escort”)
warrants your Product against all defects in materials
and workmanship.
For how long: One (1) year from the date of original
purchase from an authorized Escort dealer.
What we will do: If a breach of warranty occurs,
Escort, at its discretion, will either repair or replace
your Product free of charge.
What we will not do: Escort will not pay shipping
charges that you incur for sending your Product to us.
What you must do to maintain this warranty:
Show original proof of purchase or receipt from an
authorized Escort dealer.
Warranty exclusions: This warranty does not
apply to your product under any of the following
conditions: 1. The serial number has been removed
or modied. 2. Your product has been subjected to
misuse or damage (including water damage, physical
abuse, and/or improper installation). 3. Your product
has been modied in any way. 4. Your receipt or
proof-of-purchase is from a non-authorized dealer or
internet auction site, including E-bay, U-bid, or other
non-authorized resellers. 5. You are not the original
purchaser of the Product from an authorized dealer or
did not receive it as a gift from the original purchaser
of the Product from an authorized dealer.
To obtain service: 1. Contact Escort (1-800-543-
1608) to obtain a Return Authorization Number. 2.
Properly pack your Product and include: your name,
complete return address, written description of the
problem with your Product, daytime telephone
number, and a copy of the original proof of purchase
or receipt. 3. Label the outside of the package clearly
with your Return Authorization Number. Ship the
Product pre-paid (insured, for your protection) to:
Escort, Inc., 5440 West Chester Rd., West Chester, OH
45069.
LIMITATION OF WARRANTY: The obligations set
forth above are Escort’s sole obligations and your
exclusive remedy. Escort makes no other express
warranty. Any implied warranty of merchantability
or tness for a particular purpose that may be
applicable to the Product is limited in duration to the
duration of this warranty. Some States do not allow
limitations on how long an implied warranty lasts, so
the above limitation may not apply to you. ESCORT
SHALL NOT BE LIABLE FOR CONSEQUENTIAL, SPECIAL
OR INCIDENTAL DAMAGES INCLUDING, WITHOUT
LIMITATION, DAMAGES ARISING OUT OF THE USE,
MISUSE OR MOUNTING OF THE PRODUCT. Some
States do not allow the exclusion or limitation of
incidental or consequential damages, so the above
limitation or exclusion may not apply to you. Escort
is not responsible for products lost in shipment
between the owner and our service center.
Other legal rights: This warranty gives you specic
legal rights, and you may also have other rights which
vary from State to State.
1918
Loading...
