Andromeda
User Manual
© Copyright Ash Technologies Limited, 2001.
Page 2
Rev E EN
Revision 1.03 English February 2007
Page 3
Rev E EN
Important Safety Information
Please read all of the following instructions before setting
up your Andromeda. Failure to follow these instructions
properly could lead to physical injury.
• The Andromeda must be used on a flat, level table. Never attempt to use it
on a sloping surface or on a table that cannot accommodate the full footprint
of the unit.
• The front of the Andromeda must be placed at least 10cms or 4 inches back
from the edge of the table. This is to prevent the unit from tipping forward if
excessive weight is placed on the reading table when fully extended. There
are warning labels placed on the reading table with arrows indicating the
maximum overhang permissible when the table is fully extended.
• Both X/Y table and Screen contain moving parts. Please take care with
folding back the screen and operating the X/Y table. If fingers get caught,
injury might occur. If you feel you cannot operate the unit safely, please seek
advice or contact your supplier.
• Never lift the Andromeda by the reading table.
• To prevent fire or electric shock please ensure this unit is kept away from all
liquids. Do not use the unit in excessively damp or wet areas and do not
expose it to rain, snow, etc.
• Before cleaning the unit, please ensure that it is unplugged. Use a slightly
damp cloth to clean the exterior. Do NOT use solvents or aerosol cleaners.
• This unit should never be opened. It contains hazardous voltages. User
servicing is confined to changing the lamps. Unauthorized servicing will
invalidate your warranty. If you encounter any problems with this unit please
contact your local dealer.
• When changing the lamps, please follow the instructions carefully.
• While we have made every effort to minimize the weight of this unit, if you
feel you cannot safely lift it, seek help when moving it.
• Before moving the unit, please unplug all connectors from the back panel,
ensure the screen is folded back and the reading table is parked home with
the brakes applied.
• Use only with the power adapter provided.
Page 4
Rev E EN
Table of Contents
Important Safety Information ................................................................... 3
Equipment Supplied. ................................................................................ 5
Using the Andromeda .............................................................................. 5
1. Setting up ......................................................................................... 5
2. Folding down and storing ................................................................. 6
3. The Front Panel ............................................................................... 7
4. Basic Functions ................................................................................ 8
4A. Reading Table .............................................................................. 8
4B. Power button ................................................................................ 9
4C. Zooming in and out ...................................................................... 9
4D. Picture and Reading Modes ........................................................ 9
4E. Brightness Control ..................................................................... 10
5. The Configuration Menu (Advanced Users) ................................... 10
5A. The Video Controls menu .......................................................... 10
5B. The Button Functions menu ....................................................... 12
5C. The Focus Mode menu .............................................................. 13
5D. Factory Defaults ......................................................................... 13
6. Advanced Functions ....................................................................... 14
6A. Overview .................................................................................... 14
6B Line | Blank ................................................................................. 14
6C. Colors (User Defined) ................................................................ 15
6D. VGA (Computer Video Input) ..................................................... 16
6E. External Camera ........................................................................ 16
6F Freeze ......................................................................................... 16
6G Disabled ...................................................................................... 17
7. External Camera ............................................................................ 17
8. Computer Video Input (“VGA” mode) ............................................. 17
9. Changing the lamps ....................................................................... 19
Specifications ..................................................................................... 20
Warranty ................................................................................................ 21
Page 5
Rev E EN
Equipment Supplied.
Check that the items below have been supplied. If you are missing any
component please contact your dealer.
Foam lined case for storage and transportation;
Andromeda reading unit;
Power adapter with mains cable;
Monitor cable for connection to external computer;
Foot pedal;
User Manual.
Using the Andromeda
1. Setting up
Lift the Andromeda from its case and
place it on a solid, level desk. Raise the
screen upright.
Plug the power adapter into the mains
using the lead provided and insert the
other connector into the socket on the
rear bulkhead of the Andromeda.
Ensure the unit is placed at least 10cms
(4 inches) back from the edge of the
desk. Sit in front of the unit.
If you wish, you can connect the foot
pedal into the socket on the back panel
of the unit and place foot pedal on the
Min 10cm / 4 inches
Page 6
Rev E EN
floor under your desk. The pedal offers an alternative method of
performing some functions and may not always be required.
Press the red button on the right of the front panel to turn the
Andromeda on. The Andromeda will beep to indicate power-on and the
lamps will light. After a few seconds, the image will appear on the
screen.
Release the brake on the
reading table and pull the table
out towards you. If you push
the table back in again, you will
see that the table locks home
only when located centrally
between its legs. Place some
text on the table and you should
see it on the screen.
2. Folding down and storing
Press the red button on the front panel to turn off the unit.
Unplug the foot pedal and any other cables from the rear of the unit.
Unplug the power adapter from the Andromeda and also from the wall
socket.
Remove all material from the reading table, park it centrally between its
legs and apply the brakes.
Stow the power supply and other cables in the base of the carry case.
Fold the screen back flat and lift the Andromeda into the case. Never
fold the screen back with an object on the reading table or when there
are cables attached to the rear of the unit.
Never place any object on the screen. The screen can be scratched
or broken easily and damage to it is not covered under warranty.
Close the lid of the case securely before transporting the Andromeda.
Lock
Unlock
Unlock
Lock
Page 7
Rev E EN
Focus
Zoom
Function buttons
Brightness
Mode
Power
3. The Front Panel
The front panel has eight buttons that control the various function of the
Andromeda. Throughout this manual the buttons will be referred to with
symbols. The exact function of each button may vary depending on the
way the Andromeda is configured and its current mode of operation.

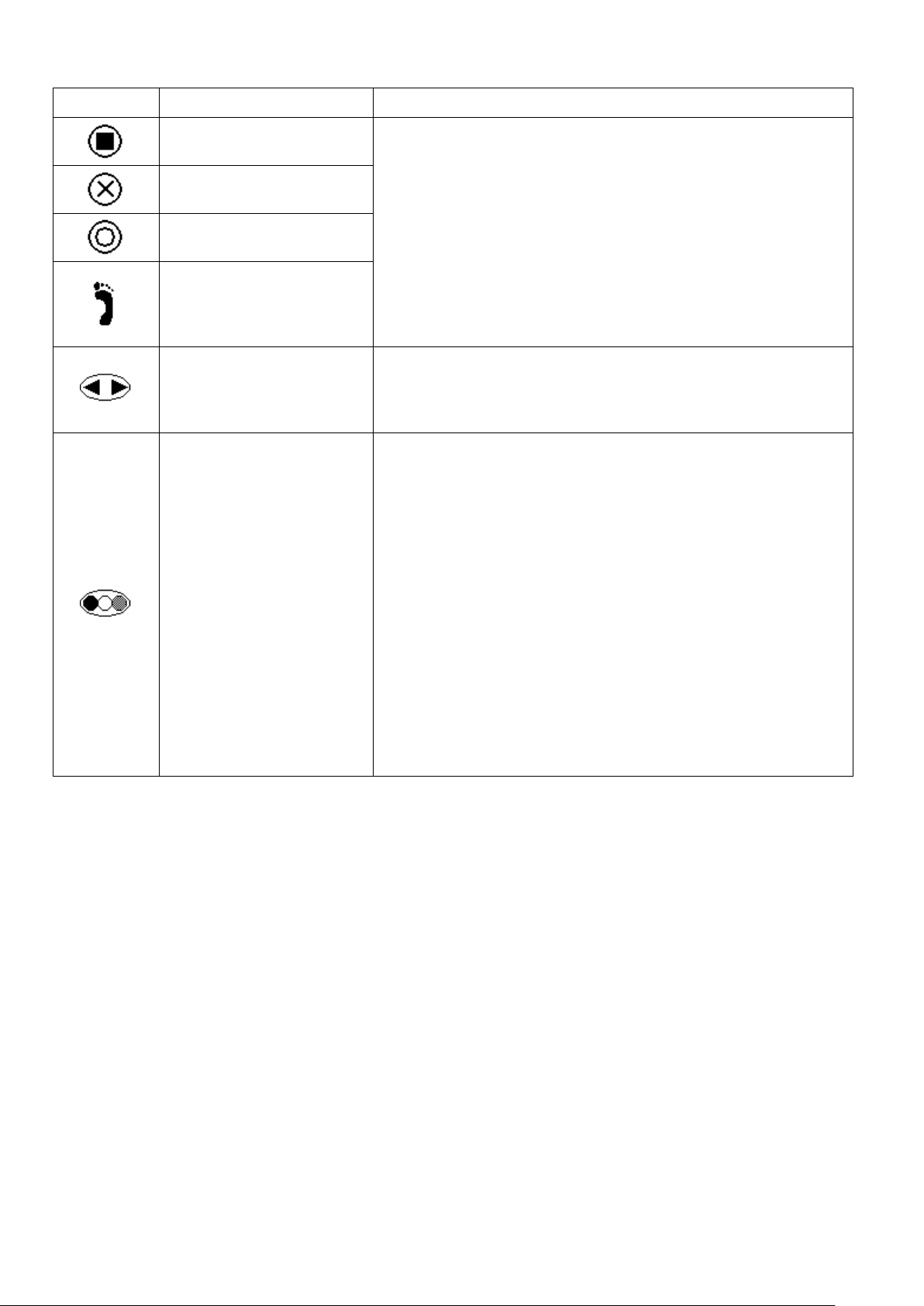

Symbol
Name
Basic function
Focus
Press to re-focus the camera if in "press
to focus mode" (see 5C: focus menu)
+
Shifted button
Press and hold the button and press
the button referred to after the “+”, in a
similar manner to the shift button on a
computer keyboard. Shifted buttons allow
extended functionality depending on the
mode of operation.
Zoom
Press the top of this button to zoom in
and increase magnification.
Press the bottom of this button to zoom
out and reduce magnification.
