Congratulations on purchasing your new electric cooktop. The Esatto brand is proudly distributed within Australia by esidentia Group Pty Ltd.

Please refer to the warranty card at the rear of this manual for information regarding your product’s parts and labour warranty, or visit us online at www.residentia.group

At esidentia Group, we are customer obsessed and our Support Team are there to ensure you get the most out of your appliance. Should you want to learn more about recommended cooking temperatures, the various features of your cooktop, and importantly taking care of your appliance when cleaning, our Support Team are here to help. You can use our online Support Centre at anytime by visiting http://support.residentiagroup.com.au, or you can contact us via calling us on 1300 11 HELP (4357).

It is important that you read through the following use and care manual thoroughly to familiarise yourself with the installation and operation requirements of your appliance to ensure optimum performance.

Again, thank you for choosing an Esatto appliance and we look forward to being of service to you.

Kind Regards, The esidentia Team

Postage. PO Box 341, Mt Eliza Victoria Australia 3930

Telephone. 1300 11 4357 Email. support@residentiagroup.com.au

esatto.house

Contents

Welcome

Your Esatto Cooktop

Operating your Cooktop

Safety Instructions

Installation Instructions

Cleaning & Maintenance/

Technical Data

Purchase Details

Troubleshooting

Warranty Information

User Manual

Safety Instructions

This cooktop must only be installed by a suitably qualiﬁed and licenced person and in accordance with the instructions provided. Incorrect installation may cause harm to persons, damage property and void the product’s warranty.

IMPORTANT!

The electricity supply to the cooktop must be cut oﬀ before any adjustments or maintenance work is undertaken.

WARNING

When using this product, basic precautions should always be taken including the following:

► This cooktop is designed for domestic household use

and for the cooking and frying of domestic foodstuﬀs.

IMPORTANT! The adjacent furniture and all materials used in the installation must be able to withstand a minimum temperature of 85°C above the ambient temperature of the room it is located in, whilst in use.

► Certain types of vinyl or laminate kitchen cabinetry

are particularly prone to heat damage or discolouration at temperatures above the guidelines given.

► Any damage caused by the cooktop being installed in

contravention of this temperature limit, will be the liability of the owner.

► Your new cooktop is guaranteed against electrical or

mechanical defects, subject to certain exclusions that are noted in the Warranty Terms and Conditions (at the rear of this user manual). The foregoing does not aﬀect your statutory rights.

► The use of this cooktop for any other purpose or in any

other environment, without the express agreement of Residentia Group, will invalidate any warranty or liability claim.

► You should not use this appliance to store items on or

as a work surface.

► No modiﬁcations to the appliance are permitted by

Residentia Group.

► You should not store or place ﬂammable or highly

ﬂammable liquids/materials on top of or near the appliance. Items made from aluminium, plastic or plastic ﬁlm should also be kept away from the appliance, as they may fuse to the surface.

► Repairs may only be carried out by authorised service

agents.

► Your Esatto cooktop is not to be used by children or

persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

► Any ﬁlm or stickers that are present on the cooktop

when it is delivered should be removed before use.

► Care should be used when utilising the cooktop,

otherwise there is a risk of burns being caused.

► You should not allow the electrical connection cables

to come into contact with the cooktop surface when it is hot or any hot cookware.

► If fat and oil overheats, then it can ignite extremely

quickly. For this reason, when cooking with fat and oil the appliance should not be left unattended.

► Make sure that all of the cooking zones are switched

oﬀ after use.

► Cleaning of the cooktop should be carried out on a

regular basis, once the cooktop has cooled down.

► Great care should be taken whilst using this appliance

and when following the cleaning procedure.

► You should not use a steam jet or any other high

pressure cleaning equipment to clean the appliance.

esatto.house

DECLARATION OF CONFORMITY

The manufacturer declares that the cooktop is built using certiﬁed materials and requires the appliance to be installed in accordance with the standards currently in force. This appliance must be used by a trained person for domestic purposes only.

TO AVOID DAMAGING YOUR COOKTOP

► The ceramic glass can be damaged by objects falling

onto it.

► The ceramic glass edge can be damaged by knocks

from cookware.

► Cast iron and cast aluminium cookware with damaged

bases may scratch the ceramic surface if they are dragged across it.

► Pans should be lifted on and oﬀ the cooktop surface

and not dragged.

► Cooking zones should not be switched on without

cookware placed on it. Also the cookware should not be empty.

UNPACKING

During transportation, protective packaging was used to protect the appliance against any damage. After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environment. All materials used for packaging the appliance are environmentally friendly; they are 100% recyclable and are marked with the appropriate symbol.

► During unpacking, the packaging materials (polythene

bags, polystyrene pieces, etc.) should be kept out of reach of children.

DISPOSAL OF THE APPLIANCE

Old appliances should not simply be disposed of with normal household waste, but should be delivered to a collection and recycling centre for electric and electronic equipment. A symbol shown on the product, the instruction manual or the packaging shows that it is suitable for recycling.

Materials used inside the appliance are recyclable and are labelled with information concerning this. By recycling materials or other parts from used devices you are making a signiﬁcant contribution to the protection of our environment.

Information on appropriate disposal centres for used devices can be provided by your local authority.

User Manual 06

PAGE 07

It’s important to carefully read the following installation instructions before beginning the installation of your cooktop.

IMPORTANT!

The connection of this cooktop must be carried out by a suitably qualiﬁed and licensed person, in accordance with the current version of the following:

► AS/NZS 3000: 2007 Wiring Regulations ► 2010 Electricity Safety Regulations ► The installation instructions within this user manual

NST

ALLATION INSTRUCTIONS

Cutoutthew

orksurfaceaccordingtothesizesshowninthedrawing.

Forthep

urposeofinstallationanduse,

inimumof50mmspaceshallbe

reservedaroundthehole.

Bes

urethethicknessoftheworksurfaceis

at l

east30mm.Pleaseselect

eat-resistantworksurfacematerial

toav

oidlargerdeformationcausedby

theh

eatradiationfromthehotplate.Asshownbelow

(mm)

520 55 51 560 490 50 mini

nderanycircumstances,makesuretheceramiccookerhobiswellventilated

andtheairi

nletandoutlet

arenotb

locked.

nsuretheceramiccookerhobisin

oodworkstate.Asshownbelow:

ote:Thesafetydistancebetweenthehotplateandthecupboardabove

theh

otplateshouldbe

at l

east760mm.

590

USER MANUAL PAGE 06

SPECIFICATIONS

YOUR INALTO COOKTOP

Your Esatto Cooktop

490

MODEL PRODUCT DIMENSIONS (W×D×H) CUT-OUT DIMENSIONS (W×D)

IE60T 590mm, 520mm, 55mm 560mm x 490mm

EE60T

MODEL BURNERS OTHER

IE60T

EE60T

CERAMIC COOKTOP SURFACE LAYOUT

2 x 1.80 kW radiant zones (Ø 190mm)

2 x 1.20 kW radiant zones (Ø 155mm)

Touch control operation 4 x Individual residual heat indicators Frameless design

1.20kW zone (Ø

1.80kW zone (Ø 190mm)

1.20kW zone (Ø 155mm)

1.80kW zone (Ø 190mm)

TOUCH CONTROLS

155mm)

esatto.house 07

PAGE 07

It’s important to carefully read the following installation instructions before beginning the installation of your cooktop.

NST

ALLATION INSTRUCTIONS

Installation Instructions

IMPORTANT!

► AS/NZS 3000: 2007 Wiring Regulations ► 2010 Electricity Safety Regulations ► The installation instructions within this user manual

The connection of this cooktop must be carried out by a suitably qualiﬁed and licensed person, in accordance with the current version of the following:

Cutoutthew am

inimumof50mmspaceshallbe

Bes

urethethicknessoftheworksurfaceis

toav

oidlargerdeformationcausedby

(mm)

590

nderanycircumstances,makesuretheceramiccookerhobiswellventilated

U arenotb

orksurfaceaccordingtothesizesshowninthedrawing.

reservedaroundthehole.

at l

east30mm.Pleaseselect

theh

eatradiationfromthehotplate.Asshownbelow

locked.

(mm)

520 55 51 560 490 50 mini

nsuretheceramiccookerhobisin

(mm)

oodworkstate.Asshownbelow:

(mm)

Forthep

eat-resistantworksurfacematerial

urposeofinstallationanduse,

(mm)

andtheairi

(mm)

nletandoutlet

ote:Thesafetydistancebetweenthehotplateandthecupboardabove

otplateshouldbe

theh

east760mm.

at l

User Manual

USER MANUAL PAGE 08

INSTALLATION INSTRUCTIONS

Theu

nitshouldbeplacedon

a s

table,smoothsurface(usethepackaging).Donot

plyforceontothecontrols

rotrudingfromthehob.

Fixthehobonthew

orksurfacebyscrewfourbracketsonthebottomofhob(see

icture)afterinstallation.

djustthebracketpositiontosuitfordifferentworksurface

’s t

hickness.

The ceramic cooker hob must be installed by qualified personnel or technicians.

We have p rofessionals at

your service.

Please never conduct the operation by

yourself.

The ceramic cooker hob shall not be mounted to cooling equipment,

dishwashers and rotary dryers.

The ceramic cooker hob shall be installed such that better heat radiation can be

ensured to enhance its

reliability.

The wall and induced heating zone above the work surface shall withstand heat.

To avoid any damage, the sandwich layer and adhesive must be resistant to

heat.

A steam cleaner is not to be used.

This ceramic can be connected only to a supply with system impedance no more

than 0.427 ohm. In case

necessary, please consult your supply authority for

system impedance information.

PAGE 09

The power supply should be connected in compliance with the relevant standard,

or a single-pole

circuit

breaker.

The method of connection is shown below.

CONNECTING THE HOB TO THE MAINS POWER SUPPLY

►

If the cable is damaged or needs replacing, this should be done by an

after-sales technician using

the proper tools, so as to avoid any accidents.

If the appliance is being connected directly to the mains supply, an omnipolar

circuit breaker must

installed with a minimum gap of 3mm between the

contacts.

The installer must ensure that the correct electrical connection has been made

and that it complies

with safety regulations.

The cable must not be bent or compressed.

The cable must be checked regularly and only replaced by a properly qualified

person.

►

► ►

ISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

This appliance is labeled in compliance with European directive 2002/96/EC for Waste Electrical and Electronic Equipment (WEEE). By ensuring that this appliance is disposed of correctly, you will help prevent any possible damage to the environment and to human health, which might otherwise be caused if it were disposed of in the wrong way.

The symbol on the product indicates that it may not be treated as normal household waste. It should be taken to a collection point for the recycling of electrical and electronic goods.

This appliance requires specialist waste disposal. For further information regarding the treatment, recover and recycling of this product please contact your local council, your household waste disposal service, or the shop where you purchased it.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

LOCATING THE FI ING BRACKETS

CAUTIONS!

►

► ►

►

esatto.house

PAGE 09

The power supply should be connected in compliance with the relevant standard,

or a single-pole

circuit

breaker.

The method of connection is shown below.

CONNECTING THE HOB TO THE MAINS POWER SUPPLY

If the cable is damaged or needs replacing, this should be done by an

after-sales technician using

the proper tools, so as to avoid any accidents.

If the appliance is being connected directly to the mains supply, an omnipolar

circuit breaker must

installed with a minimum gap of 3mm between the

contacts.

The installer must ensure that the correct electrical connection has been made

and that it complies

with safety regulations.

The cable must not be bent or compressed.

The cable must be checked regularly and only replaced by a properly qualified

person.

►

► ►

The symbol on the product indicates that it may not be treated as normal household waste. It should be taken to a collection point for the recycling of electrical and electronic goods.

This appliance requires specialist waste disposal. For further

ISPOSAL: Do not

D dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

information regarding the treatment, recover and recycling of this product please contact your local council, your household waste disposal service, or the shop where you purchased it.

User Manual

USER MANUAL PAGE 10

BEFORE FIRST USE

OPER

TING

OUR

COOKTOP

PAGE 11

Do not use cookware with jagged edges or a curved base.

CHOOSING THE RIGHT COOKWARE

Make sure that the base of your pan is smooth, sits flat against the glass, and is

the same size as

the cooking zone. Always centre your pan on the cooking zone.

OPERATING YOUR COOKTOP

Always lift pans off the ceramic hob – do not slide, or they may scratch the glass.

Thec

ontrolsrespondtotouch,soyoudon

’t n

eedtoapplyanypressure.

Usetheb

allofyourfinger,notitstip.

Youw

illhear

a b

eepeachtime

a t

ouchisregistered.

akesurethecontrolsarealwaysclean,dry,andthatthereisnoobject(e.g.

tensilor

a c

loth)coveringthem.Even

a t

hinfilmofwatermaymakethe

ontrolsdifficulttooperate.

USING THE TOUCH CONTROLS

►

Operating Your Cooktop

IMPORTANT! You should clean the ceramic cooktop surface (refer to the “Cleaning and Maintenance” section).

► You should switch on one cooking zone at a time, for 5 minutes at the maximum setting. This will help to eliminate

any new smell that exists and evaporate any humidity that has formed on the heating elements during transit. ► Do not burn oﬀ more than one zone at once. ► You must place a saucepan ﬁlled half full with cold water on each cooking zone as you burn it oﬀ.

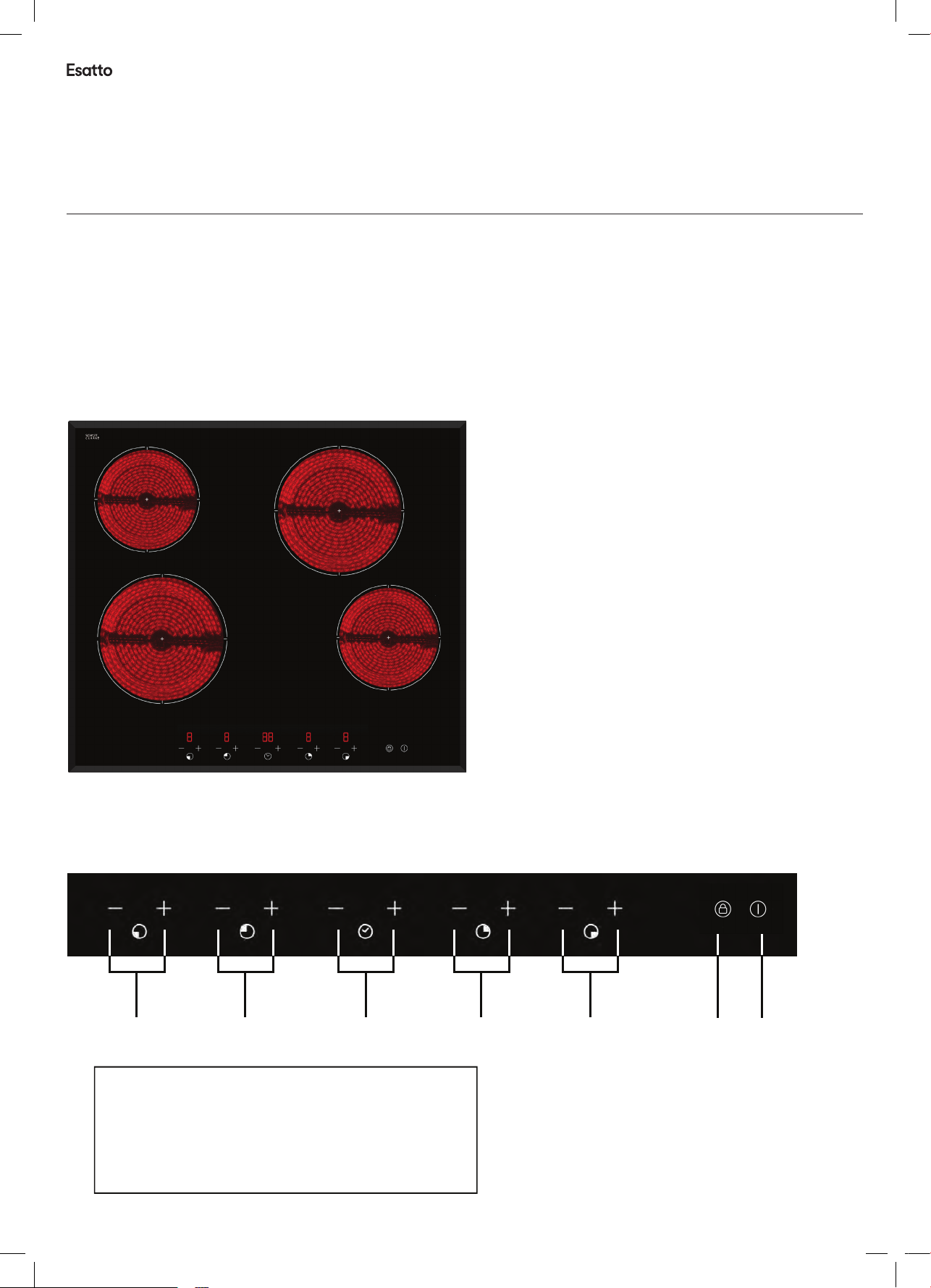

TOP VIEW

TOUCH CONTROLS

► All operations are performed by means of the touch controls that can be found on the control panel at the front .

1 1211 34

. Power regulating key

2. Timer regulating key

3. keylock control

4. ON/OFF control

esatto.house

PAGE 11

CHOOSING THE RIGHT COOKWARE

Make sure that the base of your pan is smooth, sits flat against the glass, and is

the same size as

the cooking zone. Always centre your pan on the cooking zone.

OPERATING YOUR COOKTOP

Thec

ontrolsrespondtotouch,soyoudon

’t n

eedtoapplyanypressure.

Usetheb

allofyourfinger,notitstip.

Youw

illhear

a b

eepeachtime

a t

ouchisregistered.

akesurethecontrolsarealwaysclean,dry,andthatthereisnoobject(e.g.

tensilor

a c

loth)coveringthem.Even

a t

hinfilmofwatermaymakethe

ontrolsdifficulttooperate.

Do not use cookware with jagged edges or a curved base.

Always lift pans off the ceramic hob – do not slide, or they may scratch the glass.

USING THE TOUCH CONTROLS

►

User Manual 12

USER MANUAL PAGE 12

After power on, the buzzer beeps once, all the indicators light up for 1 second

then go out, indicating that the ceramic hob has entered the state of standby

mode.

1. Touch the ON/OFF

control. all the indicators

show “-“.

2. Place a suitable pan on the cooking zone that

you wish to use.

Make sure the bottom of the pan and the surface

of the cooking

zone are clean and dry.

you don’t choose a heat setting within 1

switch off.

You will need to start again at

You

can modify the heat setting at any time

during cooking.

Turn the cooking zone off by scrolling down to“0”or

touching

“-” and “+”

control together.

Make

sure the display shows“0

RESIDUAL HEAT INDICATORS

► After a zone is switched oﬀ, the corresponding cooking zone will show an “H” in the control panel. This means that

the temperature of the zone still high enough to cause injury.

► The residual heat indicator will go out when the surface has cooled down to a safe temperature.

IMPORTANT! The residual heat indicator will disappear if the mains supply to the product is cut.

Warning! It is still possible to burn yourself on a cooktop zone, even when the residual heat indicator has gone

oﬀ. Always use caution when using the cooktop.

► The residual heat also can be used as an energy saving function if you want to heat further pans,use the hotplate

that is still hot.

You can lock the controls to prevent unintended use (for example children

accidentally turning the

cooking zones on).

When the controls are locked, all the controls except the ON/OFF control are

disabled.

Touch the keylock control. The timer indicator will show “Lo “

Make sure the ceramic hob is turned on.

Touch and hold the keylock control for a while.

You can now start using your ceramic hob.

When the hob is in the lock mode, all the controls are disable except the ON/OFF ,

you can always turn the ceramic hob off with the ON/OFF control in an emergency,

but you shall unlock the hob first in the next operation

When the hob has been operating for some time, there will be some residual

heat. The

“ H ”appears to warn you to keep away from it.

safety fe ature of the hob is auto shut down. This occurs whenever you forget to

switch off a cooking zone.

The default shutdown times are shown in

the table below:

Power level

123456789

Default working timer (hour) 888444222

LOCKING THE CONTROLS

►

TO LOCK THE CONTROLS

TO UNLOCK THE CONTROLS

► ►

►

AUTO SHUTDOWN

PAGE 13

TO START COOKING

Do not use cookware with jagged edges or a curved base.

►

3.Select a heat setting by touching the “-“ or “+”

►

automatically

►

WHEN YOU HAVE FINISHED COOKING

step 1.

control.

minute, the Induction hob will

►

Turn the whole cooktop off by touching the ON/OFF control.

”

RESIDUAL HEAT INDICATORS

You can lock the controls to prevent unintended use (for example children

accidentally turning the

cooking zones on).

When the controls are locked, all the controls except the ON/OFF control are

disabled.

Touch the keylock control. The timer indicator will show “Lo “

Make sure the ceramic hob is turned on.

Touch and hold the keylock control for a while.

You can now start using your ceramic hob.

When the hob is in the lock mode, all the controls are disable except the ON/OFF ,

you can always turn the ceramic hob off with the ON/OFF control in an emergency,

but you shall unlock the hob first in the next operation

When the hob has been operating for some time, there will be some residual

heat. The

“ H ”appears to warn you to keep away from it.

safety fe ature of the hob is auto shut down. This occurs whenever you forget to

switch off a cooking zone.

The default shutdown times are shown in

the table below:

PAGE 13

esatto.house 13

► After a zone is switched oﬀ, the corresponding cooking zone will show an “H” in the control panel. This means that

the temperature of the zone still high enough to cause injury.

► The residual heat indicator will go out when the surface has cooled down to a safe temperature. ► The residual heat also can be used as an energy saving function if you want to heat further pans,use the hotplate

that is still hot.

►

IMPORTANT! The residual heat indicator will disappear if the mains supply to the product is cut.

Warning! It is still possible to burn yourself on a cooktop zone, even when the residual heat indicator has gone

LOCKING THE CONTROLS

►

oﬀ. Always use caution when using the cooktop.

TO LOCK THE CONTROLS

TO UNLOCK THE CONTROLS

► ►

►

AUTO SHUTDOWN

Power level Default working timer (hour) 888444222

123456789

User Manual 14

OPERATING YOUR COOKTOP

You can use the timer in two different ways:

You can use it as a minute minder. In this case, the timer will not turn any

cooking zone off when the set time is up.

You can set it to turn one or more cooking zones off after the set time is up.

You can set the timer up to 99 minutes.

Make sure the cooktop is turned on.

Note: you can use the minute minder even if you’re not selecting any cooking

zone.

indicator will start flashing and “10” will show

in the timer display.

Set the time by touching the “-“ or ”+” control

of the timer.

Touch the “-“ or ”+” control of the timer

once to decrease or increase by 1 minute.

Touch and hold th“-“ or “+” control of the

timer to decrease or increase by 10 minutes.

Touching the “-“ and ”+” together, the timer

cancelled,

and the”00” will show in the minute

display.

When the time is set, it will begin to count down

immediately.

The display will show the remaining

time and the timer indicator

will flash for 5 seconds.

Buzzer will bips for 30 seconds and the timer

indicator shows “- - “

when the setting time

finished.

USER MANUAL PAGE 14

SETTING THE TIMER TO TURN ONE OR MORE COOKING ZONES OFF

►

If the timer is set on one zone:

Touch the”-“ or ”+” of the corresponding cooking

zone that want to set the timer for.

Set the time by touching the “-“ or “+” control of the

timer.

Touch the “-“ or “+” control of the timer

once will decrease or increase by 1 minute.

Touch and hold the ”-“ or “+”control of the t imer

will decrease or increase by 10 minutes.

Touching the ”-“ and “+” together, the timer is

cancelled, and the ”00” will show in the minute

display.

►

you

►

When the time is set, it will begin to count down

immediately. The display will show the remaining

time and the timer indicator flash for 5 seconds.

NOTE: The red dot next to power level indicator

will illuminate indicating that zone is selected.

When cooking timer expires, the corresponding

cooking zone will be switch off automatically.

Other cooking zone will keep operating if they are turned on previously.

PAGE 15

USING THE TIMER

►

► ►

USING THE TIMER AS A MINUTE MINDER

If you are not selecting any cooking zone

►

Touch”+” the controls of the timer. The minder

►

SETTING THE TIMER TO TURN ONE OR MORE COOKING ZONES OFF

Touch the”-“ or ”+” of the corresponding cooking

timer.

Touch the “-“ or “+” control of the timer

once will decrease or increase by 1 minute.

Touch and hold the ”-“ or “+”control of the t imer

will decrease or increase by 10 minutes.

cancelled, and the ”00” will show in the minute

display.

When the time is set, it will begin to count down

immediately. The display will show the remaining

time and the timer indicator flash for 5 seconds.

NOTE: The red dot next to power level indicator

will illuminate indicating that zone is selected.

When cooking timer expires, the corresponding

cooking zone will be switch off automatically.

PAGE 15

esatto.house 15

If the timer is set on one zone:

►

zone that want to set the timer for.

Set the time by touching the “-“ or “+” control of the

►

you

►

Touching the ”-“ and “+” together, the timer is

►

Other cooking zone will keep operating if they are turned on previously.

User Manual 16

When you set the time for several cooking zones simultaneously, decimal dots

of the relevant cooking zones are on. The minute display shows the min. timer.

The dot of the corresponding zone flashes.

(set to 15 minutes) (set to 45 minutes)

Once the countdown timer expires, the corresponding zone will switch off.

Then it will show the new min. timer and the dot of corresponding zone will

flash.

(set to 30 minutes)

Ifthe timer is set on more zone:than one

USER MANUAL PAGE 16

OPERATING YOUR COOKTOP

COOKTOP GUIDELINES

PAGE 17

►

► The ﬁrst few times the cooktop is used, it may give oﬀ a burning smell. This smell will disappear completely with

repeated use. ► The cooktop surface is ﬁtted with cooking areas of diﬀerent diametre and power. ► The positions where the heat will radiate from are clearly marked on the cooktop. The saucepans must be positioned

exactly on these zones for eﬃcient heating to occur. Pans should have the same diametre as the cooking zone that they

are being used on. ► You should not use saucepans with rough bottoms, as this can scratch the ceramic surface. ► Before use, make sure that the bottoms of the saucepans are clean and dry. ► When cold, the bottom of the pans should be slightly concave, as they expand when hot and lie ﬂat on the surface of

the cooktop. ► This will allow the heat to transfer more easily. ► The best thickness for the bottom of the pans is 2–3 mm of enameled steel and 4–6 mm for stainless steel with

sandwich type bottoms. ► If these rules are not followed, then there will be a great loss of heat and energy. Heat not absorbed by the saucepan,

will spread to the cooktop, frame and surrounding cabinets. ► Preferably cover pans with a lid to permit cooking at a lower heat. ► Always cook vegetables and potatoes, etc. in as little water to reduce cooking times. ► Food or liquid that has high sugar content may damage the cooktop if it comes into contact with the ceramic cooktop

surface. Any spillages should be wiped up immediately, however this may not prevent the cooktop surface from

becoming damaged.

esatto.house 17

Cleaning & Maintenance

By ensuring proper cleaning and maintenance of your Esatto cooktop, you can ensure that it will have a long and fault free operation.

WARNING! Do not start cleaning the cooktop until it has completely cooled.

CLEANING YOUR CERAMIC COOKTOP

► Any residues that are left on the cooktop surface from cleaning agents will damage it.

You should remove any residues with warm water mixed with a little washing up liquid. ► Abrasive cleaners or sharp objects will damage the cooktop surface; you should clean

it using warm water mixed with a little washing up liquid. ► Although it is easier to clean some deposits whilst the cooktop surface is still warm, you

should take care not to burn yourself if cleaning the cooktop surface when it is still warm.

After each use: ► Wipe the cooktop over with a damp cloth. ► Dry the cooktop by rubbing the surface with a clean cloth.

Type of deposit Remove immediately? Remove when the cooktop

has cooled down?

Sugar or food/liquid containing sugar

Tin foil or plastic Yes No Ceramic cooktop scraper

Fat splashes No Yes Ceramic cooktop cleaner

Metallic discolouration No Yes Ceramic cooktop cleaner

Water splashes or water rings No Ye s Ceramic cooktop cleaner

USING A SPECIALIST CERAMIC COOKTOP CLEANER

It is possible to purchase a specialist ceramic cooktop cleaner/conditioner.

You should follow the instructions given by the manufacturer of the cleaner and ensure that it is suitable for use on your appliance.

Yes No Ceramic cooktop scraper

What should I use to remove the deposit?

Technical Data

ELECTRICAL DETAILS Rated Voltage: 220 - 240 Volts, 50-60 Hz Supply Connection: 30A (double pole switch fuse outlet with 3mm contact gap) Max Rated Inputs: 6.0kW Mains Supply Lead: 3 core x 4mm² (not supplied)

User Manual

Troubleshooting

Please read the issues below carefully and try all relevant steps. If none of this helps, please contact us on 1300 11 4357 for further advice or to schedule a technician to inspect your cooktop.

Tips & Hints

THE COOKING ZONES ARE NOT FUNCTIONING

Please check...

That your cooktop is plugged in and there is power to the wall socket.

Hint: Check the mains power or the isolation switch.

If your cooktop has a Control Lock or Child Lock function, check that it is switched oﬀ.

THE ELEMENTS STAY ON HIGH

Please...

Contact our Support Team on 1300 11 4357 to arrange for a technician to visit.

THE RESIDUAL HEAT INDICATOR DOES NOT APPEAR

Please note...

If the cooking zone has only been turned on for less than 30 seconds, the residual heat indicator will not appear.

If the cooking zone does appear to be hotter than 50° C or has been activated for longer than 30 seconds, and the residual heat indicator has not come on, please contact our Support Team on 1300 11 4357 for advice.

THE GLASS IS SCRATCHED

Please note...

Scratches are often caused by using cookware with rough-edges. Please ensure pots and pans have smooth bases.

THE COOKTOP IS HUMMING WHEN A ZONE IS SELECTED

Please note...

This is normal—the sound will disappear when the zone heats up.

If the humming sound continues once the zone is fully at heat, please contact our Support Team on 1300 11 4357 for advice.

THE COOKTOP IS NOT TURNING OFF

Please...

Ensure the child lock is disabled.

Hint: On some models you may have to touch the zone control twice to disable.

THE COOKING ZONES HAVE BECOME DISCOLOURED

Please note...

This maybe caused by burnt on remnants of food. This will not aﬀect the working of the appliance however you should make sure that the cleaning instructions are being followed regularly.

Please note that if an engineer is asked to attend whilst the product is under warranty and ﬁnds that the problem

is not the result of an appliance fault, then you may be liable for the cost of the call out charge.

THE COOKTOP IS DIRTY AFTER COOKING

Please note...

Once it has cooled down, your cooktop should be cleaned after every use. Any residues that are left on the cooktop surface from cleaning agents will damage it. You should remove any residues with warm water mixed with a little washing up liquid.

Hint: For physical deposits on the surface, a specialist ceramic cooktop cleaner/ conditioner should be purchased. Please follow the instructions with this product.

THERE IS A METALLIC SHEEN ON THE GLASS

Please note...

This is often caused by pots with aluminium or copper bases.

Hint: Specialist ceramic cleaner should remove the marks. Your cooktop should be cleaned regularly, as spills that are allowed to burn into the surface may react with the ceramic glass and become much harder to remove.

esatto.house

Purchase Details

For future reference, please record the following information which can be found on the rating plate and the date of purchase which can be found on your sales invoice.

STORE DETAILS

STORE NAME

ADDRESS

TELEPHONE

PURCHASE DATE

PRODUCT DETAILS

The rating plate of your cooktop is located on the underneath of the appliance. Therefore please ﬁt the duplicate data plates or label on the outside of the cupboard to sure that the label can be easily seen during operation.

MODEL NO.

SERIAL NO.*

* Your serial number can be found on the underside of the cooktop.

User Manual

Warranty Information

WARRANTY TERMS & CONDITIONS COOKING APPLIANCES (BUILT-IN OVENS, COOKTOPS)

This document sets out the terms and conditions of the product warranties for Residentia Group Appliances. It is an important document. Please keep it with your proof of purchase documents in a safe place for future reference should you require service for your Appliance.

1. IN THIS WARRANTY (a) ‘acceptable quality’ as referred to in clause 10 of this

warranty has the same meaning referred to in the ACL;

(b) ‘ACL’ means Trade Practices Amendment (Australian

Consumer Law) Act (No.2) 2010;

purchased by you accompanied by this document;

(d) ‘ASR’ means Residentia Group authorised service

representative;

(e) ‘Residentia Group’ means Residentia Group Pty Ltd

of 118 Campbell St, Collingwood VIC, ACN 600 546 656 in respect of Appliances purchased in Australia;

(f ) ‘major failure’ as referred to in clause 10 of this

warranty has the same meaning referred to in the ACL and includes a situation when an Appliance cannot be repaired or it is uneconomic for Residentia Group, at its discretion, to repair an Appliance during the

Warranty Period; (g) ‘Warranty Period’ means: (i) where the Appliance is used for personal,

domestic or household use (i.e. normal single family use) as set out in the instruction manual, the Appliance is warranted against manufacturing defects for 24 months, following the date of original purchase of the Appliance;

(h) ‘you’ means the purchaser of the Appliance not having

purchased the Appliance for re-sale, and ‘your’ has a

corresponding meaning.

2. This warranty only applies to Appliances purchased

and used in Australia and is in addition to (and does

not exclude, restrict, or modify in any way) any

non-excludable statutory warranties in Australia.

3. During the Warranty Period Residentia Group or its

ASR will, at no extra charge if your Appliance is readily

accessible for service, without special equipment and

subject to these terms and conditions, repair or replace

any parts which it considers to be defective. Residentia

Group or its ASR may use remanufactured parts to

repair your Appliance. You agree that any replaced

Appliances or parts become the property of Residentia

Group. This warranty does not apply to light globes,

batteries, lters or similar perishable parts.

4. Parts and Appliances not supplied by Residentia Group

are not covered by this warranty.

esatto.house

5. You will bear the cost of transportation, travel and delivery of the Appliance to and from Residentia Group or its ASR. If you reside outside of the service area, you will bear the cost of:

(a) travel of an authorised representative; (b) transportation and delivery of the Appliance to and

from Residentia Group or its ASR, in all instances, unless the Appliance is transported by Residentia Group or its ASR, the Appliance is transported at the owner’s cost and risk while in transit to and from Residentia Group or its ASR.

6. Proof of purchase is required before you can make a claim under this warranty.

7. You may not make a claim under this warranty unless the defect claimed is due to faulty or defective parts or workmanship. Residentia Group is not liable in the following situations (which are not exhaustive):

(a) the Appliance is damaged by: (i) accident (ii) misuse or abuse, including failure to properly

maintain or service (iii) normal wear and tear (iv) power surges, electrical storm damage or

incorrect power supply (v) incomplete or improper installation (vi) incorrect, improper or inappropriate operation (vii) insect or vermin infestation (viii) failure to comply with any additional instructions

supplied with the Appliance; (b) the Appliance is modied without authority from

Residentia Group in writing;

been removed or defaced;

(d) the Appliance was serviced or repaired by anyone

other than Residentia Group, an authorised repairer or ASR.

8. This warranty, the contract to which it relates and the

relationship between you and Residentia Group are governed by the law applicable where the Appliance was purchased.

10. For Appliances and services provided by Residentia Group in Australia, the Appliances come with a guarantee by Residentia Group that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the Appliance repaired or replaced if the Appliance fails to be of acceptable quality and the failure does not amount to a major failure. The benets to you given by this warranty are in addition to your other rights and remedies under a law in relation to the Appliances or services to which the warranty relates.

11. At all times during the Warranty Period, Residentia Group shall, at its discretion, determine whether repair, replacement or refund will apply if an Appliance has a valid warranty claim applicable to it.

12. To enquire about claiming under this warranty, please follow these steps:

(a) carefully check the operating instructions, user manual

and the terms of this warranty;

(b) have the model and serial number of the Appliance

available;

13. You accept that if you make a warranty claim, Residentia Group and its ASR may exchange information in relation to you to enable Residentia Group to meet its obligations under this warranty.

IMPORTANT Before calling for service, please ensure that the steps in point 12 have been followed.

Telephone contacts → Service: Please call 1300 11 HELP (4357) → Spare Parts: Please call 1300 11 SPARE (7727)

9. To the extent permitted by law, Residentia Group excludes all warranties and liabilities (other than as contained in this document) including liability for any loss or damage whether direct or indirect arising from your purchase, use or non use of the Appliance.

The Australian Consumer Law requires the inclusion of the following statement with this warranty:

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

User Manual

This page is intentionally left blank

esatto.house

This page is intentionally left blank

Appliances

Exctly wht you need

WWW.RESIDENTIA.GROUP

Esatto EE60T User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
