Epson Z8050WNL User Manual

Download

PowerLite® Pro Z8000WUNL/Z8050WNL

User’s Guide

Notations Used in This Guide

• Safety indications

The documentation and the projector use graphical symbols to show how to use the projector safely.

Please understand and respect these caution symbols in order to avoid injury to persons or property.

Warning: This indicates information that, if ignored, could possibly result in personal injury or even death due to incorrect handling.

Caution:

• General information indications

s Indicates a page where detailed information regarding a topic can be found.

Procedure

[ (Name) ] Indicates the name of the buttons on the Remote Control or the Control panel.

"(Menu Name)"

Brightness (Boldface)

This indicates information that, if ignored, could possibly result in personal injury or physical damage due to incorrect handling.

Indicates operating methods and the order of operations.

The procedure indicated should be carried out in the order of the numbered steps.

Example: [ESC] button

Indicates the configuration menu items.

Example:

Select "Brightness" from the Image menu. Image menu - Brightness

Notations Used in This Guide

Introduction

About Your Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Projector Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Ease of use when installed on a ceiling mount. . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Reliability you can depend on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Large Projection Area and Precise Colors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Enhanced security functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Easy to handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Using the projector over a network (PowerLite Pro Z8050WNL only) . . . . . 11

Part Names and Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Front/Top . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Connecting to the HDMI Port. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Connecting to the DVI-D Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Connecting to Video Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Connecting to the HDMI Port. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Connecting to the DVI-D Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Connecting a Component Video Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Connecting an S-Video Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Connecting a Composite Video Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Turning the Projector On and Off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Adjusting the Image. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Adjusting the Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Focusing the Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Zooming the Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Fixing a Tilted Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Useful Functions

Correcting Distortion in the Projected Image. . . . . . . . . . . . . . . . . . . 39

Unpacking the Projector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Positioning the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Removing and Attaching the Interface Cover . . . . . . . . . . . . . . . . . . 28

Removing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Attaching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Connecting the Projector to Your Equipment . . . . . . . . . . . . . . . . . . 29

Connecting to a Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Connecting to the VGA Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Connecting to the BNC Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Correcting Distortion with Quick Corner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Changing the Projected Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Automatically Detect Input Signal and Change the Projected Image (Source

Search) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Switch to the target image using the Remote Control . . . . . . . . . . . . . . . . . . . 44

Functions for Enhancing Projection . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Selecting the Projection Quality (Selecting Color Mode) . . . . . . . . . . . . . . . . . 45

Setting the Auto Iris . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Hiding the Image Temporarily (Shutter) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Freezing the Image (Freeze) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Changing the Aspect Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Changing methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Changing the Aspect for video equipment images . . . . . . . . . . . . . . . . . . . . 48

Changing the Aspect for computer images . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Pointer Function (Pointer) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Enlarging Part of the Image (E-Zoom) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Limitation of the Number of the Target Projectors when Using

Multiple Projectors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Setting the Projector ID. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Checking the Projector ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Setting the Remote Control ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Correcting Color for Multiple Projectors (Multi-Screen Color

Adjustment) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Summary of Correction Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Correction Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Security Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Managing Users (Password Protect) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Type of Password Protect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Setting Password Protect. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Entering the Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Restricting Button Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Setting Control Panel Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Lens Operation Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Theft Deterrent Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Installing the wire lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Configuration Menu

Using the Configuration Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

List of Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Image Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Signal Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Settings Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Extended Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Network Menu (PowerLite Pro Z8000WUNL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Network Menu (PowerLite Pro Z8050WNL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Notes on operating the network menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

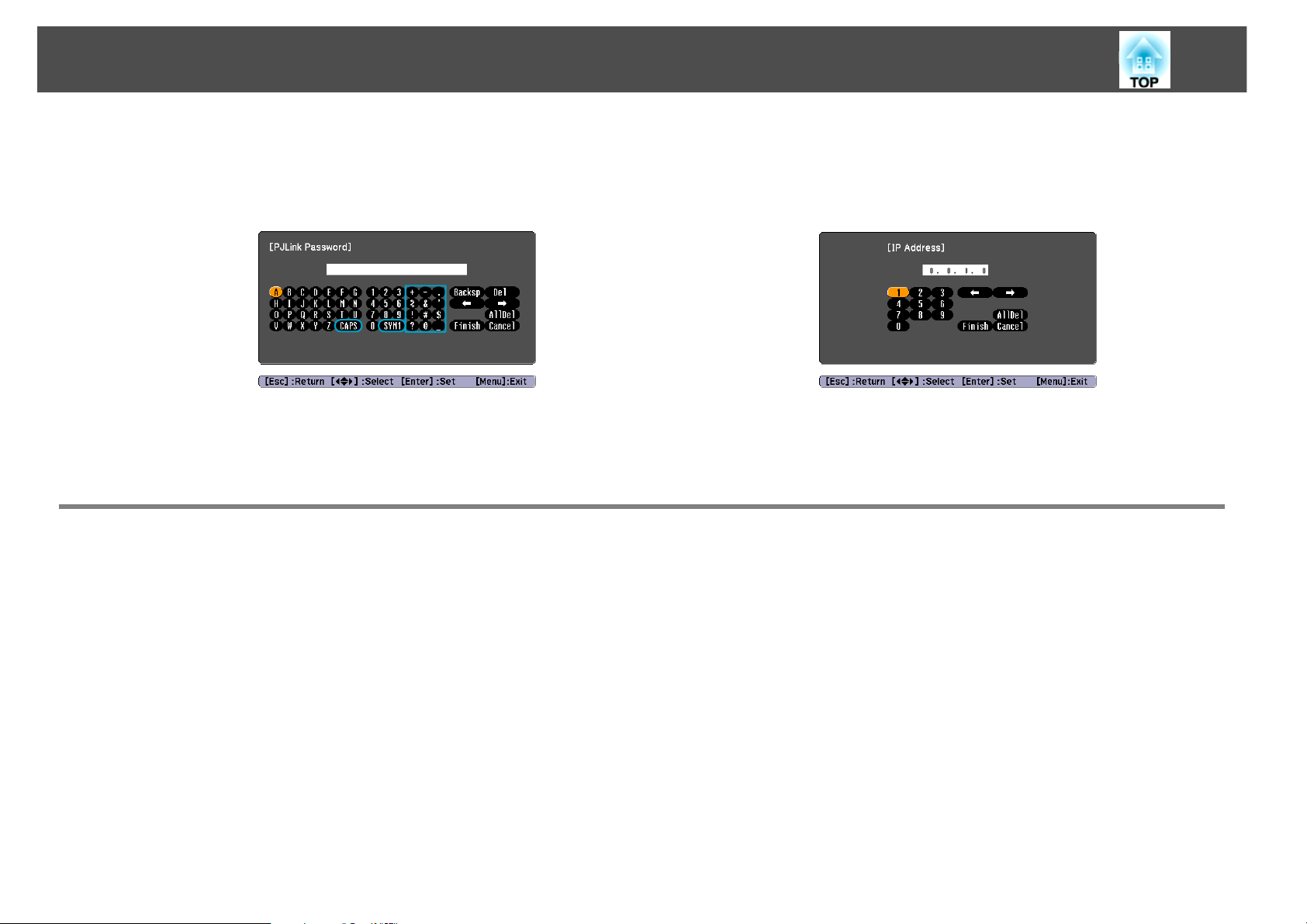

Soft keyboard operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Basic Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Wireless LAN Menu (only when the optional Wireless 802.11a/b/g Module

is installed) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Security menu (Only available when the optional Wireless 802.11a/b/g/

Module is installed) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Wired LAN Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Mail Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Others Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Reset Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Info Menu (Display Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Reset Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Projector Menu and Options List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Troubleshooting

Using the Help Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Problem Solving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

Reading the Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

t Indicator is lit or flashing red . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

m o n Indicator is flashing or lit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

When the Indicators Provide No Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .107

Problems relating to images. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

Problems when projection starts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

Other problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114

Where to Get Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

Internet Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

Speak to a Support Representative. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

Purchase Supplies and Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

Appendix

Replacing Consumables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

Replacing the Remote Control Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

Replacing the Lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

Lamp replacement period. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

How to replace the lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

Resetting the Lamp Hours. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

Replacing the Air Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

Air filter replacement period . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

How to replace the air filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

Optional Accessories and Consumables. . . . . . . . . . . . . . . . . . . . . . . 129

Optional accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

Consumables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

Notes on Transportation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

Moving Nearby. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

When Transporting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

Preparing packaging. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

Notes when packing and transporting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .130

Saving a User's Logo. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

Installation Methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Cleaning the Projector's Surface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Cleaning the Lens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Cleaning the Air filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Making a WPS (Wi-Fi Protected Setup) Connection with a Wireless

LAN Access Point (PowerLite Pro Z8050WNL only) . . . . . . . . . . . . .133

Connection Setup Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

Making a Connection Using the Push Button Method . . . . . . . . . . . . . . . . 134

Making a connection using the PIN Code Method . . . . . . . . . . . . . . . . . . . . 135

Connecting a LAN Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

Connecting to an external monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

Removing and Attaching the Projector Lens Unit . . . . . . . . . . . . . . 140

Removing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

Attaching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141

Reading Problem Mail Notification Function . . . . . . . . . . . . . . . . . . 144

ESC/VP21 Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

Command List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

Cable Layouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

Serial Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

Communications protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

About PJLink . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

Supported Monitor Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

Supported Monitor Displays for PowerLite Pro Z8000WUNL . . . . . . . . . . . . 149

Computer signals (analog RGB). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

Component Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150

Composite Video/S-Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

Input signal from the HDMI/DVI-D input port . . . . . . . . . . . . . . . . . . . . . . . . 152

Supported Monitor Displays for PowerLite Pro Z8050WNL . . . . . . . . . . . . . . 153

Computer signals (analog RGB). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153

Component Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154

Composite Video/S-Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154

Input signal from the HDMI/DVI-D input port . . . . . . . . . . . . . . . . . . . . . . . . 155

Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165

FCC Compliance Statement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168

For United States Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168

For Canadian Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169

Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156

Projector General Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156

Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158

Software System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160

Appearance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162

General Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165

Copyright Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165

Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165

Introduction

This chapter explains the projector's documentation, features, and part names.

About Your Documentation

This User’s Guide contains all the information you need to set up and use your projector. The following guides are also included with your projector:

• Quick Reference sheet

Provides information for connecting the projector to your equipment, displaying and adjusting the image, using the remote control, and solving display problems.

• On-screen EasyMP Monitor Operation Guide

Provides information for monitoring and controlling the projector over a network.

• On-screen Network Operation Guide (PowerLite Pro Z8050WNL only)

Provides information for projecting images over a network, as well as monitoring and controlling the projector over a network.

Projector Features

Ease of use when installed on a ceiling mount

Centered lens

The lens is positioned in the center of the projector so it is well balanced and is easy to mount on a ceiling. This also makes it easy to line up the screen and the projector.

Equipped with electric lens shift, zoom and focus functions

The lens shift function allows you to adjust the position of the projected image along the horizontal and vertical axes which opens up a wide variety of installation locations.

The lens shift, zoom, and focus functions can be operated with a remote control so operation is easy even if the projector is mounted on the ceiling.

Six optional lenses are available

You can select the best lens according to the projection distance and purpose. All the optional lenses are bayonet-type which allows you to simply and easily replace and install the optional lenses.

Horizontal and vertical installation possible

The projector can be pointed either up or down to project images on the floor or ceiling. This makes it an effective communication tool that lets you express your ideas with great impact.

A design that harmonizes with the surrounding environment, and makes the installation easy

The projector's sophisticated design has a cable cover in which cables are hidden for a clean exterior appearance.

The bar type handles are designed to make moving and installing the projector easy so it can be handled safely. The ceiling mount is attached to these handles when you mount the projector on the ceiling. The projector does not need to be turned upside down so installation is easy. The initial settings can be easily set as you look at the screen because the control panel is located on the back of the projector.

Projector Features

Easy maintenance

You can replace the lamp by opening a cover and pulling it straight out of the back of the projector without using a screwdriver.

There is only one air filter so cleaning and replacement are easy. The lamp and air filter can be safely replaced even when mounted on the ceiling because their covers do not fall off even if you release them.

Reliability you can depend on

The projector is equipped with two lamps. Even if one of the lamps breaks, you can continue projecting with the other lamp and avoid disrupting important presentations.

Large Projection Area and Precise Colors

Equipped with a high-resolution WUXGA panel (PowerLite Pro Z8000WUNL only)

You can project a large amount of information on the screen. Viewers can see the information at a glance without having to scroll or switch screens.

Epson Cinema Filter supports the color gamut for digital cinema.

Select Theater or sRGB in Color Mode to use Epson Cinema Filter for 100% reproduction of the color gamut used for digital cinema. As a result, this reproduces colors that are full and deep.

Precise color adjustments

As well as Color Mode, you can also adjust the image's absolute color temperature and the strength of each RGB color. Also, you can adjust the hue, saturation, and brightness of R, G, B, C, M, and Y.

Projector Features

Enhanced security functions

Password Protect to restrict and manage users

By setting a Password you can restrict who can use the projector.

Control Panel Lock restricts button operation on the Control panel.

You can use this to prevent people from changing projector settings without permission at events, in schools, and so on.

Equipped with various theft deterrent devices

The projector is equipped with the following types of theft deterrent security devices.

• Security slot

• Security cable installation point

Easy to handle

Using the projector over a network (PowerLite Pro Z8050WNL only)

You can use the included software to deliver presentations and meetings over a network. See your Network Operation Guide for more information.

Connect to the projector from computers via a network

You can use your existing network to share the projector from multiple computers. Documents can be projected from each computer without having to change any cables during meetings or presentations. Also, you don't have to worry about the distance between the computer and the projector.

Connecting wirelessly to a computer

When you install the optional Wireless 802.11a/b/g Module in the projector, you can connect wirelessly to a computer.

Direct power On/Off

In places where power is managed centrally, such as in a conference room, the projector can be set to power on and off automatically when the power source to which the projector is connected is switched on or off. s p.74

No cool down delay

After turning the projector's power off, you can disconnect the projector's power cable without having to wait for the projector to cool down.

Part Names and Functions

Front/Top

The illustration shows the projector with a standard zoom lens (not included) installed.

Name Function

1 Handle Use these handles when carrying the projector.

Also, you can pass an theft deterrent wire lock through the handles to secure the projector.

Warning:

Do not carry the projector by yourself.

Two people are needed to unpack or carry the projector.

2 Security slot( ) The Security slot is compatible with the Microsaver

Security System manufactured by Kensington®.

3 Air intake vent

(Air filter)

4 Front adjustable

foot

Takes in air to cool the projector internally. If dust collects here it can cause the internal temperature to rise, and this can lead to problems with operation and shorten the optical engine's service life. Be sure to clean the Air filter regularly.

When set up on a desk, turn to extend and retract to adjust the horizontal tilt.

The front adjustable feet can be removed when the projector is mounted on the ceiling.

5 Front cover Remove this cover to remove or install the lens

unit when replacing the lens.

This cover must be installed when using the projector.

6 Remote Receiver Receives signals from the remote control.

7 Interface cover Remove this cover to connect cables to the ports

inside when connecting the projector to video equipment.

8 Projection lens Images are projected through here.

9 Interface cover

open/close switch

Opens and closes the interface cover.

Part Names and Functions

Name Function

10 Ceiling mount

attachment points (Four points)

Attach the optional Ceiling mount here when suspending the projector from a ceiling.

Part Names and Functions

Interface

The following ports can be accessed by removing the interface cover. For information on how to remove the interface cover, see s p.28. For information on how to connect your equipment to the projector, see s p.29.

Name Function

5 Cable holder When a thick heavy HDMI cable is connected to

the HDMI input port, run a commercially available cable tie through this holder to prevent the cable from disconnecting.

6 Computer input port For analog RGB signals from a computer and

component video signals from other video sources.

7 Power inlet Connects to the power cable.

8 Remote port Connects the optional remote control cable set

and inputs signals from the remote control. When the remote control cable is plugged into this port, the remote receiver on the projector is disabled.

9 RS-232C port When controlling the projector from a computer

or controller, connect it with an RS-232C cable. This port is for control use and should not normally be used.

10 Wireless LAN Unit

port (PowerLite Pro Z8050WNL only)

Connects to the optional Wireless 802.11a/b/g Module.

Name Function

1 HDMI input port For video signals from HDMI compatible video

equipment and computers. This projector is compatible with HDCP signals.

2 BNC input port For analog RGB signals from a computer and

component video signals from other video sources.

3 Video input port For composite video signals from video sources.

4 S-Video input port For S-video signals from video sources.

11 Monitor Out port Outputs to an external monitor the analog signal

from the computer connected to the Computer input port or the BNC input port. This is not available for component video signals or other signals being input to any port other than the Computer input port or the BNC input port.

12 LAN port (PowerLite

Pro Z8000WUNL only)

13 DVI-D input port For digital RGB signals from a computer’s DVI-D

Connects to a LAN cable and then to a network.

output port. This projector is compatible with HDCP signals.

Part Names and Functions

Name Function

14 LAN port (PowerLite

Pro Z8050WNL only)

Rear

Connects to a LAN cable and then to a network.

Name Function

2 Rear foot When set up on a desk, turn to extend and retract

to adjust the horizontal tilt.

The rear adjustable feet can be removed when the projector is installed on a ceiling.

3 Lamp cover open

tab

4 Remote Receiver Receives signals from the remote control.

5 Status indicators The color of the indicators and whether they are

6 [</][>/] button Corrects horizontal Keystone distortion. If pressed

7 [Shutter] button Press this button to open or close the electric

Use these tabs to open the lamp cover.

flashing or lit indicate the status of the projector. The illustration shows the PowerLite Pro Z8050WNL. The PowerLite Pro Z8000WUNL does not have a wireless indicator.

while the configuration menu or a Help screen is displayed, these buttons only have the [ ] and [ ] functions which select menu items and setting values.

shutter. You can close the electric shutter to completely block a projection.

Name Function

1 Air exhaust vent

(Lamp cover)

Exhaust vent for air used to cool the projector internally. Also, open this cover to replace the projector's lamps.

Warning:

Do not place objects that may become warped or otherwise affected by heat near the Air exhaust vent and do not put your face or hands near the vent while projection is in progress.

8 [Esc] button Stops the current function.

If pressed when the configuration menu is displayed, it moves to the previous menu level.

9 [w/][v/]

button

Corrects vertical Keystone distortion. If pressed while the configuration menu or a Help screen is displayed, these buttons only have the [ ] and [ ] functions which select menu items and setting values.

Part Names and Functions

Name Function

10 [Enter] button If pressed during projection of computer analog

RGB signals, it automatically adjusts the Tracking, Sync., and Position to project the optimum image.

When the configuration menu or a Help screen is displayed, it accepts and enters the current selection and moves to the next level.

11 [Menu] button Displays and closes the configuration menu.

12 [Source Search]

button

13 [Lens] button Press this button to cycle through the focus, zoom,

14 [t] button Turns the projector power On or Off.

Changes to the next input source that is connected to the projector and is sending an image.

and lens shift settings to adjust the lens.

Part Names and Functions

Remote Control

Name Function

1 [t] button Turns the projector power On or Off.

2 [Computer] button Changes to images from the Computer input port.

3 [BNC] button Changes to images from the BNC input port.

4 [Video] button Changes to images from the Video input port.

5 [S-Video] button Changes to images from the S-Video input port.

6 [Menu] button Displays and closes the configuration menu.

7 [h] button When the configuration menu or Help screen is

displayed, it selects menu items and setting values.

When using the optional wireless mouse receiver, use this button to move the pointer in the desired direction.

8 [Enter] button When the configuration menu or a Help screen is

displayed, it accepts and enters the current selection and moves to the next level.

Acts as a mouse's left button when using the optional wireless mouse receiver.

9 [Page] buttons

[[][]]

When using the optional wireless mouse receiver, you can change the PowerPoint file page during projection by pressing the page up/page down buttons.

10 [Shutter] button Each time you press this button, the electric

shutter closes or opens.

You can close the electric shutter to completely block a projection.

11 [Auto] button If pressed during projection of computer analog

RGB signals, it automatically adjusts the Tracking, Sync., and Position to project the optimum image.

Part Names and Functions

Name Function

12 [Aspect] button The Aspect Ratio changes each time the button is

pressed.

13 [Lens Shift] button Press to adjust the lens shift.

14 [ID] button Press to set the remote control ID.

15 [Help] button Displays and closes the Help screen which shows

you how to deal with problems if they occur.

16 Remote port Connects the optional remote control cable set

and outputs signals from the remote control. When the remote control cable is plugged into this remote port, the remote receiver is disabled.

17 [Zoom] button Press to adjust the zoom.

18 [Num] button Use this button to enter passwords, IP address

from the Network, and so on.

19 [Focus] button Press to adjust the focus.

20 Numeric buttons Use this button to enter passwords, remote

control IP settings, IP address from the Network, and so on.

21 [Color Mode] button Each time the button is pressed, the Color Mode

changes.

22 [Freeze] button Images are paused or unpaused.

23 [E-Zoom] buttons

[z][x]

24 [Pointer] button Press to activate the on screen pointer.

The [z] button enlarges the image without changing the projection size.

The [x] button reduces the parts of images that have been enlarged using the [z] button.

Name Function

25 [Esc] button Stops the current function. If pressed when the

configuration menu is displayed, it moves to the previous menu level.

Acts as a mouse's right button when using the optional wireless mouse receiver.

26 [User] button Press to assign a frequently used item from the six

available configuration menu items. By pressing the button the assigned menu item selection/adjustment screen is displayed, allowing you to make one-touch settings/adjustments.

Test Pattern is assigned as the default setting.

27 [LAN] button Changes to images from EasyMP Network

Projection (PowerLite Pro Z8050WNL only). This button does not function on the PowerLite Pro Z8000WUNL.

28 ID switch Use this switch to enable (On)/disable (Off) ID

settings for the remote control.

29 [DVI-D/HDMI]

button

30 [Search] button Changes to the next input source that is

31 Indicators A light is emitted when outputting remote control

32 Remote control

light-emitting area

Each time you press this button, the image on the screen changes between the DVI-D and HDMI input ports.

connected to the projector and is sending an image.

signals.

Outputs remote control signals.

Part Names and Functions

When you use the remote control, make sure you are within the operating range of the projector’s front or back remote receiver as shown in the diagram below.

49 ft

(15 m)

49 ft

(15 m)

49 ft

(15 m)

49 ft

(15 m)

Unpacking the Projector

After unpacking the projector, make sure you have all the parts shown below:

Save all packaging in case you need to ship the projector. Always use the original packaging (or the equivalent) when you need to send the projector to another location. Before you move the projector, see the moving and transportation instructions. s p.130

Projector and lens cap Remote control and

2 AA batteries

Power cord VGA cable foot covers

PDF manuals and

registration CD-ROM

Projector software

CD-ROM

Password Protected

sticker

Positioning the Projector

If the projector isn’t already installed in the room you’re using, you’ll probably want to place it on a table in front of the screen. This lets you stand in the front of the room, face the audience, and remain close enough to the equipment to be able to control it. Try to leave as much space as possible between the projector and the screen to get a good-size image.

Use the illustrations and tables below to help you determine placement. Image size increases with distance, but can vary depending on which lens you’re using and whether you’ve adjusted the image with zoom or any other settings.

Projection distance

The distance from the center of the lens to the base of the screen. This

changes depending on the setting for vertical lens shift.

Center of lens

PowerLite Pro Z8000WUNL, 16:10 image, Rear projection wide lens (ELPLR04)

Screen or image size Projection distance (1) Offset from lens center (2)

60 inches 38 inches (97 cm) 15.9 inches (40 cm)

70 inches 45 inches (114 cm) 18.5 inches (47 cm)

80 inches 52 inches (131 cm) 21.2 inches (54 cm)

90 inches 58 inches (148 cm) 23.8 inches (61 cm)

100 inches 65 inches (165 cm) 26.5 inches (67 cm)

110 inches 72 inches (182 cm) 29.1 inches (74 cm)

120 inches 79 inches (200 cm) 31.8 inches (81 cm)

Positioning the Projector

Screen or image size Projection distance (1) Offset from lens center (2)

200 inches 133 inches (337 cm) 53 inches (135 cm)

300 inches 200 inches (508 cm) 79.5 inches (202 cm)

500 inches 335 inches (852 cm) 132.5 inches (337 cm)

PowerLite Pro Z8000WUNL, 16:10 image, Wide zoom lens (ELPLW04)

Screen or image size Projection distance (1) (Wide to Tele) Offset from lens center (2)

60 inches 65 to 90 inches (166 to 229 cm) 38.5 to -6.7 inches (98 to -17 cm)

70 inches 77 to 105 inches (195 to 268 cm) 44.9 to -7.8 inches (114 to -20 cm)

80 inches 88 to 121 inches (224 to 307 cm) 51.4 to -9 inches (130 to -23 cm)

90 inches 99 to 136 inches (253 to 347 cm) 57.8 to -10.1 inches (147 to -26 cm)

100 inches 111 to 152 inches (282 to 386 cm) 64.2 to -11.2 inches (163 to -28 cm)

110 inches 122 to 167 inches (310 to 425 cm) 70.6 to -12.3 inches (179 to -31 cm)

120 inches 134 to 183 inches (339 to 464 cm) 77 to -13.4 inches (196 to -34 cm)

200 inches 225 to 306 inches (570 to 778 cm) 128.4 to -22.4 inches (326 to -57 cm)

300 inches 338 to 461 inches (859 to 1171 cm) 192.6 to -33.6 inches (489 to -85 cm)

500 inches 566 to 770 inches (1437 to 1957 cm) 320.9 to -55.9 inches (815 to -142 cm)

PowerLite Pro Z8000WUNL, 16:10 image, Standard zoom lens (ELPLS04)

Screen or image size Projection distance (1) (Wide to Tele) Offset from lens center (2)

60 inches 87 to 142 inches (221 to 361 cm) 38.5 to -6.7 inches (98 to -17 cm)

70 inches 102 to 166 inches (259 to 423 cm) 44.9 to -7.8 inches (114 to -20 cm)

80 inches 117 to 191 inches (297 to 484 cm) 51.4 to -9 inches (130 to -23 cm)

90 inches 132 to 215 inches (335 to 546 cm) 57.8 to -10.1 inches (147 to -26 cm)

100 inches 147 to 239 inches (374 to 607 cm) 64.2 to -11.2 inches (163 to -28 cm)

110 inches 162 to 263 inches (412 to 669 cm) 70.6 to -12.3 inches (179 to -31 cm)

Positioning the Projector

Screen or image size Projection distance (1) (Wide to Tele) Offset from lens center (2)

120 inches 177 to 287 inches (450 to 730 cm) 77 to -13.4 inches (196 to -34 cm)

200 inches 297 to 481 inches (755 to 1222 cm) 128.4 to -22.4 inches (326 to -57 cm)

300 inches 448 to 723 inches (1137 to 1837 cm) 192.6 to -33.6 inches (489 to -85 cm)

500 inches 748 to 1207 inches (1900 to 3067 cm) 320.9 to -55.9 inches (815 to -142 cm)

PowerLite Pro Z8000WUNL, 16:10 image, Middle throw zoom lens 1 (ELPLM06)

Screen or image size Projection distance (1) (Wide to Tele) Offset from lens center (2)

60 inches 134 to 206 inches (340 to 524 cm) 38.5 to -6.7 inches (98 to -17 cm)

70 inches 157 to 241 inches (399 to 613 cm) 44.9 to -7.8 inches (114 to -20 cm)

80 inches 180 to 277 inches (458 to 702 cm) 51.4 to -9 inches (130 to -23 cm)

90 inches 204 to 312 inches (517 to 792 cm) 57.8 to -10.1 inches (147 to -26 cm)

100 inches 227 to 347 inches (576 to 881 cm) 64.2 to -11.2 inches (163 to -28 cm)

110 inches 250 to 382 inches (635 to 971 cm) 70.6 to -12.3 inches (179 to -31 cm)

120 inches 273 to 417 inches (694 to 1060 cm) 77 to -13.4 inches (196 to -34 cm)

200 inches 459 to 699 inches (1166 to 1775 cm) 128.4 to -22.4 inches (326 to -57 cm)

300 inches 691 to 1051 inches (1755 to 2669 cm) 192.6 to -33.6 inches (489 to -85 cm)

500 inches 1155 to 1755 inches (2934 to 4457 cm) 320.9 to -55.9 inches (815 to -142 cm)

PowerLite Pro Z8000WUNL, 16:10 image, Middle throw zoom lens 2 (ELPLM07)

Screen or image size Projection distance (1) (Wide to Tele) Offset from lens center (2)

60 inches 195 to 300 inches (495 to 761 cm) 38.5 to -6.7 inches (98 to -17 cm)

70 inches 229 to 351 inches (581 to 891 cm) 44.9 to -7.8 inches (114 to -20 cm)

80 inches 263 to 402 inches (668 to 1022 cm) 51.4 to -9 inches (130 to -23 cm)

90 inches 297 to 454 inches (754 to 1153 cm) 57.8 to -10.1 inches (147 to -26 cm)

100 inches 331 to 505 inches (841 to 1284 cm) 64.2 to -11.2 inches (163 to -28 cm)

Positioning the Projector

Screen or image size Projection distance (1) (Wide to Tele) Offset from lens center (2)

110 inches 365 to 557 inches (927 to 1414 cm) 70.6 to -12.3 inches (179 to -31 cm)

120 inches 399 to 608 inches (1013 to 1545 cm) 77 to -13.4 inches (196 to -34 cm)

200 inches 671 to 1020 inches (1705 to 2590 cm) 128.4 to -22.4 inches (326 to -57 cm)

300 inches 1011 to 1534 inches (2569 to 3897 cm) 192.6 to -33.6 inches (489 to -85 cm)

500 inches 1692 to 2563 inches (4298 to 6511 cm) 320.9 to -55.9 inches (815 to -142 cm)

PowerLite Pro Z8000WUNL, 16:10 image, Long throw zoom lens (ELPLL07)

Screen or image size Projection distance (1) (Wide to Tele) Offset from lens center (2)

60 inches 290 to 410 inches (738 to 1043 cm) 38.5 to -6.7 inches (98 to -17 cm)

70 inches 341 to 481 inches (866 to 1222 cm) 44.9 to -7.8 inches (114 to -20 cm)

80 inches 391 to 551 inches (994 to 1401 cm) 51.4 to -9 inches (130 to -23 cm)

90 inches 442 to 622 inches (1122 to 1580 cm) 57.8 to -10.1 inches (147 to -26 cm)

100 inches 492 to 692 inches (1251 to 1759 cm) 64.2 to -11.2 inches (163 to -28 cm)

110 inches 543 to 763 inches (1379 to 1938 cm) 70.6 to -12.3 inches (179 to -31 cm)

120 inches 593 to 833 inches (1507 to 2117 cm) 77 to -13.4 inches (196 to -34 cm)

200 inches 997 to 1397 inches (2533 to 3549 cm) 128.4 to -22.4 inches (326 to -57 cm)

300 inches 1502 to 2102 inches (3816 to 5339 cm) 192.6 to -33.6 inches (489 to -85 cm)

500 inches 2512 to 3512 inches (6381 to 8920 cm) 320.9 to -55.9 inches (815 to -142 cm)

PowerLite Pro Z8050WNL, 16:10 image, Rear projection wide lens (ELPLR04)

Screen or image size Projection distance (1) Offset from lens center (2)

60 inches 37 inches (95 cm) 15.9 inches (40 cm)

70 inches 44 inches (112 cm) 18.5 inches (47 cm)

80 inches 51 inches (129 cm) 21.2 inches (54 cm)

90 inches 57 inches (146 cm) 23.8 inches (61 cm)

Positioning the Projector

Screen or image size Projection distance (1) Offset from lens center (2)

100 inches 64 inches (162 cm) 26.5 inches (67 cm)

110 inches 71 inches (179 cm) 29.1 inches (74 cm)

120 inches 77 inches (196 cm) 31.8 inches (81 cm)

200 inches 130 inches (331 cm) 53 inches (135 cm)

300 inches 197 inches (500 cm) 79.5 inches (202 cm)

500 inches 330 inches (838 cm) 132.5 inches (337 cm)

PowerLite Pro Z8050WNL, 16:10 image, Wide zoom lens (ELPLW04)

Screen or image size Projection distance (1) (Wide to Tele) Offset from lens center (2)

60 inches 64 to 89 inches (163 to 225 cm) 38.2 to -6.4 inches (97 to -16 cm)

70 inches 75 to 104 inches (192 to 264 cm) 44.5 to -7.4 inches (113 to -19 cm)

80 inches 87 to 119 inches (220 to 302 cm) 50.9 to -8.5 inches (129 to -22 cm)

90 inches 98 to 134 inches (248 to 341 cm) 57.2 to -9.5 inches (145 to -24 cm)

100 inches 109 to 149 inches (277 to 380 cm) 63.6 to -10.6 inches (162 to -27 cm)

110 inches 120 to 165 inches (305 to 418 cm) 70 to -11.7 inches (178 to -30 cm)

120 inches 131 to 180 inches (334 to 457 cm) 76.3 to -12.7 inches (194 to -32 cm)

200 inches 221 to 302 inches (561 to 766 cm) 127.2 to -21.2 inches (323 to -54 cm)

300 inches 333 to 454 inches (846 to 1153 cm) 190.8 to -31.8 inches (485 to -81 cm)

500 inches 557 to 758 inches (1414 to 1926 cm) 318 to -53 inches (808 to -135 cm)

PowerLite Pro Z8050WNL, 16:10 image, Standard zoom lens (ELPLS04)

Screen or image size Projection distance (1) (Wide to Tele) Offset from lens center (2)

60 inches 86 to 140 inches (217 to 355 cm) 38.2 to -6.4 inches (97 to -16 cm)

70 inches 100 to 164 inches (255 to 416 cm) 44.5 to -7.4 inches (113 to -19 cm)

80 inches 115 to 188 inches (292 to 476 cm) 50.9 to -8.5 inches (129 to -22 cm)

Positioning the Projector

Screen or image size Projection distance (1) (Wide to Tele) Offset from lens center (2)

90 inches 130 to 211 inches (330 to 537 cm) 57.2 to -9.5 inches (145 to -24 cm)

100 inches 145 to 235 inches (368 to 597 cm) 63.6 to -10.6 inches (162 to -27 cm)

110 inches 160 to 259 inches (405 to 658 cm) 70 to -11.7 inches (178 to -30 cm)

120 inches 174 to 283 inches (443 to 719 cm) 76.3 to -12.7 inches (194 to -32 cm)

200 inches 293 to 474 inches (743 to 1203 cm) 127.2 to -21.2 inches (323 to -54 cm)

300 inches 441 to 712 inches (1119 to 1808 cm) 190.8 to -31.8 inches (485 to -81 cm)

500 inches 736 to 1189 inches (1870 to 3019 cm) 318 to -53 inches (808 to -135 cm)

PowerLite Pro Z8050WNL, 16:10 image, Middle throw zoom lens 1 (ELPLM06)

Screen or image size Projection distance (1) (Wide to Tele) Offset from lens center (2)

60 inches 132 to 203 inches (335 to 515 cm) 38.2 to -6.4 inches (97 to -16 cm)

70 inches 155 to 237 inches (393 to 603 cm) 44.5 to -7.4 inches (113 to -19 cm)

80 inches 177 to 272 inches (451 to 691 cm) 50.9 to -8.5 inches (129 to -22 cm)

90 inches 200 to 307 inches (509 to 779 cm) 57.2 to -9.5 inches (145 to -24 cm)

100 inches 223 to 341 inches (567 to 867 cm) 63.6 to -10.6 inches (162 to -27 cm)

110 inches 246 to 376 inches (625 to 955 cm) 70 to -11.7 inches (178 to -30 cm)

120 inches 269 to 411 inches (683 to 1043 cm) 76.3 to -12.7 inches (194 to -32 cm)

200 inches 452 to 688 inches (1147 to 1747 cm) 127.2 to -21.2 inches (323 to -54 cm)

300 inches 680 to 1034 inches (1727 to 2627 cm) 190.8 to -31.8 inches (485 to -81 cm)

500 inches 1137 to 1727 inches (2887 to 4388 cm) 318 to -53 inches (808 to -135 cm)

PowerLite Pro Z8050WNL, 16:10 image, Middle throw zoom lens 2 (ELPLM07)

Screen or image size Projection distance (1) (Wide to Tele) Offset from lens center (2)

60 inches 192 to 295 inches (487 to 749 cm) 38.2 to -6.4 inches (97 to -16 cm)

70 inches 225 to 345 inches (572 to 877 cm) 44.5 to -7.4 inches (113 to -19 cm)

Positioning the Projector

Screen or image size Projection distance (1) (Wide to Tele) Offset from lens center (2)

80 inches 259 to 396 inches (657 to 1006 cm) 50.9 to -8.5 inches (129 to -22 cm)

90 inches 292 to 447 inches (742 to 1135 cm) 57.2 to -9.5 inches (145 to -24 cm)

100 inches 326 to 497 inches (827 to 1263 cm) 63.6 to -10.6 inches (162 to -27 cm)

110 inches 359 to 548 inches (625 to 955 cm) 70 to -11.7 inches (178 to -30 cm)

120 inches 392 to 599 inches (997 to 1520 cm) 76.3 to -12.7 inches (194 to -32 cm)

200 inches 660 to 1004 inches (1677 to 2550 cm) 127.2 to -21.2 inches (323 to -54 cm)

300 inches 995 to 1510 inches (2528 to 3836 cm) 190.8 to -31.8 inches (485 to -81 cm)

500 inches 1665 to 2523 inches (4229 to 6409 cm) 318 to -53 inches (808 to -135 cm)

PowerLite Pro Z8050WNL, 16:10 image, Long throw zoom lens (ELPLL07)

Screen or image size Projection distance (1) (Wide to Tele) Offset from lens center (2)

60 inches 287 to 406 inches (729 to 1030 cm) 38.2 to -6.4 inches (97 to -16 cm)

70 inches 337 to 475 inches (855 to 1207 cm) 44.5 to -7.4 inches (113 to -19 cm)

80 inches 387 to 545 inches (982 to 1384 cm) 50.9 to -8.5 inches (129 to -22 cm)

90 inches 437 to 615 inches (1109 to 1561 cm) 57.2 to -9.5 inches (145 to -24 cm)

100 inches 486 to 684 inches (1236 to 1738 cm) 63.6 to -10.6 inches (162 to -27 cm)

110 inches 536 to 754 inches (1362 to 1915 cm) 70 to -11.7 inches (178 to -30 cm)

120 inches 586 to 824 inches (1489 to 2092 cm) 76.3 to -12.7 inches (194 to -32 cm)

200 inches 986 to 1381 inches (2503 to 3507 cm) 127.2 to -21.2 inches (323 to -54 cm)

300 inches 1485 to 2078 inches (3371 to 5277 cm) 190.8 to -31.8 inches (485 to -81 cm)

500 inches 2483 to 3471 inches (6307 to 8816 cm) 318 to -53 inches (808 to -135 cm)

Removing and Attaching the Interface Cover

Attaching

Removing

1 Loosen the screw.

2 While pulling up the interface cover open switch, pull the

When you’ve finished connecting the projector to your equipment (s p.29) and plugging the power cord into the projector (s p.34), attach the interface cover as described below.

interface cover straight out.

1 Remove the top of the interface cover.

2 Install the cover along the guide.

3 Tighten the screws.

Connecting the Projector to Your Equipment

The illustrations in this section show the PowerLite Pro Z8000WUNL. If you are using the PowerLite Pro Z8050WNL, the projector and interfaces are slightly different.

Connecting to a Computer

Connecting to the VGA Port

Procedure

A Connect one end of the VGA computer cable to the

projector’s Computer port, and the other end to your computer’s monitor port.

Connecting to the BNC Ports

Procedure

A Attach the BNC connectors on one end of your cable (not

included) to the projector’s BNC ports. Connect the other end of the cable to your computer.

B Turn the projector on (s p.34), select the image source

(s p.43), and adjust the image (s p.35).

B Turn the projector on (s p.34), select the image source

(s p.43), and adjust the image (s p.35).

Make sure the Input Signal setting in the Signal menu is set to Auto or RGB. s p.69

Connecting the Projector to Your Equipment

Connecting to the HDMI Port

Procedure

A Connect one end of your HDMI cable (not included) to the

projector’s HDMI port, and the other end to your computer’s HDMI port.

B Turn the projector on (s p.34), select the image source

(s p.43), and adjust the image (s p.35).

Connecting to the DVI-D Port

Procedure

A Connect one end of your DVI-D cable (not included) to the

projector’s DVI-D port, and the other end to your computer’s DVI-D port.

B Turn the projector on (s p.34), select the image source

(s p.43), and adjust the image (s p.35).

Connecting the Projector to Your Equipment

Connecting to Video Equipment

Connecting to the HDMI Port

Procedure

A Connect one end of your HDMI cable (not included) to the

projector’s HDMI port, and the other end to the HDMI connector on your equipment.

Connecting to the DVI-D Port

Procedure

A Connect one end of your DVI-D cable (not included) to the

projector’s DVI-D port, and the other end to the DVI-D connector on your equipment.

B Turn the projector on (s p.34), select the image source

(s p.43), and adjust the image (s p.35).

B Turn the projector on (s p.34), select the image source

(s p.43), and adjust the image (s p.35).

Connecting the Projector to Your Equipment

Connecting a Component Video Source

Procedure

A Connect one end of your cable (not included) to either the

projector’s BNC ports or Computer port (depending on the type of component video cable you’re using). Connect the other end of the cable to your equipment.

B Turn the projector on (s p.34), select the image source

(s p.43), and adjust the image (s p.35).

Connecting an S-Video Source

Procedure

A Connect one end of your S-Video cable (not included) to the

projector’s S-Video port, and the other end to the S-Video connector on your equipment.

B Turn the projector on (s p.34), select the image source

(s p.43), and adjust the image (s p.35).

Make sure the Input Signal setting in the Signal menu is set to Auto or Component Video. s p.69

Connecting the Projector to Your Equipment

Connecting a Composite Video Source

Procedure

A Connect one end of your cable (not included) to the

projector’s Video port, and the other end to your equipment.

B Turn the projector on (s p.34), select the image source

(s p.43), and adjust the image (s p.35).

Turning the Projector On and Off

Turn off this product when not in use to prolong the life of the projector.

Procedure

A Plug one end of the power cord into the projector, and the

other end into an electrical outlet.

Warning:

When the lamp is on, never look into the lens or allow children or pets to look into the lens. This can damage your eyes, and is especially dangerous for children.

C Press the [t] power button on the remote control or on the

back of the projector.

B Remove the lens cover.

Adjusting the Image

Adjusting the Position

Procedure

A Press the [Lens Shift] button on the remote control or press

the [Lens] button on the back of the projector until "Adjust Lens Shift" is displayed on the screen.

B To adjust the position, use the [h] button on the remote

control or the arrow buttons on the back of the projector as shown below.

Press the button repeatedly to make fine adjustments. Press and hold the button to make larger adjustments.

C When you’re done, press the [Esc] button on the remote

control or on the back of the projector.

Adjusting the Image

Focusing the Image

Procedure

A Press the [Focus] button on the remote control or press the

[Lens] button on the back of the projector until "Adjust Focus" is displayed on the screen.

B To adjust the focus, use the [h] button on the remote control

or the arrow buttons on the back of the projector as shown below.

Zooming the Image

Procedure

A Press the [Zoom] button on the remote control or press the

[Lens] button on the back of the projector until "Adjust Zoom" is displayed on the screen.

B To zoom, use the [h] button on the remote control or the

arrow buttons on the back of the projector as shown below.

C When you’re done, press the [Esc] button on the remote

control or on the back of the projector.

C When you’re done, press the [Esc] button on the remote

control or on the back of the projector.

Adjusting the Image

Fixing a Tilted Image

If you’ve placed your projector on a table in front of the screen and the image is tilted as shown below, you can use the four adjustable feet to correct the tilt.

Useful Functions

This chapter explains useful tips for giving presentations, and the Security functions.

Correcting Distortion in the Projected Image

There are two ways to correct distortion in projected images.

• Quick Corner This allows you to manually correct each of the four corners of the projected image separately. s p.40

We recommend using Quick Corner to accurately adjust keystone distortion.

• H/V-Keystone This allows you to manually correct distortion in the horizontal and vertical directions independently. You can perform easy H/V-Keystone corrections by using the [w/] [v/] [</] and [>/ ] buttons on the projector's control panel, as shown below.

Before performing horizontal or vertical keystone, use the lens shift function to horizontally center the lens and vertically move the lens to the top or bottom. Otherwise, the distortion is not corrected accurately.

The projected image may become smaller after you perform H/V-Keystone.

The correction may not be properly performed for some zoom settings.

Quick Corner and H/V-Keystone cannot be performed at the same time. When the Keystone correction method is selected from the configuration menu, the correction method you choose is assigned to the [w/], [v/], [</ ], and [>/ ] buttons on the control panel. The default setting for Keystone is set to H/V-Keystone, so when [w/], [v/], [</ ], and [>/ ] buttons are pressed, H/V-Keystone correction is carried out.

Because Quick Corner and H/V-Keystone correction can be carried out while projecting a test pattern, you do not need to make preparations by connecting a computer or other equipment.

Correcting Distortion in the Projected Image

Correcting Distortion with Quick Corner

Procedure

A Press the Menu button, and then from the configuration

menu select Settings - Keystone.

Using the Remote Control Using the Control panel

B Select "Quick Corner", and then press the [Enter] button.

Press the [Enter] button again to display the selection screen from which you can select one of the four corners.

Correcting Distortion in the Projected Image

C Use the [h] button on the remote control or the [w/],

[v/ ], [</ ], and [>/ ] buttons on the control panel to select the corner you want to adjust, and then press the [Enter] button.

D To adjust the shape, use the [h] button on the remote

control or the [w/ ], [v/ ], [</ ], and [>/ ] buttons on the control panel. When you finish adjusting the corner, press [Esc] or [Enter].

If the triangle in the direction you are adjusting the shape turns gray, as shown in the screen shot below, you cannot adjust the shape any further in that direction.

Correcting Distortion in the Projected Image

E Repeat steps 3 and 4 as needed to adjust any remaining

corners.

F When you are done, press the [Esc] button to exit the

correction menu.

Because the correction method was changed to Quick Corner from Keystone in the configuration menu, when [w/], [v/],

[</ ], and [>/ ] buttons are pressed later, the screen for selecting the corner in procedure 2 is displayed. Change Keystone from the configuration menu to H/V-Keystone if you want to correct H/V-Keystone when pressing the [w/], [v/], [</ ], and [>/ ] buttons on the control panel.

If the Esc button is held down for about two seconds while correcting with Quick Corner, the following screen is displayed.

Reset Quick Corner: Resets the result of Quick Corner corrections.

Switch to H/V-Keystone: Switches the correction method to H/V-Keystone.

Changing the Projected Image

You can change the projected image in the following two ways.

• Changing by Source Search The projector automatically detects signals being input from connected equipment, and the image being input from the equipment is projected.

• Changing directly to the target image You can use the remote control buttons to change to the target input port.

Automatically Detect Input Signal and Change the Projected Image (Source Search)

You can project the target image quickly as input ports with no image signal being input are ignored when you change by pressing the Source Search button.

1Computer

2BNC

3DVI-D

4S-Video

5Video

6HDMI

7 LAN (PowerLite Pro Z8050WNL only): When using EasyMP

Network Projection, the image from a computer connected to the projector via a network

Skipped when no image signal is being input.

Changing the Projected Image

Procedure

When your video equipment is connected, start playback before beginning this operation.

Using the Remote Control Using the Control panel

When two or more pieces of equipment are connected, press the [Source Search] button until the target image is projected.

The following screen showing the status of image signals is displayed when only the image that the projector is currently displaying is available, or when no image signal can be found. You can select the input port where the equipment you want to use is connected. If no operation is performed after about 10 seconds, the screen closes.

Switch to the target image using the Remote Control

You can change directly to the target image by pressing the following buttons on the Remote Control.

Remote Control

1 Changes to images from the Computer input port.

2 Changes to images from the Video input port.

3 Changes to images from the S-Video input port.

4 Changes to images from EasyMP Network Projection (PowerLite

Pro Z8050WNL only). This button does not function when you are using the PowerLite Pro Z8000WUNL.

LAN is only displayed when you are using the PowerLite Pro Z8050WNL.

5 Each time the button is pressed, switches between images from

the DVI-D and HDMI input ports.

6 Changes to images from the BNC input port.

Functions for Enhancing Projection

Selecting the Projection Quality (Selecting Color Mode)

You can easily obtain the optimum image quality simply by selecting the setting that best corresponds to your surroundings when projecting. The brightness of the image varies depending on the mode selected.

Mode Application

Dynamic Ideal for use in a bright room. This is the

brightest mode.

Presentation Ideal for making presentations using color

materials in a bright room.

Theatre

Photo (When computer images (analog RGB/digital

Ideal for watching films in a dark room. Gives images a natural tone almost like an original source.

RGB) are input)

Ideal for projecting still pictures, such as photos, in a bright room. The images are vivid and brought into contrast.

selected.

Procedure

Remote Control

The Color Mode name is displayed on the screen by pressing the button.

If you press the button while the Color Mode name is displayed on the screen, it changes to the next Color Mode.

The color mode can also be set using Color Mode in the Image menu from the configuration menu.

Sports (When Component Video, S-Video, or composite

video images are input)

Ideal for watching TV programmes in a bright room. The images are vivid and brought to life.

sRGB

Customized Select Customized to adjust R,G,B,C,M,Y from

* The Epson Cinema Filter deploys automatically when Theatre or sRGB is

Ideal for images that conform to the sRGB color standard.

Color Adjustment in the configuration menu.

Functions for Enhancing Projection

Setting the Auto Iris

By automatically setting the luminance according to the brightness of the displayed image, it lets you enjoy deep and rich images.

Procedure

A Press the [Menu] button, and select Image - Auto Iris from

the configuration menu.

Using the Remote Control Using the Control panel

B Select On.

The setting is stored for each Color Mode.

Hiding the Image Temporarily (Shutter)

You can use this when you want to focus the audience's attention on what you are saying, or if you do not want to show details such as when you are changing between files during presentations from a computer.

Procedure

Using the Remote Control Using the Control panel

C Press the [Menu] button to close the configuration menu.

Auto Iris can be set only when the Color Mode is Dynamic, Theatre, or Customized.

When Multi-screen is set to On, Auto Iris does not work.

Each time you press the buttons, the electric shutter closes or opens.

When the shutter is closed and no operations are performed for about 120 minutes, the projector enters Sleep Mode and turns off automatically. If you do not want Sleep Mode to activate, change the Shutter Timer setting to Off from Operation in the Extended menu.

If you press [t] button while the shutter is closed, the shutter automatically opens and a message requesting confirmation to turn off the power is displayed on the screen.

Functions for Enhancing Projection

Freezing the Image (Freeze)

When the moving image on the screen is frozen, the image continues to project like a still photo. Also, you can perform operations such as changing between files during presentations from a computer without projecting any images if the freeze function is activated beforehand.

Procedure

Remote Control

Each time you press the button, Freeze turns on or off.

The image source continues to play back the moving images even while Freeze is on, and so it is not possible to resume projection from the point where it was paused.

If the Freeze button is pressed while the configuration menu or a Help screen is displayed, the menu or Help screen being displayed is cleared.

Freeze still works while E-Zoom is being used.

Changing the Aspect Ratio

Change the Aspect Ratio when video equipment is connected so that images that have been recorded in digital video or onto DVDs can be viewed in 16:9 wide-screen format. Change the Aspect Ratio when projecting computer images at full size.

The changing methods and the types of Aspect ratio are as follows.

Changing methods

Procedure

Remote Control

The Aspect name is displayed on the screen by pressing the button.

If you press the button while the Aspect name is displayed on the screen, it changes to the next Aspect Mode.

The aspect ratio can also be set using Aspect in the Signal menu from the configuration menu.

Functions for Enhancing Projection

Changing the Aspect for video equipment images

Each time the button is pressed, the aspect changes in the order Normal, 16:9, Full, Zoom, and Native.

1Normal

2 16:9

3Full

4Zoom

5Native

Functions for Enhancing Projection

Changing the Aspect for computer images

You can change the aspect of projected images input from the Computer, DVI-D, or HDMI input port as follows. The default aspect ratio is 16:10 because of the wide panel mounted on the projector. When projecting onto 16:9 screens, set the Aspect to 16:9.

If parts of the image are missing or the image is not projected properly, set Wide or Normal in Resolution from the configuration menu depending on the size of the computer screen.

Set Values Operation Projection example

Normal (When the input source is a Computer, DVI-D, or BNC)

Auto (Only available when the input source is HDMI)

16:9 Projects to the full projection size at

Projects to the full projection size retaining the Aspect of the input image.

Projects in an appropriate aspect based on information from the signal being input.

an Aspect of 16:9.

When a 1024x768 signal is input

When a 1024x768 signal is input.

Functions for Enhancing Projection

Set Values Operation Projection example

Full Project at full size. When a 1024x768 signal is input

Zoom Projects the input image enlarged to

the full lateral direction size as the aspect ratio remains. Parts that extend beyond the projection size are not projected.

When a 1024x768 signal is input

PowerLite Pro Z8000WUNL

PowerLite Pro Z8050WNL

Functions for Enhancing Projection

Set Values Operation Projection example

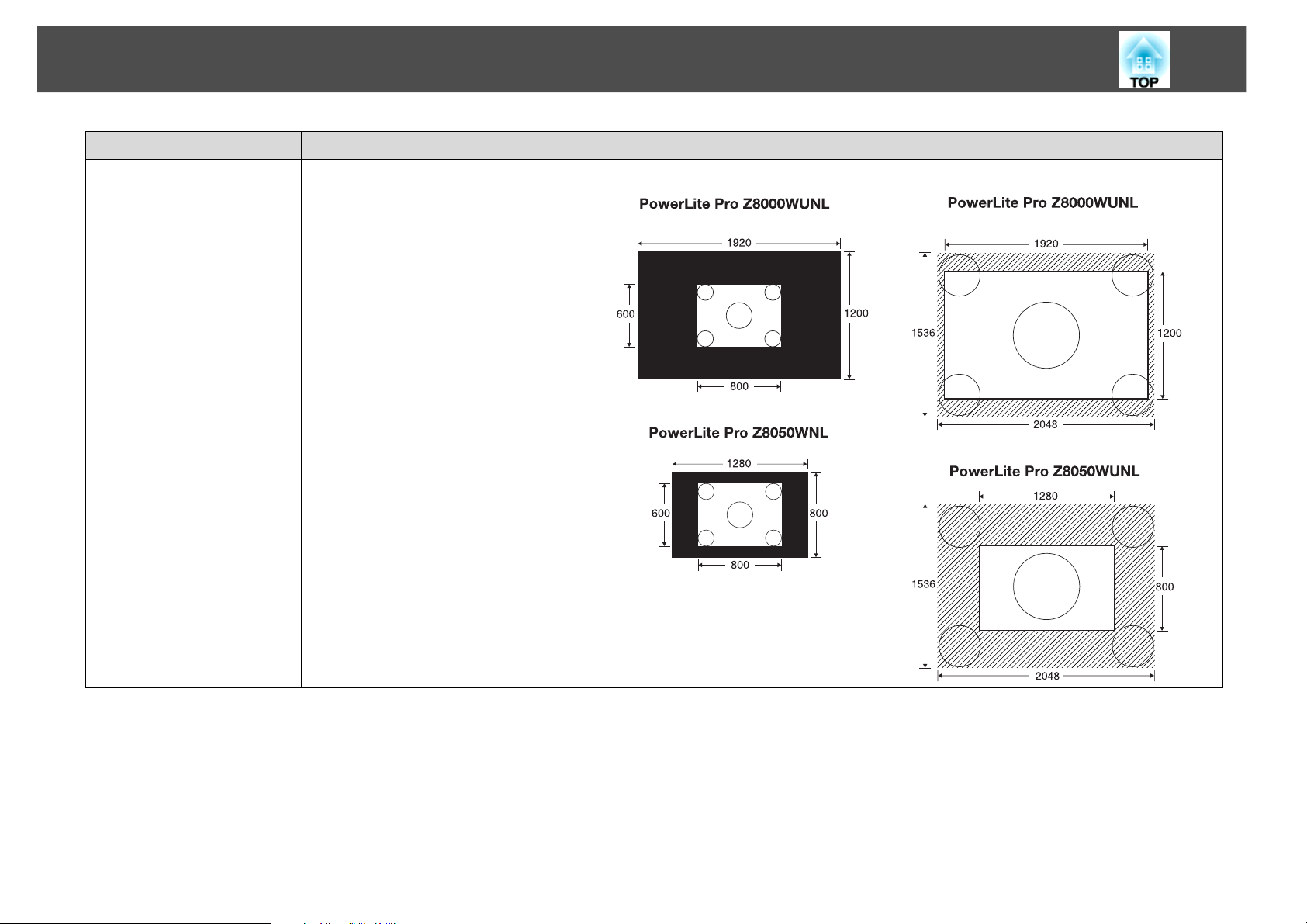

Native Projects at the resolution of the input

image size to the center of the screen. This is ideal for projecting clear images.

If the image resolution exceeds the panel resolution of your projector, the edges of the image are not projected.

When an 800x600 signal is input When an 2048x1536 signal is input

Functions for Enhancing Projection

Pointer Function (Pointer)

This allows you to move a Pointer icon on the projected image, and helps you draw attention to the area you are talking about.

Procedure

A Display the Pointer.

Remote Control

B Move the Pointer icon ( ).

Remote Control

You can choose from three different kinds of Pointer icon ( , , or ) in Settings - Pointer Shape from the configuration menu.

Each time you press the button, the pointer appears or disappears.

Functions for Enhancing Projection

Enlarging Part of the Image (E-Zoom)

This is useful when you want to expand images to see them in greater detail, such as graphs and tables.

Procedure

A Start E-Zoom.

Remote Control

B Move the ( ) to the area of the image that you want to

enlarge.

Remote Control

Functions for Enhancing Projection

C Enlarge.

Remote Control

Each time the button is pressed, the area is expanded. You can expand quickly by holding the button down.

You can reduce the enlarged image by pressing the [x] button.

Press the [Esc] button to cancel.

The enlargement ratio appears on the screen. The selected area can be enlarged to between 1 to 4 times in 25 incremental steps.

Use the [h] button to scroll through the enlarged image.

If E-Zoom is selected, Progressive and Noise Reduction are cancelled.

E-Zoom is cancelled when you perform some functions, such as Keystone or Auto Setup.

Limitation of the Number of the Target Projectors when Using Multiple Projectors

When an ID is set for the projector and the remote control, you can use the remote control to operate only the projector with a matching ID. This is very useful when managing multiple projectors.

You can set an ID for the projector within a range of "1" to "9". The default value is Off.

You can set an ID for the remote control within a range of "0" to "9". The default value is "0". When the ID switch on the side of the remote control is set to Off, you can operate all projectors by the remote control regardless of the ID setting for the projector or the remote control.

The following table shows the possible combinations of projector ID and remote control ID.

Operation Combinations Descriptions

Possible Projector ID: 1 When the control

switch is set to On, and Projector ID matches the remote control ID,

ID switch: On

Remote control ID: 1

Possible Projector ID: 1 When the ID switch on

ID switch: Off

Remote control ID: 3

you can operate the projector with the remote control.

the side of the remote control is set to Off, you can operate the projector with the remote control regardless of the projector's ID setting.

Operation Combinations Descriptions

Possible Projector ID: Off When the Projector ID is

Off, you can operate with the remote control regardless of the

ID switch: On

Remote control ID: 1

Possible Projector ID: 1 When the remote

ID switch: On

Remote control ID: 0

Not possible

Projector ID: 1 When the remote

ID switch: On

Remote control ID: 3

remote control ID setting.

control ID is "0", you can operate with the remote control regardless of the Projector ID setting.

control switch is On, and Projector ID and remote control ID do not match, you cannot operate with the remote control.

When Remote Control Type is set to Simple from Operation in the configuration menu, you cannot set the remote control ID.

Limitation of the Number of the Target Projectors when Using Multiple Projectors

Setting the Projector ID

Procedure

A During projection, press the Menu button and select

Extended - "Projector ID" from the configuration menu.

Using the Remote Control Using the Control panel

Checking the Projector ID

Use the following procedure to check the projector ID.

Procedure

A Set the remote control ID switch to On.

B During projection, while holding the [ID] button, press the

[Help] button.

Remote Control

B Choose the ID you want to set and press the Enter button. C Press the [Menu] button to close the configuration menu.

When you press the buttons, the current Projector ID is displayed on the projection screen. It disappears in about three seconds.

Limitation of the Number of the Target Projectors when Using Multiple Projectors

Setting the Remote Control ID

Procedure

A Set the remote control ID switch to On.

B While holding the [ID] button, press a number button to

select a number to match the ID of the projector you want to operate.

The remote control ID setting is saved in the remote control. Even if the remote control batteries are removed to replace them, the stored ID setting is retained. However, if the batteries are left out for a long time, it is reset to the default value (ID0).

Once this setting has been made, the projector that can be operated by the remote control is limited.

Correcting Color for Multiple Projectors (Multi-Screen Color Adjustment)

When multiple projectors are lined up and projecting images, you can manually correct the brightness and color tone of each projector's image so that the colors projected from each projector match closely.

Set each projector to the same Color Mode before using the multi-screen color adjustment function.

In some cases the brightness and color tone may not match completely even after correction.

Auto Iris does not work while this function is activated. Even if Auto Iris is set to On, and Multi-screen is set to On, Auto Iris does not work.

Correction Method

After setting up the projectors, correct the brightness and tone for each projector to reduce the differences.

Procedure

A Press the [Menu] button and select Extended -

"Multi-screen" from the configuration menu.

B Set "Multi-screen" to "On".

Summary of Correction Procedure

When multiple projectors are set up and you need to make corrections, use the following procedure to correct one projector at a time.

1. Set the projector ID and the remote control ID.

To limit operation to one target projector, set a Projector ID for the target projector, and set the same ID for the remote control. s p.55

2. Correct the color difference.

You can carry out color correction when projecting from multiple projectors. You can adjust from black to white in five stages called levels 1 to 5, and in each of these 5 levels you can adjust the following two points.

• Correcting brightness

You can correct the image brightness to make them all equal.

• Correcting color

You can adjust the image color to make them match more closely by using Color Correct. (G/R) and Color Correct. (B/Y).

C Select Lv. to be corrected in Adjustment Level.

• Each time a level is selected, the pattern of the level selected is displayed.

• You can start correcting from any level, usually you can make it darker or lighter by correcting 1 to 5 or 5 to 1.

D Correct the brightness with Brightness Correct.

• When you select Lv. 5, all the images are adjusted to the darkest image from multiple projectors.

• When you select Lv. 1, all the images are adjusted to the brightest image from multiple projectors.

• When you select Lv. 2 to 4, all the images are adjusted to the mid-range brightness image from multiple projectors.

• Because each time the [Enter] button is pressed the image displayed changes between the pattern display and the actual image, you can check the correction results and make corrections in the actual image.

Correcting Color for Multiple Projectors (Multi-Screen Color Adjustment)

E Correct the color using Color Correct. (G/R) and Color

Correct. (B/Y).

Because each time the [Enter] button is pressed the image displayed changes between the pattern display and the actual image, you can check the correction results and make corrections in the actual image.

F Repeat steps 3 to 5 until corrections are finished. G When all corrections are finished, press the Menu button to

close the configuration menu.

Security Functions

The projector has the following enhanced security functions.

• Password Protect You can limit who can use the projector.

• Control Panel Lock/Lens Operation Lock You can prevent people changing the settings on the projector without permission. s p.62

• Theft Deterrent Lock The projector is equipped with various types of theft deterrent security devices. s p.64

Managing Users (Password Protect)

When Password Protect is activated, people who do not know the Password cannot use the projector to project images even if the projector power is on. Furthermore, the user's logo that is displayed when you turn on the projector cannot be changed. This acts as an theft deterrent device as the projector cannot be used even if it is stolen. At the time of purchase, Password Protect is not activated.

2. User's Logo Protect

Even if someone tries to change the User's Logo set by the owner of the projector, it cannot be changed. When User's Logo Protect is set to On, the following setting changes for the User's Logo are prohibited.

• Capturing a User's Logo

• Settings for Display Background, and Startup Screen from Display in

the configuration menu

3. Network Protect

When Network Protect is set to On setting changes for Network Menu in the configuration menu are prohibited.

Setting Password Protect

Use the following procedure to set Password Protect.

Type of Password Protect

The following three kinds of Password Protect settings can be made according to how the projector is being used.

1. Power On Protect

When Power On Protect is On, you need to enter a preset Password after the projector is plugged in and turned on (this also applies to Direct Power On). If the correct Password is not entered, projection does not start.

Security Functions

Procedure

A During projection, hold down the [Freeze] button for about

five seconds.

The Password Protect setting menu is displayed.

Remote Control

If Password Protect is already activated, you must enter the Password. If the Password is entered correctly, the Password Protect setting menu is displayed. s "Entering the Password"

When the Password is set, stick the Password protect sticker in a visible position on the projector as a further theft deterrent.

D Turn on Network Protect.

(1) Select Network Protect, and then press the [Enter] button.

(2) Select On, and then press the [Enter] button.

(3) Press the [Esc] button.

E Set the Password.

(1) Select Password, and then press the [Enter] button.

(2) The message "Change the password?" is displayed, select Yes

and then press the [Enter] button. The default setting for the Password is "0000". Change this to your own desired Password. If you select No, the screen shown in step 1 is displayed again.

(3) While holding down the [Num] button, enter a four digit number

using the numeric buttons. The number entered is displayed as "* * * *". When you enter the fourth digit, the confirmation screen is displayed.

Remote Control

B Turn on Power On Protect.

(1) Select Power On Protect, and then press the [Enter] button.

(2) Select On, and then press the [Enter] button.

(3) Press the [Esc] button.

C Turn on User's Logo Protect.

(1) Select User's Logo Protect, and then press the [Enter] button.

(2) Select On, and then press the [Enter] button.

(3) Press the [Esc] button.

(4) Re-enter the Password.

The message "Password accepted." is displayed.

If you enter the Password incorrectly, a message is displayed prompting you to re-enter the password.

Security Functions

Entering the Password

When the Password entry screen is displayed, enter the Password using the numeric buttons on the Remote Control.

Procedure

While holding down the [Num] button, enter the Password by pressing the numeric buttons.

When you enter the correct Password, projection begins.

Caution:

• If an incorrect Password is entered three times in succession, the message "The projector's operation will be locked." is displayed for about five minutes, and then

the projector switches to standby mode. If this happens, disconnect the power plug from the electrical outlet and then reinsert it and turn the projector's power back on. The projector displays the Password entry screen again so that you can enter the correct Password.

• If you have forgotten the password, make a note of the "Request Code: xxxxx" number that appears on the screen and contact Epson. s p.116

• If you input the wrong Password thirty times in succession, the following message is displayed and the projector does not accept any more Password entries. The

projector's operation will be locked. Contact Epson. s p.116

• Lens Operation Lock

This function deactivates all buttons on the remote control related to the lens operation to prevent improper lens adjustment after it is properly adjusted.

Setting Control Panel Lock

Perform one of the following to lock the operation buttons on the Control panel. Even if the control panel is locked, you can still use the remote control as usual.

• Full Lock All of the buttons on the Control panel are locked. You cannot perform any operations from the Control panel, including turning the power on or off.

• Partial Lock All of the buttons on the Control panel, except for the [t] button, are locked.

Restricting Button Operation

The following two kinds of operation restriction functions are available with the projector.

• Control Panel Lock

This is useful at events or shows when you want to deactivate all buttons during projection or at schools when you want to limit button operation.

Security Functions

Procedure

A During projection, press the [Menu] button and select

Settings - Control Panel Lock from the configuration menu.

Using the Remote Control Using the Control panel

C Select Yes when the confirmation message is displayed.

The Control panel buttons are locked according to the setting you chose.

You can release the Control panel lock by one of the following two methods.

• From the Remote Control, select Off in Settings - Control Panel Lock from the configuration menu.

• Press and hold down the [Enter] button on the Control panel for about seven seconds, a message is displayed and the lock is released.

Lens Operation Lock

This function locks the following buttons on the remote control related to the lens operation.

Remote Control

B Select either Full Lock or Partial Lock according to your

purpose.

Security Functions

Procedure

A Press the [Menu] button, and select Settings - "Lens

Operation Lock" from the configuration menu.

Using the Remote Control Using the Control panel

Theft Deterrent Lock

As the projector is often setup on ceiling mounts and left in rooms unattended, the projector includes the following security devices to prevent someone from taking the projector.

• Security slot The Security slot is compatible with the Microsaver Security System manufactured by Kensington.

• Handle A commercially available theft-prevention wire lock can be passed through the handle to secure the projector to a desk or pillar.

Installing the wire lock

Pass an theft deterrent wire lock through the handle.

See the documentation supplied with the wire lock for locking instructions.

B Select On.

The buttons related to the lens operation are locked according to the setting you chose.

Configuration Menu

This chapter explains how to use the configuration menu and its functions. See s p.96 for a table that summarizes the options you can select based on the projector menu you are viewing. For more information on these menus

and options, continue reading this chapter.

Using the Configuration Menu

Selecting from the top menu

Selecting from the sub menu

Changing the selected item

Exit

List of Functions

Image Menu

Items that can be set vary depending on the image signal currently being projected as shown in the following screen shots. Setting details are saved for each image signal.

Analog RGB/Digital RGB Analog/Digital Component Video/

Composite video/S-Video

Sub Menu Function

Color Mode You can select the quality of the image to suit your surroundings. s p.45

Brightness You can adjust the image Brightness.

Contrast You can adjust the difference between light and shade in the images.

Color Saturation You can adjust the Color Saturation for the images.

Tint (Setting is only possible when NTSC signals are being input if you use composite video/S-Video.)

You can adjust the image Tint.

Sharpness You can adjust the image sharpness.

Abs. Color Temp. (This item cannot be selected if sRGB is selected as the Color Mode setting from the Image menu.)

You can adjust the overall tint of the image. You can adjust tints in 10 stages from 5000 K to 10000 K. When a high value is selected the image becomes tinged with blue, when a low value is selected the image becomes tinged with red.

List of Functions

Sub Menu Function

Color Adjustment (This item cannot be selected if sRGB is selected as the Color Mode setting from the Image menu.)

When you use any Color Mode other than Customized:

Red, Green, Blue: You can adjust the saturation of each color individually.

When Customized is selected as the Color Mode:

R, G, B, C, M, Y: You can adjust the hue, saturation, and brightness of each color R (red), G (green), B (blue), C (cyan), M (magenta), Y (yellow) individually.

Auto Iris (This setting is only possible when the Color Mode setting in the Image Menu is set to Dynamic, Theatre, or Customized, and

Multi-screen is set to Off.)

Set whether or not (On/Off) to adjust to the optimum light status for images being projected. s p.46

The setting is stored for each Color Mode.

Reset You can reset all adjustment values for the Image menu functions to their default settings. To return all menu items to their default

settings, see s p.95

List of Functions

Signal Menu

Items that can be set vary depending on the image signal currently being projected as shown in the following screen shots. Setting details are saved for each image signal.

Analog RGB Digital RGB/

Digital Component Video

Sub Menu Function

Auto Setup You can select whether or not (On/Off) Auto Setup automatically adjusts the image to the optimum state when the Input Signal

changes.

Auto Setup is not available when Resolution is set to Customized 1 or Customized 2.

Resolution Auto: The resolution of the input signal is automatically identified.

Wide, Normal: If the images cannot be projected correctly when Auto is set, set this menu. Set to Wide depending on the connected computer for wide screens, or set to Normal for 4:3 or 5:4 screens.

Manual: You can specify the resolution. This is ideal when connected computer is fixed,

Analog Component Video Composite video/S-Video

Tracking You can adjust computer images when vertical stripes appear in the images.

Sync. You can adjust computer images when flickering, fuzziness, or interference appear in the images.

Position You can adjust the display Position up, down, left, and right when a part of the image is missing so that the whole image is

projected.

List of Functions

Sub Menu Function

Progressive (Component Video can only be adjusted when 480i/576i/1080i signals are being input. This cannot be set when a digital RGB signal

is input.)

Off: IP conversion is carried out for each field in the screen. This is ideal for viewing images with a large amount of movement.

Video: This is ideal for viewing general video images.

Film/Auto: By automatically converting movie films, CG, animated images, and so on recorded in 24/30 frames to the optimum

progressive signal via 2-3 pull-down, it is possible to recreate the natural feel of the original image.

Noise Reduction (This cannot be set when a digital RGB signal is input.)

Smoothes out rough images. There are two modes. Select your favorite setting. It is recommended that this is set to Off when viewing image sources in which noise is very low, such as for DVDs.

DVI/HDMI Video Range (This cannot be set when a digital RGB signal is input.)

When the projector's DVI-D input port or HDMI input port is connected to a DVD player, the projector's video range is set according to the DVD player's video range setting.

Input Signal You can select an input signal from Computer input port or BNC input port.

If Auto is set, the input signal is identified automatically according to the connected equipment.

If colors do not appear correctly when this is set to Auto, select the appropriate signal according to the connected equipment.

Video Signal You can select input signal from Video input port. If set to Auto, video signals are recognized automatically. If interference appears

in the image or a problem occurs such as no image is being projected when set to Auto, select the appropriate signal according to the connected equipment.

Aspect You can set the Aspect Ratio for projected images. s p.47

Overscan (This cannot be set when a digital RGB signal is input.)

You can change the Output Scaling (the range of projected image). The range of trimming can be set to Off, 4% or 8%. You can select Auto only when the input source is HDMI. When Auto is selected, the range is automatically switched to Off or 8% according to the input signal. However, the automatic setting is only effective when the video equipment is connected via the projector's HDMI port.

Reset You can reset all adjustment values on the Signal menu to their default settings, except for Input Signal.

To return all menu items to their default settings, see s p.95

List of Functions

Settings Menu

Sub Menu Function

Keystone You can correct keystone distortion.

H/V-Keystone: Corrects horizontal and vertical keystone distortion. Select one of V-Keystone or H-Keystone. Use the [w/], [v/], [</], and [>/ ] buttons on the control panel to perform similar corrections to V-Keystone and

H-Keystone.

Quick Corner: Selects and corrects the four corners of the projected image. s p.40

Control Panel Lock You can use this to restrict operation of the projector's Control panel. s p.62

Lens Operation Lock You can use this to restrict the lens operation of the remote control. s p.63

Pointer Shape You can select the shape of the pointer. s p.52

Pointer 1: Pointer 2: Pointer 3:

Power Consumption You can set the Lamp brightness to one of two settings: Normal or ECO.

Select ECO if the images being projected are too bright such as when projecting images in a dark room or onto a small screen. When ECO is selected, the amount of electricity consumed and the lamp's operating life are changed as follows, and the fan rotation noise during projection is reduced. Electrical consumption: about 16% decrease, lamp life: about 1.4 times longer

Remote Receiver You can limit the reception of the operation signal from the Remote Control.

When you want to prohibit operation by Remote Control, or if the Remote Receiver has a fluorescent light too close to it, you can make settings to deactivate the remote receiver you do not want to use or that is experiencing interference.

List of Functions

Sub Menu Function

User Button You can assign selected items from the configuration menu to the Remote Control's [User] button. By pressing the [User] button,

the assigned menu item selection/adjustment screen is displayed, allowing you to make one-touch settings/adjustments. You can assign one of the following six items to the [User] button.

Power Consumption, Info, Progressive, Test Pattern, Multi-screen, and Resolution

Test Pattern When the projector is setup, a Test Pattern is displayed so that you can adjust the projection without connecting other equipment.

While the Test Pattern is displayed, zoom, focus adjustments, and Keystone correction can be performed.

To cancel the Test Pattern, press the [Esc] button on the Remote Control or the Control panel.

Reset You can reset all adjustment values on the Settings menu to their default settings, except for User Button.

To return all menu items to their default settings, see s p.95

List of Functions

Extended Menu

Sub Menu Function

Display You can make settings related to the projector's display.

Messages: The following messages are not displayed on the screen when this item is set to Off.

Overheating and other warnings, messages such as when there is no video input, and when Freeze is On or when changing Source, Color Mode or Aspect.

Display Background

Startup Screen

projector) is displayed.

Menu Size (PowerLite Pro Z8000WUNL only): You can select Normal or Larger for the display size of the configuration menu, Help, and other messages.

: You can set the screen status for when no image signal is available to Black, Blue, or Logo.

: You can set whether or not (On/Off) the Startup Screen (the registered User's Logo displays when starting the

Closed Caption You can select CC1, CC2, or Off.

User's Logo

Projection You can select from the following according to the way the projector is installed.

Direction You can select from the following according to the way the projector is installed.

You can change the User's Logo that is displayed as a background during Display Background or Startup Screen.

Front, Front/Upside Down, Rear, Rear/Upside Down

Normal, Pointing Up, Pointing Down

List of Functions

Sub Menu Function

Operation Direct Power On: You can set whether or not (On/Off) to enable Direct Power On.

Be careful when this item is set to On because this unit turns on at the time of power recovery with this unit plugged-in to an outlet.

Sleep Mode: When set to On, this automatically stops projection when no image signal is being input and no operations are carried

out.

Sleep Mode Timer: When Sleep Mode is set to On, you can set the time before the projector automatically turns off within a range of 1 to 30 minutes.

Shutter Timer: When set to On, this turns off the power automatically 120 minutes after the electric shutter is closed. Shutter Timer is set to On at the time of purchase. (When Shutter Time and Sleep Mode are set to On at the same time, Sleep Mode has

priority.)

High Altitude Mode: Set to On when using the projector above an altitude of 4900 ft (1500 m).

BNC Sync Termination: Set the termination for the signal from the BNC input port. This should usually be set to Off. Set to On when

analog (75Ω) termination such as for switchers is necessary.

Remote Control Type: You can select Normal or Simple depending on the type of remote control. Set this item to Normal to use the remote control provided with the projector. When Simple is selected, you can use the remote control provided with other Epson projectors to operate this projector. This is useful if you want to use a remote control that you are already familiar with to operate the projector. However, you cannot use the remote control provided with the projector if this is set to Simple. Make sure you want to change this setting to Simple because, if the projector is mounted on the ceiling or somewhere hard to reach, changing it back may be difficult.

Standby Mode You can use the functions that monitor and control the status of the projector over the network even when the projector is in

standby mode if this is set to Communication On.

You can use SNMP to monitor and control the status of the projector over the network, or by using the EasyMP Monitor software supplied with this product.

Air Filter Notice You can set whether or not (On/Off) to enable the Air Filter Notice. When this is set to On and a clog in the air filter is detected, the

message is displayed on the screen.

Projector ID Set the ID within a range of 1 to 9. Off indicates that no ID is set. s p.56

List of Functions

Sub Menu Function

Multi-screen When this is set to On, you can adjust the hue and brightness of images projected from a row of the several projectors.s p.58

Adjustment Level: You can adjust from black to white in five stages called Level 1 to 5, and in each of these 5 levels you can adjust

Brightness Correct. and Color Correct.

Brightness Correct.: Corrects the difference in the brightness of each projector.

Color Correct. (G/R) / Color Correct. (B/Y): You can correct the difference in the color of each projector.

When Multi-screen is set to On, Auto Iris does not work.

Language You can set the Language for message displays.

Reset You can reset Display

To return all menu items to their default settings, see s p.95

*1 When User's Logo Protect is set to On in Password Protect, settings relating to User's Logo cannot be changed. You can make changes after setting User's Logo

Protect to Off. s p.60

*2 Except for High Altitude Mode and Remote Control Type.

, Operation*2, and Air Filter Notice from the Extended menu to their default settings.

Network Menu (PowerLite Pro Z8000WUNL)

For information on the PowerLite Pro Z8050WNL Network menu, see s p.78.

List of Functions

When Network Protect is set to On in Password Protect, a message is displayed and the settings cannot be changed. You can make changes after setting Network Protect to Off. s p.60

Sub Menu Function

Wired LAN You can make network settings.

DHCP: You can set whether or not (On/Off) to use DHCP.

If this is set to On you cannot set any more addresses.

IP Address: You can input the IP address assigned to the projector.

You can enter a number from 0 to 255 in each field of the address. However, the following IP Addresses cannot be used.

0.0.0.0, 0.x.x.x, 127.x.x.x, 224.0.0.0 to 255.255.255.255 (where x is a number from 0 to 255)

Subnet Mask: You can input the subnet mask for the projector.

You can enter a number from 0 to 255 in each field of the address. However, the following Subnet Masks cannot be used.

0.0.0.0, 255.255.255.255

Gateway Address: You can input the IP address for the gateway for the projector.

You can enter a number from 0 to 255 in each field of the address. However, the following Gateway Addresses cannot be used.

0.0.0.0, 127.x.x.x, 224.0.0.0 to 255.255.255.255 (where x is a number from 0 to 255)

MAC Address: You can display the MAC address for the projector.

PJLink Password Set a Password to use when you access the projector using compatible PJLink software.

You can enter up to 32 single-byte alphanumeric characters.

List of Functions

Sub Menu Function

Web Control Password Set a password to use when making settings and controlling the projector using Web Control.* You can enter up to 8 single-byte

alphanumeric characters.

Web control is a function that allows you to set up and control the projector using your computer’s web browser. For more information, see the EasyMP Monitor Operation Guide.

SNMP You can make SNMP settings.

Trap IP Address 1/Trap IP Address 2: You can register up to two addresses as the SNMP trap notification destination.

To use SNMP to monitor the projector, you need to install an SNMP manager program on your computer. SNMP should be managed by a network expert.

Mail When this is set, you receive an e-mail notification if a problem or warning occurs in the projector. For information on the contents

of the sent email.

Mail Notification: You can set whether or not (On/Off) to be notified by e-mail. If this is set to Off you cannot set any more addresses.

SMTP Server: You can input the IP address for the SMTP server for the projector.

You can enter a number from 0 to 255 in each field of the address. However, the following IP Addresses cannot be used.

127.x.x.x, 224.0.0.0 to 255.255.255.255 (where x is a number from 0 to 255)

Port Number: You can display the SMTP server's port number.

The default value is 25. When editing settings from Web Control, you can change Port Number by entering a valid number from 1 to 65535.

Address 1 Setting/Address 2 Setting/Address 3 Setting: You can enter the e-mail address receive notification when a problem or warning occurs. You can register up to three destinations. You can enter up to 64 single-byte alphanumeric characters for the e-mail addresses.

AMX Device Discovery When the projector is connected to a network, set this to On to allow the projector to be detected by AMX Device Discovery. Set

this to Off if the projector is not connected to an environment controlled with a controller from AMX or AMX Device Discovery.

Projector Name Displays the projector name used to identify the projector when connected to a network.

Reset You can reset all adjustment values for the Network menu to their default settings.

To return all menu items to their default settings, see s p.95

and the contents of the message to

List of Functions

* When inputting numbers and passwords, the following software keyboards are displayed. Use the [h] button on the remote control to move the cursor to the target

key, and then press the [Enter] button. Enter figures by holding down the [Num] button on the Remote Control and pressing the numeric buttons. After inputting, select Finish on the keyboard to confirm your input. Select Cancel on the keyboard to cancel your input.

Each time the CAPS key is selected, it sets and changes between upper case and lower case letters. Each time the SYM1/2 key is selected, it sets and changes the symbol keys for the section enclosed by the frame.

Network Menu (PowerLite Pro Z8050WNL)

For information on the PowerLite Pro Z8000WUNL Network menu, see s p.75.

List of Functions

When Network Protect is set to On in Password Protect, a message is displayed and the settings cannot be changed. You can make changes after setting Network Protect to Off. s p.60

Sub Menu Function

Network Configuration The following menus are available for setting network items.

Basic, Wireless LAN, Security, Wired LAN, Mail, Others, Reset and Setup complete.

By using the Web browser of a computer connected to the projector on a network, you can set the projector's functions and control the projector. This function is called "Web control". You can easily enter text using a keyboard to make settings for Web control such as security settings. See your Network Operation Guide for more information.

List of Functions

Notes on operating the network menu

Selecting from the top menu and sub menus, and changing of selected items are the same as operations in the configuration menu.

When done, make sure you go to the Setup complete, and select Yes, No, or Cancel. When you select Yes or No, you return to the configuration menu.

Yes: Saves the settings and exits the Network menu.

No: Exits to the Network menu without saving the settings.

Cancel: Continues displaying the Network menu.

List of Functions

Soft keyboard operations

The Network menu contains items that require input of alphanumerics during setup. In this case, the following software keyboard is displayed. Use the [h] button on the remote control or [w/], [v/], [</ ], and [>/ ] on the projector to move the cursor to the desired key, and then press the [Enter] button to enter the alphanumeric. Enter figures by holding down the [Num] button on the remote control, and pressing the numeric buttons. After inputting, select Finish on the keyboard and press [Enter] to confirm your input. Select Cancel on the keyboard and press [Enter] to cancel your input.

Each time this key is selected, it sets and changes between upper case and lower case letters.

Each time this key is selected, it sets and changes the symbol keys for the section enclosed by the frame.

List of Functions

Basic Menu

Sub Menu Function

Projector Name Displays the projector name used to identify the projector when connected to a network.

When editing, you can enter up to 16 single-byte alphanumeric characters.

PJLink Password Set a password to use when you access the projector using compatible PJLink software. s p.148

You can enter up to 32 single-byte alphanumeric characters.

Web Control Password Set a password to use when making settings and controlling the projector using Web Control. You can enter up to 8 single-byte

alphanumeric characters. Web control is a computer function that allows you to set up and control the projector by using the Web browser on a computer connected on a network. See your Network Operation Guide for more information.

Projector keyword When set to On, you have to enter the keyword when you try to connect the projector to a computer on a network. As a result, you

can prevent presentations from being interrupted by unscheduled connections from the computer.

Normally this should be set to On. See your Network Operation Guide for more information.

List of Functions

Wireless LAN Menu (only when the optional Wireless 802.11a/b/g Module is installed)

Sub Menu Function

Wireless LAN Power Set to Off to deactivate the Wireless 802.11a/b/g Module connected to the projector. When set to Off, the Wireless 802.11a/b/g

Module is treated as if it were not connected.

Connection mode When the projector is connected to a computer with EasyMP Network Projection, set so that it is in a permanently connected mode.

Wi-Fi Protected Setup When using a WPS (Wi-Fi Protected Setup) compatible access point via a wireless LAN, you can easily connect the projector to the

access point and make security settings. s p.133

Antenna level Displays the wireless LAN wave strength.

Wireless LAN system Sets the wireless LAN system.

SSID Enter an SSID. When an SSID is provided for the wireless LAN system in which the projector participates, enter the SSID.

You can enter up to 32 single-byte alphanumeric characters.

DHCP You can set whether or not (On/Off) to use DHCP

If this is set to On you cannot set any more addresses.

IP Address You can input the IP address

You can input a number from 0 to 255 in each field of the address. However, the following IP addresses cannot be used. 0.0.0.0,

127.x.x.x, 224.0.0.0 to 255.255.255.255 (where x is a number from 0 to 255)

g assigned to the projector.

List of Functions

Sub Menu Function

Subnet Mask You can input the Subnet Maskg for the projector. You can input a number from 0 to 255 in each field of the address. However, the

following subnet masks cannot be used.

0.0.0.0, 255.255.255.255

Gateway Address You can input the IP address for the gateway for the projector.

You can input a number from 0 to 255 in each field of the address. However, the following Gateway addresses

0.0.0.0, 127.x.x.x, 224.0.0.0 to 255.255.255.255 (where x is a number from 0 to 255)

MAC Address Displays the MAC address.

SSID Display To prevent the SSID from being displayed on the LAN Standby screen, set this to Off.

IP Address To prevent the IP address from being displayed on the LAN Standby screen, set this to Off.

g cannot be used.

List of Functions

Security menu (Only available when the optional Wireless 802.11a/b/g/ Module is installed)

When the optional Wireless 802.11a/b/g Module is installed and being used in Manual Mode, it is strongly recommended that you set security.

Sub Menu Function

Security Select one of the following security methods.

When setting up security, follow the instructions from the administrator of the network system you are about to access.

WEP: Data is encrypted with a code key (WEP key)

This mechanism prevents communication unless the encrypted keys for the access point and the projector match.

WPA/WPA2: This is an encryption standard that improves security which is a weak point of WEP. Although there are multiple kinds of WPA encryption methods, this projector uses "TKIP" and "AES".

WPA also includes user authentication functions. WPA authentication provides two methods: using an authentication server, or authenticating between a computer and an access point without a server. This projector supports the latter method, without a server.

EAP: EAP is a protocol used for communication between clients and authentication severs. These are multiple protocols, such as EAP-TLS which uses electronic certification for user authentication, LEAP which uses user name and password, and EAP-TTLS.

List of Functions

Type of security

System Authentication

EAP-TLS Digital certificate, CA certificate

EAP-TTLS/MD5 User name, Password

EAP-TTLS/MS-CHAPv2 User name, Password

PEAP/MS-CHAPv2 User name, Password

PEAP/EAP-GTC User name, Password

LEAP User name, Password

EAP-Fast/MS-CHAPv2 User name, Password

EAP-Fast/GTC User name, Password

Type of certificate that can be registered (when EAP-TLS is selected)

Type Extension Notes

Client certificate .pfx Certificates without passwords (NULL) are not supported.

CA certificate .cer Binary encoded files (DER)

BASE64 encoded files are not supported.

• If using EAP, you need to make settings at the projector that match the authentication server settings. Check with your network administrator for details on RADIUS settings.

• Open “Network Menu” – “Certificate” in “Web Control” to register a digital certificate and a CA certificate to the projector. Only one set of a digital certificate and a CA certificate can be registered to the projector. These certificates are used with EAP-TLS.

List of Functions

When WEP is selected

The following items can be set.

Sub Menu Function

WEP encryption You can set the encryption for WEP encoding.

128 Bit: Uses 128 (104) bit encoding

64 Bit: Uses 64 (40) bit encoding

Format You can set the input method for the WEP encrypted key.

ASCII: Input text. The method of inputting the encrypted WEP with text differs depending on the access point. Check with the

network administrator for the network in which the projector participates, and then set to "ASCII".

HEX: Input in hexadecimal.

Key ID Selects the WEP encryption ID key.

List of Functions

Sub Menu Function

Encryption key 1/Encryption key 2/Encryption key 3/Encryption key 4

Authentication Type You can set Authentication Type for WEP encoding.

You can enter the key used for WEP encryption. Enter the key in single-byte characters following instructions from the network administrator for the network in which the projector participates. The type of character and the number that can be entered differ according to the WEP encryption and Format settings.

If the number of characters you enter is shorter than the required character length, no character is encrypted. If the number of characters you enter is longer than the required character length, characters that exceed the permitted number are not encrypted.

128 Bit - ASCII: Single-byte alphanumerics, 13 characters.

64 Bit - ASCII: Single-byte alphanumerics, 5 characters.

128 Bit - HEX: 0 to 9 and A to F, 26 characters

64 Bit - HEX: 0 to 9 and A to F, 10 characters

Open: Method to connect access point with no authentication.

Shared: Authentication Type using WEP key.

When WPA-PSK (TKIP) or WPA2-PSK (AES) are selected

List of Functions

The following items can be set.

Sub Menu Function

PSK (Encryption key) You can enter a Pre-Shared Key (encrypted key) in single-byte alphanumeric characters. Enter at least 8 and up to 63 characters.

When the Pre- Shared Key is entered and the Enter button is pressed, the value is set and displayed as an asterisk (*).

You cannot enter more than 32 characters on the configuration menu. When setting from Web Control, you can enter more than 32 characters. See your Network Operation Guide for more information.

When EAP-TLS is selected

The following items can be set.

Sub Menu Function

Issued to/Issued by/Validity period

Information in the certificate is displayed. You cannot enter.

When EAP-TTLS/MD5, EAP-TTLS/MS-CHAPv2, PEAP/MS-CHAPv2, PEAP/GTC, LEAP, EAP-Fast/MS-CHAPv2 or EAP-FAST/GTC are selected

The following items can be set.

Sub Menu Function

User name You can enter a user name to be used for authentication in single-byte alphanumeric characters (no spaces). You can enter up to

64 characters.

You cannot enter more than 32 characters on the configuration menu. When setting from Web Control, you can enter more than 32 characters. See your Network Operation Guide for more information.

Password You can enter an authentication password in single-byte alphanumeric characters. You can enter up to 64 characters. When the

password is entered and the Enter button is pressed, the value is set and displayed as an asterisk (*).

You cannot enter more than 32 characters on the configuration menu. When setting from Web Control, you can enter more than 32 characters. See your Network Operation Guide for more information.

List of Functions

Wired LAN Menu

Sub Menu Function

DHCP You can set whether or not (On/Off) to use DHCP

If this is set to On you cannot set any more addresses.

IP Address You can input the IP address

You can input a number from 0 to 255 in each field of the address. However, the following IP addresses cannot be used.

0.0.0.0, 127.x.x.x, 224.0.0.0 to 255.255.255.255 (where x is a number from 0 to 255)

Subnet Mask You can input the Subnet Mask

following subnet masks cannot be used.

0.0.0.0, 255.255.255.255

Gateway Address You can input the IP address for the gateway for the projector.

You can input a number from 0 to 255 in each field of the address. However, the following Gateway addresses

0.0.0.0, 127.x.x.x, 224.0.0.0 to 255.255.255.255 (where x is a number from 0 to 255)

MAC Address Displays the MAC address.

IP Address Display To prevent the IP address from being displayed on the LAN Standby screen, set this to Off.

g assigned to the projector.

g for the projector. You can input a number from 0 to 255 in each field of the address. However, the

g cannot be used.

List of Functions

Mail Menu

When this is set, you receive an e-mail notification if a problem or warning occurs in the projector. For information on the contents of the sent e-mail,

s p.144

Sub Menu Function

Mail Notification You can set whether or not (On/Off) to be notified by e-mail.

SMTP Server You can input the IP address

You can input a number from 0 to 255 in each field of the address. However, the following IP addresses cannot be used.

127.x.x.x, 224.0.0.0 to 255.255.255.255 (where x is a number from 0 to 255)

Port Number You can input the port number for the SMTP server. The default value is 25. You can input numbers between 1 to 65535.

Email Address 1/Email Address 2/Email Address 3

Setting a Notification Event

You can input the e-mail address of the destination to send the notification e-mail to. You can register up to three destinations. You can enter up to 64 single-byte alphanumeric characters for the e-mail addresses. You cannot enter more than 32 characters on the configuration menu. When setting from Web Control, you can enter more than 32 characters.

You can select the problems or warnings to be notified about by e-mail. When the selected problem or warning occurs in the projector, an e-mail is sent to the specified Email Address notifying that a problem or warning has occurred. You can select multiple items from the displayed items.

g for the SMTP server for the projector.

List of Functions

Others Menu

Sub Menu Function

Trap IP Address 1/Trap IP Address 2

Priority gateway For the priority gateway, select either Wireless LAN or Wired LAN.

AMX Device Discovery When the projector is connected to a network, set this to On to allow the projector to be detected by AMX Device Discovery

You can register up to two for the SNMP

You can input a number from 0 to 255 in each field of the address.

However, the following IP addresses cannot be used.

127.x.x.x, 224.0.0.0 to 255.255.255.255 (where x is a number from 0 to 255)

To use SNMP to monitor the projector, you need to install the SNMP manager program on your computer. SNMP should be managed by a network administrator.

this to Off if you are not connected to an environment controlled with a controller from AMX or AMX Device Discovery.

g trap notification destination.

g. Set

List of Functions

Reset Menu

Resets all of the network settings.

Sub Menu Function

Reset network settings. To reset all of the network settings, select Yes.

After you reset all the settings, the Basic menu appears.

List of Functions

Info Menu (Display Only)

Lets you check the status of the image signals being projected and the status of the projector. Items that can be displayed vary depending on the image signal being projected as shown in the following screen shots.

Analog RGB/Digital RGB/

Component Video/Digital Component Video

Sub Menu Function

Lamp Hours You can display the cumulative lamp operating time

When it reaches the lamp warning time, the characters are displayed in yellow.

Lamp Status The following icons show the status of the lamps.

: Lighted : Disable

When is displayed, the lamp is not operating normally. See "Reading the Indicators".

Source You can display the Source name for the connected equipment currently being projected.

Composite video/S-Video

Input Signal You can display the Input Signal selected in the Signal menu.

Resolution You can display the Resolution.

Video Signal You can display the Video Signal selected in the Signal menu.

Refresh Rate You can display the Refresh Rate.

Sync Info You can display the image signal Info.

This information may be needed if service is required.

List of Functions

Sub Menu Function

Status This is Info about errors that have occurred on the projector.

This information may be needed if service is required.

Serial Number Displays the projector's serial number.

* The cumulative use time is displayed as "0H" for the first 10 hours. 10 hours and above is displayed as "10H", "11H", etc.

Reset Menu

Sub Menu Function

Reset All You can reset all items in the configuration menu to their default settings.

The following items are not reset to their defaults: Input Signal, User's Logo, Multi-screen, all items for Network menus, Lamp Hours, and Language.

Projector Menu and Options List

The table below summarizes the options you can select based on the projector menu you are viewing. Some options may not be available depending on the input source you are using.

For more information on these menus and options, read this chapter.

Menu Options

Image Color Mode

Brightness Contrast Color Saturation Tint Sharpness Abs. Color Temp. Color Adjustment Auto Iris Reset

Signal Auto Setup

Resolution Tracking Sync. Position Progressive Noise Reduction DVI/HDMI Video Range Input Signal Video Signal Aspect Overscan Reset

Menu Options

Settings Keystone

Control Panel Lock Lens Operation Lock Pointer Shape Power Consumption Remote Receiver User Button Test Pattern Reset

Extended Display

Closed Caption User’s Logo Projection Direction Operation Standby Mode Air Filter Notice Projector ID Multi-screen Language Reset

Network Basic

Wireless LAN Security

Wired LAN PJLink Password

Web Control Password

SNMP Mail AMX Device Discovery Projector Name Others

Reset

Projector Menu and Options List

Menu Options

Info Lamp Hours

Lamp Status Source Input Signal Resolution Video Signal Refresh Rate Sync Info Status Serial Number

Reset Reset All

*1 PowerLite Pro Z8050WNL only

*2 PowerLite Pro Z8050WNL with optional Wireless 801.11a/b/g Module only

*3 PowerLite Pro Z8000WUNL only

Troubleshooting

This chapter explains how to identify problems and what to do if a problem is found.

Using the Help Screen

If a problem occurs with the projector, press the [Help] button to display the Help screen. You can solve problems by answering the questions.

Procedure

A Press the [Help] button.

The Help screen is displayed.

Remote Control

B Select a menu item.

Remote Control

Using the Help Screen

C Confirm the selection.

Remote Control
