TM-U325D/U325PD
F
E
E
D
R
E
L
E
A
S
E
User’s Manual
EPSON
F
E
E
D
R
E
L
E
A
S
E
R
E
O
C
U
E
T
IP
T
E
R
R
V
O
A
R
LID
A
P
T
O
IO
W
N
E
R
400665707
Printer Parts and Labels
e
F
E
E
D
R
E
L
E
A
S
E
FEED RELEASE
Printer cover
Serial interface connector
Control panel
Labels
EPSON
F
E
E
D
R
E
L
E
A
S
E
R
E
O
C
U
E
T
I
P
T
E
R
R
V
O
A
R
L
I
D
A
P
T
O
W
E
R
On/Off switch
1
2
14 25
1
I
O
N
13
2
6
1
1
3
2
6
1
1
3
Parallel interface connector
Control panel
RECEIPT
VALIDATION
OUT
POWERERROR
EPSON/U325 Printer - File: PRNTR_8.
3
CUT
5
4
2
SET
1
3
CLOSE THE
6
PRINTER COVER
CAUTION/ VORSICHT:
Print head cover and print head are hot.
Druckkopfabdeckung und Druckkopf sind heiß.
CAUTION/ VORSICHT:
Caution label for drawer kick-out connector.
Vorsichtsetikett für Schnappsteckerbuchse.
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system,
or transmitted in any form or by any means, electronic, mechanical, photocopying, recording,
or otherwise, without the prior written permission of Seiko Epson Corporation. No patent
liability is assumed with respect to the use of the information contained herein. While every
precaution has been taken in the preparation of this book, Seiko Epson Corporation assumes no
responsibility for errors or omissions. Neither is any liability assumed for damages resulting
from the use of the information contained herein.
Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product
or third parties for damages, losses, costs, or expenses incurred by purchaser or third parties as
a result of: accident, misuse, or abuse of this product or unauthorized modifications, repairs, or
alterations to this product, or (excluding the U.S.) failure to strictly comply with Seiko Epson
Corporation’s operating and maintenance instructions.
Seiko Epson Corporation shall not be liable against any damages or problems arising from the
use of any options or any consumable products other than those designated as Original Epson
Products or Epson Approved Products by Seiko Epson Corporation.
EPSON and ESC/POS are registered trademarks of Seiko Epson Corporation in Japan and
other countries/regions.
NOTICE: The contents of this manual are subject to change without notice.
Copyright © 1996, 1999 by Seiko Epson Corporation, Nagano, Japan.
i
Standards and Approvals
The following standards are applied only to the printers that are so labeled. (EMC is
tested using the Epson power supplies.)
Europe: CE marking
North America: FCC/ICES-003 Class A
Oceania: AS/NZS CISPR22 Class A
WARNING
This is a Class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
The connection of a non-shielded printer interface cable to this printer will invalidate the
EMC standards of this device.
You are cautioned that changes or modifications not expressly approved by Seiko Epson
Corporation could void your authority to operate the equipment.
CE marking
The printer conforms to the following Directives and Norms:
Directive 2004/108/EC
EN 55022 Class A
EN 55024
IEC 61000-4-2
IEC 61000-4-3
IEC 61000-4-4
IEC 61000-4-5
IEC 61000-4-6
IEC 61000-4-11
FCC Compliance Statement for American Users
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference,
in which case the user will be required to correct the interference at his own expense.
For Canadian Users
This Class A digital apparatus complies with Canadian ICES-003.
À l'intention des utilisateurs canadiens
Cet appareil numérique de classe A est conforme à la norme canadienne NMB-003.
ii
About This Manual
Setting Up and Using
❏ Chapter 1 contains information on unpacking the printer, setting it up, attaching
the paper roll near-end sensor, and setting the DIP switches.
❏ Chapter 2 contains information on using the printer.
❏ Chapter 3 contains troubleshooting information.
Reference
❏ Chapter 4 contains specifications and character code tables.
Warnings, Cautions, and Notes
WARNING / WARNUNG:
Warnings must be followed carefully to avoid serious bodily
injury.
Warnhinweise müssen sorgfältig befolgt werden, um Unfälle
mit möglicherweise schweren Verletzungen zu vermeiden.
CAUTION / VORSICHT:
Cautions must be observed to avoid minor injury to yourself or
damage to your equipment.
Vorsichtshinweise müssen sorgfältig befolgt werden, um
Unfälle mit der Gefahr leichter Verletzungen oder Schäden
am Gerät zu vermeiden.
Note:
Notes have important information and useful tips on the operation of your
printer.
Downloading Drivers, Utilities, and Manuals
Drivers, utilities, and manuals can be downloaded from one of the
following URLs.
For customers in North America, go to the following web site:
http://www.epsonexpert.com/ and follow the on-screen
instructions.
For customers in other countries, go to the following web site:
http://www.epson-pos.com/
iii
Introduction
Features
The TM-U325D and TM-U325PD are high-quality POS printers that can print a
multiple-line validation and on receipt paper (paper roll). The printer has the
following features:
❏ Easily changeable interface specifications for serial or parallel by exchanging the
interface board.
❏ Excellent reliability (long life) and good operability (drop-in paper loading).
❏ Multiple-line validation printing (possible to print a maximum of 9 lines).
❏ Compact and light in weight.
❏ High-speed printing through logic-seeking control.
❏ Excellent reliability and long life due to adoption of stepping motor, both for
moving the carriage and for paper feeding.
❏ Flexible line space setting permits printing in accordance with any user-defined
format.
❏ Conforms with ESC/POS
❏ Built-in drawer kick-out interface provides capability to drive two drawers.
❏ Selectable character fonts (7 × 9 and 9 × 9).
❏ Semi-automatic paper loading capability.
❏ AC adapter provides compact power supply.
❏ Automatic status back (ASB) function that automatically transmits changes in
printer status.
®
; excellent universality of control.
Accessories
❏ AC adapter
❏ EPSON ribbon cassette, ERC-38
Options
❏ EPSON power supply unit, PS-180
❏ Printer fastening tape (Model No. DF-10)
Restriction of Use
When this product is used for applications requiring high reliability/safety, such as
transportation devices related to aviation, rail, marine, automotive, etc.; disaster
prevention devices; various safety devices, etc.; or functional/precision devices, etc.;
you should use this product only after giving consideration to including fail-safes
and redundancies into your design to maintain safety and total system reliability.
Because this product was not intended for use in applications requiring extremely
high reliability/safety, such as aerospace equipment, main communication
equipment, nuclear power control equipment, or medical equipment related to
direct medical care, etc., please make your own judgment on this product’s
suitability after a full evaluation.
iv
Chapter 1
F
E
E
D
R
E
L
E
A
S
E
Setting Up the Printer
Unpacking
The illustration below shows the items included for the standard
specification printer.
EPSON
F
E
E
D
R
E
L
E
A
S
E
R
E
O
C
U
E
T
I
P
T
E
R
R
V
O
A
R
L
I
D
A
P
T
O
I
O
W
N
E
R
Printer
Power supply
*1
Ribbon cassette
Spacers for the paper roll
Paper roll
Manual
Power switch cover
near-end sensor 2 pcs
(*1) The power cord may not be included in the package. If it is not, make sure to use a
power cord that complies with the safety standards.
If any item is damaged, please contact your dealer for assistance.
Selecting a Location
Place the printer on a surface that is as horizontal as possible. Make
sure that the printer does not tilt more than 15 degrees.
The printer should be installed so that it does not move or vibrate
during paper cutting or the drawer kick-out operation.
Fastening tape is available as an option.
Setting Up the Printer 1–1
Adjusting the Paper Roll Near-End Sensor
Notes:
Use paper rolls with an inner core diameter of 10.5 to 12.5 mm so
that the sensor detects the remaining paper correctly.
When the last portion of a paper roll bears red markings, the
marking is sometimes an adhesive that pulls the entire paper roll up.
In this case, the sensor may not detect the remaining paper correctly.
If a paper roll easily becomes loose because of the quality of the paper
or other factors, incorrect detection of the paper end may result.
1. Make sure that the power supply is disconnected from the printer.
2. Two spacers are included. See the illustration below and decide
whether or not you want to use them. Use them if you want the
near-end sensor to be triggered when distance A is 3 to 4 mm;
otherwise it will be triggered when distance A is approximately
6mm.
3. Secure the paper roll near-end sensor (and spacers) with two
screws. When you insert the spacers, be sure you set the
spacers in the direction shown in the illustration.
1–2 Setting Up the Printer
Distance A
Spacers
Paper roll
near-end sensor
4. Check to be sure that the detecting lever moves freely.
Connecting the Cables and Grounding the Printer
You can connect up to three cables and a grounding wire to the
printer. They all connect to the connector panel on the bottom of
the printer, which is shown below:
Power supply
Drawer kick-out
Grounding screws
Interface
Notes:
There is a caution label beside the drawer kick-out connector.
Depending on the interface installed, the interface connector on your
printer may look different from the one illustrated.
Before connecting any of the cables, make sure that both the printer
and the computer are turned off.
Setting Up the Printer 1–3
Connecting the Computer
1. Plug the cable into the connector on the printer and tighten the
screws on both sides of the cable connector, as shown.
2. Connect the other end of the cable to the connector on your
computer.
Connecting the Drawer
WARNING:
Use a drawer that matches the printer specification. Using an
improper drawer may damage the drawer as well as the
printer.
CAUTION:
Do not connect a telephone line to the drawer kick-out
connector; otherwise the printer and the telephone line may
be damaged.
Plug the drawer cable into the drawer kick-out connector on the
bottom of the printer next to the power supply connector.
1–4 Setting Up the Printer
Anschließen der Lade
WARNUNG:
Eine für den Drucker geeignete Lade verwenden. Bei
Verwendung einer falschen Lade kann diese oder der
Drucker beschädigt werden.
ACHTUNG:
Kein Telefonkabel an die Schnappsteckerbuchse
anschließen, da sonst der Drucker und die Telefonkabel
beschädigt werden können.
Das Kabel der Lade an die Schnappsteckerbuchse unten am
Drucker neben dem Netßzanschluß
anschließen.
Grounding the Printer
You need a ground wire to ground your printer. Make sure that the
wire meets the specifications below.
Thickness of wire: AWG 18 or equivalent
Diameter of terminal to be attached: 3.2
1. Make sure that the printer is turned off.
Setting Up the Printer 1–5
2. Connect the ground wire to the printer using the FG screw on
the bottom of the printer, as shown.
Connecting the Power Supply
This printer requires an external power supply. Be sure to use a
power supply that matches the specifications.
WARNING / WARNUNG:
Using an incorrect power supply may cause fire or electrical
shock.
Bei Verwendung der falschen Stromversorgung besteht
Brand- oder Stromschlaggefahr.
CAUTION / VORSICHT:
When connecting or disconnecting the power supply from
the printer, make sure that the power supply is not plugged
into an electrical outlet; otherwise you may damage the
power supply or the printer.
If the power supply’s rated voltage and your outlet’s voltage
do not match, contact your dealer for assistance. Do not
plug in the power cord. Otherwise you may damage the
power supply or the printer.
1–6 Setting Up the Printer
Beim Anschließen der Stromversorgung an den Drucker und
beim Herausziehen der Stromversorgung aus dem Drucker
darf die Stromversorgung nicht in eine Steckdose eingesteckt
sein. Andernfalls kann die Stromversorgung oder der Drucker
beschädigt werden.
Wenn die Nennspannung der Stromversorgung und die
Spannung der Steckdose nicht übereinstimmen, den Händler
um Hilfe bitten. Das Netzkabel nicht einstecken. Andernfalls
kann die Stromversorgung oder der Drucker beschädigt
werden.
1. Make sure that the printer’s power switch is turned off, and the
power supply’s power cord is unplugged from the electrical
outlet.
2. Plug in the power supply’s cord as shown below. Notice that
the flat side of the connector faces down.
3. Plug the power supply’s power cord into an outlet.
Note:
If you ever need to remove the cable, unplug the power supply’s
power cord from the outlet and then grasp the connector firmly at
the arrow mark and pull it straight out.
Installing the Ribbon Cassette
Use the EPSON ERC-38 ribbon cassette for your printer.
Note the label inside the printer cover that can assist you in installing
the ribbon.
Setting Up the Printer 1–7

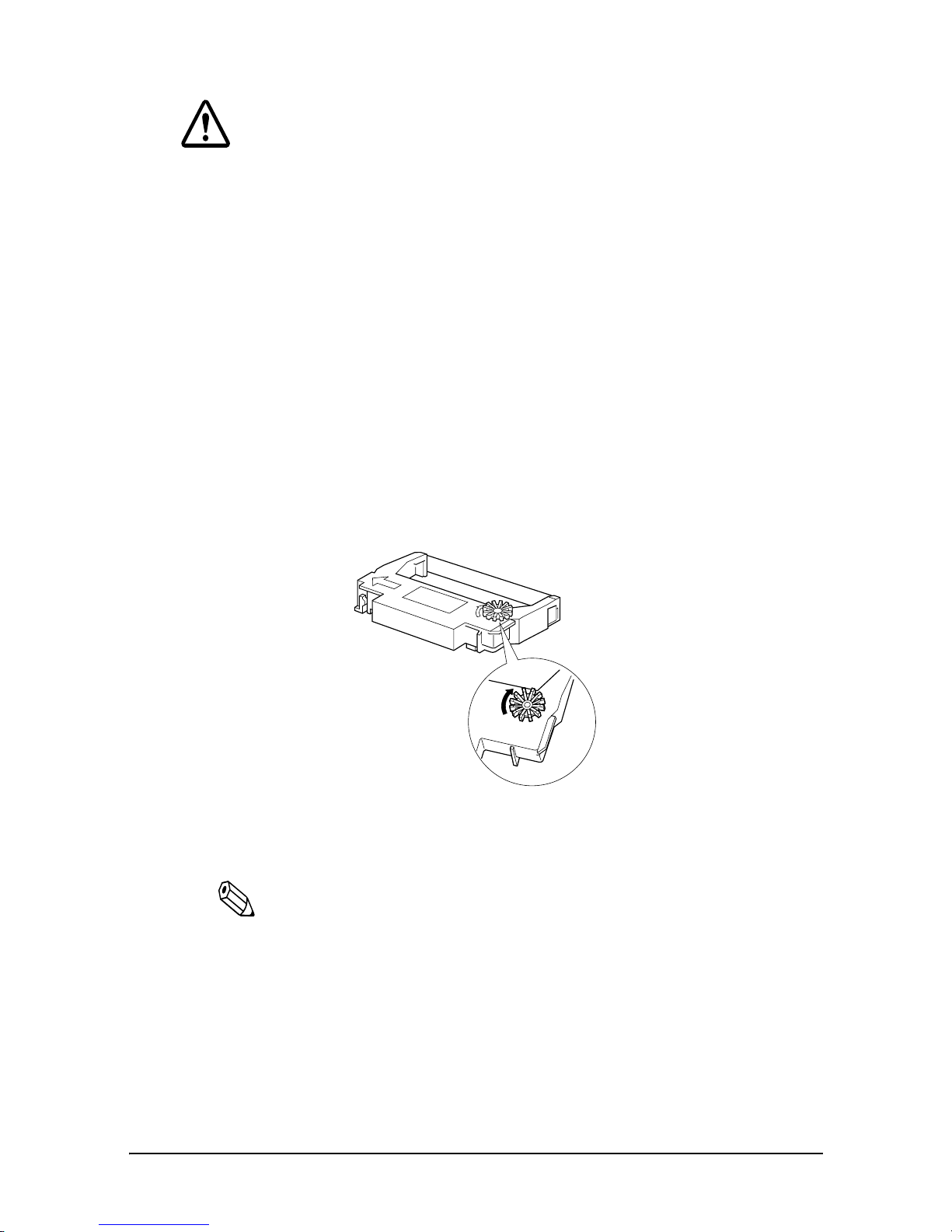

CAUTION / VORSICHT:
Never turn the ribbon cassette’s feed knob in the opposite
direction of the arrow marked on the cassette; otherwise the
ribbon cassette may be damaged.
Den Transportknopf an der Farbbandkassette nur in die durch
den Pfeil gekennzeichnete Richtung drehen. Andernfalls
kann die Farbbandkassette beschädigt werden.
1. Be sure the printer is not receiving data when you replace a
ribbon cassette; otherwise data may be lost.
2. Open the printer cover.
3. Turn the ribbon cassette’s knob in the direction of the arrow, to
take up any slack in the ribbon.
4. Insert the ribbon in the position shown in the illustration below
and push the ribbon cassette until it clicks.
Note:
Make sure that the ribbon is installed between the print head
and the platen without wrinkles or creases.
1–8 Setting Up the Printer
FEED
RELEASE
E
F
E
E
D
R
E
L
E
A
S
E
P
S
O
N
RELEASE
RECEIPT
OUT
ERROR
V
ALIDATION
POWER
5. Turn the ribbon cassette’s knob 5 or 6 times in the direction of
the arrow again, to take up any slack in the ribbon.
EPSON
F
E
E
D
R
E
L
E
A
S
E
R
E
O
C
U
E
T
I
P
T
E
R
R
V
O
A
R
L
I
D
A
P
T
O
IO
W
N
E
R
Installing the Paper Roll
CAUTION / VORSICHT:
Take care not to injure your fingers on the manual cutter
• When you remove printed paper
• When you perform other operations such as loading/
replacing roll paper
Darauf achten, dass Sie sich bei den folgenden Arbeiten
keine Handverletzungen durch die manuelle
Schneidvorrichtung zuziehen:
• Beim Herausnehmen des bedruckten Dokuments
• Bei der Durchführung von anderen Arbeiten, wie zum
Beispiel beim Einlegen/Herausnehmen der Papierrolle.
Setting Up the Printer 1–9
Notes:
F
E
E
D
R
E
L
E
A
S
E
Be sure to use a paper roll that meets the specifications.
Do not use paper rolls that have the paper glued to the core because
the printer cannot detect the paper end correctly. However, if you
will stop the printing using the paper roll near-end sensor, you can
use glued type paper rolls.
1. Using scissors, cut the leading edge of the paper roll as shown
below.
2. Turn on the printer and open the printer cover.
3. Insert the paper roll.
E
P
S
O
N
F
E
E
D
R
E
L
E
A
SE
R
E
O
C
U
E
T
IP
T
E
R
R
V
O
A
R
L
ID
A
P
T
O
IO
W
N
E
R
Note:
Be sure to note the correct direction that the paper comes off the
roll as shown below.
1–10 Setting Up the Printer
4. Hold both edges of the paper and insert it straight into the
F
E
E
D
R
E
L
E
A
S
E
FEED
RE
LEASE
paper slot. The printer feeds the paper automatically.
EPSON
F
E
E
D
R
E
L
E
A
S
E
R
E
O
C
U
E
T
I
P
T
E
R
R
V
O
A
R
L
ID
A
P
T
O
I
O
W
N
E
R
5. Tear off the paper; then close the cover.
Note:
Before closing the cover, make sure that the paper from the paper
roll is not slack.
E
P
S
O
N
FE
ED
RE
LEA
SE
R
E
O
CEIP
UT
T
ERR
VAL
OR
ID
ATION
PO
W
ER
To remove the paper roll, follow the steps below.
1. Open the printer cover.
Setting Up the Printer 1–11
Loading...
