note

For instructions on connecting to a laptop computer or to external speakers, see your User’s Guide.

This appendix describes how to connect the projector to your desktop computer and turn everything on. The projector must be connected to a computer or a video source such as a VCR, camcorder, digital camera, DVD player, or laser disc player before it can project any images. You may also want to set up the projector for one or more of the following:

■ Connect the mouse cable to use the remote control as a

wireless mouse. Except for some laptops, this disables your computer’s mouse. You use the remote control’s pointer to control the screen cursor.

■ Provide audio for one or both image sources. The audio

source can be the computer, video source, or another device such as a stereo.

■ Connect to an external speaker or PA system to amplify the

audio (see your User’s Guide for instructions).

Positioning the Projector

Before you can set up the projector, you need to decide where to place it. Keep the following in mind:

Place the projector on a sturdy, level surface.

■

Make sure the projector is within 10 feet of a grounded

■

electrical outlet or extension cord.

Place the computer and/or video source within 5 feet of the

■

projector.

Make sure the projector is at right angles to the screen.

■

Otherwise, your image will be distorted.

Connecting to a Desktop Computer 5

note

It is easier to position the projector when the screen is directly in front of the room. If the screen is placed diagonally in a corner, it is much more difficult to position the projector perpendicular to the screen and get a non-distorted image.

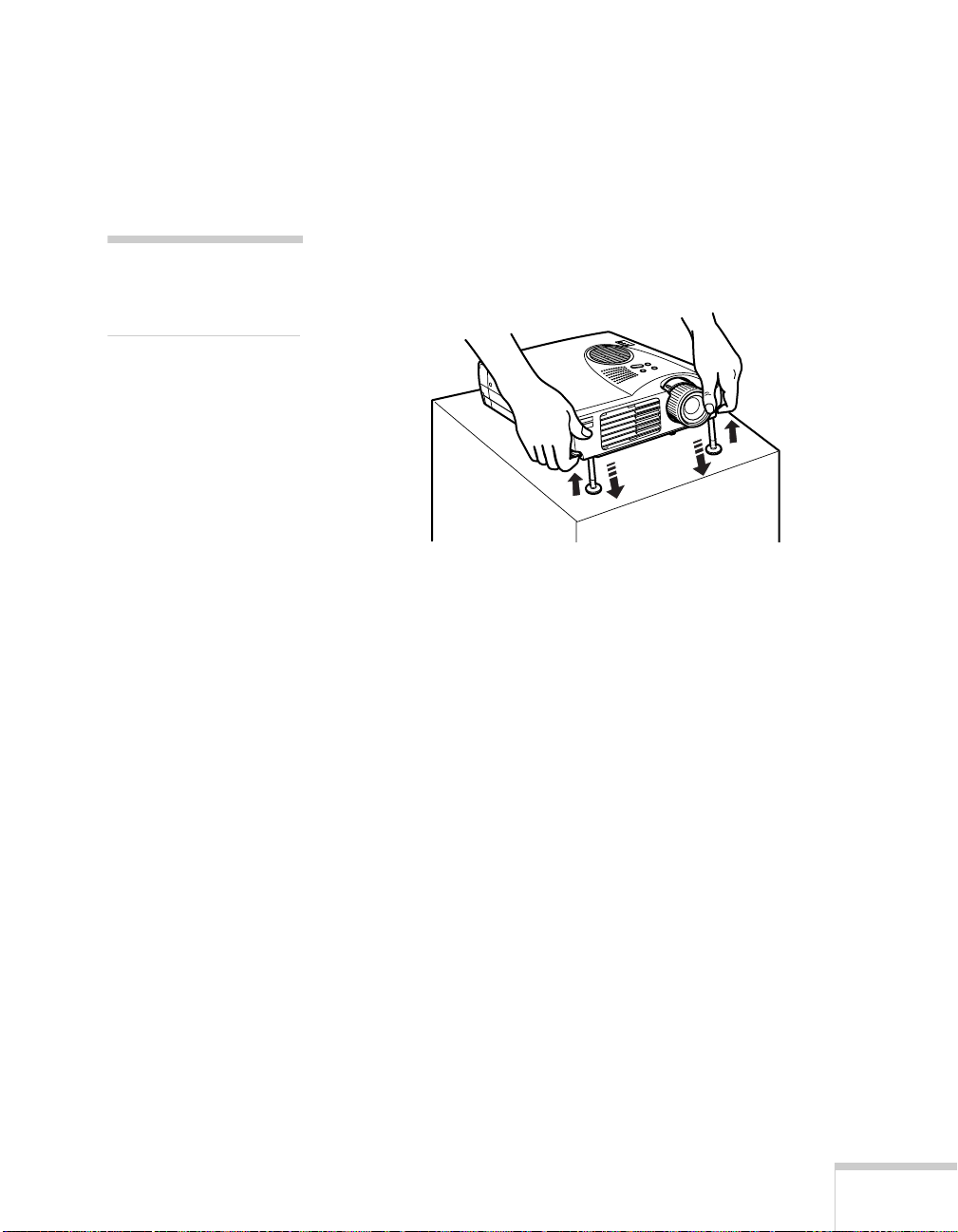

Most presenters find it convenient to place the projector (and computer) in the front of the room. With this arrangement, the projector is placed close to the screen. You need to raise the front of the projector (by extending the legs) in order to position the image high enough on the screen. Then you can use the projector’s keystone control to correct the distortion caused by tilting up the front of the projector.

The distance between the projector and the screen determines the actual image size. Use the general guidelines in the table below to determine the proper distance.

Horizontal distance from projector to screen

Image size

(diagonal)

2.2 feet (0.7 meter) — 3.6 feet (1.1 meters)

2.5 feet (0.8 meter) 3.6 feet (1.1 meters) 4.3 feet (1.3 meter)

3.3 feet (1.0 meter) 4.8 feet (1.5 meters) 5.6 feet (1.7 meters)

5.0 feet (1.5 meters) 7.5 feet (2.3 meters) 8.9 feet (2.7 meters)

6.7 feet (2.0 meters) 9.8 feet (3.0 meters) 11.8 feet (3.6 meters)

8.3 feet (2.5 meters) 12.5 feet (3.8 meters) 14.8 feet (4.5 meters)

12.5 feet (3.8 meters) 18.7 feet (5.7 meters) 22.6 feet (6.9 meters)

16.7 feet (5.1 meters) 25.3 feet (7.7 meters) 30.2 feet (9.2 meters)

25 feet (7.6 meters) 37.7 feet

Minimum (lens set to W)

(11.5 meters)

Maximum (lens set to T)

45.3 feet (13.8 meters)

6 Connecting to a Desktop Computer

Identifying the Projector Ports

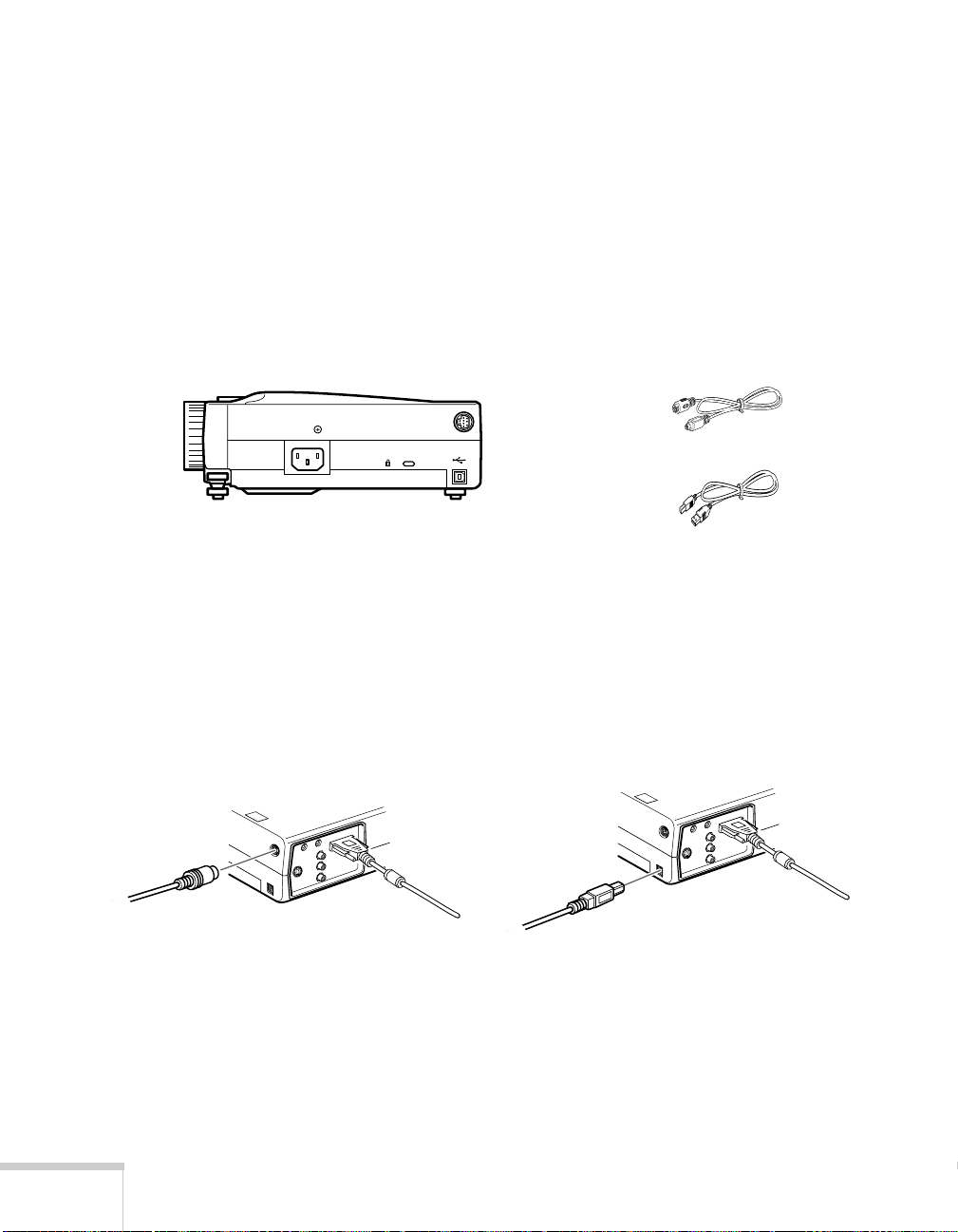

The following illustrations identify all the interface ports on the back and side of the projector; you may want to refer to them as you connect your computer or other equipment to the projector.

L-Audio-R

Audio Out

S-Video

Video

Audio In

Audio

S-Video

Computer

InOut

Audio

Video

Power Inlet

Mouse/Com

USB Mouse

Connecting to a PC Desktop Computer

To connect the projector to your PC desktop computer, you need to:

Connect the computer cable

■

■ Connect the audio cable (if you’ll be projecting with audio)

Connect the mouse cable (if you want to use the remote

■

note

control as a mouse)

Computer configurations vary. See your computer manual for the location of

If you connect the projector to your desktop computer, you cannot view your images on the computer monitor.

the ports needed to connect

our projector.

Follow the steps in each section for the cables you need to connect.

Connecting to a Desktop Computer 7

Connecting the Computer Cable

Before you start, make sure your projector, computer, and all peripherals are all turned off.

1. Disconnect the monitor cable from the monitor port on the

back of your computer.

2. Connect one end of the projector’s computer cable to the

projector’s Computer port.

3. Connect the other end of the cable to your computer’s

video (monitor) port.

4. Tighten the screws on all connectors.

If you don’t need to make any other connections, you can plug in your projector and turn it on. See page 14 for instructions.

8 Connecting to a Desktop Computer

note

If you need maximum volume (in a large auditorium, for example), you can also connect external speakers or a public address system to the projector. See your User’s Guide for instructions.

Connecting the Audio Cable

If your presentation includes sound effects or other types of computer audio, you need to connect the audio cable.

1. Connect one end of the audio cable to the

the projector.

Audio in jack

2. Connect the other end of the audio cable to the speaker or

audio out port on your computer’s sound card.

Audio In jack on

audio cable

Connecting the Cable for Remote Mouse Control

Using the remote control as a wireless mouse gives you more flexibility. You can deliver your presentation from anywhere in the room and interact with the audience. You don’t need to stand near your computer or near the projector.

You’ll use different cables and different ports on the projector, depending on whether your computer has a round PS/2 mouse port or a flat USB mouse port.

Mouse/Com

PS/2 mouse port

USB Mouse

USB mouse port USB mouse cable

Connecting to a Desktop Computer 9

PS/2 mouse cable

1. Determine which type of mouse port your computer has:

■ Round PS/2 mouse port

■ Flat USB mouse port

2. Connect one end of the appropriate mouse cable to the

Mouse/Com port or the USB Mouse port on the

PS/2 projector.

connecting PS/2 mouse cable connecting USB mouse cable

3. Connect the other end to the mouse port on your

computer. (Your computer’s mouse will be disabled while you are using the remote control as a mouse.)

Connecting to a Desktop Macintosh

note

Macintosh configurations vary. See your computer manual for the location of the ports needed to connect your projector.

To connect the projector to your desktop Macintosh,® you need to:

■ Connect the computer cable

■ Connect the audio cable (if you’ll be projecting with audio)

Connect the mouse cable (if you want to use the remote

■

control as a mouse)

If you connect the projector to your Macintosh, you cannot view your images on the computer monitor.

Follow the steps in each section for the cables you need to connect.

10 Connecting to a Desktop Computer

note

If you have an older Macintosh, you may need to use a Macintosh adapter (available from Apple Check the documentation for your Macintosh to determine what type of connections are available.

Connecting the Computer Cable

Before you start, make sure your projector, computer, and all peripherals are all turned off.

1. Disconnect the monitor cable from the monitor port on the

back of your Macintosh.

2. Connect one end of the computer cable to the projector’s

Computer port.

3. Connect the other end to the monitor port on your

Macintosh.

Macintosh adapter, if necessary

Connecting to a Desktop Computer 11

If you can’t connect the projector’s computer cable to your Macintosh, you may need to use a Macintosh adapter (available from Apple).

■ Remove the small cover on the

Macintosh adapter and set its DIP switches according to the resolution you want to use (such as 16-inch mode). See your Macintosh documentation for instructions.

■ Connect the small end

of the Macintosh adapter to the computer cable.

■ Connect the computer

cable (with the Macintosh adapter attached) to the monitor port on your Macintosh.

4. Tighten the screws on all the connectors.

If you don’t need to make any other connections, you can plug in your projector and turn it on. See page 14 for instructions.

12 Connecting to a Desktop Computer

note

If you need maximum volume (in a large auditorium, for example), you can also connect external speakers or a public address system to the projector. See your User’s Guide for instructions.

Connecting the Audio Cable

If your presentation includes sound effects or other types of computer audio, you need to connect the audio cable.

1. Connect one end of the audio cable to the

the projector.

Audio in jack

audio cable

2. Connect the other end of the audio cable to the speaker

jack on your Macintosh.

Audio In jack on

Connecting the Cable for Remote Mouse Control

You’ll use different cables and different ports on the projector, depending on what type of mouse your Macintosh has.

Mouse/Com

standard mouse port

USB Mouse

USB mouse port USB mouse cable

Connecting to a Desktop Computer 13

Mac mouse cable

1. Determine which type of mouse port your Macintosh has:

■ Round mouse port

■ Flat USB mouse port

2. Connect one end of the appropriate mouse cable to the

standard

Mouse/Com port or the USB Mouse port on the

projector.

connecting Mac mouse cable connecting USB mouse cable

3. Connect the other end to the port on your Macintosh.

Turning the Projector On and Off

After you have connected your computer and other equipment, you can plug in the projector and turn it on.

1. Connect the power cable to your projector’s power inlet.

2. Plug the other end of the cable into a grounded electrical

outlet.

The power light on top of the projector turns orange. This indicates that the projector is receiving power, but is not yet turned on.

14 Connecting to a Desktop Computer

power light

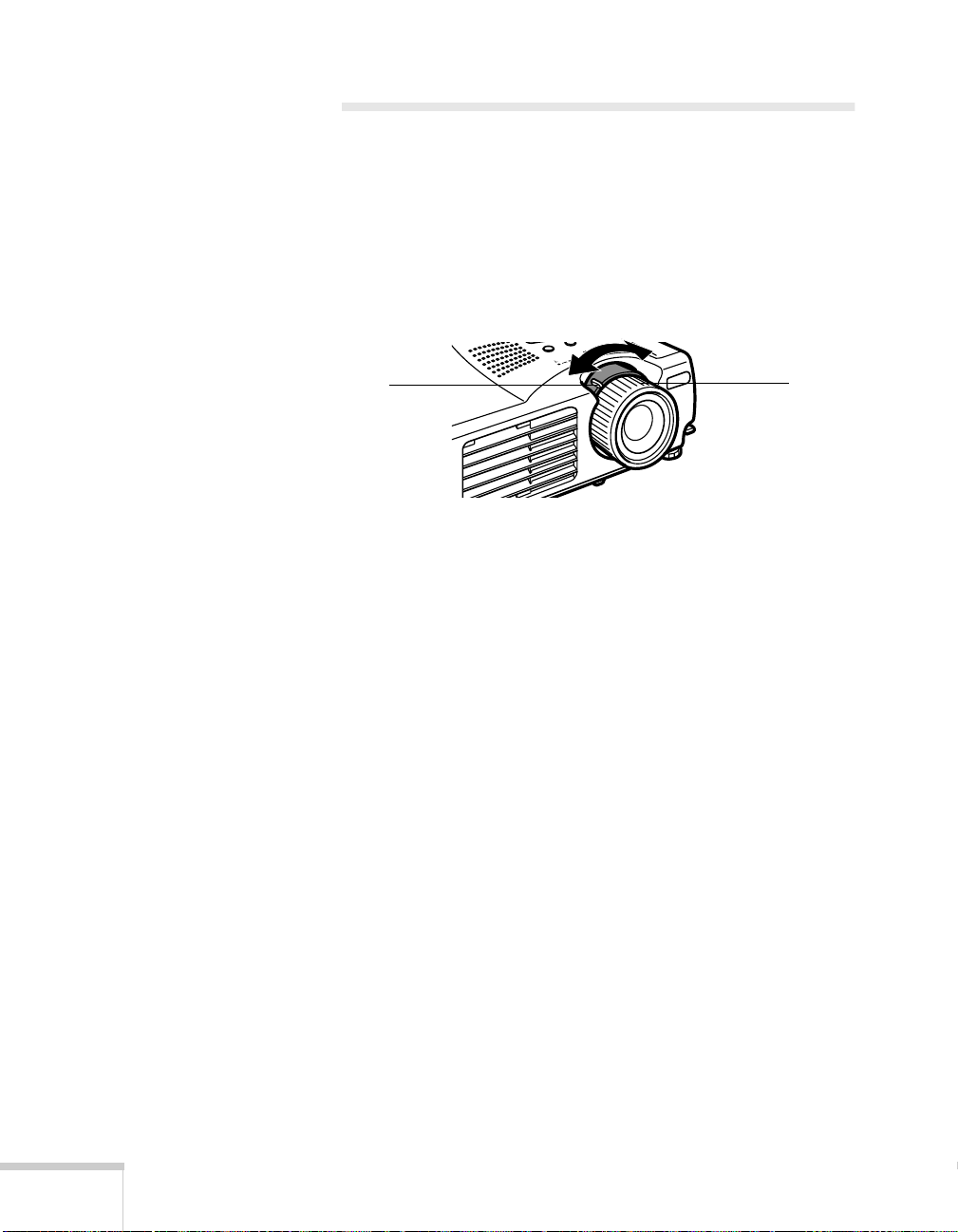

3. Use the tab on the lens ring to rotate the ring and pop out

the lens.

tab

4. Squeeze the lens cap tabs and remove the lens cap.

Squeeze here

warning

Never look into the lens when the lamp is on. This can damage your eyes, and is especially dangerous for children.

5. Press the red

power button

Power button on top of the projector.

power light

The power light flashes green, and then stays on. You may see a blue screen with the message

No Signal displayed.

This is normal.

6. Turn on or restart your computer. In a few moments, you

should see the computer display projected.

Connecting to a Desktop Computer 15

When you are ready to turn off the projector, follow these steps:

caution

To avoid damaging the lamp, never unplug the power cord when the power light is green.

1. Press the red

Power button on top of the projector. You

see a confirmation message. (If you don’t want to turn it off, press any other button.)

2. Press the

Power button again. The Power light flashes

orange for about a minute and the fan gets louder as the projector cools down. When the projector has cooled, the orange light stays on and the fan shuts off.

If you want to turn the projector on again, wait until the orange light stops flashing. Then press the

Power button.

3. When you are finished using the projector, replace the lens

cap, retract the lens, and unplug the power cord.

Turning On Other Equipment

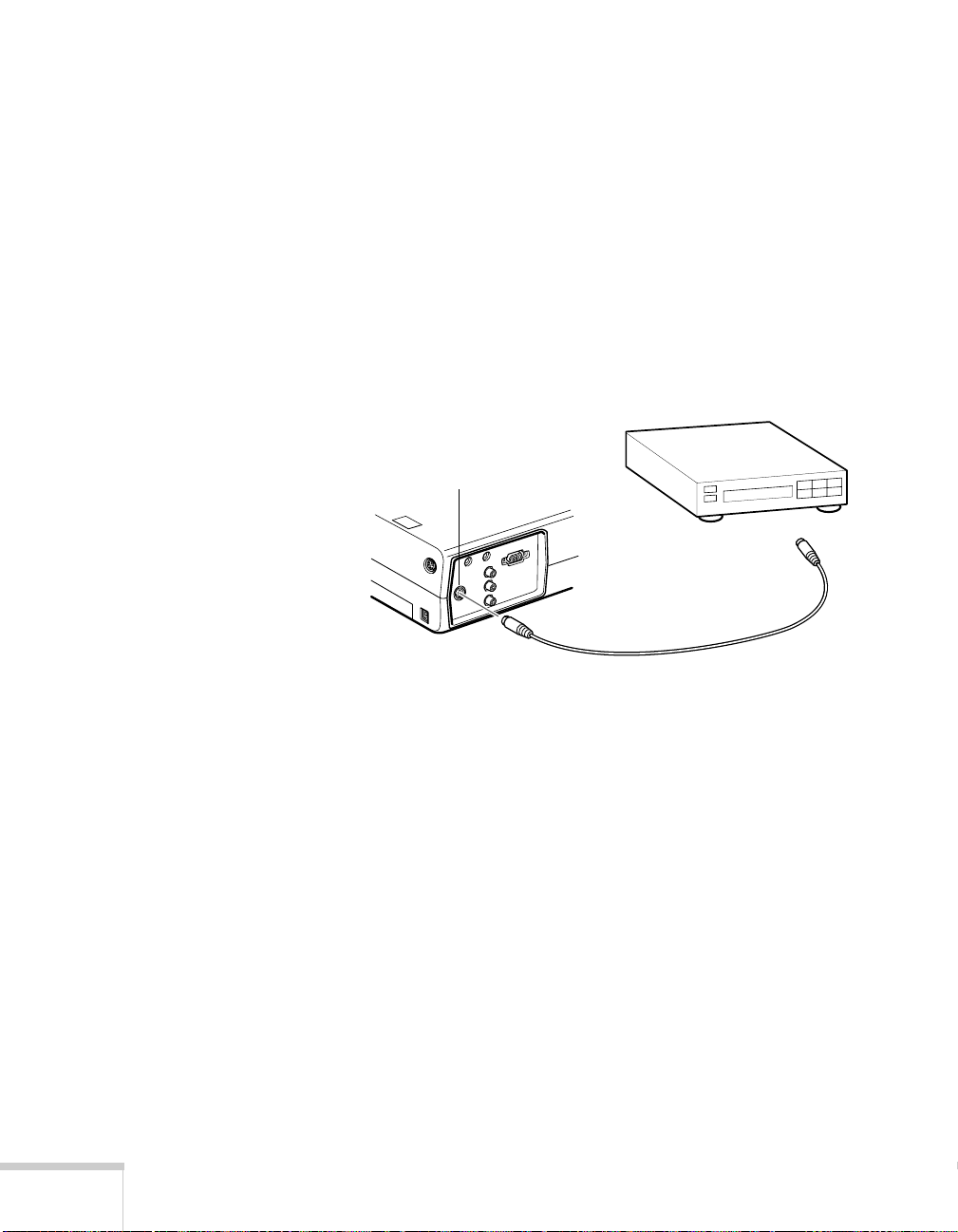

If you’re using a VCR, other external video source, or additional equipment with the projector, turn on the equipment in this order:

1. Video source

2. External audio source

3. Projector

4. External speakers or PA system

5. Computer

When you’re ready to shut down, turn off the equipment in the reverse order.

16 Connecting to a Desktop Computer

Appendix B: Using the Projector Menus

The on-screen menus let you customize and adjust projector features. The following 8 menus and features are available:

■ Video

Controls the look and quality of the projected image (from a computer or video source).

■ Audio

Adjusts the volume and tone (treble/bass).

■ Effect

Customizes the drawing tools available on the remote control.

■ Setting

Adjusts features such as the keystone setting, blank screen color, message prompt, and power management system.

■ User’s Logo

Lets you capture and store an image to be displayed with the A/V Mute button, or as the startup screen.

■ Advanced

Controls settings such as menu language, use of startup screen, color temperature, and rear or ceiling projection.

■ About

■ Reset All

Provides information about lamp usage and the current display settings.

Restores the factory defaults for all the projector settings.

Using the Projector Menus 17

Changing Menu Settings

You use the Menu, Enter and Esc buttons on the remote control to change menu settings.

To change a menu setting:

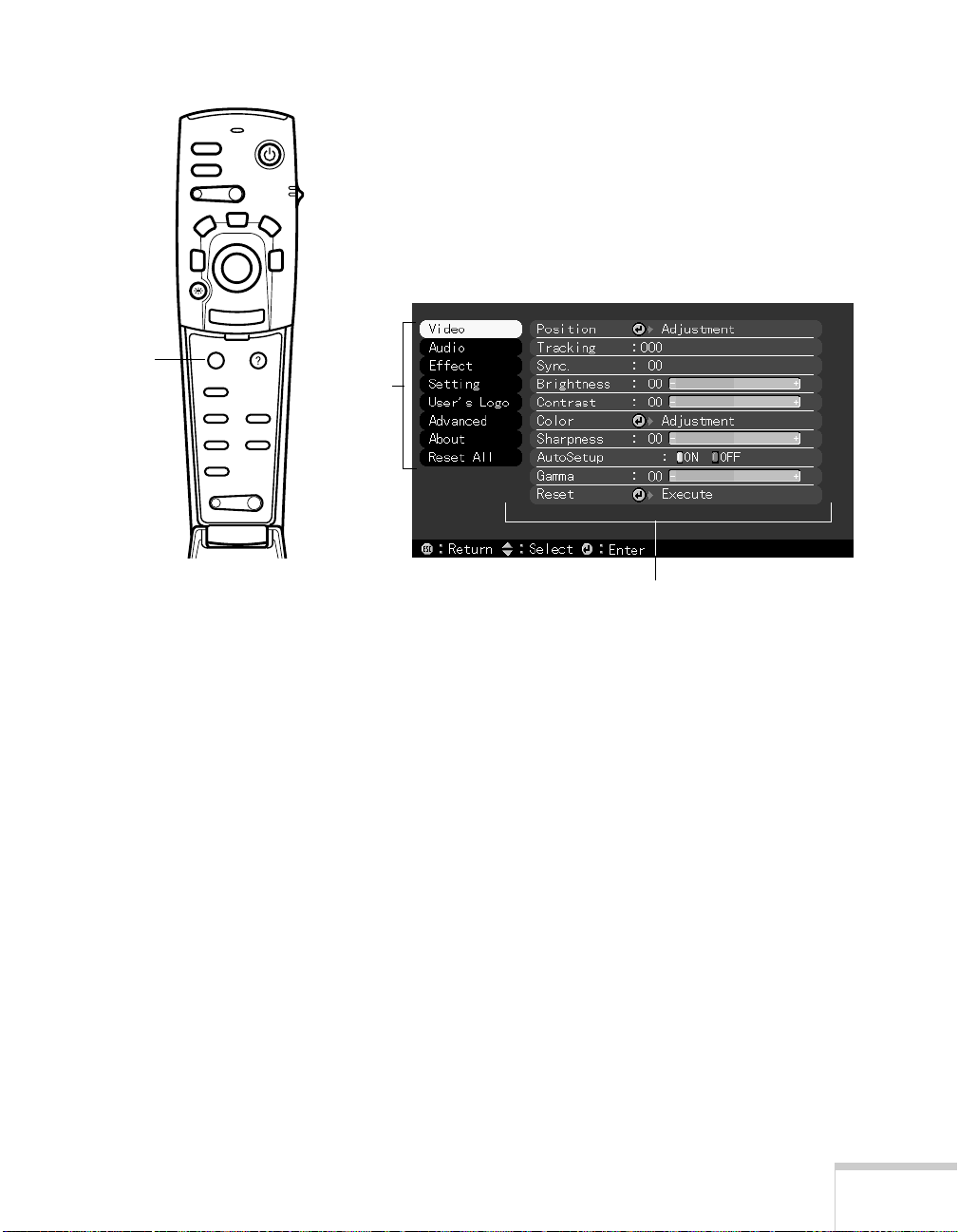

1. To access the menu system, open the cover on the lower

part of the remote control and press the

Menu button.

menus

E-Zoom

Comp

S-Video

Auto

P in P

Power

R/C ON

Enter

Esc

Help

Video

Resize

- Volume +

Freeze

A/V Mute

Menu button

You see the following:

OFF

18 Using the Projector Menus

Video menu options

note

The options available in some submenus vary, depending on whether the current image source is the computer or a video source.

As you select a menu, a submenu of options appears to the right.

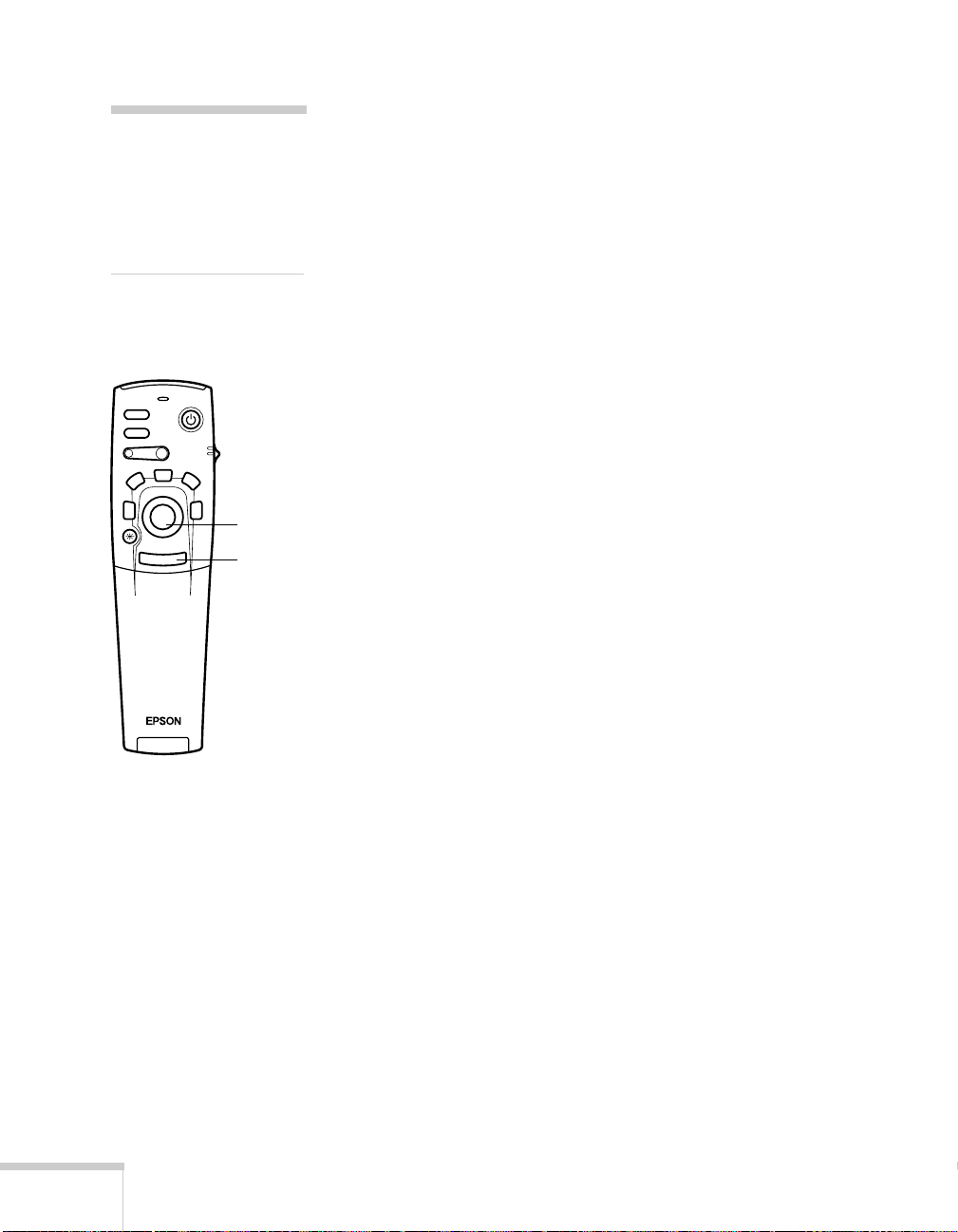

2. Press the bottom of the

Enter button (or grasp it between

your thumb and finger and tilt it down) to scroll through the menus.

When you highlight a menu, its options are shown on the right.

3. When the menu you want is highlighted, press the center of

Enter button to select it.

the

The highlight moves to the first option for that menu.

4. Press the bottom of the

Enter button (or grasp it between

your thumb and finger and tilt it down) to scroll through the options.

5. Press the right or left side of the

Enter button (or grasp it

between your thumb and finger and tilt it to the side) to change the setting.

6. If you want to go back to the default settings on any menu,

select

7. Press the

Reset

Esc

, press

Enter

, select

, and then press

Yes

Enter

button on the remote to go back to the main

menu display. Your changes are saved automatically.

button to exit the menu system.

8. Press the

The settings available in each of the menus are described below.

Using the Projector Menus 19

note

Some options are limited to being enabled (turned on) or disabled (turned off).

Video Menu (Computer Image Source)

The Video menu lets you make adjustments to the projected image. The following options are available when the image source is your computer.

Menu item Description

The computer must be connected and operating, and the image source on the

rojector must be set to Computer for you to access these menu options.

20 Using the Projector Menus

Position Use the Enter button to move the screen

position in the corresponding direction.

When you finish making adjustments, press the Esc button.

Tracking Matches the projector’s internal clock to

various computer graphic signals. Adjust this setting to remove vertical lines from the image.

Sync Synchronizes with the tracking signal sent from

the computer. Adjust this setting to correct fuzziness or screen flicker.

Brightness Lightens or darkens the overall image. Increase

brightness to lighten an image, or decrease it to darken the image.

Contrast Adjusts the difference between light and dark

areas. Increase the contrast to make light areas lighter and dark areas darker. Decrease it to minimize the difference between light and dark areas.

Menu item Description

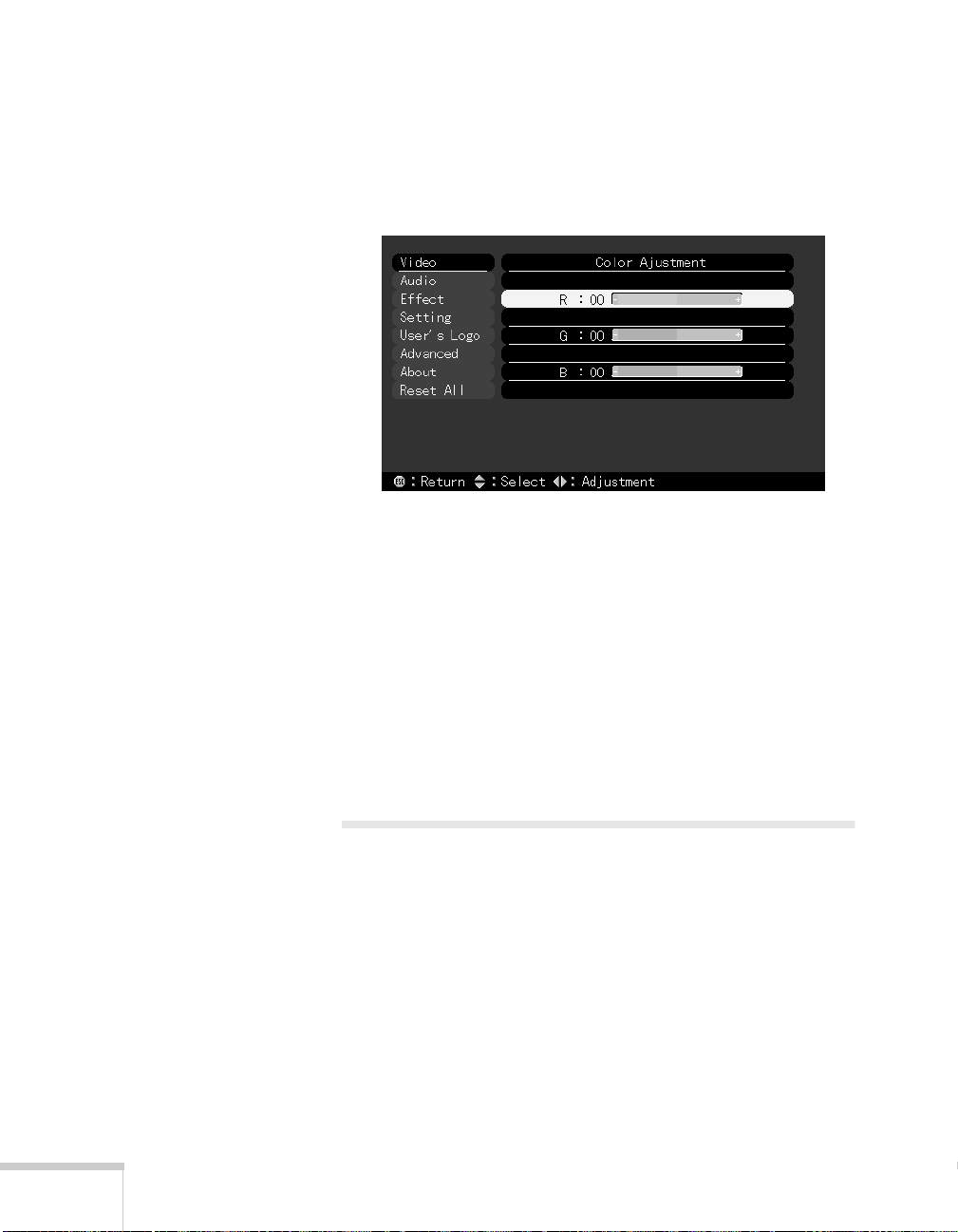

Color Adjusts the color balance (red:green:blue) of

the input source.

Increase the color setting for more intense color on the screen, and lower the setting for less intense color.

When you finish making adjustments, press the Esc button.

Sharpness Adjusts the sharpness of the screen image.

Auto Setup Set to On to have the computer automatically

optimize the image for projection.

Gamma Adjusts the projected image for natural

coloration.

Reset Returns all menu items to their initial factory

defaults.

Using the Projector Menus 21

note

p y

The projector’s image source must be set to Video, and the video source (such as a VCR or camcorder) must be connected and operating

or you to access these menu options. For example, the projector must actually be

rojecting the image from

our video tape if you’re

using a VCR.

Video Menu (Video Image Source)

The Video menu lets you make adjustments to the projected image. The following options are available when the image source is Video.

Menu item Description

Position Use the Enter button to move the screen

position in the corresponding direction.

When you finish making adjustments, press the Esc button.

Brightness Lightens or darkens the overall image. Increase

brightness to lighten an image, or decrease it to darken the image.

Contrast Adjusts the degree of difference between light

and dark areas. Increase the contrast to make light areas lighter and dark areas darker. Decrease it to minimize the difference between the lightest and darkest areas of the image.

Color Adjusts color density. Increase the setting for

darker and more opaque colors. Decrease it for lighter and less opaque colors.

Tint (NTSC only)

Sharpness Adjusts the sharpness of the screen image.

Gamma Adjusts the projected image for natural

Mode Specifies the image signal mode: Auto, NTSC,

Reset Returns all menu items to their initial factory

Adjusts the red-green color balance of the screen. Increase tint to add more green, or decrease it to add more red.

coloration.

NTSC4.43, PAL, M-PAL, N-PAL, PAL 60, SECAM.

defaults.

22 Using the Projector Menus

Audio Menu

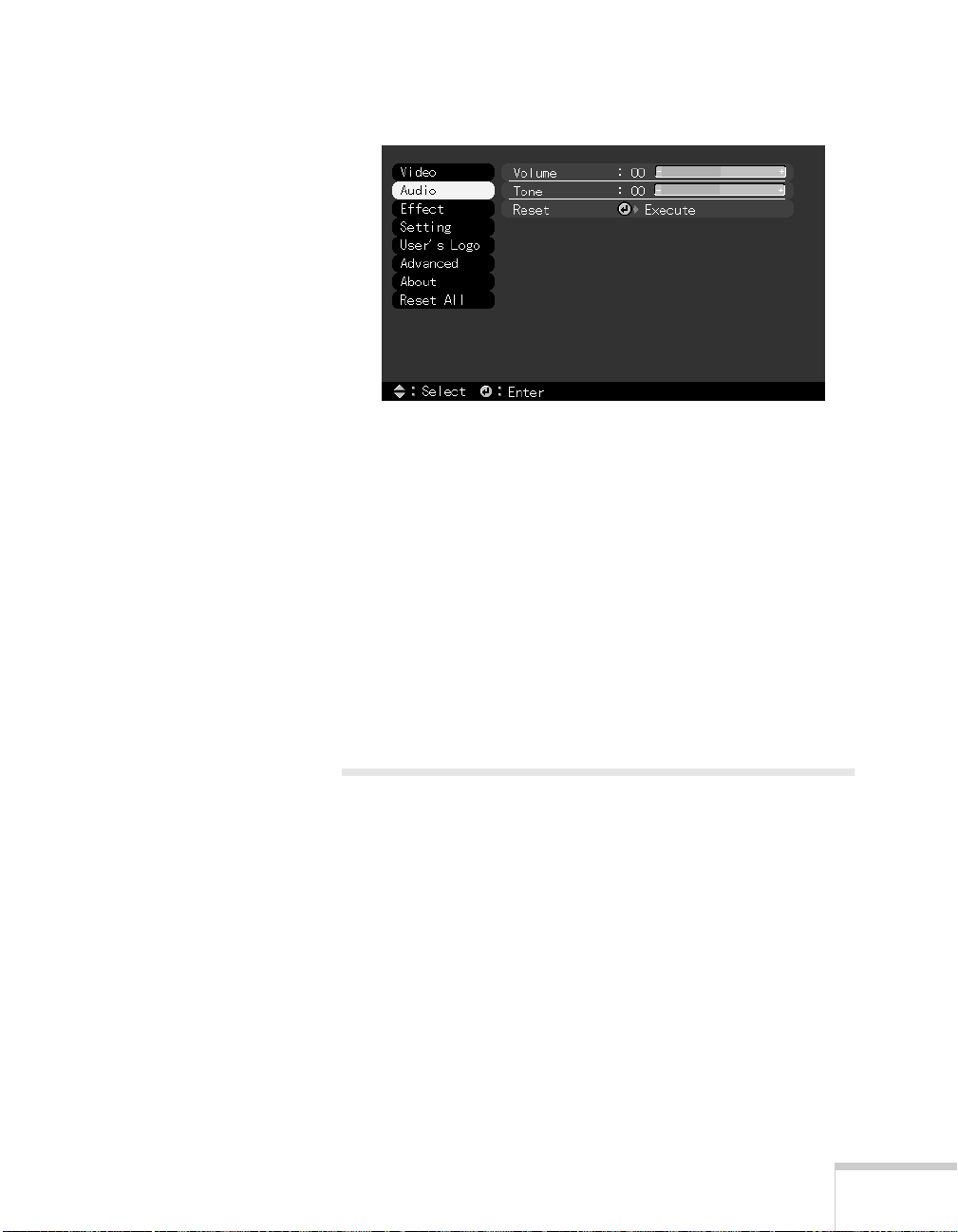

Use the Audio menu to adjust the sound volume and quality of your audio.

Menu item Description

Volume Adjusts the volume level for the projector’s

speaker and audio-out terminal.

Increase the setting to raise the volume, or decrease it to lower the volume.

Tone Adjusts the sound quality. Move left to increase

bass and right to increase treble.

Reset Returns all menu items to their initial factory

defaults.

Using the Projector Menus 23

Effect Menu

The Effect menu lets you customize the drawing tools available on the remote control.

Menu item Description

Cursor/ Stamp

Box Selects a box color and shape.

Marker Selects the marker (horizontal or vertical lines)

Freehand Selects the color and width for freehand lines

Cursor Speed Adjusts the cursor speed to Low, Middle, or

Reset Returns all menu items to their initial factory

Selects the stamp you want to use as the cursor graphic and lets you enlarge it.

color and width (from 2 to 32 pixels).

(2 to 148 pixels).

High.

defaults.

24 Using the Projector Menus

Setting Menu

The Setting menu allows you to set or adjust various projector options.

Menu item Description

Keystone Adjusts a trapezoid (distorted) image to a 4:3

rectangle, correcting up to a ± 15° tilt.

P-in-P Selects the image source (composite or

S-Video) for the picture-in-picture subscreen.

No-Signal Msg

Prompt Turns off the message identifying the image

A/V Mute Specifies whether a blue, black, or user logo

Power Mgmt Sys

Reset Returns all menu items to their initial factory

Specifies whether no screen, a black screen, a blue screen, or a user logo is displayed when the projector is not receiving a signal.

source (computer or video).

screen is displayed when the A/V mute button is pressed.

Turns on the power management system which works with your computer’s power management.

defaults.

Using the Projector Menus 25

User’s Logo Feature

The User’s Logo feature allows you to transfer any image on your computer to the projector, and then use it as the screen displayed when the projector is not receiving a signal. You can also set it as a startup screen or to be displayed when you press

A/V Mute button on the remote. The image can be a

the company logo, slogan, photograph, or another other image you want to use.

Capturing the Image

26 Using the Projector Menus

You start by displaying the image you want to use on the projector. You can use an image from either a computer or video source such as a VCR or digital camera. Then follow these steps to capture the image and transfer it to the projector:

1. Press the with the Video menu highlighted.

2. Press the bottom edge of the down) to highlight the

button. You see the main menu listing,

button (or move it

Enter

User’s Logo

menu.

3. Press Enter to select this feature. You see the following message:

4. Select

Yes and press Enter. A selection box displays over

the image.

5. Use the

Enter button on the remote control to select the

area of the image you want to use. Once you have selected the entire area, press Enter.

6. When you see the message “Do you use this image?” select

Yes and press Enter. If you want to change the area

selected, select

No and repeat step 5. You see the following:

7. Use the Enter button on the remote control to select a zoom rate (display size), and then press

Enter.

Using the Projector Menus 27

8. When the following message appears, select

Enter.

Yes and press

Saving the logo may take a few moments. Do not use the projector or other sources (computer, video, speaker, etc.) while the logo is being saved.

9. When you see the following message, press the

Enter button to redisplay the main menu.

Menu or

28 Using the Projector Menus

note

You can also set up your image as a startup screen. Use the Advanced menu to enable the startup screen.

Assigning the Image to the No-Signal Message and/or A/V Mute Button

After your image is saved, you can set it up as the no-signal message and/or the screen that’s displayed when you press the

A/V Mute button.

1. Press the

Menu button. You see the main menu listing,

with the Video menu highlighted.

2. Press the bottom edge of the to highlight the

3. Press the

Setting menu.

Enter button to select the Setting menu.

4. Press the bottom edge of the to highlight

No-Signal Msg.

5. Press the right side of the

Enter button (or tilt it down)

Enter button to select Logo. This

sets your image as the screen displayed when the projector is not receiving a signal.

6. If you want to set up your image as the A/V mute display, press the bottom edge of the to highlight

A/V Mute.

7. Press the right side of the

Enter button (or tilt it down)

Enter button to select Logo. This

sets your image as the screen displayed when you press the

AV/Mute button.

8. When you’re finished, press

To test your setting, press the

Esc or Menu.

A/V Mute button to display your

image. Press it again to turn off the image.

Using the Projector Menus 29

Advanced Menu

The Advanced menu lets you set additional projector options.

Menu item Description

Language Selects the language to be used in the menus:

Japanese, English, French, German, Italian, Spanish, Portuguese, Chinese, or Korean.

Startup Screen

Color Temp Adjusts the whiteness of the screen. Positive

Rear Proj. Mirrors the projected image so it looks correct

Ceiling Flips the projected image so it looks correct

Reset Returns all Advanced menu items to their initial

Displays the image you have saved as a user logo during the projector’s startup.

color temperature values provide a cold white; negative values provide a warmer white.

when you’re projecting from behind onto a translucent screen. Selecting ON turns mirroring on, while OFF turns it off (for a normal image).

when the projector is mounted upside-down from the ceiling. Selecting ON turns the feature on, while OFF turns it off (for a normal image).

factory defaults.

30 Using the Projector Menus

+ 94 hidden pages

Epson PL-700C, PL-710C, PL-500C User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
