Epson® Laser Pro L Series
Premium large-venue laser projectors with virtually maintenance-free operation.
Pro L1100U/NL
|
Pro L1200U/NL
|
Pro L1300U/NL
|
Pro L1405U/NL
|
Pro L1500U/NL
|
Pro L1505U/NL
“There’s no situation that I’m confronted with where an Epson projector won’t work, whether
it’s a very large-scale projection, small and intimate setting, or projecting a bigger image from
a shorter distance. The lens shift capability of the projector lets me easily fit projections into a
wide range of venues.”
— Paul Young
Di
rector
Si
licon Valley Contemporary Fair
“We’ve tried just about every projector brand over the years, but Epson is the most impressive.
We like the color and the brightness, but mainly the fact that, at any given price point, Epson
projectors deliver the greatest visual impact.”
— Caleb Keener
E
lectronics Supervisor
P
ensacola Christian College
“We can now leave the curtains up and lights on while watching a video. This was never
previously possible — the difference has been night and day. We can read the words on
t
he screen in any lighting environment, and our movie nights are now better than ever.”
— Steven Seybold
T
echnology Consultant
A
pplewood Community Church
2
Premium large-venue
laser projectors from Epson.
3
Laser Light Source
Virtually Maintenance-free Operation
Epson is the first projector manufacturer to combine inorganic 3LCD panels with an inorganic phosphor wheel to achieve higher brightness
and reliability. Featuring a lamp-free laser light source, Pro L Series projectors offer numerous advantages:
• Inorganic 3LCD panels with an inorganic phosphor wheel
• Virtually maintenance-free operation — long-life laser light engine
• No waiting for the projectors to warm up or cool down — the projectors reach maximum brightness and turn off almost immediately
• High-speed contrast control, AbsoluteBlack
• Balanced, high-quality images and performance you can count on for an array of applications
™
contrast ratio and a wide color gamut for brilliant, color-rich performance
Laser bank
Inorganic LCD panels
(Red/Green/Blue)
Beam splitter
Inorganic
phosphor wheel
Dichroic mirror
Dichroic mirror
Mirror
4
Reliable 24/7 Operation
Designed to operate 24/7, the Pro L Series is ideal for
applications that require continuous projection. Delivering
uniform brightness and exceptional, consistent image quality
— 24/7/365 — Pro L Series projectors are an excellent
choice for command centers, museums, storefronts and
hotel lobbies, as well as digital signage in malls, airports,
convention centers and more.
Outstanding Support — with Free Next-Business-Day Replacement
Pro L Series projectors are backed by one of the world’s finest customer
care programs, including a limited warranty of 20,000 hours of usage or
3 years, whichever comes first, plus toll-free support. (Free Next-Business-
1
Day replacement
return shipping label.)
to the U.S. or Canada. Arrives with a postage-paid
All projected images are simulated.
5
Brilliant Image Quality
Designed to deliver brilliant, uncompromising image quality for even the most demanding environments,
Epson Pro L Series laser projectors provide true-to-life color reproduction with incredible, precise detail.
Featuring 3LCD, the #1 projection technology in the world, they offer both high color brightness and high
white brightness. And, they’re backed by 25 years of road-tested reliability.
Color Gamut
Color gamut is the range of colors a projector is capable of reproducing.
When the color gamut of a projector is small, colors will be displayed far
less accurately.
Epson 3LCD projectors have higher color brightness and a wider color
gamut than competitive 1-chip DLP projectors.
6
All projected images are simulated.
4K Enhancement Technology
Revolutionary 4K Enhancement Technology2 accepts 4K input, allowing viewers to experience the most intricate details. This feature also
enhances the 1080p signal for output that surpasses Full HD image quality, without visible stair-stepping or pixel gaps. From tiny text to
the smallest architectural feature, you’ll see every incredible detail.
Available on select models.
4K Enhancement Technology Off
All projected images are simulated.
4K Enhancement Technology On
Pixel Scaling
This feature shifts each pixel
diagonally by 0.5 pixels to
double the resolution from
2.3 million to 4.6 million pixels.
7
Auto Image Calibration
Equipped with a built-in camera,
Pro L Series projectors are capable
of calibrating and adjusting color,
uniformity, and white balance with
the simple push of a button.
For multiple-screen applications such as display walls and
edge-blending screens, the networked projector will automatically
recognize its position in the matrix and assign itself an ID and IP
address for easy adjustment. This feature allows you to position
up to nine projectors side-by-side (1x9), stacked vertically (9x1),
or in a matrix (3x3, 2x4, or 4x2).
Camera
L1500U
Projector 1
192.168.100.101
L1500U
Projector 4
192.168.100.104
L1500U
Projector 7
192.168.100.107
8
L1500U
Projector 2
192.168.100.102
L1500U
Projector 5
192.168.100.105
L1500U
Projector 8
192.168.100.108
L1500U
Projector 3
192.168.100.103
L1500U
Projector 6
192.168.100.106
L1500U
Projector 9
192.168.100.109
All projected images are simulated.
Customizable Brightness Modes
Normal Mode
100% Brightness
50% Brightness
Custom Mode
10,000
hours
20,000
hours
30,000
hours
Pro L Series laser projectors offer customizable brightness modes for different applications. These modes allow users to preset brightness
and noise levels, as well as maintenance cycles.
• Normal Mode: Designed for maximum brightness needs —
•
•
Normal Mode
100% Brightness
50% Brightness
Custom Mode
The blue line is a simplied representation of brightness decline over time in
Normal Mode. Actual decline may vary depending on usage environment.
Brightness Over Time
10,000
hours
20,000
hours
30,000
hours
ideal for conference rooms, auditoriums and lecture halls.
Extended Mode: Extends the maintenance cycle by decreasing
the brightness by 30 percent — ideal for darker environments with
ambient light, such as museums and art galleries, where a reduced
maintenance cycle is desired.
Constant Mode: Maintains the light output of the projector at a
constant and consistent brightness — ideal for applications such as
command centers.
Custom Mode: Command Center
•
•
Quiet Mode: Reduces the noise level to as low as 31 dB (depending
on model) by decreasing the brightness by 30 percent — ideal for
libraries, theaters, museums and art galleries.
Custom Mode: Allows the user to set the brightness of the projector
at a variable level from 100 percent to as low as 30 percent to extend
the life of the projector.
All projected images are simulated.
Quiet Mode: Museum
9
Wide Selection of Powered Lenses with Lens Memory
Total of 10 Lenses to Choose From
The Pro L Series offers increased installation flexibility with a total of 10 lenses that allow
users to choose the motorized lens most suited for their environment. Choose from a
variety of ranges including ultra short-throw, short-throw, middle-throw and long-throw
lenses. A tool-free, quick-release lever enables fast, easy lens exchange.
For details, visit epson.com/largevenue
For models: L1100U, L1200U, L1300U, L1405U
Lens
Ultra short V12H004X01 0.35
Short #1 V12H004U03 0.65 - 0.78
Short #2 V12H004U04 0.87 - 1.06
Wide #1 V12H004W05 1.04 - 1.46
Wide #2 V12H004W06 1.63 - 2.22
Middle #1 V12H004M08 1.45 - 2.32
Middle #2 V12H004M09 2.15 - 3.49
Middle #3 V12H004M10 3.31 - 5.07
Middle #4 V12H004M11 4.84 - 7.39
Long V12H004L08 7.20 - 10.12
Part
Number Wide – Tele
1.0 2.0 3.0 4.0 5.0 6.0 7.0 8.0 9.0 10.0
Throw Ratio Range
For models: L1500U, L1505U
Lens
Short #1 V12H004U03 0.48 - 0.57
Short #2 V12H004U04 0.64 - 0.78
Wide #1 V12H004W05 0.76 - 1.07
Wide #2 V12H004W06 1.19 - 1.63
Middle #1 V12H004M08 1.05 - 1.70
Middle #2 V12H004M09 1.58 - 2.56
Middle #3 V12H004M10 2.43 - 3.71
Middle #4 V12H004M11 3.54 - 5.41
Long V12H004L08 5.28 - 7.42
10
Part
Number Wide – Tele
Throw Ratio Range
1.0 2.0 3.0 4.0 5.0 6.0 7.0 8.0 9.0 10.0
Zero-offset Ultra Short-throw Lens
Transform your Pro L Series projector into an ultra short-throw projector. Featuring a 0.35 throw ratio and zero offset, this lens allows you to
install the projector just inches from the screen or wall and still get large, clear, crisp projection. It’s an ideal solution for installation in narrow
spaces and rear-projection applications. Plus, the lens shift gives you even more flexibility when you need it.
Available on the Pro L1100U/NL, Pro L1200U/NL, Pro L1300U/NL and Pro L1405U/NL models.
Front projection from above
and rear projection from below
the floor surface create an
immersive experience.
All projected images are simulated.
Project from above or below for
a dynamic window display.
11
Seamless Integration Tools
Compatible with Leading Control Systems
Pro L Series projectors are compatible with Crestron®
®
RoomView
Simple Device Discovery Protocol (SDDP) to ensure easy
integration with existing systems.
, AMX®, Extron® XTP®, Art-Net* and Control4®
Emulation Mode
Easily integrate your Epson Pro L Series projector into existing networked
projection control systems using Emulation Mode, which allows the
projector to accept Sony
Simply install the projector and choose the control set that you want the
projector to emulate. This convenient feature reduces installation time and
cost, as installers do not have to reprogram the system with Epson codes.
®
, Panasonic®, Mitsubishi® and NEC® codes3.
12
All projected images are simulated.

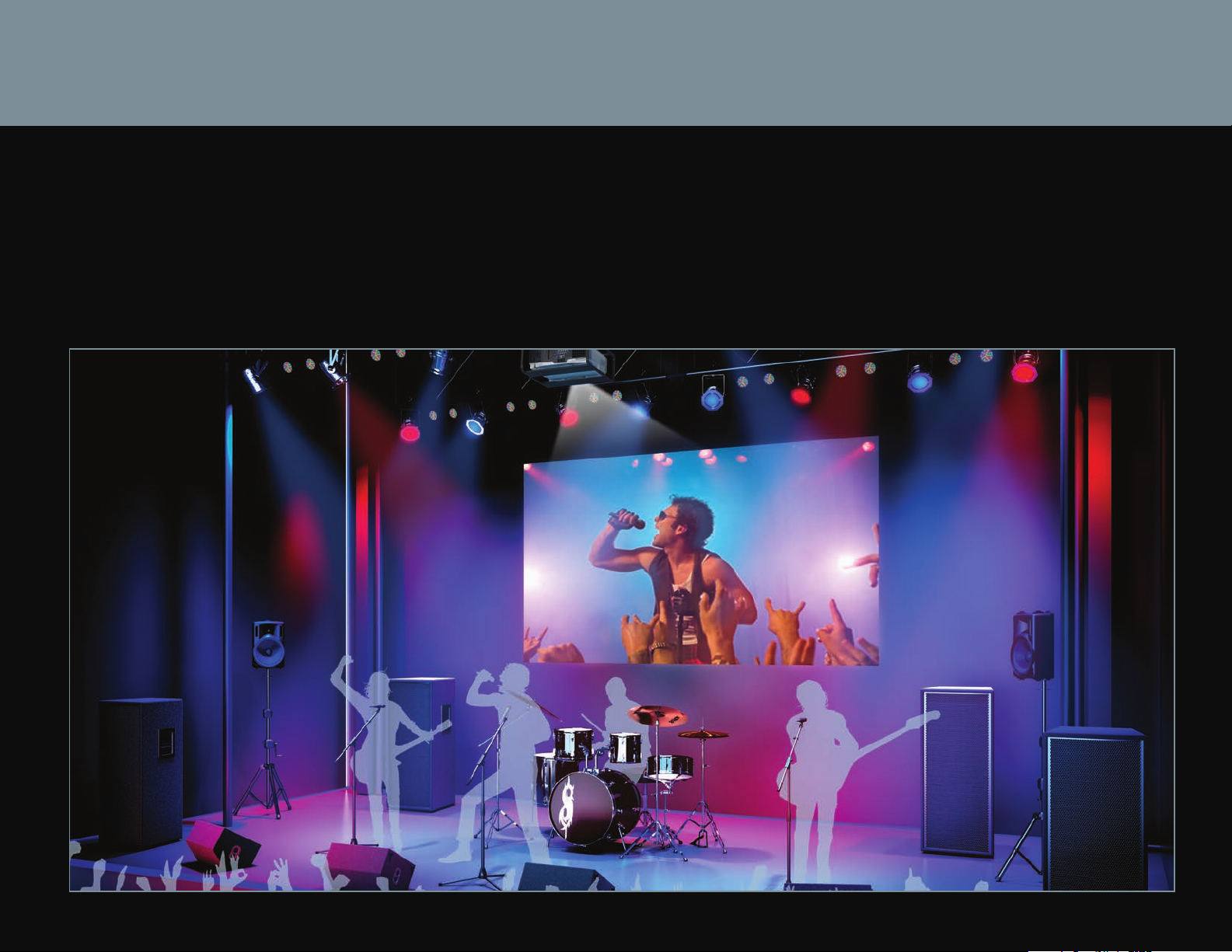

Built for Rental and Staging
DMX Art-Net
Art-Net*is a protocol for transmitting the lighting control
protocol for rental and staging applications. This feature allows
you to integrate these Pro L Series projectors into your lighting
control protocol for a more intense light show.
*Available on the L1405U/NL, L1500U/NL and L1505U/NL models.
Additional Features:
• Laser light source offers reliability, a long life and custom brightness modes
•
Reliable performance with up to 20,000 hours of maintenance-free operation
• Advanced connectivity options include: 3G-SDI*, HDBaseT™, DVI and HDMI
• Motorized lenses with lens position memory
•
Flexible installation, including 360-degree projection and Portrait Modes
4
®
13
All projected images are simulated.
Projection Mapping
Transform practically any object or setting into a dynamic visual display. From cars to landscapes to building exteriors, there is almost no limit
to the applications made possible by projection mapping — every surface can become a screen.
14
All projected images are simulated.
Advanced Edge Blending Technology
Built-in Edge Blending technology is ideal for using multiple projectors to overlap images and project seamless, multi-screen panoramic
images — even on a curved surface, the ceiling, or the floor. Perfect for art galleries, digital signage and staging, this feature ensures
uniform, seamless projection, with no bright spots where the overlap occurs.
All projected images are simulated.
15
Flexible Projection
True 360-degree Projection
Take advantage of every surface in the room. Featuring a
laser light source, Pro L Series projectors can be rotated
360 degrees in any direction for off-axis positioning (without
the need to switch out a lamp). And, there are no tilt angle
restrictions. Project straight down on the floor, straight up
on the ceiling, or tilted in any direction — Epson technology
keeps the projector running without compromising
performance or image quality.
Portrait Mode
A creative solution for window advertisements,
fashion shows, live performances and virtually
any setting requiring projection onto tall, vertical
screens or surfaces, Portrait Mode enables you
to install the projector on its side for displaying
digital signage, screening images or projecting
video with portrait orientation. Plus, the
projector’s laser light source means there’s no
need to swap out lamps for Portrait Mode.
16
All projected images are simulated.
Advanced Connectivity Options
HDBaseT and Diverse Connectivity
Connect with virtually any system — Pro L Series projectors include
HDBaseT, 3G-SDI*, HDMI, DVI-D, VGA, BNC and LAN inputs. Cuttingedge HDBaseT technology simplifies installation with just one CAT-5/6
cable carrying Full HD video, audio, network and control commands.
And, its 328-foot cable length accommodates
large venues. There’s no need for additional
cables, signal repeaters or added labor.
*3G-SDI available on the Pro L1405U/NL, Pro L1500U/NL and Pro L1505U/NL
Optional HDBaseT Transmitter
HDCP 2.2 Support over HDMI and HDBaseT
Pro L Series projectors support HDCP 2.2, the latest security
protocol, designed to create an encrypted, secure connection
between a source and a display.
Split Screen
Use the Split Screen5 feature to
simultaneously project two images
(video or still) side-by-side from
two different sources. Choose
from three layout options: 50-50
percent split screen; with the main
image on the left; or with the main
image on the right. You can swap
the images, choose the source for
the audio and even display closed
captioning if the signal includes it.
For your convenience, Epson offers an optional HDBaseT
transmitter box as a companion piece to the Pro L Series. Three
inputs are featured for easy installation: HDMI, LAN and RS-232
to output into a CAT-5/6 cable.
Wireless Connectivity
Wirelessly connect — you can either connect to a wireless
network (infrastructure) or to an ad hoc (peer-to-peer)
wireless computer. Optional wireless module sold separately.
17
Multi-PC Projection with Moderator
Epson’s Multi-PC Projection with Moderator software6 allows you to simultaneously display up to four devices on the screen over the network
®
(wired or wireless), with even more users connected to the same projector on Standby Mode. The moderator, from a PC or Mac
and drop participants into or out of the four quadrants and control which device screens to display.
• Connect up to 50 Windows
®
and Mac devices, or iOS® and Android™ devices running the Epson iProjection
™
App
7
• Encourage and control collaboration; it’s perfect for comparing ideas and content side by side
, can drag
18
All projected images are simulated.
Installation Tools
Epson knows that choosing, installing and using a projection device correctly is very important. We have collected helpful tips and resources
to make the process easier. For additional information on documentation and installation tools, visit epson.com/largevenue
Online Installation Handbook
Find a step-by-step guide to help with the most challenging
installation situations at epson.com/installhandbook
• Throw distance calculations
• CAD drawings
• Mounting information
• Connectivity information
• RS-232 control codes
• Remote control information
• Environmental requirements
• Maintenance information
• Optional accessories
Throw Distance Calculator
You can interactively change the following attributes and
find the right projector solution for your application:
• Projector model
• Lens type
• Lens shift
• Projection distance
• Screen size
• Screen positioning
on the wall
• Aspect ratio
Setting Cloning
Copy the menu settings from one projector to one or
more other projectors of the same model. This allows for
quick duplication of projector menu settings in a batch
setup operation. (Does not copy network settings.)
Firmware Updates
Perform firmware updates via:
• USB thumb drive
• USB connection from a PC
• Over the network
• Cloning — copy settings (user logo,
brightness, etc.) between installations
To determine which projector is right for your room size, use the
throw distance calculator at epson.com/distancecalculator-LV
For BIM content, go to seek.autodesk.com/epson
19
Management and Control
Epson EasyMP® Monitor tool
If you are searching for a solution that gives you control over your
time, Epson network projectors with EasyMP Monitor capabilities
can help. Epson network projectors contain built-in remote
access, with no licensing fees added, to Epson Monitor software.
These features also give you added control, and the ability to
troubleshoot and monitor all Epson network projectors from any
computer over a wired or wireless Ethernet network.
Additional features to assist administrators/help desk:
• Remote access and control through the network
•
Remote monitoring of up to 1,024 Epson networked projectors
•
View status, including input sources, power on/off, lamp life
hours and more
•
Preventative maintenance features including temperature
levels and error alerts
20
•
Schedule filter and lamp timer settings
•
Email notification (SMTP) to send alerts to your handheld device
• Enterprise SNMP plug-in available
Network Projection — Content Over IP
65%
DECISION
25%
10%
Message Broadcasting
Use EasyMP Network Projection to display your computer screen
through the projector, via a network, for effective meetings,
presentations and digital signage applications. You can use either
wired or high-security wireless LAN connections and project the same
or up to four different images on up to four projectors, or display a
panoramic image.
Full Networkability
Epson network projectors can also be accessed from your
browser via an internal webpage. Whether you assign a static IP
address or enable DHCP, the projector becomes accessible once
it’s integrated in your network. The internal webpage lets you
control items such as
network configuration,
projector settings and
email alerts.
DECISION
65%
25%
10%
This innovative feature enables you to broadcast customized
images/alerts over the network for announcements or
instructions. Messages can be sent to up to 1,024 projectors
simultaneously and will overwrite the current screen content if
the projector is being used, unless this function is disabled by
the presenter. If the projector is off, Message Broadcasting will
turn the projector on and then display the message.
Attention!
All-employee meeting
Attention!
All-employee meeting
today at noon.
today at noon.
All projected images are simulated.
DECISION
25%
65%
10%
21
Product Specifications
Model Pro L1100U Pro L1200U Pro L1300U Pro L1405U
Product Code V11H735020 V11H734020 V11H733020 V11H739120
Road Service Warranty
Free Next-Business-Day Replacement
1
Basics
Color Brightness (Color Light Output)
White Brightness (White Light Output)
Native Resolution
9
8
8
6,000 lumens 7,000 lumens 8,000 lumens 8,000 lumens
6,000 lumens 7,000 lumens 8,000 lumens 8,000 lumens
Contrast Ratio Up to 2,500,000:1
Light Source Laser
Split Screen
5
Edge Blending Yes
Scheduling Function Yes
LAN Networking & Control
Wired RJ-45 (Broadcasting)
Wireless Optional (802.11b/g/n)
Message Broadcasting Yes
Multi-PC Projection Yes
Device Management Software
(Moderator)
6
Crestron RoomView Enabled Yes
Connections
DVI-D DVI-D x 1
HDMI (HDCP 2.2) HDMI x 1
HDBaseT
Analog Connections 5-BNC, VGA x 1
SDI – – – 3G-SDI
Audio In RCA (L x R) x 1, Mini Stereo x 3
Variable Audio Out Mini Stereo x 1
USB 2.0 Connectors
Monitor Out Mini D-sub 15 pin x 1
Serial Control Serial: RS-232c x 1
Recommended Accessory 1 HDBaseT Transmitter (V12H547020)
Recommended Accessory 2 Replacement Air Filter (V13H134A30)
Recommended Accessory 3 Wireless LAN Module (V12H731P02)
22
22
Limited warranty of 20,000 hours of usage or 3 years, whichever
comes first, plus toll-free support.
Yes, ships to the U.S. and Canada. Arrives with a postage-paid return shipping label.
WUXGA with 4K Enhancement
2
Yes
Yes
Yes
Type B x 1 (For Service Only)
Type A x 1 (For Wireless Only)
Product Specifications
Product Specifications | Details and Accessories
Model Pro L1500U Pro L1505U
Product Code V11H792020 V11H792120
Road Service Warranty
Free Next-Business-Day Replacement
Basics
Color Brightness (Color Light Output)
White Brightness (White Light Output)
Native Resolution
Contrast Ratio Up to 2,500,000:1
Light Source Laser
Split Screen
Edge Blending Yes
Scheduling Function Yes
LAN Networking & Control
Wired RJ-45 (Broadcasting)
Wireless Optional (802.11b/g/n)
Message Broadcasting Yes
Multi-PC Projection Yes
Device Management Software
(Moderator)
Crestron RoomView Enabled Yes
Connections
DVI-D DVI-D x 1
HDMI (HDCP 2.2) HDMI x 1
HDBaseT
Analog Connections 5-BNC, VGA x 1
SDI 3G-SDI
Audio In RCA (L x R) x 1, Mini Stereo x 3
Variable Audio Out Mini Stereo x 1
USB 2.0 Connectors
Monitor Out Mini D-sub 15 pin x 1
Serial Control Serial: RS-232c x 1
Recommended Accessory 1 HDBaseT Transmitter (V12H547020)
Recommended Accessory 2 Replacement Air Filter (V13H134A30)
Recommended Accessory 3 Wireless LAN Module (V12H731P02)
9
5
6
1
8
8
Limited warranty of 20,000 hours of usage or 3 years, whichever
Yes, ships to the U.S. and Canada. Arrives with a postage-paid return shipping label.
12,000 lumens 12,000 lumens
12,000 lumens 12,000 lumens
comes first, plus toll-free support.
WUXGA with 4K Enhancement
Yes
Yes
Yes
Type B x 1 (For Service Only)
Type A x 1 (For Wireless Only)
2
Dimensions
19.4"
8.3"
Pro L150 0 U
23.7"
Pro L150 0 U
(Top view )
Accessories
Low Ceiling Mount
(ELPMB47)
For additional mounting solutions
visit epson.com/largevenue
High Ceiling Mount
(ELPMB48)
23
23
eco.epson.com
Epson America, Inc.
3840 Kilroy Airport Way, Long Beach, CA 90806
1 Expedited shipping not available in all areas. Road Service orders must be in by 3 p.m. Eastern Time for Next-Business-Day delivery.
2 4K Enhancement Technology shifts each pixel diagonally by 0.5 pixels to double the resolution to 3840 x 2160 and surpass Full HD image quality.
3 Emulation Mode is limited to certain code sets and may not support all codes. Contact Epson Support for the latest supported sets.
4 20,000 hours is the estimated projector life when used in Normal Mode. Actual hours may vary depending on mode and usage environment. The projector has a limited warranty of three years or 20,000 hours, whichever comes first.
5 Consult your user manual for input combinations.
6 Moderator feature is part of EasyMP Multi-PC Projection software.
7 To use Epson iProjection, the projector must be configured on a network. Epson projectors can be networked either through the Ethernet port on the projector (check model specifications for availability) or via a wireless connection. Check
your owner’s manual to determine if a wireless LAN module must be purchased separately to enable wireless connection on your Epson projector. Not all Epson projectors are able to be networked. Availability varies depending on model.
8 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
9 WUXGA (1920 x 1200), WXGA (1280 x 800), XGA (1024 x 768), SVGA (800 x 600).
Specifications and terms are subject to change without notice. EPSON, EasyMP and PowerLite are registered trademarks, EPSON Exceed Your Vision is a registered logomark and Better Products for a Better Future and Epson iProjection are trademarks of Seiko Epson
Corporation. AbsoluteBlack is a trademark of Epson America, Inc. Mac is a trademark of Apple Inc., registered in the U.S. and other countries. Android is a trademark of Google Inc. All other product and brand names are trademarks and/or registered trademarks of their
respective companies. Epson disclaims any and all rights in these marks. Copyright 2016 Epson America, Inc. CPD-50760 2/16
Epson Canada Limited
185 Renfrew Drive, Markham, Ontario L3R 6G3
epson.com/largevenue
epson.ca/largevenue
Loading...
