Important Information About Your ELP-3500
Please read the following important information about your ELP-3500 projector.
Important Safety Information
WARNING: Never look into theprojector lens when the lamp is turned on; the bright light can damageyour eyes. Never
let children look into the lens when it is on.
WARNING: Never open any cover on the projector, except the lamp and filter covers. Dangerous electrical voltages inside
the projector can severely injure you. Except as specifically explained in this User? Guide, do not attempt to service this
product yourself: Refer all servicing to qualified service personnel.
WARNING: The ELP-3500 projector and its accessories come packaged in plastic bags. Keep plastic bags away from
small children to avoid any risk ofsuffocation.
Caution: When you replace the lamp, never touch the new lamp with your bare bands; the invisible residue left by the
oil on your hands may shorten the lamp life. Use a cloth or glove to handle the new lamp.
Remote Control Information
You can operate the ELP-3500 by remote control via an infrared (IR)
projector may not respond to remote control commands under the following conditions:
Ambient light is too bright.
Certain types of fluorescent lighting are used.
A strong light source shines into the IR receiver.
Other equipment that emits infrared energy, such as a radiant room heater, is in the room.
These conditions commonly cause problems for most infrared-controlled equipment. Try the following solutions:
The remote control unit’s batteries may be low on power; replace them.
Dim the ambient lighting and/or turn off any fluorescent lights.
Close any window coverings and/or move the projector out of direct sunlight.
Turn off other equipment that emits infrared energy.
If the remote control still does not work properly, remember you can always control your computer-based presentation directly from the computer, even in an environment containing one of the conditions listed above.
Important Information About Your ELP-3500
receiver at the front of the projector. The
iii
FCC Compliance Statement
For United States Users
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio or television reception.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause interference to radio and television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures.
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•
Consult the dealer or an experienced radio/TV technician for help.
WARNING
The connection of a non-shielded equipment interface cable to this equipment will invalidate the FCC
Certification of this device and may cause interference levels which exceed the limits established by the FCC for
this equipment. It is the responsibility of the user to obtain and use a shielded equipment interface cable with this
device. If this equipment has more than one interface connector, do not leave cables connected to unused
interfaces. Changes or modifications not expressly approved by the manufacturer could void the user’s authority
to operate the equipment.
For Canadian Users
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment
Regulations.
Cet appareil numerique de la classe B respecte toutes les exigences du Reglement sur le materiel brouilleur du
Canada.
Contents
Introduction
Getting the Most Out of Your Projector
Remote control
Control panel
Optional accessories
About This Manual
Safety Instructions
Where to Get Help
Electronic support services
Energy Star Compliance
................
.. . . . . . . . . . . . . . . . . . . . . . . ................
. . . . . . . . . . . . . . . . . ..............
. . . . . . . . . . . . . . . . . . . ................
. . . . . . . . . . . . . . . . . . . . .................
. . . . . . . . . . . . . . . . . . . .................
. . . . . . . . . . . . . . . . . . . . . . .............
1 Installation
Unpacking the Projector
Additional components
Setting Up the Projector
. . . . . . . . . . . . . . . . . . ..............
. . . . . . . . . . . . . . . . . . . ............
. . . . . . . . . . . . . . . . . . . . . . ..............
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . .........
ix
. . x
. . x
. .xi
. .xi
. xii
. xiii
. xv
. xv
xvii
1
2
. .
. .
3
. .
3
v
Connecting to a Computer
Connecting to a PC desktop computer
Connecting to a PC laptop computer

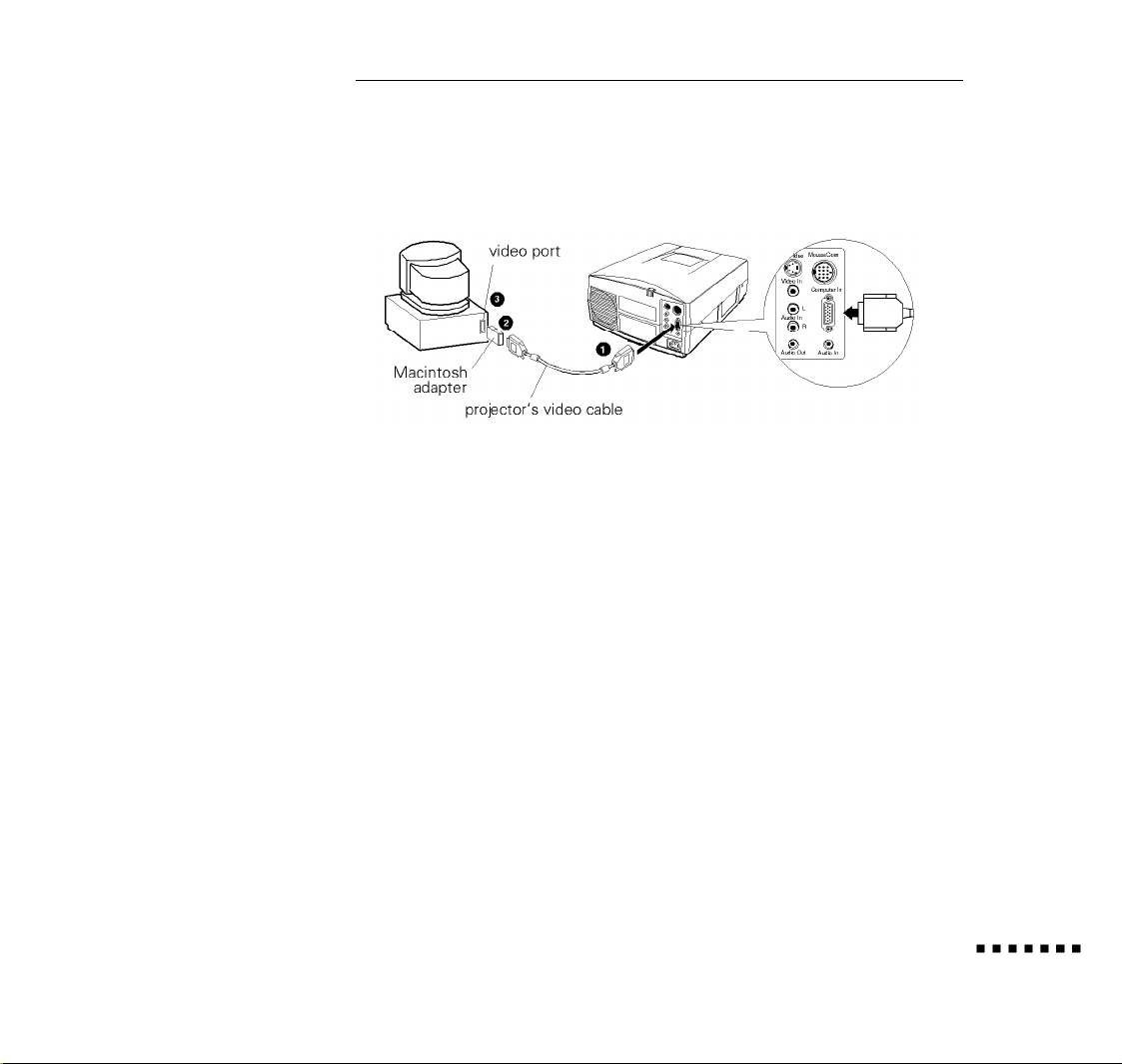

Connecting to a desktop Macintosh

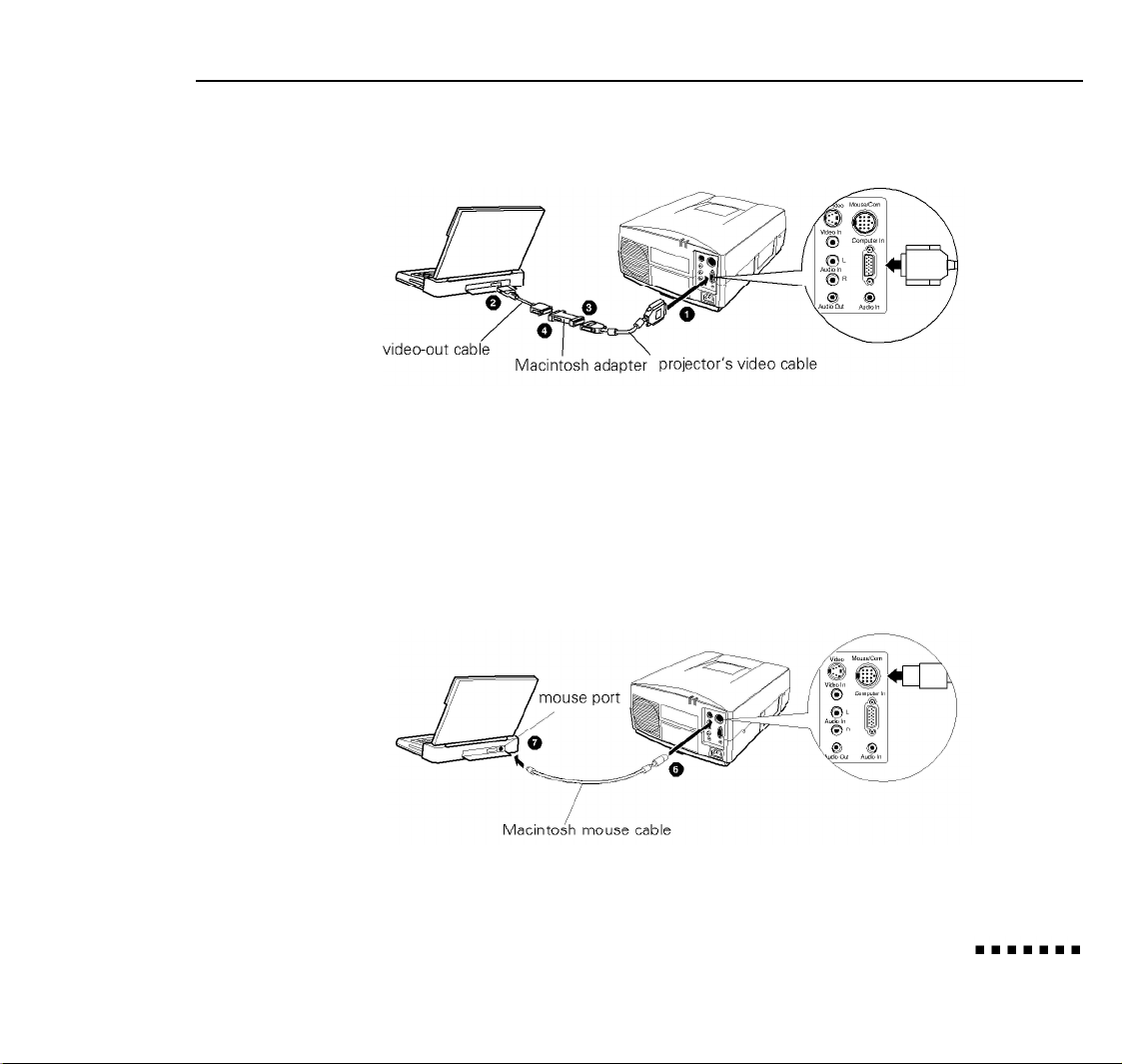

Connecting to a Power Book.
Connecting to a Video Source
Connecting to an Audio Source

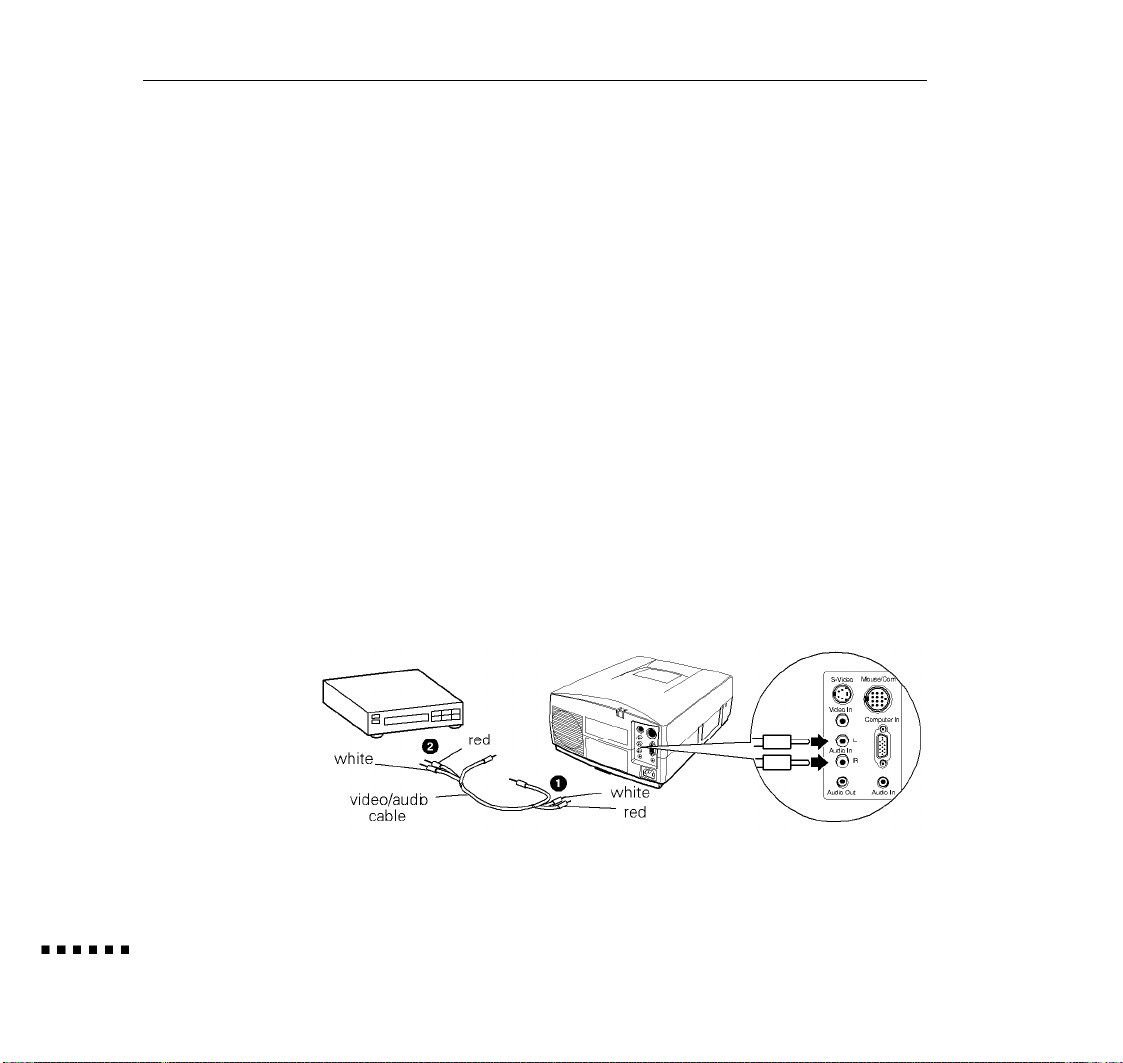

Connecting audio from a video source (such as a VCR)

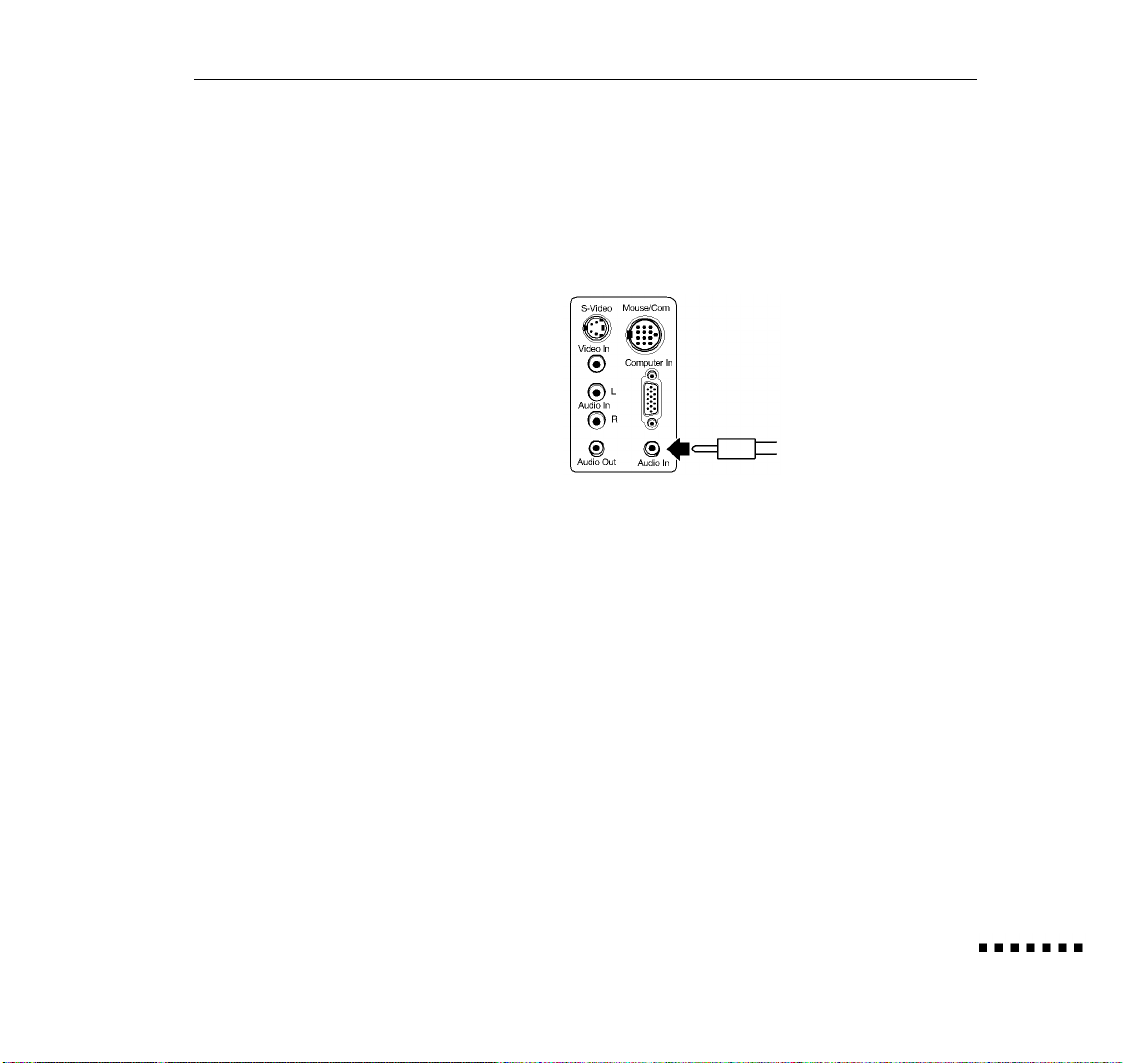

Connecting audio from a desktop or notebook computer

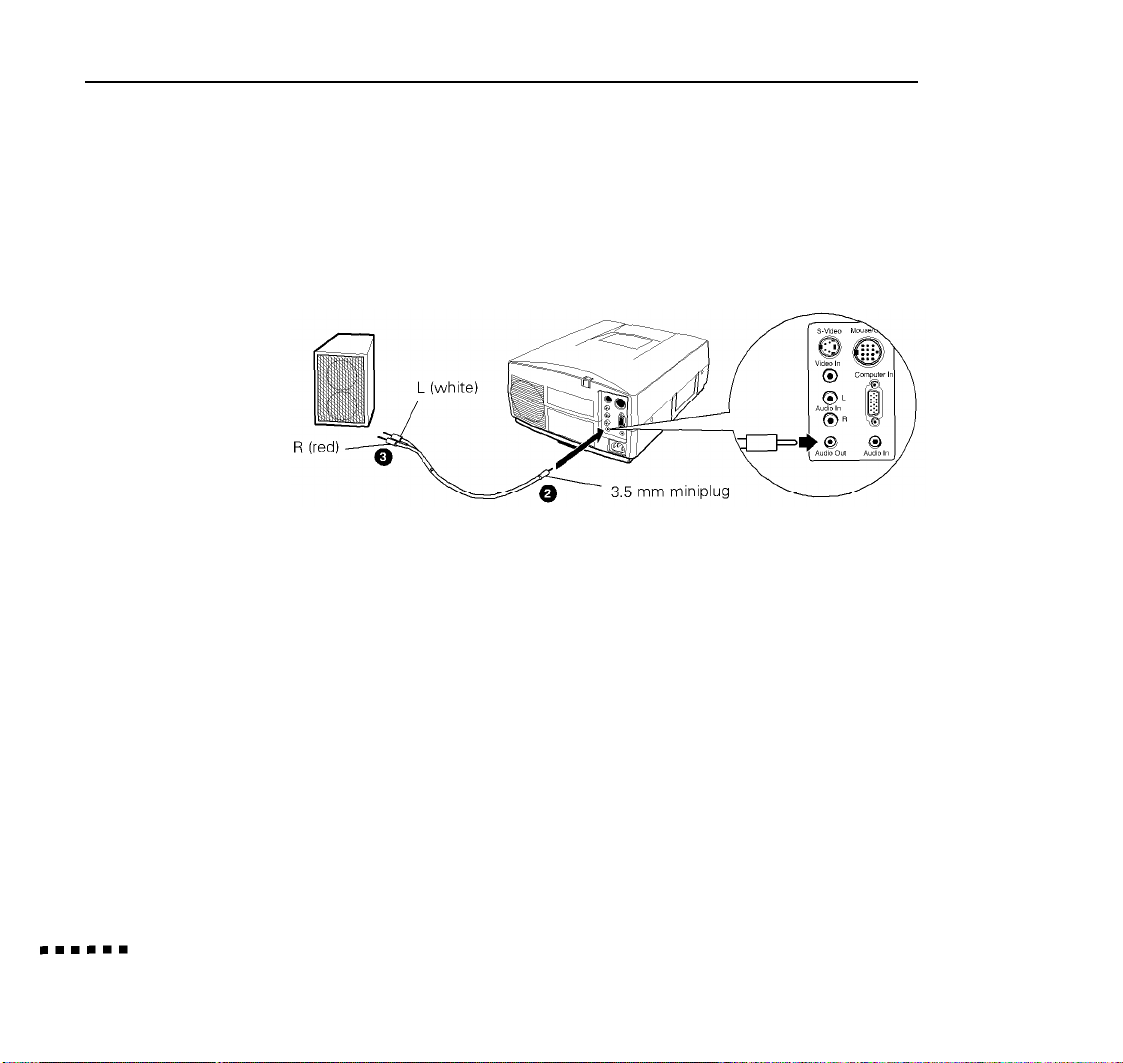

Connecting to an External Speaker or PA System
.............................
.................
..................
...................
........................
..........................
.........................
..................
. . . . . . . . .....
. . . . . . ....
. . . .
. . . .
. . . .
. . . 10
. . .12
. .
. 14
. . .
16
. . .
16
. . .
17
. . .
17
6
7
8
2 Using the Projector
Turning the Equipment On and Off
Sleep mode
Focusing and Positioning the Screen Image
Controlling the Projector
Using the remote control
Using the control panel
Projector Status Indicators
Warning lights
Status lights
3 Using the Menus
Using the Main Menus
Computer image main menu
Video image main menu.
Changing Menu Settings
Using the control panel
Using the remote control
vi
Contents
............................
.....................................
..........................
.................................
.................................
...............................
............................
..................................
.......................................
...................
...........
..............
.................
...............
..............
.........................
.........................
.........................
.........................
.........................
.........................
. . .
. .
. .
. .
. .
. . .
. . .
. . .
. . .
19
20
. 22
. 22
. 24
. 24
26
27
27
27
29
30
30
31
32
32
33
Using the SETTINGS Screens
Computer image SETTINGS screen
Video image SETTINGS screen
Using the Option Menus
Computer image option menu
Video image option menu
Using Projector Setups
Storing a setup
Recalling a setup
Clearing a setup
...........................
..................................
.....................................
....................................
..................................
.........................
....................
....................
........................
..........................
34
34
35
35
36
37
38
39
. . 40
.
. 40
4 Maintenance
Cleaning the Lens
Cleaning the Projector Case
Cleaning the Air Filter
Replacing the Lamp
Resetting the lamp timer
.................................................
........................................
.............................................
..............................................
.......................................
5 Troubleshooting
Problems with the Projector . . . . . . . . . . . . . . .
Problems with the Image or Sound
. . . . . . . . .
6 Technical Specifications
Supported monitor displays . . . . . . . . . . . . . . .
Monitor and VGA connector pin assignments .
Glossary
Index
. . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . .
. . . . . . . . . .
. . . . . . . . . .
41
42
. 42
43
. 44
. 47
49
50
52
55
57
58
59
61
vii
Introduction
The compact, lightweight, SVGA-capable EPSON
Projector lets you project computer and video images onto a large
screen for full-color presentations. You can connect the projector
simultaneously to two image sources; one can be your PC or Apple
Macintosh@ computer and the other can be a video source, such as a
VCR, camcorder, digital camera, or laser disc player. One or both
image sources can supply audio.
The projector displays images in full color (16,670,000 colors) at a
native resolution of 640 x 480 pixels, and uses a patent-pending
technology to resize 800 x 600 images. It produces bright images that
you can see easily in rooms light enough to take notes. You can play
audio on the projector’s internal speaker or route the sound to external
speakers for amplification.
You control the projector through a hand-held remote control that lets
you switch between image sources and make adjustments to the
projected image. The remote control also works as a wireless mouse to
control operations on your computer’s screen during presentations.
®
ELP-3500
®
ix
The projector supports any computer capable of SVGA or VGA
output, including IBM®-compatible PCs and laptops as well as Apple
Macintosh computers, including the PowerBook
Macintosh.” The video source can be NTSC, PAL, or SECAM in
composite video or S-Video format.
TM
and Power
Getting the Most Out of Your Projector
The projector comes with a full set of features that allow you to control
the settings for the image display, video, and audio. To get the most
out of your projector, read this section for a quick summary of the
important features.

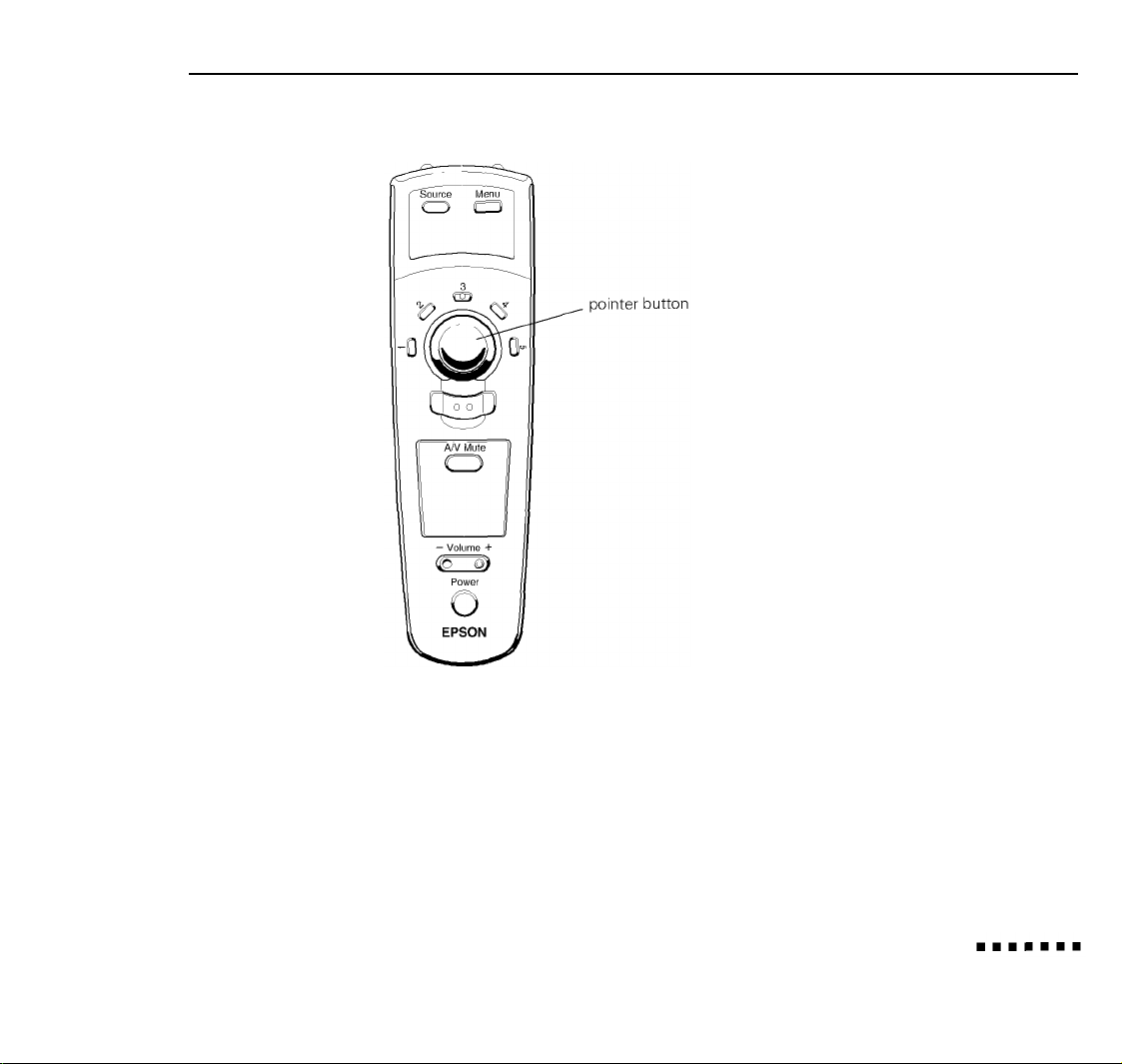

Remote control
The buttons on the remote control let you change the volume, mute
the A/V, switch from one image source to the other, or use the remote
control as a wireless mouse. You can make other adjustments by using
the remote control’s Menu button to access the projector’s menu
system. These menus, which you can superimpose on the projector
screen, let you control brightness, contrast, color, tint, image position,
and other settings.

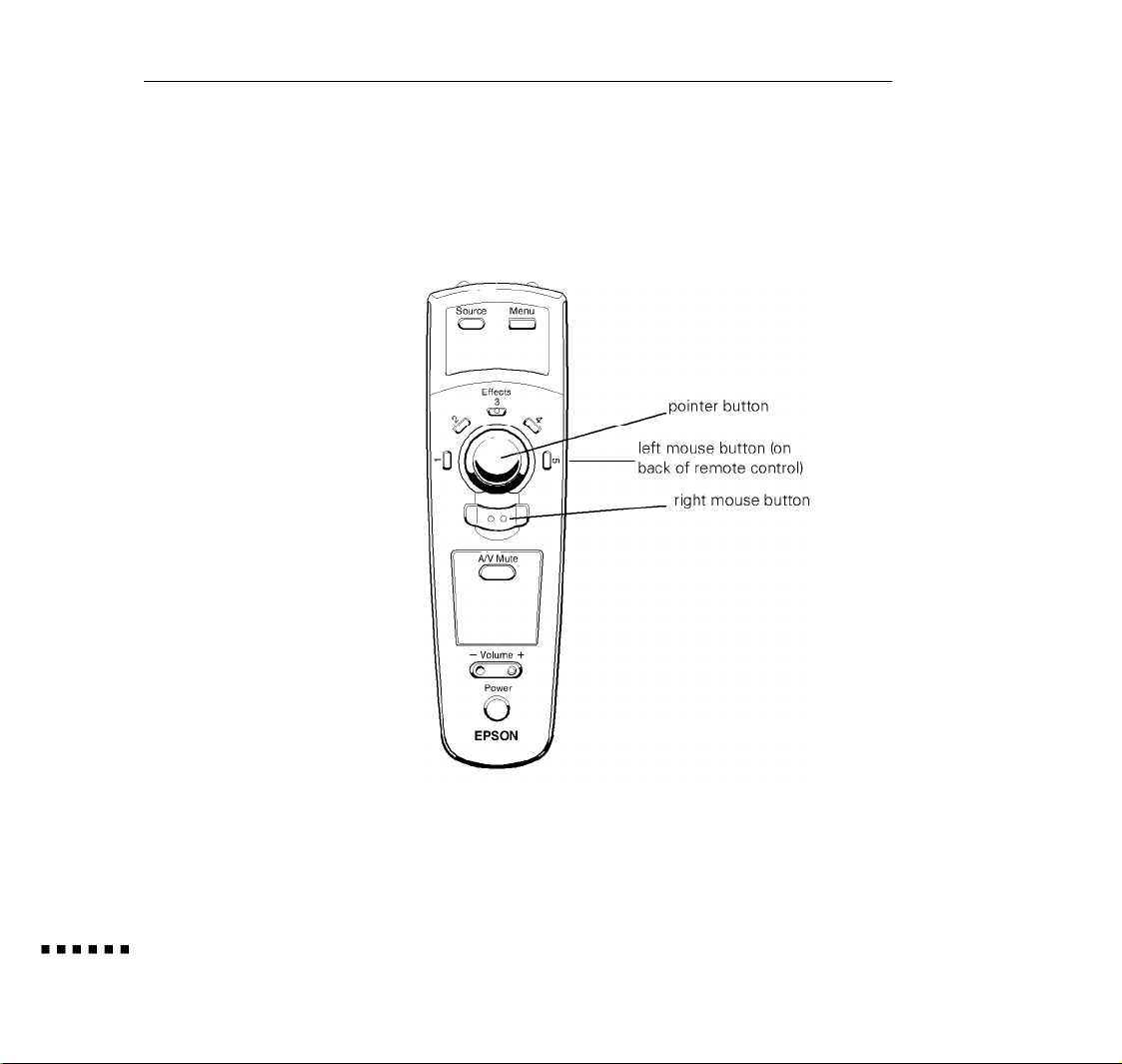

To use the remote control as a wireless mouse, you simply connect the
projector to your computer with the mouse cable. If you purchase the
ELP Communication Kit, you can also customize buttons on the
remote control to perform functions you select.
x
• Introduction
Control panel
The control panel buttons on the projector duplicate the remote
control buttons and let you perform additional functions. Using the
control panel’s Preset button, you can save projector settings for
instant recall when you need them. Control panel buttons also let you
adjust the tracking and sync for computer images.
Optional accessories
To enhance your use of the projector, EPSON provides the following
accessories:
l Polarized screens, designed specifically for use with the projector.
They let you project images in a bright, illuminated room, making
it unnecessary to dim lights to view the projected image. The
polarized screen comes in two sizes: 40" and 60" diagonal.
High Bright Screen 40: ELPSC0l
High Bright Screen 60: ELPSC02
l Carrying cases especially designed for the projector and its cables.
Both a soft and hard case are available.
Soft Carrying Case: ELPKS04
Hard Carrying Case: ELPKS05
l Replacement lamp and air filter.
Lamp with Filter: ELPLP02
l Software package for ELP-3500.
ELP Communication Kit: ELPSW0l
Getting the Most Out of Your Projector
xi
l A switch box that lets you connect two computers to the projector
at the same time, and then switch between images from the two
computers during your presentation.
Selector: ELPST0l
You can purchase these accessories from your ELP-3500 dealer or by
calling EPSON Accessories at (800) 873-7766.
About This Manual
Chapter 1, “Installation,” gives step-by-step instructions on setting up
the projector and connecting it to your computer, video source, and
other optional equipment. Read the installation procedures that apply
to your environment.
Chapter 2, “Using the Projector,” tells how to turn on the projector,
focus and position the image, and control simple projector settings
using the remote control or the control panel.
Chapter 3, “Using the Menus,” describes how to use the projector
menus to adjust image brightness and contrast, video color and tint,
and other settings. It also explains how to save and recall projector
setups.
Chapter 4, “Maintenance,” describes how to maintain the projector in
good working order.
Chapter 5, “Troubleshooting,” tells you how to interpret the
projector’s warning lights and gives helpful information for avoiding
errors, optimizing image quality, and solving problems.
Chapter 6 provides technical specifications.
xii • Introduction
Safety Instructions
Follow these safety instructions when setting up and using the
projector:
1.
Do not place the projector on an unstable cart, stand, or table.
2. Do not use the projector near water or sources of heat.
3. Use attachments only as recommended.
4. Use the type of power source indicated on the projector. If you are
not sure of the power available, consult your dealer or power
company.
5. Insert the projector’s three-wire grounding-type plug into a
properly grounded outlet. If you have a two-prong outlet, contact
an electrician to replace it. Do not hold the plug with wet hands.
6. Take the following precautions for the plug. Failure to comply
with these precautions could result in sparks or fire.
•
Do not insert the plug into an outlet with dust present.
•
Insert the plug firmly into the outlet.
7. Do not overload wall outlets, extension cords, or integral
convenience receptacles. This can cause fire or electric shock.
8. Do not place the projector where the cord can be walked on. It
may result in fraying or damage to the plug.
9. Unplug the projector from the wall outlet before cleaning. Use a
damp cloth for cleaning. Do not use liquid or aerosol cleaners.
Safety Instructions
xiii
10. Do not block the slots and openings in the projector case. They
provide ventilation and prevent the projector from overheating.
Do not put the projector on a sofa, rug, or other soft surface or in
a built-in installation, unless proper ventilation is provided.
11. Never push objects of any kind through cabinet slots. Never spill
liquid of any kind into the projector.
12. Except as specifically explained in this Owner’s Manual, do not
attempt to service this product yourself. Refer all servicing to
qualified service personnel. Opening or removing covers may
expose you to dangerous voltages and other hazards.
13. Unplug the projector during lightning storms or when it will not
be used for extended periods.
14. Do not place the projector and remote control on top of
heat-producing equipment or in a heated place, such as a car.
15. Unplug the projector from the wall outlet and refer servicing to
qualified service personnel under the following conditions:
•
When the power cord or plug is damaged or frayed.
•
If liquid has been spilled into the projector, or it has been
exposed to rain or water.
•
If it does not operate normally when you follow the operating
instructions, or if it exhibits a distinct change in performance,
indicating a need for service.
•
If it has been dropped or the cabinet has been damaged.
xiv
• Introduction
Where to Get Help
EPSON provides customer support and service through a network of
authorized EPSON Customer Care Centers. Dial (800) 922-8911 for
the nearest location or the following services:
l Fax-on-Demand access to EPSON’s technical information library
l Literature on current and new products
l The location of your nearest Authorized EPSON Reseller or
Customer Care Center
l Technical information on installation, configuration, and
operation of EPSON products
• Customer relations.
For answers to commonly asked questions about EPSON products
24 hours a day, 7 days a week, call EPSON Sound Advice at
(800) 442-2110.
You can purchase manuals, accessories, or parts from EPSON
Accessories at (800) 873-7766 (U.S. sales only). In Canada, please call
(800) 463-7766 for dealer referral.
If you need help using software with an EPSON product, see the
documentation for that program for technical support information.
Electronic support services
You can access helpful tips, specifications, DIP switch or jumper
settings, drivers, FAQs, sample files, application notes, and EPSON
product bulletins 24 hours a day, 7 days a week, using a modem and
one of the online services below.
Where to Get Help
xv
World Wide Web
From the Internet, you can reach EPSON’s Home Page at
http://www.epson.com
EPSON Internet FTP Site
If you have Internet FTP capability, use your Web browser (or other
software for FTP downloading) to log onto ftp.epson.com with the
user name anonymous and your E-mail address as the password.
EPSON Download Service
You can call the EPSON Download Service BBS at (800) 442-2007.
Set your communications software to 8 data bits, 1 stop bit, no parity.
Modem speed can be up to 28.8 Kbps.
EPSON Fax-on-Demand Service
You can access EPSON’s technical information library by calling
(800) 442-2110 or (800) 922-8911 and selecting the appropriate
phone option. You must provide a return fax number to use
Fax-on-Demand.
EPSON Forum on CompuServe
Members of CompuServe can type GO EPSON at the menu prompt
to reach CompuServe’s Epson America Forum. As an owner of an
EPSON product, you are eligible for a free introductory CompuServe
membership, which entitles you to an introductory credit and your
own user ID and password. To take advantage of this offer in the U.S.
or Canada, call (800) 848-8199 and ask for representative #529.
xvi
l Introduction
®
Energy Star Compliance
As an ENERGY STAR Partner, EPSON has determined that this product meets the ENERGY
STAR guidelines for energy efficiency.
The EPA ENERGY STAR Office Equipment Program is a voluntary
partnership with the computer and office equipment industry to
promote the introduction of energy-efficient personal computers,
monitors, printers, fax machines, and copiers in an effort to reduce
air pollution caused by power generation.
Energy Star Compliance
xvii
Installation
This chapter describes how to unpack, set up, and connect your
projector to other equipment. You must connect the projector to your
computer or to a video source such as a VCR, camcorder, digital
camera, or laser disc player. Connecting it to other equipment is
optional. For example, you may want to connect the projector to both
your computer and video source, or set up the projector for one or
more of the following:
l Connect the mouse cable to use the remote control as a wireless
mouse.
l Provide audio for one or both image sources. The audio source can
be the computer, video source, or another device such as a stereo.
l Connect to an external speaker or PA system to amplify the audio.
1
Unpacking the Projector
When you unpack the projector, make sure you have all these
components:
Projector
Remote control
2 AA batteries
Power cord
ELP computer video cable
Macintosh video adapter
Lens cover
Video/audio cable
Audio cable
PS/2 mouse cable
Macintosh mouse cable
Depending on the configuration of your equipment, you may not need
all these components.
Save all packaging materials in case you need to ship the projector in
the future. Always transport the projector in its original packaging or
the equivalent.
l To receive an S-Video signal, you need an S-Video cable. One is
usually provided with your video device.
2
1 l Installation
Additional components
Depending on how you plan to use the projector, you may need
additional components:
l For a Macintosh PowerBook, you need a video-out cable. One is
provided for all new PowerBooks that have video-out capability. If
your PowerBook does not include one, see your Macintosh dealer.
l To connect the projector to an external sound system, you need an
RCA-to-3.5 mm stereo audio cable. You can obtain one from your
computer dealer.
l To connect the mouse cable to your computer, you may require a
special connector, cable, or other components. You can obtain
these items from your computer dealer. You cannot use the mouse
cable with a computer that is not equipped with a PS/2 mouse
connector.
Setting Up the Projector
1.
Place the projector on a sturdy, level surface within five feet of the
computer or video source.
Caution: Do not hold the projector by the lens. This can damage the
lens.
Caution: Do not use the ELP-3500 projector upside down. For
example, do not mount it on the ceiling.
Setting Up the Projector
3
2. Place the projector the proper distance from the screen.
The distance between the projector and the screen determines the
actual image size. Use the general guidelines in the table below to
determine the proper distance.
Horizontal distance from the
Image size
(diagonal)
300 inches
200 inches
100 inches
80 inches
60 inches
40 inches
30 inches
21 inches
projector screen
Minimum
484.3 inches (12.3 m)
322.8 inches
(8.2 m)
161.4 inches
(4.1 m)
126 inches
(3.2 m)
94.5 inches
(2.4 m)
63 inches
(1.6 m)
47.2 inches
(1.2 m)
47.2 inches (1.2 m) 1.2 inches (3 cm)
Maximum projector to the screen
460.2 inches 13.4 inches (34 cm)
(11.7 m)
228.3 inches 6.7 inches (17 cm)
(5.8 m)
181.1 inches 5.5 inches (14 cm)
(4.6 m)
137.8 inches 3.9 inches (10 cm)
(3.5 m)
SO.6 inches 2.8 inches (7 cm)
(2.3 m)
66.9 inches 2.0 inches (5 cm)
(1.7 m)
Vertical distance from the
20.1 inches (51 cm)
3. Make sure the projector is at a right angle to the screen.
Otherwise, the screen image will be distorted.
4
1 l Installation
4. Connect one end of the power cord to the projector’s power
connector. Connect the other end to a grounded electrical outlet.
The projector goes into sleep mode, indicated by the orange power
status light.
Warning: Never look into the lens when the lamp is on. The projector
might come on suddenly, even when it is not operated. This can
damage your eyes. It is especially important that children not look into
the lens.
5. To insert the batteries in the remote control, slide off the battery
compartment cover as shown here.
Setting Up the Projector
5
6. Insert the two AA batteries included with the projector. Make sure
the polarity of the batteries is correct.
7. Replace the battery compartment cover.
When replacing batteries, take the following precautions:
Do not mix old and new batteries.
Replace batteries as soon as they run out. If the batteries leak, wipe
away battery fluid with a soft cloth. If fluid gets on your hands,
wash immediately.
Remove batteries if you will not be using the projector for a long
period.
Connecting to a Computer
You can connect the projector to any computer capable of standard
VGA output, including:
l IBM desktop PC or compatible
l IBM laptop PC or compatible
6
1 l Installation
Apple Macintosh desktop computer, including Macintosh
•
Quadra,® Macintosh Centris,® and Power Macintosh
Any Apple PowerBook with video-out capability. This includes all
•
160, 165, 180, and 500 series PowerBooks.
See the following section that applies to your computer.
Connecting to a PC desktop computer
Before beginning, turn off the projector and computer if they are on.
1.
Connect either end of the projector’s video cable to the projector’s
Computer In port.
2. Disconnect the computer’s monitor cable from the VGA port on
the back of the computer, and connect the projector’s video cable
to the computer’s VGA port.
3. Tighten the screws on both connectors to make sure they are
fastened securely.
Connecting to a Computer
7
4. Connect the bigger end of on the projector’s PS/2 mouse cable to
the projector’s Mouse/Corn port.
5. Disconnect the computer’s mouse cable from the mouse port on
the back of the computer, and connect the smaller end of the
projector’s PS/2 mouse cable to the computer’s mouse port.
Connecting to a PC laptop computer
Before beginning, turn off the projector and computer if they are on.
1.
Connect either end of the projector’s video cable to the projector’s
Computer In port.
8
1 l Installation
Connect the other end of the projector’s video cable to the
2.
laptop’s monitor port.
Tighten the screws on both connectors to make sure they are
3.
fastened securely.
Connect the bigger end of the projector’s PS/2 mouse cable to the
4.
projector’s Mouse/Corn port.
Connecting to a Computer
9
5. Disconnect the computer’s mouse cable from the mouse port on
the back of the computer. Then connect the smaller end of the
projector’s PS/2 mouse cable to the computer’s mouse port.
When the external graphics port is activated, some laptop computers
automatically turn off their internal display. See your computer
manual for information on using the internal display.
Connecting to a desktop Macintosh
Before beginning, turn off the projector and Macintosh if they are on.
1.
Connect either end of the projector’s video cable to the projector’s
Computer In port.
10
2. Connect the Macintosh adapter to the other end of the projector’s
video cable.
1 l Installation
Disconnect the monitor cable from the video port on the back of
3.
the Macintosh, and connect the projector’s video cable with the
Macintosh adapter to the video port.
Tighten the screws on all the connectors to make sure they are
4.
fastened securely.
Connect the bigger end of the projector’s Macintosh mouse cable
5.
to the projector’s Mouse/Corn port.
Connecting to a Computer
11
6. Disconnect the computer’s mouse cable from the mouse port on
the back of the computer. Then connect the smaller end of the
projector’s Macintosh mouse cable to the computer’s mouse port.
Connecting to a PowerBook
Your PowerBook must have a video-out capability. See page 7 for
more information.
Before beginning, turn off the projector and computer if they are on.
1.
Connect either end of the projector’s video cable to the projector’s
Computer In port.
2. Connect the video-out cable that comes with your PowerBook to
the video-out connector on the back of the PowerBook.
12
3. Connect the Macintosh adapter to the other end of the projector’s
video cable.
1 l Installation
4. Connect the video-out cable to the other side of the Macintosh
adapter on the projector’s video cable.
5. Tighten the screws on all the connectors to make sure they are
fastened securely.
6. Connect the bigger end of the projector’s Macintosh mouse cable
to the projector’s Mouse/Corn port.
7. Disconnect the computer’s mouse cable from the mouse port on
the back of the computer, and connect the smaller end of the
projector’s Macintosh mouse cable to the computer’s mouse port.
8. In the PowerBook’s Display Control Panel, select Mirroring.
Connecting to a Computer
13
Connecting to a Video Source
You can also connect a video tape deck, a camcorder, a laser disc
player, or any other compatible video image source to the projector.
The projector can receive composite video or S-Video. You have
composite video if your video source has a one-pin RCA video jack.
You have S-Video if your video source has a four-pin video jack.
Note: The projector is not compatible with a cable TV-style F connector.
You can connect to both an S-Video and a composite video source at
the same time. However, the projector automatically selects the
S-Video source. To display composite video, you need to disconnect
the S-Video source.
The projector supports NTSC, PAL, and SECAM video formats, and
automatically detects and identifies the video format. However, you
can specify that a single broadcast format be detected. (See “Using the
Option Menus” in Chapter 3.) Note that the projector will then be
able to detect only one type of video signal.
The type of cable you use to connect the video source to the projector
depends on whether you have composite video or S-Video. For
composite video, use the video/audio cable supplied with the
projector. For S-Video, use the S-Video cable supplied with your video
device or obtain one from your computer dealer.
14
To connect a video source to the projector:
1.
Turn off the projector and video source if they are on.
1 l Installation
If your video source uses a small, round, one-prong composite
2.
(RCA) video connector, you’ll need the video/audio cable that
comes with the ELP-3500. If your video source uses a large,
round, four-prong S-Video connector, you will need to purchase
an S-Video cable.
For composite video, connect the yellow RCA plug on one end of
3.
the video/audio cable to the projector’s Video In jack. Connect
the other yellow RCA plug to the video-out jack of your video
source. (The red and white plugs carry audio. For information
about audio, see page 16.)
For S-Video, insert one end of the S-Video cable into the
projector’s S-Video jack. Insert the other end into the S-video-out
jack of your video source.
S-Video cable
Connecting to a Video Source
15
Connecting to an Audio Source
The projector has two kinds of input for audio: one single-jack input
for your computer and one two-jack input for your video source. The
video source input has an L jack to control the left audio channel and
an R jack to control the right audio channel. If you are connecting to a
video source that has only a single plug, connect it to either the L or
the R Audio In jack.
Connecting audio from a video source (such as a VCR)
Before beginning, turn off the projector and video source if they are
on.
1.
Connect one end of the video/audio cable to the Audio In jacks of
the projector. Insert the white plug into the L Audio In jack and
the red plug into the R Audio In jack.
2. Connect the other end of the video/audio cable to the audio
output jacks of the video source. Connect the white plug to the
left channel and the red plug to the right channel.
16
1 l Installation
Connecting audio from a desktop or notebook computer
1.
Turn off the projector and computer if they are on.
2. Connect either end of a 3.5 mm stereo miniplug audio cable to the
Audio In jack on the projector. (You will need to purchase this
cable.)
3. Connect the other end of the 3.5 mm stereo miniplug audio cable
to the audio output jack on the computer.
Connecting to an External Speaker or
PA System
For most small- or medium-sized rooms, the projector’s internal
speaker is sufficient. If you need extra amplification for a large room,
you can connect the projector to an external amplified speaker or PA
system.
To connect the projector to an external sound system, you need to
obtain an RCA-to-3.5 mm stereo audio cable. You can get one from
your computer dealer.
Connecting to an External Speaker or PA System
17
1.
Turn off the projector and speaker or PA system if they are on.
2.
Connect the cable’s 3.5 mm stereo miniplug to the projector’s
Audio Out jack.
3.
Connect the RCA plug to the external amplified speaker or PA
system. Insert the cable’s red plug into the R jack, and the white
plug into the L jack.
18
1 l Installation
Using the Projector
This chapter provides the following information about using your
projector:
l Turning the equipment on and off
l Focusing and positioning the image
l Controlling the projector with the remote control and the control
panel
l Monitoring the status of the projector.
19
Turning the Equipment On and Off
Always turn on the projector and its attached equipment in the
following order:
1.
Video source (such as a VCR), if your video source is not your
computer
2. Audio source (if different from computer or video source)
3. Projector
4. External amplified speaker or PA system (if necessary)
5. Computer.
Remove the projector’s lens cap. Then press the Power button on the
remote control or the projector’s control panel to turn on the
projector. The green power indicator comes on. If computer or video
equipment is attached, the computer or video signal is projected.
Allow about 30 seconds for full illumination.
Warning: Never look into the lens when the lamp is on. This can damage
your eyes. It is especially important that children not look into the lens.
Reverse the steps above to turn off your equipment.
20
2 l Using the Projector
When you want to stop projecting images, press the Power button
again. The fan remains on, and the green power indicator flashes for
about 60 seconds as the projector cools off. When the projector has
cooled off, the power indicator changes to orange, and the projector
goes into sleep mode (described below).
Note: The projector is designed so that it cannot be turned back on while
the power indicator is flashing green. Before pressing the Power button
again, wait until the lamp has cooled and the power indicator is orange.
The illustration below identifies the parts of your projector.
Turning the Equipment On and Off
21
Sleep mode
Sleep mode conserves electricity by automatically turning off the lamp
after the projector has not been used for 30 minutes. In sleep mode,
the projector’s power indicator is orange and only a minimum amount
of the projector’s circuitry remains on. This conserves electricity, cools
the projector, and extends the life of the lamp. When the projector is
in sleep mode, you can press the Power button to start projecting
images, or you can unplug the projector’s power cord.
Focusing and Positioning the Screen Image
When an image appears on screen, check that it is in focus and
correctly positioned on the screen. To focus the image, rotate the focus
ring, which is the inside ring on the lens. To adjust the size of the
image, rotate the zoom ring, which is the outside ring. Rotate the
zoom ring clockwise to make the screen image larger or
counterclockwise to make it smaller.
If you need to raise or lower the image on the screen, extend or retract
the two feet at the bottom of the projector as follows:
1.
Stand behind the projector and support the front of it while you
press the purple release levers located above the feet. This unlocks
the feet so they can move up and down freely. Do not let the
projector drop.
22
Caution: Do not hold the projector by its lens. This can damage the
lens.
2 l Using the Projector
2. While pressing the release levers, raise or lower the projector until
the screen image is correctly positioned.
3. Release the levers to lock the feet in their new position.
4. To fine-tune the height of the projector, turn the feet clockwise to
raise the height or counterclockwise to lower it.
Controlling the Projector
You normally control the projector with the remote control. Buttons
on the remote control allow you to do the following:
Turn power on or off
Adjust the volume
Mute the audio and video
Switch between computer and video images
Use the remote control as a wireless mouse when the projector is
connected to the computer with the mouse cable
Access the projector menus to adjust the image, audio, video, or
display settings (described in Chapter 3)
Access additional functions available with the optional ELP
Communication Kit software.
Functions of the remote control buttons are summarized on page 25.
To use the remote control, always point it toward the remote control
receiver in the front of the projector. You can use the remote control
up to about 33 feet (10 meters) from the front of the projector. (This
distance may be shorter if your batteries are low.)
Controlling the Projector
23
In addition to the remote control, there are buttons on the control
panel on top of the projector that let you control it.
Using the remote control
pointer button
left mouse button (on
back of remote control)
right mouse button
24
2 l Using the Projector
Button Function
ELP Communication Kit software.
Source
Menu
1-5
Switches the image source between computer and video equipment.
Displays or hides the menu.
Perform computer functions that can be assigned using the optional
Pointer
Right mouse
button
AN Mute
Volume
Power
Left mouse
button
Selects a menu item and changes the setting of the selected menu
item. Moves the computer pointer (when the projector is connected
to the computer with the mouse cable).
Clicks the right mouse button
Turns off the audio and video.
Adjusts the volume.
Starts or stops projection.
Clicks the left mouse button.
-
Note: The left mouse button is on the back of the remote control.
Controlling the Projector
25
Using the control panel
Button Function
Power Starts or stops projection.
Menu Displays or hides the menu
Up, Down Arrow Selects a menu item
Left, Right Arrow Changes the setting of the selected menu item
Source Switches the image source between computer and video
equipment.
Preset Saves projector setups for computer and video images for later
recall. (See page 38 for more information.)
Comp Tracking Matches the projector’s internal clock to various computer
graphics signals. If vertical lines appear in an image, adjust Comp
Tracking to spread the distance between lines until they
disappear.
Comp Sync Synchronizes graphics signals coming from the computer. Adjust
this setting if the image is fuzzy or streaked.
Volume Adjusts the volume
26
2 l Using the Projector

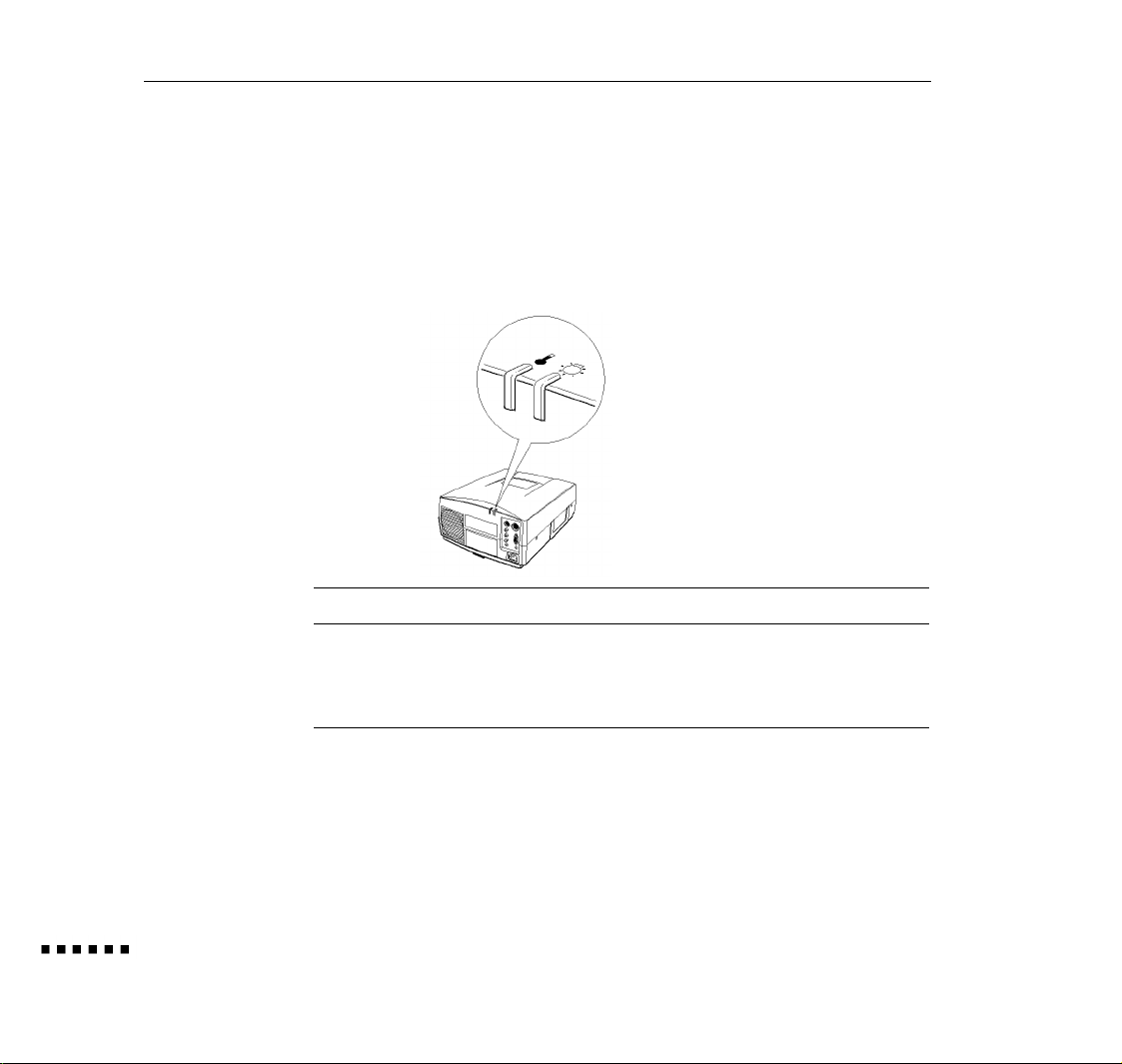

Projector Status Indicators
There are two warning lights on the top rear of the projector, and a
row of status lights at the top of the control panel. The control panel
lights indicate the projector’s operating status.
Warning lights
The two warning lights on the top of the projector alert you when a
condition requires your immediate attention. See Chapter 5 for details
about what to do when the warning lights come on.
Status lights
The control panel lights let you know the status of the projector at a
glance, as described below.
Status light
Power
Steady orange:
Steady green:
Flashing green:
Video, Comp
1, 2, 3
Function
Sleep mode. (The projector is plugged in, but not operational.)
Power is on, the projector lamp is lit, and the projector is
projecting.
The projector is cooling down.
Indicates whether video equipment (Video) or a computer
(Comp) is currently selected as the image source.
Indicates the currently selected setup memory area. (See
page 38 for more information.)
Note: You cannot turn on the projector when the power light is flashing
green to indicate the lamp is cooling down.
Projector Status Indicators
27
Using the Menus
he projector menus let you do the following:
T
l Control image brightness and contrast.
Adjust the horizontal and vertical position and red, green, and
•
blue strength of computer images.
l Change the color and tint of video images.
•
View your current projector settings.
l Change the language used in the menus.
l Save and recall projector setups.
29
Using the Main Menus
You can display the main menu any time by pressing the Menu button
on the remote control or the projector’s control panel. When you press
the Menu button, you see the computer image main menu or the video
image main menu, depending on the currently selected image source.
The Video and Comp (computer) status lights on the control panel
show you which image source the projector is using.
To clear the main menu from the screen, press Menu again. The tables
below describe the settings available on each main menu.
Note: See "Changing Menu Settings” on page 32 for details on bow to
select a menu item and change its setting.
Note:
If
the projector is not connected to the currently selected image source
or does not supportyour system's video format or resolution, you cannot
display the main menu.
Computer image main menu
BRIGHTNESS
CONTRAST
30
H POSITION
U POSITION
SETTINGS
3 l Using the Menus
ON
Menu Item
BRIGHTNESS Lightens or darkens the overall image. Increase brightness to lighten
CONTRAST
H POSITION
V POSITION
SETTINGS
Description
an image, or decrease it to darken the image.
Adjusts the difference between light and dark areas. Increase the
contrast to make light areas lighter and dark areas darker. Decrease it
to minimize the difference between light and dark areas.
Moves the image left or right. Increase the setting to move the image
right, or decrease it to move it left.
Moves the image up or down. Increase the setting to move the image
up, or decrease it to move it down.
When ON, lets you view a screen of current computer image control
panel settings.
Video image main menu
Menu Item
BRIGHTNESS Lightens or darkens the overall image. Increase brightness to lighten
CONTRAST
COLOR
TINT
(NTSC only)
SETTINGS
Description
an image, or decrease it to darken the image.
Adjusts the degree of difference between light and dark areas.
Increase the contrast to make light areas lighter and dark areas
darker. Decrease it to minimize the difference between the lightest
and darkest parts of the image.
Adjusts color density. Increase the setting for darker and more
opaque colors. Decrease it for lighter and less opaque colors.
Adjusts the red/green color balance. Increase the tint to add more
green to the image, or decrease it to add more red.
When ON, lets you view a screen of current video image control panel
settings.
Using the Main Menus
31
Changing Menu Settings
To change a menu setting, you use a slider to increase or decrease the
value or turn the setting on or off. Follow the steps in the appropriate
section below to select a menu item and change its setting.
Using the control panel
1.
Press the Menu button to display the menu.
2. Use the up or down arrow button to highlight the menu item you
want to change.
32
3. When the menu item is highlighted, use the left or right arrow
button to change its setting.
4. When you are finished changing settings, press Menu again to
clear the menu.
3 l Using the Menus
Using the remote control
1.
Press the Menu button to display the menu.
2. Press the upper part of the pointer button to move the
highlighting up one item. Press the lower part of the pointer
button to move the highlighting down one item.
3. When the menu item you want to change is highlighted, press the
left or right side of the pointer button to change the setting.
4. When you are finished changing settings, press Menu again to
clear the menu.
Changing Menu Settings
33
Using the SETTINGS Screens
The SETTINGS screen shows you the control panel settings (see
page 26) currently in effect for the selected image source (computer or
video). To display a SETTINGS screen, highlight the SETTINGS
option on the main menu; then press the right arrow on the control
panel or the right side of the remote control pointer button.
A sample SETTINGS screen for each image source is described below.
Computer image SETTINGS screen
SETTINGS EXIT
34
TRACKING + 100
800X600 MODE
SYNC + 10
VOLUME + 10
PRESET 1
LAMP
Current input signal resolution: 800 x 600 (When the projector is in
640 x 480 mode, the SETTINGS screen does not display the mode
setting.)
Computer tracking setting: +100 (range of available settings: -120 to
+120)
Computer sync setting: +10 (range of available settings: 0 to +30)
Volume setting: +10 (range of available settings: 0 to +30)
Selected projector setup: 1 (See page 38 for more information.)
3 l Using the Menus
1000 H
Lamp hours used at last start up: 1000 hours (displayed in lo-hour
increments)
Video image SETTINGS screen
SETTINGS EXIT
VOLUME
PRESET
NTSC
+ 15
1
LAMP
Current input signal type: NTSC
Volume setting: +15 (range of available settings: 0 to +30)
Selected projector setup: 1 (See page 38 for more information.)
To clear a SETTINGS screen and return to the main menu, highlight
the EXIT menu option and then press the left arrow on the control
panel or the left side of the remote control pointer button.
Using the Option Menus
The option menu contains a number of basic settings you normally do
not have to change on a regular basis. To display the option menu for
the currently selected image source, hold down the Menu button for at
1000 H
Using the Option Menus
35
least three seconds. To clear the option menu from the screen, press
Menu again. The tables below describe the option menu settings
available for each image source.
Note: See "Changing Menu Settings” on page 32 for details on selecting
and changing a menu item setting.
Computer image option menu
RED
GREEN
BLUE
36
LANGUAGE
Menu Item
RED
GREEN
BLUE
LANGUAGE
3 l Using the Menus
1 2
E J
Description
Adjusts red level strength
Adjusts green level strength.
Adjusts blue level strength.
Specifies image sharpness. 1 enhances color images (by
de-emphasizing edges); 2 enhances black and white images (by
emphasizing edges).
E = English, J = Japanese, D = German, F = French,
S = Spanish, I = Italian. Languages scroll in the following order:
Video image option menu
LANGUAGE
Menu Item
LANGUAGE
MODE
1 2
E J
MODE
Description
Specifies image sharpness. 1 emphasizes edges and 2
de-emphasizes edges.
E = English, J = Japanese, D = German, F = French,
S = Spanish, I = Italian. Languages scroll in the following order:
Specifies the video format setting: Auto, NTSC, PAL, or SECAM.
See “Connecting to a Video Source” in Chapter 1 for more
information.
AUTO
Using the Option Menus
37
Using Projector Setups
You can store projector setup parameters for up to six sources (three
for computer image sources and three for video image sources) for
instant recall when you need them. These setups remain in memory
even when you turn off the projector. The settings available for you to
save depend on the currently selected image source, as described below.
When the projector is using the computer as its image source, you can
change and save these settings:
•
Comp sync (control panel setting)
l Comp tracking (control panel setting)
l Brightness (main menu setting)
•
Contrast (main menu setting)
l Horizontal position (main menu setting)
•
Vertical position (main menu setting).
When the projector is using a video image source, you can change and
save these settings:
l Brightness (main menu setting)
•
Contrast (main menu setting)
•
Color (main menu setting)
l Tint (main menu setting, NTSC only).
38
3 l Using the Menus
Storing a setup
Important! Saving new settings in a memory area automatically replaces
any settings previously stored in that memory area.
1.
Use the Preset button on the control panel to choose the memory
area where you want to store your projector settings. The status
light indicates the currently selected memory area (1, 2, or 3).
Pressing the Preset button changes the selected memory area (or
turns off the projector setup feature) in this sequence:
2. While the status light for the memory area you want is lit, check
the projected image and make your projector settings. You can
adjust the following settings:
•
•
See “Using the control panel” on page 26 in Chapter 2 and “Using
the Main Menus” on page 30 for instructions on changing
projector settings.
Sync, tracking, brightness, contrast, and vertical and
horizontal position for a computer image
Brightness, contrast, color, and tint (NTSC only) for a video
image.
3. After you select your projector settings, hold down the Preset
button for about three seconds, until the memory area status light
starts flashing. Then release the Preset button; the status light
stops flashing and stays on, and the projector setup is stored in the
selected memory area.
Using Projector Setups
39
Recalling a setup
Important! Recalling a setup replaces your current projector settings with
the settings that were saved in memory.
Use the Preset button on the control panel to select the memory area
that contains the settings you want to recall.
Clearing a setup
When you don’t want a preset projector setup anymore, you can clear
its memory area. This removes your settings from the memory area and
replaces them with the projector’s default settings. To clear a preset
setup, follow these steps:
1.
Use the Preset button on the control panel to choose the memory
area you want to clear.
2. Hold down the Preset button for approximately 15 seconds. The
status light alternates between flashing and staying lit; when it
remains lit, release the Preset button.
40
3 l Using the Menus
Maintenance
T
he projector needs little maintenance. You should keep the lens
clean, because any dirt or smears appear on the screen. You also need
to periodically clean the air filter at the bottom of the projector.
Cleaning the air filter is important, because a clogged air filter can
block ventilation needed to cool the projector and keep it from
overheating. Before you clean any part of the projector, always turn off
the projector and unplug the power cord.
The only parts you should replace are the lamp and air filter. If any
other part needs replacing, contact your ELP-3500 dealer or a
qualified service person.
41
Warning: Never open any cover on the projector, except the lamp and
filter covers. Dangerous electrical voltages in the projector can injure you
severely. Do not try to service this product yourself except as specifically
explained in this Owner's Manual. Refer all servicing to qualified service
personnel.
Cleaning the Lens
Clean the lens whenever you notice dirt or dust on the surface. Lightly
wipe the lens surface with a soft, dry, lint-free cloth. To remove dirt or
smears on the lens, moisten a soft cloth with an alcohol-based cleaner
and gently wipe the lens surface.
Cleaning the Projector Case
To clean the projector case, first unplug the power cord. To remove
dirt or dust, wipe the case with a soft, dry, lint-free cloth. To remove
stubborn dirt or stains, moisten a soft cloth with water and a neutral
detergent. Then wipe the case. Do not use alcohol, benzene, thinner,
or other chemical detergents. These can cause the case to warp.
42
4 l Maintenance
Cleaning the Air Filter
Clean the air filter at the bottom of the projector after every 100 hours
of use. If it is not cleaned periodically, it can become clogged with
dust, preventing the projector from being ventilated properly. This can
cause overheating and damage the projector. To clean the air filter,
follow these steps:
1.
Turn off the projector and unplug the power cable from the wall
outlet.
2. Turn the projector so that its handle is on top so you can access
the filter easily.
Caution: Stand the projector with the handle at the top to keep dust from
getting inside it.
3. Use a flat-head screwdriver to lift and remove the filter cover.
Cleaning the Air Filter
43
4. The filter is attached to the other side of the filter cover. It is
recommended that you use a small vacuum cleaner designed for
computers and other office equipment to clean the filter. If you
don’t have one, use a dry, lint-free cloth.
If the dirt is difficult to remove or if the filter is torn, replace it.
Contact your ELP dealer or call EPSON Accessories
(800-873-7766 in the United States) to obtain a new one. Be sure
to request part number 1023658.
5. Replace the filter.
6. Reconnect the power cord to the wall outlet.
Replacing the Lamp
The projector lamp typically lasts for about 4000 hours of use. It is
time to replace the lamp when:
l You notice that projected images get darker or start to deteriorate.
l The lamp warning light is red.
44
Contact your local EPSON d
(800-873-7766 in the United States) for a replacement lamp. Use only
replacement lamp part number ELPLP02.
Warning: Let the lamp cool before replacing it. During use, it becomes hot
enough to burn you.
1.
Turn off the projector and disconnect the power cord from the
wall outlet.
2. Turn the projector over so you can access the lamp cover.
4 l Maintenance
ealer or call EPSON Accessories
3. Use a screwdriver, coin, or similar object to loosen the two
retaining screws on the lamp cover. You cannot remove these
screws.
4. When the screws are loose, lift off the lamp cover.
Replacing the Lamp
45
5.
Use a screwdriver, coin, or similar object to loosen the two screws
holding the lamp in position. You cannot remove these screws.
6.
Lift up the handle and pull out the lamp.
46
4 l Maintenance
Gently insert the new lamp by lowering it into position. Make sure
7.
it is inserted securely.
Tighten the screws you loosened in step 5.
8.
Replace the lamp cover and tighten the cover screws.
9.
Make sure the lamp cover is securely fastened. The projector turns
itself off if the lamp cover is open.
Resetting the lamp timer
After changing the lamp, you need to reset the lamp timer as follows:
Make sure the projector is turned off.
1.
While holding down the projector’s Comp Sync + and Comp
2.
Tracking + buttons, Press and hold down the Power button.
3. After status lights 1, 2, and 3 flash ON and OFF at least 3 times,
release the Comp Sync +, Comp Tracking +, and Power buttons.
The flashing status lights indicate that the lamp timer is reset.
Replacing the Lamp
47
Troubleshooting
T
his chapter describes the problems indicated by the warning lights
and provides information on how to solve problems with the projector.
It is divided into the following sections:
l Problems with the projector. See this section if the projector is not
working and to find out what the warning lights are indicating.
l Problems with the screen image. See this section if you cannot
project an image or if the screen image is not good.
If you have a problem, check the appropriate section and follow all
suggestions that apply to your problem. If none of the suggestions
solves the problem, call your ELP-3500 dealer or call EPSON. In the
U.S. or Canada, call (800) 922-8911.
49
Problems with the Projector
If you have problems with the projector, first turn it off and unplug
the power cord from the wall outlet. Then plug the power cord back in
and turn on the projector. If this does not solve the problem, check the
warning lights at the top of the projector. These lights alert you to
problems with projector operation.
50
Warning light
Temp Red
Lamp Red
Temp and lamp Flashing red There may be an abnormality in the projector.
Color
Status
The projector is hot.
The lamp needs to be replaced. (See “Replacing
the Lamp” in Chapter 4 for instructions.)
See the following pages for information on what to do when you see
these warning lights or encounter other specific problems with the
projector.
5 l Troubleshooting
The power status light is flashing green and you cannot turn on the
projector.
The lamp is cooling down. Wait until the light changes to orange and
then turn on the projector.
The power status light does not come on.
Turn off the projector, check that the power cable is connected
securely both at the power outlet and the projector, and press the
Power button again.
Projected images get darker or start to deteriorate, or the lamp
warning light is red.
Replace the projector lamp as described on page 44.
The temperature warning light is red.
The projector is overheating, which turns the lamp off automatically.
Let the projector cool for a few minutes; then turn it back on. Make
sure nothing is blocking the ventilation vents.
The air filter may be clogged. Clean it as described in Chapter 4, and
then let the projector cool for a while.
If the projector continues to overheat after you clean the air filter, the
problem may be caused by damage to the cooling fan or internal
circuits. Contact a qualified service person.
Problems with the Projector
51
The lamp and temperature warning lights are flashing at the same
time.
An abnormality may have occurred in the projector. Turn off the
projector and unplug the power cord from the wall outlet. Then plug
the power cord back in and turn on the projector. If nothing changes,
call the service center.
Warning: Except as specifically explained in this Owner's Manual, do not
attempt to service this product yourself
Problems with the Image or Sound
An image does not appear on the screen.
Check that the power light is on and the lens cover is off. Also make
sure the cables are installed correctly, as described in Chapter 1.
The correct image source may not be selected. Press the Source button
on the remote control or the control panel to choose the other image
source.
Only part of the computer image is displayed.
If the computer’s output resolution setting is set higher than 640 x
480, the projector resizes the image. If the computer output is not
compatible with this resizing, choose a different display setting on the
computer. In Windows 3.1, use Windows Setup in the Main program
group. For a Macintosh, choose Control Panels under the Apple menu
52
5 l Troubleshooting
and then Monitors; in the Monitors screen, choose Options and make
sure Macintosh Hi-Res Display or another 640 x 480 display is
selected. For supported display settings, see Chapter 6.
If a 640 x 480 display is selected, see Chapter 6 for supported display
settings. You also may need to modify existing presentation files if you
created them for a different resolution. See your software manual for
specific information.
The message NO SIGNAL is displayed.
An image source not connected to the projector is selected, the signal is
not being output from the computer, or the signal is not reaching the
projector. Make sure the connectors are securely attached to both the
projector and the image source. Then check that the image source is
selected correctly. When NO SIGNAL is displayed, you cannot access
the projector menus.
A black screen is displayed.
The computer signal cannot be interpreted by the projector. Verify the
display format (see page 57). When you see a black screen, you cannot
access the projector menus.
The image or parts of the image are blurred or not in focus.
Turn the focus ring on the projector to see if this improves the image.
Also check that the projector is within the recommended distance for
the size of the screen. (See the table on page 4 for more information.)
For the sharpest images, the projector must be perpendicular to the
screen and the projection surface must be flat.
Problems with the Image or Sound
53
Adjust the Brightness and Contrast settings on the Computer Image or
Video Image main menu. If you’re viewing a computer image, also try
adjusting the Comp Tracking and Comp Sync buttons on the
projector’s control panel.
There may be dirt or smears on the lens. Clean the lens as described in
Chapter 4.
The colors of the image are not right.
The color balance may be incorrect. If you’re displaying a computer
image, adjust the red, green, and blue settings in the Computer image
option menu. If you’re displaying video, adjust the color and tint
(NTSC only) settings on the Video image main menu.
There is no sound.
First check that the volume setting is not turned all the way down and
that the video/audio cable is securely attached to both the projector
and the audio source.
The wrong source is selected. Use the Source button on the remote
control or control panel to change the source.
54
5 l Troubleshooting
Technical Specifications
General
Type of display
Size of liquid crystal panels
Resolution
Image size
Projection distance
Remote control range
Internal speaker system
Optical aspect ratio
Zoom ratio
Liquid crystal panel, Thin Film
Transistor (TFT)
1.32 inches (33.6 mm)
640 (horizontal) x 480 (vertical) pixels
21 to 300 inches (0.5 to 7 meters)
4 to 40 feet (1.2 to 12.3 meters)
33 feet (10 meters)
3 W monaural
4 x 3 (horizontal x vertical)
1:1.4
55
Projector
lamp
Type
Power
Metal Halide, DC
100 W, 85 V
Part number
Mechanical
Electrical
Environmental Temperature
Height
Width
Depth
Weight
Voltage
Rated frequency
Power
Consumption
Humidity
ELPLP02
5.9 inches (13.7 cm)
11.2 inches (28.3 cm)
15.1 inches (38.2 cm)
14.8 lb (6.7 kg)
100 to 120 VAC and 200 to 240 VAC
50/60 Hz
150 W, 6 W in Sleep mode
ENERGY STAR Compliance
100 to 120 VAC, 1.5 A, 50/60 Hz
200 to 240 VAC, 0.8 A, 50/60 Hz
Operation: 32 to 104° F (0 to 40° C)
Storage: -4 to 140° F (-10 to 60° C)
Operation: 20 to 80% RH,
non-condensing
Storage: 10 to 90% RH,
non-condensing
56
6 l Technical Specifications
Supported monitor displays
The projector displays images at a resolution of 640 x 480 pixels. To
display a higher resolution image, the projector compresses it to
640 x 480. The following table lists the display formats supported by
the projector:
Computer type Formats
IBM PC and VGA, VESA, JEGA
IBM PC compatible CGA
Apple Macintosh Standard 8- and
24-bit color monitor
NEC
PC
Resolutions
640 x 480
640x200
640x400
800 x 600*
640x480
832 x 624*
640x480
* The projector uses a patent-pending technology to resize the image to 640 x 480.
Note: The frequencies of some computers may not allow the image to be
displayed correctly.
Note: This projector is compatible with DDC-capable graphic sub-systems
and boards only.
57
Monitor and VGA connector pin assignments
The Monitor connector is a female video RGB, 15-pin micro-D-style
connector, and the VGA connector is a male video RGB, 15-pin
micro-D-style connector. The pin assignments for both connectors
are:
Input pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Signal
Red analog input
Green analog input with composite sync
Blue analog input
GND
GND
Red GND
Green GND
Blue GND
+5V
Sync GND
GND
SDA
Horizontal sync/composite sync input
Vertical sync input
SCL+
58
6 l Technical Specifications
Glossary
Brightness. The balance of light and dark shades in an image.
Composite video. A type of video signal that encodes picture,
luminance, and synchronization information so it can be carried in one
signal.
Contrast. A measure of the tonal differences between the highlights
and shadows of an image. In a high-contrast image, light areas are very
bright and dark areas are very dark, with relatively few levels of gray
between white and black. Contrast is decreased by adding grays.
NTSC. A 525-line video broadcast format developed by the National
Television Standards Committee. NTSC is widely used in North
America, Mexico, and Japan.
PAL (Phase Alternation by Line). A 625-line video broadcast format
used in Western Europe, India, China, Australia, New Zealand, and
parts of Africa.
59
Resolution. A measure of the amount of detail contained in an image.
Resolution can be measured in dots per inch or in pixels. Image
sharpness and clarity improve as resolution increases.
RGB. A type of color scheme that defines color as percentages of red,
green, and blue.
S-Video. A type of vid
eo signal used in S-VHS videotape formats. It
transmits luminance and color separately.
SECAM (System Electronique pour Couleur Avec Memoire). A
625-line TV system used in France, Eastern Europe, Russia, and parts
of Africa.
Sleep mode. A power-saving feature in which the projector’s lamp is
turned off when the projector has not been used for 30 minutes. In
sleep mode, only a minimum amount of the projector’s circuitry
remains on.
VGA. Video Graphics Array. A high-resolution display adapter that
provides a variety of video modes.
60
l Glossary
Index
Numerics
1, 2, 3 light, 27, 39
640 x 480 resolution, ix, 34, 52 to 53, 57
800 x 600 resolution, ix, 34, 57
A
Abnormality, 52
Accessories, xi to xii, 44
Adapter, Macintosh, 10 to 12
Air filter, 41, 43
Alcohol, 42
Amplification, 17
Angle, 4
Arrow buttons, 26, 32
Audio source, connecting to, 16 to 17
Audio In, 16 to 17
Audio Out, 18
B
Balance, 31, 54
Batteries, 5 to 6
Blank screen, 53
Blue, 36, 54
Brightness, 31, 38, 53
Bulb, 44
Burn, 44
Burned out, 51
Buttons
control panel, 26
menu, 35
remote control, 25
video, 52
61
C
Cable,
Cable, mouse, see Mouse cable
Camcorder, 14
Case, 42
Cleaning, 40 to 44, 54
Cloth, 42, 44
Color, 31, 54
Comp
Comp Sync button, 26
Comp Tracking button, 26
Composite video, 14
CompuServe, xvi
Computer
Connecting, 1, 6, 16
Connector, 15, 58
Consumption, power, 56
Contrast, 31, 38, 53
Control panel
3, 15, 17,
52
status light, 27, 30
sync, 34, 38
tracking, 34, 38
connecting to, 6 to 13
main menu, 30
option menu, 36
SETTINGS screen, 34
signal, 53
buttons, xi, 26, 39
displaying menus from, 30 to 32
Converter, 3
Cooling, 21 to
22, 27,
41, 44,
Cover
filter, 43
lamp, 45, 47
lens, 20, 52
opening, 42
Crooked screen image, 4
D
Darken, 31
Dealer, 41, 44
Depth, 56
Desktop
Macintosh, 10
PC, 7
Dimensions, 56
Dirt, 42, 54
Discharge, 56
Display format, 53, 57
Display setting, 52
Distance, 4, 53, 55
E
Edges, 36
Electrical
specifications, 56
voltage, 42
Enlarging screen image, 22
51
62
l Index
Environmental specifications, 56
EPSON
accessories, xi to xii
Customer Care Centers, xv
Electronic support services, xv to xvi
F
F connector, 14
Fan, 21, 51
Feet, 23
Filter, 41, 43 to 44
Flashing light, 21, 39, 47, 50
Focus ring, 21, 22, 53
Focusing, 22
Format, video, 14
Frequency, 56
Functions, computer, 25
Fuzzy, 26
G
Glossary, 59
Green, 36, 54
H
H position, 31, 38
Handle, 43, 46
Height, 22 to 23, 56
Help, xv to xvi
Hot, 44, 50 to 51
Humidity, 56
I
Image problem, 52
Image source, 52 to 53
Input signal, 35
Internet, xvi
J
Jack, 14 to 18
L
L jack, 16, 18
Lamp
cover, 45, 47
life, 34
replacing, 44 to 47
specifications, 56
timer, 47
warning lights, 50 to 52
Language, 36 to 37
Laptop, 8
Laser disc player, 14
Lens
cleaning, 42, 54
cover, 20, 52
holding projector by, 3
looking into, 5, 20
63
Light
lamp, 50
power, 20 to 22
temp, 50 to 52
Lighten image, 31
Lights
status, 27
warning, 21, 49 to 50
M
Macintosh
adapter,
connecting to the projector, 10 to 12
display problems, 52 to 53
supported monitors, 57
Main menu, 30, 38
Maintenance, 40 to 41
Mechanical specifications, 56
Memory, 38 to 40
Memory area, 27
Menu button, 24 to 25, 32 to 33, 35 to 36
Menus
choosing language, 36
main, 30 to 31
option, 35 to 37
Miniplug, 18
Monitor displays, supported, 57 to 58
Mouse cable, 1 to 3, 23
10, 12
Moving the image, 31
Mute, 24 to 25
N
National Television Standards Committee,
see NTSC
NTSC, x, 14, 31, 35, 38
O
Opaque, 31
Option menu, 35
Outlet, 5
Overheating,
P
PA system,
Packaging, 2
Phase Alternation by Line, see PAL
PAL, 14
PC, 57
PC desktop, 7 to 8
PC laptop, 8 to 9
Picture 1 or 2, 36 to 37
Pin assignments, 58
Plugs
red,
white, 16, 18
yellow,
Pointer button, 24 to 25, 33
41, 43, 51
1, 17
16,
18
15,
18
64
l Index
Polarized screen, xi
Power
button, 23 to 26
cable, 43, 51
cord, 4
lamp, 56
light, green, 20 to 21, 27, 51
light, orange, 5, 22, 27, 51
outlet, 52
turning on and off, 20 to 22
Power indicator, see Power light, green and
Power light, orange
PowerBook, 12 to 13
Presentation, 53
Preset
button, 26, 39
setup parameters, 38 to 40
values, 34 to 35
Problems, 49 to 54
R
R Audio In, 16
R jack, 18
Range, 55
RCA, 15, 17
Recalling a setup, 40
Red, 36, 54
Red light, 50
Red plug, 16, 18
Remote control
buttons, 24 to 25
problems with, iii
range, 55
receiver, 21, 23
using, x, 24 to 25
Resetting the lamp timer, 47
Resolution, ix, 34, 52 to 53, 55, 57
RGB, 58
Ring
focus, 21, 22, 53
zoom, 21, 22
S
instructions, iii, xiii to xiv
Safety
Screen image, 49
Screwdriver, 43, 45 to 46
Screws, 45 to 47
SECAM, 14
Service, 41, 51 to 52
Setting up, 1, 3
Settings, 31
SETTINGS screen, 34 to 35
Setup, recalling, 40
Setups, 26, 34 to 35, 38 to 40
Sharpness, 36 to 37
Shipping, 2
Signal, 53
Size, 55
65
Sleep mode, 5, 27
Sliders, 32
Smears, 42, 54
Softer images, 36 to 37
Software, 53
Sound system, 17
Source
audio,
1, 16
button, 24 to 26
stereo, 1
video, 1, 14
Speaker, 17
Specifications, 55 to 58
Status lights, 27, 51
Streaks, 26
Surface, 3, 53
S-Video, 3, 14 to 15
Sync, 38, 47, 53
Sync, comp, 34
Synchronize, 26
System Electronique pour Couleur Avec
Memoire. see SECAM
T
Temp, 50 to 52
Temperature, 51, 56
Temperature light, 50 to 52
TFT, 55
Thin Film Transistor, see TFT
Timer, 47
Tint, 31, 38, 54
Tracking, 26, 34, 38, 47
Transport, 2
Troubleshooting, 49 to 54
U
Unpacking, 2
V
V position, 31, 38
Vacuum, 44
Ventilation, 41, 43, 51
Vertical lines, 26
VGA, 58
Video
light, 27
main menu, 31
option menu, 37
SETTINGS screen, 35
Video Graphics Array, see VGA
Video In, 15
Video-out, 15
Video source, connecting to, 14
Voltage
input, 56
warning, 42
Volume, 23 to 26, 34 to 35, 55
66
l Index
W
Warning lights, 49 to 50
Water, 42
Watts, 56
Weight, 56
White plug, 16, 18
Width, 56
Windows, 52
Wireless mouse, 1, 23
Y
Yellow plug, 15
Z
Zoom, 55
Zoom ring,
21, 22
67
Loading...
