Epson ELP-3300 User Manual

EPSON

®

Owner’s Manual

i

All rights reserved. No part of this publication may be reproduced, stored in a retrieval system,
or transmitted in any form or by any means, electronic, mechanical, photocopying, recording,
or otherwise, without the prior written permission of Seiko Epson Corporation. No patent
liability is assumed with respect to the use of the information contained herein. Neither is any
liability assumed for damages resulting from the use of the information contained herein.

Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this
product or third parties for damages, losses, costs, or expenses incurred by purchaser or third
parties as a result of: accident, misuse, or abuse of this product or unauthorized modifications,
repairs, or alterations to this product, or (excluding the U.S.) failure to strictly comply with
Seiko Epson Corporation’s operating and maintenance instructions.

Seiko Epson Corporation shall not be liable against any damages or problems arising from the
use of any options or any consumable products other than those designated as Original EPSON
Products or EPSON Approved Products by Seiko Epson Corporation.

EPSON is a registered trademark of Seiko Epson Corporation.
EPSON Connection is a service mark of Epson America, Inc.

General Notice: Other product names used herein are for identification purposes only and may
be trademarks of their respective owners. EPSON disclaims any and all rights in those marks.

The Energy Star emblem does not represent EPA endorsement of any product or service.

Copyright © 1996 by Epson America, Inc. 4005478
Torrance, California, USA 2/96

ii

FCC Compliance Statement

For United States Users

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment.

WARNING

The connection of a non-shielded equipment interface cable to this equipment will invalidate the FCC Certification of this
device and may cause interference levels which exceed the limits established by the FCC for this equipment. It is the
responsibility of the user to obtain and use a shielded equipment interface cable with this device. If this equipment has
more than one interface connector, do not leave cables connected to unused interfaces. Changes or modifications not
expressly approved by the manufacturer could void the user’s authority to operate the equipment.

DOC (for Canadian Users)

This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment regulations.
Cet appareil numérique de la Classe A respecte toutes les exigences du Réglement sur le materiel brouilleur du Canada.

Apple Warranty Disclaimer

Apple Computer, Inc. (“Apple”) makes no warranties, express or implied, including without limitation the implied
warranties of merchantability and fitness for a particular purpose, regarding the Apple software. Apple does not warrant,
guarantee or make any representations regarding the use or the results of the use of the Apple software in terms of its
correctness, accuracy, reliability, currentness or otherwise. The entire risk as to the results and performance of the Apple
software is assumed by you. The exclusion of implied warranties is not permitted by some states. The above exclusion may
not apply to you.

In no event will Apple, its directors, officers, employees or agents be liable to y o u for any consequential, incidental or
indirect damages (including damages for loss of business profits, business interruption, loss of business information, and
the like) arising out of the use or inability to use the Apple software even if Apple has been advised of the possibility of
such damages. Because some states do not allow the exclusion or limitation of liability for consequential or incidental
damages, the above limitations may not apply to you. Apple’s liability to you for actual damages from any cause
whatsoever, and regardless of the form of the action (whether in contract, tort (including negligence), product liability or
otherwise), will be limited to $50.

Energy Star Compliance

EPSON is an Energy Star Partner and this projector complies with the Energy Star program's
guidelines for energy efficiency.

iii

Important Information About Your ELP-3300

Please read the following important information about your ELP-3300 projector.

Important Safety Information

WARNING: Never look into the projector lens when the lamp is turned on;
the bright light can damage your eyes. Never let children look into the lens
when it is on.

WARNING: Never open any cover on the projector, except the lamp, fuse, and
filter covers. Dangerous electrical voltages inside the projector can severely
injure you. Except as specifically explained in this Owner’s Manual, do not
attempt to service this product yourself. Refer all servicing to qualified
service personnel.

Caution: When you replace the lamp, never touch the new bulb with your
bare hands; the invisible residue left by the oil on your hands may shorten
the bulb life. Use a cloth or glove to handle the new bulb.

Remote Control Information

The ELP-3300 allows you to operate it by remote control via infrared (IR)
receivers located at the front and back of the projector. The projector may not
respond to remote control commands under the following conditions:

• The ambient light is too bright

iii

• Certain types of fluorescent lighting are used

• A strong light source shines into either IR receiver

• Other equipment that emits infrared energy, such as a radiant room heater, is
in the room.

These conditions commonly cause problems for most infrared-controlled
equipment. Try the following solutions:

• The remote control unit’s batteries may be low on power; replace them.

• Dim the ambient lighting and/or turn off any fluorescent lights.

• Close any window coverings and/or move the projector out of direct sunlight.

• Turn off other equipment that emits infrared energy.

If the remote control still does not work properly, cover the unused IR receiver
on the projector with light-blocking material, such as masking tape. Remember
you can always control your computer-based presentation directly from the
computer, even in an environment containing one of the conditions listed above.

README File Information

The diskettes that came with your projector include README files that contain
additional important information about the projector. Be sure to read these files.

iv

Contents

Introduction

Getting the Most Out of Your Projector x
Optional Accessories xii
About This Manual xiii
Safety Instructions xiv
Where to Get Help xvi

Electronic support services xvii

Energy Star Compliance xviii

1 Installation 1

Unpacking the Projector 2

Additional components 3
Setting Up the Projector 4
Connecting to a Computer 6

Connecting to a PC desktop computer 7

Contents

ix

v

Connecting to a PC laptop computer 8
Connecting to a desktop Macintosh 9
Connecting to a PowerBook 10

Connecting to a Video Source 11
Connecting to an Audio Source 13
Connecting to an External Speaker or PA System 14
Setting Up Serial Communication 15

Connecting the serial cable 15
Installing the software 16

Connecting the Remote Control with the Lead Wire 17

2 Using the Projector 19

Turning the Equipment On and Off 20
Focusing and Positioning the Screen Image 21
Controlling the Projector 23

Adjusting the settings from ELP Link 26

Monitoring the Projector 27
Using Rear Projection 28

3 Using the Menus 29

Accessing the Menus 30

Changing menu settings 31
Accessing ELP Link menus 32
Restoring the default settings 33

Menu Settings 33

vi

Contents

Computer menu 34

Video menu 36

Display menu 37

Audio menu 39

Options menu 40

Custom menu 41

4 Remote Control of the Computer 43

ELP Remote Programmer Templates 44
Starting the ELP Remote Programmer 45
Assigning a Macro to a Programmable Button 48

Using record mode 49

Using manual mode 51
Activating a Template 51
ELP Remote Programmer Menus 52

5 Maintenance 53

Cleaning the Lens 54
Cleaning the Projector Case 54
Cleaning the Air Filter 54
Cleaning the Trackball 56
Replacing the Lamp 58

Resetting the lamp timer 61
Replacing the Fuse 62

Contents

vii

6 Troubleshooting 65

Problems with the Projector 66
Problems with the Image or Sound 69
Problems with the Remote Control 72

A Technical Specifications 75

General 75
Optical 76
Projector Lamp 76
Mechanical 76
Electrical 77
Environmental 77
Supported Monitor Displays 78
Pin Assignments 79

Glossary 81

Index 85

viii

Contents

Introduction

he compact, lightweight EPSON® ELP-3300 Projector allows you to project

T

computer images and video onto a large screen for full-color presentations. The
projector can connect simultaneously to two image sources; one can be your PC
or Apple
VCR, camcorder, digital camera, or laser disk player. Audio can be supplied with
one or both image sources.

®

Macintosh® computer and the other can be a video source, such as a

Images are displayed in up to 16 million colors at a resolution of 640

x 480

pixels. The projector’s 300-lumen bulb produces bright images that can be easily
seen in rooms light enough to take notes. You can play audio on the projector’s
internal speakers or route it to an external speaker for amplification. You control
the projector through a hand-held remote control, which allows you to switch
between image sources and make adjustments to the projected image.

The projector supports any computer capable of VGA output, including IBM
compatible PCs and laptops and Apple Macintosh computers, including the
PowerBook

TM

and Power Macintosh.

TM

The video source can be NTSC, PAL,

®

-

and SECAM in composite video or S-Video format.

ix

Getting the Most Out of Your Projector

The projector comes with a full set of features that allow you to control the
settings for the image display, video, and audio. To get the most out of your
projector, read this section for a quick summary of the important features.

Remote control

The buttons on the remote control allow you to directly change the volume,
control the brightness, or switch from one image source to the other. Additional
adjustments can be made by using the buttons on the remote control to access
the projector’s menu system.

The menus, which you can superimpose on the projector image or display on
your computer screen, allow you to do the following:

• Control the brightness, contrast, sharpness, color, and position of the image.

• Adjust the volume, balance, treble, and bass settings.

• Adjust the display by rotating or inverting it.

Additional settings are described in Chapter 3.

You can also use the remote control to control your computer if you install the
Serial Communication Kit.

x

Introduction

Serial Communication Kit

The Serial Communication Kit allows your computer and projector to communi­cate over an RS-232C connection. The kit includes an RS-232C serial cable and
two software utilities: ELP Link and ELP Remote Programmer.

• ELP Link allows you to make adjustments to the projector from your computer.
The same controls that are available on your remote control, including the
ability to access the projector menus, are available from the main ELP Link
screen.

• The ELP Remote Programmer allows you to use the remote control to control
your computer. The trackball moves the mouse on your computer monitor, and
five buttons on the remote control can be programmed to drag or click
windows and icons or perform the same functions as keys on your keyboard.

For information on using ELP Link, see Chapters 2 and 3. For information on the
ELP Remote Programmer, see Chapter 4.

Standby mode

Standby mode conserves electricity by automatically turning off the lamp if the
projector has not been used for a specified period of time (the default is
10 minutes). In standby mode, the projector remains on but the lamp is turned
off. This conserves electricity, cools the projector, and extends the life of the lamp.

Use the Standby button on the remote control to turn standby mode on or off.

Getting the Most Out of Your Projector

xi

Rear projection

If you have a translucent screen, you can set up the projector for rear projection,
in which the projector sits behind the screen. To use the remote control with rear
projection, you need to purchase the optional lead wire and connect the remote
control directly to your computer.

Optional Accessories

To enhance your use of the projector, EPSON provides the following accessories:

• Polarized screens designed specifically for use with the projector. They allow
you to project images in a bright, illuminated room, making it unnecessary to
dim lights to view the projected image. The polarized screen comes in two
sizes: 40" and 60" diagonal.

• Carrying cases especially designed for the projector and its cables. Both a soft
and hard case are available.

• Remote control lead wire, which allows you to directly connect the remote
control to the projector. This option enables you to use the remote control
when an object is blocking the path between the remote control and projector,
such as during rear projection when the screen is between the remote control
and the projector.

xii

You can purchase these accessories from your ELP-3300 dealer or by calling
EPSON Accessories at [phone].

Introduction

About This Manual

Chapter 1, “Installation,” gives step-by-step instructions on setting up the
projector and connecting it to your computer, video source, and optional other
equipment. Read the installation procedures that apply to your environment.

Chapter 2, “Using the Projector,” tells you how to turn on the projector; control
simple projector settings using the remote control, the operation panel, and the
ELP Link software; and set up the projector for rear projection.

Chapter 3, “Using the Menus,” describes how to use the menus to adjust the color
and image settings, change the display of the projected image, and modify audio
settings such as bass or treble.

Chapter 4, “Remote Control of the Computer,” explains how to use the ELP
Remote Programmer so you can use the remote control to control your com­puter. It also describes how you can assign keyboard macros to the program­mable buttons on the remote control.

Chapter 5, “Maintenance,” describes how to maintain the projector in good
working order.

Chapter 6, “Troubleshooting,” tells you how to interpret the projector’s status
lights and gives helpful information for avoiding errors, optimizing image quality,
and solving problems.

Appendix A provides technical specifications.

About This Manual

xiii

Safety Instructions

Follow these safety instructions when setting up and using the projector:

1. Do not place the projector on an unstable cart, stand, or table.

2. Do not use the projector near water or sources of heat.

3. Use attachments only as recommended.

4. Use the type of power source indicated on the projector. If you are not sure

of the type of power available, consult your dealer or local power company.

5. Insert the projector’s three-wire grounding-type plug into a properly

grounded outlet. If you have a two-prong outlet, contact an electrician to
replace it.

6. Do not overload wall outlets, extension cords, or integral convenience

receptacles. This can cause fire or electric shock.

7. Do not place the projector where the cord can be walked on.

8. Unplug the projector from the wall outlet before cleaning. Use a damp cloth

for cleaning. Do not use liquid or aerosol cleaners.

xiv

9. Do not block the slots and openings in the projector case. They provide

ventilation and prevent the projector from overheating. Do not put the
projector on a sofa, rug, or other soft surface or in a built-in installation
unless proper ventilation is provided.

Introduction

10. Never push objects of any kind through cabinet slots. Never spill liquid of any
kind in the projector.

11. Except as specifically explained in this Owner’s Manual, do not attempt to
service this product yourself. Opening or removing covers may expose you to
dangerous voltages and other hazards. Refer all servicing to qualified service
personnel.

12. Unplug the projector during lightning storms or when it will not be used for
extended periods.

13. Unplug the projector from the wall outlet and refer servicing to qualified
service personnel under the following conditions:

A. When the power cord or plug is damaged or frayed.

B. If liquid has been spilled into it or it has been exposed to rain or water.

C. If it does not operate normally when the operating instructions are

followed or if it exhibits a distinct change in performance, indicating a
need for service.

D. If it has been dropped or the cabinet has been damaged.

Safety Instructions

xv

Where to Get Help

If you purchased your projector in the United States or Canada, EPSON provides
customer support and service through a network of authorized EPSON Customer
Care Centers. EPSON also provides the following services when you dial
[phone]:

• EPSON Technical information library fax service

• Product literature on current and new products

• Assistance in locating your nearest Authorized EPSON Reseller or Customer
Care Center

• Technical information on the installation, configuration, and operation of
EPSON products

• Customer relations.

You can purchase supplies, parts, printed manuals, and accessories for EPSON
products by calling EPSON Accessories at [phone] (U.S. sales only). In
Canada, call (800) BUY-EPSON for sales locations.

xvi

If you purchased your projector outside the United States or Canada, contact your
EPSON dealer or the marketing location nearest you for customer support and
service.

Introduction

Electronic support services

If you have a modem, you can access helpful tips, specifiations, drivers, applica­tion notes, and bulletins for EPSON products through the online services below.

EPSON Download Service

You can call the EPSON Download Service (our BBS) at [phone]. No
membership is required. Make sure your communications software is set to 8
data bits with 1 stop bit, no parity bit, and a modem speed up to 28.8 Kbps. See
the manual that came with your communications software for more information.

CompuServe® online support

CompuServe members can call the Epson America Forum on CompuServe. If you
are already a member, simply type GO EPSON at the menu prompt to reach the
Epson America Forum. If you are not currently a member of CompuServe, you
are eligible for a free introductory membership as an owner of an EPSON
product. This membership entitles you to:

• An introductory credit on CompuServe

• Your own user ID and password

• A complimentary subscription to CompuServe Magazine, CompuServe’s
monthly publication.

Where to Get Help

xvii

To take advantage of this offer, call [phone] in the United States
and Canada and ask for representative #529. In other countries, call
[phone] or your local CompuServe access number.

World Wide Web site

If you are connected to the Internet and have a Web browser, you can access
EPSON's World Wide Web site at http://www.epson.com. EPSON’s home page
links users to What’s New, EPSON Products, EPSON Connection, Corporate Info,
and EPSON Contacts. Link to the EPSON Connection for the latest drivers and
FAQs (Frequently Asked Questions) and the EPSON Chat area. To get in touch
with EPSON around the world, EPSON Contacts includes Contact Information for
local EPSON subsidiaries.

Energy Star Compliance

As an Energy Star Partner, EPSON has determined that this product meets the
Energy Star guidelines for energy efficiency. The EPA estimates that if all desktop
computers, printers, and other peripheral devices met Energy Star standards,
energy cost savings would exceed $1 billion annually and carbon dioxide
emissions would be reduced by 20 million tons.

xviii

Introduction

1

Installation

T

his chapter describes how to unpack, set up, and connect your projector to
other equipment. You must connect the projector to your computer or to a video
source such as a VCR, camcorder, digital camera, or laser disk player. Connecting
to other equipment is optional. For example, you may want to connect the projec­tor to both your computer and video source, or set up the projector for one or
more of the following:

• Provide audio for one or both image sources. The audio source can be the

computer, video source, or another device such as a stereo.

• Connect to an external speaker or PA system to amplify the audio.

• Install the RS-232C Serial Communication Kit. This kit enables communication

between your computer and the projector so you can use the remote control to
control your computer and use your computer to control the projector settings.

• Directly connect the remote control and the projector using the optional lead

wire. You need to do this to use the remote control for rear projection.

1

Unpacking the Projector

When you unpack the projector, make sure you have all these components:

• Projector

• Remote control

• 2 AA batteries

• Power cord

• Y-shaped VGA cable

• 2 Macintosh adapters (labeled VGA and MONITOR)

• Lens cover

• Video/audio cable

• RS-232C serial communication kit, which consists of an RS-232C serial cable,
an RS-232C adapter for the Macintosh, and two diskettes (one for the
Macintosh, and one for the PC)

• Spare fuse.

Depending on your configuration, you may not need all of these components.

Save all packaging materials in case you need to ship the projector in the future. It
should always be transported in its original packaging or the equivalent.

2 1 • Installation

Additional components

Depending on how you plan to use the projector, you may need to obtain
additional components:

• To receive audio from both the computer and video source, you need a second
video/audio cable. See your computer dealer to obtain one.

• To receive an S-Video signal, you need an S-Video cable. One is usually
provided with your video device.

• For a Macintosh PowerBook, you need a video-out cable. One is provided for
all new PowerBooks that have video-out capability. If your PowerBook does
not include one, see your Macintosh dealer.

• To connect the projector to external speakers, you need an RCA-to-3.5mm
audio cable. You can obtain one from your computer dealer.

• If your PC has a 25-pin RS-232C port, you need a 25-pin to 9-pin converter.
You can obtain one from your computer dealer.

Unpacking the Projector

3

Setting Up the Projector

1. Place the projector on a sturdy, level surface within five feet of the computer
or video source.

◆ Caution: Do not hold the projector by the lens when you move it. This

will damage the lens.

2. Place the projector the proper distance from the screen.

The distance between the projector and the screen determines the actual
image size. Use the following general guidelines to determine the proper
distance.

Maximum Zoom Minimum Zoom

300 inches (25 feet) 214 inches (30 feet) 40 feet
204 inches 146 inches 27 feet
96 inches 69 inches 13 feet
60 inches 42 inches 8 feet
30 inches 21 inches 4 feet

Image size Distance from screen

(diagonal) (approximate)

3. Turn the projector so the lens is at a right angle to the screen. If the projector
is not at a right angle, the screen image will be crooked.

4 1 • Installation

4. Connect one end of the power cord to the projector’s power connector.
Connect the other end to a grounded electrical outlet.

If the projector comes on, turn it off using the power switch at the back of
the projector.

5. To insert the batteries in the remote control, slide off the battery compart­ment cover as shown here.

6. Insert the two AA batteries included with the projector. Make sure the
polarity of the batteries is correct.

7. Replace the battery compartment cover.

Setting Up the Projector

5

When replacing batteries, take the following precautions:

• Do not mix old and new batteries.

• Replace batteries as soon as they run out. If the batteries leak, wipe away the
fluid with a soft cloth. If battery fluid gets on your hands, wash immediately.

• Remove batteries if you will not be using the projector for long periods.

Connecting to a Computer

You can connect the projector to any computer capable of VGA output, including:

• IBM desktop PC or compatible

• IBM laptop or compatible

• Apple Macintosh desktop computer, including Macintosh Quadra,

• Any Apple PowerBook with video-out capability. This includes all 160, 165,

®

Centris,

and Power Macintosh

180, and 500 series PowerBooks.

®

Macintosh

See the following section that applies to your computer.

6 1 • Installation

Connecting to a PC desktop computer

Before beginning, turn off the projector and computer if they are on. To access
the connectors on the projector, push open the cover located on the right side
of the projector, under the handle.

1. Disconnect the computer’s monitor cable from the VGA port on the back of
your computer and connect it to the MONITOR connector of the Y-cable.

2. Connect the Y-cable’s VGA connector to the computer’s VGA port.

3. Connect the Y-cable’s LCD connector to the projector’s Computer IN/OUT
port.

4. Tighten the screws for all connectors to make sure they are fastened securely.

monitor
cable

MONITOR
connector

VGA port

2

1

VGA connector

3

LCD connector

Connecting to a Computer

Computer

Computer In/Out

LR

Audio In

S-Video

7

Connecting to a PC laptop computer

Before beginning, turn off the projector and computer if they are on. To access
the connectors on the projector, push open the cover located on the right side of
the projector, under the handle.

1. Connect the LCD connector on the Y-cable to the projector’s Computer
IN/OUT port.

2. Connect the VGA connector on the Y-cable to the laptop’s monitor port.

3. Tighten the screws for all connectors to make sure they are fastened securely.

2 1

VGA connector

MONITOR connector

LCD connector

Computer

Computer In/Out

LR

Audio In

S-Video

When the external graphics port is activated, some laptop computers
automatically turn off their internal display. See your computer manual for
information on using the internal display.

8 1 • Installation

Connecting to a desktop Macintosh

Before beginning, turn off the projector and Macintosh if they are on. To access the
connectors on the projector, push open the cover located on the right side of the
projector, under the handle.

1. Attach the Macintosh adapters provided with the projector to the appropriate
connectors on the Y-cable. Connect the MONITOR adapter to the MONITOR
connector (1a), and connect the VGA adapter to the VGA connector (1b).

2. Disconnect the monitor cable from the monitor port on the back of the
Macintosh and connect it to the MONITOR Macintosh adapter.

3. Connect the VGA adapter (attached to the Y-cable) to the Macintosh’s monitor
port.

4. Connect the Y-cable’s LCD connector to the projector’s Computer IN/OUT port.

5. Tighten the screws for all connectors to make sure they are fastened securely.

Macintosh
monitor cable

MONITOR adapter

monitor port

3

1b

2

VGA adapter

VGA connector

1a

4

LCD connector

MONITOR connector

Connecting to a Computer

Computer

Computer In/Out

LR

Audio In

S-Video

9

Connecting to a PowerBook

Your PowerBook must have a video-out capability. See page 6 for more information.

Before beginning, turn off the projector and computer if they are on. To access the
connectors on the projector, push open the cover located on the right side of the
projector, under the handle.

1. Attach the video-out cable supplied with your PowerBook to the video-out
connector on the back of the PowerBook.

2. Attach the Macintosh VGA adapter to the VGA connector of the Y-cable.

3. Connect the VGA Macintosh adapter to the video-out cable.

4. Connect the Y-cable’s LCD connector to the projector’s Computer IN/OUT port.

5. Tighten the screws for all connectors to make sure they are fastened securely.

6. In the PowerBook’s Display Control Panel, select Mirroring.

Computer

Computer In/Out

LR

Audio In

S-Video

1

3

10 1 • Installation

VGA

connector

2

4

LCD connector

monitor connector

Connecting to a Video Source

The projector can receive composite video or S-Video. You have composite video
if your video source has a one-pin RCA video jack. You have S-Video if your video
source has a four-pin video jack.

Note: The projector is not compatible with a cable TV-style F connector.

You can connect to both an S-Video and a composite video source at the same
time. However, the projector automatically selects the S-Video source. To display
composite video, you need to disconnect the S-Video source.

The projector supports NTSC, PAL, and SECAM video formats. By default, it
automatically detects and identifies the video format. However, you can specify
that a single broadcast format be detected. (See “Video menu” in Chapter 3.)
Note that the projector will then be able to detect only one type of video signal.

The type of cable you use to connect the video source to the projector depends
on whether you have composite video or S-Video. For composite video, use the
video/audio cable supplied with the projector. For S-Video, use the S-Video cable
supplied with your video device or obtain one from your computer dealer.

To connect a video source to the projector:

1. Turn off the projector and video source if they are on.

2. Locate the video-out jack on the video source. It may be labeled Video Out,
To Monitor, or something similar.

Connecting to a Video Source

11

For composite video, connect the yellow RCA plug on one end of the video/audio
cable to the projector’s Video In jack. Connect the other yellow RCA plug to the
video-out jack of the video source. (The red and white plugs carry audio. For
information about audio, see page 13.)

S-Video cable

S-Video

Video

Video In

yellow

video/audio cable

LR LR

yellow

For S-Video, insert one end of the S-Video cable into the projector’s S-Video jack.
Insert the other end to the video-out jack of your video source.

S-Video

Video

Video In

Audio InAudio In

LR LR

Audio InAudio In

12 1 • Installation

Connecting to an Audio Source

The projector has two inputs for audio: one for your computer and one for your
video source. Each input has two audio jacks: the L jack controls the left speaker
and the R jack controls the right speaker. If you’re connecting to an audio
source that has only a single plug, connect it to the L Audio In jack.

To receive audio from the computer or video source, use the video/audio cable
supplied with the projector. To receive audio from both the computer and video
source, you need to obtain an additional cable from your computer dealer.

1. Connect one end of the audio cable to the appropriate (computer or video
source) Audio In jacks on the projector. Insert the white plug in the L Audio
In jack and the red plug in the R Audio In jack. (You don’t use the yellow
plug unless you’re supplying composite video.)

2. Connect the other end of the cable to the audio source. Insert the white plug
in the L Audio Out jack, and the red plug in the R Audio Out jack.

white

video/audio cable

S-Video

Video

Video In

Audio InAudio In

13

LR LR

red

2

1

white

red

Connecting to an Audio Source

Connecting to an External Speaker or PA System

For most small- or medium-sized rooms, the projector’s internal speakers are
sufficient. If you need extra amplification for a large room, you can connect the
projector to an external amplified speaker or PA system.

To connect the projector to an external sound system, you need to obtain an RCA­to-3.5mm Stereo audio cable. You can get one from your computer dealer.

Before beginning, turn off the projector and the speaker or PA system.

1. Connect the cable’s 3.5mm stereo miniplug into the projector’s Audio Out
jack.

2. Connect the RCA plug to the external amplified speaker or PA system. Insert
the cable’s red plug into the R side, and the white plug into the L side.

You should now adjust the Fade menu setting. See page 39.

L (white)

R (red)

RCA/3.5mm cable

2

14 1 • Installation

Serial

Remote

12V

0.35A

DC
Out

LR

Audio

Audio In

Out

1

3.5mm miniplug

Setting Up Serial Communication

The RS-232C Serial Communication Kit allows your computer and projector
to communicate so you can access the projector menus from your computer
and use the remote control to control your computer. The kit consists of a
cable, a Macintosh adapter, and two software utilities: ELP Link and ELP
Remote Programmer.

Instructions for installing the cable and software are given in the next two
sections. For information on using ELP Link, see Chapters 2 and 3. For
information on the ELP Remote Programmer, see Chapter 4.

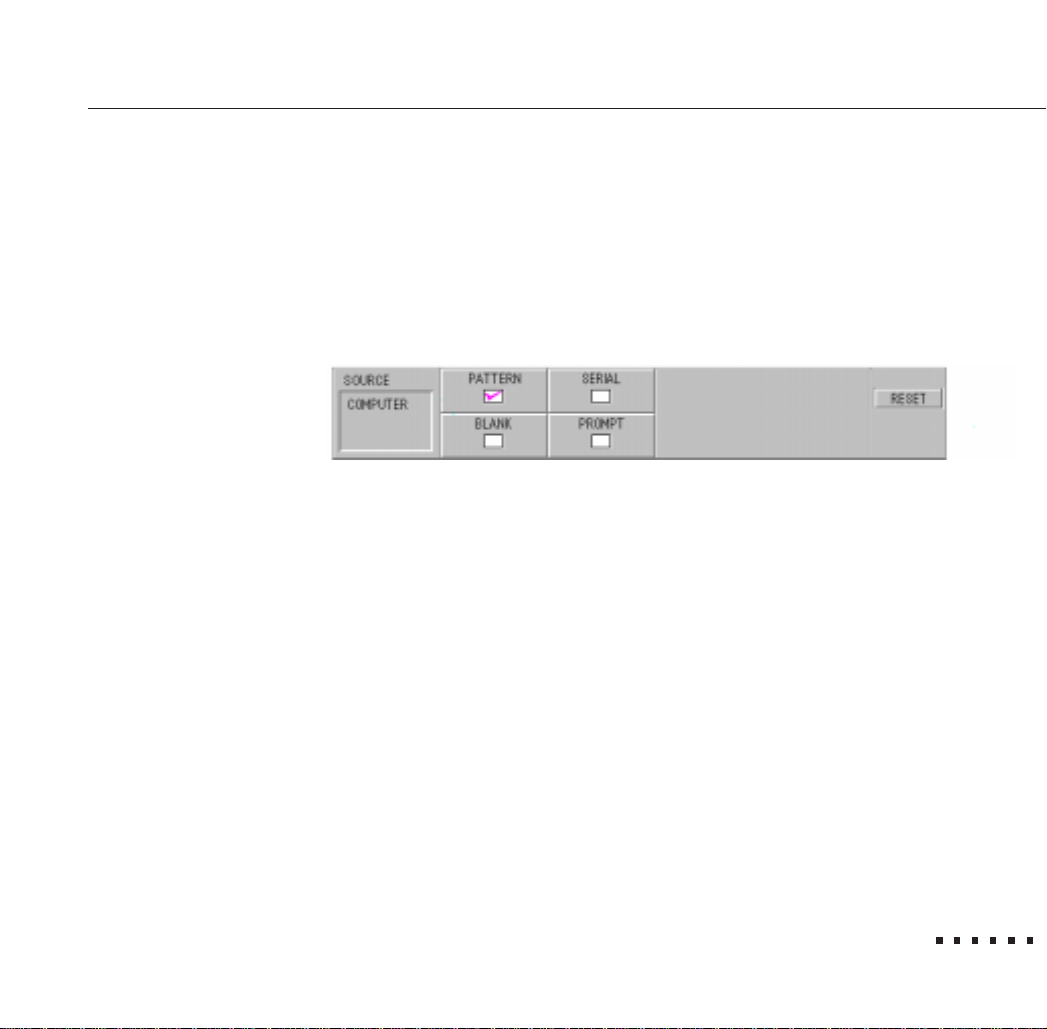

By default, the Serial setting in the Options menu is on to enable communication
when the Serial Communication Kit is installed. If, after installing the kit, you
cannot enable communication, make sure the Serial setting has not been turned
off. See Chapter 3 for more information about the menus.

Connecting the serial cable

To connect the serial RS-232C cable to your computer and projector:

1. Connect one end of the serial RS-232C cable to the projector’s RS-232C
connector.

2. If you have a Macintosh, attach the RS-232C adapter to the modem port on
the Macintosh.

Setting Up Serial Communication

15

The modem port is identified by the following icon:

3. Connect the other end of the RS-232C cable to the PC’s RS-232C serial
connector or to the RS-232C adapter on your Macintosh. The serial
connector on your PC is a nine-pin male connector. It may be labeled Serial,
RS-232C, COM1, or something similar. If you have a 25-pin serial connector,
you need to obtain a 25-pin to 9-pin converter.

Installing the software

Two diskettes are provided with the kit: one for the Macintosh and one for the PC.
Use only the diskette appropriate for your platform. Each contains ELP Link and
the ELP Remote Programmer.

Before installing the software, exit any open programs. Insert the appropriate
diskette in a diskette drive. Then do the following:

• Windows.

File menu; for Windows 95, choose Start and then Run. In the Command Line
text box, type A:SETUP or B:SETUP as appropriate. Choose OK. Then
follow the onscreen instructions.

®

For version 3.1, in the Program Manager, choose Run from the

• Macintosh. Double-click on the ELP Installer icon and follow the onscreen

instructions.

16 1 • Installation

Connecting the Remote Control with the Lead Wire

If you set up the projector for rear projection and want to use the remote control
to control the projector, you need to connect the remote control directly to the
projector with the optional lead wire. You might also need to directly connect
the remote control if anything is blocking the path between the remote control
and the projector.

To directly connect the remote control, connect one end of the lead wire to the
projector’s Remote jack. Connect the other end to the output terminal at the front
end of the remote control. Make sure both ends are plugged in securely.

lead wire

Connecting the Remote Control with the Lead Wire

LR

Audio In

Audio

Out

Serial

Remote

12V

0.35A

DC
Out

17

18 1 • Installation

2

Using the Projector

T

his chapter provides the following information about using your projector:

• Turning the equipment on and off

• Focusing and positioning the image

• Controlling the projector with the remote control, operation panel, and ELP
Link software

• Monitoring the status of the projector

• Using rear projection.

19

Turning the Equipment On and Off

Always turn on the projector and its attached equipment in the following order:

1. Monitor

2. Video source

3. Audio source (if different than computer or video source)

4. Projector

5. External amplified speaker or PA system

6. Computer.

The projector’s power switch is at the back. When you turn on the projector, the
green power indicator comes on and the lamp begins to warm up. Remove the
lens cap. After a few seconds, an image appears on screen.

◆ Warning: Never look into the lens when the lamp is on. This can damage

your eyes. It is especially important that children not look into the lens.

If the lamp does not come on when you turn on the projector, the projector may
be in standby mode. To turn off standby mode, press the Standby button on the
remote control.

To turn off the projector and other equipment, reverse the order shown above.
After you turn off the projector, the fan may remain on a few minutes to dissipate
heat from the lamp. Always wait 10 to 60 seconds before turning the projector
back on. If you turn on the projector immediately after turning it off, the lamp
might be too hot and the projector will not turn on.

20 2 • Using the Projector

The following illustration identifies the different parts of the projector:

operation panel

status lights

input/output
connectors

Focusing and Positioning the Screen Image

When an image appears on screen, check that it is in focus and correctly
positioned on the screen. To focus the image, rotate the focus ring, which is the
outside ring on the lens. To adjust the size of the image, rotate the zoom ring,
which is the inside ring. Rotate the zoom ring clockwise to make the screen
image larger or counterclockwise to make it smaller.

remote control
receiver

zoom ring

focus ring

foot release button

foot

Focusing and Positioning the Screen Image

21

If you need to raise or lower the image on the screen, extend or retract the two
feet at the bottom of the projector as follows:

1. Stand behind the projector and support the front of it while you press the
purple release buttons located above the feet. This unlocks the feet so they
can move up and down freely. Do not let the projector drop.

◆ Caution: Do not hold the projector by its lens. This can damage the lens.

2. While pressing the release buttons, raise or lower the projector until the
screen image is correctly positioned.

3. Release the buttons to lock the feet in their new position.

4. To fine-tune the height of the projector, turn the feet clockwise to raise the
height or counterclockwise to lower it.

22 2 • Using the Projector

Controlling the Projector

Normally you control the projector using the remote control. The buttons on the
remote control allow you to do the following:

• Switch between the computer and video images

• Adjust the brightness, volume, and synchronization

• Turn standby mode on or off

• Access the menus to adjust the image, audio, video, or display settings
(described in Chapter 3)

• Control your computer (described in Chapter 4).

The functions of the remote control buttons are summarized on page 25.

To use the remote control, always point it toward one of the two remote control
receivers. One is located at the front of the projector; the other is located on the
back. You can use the remote control up to 33 feet (10 meters) from the projector.

In addition to the remote control, you can control the projector by:

• Pressing the buttons on the projector’s operation panel, located on top of the
projector. These buttons duplicate the buttons on the remote control.

• Running the ELP Link software on your computer. This program contains
the same controls available on the remote control, including the menus.
See page 26 for more information.

Controlling the Projector

23

Standby

Menu

Prev. Next

Custom

Video

Standby

Menu

Menu

Select

Freeze Mute

Sync Bright

Drag

-

L

++

Adjust

- Bright +

Function

Select

Menu
Select

Light

+

Vol.

---

+

R

- Vol +- Sync +

Function

_

Adjust

+

FreezeMute Video

24 2 • Using the Projector

Button/component Function

Standby T u rns standby mode on or off .
Prev , Next* Control the computer (see Chapter 4).
Menu Displays or hides the menus.
Custom Selects one of four functions: pattern (default), serial, blank, or

Video Switches between the computer image and video source.
Freeze Freezes or unfreezes the image.
Mute Turns off the sound.
Light Illuminates buttons for 10 seconds or until you press a button

Sync (+ and -) Synchronize the RGB signals coming from the computer to

Bright (+ and -) Adjust the image brightness.
V olume (+ and -) Adjust the volume level.
Drag/Menu Select* Selects a menu when the menu bar is displayed or controls

T r ac kball Moves the cursor when using the projector menus, or moves

Adjust buttons (+ and -)* Adjust the settings when using the projector menus. When no

prompt. See Chapter 3 to assign the function.

or use the trackball. Pressing again keeps the buttons on for
another 10 seconds.

eliminate flickering.

the computer (see Chapter 4).

the mouse on your computer screen.

menu is displayed, these buttons control the computer .

* Programmable to control the computer. See Chapter 4 f or more inf ormation.

If you do not use the remote control for 15 minutes, it enters sleep mode and
cannot be reactivated using the trackball. Press any button to turn off sleep mode
so you can use the trackball.

Controlling the Projector

25

Adjusting the settings from ELP Link

If you set up the projector for serial communication as described in Chapter 1,
you can use the ELP Link program to control the projector from your computer.
To start ELP Link, do one of the following:

• Windows. Open the ELP Utilities program group by double-clicking on its

icon. Then double-click the ELP Link icon.

• Macintosh. Open the ELP Utilities folder by double-clicking on its icon.

Double-click the ELP Link folder icon and then double-click the ELP Link icon.

You see a screen similar to the following:

26 2 • Using the Projector

The buttons on the right side of the screen allow you to control the projector
settings as you do with the remote control. See the table on page 25 for a
description of these buttons. The buttons on the left allow you to access the
menus. For more information about the menus, see Chapter 3.

Monitoring the Projector

The three lights at the top of the projector monitor its operating status:

temperature light power light

Under normal circumstances the power and lamp lights are green and the
temperature light is off. (During standby mode, the lamp light is off and the
power light is orange.) Any time the status or operation of the projector changes
or whenever a problem occurs, the lights flash or turn orange. See Chapter 6 for
specific information about the meaning of the status lights.

lamp light

Monitoring the Projector

27

Using Rear Projection

The projector can be set up for front or rear projection. In rear projection, the
projector is on the opposite side of the screen from the audience, as shown here:

For rear projection, you must turn on the Rear setting in the Display menu. This
setting flips the image from left to right for correct viewing. See Chapter 3 for
information about the menus.

Because the screen is between the remote control and the projector for rear
projection, you need the optional lead wire to use the remote control. See
Chapter 1 for more information. If you don’t have the lead wire, use the buttons
on the operation panel to make changes to the menus.

28 2 • Using the Projector

3

Using the Menus

T

he projector menus allow you to do the following:

• Control the brightness, contrast, sharpness, and color of the image.

• Adjust the vertical or horizontal position of the display, change the placement
of the menus, and configure the display for rear projection or an upside down
ceiling mount.

• Adjust audio settings such as volume, balance, bass, and treble.

• Adjust the display by rotating or inverting it and modifying the color.

• Change the language used in the menus and specify how long the projector is
idle before it enters standby mode.

• Assign a function to the remote control’s Custom button.

29

Accessing the Menus

You can display menus on the projector screen or on your computer. To display
menus on top of the projector screen, press the Menu button on the remote
control or the operation panel. This opens the currently selected menu. Other
menus are available from the menu bar at the bottom of the menu.

The following table shows the settings for each of the menus:

Menu Settings

Computer Brightness, Contrast, Sync, T r acking, Red, Green, Blue, Text

Video Brightness, Contrast, Sharpness, Color , Mode , Te xt
Display Horizontal, V ertical, Menu, Blank To , Rear Proj, Upside Down,

Audio Volume , Balance, A udio Source, Bass, Treble, Loudness, Fade
Options Prompt, Background, Serial, Power Save, Dly On, Language

Custom Pattern, Serial, Blank To, Prompt

30 3 • Using the Menus

(PC only), Mac LC (Macintosh only)

Invert

To select a different menu, press the Menu Select button on the remote control
or operation panel. To select a setting in the menu, use the trackball (remote
control) or the Function Select buttons (operation panel).

To close the menus, again press the Menu button.

Changing menu settings

Menu settings are sliders with increasing and decreasing values or checkboxes
you turn on or off. A checkbox is on when it is shown with a checkmark.

To change a slider setting or turn a checkbox on or off, do one of the following:

• If you’re using the remote control, use the trackball to select a menu setting.
Then press the Adjust buttons (+ and -) to increase or decrease a slider
setting or turn a checkbox on or off.

• If you’re using the operation panel, use the Function Select buttons to select a
setting and use the Function Adjust buttons to change a slider setting or turn a
checkbox on or off.

Any adjustments you make using the menus remain in effect until you change
them. Turning off the projector does not reset the settings.

Accessing the Menus

31

Note: If you do not use the remote control for 15 minutes, it enters sleep
mode and cannot be reactivated using the trackball. Press any button to turn
off sleep mode so you can use the trackball.

Accessing ELP Link menus

You can also access menus from your computer. To do so, start the ELP Link
program as described in Chapter 2. You see a screen similar to the one shown
below. The menu buttons are on the left. To open a menu, simply double-click on
the appropriate icon. Although the menus look different from those displayed on
the projector screen, the menu settings are the same.

32 3 • Using the Menus

Restoring the default settings

You can reset all settings in the current menu back to the factory defaults by
pressing the Reset button, which appears in each projector and ELP Link menu
except the Options menu.

To restore all default settings in all menus, choose the Reset All button in the
Options menu.

Menu Settings

The following sections describe the settings on each menu. Note that the
Computer and Video menus both contain Brightness and Contrast settings. This
allows you to change the brightness and contrast of one image source without
affecting the other.

Note: You cannot display the Video menu when the computer is selected as
the image source. Likewise, you cannot display the Computer menu when
the video source is selected.

The menus displayed on the projector screen are shown on the following pages.
The ELP Link screens look different, but the settings on the menus are the same.

Menu Settings

33

Computer menu

Brightness Lightens or darkens the overall image. Increase bright-

ness to lighten an image; decrease it to darken an image.

Contrast Adjusts the degree of difference between light and dark

areas. Increase the contrast if you want light areas to be
very light and dark areas to be very dark. Decrease
contrast to minimize the difference between the lightest
and darkest parts of the image.

Synchronize Synchronizes the graphics signals coming from the

computer. Adjust this setting if the image is fuzzy or
streaked or contains artifacts.

Use the Synchronize setting only if the image cannot be
corrected by adjusting Brightness and Contrast.

34 3 • Using the Menus

Tracking Matches the projector’s internal clock to the various

computer graphics signals. If vertical lines appear within
an image, adjust Tracking to spread the distance between
the lines until they disappear.

Red Adjusts the strength of the red level.

Green Adjusts the strength of the green level.

Blue Adjusts the strength of the blue level.

Text Compresses the projected image to fit into the projector’s

640-pixel image area. Normally you need to compress
an image only if your DOS software program has a text
screen wider than the projector’s area.

Menu Settings

35

Video menu

Brightness Lightens or darkens the overall image. Increase bright-

ness to lighten an image; decrease it to darken an image.

Contrast Adjusts the degree of difference between light and dark

areas. Increase the contrast if you want light areas to be
very light and dark areas to be very dark. Decrease
contrast to minimize the difference between the lightest
and darkest parts of the image.

Sharpness Emphasizes or de-emphasizes edges within an image.

Increase sharpness for more edge definition and a
sharper image. Decrease sharpness for softer edges.

Color Adjusts the color density. Increase color when you want

darker and more opaque colors. Decrease color for
lighter and less opaque colors.

Mode Specifies the type of video signal the projector can

36 3 • Using the Menus

receive. Mode can be Auto (default), NTSC, PAL, or
SECAM.

Display menu

When Auto is selected, the projector automatically
identifies the incoming video signal. If you select NTSC,
PAL, or SECAM, the projector accepts only the selected
video signal. Normally you should not change the default
setting.

Tint Adjusts the red/green color balance. Increase tint to
(NTSC only) make the image more green; decrease to make it more

red.

Horizontal Moves the image left or right. To move the image to the

right, increase the setting; to move it to the left, decrease
the setting.

Vertical Moves the image up or down. To move the image up,

increase the setting; to move it down, decrease the setting.

Menu Switches the position of the menu between the top and

bottom of the projector screen.

37Menu Settings

Blank To Selects the color shown on the screen when you use the

Blank setting to clear the screen. Choose Black, White, or
Blue. For a description of Blank, see page 41.

Rear Proj Flips the right and left of the projected image so the

projector can be used for rear projection. For front
projection, Rear Proj should be off.

Upside Down Flips the horizontal axis of the image so the projector can

be turned upside down from a ceiling mount.

Invert Substitutes each color with its complementary opposite.

For example, when you use Invert, red areas of an image
turn green. For black and white images, Invert makes the
image resemble a negative.

38 3 • Using the Menus

Audio menu

Volume Increases or decreases the volume.

Balance Distributes sound between the left and right speakers.

Increase the setting for more sound on the left and less on
the right. Decrease it for more sound on the right.

Audio Source Specifies whether audio is supplied only from the

computer (C), only from the video source (V), or from
the currently selected source (CV, the default). If you
select C or V, pressing the Video button does not switch
the audio.

Bass Increases or decreases low tones.

Treble Increases or decreases high tones.

Loudness Turns bass boost on or off.

Fade Adjusts the audio levels between the projector’s built-in

speakers and an external amplified speaker. If you
connect to an external speaker, move the slider to the
right to increase volume to the external speaker.

Menu Settings

39

Options menu

Prompt Temporarily displays a prompt on the projector screen to

identify which source (computer or video) is providing
the image. This prompt appears only when you switch the
image source.

Backgnd Specifies what is shown onscreen when an image signal

is not available. The options are Test Pattern (default),
Black, or Blue.

Serial Enables communication between your computer and the

projector. See Chapter 4 for more information.

Power Save Specifies in minutes how long the projector waits for an

image signal before entering standby mode. If an image
signal is not received within the specified time, the
projector automatically enters standby mode.

Delay On Automatically places the projector in standby mode when

40 3 • Using the Menus

Power Save can be 5 to 60 minutes. The default is 10.

it is turned on. By default Delay On is off.

Custom menu

Language Specifies the language used in the menus. The choices are

English (default), Deutsch, Francais, Espanol, Italiano,
and Japanese.

The Custom menu allows you to use the Custom button to immediately access one
of the following four functions:

• Pattern (default). Displays a test pattern on the screen.

• Serial. Enables communication between the projector and your computer if
you have installed the Serial Communication Kit.

• Blank. Turns off the image display and blanks the screen to black, white,
or blue. The color of the screen is determined by the Blank To setting
(see page 38).

• Prompt. Temporarily displays a prompt on the projector screen to identify
which source (computer or video) is providing the image. This prompt
appears only when you switch the image source.

Menu Settings

41

42 3 • Using the Menus

4

Remote Control of the
Computer

his chapter describes the ELP Remote Programmer. When this utility is

T

running on your computer, you can use the remote control to control your
software program. The trackball moves the mouse on your computer, and the
five programmable buttons can be used to drag or click windows or icons.

If you wish, you can also assign a keyboard macro to a programmable button.
A macro is a sequence of up to 32 keystrokes and mouse commands. If you
assign a macro to a button, pressing the button has the same effect as typing the
keys on the keyboard or using the mouse. For example, if you have Windows and
assign Alt + Tab to one of the buttons, you can cycle through your open programs
with the press of a button. If you have a Macintosh, you could assign Apple + O
and open a new document by pressing a button.

In order to use the ELP Remote Programmer, you must first install the Serial
Communication Kit as described in Chapter 1.

43

ELP Remote Programmer Templates

Five buttons on the remote control can control the computer if you are running
the ELP Remote Programmer. The five programmable buttons are the Prev, Next,
Drag, and Adjust (+ and -) buttons.

The keys and mouse commands assigned to each button are stored in a file
called a template. The ELP Remote Programmer comes with a series of tem­plates. Each is customized for several popular software programs.

Only one template can be active at a time. The following table shows the button
assignments for the default template. This template is active the first time you
start the ELP Remote Programmer. You can modify the default template or any
of the custom templates for your own purposes.

Windows Macintosh

Left mouse click [MLBC] Left arrow

Right mouse click [MRBC] Right arrow

Left mouse drag [MLBDG] Mouse drag

Left mouse click [MLBC] Mouse click

Right mouse click [MRBC] Mouse click

44 4 • Remote Control of the Computer

[LEFT]

[RIGHT]

[MBDG]

[MLBC]

[MRBC]

Starting the ELP Remote Programmer

The ELP Remote Programmer can run under Windows or on the Macintosh. This
section provides general information that applies to both platforms. For specific
information on how to use the ELP Remote Programmer on your platform, see
the online help, which is available by selecting Help in the menu bar.

Do the following to start the ELP Remote Programmer:

• Windows: Open the ELP Utility program group by double-clicking on it.

Then double-click the ELP Remote Programmer icon.

• Macintosh: Open the ELP Utilities folder by double-clicking on its icon.

Double-click the ELP Remote Programmer folder and then double-click the
ELP Remote Programmer icon.

When you start the ELP Remote Programmer, you see a screen similar to the
one on the next page. This screen, which represents the buttons on the remote
control, allows you to change the button assignment and then activate the
template so you can use it with the remote control.

The ELP Remote Programmer must be running on your computer in order for
you to use the remote control to control your software program. If you do not
need to program any buttons, you can minimize the ELP Remote Programmer
screen so it appears as an icon at the bottom of the screen.

Note: Although both ELP Remote Programmer and ELP Link can be running
on your computer at the same time, only one can be active. If both are
running, ELP Link has priority.

Starting the ELP Remote Programmer

45

46 4 • Remote Control of the Computer

The following table describes the elements in the ELP Remote Programmer
screen. The remote control buttons that can be programmed are shown at the
right of the screen.

Element Function

Menu bar Contains ELP Remote Programmer commands. See “ELP

Remote Programmer Menus” on page 52 for information.
Record button Turns record mode on and off.
Key Help button

Activate button Makes the current template active so it can be used with the

Button T est button Brings up a text box that displays the assigned keystrokes

Windows:

character keys and mouse commands.

Macintosh:

non-character keys (e .g., Alt, Shift, Control) and mouse

commands.

remote control.

when you press a remote control button.

Brings up a list of the codes that represent non-

Identifies the special symbols used to represent

Starting the ELP Remote Programmer

47

Assigning a Macro to a Programmable Button

To assign a macro, start the ELP Remote Programmer. Move the cursor to the text
box of the button you want to edit. You can then assign keystrokes and mouse
commands.

To assign a mouse command, open the Special menu at the top of the screen
and select the appropriate mouse command. This inserts a special code (PC)
or symbol (Macintosh) in the text box to represent the mouse command.

To assign keyboard keys, you can use record mode or manual mode.

• In record mode, you simply type one or more keyboard keys. The keys are
shown in the text box next to the button, with special codes (PC) or symbols
(Macintosh) representing non-character keys (e.g., Ctrl, Alt, F1).

On the Macintosh, some non-character keys cannot be typed in, including
Command, Shift, and Control. You need to choose these keys from Mouse/
Special Buttons in the Special menu at the top of the screen.

• If you have a PC, use manual mode to include Scroll Lock in a macro or
to enter key combinations, such as Ctrl + Alt + S. See page 51 for more
information about manual mode. You do not normally need to use manual
mode on the Macintosh because key combinations are created using the
options in Mouse/Special Buttons of the Special menu.

48 4 • Remote Control of the Computer

Using record mode

In record mode, you simply type keystrokes and the ELP Remote Programmer
displays the keys in the text box next to the button. For non-character keys, the
ELP Remote Programmer enters codes (PC) or special symbols (Macintosh) that
represent the keys. For a list of codes or symbols, choose the Key Help button.

To use record mode to assign a button:

1. Open the ELP Remote Programmer.

2. Turn on record mode. Choose the Key Record button at the top of the screen.

3. Move the cursor to the text box of the button you want to program. Use the

4. Type the keys you want to assign to the button or assign a mouse command.

If you have a PC, you can also press Scroll Lock.

mouse or press Enter to move the cursor.

Simply type the keys into the text box. On the Macintosh, you cannot type
some non-character keys (e.g., Shift, Command, and Control) in the text box.
Instead, you need to select these keys from the Mouse/Special Buttons list in
the Special menu.

To enter mouse commands, open the Special menu and select Mouse
Buttons (PC) or Mouse/Special Buttons (Macintosh).

Assigning a Macro to a Programmable Button

49

On the Macintosh, you can assign key combinations, such as Command + O,
while in record mode. To do so, use the Link symbol under Mouse/Special
Buttons between each key you want to combine. For example, to program
Command + O, choose Command in Mouse/Special Buttons, then choose
Link in Mouse/Special Buttons, then type O in the text box. (It is not neces­sary to be in record mode to choose keys from Mouse/Special Buttons.)

On the PC, use manual mode to create key combinations. See the next
section.

5. Repeat steps 3 through 4 for each button you want to program.

6. Turn off record mode. Choose the Key Record button or, if you have a PC,
press the Scroll Lock key.

7. Activate the template by pressing the Activate button. This makes the new
button assignment active with the remote control.

To be able to use the remote control and the new macros, be sure you have
connected the RS-232C cable as described in Chapter 1.

8. Save the template. Choose Save or Save As in the File menu.

Note: In Windows, the ELP Remote Programmer assumes use of the COM1
serial port. To use the COM2 port, choose COM2 in the Special menu.

50 4 • Remote Control of the Computer

Using manual mode

Use manual mode if you have a PC and want to create macros that include the
Scroll Lock key or key combinations such as Ctrl + Alt + Delete.

To manually enter alphanumeric characters (1-9 and A, B, C . . .), simply type the
key. For non-character keys, enter the code for the key. To display the codes,
press the Key Help button. Each control code is enclosed in square brackets. For
example, the code for the Control key is [C] or [Ctrl].

When entering a control key combination, put brackets around the entire
combination as well as around each control key. Do not put individual brackets
around alphanumeric keys. The following gives examples of how to program key
combinations on the PC:

To program Alt + X, enter [[A]X].
To program Alt + X followed by the escape key, enter [[A]X][ESC].
To program Control + Alt + Delete, enter [[C][A][DEL]].

Activating a Template

Once you assign a new macro to a button, you need to activate the template to be
able to use the new button assignment with the remote control. You do not need
to save a template before you activate it. To activate the template, choose the
Activate button.

Activating a Template

51

ELP Remote Programmer Menus

The menu bar at the top of the screen contains these four menus:

File Allows you to create a new template or open an existing one,

save the current template or create a new one, or exit the
program.

Edit Makes it easy to edit text in the text box of the currently

selected button. The items on this menu allow you to cut,
copy, and paste text and clear the contents of the currently
selected button.

Special The items on this menu allow you to do the following:

• Activate and test the buttons of the current template

• Insert codes for mouse commands

• Insert codes for special keys (Macintosh only)

• Adjust the mouse speed to your preference

• Configure the remote control for the COM1 or COM2
port (PC only).

Help Displays topics to help you use the program.

52 4 • Remote Control of the Computer

5

Maintenance

he projector needs little maintenance. You should keep the lens clean because

T

any dirt or stains will appear on the screen. You also need to periodically clean
the air filter, which is located at the bottom of the projector. Keeping the air filter
clean is important because a clogged air filter prevents proper ventilation, which
is necessary to cool the projector and prevent it from overheating.

You should also clean the trackball on the remote control whenever you notice
that the trackball is not rotating smoothly due to dirt and dust that have collected
on the trackball.

The only parts you should replace are the lamp, air filter, and fuse. If any other
part needs replacing, contact your ELP-3300 dealer or a qualified service person.

Whenever you clean any part of the projector, always turn off the projector and
unplug it first.

53

Cleaning the Lens

Clean the lens whenever you notice dirt or dust on the surface. Lightly wipe the
lens surface with a soft, dry, lint-free cloth.

To remove dirt or stains on the lens, moisten a soft cloth with an alcohol-based
cleaner and gently wipe the lens surface.

Cleaning the Projector Case

To clean the projector case, first unplug the power cord. To remove dirt or dust,
wipe the casing with a soft, dry, lint-free cloth. To remove stubborn dirt or stains,
moisten a soft cloth with water and a neutral detergent. Then wipe the casing.

Do not use alcohol, benzine, thinner, or other chemical detergents. These can
cause the casing to warp.

Cleaning the Air Filter

The air filter, which is located at the bottom of the projector, should be cleaned
after every 100 hours of use. If it is not cleaned periodically, it can become
clogged with dust and prevent the projector from being ventilated properly. This
can cause overheating and damage the projector.

54 5 • Maintenance

To clean the air filter:

1. Turn off the projector and unplug the power cable from the wall outlet.

2. Turn the projector over so you can easily access the filter.

filter

3. Use a flat-head screwdriver to lift and remove the filter cover.

Cleaning the Air Filter

55

4. The filter is attached to the other side of the filter cover. To clean the filter, it is
recommended that you use a small vacuum cleaner designed for computers
and other office equipment. If you don’t have one, use a dry, lint-free cloth.

If the dirt is difficult to remove or if the filter is torn, replace it. Contact your
ELP dealer or call EPSON Accessories at [phone] to obtain a new one.
Be sure to request part number 1023658.

5. Replace the filter.

6. Reconnect the power cord to the wall outlet.

Cleaning the Trackball

You should clean the trackball periodically and whenever you notice that it is not
moving smoothly.

1. Turn off both the projector and the computer.

2. Turn the frame that surrounds the trackball counterclockwise until it unlocks.
You may need to use a sharp object, such a pencil, to help turn the frame.

56 5 • Maintenance

3. Lift out the trackball from its holder and wipe it completely with a soft, dry
cloth to remove dirt and grit. To remove stubborn dirt and stains, moisten the
cloth with a neutral detergent. Do not use an alcohol-based cleaner.

4. Use a cotton swab to gently clean the trackball holder. Pressing too hard can
cause the holder to move out of position.

5. Place the trackball back into its holder and rotate its frame clockwise until it
locks in place.

Cleaning the Trackball

57

Replacing the Lamp

The projector lamp typically lasts for about 700 hours of use. It is time to replace
the lamp when:

• You notice that projected images get darker or start to deteriorate.

• The bulb goes out or the lamp light flashes green and orange five minutes after

the power has been turned on.

• The lamp light turns red.

Contact your local EPSON dealer or call EPSON Accessories (800-873-7766 in
the United States) for a replacement bulb. Use only replacement lamp type
MSCR150E3H, part number 1023661.

◆ Warning: Allow the lamp to cool before replacing it. During use it becomes

hot enough to burn you.

1. Turn off the projector and disconnect the power cable from the wall outlet.

58 5 • Maintenance

2. Turn the projector over so you can access the lamp cover.

lamp cover

3. Use a screwdriver, coin, or similar object to loosen the two retaining screws
on the lamp cover. You cannot remove these screws.

4. When the screws are loose, lift off the lamp cover.

Replacing the Lamp

59

5. Use a screwdriver, coin, or similar object to loosen the two screws holding
the lamp in position. You cannot remove these screws.

screws

6. Lift up the handle and pull out the lamp.

60 5 • Maintenance

7. Gently insert the new lamp by lowering it into position.

8. Tighten the screws you loosened in step 5.

9. Replace the lamp cover and tighten the cover screws.

Make sure the lamp cover is securely fastened. The projector turns itself off
if the lamp cover is open.

Resetting the lamp timer

After changing the lamp, you need to reset the lamp timer as follows:

1. Make sure the projector is turned off.

2. Hold down the Menu and Sync buttons on the projector simultaneously and
turn on the projector, while continuing to hold down the Menu and Sync
buttons for several seconds after the power comes on.

The three monitor lights start flashing, indicating that the lamp timer has been
reset.

Replacing the Lamp

61

Replacing the Fuse

When you need to replace the fuse, use only a 250 V, 6.3A.T. fuse appropriate for
your voltage. Follow these steps:

1. Turn off the projector and disconnect the power cord from both the back of
the projector and the wall outlet.

2. Turn the projector so its back panel is facing you. The fuse holder is located
below the power switch.

3. Remove the fuse holder by inserting a screwdriver or similar object into the
groove. Then pry out the holder.

4. To remove the fuse from the holder, pull out one end so it is at an angle.
Then pull out the fuse.

62 5 • Maintenance

5. Insert the new fuse and push the fuse holder back into position.

6. Reconnect the power cord.

Replacing the Fuse

63

64 5 • Maintenance

6

Troubleshooting

his chapter describes what problems are indicated by the status lights and

T

provides information on what to do if you are having problems with the projector.
It is divided into the following sections:

• General problems with the projector. See this section if the projector is not
working and to find out what the status lights are indicating.

• Problems with the screen image. See this section if you cannot project an
image or if the screen image is not good.

• Problems with the remote control. See this section if the projector or
computer does not respond correctly when you use the remote control.

If you have a problem, check the appropriate section and follow all suggestions
that apply to your problem. If none of the suggested solutions solves the problem,
call your ELP-3300 dealer or call the EPSON Connection. In the U.S., call
[phone]. In Canada, call (800) BUY-EPSON.

65

Problems with the Projector

If you are having problems with the projector, first check the status lights at the
top of the projector. These lights monitor the operation of the projector.

temperature light power light

Status light Color Status

T emperature Flashing orange The projector is hot.

Orange The projector is too hot. The lamp turns off.

Lamp Flashing green The lamp is warming up.

Green The lamp is on.
Flashing orange The lamp is cooling down.
Flashing green The lamp has been used for 700 hours and

and orange should be replaced.
Flashing red The lamp is not working.

Power Orange The projector is in standby mode.

Green The projector and lamp are on.
Flashing green The projector is receiving a signal from the

Flashing red There is a problem with the projector.

lamp light

remote control.

66 6 • Troubleshooting

For specific problems, see the following:

❙❙

❙ The power status light does not come on.

❙❙

Check the power switch and make sure the power cable is securely connected at
both the power outlet and the projector.

The projector has become too hot and has turned off automatically. Wait for the
projector to cool before turning it back on.

The fuse may have blown. Replace the fuse as described in Chapter 5.

❙❙

❙ The lamp does not come on.

❙❙

The projector is in standby mode. Press the Standby button on the remote control
or the operation panel.

The lamp is burned out and needs to be replaced.

❙❙

❙ The temperature status light is flashing orange.

❙❙

The lamp is too hot. Turn off the lamp and let it cool. When you turn the lamp
back on, check the temperature light again. Make sure nothing is blocking the
ventilation vents.

67Problems with the Projector

❙❙

❙ The temperature status light is orange.

❙❙

The projector is overheating and turns the lamp off automatically. Let the
projector cool for a few minutes; then turn it back on. Make sure nothing is
blocking the ventilation vents.

The air filter may be clogged. Clean it as described in Chapter 5 and then let the
projector cool for a while.

If the projector continues to overheat after you clean the air filter, the problem
may be caused by damage to the cooling fan or internal circuits. Contact a
qualified service person.

❙❙

❙ The lamp status light is flashing red and the lamp does not come on.

❙❙

Turn off the projector and turn it back on again. Check the lamp light again.

If the lamp still does not come on, it may have burned out or become damaged.
Replace it as described in Chapter 5.

68 6 • Troubleshooting

Problems with the Image or Sound

❙❙

❙ An image does not appear on the screen.

❙❙

Check that the power light is on and the lens cover is off. Also make sure the
Y-cable is installed correctly to both the image source and projector as described
in Chapter 1.

The projector may be in standby mode. Press the Standby button on the remote
control or operation panel to turn on the lamp.

The correct image source may not be selected. Press the Video button on the
remote control or operation panel to choose the other image source.

The brightness level may not be set correctly. Use the Brightness button to adjust
the brightness level.

❙❙

❙ Only part of the computer image is displayed.

❙❙

Your monitor is set up for a resolution higher than 640 x 480, and the projector
is compressing the image. You need to choose a different monitor display setting.
In Windows, use Windows Setup in the Main program group. For a Macintosh,
choose Control Panels under the Apple menu and then Monitors; in the Monitors
screen, choose Options and make sure Macintosh Hi-Res Display or another
640 x 480 display is selected. For supported display settings, see Appendix A.

You may also need to modify existing presentation files if you created for them for
a different resolution. See your software manual for specific information.

Problems with the Image or Sound

69

❙❙

❙ Only the test pattern is displayed.

❙❙

The input source has not been selected correctly. Press the Video button on the
remote control or operation panel to select the other image source.

The projector is not detecting the signal from the source. Check that the cable is
securely attached to both the source and projector. If it is, the problem may be
with your presentation software.

The proper order was not followed when the projector and peripheral devices
were turned on. Turn off the projector and all devices in the reverse order shown
on page 20. Then turn everything back on in the proper order.

❙❙

❙ The image or parts of the image are blurred or not in focus.

❙❙

Turn the focus ring on the projector to see if this improves the image. Check also
that the projector is within the recommended distance according to the size of
the screen (see page 4). For the sharpest images, the projector must be perpen­dicular to the screen and the projection surface must be flat.

Adjust the Brightness and Contrast settings on the Computer or Video menu. If
you’re viewing a computer image, also try adjusting the Sync setting on the
Computer menu.

There may be dirt or stains on the lens. Clean the lens as described in Chapter 5.

70 6 • Troubleshooting

❙❙

❙ The colors of the image are not right.

❙❙

The color balance may be incorrect. If you’re displaying a computer image,
adjust the Red, Green, and Blue settings in the Computer menu. If you’re
displaying video, adjust the Color and Tint settings. Check also that Invert in the
Display menu is not selected.

The video cable from your computer may not be properly attached. Check to see
that it is properly and securely attached to the connectors on both the projector
and image source.

❙❙

❙ Text is not displayed correctly.

❙❙

The software program you are using displays text at 720 dpi, but the projector
displays text at 640 dpi. Use the Text setting in the Computer menu to compress
the text to 640 dpi.

❙❙

❙ There is no sound.

❙❙

Check first that the volume setting is not turned all the way down and that the
audio/video cable is securely attached to both the projector and the audio
source. Press the Mute button on the remote control to make sure the mute
function is not on.

The wrong source is selected. Use the Video button on the remote control to
change the source. Also, check that the Audio Source setting in the Audio menu
is not set for a specific source.

The Fade setting might not be appropriate. Adjust this setting in the Audio menu.

Problems with the Image or Sound

71

Problems with the Remote Control

❙❙

❙ You programmed the buttons on the remote control to control the

❙❙

computer, but pressing one or more buttons has no effect.

First make sure the RS-232C serial cable is properly and securely connected as
described in Chapter 1. Check that the Serial setting on the Options menu is on
and the ELP Remote Programmer is running on your computer.

The remote control is more than 33 feet from the projector or is more than
30 degrees to the side of the projector. Move closer to the projector and hold the
remote control more directly in front of it.

There is an obstacle in the path between the remote control and the receiver at
the front or back of the projector. Remove anything blocking the path. If you’re
using rear projection and the screen is between the remote control and the
projector, you need to connect the remote control directly to the projector using
the optional lead wire.

Both the ELP Remote Programmer and ELP Link utilities are running. When both
are running, ELP Link has priority. You need to close ELP Link in order to use the
ELP Remote Programmer.

The ELP Remote Programmer might be set up for a different serial port than the
one you’re using. Bring up the ELP Remote Programmer and open the Special
menu to check which serial COM port is selected.

72 6 • Troubleshooting

The batteries in the remote control are not inserted properly or are no longer
good. Reinsert them or replace them if necessary.

A strong light source, such as direct sunlight or a compact fluorescent tube, is
causing interference. Move the projector away from the strong light source.

❙❙

❙ Using the trackball has no effect.

❙❙

The remote control is in sleep mode. Press any button to exit sleep mode so you
can use the trackball.

❙❙

❙ Double-clicking a programmable button has no effect.

❙❙

You are double-clicking too fast and the projector is not able to distinguish both
clicks. Double-click more slowly.

❙❙

❙ When using the ELP Remote Programmer on your PC, the mouse speed

❙❙

is too slow or too fast.

The ELP Remote Programmer mouse speed and the Windows Control Panel
mouse speed may be interfering with one another. First try adjusting the mouse
speed in the ELP Remote Programmer’s Special menu. If this does not solve the
problem, adjust the mouse speed in your computer’s Control Panel.

Problems with the Remote Control

73

74 6 • Troubleshooting

11 A

Technical Specifications

General

Type of display Thin Film Transistor (TFT)

Size of liquid 1.32 inches (33.6 mm)
crystal panels

Resolution 640 (horizontal) x 480 (vertical) pixels

Image size 21 to 300 inches (.5 to 7 meters)

Projection distance 4 to 40 feet (1.2 to 12.3 meters)

Remote control range 33 feet (10 meters)
Maximum volume 1W x 1W stereo

75

Optical

Projector Lamp

Projector lamp

Mechanical

Aspect ratio 4 x 3 (horizontal x vertical)

Brightness 300 lumens (average)

Zoom ratio 1:1.4

Model number MSCR150E3H

Type Metal halide

Life Typically 700 hours

Power 150W

Height 5.9 inches (14.9 cm)

Width 11.2 inches (28.5 cm)

Depth 16.3 inches (41.3 cm)

Weight 17 lb (7.7 kg)

76 A • Technical Specifications

Electrical

Electrical

Environmental

Voltage 100-120 VAC and 220-240 VAC

Rated frequency 50/60 Hz
Fuse type 250 V, 6.3A.T., 5 x 20 mm

Power 220 W
consumption 100 - 120 VAC 3.5 A, 50/60 Hz

220 - 240 VAC 1.3 A, 50/60 Hz

Temperature Operation: 41 to 104o F (5 to 40o C)

Storage: 14 to 140o F (-20 to 60o C)

Humidity Operation: 20 to 80% RH,

non-condensing

Storage: 10 to 90% RH,

non-condensing

Electrical

77

Supported Monitor Displays

The projector displays images at a resolution of 640 x 480 pixels. To display a
higher resolution image, the projector compresses it to 640 x 480.

The following table lists the display formats supported by the projector:

Computer type Formats Resolutions

IBM PC compatible VGA, VESA, NEC, 640 x 480

JEGA, CGA 640 x 200

640 x 400
640 x 350
720 x 350*
720 x 400*
800 x 600*

Apple Macintosh Standard 8- and 640 x 480

24-bit color monitor 640 x 400

* Compressed to 640 x 480.

78 A • Technical Specifications

Pin Assignments

The following tables describe the pin assignments for the three connectors of the
Y-cable: LCD connector, VGA connector, and Monitor connector. The pin assign­ments for the VGA and Monitor connectors are identical.

LCD connector pin assignments

The LCD connector is a 26-pin D-style connector. Its pin assignments are as
follows:

Input pin Signal Output pin

1 V ertical sync 10
2 Horizontal sync 11
8 Blue analog 14
6 Intensity digital 12
7 Green digital 13

9 Red analog 15
16 Blue digital 3
17 Red digital 4
18 Green analog input with composite sync 5
20 GND
21 GND
22 GND
23 Digital/analog video cable ID
24 GND
25 VGA/no video cable ID pin
26 Monochrome digital (Hercules) 19

Pin Assignments

79

Monitor and VGA connector pin assignments

The Monitor connector is a female video RGB, 15-pin micro-D style connector, and
the VGA connector is a male video RGB, 15-pin micro-D style connector. The pin
assignments for both connectors are as follows:

Input pin Signal

1 Red analog input
2 Green analog input with composite sync
3 Blue analog input
4 GND
5 GND
6 Red GND
7 Green GND
8 Blue GND

9NC
10 Sync GND
11 GND
12 NC
13 Horizontal sync/composite sync input
14 V ertical sync input
15 NC

Electrical

80 A • Technical Specifications

Glossary

Brightness. The balance of light and dark shades in an image.

Composite video. A type of video signal that encodes picture, luminance, and

synchronization information so it can be carried in one signal.

Contrast. A measure of the tonal differences between the highlights and
shadows of an image. In a high-contrast image, light areas are very bright and
dark areas are very dark, with relatively few levels of gray between white and
black. Contrast is made lower by adding grays.

ELP Remote Programmer. Utility that allows you to use the remote control to
control your computer. It also allows you to assign a keyboard macro to the
remote control’s five programmable buttons.

Macro. As used in the ELP Remote Programmer, a series of 32 keystrokes and
mouse commands that can be assigned to a programmable button on the remote
control. Pressing the button has the same effect as typing the keys contained in
the macro.

Glossary 81
