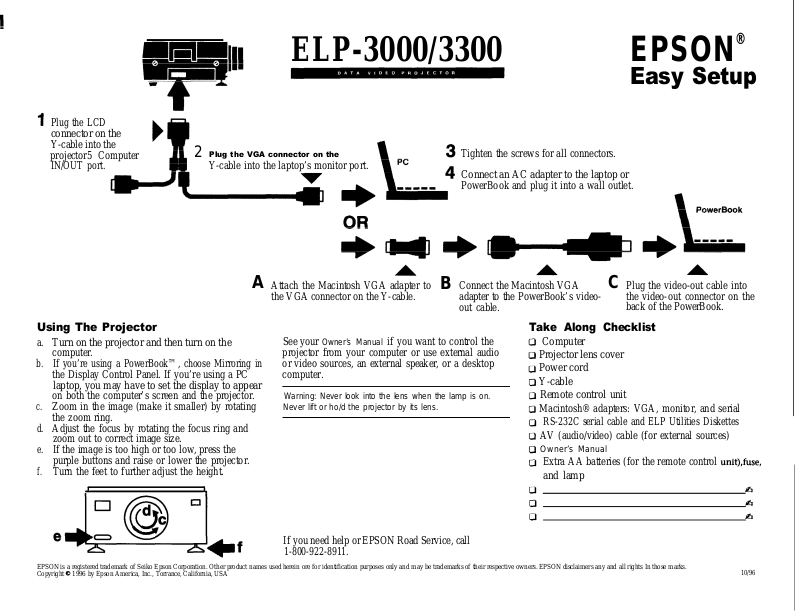

Epson ELP-3000 User Manual

®

I

Plug the LCD
connector on the

Y-cable into the
projector5 Computer
IN/OUT port.

Using The Projector

a.

Turn on the projector and then turn on the
computer.

b.

If you’re using a PowerBook™, choose Mirroring in
the Display Control Panel. If you’re using a PC
laptop, you may have to set the display to appear
on both the computer’s screen and the projector.

c.

Zoom in the image (make it smaller) by rotating
the zoom ring.

d.

Adjust the focus by rotating the focus ring and
zoom out to correct image size.

e.

If the image is too high or too low, press the
purple buttons and raise or lower the projector.

f.

Turn the feet to further adjust the height.

I

2

Plug the VGA connector on the

Y-cable into the laptop’s monitor port.

c

ELP-3000/3300

Tighten the screws for all connectors.
Connect an AC adapter to the laptop or

PowerBook and plug it into a wall outlet.

A

A

Attach the Macintosh VGA adapter to Connect the Macintosh VGA
the VGA connector on the Y-cable. adapter to the PowerBook’s video-

See your
projector from your computer or use external audio
or video sources, an external speaker, or a desktop
computer.

Warning: Never look into the lens when the lamp is on.

Never lift or ho/d the projector by its lens.

Owner’s Manual

A

B

out cable.

if you want to control the

Take Along Checklist

0

Computer

Cl

Projector lens cover

IJ

Power cord

0

Y-cable

0

Remote control unit

0

Macintosh® adapters: VGA, monitor, and serial

0

RS-232C serial cable and ELP Utilities Diskettes

IJ

AV (audio/video) cable (for external sources)

Cl

Owner’s Manual

IJ

Extra AA batteries (for the remote control
and lamp

cl

ci
0

EPSON

Easy Setup

PowerBook

A

C

Plug the video-out cable into
the video-out connector on the
back of the PowerBook.

unit),fuse,

P$
eo
e5

If you need help or EPSON Road Service, call
1-800-922-8911.
