The documentation and the projector use graphical symbols to show how to use the projector safely.
The indications and their meaning are as follows. Make sure you understand them properly before reading the guide.
Warning
Caution
• General information indications
Attention
a
sIndicates a page where detailed information regarding a topic can be found.
g
[Name]Indicates the name of the buttons on the remote control or the control panel.
Menu NameIndicates Configuration menu items.
This symbol indicates information that, if ignored, could possibly result in personal injury or even death due to incorrect handling.
This symbol indicates information that, if ignored, could possibly result in personal injury or physical damage due to incorrect handling.
Indicates procedures which may result in damage or injury if sufficient care is not taken.
Indicates additional information and points which may be useful to know regarding a topic.
Indicates that an explanation of the underlined word or words in front of this symbol appears in the glossary of terms. See the "Glossary"
section of the "Appendix".
s "Glossary" p.198
Example: [Esc] button
Example:
Select Brightness from Image.
Image - Brightness
Contents
3
Notations Used in This Guide ........................ 2
Introduction
Projector Features .......................................... 8
Interactive Features (Easy Interactive Function) (EB-595Wi/EB-585Wi/EB-575Wi only)
How to Replace the Lamp ..................................... 176
Resetting the Lamp Hours..................................... 179
Replacing the Air Filter ......................................... 179
Air Filter Replacement Period.................................. 179
How to Replace the Air Filter ................................... 179
Introduction
This chapter explains the projector's features and the part names.
Projector Features
Interactive Features (Easy Interactive Function)
(EB-595Wi/EB-585Wi/EB-575Wi only)
s
"Using the Interactive Features (EB-595Wi/EB-585Wi/EB-575Wi only)"
p.64
Enabling Projection from a Short Distance
You can project large images from a short distance without having to move
the projector away from the screen. By mounting the projector on a ceiling
or wall, you can minimize shadows cast on the screen even when you are
standing near it and avoid being dazzled by the projected light.
s
"Screen Size and Projection Distance" p.185
Connecting to a Network and Projecting Images
from the Computer's Screen
You can perform the following operations using EasyMP Network
Projection and EasyMP Multi PC Projection found on the supplied EPSON
Projector Software CD-ROM.
8

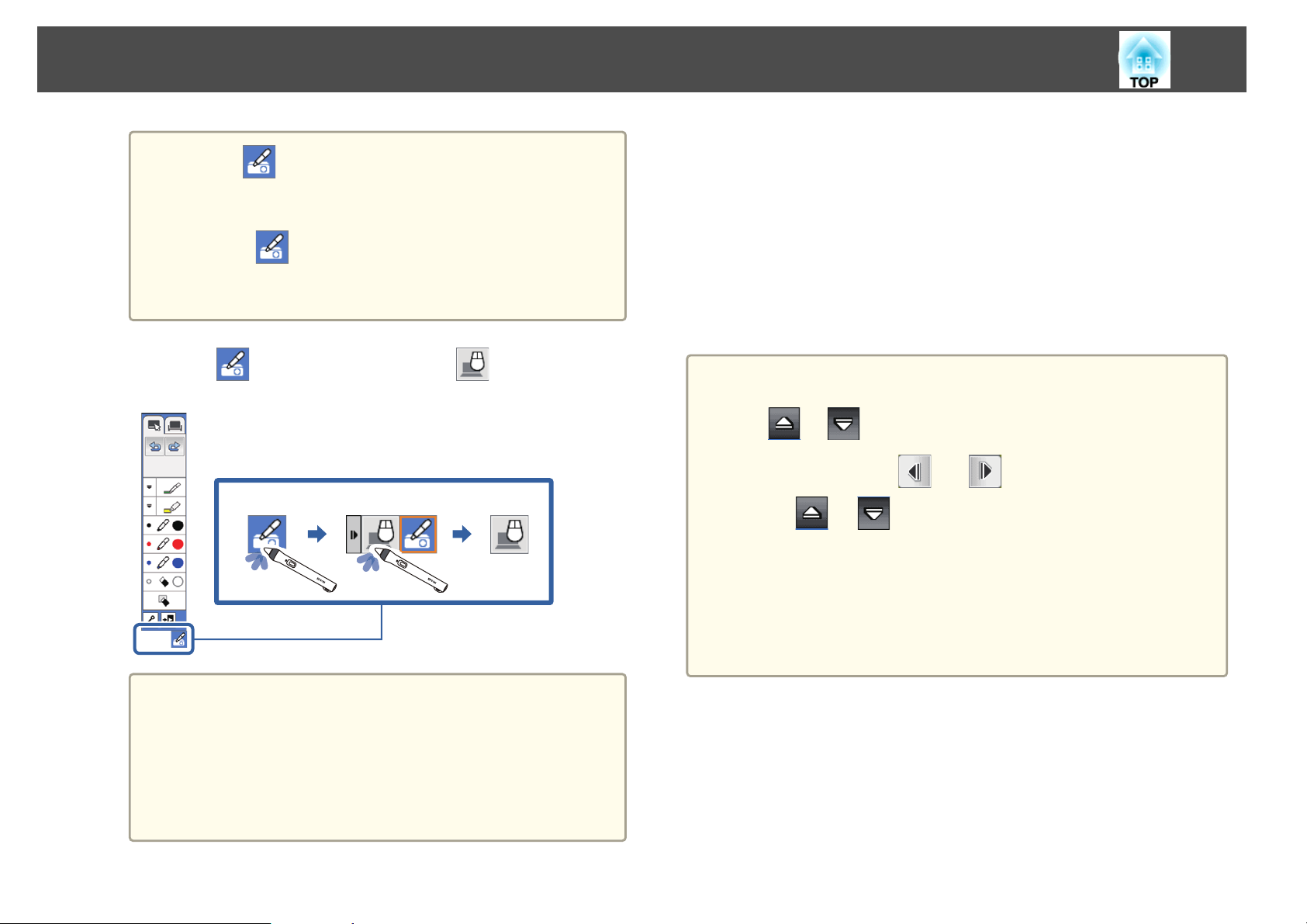

You can perform the following operations with the interactive pen.
• Use the projected screen as a whiteboard
• Draw on content projected from a computer
• Operate a computer from the projected screen

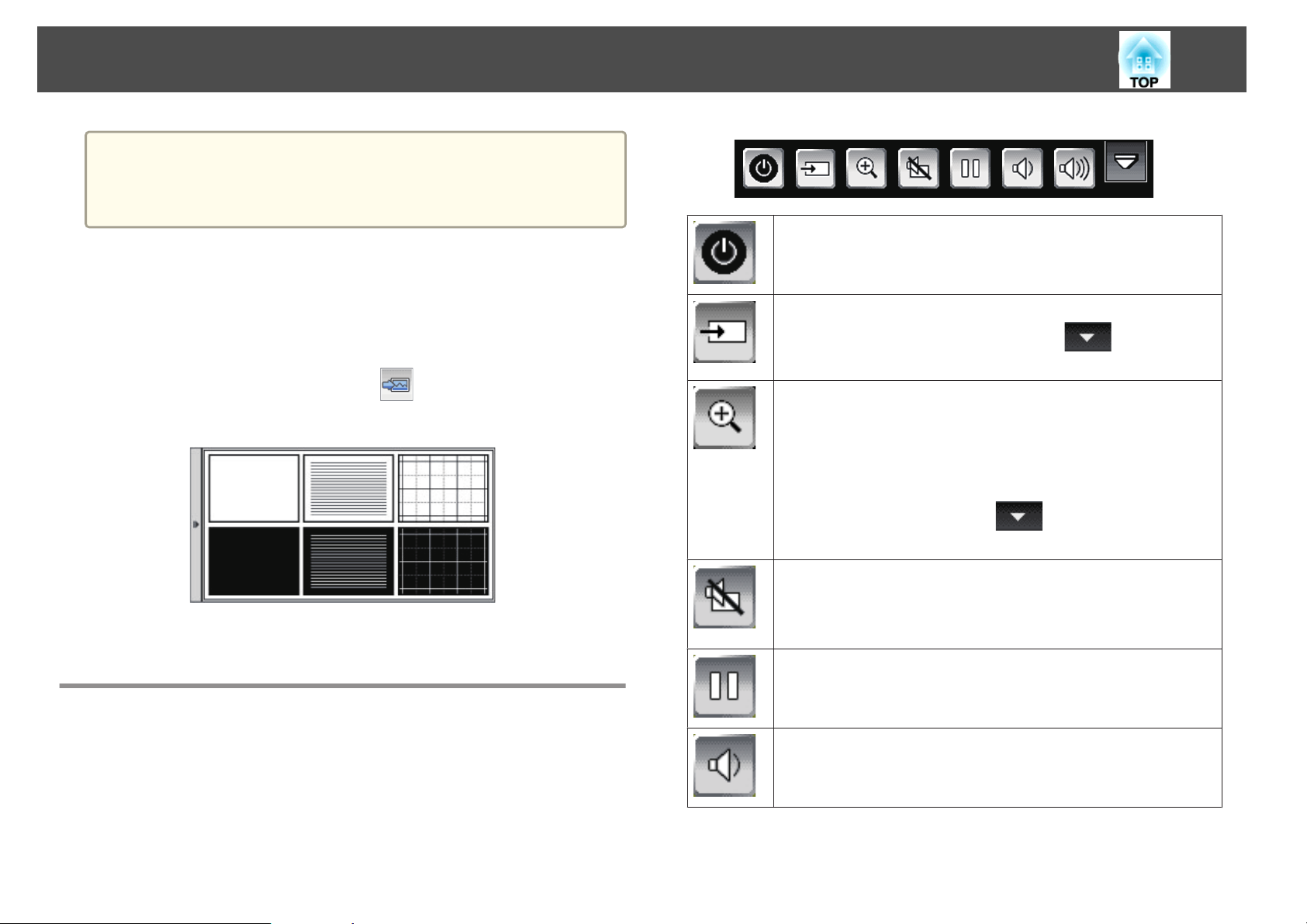

• Operate the projector from the projected screen
• Select devices on the projected screen that have been connected to the
network using the supplied EasyMP Multi PC Projection
• Use the interactive features over a network using the supplied EasyMP
Network Projection or the optional Quick Wireless
When the Touch Unit is installed, you can use your finger to interact with
the projected screen instead of the interactive pen (EB-595Wi only).
• Sharing the projector over a network
By using EasyMP Network Projection, you
can connect the projector to a network and
share it with multiple computers. This allows
you to project images and documents from
any of the computers without changing
cables. You can also project from one
computer to multiple projectors.
sEasyMP Network Projection Operation
Guide
Projector Features
9
• Projecting multiple computer screens at the same time
By using EasyMP Multi PC Projection, you
can project up to four screens at the same time
from a computer on the network, or from
smartphones or tablet devices on which Epson
iProjection is installed.
sEasyMP Multi PC Projection Operation
Guide
You can perform the following operations using optional products and
applications.
• Wirelessly projecting your computer's screen
By installing the optional wireless LAN unit,
you can project a computer screen over a
network.
s "Installing the Optional Wireless LAN
Unit" p.41
• Connecting to a computer with Quick Wireless easily
By simply connecting the optional Quick
Wireless Connection USB Key to a computer,
you can automatically perform network
settings for a wireless LAN connection, and
project the computer's screen.
• Projecting images from portable devices over a network
If Epson iProjection is installed on your
smartphone or tablet device, you can
wirelessly project data from the device. You
can download Epson iProjection for free from
the App Store or from Google play. Any fees
incurred when communicating with the App
Store or Google play are the responsibility of
the customer.
Enhanced Security Functions
• Password Protect to restrict and manage users
By setting a password you can restrict who can use the projector.
s
"Managing Users (Password Protection)" p.110
• Control Panel Lock restricts button operation on the control panel
You can use this to prevent people changing projector settings without
permission at events, in schools, and so on.
The projector is equipped with the following types of anti-theft security
devices.
• Security slot
• Security cable installation point
"Anti-Theft Lock" p.113
s
Enlarge and Project Your Files with the Document
Camera
You can project paper documents and objects using the optional Document
Camera. By connecting to a computer and using the software supplied, you
can make full use of the projector's capabilities.
Projector Features
s
"Optional Accessories" p.184
10
Part Names and Functions
11
Front/Side
NameFunction
Air exhaust vent
D
Cable cover fixing
E
screws
Cable cover
F
Control panel
G
Speaker
H
Exhaust vent for air used to cool the projector internally.
Caution
While projecting, do not put your face or hands
near the air exhaust vent, and do not place objects
that may become warped or damaged by heat near
the vent. Hot air from the air exhaust vent could
cause burns, warping, or accidents to occur.
Screws to fix the cable cover in place.
Loosen the two screws and open the cover when
connecting cables for external devices or installing the
wireless LAN unit.
Operates the projector.
s "Control Panel" p.16
Outputs audio.
NameFunction
Remote receiver
A
Lamp cover
B
Lamp cover fixing
C
screw
Receives signals from the remote control.
Open when replacing the projector's lamp.
s "Replacing the Lamp" p.175
Screw to fix the lamp cover in place.
s "Replacing the Lamp" p.175
Part Names and Functions
12
Top/Side
NameFunction
Easy Interactive
C
Function receiver
(EB-595Wi/EB-585Wi/
EB-575Wi only)
Obstacle sensor
D
Remote receiver
E
Projection window
F
Security slot
G
Receives signals from the interactive pen.
s "Using the Interactive Features
(EB-595Wi/EB-585Wi/EB-575Wi only)" p.64
Detects obstacles that are interfering with the projection
area.
s "Cleaning the Obstacle Sensor" p.171
Receives signals from the remote control.
Projects images.
Warning
• Do not look into the projection window while
projecting.
• Do not place any objects or put your hand near
the projection window. It could cause burns,
fire, or the object to warp because this area rea‐
ches a high temperature due to the concentrated
projection light.
The security slot is compatible with the Microsaver
Security System manufactured by Kensington.
s "Anti-Theft Lock" p.113
NameFunction
Air filter cover
A
open/close lever
Wireless LAN indicator
B
Opens and closes the air filter cover.
Indicates the access status to the optional wireless LAN
unit.
Air filter cover
H
Air intake vent
I
(air filter)
Focus lever
J
Open when changing the air filter or operating the focus
lever.
Takes in air to cool the projector internally.
s "Cleaning the Air Filter" p.172
s "Replacing the Air Filter" p.179
Adjusts the image focus.
Open the air filter cover to operate.
Part Names and Functions
13
Interface
The following ports are available under the cable cover.
NameFunction
Wireless LAN unit
A
installation section
Audio1 port
B
Computer1 port
C
Audio2 port
D
Install the optional Wireless LAN unit.
s "Installing the Optional Wireless LAN Unit" p.41
Inputs audio from equipment connected to the
Computer1 port.
Inputs image signals from a computer and component
video signals from other video sources.
• Inputs audio from equipment connected to the
Computer2 port.
• Inputs audio from other devices when projecting
images from the device connected to the USB-A port.
NameFunction
USB-B port
E
LAN port
F
Monitor Out/
G
Computer2 input
ports
HDMI2 port
H
S-Video port
I
HDMI1/MHL input
J
port
• Connects the projector to a computer via the supplied or
a commercially available USB cable, and projects the
images on the computer.
s "Projecting with USB Display" p.48
• Connects the projector to a computer via the supplied or
a commercially available USB cable to use the Wireless
Mouse function.
s "Using the Remote Control to Operate the
Mouse Pointer (Wireless Mouse)" p.104
• Connects the projector to a computer via the supplied
USB cable to use the interactive pen as a mouse
(EB-595Wi/EB-585Wi/EB-575Wi only).
s "Controlling Computer Features from a
Projected Screen (Computer Interactive Mode)"
p.68
Connects a LAN cable to connect to a network.
• When Monit or Out Port is set to Monitor Out from the
Configuration menu, analog RGB signals input from
the Computer1 port are output to an external monitor.
You cannot output signals input from other ports or
component video signals.
• When Monitor Out Port is set to Computer2 from the
Configuration menu, image signals from a computer
and component video signals from other video sources
are input.
Inputs video signals from HDMI compatible video
equipment and computers. This projector is compatible
with
HDCPg.
For S-video signals from video sources.
• Inputs video signals from HDMI compatible video
equipment and computers. This projector is compatible
with
HDCPg.
• Inputs signals from smartphones and tablet devices that
support
MHLg (Mobile High-definition Link).
Part Names and Functions
14
NameFunction
Audio port
K
Video port
L
SYNC IN/OUT port
M
(EB-595Wi/EB-585Wi/
EB-575Wi only)
Power inlet
N
TCH port (EB-595Wi
O
only)
USB-A port
P
RS-232C port
Q
Audio Out port
R
Mic port
S
Inputs audio from equipment connected to the S-Video
port or the Video port.
Inputs composite video signals from video sources.
When using the interactive features in the same room as
multiple versions of the same projector, you need to
connect the optional remote control cable set (ELPKC28)
to the projectors. When the cable set is connected, the
interactive pen operates smoothly.
s "Connecting Multiple Projectors (EB-595Wi/
EB-585Wi/EB-575Wi only)" p.42
Connects the power cord to the projector.
s "Getting Ready to Project" p.45
Connects the supplied Touch Unit connection cable to the
Touch Unit.
• Connects a USB memory device or a digital camera, and
projects images in PC Free.
"Projecting Images Stored on a USB Storage
s
Device (PC Free)" p.97
• Connects the optional Document Camera.
When controlling the projector from a computer, connect
it to the computer with an RS-232C cable. This port is for
control use and should not normally be used.
s "ESC/VP21 Commands" p.118
Outputs audio from the currently projected image or the
Mic port to an external speaker.
Inputs audio from the microphone.
s "Connecting a Microphone" p.37
Base
NameFunction
Ceiling mount fixing
A
points (five points)
Attach the optional Ceiling mount here when suspending
the projector from a ceiling.
s "Installing the Projector" p.26
s "Optional Accessories" p.184
Part Names and Functions
NameFunction
Security cable
B
installation point
Pass a commercially available wire lock through here and
lock it in place.
Do not pass drop-prevention wires through here when
mounting the projector on a wall or suspending it from a
ceiling.
s "Installing the Wire Lock" p.113
15
Rear foot fixing points
C
(two points)
Wall mount fixing
D
points (four points)
Illumination sensor
E
Front foot fixing point
F
Attach the feet when using the projector on a surface such
as a desk. (Only models with feet supplied)
s "Attaching the Feet (only Models with Feet Supplied)"
p.15
Attach the supplied or optional setting plate when
mounting on a wall.
s Installation Guide
s "Optional Accessories" p.184
Detects the brightness of the surroundings, and
automatically adjusts the brightness of the screen. Set
Brightness Control to Auto from the Configuration
menu.
s ECO - Brightness Controlp.144
Attach the foot with a spacer when using the projector on a
surface such as a desk. (Only models with feet supplied)
s "Attaching the Feet (only Models with Feet Supplied)"
p.15
Attaching the Feet (only Models with Feet Supplied)
Insert the feet into the foot fixing points.
Insert the foot with the spacer into the front foot fixing point.
A
Insert the rear feet (x2) into the foot fixing points.
B
Part Names and Functions
16
Control Panel
NameFunction
Indicators
A
[Source Search]
B
button
[Enter] button
C
[
]
Indicates the projector's status using color, and by being lit
or flashing.
s "Reading the Indicators" p.150
Switches to the image from the input port where video
signals are being input.
s "Automatically Detect Input Signals and Change the
Projected Image (Source Search)" p.46
• When the Configuration menu or the Help screen is
displayed, it accepts and enters the current selection and
moves to the next level.
• If pressed while projecting analog RGB signals from
Computer1 port or Computer2 port, you can
automatically optimize Tracking, Sync., and Position.
NameFunction
[w][v] button
D
[Help] button
E
[Esc] button
F
[Tele]/[Wide] buttons
G
[Menu] button
H
[Power] button
I
[t]
• Performs keystone correction.
s "H/V-Keystone" p.52
• If pressed when the Configuration menu or the Help
screen is displayed, these buttons select menu items and
setting values.
s "Using the Configuration Menu" p.125
s "Using the Help" p.149
Displays and closes the help screen which shows you how
to deal with problems if they occur.
s "Using the Help" p.149
• Stops the current function.
• If pressed when the Configuration menu is displayed, it
moves to the previous menu level.
s "Using the Configuration Menu" p.125
• Adjusts the size of the projection screen. Press the [Tele]
button to reduce the size of the projection screen and
press the [Wide] button to increase the size of the
projection screen.
• Corrects keystone distortion in the horizontal direction
when the Keystone screen is displayed.
s "H/V-Keystone" p.52
• If pressed when the Configuration menu or the Help
screen is displayed, these buttons select menu items and
setting values.
s "Using the Configuration Menu" p.125
"Using the Help" p.149
s
Displays and closes the Configuration menu.
s "Using the Configuration Menu" p.125
Turns the projector power on or off.
s "Getting Ready to Project" p.45
Part Names and Functions
17
Remote Control
NameFunction
[Power] button
A
[t]
[Computer] button
B
[Video] button
C
Numeric buttons
D
[Auto] button
E
[Aspect] button
F
[Num] button
G
Turns the projector power on or off.
s "Getting Ready to Project" p.45
Each time you press the button, the input changes between
images from the Computer1 port and the Computer2
port.
Each time the button is pressed, the image cycles through
the S-Video, Video, HDMI1/MHL, and HDMI2 ports.
• Enter the Password.
s "Setting Password Protection" p.110
• Use this button to enter numbers in Network settings
from the Configuration menu.
If pressed while projecting analog RGB signals from
Computer1 port or Computer2 port, you can
automatically optimize Tracking, Sync., and Position.
Each time the button is pressed, the aspect mode changes.
s "Changing the Aspect Ratio of the Projected Image"
p.61
Hold down this button and press the numeric buttons to
enter passwords and numbers.
s "Setting Password Protection" p.110
[Menu] button
H
Displays and closes the Configuration menu.
s "Using the Configuration Menu" p.125
Part Names and Functions
18
NameFunction
I
[][][ ][ ]
button
[Enter] button
J
[
]
[User] button
K
• When the Configuration menu or Help screen is
displayed, pressing these buttons selects menu items
and setting values.
s "Using the Configuration Menu" p.125
• When projecting in PC Free, pressing these buttons
displays the previous/next image, rotates the image, and
so on.
s "Projecting Images Stored on a USB Storage
Device (PC Free)" p.97
• During Wireless Mouse function, the mouse pointer
moves in the direction of the button that was pushed.
s "Using the Remote Control to Operate the
Mouse Pointer (Wireless Mouse)" p.104
• When the Configuration menu or the Help screen is
displayed, it accepts and enters the current selection and
moves to the next level.
s "Using the Configuration Menu" p.125
• Acts as a mouse's left button when using the Wireless
Mouse function.
s "Using the Remote Control to Operate the
Mouse Pointer (Wireless Mouse)" p.104
Select any frequently used item from the Configuration
menu items, and assign it to this button. By pressing
the [User] button, the assigned menu item selection/
adjustment screen is displayed, allowing you to make onetouch settings/adjustments.
s "Settings Menu" p.131
The following item is assigned by default.
• For EB-595Wi/EB-585Wi/EB-575Wi: Auto
Calibration
• For EB-585W/EB-580/EB-575W/EB-570: Power
Consumption
NameFunction
[Page] buttons
L
[[][]]
[E-Zoom] buttons
M
[z][x]
[A/V Mute] button
N
Strap attachment hole
O
[Help] button
P
[Freeze] button
Q
[Volume] buttons
R
[a][b]
Changes pages in files such as PowerPoint files when using
the following projection methods.
• When using the Wireless Mouse function
s "Using the Remote Control to Operate the
Mouse Pointer (Wireless Mouse)" p.104
• When using USB Display
s "Projecting with USB Display" p.48
• When connecting to a network
When projecting images using PC Free, pressing these
buttons displays the previous/next image file.
Enlarges or reduces the image without changing the
projection size.
s "Enlarging Part of the Image (E-Zoom)" p.103
• Turns the video and audio on or off.
s "Hiding the Image and Sound Temporarily (A/V
Mute)" p.102
• You can change the Projection mode as follows by
pressing the button for about five seconds.
FrontWFront/Upside Down
RearWRear/Upside Down
Allows you to attach a commercially available strap to the
remote control.
Displays and closes the help screen which shows you how
to deal with problems if they occur.
s "Using the Help" p.149
Pauses or resumes image playback.
s "Freezing the Image (Freeze)" p.102
[a] Decreases the volume.
[b] Increases the volume.
s "Adjusting the Volume" p.59
[Pointer] button
S
Displays the on-screen pointer.
s "Pointer Function (Pointer)" p.103
Part Names and Functions
19
NameFunction
[Esc] button
T
[Pen Mode] button
U
[Color Mode] button
V
[MHL Menu] button
W
[LAN] button
X
[USB] button
Y
• Stops the current function.
• If pressed when the Configuration menu is displayed, it
moves to the previous level.
s "Using the Configuration Menu" p.125
• Acts as a mouse's right button when using the Wireless
Mouse function.
s "Using the Remote Control to Operate the
Mouse Pointer (Wireless Mouse)" p.104
Changes between operating the computer or drawing
using the interactive pen.
s "Using the Interactive Features
(EB-595Wi/EB-585Wi/EB-575Wi only)" p.64
Each time the button is pressed, the color mode changes.
s "Selecting the Projection Quality (Selecting Color
Mode)" p.60
Displays the settings menu for the device linked to the
projector's MHL port.
Switches to the image from the network connected device.
Each time the button is pressed, it cycles through the
following images:
• USB Display
• Images from the device connected to the USB-A port
Replacing the Remote Control Batteries
If the remote control becomes unresponsive or inoperable after it has been
used for some time, the batteries may have reached the end of their service
life. When this happens, replace them with new batteries. Obtain two AA
size manganese or alkaline batteries. You cannot use other batteries except
for the AA size manganese or alkaline.
Attention
Make sure you read the following manual before handling the batteries.
s Safety Instructions
a
Remove the battery cover.
While pushing the battery cover catch, lift the cover up.
[Source Search]
Z
button
Remote control light-
a
emitting area
Switches to the image from the input port where video
signals are being input.
s "Automatically Detect Input Signals and Change the
Projected Image (Source Search)" p.46
Outputs remote control signals.
b
Replace the old battery with a new battery.
Slide the batteries in negative side first.
Part Names and Functions
Caution
Check the positions of the (+) and (-) marks inside the battery holder to
ensure the battery is inserted the correct way.
If the batteries are not used correctly, they could explode or leak causing
a fire, injury, or damage to the product.
20
Remote Control Operating Range
c
Reattach the battery cover.
Press the battery cover until it clicks into place.
Interactive Pen (EB-595Wi/EB-585Wi/EB-575Wi
only)
There are two types of interactive pens with different colored bottom
sections. You cannot use interactive pens with the same colored bottom
sections at the same time.
s
"Optional Accessories" p.184
Part Names and Functions
C
NameFunction
Button
• Turn on the interactive pen. When turned on, it takes
approximately one second before the interactive pen is
operational.
• Press the button to switch the tip function between pen
and eraser while drawing.
• Press the button to perform a right-click operation
while using the pen as a mouse.
21
Pen tip
A
Battery light
B
NameFunction
• Turn on the interactive pen. When turned on, it takes
approximately one second before the interactive pen is
operational.
• Hold the pen close to the projected screen, and press to
use.
s "Using the Interactive Features
(EB-595Wi/EB-585Wi/EB-575Wi only)" p.64
s "Optional Accessories" p.184
Press the button on the side of the pen to indicate the
remaining battery power.
• When the battery is charged, the light is lit green until
you release the button.
• When the battery is running low, the light flashes green
until you release the button.
• Does not light when the battery is exhausted. Change
the battery.
s "Replacing the Battery for the Interactive Pen" p.21
Attachment for
D
optional strap or cord
Battery cover
E
The interactive pen turns off automatically after 20 minutes of
a
inactivity.
To use the pen again, tap the pen tip or press the button on the side
to turn on the power.
Allows you to attach a commercially available strap.
Open this cover when replacing the battery.
s "Replacing the Battery for the Interactive Pen" p.21
Replacing the Battery for the Interactive Pen
When you press the button, the battery light on the interactive pen lights or
flashes. Does not light or flash when the battery is exhausted. When the
light no longer lights or flashes, replace the battery. Use one of the
following types of battery. Other chargeable batteries cannot be used.
• AA size manganese battery
• AA size alkaline manganese battery
*
• eneloop
* eneloop
(HR-3UTG/HR-3UTGA/HR-3UTGB/BK-3MCC)
®
is a registered trademark of the Panasonic Group.
®
Attention
Make sure you read the following manual before handling batteries.
s Safety Instructions
Part Names and Functions
22
a
b
Remove the battery cover.
While pushing the battery cover catch, lift the cover up.
Replace the old battery with a new battery.
Slide the batteries in negative side first.
c
Replacing the Tip of the Interactive Pen
Replace the tip of the interactive pen when it is worn.
s
Replace the battery cover.
Press the battery cover until it clicks into place.
"Optional Accessories" p.184
Turn the tip of the pen to remove it.
a
Caution
Check the positions of the (+) and (-) marks inside the battery holder to
ensure the battery is inserted the correct way.
If the batteries are not used correctly, they could explode or leak causing
a fire, injury, or damage to the product.
b
Turn the new tip to attach it.
Part Names and Functions
23
Pen Tray (EB-595Wi/EB-585Wi/EB-575Wi only)
NameFunction
Fixing points
A
Security hole
B
a
It is recommended that the pen tray be tightened with two
commercially available M5 bolts.
Attach the pen tray to a whiteboard or wall.
Pass a commercially available lock through here.
Touch Unit (EB-595Wi only)
Front
When the dial cover is not attached
NameFunction
Dial cover
A
TCH port
B
Security slot
C
Remove to use the adjustment dials.
Connects the projector to the Touch Unit with the Touch
Unit connection cable.
The security slot is compatible with the Microsaver
Security System manufactured by Kensington.
Adjustment dials
D
Indicator
E
Screw holes (for
F
installation)
Performs angle adjustments.
Lit when the Touch Unit is turned on.
The screw holes for securing the Touch Unit with M4
screws (only when installing on a non-magnetic surface).
Part Names and Functions
24
Rear
NameFunction
Laser diffusion port
A
Installation magnet
B
Marker
C
Diffuses laser light to detect the position of fingers.
Magnet used for installation.
Place the markers on the screen when performing angle
adjustment.
Caution
• Do not use the Touch Unit near magnetic storage media such as magnetic
cards, or precision electronic devices such as computers, digital watches, or
cell phones. Data could be corrupted or a malfunction could occur.
• When installing the Touch Unit on a magnetic surface, be careful not to trap
your fingers or any other part of your body between the magnet and the
installation surface.
Attention
• Do not connect the Touch Unit to any devices except for EB-595Wi. The
device could malfunction, or laser light could leak beyond the limit.
• Make sure you use the supplied Touch Unit connection cable. Operations are
not possible with a commercially available cable.
• When disposing of the Touch Unit, do not disassemble it. Dispose according
to your local or national laws and regulations.
See the Installation Guide for the Touch Unit installation methods and
a
angle adjustment methods.
s Installation Guide
Warning
• Follow the steps in the Installation Guide to install the Touch Unit. If this is
not installed correctly, it could cause damage to your eyes due to the
powerful light emitted.
• Do not use the Touch Unit near medical equipment such as pace makers.
Furthermore, when using the Touch Unit, make sure there is no medical
equipment such as pace makers, in the surrounding area. Electromagnetic
interference may cause medical equipment to malfunction.
Preparing the Projector
This chapter explains how to install the projector and connect projection sources.
Installing the Projector
26
Installation Methods
The projector supports the following six different installation methods.
Install the projector according to the installation location.
Turn the projector off when installing the projector or changing the
installation method. Turn the power back on after completing installation.
Warning
• A special method of installation is required when suspending the projector
from a wall or ceiling. If it is not installed correctly, it could fall causing an
accident and injury.
• If you use adhesives on the wall mount plate fixing points or the ceiling
mount fixing points to prevent the screws from loosening, or if you use
things such as lubricants or oils on the projector, the projector case may
crack causing it to fall from its mount. This could cause serious injury to
anyone under the mount and could damage the projector.
When installing or adjusting the mount, do not use adhesives to prevent the
screws from loosening and do not use lubricant or oil and so on.
• Do not cover the projector's air intake vent or air exhaust vent. If either of
the vents are covered, the internal temperature could rise and cause a fire.
• Do not use the projector in a location subject to combustible or explosive gas.
The projector may catch fire because of the high temperature of the lamp
inside the projector.
• We recommend using a smooth, board type screen without any
a
• Mount the projector on a wall
or ceiling and project images
from in front of a screen.
(Front/Upside Down projection)
unevenness. If the projection screen is uneven, there may be
distortions in the projected image.
• Distortions may occur in the projected image depending on the
material of the screen and the installation method.
• When mounting the projector on a wall or ceiling, or placing the
projector vertically, make sure you use the correct tools for the
installation method.
s "Optional Accessories" p.184
• The default Projection setting is Front/Upside Down. You can
change to other Projection settings from the Configuration menu.
s Extended - Projection p.132
• You can change the Projection setting as follows by pressing down
the [A/V Mute] button on the remote control for about five seconds.
FrontWFront/Upside Down
RearWRear/Upside Down
• Mount the projector on a wall
or ceiling and project images
from behind a translucent
screen. (Rear/Upside Down pro‐
jection)
Installing the Projector
27
• Project images from in front of
the screen. (Front projection)
Attach the feet when using the projector on a surface such as a desk.
a
s "Attaching the Feet (only Models with Feet Supplied)" p.15
• Place the projector vertically and
project images from in front of
the screen. (Front/Upside Down
projection)
• Project images from behind a
translucent screen. (Rear projec‐
tion)
• Place the projector vertically and
project images from behind the
screen (Rear/Upside Down pro‐
jection)
When Using the Interactive Features (EB-595Wi/EB-585Wi/
EB-575Wi only)
Project from in front of the screen when using the interactive features. Set
Projection to Front/Upside Down or Front.
Attention
The interactive features operates by infrared communication. Note the
following points when installing the projector.
• Make sure there is no strong light or sunlight shining on the Easy Interactive
Function receiver, the projection screen, the projector itself, or the rear of the
projector.
• Do not install the projector in direct sunlight through a window. This could
cause the interactive features to malfunction.
• Install the projector so that the Easy Interactive Function receiver is not too
close to fluorescent lights. If the surrounding area is too bright, the
interactive features may not operate correctly.
• If there is any dust stuck to the Easy Interactive Function receiver, it could
interfere with infrared communication and you may not be able to use the
features normally. Clean the receiver if it is dirty.
"Cleaning" p.171
s
• Do not put paint or any stickers on the cover of the Easy Interactive
Function receiver.
• When using the interactive features, do not use an infrared remote control or
microphone in the same room. The interactive pen could malfunction.
• Do not use devices that generate powerful noise, such as rotary devices or
transformers, near the projector. You may not be able to operate the
interactive features.
Installing the Projector
• When using the interactive features, install so that the projected
a
Setting up the Touch Unit (EB-595Wi only)
When using the Touch Unit, install the projector using one of the following
methods. The Touch Unit cannot be used if another installation method is
used.
screen is a rectangle without any distortion.
• When using the interactive features in the same room as multiple
projectors, interactive pen operations may become unstable. In this
situation, connect the optional remote control cable set (ELPKC28)
to the projectors, and change Sync of Projectors to Wired from the
Configuration menu.
s Extended - Easy Interactive Function - Advanced - Sync of
Projectors p.135
28
• Mount the projector on a wall or suspend it from a ceiling and project
images from in front of the screen (when suspending the projector from
a ceiling, the optional ceiling mount (ELPMB23) is required)
• Install vertically on a desk and project from the front of the desk (the
optional interactive table mount (ELPMB29) is required)
s
"Optional Accessories" p.184
Connecting Equipment
The port name, location, and connector orientation differ depending on the source being connected.
Connecting a Computer
To project images from a computer, connect the computer using one of the following methods.
29
AB
C
D
When using the optional computer cable
Connect the computer's display output port to the projector's Computer1 or Computer2 port.
You can output audio from the projector's speaker by connecting the computer's audio output port to the projector's Audio1 or Audio2 port using a commercially available
audio cable.
When using the supplied or a commercially available USB cable
Connect the computer's USB port to the projector's USB-B port.
Audio from the computer is output from the projector with the projected image.
When using a commercially available HDMI cable
Connect the computer's HDMI port to the projector's HDMI1/MHL or HDMI2 port.
Audio from the computer is output from the projector with the projected image.
Connecting Equipment
30
a
• When connecting to the Audio1, Audio2, and Computer1 ports, we recommend connecting cables to the ports in the following order: Audio1, Audio2, and then
Computer1.
• You can also set the port used for audio input from the Configuration menu.
Extended - A/V Settings - Audio Output p.132
s
• If audio is not output when an HDMI cable is connected, connect a commercially available audio cable to the Audio Input port. After connecting the cable, select
the input port you connected to from HDMI1 Audio Output or HDMI2 Audio Output from the Configuration menu.
