Epson DS-575W User Manual

DS-575W User's Guide

Contents

DS-575W User's Guide................................................................................................................................ 7
Scanner Basics............................................................................................................................................ 8
Loading Originals...................................................................................................................................... 15
Wi-Fi Networking ....................................................................................................................................... 40
Scanner Parts Locations ...................................................................................................................... 8
Scanner Parts.................................................................................................................................. 8
Scanner Buttons and Lights........................................................................................................... 11
Changing the Power Off and Sleep Timer Settings ............................................................................ 13
Loading Originals in the Input Tray..................................................................................................... 15
Original Document Specifications.................................................................................................. 25
Loading Plastic and Laminated Cards in the Input Tray ..................................................................... 27
Plastic and Laminated Card Specifications ................................................................................... 32
Loading Special Originals................................................................................................................... 32
Special Original Specifications ...................................................................................................... 38
Manual Network Connection Setup.................................................................................................... 40
Connecting to an Existing Wi-Fi Network .......................................................................................... 41
Manually Connecting to a Wi-Fi Router Using EpsonNet Config ................................................... 42
Setting Up Network Scanning ........................................................................................................ 43
Determining the Scanner's IP Address ..................................................................................... 46
Direct Wi-Fi Mode Setup .................................................................................................................... 46
Enabling a Direct Wi-Fi (AP Mode) Connection............................................................................. 47
Using WPS to Set Up a Direct Wi-Fi Connection ........................................................................... 48
Wi-Fi Protected Setup (WPS)............................................................................................................. 48
Using WPS to Connect to a Network ............................................................................................. 49
Using WPS PIN Mode to Connect to a Network ............................................................................ 49
Epson DocumentScan App for iOS/Android ....................................................................................... 50
Using the Network Interface Unit........................................................................................................ 50
Network Interface Unit Control Panel ............................................................................................ 51
3
Connecting the Network Interface Unit .......................................................................................... 51
Scanning to Network Computers from the Network Interface Unit - Windows ............................... 52
Disabling Wi-Fi Features .................................................................................................................... 52
Restoring Default Network Settings.................................................................................................... 53
Scanning .................................................................................................................................................... 54
Starting a Scan................................................................................................................................... 54
Starting a Scan from a Scanner Button.......................................................................................... 54

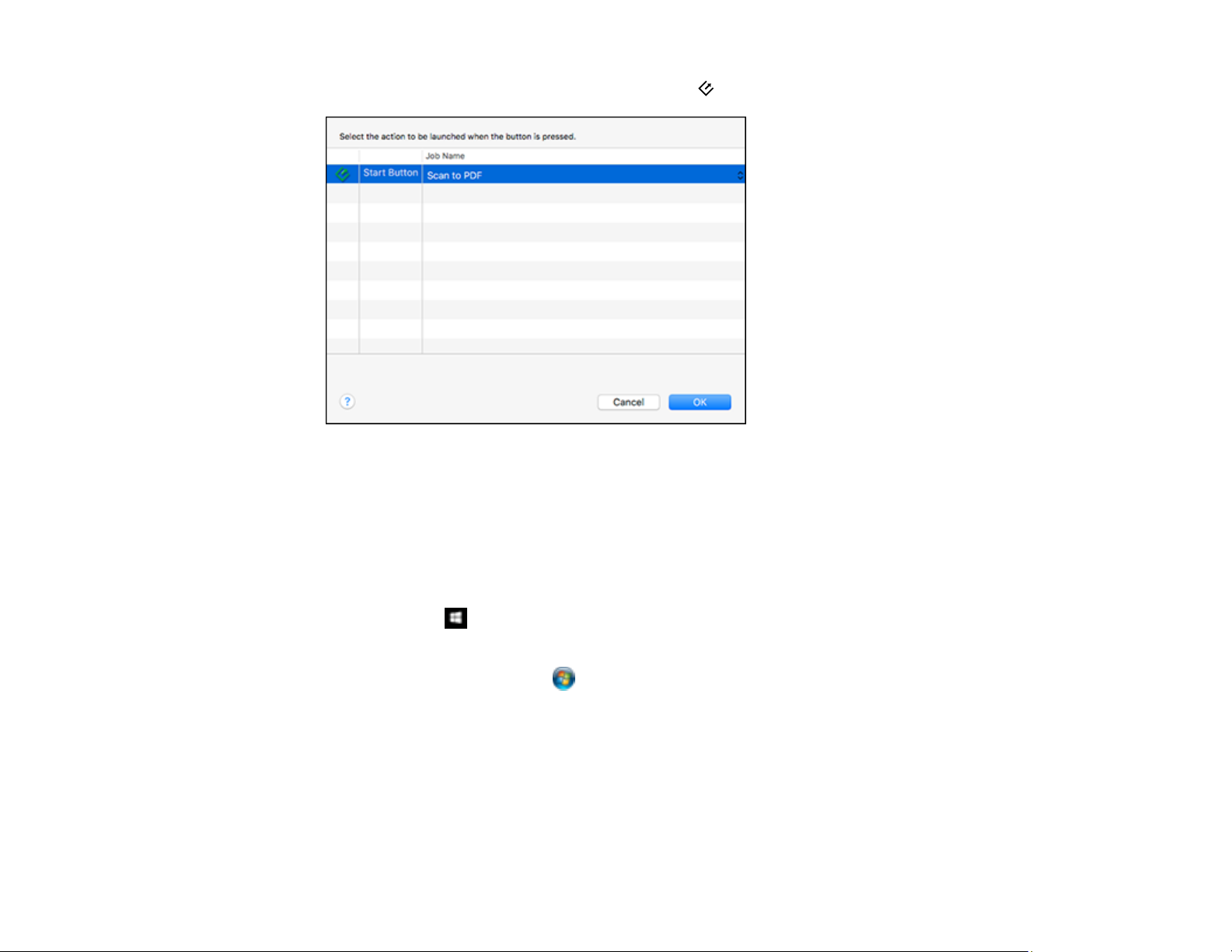

Assigning Start Button Settings or Scan Jobs ........................................................................... 55
Starting a Scan Using the Epson Scan 2 Icon ............................................................................... 57
Starting a Scan from a Scanning Program..................................................................................... 59
Scanning with Document Capture Pro or Document Capture ............................................................ 61
Scanning in Epson Scan 2 ................................................................................................................. 64
Additional Scanning Settings - Main Settings Tab ......................................................................... 67
Additional Scanning Settings - Advanced Settings Tab................................................................. 67
Scanning Settings for Special Documents..................................................................................... 68
Image Format Options................................................................................................................... 69
Scan Resolution Guidelines ............................................................................................................... 70
Scanning with NFC from Your Android Device................................................................................... 71
Scanning Special Projects.................................................................................................................. 72
Scanning Two Originals onto One Sheet (Stitching Images) - Windows ....................................... 73
Scanning Multi-Page Originals as Separate Files - Windows ........................................................ 76
Convert Scanned Documents to Editable Text (OCR) ................................................................... 78
Scanning Using OCR - Windows .............................................................................................. 78
Scanning Using OCR - Mac ...................................................................................................... 80
Saving Scanned Documents as a Searchable PDF....................................................................... 83
Saving a Scan as an Office Format File - Windows ....................................................................... 85
Scanning to a SharePoint Server or Cloud Service ....................................................................... 86
Cleaning and Transporting Your Scanner............................................................................................... 89
Cleaning Your Scanner ...................................................................................................................... 89
Cleaning Inside Your Scanner............................................................................................................ 89
Checking the Scanner Roller Counter ................................................................................................ 93
Replacing the Scanner Rollers........................................................................................................... 94
Resetting the Scanner Roller Counter ......................................................................................... 100
4
Transporting Your Scanner .............................................................................................................. 102
Solving Problems .................................................................................................................................... 103
Scanner Light Status........................................................................................................................ 103
Solving Scanning Problems ............................................................................................................. 105
Scanner Does Not Turn On or Turns Off Unexpectedly ............................................................... 105
Scanner Button Does Not Work as Expected .............................................................................. 105
Scanning Software Does Not Operate Correctly ......................................................................... 106
Cannot Start Epson Scan 2 ......................................................................................................... 107
Original Feeds Incorrectly in Scanner.......................................................................................... 107
Original Jams in Scanner............................................................................................................. 108
Scanning is Slow ......................................................................................................................... 110
Solving Network Scanning Problems ............................................................................................... 110
Cannot Scan Over a Network ...................................................................................................... 111
Scanner Cannot Connect to a Wireless Router or Access Point ................................................. 111
Solving Scanned Image Quality Problems ....................................................................................... 112
Back of Original Image Appears in Scanned Image .................................................................... 113
Scanned Characters are Blurry ................................................................................................... 113
Characters are not Recognized During Conversion to Editable Text (OCR) ............................... 114
Ripple Patterns Appear in an Image ............................................................................................ 114
Spots or Lines Appear in All Scanned Images ............................................................................. 115
Scanned Image is Cropped ......................................................................................................... 115
Resetting the Epson Scan 2 Settings .......................................................................................... 115
Uninstall Your Scanner Software...................................................................................................... 116
Uninstalling Scanner Software - Windows................................................................................... 116
Uninstalling Scanner Software - Mac........................................................................................... 117
Where to Get Help............................................................................................................................ 117
Technical Specifications ........................................................................................................................ 119
Windows System Requirements ...................................................................................................... 119
Mac System Requirements .............................................................................................................. 119
General Specifications ..................................................................................................................... 120
Dimension Specifications ................................................................................................................. 121
Electrical Specifications ................................................................................................................... 122
Environmental Specifications ........................................................................................................... 122
5
Network Interface Specifications ...................................................................................................... 123
Safety and Approvals Specifications ................................................................................................ 124
Notices ..................................................................................................................................................... 126
Important Safety Instructions............................................................................................................ 126
Restrictions on Copying ................................................................................................................... 128
Default Delay Times for Power Management for Epson Products.................................................... 129
Binding Arbitration and Class Waiver ............................................................................................... 129
Trademarks...................................................................................................................................... 132
Copyright Notice............................................................................................................................... 133
libTIFF Software Acknowledgment.............................................................................................. 133
A Note Concerning Responsible Use of Copyrighted Materials................................................... 134
Copyright Attribution.................................................................................................................... 134
6
DS-575W User's Guide
Welcome to the DS-575W User's Guide.
For a printable PDF copy of this guide, click here.
7

Scanner Basics

See these sections to learn about the basic features of your scanner.
Scanner Parts Locations Changing the Power Off and Sleep Timer Settings

Scanner Parts Locations

See these sections to identify the parts on your scanner.
Scanner Parts Scanner Buttons and Lights User Replaceable Epson Scanner Parts and Accessories
Parent topic: Scanner Basics

Scanner Parts

8
1 ADF (Automatic Document Feeder)
2 Edge guides
3 Input tray
4 Input tray extension
5 Output tray
6 Output tray extensions
7 Stopper
1 Kensington security slot
2 USB port
9
3 Power inlet
1 Cover open lever
2 Scanner cover
3 Pickup rollers
4 Separation rollers
1 AC adapter
10
2 Power cord
3 USB cable
Parent topic: Scanner Parts Locations

Scanner Buttons and Lights

Buttons
1
2 Wi-Fi connect button
3
4
5
6
7 start button
8
power button
Wi-Fi button
double feed detection skip button
slow mode button
stop button
NFC tag
11
Lights
1
2
3 ! error light
4
5 ready light
6
7
Parent topic: Scanner Parts Locations
AP mode light
Wi-Fi light
automatic feeding mode light
double feed detection skip light
slow mode light

User Replaceable Epson Scanner Parts and Accessories

You can purchase genuine Epson accessories at epson.com (U.S. sales) or epson.ca (Canadian sales). You can also purchase accessories from an Epson authorized reseller. To find the nearest one, call 800­GO-EPSON (800-463-7766) in the U.S. or 800-807-7766 in Canada.
Part Part number
Carrier sheet B12B819051
Roller assembly kit B12B819031
12
Part Part number
Cleaning kit B12B819291
Network Interface Unit B12B808441
Parent topic: Scanner Parts Locations

Changing the Power Off and Sleep Timer Settings

You can use the Epson Scan 2 Utility to change the time period before the scanner enters sleep mode and turns off automatically.
1. Do one of the following to access the Epson Scan 2 Utility:
• Windows 10: Click and select All Apps > EPSON > Epson Scan 2 Utility.
• Windows 8.x: Navigate to the Apps screen and select Epson Scan 2 Utility.
• Windows (other versions): Click or Start, and select All Programs or Programs. Select EPSON > Epson Scan 2 > Epson Scan 2 Utility.
• Mac: Open the Applications folder, open the Epson Software folder, and select Epson Scan 2
Utility.
13
2. Click the Power Save tab.
3. Select the length of time after which you want the scanner to go to sleep as the Sleep Timer setting.
4. Select the length of time after which you want the scanner to automatically turn off when not in use as the Power Off Timer setting.
5. Close the Epson Scan 2 Utility.
Parent topic: Scanner Basics
14

Loading Originals

Follow the instructions here to load your originals into the scanner.
Loading Originals in the Input Tray Loading Plastic and Laminated Cards in the Input Tray Loading Special Originals

Loading Originals in the Input Tray

You can load originals that meet the document specifications in the input tray.
Caution: Do not load photos, or valuable original documents or artwork, directly into the input tray. This may wrinkle or damage the original. Load these originals using an optional carrier sheet.
The steps below describe loading originals of the same size. To load originals of multiple sizes at once, see the link at the end of these steps.
1. Open the input tray and pull up its extension.
2. Pull out the output tray and its extension, and open the stopper.
15
Note: If you are loading an original that is 15.5 inches (393.8 mm) or longer, do not pull out the input
or output tray extensions and do not open the stopper.
3. Slide the input tray edge guides all the way out.
4. If you are loading a multi-page original, fan your stack of originals.
Note: If you are loading an original that is 15.5 inches (393.8 mm) or longer, load only one sheet at a time.
16
5. Stack the originals with the printed side facing down and slide the stack so the leading edge is at an angle as shown.
17
6. Load standard originals into the input tray printed side down and top edge first, and guide them in until they meet resistance.
• If you are loading paper business cards, load up to 15 cards printed side down and top edge first
into the input tray horizontally, and slide them in until they meet resistance.
18
19
• If you are loading hole-punched originals, load them with the holes facing down or to the side as
shown. The holes must be within 1.2 inches (30 mm) of the edge of the originals.
7. Slide the edge guides against the edges of the original.
20
Note: If you are scanning originals that are 15.5 inches (393.8 mm) or longer, support the original as
it enters into and ejects from the scanner as shown.
8. If necessary during scanning, adjust the position of the stopper on the output tray extension to fit the ejected originals.
Note: If thicker paper does not eject properly or falls from the output tray, push in the output tray and allow the originals to eject freely onto the surface below the scanner. If the scanned images are affected by the originals ejecting below the scanner, try placing the scanner on the edge of a table where the ejected originals can drop freely.
21
If scanning thin or wrinkled paper causes paper jams, press the slow mode button once before scanning to slow down the feeding speed; press it again to return to normal speed.
Loading Multiple Sizes of Originals in the Input Tray Original Document Specifications
Parent topic: Loading Originals
Related references
Original Document Specifications
Related topics
Scanning

Loading Multiple Sizes of Originals in the Input Tray

You can load originals of different sizes, paper types, and thicknesses at one time in the input tray. Just make sure they meet the original document specifications.
Caution: Do not load photos, or valuable original documents or artwork, directly into the input tray. This may wrinkle or damage the original. Load these originals using an optional carrier sheet.
1. Open the input tray and pull up its extension.
22
2. Pull out the output tray and its extension, and open the stopper.
Note: If you are loading originals that are 15.5 inches (393.8 mm) or longer, do not pull out the input or output tray extensions and do not open the stopper.
3. Slide the input tray edge guides all the way out.
23
4. Load the originals in the input tray in descending order of paper size with the widest at the back and the narrowest at the front. Slide them in until they meet resistance. Make sure the printed sides are facedown and the top edges are slightly angled in the input tray.
5. Slide the edge guides against the edges of the widest original.
6. If necessary during scanning, adjust the position of the stopper on the output tray extension to fit the ejected originals.
Note: If thicker paper does not eject properly or falls from the output tray, push in the output tray and allow the originals to eject freely onto the surface below the scanner. If the scanned images are affected by the originals ejecting below the scanner, try placing the scanner on the edge of a table where the ejected originals can drop freely.
24
If scanning thin or wrinkled paper causes paper jams, press the slow mode button once before scanning to slow down the feeding speed; press it again to return to normal speed.
Parent topic: Loading Originals in the Input Tray

Original Document Specifications

You can load original documents that meet these specifications in your scanner.
25
Paper type Paper size Paper weight Loading capacity
Plain paper
Fine paper
Recycled paper
Letter (8.5 × 11 inches [216 × 279 mm])
Legal (8.5 × 14 inches [216 × 356 mm])
A4 (8.3 × 11.7 inches [210 × 297 mm])
A5 (5.8 × 8.2 inches [148 × 210 mm])
A6 (4.1 × 5.8 inches [105 × 148 mm])
B5 (7.2 × 10.1 inches [182 × 257 mm])
Width: 2.0 to 8.5 inches (50.8 to 215.9 mm)
Height: 15.5 to 240 inches (393.7 to 6,096 mm)
7 to 110 lb (27 to 413 g/m²)
13 to 35 lb (50 to 130 g/m²)
21 lb (80 g/m²): 50 sheets
24 lb (90 g/m²): 43 sheets
28 lb (104 g/m²): 37 sheets
34 lb (127 g/m²): 31 sheets
42 lb (157 g/m²): 25 sheets
56 lb (209 g/m²): 19 sheets
68 lb (256 g/m²): 15 sheets
110 lb (413 g/m²): 9 sheets
Loading capacity may vary depending on the paper type.
1 sheet
Paper business cards Business cards Up to 56 lb
(210 g/m²)
15 cards loaded horizontally
Note: You can load originals of different sizes, paper types, and thicknesses up to this size: Letter (8.5 × 11 inches [216 × 279 mm]).
Caution: Do not load the following types of originals in the scanner, or they may be damaged or may damage the scanner:
• Thermal paper
• Coated paper
• Originals with uneven surfaces, such as embossed documents
26
• Photos
• Originals with wet ink
• Ripped, curled, or wrinkled originals
• Originals containing staples or paper clips
• Originals with holes, other than standard hole-punched originals
• Originals that are bound
• Originals with carbon paper backing
• Transparencies
• Glossy originals
• Carbon-less paper
• Perforated originals
• Originals with labels or stickers
• Fabric or other non-paper originals
Parent topic: Loading Originals in the Input Tray

Loading Plastic and Laminated Cards in the Input Tray

You can load plastic and laminated cards that meet the card specifications in the input tray.
27
1. Open the input tray, pull out the output tray, and open the stopper. Do not pull out the extensions.
2. Slide the input tray edge guides all the way out.
28
3. Load plastic or laminated cards printed side down and top edge first into the input tray horizontally, and slide them in until they meet resistance.
29
Note: Do not load plastic cards vertically.
30
Loading...
+ 104 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
