Epson 5510, 5535U, 5530U, 5520W User Manual

PowerLite

5510/5520W/5530U/5535U

User's Guide

PowerLite 5510/5520W/5530U/5535U User's Guide................................................................................ 11

Introduction to Your Projector ................................................................................................................. 12

Setting Up the Projector ........................................................................................................................... 27

Projector Features.............................................................................................................................. 12

Product Box Contents.................................................................................................................... 13

Additional Components ................................................................................................................ 15

Additional Projector Software and Manuals................................................................................... 15

Optional Equipment and Replacement Parts................................................................................. 16

Warranty and Registration Information .......................................................................................... 17

Notations Used in the Documentation ................................................................................................ 18

Where to Go for Additional Information .............................................................................................. 18

Projector Part Locations ..................................................................................................................... 18

Projector Parts - Front/Top ............................................................................................................ 19

Projector Parts - Rear .................................................................................................................... 20

Projector Parts - Interface Ports .................................................................................................... 21

Projector Parts - Base.................................................................................................................... 22

Projector Parts - Control Panel ...................................................................................................... 23

Projector Parts - Remote Control................................................................................................... 24

Projector Placement........................................................................................................................... 27

Projector Setup and Installation Options ....................................................................................... 27

Projection Distance........................................................................................................................ 30

Projector Connections........................................................................................................................ 32

Connecting to Computer Sources.................................................................................................. 32

Connecting to a Computer for VGA Video................................................................................. 32

Connecting to a Computer for HDMI Video and Audio.............................................................. 33

Connecting to a Computer for 5 BNC Video.............................................................................. 34

Connecting to a Computer for Sound........................................................................................ 35

Connecting to Video Sources ........................................................................................................ 36

Connecting to an HDMI Video Source ...................................................................................... 36

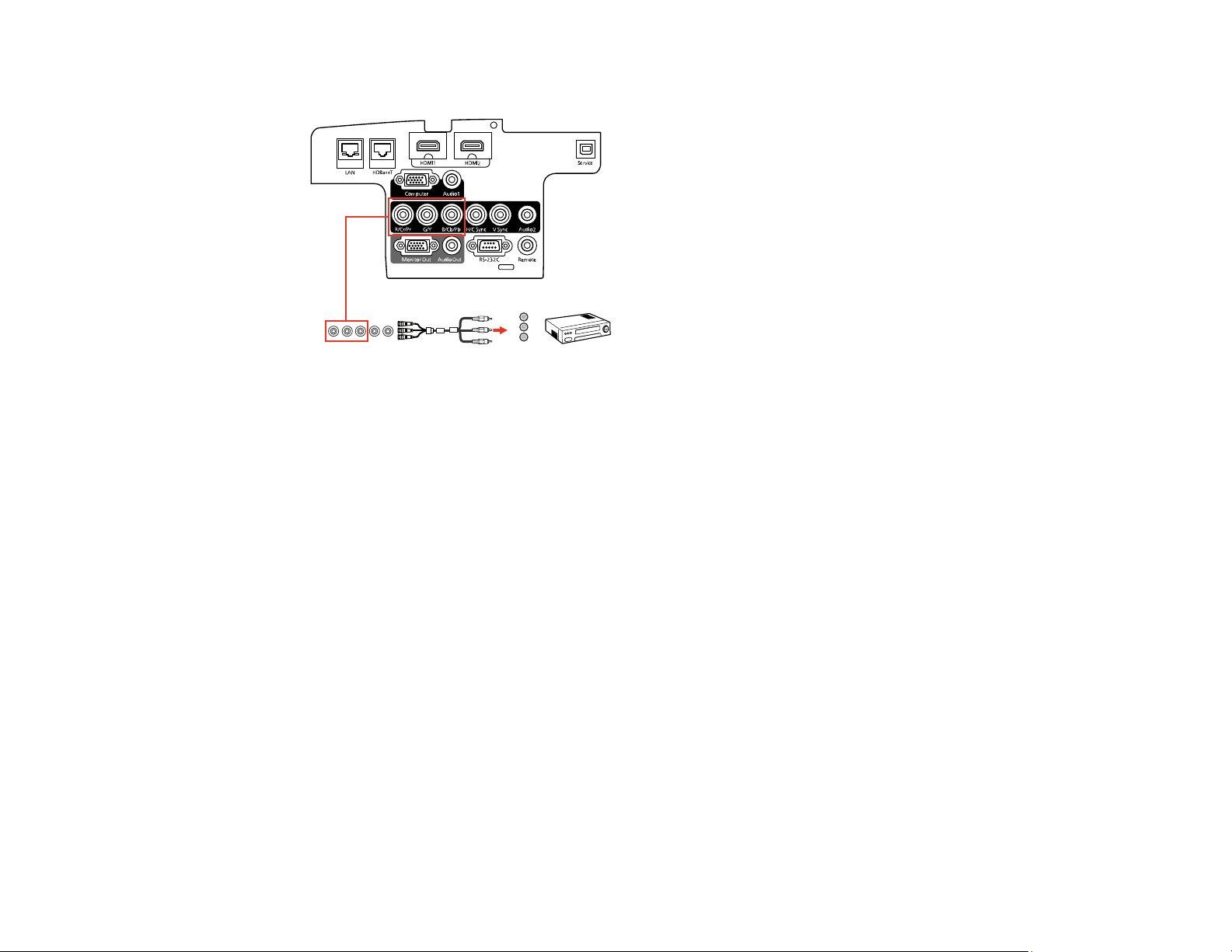

Connecting to a Component-to-BNC Video Source .................................................................. 37

Connecting to a Component Video Source ............................................................................... 38

Connecting to a Video Source for Sound .................................................................................. 39

Connecting to an HDBaseT Transmitter ....................................................................................... 40

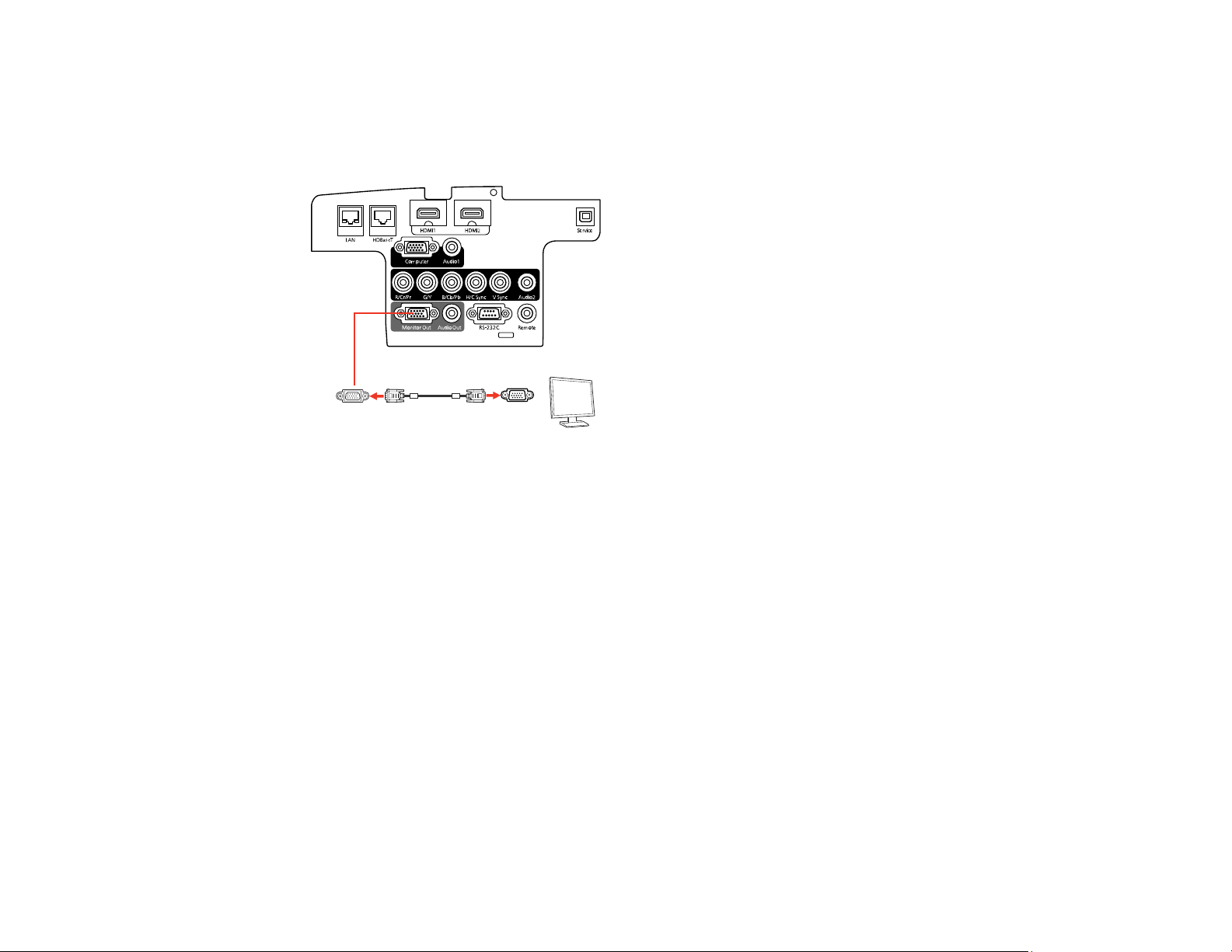

Connecting to an External Computer Monitor................................................................................ 41

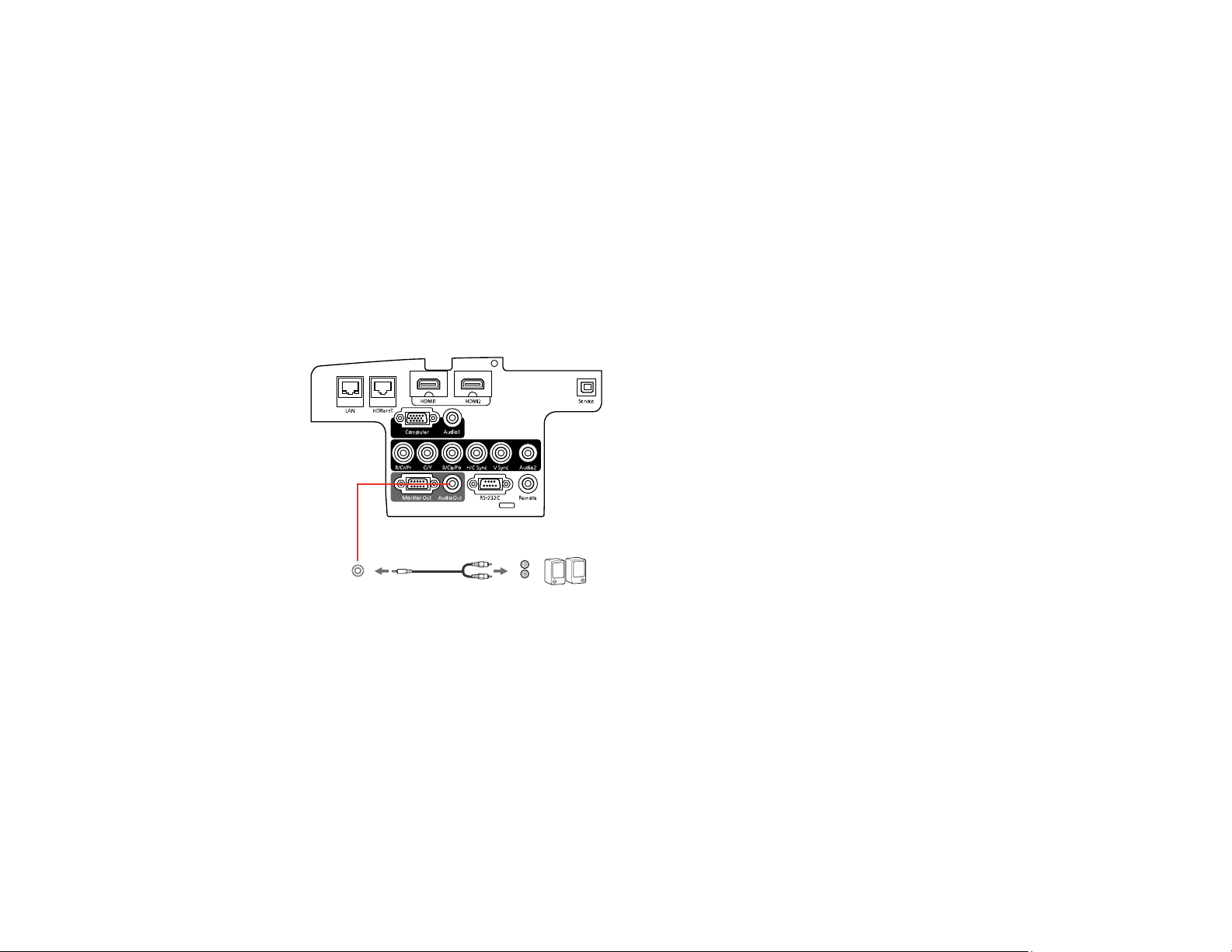

Connecting to External Speakers .................................................................................................. 42

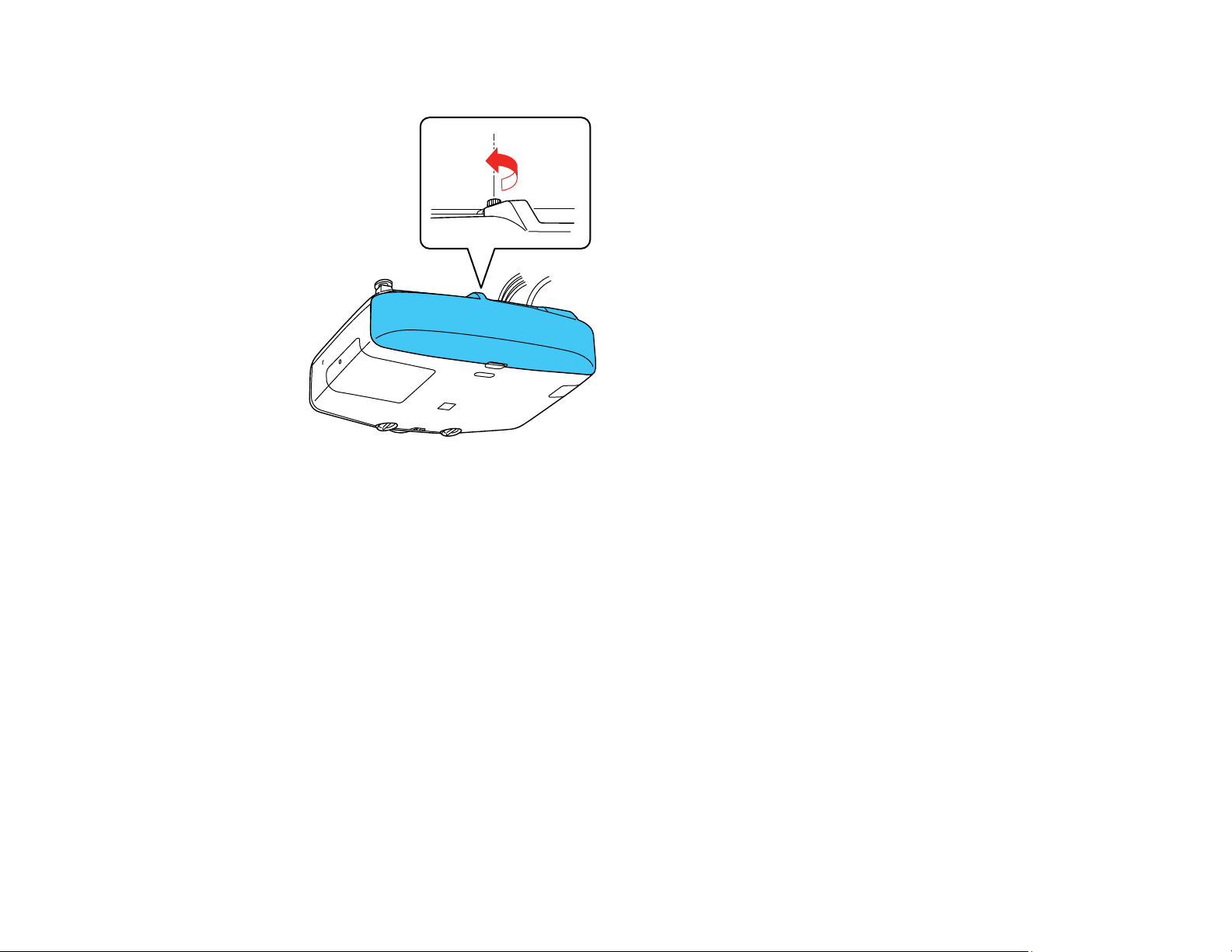

Attaching and Removing the Cable Cover.......................................................................................... 43

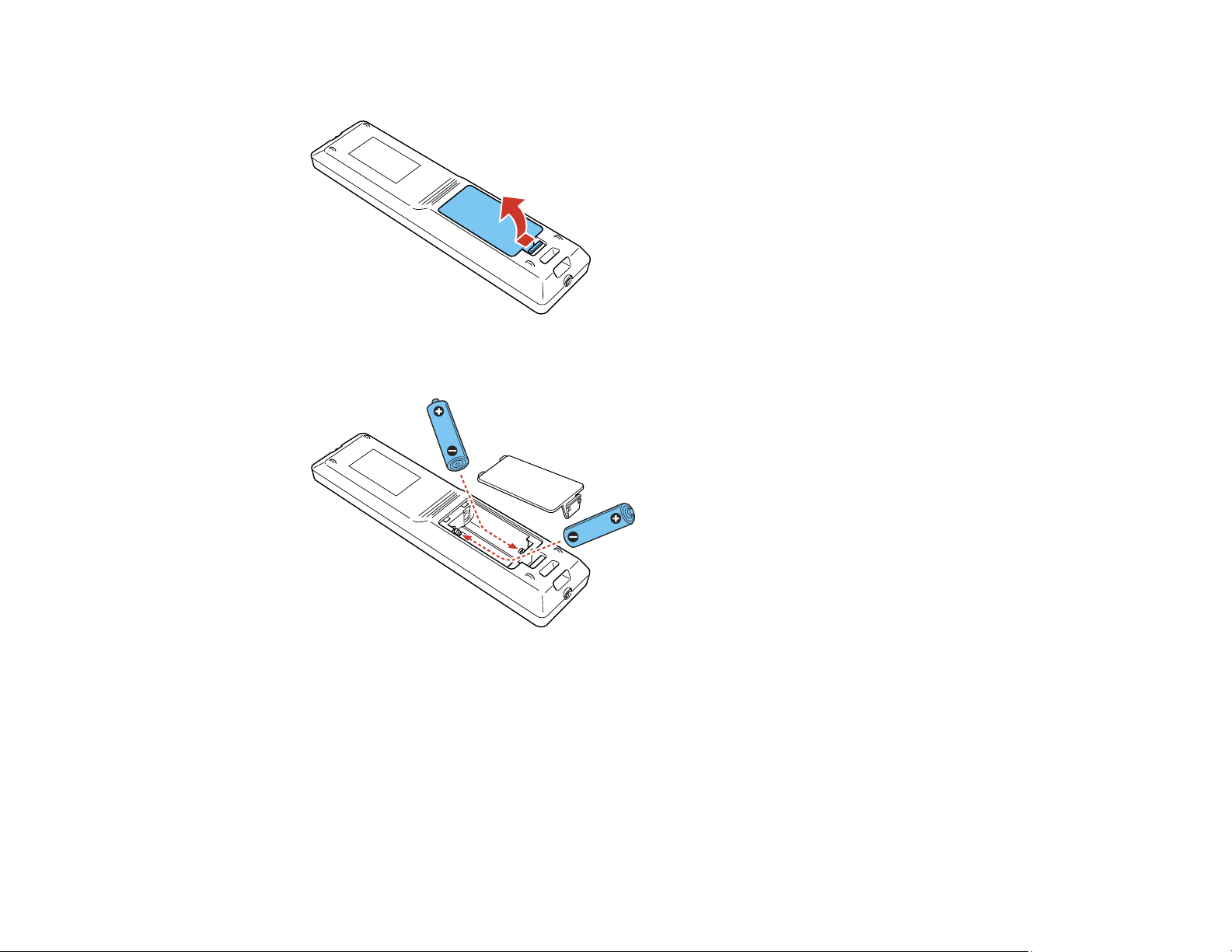

Installing Batteries in the Remote Control .......................................................................................... 45

Using the Projector on a Network ............................................................................................................ 48

Wired Network Projection................................................................................................................... 48

Connecting to a Wired Network ..................................................................................................... 48

Selecting Wired Network Settings ................................................................................................. 49

Wireless Network Projection .............................................................................................................. 52

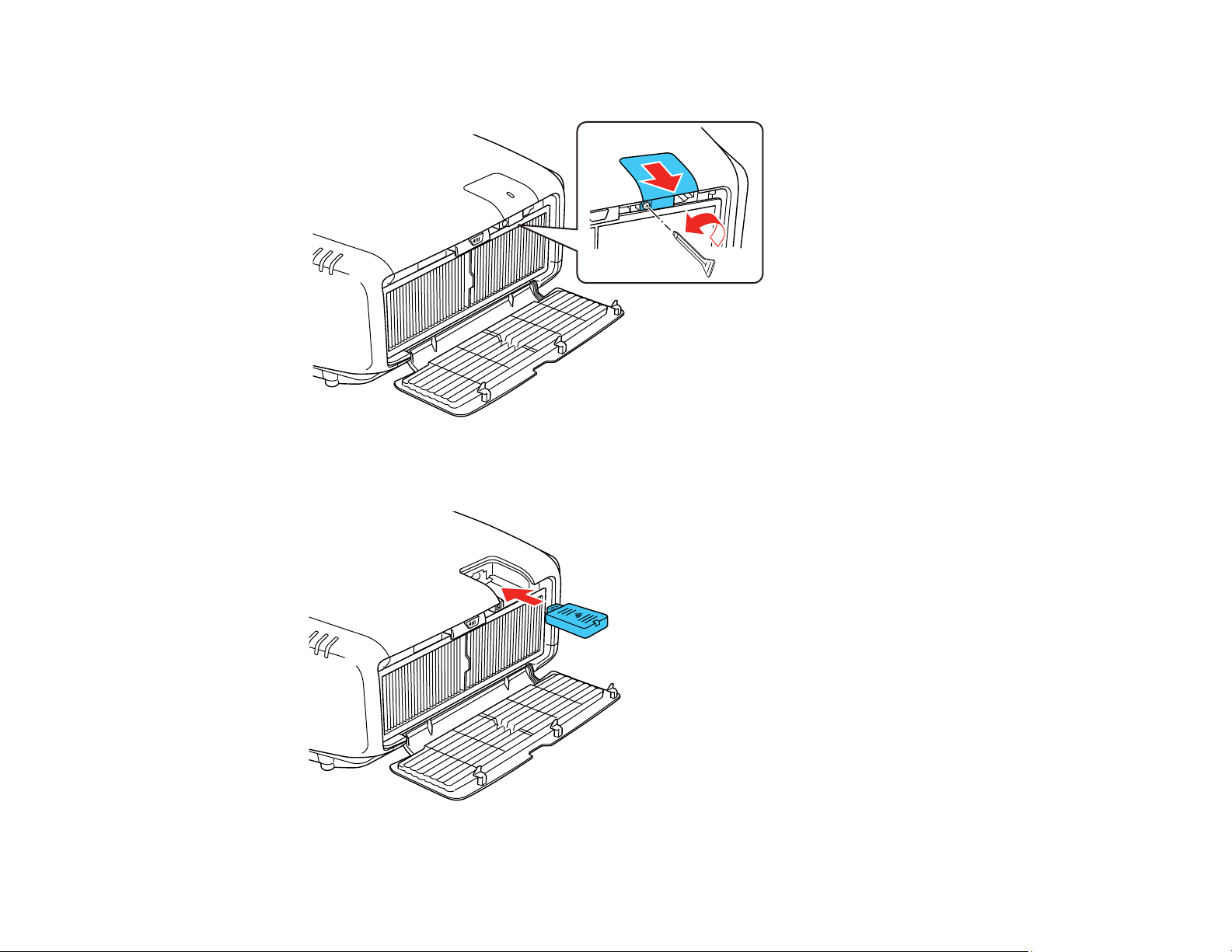

Installing the Wireless LAN Module ............................................................................................... 53

Using Quick Wireless Connection (Windows)................................................................................ 55

Selecting Wireless Network Settings Manually.............................................................................. 56

Wireless LAN Menu Settings .................................................................................................... 59

Selecting Wireless Network Settings in Windows.......................................................................... 61

Selecting Wireless Network Settings on Mac ................................................................................ 61

Setting Up Wireless Network Security ........................................................................................... 62

Using a QR Code to Connect a Mobile Device .............................................................................. 63

Wireless Network Projection from a Mobile Device or Windows Computer (Screen Mirroring) ..... 64

Screen Mirroring Restrictions.................................................................................................... 65

Selecting Screen Mirroring Settings.......................................................................................... 65

Connecting for Screen Mirroring with Miracast ......................................................................... 67

Connecting for Screen Mirroring with a Windows 8.x/10 Computer .......................................... 67

Setting Up Projector Network E-Mail Alerts ........................................................................................ 68

Network Projector E-mail Alert Messages ..................................................................................... 70

Setting Up Monitoring Using SNMP ................................................................................................... 70

Controlling a Networked Projector Using a Web Browser .................................................................. 72

Web Control Options ..................................................................................................................... 74

Crestron RoomView Support.............................................................................................................. 77

Setting Up Crestron RoomView Support ....................................................................................... 77

Controlling a Networked Projector Using Crestron RoomView ...................................................... 78

Using Basic Projector Features ............................................................................................................... 80

Turning On the Projector .................................................................................................................... 80

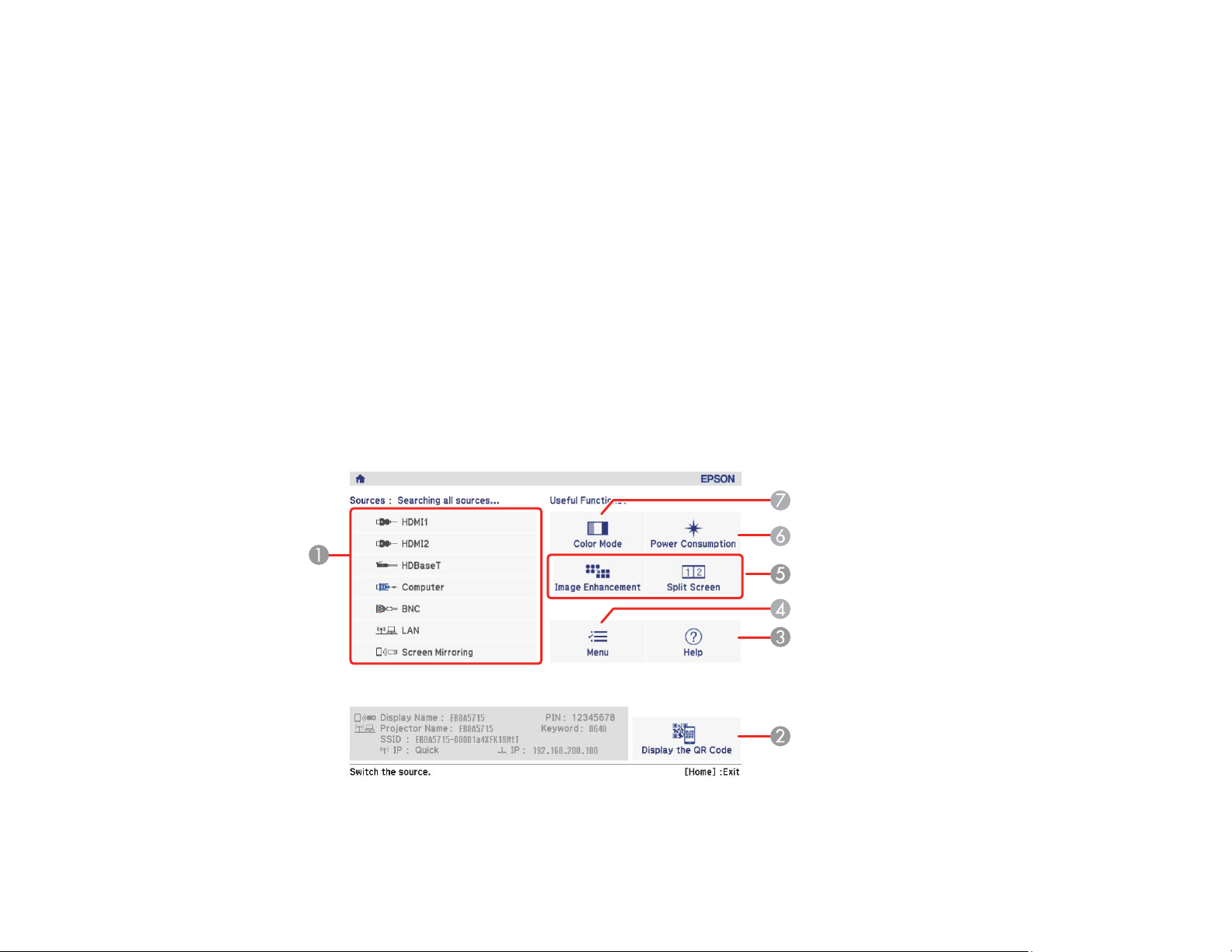

Using the Home Screen................................................................................................................. 82

Turning Off the Projector .................................................................................................................... 83

Selecting the Language for the Projector Menus................................................................................ 84

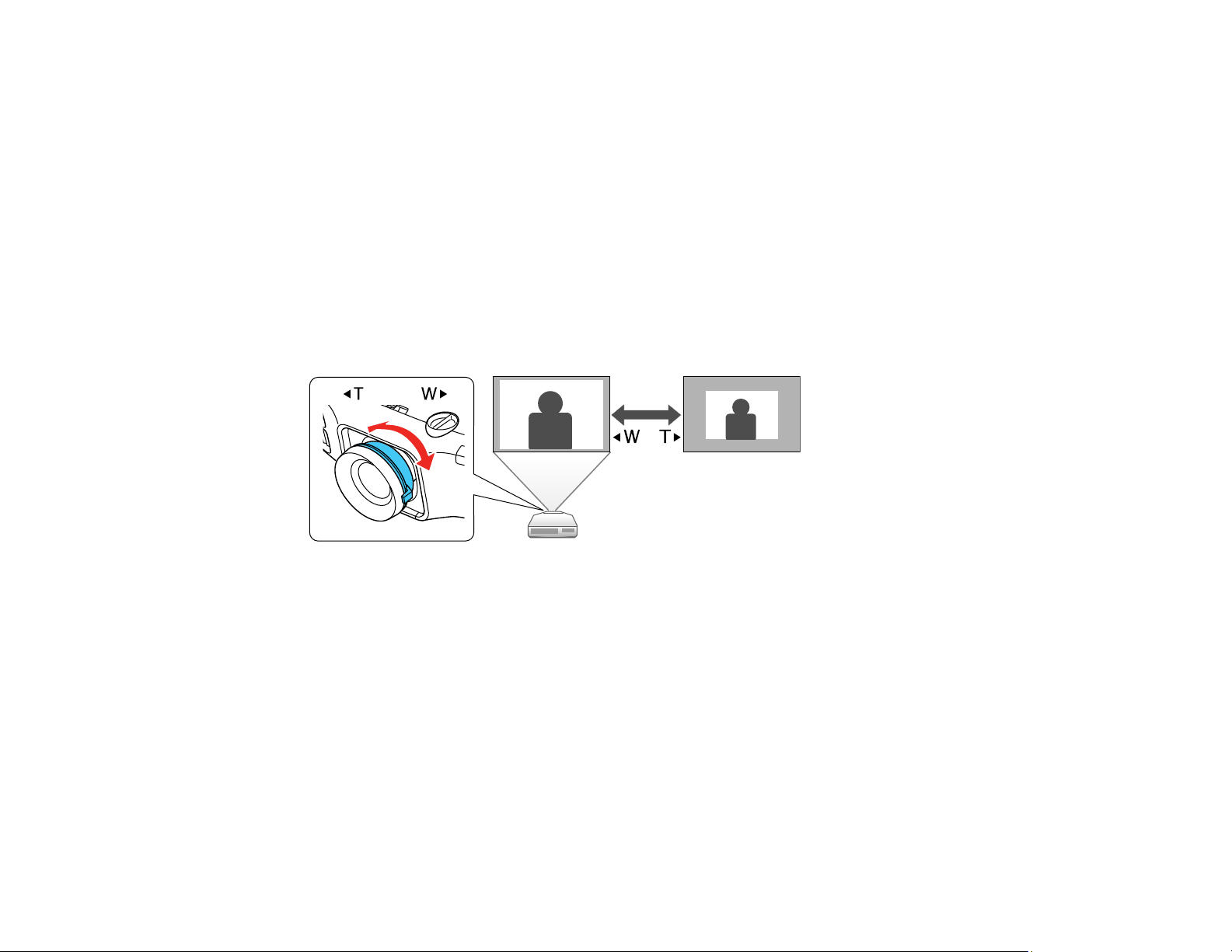

Resizing the Image with the Zoom Ring ............................................................................................. 85

Focusing the Image Using the Focus Ring......................................................................................... 85

Setting the Screen Type..................................................................................................................... 86

Adjusting the Image Position Using Lens Shift ................................................................................... 87

Adjusting the Image Position Using Screen Position.......................................................................... 90

Displaying a Test Pattern ................................................................................................................... 90

Available Test Pattern Image Adjustments.................................................................................... 91

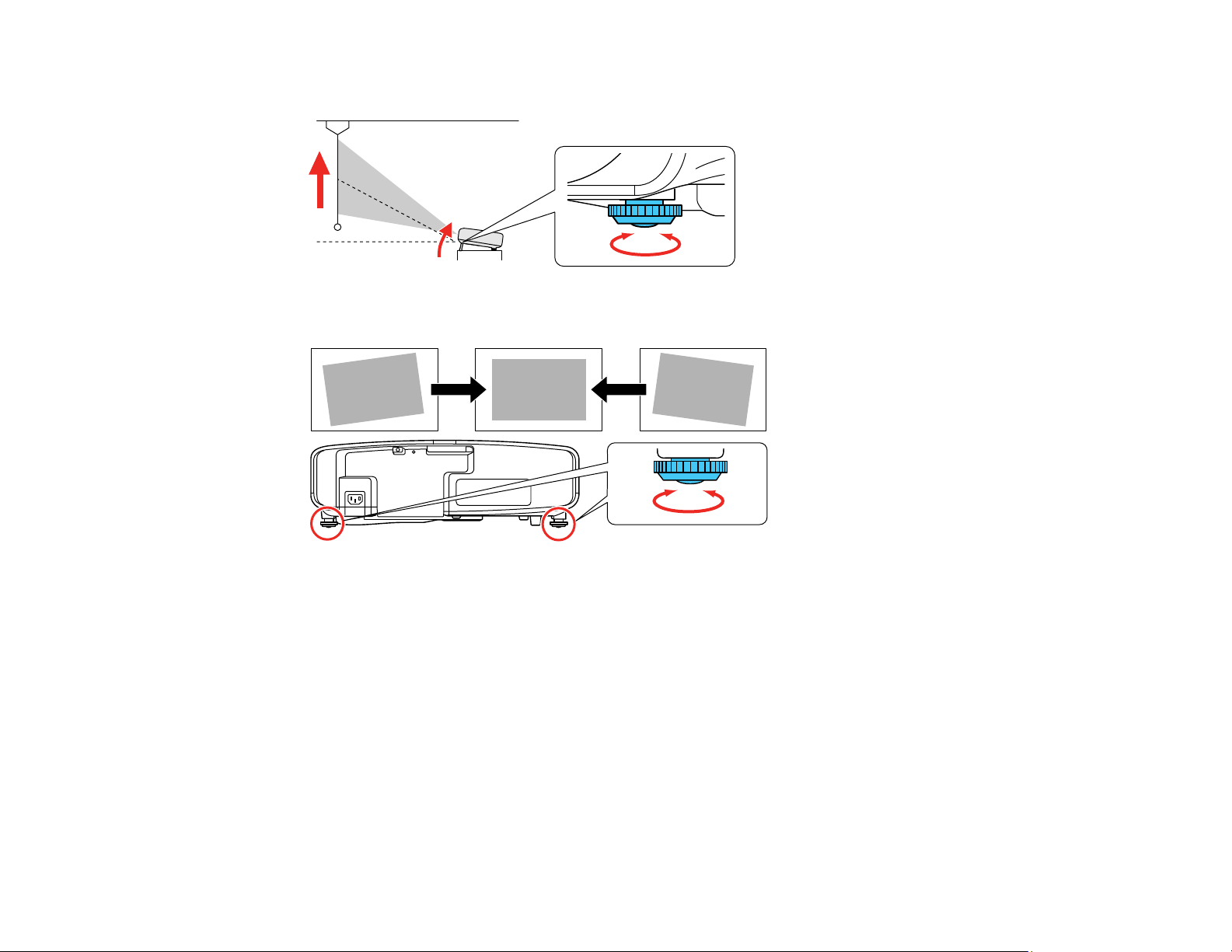

Adjusting the Image Height ................................................................................................................ 91

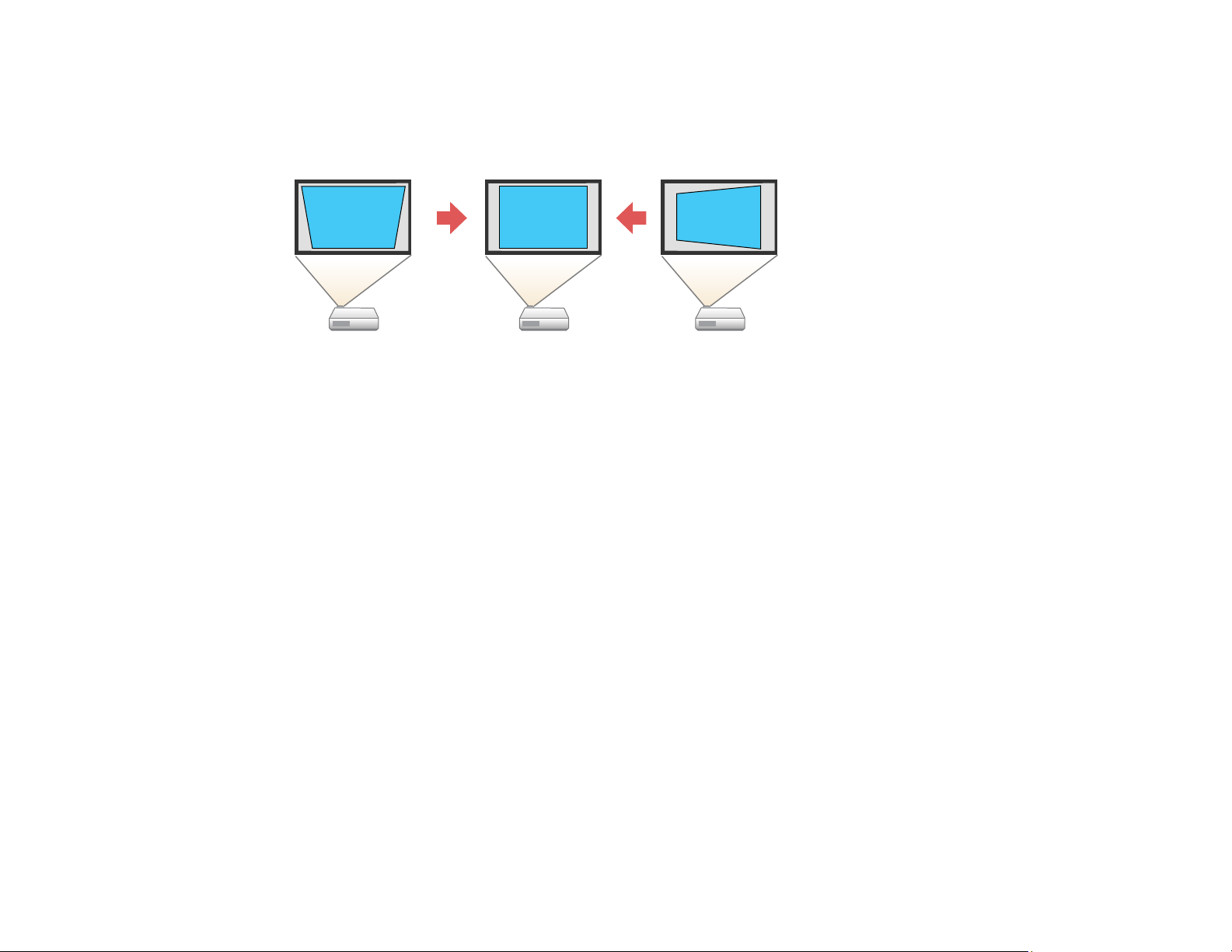

Image Shape...................................................................................................................................... 92

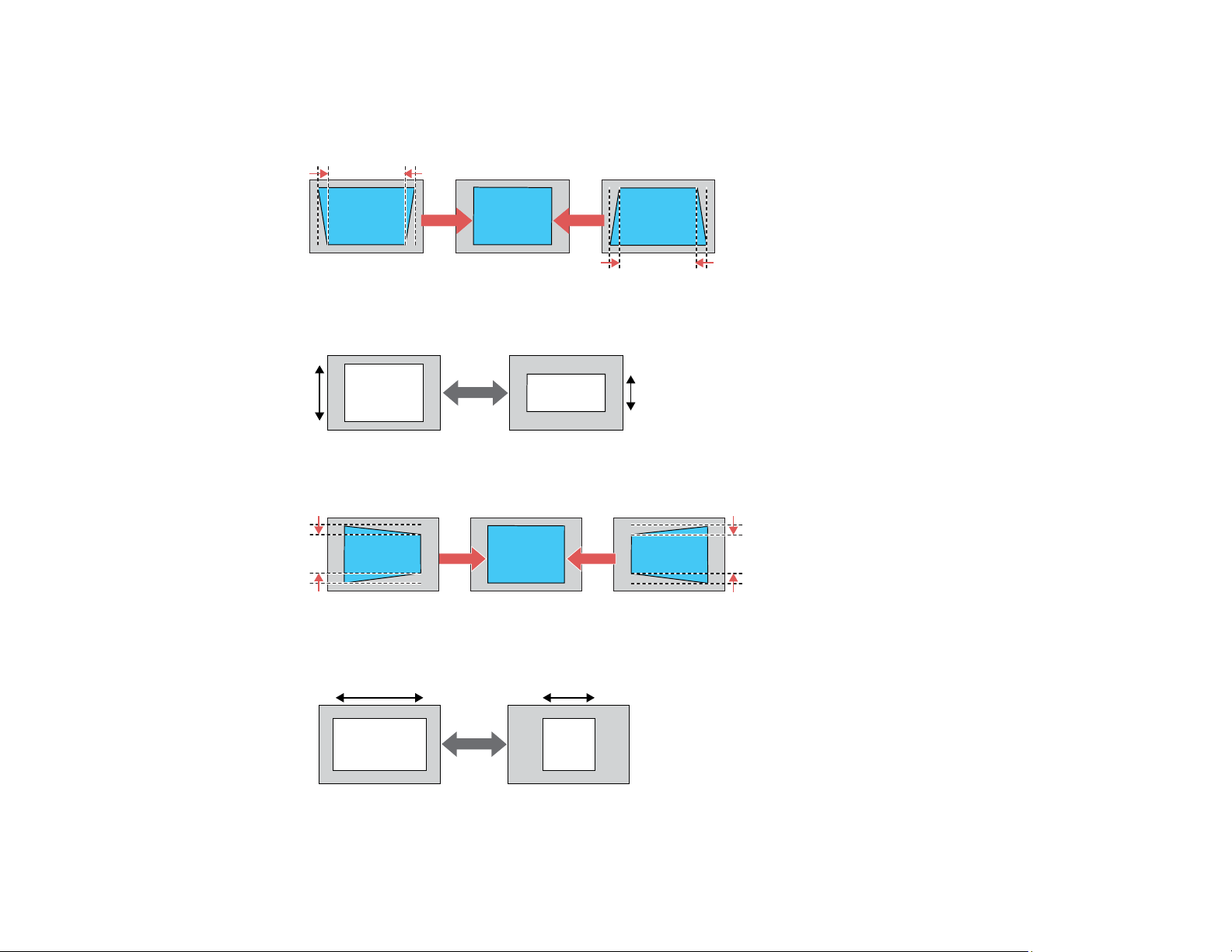

Correcting Image Shape with H/V Keystone.................................................................................. 93

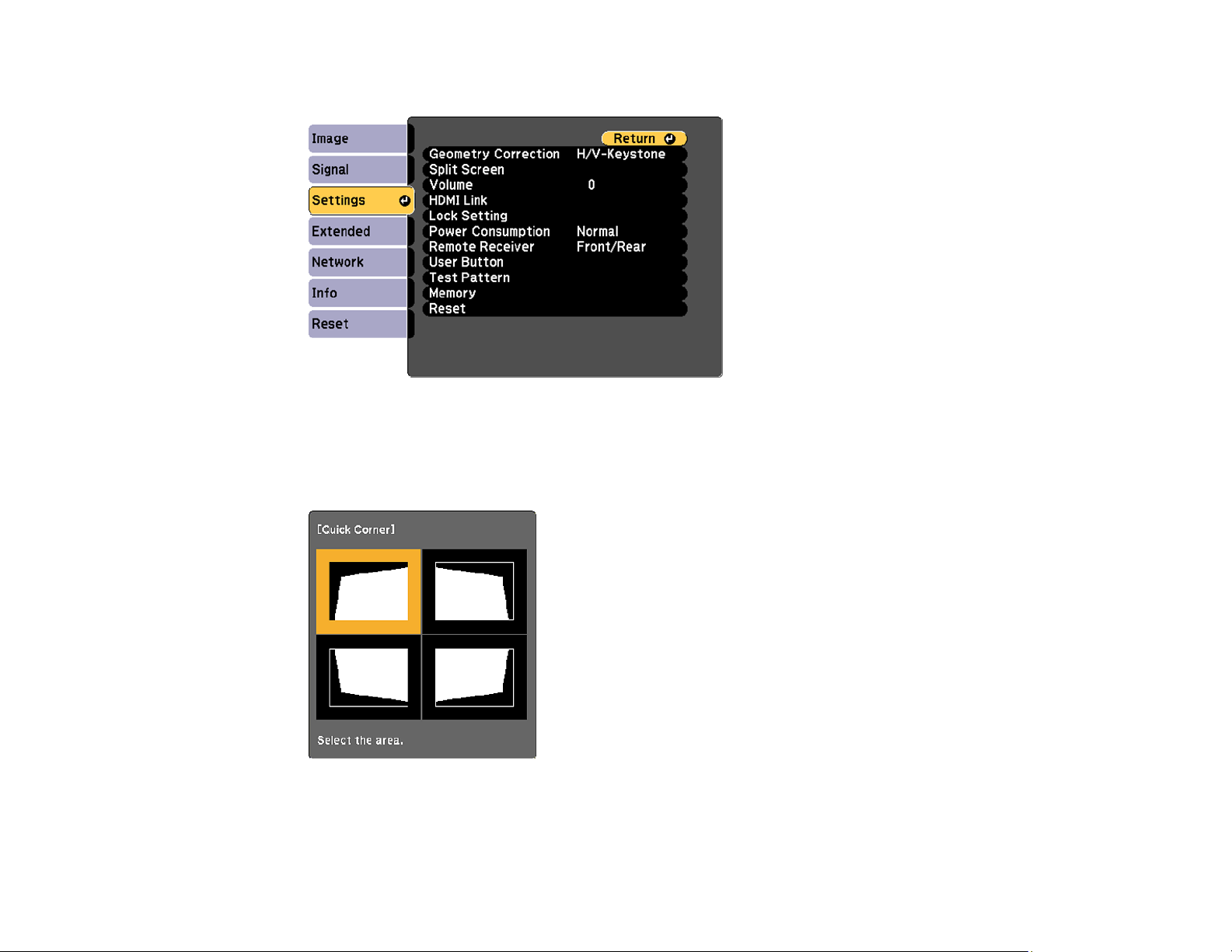

Correcting Image Shape with Quick Corner .................................................................................. 96

Correcting Image Shape with Arc Correction................................................................................. 98

Selecting an Image Source ................................................................................................................ 99

Remote Control Operation ............................................................................................................... 101

Projection Modes ............................................................................................................................. 103

Changing the Projection Mode Using the Remote Control .......................................................... 103

Changing the Projection Mode Using the Menus......................................................................... 103

Image Aspect Ratio .......................................................................................................................... 104

Changing the Image Aspect Ratio ............................................................................................... 105

Available Image Aspect Ratios .................................................................................................... 105

Color Mode....................................................................................................................................... 106

Changing the Color Mode............................................................................................................ 107

Available Color Modes................................................................................................................. 107

Turning On Auto Iris..................................................................................................................... 108

Controlling the Volume with the Volume Buttons.............................................................................. 109

Setting the Date and Time................................................................................................................ 109

Date and Time Settings ............................................................................................................... 110

Adjusting Projector Features ................................................................................................................. 112

Shutting Off the Picture and Sound Temporarily .............................................................................. 112

Stopping Video Action Temporarily .................................................................................................. 113

Zooming Into and Out of Images ...................................................................................................... 114

Projector Security Features.............................................................................................................. 115

Password Security Types ............................................................................................................ 115

Setting a Password ................................................................................................................. 116

Selecting Password Security Types........................................................................................ 117

Entering a Password to Use the Projector............................................................................... 118

Saving a User's Logo Image to Display................................................................................... 119

Locking the Projector's Buttons ................................................................................................... 121

Unlocking the Projector's Buttons ........................................................................................... 122

Locking the Remote Control Buttons .......................................................................................... 123

Installing a Security Cable ........................................................................................................... 124

Projecting Two Images Simultaneously............................................................................................ 125

Using Multiple Projectors.................................................................................................................. 126

Multiple Projector Adjustment Overview ...................................................................................... 127

Projector Identification System for Multiple Projector Control ...................................................... 127

Setting the Projector ID........................................................................................................... 128

Setting the Remote Control ID ................................................................................................ 128

Matching the Image Colors.......................................................................................................... 129

Saving Settings to Memory and Using Saved Settings .................................................................... 130

Adjusting the Color Tone (Color Uniformity)..................................................................................... 132

Scheduling Projector Events ............................................................................................................ 134

Saving a Scheduled Event........................................................................................................... 134

Viewing Scheduled Events .......................................................................................................... 135

Editing a Scheduled Event........................................................................................................... 135

Copying Menu Settings Between Projectors .................................................................................... 136

Saving Settings to a USB Flash Drive.......................................................................................... 137

Transferring Settings From a USB Flash Drive............................................................................ 139

Saving Settings to a Computer .................................................................................................... 141

Transferring Settings From a Computer ...................................................................................... 143

Adjusting the Menu Settings .................................................................................................................. 146

Using the Projector's Menus............................................................................................................. 146

Image Quality Settings - Image Menu .............................................................................................. 148

Input Signal Settings - Signal Menu.................................................................................................. 150

Projector Feature Settings - Settings Menu...................................................................................... 153

Projector Setup Settings - Extended Menu....................................................................................... 156

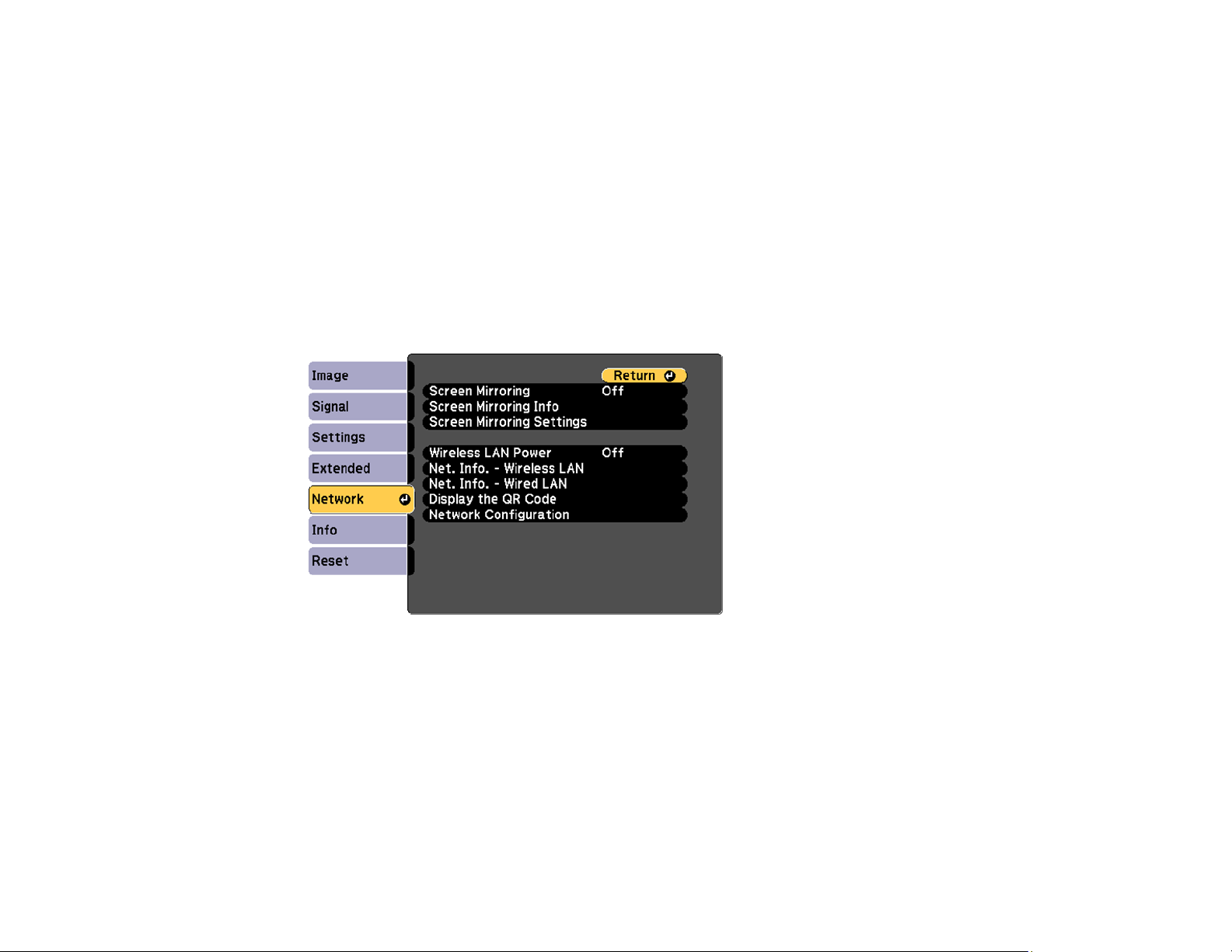

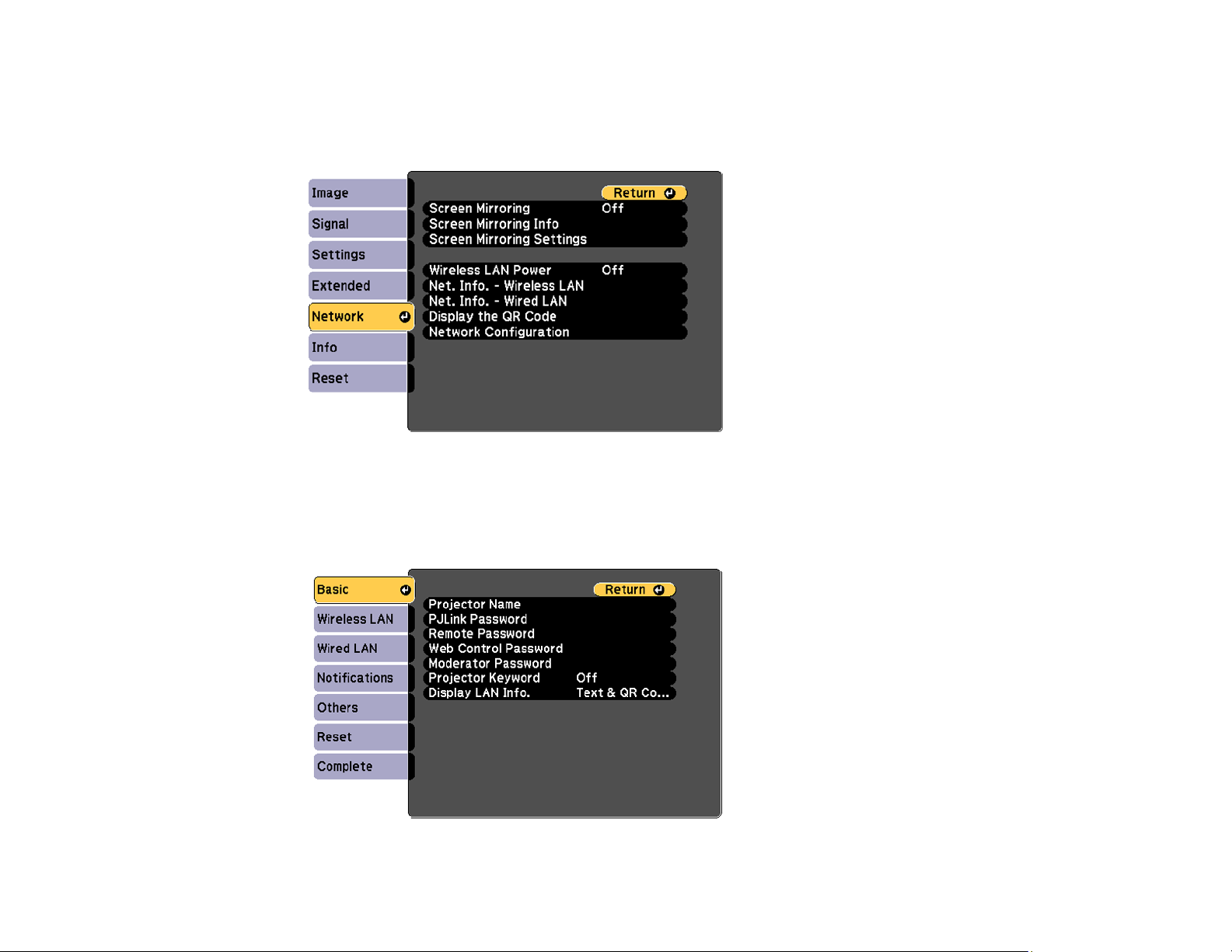

Projector Network Settings - Network Menu..................................................................................... 162

Projector Information Display - Info Menu ........................................................................................ 164

Event ID Code List....................................................................................................................... 166

Projector Reset Options - Reset Menu............................................................................................. 168

Maintaining and Transporting the Projector ......................................................................................... 170

Projector Maintenance ..................................................................................................................... 170

Cleaning the Lens........................................................................................................................ 170

Cleaning the Projector Case ........................................................................................................ 171

Air Filter and Vent Maintenance .................................................................................................. 171

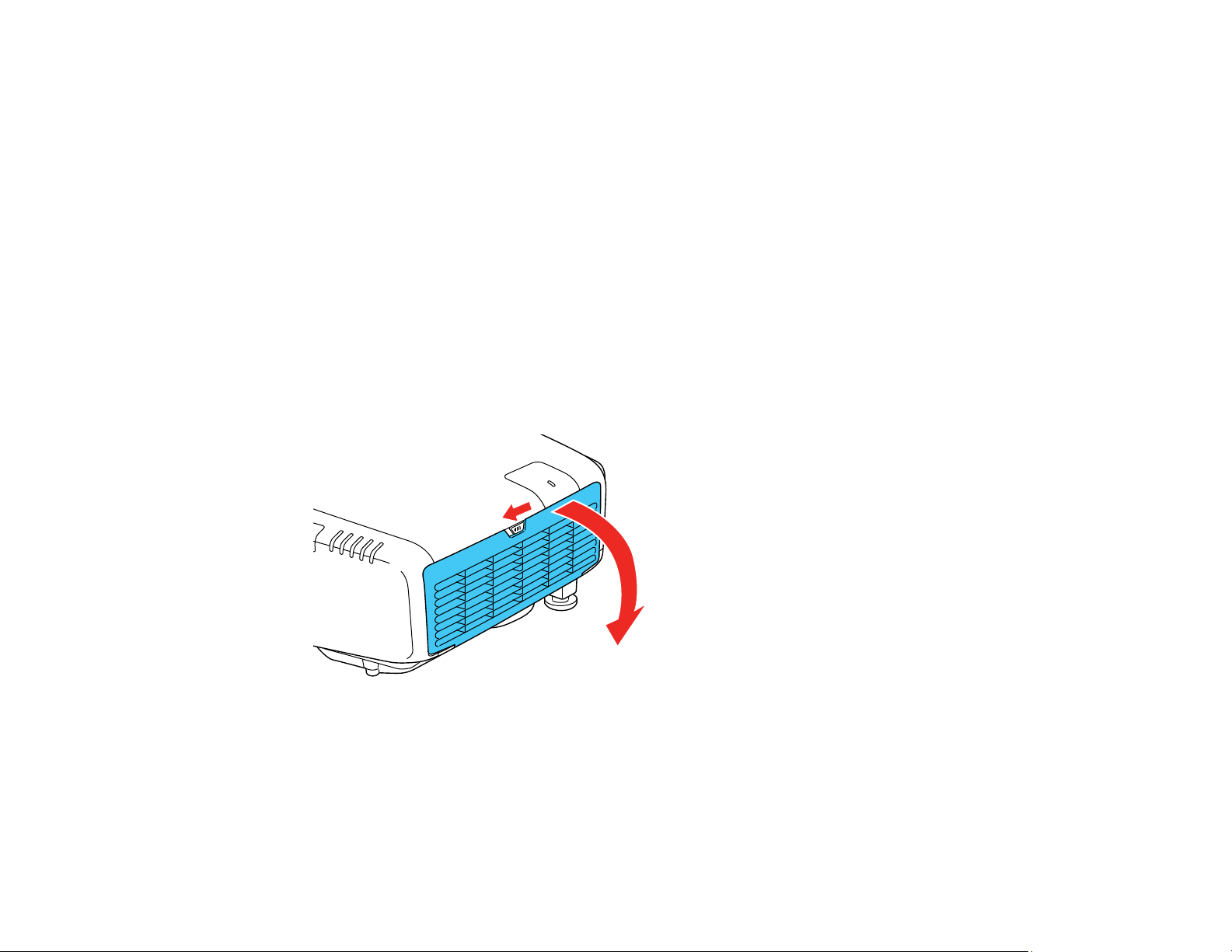

Cleaning the Air Filter.............................................................................................................. 172

Replacing the Air Filter ............................................................................................................ 175

Projector Lamp Maintenance....................................................................................................... 177

Replacing the Lamp ................................................................................................................ 177

Resetting the Lamp Timer....................................................................................................... 181

Replacing the Remote Control Batteries ..................................................................................... 182

Transporting the Projector................................................................................................................ 184

Solving Problems .................................................................................................................................... 185

Projection Problem Tips ................................................................................................................... 185

Projector Light Status ....................................................................................................................... 186

Using the Projector Help Displays .................................................................................................... 190

Solving Image or Sound Problems ................................................................................................... 190

Solutions When No Image Appears............................................................................................. 191

Solutions When "No Signal" Message Appears........................................................................... 191

Displaying From a PC Laptop ................................................................................................. 192

Displaying From a Mac Laptop ............................................................................................... 193

Solutions When No Image Appears on an External Monitor ........................................................ 193

Solutions When "Not Supported" Message Appears ................................................................... 193

Solutions When Only a Partial Image Appears............................................................................ 194

Solutions When the Image is Not Rectangular ............................................................................ 194

Solutions When the Image Contains Noise or Static ................................................................... 195

Solutions When the Image is Fuzzy or Blurry .............................................................................. 195

Solutions When the Image Brightness or Colors are Incorrect .................................................... 196

Solutions to Sound Problems ...................................................................................................... 197

Solving Projector or Remote Control Operation Problems ............................................................... 198

Solutions to Projector Power or Shut-Off Problems..................................................................... 198

Solutions to Problems with the Remote Control........................................................................... 199

Solutions to Password Problems ................................................................................................. 200

Solutions When Using HDMI Link................................................................................................ 200

Solving Network Problems ............................................................................................................... 201

Solutions When Wireless Authentication Fails ............................................................................ 201

Solutions When You Cannot Access the Projector Through the Web ......................................... 201

Solutions When Network Alert E-Mails are Not Received............................................................ 202

Where to Get Help............................................................................................................................ 202

Technical Specifications ........................................................................................................................ 204

General Projector Specifications ...................................................................................................... 204

Projector Lamp Specifications.......................................................................................................... 206

Remote Control Specifications ......................................................................................................... 206

Projector Dimension Specifications.................................................................................................. 207

Projector Electrical Specifications .................................................................................................... 207

Projector Environmental Specifications............................................................................................ 208

Projector Safety and Approvals Specifications................................................................................. 208

Supported Video Display Formats.................................................................................................... 209

Notices ..................................................................................................................................................... 212

Recycling.......................................................................................................................................... 212

Important Safety Information ............................................................................................................ 212

Important Safety Instructions............................................................................................................ 213

Restriction of Use ........................................................................................................................ 216

List of Safety Symbols (corresponding to IEC60950-1 A2)............................................................... 216

FCC Compliance Statement............................................................................................................. 220

Open Source Software License........................................................................................................ 220

Binding Arbitration and Class Waiver ............................................................................................... 275

Trademarks...................................................................................................................................... 278

Copyright Notice............................................................................................................................... 278

A Note Concerning Responsible Use of Copyrighted Materials................................................... 279

Copyright Attribution.................................................................................................................... 279

PowerLite 5510/5520W/5530U/5535U User's Guide

Welcome to the PowerLite 5510/5520W/5530U/5535U User's Guide.

For a printable PDF copy of this guide, click here.

Introduction to Your Projector

Refer to these sections to learn more about your projector and this manual.

Projector Features Notations Used in the Documentation Where to Go for Additional Information Projector Part Locations

Projector Features

The PowerLite 5510, 5520W, 5530U, and 5535U projectors include these special features:

Bright, high-resolution projection system

• Up to 5500 lumens of brightness (white light output and color light output)

Note: Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

• PowerLite 5510: Native resolution of 1024 × 768 pixels (XGA)

PowerLite 5520W: Native resolution of 1280 × 800 pixels (WXGA)

PowerLite 5530U/5535U: Native resolution of 1920 × 1200 pixels (WUXGA)

Flexible connectivity

• Wired and wireless (optional) network support for projection, monitoring, and control via remote network computer

• Projection from iOS or Android devices and free Epson iProjection app

• Two HDMI ports for multiple high-definition input devices

• Miracast screen mirroring for laptops and mobile devices

• Variety of connection methods to computer or video devices including HDMI, BNC, and HDBaseT

• Ports for connecting an external monitor and external speakers

Easy-to-use setup and operation features

• Epson's quick-connect on-screen QR code feature for easy wireless setup

• Project images side by side from two separate input sources

• Epson's Instant Off and Direct Power On features for quick setup and shut down

• Support for Crestron RoomView network monitoring systems

• Network message broadcast system to project timely messages to all networked projectors (Windows only)

Note: The PowerLite 5530U/5535U is shown in most illustrations in this manual, unless noted otherwise.

Product Box Contents Additional Components Additional Projector Software and Manuals Optional Equipment and Replacement Parts Warranty and Registration Information

Parent topic: Introduction to Your Projector

Related concepts

Wireless Network Projection from a Mobile Device or Windows Computer (Screen Mirroring) Projector Connections Crestron RoomView Support

Related references

Additional Projector Software and Manuals

Related tasks

Using a QR Code to Connect a Mobile Device Projecting Two Images Simultaneously

Product Box Contents

Save all the packaging in case you need to ship the projector. Always use the original packaging (or equivalent) when shipping.

Make sure your projector box included all of these parts:

1 Projector with lens cap

2 Cable cover

3 Remote control

4 Remote control batteries (two AA alkaline)

5 Power cord

6 VGA computer cable

7 Projector documentation CD

8 Projector software CD

Parent topic: Projector Features

Additional Components

Depending on how you plan to use the projector, you may need to obtain additional components.

Note: To connect a Mac that does not include a compatible video output port, you need to obtain an adapter that allows you to connect to an input port on the projector. Contact Apple for compatible adapter options. To connect a smartphone or tablet, you may need to obtain an adapter that allows you to connect to the projector. This allows you to mirror your smartphone or tablet screens, watch movies, and more. Contact your device manufacturer for compatible adapter options.

Unless listed as available from Epson in this table, see your local computer or electronics dealer for purchase information.

Signal or connection type

Component video D-sub, 15-pin, component-to-VGA video cable or adapter

HDMI Compatible HDMI cable

Audio from certain ports Commercially available audio cable compatible with your device

BNC VGA-to-5-BNC cable or adapter

HDBaseT Compatible 100Base-TX LAN cable

Parent topic: Projector Features

Additional component necessary

Available for purchase from Epson or an authorized Epson reseller.

Note: Older Mac computers (2009 and earlier) may not support HDMI audio.

Available for purchase from Epson or an authorized Epson reseller.

Additional Projector Software and Manuals

After connecting and setting up the projector, install the projector software from the included software CD, or download the software and manuals as necessary.

You can install the projector software programs listed here and view their manuals for instructions on using them.

Note: If you still need help after checking this manual and the sources listed here, you can use the

Epson PrivateLine Support service to get help fast. For details, see "Where to Get Help".

Projector software Manual Description

EasyMP Monitor (Windows only)

EasyMP Multi PC Projection

EasyMP Network Updater (Windows only)

Epson iProjection app Instructions are included

EasyMP Monitor Operation Guide

EasyMP Multi PC Projection Operation Guide

EasyMP Network Updater Operation Guide

with the app

Lets you monitor and control your projector through the network.

You can download the latest software and documentation from the Epson web site. Go to

epson.com/support (U.S.) or epson.ca/support

(Canada) and select your projector.

Lets you hold interactive meetings by projecting the computer screens of users over a network.

Lets you update firmware for a projector over a wired LAN.

You can download the latest software and documentation from the Epson web site. Go to

epson.com/support (U.S.) or epson.ca/support

(Canada) and select your projector.

Lets you project from an iOS or Android device if your projector is connected to a network that includes a wireless access point.

Visit epson.com/iprojection (U.S.) or

epson.ca/iprojection (Canada) for more

information.

Parent topic: Projector Features

Related references

Where to Get Help

Optional Equipment and Replacement Parts

You can purchase screens, other optional accessories, and replacement parts from an Epson authorized reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766) in the U.S. or 800-807-7766 in Canada. Or you can purchase online at epsonstore.com (U.S. sales) or epsonstore.ca (Canadian sales).

Epson offers the following optional accessories and replacement parts for your projector:

Option or part Part number

Genuine Epson replacement lamp (ELPLP95) V13H010L95

Replacement air filter (ELPAF45) V13H134A45

Wireless LAN module (ELPAP10) V12H731P02

HDBaseT transmitter (ELPHD01) V12H547020

Remote control cable set (ELPKC28) V12H005C28

Epson DC-11 document camera (ELPDC11) V12H377020

Epson DC-13 document camera (ELPDC13) V12H757020

Epson DC-20 document camera (ELPDC20) V12H500020

Epson DC-21 document camera (ELPDC21) V12H758020

Wireless IR mouse receiver for remote control (ELPST16) V12H007T16

PowerLite Pilot 2 (ELPCB02) V12H614020

Active speakers (ELPSP02) V12H467020

Ceiling mount (ELPMBPRH) V12H809001

Component-to-VGA video cable ELPKC19

HDMI audio video cable 3 feet (0.9 m) length AV22300-03

HDMI audio video cable 6 feet (1.8 m) length AV22300-06

Parent topic: Projector Features

Warranty and Registration Information

Your projector comes with a basic warranty that lets you project with confidence. For details, see the warranty that came with your projector.

In addition, Epson offers free Extra Care Road Service. In the unlikely event of an equipment failure, you won’t have to wait for your unit to be repaired. Instead, Epson will ship you a replacement unit anywhere in the United States, Canada, or Puerto Rico. See the Extra Care Road Service brochure for details.

Registering also lets you receive special updates on new accessories, products, and services.

Parent topic: Projector Features

Notations Used in the Documentation

Follow the guidelines in these notations as you read your documentation:

• Warnings must be followed carefully to avoid bodily injury.

• Cautions must be observed to avoid damage to your equipment.

• Notes contain important information about your projector.

• Tips contain additional projection information.

Parent topic: Introduction to Your Projector

Where to Go for Additional Information

Need quick help on using your projector? Here's where to look for help:

• Built-in help system

Press the Home button on the remote control or projector, select Help, and press Enter to get quick solutions to common problems.

• epson.com/support (U.S) or epson.ca/support (Canada)

View FAQs (frequently asked questions) and e-mail your questions to Epson technical support 24 hours a day.

• If you still need help after checking this manual and any other sources listed here, you can use the Epson PrivateLine Support service to get help fast. For details, see "Where to Get Help".

Parent topic: Introduction to Your Projector

Related references

Where to Get Help

Projector Part Locations

Check the projector part illustrations to learn about the parts on your projector.

Projector Parts - Front/Top Projector Parts - Rear Projector Parts - Interface Ports Projector Parts - Base Projector Parts - Control Panel Projector Parts - Remote Control

Parent topic: Introduction to Your Projector

Projector Parts - Front/Top

1 Exhaust vent

2 Focus ring

3 Projection lens

4 Zoom ring

5 Remote receivers

6 Status lights

7 Air filter cover/intake vent

8 Air filter cover latch

9 Wireless LAN module cover

10 Wireless LAN module light

11 Cable cover

12 Vertical lens shift dial

13 Lens shift dial lock

14 Horizontal lens shift dial

15 Lamp cover

16 Kensington security slot

Parent topic: Projector Part Locations

Projector Parts - Rear

1 AC input

2 Interface ports

3 Control panel

4 Speaker

Parent topic: Projector Part Locations

Projector Parts - Interface Ports

1 Computer port

2 BNC ports

3 Monitor Out port

4 Audio Out port

5 RS-232C port

6 Cable clip slot

7 Remote port

8 Audio2 port

9 Audio1 port

10 Service port

11 HDMI2 port

12 HDMI1 port

13 HDBaseT port (PowerLite 5520W/5530U/5535U)

14 Network LAN port

Parent topic: Projector Part Locations

Projector Parts - Base

1 Security cable attachment point

2 Rear feet

3 Screw hole for cable cover

4 Mounting bracket holes

5 Front adjustable foot

Parent topic: Projector Part Locations

Projector Parts - Control Panel

1 Power button (turns on the projector)

2 Source Search button (searches for connected sources)

3 A/V Mute button (turns the video and audio on or off)

4 Left arrow button and displays the Control Panel Lock screen

5 Down arrow button and displays a test pattern

6 Enter button (selects options)

7 Right arrow button and displays the Info menu

8 Esc button (cancels/exits functions)

9 Up arrow button and displays screen adjustment options

10 Menu button (accesses projector menu system)

Parent topic: Projector Part Locations

Related references

Projector Light Status

Projector Parts - Remote Control

1 On button (turns on the projector)

2 Standby button (turns off the projector)

3 Source buttons (select an image source)

4 User1, User2, and User3 buttons (open menu assigned by user)

5 Aspect button (selects the image aspect ratio)

6 Auto button (automatically adjusts computer images)

7 Test Pattern button (displays a test pattern)

8 Freeze button (stops video action)

9 Menu button (accesses projector menu system)

10 Arrow buttons (move through on-screen options and move pointer)

11 Enter button (selects options and left mouse button)

12 A/V Mute button (turns the video and audio on or off)

13 Page up and down buttons (scroll through image files when projecting from a computer over a

network connection or scroll through test patterns while displaying a test pattern)

14 Volume up and down buttons (adjust speaker volume)

15 i button (displays the Info menu)

16 Numeric buttons (enter numbers)

17 ID button (hold down and use numeric keys to select projector to control)

18 ID switch (control one or multiple projectors)

19 Remote port (connects to a remote control cable)

20 Home button (displays the Home screen)

21 Num button (hold down and use numeric keys to enter numbers)

22 Geometry button (corrects image distortion)

23 Memory button (saves and applies presets)

24 E-Zoom +/– buttons (zoom into and out of the image)

25 Default button (resets settings to their default values in the projector menu system)

26 Esc button (cancels/exits functions and right mouse button)

27 Split button (splits the screen between two inputs)

28 Color Mode button (selects display modes)

29 Search button (searches for connected sources)

30 Light button (lights up the remote control buttons temporarily)

31 Indicator light (lights up when the remote control is in use)

32 Remote control signal emitter (emits remote control signals)

Parent topic: Projector Part Locations

Setting Up the Projector

Follow the instructions in these sections to set up your projector for use.

Projector Placement Projector Connections Attaching and Removing the Cable Cover Installing Batteries in the Remote Control

Projector Placement

You can place the projector on almost any flat surface to project an image.

You can also install the projector in a ceiling mount if you want to use it in a fixed location.

Keep these considerations in mind as you select a projector location:

• Place the projector on a sturdy, level surface or install it using a compatible mount.

• Leave plenty of space around and under the projector for ventilation, and do not place it on top of or next to anything that could block the vents.

• Position the projector within reach of a grounded electrical outlet or extension cord.

Projector Setup and Installation Options Projection Distance

Parent topic: Setting Up the Projector

Projector Setup and Installation Options

You can set up or install your projector in the following ways:

Front

Rear

Front ceiling

Rear ceiling

Note: Be sure to leave at least 20 inches (50 cm) of space in front of the air exhaust and intake vents

and, when setting up multiple projectors, 20 inches (50 cm) of space between the projectors.

If you mount the projector to the ceiling, it can be installed at the following angles:

• Vertically: Any angle up to ±30°.

• Horizontally: Can be tilted within the range of the rear feet.

If you project from the ceiling, select On as the Inv Direction Button setting in the Extended menu so that the operations on the screen match the control panel button commands.

Parent topic: Projector Placement

Related references

Projector Setup Settings - Extended Menu

Projection Distance

The distance at which you place the projector from the screen determines the approximate size of the image. The image size increases the farther the projector is from the screen, but can vary depending on the zoom factor, aspect ratio, and other settings.

Use the tables here to determine approximately how far to place the projector from the screen based on the size of the projected image. (Conversion figures may have been rounded up or down.) You can also use the projector Throw Distance Calculator at epson.com/support (U.S.) or epson.ca/support (Canada).

1 Projection distance

2 Distance from the center of the lens to the base of the image

3 Center of lens

PowerLite 5510

4:3 Aspect Ratio Image or Screen

Screen or image size Projection distance (1)

Wide to Tele

50 inches 50 to 103 inches

(127 to 261 cm)

80 inches 81 to 166 inches

(206 to 421 cm)

100 inches 102 to 208 inches

(258 to 527 cm)

150 inches 153 to 312 inches

(390 to 793 cm)

PowerLite 5520W/5530U/5535U

16:10 Aspect Ratio Image or Screen

Screen or image size Projection distance (1)

Wide to Tele

50 inches 53 to 97 inches

(135 to 247 cm)

Vertical lens shift from bottom to top (2)

–32.7 to 2.7 inches (–83 to 7 cm)

–52.3 to 4.3 inches (–133 to 11 cm)

–65.3 to 5.3 inches (–166 to 13 cm)

–98 to 8 inches (–249 to 20 cm)

Vertical lens shift from bottom to top (2)

–26.5 to 0 inches (–67 to 0 cm)

80 inches 86 to 156 inches

(219 to 397 cm)

100 inches 108 to 196 inches

(275 to 498 cm)

150 inches 164 to 295 inches

(415 to 749 cm)

Parent topic: Projector Placement

–42.4 to 0 inches (–108 to 0 cm)

–53 to 0 inches (–135 to 0 cm)

–106 to 0 inches (–202 to 0 cm)

Projector Connections

See these sections to connect the projector to a variety of projection sources.

Caution: If you will use the projector at altitudes above 4921 feet (1500 m), turn on High Altitude Mode to ensure the projector's internal temperature is regulated properly.

Connecting to Computer Sources Connecting to Video Sources Connecting to an HDBaseT Transmitter Connecting to an External Computer Monitor Connecting to External Speakers

Parent topic: Setting Up the Projector

Related references

Additional Components Projector Setup Settings - Extended Menu

Connecting to Computer Sources

Follow the instructions in these sections to connect a computer to the projector.

Connecting to a Computer for VGA Video Connecting to a Computer for HDMI Video and Audio Connecting to a Computer for 5 BNC Video Connecting to a Computer for Sound

Parent topic: Projector Connections

Connecting to a Computer for VGA Video

You can connect the projector to your computer using a VGA computer cable.

Note: To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, or Mini-DVI port for video output, you need to obtain an adapter that allows you to connect to the projector's VGA video port. Contact Apple for compatible adapter options.

1. If necessary, disconnect your computer's monitor cable.

2. Connect the VGA computer cable to your computer's monitor port.

3. Connect the other end to a Computer port on the projector.

4. Tighten the screws on the VGA connector.

Parent topic: Connecting to Computer Sources

Related tasks

Connecting to a Computer for Sound

Connecting to a Computer for HDMI Video and Audio

If your computer has an HDMI port, you can connect it to the projector using an optional HDMI cable.

Note: To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, or Mini-DVI port for video output, you need to obtain an adapter that allows you to connect to the projector's HDMI port. Contact Apple for compatible adapter options. Older Mac computers (2009 and earlier) may not support audio through the HDMI port.

1. Connect the HDMI cable to your computer's HDMI output port.

2. Connect the other end to one of the projector's HDMI ports.

Note: The projector converts the digital audio signal sent from your computer into a mono analog signal for the internal speaker or a stereo analog signal if you are connecting to external speakers.

Note: If you have problems hearing audio through the HDMI connection, you can use one of the projector's audio ports instead to play sound. Connect one end of an optional 3.5 mm stereo mini-jack audio cable to one of the projector's audio ports and the other end to your computer's audio out port. Then select the audio port you connected to as the HDMI1 Audio Output or HDMI2 Audio Output setting in the Extended menu.

Parent topic: Connecting to Computer Sources

Related references

Additional Components Projector Setup Settings - Extended Menu

Connecting to a Computer for 5 BNC Video

You can connect the projector to your computer using an optional VGA-to-5-BNC cable.

1. Connect the VGA connector to your computer's monitor port.

2. Connect the 5 BNC connectors to the projector's BNC ports.

Parent topic: Connecting to Computer Sources

Related references

Additional Components

Connecting to a Computer for Sound

If your computer presentation includes sound and you did not connect it to the projector's HDMI port, you can still play sound through the projector's speaker system. Just connect an optional 3.5 mm stereo mini-jack audio cable as described here.

1. Connect the audio cable to your laptop's headphone or audio-out jack, or your desktop's speaker or

audio-out port.

2. Connect the other end to the Audio port that corresponds to the Computer or BNC port you are

using.

Parent topic: Connecting to Computer Sources

Related references

Additional Components

Related tasks

Connecting to an External Computer Monitor

Connecting to Video Sources

Follow the instructions in these sections to connect video devices to the projector.

Connecting to an HDMI Video Source Connecting to a Component-to-BNC Video Source Connecting to a Component Video Source Connecting to a Video Source for Sound

Parent topic: Projector Connections

Connecting to an HDMI Video Source

If your video source has an HDMI port, you can connect it to the projector using an optional HDMI cable. The HDMI connection provides the best image quality.

1. Connect the HDMI cable to your video source's HDMI output port.

2. Connect the other end to one of the projector's HDMI ports.

Note: The projector converts the digital audio signal sent from your video source into a mono analog signal for the internal speaker or a stereo analog signal if you are connecting to external speakers.

Parent topic: Connecting to Video Sources

Related references

Additional Components Projector Setup Settings - Extended Menu

Connecting to a Component-to-BNC Video Source

If your video source has component video ports, you can connect it to the projector using an optional component-to-BNC video cable. Depending on your component ports, you may need to use an adapter cable along with a component video cable.

1. Connect the component connectors to your video source's color-coded component video output

ports, usually labeled Y, Pb, Pr or Y, Cb, Cr. If you are using an adapter, connect these connectors to your component video cable.

2. Connect the BNC connectors to the projector's R/Cr/Pr, G/Y, B/Cb/Pb ports.

Parent topic: Connecting to Video Sources

Related references

Additional Components

Connecting to a Component Video Source

If your video source has component video ports, you can connect it to the projector using an optional component-to-VGA video cable. Depending on your component ports, you may need to use an adapter cable along with a component video cable.

1. Connect the component connectors to your video source's color-coded component video output

ports, usually labeled Y, Pb, Pr or Y, Cb, Cr. If you are using an adapter, connect these connectors to your component video cable.

2. Connect the VGA connector to a Computer port on the projector.

3. Tighten the screws on the VGA connector.

If your image colors appear incorrect, you may need to change the Input Signal setting in the projector's Signal menu.

Parent topic: Connecting to Video Sources

Related references

Additional Components

Connecting to a Video Source for Sound

You can play sound through the projector's speaker system if your video source has audio output ports.

If you are projecting video using the Computer or BNC ports, connect the projector to the video source using an optional stereo 3.5 mm mini-jack audio cable.

Note: If you connected your video source to the projector using an HDMI cable, the audio signal is transferred with the video signal; you do not need an additional cable for sound.

1. Connect the audio cable to your video source's audio-out ports.

2. Connect the other end of the cable to the projector's Audio port that corresponds to the Computer

or BNC port you are using for video.

Parent topic: Connecting to Video Sources

Related tasks

Connecting to an External Computer Monitor

Connecting to an HDBaseT Transmitter

To send an HDMI or RS-232C signal over a long distance, you can connect the projector to an optional HDBaseT transmitter using a 100Base-TX network cable. This is useful when you want to send a signal to or control the projector from a remote location, such as in a hall or event site, since you can use a network cable up to 328 feet (100 m) in length. To ensure proper data transmission, use a Category 5e STP cable or better.

1. Turn off the projector and HDBaseT transmitter.

Note: Make sure the projector and HDBaseT transmitter are turned off when connecting or disconnecting a network cable between the two devices.

2. Connect one end of the network cable to the HDBaseT port on the transmitter.

3. Connect the other end to the projector's HDBaseT port.

Note: See the documentation that came with the HDBaseT transmitter for instructions on connecting

it to your video device or computer.

4. Turn on the projector and HDBaseT transmitter.

Note: To enable communication from the Ethernet and serial ports on the transmitter, select On as the Control Communications setting in the projector's Extended menu. Turning on this setting disables the

projector's LAN, RS-232C, and Remote ports. If you connected an Extron XTP transmitter or switcher to the projector's HDBaseT port, select On as the Extron XTP setting in the projector's Extended menu.

Parent topic: Projector Connections

Related references

Projector Setup Settings - Extended Menu

Connecting to an External Computer Monitor

If you connected a computer to the projector's Computer or BNC port, you can also connect an external monitor to the projector. This lets you see your presentation on the external monitor even when the projected image is not visible.

If you want to output images to an external monitor when the projector is turned off, you need to select Communication On as the Standby Mode setting and Always On as the A/V Output setting in the projector's Extended menu.

Note: Monitors that use a refresh rate less than 60 Hz may not be able to display images correctly.

1. Make sure your computer is connected to the projector's Computer or BNC port.

2. Connect the external monitor's cable to your projector's Monitor Out port.

Note: If you do not see an image on the external monitor, you may need to change the Monitor Out setting in the Extended menu.

Parent topic: Projector Connections

Related references

Projector Setup Settings - Extended Menu

Related tasks

Connecting to a Computer for VGA Video Connecting to a Component-to-BNC Video Source

Connecting to External Speakers

To enhance the sound from your presentation, you can connect the projector to external self-powered speakers. You can control the volume using the projector's remote control.

You can also connect the projector to an amplifier with speakers.

If you want to output audio from the external speakers when the projector is turned off, you need to select Communication On for the Standby Mode setting and Always On for the A/V Output setting in the projector's Extended menu.

Note: The projector's built-in speaker system is disabled when you connect external speakers.

1. Make sure your computer or video source is connected to the projector with both audio and video

cables as necessary.

2. Locate the appropriate cable to connect your external speakers, such as a stereo mini-jack-to-pin-

jack cable, or another type of cable or adapter.

3. Connect one end of the cable to your external speakers as necessary.

4. Connect the stereo mini-jack end of the cable to your projector's Audio Out port.

Parent topic: Projector Connections

Related references

Projector Setup Settings - Extended Menu

Attaching and Removing the Cable Cover

You can attach the cable cover that came with your projector to hide the attached cables from view.

1. Bundle the cables together using a band or other fastener (not provided).

Caution: Do not bundle the power cord to the other cables. Otherwise, a fire may occur.

2. Place the cable cover on the projector as shown, guiding the cables through the notch on the base of

the cable cover.

3. Tighten the cable cover screw.

To remove the cover, loosen the cover screw and pull the cover off of the projector.

Parent topic: Setting Up the Projector

Installing Batteries in the Remote Control

The remote control uses the two AA batteries that came with the projector.

Caution: Use only the type of batteries specified in this manual. Do not install batteries of different types, or mix new and old batteries.

1. Remove the battery cover.

2. Insert the batteries with the + and – ends facing as shown.

3. Replace the battery cover and press it down until it clicks into place.

Warning: Dispose of used batteries according to local regulations. Do not expose batteries to heat or flame. Keep batteries out of the reach of children; they are choking hazards and are very dangerous if swallowed.

Parent topic: Setting Up the Projector

Using the Projector on a Network

Follow the instructions in these sections to set up your projector for use on a network.

Wired Network Projection Wireless Network Projection Setting Up Projector Network E-Mail Alerts Setting Up Monitoring Using SNMP Controlling a Networked Projector Using a Web Browser Crestron RoomView Support

Wired Network Projection

You can project through a wired network. To do this, you connect the projector to your network, and then set up your projector and computer for network projection.

After connecting and setting up the projector as described here, install the network software from the included CD or download the software and manuals as necessary.

Note: If your projector is connected via a LAN cable to a network that includes a wireless access point, you can connect to the projector wirelessly through the access point using the Epson network software.

Connecting to a Wired Network Selecting Wired Network Settings

Parent topic: Using the Projector on a Network

Related references

Additional Projector Software and Manuals

Connecting to a Wired Network

To connect the projector to a wired local area network (LAN), use a 100Base-TX or 10Base-T network cable. To ensure proper data transmission, use a Category 5 shielded cable or better.

1. Connect one end of the network cable to your network hub, switch, or router.

2. Connect the other end of the cable to the projector's LAN port.

Parent topic: Wired Network Projection

Selecting Wired Network Settings

Before you can project from computers on your network, you must select the network settings for the projector using its menu system.

Note: Make sure you already connected the projector to your wired network using the LAN port.

1. Turn on the projector.

2. Press the Menu button.

3. Select the Network menu and press Enter.

4. Select Network Configuration and press Enter.

5. Select the Basic menu and press Enter.

6. Select the following basic options as necessary:

• Projector Name lets you enter a name up to 16 alphanumeric characters long to identify the projector over the network.

• PJLink Password lets you enter a password up to 32 alphanumeric characters long for using the PJLink protocol for projector control.

• Remote Password lets you enter a password up to 8 alphanumeric characters long for accessing the Remote or Basic Control screen in Epson Web Control. (Default user name is EPSONREMOTE; default password is guest.)

• Web Control Password lets you enter a password up to 8 alphanumeric characters long for accessing the projector over the web. (Default user name is EPSONWEB; default password is admin.)

• Moderator Password lets you enter a password up to 4 numbers long for accessing the projector as a moderator using EasyMP Multi PC Projection or the Epson iProjection app.

• Projector Keyword lets you turn on a security password to prevent access to the projector by anyone not in the room with it. You must enter a displayed, randomized keyword from a computer using the EasyMP Multi PC Projection software to access the projector.

• Display LAN Info lets you select how the projector displays network information. You can select an option to display a QR code that lets you quickly connect your iOS or Android devices using the Epson iProjection app.

Note: Use the displayed keyboard to enter the name, passwords, and keyword. Press the arrow buttons on the remote control to highlight characters and press Enter to select them.

7. Select the Wired LAN menu and press Enter.

8. If necessary, select IP Settings and press Enter.

9. Select your IP Settings as necessary:

• If your network assigns addresses automatically, turn on the DHCP setting.

• If you must set addresses manually, turn off DHCP and enter the projector's IP Address, Subnet

Mask, and Gateway Address as needed.

Note: To highlight the numbers you want from the displayed keyboard, press the arrow buttons on

the remote control. To select a highlighted number, press Enter.

10. To prevent display of the IP address on the standby screen, turn off IP Address Display.

11. To connect the projector to the network using IPv6, select On as the IPv6 Settings option. Then select the Auto Configuration and Use Temporary Address settings as necessary.

12. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

Parent topic: Wired Network Projection

Wireless Network Projection

You can project over a wireless network. To do this, you must set up your projector and computer for wireless projection.

Note: The Epson 802.11b/g/n wireless LAN module is not included with your projector and is optional.

After setting up the projector as described here, install the network software from the included CD or download the software and manuals as necessary.

Installing the Wireless LAN Module Using Quick Wireless Connection (Windows) Selecting Wireless Network Settings Manually Selecting Wireless Network Settings in Windows Selecting Wireless Network Settings on Mac Setting Up Wireless Network Security Using a QR Code to Connect a Mobile Device

Wireless Network Projection from a Mobile Device or Windows Computer (Screen Mirroring)

Parent topic: Using the Projector on a Network

Related references

Additional Projector Software and Manuals Optional Equipment and Replacement Parts

Installing the Wireless LAN Module

To use the projector over a wireless network, install the optional Epson 802.11b/g/n wireless LAN module. Do not install any other type of wireless LAN module.

Caution: Never remove the module while its indicator light is blue or flashing, or while you are projecting wirelessly. You may damage the module or lose data.

1. Turn off the projector and unplug the power cord.

2. Slide the air filter cover latch and open the air filter cover.

3. Loosen the screw securing the wireless LAN module cover, then remove the cover.

4. Insert the wireless LAN module into the port.

5. Replace the wireless LAN module cover and secure it using the screw you loosened.

6. Close the air filter cover.

7. Plug in and turn on the projector.

Parent topic: Wireless Network Projection

Related references

Optional Equipment and Replacement Parts

Using Quick Wireless Connection (Windows)

You can create a Quick Wireless Connection USB Key to quickly connect the projector to a Windows computer wirelessly. Then you can project your presentation and remove the key when you are done.

Note: A USB flash drive is not included with your projector.

1. Create a Quick Wireless Connection USB Key with a USB flash drive and the EasyMP Multi PC Projection software.

Note: See the EasyMP Multi PC Projection Operation Guide for instructions.

2. Turn on the projector.

3. Press the LAN button on the remote control.

You see the LAN standby screen.

4. Verify that an SSID and IP address are displayed.

5. Remove the wireless LAN module from the projector.

6. Insert the USB key into the same port used for the wireless LAN module.

You see a projected message that the network information update is complete.

7. Remove the USB key.

8. Reinsert the wireless LAN module into the projector.

9. Insert the USB key into a USB port on your computer.

Note: In Windows Vista, if you see the AutoPlay window, select Run MPPLaunch.exe, then select Allow on the next screen.

10. Follow the on-screen instructions to install the EasyMP Multi PC Projection software.

Note: If you see a Windows Firewall message, click Yes to disable the firewall. You need administrator authority to install the software. If it is not installed automatically, double-click MPPLaunch.exe in the USB key.

After a few minutes, your computer image is displayed by the projector. If it does not appear, press the LAN or Source Search button on your remote control or restart your computer.

11. Run your presentation as necessary.

12. When you finish projecting wirelessly, select the Safely Remove Hardware option in the Windows taskbar, then remove the USB key from your computer.

Note: You can share the USB key with other computers without disconnecting your computer. You may need to restart your computer to reactivate your wireless LAN connection.

Parent topic: Wireless Network Projection

Selecting Wireless Network Settings Manually

Before you can project from your wireless network, you must select the network settings for the projector using its menu system.

1. Turn on the projector.

2. Press the Menu button.

3. Select the Network menu and press Enter.

4. Make sure the Wireless LAN Power setting is set to On.

5. Select Network Configuration and press Enter.

6. Select the Basic menu and press Enter.

7. Select the following basic options as necessary:

• Projector Name lets you enter a name up to 16 alphanumeric characters long to identify the

projector over the network.

• PJLink Password lets you enter a password up to 32 alphanumeric characters long for using the

PJLink protocol for projector control.

• Remote Password lets you enter a password up to 8 alphanumeric characters long for accessing

the Remote or Basic Control screen in the Epson Web Control. (Default user name is EPSONREMOTE; default password is guest.)

• Web Control Password lets you enter a password up to 8 alphanumeric characters long for

accessing the projector over the web. (Default user name is EPSONWEB; default password is admin.)

• Moderator Password lets you enter a password up to 4 numbers long for accessing the projector

as a moderator with EasyMP Multi PC Projection or the Epson iProjection app.

• Projector Keyword lets you turn on a security password to prevent access to the projector by

anyone not in the room with it. The projector displays a random keyword that you must enter from a computer using the EasyMP Multi PC Projection software or an iOS or Android device using iProjection.

• Display LAN Info lets you select how the projector displays network information. You can select

an option to display a QR code that lets you quickly connect your iOS or Android devices using the Epson iProjection app.

Note: Use the displayed keyboard to enter the name, passwords and keyword. Press the arrow buttons on the remote control to highlight characters and press Enter to select them.

8. Select the Wireless LAN menu and press Enter.

9. Select the settings on the Wireless LAN menu as necessary for your network.

10. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

After you complete the wireless settings for your projector, you need to select the wireless network on your computer, or iOS or Android device.

Wireless LAN Menu Settings

Parent topic: Wireless Network Projection

Wireless LAN Menu Settings

Setting Options Description

Connection Mode Quick

Advanced

Selects the type of wireless connection:

Quick: lets you quickly connect to one computer (ad hoc mode)

Advanced: lets you connect to multiple computers via a wireless network access point (infrastructure mode)

Setting Options Description

Search Access Point To Search View Search for available wireless

network access points in

Advanced connection mode

SSID Up 32 alphanumeric characters Sets the SSID (network name) of

the wireless LAN system the projector is connecting to

Security Open

WPA2-PSK

WPA/WPA2-PSK

WPA2-EAP

WPA/WPA2-EAP

Passphrase Between 8 to 63 alphanumeric

characters

EAP Method EAP Type

User name

Password

Client Certificate

Verify Server Cert.

CA certificate

RADIUS Serv.Name

Channel 1ch

6ch

11ch

Selects the type of wireless security used in the wireless network (some options are only available when the Connection

Mode setting is set to Advanced)

Enter a paraphrase for the wireless network

Sets the EAP settings for WPA2EAP and WPA/WPA2-EAP security

In Quick connection mode, selects the frequency band (channel) used by the wireless LAN

IP Settings DHCP

IP Address

Subnet Mask

Gateway Address

Turns on DHCP if your network assigns addresses automatically; set to Off to manually enter the network's IP Address, Subnet

Mask, and Gateway Address

Setting Options Description

SSID Display On

Off

IP Address Display On

Off

IPv6 Settings IPv6

Auto Configuration

Use Temporary Address

Parent topic: Selecting Wireless Network Settings Manually

Selecting Wireless Network Settings in Windows

Before connecting to the projector, select the correct wireless network on your computer.

1. To access your wireless utility software, access the Desktop and double-click the network icon on the Windows taskbar.

2. Do one of the following:

• If your projector is set up on an existing network (Advanced mode), select the network name

(SSID).

• If your projector is configured for Quick mode, select the projector's SSID.

Selects whether to display the SSID on the network standby screen

Selects whether to display the IP address on the network standby screen

Selects the IPv6 settings when you connect the projector to the network using IPv6

3. Click Connect.

Parent topic: Wireless Network Projection

Selecting Wireless Network Settings on Mac

Before connecting to the projector, select the correct wireless network on your Mac.

1. Click the AirPort icon on the menu bar at the top of the screen.

2. Make sure AirPort is turned on, then do one of the following:

• If your projector is set up on an existing network (Advanced mode), select the network name

(SSID).

• If your projector is configured for Quick mode, select the projector's SSID.

Parent topic: Wireless Network Projection

Setting Up Wireless Network Security

You can set up security for your projector to use on the wireless network. Set up one of the following security options to match the settings used on your network:

• WPA/WPA2-PSK security (Advanced connection mode)

• WPA2-EAP security (Advanced connection mode)

• WPA/WPA2-PSK security (Quick connection mode)

• WPA/WPA2-EAP security (Advanced connection mode)

Check with your network administrator for guidance on entering the correct information.

1. Press the Menu button.

2. Select the Network menu and press Enter.

3. Select Network Configuration and press Enter.

4. Select the Wireless LAN menu and press Enter.

5. Select the Security setting and press Enter.

6. Select the security settings for your network.

7. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

Parent topic: Wireless Network Projection

Related references

Wireless LAN Menu Settings

Using a QR Code to Connect a Mobile Device

After you select the wireless network settings for your projector, you can display a QR code on the screen and use it to connect a mobile device using the Epson iProjection app.

Note: Make sure you have installed the latest version of Epson iProjection on your device. Visit

epson.com/iprojection (U.S.) or epson.ca/iprojection (Canada) for more information.

1. Press the Menu button.

2. Select the Network menu and press Enter.

3. Select Network Configuration and press Enter.

4. Select the Basic menu and press Enter.

5. Set the Display LAN Info setting to Text & QR Code.

6. Select Complete and follow the on-screen instructions to save your settings and exit the menus.

7. Press the LAN button on the remote control or select Display the QR Code in the projector's Network menu. (You can also press the Home button on the remote control and select Display the QR Code on the Home screen.)

Your projector displays the QR code on the projection surface.

Note: If you do not see the QR code after pressing the LAN button, press Enter to display it.

8. Start Epson iProjection on your mobile device.

9. Use the QR code reader feature to read the QR code and connect your device to the projector. Visit

epson.com/iprojection (U.S.) or epson.ca/iprojection (Canada) for instructions.

Parent topic: Wireless Network Projection

Wireless Network Projection from a Mobile Device or Windows Computer (Screen Mirroring)

You can send images to your projector from mobile devices such as laptops, smartphones, and tablets using Miracast technology or from a Windows computer (PowerLite 5520W/5530U/5535U). If your device supports Miracast, you do not need to install any additional software.

Screen Mirroring Restrictions Selecting Screen Mirroring Settings Connecting for Screen Mirroring with Miracast Connecting for Screen Mirroring with a Windows 8.x/10 Computer

Parent topic: Wireless Network Projection

Screen Mirroring Restrictions

Note the following when using Screen Mirroring features (PowerLite 5520W/5530U/5535U):

• You cannot project an interlaced image.

• You cannot play audio with more than 3 channels.

• You cannot project images with a resolution above 1920 × 1080 and a frame rate above 30 fps.

• You cannot project 3D video.

• You cannot use extended Miracast features on Windows 8.1.

• You may not be able to view contents with copyright protection using a Miracast connection.

Parent topic: Wireless Network Projection from a Mobile Device or Windows Computer (Screen

Mirroring)

Selecting Screen Mirroring Settings

You can select Screen Mirroring settings for your projector and then project images from your mobile device or computer (PowerLite 5520W/5530U/5535U).

1. Press the Menu button.

2. Select the Network menu and press Enter.

3. Set the Screen Mirroring setting to On.

4. Select Screen Mirroring Settings and press Enter.

5. Select the Screen Mirroring Settings options as necessary.

6. When you finish selecting settings, select Set and follow the on-screen instructions to save your settings and exit the menus.

7. Press the Home button on the control panel or remote control.

You see the Display Name on the Home screen

Parent topic: Wireless Network Projection from a Mobile Device or Windows Computer (Screen

Mirroring)

Connecting for Screen Mirroring with Miracast

If your mobile device supports Miracast, you can connect it to the projector wirelessly and project images and sound (PowerLite 5520W/5530U/5535U).

1. Select the Screen Mirroring settings on your projector as necessary.

2. Press the LAN button on the remote control to switch to the Screen Mirroring source.

You see the Screen Mirroring standby screen.

3. On your mobile device, use the Miracast function to search for the projector.

Note: See your mobile device's documentation for information on accessing the Miracast function.

You see a list of available devices.

4. Select your projector from the list.

5. If you see the PIN entry screen on your mobile device, enter the PIN code displayed on the Screen Mirroring standby screen or at the bottom right of the projected image.

The projector displays the image from your mobile device.

Note: It may take some time to establish the connection. Do not disconnect the projector's power cord while it is connecting to your device. Doing so may cause your device to freeze or malfunction.

Note: Depending on the mobile device, you may need to delete a device when connecting. Follow the on-screen instructions on your device.

Parent topic: Wireless Network Projection from a Mobile Device or Windows Computer (Screen

Mirroring)

Related tasks

Selecting Screen Mirroring Settings

Connecting for Screen Mirroring with a Windows 8.x/10 Computer

You can set up your computer to wirelessly project images and play sound using Screen Mirroring (PowerLite 5520W/5530U/5535U).

1. Select the Screen Mirroring settings on your projector as necessary.

2. Press the LAN button on the remote control to switch to the Screen Mirroring source.

You see the Screen Mirroring standby screen.

3. Do one of the following:

• Windows 10: Open Action Center and select Connect.

• Windows 8.x: Select Devices > Project > Add a wireless display.

4. Select your projector's Display Name from the list.

5. If you see the PIN entry screen on your computer, enter the PIN code displayed on the Screen Mirroring standby screen or at the bottom right of the projected image.

The projector displays the image from your computer or mobile device.

Note: It may take some time to establish the connection. Do not disconnect the projector's power cord while it is connecting to your device. This may cause your device to freeze or malfunction.

Parent topic: Wireless Network Projection from a Mobile Device or Windows Computer (Screen

Mirroring)

Related tasks

Selecting Screen Mirroring Settings

Setting Up Projector Network E-Mail Alerts

You can set up the projector to send you an e-mail alert over the network if there is a problem with the projector.

1. Press the Menu button.

2. Select the Network menu and press Enter.

3. Select Network Configuration and press Enter.

4. Select the Notifications menu and press Enter.

5. Turn on Mail Notification.

6. Enter the IP address for the SMTP Server setting.

Note: To enter the IP address using the numeric keys on the remote control, press and hold the Num button. Do not use these addresses: 127.x.x.x or 224.0.0.0 through 255.255.255.255 (where x

is a number from 0 to 255).

7. Select a number for the SMTP server Port Number setting, from 1 to 65535 (default is 25).

8. Enter the sender's email address for the From option.

9. Choose an Address field, enter the e-mail address, and select the alerts you want to receive there. Repeat for up to three addresses. Your e-mail address can be up to 32 alphanumeric characters long.

10. If you are using the PJLink protocol for projector control, turn on PJLink Notification and enter the IP address where you want to receive PJLink notifications for the Notified IP Address setting.

11. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

Note: If a critical problem causes a projector to shut down, you may not receive an e-mail alert.

Network Projector E-mail Alert Messages

Parent topic: Using the Projector on a Network

Network Projector E-mail Alert Messages

When a problem occurs with a networked projector, and you selected to receive e-mail alerts, you receive an e-mail containing the following information:

• The email address entered as the From setting

• Epson Projector on the subject line

• The name of the projector experiencing a problem

• The IP address of the affected projector

• Detailed information about the problem

Note: If a critical problem causes a projector to shut down, you may not receive an e-mail alert.

Parent topic: Setting Up Projector Network E-Mail Alerts

Setting Up Monitoring Using SNMP

Network administrators can install SNMP (Simple Network Management Protocol) software on network computers so they can monitor projectors. If your network uses this software, you can set up the projector for SNMP monitoring.

1. Press the Menu button.

2. Select the Network menu and press Enter.

3. Select Network Configuration and press Enter.

4. Select the Notifications menu and press Enter.

5. Turn on the SNMP setting.

6. Enter up to two IP addresses to receive SNMP notifications, using 0 to 255 for each address field.

Note: To enter the IP address using the numeric keys on the remote control, press and hold the Num button. Do not use these addresses: 127.x.x.x or 224.0.0.0 through 255.255.255.255 (where x

is a number from 0 to 255).

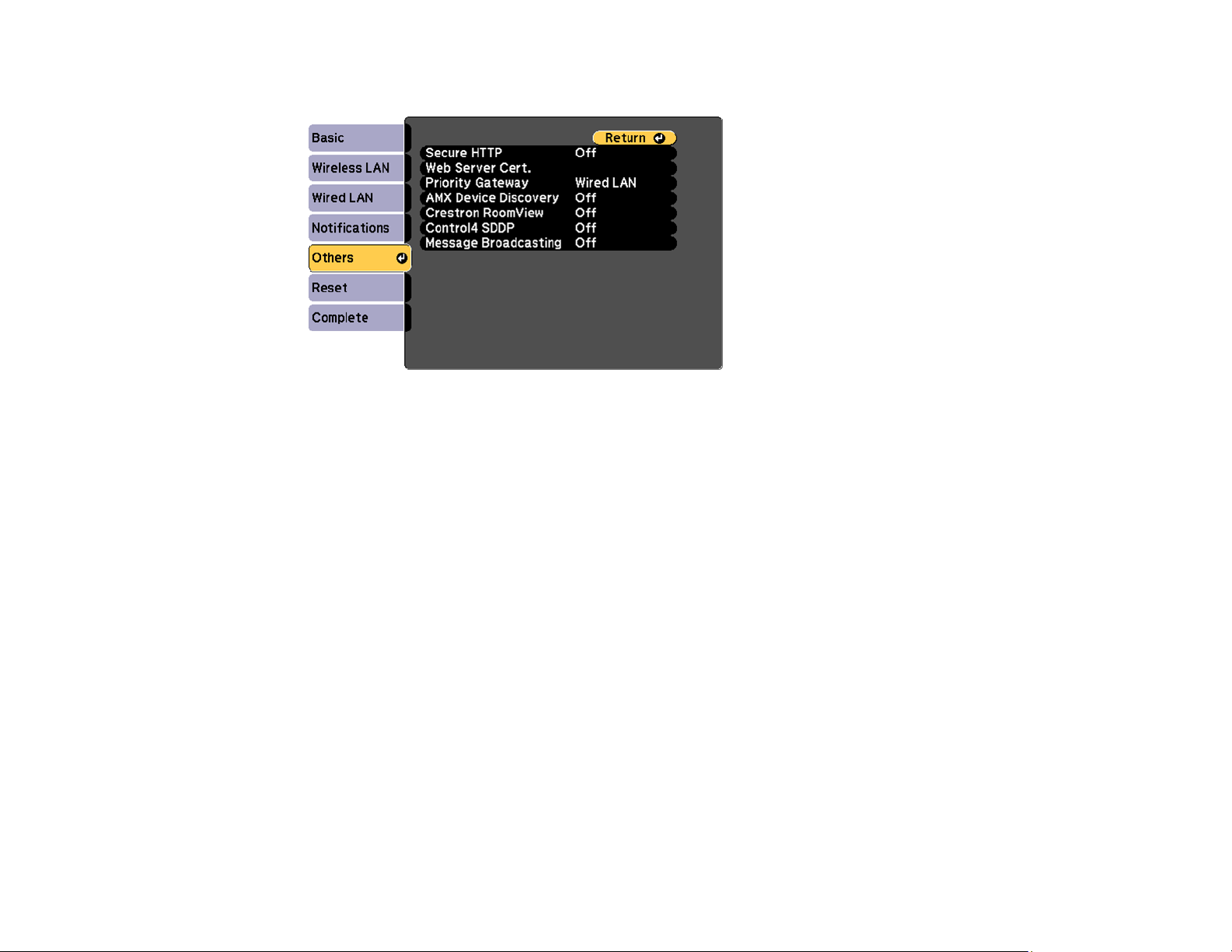

7. Select the Others menu and press Enter.

8. If you want to use the Secure HTTP protocol to encrypt communication when using Web Control, turn on the Secure HTTP setting and import the web server certificate to the Web Server Cert. setting.

9. If available, select the Priority Gateway setting for your network.

10. If your network environment uses an AMX controller, turn on the AMX Device Discovery setting to allow the projector to be detected.

11. If your network environment uses a Crestron RoomView controller, turn on the Crestron RoomView setting to allow the projector to be detected.

12. If you are using the projector with a Control 4 Simple Device Discovery Protocol (SDDP) automation system, turn on the Control4 SDDP setting.

13. If you want this projector to receive broadcast messages over the network, turn on the Message Broadcasting setting. Administrators can broadcast messages over the network using the Message Broadcasting plug-in for EasyMP Monitor (Windows only).

14. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

Parent topic: Using the Projector on a Network

Controlling a Networked Projector Using a Web Browser

Once you have connected your projector to your network, you can select projector settings and control projection using a compatible web browser. This lets you access the projector remotely.

Note: The web setup and control features support Microsoft Internet Explorer 9.0 or later, and Safari on networks that do not use a proxy server for connection. You cannot select all of the projector menu settings or control all projector functions using a web browser.

Note: If you set Standby Mode to Communication On, you can use a web browser to select settings and control projection even if the projector is in standby mode.

1. Make sure the projector is turned on.

2. Start your web browser on a computer or device connected to the network.

3. Type the projector's IP address into the browser's address box and press the computer's Enter key.

You see the Web Control screen.

1 Select Basic Control to control the projector remotely.

2 Select OSD Control Pad to change the projector's menu settings.

3 Select Status Information to view the projector's status.

4 Select Advanced to open the advanced menu screen.

5 Select Test Pattern to display a test pattern

4. Select the option corresponding to the projector function you want to control.

Note: You may need to log in to access some of the options on the Web Control screen. If you see a log in window, enter your user name and password. (The default user name is EPSONWEB and the default password is admin.)

Web Control Options

Parent topic: Using the Projector on a Network

Related references

Projector Setup Settings - Extended Menu

Web Control Options

Basic Control

Note: If the Remote Password is set to On, you need to enter your user name and password. (The

default username is EPSONREMOTE and the default password is guest).

1 Returns to the Home screen

2 Turns on the projector

3 Input source selection controls

4 A/V Mute button control

5 Volume button controls

6 Searches for sources

7 Turns off the projector

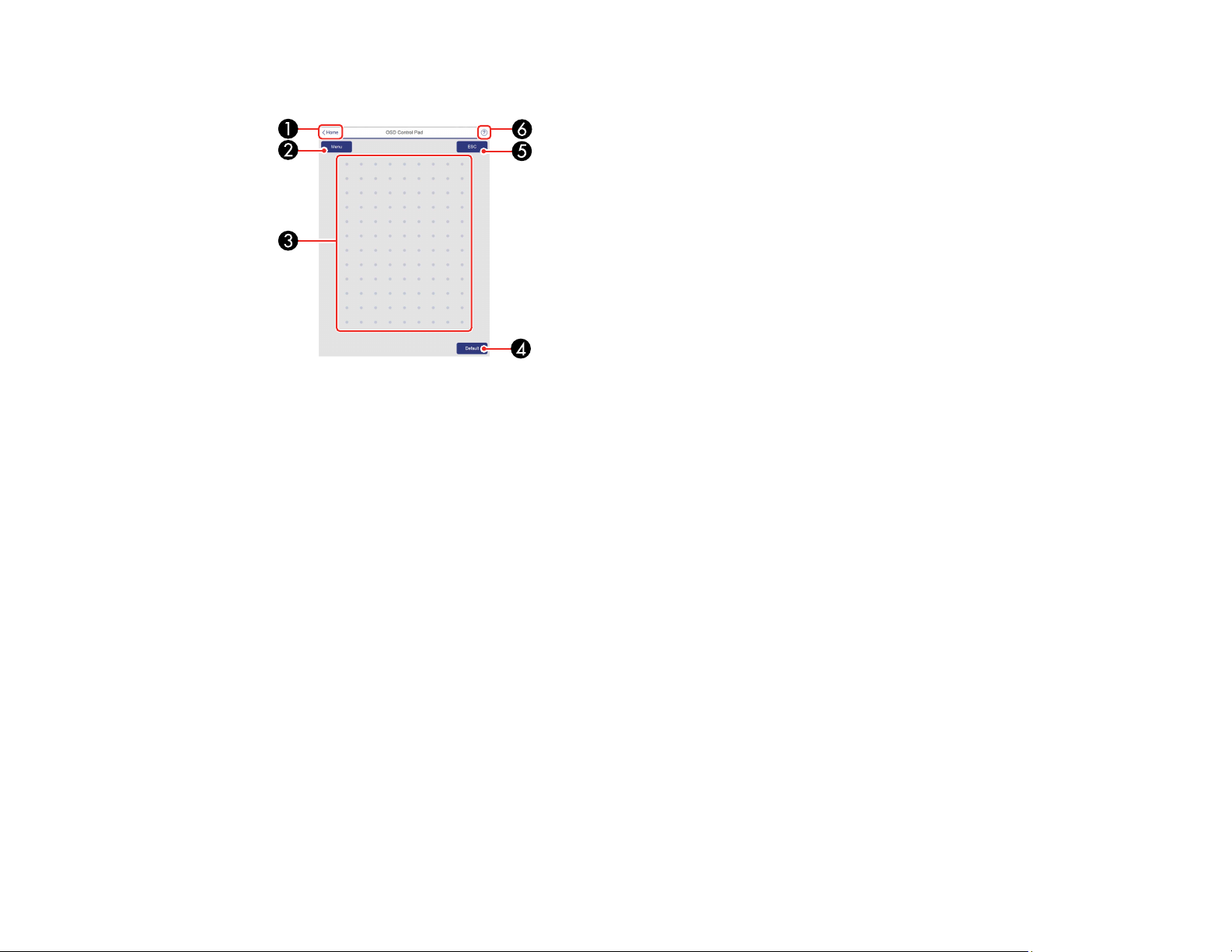

OSD Control Pad

1 Returns to the Home screen

2 Displays the projector's setting menus

3 Use your finger or mouse to navigate the menus

4 Returns settings to their default values

5 Returns to the previous menu

6 Displays help topics

Note: You cannot change some settings using Epson Web Control.

Test Pattern screen

1 Displays available test patterns; select to project a test pattern

2 Turns off test pattern display

Status Information

1 Returns to the Home screen

2 Displays a list of monitored settings

3 Displays the setting status

4 Select to view different status information

Parent topic: Controlling a Networked Projector Using a Web Browser

Crestron RoomView Support

If you are using the Crestron RoomView network monitoring and control system, you can set up your projector for use on the system. Crestron RoomView lets you control and monitor your projector using a web browser.

Note: You cannot use the Epson Web Control feature or the Message Broadcasting plug-in for EasyMP Monitor when you use Crestron RoomView.

For additional information on Crestron RoomView, contact Crestron.

Setting Up Crestron RoomView Support Controlling a Networked Projector Using Crestron RoomView

Parent topic: Using the Projector on a Network

Setting Up Crestron RoomView Support

To set up your projector for monitoring and control using a Crestron RoomView system, make sure your computer and projector are connected to the network. If you are connecting wirelessly, set up the projector using the Advanced network connection mode.

Note: If you want to use the Crestron RoomView system when the projector is turned off, you need to adjust the Standby Mode settings in the Extended menu.

1. Press the Menu button.

2. Select the Network menu and press Enter.

3. Select Network Configuration and press Enter.

4. Select the Others menu and press Enter.

5. Set the Crestron RoomView setting to On to allow the projector to be detected.

Note: Enabling Crestron RoomView disables the Epson Message Broadcasting feature in the EasyMP Monitor software.

6. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

7. Turn off the projector, then turn it on again to enable the setting.

Parent topic: Crestron RoomView Support

Related tasks

Selecting Wireless Network Settings Manually

Controlling a Networked Projector Using Crestron RoomView

Once you have set up your projector to use Crestron RoomView, you can control and monitor projection using a compatible web browser.

1. Start your web browser on a computer connected to the network.

2. Type the projector's IP address into the browser's address box and press the computer's Enter key.

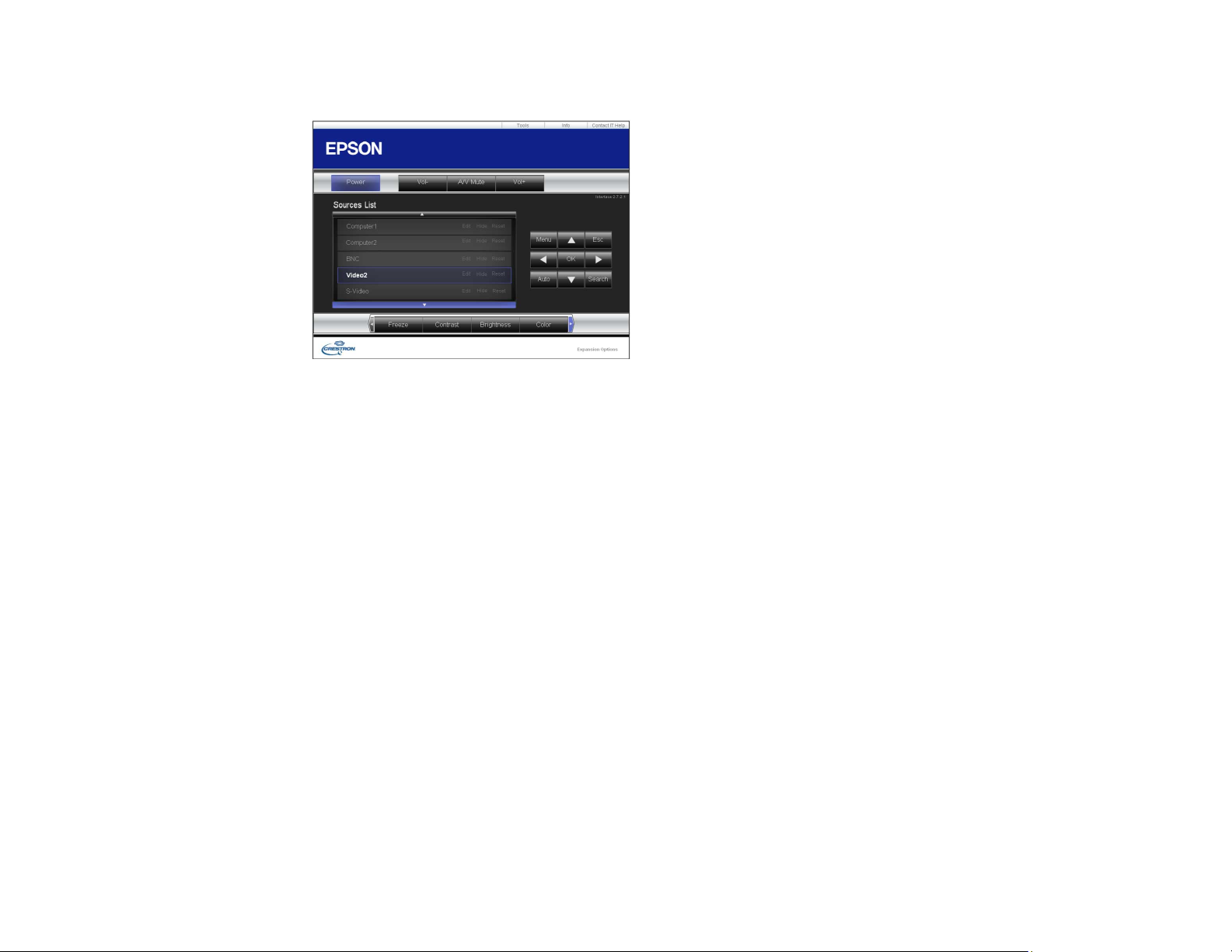

You see this screen:

3. Select the input source that you want to control in the Sources List box. You can scroll through available sources using the up and down arrows in the box.

4. To control projection remotely, click the on-screen buttons that correspond to the projector's remote control buttons. You can scroll through button options at the bottom of the screen.

Note: These on-screen buttons do not directly correspond to the projector's remote control buttons:

• OK acts as the Enter button

• Menu displays the projector's menu

5. To view information about the projector, click the Info tab.

6. To change projector, Crestron, and password settings, click the Tools tab, select settings on the displayed screen, and click Send.

7. When you finish selecting settings, click Exit to exit the program.

Parent topic: Crestron RoomView Support

Using Basic Projector Features

Follow the instructions in these sections to use your projector's basic features.

Turning On the Projector Turning Off the Projector Selecting the Language for the Projector Menus Resizing the Image with the Zoom Ring Focusing the Image Using the Focus Ring Setting the Screen Type Adjusting the Image Position Using Lens Shift Adjusting the Image Position Using Screen Position Displaying a Test Pattern Adjusting the Image Height Image Shape Selecting an Image Source Remote Control Operation Projection Modes Image Aspect Ratio Color Mode Controlling the Volume with the Volume Buttons Setting the Date and Time

Turning On the Projector

Turn on the computer or video equipment you want to use before you turn on the projector so it can display the image source.

1. Connect the power cord to the projector's power inlet.

2. Plug the power cord into an electrical outlet.

The projector's On/Standby light turns blue. This indicates that the projector is receiving power, but is not yet turned on (it is in standby mode).

Note: With Direct Power On turned on, the projector turns on as soon as you plug it in.

3. Press the power button on the projector or the On button on the remote control to turn on the projector.

The projector beeps and the Status light flashes blue as the projector warms up. After about 30 seconds, the status light stops flashing and turns blue.

Warning: Never look into the projector lens when the lamp is on. This can damage your eyes and is especially dangerous for children and pets.

Note: If the Auto Source Search setting in the Extended menu is enabled, the projector automatically detects the input signal when you turn it on.

If you do not see a projected image right away, try the following:

• Turn on the connected computer or video device.

• Insert a DVD or other video media, and press the play button (if necessary).

• Press the Source Search button on the projector or the Search button on the remote control to detect

the video source.

• Press the Home button and select the source you want to project on the Home screen.

Using the Home Screen

Parent topic: Using Basic Projector Features

Related references

Projector Setup Settings - Extended Menu Projector Light Status

Using the Home Screen

You can select input sources and other frequently used options from the Home screen.

1. To display the Home screen, do one of the following:

• Press the Home button on the remote control.

• Turn on the projector with the Home Screen Auto Disp setting enabled.

• Turn on the projector when no signal is received from the selected input source.

2. Press the arrow buttons on the remote control or control panel to navigate the screen, and press Enter to select an option.

1 Select the video source you want to project

2 Display the QR code

3 Display the Help screen

4 Display the projector's menus

5 Select customizable menu options

6 Select to change the Power Consumption setting

7 Select to change the Color Mode

Note: You can select the customizable menu options using the Custom Function 1 and Custom Function 2 settings in the Extended menu.

3. Press the Home button to hide the Home screen.

Parent topic: Turning On the Projector

Related references

Projector Setup Settings - Extended Menu

Turning Off the Projector

Before turning off the projector, shut down any computer connected to it so you can see the computer display during shutdown.

Note: Turn off this product when not in use to prolong the life of the projector. Lamp life will vary depending upon mode selected, environmental conditions, and usage. Brightness decreases over time.

1. Press the power button on the projector or the Standby button on the remote control.

2. If you see a shutdown confirmation screen, press the power button on the projector or the Standby button on the remote control again. (To leave the projector on, press any other button.)

The projector beeps twice, the lamp turns off, and the Status light turns off.

Note: With Epson's Instant Off technology, there is no cool-down period so you can pack up the projector for transport right away (if necessary).

3. To transport or store the projector, make sure the Status light is off, then unplug the power cord.

Caution: To avoid damaging the projector or lamp, never unplug the power cord when the Status light is on or flashing blue.

Parent topic: Using Basic Projector Features

Selecting the Language for the Projector Menus

If you want to view the projector's menus and messages in another language, you can change the Language setting.

1. Turn on the projector.

2. Press the Menu button.

3. Select the Extended menu and press Enter.

4. Select the Language setting and press Enter.

5. Select the language you want to use and press Enter.

6. Press Menu or Esc to exit the menus.

Parent topic: Using Basic Projector Features

Resizing the Image with the Zoom Ring

1. Turn on the projector and display an image. Wait 30 minutes after turning on the projector before setting the focus, zoom, and lens shift for maximum accuracy.

Note: You can display a pattern to aid in adjusting the projected image using the Settings menu.

Note: You can also display a pattern to aid in adjusting the projected image using the Test Pattern

button on the remote control.

2. To enlarge or reduce the image size, rotate the projector's zoom ring.

Parent topic: Using Basic Projector Features

Related references

Projector Feature Settings - Settings Menu

Focusing the Image Using the Focus Ring

1. Turn on the projector and display an image. Wait 30 minutes after turning on the projector before setting the focus, zoom, and lens shift for maximum accuracy.

Note: You can display a pattern to aid in adjusting the projected image using the Settings menu.

Note: You can also display a pattern to aid in adjusting the projected image using the Test Pattern

button on the remote control.

2. To sharpen the image focus, rotate the projector’s focus ring.

Parent topic: Using Basic Projector Features

Related references

Projector Feature Settings - Settings Menu

Setting the Screen Type

You can use the Screen Type setting to match the aspect ratio of the displayed image to the screen you are using.

Note: This setting is unavailable when projecting images from a computer over a network.

1. Turn on the projector and display an image.

2. Press the Menu button.

3. Select the Extended menu and press Enter.

4. Select Display > Screen > Screen Type.

You see this screen:

5. Select your screen's aspect ratio and press Enter.

6. Press the Menu button to exit.

7. Adjust the aspect ratio for the projected image, if necessary.

Parent topic: Using Basic Projector Features

Related concepts

Image Aspect Ratio

Adjusting the Image Position Using Lens Shift

If you cannot install the projector directly in front of the screen, you can adjust the position of the projected image using the lens shift feature.

Follow these guidelines when using lens shift to adjust your images:

• When adjusting the image height, position the image lower than where you want it to be and then

move it up using the vertical lens shift dial. This helps prevent the image from moving down after adjustment.

• Keep the vertical and horizontal lens shift dials in their center positions for the clearest picture.

Note: Wait 30 minutes after turning on the projector before setting the focus, zoom, and lens shift for maximum accuracy.

1. Turn on the projector and display an image.

2. Slide the lens shift dial lock as shown to release the lock.

3. Turn the vertical and horizontal lens shift dials on the projector to adjust the position of the projected image as necessary.

PowerLite 5510

1 Center of lens

2 Projected image when the lens is set to the home position

3 Maximum range: V × 58%

Note: You cannot move the image upward when the lens is shifted horizontally all the way.

PowerLite 5520W/5530U/5535U

1 Center of lens

2 Projected image when the lens is set to the home position

4. When you are finished, slide the lens shift dial lock as shown to lock the dials.

Parent topic: Using Basic Projector Features

Adjusting the Image Position Using Screen Position

You can adjust the image position if there are margins between the edge of the image and the projected screen frame.

Note: You cannot adjust the screen position if the Screen Type setting is set to 16:10 for a WXGA/WUXGA projector model or 4:3 for a XGA projector model.

1. Turn on the projector and display an image.

2. Press the Menu button.

3. Select the Extended menu and press Enter.

4. Select Display > Screen > Screen Position.

5. Use the arrow buttons on the remote control or projector to adjust the position of the image.

6. When you are finished, press the Menu button.

Parent topic: Using Basic Projector Features

Displaying a Test Pattern

You can display a test pattern to adjust the projected image without connecting a computer or video device.

Note: The test pattern's shape is determined by the Screen Type setting. Be sure to set the correct screen type before adjusting with the test pattern.

1. Turn on the projector.

2. Press the Test Pattern button on the remote control or the down arrow button on the control panel.

3. Press the left or right arrow button on the remote control or press Enter on the control panel to cycle through the available test patterns.

4. Adjust the image as necessary.

5. Press the Esc to clear the test pattern.

Available Test Pattern Image Adjustments

Parent topic: Using Basic Projector Features

Related tasks

Setting the Screen Type

Available Test Pattern Image Adjustments

You can adjust the following settings while the test pattern is displayed.

Menu Settings

Image Color Mode

White Balance

Advanced

• Gamma

Settings Geometry Correction

Extended Multi-Projection

Except for custom Gamma settings

Except for the Color Uniformity setting

Parent topic: Displaying a Test Pattern

Adjusting the Image Height

If you are projecting from a table or other flat surface, and the image is too high or low, you can adjust the image height using the projector's adjustable feet.

1. Turn on the projector and display an image.

• RGBCMY

2. To adjust the image height, rotate the front foot to extend or retract it.

3. If the image is tilted, rotate the rear feet to adjust their height.

If the projected image is unevenly rectangular, you need to adjust the image shape.

Parent topic: Using Basic Projector Features

Image Shape

You can project an evenly rectangular image by placing the projector directly in front of the center of the screen and keeping it level. If you place the projector at an angle to the screen, or tilted up or down, or off to the side, you may need to correct the image shape for the best display quality.

Correcting Image Shape with H/V Keystone Correcting Image Shape with Quick Corner Correcting Image Shape with Arc Correction

Parent topic: Using Basic Projector Features

Correcting Image Shape with H/V Keystone

You can use the projector's H/V Keystone setting to correct the shape of an image that is unevenly rectangular on the sides.

Note: You cannot combine H/V Keystone correction with other image shape correction methods.

1. Turn on the projector and display an image.

Note: You can display a pattern to aid in adjusting the projected image using the Settings menu.

Note: You can also display a pattern to aid in adjusting the projected image using the Test Pattern

button on the remote control.

2. Press the Menu button.

3. Select the Settings menu and press Enter.

4. Select the Geometry Correction setting and press Enter.

Note: You can also access the geometric adjustment screen by pressing the Geometry button on the remote control or the up arrow button on the control panel.

5. Select the H/V-Keystone setting and press Enter. Then press Enter again.

You see the H/V-Keystone adjustment screen:

6. Use the arrow buttons on the projector or the remote control to select between vertical and horizontal keystone correction and to adjust the image shape as necessary.

V-Keystone

V-Balance

H-Keystone

H-Balance

7. When you are finished, press Esc.

After correction, your image is slightly smaller.

Parent topic: Image Shape

Related references

Projector Feature Settings - Settings Menu

Correcting Image Shape with Quick Corner

You can use the projector's Quick Corner setting to correct the shape and size of an image that is unevenly rectangular on all sides.

Note: You cannot combine Quick Corner correction with other image shape correction methods.

1. Turn on the projector and display an image.

Note: You can display a pattern to aid in adjusting the projected image using the Settings menu.

Note: You can also display a pattern to aid in adjusting the projected image using the Test Pattern

button on the remote control.

2. Press the Menu button.

3. Select the Settings menu and press Enter.

4. Select the Geometry Correction setting and press Enter.

5. Select the Quick Corner setting and press Enter. Then press Enter again.

You see the Quick Corner adjustment screen:

Note: To reset your adjustments, press and hold the Esc button for at least 2 seconds to display a reset screen. Then select Yes.

6. Use the arrow buttons on the projector or the remote control to select the corner of the image you want to adjust. Then press Enter.

7. Press the arrow buttons to adjust the image shape as necessary.

8. When you are finished, press Esc.

Parent topic: Image Shape

Related references

Projector Feature Settings - Settings Menu

Correcting Image Shape with Arc Correction

You can use the projector's Arc Correction setting to adjust the curve or arc of the sides of your image.

Note: You cannot combine Arc Correction with other image shape correction methods.

1. Turn on the projector and display an image.

Note: You can display a pattern to aid in adjusting the projected image using the Settings menu.

Note: You can also display a pattern to aid in adjusting the projected image using the Test Pattern

button on the remote control.

2. Press the Menu button.

3. Select the Settings menu and press Enter.

4. Select the Geometry Correction setting and press Enter.

5. Select the Arc Correction setting and press Enter. Then press Enter again.

You see the Arc Correction adjustment screen.

Note: To reset your adjustments, press the Esc button for at least 2 seconds to display a reset screen, and select Yes.

6. Use the arrow buttons on the projector or the remote control to select the corner or side of the image you want to adjust. Then press Enter.

7. Press the arrow buttons to adjust the image shape as necessary.

8. When you are finished, press Esc.

Parent topic: Image Shape

Related references

Projector Feature Settings - Settings Menu

Selecting an Image Source

If you connected multiple image sources to the projector, such as a computer and DVD player, you may want to switch from one image source to the other.

Note: If the Auto Source Search setting in the Extended menu is enabled, the projector automatically switches to another detected image source if the signal to the current image source is lost.

1. Make sure the connected image source you want to use is turned on.

2. For video image sources, insert a DVD or other video media and press its play button, if necessary.

3. Do one of the following:

• Press the Search button on the remote control or the Source Search button on the projector until

you see the image from the source you want.

• Press the button for the source you want on the remote control.

1 HDMI1 port source

2 HDMI2 port source

100

Epson 5510, 5535U, 5530U, 5520W User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Introduction to Your Projector

Projector Features

Product Box Contents

Additional Components

Additional Projector Software and Manuals

Optional Equipment and Replacement Parts

Warranty and Registration Information

Notations Used in the Documentation

Where to Go for Additional Information

Projector Part Locations

Projector Parts - Front/Top

Projector Parts - Rear

Projector Parts - Interface Ports

Projector Parts - Base
