EPSON® PowerLite® 5500C/7500C User’s Guide

Copyright Notice

All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of SEIKO EPSON CORPORATION. No patent liability is assumed with respect to the use of the information contained herein. Neither is any liability assumed for damages resulting from the use of the information contained herein.

Neither SEIKO EPSON CORPORATION nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the U.S.) failure to strictly comply with SEIKO EPSON CORPORATION’s operating and maintenance instructions.

SEIKO EPSON CORPORATION shall not be liable against any damages or problems arising from the use of any options or any consumable products other than those designated as Original EPSON Products or EPSON Approved Products by SEIKO EPSON CORPORATION.

EPSON and PowerLite are registered trademarks of SEIKO EPSON CORPORATION.

SoundAdvice is a service mark and FaxAdvice is a trademark of Epson America, Inc.

General Notice:

of their respective owners. EPSON disclaims any and all rights in those marks.

Other product names used herein are for identification purposes only and may be trademarks

1/99

Important Information About Your Projector

Important Safety Information

Warning: Never look into the projector lens when the lamp is turned on; the bright light can damage your eyes. Never let children look into the lens when it is on. Never open any cover on the projector, except the lamp and filter covers. Dangerous electrical voltages inside the projector can severely injure you. Except as specifically explained in this User’s Guide, do not attempt to service this product yourself. Refer all servicing to qualified service personnel.

Warning: The projector and its accessories come packaged in plastic bags. Keep plastic bags away from small children to avoid any risk of suffocation.

Caution: When you replace the lamp, never touch the new lamp with your bare hands; the invisible residue left by the oil on your hands may shorten the lamp life. Use a cloth or glove to handle the new lamp.

Remote Control Information

You can operate the projector by remote control via a line-of-sight infrared (IR) receiver at the front of the projector. The projector may not respond to remote control commands under the following conditions:

There is an object between the remote control IR emitter and the IR receiver on the projector.

❐

Ambient light is too bright.

❐

Certain types of fluorescent lighting are used.

❐

A strong light source shines into the IR receiver.

❐

Other equipment that emits infrared energy, such as a radiant room heater, is in the room.

❐

These conditions commonly cause problems for most infrared-controlled equipment. Try the following solutions:

The remote control unit’s batteries may be low on power; replace them.

❐

Dim the ambient lighting and/or turn off any fluorescent lights.

❐

Close any window coverings and/or move the projector out of direct sunlight.

❐

Turn off other equipment that emits infrared energy.

❐

iii

If the remote control still does not work properly, remember you can always control your computer-based presentation directly from the computer, even in an environment containing one of the conditions listed above.

FCC Compliance Statement For United States Users

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio and television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

Reorient or relocate the receiving antenna.

❐

Increase the separation between the equipment and receiver.

❐

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

❐

Consult the dealer or an experienced radio/TV technician for help.

❐

WARNING

The connection of a non-shielded equipment interface cable to this equipment will invalidate the FCC Certification of this device and may cause interference levels which exceed the limits established by the FCC for this equipment. It is the responsibility of the user to obtain and use a shielded equipment interface cable with this device. If this equipment has more than one interface connector, do not leave cables connected to unused interfaces. Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment.

For Canadian Users

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le materiel brouilleur du Canada.

Introduction 1

Getting the Most Out of Your Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Sleep Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Optional Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

About This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Where to Get Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Electronic Support Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Automated Telephone Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Installation 11

Unpacking the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Additional Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Attaching the Hand Strap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Installing the Remote Control Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Before You Connect the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Connecting to a Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Connecting to a PC Desktop Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Connecting to a PC Laptop Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Connecting to a Desktop Macintosh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Connecting to a PowerBook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Connecting to a Video Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Connecting to an External Speaker or PA System . . . . . . . . . . . . . . . . . . . . . . .37

Using the Projector 39

Turning the Equipment On and Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Turning the Projector On and Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Positioning the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

Calculating Image Size and Projection Distance . . . . . . . . . . . . . . . . . . . . .45

Focusing and Positioning the Screen Image . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Resize Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

Controlling the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

Using the Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Using the Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Projector Status Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

Power Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

Projection Lamp Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

Temperature Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

Using the Projector Menus 59

Accessing the Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Changing a Menu Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Video Menu (Image Source = Computer) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Video Menu (Image Source = Video) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Audio Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Setting Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

User’s Logo Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Storing a User Logo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Assigning the Logo to the AV/Mute Button . . . . . . . . . . . . . . . . . . . . . . . . 71

Effect Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

About Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Reset All Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Using the ELP Link III Software 75

Connecting the ELP Link III Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Connecting to a PC Desktop Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Connecting to a PC Laptop Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Connecting to a Desktop Macintosh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Connecting to a PowerBook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Installing the Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Installing the Software for Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Installing the Software for a Macintosh . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Launching the Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Launching the Software from Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Launching the Software on a Macintosh . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

vii

Using the Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91

Changing the COM Port Assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91

Customizing the Remote Control Effects Buttons . . . . . . . . . . . . . . . . . . . .91

Controlling Projector Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .98

Maintenance 109

Cleaning the Lens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .110

Cleaning the Projector Case . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .110

Cleaning the Air Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .111

Replacing the Lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .112

Transporting the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .115

Troubleshooting 117

Using the Online Help Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118

Problems with the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .119

Problems with the Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .122

Problems with the Image or Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .123

Technical Specifications 127

Glossary 133

Index 137

viii

Introduction

Your EPSON® PowerLite® projector is a compact, lightweight projector that lets you project SVGA (PowerLite 5500C) or XGA (PowerLite 7500C) full-color images and video onto a large screen for presentations. You can connect it simultaneously to two image sources: one PC or Apple source, such as a VCR or camcorder. You can also connect audio for each image source.

Images are displayed in SVGA at a resolution of 800 × 600 pixels (PowerLite 5500C) or XGA at a resolution of 1024 × 768 pixels

(PowerLite 7500C). Your projector produces bright images that can be easily seen in rooms light enough to take notes.

The projector’s two speakers employ a built-in SRS 3D Sound System for rich, powerful audio output. You can also connect an external speaker when further amplification is required.

Macintosh® computer plus one video

For your presentations, you can select front, rear, or ceiling projection. This provides maximum flexibility in choosing the best display method for each environment.

You can control your projector through a hand-held remote control unit, with menus provided for image source switching and image adjustment. The remote control can also act as a wireless mouse to control operations on your computer screen during presentations. Additionally, you can install the projector’s optional ELP Link III software to control the projector’s settings from your computer and reconfigure the projector’s special effects.

Your projector features a new patented SizeWize™ chip for supporting a variety of computer output resolutions. For example, if you have the PowerLite 5500C, the resize feature lets you display VGA or XGA images at the projector’s SVGA resolution. On the PowerLite 7500C, you can resize the image to display VGA, SVGA, or SXGA images at the projector’s XGA resolution. No matter what type of computer output is used, the result is a full-size video image of outstanding clarity.

Your projector supports IBM as Apple Macintosh, Power Macintosh

compatible PCs and laptops, as well

™

, and PowerBook™ computers. The video source can be NTSC, PAL, or SECAM. The projector automatically senses the video format, which can be composite video or S-Video. See Chapter 7 for details on supported computers and video formats.

Introduction

Getting the Most Out of Your Projector

Your projector comes with a full set of features that allow you to control the settings for the image display, video, and audio. Read this section for a quick summary of the important features.

Remote Control

The buttons on the remote control let you turn the projector on and off, and provide direct access to blank, freeze, volume, mute, and image source switching. Use the remote control buttons to access custom functions with the optional ELP Link III software and the projector’s menu system. You can even use the remote control in place of your computer’s mouse.

Sleep Mode

Sleep mode conserves electricity by automatically turning off the lamp after the projector has not been used for 30 minutes. In sleep mode, the projector remains on but the lamp is turned off, conserving electricity, cooling the projector, and extending the life of the lamp.

Control Panel

The control panel buttons on the projector duplicate the remote control buttons and let you perform additional functions, such as adjusting the tracking and sync for computer images.

Getting the Most Out of Your Projector

Optional Accessories

To enhance your use of the projector, EPSON provides the following optional accessories:

Replacement lamp

●

and filter ELPLP06

Soft travel case

●

for projector and laptop ELPKS13

Hard travel case ELPKS14

●

Computer cable ELPKC02

●

ELP Link III set for PC

●

(includes ELP Link III software and cables) ELPSW03

ELP Link III set for Macintosh

●

(includes ELP Link III software and cables) ELPSW04

Mac adapter set ELPAP01

●

Portable projection screen ELPSC06

●

You can purchase these accessories from your dealer or by calling EPSON Accessories at www.epsonsupplies.com (U.S. sales only). In Canada, please call (800) 873-7766 for dealer referral.

(800) 873-7766

; or visit our web site at

Introduction

About This Manual

This manual describes how to install and use the EPSON PowerLite 5500C and PowerLite 7500C projectors. Except where noted, the instructions apply to both projectors.

Chapter 1, “Installation,” gives step-by-step instructions on how to set up your projector and connect it to your computer or video source. Read the installation procedures that apply to your configuration.

Chapter 2, “Using the Projector,” describes how to turn on the projector and control simple projector settings using the remote control or the control panel.

Chapter 3, “Using the Projector Menus,” describes how to use the menus to adjust the color and image settings, change the display of the projected image, and modify audio settings such as bass and treble.

Chapter 4, “Using the ELP Link III Software,” describes how to connect the ELP Link III cables and use the optional ELP Link III software to control the projector or configure special effects.

Chapter 5, “Maintenance,” describes how to clean your projector and perform limited maintenance.

Chapter 6, “Troubleshooting,” describes how to interpret your projector’s warning lights and gives helpful information for avoiding errors, optimizing image quality, and solving problems.

About This Manual

Chapter 7, “Technical Specifications,” lists the technical specifications for the projector.

A Glossary and Index are provided at the end of the manual.

Introduction

Safety Instructions

Follow these safety instructions when setting up and using the projector:

1. Do not place the projector on an unstable cart, stand, or table.

2. Do not use the projector near water or sources of heat.

3. Use attachments only as recommended.

4. Use the type of power source indicated on the projector. If you are not sure of the power available, consult your dealer or power company.

5. Place the projector near a wall outlet where the plug can be easily unplugged.

Placez l’imprimante près d’une prise de contacte où la fiche peut être débranchée facilement.

6. Insert the projector’s three-wire grounding-type plug into a properly grounded outlet. If you have a two-prong outlet, contact an electrician to replace it. Do not hold the plug with wet hands.

7. Take the following precautions for the plug. Failure to comply with these precautions could result in sparks or fire.

Do not insert the plug into an outlet with dust present.

●

● Insert the plug firmly into the outlet.

8. Do not overload wall outlets, extension cords, or integral convenience receptacles. This can cause fire or electric shock.

Safety Instructions

9. Do not place the projector where the cord can be walked on. It may result in fraying or damage to the plug.

10. Unplug the projector from the wall outlet before cleaning. Use a damp cloth for cleaning. Do not use liquid or aerosol cleaners.

11. Do not block the slots and openings in the projector case. They provide ventilation and prevent the projector from overheating. Do not operate the projector on a sofa, rug, or other soft surface, or in a closed-in cabinet unless proper ventilation is provided.

12. Never push objects of any kind through cabinet slots. Never spill liquid of any kind into the projector.

13. Except as specifically explained in this

User’s Guide

, do not attempt to service this product yourself. Refer all servicing to qualified service personnel. Opening or removing covers may expose you to dangerous voltages and other hazards.

14. Unplug the projector during lightning storms or when it will not be used for extended periods.

15. Do not place the projector and remote control on top of heat-producing equipment or in a heated place.

16. Unplug the projector from the wall outlet and refer servicing to qualified service personnel under the following conditions:

When the power cord or plug is damaged or frayed

●

If liquid has been spilled into the projector, or if it has been

●

exposed to rain or water

Introduction

If it does not operate normally when you follow the operating

●

instructions, or if it exhibits a distinct change in performance, indicating a need for service

If it has been dropped or the housing has been damaged.

●

Where to Get Help

If you are having trouble setting up or running your projector, see the Help menu on the projector or read Chapter 6, “Troubleshooting.” If you can’t resolve the problem, EPSON provides technical assistance through electronic support services and automated telephone services 24 hours a day, as listed in the following tables:

Electronic Support Services

Service Access

World Wide Web From the Internet, you can reach EPSON’s Home Page at

http://www.epson.com

EPSON Internet FTP Site

If you have Internet FTP capability, use your Web browser (or other software for FTP downloading) to log onto

ftp.epson.com

e-mail address as the password.

with the user name

Where to Get Help

anonymous

and your

Service Access

EPSON Forum on CompuServe

Members of CompuServe can type prompt to reach the Epson America Forum. For a free introductory CompuServe membership, call and ask for representative #529.

Automated Telephone Services

Service Access

EPSON SoundAdvice

EPSON FaxAdvice

EPSON Referral Service For the location of your nearest Authorized

When support is required, follow the calling instructions on the back of the EPSON Private Line Technical Support card included with the projector. Technical support is also available in the U.S. by calling (310) 974-1202 between 6 Monday through Friday. In Canada, call (905) 709-3839. Toll or long distance charges may apply.

™

GO EPSON

For pre-recorded answers to commonly asked questions about EPSON products 24 hours a day, seven days a week, call

(800) 922-8911

Access EPSON’s technical information library by calling

(800) 922-8911

use this service.

EPSON Reseller or Customer Care Center, call

(800) 922-8911

. You must provide a return fax number to

and 6PM, Pacific time,

at the menu

(800) 848-8199

Before you call, please have the following information ready:

Introduction

Product name

●

Product serial number

●

Personal identification number (PIN) for EPSON Private Line

●

Technical Support

Computer configuration

●

Description of the problem

●

You can purchase accessories from

EPSON

Accessories at (800) 873-7766, or visit our web site at www.epsonsupplies.com (U.S. sales only). In Canada, please call (800) 873-7766 for dealer referral.

Where to Get Help

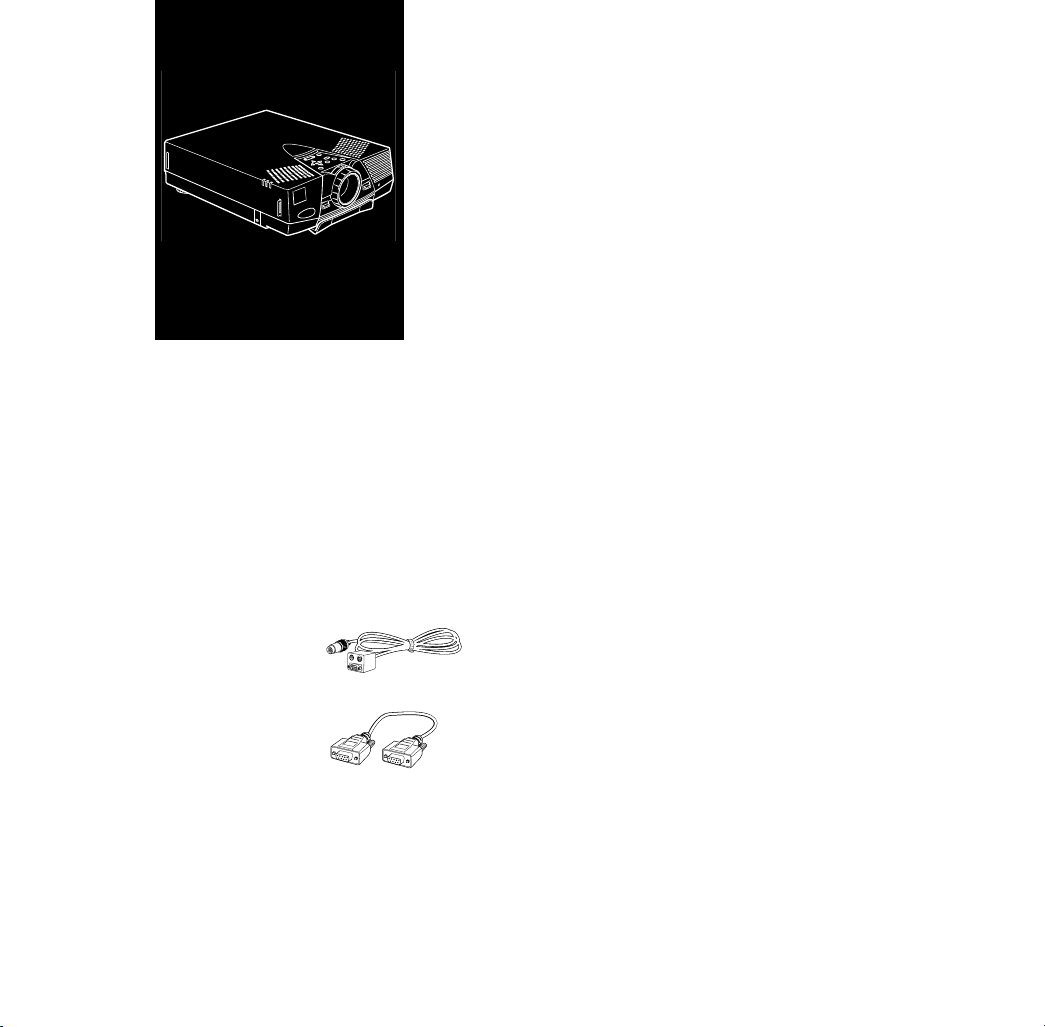

Installation

his chapter describes how to unpack and set up your projector, and connect it to other equipment. The projector must be connected to a computer or a video source such as a VCR, camcorder, or laser disc player before it can project any images. You may also want to:

Connect the mouse cable to use the remote control as a wireless

●

mouse. Except for some laptops, this disables your computer’s mouse. If you are also viewing the display on your monitor, the remote control’s pointer controls the screen cursor.

Connect the projector to an audio source for one or both image

●

sources. The audio source can be the computer, video source, or another device such as a stereo.

Connect the projector to an external speaker to amplify the

●

audio.

Unpacking the Projector

When you unpack the projector, make sure you have all these components:

Projector

Remote control

2 AA batteries

Power cord

Projector video cable

Audio cable

1 • Installation

Macintosh adapter set:

Audio/video (A/V) cable

Macintosh desktop adapter

Macintosh monitor adapter

mouse cable (for the PC)

PS/2

Mac mouse cable (for the Macintosh)

Projector software CD-ROM

Hand strap

Soft carrying case

Unpacking the Projector

Depending on the configuration of your equipment, you may not need all these components.

Save all packaging in case you need to ship the projector in the future. Always transport the projector in its original packaging (or the equivalent) or use a carrying case if you are carrying the projector by hand. (See “Transporting the Projector” on page 115 for instructions.)

Additional Components

Depending on how you plan to use the projector, you may need these additional components:

For complete control of the projector from your computer or to

●

program enhanced special effects on the remote control, you need the optional ELP Link III set. You can purchase the set from your dealer or by calling EPSON Accessories at

873-7766

To receive an S-Video signal, you will need an S-Video cable.

●

(One is usually provided with your video device.) A separate cable is required for each video source.

To connect the projector to a Macintosh PowerBook, you need a

●

video-out cable and an adapter. (One is provided by—or can be purchased from—Apple for all new PowerBooks that have video-out capability.) If your PowerBook does not include one, see your Macintosh dealer.

(U.S. sales only).

(800)

1 • Installation

To connect the projector to an external sound system, you need

●

an RCA-to-3.5 mm stereo audio cable. You can obtain one from your computer dealer.

To use the remote control when the projector is not in

●

line-of-sight of the remote, you need an optional infrared repeater. For more information, call web address:

To connect a serial mouse cable to your computer, you may

●

www.xantech.com

require a special connector, cable, or other components. You can obtain these items from your computer dealer.

To protect your projector, you can connect a Kensington

●

MicroSaver

anti-theft device in the hole on the right side of the

projector. Contact your local computer dealer.

Attaching the Hand Strap

1. Place the projector on its right side.

(800) 843-5465 or

visit this

✦

Caution:

Do not hold or lift the projector by the lens. This can

damage the lens.

Attaching the Hand Strap

2. Locate the slider button on the bottom front of the projector and slide the button up until the front strap connector is fully extended

front strap connector

slider button

3. Place one end of the strap through the front strap connector and and fasten the screw through the strap.

screw

1 • Installation

4. Place the other end of the strap through the rear strap connector and fasten the screw.

There is no slider button for the rear strap connector.

Note:

rear strap connector

Installing the Remote Control Batteries

You can use the remote control as a wireless mouse instead of your computer’s mouse to control your presentation. With the optional ELP Link III set, you can reconfigure the Effects buttons. Follow these steps to install the batteries in the remote control:

1. Slide off the battery compartment cover

Installing the Remote Control Batteries

2. Insert the two AA batteries included with the projector. Make sure the polarity of the batteries is correct.

3. Replace the battery compartment cover.

When replacing batteries, take the following precautions:

● Do not mix old and new batteries.

Replace batteries as soon as they run out. If the batteries leak,

●

wipe away battery fluid with a soft cloth. If fluid gets on your hands, wash them immediately.

Remove the batteries if you won’t be using the projector for a

●

long period of time.

1 • Installation

Before You Connect the Projector

Before you begin, decide where you want to place the projector and computer or video source. Be sure to place the projector on a sturdy, level surface within five feet of the computer or video source. The distance between the projector and the screen determines the image size. Place the projector between 2.4 and 53.7 feet (0.8 and 16.4 meters) away from the screen; use the table below to determine the proper distance. (For more precise calculations, see page 45.)

✦

Caution:

Do not hold or lift the projector by the lens; this can

damage the lens.

Horizontal distance from projector to screen

Image size (diagonal)

300 inches (762 cm) 493.7 inches (12.6 m) 644.8 inches (16.4 m)

200 inches (508 cm) 328.1 inches (8.4 m) 428.8 inches (10.9 m)

100 inches (254 cm) 162.5 inches (4.2 m) 212.9 inches (5.4 m)

80 inches (203 cm) 129.4 inches (3.3 m) 169.7 inches (4.3 m)

60 inches (152 cm) 96.2 inches (2.5 m) 126.5 inches (3.2 m)

40 inches (102 cm) 63.1 inches (1.6 m) 83.3 inches (2.1 m)

30 inches (76 cm) 46.6 inches (1.2 m) 61.8 inches (1.6 m)

25 inches (64 cm) 38.3 inches (1.0 m) 51.0 inches (1.3 m)

19 inches (48 cm) 28.3 inches (0.8 m) 38.0 inches (1.0 m)

Minimum Maximum

Before You Connect the Projector

Connecting to a Computer

You can connect the projector to a computer capable of XGA, VGA, or SVGA output. The PowerLite 7500C is also capable of projecting SXGA images. Resizing is supported by the projectors as follows:

PowerLite 5500C: VGA and XGA output

●

PowerLite 7500C: VGA, SVGA, and SXGA output.

●

The following types of computers are supported:

IBM compatible desktop PC

●

IBM compatible laptop PC

●

Apple Macintosh desktop computer, including Macintosh

●

Quadra,

Any Apple PowerBook with video-out capability.

●

To connect the video and mouse cables (to use the wireless remote as a mouse pointer), see the section in this chapter that applies to your computer.

To connect the main, serial, and mouse cables to use the optional ELP Link III software, see Chapter 4.

Macintosh Centris,® and Power Macintosh

1 • Installation

Connecting to a PC Desktop Computer

Before beginning, turn off the projector and computer if they are on.

1. Connect the projector video cable and monitor cable.

Computer Out port

Computer configurations vary. See your computer

Note:

Computer In port

projector video cable

monitor cable

manual for the location of the ports needed to connect your projector.

a. Connect either end of the projector video cable to the

projector’s Computer In port.

b. Disconnect the computer monitor cable from the video port

on the back of the computer, and connect the other end of the projector video cable to the computer’s video port.

Connecting to a Computer

c. To also view the video on the computer monitor, connect

the monitor cable to the projector’s Computer Out port. This is useful when you need to view the video output but the projection screen is behind you.

d. Tighten the screws on all connectors.

2. If you want to use the remote control as a mouse pointer for the computer, connect the mouse cable.

If you’ll be using the optional ELP Link III software, skip

Note:

step 2, as you’ll need to connect the mouse cable included in the ELP Link III set instead. Follow the instructions on page 78 to connect the mouse cable.

Mouse/Com port

PS/2 mouse cable

a. Disconnect the computer’s PS/2 mouse cable from the

mouse port on the back of your computer and replace it with the small end of the PS/2 mouse cable included with the projector.

1 • Installation

You need the optional ELP Link III set to connect the

Note:

projector to a computer with a serial mouse. See Chapter 4 for more information.

b. Connect the other end of the PS/2 mouse cable to the

projector’s Mouse/Com port.

3. Connect the audio cable if needed.

Audio In jack

audio cable

a. Connect one end of the audio cable to the Audio In jack on

the projector.

b. Connect the other end of the audio cable to the Audio Out

port on a sound card in the computer.

4. If you are using the optional ELP Link III software, see Chapter 4 for instructions for connecting the Link cables.

Connecting to a Computer

Connecting to a PC Laptop Computer

Before beginning, turn off the projector and computer if they are on.

1. Connect the projector video cable.

Computer In port

Laptop configurations vary. See your computer manual

Note:

for the location of the ports needed to connect your projector.

a. Connect either end of the projector video cable to the

projector’s Computer In port.

b. Connect the other end of the projector video cable to the

laptop’s video (monitor) port.

projector video cable

c. Tighten the screws on both connectors.

1 • Installation

2. If you want to use the remote control as a mouse pointer for the laptop, connect the mouse cable.

If you’ll be using the optional ELP Link III software, skip

Note:

step 2, as you’ll need to connect the mouse cable included in the ELP Link III set instead. Follow the instructions on page 80 to connect the mouse cable.

Mouse/Com port

PS/2 mouse cable

a. Connect the small end of the PS/2 mouse cable included

with the projector to the laptop’s mouse port.

You’ll need the optional ELP Link III set to connect

Note:

the projector to a laptop with a serial mouse. See Chapter 4 for more information.

b. Connect the other end of the PS/2 mouse cable to the

projector’s Mouse/Com port.

Connecting to a Computer

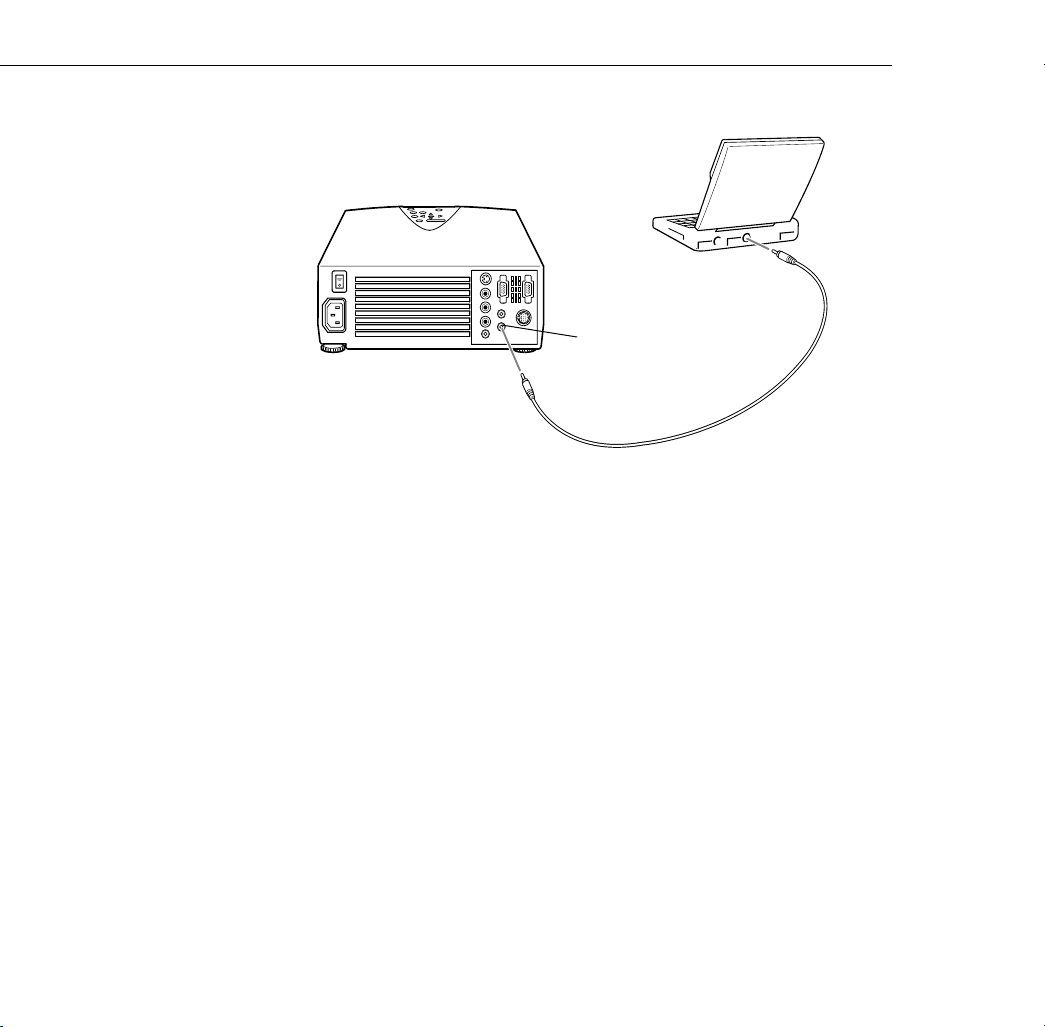

3. Connect the audio cable if needed (and if your laptop has an Audio Out jack).

Audio In jack

audio cable

a. Connect one end of the audio cable to the Audio In jack on

the projector.

b. Connect the other end of the audio cable to the Audio Out

jack on your laptop.

4. If you are using the optional ELP Link III software, see Chapter 4 for instructions for connecting the Link cables.

1 • Installation

Connecting to a Desktop Macintosh

Before beginning, turn off the projector and Macintosh if they are on.

1. Connect the projector video cable and monitor cable.

Computer Out port

Computer In port

Macintosh desktop adapter

Macintosh monitor adapter

Macintosh computer configurations vary. See your

Note:

projector video cable

computer manual for the location of the ports needed to connect your projector.

a. Connect either end of the projector video cable to the

projector’s Computer In port.

Connecting to a Computer

b. Remove the small cover (as shown below) and set the DIP

switches on the Macintosh desktop adapter to select the resolutions you want to use (such as 16-inch mode). See your Macintosh documentation for instructions.

c. Disconnect the monitor cable from the video port on the

back of the Macintosh.

d. Connect the small terminal of the Macintosh desktop

adapter to the other end of the projector video cable and connect the projector video cable (with Macintosh desktop adapter attached) to the video port.

1 • Installation

e. If you wish to view or check images on the computer’s

monitor, attach the large end of the Macintosh monitor adapter to the monitor cable and connect the monitor to the projector’s Computer Out port.

f. Tighten the screws on all connectors.

2. If you want to use the remote control as a mouse pointer for the computer, connect the mouse cable.

If you’ll be using the optional ELP Link III software, skip

Note:

step 2, as you’ll need to connect the mouse cable included in the ELP Link III set instead. Follow the instructions on page 82 to connect the mouse cable.

Mouse/Com port

Mac mouse cable

Connecting to a Computer

a. Disconnect your Macintosh’s mouse cable. Connect the

small end of the projector’s Mac mouse cable to the Mouse port on your Macintosh.

b. Connect the other end of the Mac mouse cable to the

projector’s Mouse/Com port.

3. Connect the audio cable if needed.

Audio In jack

audio cable

a. Connect one end of the audio cable to the Audio In jack on

the projector.

b. Connect the other end of the audio cable to the Audio Out

port on your computer.

4. If you are using the optional ELP Link III software, see Chapter 4 for instructions for connecting the Link cables.

1 • Installation

Connecting to a PowerBook

Your PowerBook must have a video-out capability in order to connect to the projector.

Before beginning, turn off the projector and computer if they are on.

1. Connect the projector video cable.

Computer In port

Computer Out port

Some new PowerBooks may enable you to connect the

Note:

projector video cable directly to the computer without using a video-out cable. In addition, PowerBook configurations vary, so the location of your computer’s ports may not match the illustration. See your computer manual for additional information on connecting a video cable.

Video-out cable

Macintosh desktop adapter

projector video cable

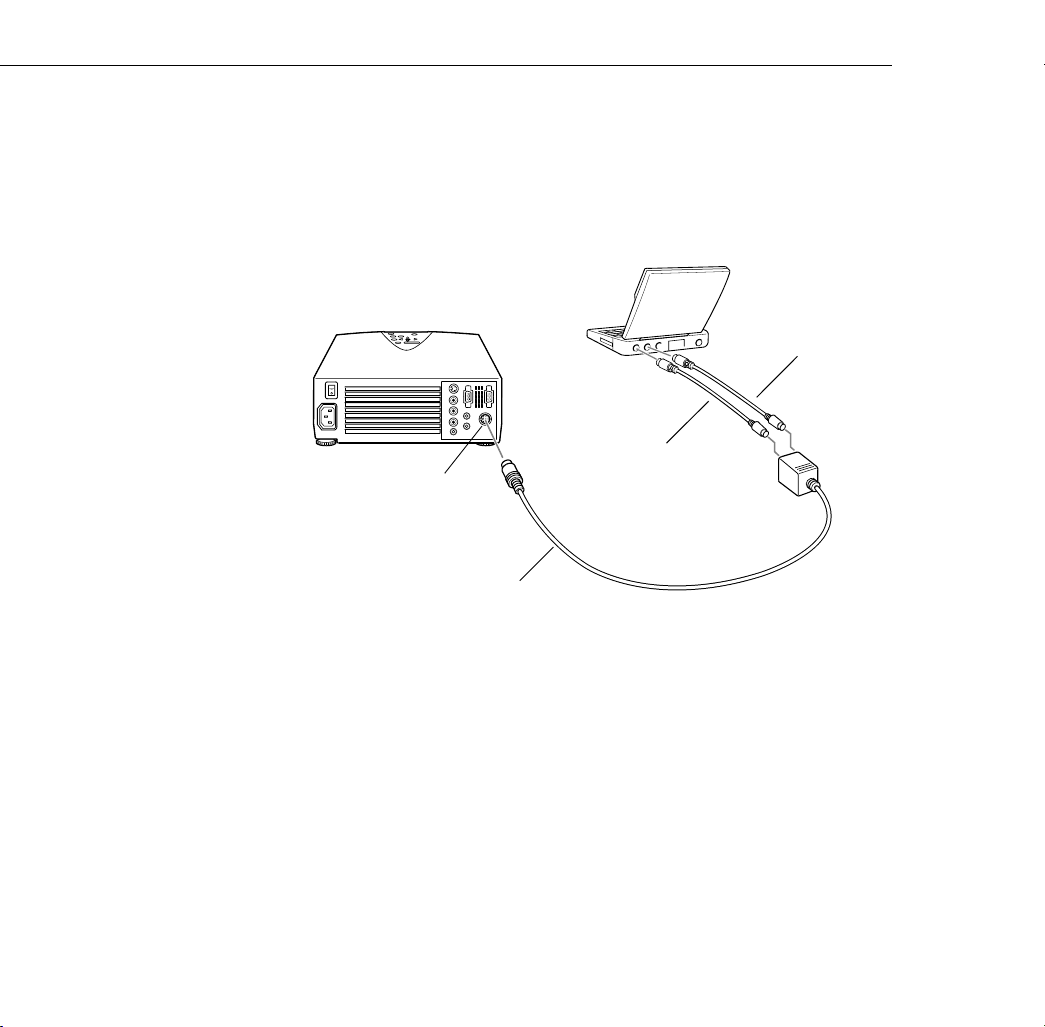

a. Connect one end of the projector video cable to the

projector’s Computer In port.

Connecting to a Computer

b. Remove the small cover (as shown below) and set the DIP

switches on the Macintosh desktop adapter to select the resolutions you want to use (such as 16-inch mode). See your Macintosh documentation for instructions.

c. Connect the small terminal of the Macintosh desktop

adapter to the other end of the video cable.

d. Connect one end of the video-out cable that came with your

PowerBook to the video-out connector on the back of the PowerBook.

1 • Installation

e. Connect the other end of the PowerBook video-out cable to

the projector video cable (with Macintosh desktop adapter attached).

f. Tighten the screws on all the connectors.

2. If you want to use the remote control as a mouse pointer for the laptop, connect the mouse cable.

If you’ll be using the optional ELP Link III software, skip

Note:

step 2, as you’ll need to connect the mouse cable included in the ELP Link III set instead. Follow the instructions on page 84 to connect the mouse cable.

Mouse/Com port

Mac mouse cable

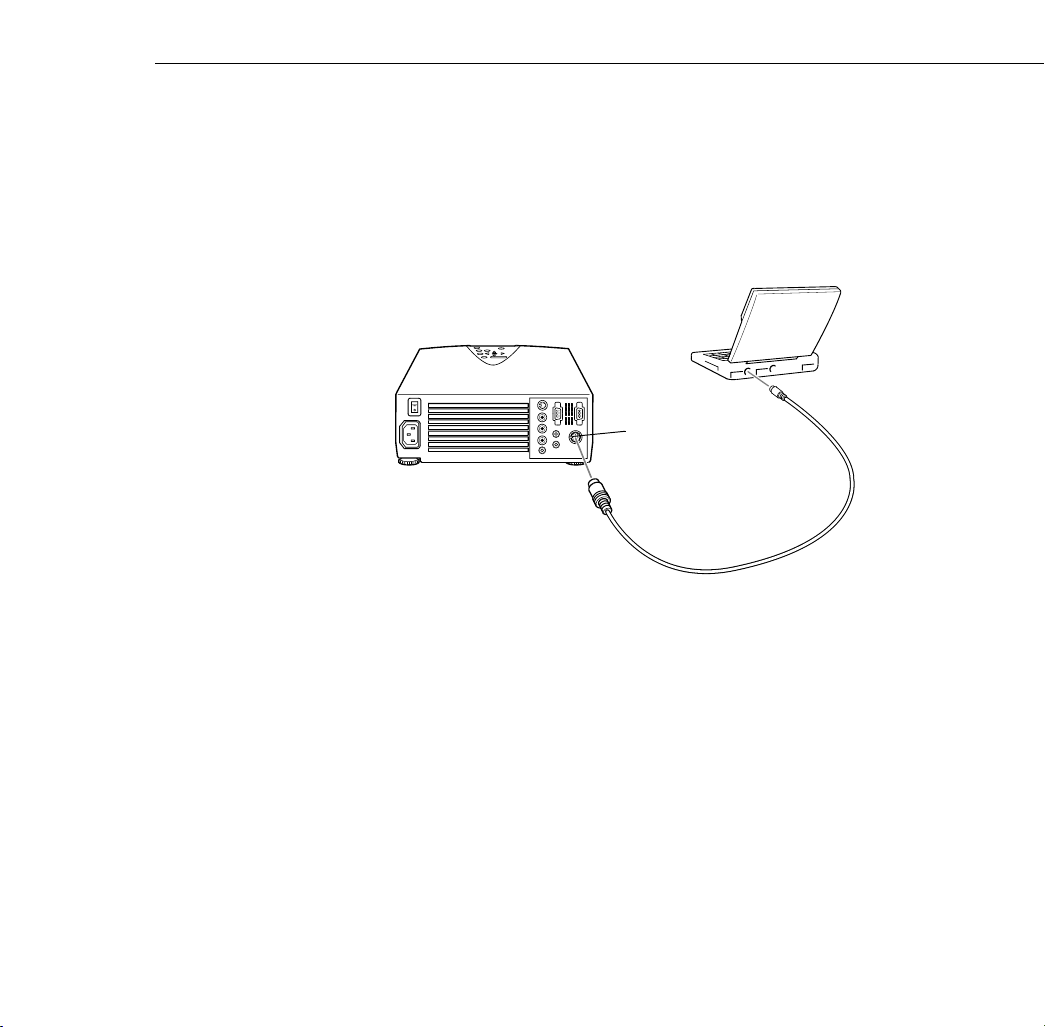

a. Connect the small end of the projector’s Mac mouse cable

to the Mouse port on your laptop.

b. Connect the other end of the mouse cable to the projector’s

Mouse/Com port.

Connecting to a Computer

3. Connect the audio cable, if needed.

Audio In jack

audio cable

a. Connect one end of the audio cable to the Audio In jack on

the projector.

b. Connect the other end of the audio cable to the Audio Out

port on your computer.

4. If you are using the optional ELP Link III software, see Chapter 4 for instructions for connecting the Link cables.

After you turn on the projector and computer, you may need

Note:

to choose Mirroring in the Display Control Panel to display the image on the LCD screen as well as the projector screen. See your Macintosh documentation for details. (This step is not necessary on some newer systems, which can detect a dual video signal.)

1 • Installation

Connecting to a Video Source

You can connect a VCR, camcorder, DVD player, or any other compatible video image source to your projector.

The projector can receive composite video or S-Video. Your equipment has composite video if your video source has a one-pin RCA video jack. Your equipment has S-Video if your video source has a four-pin video jack.

The type of cable you use to connect the video source to the projector depends on whether you have composite video or S-Video. For composite video, use the audio/video (A/V) cable supplied with the projector. For S-Video, use the S-Video cable supplied with your video device or obtain one from your computer dealer.

The projector is not compatible with a cable TV-style F

Note:

connector.

You can connect the projector to an S-Video source or a composite video source. However, the projector automatically selects the S-Video as the video source. To display composite video, first disconnect the S-Video source.

The projector supports NTSC, PAL, and SECAM video formats, and automatically detects and identifies the video format. However, you can specify that a single broadcast format be detected (see page 65). Note that the projector will then be able to detect only one type of video format.

Connecting to a Computer

Before beginning, turn off the projector and video source if they are on.

1. Locate the appropriate video cable. If your video source uses a small, round, one-prong composite (RCA) video connector, you’ll need the audio/video (A/V) cable that comes with the projector. If your video source uses a large, round, four-prong S-Video connector, you will need to purchase the appropriate cable or use the cable that came with your video source.

2. For composite video, connect the yellow RCA plug on one end of the audio/video cable to the projector’s Video In jack. Connect the other yellow RCA plug to the video-out jack of your video source.

L Audio

Connect the other plugs on the audio/video cable to the Audio jacks of the projector: insert the white plug into the L jack and the red plug into the R jack. Connect the plugs at the other end of the audio/video cable to the audio output jacks of the video source.

1 • Installation

Video In port

audio/video cable

R Audio

3. For S-Video, insert one end of an S-Video cable into the projector’s S-Video In connector. Insert the other end into the S-Video-Out jack of your video source.

S-Video connector

S-Video cable

Connecting to an External Speaker or PA System

Although the projector’s internal speakers are enough for most small- or medium-size rooms, you can connect the projector to an external speaker or public address (PA) system for large rooms or to gain maximum benefit from the projector’s built-in 3D sound function.

To connect the projector to an external sound system, you need to obtain an RCA-to-3.5 mm stereo audio cable from your computer dealer.

Connecting to an External Speaker or PA System

Before beginning, turn off the projector and speaker or PA system if they are on.

1. Connect the cable’s 3.5 mm stereo miniplug to the projector’s Audio Out jack.

stereo audio cable

Audio Out jack

2. Connect the RCA plugs to the external amplified speaker or PA system. Insert the cable’s red plug into the Audio R jack, and the white plug into the Audio L jack.

1 • Installation

Using the Projector

his chapter provides the following information about using your

projector:

Turning the equipment on and off

●

Positioning the projector relative to the screen

●

Focusing and positioning the screen image

●

Controlling the projector with the remote control and

●

the control panel

Monitoring the projector’s operating status

●

The illustration below identifies the parts of your projector.

status lights

rear feet (left foot not visible)

hand strap connectors

control panel

infrared receiver

speakers

adjustable foot

projection lens/focus/zoom

foot adjust levers

2 • Using the Projector

Turning the Equipment On and Off

It’s best to turn on the projector and its attached equipment in the following order:

1. Video source (such as a VCR), if your video source is not your computer

2. Audio source (if different from computer or video source)

3. External amplified speaker or PA system (if necessary)

4. Computer

5. Projector (see instructions below)

When you are ready to turn off the equipment, do so in the reverse order.

Turning the Projector On and Off

1. Remove the projector lens cap.

2. Connect one end of the power cord to the projector’s power inlet, and connect the other end to a grounded electrical outlet.

3. Turn on the main power switch located at the rear of the projector and wait until the power light remains orange.

4. Press the Power button on the remote control or control panel. The power light flashes green as the projector warms up. When the projector is fully warmed up, this light remains green.

Turning the Equipment On and Off

If computer or video equipment is attached, the computer or video signal is projected. Allow about 30 seconds for full illumination.

✦

Warning:

Never look into the lens when the lamp is on. This can damage your eyes. It is especially important that children not look into the lens.

When you want to stop projecting images, press the Power button again. The fan remains on and the power light flashes orange for about two minutes as the projector cools down.

power light

projection lamp light

temperature light

When the projector has cooled down, the power light stops flashing and remains orange.

To turn off the projector completely, turn off the main power switch at the rear of the projector after the power light becomes orange.

If you press the

Note:

Power

button to turn the projector back on while the power light is orange, there may be a delay before a projected image appears.

2 • Using the Projector

Sleep Mode

Sleep mode conserves electricity by automatically turning off the lamp after the projector has not been used for 30 minutes. In sleep mode, the projector’s power light is orange and only a minimum amount of the projector’s circuitry remains on. This conserves electricity, cools the projector, and extends the life of the lamp.

When the projector is in sleep mode, press the Power button to resume projecting images, or unplug the projector’s power cord to turn it off.

Positioning the Projector

Your projector supports front, rear, and ceiling projection, allowing you to choose the best method for displaying your images. If you use rear or ceiling projection, you need to select a special mode in the projector’s Setting menu. See page 67 for more information.

To get the best results, it’s important to position the projector at the proper height and distance relative to the screen.

Positioning the Projector

When projecting from a table or desk, place the projector so the lens is aligned as closely as possible with the bottom of your screen:

2 • Using the Projector

When projecting from the ceiling, align the lens as closely as possible with the top of your screen:

Calculating Image Size and Projection Distance

The distance between the projector and the screen determines the actual image size. To determine the exact distance required for a particular image size (or to determine the size of an image at a particular distance), use the formulas given below. (Remember that the size of the image can also be changed by rotating the zoom ring; see page 47 for more information.)

Positioning the Projector

To determine the minimum and maximum diagonal size of an image when you know the projection distance:

Inches:

●

Maximum diagonal size = (0.6038 × projection distance) +

1.8898

Minimum diagonal size = (0.4631 × projection distance) +

1.4000

Centimeters:

●

Maximum diagonal size = (0.6038 × projection distance) +

4.8001

Minimum diagonal size = (0.4631 × projection distance) +

3.5560

To determine the projection distance when you know the diagonal size of the screen image:

Inches:

●

Maximum projection distance = (2.1593 × diagonal size) -

3.0229

Minimum projection distance = (1.6562 × diagonal size) -

3.1291

Centimeters:

●

Maximum projection distance = (2.1593 × diagonal size) -

7.6782

Minimum projection distance = (1.6562 × diagonal size) -

4.2068

2 • Using the Projector

For example, here are the measurements for three installations:

Horizontal distance from projector to screen

Image size (diagonal)

300 inches* (762 cm) 493.7 inches (12.6 m) 644.8 inches (16.4 m)

200 inches (508 cm) 328.1 inches (8.4 m) 428.8 inches (10.9 m)

100 inches (254 cm) 162.5 inches (4.2 m) 212.9 inches (5.4 m)

* For an image size of 300 inches, the projector may be up to 53.7 feet away from the

screen, depending on the setting of the zoom ring.

Minimum Maximum

Positioning the Projector

Focusing and Positioning the Screen Image

When an image appears on screen, check that it is in focus and correctly positioned on the screen.

zoom ring

To focus the image, rotate the focus ring (the front ring on the

●

lens).

To adjust the size of the image, rotate the zoom ring (the rear

●

ring). Rotate the zoom ring clockwise to make the screen image larger or counterclockwise to make it smaller.

focus ring

2 • Using the Projector

If you need to raise or lower the image on the screen, extend or retract the foot at the bottom front of the projector as follows:

foot adjust levers

✦

rear feet (left foot not visible)

adjustable foot

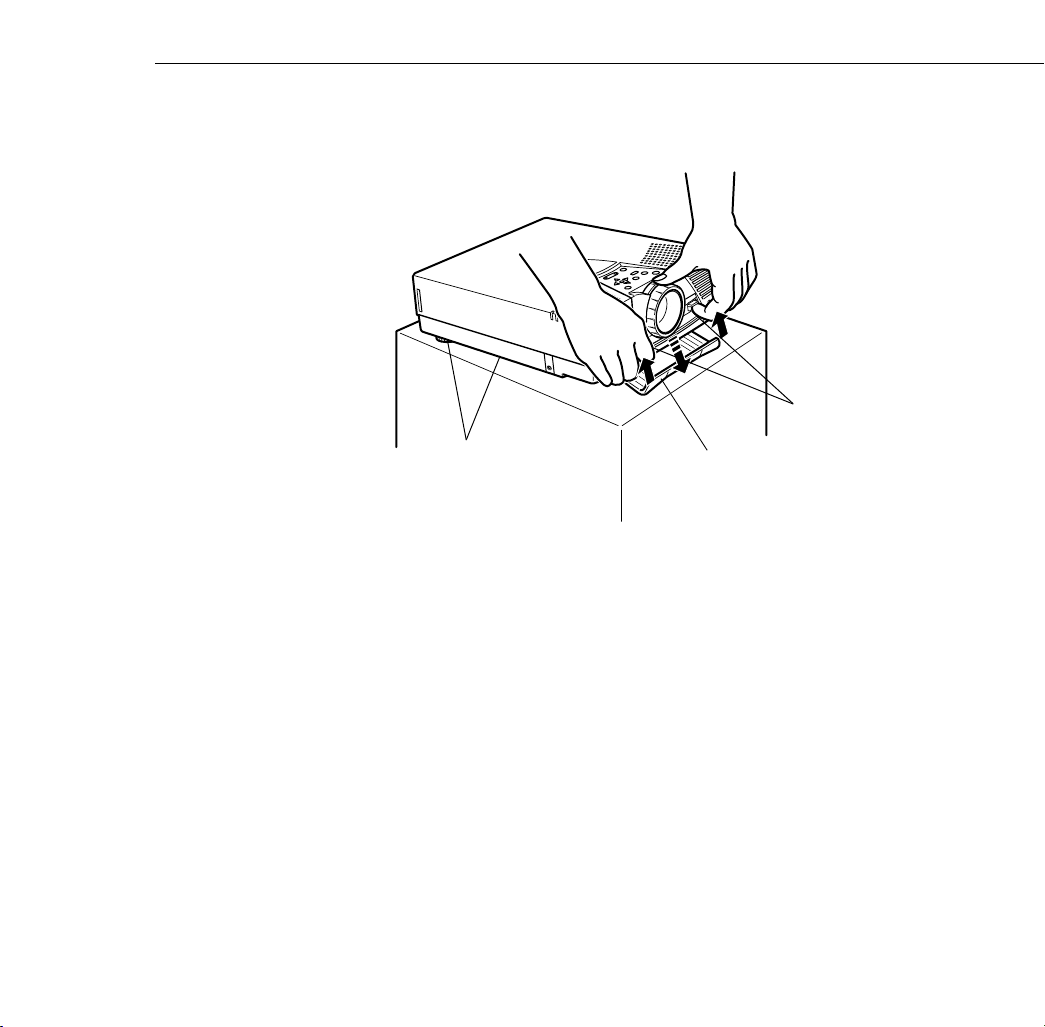

1. Stand behind the projector and support the front of it while you lift the blue foot adjust levers above the adjustable foot. This unlocks the foot so it can move up and down. Be careful not to drop the projector.

Caution:

Don’t hold or lift the projector by its lens. This can damage the lens.

2. While lifting the foot adjust levers, raise or lower the projector until the screen image is correctly positioned.

3. Release the levers to lock the foot in its new position.

Focusing and Positioning the Screen Image

Resize Button

4. If the projector is not on a level surface, level the projector by turning one of its rear feet to adjust its height.

The Resize button lets you select the projection method for certain types of image signals input from a computer.

PowerLite 7500C:

With images up to XGA size (1024

768), you can choose from two projection methods. You can either display the image in the center of the projection area or display the image full size. You can also choose from two projection methods with images greater than XGA size: either project a portion of the image or project the entire image in a compressed format. The projector automatically reduces the image size to the projector’s maximum resolution. The Resize button cannot be used with images at XGA resolution.

PowerLite 5500C:

With images up to SVGA (800

600 pixels), you can either project a portion of the image or project the entire image in a compressed format. The projector automatically reduces the image size to the projector’s maximum resolution. The Resize button cannot be used with SVGA.

There is a Resize button on both the control panel and the remote control. Press the Resize button to cycle between the choices described above.

2 • Using the Projector

Controlling the Projector

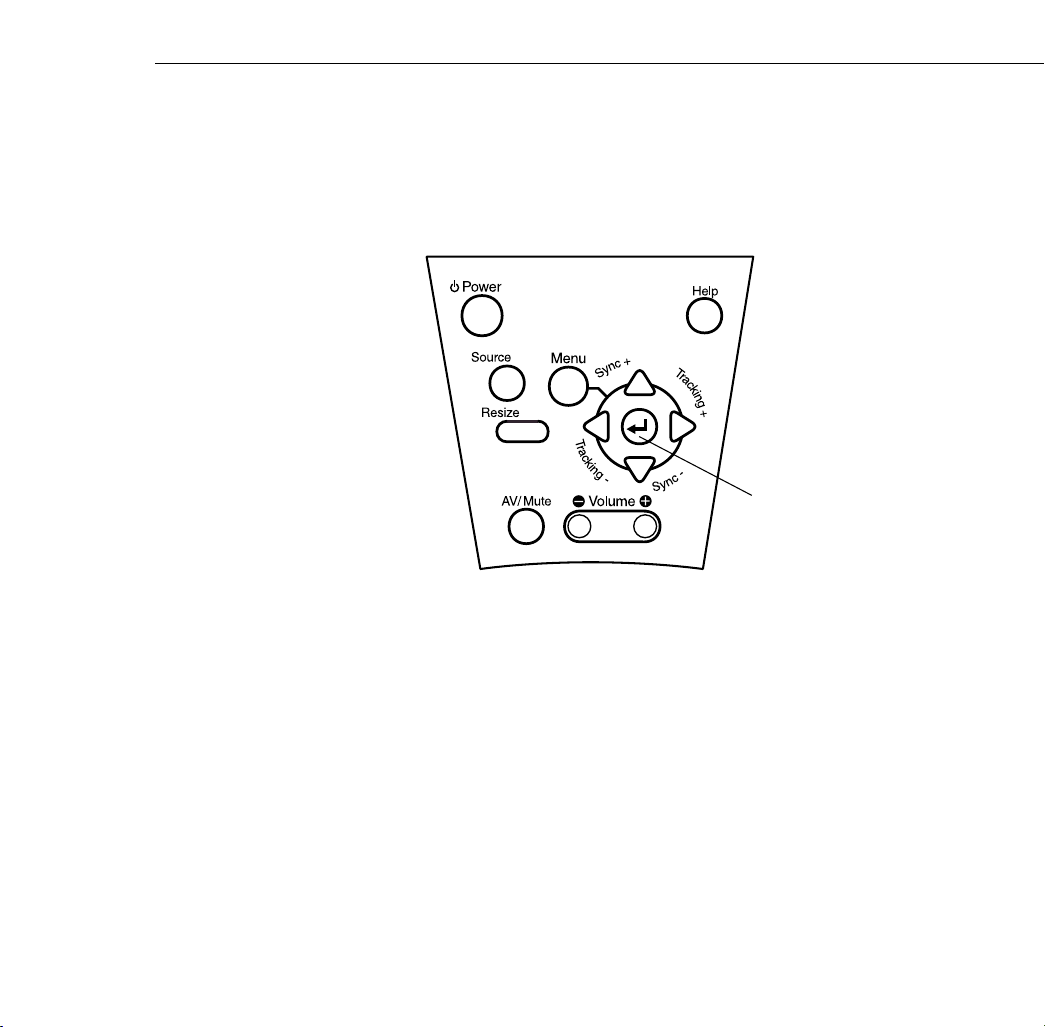

You can use the control panel on top of the projector or the remote control to perform the following actions:

Turn power on or off

●

Access the help function (image and sound)

●

Switch between input sources (video or computer)

●

Access the projector menus to adjust the image, audio, video,

●

and display settings

Control resizing

●

Control display freeze (remote control only)

●

Control A/V mute (cuts off the image and sound temporarily)

●

Adjust or mute audio output

●

Use custom functions (remote control only)

●

Use effects functions (for enhancing projected images on the

●

screen; remote control only)

Controlling the Projector

Using the Remote Control

pointer button

top multi-purpose button

bottom multi-purpose button

The remote control uses a line-of-sight infrared signal. To use the remote control, point it towards the infrared receiver located at the front of the projector (see page 40).

To be able to use the remote control as a wireless mouse,

Note:

make sure you have connected the mouse cable to the projector and your computer. (See Chapter 1 for instructions.)

You can use the remote control up to 32.8 feet (10 meters) from the projector. (This distance may be shorter if the remote control

± 30°

batteries are low.) You must also be within a

angle from the

front receiver.

2 • Using the Projector

The projector may not respond to remote control commands

Note:

in these conditions: ambient light is too bright; a certain type of fluorescent light is present; a strong light source (such as direct sunlight) shines into the infrared receiver; or other equipment emitting infrared energy is present (such as a radiant room heater). Correct these conditions to use the remote control or control the projector from a computer.

This table summarizes the functions on the remote control.

Button Function

Source Switches input source from computer to video or vice versa.

Menu Displays or hides the menu.

Effects buttons Use to display special effects that have been assigned in the Effect menu

Pointer button Use to navigate the menus or use the remote as a mouse pointer when the

Top multi-purpose button

Bottom multi-purpose button

AV/Mute Turns off/on the audio/video output of the projector, clears all special

Resize Resizes the image on the screen to match the resolution of your

or with the optional ELP Link III software.

projector is connected to the computer with the included mouse cable or the optional ELP Link III set cables.

Acts as a right mouse click, registers a menu selection, and selects other custom functions.

Acts as a left mouse click, registers a menu selection, and selects other custom functions.

effects, and displays a black, blue, or user logo screen.

computer display. See page 49 for details.

Controlling the Projector

Button Function

Custom Allows you to zoom the image using the top and bottom multi-purpose

Freeze Keeps the current computer or video image on the screen.

Help Displays the Help menu. See“Using the Online Help Menu” on page 118

– Volume +

Power Turns the projector lamp on or off.

buttons.

for details.

Adjusts the volume.

2 • Using the Projector

Using the Control Panel

You can use the projector’s control panel to control the projector instead of the remote control. However, you can program and access the custom features only using the remote control.

Enter button

Controlling the Projector

The following table summarizes the functions on the control panel.

Button Function

Power Turns the projector lamp on or off.

Source Switches input source from computer to video or vice versa.

Menu Displays or hides the menu.

Up, down arrows (Sync+/Sync-)

Left, right arrows (tracking-/ tracking+)

Enter Selects a menu option.

Resize Resizes the image on the screen to match the resolution of your

AV/Mute Turns off/on the audio/video output of the projector, clears all special

– Volume +

Help Displays the Help menu. See “Using the Online Help Menu” on

Synchronize the computer’s graphic signal.

Use these buttons to adjust an overall image that is fuzzy or streaked, or to select menu items during menu operations.

Match the projector’s internal clock to various computer graphic signals (tracking adjustment).

Use these buttons to adjust an image with vertical fuzzy lines, or to change numeric settings during menu operations.

computer display. See page 49 for details.

effects, and displays a black, blue, or user logo screen.

Adjusts the volume.

page 118 for details.

2 • Using the Projector

Projector Status Lights

The lights on top of the projector tell you its operating status.

power light

projection lamp light

temperature light

✦

Caution:

A red light warns you if a serious problem occurs. See Chapter 6, “Troubleshooting,” for what to do if a warning light comes on.

Projector Status Lights

Power Light

Light status Meaning

Steady orange The projector is in sleep mode. (The projector is plugged in, but not

Steady green Power and projection lamp are on.

Flashing green The projector is warming up. Allow about 30 seconds.

Flashing orange The projector is cooling down.

Off There is an internal projector problem, or the power to the projector has

projecting.)

been cut off.

2 • Using the Projector

Projection Lamp Light

Light status Meaning

Orange and red flashing alternately

Steady red Projection lamp has burned out. Replace it to project images. See

Flashing red There is a problem with the projection lamp, lamp power supply, lamp

Off Lamp is functioning normally.

Temperature Light

Light status Meaning

Flashing orange Projector is too hot.

Steady red Projector has turned off automatically because of overheating.

Flashing red There is a problem with the cooling fan or temperature sensor. Call a

Off The projector is functioning normally.

The lamp needs to be replaced. See “Replacing the Lamp” in Chapter 5 for instructions.

“Replacing the Lamp” in Chapter 5 for instructions.

fuse, or a circuit malfunctioned in the projector.

service representative.

Projector Status Lights

Using the Projector Menus

he seven projector menus let you control these projector settings:

The Video menu controls the look and quality of the projected

●

image, whether the image source is a computer or a video source (for example, a VCR).

The Audio menu controls audio features, such as the volume

●

level, tone setting, and SRS sound.

The Setting menu lets you select various projector options.

●

The User’s Logo menu lets you select special features such as

●

background color or a custom logo.

The Effect menu lets you define functions for the Effects

●

buttons on the remote control.

The About menu provides information about H/V

●

(Horizontal/Vertical) frequency, computer selection, and lamp hours.

The Reset All menu returns all settings to their factory defaults.

●

Accessing the Main Menu

To display the Main menu, press the Menu button on the control panel or the remote control. The Main menu appears:

Press the Menu button again to hide the menu.

3 • Using the Projector Menus

Changing a Menu Setting

To change a menu setting:

1. Press the Menu button on the control panel or remote control to

display the Main menu.

2. Press the up or down arrows (control panel) or press up or down

on the pointer button (remote) to scroll through the menu choices.

up and down buttons

pointer button

As you select a menu, a submenu of options appears to the right. The options available in some submenus vary, depending on whether the current image source is the computer or a video source.

Changing a Menu Setting

The following screen display shows the options for the Video menu when the image source is the computer.

3. Press either the Enter button (control panel) or the top or bottom multi-purpose button (remote) to move to a submenu list.

4. Press the up or down arrows (control panel) or press up or down on the pointer button (remote) to scroll through the submenu options.

5. Press either the left or right arrow buttons (control panel) or press right or left on the pointer button (remote) to change a setting on one of the submenus.

6. When you have finished changing settings, press the Menu button to go back to the Main menu. Your changes are saved automatically.

3 • Using the Projector Menus

Video Menu (Image Source = Computer)

The Video menu lets you make adjustments to the projected image. The following options are available when the image source is Computer.

The computer must be connected and operating, and the

Note:

image source on the projector must be set to Computer for you to access these menu options.

Menu item Description

Position Select this item by pressing the Enter button (control panel) or the

multi-purpose button (remote) to enter screen position adjustment mode. Then use the pointer button (remote) or up, down, left, and right buttons (control panel) to move the screen position in the corresponding direction.

When you finish making adjustments, press the Menu button on the control panel or the remote to return to the Video menu.

Tracking Matches the projector’s internal clock to various computer graphic signals.

Adjust this setting to remove vertical lines from the image.

Sync Synchronizes with the tracking signal sent from the computer. Adjust this

setting to correct fuzziness or screen flicker.

Brightness Lightens or darkens the overall image. Increase brightness to lighten an

image, or decrease it to darken the image.

Contrast Adjusts the difference between light and dark areas. Increase the contrast to

make light areas lighter and dark areas darker. Decrease it to minimize the difference between light and dark areas.

Video Menu (Image Source = Computer)

Menu item Description

Color Adjusts the color balance of the input source.

Select this item by pressing the Enter button (control panel) or right on the pointer button (remote) (or press either multi-purpose button on the remote). The projector will enter color adjustment mode. Use the pointer button (remote) or up and down buttons (control panel) to select a color.

Next, use the pointer button (remote) or left and right buttons (control panel) to adjust the selected color. Increase the color setting for more intense color, or lower the setting for less intense color.

When you finish making adjustments, press the Menu button on the control panel or the remote to return to the Video menu.

Auto Set Up When enabled, this feature allows the projector to sense the computer signal

input and adjust it to the current projector settings. If the projector doesn’t automatically recognize the video source, try turning this setting off and choosing your projector settings manually.

Reset Returns all menu items to their initial factory defaults.

Select this item and then press the Enter button (control panel) or the multi-purpose button (remote) to display the confirmation screen.

Next, select Yes and then press the Enter button (control panel) or a multi-purpose button (remote) to reset the menu.

If you change your mind, select No and then press a multi-purpose button (remote) or the Enter button (control panel) to clear the confirmation screen without changing any settings.

3 • Using the Projector Menus

Video Menu (Image Source = Video)

The Video menu lets you make adjustments to the projected image. The following options are available when the image source is Video.

The projector’s image source must be set to Video, and the

Note:

video source (such as a VCR or camcorder) must be connected and operating for you to access these menu options (for example, the projector must actually be projecting an image from a video tape, if you’re using a VCR).

Menu item Description

Brightness Lightens or darkens the overall image. Increase brightness to lighten an

Contrast Adjusts the difference between light and dark areas. Increase the contrast to

Sharpness Adjusts the sharpness of the screen image.

Color Adjusts color density. Increase the setting for darker and more opaque colors.

Tint (NTSC only)

image, or decrease it to darken the image.

make light areas lighter and dark areas darker. Decrease it to minimize the difference between light and dark areas.

Decrease it for lighter and less opaque colors.

Adjusts the red-green color balance of the screen. Increase tint to add more green, or decrease it to add more red. This setting only works with NTSC video signals.

Video Menu (Image Source = Video)

Menu item Description

Audio Menu

Mode Specifies the video signal system. Normally this signal system setting should

be left at AUTO to automatically detect the type of video signal. If automatic selection is not possible for some reason, use this menu to manually specify NTSC, PAL, or SECAM.

Reset Returns all menu items to their initial factory defaults.

Select this item and then press the Enter button (control panel) or a multi-purpose button (remote) to display the confirmation screen. Next, select Yes and then press a multi-purpose button (remote) or the Enter button (control panel) to reset the Video Menu.

If you change your mind, select No and then press a multi-purpose button (remote) or the Enter button (control panel) to clear the confirmation screen without changing any settings.

The Audio menu lets you make adjustments related to audio.

Menu item Description

Volume Adjusts the volume level for the speakers and audio-out terminal.

Treble Adjusts the treble tone of the speakers. Press the right arrow button (control

panel) or press right on the pointer button (remote) to increase the treble tone; press the left arrow button (control panel) or left on the pointer button (remote) to decrease the treble tone.

Bass Adjusts the bass tone of the speakers. See Treble for details.

SRS SPACE Adjusts stereo sound. Increasing the value widens the sound.

3 • Using the Projector Menus

Menu item Description

SRS CENTER Adjusts stereo sound. Changing the value balances the SRS sound.

Reset Returns all menu items to their initial factory defaults.

Setting Menu

The Setting menu enables you to adjust basic projector settings.

Menu item Description

If you change your mind, select No and then press a multi-purpose button (remote) or the Enter button (control panel) to clear the confirmation screen without changing any settings.

Prompt Temporarily displays a message on the projector screen to identify which

Color Temperature

Ceiling Flips the projected image so it looks correct when you’re hanging the

source (computer or video) is providing the image.

Adjusts the whiteness of the screen. Positive color temperature values provide a cold white; negative values provide a warmer white. Press the right arrow button (control panel) or press right on the pointer button (remote) to increase the color temperature value; press the left arrow button (control panel) or left on the pointer button (remote) to decrease the color temperature value.

projector upside-down from the ceiling. Selecting ON turns this feature on, while OFF turns it off (for a normal image).

Setting Menu

Menu item Description

Rear Projection Mirrors the projected image so it looks correct when you’re projecting

Blank Specifies whether a black screen, a blue screen, or a user logo displays

Video Signal Specifies the input image signal mode. User can select from AUTO, NTSC,

Language Selects the menu language: Japanese, English, French, German, Italian,

Reset Returns all menu items to their initial factory defaults.

from behind onto a translucent screen. Selecting ON turns mirroring on, while OFF turns it off (for a normal image).

when the screen is blanked. See page 69 and page 106 for more information about creating a user logo.

NTSC 4.43, PAL, PAL N, PAL M, PAL 60 and SECAM.

Spanish and Portuguese.

If you change your mind, select No and then press a multi-purpose button (remote) or the Enter button (control panel) to clear the confirmation screen without changing any settings.

3 • Using the Projector Menus

User’s Logo Menu

The User’s Logo menu lets you display a custom logo on the screen. Creating a user logo requires two steps:

Storing a user logo

●

Assigning the logo to the AV/Mute button

●

Storing a User Logo

Follow these steps to capture and store a logo:

1. Display the image (with the projector) you wish to use as a logo.

2. Press the Menu button to open the Menu window.

3. Select the User’s Logo menu option by pressing the down arrow button on the control panel or the pointer button on the remote control. Then press the Enter button to display the User’s Logo Setting window.

4. The message, “Do you use this image as a user logo?” appears on the screen. Choose Yes or No by pressing the left or right arrow buttons on the control panel or pressing left or right on the pointer on the remote control. Then press Enter.

5. A selection box will appear over the image. To select the portion of the image you wish to use as the logo, use the arrow buttons on the control panel or the pointer button on the remote control. Once you have selected the desired area, press the Enter button.

User’s Logo Menu

6. The message “Do you use this image?” appears on the screen. Select Yes and press the Enter button. If you want to change the position, select No.

7. Next, the Zoom rate setting window appears on the screen. Select a rate using the arrow buttons or pointer, then press the Enter button.

8. The message “Do you save this image?” appears on the screen. Select Yes and press the Enter button. If you don’t want to save the logo, select No.

Saving the logo may take a moment. Do not use the

Note:

projector or other sources (computer, video, speaker, etc.) while the logo is being saved.

9. When the message “Saving the user logo is completed” appears on the screen, press the Menu or Enter button to display the Main Menu.

3 • Using the Projector Menus

Assigning the Logo to the AV/Mute Button

Follow these steps to assign the logo to the AV/Mute button:

1. Press the Menu button to open the Menu window.

2. Select the Setting menu and press the Enter button.

3. Select the Blank (AV/Mute) option, then highlight Logo.

4. Press the Menu button twice.

Now you can press the AV/Mute button on the control panel or the remote control to display the user logo.

User’s Logo Menu

Effect Menu

Use the Effect menu to modify what happens when you use the Effects buttons on the remote control and to change the cursor speed.

Item Description

Pointer Set the pointer icon and size.

Box Set the box color.

Line Set the color and width.

Marker Set the marker color and width.

Clear This effect button cannot be modified using the Effect menu.

Cursor Speed Set the cursor speed to Low, Middle, or High.

Reset Return all effect functions to their factory defaults.

If you change your mind, select No and then press a multi-purpose button (remote) or the Enter button (control panel) to clear the confirmation screen without changing any settings.

If you have the optional ELP Link III software, you can reconfigure the Effects button with different functions. See “Customizing the Remote Control Effects Buttons” on page 91 for more information.

3 • Using the Projector Menus

About Menu

The About menu displays information about your projector.

When the image source is Computer:

Item Description

Frequency Displays the frequency of the computer.

Resolution Displays the output resolution of the computer video output.

Refresh Rate Displays the refresh rate of the computer video output.

Lamp Displays the number of hours the current lamp has been used. The lamp

light turns red when the projector lamp is near the end of its normal life. When this happens, replace the projector lamp with a new one as soon as possible.

When the image source is Video:

Item Description

Video Signal Displays the video signal.

Lamp Displays the number of hours the current lamp has been used. The lamp

light turns red when the projector lamp is near the end of its normal life. When this happens, replace the lamp with a new one as soon as possible.

About Menu

Reset All Menu

Selecting the Reset All menu option resets the settings in all menus to their factory defaults. It does not change or delete any user logo you may have stored.

You will be prompted to confirm the reset action. Select Yes or No, then press the top or bottom multi-purpose button (remote) or the Enter button (control panel) to reset all the settings.

3 • Using the Projector Menus

Using the ELP Link III Software

he optional ELP Link III set contains the ELP Link III software and cables used to control the projector from your computer or to program special effects on the remote control. The set includes:

Main cable

9-pin serial cable (PC set)

PS/2 mouse cable (PC set)*

Serial mouse cable (PC set)

Serial cable (Mac set)

Mouse cable (Mac set)*

ELP Link III software on CD-ROM

(PC or Mac)

* Note that these mouse cables are different from the cables included with

your projector.

4 • Using the ELP Link III Software

The ELP Link III software can be used with the following operating systems:

Windows 3.x

●

Windows 95

●

Windows 98

●

Windows NT 4.0

●

Macintosh OS System 7.x and OS System 8.x

●

If you purchased the ELP Link III set, follow the instructions in this chapter to connect the cables and install and use the software.

Connecting the ELP Link III Cables

Once you have connected the projector video cable, monitor cable and audio cable (if needed) as described in Chapter 1, you need to connect the ELP Link III main cable, mouse cable, and serial cable as described in this section.

Connecting the ELP Link III Cables

Connecting to a PC Desktop Computer

The main cable included in your ELP Link III set connects the PS/2 mouse cable (needed to use the remote control as a mouse) and 9-pin serial cable (needed to use the ELP Link III software and the Effects buttons on the remote control) from your computer to the projector.

PS/2 mouse cable

Mouse/Com port

9-pin serial cable

main cable

1. If you connected the PS/2 mouse cable included with the projector as described on page 22, disconnect it from the computer and the projector.

2. Connect the round end of the main cable to the projector’s Mouse/Com port.

4 • Using the ELP Link III Software

3. Connect the 9-pin end of the PS/2 mouse cable included with the ELP Link III set to the MOUSE terminal on the square end of the main cable.

4. If your computer’s mouse cable is still connected to your computer, disconnect it. Then connect the other end of the PS/2 mouse cable included with the ELP Link III set to your computer’s mouse port.

If your system uses a serial mouse, perform steps 3 and 4

Note:

using the serial mouse cable instead of the PS/2 mouse cable (not shown in the illustration).

5. To configure the projector from your PC using the ELP Link III software or to use the Effects buttons on the remote control, connect one end of the 9-pin serial cable to the SERIAL terminal on the square end of the main cable.

You will not be able to use the ELP Link III software if

Note:

your system has only one serial port that is being used to support a serial mouse.

6. Connect the other end of the 9-pin serial cable to the serial port on the back of your computer.

7. Tighten the screws on all connectors.

8. Go to page 85 to install the software.

Connecting the ELP Link III Cables

Connecting to a PC Laptop Computer

PS/2 mouse cable

Mouse/Com port

9-pin serial cable

main cable

1. If you connected the PS/2 mouse cable included with the projector as described on page 25, disconnect it from the laptop and the projector.

2. Connect the round end of the main cable to the projector’s Mouse/Com port.

3. Connect the 9-pin end of the PS/2 mouse cable included with the ELP Link III set to the MOUSE terminal on the square end of the main cable.

4 • Using the ELP Link III Software

4. Connect the other end of the PS/2 mouse cable to the mouse port on your laptop.

If your laptop uses a serial mouse, perform steps 3 and 4

Note:

using the serial mouse cable instead of the PS/2 mouse cable (not shown in the illustration).

5. To configure the projector from your laptop using the ELP Link III software or to use the Effects buttons on the remote control, connect one end of the 9-pin serial cable to the SERIAL terminal on the square end of the main cable.

You will not be able to use the ELP Link III software if

Note:

your laptop has only one serial port that is being used to support a serial mouse.

6. Connect the other end of the 9-pin serial cable to the serial port on the back of your laptop.

7. Tighten the screws on all connectors.

8. Configure your laptop to work with an external mouse.

You may have to set the display to appear on both the

Note:

laptop’s screen and the projector. Some laptops let you change this setting with the keyboard’s function keys or by using a setup utility provided by the computer manufacturer. Check your laptop’s manual or online help for instructions.

9. Go to page 85 to install the software.

Connecting the ELP Link III Cables

Connecting to a Desktop Macintosh

The main cable included in your ELP Link III set connects the Mac mouse cable (needed to use the remote control as a mouse) and Mac serial cable (needed to use the ELP Link III software) from your Macintosh to the projector.

Mouse/Com port

Mac serial cable

Mac mouse cable

main cable

1. If you connected the Mac mouse cable included with the projector as described on page 29, disconnect it from the computer and the projector.

2. Connect the round end of the main cable to the projector’s Mouse/Com port.

4 • Using the ELP Link III Software

3. Connect the Mac mouse cable included with the ELP Link III set to the MOUSE terminal on the square end of the main cable.

4. If your computer’s mouse cable is still connected to the computer, disconnect it. Then connect the other end of the Mac mouse cable included with the ELP Link III kit to the Mouse port on your Macintosh.

5. Connect either end of the Mac serial cable to the SERIAL terminal on the square end of the main cable. Connect the other end of the Mac serial cable to the printer or modem port on the back of your Macintosh.

6. Go to page 85 to install the software.

Connecting the ELP Link III Cables

Connecting to a PowerBook

Mouse/Com port

1. If you connected the Mac mouse cable included with the projector as described on page 33, disconnect it from the PowerBook and the projector.

Mac serial cable

Mac mouse cable

main cable

2. Connect the round end of the main cable to the projector’s Mouse/Com port.

4 • Using the ELP Link III Software

3. Connect one end of the Mac mouse cable included with the ELP Link III set to the MOUSE terminal on the square end of the main cable.

4. Connect the other end of the Mac mouse cable to the mouse port on the back of the PowerBook.

After you turn on the projector and computer, you may

Note:

need to choose Mirroring in the Display Control Panel to display the image on the LCD screen as well as the projector screen. See your Macintosh documentation for details. (This step is not necessary on some newer systems, which can detect a dual video signal.)

6. Now install the software as described on page 87.

Installing the Software

ELP Link III software can be used with the following operating systems:

Windows 3.x

●

Windows 95

●

Windows 98

●

Windows NT 4.0

●

Installing the Software

Macintosh OS System 7.x and OS System 8.x

●

Installing the Software for Windows

Follow these steps to install ELP Link III for Windows 3.x, Windows 95 or 98, or Windows NT:

1. Turn on your computer and start Windows. Make sure all screen savers are off.

2. Insert the Projector Software CD into your CD-ROM drive.

3. If you have Windows 95, 98, or NT, the installer program should start up automatically. Go to step 4. If it doesn’t, click Start and then Run.

If you have Windows 3.x, in Program Manager click on the File menu, then on Run.

The Run dialog box appears. Type E:\SETUP (substitute the correct drive letter for your CD-ROM drive if it is not E), then click OK.

4. You see the ELP Link III welcome screen listing the languages available for installation screens. Select the language you want for running the software and click OK.

5. You see the ELP Link III main menu. Click Install ELP Link III V2.0.

4 • Using the ELP Link III Software

6. You see a list of items to install. Make sure ELP Link III V2.0 and ELP Link User’s Guide are checked. If you don’t have

Adobe

Acrobat® Reader on your system, also check Acrobat Reader to install the program so you can view your online manual. Then click Install.

7. After a moment, you see the ELPLink3 Welcome screen. Click Next.

8. You see the Software License Agreement screen. Read the agreement and click Yes.

9. An Information screen warns you that leaving a screen saver on may cause problems while running the software. Click Next. (See “Launching the Software” on page 88 for more information about turning off your screen saver.)

10. Follow the instructions on the screen to select a directory or a folder for the software. Then the Installer copies the ELP Link III files to your system.

11. When the installation is complete, click Finish.

12. If you selected to install the online User’s Guide and Acrobat Reader, follow the on-screen instructions to install them.

13. When you return to the ELP Link III main menu, click QUIT.

Installing the Software for a Macintosh

Follow these steps to install the software for the Macintosh:

1. Insert the Projector Software CD into your CD-ROM drive.

Installing the Software

2. Open the CD-ROM drive folder, if necessary.

3. Double-click the Installer icon.

4. You see a dialog box asking you to select a language for the software. Select a language and click OK.

5. You see the ELP Link III main menu. Click Install ELP Link III V2.0.

6. You see the Software License Agreement screen. Read the agreement and click Accept.

7. You see the Installer dialog box. Click Install. The installer copies the program to your hard disk.

8. When the installation is finished, click Quit.

Launching the Software

Follow the steps in the appropriate section below to launch the software. If you’re using the remote control as a mouse, use the pointer button to position the cursor and the bottom multi-purpose button to launch the software.

Make sure you have disabled any screen savers on your

Note:

system before running the software.

If you have a Macintosh, your screens may look slightly

Note:

different than the screens in this chapter.

4 • Using the ELP Link III Software

Launching the Software from Windows

If you have Windows 3.x, double-click the ELPLink3 program group icon in the Program Manager. Then double-click the ELPLink3 icon.

If you have Windows 95, 98, or NT, click Start, then select Programs, ELPLink3, and then click the ELPLink3 program icon. The ELP Link III program icon appears minimized on the taskbar. Click the minimized icon.

If you see a prompt asking you to select a port or open the

Note:

software with the projector disconnected, it may be because the projector is disconnected or is connected to an incorrect COM port. If you want to run the software without the projector connected,

Unconnected and Execute

select

port, and retry

screen.

. Then select the COM port you’re using on the next

. If it is connected, click

Select a

Launching the Software

The ELP Link III main dialog box appears.

4 • Using the ELP Link III Software

Epson 5500C User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Copyright Notice

Important Information About Your Projector

Important Safety Information

Contents

Introduction

Getting the Most Out of Your Projector

Remote Control

Sleep Mode

Control Panel

Optional Accessories

About This Manual

Safety Instructions

Where to Get Help

Electronic Support Services

Automated Telephone Services

Unpacking the Projector

Additional Components

Attaching the Hand Strap

Installing the Remote Control Batteries

Before You Connect the Projector

Connecting to a Computer

Connecting to a PC Desktop Computer

Connecting to a PC Laptop Computer

Connecting to a Desktop Macintosh

Connecting to a PowerBook

Connecting to a Video Source

Connecting to an External Speaker or PA System

Turning the Equipment On and Off

Turning the Projector On and Off

Positioning the Projector

Calculating Image Size and Projection Distance

Focusing and Positioning the Screen Image

Resize Button

Controlling the Projector

Using the Remote Control

Using the Control Panel

Projector Status Lights

Power Light

Projection Lamp Light

Temperature Light

Accessing the Main Menu

Changing a Menu Setting

Video Menu (Image Source = Computer)

Video Menu (Image Source = Video)

Audio Menu

Setting Menu

User’s Logo Menu

Storing a user logo

Assigning the Logo to the AV/Mute Button

Effect Menu

About Menu

Reset All Menu

Connecting the ELP Link III Cables

Connecting to a PC Desktop Computer

Connecting to a PC Laptop Computer

Connecting to a Desktop Macintosh

Connecting to a PowerBook

Installing the Software

Installing the Software for Windows

Installing the Software for a Macintosh

Launching the Software

Launching the Software from Windows
