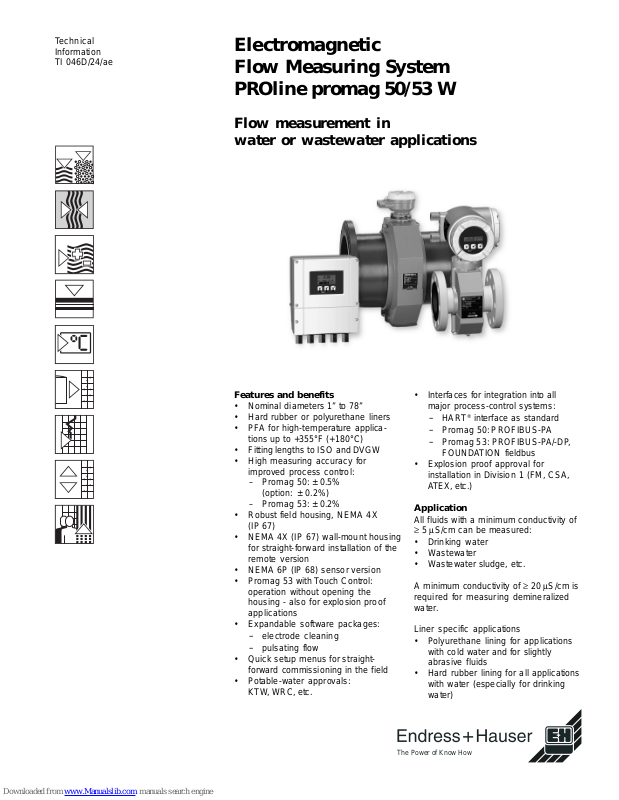

Page 1

Technical

The PowerofKnowHo w

Information TI 046D/24/ae

Electromagnetic Flow Measuring System

PROline promag 50/53 W

Flow measurement in water or wastewater applications

Features and benefits

• Nominal diameters 1” to 78”

• Hard rubber or polyurethane liners

• PFA for high-temperature applications up to +355°F (+180°C)

• Fitting lengths to ISO and DVGW

• High measuring accuracy for improved process control:

– Promag 50: ± 0.5%

(option: ± 0.2%)

– Promag 53: ± 0.2%

• Robust field housing, NEMA 4X (IP 67)

• NEMA 4X (IP 67) wall-mount housing for straight-forward installation of the remote version

• NEMA 6P (IP 68) sensor version

• Promag 53 with Touch Control: operation without opening the housing - also for explosion proof applications

• Expandable software packages:

– electrode cleaning – pulsating flow

• Quick setup menus for straightforward commissioning in the field

• Potable-water approvals: KTW , WRC, etc.

• Interfaces for integration into all major process-control systems:

– HART

interface as standard

– Promag 50: PROFIBUS-PA – Promag 53: PROFIBUS-PA/-DP,

FOUNDATION fieldbus

• Explosion proof approval for installation in Division 1 (FM, CSA, A TEX, etc.)

Application

All fluids with a minimum conductivity of ≥ 5 µS/cm can be measured:

• Drinking water

• Wastewater

• Wastewater sludge, etc.

A minimum conductivity of ≥ 20 µS/cm is required for measuring demineralized water.

Liner specific applications

• Polyurethane lining for applications with cold water and for slightly abrasive fluids

• Hard rubber lining for all applications with water (especially for drinking water)

Page 2

Function and system design

Promag 50/53 W

Measuring principle

Faraday’s law of induction

states that a voltage is induced in a conductor moving in a magnetic field. In electromagnetic measuring, the flowing medium corresponds to the moving conductor. The induced voltage is proportional to the flow velocity and is detected by two measuring electrodes and transmitted to the amplifier. Flow volume is computed on the basis of the pipe’s diameter. The constant magnetic field is generated by a switched direct current of alternating polarity.

Measuring system

Ue = B · L · v Q = A · v

U e = induced voltage B = magnetic induction (magnetic field) L = electrode gap v = flow velocity Q = volume flow A = pipe cross-section I = current strength

The measuring system consists of a transmitter and a sensor. Two versions are available:

• Compact version: transmitter and sensor form a single mechanical unit.

• Remote version: transmitter and sensor are installed separately. Transmitter:

• Promag 50 (user interface with push buttons for operation, two-line display)

• Promag 53 (“Touch Control” without opening the housing, four-line display) Sensor:

• Promag W, 1” to 78” (DN 25 to 2000)

Endress+Hauser

Page 3

Promag 50/53 W

Input

Measured variable Measuring range Operable flow range Input signal

Output signal

Flow rate (proportional to induced voltage) Typically v = 0.033 to 33 ft/s (0.01 to 10 m/s) with the specified measur ing accuracy Over 1000 : 1 Status input (auxiliary input):

U = 3 to 30 V DC, R Configurable for: totalizer(s) reset, measured-value suppression, error-message

= 5 kΩ, galvanically isolated.

reset Current input (for Promag 53 only): Active/passive selectable, galvanically isolated, full scale value selectable,

resolution: 3

A Temperature coefficient: typically 0.003% o.r./°F (0.005% o.r./°C) (o.r = of reading) Active: 4 to 20 mA, Ri ≤ 150 Ω, U Passive: 0/4 to 20 mA, Ri ≤ 150 Ω, U

= 24 VDC, short-circuit proof

out

= 30 VDC

max

Output

Promag 50

Current output: Active/passive selectable, galvanically isolated, time constant selectable

(0.01 to 100 s), full scale value selectable, temperature coefficient: typically

0.003% o.r./°F (0.005% o.r./°C); resolution: 0.5 µA

• active: 0/4 to 20 mA, R

• passive: 4 to 20 mA, max. 30 V DC, Ri ≤ 150 Ω

< 700 Ω (HART®: RL ≥ 250 Ω)

Pulse/frequency output: Passive, open collector, 30 V DC, 250 mA, galvanically isolated.

Frequency output:

pulse width max. 10 s

Pulse output:

full scale frequency 2 to 1000 Hz (f

= 1250 Hz), on/off ratio 1:1,

max

pulse value and pulse polarity selectable, max. pulse width

configurable (0.5 ms to 2 s), maximum pulse frequency selectable

PROFIBUS-PA interface

• PROFIBUS-PA in accordance with EN 50170 Volume 2, IEC 61158-2 (MPB),

galvanically isolated

• Current consumption: 11 mA

• Permissible supply voltage: 9 to 32 V

• FDE (Fault Disconnection Electronic): 0 mA

• Data transmission rate, supported bauderate: 31.25 kBit/s

• Signal encoding: Manchester II

• Function blocks: 1 x Analog Input, 1 x Totalizer

• Output data: Volume flow , Totalizer

• Input data: Positive zero return (ON/OFF), Control totalizer, Value for local display

• Bus address adjustable via DIP switches at the measuring device

Endress+Hauser

Page 4

Promag 50/53 W

Promag 53

Current output: Active/passive selectable, galvanically isolated, time constant selectable

(0.01 to 100 s), full scale value selectable, temperature coefficient: typically

0.003% o.r./°F (0.005% o.r./°C); resolution: 0.5 µA

• active: 0/4 to 20 mA, R

• passive: 4 to 20 mA, max. 30 V DC, Ri ≤ 150 Ω

< 700 Ω (HART®: RL ≥ 250 Ω)

Pulse/frequency output: Active/passive selectable, galvanically isolated (I.S. version: passive only)

• active: 24 V DC, 25 mA (max. 250 mA during 20 ms), R

• passive: open collector, 30 V DC, 250 mA

Frequency output:

full scale frequency 2 to 10,000 Hz (f

on/off ratio 1:1, pulse width max. 10 s

Pulse output:

pulse value and pulse polarity selectable, pulse width configurable

> 100 Ω

= 12,500 Hz),

max

(0.05 ms to 2 s), on/off ratio is 1:1 as of a frequency of 1 / (2 x pulse width) PROFIBUS-DP interface:

• PROFIBUS-DP/PA in accordance with EN 50170 Volume 2, IEC 61158-2 (MPB), galvanically isolated

• Data transmission rate, supported baudrate: 9.6 kBaud to 12 MBaud

• Automatic data transmission rate recognition

• Signal encoding: NRZ-Code

• Function blocks: 2 x Analog Input, 3 x Totalizer

• Output data: Volume flow, Corrected volume flow, Totalizer 1 to 3

• Input data: Positive zero return (ON/OFF), Totalizer control, Value for local display

• Bus address adjustable via DIP switches at the measuring device

PROFIBUS-PA interface:

• PROFIBUS-PA in accordance with EN 50170 Volume 2, IEC 61158-2 (MPB), galvanically isolated

• Current consumption: 11 mA

• Permissible supply voltage: 9 to 32 V

• Data transmission rate, supported baudrate: 31.25 kBit/s

• Error current FDE (Fault Disconnection Electronic): 0 mA

• Signal encoding: Manchester II

• Function blocks: 2 x Analog Input, 3 x Totalizer

• Output data: Volume flow, Corrected volume flow, Totalizer 1 to 3

• Input data: Positive zero return (ON/OFF), Totalizer control, Value for local display

• Bus address adjustable via DIP switches at the measuring device

FOUNDATION Fieldbus interface:

• FOUNDATION Fieldbus H1, IEC 61158-2 (MBP), galvanically isolated

• Current consumption: 12 mA

• Permissible supply voltage: 9 to 32 V

• Error current FDE (Fault Disconnection Electronic): 0 mA

• Data transmission rate, supported buadrate: 31.25 kBit/s

• Signal encoding: Manchester II

• Function blocks: 5 x Analog Input, 1 x Discrete Output, 1 x PID

• Output data: Volume flow, Corrected volume flow, Totalizer 1 to 3

• Input data: Positive zero return (ON/OFF), Reset totalizer

• Link Master (LM) functionality is supported

Endress+Hauser4

Page 5

Promag 50/53 W

Signal on alarm

Load

Switching output

Low flow cutoff

Galvanic isolation

• Current output → failure response selectable

• Pulse/frequency output → failure response selectable

• Status output (Promag 50) → non-conductive by fault or power supply failure

• Relay output (Promag 53) → de-energized by fault or power supply failure

See “Output signal”

Status output (Promag 50): Open collector, max. 30 V DC / 250 mA, galvanically isolated

Configurable for: error messages, Empty Pipe Detection (EPD), flow direction, limit values

Relay output (Promag 53): Normally closed (NC or break) or normally open (NO or make) contacts available

(default: relay 1 = NO, relay 2 = NC), max. 30 V / 0.5 A AC; 60 V / 0.1 A DC, galvanically isolated. Configurable for: error messages, Empty Pipe Detection (EPD), flow direction, limit values, batching contacts

Switch points for low flow cutoff are selectable

All circuits for inputs, outputs, and power supply are galvanically isolated from each other.

Endress+Hauser 5

Page 6

Electrical connection measuring unit

Power supply

Promag 50/53 W

−27

+26

−25

+24

−23 +22

−21 +20

b d

N (L-)

L1 (L+)

2 1

c a

N (L-)

L1 (L+)

222320

21 24

+ − + − + − + −

Top: field housing Bottom: wall-mount housing

a Cable for power supply: 85 to 260 VAC, 20 to 55 VAC, or 16 to 62 VDC; power consumption: 15 VA / 15 W

Terminal No. 1: L1 fo AC, L+ for DC Terminal No. 2: N for AC, L- for DC

b Signal cable: terminals No. 20 to 27 ´® see Page 8 c Grounding terminal for protective conductor d Grounding terminal for signal-cable shield e Service connection for connecting service interface FXA 193 (FieldChec k, ToF T ool-Field Tool Package) f Cover for wiring compartment g Cover securing clamp

cda

Endress+Hauser6

Page 7

Promag 50/53 W

Electrical connection Measuring unit (bus communication)

DP (A)/PA (–)/FF (–) DP (B)/PA (+)/FF (+)

N (L–) L1 (L+)

Esc

(DGND)

(+5 V)

N (L-) L1 (L+)

27 26

25 24

23 22

21 20

2 1

222320 21 242526

b d

c a

(+5 V) (DGND)

DP (B)/PA (+)/FF (+) DP (A)/PA (–)/FF (–)

T op: Field housing Bottom: Wall-mount housing

a Cable for power supply: 85 to 260 VAC, 20 to 55 VAC, or 16 to 62 VDC; power consumption:15 VA / 15 W

Terminal No. 1: L1 fo AC, L+ for DC Terminal No. 2: N for AC, L- for DC

b Fieldbus cable:

Terminal No. 26: DP (B) / PA (+) / FF (+) (with polarity protection) Termianl No. 27: DP (A) / PA (-) / FF (-) (with reverse polarity protection)

DP (A) = RxD/TxD-N; DP (B) = RxD/TxD-P c Grounding terminal for protective conductor d Grounding terminal for signal-cable shield e Service connector for connecting service interface FXA 193 (FieldChec k, ToF T ool-Field Tool Package) f Cover for connection compartment g Cable for external termination (PROFIBUS only) h Cover securing clamp

Endress+Hauser 7

Page 8

Promag 50/53 W

Terminal assignment Promag 50

Terminal No. (inputs / outputs)

Order variant 20 (+) / 21 (-) 22 (+) / 23 (-) 24 (+) / 25 (-) 26 (+) / 27 (-)

50***-***********W - - - Current output

HART

50***-***********A - - Frequency output Current output

HART

50***-***********D Status input Status output Frequency output Current output

HART

50***-***********S - - Frequency output Current output

IS, passive HART

50***-***********T - - Frequency output Current output

Intrinsically Safe HART

Ground connection, power supply → refer to illustration on top of page 6

Terminal assignment Promag 53

The inputs and outputs on the communication board can be either permanently assigned or variable, depending on the version ordered (see table). Replacement for modules which are defective or which have to be replaced can be ordered as accessories.

Terminal No. (inputs / outputs)

Order variant 20 (+) / 21 (-) 22 (+) / 23 (-) 24 (+) / 25 (-) 26 (+) / 27 (-)

Fixed communication boards (fixed assignment)

53***-***********A - - Frequency output Current output

HART

53***-***********B Relay output 2 Relay output 1 Frequency output Current output

HART

53***-***********F - - - Profibus-PA

53***-***********G - - - Foundation

Fieldbus IS 53***-***********H - - - Profibus-PA 53***-***********J - - - Profibus-DP 53***-***********K - - - Foundation

Fieldbus 53***-***********S - - Frequency output Current output

Intrinsically safe IS, active

HART 53***-***********T - - Frequency output Current output

Intrinsically safe IS, passive

HART

Flexible communication boards

53***-***********C Relay output 2 Relay output 1 Frequency output Current output

HART 53***-***********D Status input Relay output Frequency output Current output

HART 53***-***********L Status input Relay output 2 Relay output 1 Current output

HART 53***-***********M Status input Frequency output 2 Frequency output 1 Current output

HART 53***-***********2 Relay output Current output 2 Frequency output Current output

1 HART 53***-***********4 Current input Relay output Frequency output Current output

HART 53***-***********5 Status input Current input Frequency output Current output

HART

Ground connection, power supply → refer to illustration on top of page 6

Endress+Hauser

Page 9

Promag 50/53 W

Electrical connection remote version

Electrode Circuit

EPDMeas.signal Pipe

Cable entry

Cable specifications remote version

Esc

n.c. = cable shields to be isolated and not to be connected

n.c. n.c.n.c.

brown

white

E1E1E2

green

GND

373736

yellow

GND

Coil circuit

424241

Power-supply and signal cables (inputs/outputs):

• 1/2" NPT Connecting cable for remote version:

• 1/2" NPT Coil cable:

• 2 x 18 AWG (0.75 mm2) PVC cable with common, braided copper shield, approximately 0.28” diameter (Ø approx. 7 mm)

• Conductor resistance: ≤ 0.011 Ω/ft (37 Ω/km)

• Capacitance: core/core, shield grounded: ≤ 36 pF/ft (120 pF/m)

• Permanent operating temperature: -5° to +180°F (–20 to +80°C)

• Cable cross-section: maximum 16 AWG (2.5 mm2)

Endress+Hauser

Signal cable:

• 3 x 20 AWG (0.38 mm

) PVC cable with common, braided copper shield,

approximately 0.28” diameter (Ø approx. 7 mm) and individually shielded cores.

• With Empty Pipe Detection (EPD): 4 x 20 AWG (0.38 mm2) PVC cable with common, braided copper shield, approximately 0.28” diameter (Ø approx. 7 mm) and individually shielded cores.

• Conductor resistance: ≤ 0.015 Ω/ft (50 Ω/km)

• Capacitance: core/shield: ≤ 128 pF/ft (420 pF/m)

• Permanent operating temperature: -5° to +180°F (–20 to +80 °C)

• Cable cross-section: maximum 16 AWG (2.5 mm2)

1 2 3 4 5 6 7

a = signal cable, b = coil current cable (maximum 16 AWG (2.5 mm2) 1 = Core 5 = Core strengthening 2 = Core insulation 6 = Cable shield 3 = Core shield 7 = Outer jacket 4 = Core jacket

Page 10

Promag 50/53 W

Endress+Hauser optionally supplies reinforced connecting cables with an additional metal braid. We recommend such cables for the following cases:

• Underground laid cables

• Danger of rodent attack

• Device used with NEMA 6P (IP 68) ingress protection Operation in areas of severe electrical interference:

The measuring device complies with the general safety requirements in accordance with EN 61010, the EMC requirements of EN 61326, and NAMUR recommendation NE 21.

Caution: Grounding is by means of the ground terminals provided for that purpose inside the

connection housing. Keep the stripped and twisted lengths of cable shield to the terminals as short as possible.

Supply voltage

Power consumption

Power supply failure

Potential equalization

85 to 260 VAC, 45 to 65 Hz 20 to 55 VAC, 45 to 65 Hz 16 to 62 V DC

PROFIBUS-PA and FOUNDATION Fieldbus Nonhazardous: 9 to 32 VDC

Intrinsically safe: 9 to 24 VDC Explosion proof: 9 to 32 VDC

AC: <15 VA (including sensor) DC: <15 W (including sensor)

Switch-on current:

• maximum 13.5 A (< 50 ms) at 24 V DC

• maximum 3 A (< 5 ms) at 260 V AC Lasting minimum 1 power cycle:

• EEPROM or T-DAT™ (Promag 53 only) retain the measuring-system data in the event of a power supply failure

• S-DAT™ = exchangeable data storage chip which stores the data of the sensor: nominal diameter, serial number, calibration factor, zero point, etc.

Standard case

Perfect measurement is only ensured when the medium and the sensor have the same electrical potential. Most Promag sensors have a standard installed reference electrode which guarantees the required potential matching. This usually means that additional potential matching measures are unnecessary.

NOTE: For installation in metal pipes, it is advisable to connect the ground terminal of the transmitter housing to the piping.

Caution: For sensors without reference electrodes or without metal process terminals, carry

out potential matching as per the instructions for special cases described below. These special measures are particularly important when standard grounding practice cannot be ensured or extremely strong matching currents are expected.

Endress+Hauser10

Page 11

Promag 50/53 W

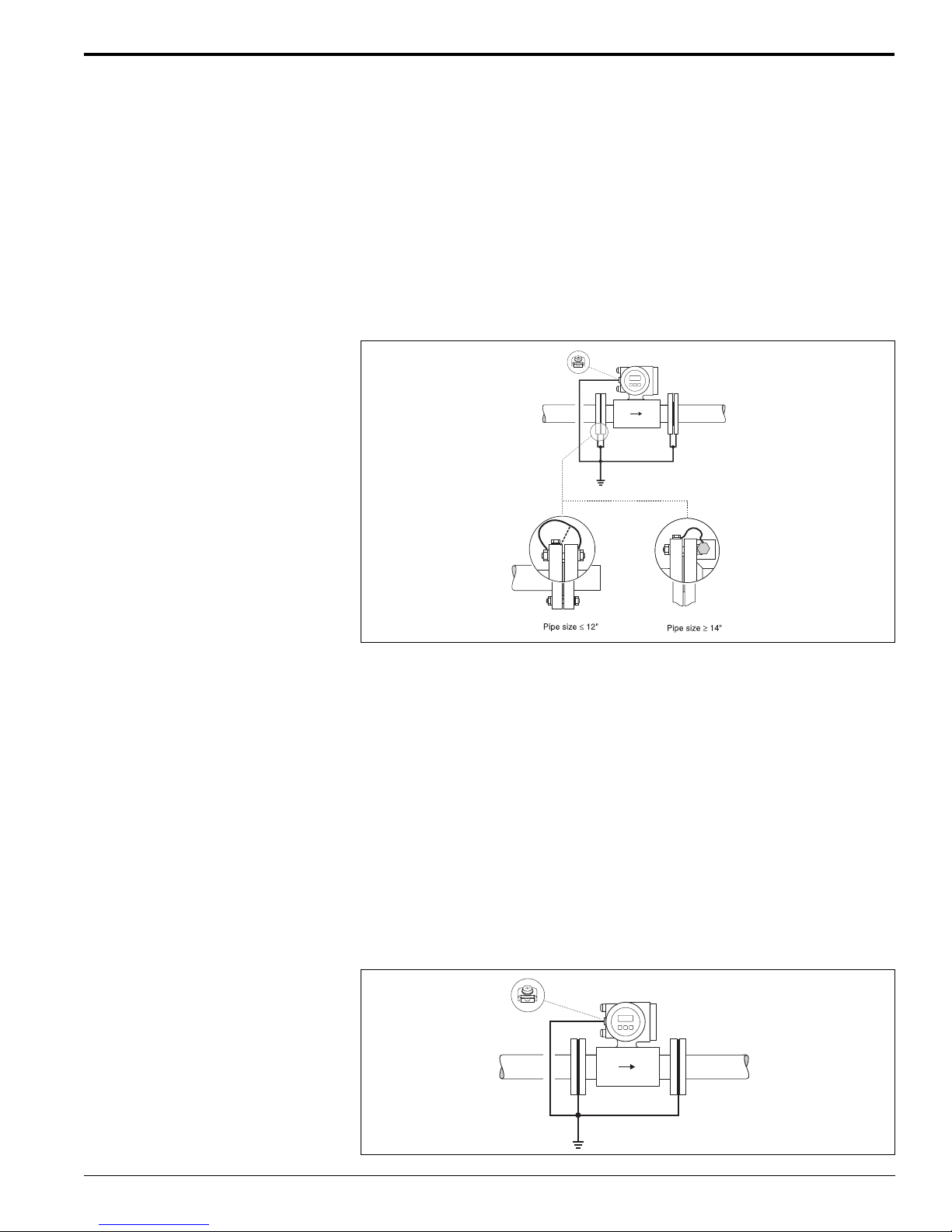

Metallic, ungrounded pipes

In order to avoid errors in measurement, use grounding cables to connect each sensor flange to its corresponding pipe flange and ground the flanges. Connect the transmitter or sensor connection housing, as applicable, to ground by means of the grounding terminal provided for that purpose.

Note: The grounding cable for flange-to-flange connections can be ordered separately as

an accessory from Endress+Hauser.

• ≤ 12”; the grounding cable is in direct connection with the conductive flange coating and is secured by the flange screws.

• ≥ 14”, the grounding cable connects directly to the metal transport bracket.

9 AWG Cu

Plastic pipes and lined pipes

Normally, potential is matched using the reference electrodes in the measuring tube. However, in exceptional cases it is possible that, due to the grounding plan of a system, large matching currents flow over the reference electrodes. This can lead to destruction of the sensor, e.g. through electrochemical decomposition of the electrodes. In such cases, e.g. for fiberglass or PVC piping, it is recommended that you use additional ground disks for potential matching.

When using ground disks, not the following points:

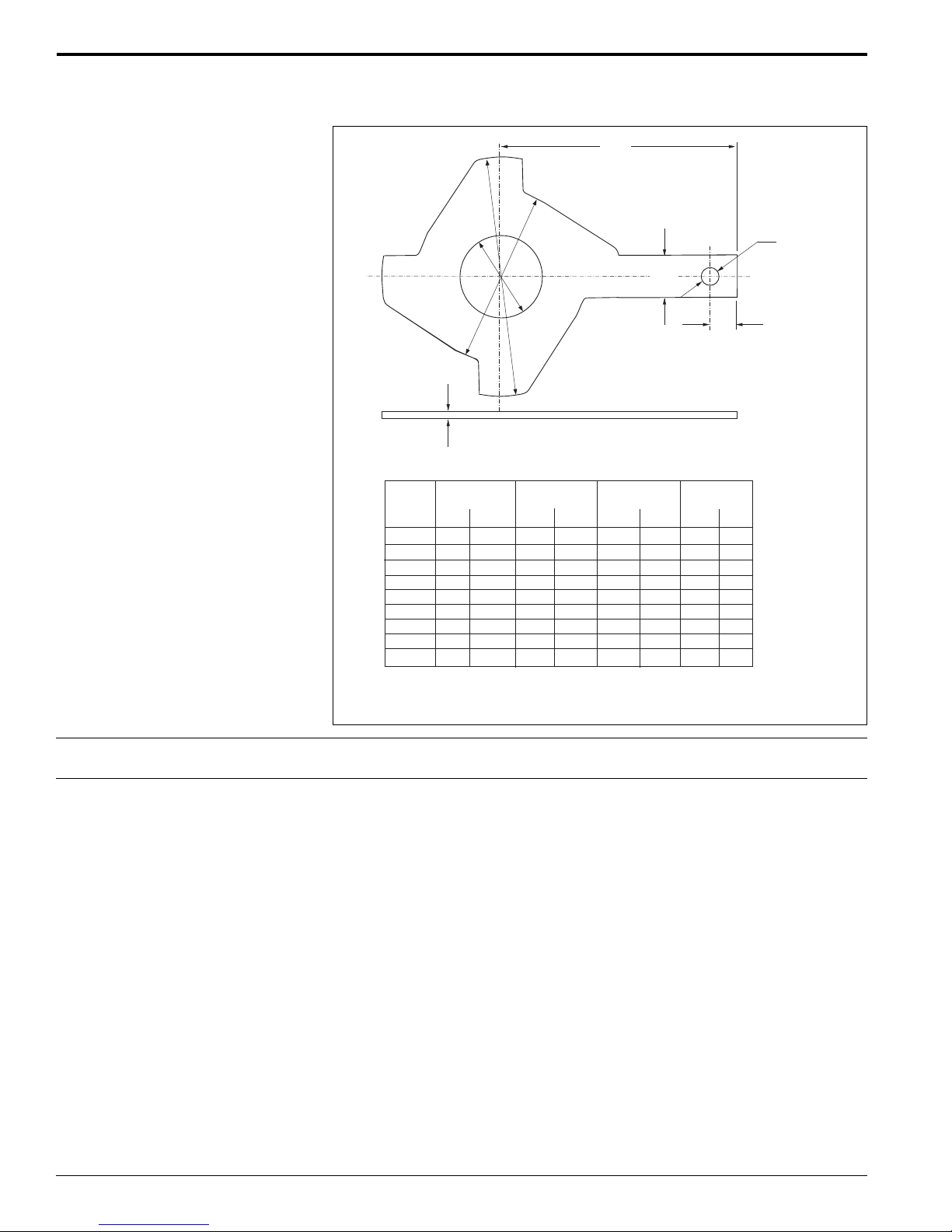

• Ground disks (1” to 12”) can be ordered from Endress+Hauser as an accessory

• Ground disks (including seals) increase the installation length. Refer to the disk dimensions on page 22.

Caution: Risk of damage by electrochemical corrosion. Note the electrochemical insulation

rating if the grounding rings and measuring electrodes are made of different materials.

Observe the plant internal grounding guidelines.

Endress+Hauser 11

9 AWG Cu

Page 12

Promag 50/53 W

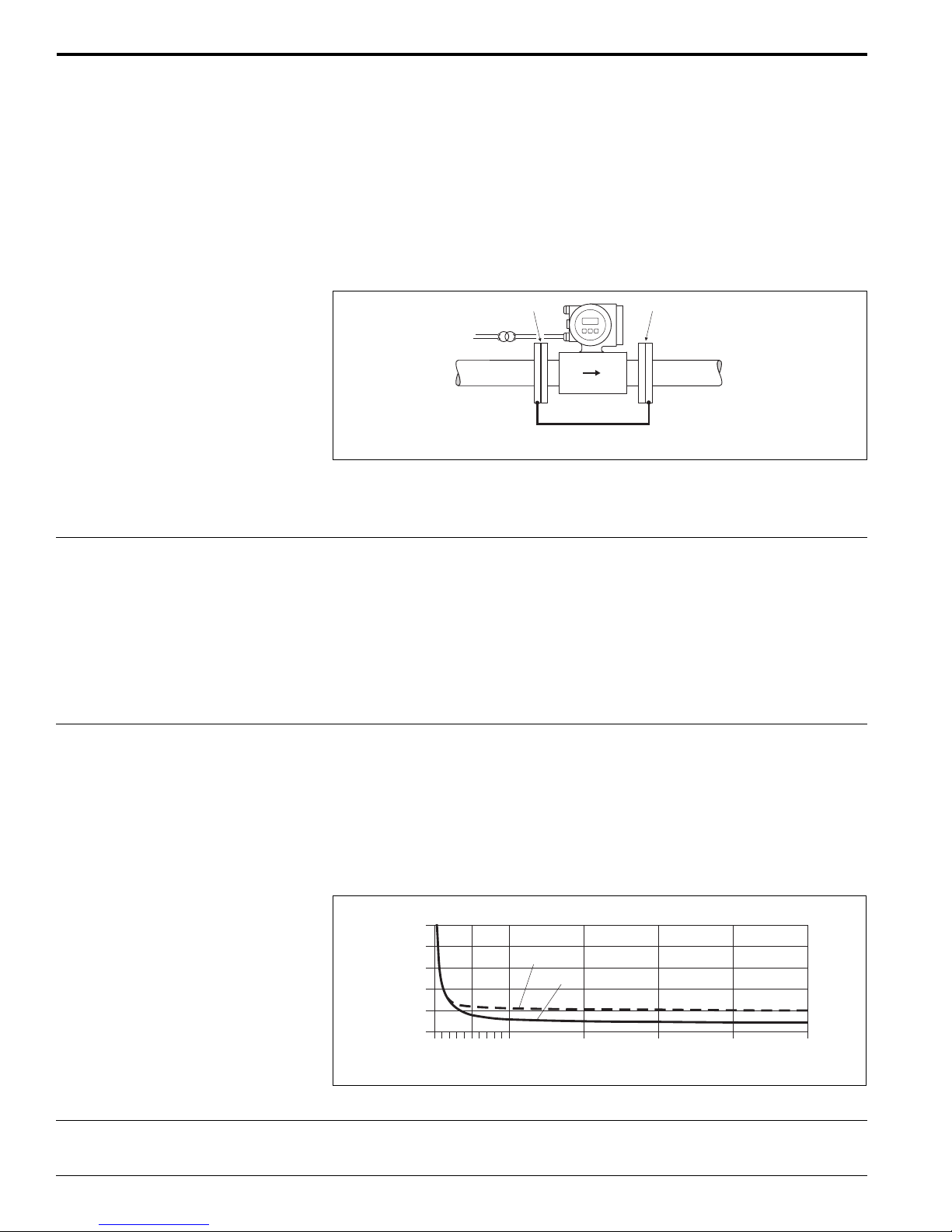

Pipes with cathodic protection

If the medium cannot be grounded for process-related reasons, the measuring device must be installed in such a way as to be potential-free:

• When installing the measuring device, make sure that there is an electrical connection between the two piping runs, 9 AWG copper wire (6 mm

• Make sure that the installation materials do not establish a conductive connection to the measuring device and that the installation materials withstand the tightening torques applied when the threaded fasteners are tightened.

• Also comply with the regulations applicable to potential-free installation.

9 AWG Cu

a = isolating transformer, b = electrically insulated

Reference conditions

Measured error

Performance characteristics

To DIN 19200 and VDI/VDE 2641:

• Medium temperature: +28 °C ± 2 K

• Ambient temperature: +22 °C ± 2 K

• Warm-up time: 30 minutes

Installation:

• Inlet run >10 x Dia

• Outlet run > 5 x Dia

• Sensor and transmitter grounded.

• Sensor centered relative to the pipe.

Promag 50: Pulse output: ± 0.5% o.r. ± 1 mm/s (o.r. = of reading)

Current output: plus typically ± 5 µA Promag 53:

Pulse output: ± 0.2% o.r. ± 2 mm/s (o.r. = of reading) Current output: plus typically ± 5 µA

Supply-voltage fluctuations have no effect within the specified range.

[%]

2.5

2.0

1.5

1.0

0.5 0

Measured error in [%] of reading

(1)

(2)

0.5 %

0.2 %

13 (4)

v ft/s (m/s)

(6)

26 (8)

(10)

Repeatability

± 0.1% o.r. ± 0.5 mm/s (o.r. = of reading)

Endress+Hauser

Page 13

Promag 50/53 W

h 2 x D³

Operating conditions

Installation conditions

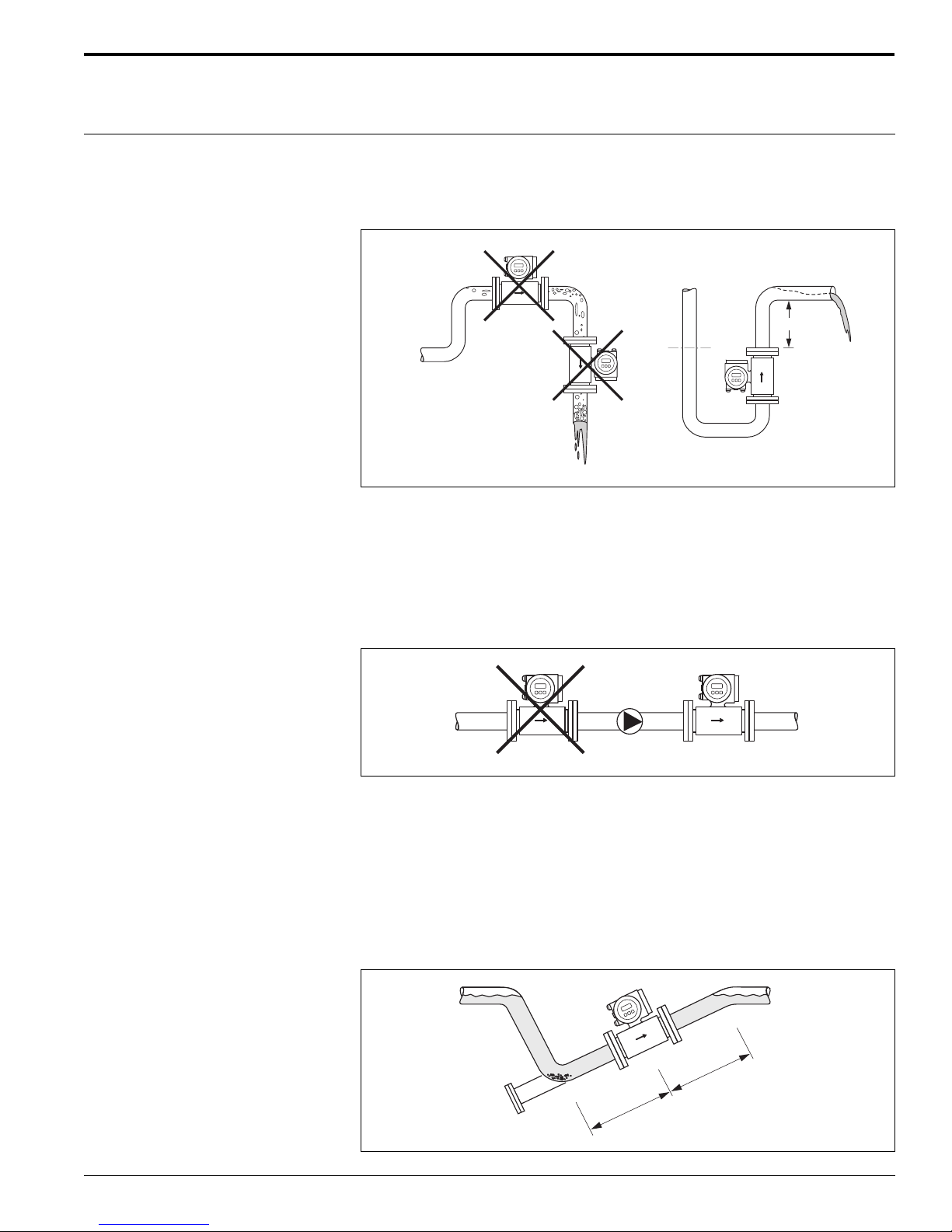

Installation instructions Mounting location

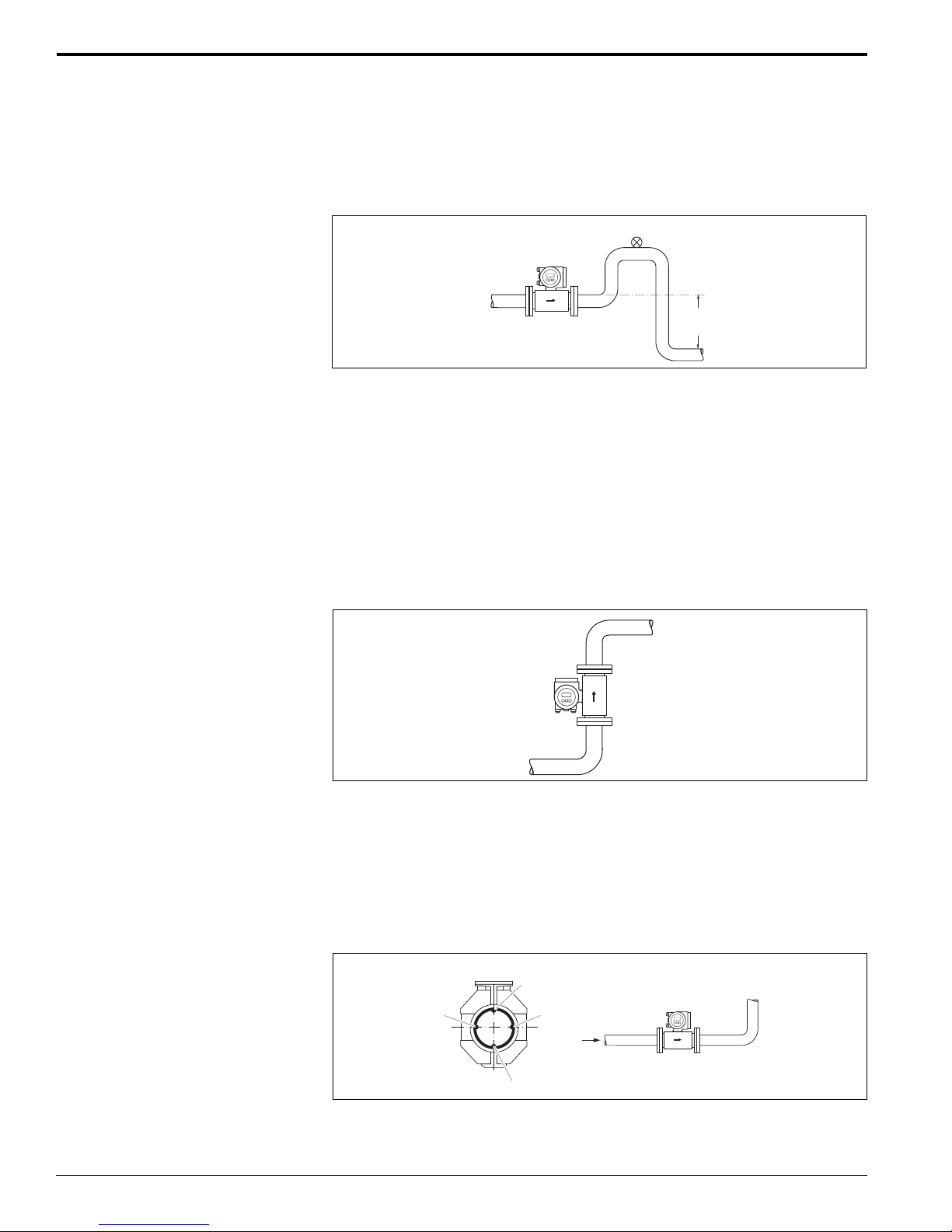

Correct measuring is possible only if the pipe is full. Avoid the following locations:

• Highest point in the run. Risk of air accumulating

• Directly upstream from an open pipe outlet in a down pipe

Installation of pumps

Do not install the sensor on the inlet side of a pump. This precaution is to avoid low pressure and the consequent risk of damage to the lining of the measuring tube.

It might be necessary to install pulse dampers in systems incorporating reciprocating, diaphragm or peristaltic pumps. The sensor is shock and vibration resistant for acceleration up to 2 g in accordance with IEC 68-2-6.

Partially filled pipes

Partially filled pipes with gradients necessitate a drain-type configuration. The Empty Pipe Detection (EPD) function offers additional protection by detecting empty or partially filled pipes.

Caution: To avoid the risk of solids accumulating, do not install the sensor at the lowest point in the drain. It is advisable to install a cleaning valve.

Endress+Hauser 13

³ 2 x D

³ 5 x D

Page 14

Promag 50/53 W

Vertical pipes

Install a siphon (b) or a vent valve (a) downstream of the sensor in vertical pipes longer than 15 feet (5 meters). This precaution is to avoid low pressure and the consequent risk of damage to the lining of the measuring tube. These measures also prevent the system losing prime, which could cause air inclusions.

> 15 ft

(5 m)

a = vent valve, b = siphon

Orientation

An optimum orientation helps avoid gas and air accumulations and deposits in the measuring tube. Promag, nevertheless, supplies a range of options and accessories for correct measuring of problematic mediums:

• Electrode Cleaning Circuitry (ECC) to remove electrically conductive deposits in the measuring tube, e.g. in accretive mediums

• Empty Pipe Detection (EPD) for recognition of partially filled measuring tubes, or for degassing mediums or for applications with fluctuating process pressure.

Vertical orientation:

This orientation is ideal for self-emptying piping systems and for use in conjunction with Empty Pipe Detection.

Horizontal orientation:

The measuring electrode-plane should be horizontal. This prevents brief insulation of the two electrodes by entrained air bubbles.

Caution: Empty Pipe Detection functions correctly only when the measuring device is installed

horizontally and the transmitter housing is facing upward. Otherwise, there is no guarantee that Empty Pipe Detection will respond if the measuring tube is only partially filled or empty.

1 = EPD electrode (Empty Pipe Detection) 2 = Measuring electrodes (signal detection) 3 = Reference electrode (potential equalization)

Endress+Hauser14

Page 15

Promag 50/53 W

> 30 feet (> 10 m)

max. 4°

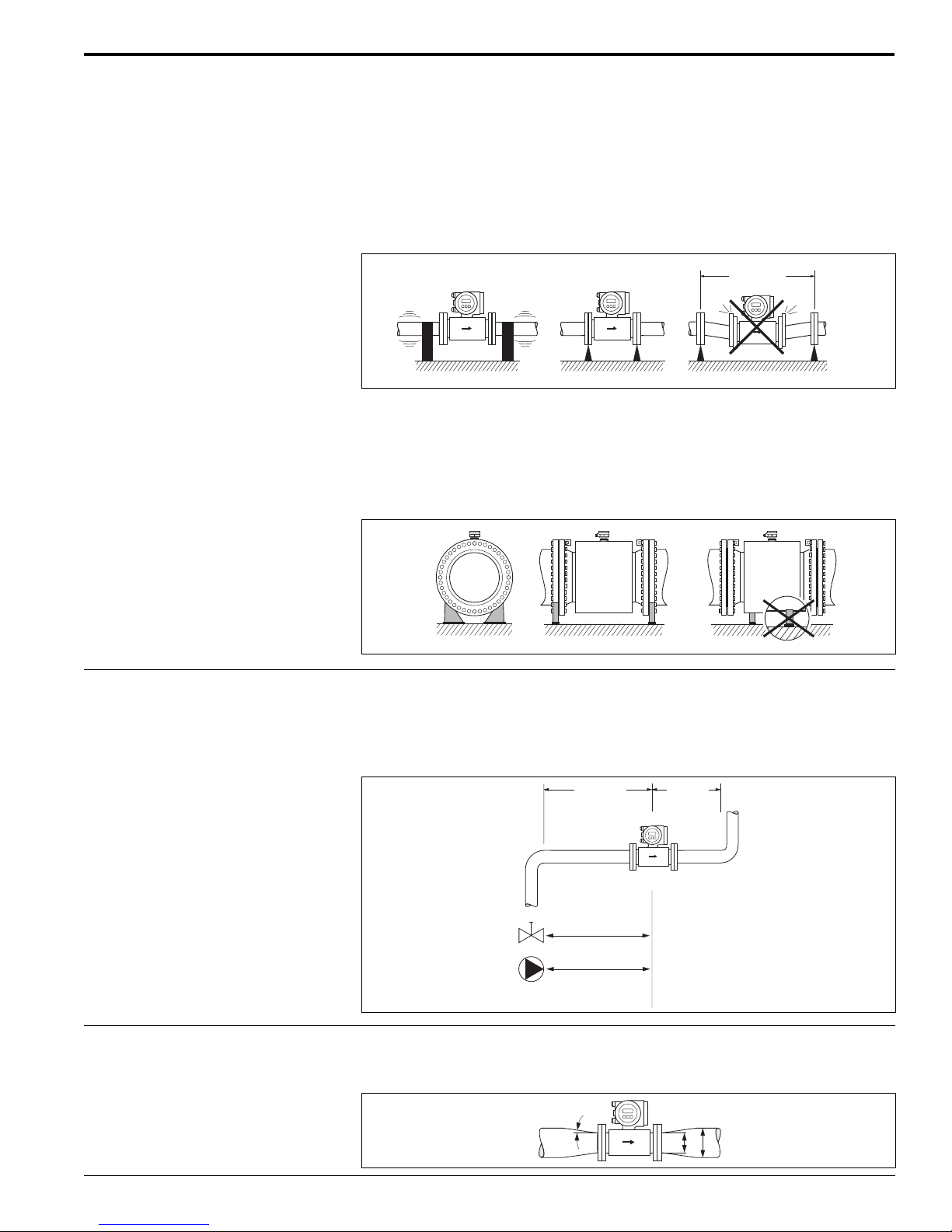

Vibrations

Secure the piping and the sensor if vibration is severe. Caution:

It is advisable to install the sensor and transmitter separately if vibration is excessively severe. The sensor is shock and vibration resistant for acceleration up to 2 g in accordance with IEC 68-2-6.

Foundations, supports

If the nominal diameter is 14” or larger, mount the sensor on a foundation of adequate loadbearing strength.

Caution: Do not allow the sensor casing to take the weight of the sensor. This would buckle

the casing and damage the internal magnetic coils.

Inlet and outlet runs

If possible, install the sensor well clear of fittings such as valves, T-pieces, elbows, etc. Compliance with the following requirements for the inlet and outlet runs is necessary in order to ensure measuring accuracy:

• Inlet run ≥ 5 x pipe diameter

• Outlet run ≥ 2 x pipe diameter

5 x D³

2 x D³

Adapters With the help of the appropriate adapters (reducers and expanders) the sensor can

be mounted in a pipeline of a larger diameter. For slowly flowing fluids, the resulting higher velocity increases the measuring accuracy.

Endress+Hauser 15

Page 16

Promag 50/53 W

Esc

200

100

(10)

330

(100)

650

(200)

L max

ft (m)

[ S/cm]m

L max

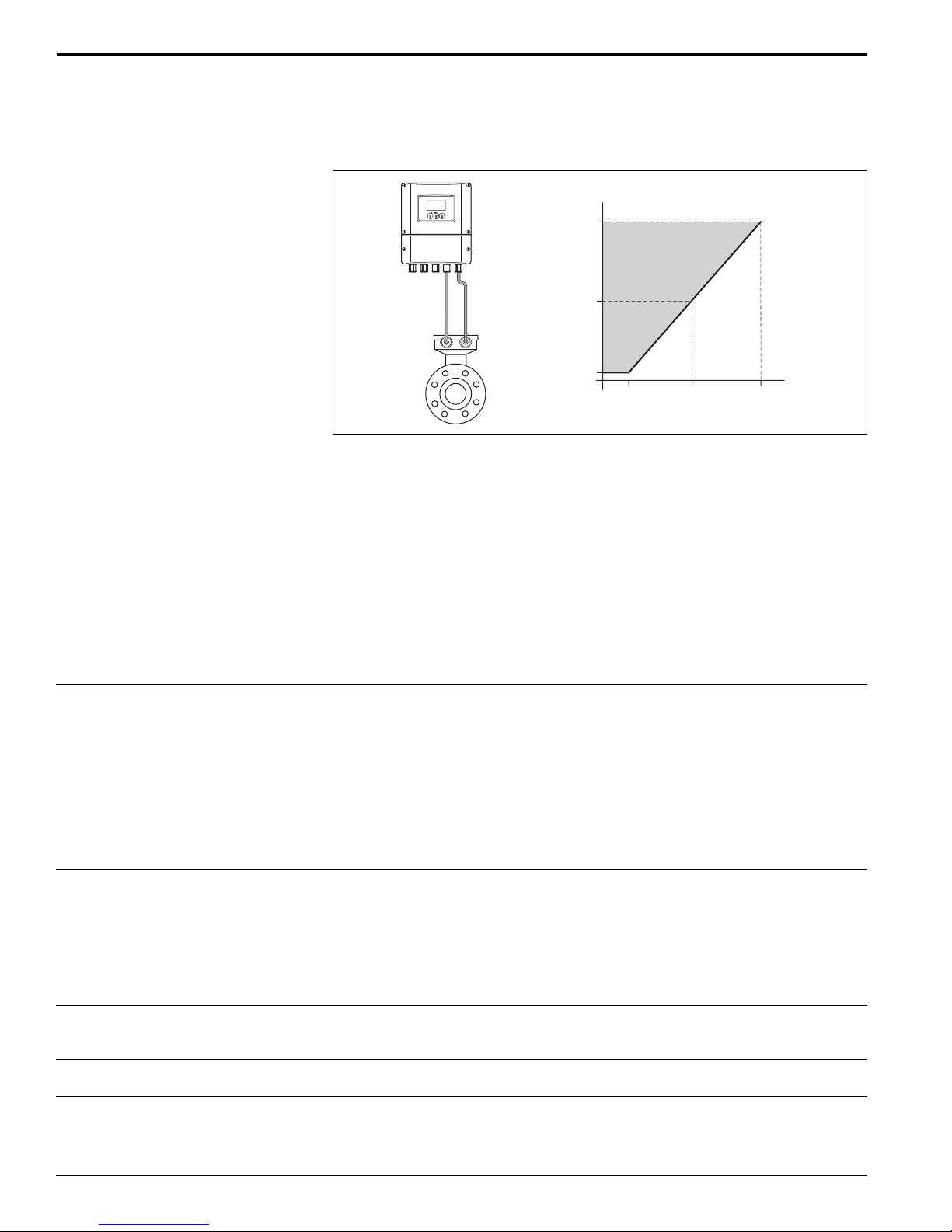

Length of connecting cable Permissible cable length Lmax depends on the conductivity of the medium. A

minimum conductivity of 20 µS/cm is required for measuring demineralized water.

Gray shaded area = permissible range for medium conductivity Lmax = length of connecting cable in feet (m) Medium conductivity in µS/cm

In order to ensure measuring accuracy, comply with the following instructions when installing the remote version:

• Secure the cable run or route the cable in a conduit. Movement of the cable can falsify the measuring signal, particularly if the conductivity of the medium is low.

• Route the cable well clear of electrical machines and switching elements.

• Ensure ground equalization between the sensor and transmitter, if necessary.

Environment

Ambient temperature Standard: -5° to +140°F (-20° to +60°C) for sensor and transmitter

Optional: -40° to +140°F (-40° to +60°C) Note the following points:

• Install the device at a shady location. Avoid direct sunlight, particularly in warm climatic regions.

• If both medium and ambient temperatures are high, specify the remote transmitter (refer to the “Medium temperature” ranges).

• At ambient temperatures below -5°F (-20°C), the readability of the display may be impaired.

Storage temperature

Degree of protection

15° to + 120°F (-10° to +50°C), 70°F (20°C) is the preferable storage temperature.

• The measuring device must be protected against direct sunlight during storage in order to avoid unacceptably high surface temperatures.

• Choose a storage location where moisture does not collect in the measuring device. This helps prevent mold, fungus and bacteria from damaging the liner.

• Do not remove the protective plates or caps on the process connections until the device is ready to install.

• Standard: NEMA 4X (IP 67) for transmitter and sensor

• Optional: NEMA 6P (IP 68) for Promag W sensor, remote version

Shock and vibration resistance

Electromagnetic compatibility (EMC)

Acceleration up to 2 g in accordance with IEC 68-2-6

To EN 61326 and NAMUR recommendation NE 21

Endress+Hauser16

Page 17

Promag 50/53 W

Process conditions

Medium temperature range The permissible medium temperature depends on the measuring tube liner:

• Polyurethane, -5° to +125°F (-20° to +50°C) for 1” to 78” sensors

• Hard rubber, 32° to +180°F (0° to +80°C) for 3” to 78” sensors

Conductivity Minimum conductivity:

≥ 5µS/cm → for fluids generally ≥ 20µS/cm → for demineralized water

Note that in the case of the remote version, the minimum conductivity is also influenced by the length of the connecting cable. Refer to “Length of connecting cable”.

Medium pressure range (nominal pressure)

Pressure tightness (liner)

ANSI B 16.5: Class 150, 1” to 24” Class 300, 1” to 6”

AWWA: Class D, 28” to 78”

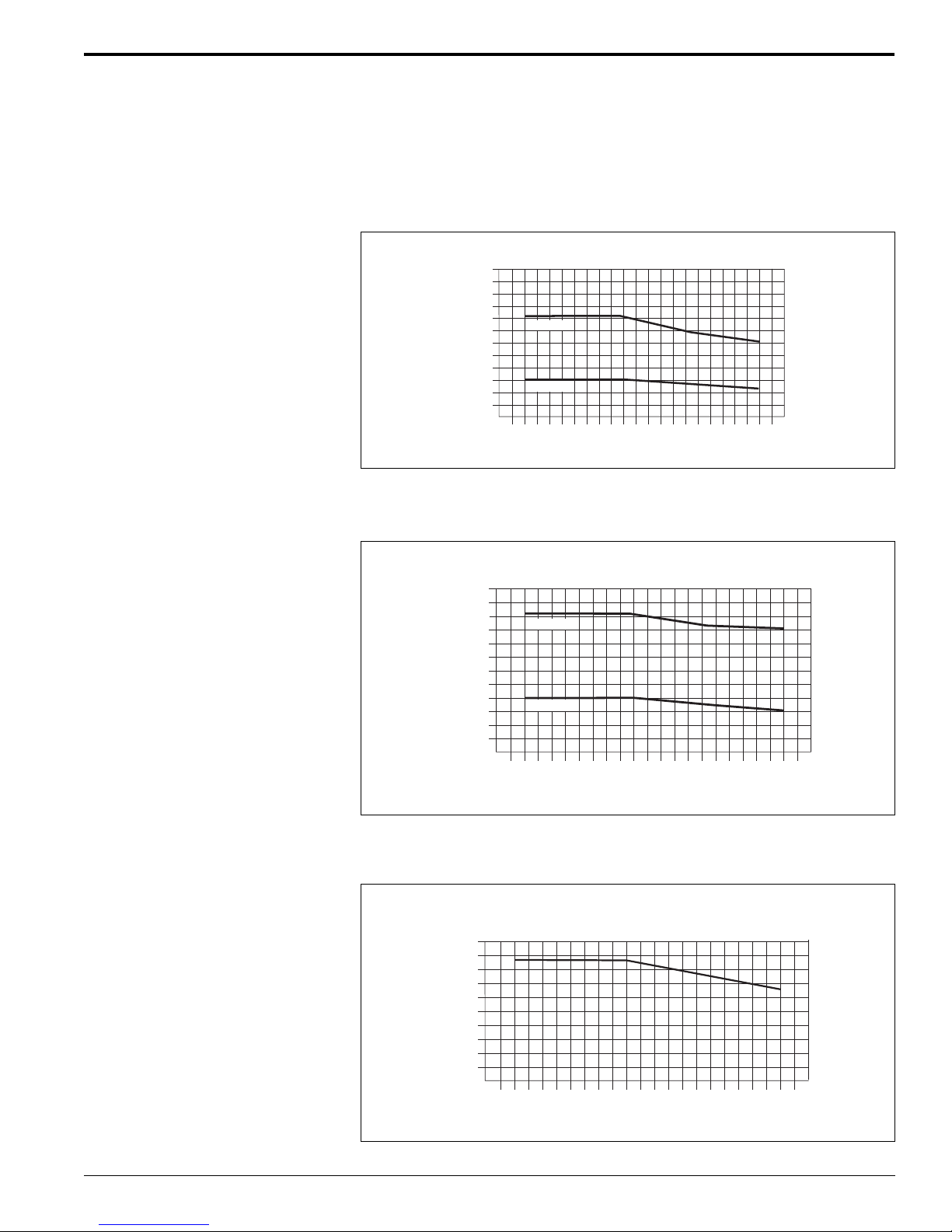

Size Measuring Resistance to partial vacuum of measuring tube lining

tube limit values for abs. pressure (psia) at various

lining fluid temperatures

75°F 160°F 175°F 212°F 265°F 300°F 355°F 1” to 40” Polyurethane 0 0 - - - - 3” to 78” Hard rubber 0 0 0 - - - -

Endress+Hauser 17

Page 18

Promag 50/53 W

Flow limit

As a rule, the pipeline diameter determines the sensor diameter. With a known flowrate and the help of the Endress+Hauser Flow Applicator, the best size can be selected. Generally, a velocity range of 6 to 10 ft/sec should be selected.

A necessary increase in velocity can be achieved through a reduction of the sensor diameter. The higher installation expense is normally balanced by the lower sensor cost.

The flow velocity should also be determined by the fluid’s physical properties:

• v < 6 ft/sec, for abrasive mediums such as potter’s clay, lime milk, ore slurry, etc.

• v > 6 ft/sec, for fluids causing build-up such as wastewater sludge, etc.

Nominal

diameter

inch

1-1/2

2 3 4 6

8 10 12 14 16 18 20 24 28 30 32 36 40 42 48 54 60 66 72 78

25 40 50

80 100 150 200 250 300 350 400 450 500 600 700 750 800 900

1000 1050 1200 1350 1500 1650 1800 2000

Recommended

flow rate

Min./max. full scale value

(v ~ 1.0 or 33 ft/s)

2.5 to 80 gpm 7 to 190 gpm

10 to 300 gpm

24 to 800 gpm 40 to 1250 gpm 90 to 2650 gpm

155 to 4850 gpm

250 to 7500 gpm 350 to 10,600 gpm 500 to 15,000 gpm 600 to 19,000 gpm 800 to 24,000 gpm

1000 to 30,000 gpm 1400 to 44,000 gpm 1900 to 60,000 gpm 2150 to 67,000 gpm

2450 to 80,000 gpm 3100 to 100,000 gpm 3800 to 125,000 gpm 4200 to 135,000 gpm 5500 to 175,000 gpm

9 to 300 Mgal/day 12 to 380 Mgal/day 14 to 500 Mgal/day 16 to 570 Mgal/day 18 to 650 Mgal/day

Full scale value

(v ~ 8 ft/s)

200 gpm 300 gpm

600 gpm 1200 gpm 1500 gpm 2400 gpm 3600 gpm 4800 gpm 6000 gpm 7500 gpm

10,500 gpm 13,500 gpm 16,500 gpm 19,500 gpm 24,000 gpm 30,000 gpm 33,000 gpm

52,000 gpm 75 Mgal/day 95 Mgal/day

120 Mgal/day 140 Mgal/day 175 Mgal/day

18 gpm 50 gpm 75 gpm

Factory settings

Pulse weighting

(~ 2 pulses/s)

0.20 gal

0.50 gal

0.5 gal 2 gal 2 gal 5 gal

10 gal 15 gal 25 gal 30 gal 50 gal 50 gal

75 gal 100 gal 125 gal 150 gal 200 gal 225 gal 250 gal 250 gal 400 gal

0.0005 Mgal/day

0.00075 Mgal/day

0.001 Mgal/day

Creepage

(~ 0.1 ft/s)

0.25 gpm

0.75 gpm

1.25 gpm

2.5 gpm

4.0 gpm 12 gpm 15 gpm 30 gpm 45 gpm 60 gpm 60 gpm 90 gpm

120 gpm 180 gpm 210 gpm 270 gpm 300 gpm 360 gpm 480 gpm 600 gpm 600 gpm

1.3 Mgal/day

2.2 Mgal/day

2.6 Mgal/day

3.0 Mgal/day

Pressure loss No pressure loss if the sensor is installed in a pipe of the same nominal diameter.

Pressure losses occur in configurations incorporating adapters (reducers, expanders). Contact your Endress+Hauser representative or Endress+Hauser for information.

Endress+Hauser18

Page 19

Promag 50/53 W

13.9" (355)

6.57" (167)

10.4" (265)

9.53" (242)

Blind version

7.40" (188)

5.24" (133)

4.84" (123)

Æ 0.34"

(8.6 M8)

3.94" (100)

Mechanical construction

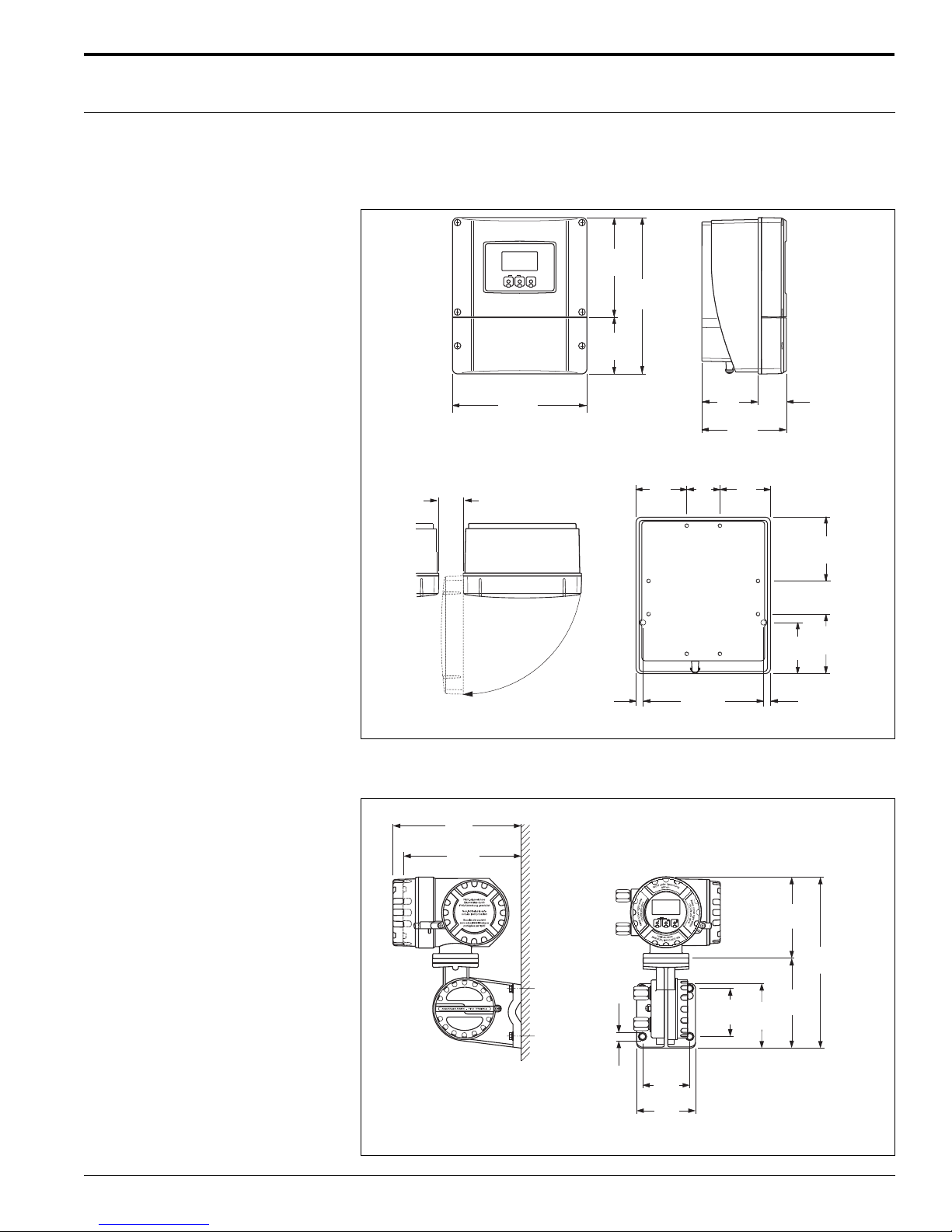

Dimensions / mounting details Wall mounted housing

Weight: 13 lbs (6 kg) NOTE: A mounting kit (for panel or post mounting) is available from

Endress+Hauser. Please refer to Accessories.

> 1.97"

(50)

Esc

8.46" (215)

6.27"

(159.5)

9.84" (250)

3.56"

(90.5)

3.54"

1.77"

(90)

(45)

5.31" (135)

2.08" (53)

3.18" (81)

Remote field housing (nonhazardous areas only U.S.)

Dimensions in inches (mm)

0.45"

(11.5)

7.55"

(192)

3.20"

(81.5)

4.01" (102)

2.08" (53)

3.74" (95)

0.45"

(11.5)

Endress+Hauser 19

Page 20

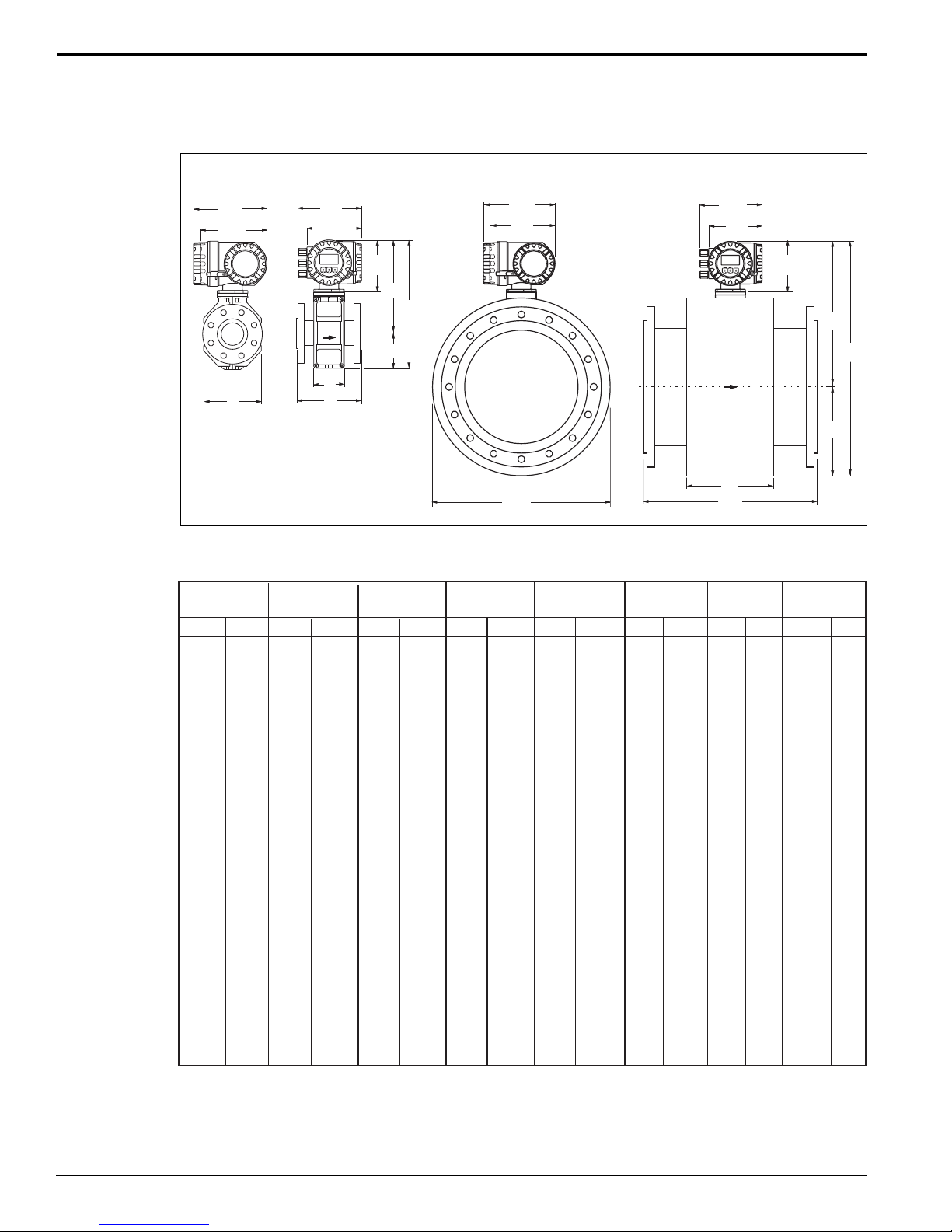

Promag W (compact version)

Promag 50/53 W

Promag W 1" to 12”

Compact Version

8.94" (227)

8.15" * (207)

Dimensions in inches (mm)

Nominal

Size

inches mm

1-1/2

2 3 4 6

8 10 12 14 16 18 20 24 28 30 32 36 40

1000

1050

1200

1350

1500

1650

1800

2000

25 40 50

80 100 150 200 250 300 350 400 450 500 600 700 750 800 900

in mm

7.87

9.84

11.8

13.8

17.7

19.7

21.6

23.6

25.6

30.7

35.8

38.4

40.9

46.0

51.2

53.7

61.4

69.1

76.8

84.4

92.1

102.3

7.68" (195)

6.61" (168)

6.30"

Esc

(160)

E L

* Blind option dimension

13.4

200

13.4

200

13.4

200

15.4

200

15.4

250

18.6

300

20.7

350

22.7

450

24.7

500

29.1

550

31.1

600

33.1

650

35.1

650

39.2

780

47.2

910

47.2

975

48.9

1040

54.9

1170

60.9

1300

62.9

1365

71.7

1560

78.7

1755

86.5

1950

92.9

2145

100.4

2340

104.3

2600

in mm

341 341 341 391 391 472 527 577 627

738.5

790.5

840.5

891.5

995.5

1198.5

1241.5

1394.5

1546.5

1598.5

1796.5

1998.5

2196.5

2360.5

2550.5

2650.5

in mm

10.1

11.1

12.7

13.6

14.6

15.6

17.9

18.9

19.9

20.9

23.0

27.0

27.9

30.9

33.9

34.9

38.8

42.8

46.7

49.9

53.6

55.6

257 257 257 282 282 322 347 372 397

456.5

482.5

507.5 533 585

686.5

686.5 708

784.5

860.5

886.5

985.5

1086.5

1185.5

1267.5

1362.5

1412.5

8.94" (227)

8.15" * (207)

in mm

3.31

4.29

5.90

7.08

8.07

9.05

11.1

12.1

13.1

14.1

16.2

20.1

21.0

24.0

27.0

28.0

31.9

35.9

39.8

43.0

46.8

48.7

358.5

410.5

533.5

1011 1093 1188 1238

NOTE: The fitting length (L) is always the same, regardless of the pressure rating. * Weight data valid for 150 lb ANSI and AWWA Class D versions.

Promag W 14" to 78”

Compact Version

in mmEin mm

4.72

109

7.08

109

7.08

150

10.2

180

12.7

205

15.7

230

18.1

282

22.2

308

24.2

333

26.2

28.2

32.3

512

40.3

512

40.3

42.0

610

48.0

686

54.0

712

56.0

811

63.8

912

71.8

79.6

86.0

93.5

97.5

120 120 120 180 180 260 324 400 460 564 616 666 717

821 1024 1024 1067 1220 1372 1424 1622 1824 2022 2186 2376 2476

7.68" (195)

(168)

Esc

3.70

5.51

6.14

6.53

10.9

11.5

15.8

23.2

24.6

25.5

30.9

33.9

35.9

39.0

42.3

54.8

58.3

64.2

68.2

6.61"

6.30"

(160)

Weight *

lb kg

16 20 23 31 35 56

99 165 242 386 452 562 628 893 882

1014 1212 1764 1984 2425 3086 4850 5952 8157 9039

7.3

9.4

10.6 14 16

25.5 45 75

110 175 205 255 285 405 400 460 550 800

900 1100 1400 2200 2700 3700 4100 4600

94 94 94 94

94 140 156 156 166 276 276 292 292 402 589 626 647 785 862 912 992

1252 1392 1482 1632 1732

10,1421

Endress+Hauser20

Page 21

Promag 50/53 W

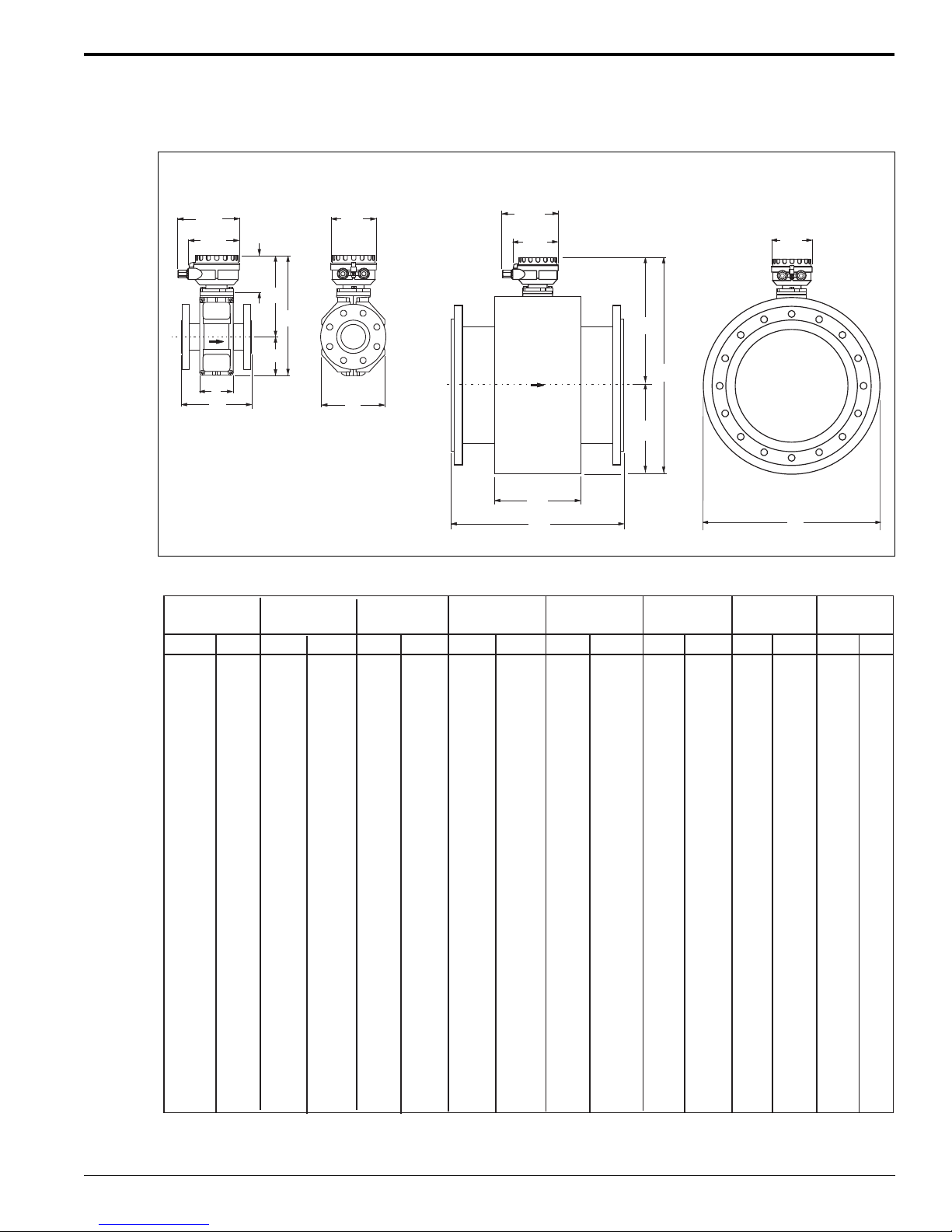

Promag W (remote version)

Promag W 1” to 12"

Remote Version

in mm

202 202 202 227 227 267 292 317 342

401.5

427.5

452.5 478 530

631.5

631.5 653

729.5

805.5

831.5

930.5

1031.5

1130.5

1212.5

1307.5

1357.5

6.73" (171)

5.63"

(143)

in mm

3.31

4.29

5.90

7.08

8.07

9.05

11.1

12.1

13.1

14.1

16.2

20.1

21.0

24.0

27.0

28.0

31.9

35.9

39.8

43.0

46.8

48.7

6.73" (171)

5.63" (143)

4.01" (102)

Dimensions in inches (mm)

Nominal

Size

inches mm

7.87

1-1/2

2 3 4 6

8 10 12 14 16 18 20 24 28 30 32 36 40 42 48 54 60 66 72 78

25 40 50

80 100 150 200 250 300 350 400 450 500 600 700 750 800 900

1000 1050 1200 1350 1500 1650 1800 2000

7.87

9.84

11.8

13.8

17.7

19.7

21.6

23.6

25.6

30.7

35.8

38.4

40.9

46.0

51.2

53.7

61.4

69.1

76.8

84.4

92.1

102.3

in mm

1040 1170 1300 1365 1560 1755 1950 2145 2340 2600

200 200 200 200 250 300 350 450 500 550 600 650 650 780 910 975

5.08" (129)

in mm

11.2

13.2

16.4

18.6

20.5

22.5

26.9

29.0

30.9

32.9

37.0

45.0

46.7

52.7

58.7

60.7

68.5

76.5

84.3

90.8

98.2

102.2

286 286 286 336 336 417 472 522 572

683.5

735.5

785.5

836.5

940.5

1143.5

1186.5

1339.5

1491.5

1543.5

1741.5

1943.5

2141.5

2305.5

2495.5

2595.5

7.95

8.94

10.5

11.5

12.5

13.5

15.8

16.8

17.8

18.8

20.9

24.9

25.7

28.7

31.7

32.7

36.6

40.6

44.5

47.7

51.5

53.4

NOTE:The fitting length (L) is always the same, regardless of the pressure rating * Weight data valid for 150 lb ANSI and AWWA Class D versions

Promag W 14" to 78”

Remote Version

in mmEin mm

4.72

4.72 109 109 150 180 205 230 282 308 333

358.5

410.5 512 512

533.5 610 686 712 811 912

1011 1093 1188 1238

7.08

10.2

12.7

15.7

18.1

22.2

24.2

26.2

28.2

32.3

40.3

42.0

48.0

54.0

56.0

63.8

71.8

79.6

86.0

93.5

97.5

120 120 120 180 180 260 324 400 460 564 616 666 717

821 1024 1024 1067 1220 1372 1424 1622 1824 2022 2186 2376 2476

3.70

5.51

6.14

6.53

10.9

11.5

15.8

23.2

24.6

25.5

30.9

33.9

35.9

39.0

42.3

54.8

58.3

64.2

68.2

5.08" (129)

94 94 94 94

94 140 156 156 166 276 276 292 292 402 589 626 647 785 862 912 992

1252 1392 1482 1632 1732

Weight *

lb kg

12 16 19 24 31 52

95 161 238 381 448 558 624 888 877

1010 1208 1759 1980 2421 3082 4846 5948 8153 9035

10,137

5.3

7.4

8.6 12 14

23.5 43 73

108 173 203 253 283 403 398 458 548 798

898 1098 1398 2198 2698 3698 4098 4598

Endress+Hauser 21

Page 22

Promag 50/53 W

Ground disk, 1” to 12”

Ø B

Ø A

Ø D

0.08" (2)

in mm

1.18

1.75

2.22

3.35

4.33

6.42

8.29

10.4

12.5

44.5

56.5 85

110 163

210.5 265 317

Nominal

size

1-1/2

2 3 4 6 8

Ground disks, apart from those for 12", can be used for all

supplied flange standards / pressure ratings

Class 150

in mm

2.44

3.23

3.98

5.16

6.14

8.54

10.5

12.9

14.8

82 101 131 156 217 267 328 375

in mm

3.05

3.98

4.55

6.08

7.34

10.1

11.3

14.1

16.3

0.59" (15)

77.5 101

115.5

154.5

186.5 256 288 359 413

in mm

3.44

4.06

4.25

5.31

6.02

7.24

8.07

9.45

10.7

Æ 0.26"

(6.5)

0.39" (10)

87.5 103 108 135 153 184 205 240 273

Weight Refer to Pages 20 to 21.

Materials

Transmitter housing:

• Compact housing: powder coated die-cast aluminum

• Remote field housing: powder coated die-cast aluminum

• Wall mounted housing: powder coated die-cast aluminum Sensor housing:

• 1” to 12”: powder coated die-cast aluminum

• 14” to 78”: painted steel (Amerlock 400) Measuring tube:

• < 14”: 304 SS or 304L SS with Al/Zn protective coating when supplied with non-stainless flange material

• > 12”: 304 SS with Amerlock 400 paint when supplied with non-stainless flange material

Flanges:

• ANSI: A105 CS (< 14” with Al/Zn protective coating; > 12” with Amerlock 400 paint) or 316L SS

• AWW A: A36

Electrodes:

• Standard, 316L SS; optional Alloy C-22, tantalum

Seal:

• Seals to DIN 2690

Ground disks (accessory):

• 316L SS or Alloy C-22

Endress+Hauser22

Page 23

Promag 50/53 W

Material load diagrams Caution!

The following material load diagrams are refering to a temperature range of -40° to +356°F (-40° to +180°C) reference curves. The maximum permissible fluid temperature always depends on the lining material of the sensor and/or the seal material.

Flange, 316L SS, ANSI B16.5

[psi]

870 725 580 435 290 145

-76

-60

Class300

Class150

-40

-40-4-20

Flange, A105 CS, ANSI B16.5

[psi]

870 725 580 435 290 145

-76

-60

Class300

Class150

-40

-40-4-20

[bar]

60 50 40 30 20 10

10440140

176

212 100

248 120

284 140

320 160

[°F] [°C]

[bar]

50 40 30 20

68 20

10440140

176

212 100

248 120

284 140

320 160

[°F] [°C]

Endress+Hauser 23

Flange, A105 CS, to AS2129 Table E

[psi]

160 145

130 115

100

-76

-60

-40

-40-4-20

68 20

10440140

176

212 100

248 120

284 140

320 160

[bar]

[°F] [°C]

Page 24

Fitted electrodes Measuring, reference and Empty Pipe Detection electrodes:

• Standard with: 316L SS, Alloy C-22 or tantalum

• Optional: exchangeable measuring electrodes, 316L SS, 14” to 78”. For hard rubber liner only, no EPD or reference electrodes, for safe areas only.

Promag 50/53 W

Process connections Surface roughness

Display elements

Operating elements

Flange connections: ANSI

• Electrodes:

- 316L SS, Alloy C-22, tantalum: 12

All data relates to wetted parts.

in to 20 µin (0.3 µm to 0.5 µm)

Human interface

• Liquid crystal display, backlit, two lines (Promag 50) or four lines (Promag 53) with 16 characters per line

• Custom configurations for presenting different measured value and status variables

• Flow rate: 5 digits with sign and units

• Totalizer : Promag 50: 2 totalizers (7-digit plus 7-digit overflow with sign and units) Promag 53: 3 totalizers (7-digit plus 7-digit overflow with sign and units)

Unified operation concept for both types of transmitter: Promag 50:

• Local operation with three push buttons (-, +, E)

• Quick Setup menus for straightforward commissioning

Promag 53:

• Local operation with Touch Control (-, +, E)

• Application specific Quick Setup menus for straightforward commissioning

Remote operation

Promag 50; remote operation via HART®, PROFIBUS-PA Promag 53; remote operation via HART®, PROFIBUS-PA/DP, FOUNDATION fieldbus

Endress+Hauser24

Page 25

Promag 50/53 W

Certificates and approvals

Hazardous area approvals Information on the currently available hazardous area rated versions

(FM, CSA, ATEX, etc.) is available on request from Endress+Hauser. All information relevant to explosion protection is available in separate documentation.

CE mark

Pressure equipment directive

PROFIBUS-DP/PA certification

FOUNDATION Fieldbus certification

By attaching the CE mark, Endress+Hauser confirms that the instrument fulfills all the requirements of the relevant EC directives.

Flow meters with a nominal diameter smaller or equal to 1” (DN 25) are covered by Art. 3(3) of the European directive 97/23/EG (Pressure Equipment Directive) and are designed according to sound engineering practice. For larger nominal diameters, optional approvals according to Cat. III are available when required (depends on the fluid and process pressure).

The flow device has successfully passed all the test procedures carried out and is certified and registered by the PNO (PROFIBUS User Organization). The device thus meets all the requirements of the following specifications:

• Certified to PROFIBUS-PA, profile version 3.0 (device certification number on request)

• The device can also be operated with certified devices of other manufacturers (interoperability)

The flow device has successfully passed all the test procedures carried out and is certified and registered by the Fieldbus FOUNDATION. The device thus meets all the requirements of the following specifications:

• Certified to FOUNDATION Fieldbus Specification

• The device meets all the specifications of the FOUNDATION Fieldbus H1

• Interoperability Test Kit (ITK), revision status 4.0 (device certification number on request)

• The device can also be operated with certified devices of other manufacturers

• Physical Layer Conformance Test of the Fieldbus FOUNDATION

Other standards, guidelines

EN 60529: Degrees of protection by housing (IP Code)

EN 61010: Protection Measures for Electrical Equipment for Measurement, Control, Regulation and Laboratory Procedures

EN 61326/A1 (IEC 1326): Electromagnetic compatibility (EMC requirements)

NAMUR 21: Electromagnetic compatibility (EMC) of industrial process and laboratory control equipment

NAMUR 43: Standarization of the signal level for the breakdown information of digital transmitters with analog output signals

Endress+Hauser 25

Page 26

Ordering information

Promag 50 W Electromagnetic Flowmeter, 1” to 24” sizes

1 2 3 4 5 6 7 8 9 10 11 12 13

Promag 50 W -

Promag 50/53 W

Nominal Diameter 1251”

40 1-1/2” 50 2” 80 3” 1H 4” 1F 6” 2H 8” 2F 10” 3H 12” 3F 14” 4H 16” 4F 18” 5H 20” 6H 24”

2 Liner

H Hard rubber U Polyurethane

3 Process Connection

L Class 150 ANSI B16.5 carbon steel A105 flanges M Class 300 ANSI B16.5 carbon steel A105 flanges R Class 150 ANSI B16.5, 316L SS flanges S Class 300 ANSI B16.5, 316L SS flanges (not for 8” and

larger sensors)

9 Other

4 Electrodes / Material

0 Measuring, reference and EPD electrodes / 316L SS 1 Measuring, reference and EPD electrodes / Alloy C-22 2 Measuring, reference and EPD electrodes / tantalum 7 Measuring electrode, exchangeable / 316L SS

(for hard rubber liner only, 14” and larger sensors, no EPD or

reference electrodes, for safe areas only) G Measuring, reference and EPD electrodes, bullet nose / 316L SS H Measuring, reference and EPD electrodes, bullet nose / Alloy C-22 9 Other

5 Calibration

A 3-point calibration, 0.5% B 3-point calibration, 0.2% D SCS/A2LA 3-point 0.5% calibration (ISO/IEC 17025) with certificate

traceable according to ISO 9000 (specify flow range) E SCS/A2LA 3-point 0.2% calibration (ISO/IEC 17025) with certificate

traceable according to ISO 9000 (specify flow range) 9 Other

6 Certificates

1 Standard, no certificate 2 3.1B material certificate for pipe and flanges 3 2.3 pressure test certificate (1.5 x PN, 3 minutes) for sensors

up to 12” only 4 3.1B material and 2.3 pressure test certificate for sensors

up to 12” only 5 CRN approval for ANSI flanges only 8 CRN approval, 3.1B material certificate and 2.3 pressure test

certificate (1.5 x PN) for ANSI flanges only

7 Approvals

A For use in nonhazardous areas N FM explosion proof Class I, Div. 1 / CSA Class I, Div. 1 (only for

aluminum field housing, compact version, not for 14” and larger

sensors) R FM non-incendive Class I, Div. 2 / CSA Class I, Div. 2

8 Protection type / Version

A NEMA 4X / compact, aluminum field housing C NEMA 4X / remote wall mounted housing (only for approvals A or R) G NEMA 4X / remote aluminum field housing for nonhazardous areas K NEMA 6P / remote, wall mounted housing (only for approvals A or R) N NEMA 6P / remote aluminum field housing, nonhazardous 1 -40°F (-40°C) ambient temperature, NEMA 4X / compact aluminum

housing for transmitter (only for approvals A or R)

3 -40°F (-40°C) ambient temperature, NEMA 4X / compact SS housing

for transmitter (only for approvals A or R)

5 -40°F (-40°C) ambient temperature, NEMA 4X / remote wall mount

housing for transmitter (only for approvals A or R)

9 Other

9 Cable for Remote Version

0 Without cable 1 15 foot coil and signal cable 2 30 foot coil and signal cable 5 Coil and signal cable, specify length in feet, maximum 650 feet,

depending on conductivity of process material

9 Other

10 Cable Entries

B 1/2” NPT L Fieldbus connector (Outputs / Inputs H and Approval A only) X Sensor only, without cable (compact version only) 9 Other

11 Display / Power Supply / Operation

7 85 to 260 VAC, without display, remote configuration only (not for

wall mount or SS housing)

8 20 to 55 VAC / 16 to 62 VDC, without display, remote configuration

only (not for wall mount or SS housing)

A 85 to 260 VAC, with display, push button operation (language: EN,

ES, FR, IT, NL, PT, DE)

B 20 to 55 VAC / 16 to 62 VDC, with display, push button operation

(language: EN, ES, FR, IT, NL, PT, DE)

X Sensor only (without transmitter, only available up to 8”)

12 Software

A Standard X Sensor only

13 Outputs / Inputs

W Current / HART A Current / HART, frequency D Current / HART, frequency, status, status input H PROFIBUS-P A (only f or appro vals A or R) S Current HART active, frequency passive; I.S. (only for approval N) T Current HART passive, frequency passive; I.S. (only for approval N) X Sensor only

Endress+Hauser

Page 27

Promag 50/53 W

Promag 50 W Electromagnetic Flowmeter, 28” to 78” sizes

1 2 3 4 5 6 7 8 9 10 11 12 13

Promag 50 W -

Nominal Diameter 1 7 H 28”

7F 30”, AWWA

8H 32”

9H 36”

T0 40”

V0 42”, AWWA

T2 48”

V3 54”, AWWA

V5 60”, AWWA

V6 66”, AWWA

T8 72”

V9 78”, AWWA 2 Liner

H Hard rubber

U Polyurethane 3 Process Connection

L Class 150 ANSI B16.5 carbon steel A105 flanges

M Class 300 ANSI B16.5 carbon steel A105 flanges

P Class D AWWA carbon steel A105 flanges

R Class 150 ANSI B16.5, 316L SS flanges

S Class 300 ANSI B16.5, 316L SS flanges (not for 8” and

larger sensors)

9 Other 4 Electrodes / Material

0 Measuring, reference and EPD electrodes / 316L SS

1 Measuring, reference and EPD electrodes / Alloy C-22

2 Measuring, reference and EPD electrodes / tantalum

7 Measuring electrode, exchangeable / 316L SS

(for hard rubber liner only, 14” and larger sensors, no EPD or

reference electrodes, for safe areas only) G Measuring, reference and EPD electrodes, bullet nose / 316L SS H Measuring, reference and EPD electrodes, bullet nose / Alloy C-22 9 Other

5 Calibration

A 3-point calibration, 0.5% B 3-point calibration, 0.2% D SCS/A2LA 3-point 0.5% calibration (ISO/IEC 17025) with certificate

traceable according to ISO 9000 (specify flow range) E SCS/A2LA 3-point 0.2% calibration (ISO/IEC 17025) with certificate

traceable according to ISO 9000 (specify flow range) 9 Other

6 Certificates

1 Standard, no certificate 2 3.1B material certificate for pipe and flanges 3 2.3 pressure test certificate (1.5 x PN, 3 minutes) for sensors

up to 12” only 4 3.1B material and 2.3 pressure test certificate for sensors

up to 12” only 5 CRN approval for ANSI flanges only 8 CRN approval, 3.1B material certificate and 2.3 pressure test

certificate (1.5 x PN) for ANSI flanges only

7 Approvals

A For use in nonhazardous areas N FM explosion proof Class I, Div. 1 / CSA Class I, Div. 1 (only for

aluminum field housing, compact version, not for 12” and larger

sensors) R FM non-incendive Class I, Div. 2 / CSA Class I, Div. 2

8 Protection type / Version

housing for transmitter (only for approvals A or R)

3 -40°F (-40°C) ambient temperature, NEMA 4X / compact SS housing

for transmitter (only for approvals A or R)

5 -40°F (-40°C) ambient temperature, NEMA 4X / remote wall mount

housing for transmitter (only for approvals A or R)

9 Other

9 Cable for Remote Version

0 Without cable 1 15 foot coil and signal cable 2 30 foot coil and signal cable 5 Coil and signal cable, specify length in feet, maximum 650 feet,

depending on conductivity of process material

9 Other

10 Cable Entries

B 1/2” NPT L Fieldbus connector (Outputs / Inputs H and Approval A only) X Sensor only, without cable (compact version only) 9 Other

11 Display / Power Supply / Operation

7 85 to 260 VAC, without display, remote configuration only (not for

wall mount or SS housing)

8 20 to 55 VAC / 16 to 62 VDC, without display, remote configuration

only (not for wall mount or SS housing)

A 85 to 260 VAC, with display, push button operation (language: EN,

ES, FR, IT, NL, PT, DE)

B 20 to 55 VAC / 16 to 62 VDC, with display, push button operation

(language: EN, ES, FR, IT, NL, PT, DE)

X Sensor only (without transmitter, only available up to 8”)

12 Software

A Standard X Sensor only

13 Outputs / Inputs

Endress+Hauser

Page 28

Promag 53 W Electromagnetic Flowmeter, 1” to 24”

1 2 3 4 5 6 7 8 9 10 11 12 13

Promag 53 W -

Promag 50/53 W

Nominal Diameter 1251”

40 1-1/2” 50 2” 80 3” 1H 4” 1F 6” 2H 8” 2F 10” 3H 12” 3F 14” 4H 16” 4F 18” 5H 20” 6H 24”

2 Liner

H Hard rubber U Polyurethane

3 Process Connection

L Class 150 ANSI B16.5 carbon steel A105 flanges M Class 300 ANSI B16.5 carbon steel A105 flanges P Class D AWWA carbon steel C207 flanges R Class 150 ANSI B16.5, 316L SS flanges S Class 300 ANSI B16.5, 316L SS flanges (not for 8” and

larger sensors)

9 Other

4 Electrodes / Material

(for hard rubber liner only, 14” and larger sensors , no EPD or reference electrodes, for safe areas only)

G Measuring, reference and EPD electrodes, bullet nose / 316L SS H Measuring, reference and EPD electrodes, bullet nose / Alloy C-22 9 Other

5 Calibration

B 3-point calibration, 0.2% E SCS/A2LA 3-point 0.2% calibration (ISO/IEC 17025) with certificate

traceable according to ISO 9000 (specify flow range)

9 Other

6 Certificates

1 Standard, no certificate 2 3.1B material certificate for pipe and flanges 3 2.3 pressure test certificate (1.5 x PN, 3 minutes) for sensors

up to 12” only

4 3.1B material and 2.3 pressure test certificate for sensors

up to 12” only

5 CRN approval for ANSI flanges only 8 CRN approval, 3.1B material certificate and 2.3 pressure test

certificate (1.5 x PN) for ANSI flanges only

7 Approvals

A For use in non-hazardous areas N FM explosion proof Class I, Div. 1 / CSA Class I, Div. 1 (only for

aluminum field housing, compact version, not for 12” and larger sensors)

R FM non-incendive Class I, Div. 2 / CSA Class I, Div. 2

8 Protection type / Version

A NEMA 4X / compact, aluminum field housing C NEMA 4X / remote wall mounted housing (only for approvals A or R) K NEMA 6P remote, wall mounted housing (only for approvals A or R) N NEMA 6P / remote aluminum field housing, nonhazardous 1 -40°F (-40°C) ambient temperature, NEMA 4X / compact aluminum

housing for transmitter (only for approvals A or R)

3 -40°F (-40°C) ambient temperature, NEMA 4X / compact SS housing

for transmitter (only for approvals A or R)

5 -40°F (-40°C) ambient temperature, NEMA 4X / remote wall mount

housing for transmitter (only for approvals A or R)

9 Other

9 Cable for Remote Version

0 Without cable 1 15 foot coil and signal cable 2 30 foot coil and signal cable 5 Coil and signal cable, specify length in feet, maximum 650 feet,

depending on conductivity of process material

9 Other

10 Cable Entries

B 1/2” NPT L Fieldbus connector (Outputs / Inputs H or K, and Approval A only) X Sensor only, without cable (compact version only) 9 Other

11 Display / Power Supply / Operation

7 85 to 260 VAC, without display, remote configuration only (not for

wall mount or SS housing)

8 20 to 55 VAC / 16 to 62 VDC, without display, remote configuration

only (not for wall mount or SS housing)

A 85 to 260 VAC, with display, touch control operation (language: EN,

ES, FR, IT, NL, PT, DE)

B 20 to 55 VAC / 16 to 62 VDC, with display, touch control operation

(language: EN, ES, FR, IT, NL, PT, DE) X Sensor only (without transmitter, only available up to 8”) 9 Other

12 Software

A Standard C ECC electrode cleaning circuit (only for Approvals A or R) X Sensor only

13 Outputs / Inputs

A Current / HART, frequency B Current / HART, frequency and 2 relays C Current / HART , frequency, 2 relays (flexible module) D Current / HART, frequency, relay, and status input (flexible module) F PROFIBUS PA IS (only for Approval N) G FOUNDATION fieldbus IS (only for Approval N) H PROFIBUS-P A (only f or Approv als A or R) J PROFIBUS-DP K FOUNDA TION fieldb us L Current / HART, 2 relays and status input/output (flexible module) M Current / HART, 2 frequency, status input/output (flexible module) S Current / HART (active), frequency; IS(only for Approval N) T Current / HART (passive), frequency; IS (only for Approval N) 2 Current / HART, frequency, current, relay (flexible module) 4 Current / HART, frequency, current input, relay (flexible module) 5 Current / HART, frequency, current input, status input (flexible module) X Sensor only

Endress+Hauser

Page 29

Promag 50/53 W

Promag 53 W Electromagnetic Flowmeter, 28” to 78”

1 2 3 4 5 6 7 8 9 10 11 12 13

Promag 53 W -

Nominal Diameter 1 7 H 28”

7F 30”, AWWA 8H 32” 9H 36” T0 40” V0 42”, AWWA T2 48” V3 54”, AWWA V5 60”, AWWA V6 66”, AWWA T8 72” V9 78”, AWWA

2 Liner

H Hard rubber U Polyurethane

3 Process Connection

larger sensors)

9 Other

4 Electrodes / Material

(for hard rubber liner only, 14” and larger sensors , no EPD or

reference electrodes, for safe areas only) G Measuring, reference and EPD electrodes, bullet nose / 316L SS H Measuring, reference and EPD electrodes, bullet nose / Alloy C-22 9 Other

5 Calibration

B 3-point calibration, 0.2% E SCS/A2LA 3-point 0.2% calibration (ISO/IEC 17025) with certificate

traceable according to ISO 9000 (specify flow range) 9 Other

6 Certificates

1 Standard, no certificate 2 3.1B material certificate for pipe and flanges 3 2.3 pressure test certificate (1.5 x PN, 3 minutes) for sensors

up to 12” only 4 3.1B material and 2.3 pressure test certificate for sensors

up to 12” only 5 CRN approval for ANSI flanges only 8 CRN approval, 3.1B material certificate and 2.3 pressure test

certificate (1.5 x PN) for ANSI flanges only

7 Approvals

A For use in non-hazardous areas N FM explosion proof Class I, Div. 1 / CSA Class I, Div. 1 (only for

aluminum field housing, compact version, not for 12” and larger

sensors) R FM non-incendive Class I, Div. 2 / CSA Class I, Div. 2

8 Protection type / Version

12” and larger sensors 1 -40°F (-40°C) ambient temperature, NEMA 4X / compact aluminum

housing for transmitter (only for approvals A or R) 3 -40°F (-40°C) ambient temperature, NEMA 4X / compact SS housing

for transmitter (only for approvals A or R) 5 -40°F (-40°C) ambient temperature, NEMA 4X / remote wall mount

housing for transmitter (only for approvals A or R) 9 Other

9 Cable for Remote Version

0 Without cable 1 15 foot coil and signal cable 2 30 foot coil and signal cable 5 Coil and signal cable, specify length in feet, maximum 650 feet,

depending on conductivity of process material

9 Other

10 Cable Entries

B 1/2” NPT L Fieldbus connector (Outputs / Inputs H or K, and Approval A only) X Sensor only, without cable (compact version only) 9 Other

11 Display / Power Supply / Operation

7 85 to 260 VAC, without display, remote configuration only (not for

wall mount or SS housing)

8 20 to 55 VAC / 16 to 62 VDC, without display, remote configuration

only (not for wall mount or SS housing)

A 85 to 260 VAC, with display, touch control operation (language: EN,

ES, FR, IT, NL, PT, DE)

B 20 to 55 VAC / 16 to 62 VDC, with display, touch control operation

(language: EN, ES, FR, IT, NL, PT, DE) X Sensor only (without transmitter, only available up to 8”) 9 Other

12 Software

A Standard C ECC electrode cleaning circuit (only for Approvals A or R) X Sensor only

13 Outputs / Inputs

A Current / HART, frequency B Current / HART, frequency and 2 relays C Current / HART, frequency , 2 relays (flexible module) D Current / HART, frequency, relay, and status input (flexible module) F PROFIBUS PA IS (only for Approval N) G FOUNDATION fieldbus IS (only for Approval N) H PROFIBUS-P A (only f or Approv als A or R) J PROFIBUS-DP K FOUNDA TION fieldb us L Current / HART, 2 relays and status input/output (flexible module) M Current / HART, 2 frequency, status input/output (flexible module) S Current / HART (active), frequency; IS(only for Approval N) T Current / HART (passive), frequency; IS (only for Approval N) 2 Current / HART, frequency, current, relay (flexible module) 4 Current / HART, frequency, current input, relay (flexible module) 5 Current / HART, frequency, current input, status input (flexible module) X Sensor only

Endress+Hauser

Page 30

Promag 50/53 W

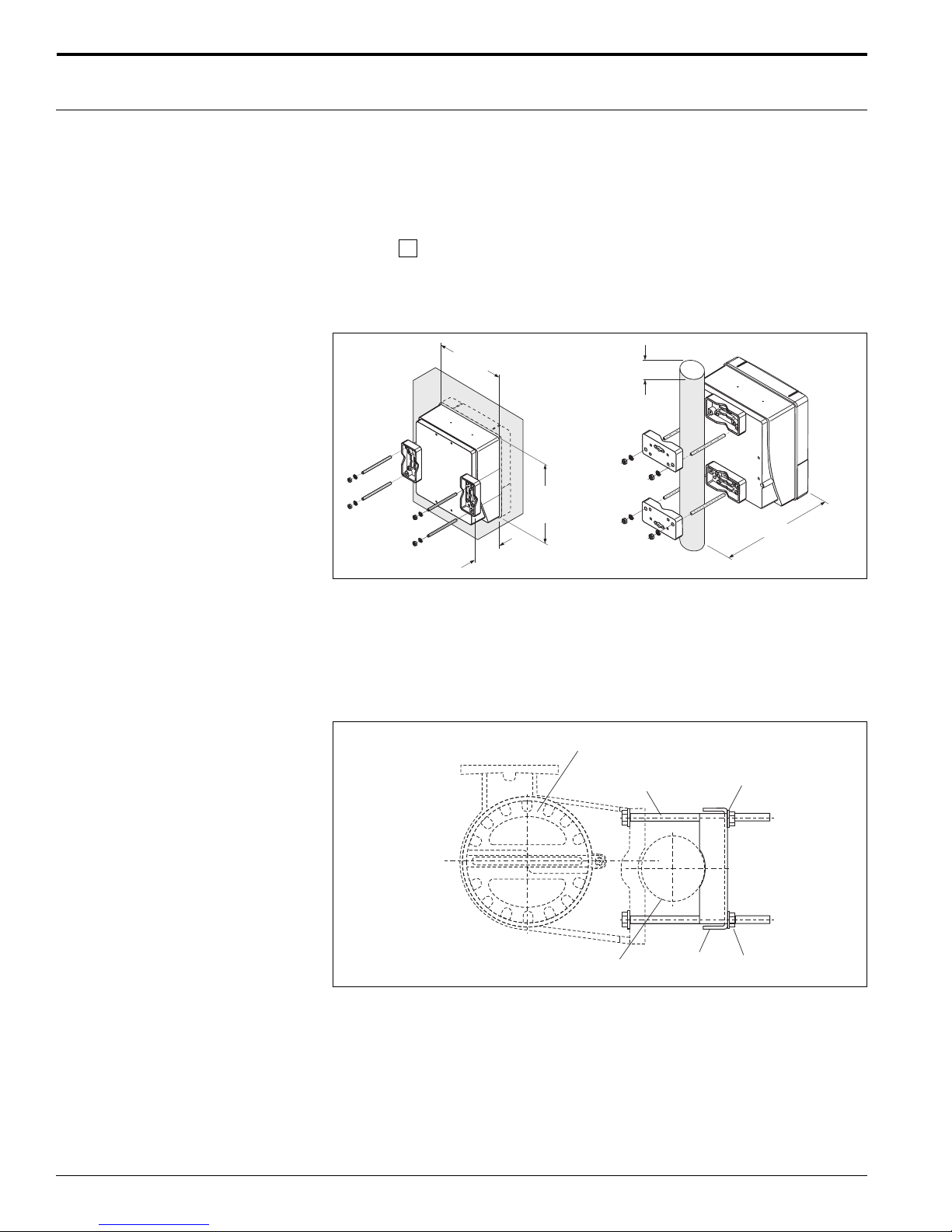

Accessories

Various accessories, which can be ordered from Endress+Hauser, are available for the transmitter and the sensor. Contact your local representative or Endress+Hauser for detailed information.

Promag 50/53 field housing mounting kit

DK8WM -

1 Transmitter type

A Panel/wall/pipe mount (2” pipe) hardware B Wall/pipe mount for remote field housing

+0.02

-0.02

8.27"

+0.5

-0.5

(210 )

4.33" (110)

9.65" (245 )

+0.02

-0.02 +0.5

-0.5

Ø 2" (50)

6.10" (155)

DK8WM - A Mounting set for wall / panel enclosure, 3/4” to 2-3/4” pipe

Includes: 4 mounting plates 4 threaded rods, M6 x 150 mm 4 washers 4 nuts, M6

Remote Transmitter Housing

Bolt

3/4" to 3" Pipe

Mounting Plate

DK8WM - B Mounting set for wall / pipe mount remote field enclosure, 3/4” to 3” pipe

Includes: Mounting plate 4 bolts, M8 x 150 mm 4 washers 4 nuts, M8

Washer

Nut

Endress+Hauser30

Page 31

Promag 50/53 W

Supplemental documentation

Promag System Information (SI 028D/24/ae) Promag 50/53 P Technical Information (TI 047D/24/ae) Promag 50/53 H Technical Information (TI 048D/24/ae) Promag 50 Operating Instructions (BA 046D/06/en and BA 049D/06/en) Promag 53 Operating Instructions (BA 047D/06/en and BA 048D/06/en) Hazardous Area Approvals Documentation (FM, CSA, ATEX, etc.)

Endress+Hauser 31

Page 32

For application and selection assistance, in the U.S. call 888-ENDRESS

For total support of your installed base, 24 hours a day, in the U.S. call 800-642-8737

Visit us on our web site, www.us.endress.com

United States

Endress+Hauser, Inc. 2350 Endress Place Greenwood, IN 46143 Phone: (317) 535-7138 888-ENDRESS FAX: (317) 535-8498

Canada

Endress+Hauser Canada 1075 Sutton Drive Burlington, ON L7L 5Z8 Phone: (905) 681-9292 800-668-3199 FAX: (905) 681-9444

Mexico

Endress+Hauser Paseo del Pedregal No. 610 Col. Jardines del Pedregal 01900, Mexico D .F. Mexico Phone: (525) 568-2405 FAX: (525) 568-7459

Endress+Hauser

The Power ofKnow How
